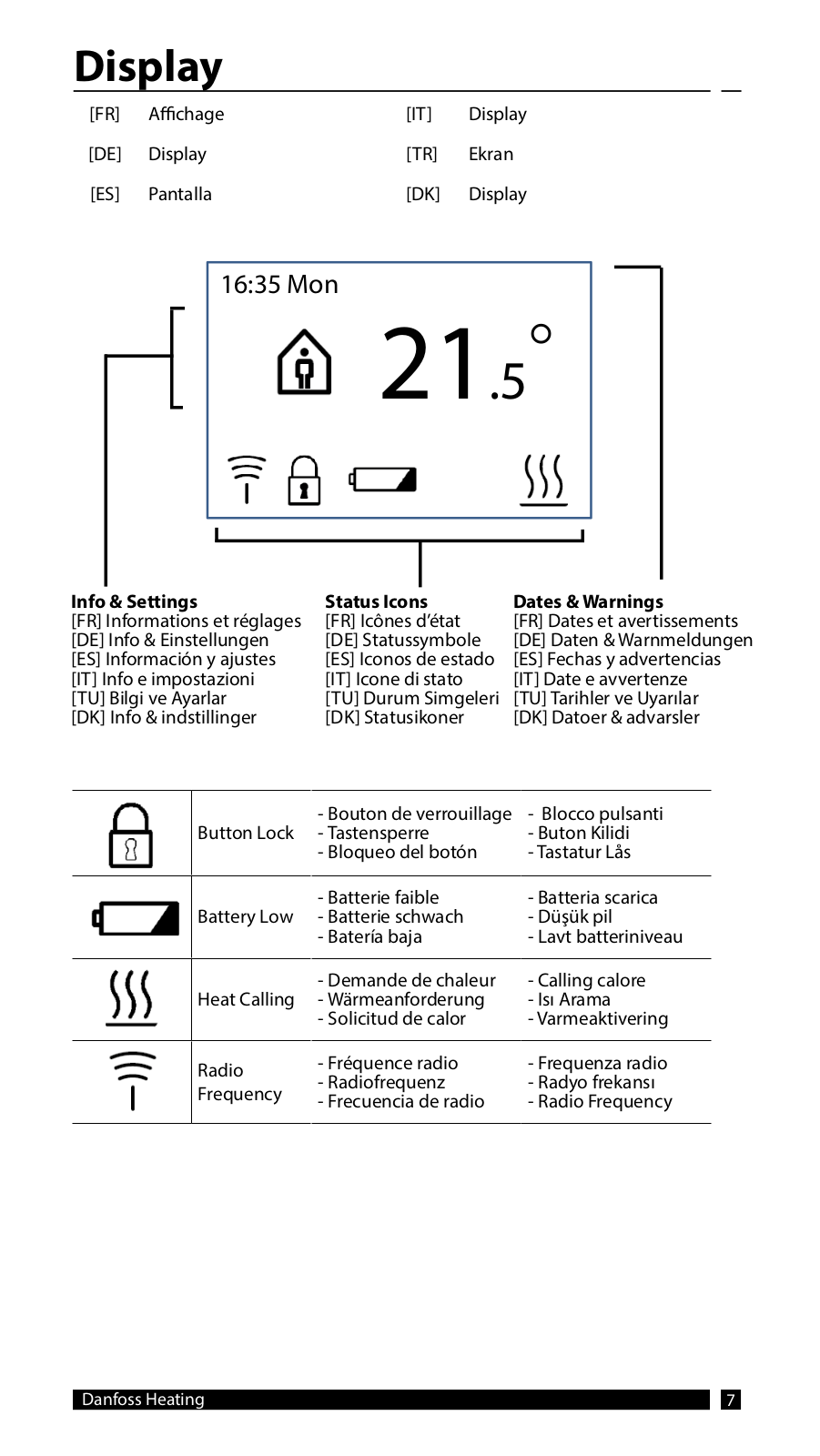

TPOne-RF
Electronic Programmable Room Thermostat
Danfoss Heating
Quick Guide GB
Guide rapide FR
Kurzanleitung DE
Guía rápida ES
Guida rapida IT
Hızlı Kılavuz TR
Hurtig Guide DK
Full product instructions can be be found at:
[FR] Des instructions complètes des produits sont consultables à :
[DE] Die vollständigen Produktinformationen können abgerufen werden auf: [ES] Las instrucciones completas de producto se pueden encontrar en:
[IT] Le istruzioni complete del prodotto sono disponibili all’indirizzo: [TR] Ürünle ilgili tüm talimatlar şurada bulunabilir:
[DK] Der findes en fuld produktvejledning på:
www.guides-tpone.danfoss.com
ErP Class
The products represented within this document are classified according to, and allow completion of, the Energy Related Product (ErP) Directive System Package fiche and the ErP system data label. ErP Labelling obligation is applicable from 26th September 2015.
Additional ERP Class Product Function and ErP Description efficiency
gain
|
TPI Room Thermostat, for use with on/off |
|
IV |
output heaters |
2% |
|
An electronic room thermostat that controls |
|
|
both thermostat cycle rate and in-cycle on/ |
|
|
off ratio of the heater proportional to room |
|
|
temperature. TPI control strategy reduces |
|
|
mean water temperature, improves room |
|
|
temperature control accuracy and enhances |
|
|
system efficiency. |
|
|
[FR] Thermostat d’ambiance TPI, à utiliser avec |
|
|
des radiateurs à sortie de type marche/arrêt |
|
|
[DE] TPI-Raumthermostat zur Verwendung mit |
|
|
Ein-/Aus-Ausgangsheizsystemen |
|
|
[ES] Termostato de ambiente TPI, para uso con |
|
|
calentadores de encendido y apagado según |
|
|
demanda |
|
|
[IT] Termostato d’ambiente con funzione TPI, |
|
|
destinato all’uso con apparecchi di riscaldamento |
|
ErP |
con uscita ad accensione/spegnimento |
|
[TR] Açma/kapama çıkışlı ısıtıcılarla kullanım için |
|
|
TPI Oda Termostatı |
|
|
Product |
[DK] TPI-rumtermostat, til anvendelse sammen |
|
Class 4 |
|
|
|
med til/fra-effektvarmere |
|
Hearby, Danfoss A/S declares that the radio equipment type TPOne-RF + RX1-S is in compliance with directive 1999/5/EC.
The full text of the EU declaration of conformity is available at the following internet address, http://heating.danfoss.co.uk/download/documentation
Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other printed material. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2 |
TPOne-RF |
Installation Instructions
Please note: This product should only be installed by a qualified electrician or competent heating
installer and should be in accordance with local wiring regulations.
[FR] Remarque : ce produit doit être installé exclusivement par un électricien qualifié ou un chauffagiste compétent et doit être conforme à la version en vigueur des réglementations de câblage locales.
[DE] Bitte beachten: Dieses Produkt darf nur von einer Elektrofachkraft oder einem qualifizierten
Heizungsinstallateur gemäß der aktuellen Ausgabe der VDEElektroinstallationsrichtlinien installiert werden.
[ES] Nota: La instalación de este producto solo puede ser llevada a cabo por electricistas cualificados o instaladores de calefacción formados, de conformidad con la normas de cableado locales.
[IT] NB: questo prodotto deve essere installato solo da un elettricista qualificato o da un installatore riscaldamento competente, in conformità delle norme di cablaggio locali. [TR] Lütfen Dikkat: Bu ürün yalnızca yetkili bir elektrikçi ya da yetkin bir ısıtma kurulumcusu tarafından kurulmalı ve elektrik tesisatı düzenlemelerinin geçerli sürümüne uygun olmalıdır.
[DK] Bemærk: Dette produkt må kun installeres af en autoriseret elektriker eller en faglært varmeinstallatør og skal overholde de lokale regler og bestemmelser vedrørende.
Thermostat or Remote Room Sensor positioning:
[FR] Positionnement d’un thermostat ou d’une sonde d’ambiance à distance :
[DE] Positionierung des Thermostats oder Raumfernfühlers:
[ES] Colocación del termostato o del sensor de ambiente remoto: [IT] Posizionamento termostato o sensore ambiente remoto: [TR] Termostat veya Uzak Oda Sensörünü konumlandırma:
[DK]Placering af termostat eller ekstern rumføler:
Danfoss Heating |
3 |
Mounting
[FR] |
Montage |
[IT] |
Montaggio |
[DE] |
Montage |
[TR] |
Montaj |
[ES] |
Montaje |
[DK] |
Montering |
OK
RX1-S Receiver
4 |
TPOne-RF |
Wiring RX1-S |
|
|
|
|||
[FR] |
Câblage |
|
|
[IT] |
Cablaggio |
|
[DE] |
Verdrahtung |
|
|
[TR] |
Elektrik şebekesi |
|
[ES] |
Alambrado |
|
|
[DK] |
Ledningsføring |
|
|
|
|
RX1-S Receiver |
|
|
|
|
<![if ! IE]> <![endif]>ELECTRONICS |
|
|
|
|
|
|
N |
L |
1 |
2 |
3 |
4 |
|
N |
L |
|
COM |
ON |
OFF |
|
230Vac |
|
|
|
|
Remote sensor inputs
[FR] Entrées de capteurs à distance [DE] Eingäng für entfernte Sensoren [ES] Entrada para sensor externo
S1 S2
Remote room or limit sensor
[FR] Capteur d’ambiance à distance ou pour capteur de limite
[DE] Fernfühler oder Grenzwertsensor [ES] Sensor externo de ambiente o sensor de límite de temperatura
[IT] Sensore limite o ambiente remoto [TR] Oda sensörü veya limit sensörü
[DK] Ekstern rumssensor eller grænseføler
[IT] Ingressi sensore remoto [TR] Oda Sensör Bağlantıları [DK] Ekstern sensorindgang
S1 S2
Window switch contact
[FR] Interrupteur de contact de fenêtre [DE] Fensterschalterkontakt
[ES] Contacto de interruptor de ventana [IT] Contatto finestra
[TR] Pencere anahtarı kontağı [DK] Vindueskontakt
