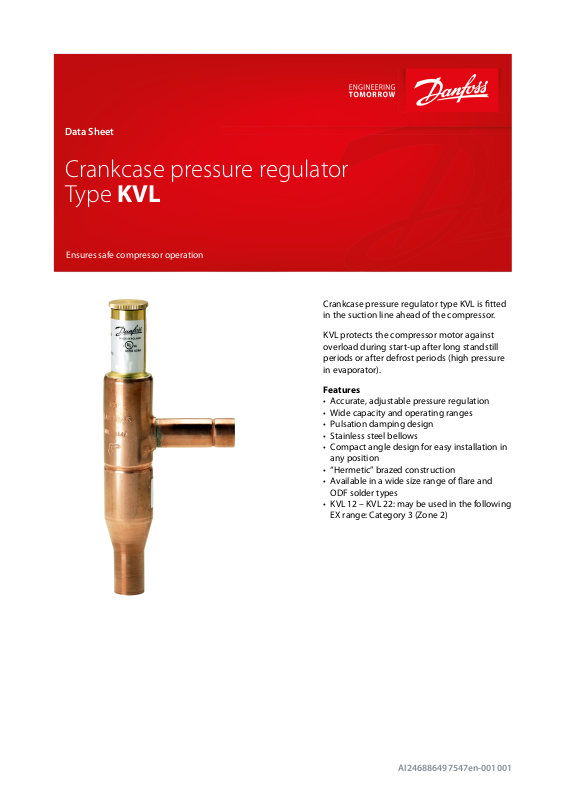

Danfoss KVL 12, KVL 15, KVL, KVL 22, KVL 28 Data sheet

...
Data Sheet
Crankcase pressure regulator Type KVL
Ensures safe compressor operation
Crankcase pressure regulator type KVL is tted in the suction line ahead of the compressor.
KVL protects the compressor motor against overload during start-up after long standstill periods or after defrost periods (high pressure in evaporator).
Features
• Accurate, adjustable pressure regulation
• Pulsation damping design
• Stainless steel bellows
• Compact angle design for easy installation in any position
• “Hermetic” brazed construction
• Available in a wide size range of are and ODF solder types
• KVL 12 – KVL 22: may be used in the following EX range: Category 3 (Zone 2)
AI246886497547en-001001
= 8mm
1 2
3
4
5
6
9
8
7
123456789
Protective cap
Gasket
Setting screw
Main spring
Valve body
Equalization bellows
Valve plate
Valve seat
Damping device
100%
0.2 1 2 3 4 5 6
S
P
Min.
C
b
Max.
A
O
CbSOPAMin.
Max.
Capacity
bar
Set point
oset
P- band
Adjustment range
Min. setting point
Max. setting point
Crankcase pressure regulator, Type KVL
Functions
Figure 1: Design/Function for KVL
The Crankcase pressure regulator type KVL opens at pressure fall on the outlet side, i.e. when the suction pressure ahead of the compressor drops below the set value.
The KVL only regulates based on the outlet pressure. Pressure variations on the inlet side of the regulator do not
aect the degree of opening since the KVL is equipped with an equalization bellows (6). This bellows has an eective area corresponding to that of the valve seat.
The regulator is also equipped with an eective damping device (9) against pulsations, which normally occur in a refrigeration plant.
The damping device helps to ensure long life of the regulator without impairing regulation accuracy.
Figure 2: P-band and Oset
Proportional band
The p-band is dened as the dierence between the pressure at which the valve plate starts to open (set point) and the pressure at which the valve is completely open.
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 2
Crankcase pressure regulator, Type KVL
Example
If the valve is set to open at 4 bar and the valve p-band is 2 bar, the valve will give maximum capacity when the outlet pressure reaches 2 bar.
Oset
The oset is dened as the dierence between the pressure at which the valve plate starts to open (set point) and the pressure at which the valve reaches the necessary opening for the actual load.
The oset is always a part of the p-band
Because optimal function of a refrigeration plant is best reached with fully open KVL, the term oset is normally not used in connection with the KVL valve.
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 3
Features
Description
Refrigerants
R22, R134a, R290
(1)
, R404A, R407A, R407C, R407F, R407H, R448A, R449A, R449B, R450A, R452A, R454A
(1)
,
R454C
(1)
, R455A
(1)
, R507, R513A, R515B, R516A, R600
(1)
, R600a
(1)
, R1234ze(E)
(1)
, R1234yf
(1)
, R1270
(1)
Regulating range
0.2 – 6.0 bar
Factory setting = 2 bar
Max. working pressure
PS/MWP PS = 18 bar
Max. test pressure
Pe = 19.8 bar
Medium temperature range
-60 – 130 °C
Maximum P-band
KVL 12 – 22 = 2 bar
KVL 28 – 35 = 1.5 bar
Kv-value
(2)
with maximum P-band
KVL 12 – 22 = 3.2 m3 / h
KVL 28 – 35 = 8.0 m3 / h
Crankcase pressure regulator, Type KVL
Product specication
Technical data
Table 1: Technical data for KVL
(1)
(1)
KVL 12 – KVL 22 only.
KVL 12 – KVL 22 only.
(2)
(2)
The Kv value is the ow of water in [m3 / h] at a pressure drop across valve of 1 bar, ρ = 1000 kg / m3.
The Kv value is the ow of water in [m3 / h] at a pressure drop across valve of 1 bar, ρ = 1000 kg / m3.
This product (KVL 12 – KVL 22) is evaluated for R290, R454A, R454C, R455A, R600, R600a, R1234ze(E), R1234yf, R2170 by ignition source assessment in accordance with standard EN ISO80079-36. Flare connections are only approved for A1 and A2L refrigerants.
For complete list of approved refrigerants, visit store.danfoss.com and search for individual code numbers, where refrigerants are listed as part of technical data.
Sizing
For optimum performance, it is important to select a KVL valve according to system conditions and applications.
The following data must be used when sizing a KVL valve:
• Refrigerant
• Evaporator capacity: Qe in [kW]
• Liquid temperature ahead of expansion valve: tl in [°C]
• Suction temperature ahead of compressor: ts in [°C]
• Maximum suction pressure after the regulator: PS in [bar]
• Connection type: are or solder
• Connection size in [in.] or [mm]
Valve selection
Example
When selecting the appropriate valve it may be necessary to convert the actual evaporator capacity using a correction factor. This is required when your system conditions are dierent than the table conditions. The selection is also dependant on the acceptable pressure drop across the valve.
The following example illustrates how this is done:
• Refrigerant: R404A
• Evaporator capacity: Qe = 4.0 kW
• Liquid temperature ahead of expansion valve: 35 °C
• Suction temperature ahead of compressor: -25 °C
• Maximum suction pressure after the regulator: 3.8 bar ~ -7 °C
• Connection type: Solder
• Connection size:
5
8 in.
Step 1
Determine the correction factor for liquid temperature tl ahead of expansion valve.
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 4
t
l
101520253035404550
[°C]
R134a
0.88
0.92
0.96
1.0
1.05
1.10
1.16
1.23
1.31
R22
0.9
0.93
0.96
1.0
1.05
1.10
1.13
1.18
1.24
R404A/R507
0.84
0.89
0.94
1.0
1.07
1.16
1.26
1.4
1.57
R407C
0.88
0.91
0.95
1.0
1.05
1.11
1.18
1.26
1.35
Danfoss
34L05.13
Crankcase pressure regulator, Type KVL
From the Table 2: Correction factors for liquid temperature tl (see below) the correction factor for a liquid temperature at 35 °C (R404A) corresponds to a factor of 1.16.
Table 2: Correction factors for liquid temperature t
l
Step 2
Corrected evaporator capacity is: Qe = 4.0 × 1.16 = 4.64 kW
Step 3
Now select the capacity table for R404A and choose the column with a suction temperature of -25 °C.
Using the corrected replacement capacity, select a valve that provides an equivalent or greater capacity than required.
KVL 12 / KVL 15 / KVL 22 delivers a capacity of 4.6 kW at a pressure drop of 0.2 bar across the valve and 5.6 kW at a pressure drop of 0.3 bar across the valve. Based on the required connection size of 5⁄8 in. the KVL 15 valve is the proper selction for this example.
Step 4
KVL 15,
5
8 in. solder connection: code no. 034L0049, see Table 4: Ordering for type KVL.
Valve selection based on capacity calculation
As for extended capacity calculations and valve selection based on capacities and refrigerants, please refer to Coolselector®2. Rated and extended capacities are calculated with the Coolselector®2 calculation engine to ARI standards with the ASEREP equations based on laboratory measurements of selected valves.
Dimensions and Weight
Figure 3: Dimensions for KVL
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 5
Type
Connection
H1H2B
1
CøDNet weight
Flare
Solder ODF
[in.]
[mm]
[in.]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[Kg]
KVL 12
1
2
12
1
2
12
17999641030
0.4
KVL 15
5
8
16
5
8
16
17999641230
0.4
KVL 22--
7
8
22
17999641730
0.4
KVL 28--
1
1
8
28
259
151
1052043
1.0
KVL 35--
1
3
8
35
259
151
1052543
1.0
Crankcase pressure regulator, Type KVL
Table 3: Dimensions and Weight for KVL
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 6
Type
Rated capacity
(1)
[kW]
Flare connection
(2)
Code no.
Solder connection
Code no.
R22
R134a
R404A/R507
R407C
[in]
[mm]
[in]
[mm]
KVL 12
7.1
5.3
6.3
6.4
1
2
12
034L0041
1
2
034L0043
7.1
5.3
6.3
6.4––––12034L0048
KVL 15
7.1
5.3
6.3
6.4
5
8
16
034L0042
5
8
16
034L0049
KVL 22
7.1
5.3
6.3
6.4––
7
8
22
034L0045
KVL 28
17.8
13.2
15.9
16.4–––1
1
8
034L0046
17.8
13.2
15.9
16.4––––28034L0051
KVL 35
17.8
13.2
15.9
16.4–––1
3
8
35
034L0052
Crankcase pressure regulator, Type KVL
Ordering
Figure 4: Flare connection Figure 5: Solder connection
Table 4: Ordering for type KVL
(1)
(1)
Rated capacity is the regulator capacity at
Rated capacity is the regulator capacity at
• suction temperature ts = -10 °C
• suction temperature ts = -10 °C
• condensing temperature tc = 25 °C
• condensing temperature tc = 25 °C
• pressure drop in regulator Δp = 0.2 bar oset = 0.6 bar
• pressure drop in regulator Δp = 0.2 bar oset = 0.6 bar
To select the product for other conditions or refrigerants, use Danfoss Coolselector®2
To select the product for other conditions or refrigerants, use Danfoss Coolselector®2
(2)
(2)
KVL supplied without are nuts. Separate are nuts can be supplied:
KVL supplied without are nuts. Separate are nuts can be supplied:
1
1
2 in / 12 mm, code no. 011L1103
2 in / 12 mm, code no. 011L1103
5
5
8 in / 16 mm, code no. 011L1167
8 in / 16 mm, code no. 011L1167
The connection dimensions chosen must not be too small, as gas velocities in excess of 40 m / s at the inlet of the regulator can result in ow noise.
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 7
Document name
Document type
Document topic
Approval authority
UL SA7200
Mechanical - Safety Certicate
UL
034R9541.AA
Manufacturers Declaration
China RoHS
Danfoss
034L9630.AA
Manufacturers Declaration
ATEX
Danfoss
Crankcase pressure regulator, Type KVL
Certicates, declarations, and approvals
The list contains all certicates, declarations, and approvals for this product type. Individual code number may have some or all of these approvals, and certain local approvals may not appear on the list.
Some approvals may change over time. You can check the most current status at danfoss.com or contact your local Danfoss representative if you have any questions.
Table 5: Certicates, declarations, and approvals
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 8
Online support
Danfoss oers a wide range of support along with our products, including digital product information, software, mobile apps, and expert guidance. See the possibilities below.
The Danfoss Product Store
The Danfoss Product Store is your one-stop shop for everything product related—no matter where you are in the world or what area of the cooling industry you work in. Get quick access to essential information like product specs, code numbers, technical documentation, certications, accessories, and more. Start browsing at store.danfoss.com.
Find technical documentation
Find the technical documentation you need to get your project up and running. Get direct access to our ocial collection of data sheets, certicates and declarations, manuals and guides, 3D models and drawings, case stories, brochures, and much more.
Start searching now at www.danfoss.com/en/service-and-support/documentation.
Danfoss Learning
Danfoss Learning is a free online learning platform. It features courses and materials specically designed to help engineers, installers, service technicians, and wholesalers better understand the products, applications, industry topics, and trends that will help you do your job better.
Create your Danfoss Learning account for free at www.danfoss.com/en/service-and-support/learning.
Get local information and support
Local Danfoss websites are the main sources for help and information about our company and products. Find product availability, get the latest regional news, or connect with a nearby expert—all in your own language.
Find your local Danfoss website here: www.danfoss.com/en/choose-region.
Coolselector®2 - nd the best components for you HVAC/R system
Coolselector®2 makes it easy for engineers, consultants, and designers to nd and order the best components for refrigeration and air conditioning systems. Run calculations based on your operating conditions and then choose the best setup for your system design.
Download Coolselector®2 for free at coolselector.danfoss.com.
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specications already agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
© Danfoss | Climate Solutions | 2021.02 AI246886497547en-001001 | 9
