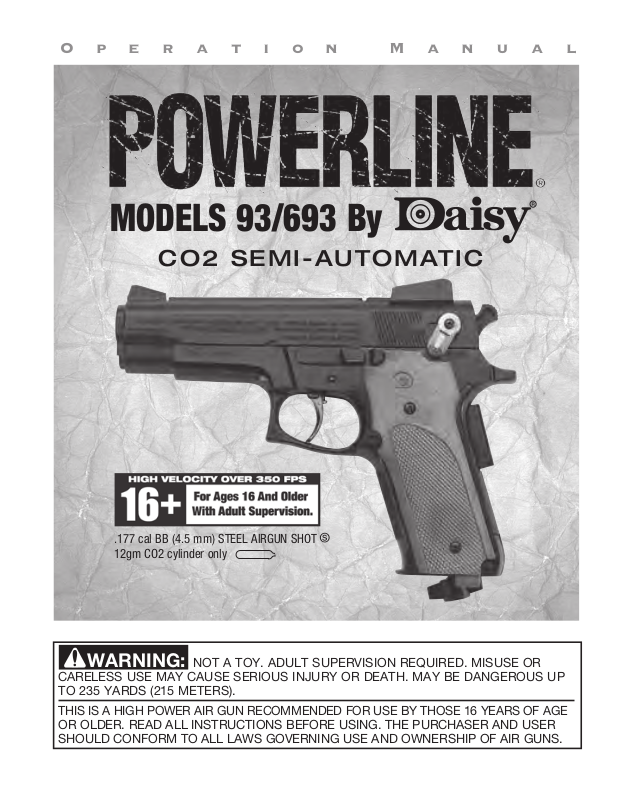

Daisy PowerLine 693 User Manual

O p e r a t i o n M a n u a l

MODELS 93/693 By

CO 2 S E M I - A U T O M ATI C

.177 cal BB (4.5 mm) STEEL AIRGUN SHOT
12gm CO2 cylinder only

WARNING: NOT A TOY. ADULT SUPERVISION REQUIRED. MISUSE OR

CARELESS USE MAY CAUSE SERIOUS INJURY OR DEATH. MAY BE DANGEROUS UP
TO 235 YARDS (215 METERS).

THIS IS A HIGH POWER AIR GUN RECOMMENDED FOR USE BY THOSE 16 YEARS OF AGE
OR OLDER. READ ALL INSTRUCTIONS BEFORE USING. THE PURCHASER AND USER
SHOULD CONFORM TO ALL LAWS GOVERNING USE AND OWNERSHIP OF AIR GUNS.

WARNING: THIS GUN CAN CAUSE SERIOUS INJURY OR DEATH.
READ AND FOLLOW THE INSTRUCTIONS CAREFULLY. DO NOT INSTALL
A QUICK CHANGE CLIP WHICH CONTAINS BBs INTO THE GUN UNTIL YOU
ARE READY TO SHOOT. IF YOU DO INSTALL A QUICK CHANGE CLIP
WHICH CONTAINS BBs INTO THE GUN AND THEN DECIDE NOT TO
SHOOT, EITHER MANUALLY REMOVE THE QUICK CHANGE CLIP FROM
THE GUN OR SHOOT THE REMAINING BBs AT A SAFE TARGET. AN
UNCOCKED, UNLOADED GUN IS SAFEST. ACCIDENTS HAPPEN FAST,
AND ACCIDENTALLY INJURING OR KILLING SOMEONE IS A TERRIBLE
THING. PLEASE SHOOT SAFELY.

This safety alert symbol indicates important safety messages in this manual.
When you see this symbol, be alert to the possibility of personal injury and carefully
read the message that follows.

The Model 93/693 CO2 PowerLine

®

gun shoots with much more muzzle energy
than the traditional spring air BB gun. More power means greater chance of serious
injury or death. Use extreme caution when operating this gun.

Although your new PowerLine®gun is not a firearm, it has lethal potential and
should be treated with the caution and respect due any conventional firearm. Like a
firearm, your PowerLine®gun, when misused or carelessly used, can kill or seriously
injure the shooter or other persons. All safeties are mechanical devices and the
shooter is the only part of the system that can make a gun safe–or unsafe. DON’T
DEPEND ON MECHANICAL SAFETIES – think ahead and avoid situations that
might lead to accidents.

Guns differ in their operations and you are never ready to fire any gun until you
are thoroughly familiar with it. Read the following operating instructions and WITH-
OUT LOADING A PROJECTILE, proceed several times through the operating
steps with your gun (dry fire the gun at a safe target) so that you will be able to
operate the PowerLine®93/693 properly and safely.

FRONT SIGHT

FIG. 1A

MUZZLE

TRIGGER

REAR SIGHT

NON-FUNCTIONAL
HAMMER

SAFETY LEVER

GRIP SAFETY

GRIP

PUNCTURE SCREW

2

EMOVABLE QUICK

R
CHANGE BB CLIP

CLIP

ELEASE

R
LATCH

REAR SIGHT

FIG. 1B

PRIOR TO OPERATION

Put “ON” SAFETY–POSITION SAFETY LEVER TOWARDS “SAFE”
(refer to Operation Step 1, page 4).

OPERATION STEPS:

WARNING: Be sure gun is always pointed in a safe direction.

Step 1. PUT “ON “ SAFETY – POSITION SAFETY

LEVER TOWARDS “SAFE” (refer to

page 4).
Step 2. INSERT CO
Step 3. FILL QUICK CHANGE BB CLIP WITH A

MAXIMUM OF 15 BBs (refer to page 5).
Step 4. INSERT QUICK CHANGE BB CLIP INTO

GUN (refer to page 6).

2 CYLINDER (refer to page 4).

If desired, the gun may continue to be fired (Steps 5 and 7) until the Quick

Change BB Clip is empty or the CO

2 cylinder needs to be replaced. Once the Quick

Change BB Clip is empty, Steps 1,3,4,5,6,7, and 8 should be followed. If the CO2
cylinder is empty, then all 8 Steps should be followed. (Approximately 10 Quick
Change Clips or 150 shots can be expected per cylinder).

Step 5. AIM AT A SAFE TARGET (refer to page 7).
Step 6. TAKE “OFF” SAFETY – POSITION

SAFETY LEVER TOWARDS “FIRE” (refer

to page 7).
Step 7. FIRE (refer to page 8).
Step 8. PUT “ON” SAFETY.

NEVER STORE A LOADED GUN

At the end of a shooting session, as a safety precaution, always put “ON” safety
(refer to step 1, page 4), remove CO2 cylinder (refer to page 9) and remove Quick
Change BB clip from pistol (refer to page 9). Store in a safe place to prevent
unauthorized use.

3

HOW TO OPERATE

WARNING: BE SURE GUN IS ALWAYS POINTED

IN A SAFE DIRECTION. NEVER POINT THE GUN AT
ANYONE. ALWAYS ASSUME AND TREAT THE GUN
AS IF IT WERE LOADED AND READY TO FIRE.

STEP 1. PUT “ON”SAFETY – POSITION SAFETY
LEVER TOWARDS “SAFE”

Rotate the safety lever counterclockwise toward the
“SAFE” position (see Fig. 2). In this position, the trigger
cannot be pulled to fire the gun.

CAUTION: Even when the safety is “ON” you should
continue to handle the pistol safely. Don’t point the gun at
anything that you don’t intend to shoot.

NOTE: The safety is not automatic. It will only do its job
when you do yours. With the index finger out of the
trigger area, move the safety lever to the “SAFE” position
(see Figs. 2 and 2A).

BEST SAFETY IS GOOD GUN HANDLING.

STEP 2. INSERT CO2 CYLINDER

REMEMBER, THE

FIG. 2

FIG. 2A

WARNING:

Use only CO2 cylinders which are the 12 gram type. Any attempt to
use other sizes and/or cylinders containing other types of gas could be extremely
dangerous. The use of gases other than CO2
could result in an explosion or could rupture the
gun, causing serious injury.

LEFT GRIP
COVER

1. Always point gun in a safe direction. Put “ON”

safety – position safety lever towards “SAFE”
(see Operation Step 1, page 4).

2. Remove left grip cover by lifting at the bottom

of the grip (see Fig. 3).

FIG. 3

3. Turn puncture screw counterclockwise until

there is enough room to insert a CO2 cylinder.

4. Insert the CO2 cylinder into the grip, first

placing the larger end of the CO2 cylinder into
the lower portion of the grip (see
Fig. 4).

12gm CO
CYLINDER

5. Replace the left grip cover.

4

FIG. 4
