OPERATION MANUALOPERATION MANUAL
System air conditioner
RXYMQ4PVET
RXYMQ5PVET
RXYMQ6PVET
VRV
Operation manual
III
System air conditioner
-S
English
Thank you for purchasing this Daikin air conditioner.
Carefully read this operation manual before using the air conditioner.
It will tell you how to use the unit properly and help you if any trouble occurs.
Use it along with the operatoin manual for the indoor unit. After reading the manual,
file it away for future reference.
CONTENTS
READ BEFORE OPERATION
Safety precaution .............................................................................................................1
Names of parts.................................................................................................................4
Preparation Before Operation ..........................................................................................6
Useful Information ............................................................................................................6
OPERATION
COOLING · HEATING · FAN Operation...........................................................................7
Program DRY Operation ..................................................................................................9
Adjusting the Air Flow Direction .....................................................................................10
ON/OFF TIMER Operation.............................................................................................11

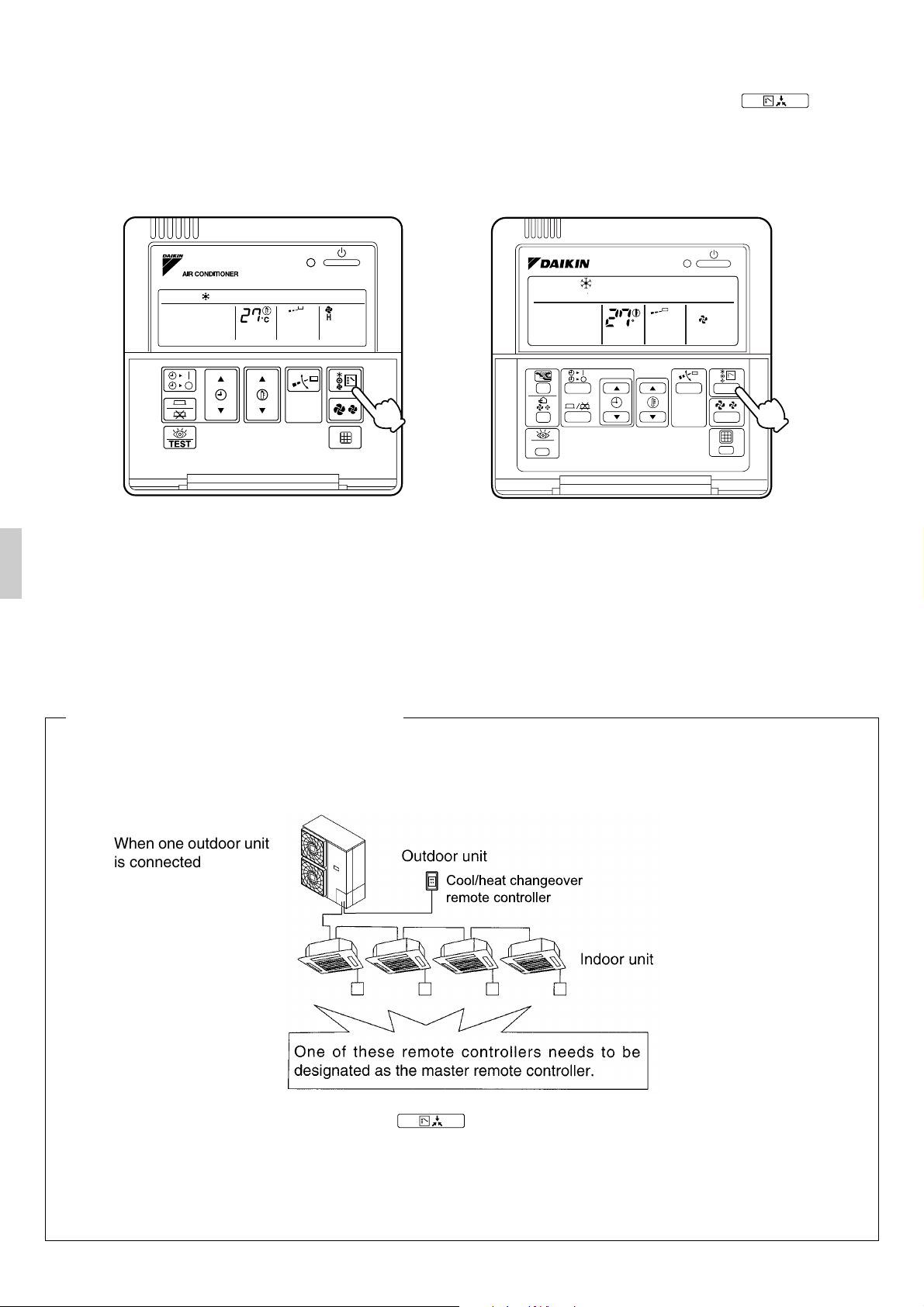

How to set Master Remote Controller ............................................................................12
TROUBLE SHOOTING
Trouble Shooting............................................................................................................14
Check the following before requesting service...............................................................16
Types of Equipment .......................................................................................................17
After-Sales Service ........................................................................................................17
READ BEFORE OPERATION
Safety precaution
To gain full advantage of the air conditioner’s functions and to avoid malfunction due to mishandling, we recommend that
you read this instruction manual carefully before use.
This air conditioner is classified under “appliances not accessible to the general public”.
•
The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.
WARNING
Failure to follow these instructions properly may result in
personal injury or loss of life.
•
After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the
equipment is transferred to a new user, be sure also to hand over the manual.
Failure to observe these instructions properly may result in
property damage or personal injury, which may be serious
depending on the circumstances.
CAUTION
WARNING
• Be aware that prolonged, direct exposure to cool
or warm air from the air conditioner, or to air that
is too cool or too warm can be harmful to your
physical condition and health.
• When the air conditioner is malfunctioning (giving
off a burning odour, etc.) turn off power to the unit
and contact your local dealer.
Continued operation under such circumstances may
result in a failure, electric shocks or fire hazards.
• Consult your local dealer about installation work.
Doing the work yourself may result in water leakage,
electric shocks or fire hazards.
• Consult your local dealer regarding modification,
repair and maintenance of the air conditioner.
Improper workmanship may result in water leakage,
electric shocks or fire hazards.
• Do not place objects, including rods, your fingers,
etc., in the air inlet or outlet.
Injury may result due to contact with the air
conditioner’s highspeed fan blades.
• Never touch the air outlet or the horizontal blades
while the swing flap is in operation.
Fingers may become caught or the unit may break
down.
• Beware of fire in case of refrigerant leakage.
If the air conditioner is not operating correctly, i.e. not
generating cool or warm air, refrigerant leakage could
be the cause.
Consult your dealer for assistance.
The refrigerant within the air conditioner is safe and
normally does not leak.
However, in the event of a leakage, contact with a
naked burner, heater or cooker may result in
generation of noxious gas.
Do not longer use the air conditioner until a qualified
service person confirms that the leakage has been
repaired.
• Consult your local dealer regarding what to do in
case of refrigerant leakage.
When the air conditioner is to be installed in a small
room, it is necessary to take proper measures so that
the amount of any leaked refrigerant does not exceed
the concentration limit in the event of a leakage.
Otherwise, this may lead to an accident due to oxygen
depletion.
• Contact professional personnel about attachment
of accessories and be sure to use only
accessories specified by the manufacturer.
If a defect results from your own workmanship, it may
result in water leaks, electric shock or fire.
• Consult your local dealer regarding relocation and
reinstallation of the air conditioner.
Improper installation work may result in leakage,
electric shocks or fire hazards.
1
WARNING
• Be sure to use fuses with the correct ampere
reading.
Do not use improper fuses, copper or other wires as a
substitute, as this may result in electric shock, fire, injury
or damage to the unit.
• Be sure to earth the unit.
Do not earth the unit to a utility pipe, lightning conductor
or telephone earth lead. Imperfect earthing may result in
electric shocks or fire.
A high surge current from lightning or other sources may
cause damage to the air conditioner.
• Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may result in
electric shocks or fire.
• Consult the dealer if the air conditioner submerges
owing to a natural disaster, such as a flood or
typhoon.
Do not operate the air conditioner in that case, or
otherwise a malfunction, electric shock, or fire may
result.
• Do not start or stop operating the air conditioner
with the power supply breaker turned ON or OFF.
Otherwise, fire or water leakage may result.
Furthermore, the fan will rotate abruptly if power failure
compensation is enabled, which may result in inlury.
• Do not use the product in the atmosphere
contaminated with oil vapor, such as cooking oil or
machine oil vapor.
Oil vapor may cause crack damage, electric shocks, or
fire.
• Do not use the product in places with excessive oily
smoke, such as cooking rooms, or in places with
flammable gas, corrosive gas, or metal dust.
Using the product in such places may cause fire or
product failures.
• Do not use flammable materials (e.g., hairspray or
insecticide) near the product.
Do not clean the product with organic solvents such
as paint thinner.
The use of organic solvents may cause crack damage to
the product, electric shocks, or fire.
• Be sure to use a dedicated power supply for the air
conditioner.
The use of any other power supply may cause heat
generation, fire, or product failures.
• Consult your dealer regarding cleaning the inside of
the air conditioner.
Improper cleaning may cause breakage of plastic parts,
water leakage and other damage as well as electric
shocks.
CAUTION
• Do not use the air conditioner for purposes other
than those for which it is intended.
Do not use the air conditioner for cooling precision
instruments, food, plants, animals or works of art as this
may adversely affect the performance, quality and/or
longevity of the object concerned.
• Do not remove the outdoor unit’s fan guard.
The guard protects against the unit’s high speed fan,
which may cause injury.
• Do not place objects that are susceptible to
moisture directly beneath the indoor or outdoor
units.
Under certain conditions, condensation on the main unit
or refrigerant pipes, air filter dirt or drain blockage may
cause dripping, resulting in fouling or failure of the object
concerned.
• To avoid oxygen depletion, ensure that the room is
adequately ventilated if equipment such as a burner
is used together with the air conditioner.
• After prolonged use, check the unit stand and its
mounts for damage.
If left in a damaged condition, the unit may fall and
cause injury.
• Do not place flammable sprays or operate spray
containers near the unit as this may result in fire.
• Before cleaning, be sure to stop unit operation, turn
the breaker off or remove the power cord.
Otherwise, an electric shock and injury may result.
• To avoid electric shocks, do not operate with wet
hands.
• Do not place appliances that produce naked flames
in places exposed to the air flow from the unit as
this may impair combustion of the burner.
• Do not place heaters directly below the unit, as
resulting heat can cause deformation.
2
CAUTION
• Do not allow a child to mount on the outdoor
unit or avoid placing any object on it.
Falling or tumbling may result in injury.
• Do not block air inlets nor outlets.
Impaired air flow may result in insufficient
performance or trouble.
• Be sure that children, plants or animals are not
exposed directly to airflow from the unit, as
adverse effects may ensue.
• Do not wash the air conditioner or the remote
controller with water, as this may result in
electric shocks or fire.
• Do not install the air conditioner at any place
where there is a danger of flammable gas
leakage.
In the event of a gas leakage, build-up of gas near
the air conditioner may result in fire hazards.
• Do not put flammable containers, such as spray
cans, within 1 m from the blow-off mouth.
The containers may explode because the warm air
output of the indoor or outdoor unit will affect them.
• Arrange the drain to ensure complete drainage.
If proper drainage from the outdoor drain pipe does
not occur during air conditioner operation, there
could be a blockage due to dirt and debris build-up
in the pipe.
This may result in a water leakage from the indoor
unit. Under these circumstances, stop air
conditioner operation and consult your dealer for
assistance.
• The appliance is not intended for use by
unattended young children or infirm persons.
Impairment of bodily functions and harm to health
may result.
• Children should be supervised to ensure that
they do not play with the unit or its remote
controller.
Accidental operation by a child may result in
impairment of bodily functions and harm health.
• Do not let children play on or around the
outdoor unit.
If they touch the unit carelessly, injury may be
caused.
• Do not place water containers (flower vases,
etc.) on the unit, as this may result in electric
shocks or fire.
• To avoid injury, do not touch the air inlet or
aluminium fins of the unit.
• Never press the button of the remote controller
with a hard, pointed object.
The remote controller may be damaged.
• Do not operate the air conditioner when using a
room fumigation - type insecticide.
Failure to observe could cause the chemicals to
become deposited in the unit, which could
endanger the health of those who are
hypersensitive to chemicals.
• Do not place objects in direct proximity of the
outdoor unit and do not let leaves and other
debris accumulate around the unit.
Leaves are a hotbed for small animals which can
enter the unit. Once in the unit, such animals can
cause malfunctions, smoke or fire when making
contact with electrical parts.
• Never touch the internal parts of the controller.
Do not remove the front panel. Touching certain
internal parts will cause electric shocks and
damage to the unit. Please consult your dealer
about checking and adjustment of internal parts.
• Do not leave the remote controller wherever
there is a risk of wetting.
If water gets into the remote controller there is a
risk of electrical leakage and damage to electronic
components.
• Turn off the power when the unit is not to be
used for long periods of time.
Otherwise, the unit may get hot or catch on fire due
to dust accumulation.
• Watch your steps at the time of air filter
cleaning or inspection.
High-place work is required, to which utmost
attention must be paid.
If the scaffold is unstable, you may fall or topple
down, thus causing injury.
3
Names of parts
Installation site
This operation manual is for the following systems with standard control. If your installation has a customized control system, ask your Daikin dealer for the operation that corresponds your system.
BFFORE INITIATION, CONTACT YOUR DAIKIN DEALER TO CONFIRM YOUR SYSTEM TYPE.
The system provides 4 operation modes,
Cool/heat changeover
remote controller
Operation modes
Inverter series
heat pumps RXYMQ series ❏ yes ❏ no
(COOLING), (HEATING), (DRY) and (FAN).
ATTENTION
To protect the unit, turn on the main power switch 6 hours before operation.
•
■
System
Cool/heat changeover
remote controller
■
Remote Controller
(Cool/heat changeover remote controller)
24
25
■
Remote Controller
8
9
6
14
15
16
57
22
18
17
Fig. 1
BRC1A61 only
BRC1A61, BRC1A62
245137
LH
1
10
3
11
12
23
21
20
19
124
3
10
11
12
13
21
20
19
14
8
9
6
TEST
16
hr
hr
TEST
15 17 18 22
C
Fig. 2
OPTION
NOT
AVAILABLE
BRC1C61
4
ON/OFF button
1
Press the button and the system will start. Press the
button again and the system will stop.
OPERATION LAMP (RED)
2
The lamp lights up during operation.
DISPLAY “ ” (CHANGEOVER
UNDER CONTROL)
3
It is impossible to changeover heat/cool with the remote
controller when this icon is displayed.
TIMER ON/OFF button
15
Refer to page 11.
INSPECTION/TEST OPERATION button
This button is used only by qualified service persons for
16
maintenance purposes.
Do not use it in normal operation.
PROGRAMMING TIME button
17
Use this button for programming “START and/or STOP” time.
DISPLAY “ ” (AIR FLOW FLAP)
4
Refer to page 10.
DISPLAY “ ” (VENTILATION/AIR
CLEANING)
5
This display shows that the total heat exchange and the air
cleaning unit are in operation. (these are optional accessories)
DISPLAY “ ” (SET TEMPERATURE)
C
6
This display shows the set temperature.
DISPLAY “ ” “ ” “ ” “ ”
(OPERATION MODE)
7
This display shows the current OPERATION MODE.
DISPLAY “ ” (PROGRAMMED TIME)
8
This display shows PROGRAMMED TIME of the system
start or stop.
DISPLAY “ ” (INSPECTION/TEST
OPERATION)
9
When the INSPECTION/TEST OPERATION BUTTON is
pressed, the display shows the system mode is in.
TEST
DISPLAY “ ” (UNDER CENTRALIZED
CONTROL)
10
When this display shows, the system in UNDER
CENTRALIZED CONTROL.
(This is not a standard specification)
DISPLAY “ ” (FAN SPEED).
11
LH
TEMPERATURE SETTING button
18
Use this button for SETTING TEMPERATURE of the
thermostat.
FILTER SIGN RESET button
19
Refer to the operation manual attached to the indoor unit.
FAN SPEED CONTROL button
20
Press this button to select the fan speed, LOW or HIGH,
of your choice.
OPERATION MODE SELECTOR button
21
Press this button to select OPERATION MODE.
AIR FLOW DIRECTION ADJUST button
(BRC1A61 only)
22
Refer to page 10.
NON-FUNCTIONING DISPLAY (BRC1C61 only)
If that particular function is not available, pressing the button
may display the words “NOT AVAILABLE” for a few seconds.
23
When running multiple units simultaneously, the “NOT
AVAILABLE” message will only be appear if none of the
indoor units is equipped with the function. If even one unit is
equipped with the function, the display will not appear.
FAN ONLY/AIR CONDITIONING SELECTOR
SWITCH
24
Set the switch to “ ” for fan only operation or to “ ” for
heating or cooling operation.
COOL/HEAT CHANGEOVER SWITCH
25
Set the switch to “ ” for cooling or to “ ” for heating
operation.
The display shows the fan speed: “LOW” or “HIGH”.
DISPLAY “ ” (TIME TO CLEAN AIR FILTER)
12
Refer to the operation manual attached to the indoor unit.
DISPLAY “ ” (DEFROST/HOT START)
13
Refer to page 8.
TIMER MODE START/STOP button
14
Refer to page 11.
NOTE
• For the sake of explanation, all indications are shown on the display in
Fig. 1 and 2 contrary to actual running situations.
• If the filter sign lamp lights up, clean the air filter as explained in the indoor
unit manual. After cleaning and reinstalling the air filter: press the filter sign
reset button on the remote controller. The filter sign lamp on the display will
go out.
• The remote controller BRC1A62 (for FXSQ, FXMQ, FXLQ, FXNQ, FXDQ)
does not have the display air flow flap (4) nor the air flow direction adjust
button (22).
5
Preparation Before Operation
■
Tips for saving energy
Be careful not to cool (heat) the room too much.
•
Keeping the temperature setting at a moderate level helps save energy.
Cover windows with a blind or a curtain.
•
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
■
Operation range
If the temperature or the humidity is beyond the following conditions, safety devices
may work and the air conditioner may not operate, or sometimes, water may drop from the indoor unit.
Recommended temperature setting
For cooling 26 to 28 °C
For heating 20 to 24 °C
Cooling
INDOOR
TEMPERATURE HUMIDITY
OUTDOOR TEM-
PERATURE
80% or below
DB 21 to 32 °C
WB 14 to 25 °C
(Long time operation in a humidity over 80% may cause condensation on the unit and dripping.)
DB –5 to 46 °C
DB: Dry bulb temperature WB: Wet bulb temperature
The setting temperature range of the remote controller is 16°C to 32°C.
Useful Information
Observe the following precautions to ensure the system operates properly.
•
•
Set the room temperature appropriately.
Take care not to cool or heat the room excessively.
Adjust the temperature so that everyone in the room is comfortable.
26-28˚C
during
cooling
•
Ventilate the room from time to time.
20-24˚C
during
heating
Be sure to ventilate the room after using the air conditioner for a long time.
Turn off the power when the air conditioner is not
used for a long time.
With the power on, the air conditioner will consume several to several tends of watts of power (∗1)
NOTE
∗1The power consumption while the equipment is stopped
varies with the type of outdoor unit, etc. Consult your
dealer for further details on power consumption.
Heating
INDOOR
TEMPERATURE
DB 15 to 27 °C
OUTDOOR
TEMPERATURE
DB –20 to 21 °C**
WB
–20 to 15.5 °C
**
**–20~–15°CWB: Range for operation
–15~15.5°CWB: Range for continuous operation
OFF
•
Do not leave the door or window open.
The air will be released, and the effect of cooling/heating
will be reduced.
•
Do not allow direct sunshine to enter the room during the cooling operation.
Hang a curtain or blind to the window to prevent direct sunshine.
•
Keep televisions, radios or stereo equipment at least
1 meter from the indoor unit or remote controller.
Otherwise, picture
disturbance or
noise may result.
• Use flow direction adjustment skillfully.
Cold air collects toward the floor and hot air collects toward
the ceiling. Therefore, for cooling, set the air flow horizontally, and for heating, set the air flow downward. Also, set
the air flow so that it does not blow directly on your body.
•
Do not use and room heater under the indoor unit.
Heat may deform the indoor unit of suction grille.
•
Do not place things near the air outlet or air inlet.
Such obstacles may lower the performance of the air
conditioner or make it stop.
•
When the display shows “ ” (TIME TO CLEAN
AIR FILTER), refer to the instruction manual of the
indoor unit, and clean the air filter.
•
Use timer operation effectively.
It takes time for the room temperature to
reach the set temperature. Therefore, use
timer operation to start the air conditioner
ahead of time.
6
OPERATION
COOLING · HEATING · FAN Operation
This operation manual describes the explanation for a case in which the wired remote controller is used.
When using the wireless remote controller, refer to the attached operation manual.
Changeover cannot be made with a remote controller whose display shows “ ” (CHANGEOVER UNDER CONTROL).
•
When the display “ ” (CHANGEOVER UNDER CONTROL) flashes, refer to page 13.
•
For protecting the mechanism, supply the power for 6 hours at first, then operate the air conditioner.
•
FOR SYSTEMS WITHOUT COOL/HEAT CHANGEOVER REMOTE CONTROLLER
For the BRC1A61
∗The situation is the same for the BRC1A62.
2·6
1
3
1.
Press OPERATION MODE SELECTOR button several times and select the OPERATION MODE of your choice as follows.
COOLING Operation.......“ ” HEATING Operation ....“ ” FAN Operation...... “ ”
2.
Press ON/OFF button.
OPERATION lamp lights up and the system starts OPERATION.
FOR SYSTEMS WITH COOL/HEAT CHANGEOVER REMOTE CONTROLLER (Only for the heat pump)
BRC1A61
only
5
4
For the BRC1C61
TEST
2·6
C
H
1
5
4
3
Cooling Operation
1
1.
Select operation mode with the cool/heat changeover remote controller as follows:
COOLING Operation.......“ ” “ ” HEATING Operation ....“ ” “ ” FAN Operation...... “ ”
2.
Press ON/OFF button.
OPERATION lamp lights up and the system starts OPERATION.
Heating Operation Fan Operation
1
1
1
1
2·6
5
3
4
For the BRC1C61For the BRC1A61
Adjustment
3.
Press TEMPERATURE SETTING button and program the setting temperature.
Each time this button is pressed, setting temperature rises 1°C.
Each time this button is pressed, setting temperature lowers 1°C.
NOTE:
Set the temperature within the operation range shown in the table on page 6.
•
The temperature cannot be set in the fan operation.
•
2·6
5
4
3
7
COOLING · HEATING · FAN Operation
4.
Press FAN SPEED CONTROL button.
High or Low fan speed can be selected.
NOTE:
In the heating operation, the fan stops during defrosting or at startup. It does not indicate any abnormality.
•
5.
Press AIR FLOW DIRECTION ADJUST button. (
This operation is not available with the BRC1A62 remote controller.
Refer to page 10 for details.
STOPPING THE SYSTEM
6.
Press ON/OFF button once again.
OPERATION lamp goes off, and the system stops OPERATION.
•
The fan may keep on running for about 1 minute after the heating operation stops.
•
(To start the next operation smoothly.)
ATTENTION:
Do not turn OFF power immediately after the unit stops.
•
Then, wait no less than 5 minutes. Water is leaking or there is something else wrong with the unit.
When the operation is started again immediately after being stopped, when the operation mode is changed over, or
•
when the TEMPERATURE SETTING button is pressed then returned soon, the air conditioner will start the operation
automatically about 5 minutes later (because the air conditioner is controlled so that excessive load is not applied).
only for FXCQ, FXFQ, FXHQ, FXAQ)
Characteristics of the heating operation
DEFROST OPERATION
(1)
As the frost on the coil of an outdoor unit increase, heating effect decreases and the system goes into DEFROST
•
OPERATION.
The indoor unit fan stops and the remote controller displays shows “ ” (DEFROST/HOT START).
•
After 6 to 8 minutes (maximum 10 minutes) of DEFROST OPERATION, the system returns to HEATING OPERATION.
•
HOT START
(2)
In order to prevent cold air from blowing out of an indoor unit at the start of heating operation, the indoor fan is auto-
•
matically stopped. The display of the remote controller shows “ ” (DEFROST/HOT START).
OPERATION START
(3)
For ordinary heating, it will take longer for the room temperature to reach the set temperature than with cooling. We
•
therefore recommend starting the unit ahead of time using the timer operation.
8
Program DRY Operation
Program DRY is a function that alternates between weak cooling and stopping the unit to remove humidity from the
air, in order to prevent the room temperature from dropping and becoming too cold.
The microcomputer automatically controls the temperature and fan strength, so these cannot be set using the remote
•
controller.
This function is not available if the room temperature is 16°C or lower.
•
FOR SYSTEMS WITHOUT COOL/HEAT CHANGEOVER REMOTE CONTROLLER
For the BRC1A61
∗The situation is the same for the BRC1A62.
For the BRC1C61
2·5
1
4
BRC1A61
only
1.
Press OPERATION MODE SELECTOR button several times and select “ ” (PROGRAM DRY Operation).
2.
Press ON/OFF button.
OPERATION lamp lights up and system starts OPERATION.
FOR SYSTEMS WITH COOL/HEAT CHANGEOVER REMOTE CONTROLLER (Only for the heat pump)
1
4
TEST
For the BRC1C61For the BRC1A61
3-5
4
4
2·5
1
3-5
1
1.
Select cooling operation mode with the cool/heat changeover remote controller.
2.
Press OPERATION MODE SELECTOR button several times and select “ ” (PROGRAM DRY Operation).
3.
Press ON/OFF button.
OPERATION lamp lights up and system starts OPERATION.
2
2
Adjustment
4.
Press AIR FLOW DIRECTION ADJUST button.
This operation is not available with the BRC1A62 remote controller.
Refer to page 10 for details.
(only for FXCQ, FXFQ, FXHQ, FXAQ)
STOPPING THE SYSTEM
5.
Press ON/OFF button again.
OPERATION lamp goes off, and the system stops OPERATION.
ATTENTION:
Do not turn OFF power immediately after the unit stops. Then, wait on no less than 5 minutes. Water is leaking or there
•
is something else wrong with the unit.
9
Adjusting the Air Flow Direction
Press the AIR FLOW DIRECTION button to adjust the air flow angle. (
•
only for FXCQ, FXFQ, FXHQ, FXAQ)
This operation is not available with the BRC1A62 remote controller.
For the BRC1A61
1
1.
Press the AIR FLOW DIRECTION ADJUST button to select the air direction as shown below.
The AIR FLOW FLAP display swings as shown left and the air flow direction continuously varies.
(Automatic swing setting)
For the BRC1C61
C
TEST
swing
H
1
Press AIR FLOW DIRECTION ADJUST button to select the air direction of your choice.
The AIR FLOW FLAP display stops swinging and the air flow direction is fixed.
(Fixed air flow direction setting)
MOVEMENT OF THE AIR FLOW FLAP
For the following conditions, micro computer controls the air flow direction so it may be different from the display.
Operation mode Cooling Heating
When room temperature is lower
•
Operation conditions
The air flow direction can be adjusted in either of the following ways.
Automatic
•
The air flow flap adjusts its position itself.
Fixed air flow direction
•
The air flow direction can be fixed by the user.
<Automatic>
FXCQ, FXFQ
than the set temperature
When operating continuously at horizontal air flow direction
•
FXHQ
FXAQ
When room temperature is higher than the set temperature
•
At defrost operation
•
<Fixed air flow direction>
FXCQ, FXFQ
ATTENTION:
The movable limit of the flap is changeable. Contact your Daikin dealer for details.
•
FXHQ
FXAQ
(Only for FXCQ, FXFQ, FXHQ and
FXAQ.)
Avoid operating in the horizontal direction “ ” which may cause dew or dust to settle on ceiling.
•
10
ON/OFF TIMER Operation
The timer is operated by the following two ways.
•
Programming the stop time ( ) ........ The system stops operating after the time setting has elapsed.
Programming the start time ( ) ......... The system starts operating after the time setting has elapsed.
The timer can be programmed for a maximum of 72 hours.
•
The start and the stop time can simultaneously be programmed.
•
For the BRC1A61
∗The situation is the same for the BRC1A62.
1
3
2
1.
Press the TIMER MODE START/STOP button several times and select the mode on the display.
The display flashes.
For setting the timer stop...“ ”
For setting the timer start...“ ”
2.
Press the PROGRAMMING TIME button and set the time for stopping or starting the system.
For the BRC1C61
hr
1
3
TEST
C
2
H
When this button is pressed, the time advances by 1 hour.
When this button is pressed, the time goes backward by 1 hour.
3.
Press the TIMER ON/OFF button.
The timer setting procedure ends. The display “ or ” changes from flashing light to a constant light.
NOTE:
When setting the timer Off and On at the same time, repeat the above procedure (from 1 to 3) once again.
•
After the timer is programmed, the display shows the remaining time.
•
Press the TIMER ON/OFF button once again to cancel programming. The display vanishes.
•
For example:
When the timer is programmed to stop the system after 3 hours and start the system after 4
hours, the system will stop after 3 hours and then 1 hour later the system will start.
11
How to set Master Remote Controller
When the right to select the cooling/heating operation mode is set in the master remote controller, “ ” is dis-
•
played in slave remote controllers.
The right to select the cooling/heating operation mode cannot be set in slave remote controllers.
For the BRC1A61
*The situation is the same for the BRC1A62.
1·2·3
For the BRC1C61
TEST
C
H
1·2·3
Setting the master remote controller
When the system is installed as shown below, it is necessary to designate the master remote controller.
•
Only the remote controller having the right to select the cooling/heating operation mode (master remote controller)
•
can select the cooling/heating operation mode.
When one outdoor unit
is connected with
several indoor units.
The displays of slave remote controllers show “ ” (CHANGEOVER UNDER CONTROL) and they automati-
•
cally follow the operation mode directed by the master remote controller. (This symbol is not displayed in wireless
remote controllers.)
However, it is possible to changeover to PROGRAM DRY with slave remote controller only if the system is in COOLING
OPERATION set by the master remote controller.
12
TROUBLE SHOOTING
How to designate the master remote controller
1.
Continuously press the OPERATION MODE SELECTOR button of the current master remote controller for 4 seconds
The displays showing “ ” (CHANGEOVER UNDER CONTROL) of all slave remote controllers connected to
the same outdoor unit flash.
2.
Press the OPERATION MODE SELECTOR button of the controller that you wish to designate as the master
remote controller. Then designation is completed. This remote controller is designated as the master remote
controller and the display showing “ ” (CHANGEOVER UNDER CONTROL) vanishes.
The displays of other remote controllers show “ ” (CHANGEOVER UNDER CONTROL).
3.
Press the OPERATION MODE SELECTOR button of the master remote controller (in which “ ” is not
displayed) several times, and select the operation mode that you wish.
Every time the OPERATION MODE SELECTOR button is pressed, the indication is changed over in the sequence
“fan” → “dry” → “cooling” → “heating”.
The indication in other slave remote controllers is changed over while following up the indication in the master unit.
In the case of wireless remote controllers
1.
Continuously press the OPERATION MODE SELECTOR button of the current master indoor unit for 4 seconds.
The timer lamp flashes in all indoor units connected to the same outdoor unit.
2.
Press the OPERATION MODE SELECTOR button of the indoor unit that you wish to designate as the master indoor unit.
A “beep” sound is issued, and the timer lamp turns off.
This indoor unit is designated as the master unit.
3.
Press the OPERATION MODE SELECTOR button of the master indoor unit several times, and select the operation mode that you wish.
Every time the OPERATION MODE SELECTOR button is pressed, the indication is changed over in the sequence
“fan” → “dry” → “cooling” → “heating”.
The indication in other slave indoor unit is changed over while following up the indication in the master indoor unit.
.
Contents and functions of operation
1.
When master remote controller (in which “ ” is
not displayed) is set to “cooling” or “heating”
Other slave remote controllers (in which “ ”
is displayed)
The operation mode is changed over to the mode
•
selected in the master remote controller.
Display in slave remote controllers
The set temperature selected in the same mode at
1.
the previous time is displayed.
The initial setting is displayed.
2.
(When the mode is set for the first time.)
Cooling: 28°C Heating: 22°C
However, changeover to the fan operation and
•
changeover from “cooling” to “dry” are available.
In the case of wireless remote controllers
When an operation mode different from the currently
selected operation mode is selected in a slave
remote controller, a long “beep” sound is issued to
notify that the mode is in conflict.
2.
When master remote controller (in which
“ ” is not displayed) is set to “fan”.
Other slave remote controllers (in which
“ ” is displayed)
Only “fan” is available.
•
PRECAUTIONS FOR GROUP CONTROL SYSTEM OR TWO REMOTE CONTROLLER CONTROL SYSTEM
This system provides two other control systems beside individual control (one remote controller controls one indoor unit)
system. Confirm the following if your unit is of the following control system type.
•
Group control system
One remote controller controls up to 16 indoor units. All indoor units are equally set.
•
Two remote controller control system
Two remote controllers control one indoor unit (in case of group control system, one group of indoor units). The unit is individually operated.
NOTE:
Contact your Daikin dealer in case of changing the combination or setting of group control and two remote controller
•
control systems.
13
Trouble Shooting
These cases are not troubles.
The following cases are not air conditioner troubles but have some reasons. You may just continue using it.
Case Explanation
Check if the fuse has blown.
Does not operate at all.
Operation does not start soon.
When ON/OFF button was pressed
•
soon after operation was stopped.
When the mode was reselected.
•
Hot air does not flow out soon after the
power supply is turned on.
The heating operation stops suddenly
and a flowing sound is heard.
A “Zeen” sound is heard immediately
after the power supply is turned on.
A continuos low “Shah” sound is heard
when the system is in COOLING OPERATION or at a stop.
A “Pishi-pishi” squeaking sound is
heard when the system stops after
HEATING OPERATION.
A low “Sah”, “Choro-choro” sound is
heard while an indoor unit has
stopped.
A continuous low “Shuh” sound is
heard when the systems is in COOLING
or DEFROST OPERATION.
A “Shuh” sound which is head at the
start or immediately after the stop of
operation or which is heard at the start
or immediately after the stop of
DEFROST OPERATION.
When the tone of operating noise
changes.
A continuous “shuh” sound generated
during operation or immediately after
the operation is started or stopped.
The outdoor unit emits water or steam.
Mists come out of the indoor unit.
The indoor unit gives out odour.
•
Set power switch to off.
Check if breaker has worked.
•
Turn the power on with the breaker switch in the
off position.
Do not turn the power on with the breaker switch
in the trip position. (Contact your dealer.)
When the power is interrupted.
•
Wait until the power is recovered, then operate the air conditioner again.
The air conditioner automatically resumes operation in about 3 minutes.
You should just wait for a while.
This is to protect the air conditioner.
•
You should wait for about 5 minutes.
The micro computer is preparing for operation.
Wait for about 10 minutes.
The air conditioner is warming up. You should wait for about 1 minute.
•
(The system is designed to start discharging air only after it has reached a
certain temperature.)
The system is taking away the frost on the outdoor unit.
•
You should wait for about 3 to 8 minutes. (Max. 10 minutes).
This sound indicates that the valve for the refrigerant bypass is in operation.
•
The electronic expansion∗ valve inside an indoor unit starts working and
•
makes the noise. Its volume will reduce in about one minute.
∗ Electronic expansion valve … Controls the flow rate of the gas
(refrigerant) flowing inside the indoor unit.
When the drain pump (optional accessories) is in operation, this noise is
•
heard.
Expansion and contracion of plastic parts caused by temperature change
•
makes this noise.
When the other indoor unit is in operation, this noise is heard. In order to
•
prevent oil and refrigerant from remaining in the system, a small amount of
refrigerant is kept flowing.
This is the sound of refrigerant gas flowing through both indoor and out-
•
door units.
This is the noise of refrigerant caused by flow stop and flow change.
•
This noise caused by the change of frequency.
•
This sound indicates that the valve for the refrigerant bypass is in opera-
•
tion.
In HEATING mode
■
• The frost on the outdoor unit melts into water or steam when the air conditioner is in defrost operation.
In COOLING or DRY mode
■
• Moisture in the air condenses into water on the cool surface of outdoor
unit piping and drips.
This happens when the air in the room is cooled into mist by the cold air
•
flow during cooling operation.
If the inside of an indoor unit is extremely contaminated, the temperature
•
distribution inside a room becomes uneven. It is necessary to clean the
inside of the indoor unit. Ask your Daikin dealer for details on cleaning the
indoor unit. This operation requires a qualified service person.
This happens when smells of the room, furniture, or cigarettes are
■
absorbed into the unit and discharged with the air flow.
(If this happens, we recommend you to have the indoor unit washed by a
technician. Consult the service shop where you bought the air conditioner.)
Breaker
ON
Switch
Trip position
OFF
14
Trouble Shooting
Case Explanation
After operation is stopped:
The outdoor fan rotates while the air
conditioner is not in operation.
The operation stopped suddenly.
(OPERATION lamp is on)
“ ” is displayed on the remote
controller, and the displayed contents flash
for several seconds when an operation button is pressed.
When three short “beep” sounds are issued
in the case of wireless remote controller.
COOL/HEAT cannot be changed over.
•
When the display shows “ ”
(CHANGEOVER UNDER CONTROL),
it shows that this is a slave remote
controller.
•
When the cool/heat changeover
remote control switch is installed
and the display shows “ ”
(CHANGEOVER UNDER CONTROL).
When a long “beep” sound is issued in
the case of wireless remote controller.
The liquid crystal of the remote controller shows “ ” immediately after the
power supply is turned on.
The compressor in the outdoor unit does
not stop after a short HEATING operation.
The inside of an outdoor unit is warm
when the unit has stopped
When the air conditioner has not been used
(the power has been off) for a long time.
Warm air exits the unit even though it is off.
You can feel hot air coming out of the unit.
■
The outdoor fan continues rotating for another 60 seconds for system protection.
•
While the air conditioner is not in operation:
■
When the outdoor temperature is very high, the out door fan starts rotating
•
for system protection.
For system protection, the air conditioner may stop operating on a sudden
■
large voltage fluctuation.
It automatically resumes operation in about 3 minutes.
The air conditioner is controlled by the central equipment.
•
Flashing of the displayed contents indicates that the remote controller is
invalid for control.
Refer to page 13.
•
This is because cool/heat changeover is controlled by the cool/heat
•
changeover remote control switch. Ask your Daikin dealer where the
remote control switch is installed.
This shows that the remote controller is in normal condition.
•
This continuoues for one minute.
This is to prevent oil and refrigerant from remaining in the compressor.
•
The unit will stop after 5 to 10 minutes.
This is because the crankcase heater is warming the compressor even
•
while the outdoor unit is stopped so that the compressor can start smoothly.
For protecting the mechanism, supply the power for 6 hours at first, then
•
operate the air conditioner.
Multiple units are operating on the same system, so if a unit in another
•
room is operating, some refrigerant will flow through the stopped units, too.
Call the service shop immediately.
WARNING
When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF.
■
Continued operation in an abnormal condition may result in troubles, electric shocks or fire.
Consult the service shop where you bought the air conditioner.
Do not attempt to repair or modify the air conditioner by yourself.
■
Incorrect work may result in electric shocks or fire.
Consult the service shop where you bought the air conditioner.
If one of the following symptoms takes place, call the service shop immediately.
■ The power cord is abnormally hot or damaged.
■ An abnormal sound is heard during operation.
■ The safety breaker, a fuse, or the earth leakage breaker
cuts off the operation frequently.
■ A switch or a button often fails to work properly.
■ There is a burning smell.
■ Water leaks from the indoor unit.
After a power failure
■
The air conditioner automatically resumes operation
in about 3 minutes. You should just wait for a while.
■
Lightning
If lightning may strike the neighbouring area, stop operation and turn the breaker OFF for system protection.
Turn the breaker OFF
and call the service
shop.
15
Check the following before requesting
service
Symptom
Safety equipment such as fuses,
circuit breakers, leakage breaker, etc.
are set off occasionally.
Operating switch function is not secure.
Water leaks from the air conditioner.
If the display “ ” (INSPECTION),
UNIT No.” and the OPERATION
lamp flash and “MALFUNCTION
CODE” appears.
Symptom
The machine does not work at all.
The machine runs but stops soon.
The machine does not work
properly.
Action and contact
Do not set power switch to on.
Set power switch to off.
Stop operation.
Inform your dealer of the contents of the display on the remote contoller.
OPERATION lamp
UNIT No.
INSPECTION
display
Cause Remedy
Blown fuse or open breaker
Power outage
Blocked air inlet or air outlet of the
indoor or outdoor unit
Blocked air inlet or air outlet of indoor
or outdoor unit
Improper temperature setting
Low fan speed setting
C
H
INDOOR UNIT No. in which a malfunction occurs
MALFUNCTION CODE
Replace the fuse or close the breaker.
If the main power supply is turned off
during operation, operation will restart
automatically after power turns back again.
Remove the obstacle.
Remove the obstacle.
See page 7.
See page 8.
Improper air flow direction
Window or door open
Direct sunshine
Too many people in the room
Too many heat sources in the room
If the air filter clogged.
NOTE
Check the above items, and if the problem still cannot be fixed, contact your dealer for repair, stating the symptom(s) and
•
the model name.
See page 10.
Close.
Put up a curtain or blind over the window.
Refer to the instruction manual of
the indoor unit, and clean the air filter.
16
Types of Equipment
Item
Ty pe
Model
Cooling method of condenser Air-cooling type
Blowing method Direct air discharge type
Cooling capacity (kW) 11.2 14.0 15.5
Heating capacity (kW) 12.5 16.0 18.0
RXYMQ4PVET RXYMQ5PVET RXYMQ6PVET
After-Sales Service
CAUTION
•
Do not disassemble, modify or repair the air conditioner by yourself.
Improper disassembly, modification or repair may cause water leakage, electric shock or fire.
Ask your dealer for such servicing.
•
Do not move and install the air conditioner by yourself.
Improper reinstallation may cause water leakage, electric shock or fire.
Ask your dealer for reinstallation.
•
Objects which can start fire are strictly prohibited if the refrigerant leaks.
The refrigerant used in the air conditioner is safe, and does not leak usually.
If the refrigerant leaks into the room and becomes contact with burning appliances such as
fan heater, stove and cooker, however, harmful gases may be generated.
Turn off burning appliances, ventilate the room, and contact your dealer.
After asking for repair of refrigerant leakage, confirm to the service personnel that the leaking positions are repaired securely, then start the operation.
We recommend periodical maintenance
In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor
performance. It is recommended to have periodical maintenance by a specialist aside from regular cleaning by the user.
For specialist maintenance, contact the service shop where you bought the air conditioner.
The maintenance cost must be born by the user.
17
