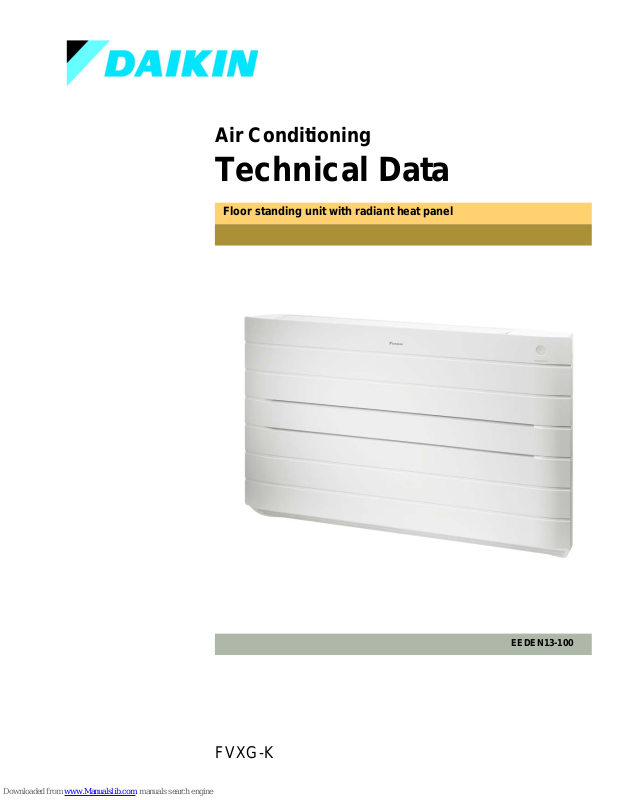

Daikin FVXG-K Technical Data
Air Conditioning
Technical Data
Floor standing unit with radiant heat panel
EEDEN13-100
FVXG-K
• Split - Sky Air • Indoor Unit
1
• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K
TABLE OF CONTENTS
FVXG-K
1Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K
1
1
• Split - Sky Air • Indoor Unit
2
1 Features
Indoor Unit Split - Sk FVXG-KFloor stand
• The aluminium part of the front panel of the Nexura indoor unit has
the capability of warming up, just like a traditional radiator, to add
even more comfort on cold days
• Quiet and discrete, Nexura offers you the best in heating and cooling,
in comfort and design
• The indoor unit distributes air at the sound of a whisper. The noise
produced amounts to barely 22dB(A) in cooling and 19dB(A) in
radiant heat mode. In comparison, the ambient sound in a quiet room
amounts to 40dB(A) on average.
• Comfortable vertical auto swing ensures draughtfree operation and
prevents ceiling soiling
• Online controller (optional): control your indoor unit from any location
via smartphone, laptop, pc, tablet or touch screen
• Can be installed against a wall or recessed
• Its low height enables the unit to fit perfectly beneath a window
• Weekly timer can be set to start heating or cooling anytime on a daily
or weekly basis
3
1
2
• Split - Sky Air • Indoor Unit
3
• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K
2 Specifications
Standard Accessories : Installation plate; Quantity : 1;
Standard Accessories : Thermal insulation (thermal insulation tube); Quantity : 1;
Standard Accessories : Insulation sheet; Quantity : 2;
Standard Accessories : Titanium apatite photocatalytic air purification filter; Quantity : 2;
Standard Accessories : Remote control holder; Quantity : 1;
Standard Accessories : Drain hose; Quantity : 1;
Standard Accessories : Batteries; Quantity : 2;
Standard Accessories : Wireless remote control; Quantity : 1;
Standard Accessories : Operation manual; Quantity : 1;
Standard Accessories : Installation manual; Quantity : 1;
2-1 Technical Specifications FVXG25K FVXG35K FVXG50K
Power input - 50Hz Cooling Nom. kW 0.019 0.210 0.032
Heating Nom. kW 0.022 0.02 0.035
Casing Colour Fresh white (6.5Y 9.5/0.5)
Dimensions Unit Height/Width/Depth mm 600/950/215
Packed unit Height/Width/Depth mm 761/1,030/314
Weight Unit kg 22
Packed unit kg 28
Packing Weight kg 6
Heat exchanger Length mm 665
Rows Quantity 2
Fin pitch mm 1.2
Stages Quantity 18
Tube type ø6.35 Hi-XU tube
Fin Type Multi slit fin
Fan Type Cross flow fan
Air flow rate Cooling High m³/min 8.9 9.1 10.6
cfm 314 321 374
Nom. m³/min 8.9 9.1 10.3
cfm 314 321 -
Low m³/min 5.3 7.3
cfm 187 258
Silent operation
m³/min 4.5 6.0
cfm 159 212
Heating High m³/min 9.9 10.2 12.2
cfm 349 360 431
Nom. m³/min 7.8 8.0 10.0
cfm 275 282 353
Low m³/min 5.7 5.8 7.8
cfm 201 205 275
Silent operation
m³/min 4.7 5.0 6.8
cfm 166 177 240
Fan motor Model KFD-280-40-8H
Speed Steps 5 + silent, + auto
Cooling
High/Medium/Low/Silent operation
rpm 1,350/1,140/940/850 1,390/1,170/950/860 1,630/1,440/1,250/1,100
Heating
High/Medium/Low/Silent operation
rpm 1,430/1,190/950/840 1,470/1,210/960/870 1,700/1,450/1,200/1,080
Output High W 32
Sound power level Cooling Nom. dBA 52 58
Heating Nom. dBA 55 56 58
Sound pressure
level
Cooling High/Nom./Low/Silent operation dBA 38/32/26/23 39/33/27/24 44/40/36/32
Heating
Super high/High/Nom./Low/Silent operation/Radiant
heat
dBA -/39/32/26/22/19 -/40/33/27/23/19 -/46/40/34/30/26
Refrigerant Type R-410A
Piping connections Liquid OD 6.35
Gas OD 9.50 12.70
Drain 18
Temperature control Microcomputer control
Air direction control Right, left, upwards
Air filter Type Removable / washable / mildew proof
