DAIKIN ROOM AIR CONDITIONER
Operation Manual
FVXS25BVMB FVKS25BVMB
FVXS35BVMB FVKS35BVMB
FVXS50BVMB FVKS50BVMB
00_CV_3P098587-1_1.fm Page 1 Wednesday, October 23, 2002 4:15 PM
(0212)
HT
3P098587-1
M02B053
00_CV_3P098587-1_1.fm Page 2 Wednesday, October 23, 2002 4:15 PM
1
CONTENTS
READ BEFORE OPERATION
Safety precautions ......................................... 2
Names of parts ............................................... 4
Preparation Before Operation ........................ 7
OPERATION
AUTO · DRY · COOL · HEAT · FAN
Operation ..................................................... 10
Adjusting the Air Flow Direction ................... 12
POWERFUL Operation ................................ 14
OUTDOOR UNIT SILENT Operation .......... 15
HOME LEAVE Operation ............................. 16
TIMER Operation ......................................... 18
Note for Multi System ................................... 20
CARE
Care and Cleaning ....................................... 22
TROUBLE SHOOTING
Trouble Shooting .......................................... 25
01_EN_3P098587-1_1.book Page 1 Thursday, December 5, 2002 6:01 PM
2
Safety precautions
•
Keep this manual where the operator can easily find them.
•
Read this manual attentively before starting up the unit.
•
For safety reason the operator must read the following cautions carefully.
•
This manual classifies precautions into WARNINGS and CAUTIONS. Be sure to follow all precautions below: they are
all important for ensuring safety.
WARNING
•
In order to avoid fire, explosion or injury, do not operate the unit when harmful, among which flammable or
corrosive gases, are detected near the unit.
•
It is not good for health to expose your body to the air flow for a long time.
•
Do not put a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at a high speed, it will
cause injury.
•
Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric
shocks, fire etc.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
•
The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some
reason any refrigerant happens to leak into the room, make sure it does not come in contact
with any flame as of gas heaters, kerosene heaters or gas range.
•
If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, so call your dealer.
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with our service staff.
•
Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage, electric shocks or
fire. For installation, consult the dealer or a qualified technician.
•
In order to avoid electric shock, fire or injury, if you detect any abnormally such as smell of fire, stop the operation and
turn off the breaker. And call your dealer for instructions.
CAUTION
•
The air conditioner must be earthed. Incomplete earthing may result in electric shocks. Do not connect the
earth line to a gas pipe, water pipe, lightening rod, or a telephone earth line.
•
In order to avoid any quality deterioration, do not use the unit for cooling precision instruments, food, plants,
animals or works of art.
•
Never expose little children, plants or animals directly to the air flow.
•
Do not place appliances which produce open fire in places exposed to the air flow from the unit or under the
indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat.
•
Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble.
WARNIN G
If you do not follow these instructions exactly, the unit may
cause property damage, personal injury or loss of life.
CAUTION
If you do not follow these instructions exactly, the unit may
cause minor or moderate property damage or personal injury.
Never do. Be sure to follow the instructions.
Be sure to earth the air conditioner.
Never cause the air conditioner (including the remote
controller) to get wet.
Never touch the air conditioner (including the remote
controller) with a wet hand.
01_EN_3P098587-1_1.book Page 2 Thursday, December 5, 2002 6:01 PM
3
•
Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard.
•
Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions,
moisture in the air may condense and drip.
•
After a long use, check the unit stand and fittings for damage.
•
Do not touch the air inlet and alminum fins of outdoor unit. It may cause injury.
•
To avoid oxygen deficiency, ventilate the room sufficiently if equipment with burner is used together with the
air conditioner.
•
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord.
•
Do not connect the air conditioner to a power supply different from the one as specified. It may cause trouble or fire.
•
Depending on the environment, an earth leakage breaker must be installed. Lack of an earth leakage breaker may
result in electric shocks.
•
Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the building, furniture
etc.
•
Do not operate the air conditioner with wet hands.
•
Do not wash the indoor unit with excessive water, only use a slightly wet cloth.
•
Do not place things such as vessels containing water or anything else on top of the unit. Water may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
■
To install the air conditioner in the following types of environments, consult the dealer.
•
Places with an oily ambient or where steam or soot occurs.
•
Salty environment such as coastal areas.
•
Places where sulfide gas occurs such as hot springs.
•
Places where snow may block the outdoor unit.
The drain from the outdoor unit must be discharged to a place of good drainage.
■
For installation, choose a place as described below.
•
A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
• A place from where the air discharged from the outdoor unit or the operation noise will not annoy
your neighbours
.
•
For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
•
Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if relocation is necessary for moving or remodeling
Installation site
Consider nuisance to your neighbours from noises
Electrical work
System relocation
01_EN_3P098587-1_1.book Page 3 Thursday, December 5, 2002 6:01 PM
4
Names of parts
■

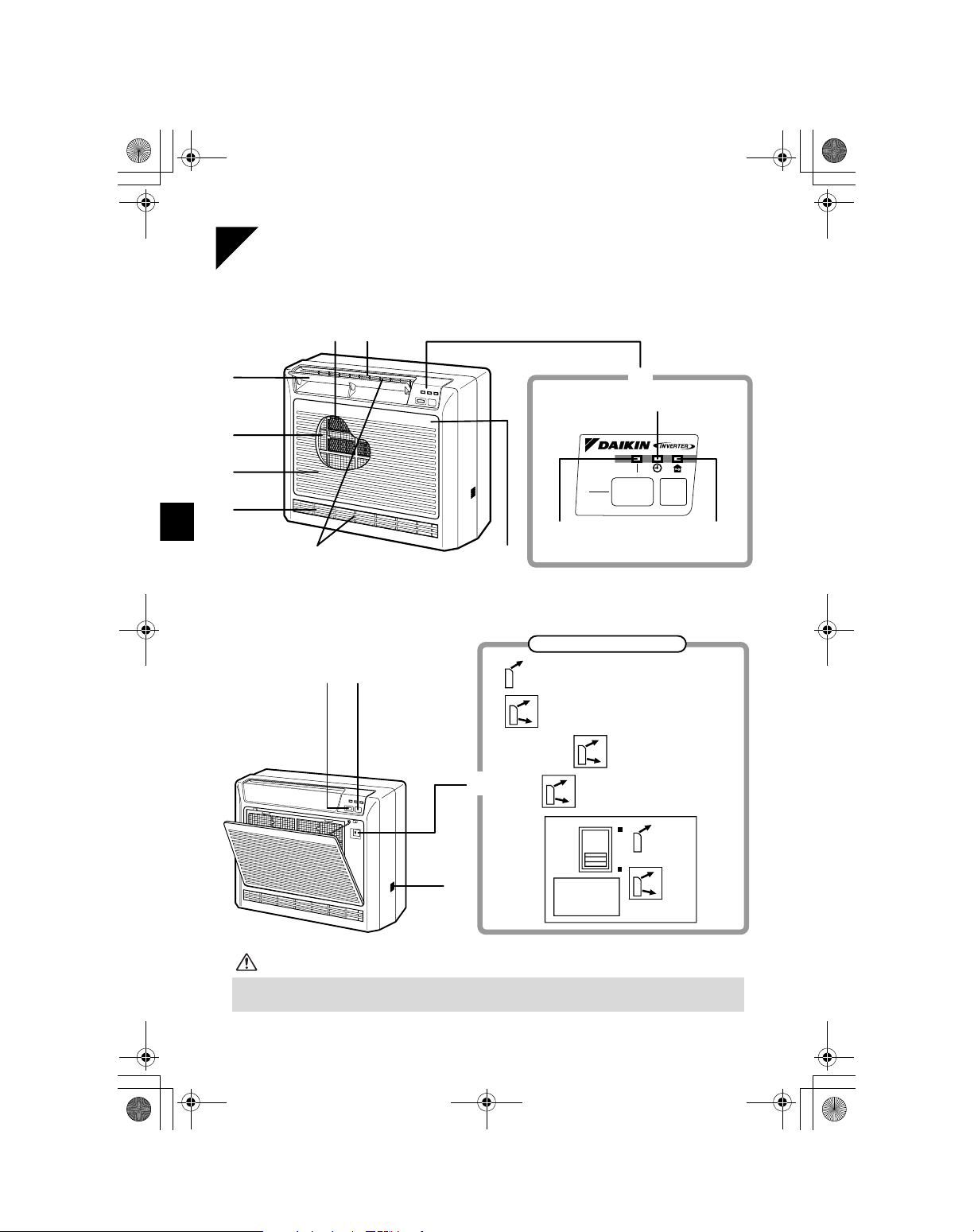

Indoor Unit
■
Opening the front grille
How to open the grille: (page 22)
CAUTION
Before opening the front grille, be sure to stop the operation and turn the breaker OFF.
Do not touch the metal parts on the inside of the indoor unit, as it may result in injury.
ON
OFF
12
4
5
2
6
7
8
3
911
10
14
15
12 13
Air outlet selection switch
This setting blows air from upper outlet only.•
This setting automatically decides a blow
pattern depending on mode and conditions.
•
• The unit is shipped from the
factory with this setting.
• This setting is
recommended.
Air outlet
selection
01_EN_3P098587-1_1.book Page 4 Thursday, December 5, 2002 6:01 PM
5
■

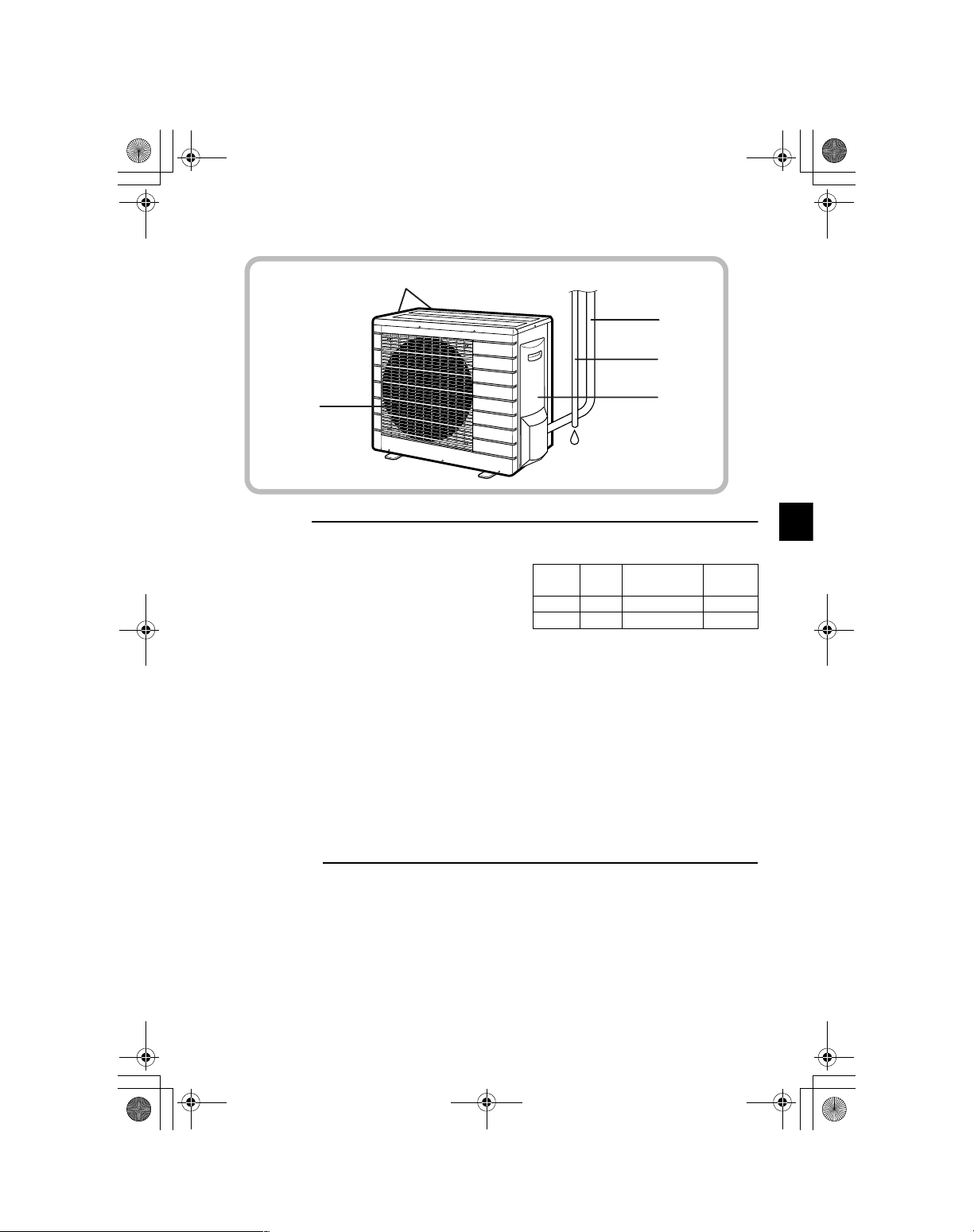

Outdoor Unit
■
Indoor Unit
1. Photocatalytic deodorizing filter and
Air purifying filter:
•
These filters are attached to the inside of the air
filters.
2. Air outlet
3. Display
4. Front grille
5. Louvres (vertical blades):
(page 12.)
•
The louvres are inside of the air outlet.
6. Air inlet
7. Air filter
8. Flap (horizontal blade):
(page 12.)
9. Operation lamp (green)
10. TIMER lamp (yellow):
(page 18.)
11. HOME LEAVE lamp (red):
(page 16.)
12. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
13. Signal receiver:
•
Signals are received from the remote controller .
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start ............. beep-beep
•
Settings changed ..........beep
•
Operation stop ..............beeeeep
14. Air outlet selection switch
15. Room temperature sensor:
•
It senses the air temperature around the unit.
■
■
Ou
tdoor Unit
16. Air inlet:
(Back and side)
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
20. Air outlet
Appearance of the outdoor unit may differ from some models.
17
18
19
20
16
Mode
Temperature
setting
Air flow
rate
FVKS COOL
22°C
AUTO
FVXS AUTO
25°C
AUTO
01_EN_3P098587-1_1.book Page 5 Thursday, December 5, 2002 6:01 PM
6
■

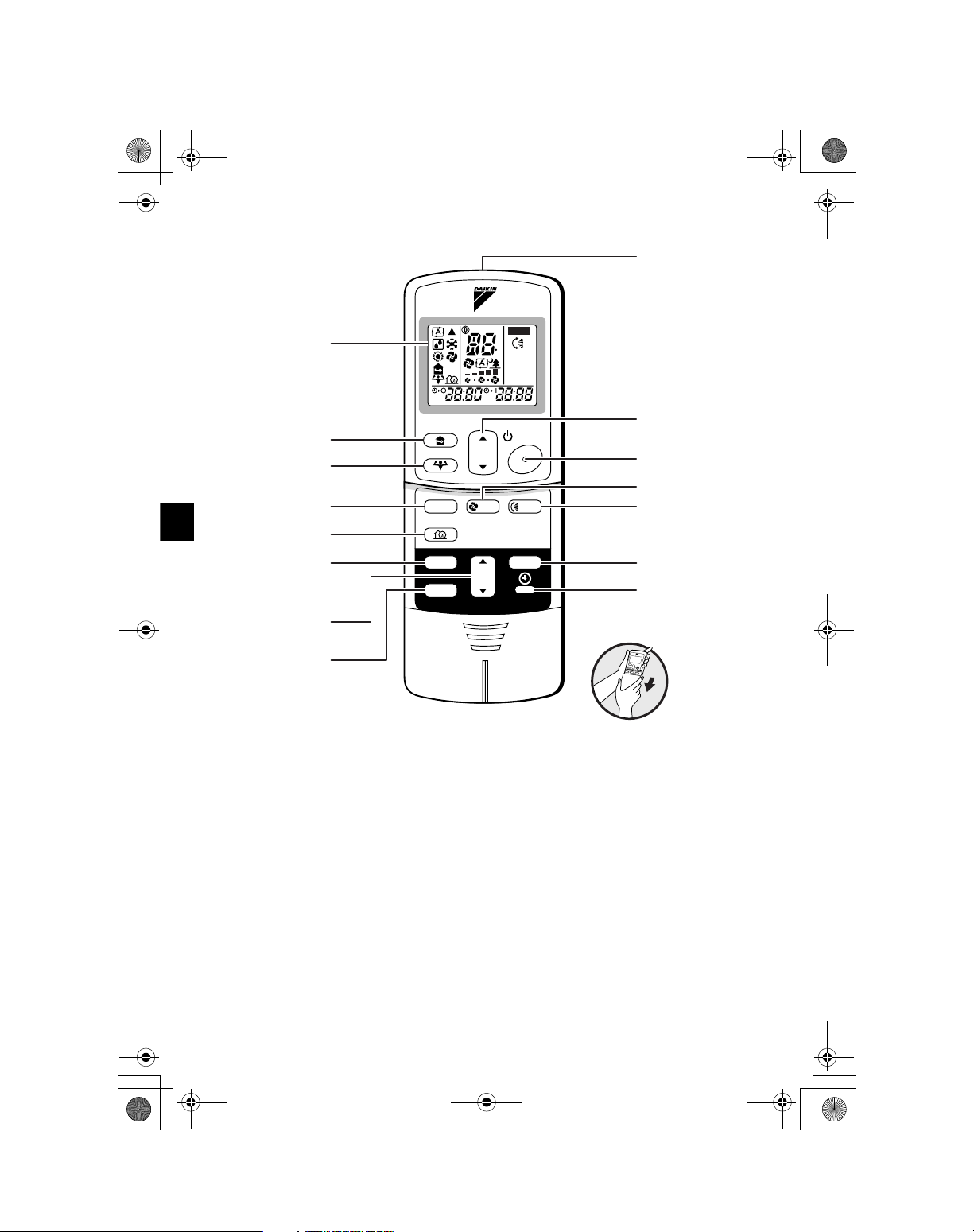

Remote Controller
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation (page 16.)
4. POWERFUL button:
for POWERFUL operation (page 14.)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. SILENT button:
for OUTDOOR UNIT
SILENT operation
(page 15.)
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button:
(page 12.)
11. ON TIMER button:
(page 19.)
12. TIMER Setting button:
• It changes the time setting.
13. OFF TIMER button:
(page 18.)
14. TIMER CANCEL button:
• It cancels the timer setting.
15. CLOCK button:
(page 9.)
C
ON
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SWING
SILENT
ON
CANCEL
OFF
1
2
5
6
9
10
14
15
11
12
13
<
ARC433A5, A6
>
3
4
7
8
01_EN_3P098587-1_1.book Page 6 Thursday, December 5, 2002 6:01 PM
7
Preparation Before Operation
■

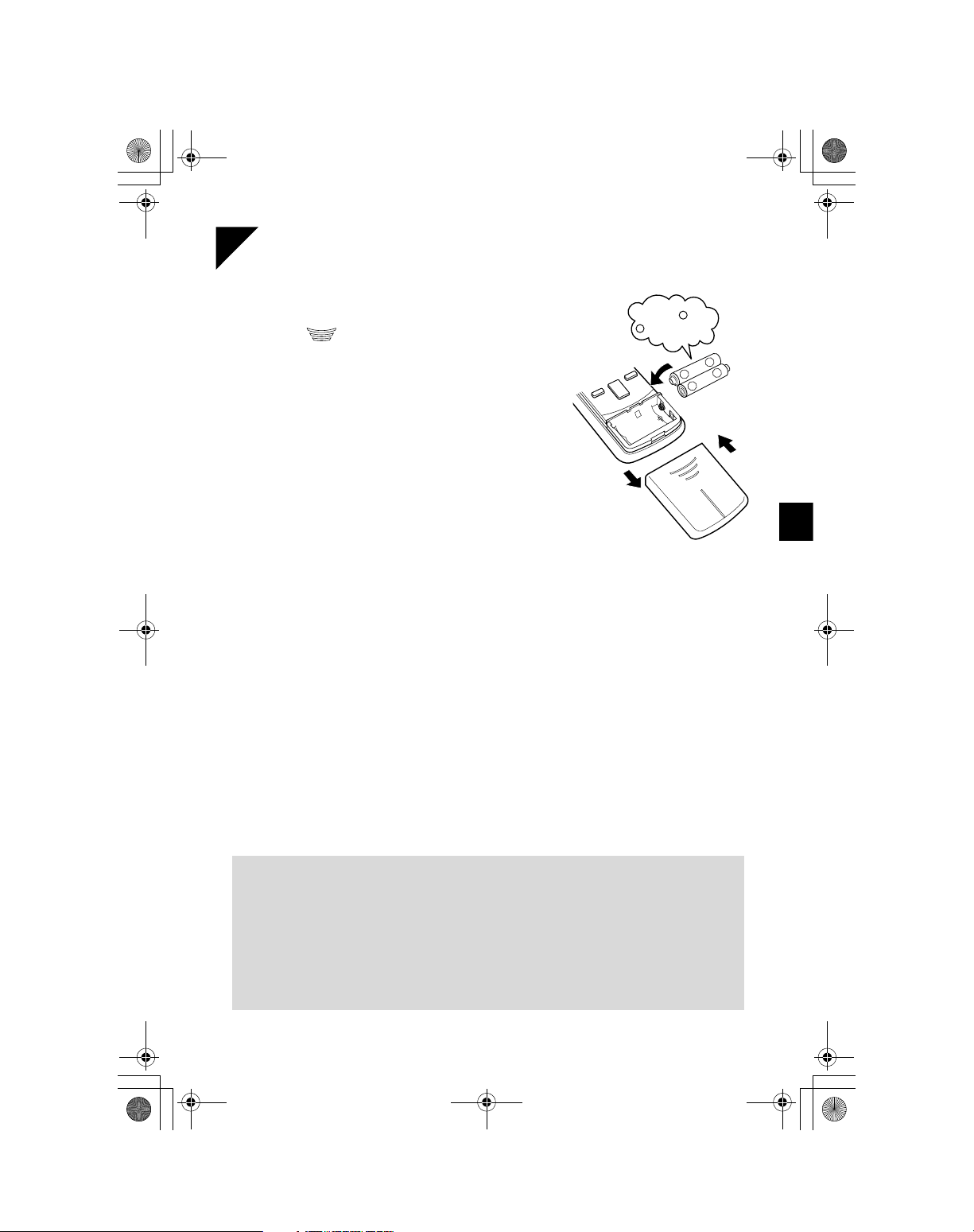

To set the batteries
1. Press with a finger and slide the
front cover to take it off.
2. Set two dry batteries (AAA).
3. Set the front cover as before.
ATTENTION
■
■
About batteries
•
When replacing the batteries, use batteries of the same type, and replace the two old batteries
together.
•
When the system is not used for a long time, take the batteries out.
•
We recommend replacing once a year, although if the remote controller display begins to fade or if
reception deteriorates, please replace with new alkali batteries. Using manganese batteries reduces
the lifespan.
•
The attached batteries are provided for the initial use of the system.
The usable period of the batteries may be short depending on the manufactured date of the air
conditioner.
+
–
–
+
2
3
1
Position + and
– correctly!
01_EN_3P098587-1_1.book Page 7 Thursday, December 5, 2002 6:01 PM
8
Preparation Before Operation
■
To operate the remote
controller
• To use the remote controller, aim the transmitter
at the indoor unit. If there is anything to block
signals between the unit and the remote controller, such as a curtain, the unit will not operate.
•
Do not drop the remote controller. Do not get it wet.
• The maximum distance for communication is
about 7 m.
■
To fix the remote controller
holder on the wall
1. Choose a place from where the signals reach the unit.
2. Fix the holder to a wall, a pillar, etc.
with the screws supplied with the
holder.
3. Place the remote controller in the
remote controller holder.
ATTENTION
■
■
About remote controller
•
Never expose the remote controller to direct sunlight.
•
Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
•
Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as
inverter-type lamps) is in the room. Consult the shop if that is the case.
•
If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the shop.
Receiver
Remote controller
holder
Set.
●
To remove, pull it upwards.
01_EN_3P098587-1_1.book Page 8 Thursday, December 5, 2002 6:01 PM
