CYBEX RUBY 2011 Owner's Manual
English
EspañolFrançais
READ this Owner’s Manual
carefully before rst use, and keep
it for future reference.
LIRE ce Guide de l’Utilisateur
attentivement avant d’utiliser pour
la première fois, et le conserver
pour référence ultérieure.
LEA este Manual del Propietario
municiosamente antes de usarlo
y guarde para su futura referencia.
RUBY 2011
Owner‘s Manual
Guide de l’Utilisateur
Manual del Propietaro
From 6 months up to 55 lb (25 kg)
De 6 mois jusqu’à 25 kg (55 livres)
Desde 6 meses hasta 25 kg (55 libras)
Welcome to CYBEX!
Dear CYBEX Customer!
Thank you very much for purchasing a CYBEX stroller. We hope it will give you and your children
a great ride for many years. This stroller is suitable for children from birth up to 55 lb (25 kg).
The stroller comes well equipped, but you can also purchase cup holders and a rain cover as
accessories. In developing the CYBEX strollers, we can assure you that our main focus was safety,
comfort and ease of use. The stroller has been developed in Germany and is manufactured under
strict quality controls. It meets or exceeds all relevant safety standards in the United States (ASTM
F833-10) and Canada (SOR/85–379). We appreciate your purchase and invite you to visit our
website www.cybex-online.com to learn about other great CYBEX products.
Bienvenue à CYBEX!
Cher Client CYBEX!
Merci beaucoup d’avoir acheté une poussette CYBEX. Nous espérons qu’elle vous offrira de
nombreuses années de joie avec votre enfant. Cette poussette convient aux enfants de 6 mois
jusqu’à 25 kg (55 livres). La poussette est livrée bien équipée, mais il est également possible
d’acheter des accessoires tels porte-gobelets et écran protecteur imperméable. Nous pouvons
vous assurer que lors de la mise au point des poussettes CYBEX, nous avons concentré nos
efforts sur la sécurité, le confort et la facilité d’utilisation. La poussette a été conçue et est
fabriquée en Allemagne sous les plus stricts contrôles de qualité. Elle rencontre ou excède toutes
les normes de sécurité pertinentes aux États-Unis (ASTM F833-10) et au Canada (SOR/85–379).
Nous vous sommes reconnaissants de votre achat et vous invitons à visiter notre site à www.
cybex-online.com pour découvrir d’autres excellents produits CYBEX.
¡Bienvenido a CYBEX!
¡Estimado Cliente CYBEX!
Muchas gracias por haber adquirido un cochecito CYBEX. Esperamos que usted y sus niños
compartan juntos paseos gratos durante muchos años. Este cochecito es adecuado para niños
desde 6 meses hasta las 55 lb (25 kg). El cochecito viene muy bien equipado, pero usted
puede comprar portavasos y cubierta para lluvia como accesorios. Permítanos asegurarle que al
desarrollar los cochecitos CYBEX, nuestros objetivos fueron la seguridad, comodidad y facilidad
de uso. El cochecito fue desarrollado en Alemania y se fabrica bajo estrictos controles de calidad,
además de que cumple o supera las normas de seguridad de Estados Unidos (ASTM F833-10) y
Canada (SOR/85-379). Agradecemos su compra y lo invitamos a visitar nuestro sitio Web www.
cybex-online.com para informarse acerca de otros fabulosos productos CYBEX.
Bengt Lager
President / Président / Presidente
Regal Lager, Inc.
Table of Contents
Warnings ....................................................................................................................... 2
Fall Hazard .....................................................................................................................2
Tipping Hazard ............................................................................................................... 2
Finger Entrapment Hazard .............................................................................................. 2
Ruby Overview ................................................................................................................ 3
In the box ......................................................................................................................3
Stroller Assembly ............................................................................................................ 4
Attach Handles ...............................................................................................................4
Unfold the Stroller Frame ................................................................................................4
Attach Front Wheels .......................................................................................................4
Attach Rear Wheels ........................................................................................................ 5
Attach Super Canopy™ ..................................................................................................5
Folding the Stroller ......................................................................................................... 6
Carrying Stroller .............................................................................................................6
Stroller Wheel Functions ................................................................................................. 7
One Touch Braking ......................................................................................................... 7
Front Wheel Swivel Lock ................................................................................................. 7
Stroller Adjustments ........................................................................................................ 8
Reclining Backrest .......................................................................................................... 8
Super Canopy™ ............................................................................................................8
Adjusting the Harness ..................................................................................................... 9
Harness Fit ..................................................................................................................... 9
Changing Harness Height ...............................................................................................9
Removing Seat Cover ...................................................................................................... 10
Care and Cleaning .......................................................................................................... 11
Spot Cleaning ................................................................................................................ 11
Washing Instructions ...................................................................................................... 11
Metal and Plastic Parts ...................................................................................................11
Convert Stroller into a Travel System ................................................................................ 12
Two Year Limited Warranty ............................................................................................... 13
Registration ..................................................................................................................13
For more Information ......................................................................................................13
English
!
WARNING
• READ this Owner’s Manual carefully before rst use, and keep it for future reference.
• NEVER LEAVE your child unattended in or near the stroller.
• DO NOT use stroller with a child weighing more than 55 lb (25 kg) and a maximum
height of 48 inches (120 cm).
!
FALL HAZARD
• Avoid serious injury from falling or sliding out. ALWAYS use safety harness. Use of the
safety harness does not replace adult supervision.
• DO NOT carry more than one child at a time in this stroller.
• NEVER LIFT stroller with your child in it.
• NEVER USE stroller on stairs or escalators as you may lose control of the stroller and
your child may fall out.
!
TIPPING HAZARD
• NEVER hang or place bags, purses, or parcels on the handle or canopy.
• DO NOT place more than 4.5 lb (2 kg) in the storage basket.
• ALWAYS ENGAGE brakes before putting your child into the stroller.
• NEVER PARK stroller on a sloped surface, even with the brakes applied.
• NEVER ALLOW a child to stand on the footrest, or ride or stand in the storage basket.
• USE ONLY CYBEX approved accessories and replacement parts.
• NEVER ALLOW stroller to be used as a toy.
!
FINGER ENTRAPMENT HAZARD
• KEEP CHILDREN AWAY from stroller when folding or unfolding.
• NEVER USE stroller for jogging, running, skating, etc. Use ONLY at walking speed.
• DRIVE CAREFULLY over curbs and gravel roads to prevent damage to the stroller.
• DISCONTINUE USE of stroller should it become damaged or broken.
• ALWAYS EMPTY storage basket before folding stroller.
2
In the box
• 1x Stroller
• 2x Front wheels
• 2x Rear wheels connected by brake cable
• 2x Handles
• Super Canopy™
• Owner’s Manual
Super Canopy

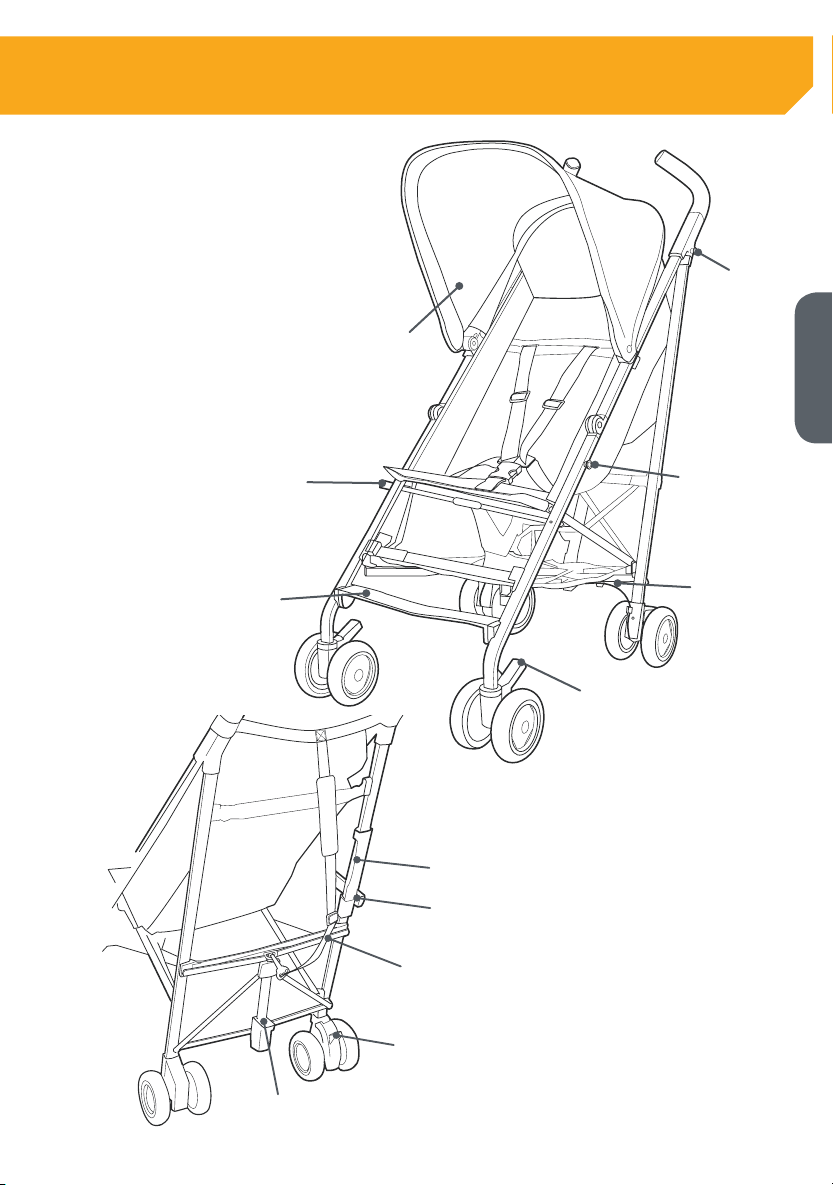

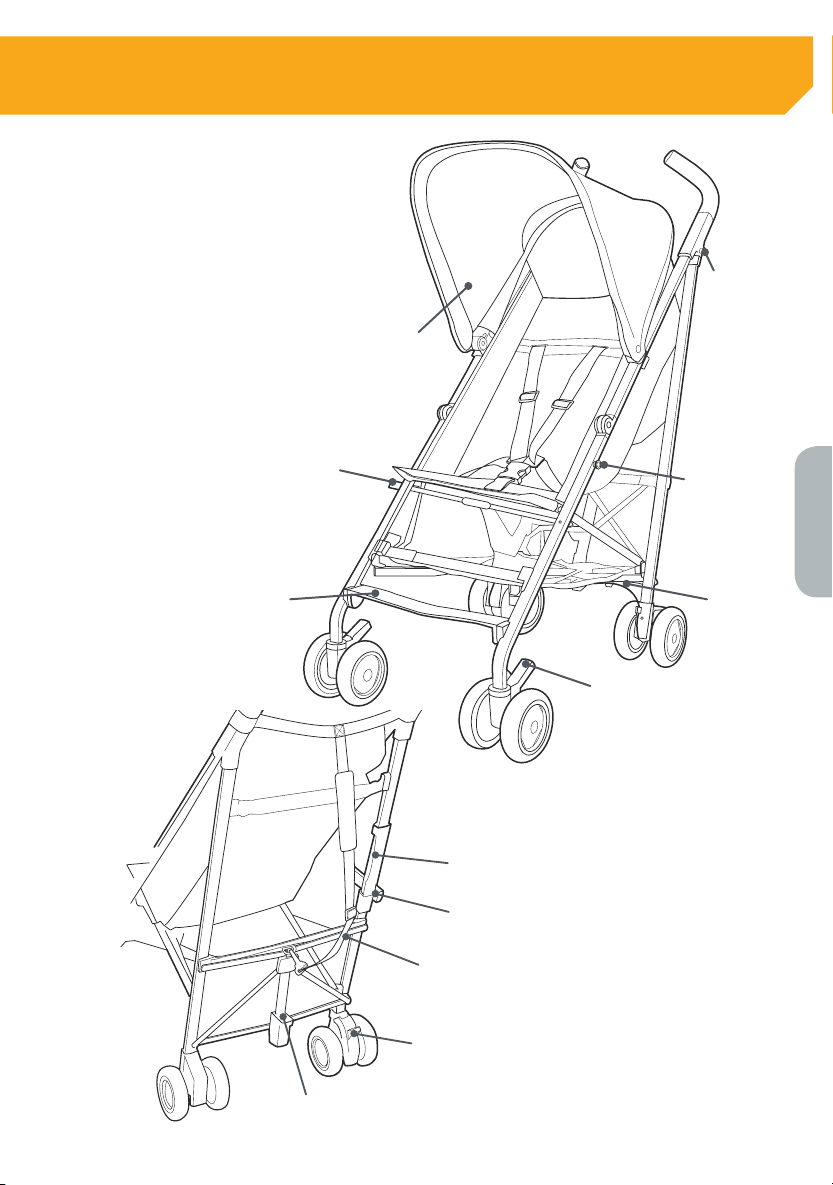

Ruby Overview
English
Cup Holder
Button
Secondary Fold Lock
Foot Rest
Cup Holder Button
Brake Cable
Swivel Lever
Carry Handle
Automatic Frame Lock
Shoulder Carrying Strap
Brakes
Primary Fold Lock
3
Stroller Assembly
Attach Handles

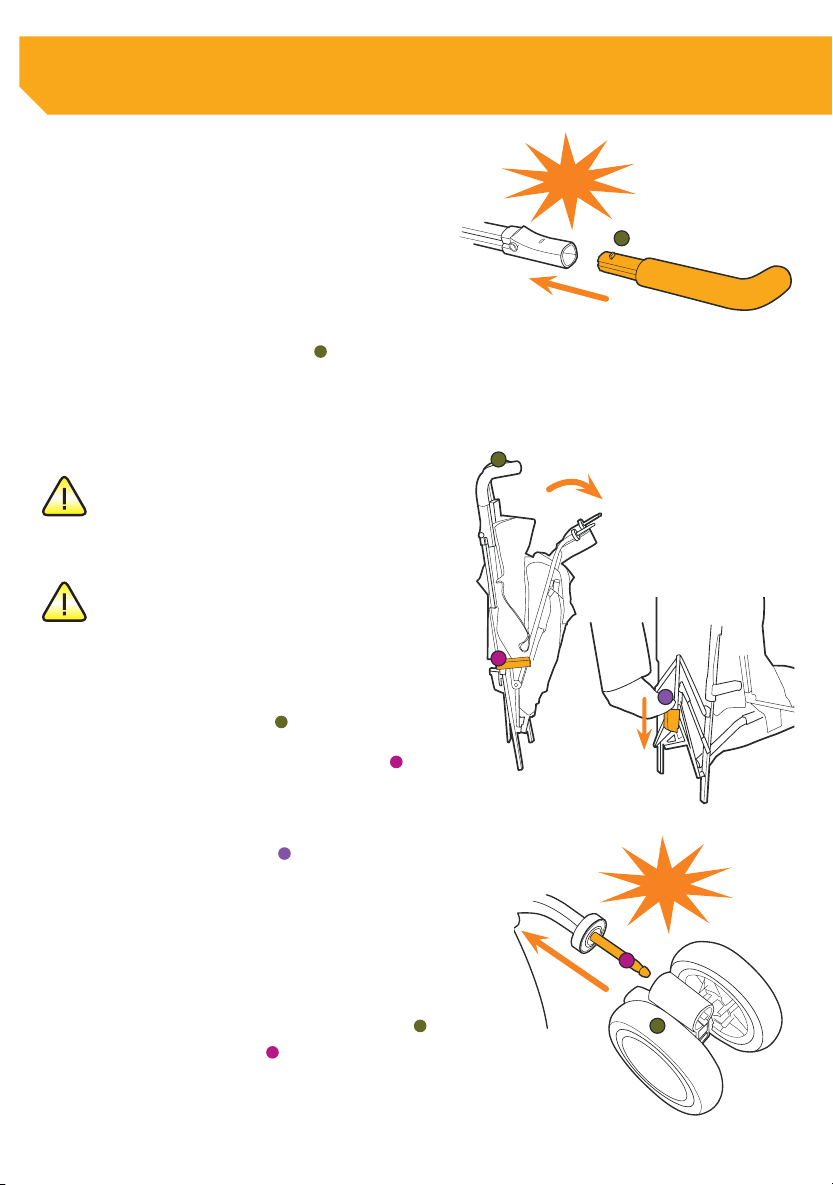

1. Lay stroller down with the back
of the stroller facing up.
2. With the locking tab facing you,
slide handle into recepticle. Push in
locking tab
until it makes an audible CLICK.
and push Handle in
Unfold the Stroller Frame
PERFORM the following steps on a
CARPETED surfrace to avoid damage to
ooring.
KEEP CHILDREN AWAY from stroller when
folding and unfolding.
1. Hold the stroller upright by the handles.
2. Release the Automatic Frame Lock.
CLICK
3. Push the Primary Fold Lock downward
with your foot until it locks into place.
4. Turn stroller on its left side.
Attach Front Wheels

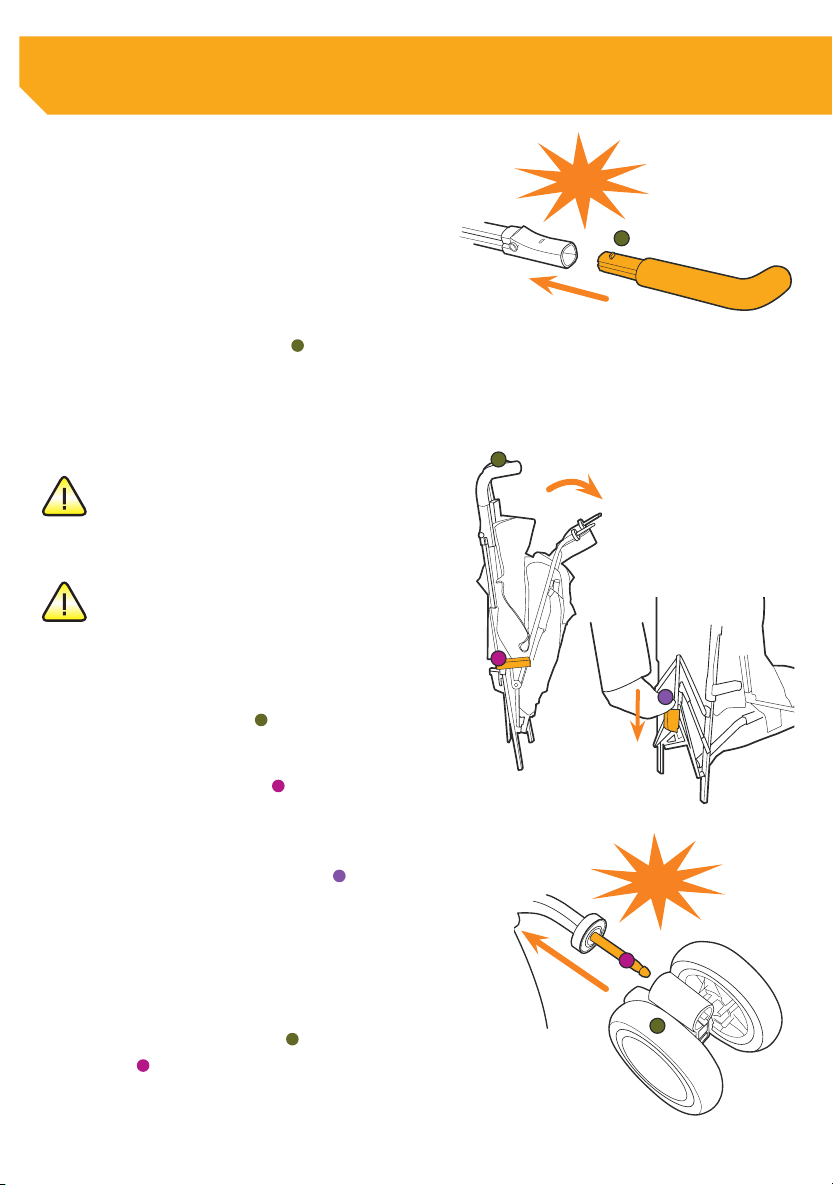

Push each Front Wheel onto the metal axle
until it makes an audible CLICK.
4
CLICK

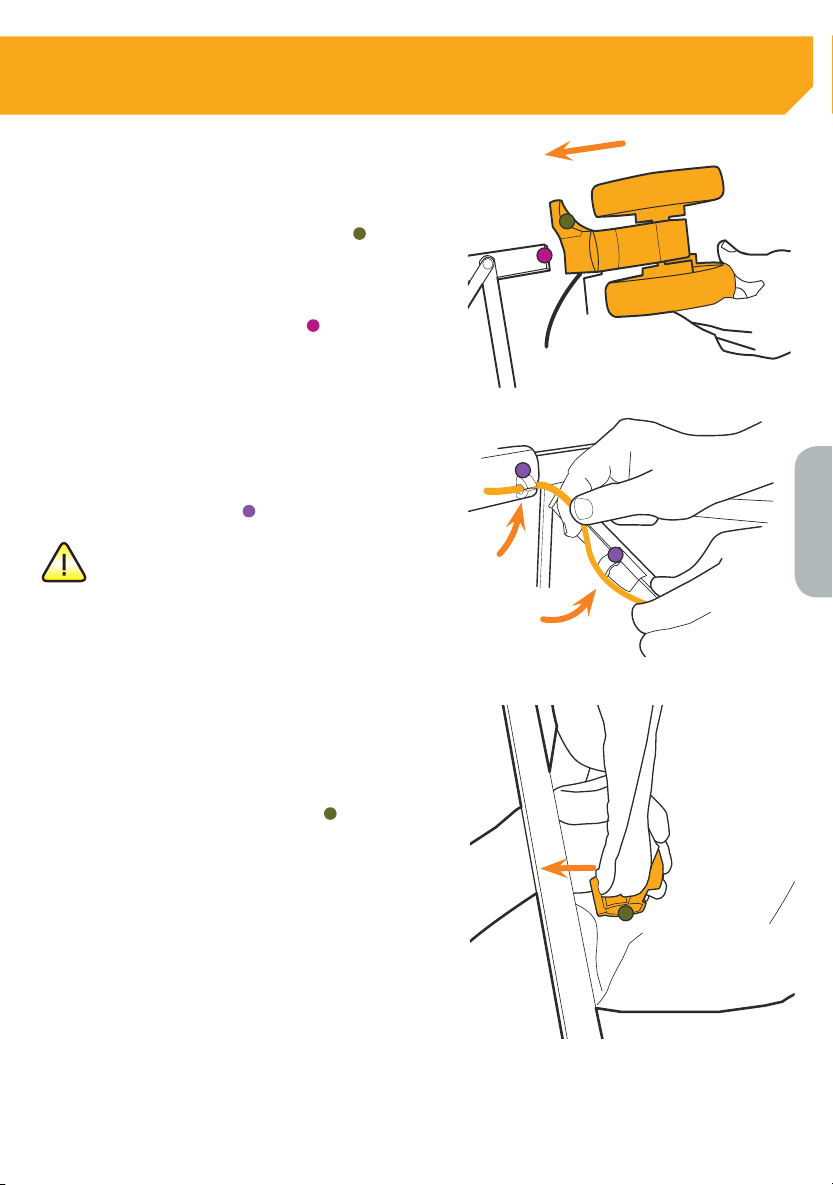

Attach Rear Wheels
1. Identify the right Rear Wheel unit
(the one with the brake pedal.)
2. With the pedal towards the rear of the
stroller, slide unit onto right rear tubing.
3. While pushing in nib spring, push
unit until nib spring locks it into
place. Repeat for left side.
4. Slide brake cable into frame clips.
ENSURE that all wheels are securely
attached before using stroller.
Stroller Assembly
English
Attach Super Canopy™
1. Slide Canopy clips onto the stroller
frame, making sure the front of the
canopy faces the front of the stroller.
2. Extend the Canopy and place the back
ap of canopy behind the seat.
5

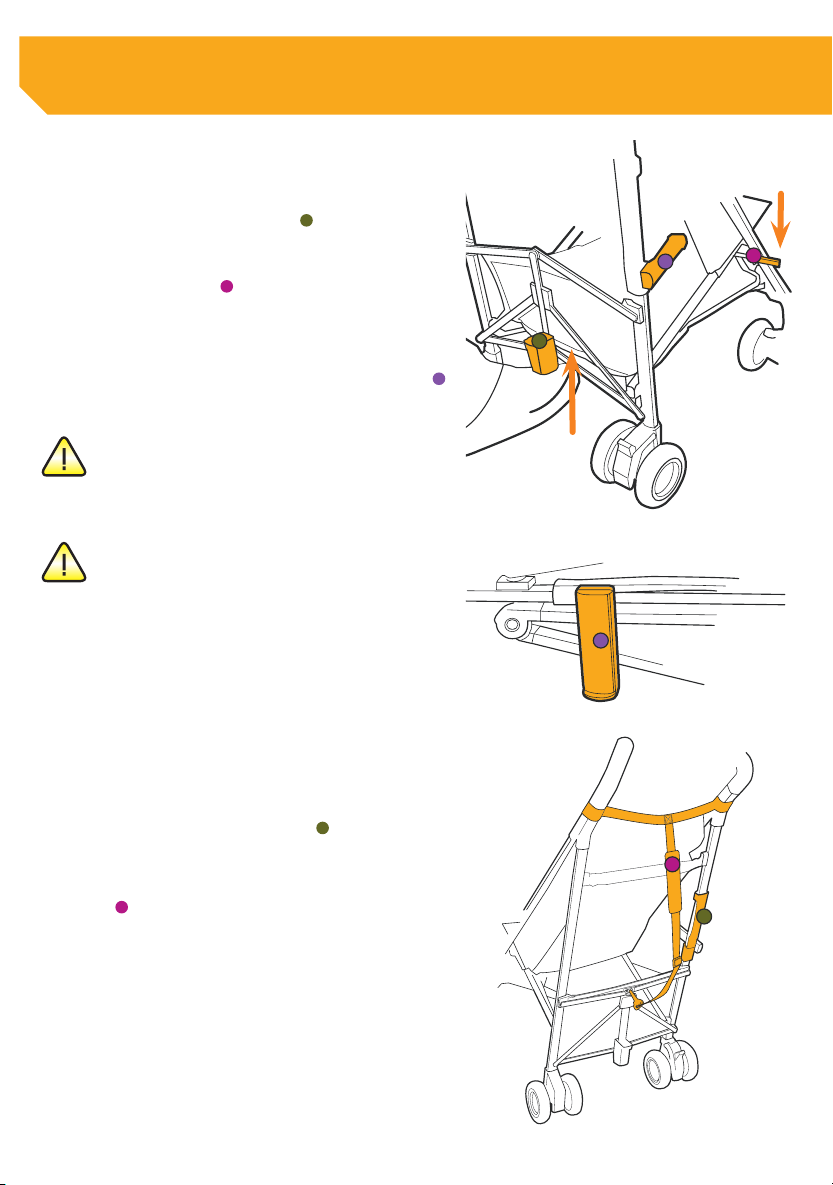

Folding the Stroller
1. Empty the basket and retract the canopy.
2. With the top of your foot, lift up
the Primary Fold Lock.
3. Step on the Secondary Fold Lock
located just under the front seat.
4. Push the handles forward to collapse
the stroller until the Automatic Frame
Lock on the right side, engages.
KEEP CHILDREN AWAY from stroller when
folding and unfolding.
ALWAYS USE the automatic frame lock to
avoid accidental unfolding.
Carrying Stroller
Only lift/carry the stroller when it is properly
folded and locked.
Use the exible Carry Handle that is attached
to the rear leg of the stroller frame or the
Shoulder Carrying Strap.
6

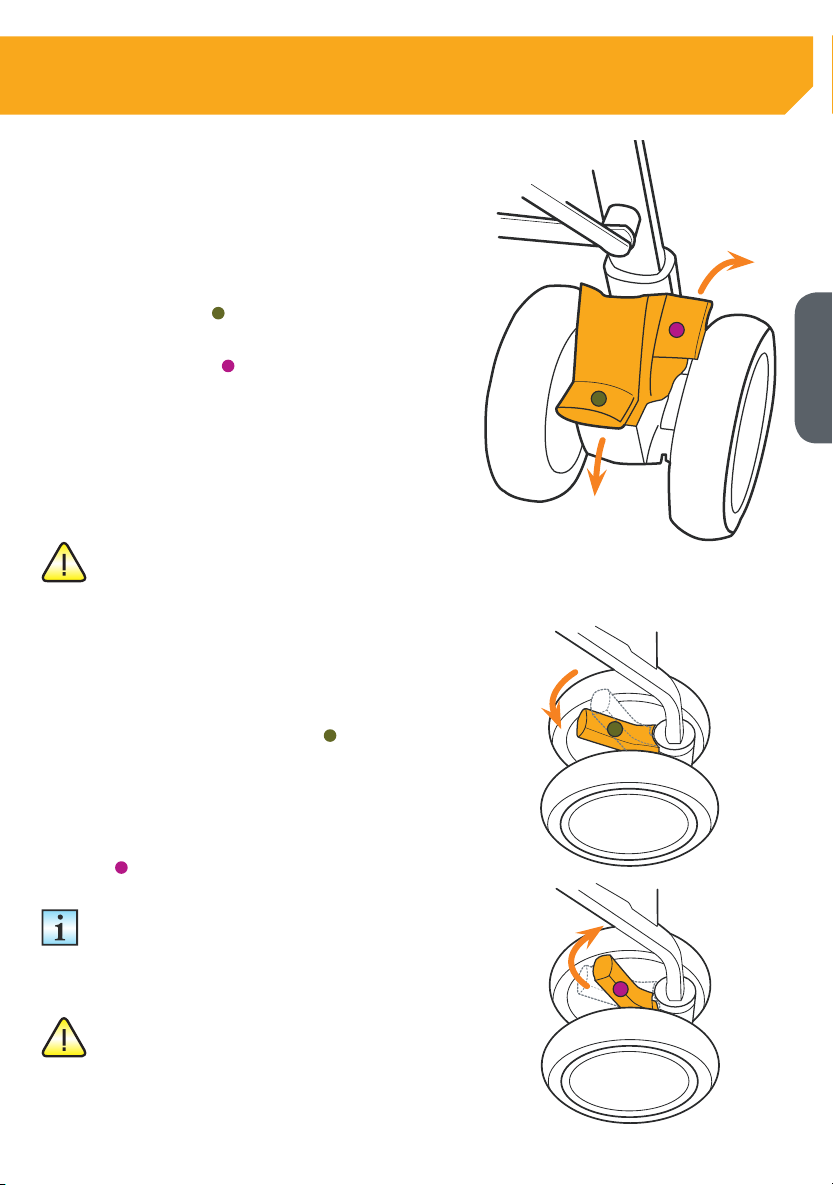

One Touch Braking
The right and left brakes are linked together and
will both lock and unlock at the same time.
Stroller Wheel Functions
English
UNLOCKED
To set the brakes, step on lower step
right brake lever. To unlock brakes, step on the
upper step of brake lever.
If set, the brakes will remain engaged when the
stroller is folded. They can also be engaged after
the stroller has been folded.
NEVER PARK an occupied stroller on a
sloped surface, even with the brakes
applied.
of the

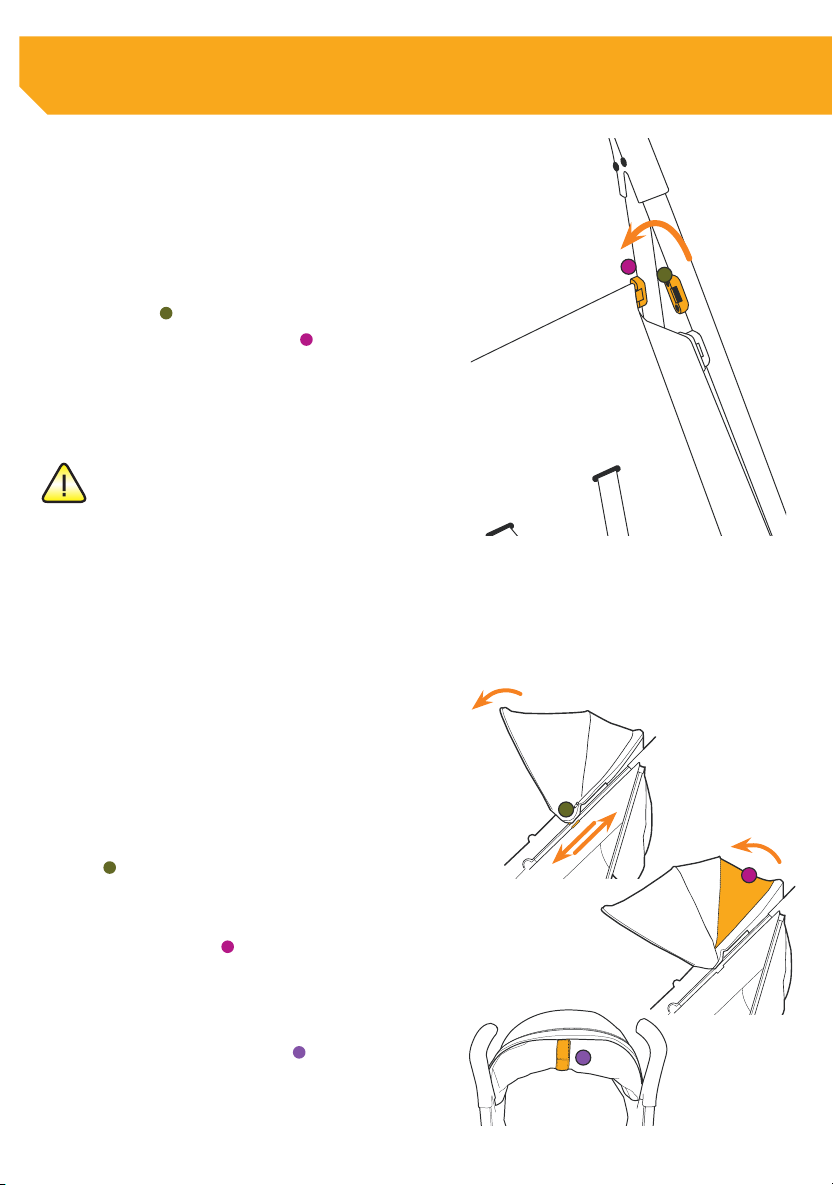

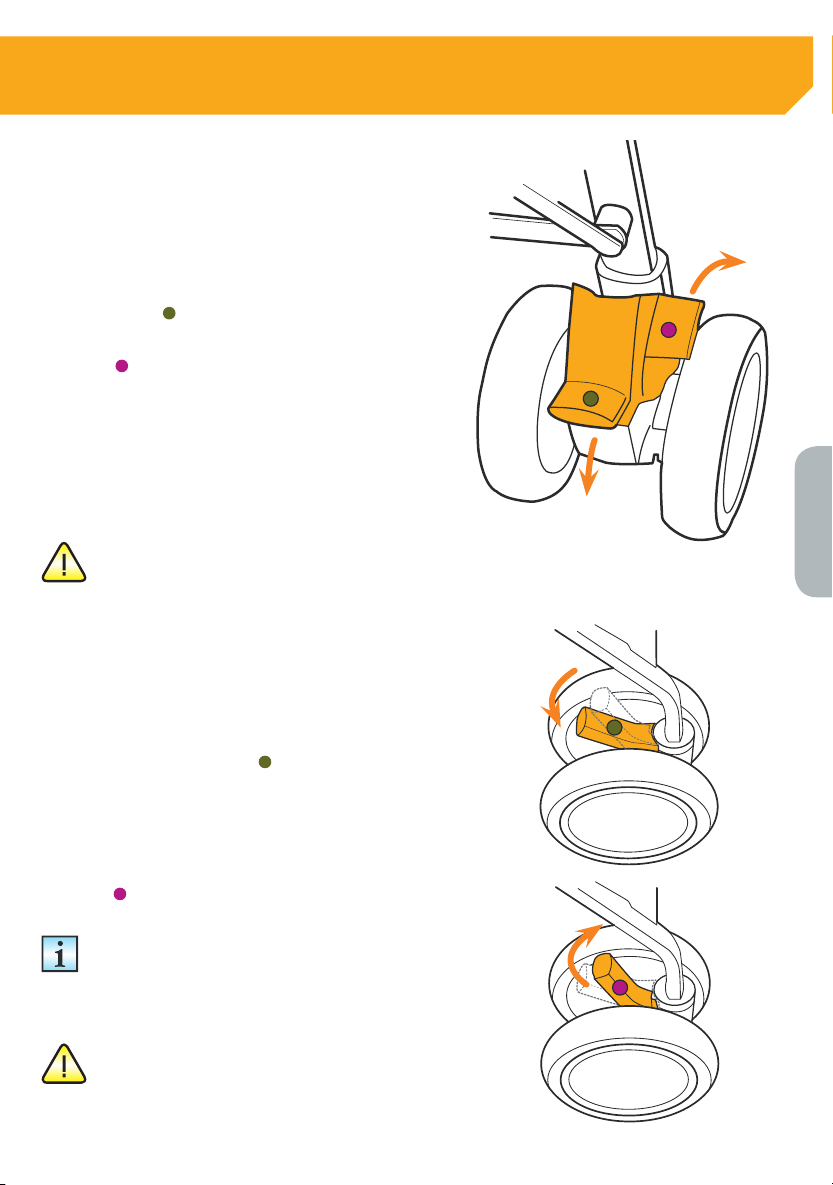

Front Wheel Swivel Lock
To lock the front wheels in place, push down
on the levers located on the front wheels. The
wheels will lock automatically once they swivel
into the correct position.
To re-activate swivel, lift up on the lever.
LOCKED
It is recommended to use locked wheels
on gravel, unpaved roads and uneven
terrain.
ALWAYS USE BOTH wheels in the same
mode.
7
Stroller Adjustments

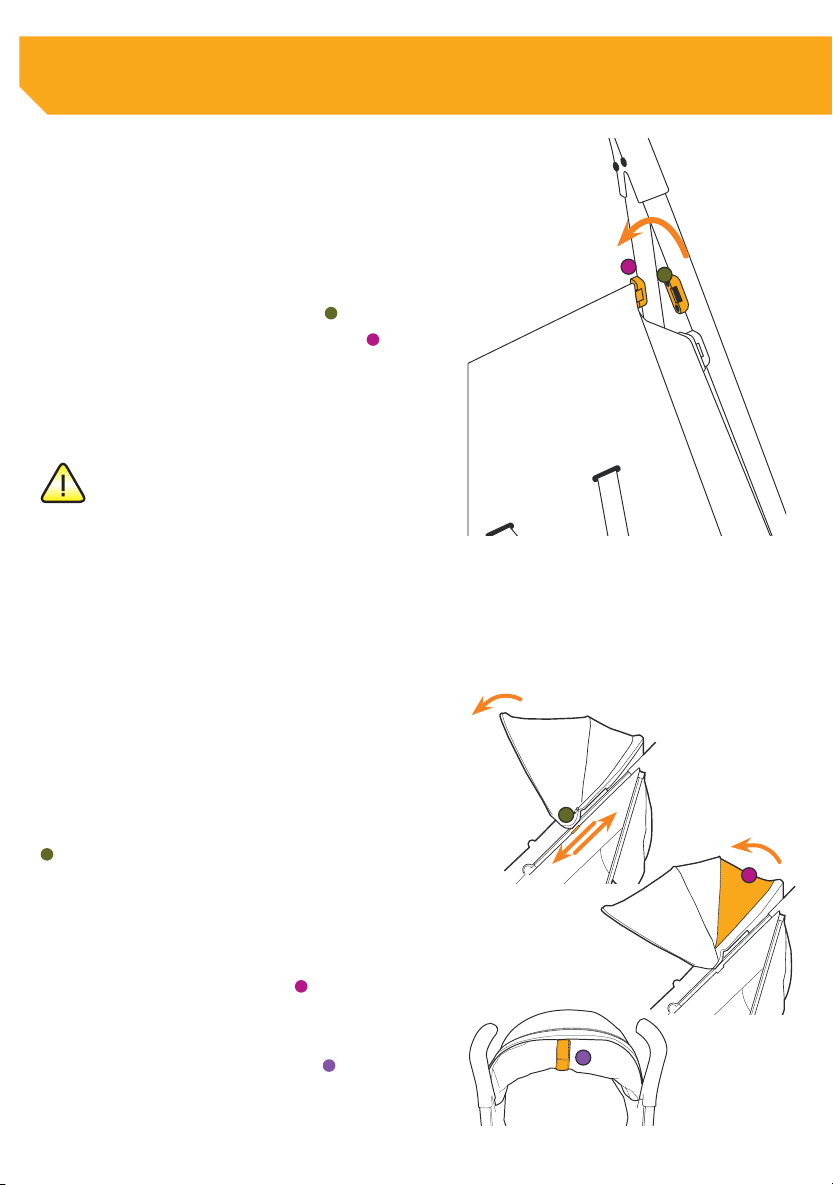

Reclining Backrest
Seat back adjusts to two positions.
To recline, push from behind on both seat hooks
to release seat from the front tubing and
reattach hooks to the rear tubing.
To raise the seat, hook seat into front tubing.
Hooks MUST be engaged while stroller is
in use.
Super Canopy™
The Canopy has a fully ratcheting function to
create complete coverage. Simply pull on the
front of the Canopy to the desired position. The
height can easily be adjusted by simply sliding
the Canopy up or down the frame. The entire
Canopy can also be tilted forward. For maximum
coverage, unzip the extra panel on top of
canopy and pull forward.
The canopy ap at the rear of the stroller can be
rolled up and afxed with the velcro fastener.
8
This stroller is equipped with a ve point safety
harness for your child’s safety.
ALWAYS ensure that your child wears the
complete harness that is correctly tted
and adjusted at all times.

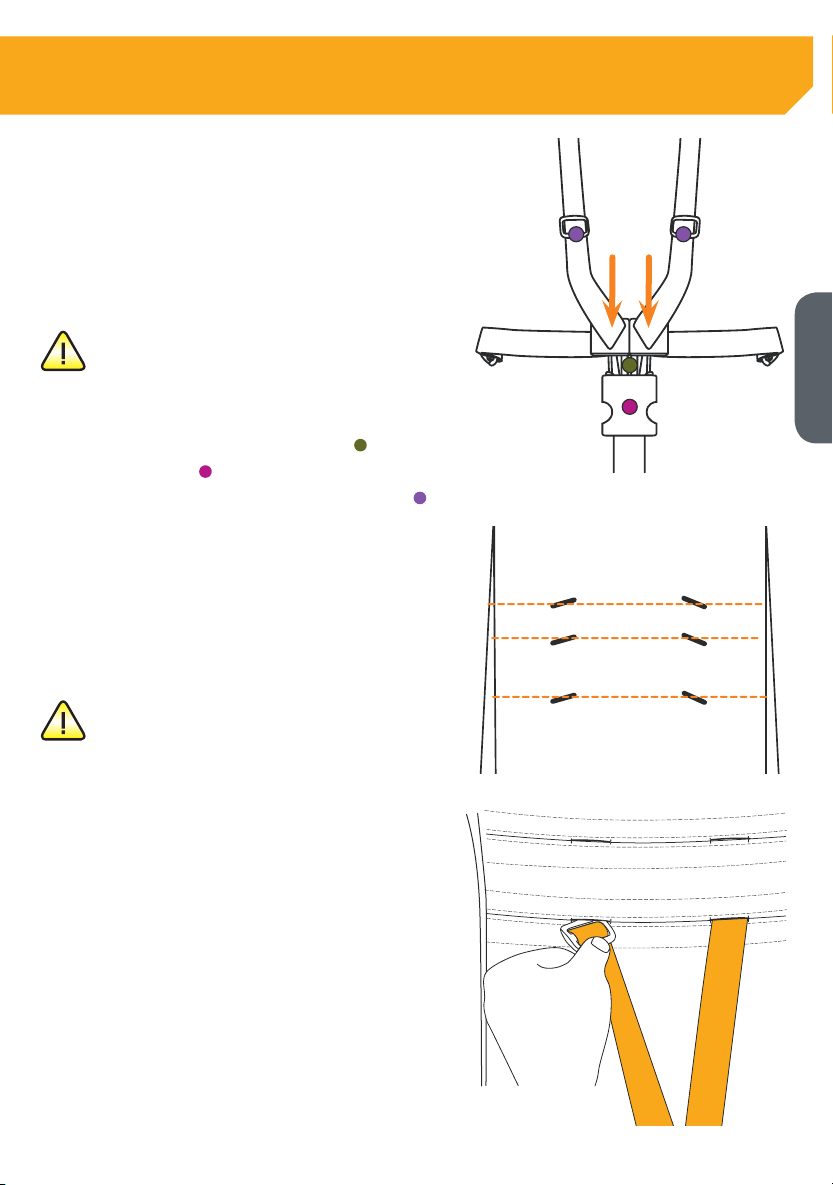

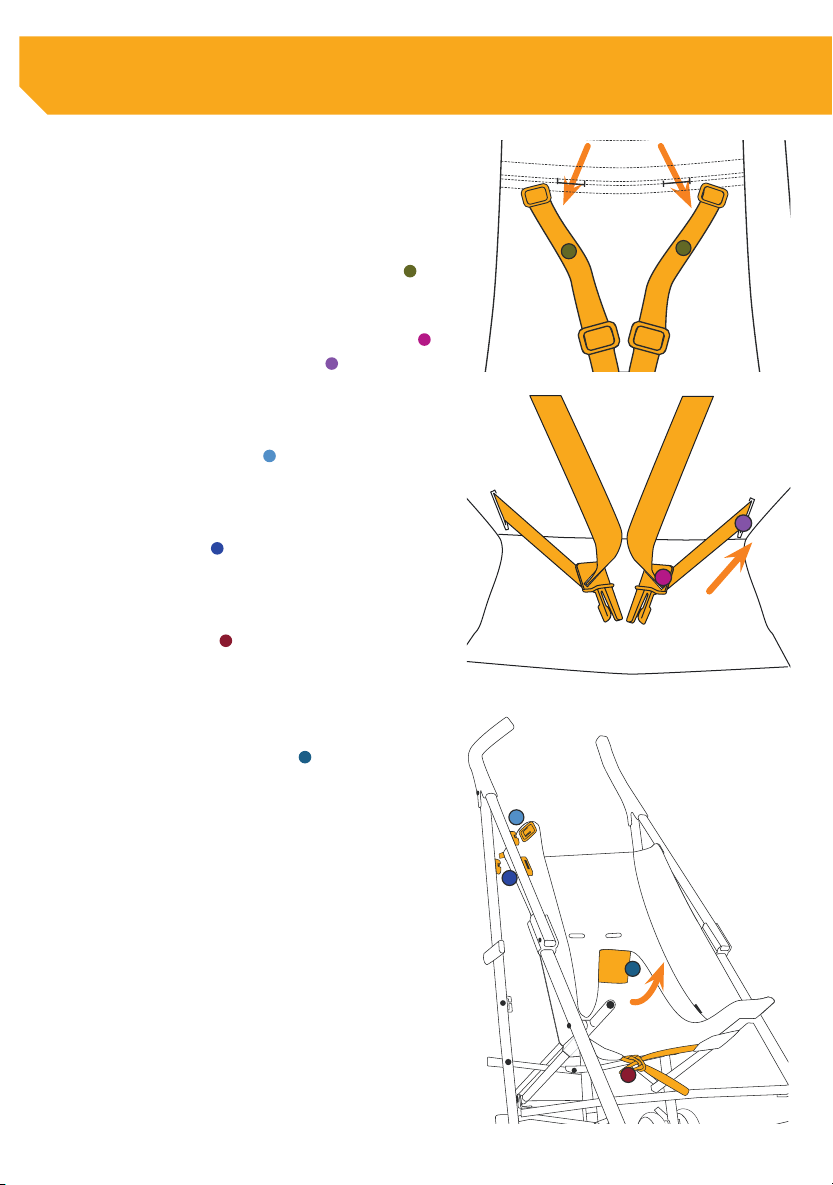

Harness Fit

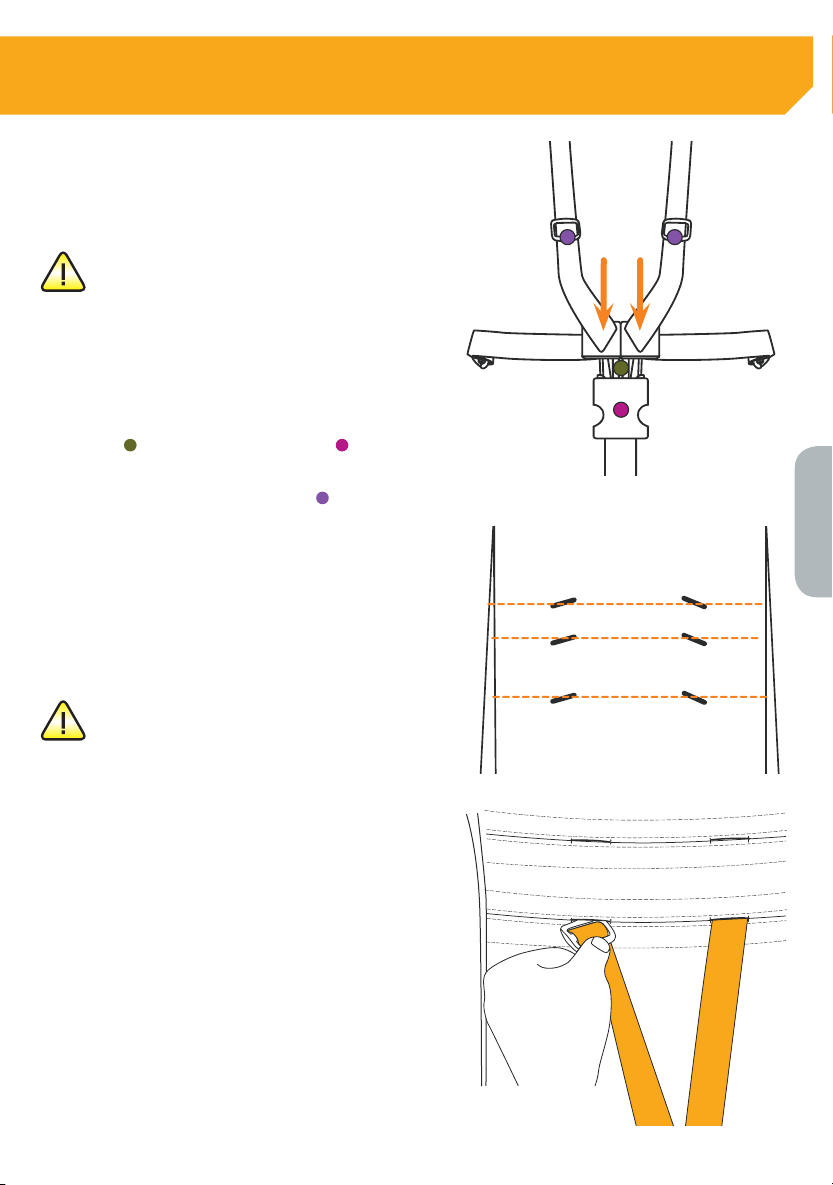

Attach both Buckle Tongues into the Harness
Buckle. To achieve a snug t adjust each strap
to the desired length.

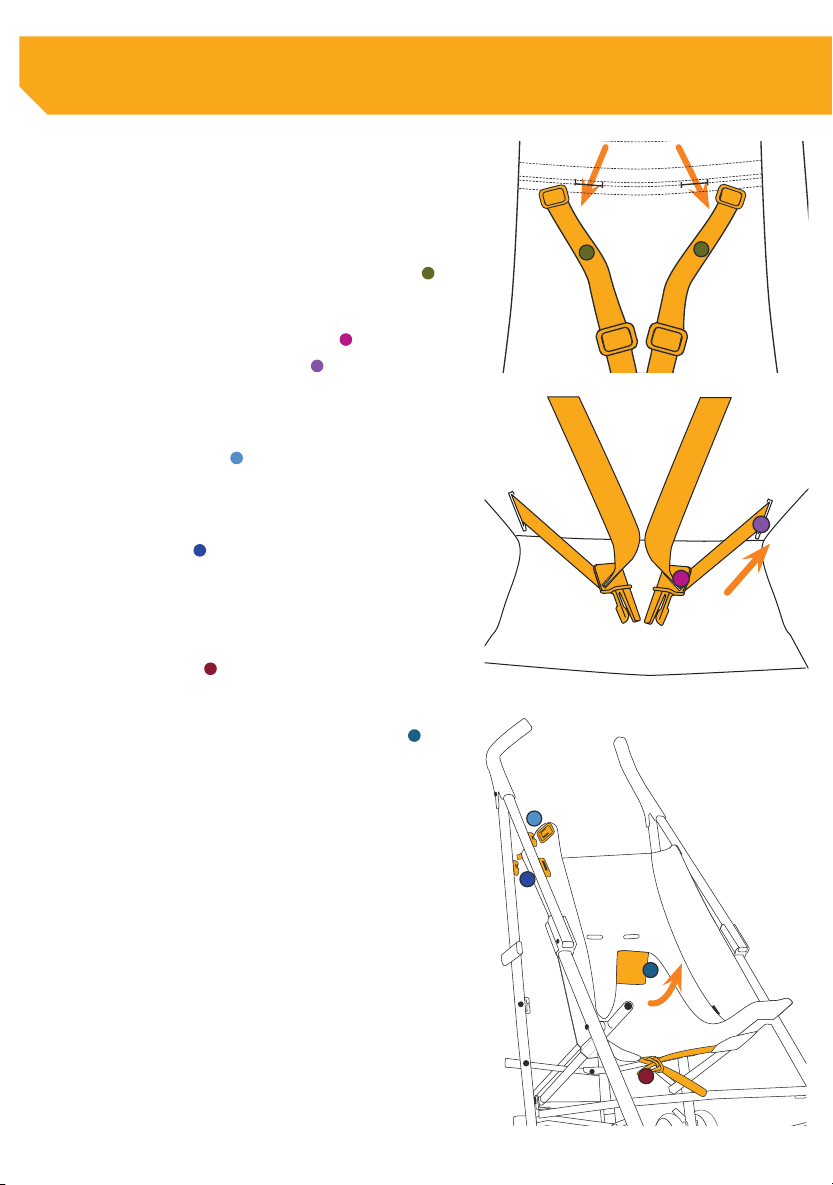

Changing Harness Height
This stroller features three Shoulder Harness
Positions for the safety and comfort of your child.
Adjusting the Harness
English
ALWAYS USE a harness position located
ABOVE the child’s shoulders. If all harness
positions are above the child’s shoulders,
use the one closest to the shoulders.
Simply twist Shoulder Strap end buckles and
feed through holes in the seat fabric.
9

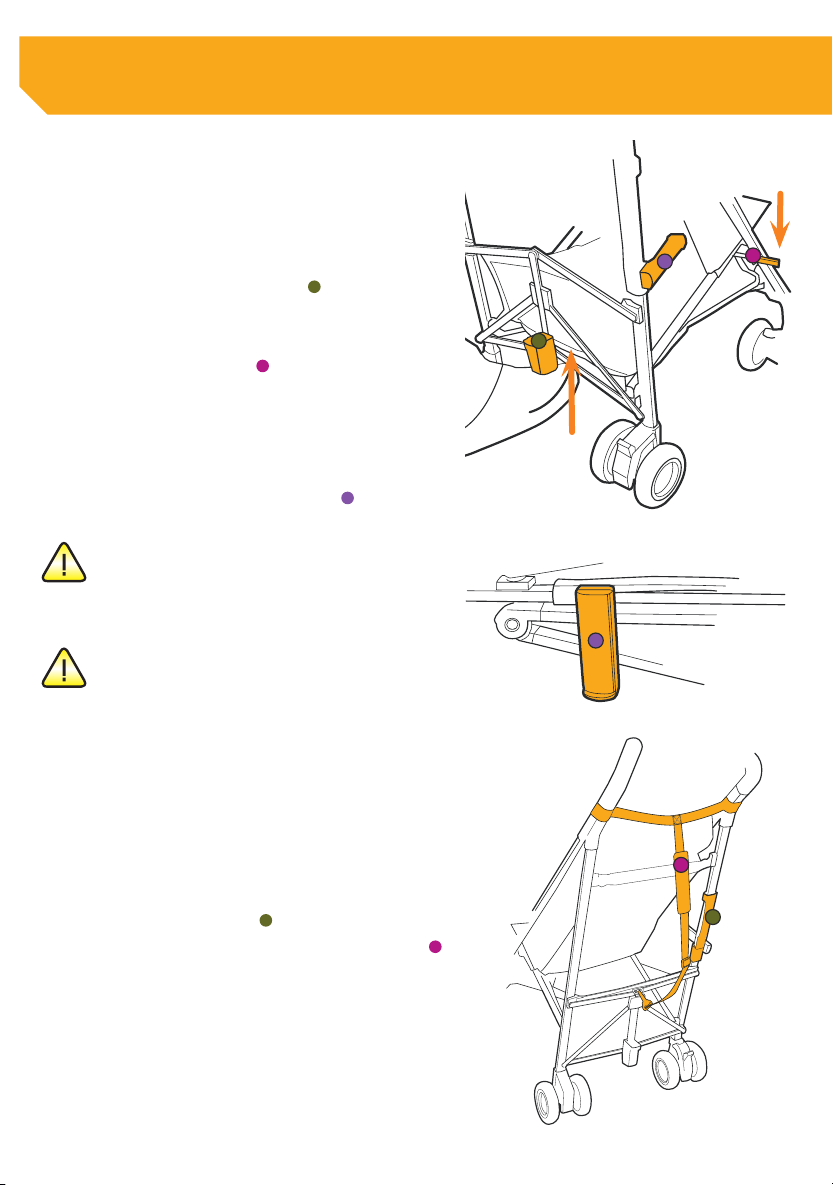

Removing Seat Cover
1. First, remove canopy and items
from the storage basket.
2. Unbuckle safety harness and feed
shoulder straps and end buckles
through the slits in the backrest.
3. Feed Shoulder Straps and Buckle Tongues
through slits in the seat cover.
4. Release recline hooks on both
right and left side.
5. Disengage seat retention
latches on both sides.
6. Release the strap from the D
rings under the fabric seat.
7. Slide seat cover off frame.
8. To reassemble reverse this process.
Fasteners and tethers are permanently
attached to straps.
10
Care and Cleaning
Spot Cleaning
Spot clean fabrics as needed with a clean cloth using mild detergent and water.
Washing Instructions
Machine wash, cold, gentle cycle with mild detergent
Do not bleach
Do not tumble dry
Line dry
Do not iron
Do not dry clean
Metal and Plastic Parts
• Wipe clean with a damp cloth and mild detergent. Let dry thoroughly before using. Do
not use household cleaners or solvents.
• If stroller is exposed to salt water, rinse and dry thoroughly.
• Do not store stroller wet. Allow to dry completely before storage.
• Routinely check the condition of the wheels and moving parts to keep them free from
dust, dirt, and sand.
• Lubricate moving parts only when necessary with a light application of a silicone
based lubricant. Never use oil-based lubricants.
English
Do not store stroller in direct sunlight as it could fade the fabrics.
11
Convert Stroller into a Travel System

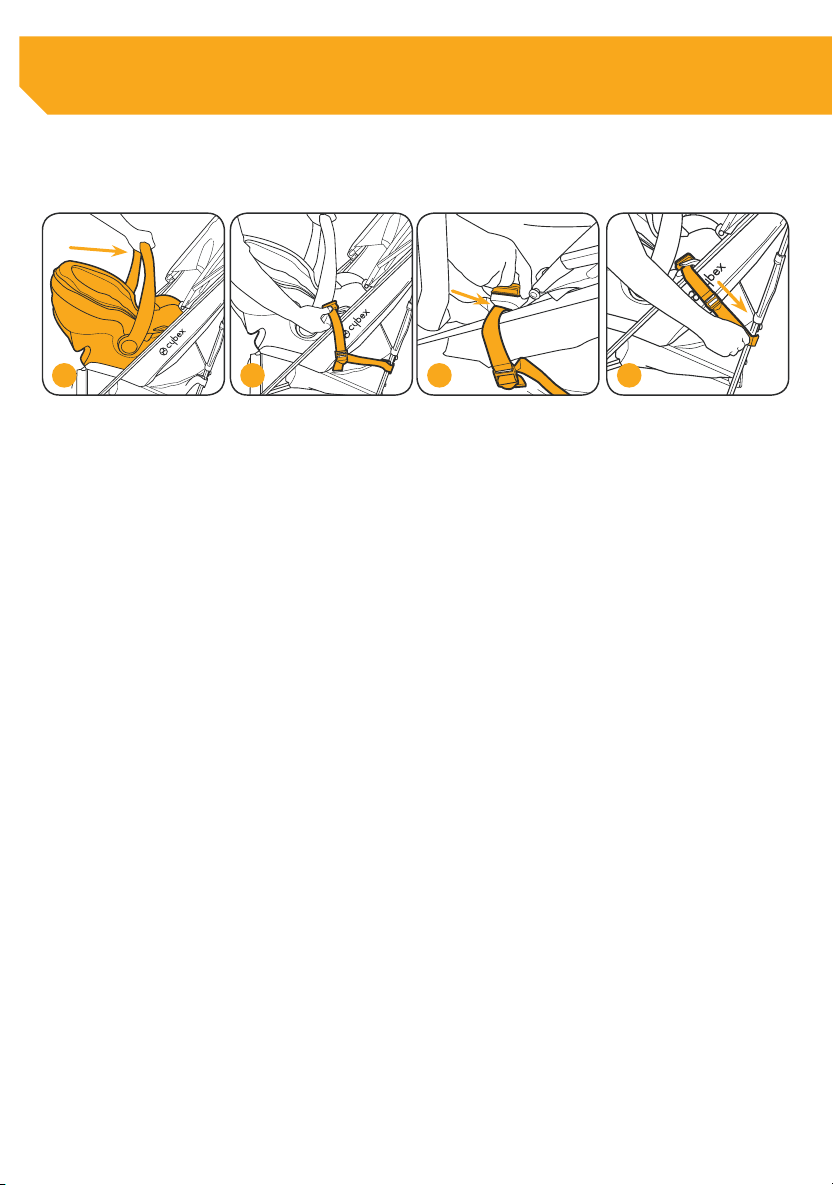

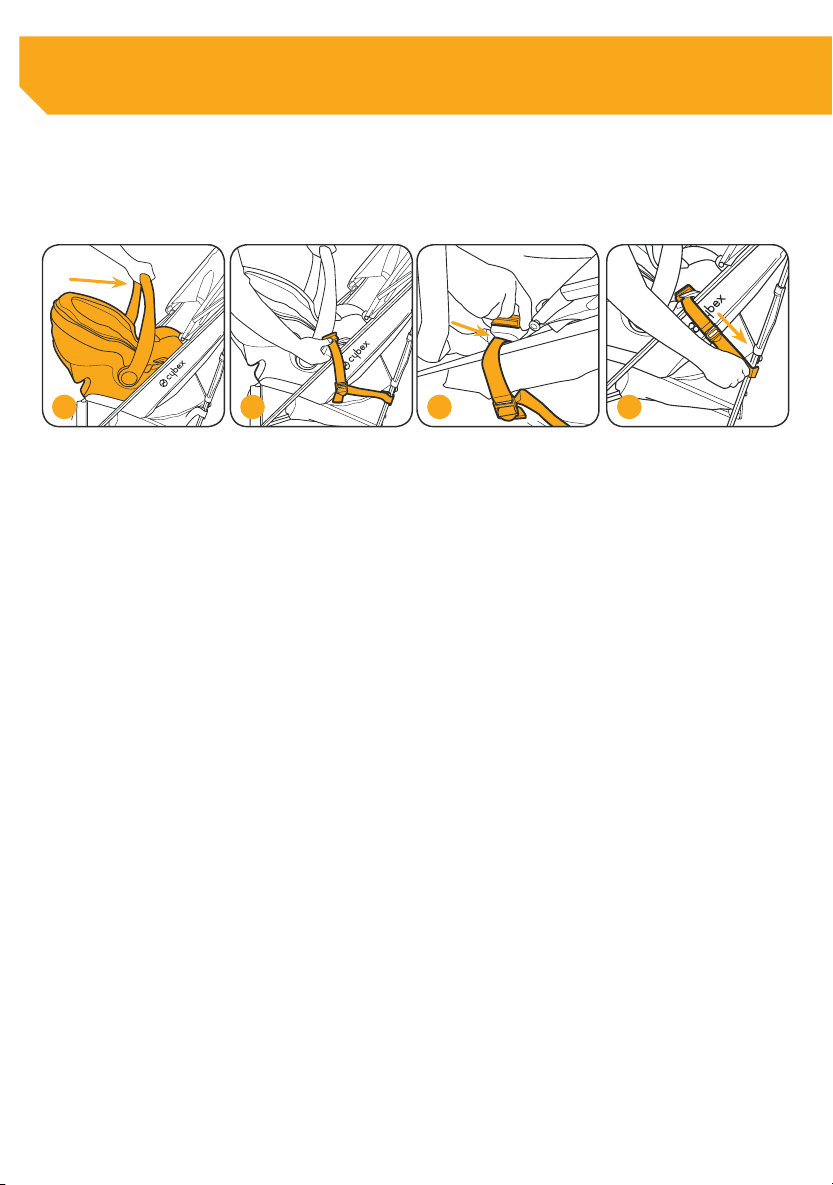

Convert your CYBEX Ruby stroller into a convenient travel system with the CYBEX Infant
Car Seat Adapter (sold separately).
1 2 3 4
Compatibility Guide
®
Britax
Baby Trend
®
Chicco
®
Combi
Eveno
Graco
®
®
Maxi-Cosi
Peg Perego
Safety 1st
®
®
®
®
Chaperone
Flex Lox
Keyt, Keyt 30
Shuttle, Shuttle 33
Embrace, Serenade 35
Safeseat 22, Snugride 22, 35
Mico
Primo Viaggio SIP 30/30
On Board 35
For the latest compatibility information, please visit:
www.regallager.com/cybex/icsa
12
Loading...
