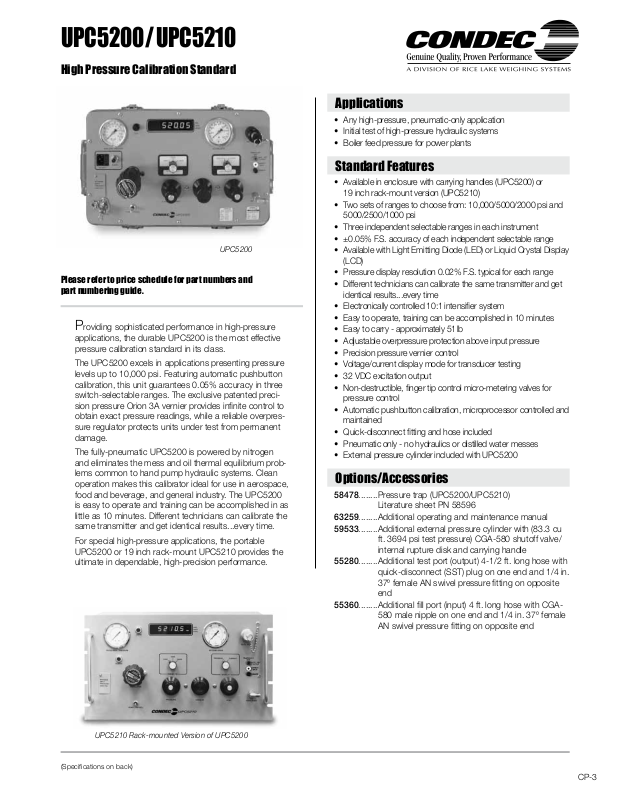

Condec UPC5200, UPC5210 Specifications
UPC5200/UPC5210
High Pressure Calibration Standard
UPC5200
Please refer to price schedule for part numbers and
part numbering guide.
Providing sophisticated performance in high-pressure
applications, the durable UPC5200 is the most effective
pressure calibration standard in its class.
The UPC5200 excels in applications presenting pressure
levels up to 10,000 psi. Featuring automatic pushbutton
calibration, this unit guarantees 0.05% accuracy in three
switch-selectable ranges. The exclusive patented precision pressure Orion 3A vernier provides infinite control to
obtain exact pressure readings, while a reliable overpressure regulator protects units under test from permanent
damage.
The fully-pneumatic UPC5200 is powered by nitrogen
and eliminates the mess and oil thermal equilibrium problems common to hand pump hydraulic systems. Clean
operation makes this calibrator ideal for use in aerospace,
food and beverage, and general industry. The UPC5200
is easy to operate and training can be accomplished in as
little as 10 minutes. Different technicians can calibrate the
same transmitter and get identical results...every time.
For special high-pressure applications, the portable
UPC5200 or 19 inch rack-mount UPC5210 provides the
ultimate in dependable, high-precision performance.
Applications
• Any high-pressure, pneumatic-only application
• Initial test of high-pressure hydraulic systems
• Boiler feed pressure for power plants
Standard Features
• Available in enclosure with carrying handles (UPC5200) or
19 inch rack-mount version (UPC5210)
• Two sets of ranges to choose from: 10,000/5000/2000 psi and
5000/2500/1000 psi
• Three independent selectable ranges in each instrument
• ±0.05% F.S. accuracy of each independent selectable range
• Available with Light Emitting Diode (LED) or Liquid Crystal Display
(LCD)
• Pressure display resolution 0.02% F.S. typical for each range
• Different technicians can calibrate the same transmitter and get
identical results...every time
• Electronically controlled 10:1 intensier system
• Easy to operate, training can be accomplished in 10 minutes
• Easy to carry - approximately 51 lb
• Adjustable overpressure protection above input pressure
• Precision pressure vernier control
• Voltage/current display mode for transducer testing
• 32 VDC excitation output
• Non-destructible, nger tip control micro-metering valves for
pressure control
• Automatic pushbutton calibration, microprocessor controlled and
maintained
• Quick-disconnect tting and hose included
• Pneumatic only - no hydraulics or distilled water messes
• External pressure cylinder included with UPC5200
Options/Accessories
58478 ........Pressure trap (UPC5200/UPC5210)
Literature sheet PN 58596
63259 ........Additional operating and maintenance manual
59533 ........Additional external pressure cylinder with (83.3 cu
ft. 3694 psi test pressure) CGA-580 shutoff valve/
internal rupture disk and carrying handle
55280 ........Additional test port (output) 4-1/2 ft. long hose with
quick-disconnect (SST) plug on one end and 1/4 in.
37º female AN swivel pressure fitting on opposite
end
55360 ........Additional fill port (input) 4 ft. long hose with CGA-
580 male nipple on one end and 1/4 in. 37º female
AN swivel pressure fitting on opposite end
UPC5210 Rack-mounted Version of UPC5200
(Specifications on back)
CP-3
UPC5200/UPC5210
Specications
AVAILABLE PRESSURE CALIBRATIONS:
Gauge
OVERALL ACCURACY:
±0.05% F.S. maximum. Accuracy statement includes all effects
of linearity, hysteresis, repeatability and ambient temperature.
POWER:
115 or 230 VAC 50/60 Hz
TEMPERATURE RANGE:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing
PRESSURE MEDIA:
Clean dry gaseous nitrogen, standard
ExTERNAL PRESSURE CYLINDER SUPPLIED:
Capacity: 88 standard cubic feet
Volume: 960 cubic inches
Rating: 2216 psi
REGULATED PRESSURE GAUGE:
Size: Two and one half-inch diameter
Range: 0-1500
PRESSURE MEDIA FILTER:
Rating: 7 microns, nominal
Type: Field replaceable filter cartridge contained within a stainless steel outer case
CONTROL VALVES:
Type: Micro-metering with positive shut off, adjustable stop and
replaceable seat, non-destructible
Material: 300 series stainless steel outer body
INTERNAL PIPING:
Tubing: 1/4 in. O.D. and 1/8 in. O.D., 300 series stainless steel,
seamless
Couplings: 300 series stainless steel Swagelok
®
OUTPUT TEST PORT:
Style: Quick-disconnect type
Pressure Rating: 10,000 psig minimum, connected or
disconnected
PRESSURE HOSES:
Quantity supplied: Two; one input and one output
Length: 4 feet, nominal
BOOSTER PUMP SOLENOID VALVE:
Type: Three-way, normally closed, electronically controlled
Pressure Rating: 1500 psig
Power Requirements: 115 or 230 VAC, 50/60 Hz, 10 watts
ACCUMULATOR GAUGE:
Size: Two and one half-inch diameter
Range: 0-15,000 psi
INPUT PRESSURE REGULATOR:
Pressure Rating: 3000 psig maximum
Output Pressure Range: 0-1000 psi
Construction: Self-relieving, single stage regulator
UPC5200 INTERNAL PRESSURE SENSOR:
Type: Bonded, metal foil strain gauge or equal
Sensitivity: 3 mV/V, nominal
Construction: Completely weld sealed stainless steel outer body
and pressure cavity
ExTERNAL CARRYING CASE:
Type: Deep-drawn aluminum case with cover and carrying
handles
Material Thickness: 0.090 in. nominal
Finish: Grey polyurethane baked-enamel paint, textured finish
CURRENT DISPLAY:
0-20.000 mA counting by 0.005 mA
WEIGHT:
UPC5200: 51 lb (23.1 kg) including all hoses and cables
External cylinder 5 lb (2.26 kg)
UPC5200 OVERALL DIMENSIONS
A = 11 in. (279.40 mm) C = 11.5 in. (292.10 mm)
B = 18.0 in. (457.20 mm)
UPC5210
19 in. (482.6 mm) W x 8.1 in. (205.74 mm) D x 10.5 in. (266.7 mm) H
Rack-mount dimensions are for reference only. Consult factory for
cutout dimensions.
(not shown) dimensions—excluding front handles:
Specifications subject to change without notice
