CONCORD Eye-Q 4363z

ENGLISH

User’s Guide

FRANÇAIS

DEUTSCH

LANGUAGES

ESPAÑOL

ENGLISH

CONGRATULATIONS

Congratulations on the purchase of your new camera. Your camera has been carefully engineered and manufactured to give you dependable operation. Read this manual before operating the camera to become more familiar with it.

This manual has been written and formatted with depth and detail so that you can easily follow the instructions to maximize the features of your camera.

CAMERA OVERVIEW

AWB

CAMERA OVERVIEW

Top/Front

10 11

1. Power Button

2. Shutter Button

3. Flash

4. Lens/ Lens Door

5. Viewfinder

6. Flash Sensor

7. Microphone

8. Red-eye Reduction LED/ Self-Timer LED/ AF Assist Light

9. Port Cover

10. Mini-USB port

11. TV-Out port

Bottom/Back

12. Flash Ready LED

13. Auto-Focus LED

14. Viewfinder

15. LCD

16. LCD On/Off Button

17. Tripod Socket

18. Battery/Memory Card Door

19. Mode Switch

20. Thumbnail/Wide/ Tele Zoom Button

21. MENU Button

22. Move up / Flash ( ) Button

23. OK Button

24. Wrist Strap Holder

25. Move to right / Macro ( ) Button

26. Speaker

27. Move down / Self-timer ( ) Button

28. Memory Card Slot

29. Battery Compartment

30. Move to left / Continuous ( ) Shot Button

31. Reset Button

32. Delete Button

12 13

21 22

23 24 25 26

28 29 30 31 32

LCD ICONS

0001/0014

AWB

D E

A. Resolution B. Camera Mode C. Flash / Scene Selection D. White Balance

G. Frame Counter H. Macro I. Zoom Bar J. Self-Timer

K. Memory Card E. Battery Level F. Image Quality

AWB

: Single Shot

: Continuous Shot

: Review

: Video Clips

: Sport

0001/0014

Camera Features

• 4.0 Megapixels, 2272 x 1704 Resolution

• 1.5” Color LCD

• 3x Optical Zoom

• 6x Digital Zoom

• AVI Movie with Sound at 30fps

• 7 Preset Scenes

• Macro Mode

• Continuous Shooting Mode

• Self-timer

• Multi-area/Center-spot Auto Focus

• 16MB Internal Memory, SD Card Slot

• Compatible with Windows® 98/98SE/ 2000/ME/XP and Mac OS 9.0 or higher

TABLE OF CONTENTS

CAMERA OVERVIEW ........................................................................................................................................... 2

Top/Front......................................................................................................................................................... 2

Bottom/Back ................................................................................................................................................... 2

LCD Icons....................................................................................................................................................... 2

Camera Features............................................................................................................................................ 2

GETTING STARTED.............................................................................................................................................. 5

Attaching the Wrist Strap................................................................................................................................ 5

Loading the Batteries ..................................................................................................................................... 5

Turning the Camera On and Off..................................................................................................................... 5

Removing the Protective Plastic Film............................................................................................................. 5

Setting the Language, Date and Time............................................................................................................ 6

Checking the Battery Level ............................................................................................................................ 7

Turning the LCD On and Off .......................................................................................................................... 7

Internal memory / Inserting the Memory Card ............................................................................................... 8

Setting the camera’s operational mode.......................................................................................................... 9

TAKING A PICTURE.............................................................................................................................................. 9

Taking Pictures with the viewfinder ................................................................................................................ 9

Taking Pictures with the LCD ...................................................................................................................... 10

Using the Auto Focus Lock ...........................................................................................................................11

Setting the Flash .......................................................................................................................................... 12

Using the Optical Zoom................................................................................................................................ 13

Using the Digital Zoom ................................................................................................................................. 13

Taking Pictures in Macro Mode .................................................................................................................... 14

Taking Pictures in Continuous Mode ........................................................................................................... 14

Taking Pictures in Self-timer Mode ............................................................................................................... 15

Using the main menu in Camera mode ....................................................................................................... 16

• Setting Capture mode ........................................................................................................................... 17

• Taking Pictures in Sport Mode .............................................................................................................. 17

• Setting Image Quality ........................................................................................................................... 18

• Setting Image Resolution...................................................................................................................... 18

• Selecting Scene Modes ........................................................................................................................ 20

• Setting White Balance .......................................................................................................................... 21

• Selecting Photo Effect ......................................................................................................................... 21

• Setting EV Compensation..................................................................................................................... 22

• Setting ISO Sensitivity .......................................................................................................................... 23

• Setting Metering Method....................................................................................................................... 24

• Setting AF Mode .................................................................................................................................. 24

TAKING VIDEO CLIPS ........................................................................................................................................ 25

Taking Video Clips ....................................................................................................................................... 25

Taking Video Clips in Self-timer Mode ......................................................................................................... 26

Using the Main Menu in Video Clip Mode.................................................................................................... 26

Setting Video Resolution .............................................................................................................................. 27

REVIEWING YOUR FILES .................................................................................................................................. 28

Using Review Mode ..................................................................................................................................... 28

Reviewing Pictures/Video Clips.................................................................................................................... 28

3En3

Enlarging Stored Picture .............................................................................................................................. 29

Using Thumbnail View.................................................................................................................................. 30

Using the Delete Button ............................................................................................................................... 30

Using the main menu in Review Mode ........................................................................................................ 32

• Deleting Files ........................................................................................................................................ 33

• Using slide show ................................................................................................................................... 34

• Transferring Files from Internal Memory to SD Card............................................................................ 36

CUSTOMIZING THE CAMERA SETTINGS......................................................................................................... 37

Setup Menu and Features............................................................................................................................ 39

Setting the Auto Off Time ............................................................................................................................. 39

Setting the Language ................................................................................................................................... 40

Setting the Date and Time............................................................................................................................ 40

Setting the LCD Brightness .......................................................................................................................... 40

Formatting memory card .............................................................................................................................. 41

Turning Beep On or Off ................................................................................................................................ 42

Setting Quick View Interval .......................................................................................................................... 42

Setting AF Assist Light.................................................................................................................................. 43

RESTORE THE CAMERA TO FACTORY DEFAULT SETTINGS....................................................................... 44

SOFTWARE INSTALLATION GUIDE.................................................................................................................. 45

Computer System Requirements ................................................................................................................. 45

Installation Requirements............................................................................................................................. 45

Using the Installer Splash Screen ................................................................................................................ 46

Flow Diagram for Software Installation ........................................................................................................ 47

Identifying your Operating System ............................................................................................................... 48

Installing the Driver and DirectX 9 - Windows 98/98SE............................................................................... 49

Installing DirectX 9 - Windows 2000 ............................................................................................................ 51

Installing ArcSoft PhotoImpression - all Windows users .............................................................................. 52

Installing Adobe Acrobat Reader 5 - all Windows users (optional) .............................................................. 54

CONNECTING THE CAMERA TO THE COMPUTER ........................................................................................ 56

Downloading Pictures and Video Clips onto your Computer ....................................................................... 56

Using ArcSoft PhotoImpression.................................................................................................................... 57

Unplugging your Camera from the Computer .............................................................................................. 58

TV MODE ............................................................................................................................................................. 59

Connecting the camera to the television ...................................................................................................... 59

Using the TV as a Live Viewfinder ............................................................................................................... 59

Reviewing pictures and video clips on your TV ........................................................................................... 59

ERROR MESSAGES ........................................................................................................................................... 60

TROUBLESHOOTING......................................................................................................................................... 61

GETTING HELP................................................................................................................................................... 65

CAMERA SPECIFICATIONS............................................................................................................................... 66

SAFETY TIPS AND MAINTENANCE.................................................................................................................. 69

REGULATORY INFORMATION........................................................................................................................... 72

GETTING STARTED

⁄ ⁄

AWB

⁄ ⁄

GETTING STARTED

ATTACHING THE WRIST STRAP

Please attach the wrist strap to prevent dropping the camera.

LOADING THE BATTERIES

fig.1.1 fig.1.2 fig.1.3

The camera can use 2x AA alkaline, lithium or rechargeable batteries to operate. Rechargeable Batteries (NiMh) are highly recommended.

1. Slide the Battery/Memory Card door in the direction of the arrow, and lift it open. (fig.1.1)

2. Insert the batteries according to the polarity indication engraved on the battery contact. (fig.1.2)

3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow, and close it securely. (fig.1.3)

TURNING THE CAMERA ON AND OFF

The Power button is located on the top of the camera.

1. Press and hold the Power button ( ) for more than 1 second to turn the camera on.

• The Concord logo will show on the LCD for about 2 seconds.

• If the camera is in Camera Mode ( ) or Video Clip Mode ( ), the

• The LCD will turn on automatically and display live viewfinder.

2. To turn the camera off, press the Power ( ) button.

Note: To extend battery life,

• The LCD will be off after 1 minute of inactivity. After the LCD is automatically turned off, the Flash

• The camera will automatically power off after 2 minutes of inactivity. Press and hold the Power ( )

lens cover will open, and the lens will extend out automatically to the wide-angle position. Do not block the lens from extending out.

Ready LED blinks. Press any button to reactivate the LCD.

button for more than 1 second to turn the camera back on.

REMOVING THE PROTECTIVE PLASTIC FILM

To prevent the LCD from damaging during transportation, the LCD is covered with a clear plastic film. To get a clearer view of the subject while taking pictures, please remove the protective film.

GETTING STARTED

SETTING THE LANGUAGE, DATE AND TIME

When the camera is powered on for the first time, the Language, Date and Time menus will appear.

DATE/TIME SETUP

01 - 01 - 2004

01 : 01 AM MM - DD - YYYY 12 - HOUR

RETURN SET

fig. 1.1 fig. 1.2

1. Press or to highlight the language you would like to use. (fig. 1.1)

2. Press the OK button to select. The next screen shows date/time setup page. (fig. 1.2)

3. Press to highlight the Date field, the Time field, the Date Format field or the Time Format field. The selected segment will blink.

4. Press or to change the number in the blinking position, and press to go to other fields.

5. Press the OK button to exit date/time setting. The next screen displays live viewfinder.

Note:

1. Each language will set the default setting for date format and TV option. To change the TV setting, please refer to page 59.

Language(s) Date Format Setting TV Option

English / Español / MM/DD/YYYY NTSC

Francis / Deutsch DD/MM/YYYY PAL /Italiano/ Nederlands/Português

YYYY/MM/DD PAL

2. If the battery is removed or dead for about 4 minutes, the date/time will return to its default setting. When you power on the camera again, the Date/Time setup screen will show on the LCD. You can either reset date/time by following steps 3-5 above or skip the date/time setting first by pressing the OK button and then set the date/time when you like by referring to p.40.

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

GETTING STARTED

CHECKING THE BATTERY LEVEL

The battery level indicator represents the level of power of the batteries. The meaning of each icon is as follows:

Batteries are fully charged.

Battery power is low, need to be replaced or recharged (rechargeable

Battery power is not full, but sufficient for usage.

Batteries are empty and need to be replaced.

Battery power is running low.

batteries only) soon.

Note:

• The camera’s battery level indicator may not accurately reflect the state of rechargeable batteries even when the rechargeable batteries have been fully recharged due to the inherent problem with rechargeable batteries. For better performance, please use Ni-MH rechargeable batteries.

• Remove the batteries from the camera if they will not be used for an extended period of time to prevent corrosion or battery leaks.

TURNING THE LCD/ICONS ON AND OFF

The camera has a 1.5” LCD which can frame subjects for image and video clip capture, review stored images, video clips and display the current camera settings.

ÎÎ Î

Icons off LCD off LCD on with icons

Use the ( ) button to toggle the LCD mode. The LCD mode changes each time the button is pressed.

AWB

28/45

Note:

• To save battery power, you may turn off the LCD display.

• The LCD will also automatically power off after one minute of inactivity. The flash LED blinks when the LCD is auto-powered off. Press any button to turn the LCD back on.

• In ( ) Review Mode, only the LCD icons can be turned on or off.

GETTING STARTED

INTERNAL MEMORY/INSERTING THE MEMORY CARD

Internal Memory

The camera is equipped with 16MB of internal memory, which can be used right away.

Status Memory in Use

Memory card is not inserted. Internal Memory

Memory card is inserted. Memory Card

NOTE!: The files stored in the internal memory will remain in the internal memory until the Transferring Files feature is selected. Please refer to the Transferring Files section on page 36.

Inserting the Memory Card

fig.1.1 fig.1.2 fig.1.3

In addition to having a 16MB internal memory, the camera can use Secure Digital (SD) memory cards to store images and video clips.

1. Slide the Battery/Memory Card door in the direction of arrow (fig. 1.1), and lift it open.

2. Insert the memory card in the direction as shown in fig.1.2, and push it firmly into the SD card slot as far as it will go. A click sound can be heard when the SD card is fully engaged.

3. Close the Battery/Memory Card door. (fig. 1.3) Make sure it is closed securely.

Removing the Memory Card

1. Press the memory card with finger-tip, the card will eject up.

2. Pull the card out.

Note:

• The camera can support SD cards up to 512 MB.

• When the SD card is inserted, power on the camera, the camera will first check if the SD card is valid. If

yes, it will set the SD card as storage; otherwise it will request for formatting. Format the SD card (refer to p.41) if you want to use the SD card as storage, or else the memory locked icon will be shown on the LCD and Shutter button will be disabled.

• If the SD card is locked, when the camera is powered on, no image can be taken by pressing the Shutter

button. In this case, please power off the camera first, then take out the SD card and unlock the SD card, and then reload the SD card.

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

GETTING STARTED / TAKING A PICTURE

SETTING THE CAMERA’S OPERATIONAL MODE

The camera has 3 operational modes: Camera Mode, Review Mode and Video Clip Mode.

To change the camera operational mode, slide the mode switch horizontally to the corresponding position.

Camera Mode

Use the camera mode to take pictures or to customize your camera settings for picture taking.

Review Mode

Use the review mode to browse through images and video clips, to delete images and video clips, to play a slide show, or to transfer the images/video clips from the internal memory to the SD card.

Video Clip Mode

Use video clip mode to capture video clips with sound or to customize your camera settings for video clip recording.

TAKING PICTURES

TAKING PICTURES WITH THE VIEWFINDER

28/45

fig.1.1 fig.1.2 fig.1.3

1. Turn the camera on.

2. Set the camera to ( ) Camera mode. The LCD can be switched off to save battery power by pressing the ( ) button.

3. Frame the subject in the viewfinder. (fig.1.1)

4. Press the shutter button half-way to activate the auto-focus until the green AF LED stops blinking. (fig.1.2)

• The camera will automatically determine the best focus, and a rapid click sound can be heard. Note: For more information on Focus Lock, please go to page 11. To change AF mode, please refer to p. 24.

5. Press the shutter button fully to capture the image. (fig.1.3)

• The camera will make a click sound.

• The camera will beep when the image is captured.

• When the image has been captured, the Flash Ready LED next to the viewfinder will blink to indicate that the image is being stored.

About Flash Ready LED

AWB

TAKING A PICTURE

Steady

The camera is capturing a video clip.

Blinking

The flash is recharging, or LCD is auto powered off.

Note: Do not power the camera off or change camera mode while the camera is capturing or storing a picture or video clip. Otherwise, the picture or video clip may be corrupted.

TAKING PICTURES WITH THE LCD

AWB

fig. 1.1 fig. 1.2 fig. 1.3

1. Set the camera to ( ) camera mode.

2. Frame the subject in the LCD. (fig.1.1)

3. Press the shutter button half-way to activate the auto-focus lock until the green AF LED stops blinking and the AF frame turns green. (fig.1.2)

• The camera will automatically determine the best focus, and a rapid click sound can be heard.

Note: For more information on Focus Lock, please go to p. 11. To change AF mode, please refer to p. 24.

4. Press the shutter button fully to capture the image. (fig.1.3)

• The camera will make a click sound.

• The camera will beep when the image is captured.

• When the image has been captured, the Flash Ready LED next to the viewfinder will blink to indicate that

the image is being stored.

• A preview of the image will be displayed on the LCD for a second. To change the preview interval, please

refer to p.42.

• The picture counter number displayed in the LCD will be updated.

5. If you are not satisfied with the image, you may simply press ( ) button to delete the image before it is saved. For details, please refer to p.30.

28/45

TAKING A PICTURE

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

USING AUTO-FOCUS LOCK

This feature can be used to freeze the focus when the subject is not located in the center of the picture.

About Auto-Focus LED

When the shutter button is pressed half-way, the auto-focus feature will be activated and the Auto Focus (green) LED will display the status of the auto focus lock.

Steady

The subject is in focus.

About Auto-Focus Frame

AF Frame Color Description

AWB

28/45

White No focus.

Green The subject(s) is in focus.

Using the focus lock:

Blinking

The camera is setting the focus.

Auto-Focus Frame

AWB

fig. 1.1

28/45

AWB

28/45

fig. 1.2 fig. 1.3 fig. 1.4

28/45

1. Position the subject in the frame center. (fig.1.1)

2. Press the shutter button halfway down until the AF frame turns green and the green AF LED stops blinking. (fig.1.2)

3. Recompose your picture. (fig.1.3)

Keep the shutter pressed half-way while recomposing the picture.

4. Press the shutter button fully to capture the picture. (fig.1.4)

Note: The AF LED will continue blinking in the following conditions:

1. There are several subjects at different distances within the focus lock area. Recompose the picture by moving the camera slightly.

2. There is no color contrast. Recompose the picture with a subject that contains more color.

3. There is insufficient lighting. Increase the lighting in the surrounding area.

4. Please refer to P.24 to change AF assist light setting.

SETTING THE FLASH

AWB

TAKING A PICTURE

AWB

28/45

AWB

fig. 1.1 fig. 1.2 fig. 1.3

How to set the flash:

Press / repeatedly until the desired indicator appears on the LCD.

Flash Mode Description

Auto Flash (Default) The camera judges if a flash is required. If the environment is too dark,

the flash will fire.

Auto + Red-Eye Use this mode to significantly reduce the occurrence of “red-eye” in flash

photography. The camera will automatically detect when the flash is needed and the flash will fire after a short delay.

Flash ON Flash will fire in any lighting condition. The “red-eye” reduction function is included also.

Flash off The flash will not fire in this mode. Please use this mode if you want to capture the mood of the ambient lighting or to use the available light in places where flash photography is prohibited, such as museums.

• To prevent blurry pictures in low light situations, hold the camera steady when pressing the Shutter button or mount the camera on a tripod.

28/45

Note:

• The flash needs to recharge after it is fired. If the Shutter button is pressed while the flash is charging, the Flash Ready LED will blink. Please wait a few moments and press the Shutter button

again to take a picture.

• Some of the Scene Selection Modes will deactivate the flash setting. Please refer to p.20 for more information.

TAKING A PICTURE

X2X1

28 SEC

1 SEC

AWB

28 SEC

AWB

X2X1

28 SEC

1 SEC

AWB

28 SEC

USING THE OPTICAL ZOOM

The camera provides up to 3x optical zoom to take pictures.

28/45

fig. 1.1

AWB

fig. 1.2 fig. 1.3

AWB

1. Press T (Tele) to zoom in your subject. The optical zoom status is shown on the LCD by the zoom bar in white color ( ).

2. Press W (Wide) to zoom out.

USING THE DIGITAL ZOOM

The camera also provides 6x Digital Zoom (six times). Combined with the 3x optical zoom, it can give up to 18x magnification to your pictures.

28/45

6x DIGITAL ZOOM

) first. When

) and the focus mark will change as

AWB

fig. 1.1 fig. 1.2 fig. 1.3

How to use digital zoom:

1. Turn the LCD on.

2. Press T until the white optical zoom bar reached the mid-marker (

3. Continue to press T to activate the digital zoom. The zoom bar will turn blue ( digital zoom reaches 6x, the zoom bar will change to red ( show in fig. 1.3. The captured area is within the red arrows.

• There will be a short delay before the digital zoom is activated.

4. Press W to zoom out.

Activating/Deactivating Digital Zoom

CAMERA MODE

SETUP

RETURN SELECT

fig. 1.1 fig. 1.2 fig. 1.3

SETUP

FORMAT

DATE/TIME SETUP

DIGITAL ZOOM

BEEP

QUICK VIEW

RETURN SELECT

1. In Camera Mode, press MENU to display the Main Menu.

2. Press until SETUP is highlighted, then press to enter its submenu.

3. Press until Digital Zoom is highlighted, then press to enter its submenu.

4. Press or to highlight Yes or No.

• The default setting is Yes.

5. Press OK to select.

DIGITAL ZOOM

YES

RETURN SET

TAKING A PICTURE

AWB

Important:

1. Hold your camera steady while using Digital Zoom to prevent blurriness in the photograph due to camera movement. It is recommended to either place your camera on a steady surface or use a tripod.

2. For best results, stand at least 2 ft (0.6m) away from the subject in normal mode.

3. The image quality may degrade slightly with Digital Zoom.

4. Digital Zoom can only be monitored with the LCD and not through the optical viewfinder.

TAKING PICTURES IN MACRO MODE (CLOSE-UP SHOOTING)

This mode enables the camera to capture pictures in close distances.

AWB

1. Press the button. The Macro icon ( ) will be displayed on the LCD.

2. Frame the subject in the LCD.

• The best shooting range is from 10 cm to 60 cm. (4 in. – 23.6 in.)

3. Press the shutter button half-way to activate the focus until the green AF LED stops blinking and the AF frame turns green.

4. Press the shutter button fully to take the picture.

28/45

Note:

1. When Macro mode is selected, the camera will turn the LCD on if it is turned off automatically.

2. Zoom buttons will not work in Macro mode.

TAKING CONTINUOUS PICTURES

AWB

1. Press the button. The Continuous Shot icon ( ) will be displayed on the LCD.

2. Frame the subject in the LCD screen and press the shutter button half-way to activate the focus until the

green AF LED stops blinking and the AF frame turns green.

3. Press the shutter button fully to capture the pictures.

• The camera will automatically capture 7 continuous images at approximately 3 images per second in

1600 x 1200 resolution.

4. If you do not want to take continuous pictures anymore, press the button once until the Continuous Shot icon ( ) disappears from the LCD.

28/45

Note:

• In continuous shooting mode the flash is disabled as the recharging time will slow it down.

• The camera will only capture pictures in 1600 x 1200 resolution in continuous shooting mode.

• The LCD will be blank when the images are taken in the Continuous Shooting Mode.

TAKING A PICTURE

AWB

TAKING PICTURES WITH SELF-TIMER

AWB

1. In ( ) Camera Mode, press button, the self-timer icon ( ) appears on the LCD.

2. Place the camera on a flat surface or tripod.

3. Use the LCD to compose the picture, and then press the Shutter button to activate the Self-Timer. The Self -timer LED will blink slowly for 7 seconds, faster for the remaining 3 seconds and then the image

will be captured.

Note:

• The Self-Timer is automatically deactivated once the image is taken.

• To deactivate the Self-Timer before taking a picture, press button until the self-timer icon ( ) disappears.

Photography Hints -

Since the Self-Timer LED indicator on the front of the camera flashes, you have time to join in the photograph and know when the camera is done taking a picture when the Self-Timer LED light stops blinking.

28/45

USING THE MAIN MENU IN CAMERA MODE

TAKING A PICTURE

CAPTURE MODE

CAMERA MODE

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

CAMERA MODE

PICTURE EFFECT

EV COMPENSATION

—

ISO

METERING

AUTO FOCUS

RETURN SELECT

CAMERA MODE

SETUP

QUALITY SETUP

FINE

NORMAL

ECONOMY

RETURN SET

WHITE BALANCE

AUTO

AWB

SUNNY

FLUORESCENT

TUNGSTEN

RETURN SET

PICTURE EFFECT

OFF

B&W

SOLARIZE

SEPIA

RETURN SET

IMAGE SIZE

2272 x 1704

2048 x 1536

1600 x 1200

1280 x 960

640 x 480

RETURN SET

SCENE SELECTION

OFF

PAR TY / INDOOR

SNOW

BEACH

SUNSET

RETURN SET

SCENE SELECTION

NIGHT LANDSCAPE

FIREWORKS

NIGHT PORTRAIT

RETURN SET

EV COMPENSATION

—

RETURN SELECT

ISO

AUTO

100

200

400

RETURN SET

CENTER SPOT

MULTI-AREA

RETURN SET

AUTO-FOCUS

00 EV

—

SET

METERING

SPOT

MATRIX

RETURN SET

TAKING A PICTURE

AWB

USING THE MAIN MENU IN CAMERA MODE

Follow the steps below to set the advanced shooting options in the camera through the Main Menu.

1. Turn the camera on.

2. Set the mode switch to ( ) Camera mode.

3. Press the MENU button to display the main menu.

4. Press or until the desired option is highlighted.

5. Press to enter the submenu.

6. Press or in the submenu to toggle between the options.

7. Press the OK button to make a selection.

• All selections will be marked by a red check mark.

8. To return to the previous menu, press .

9. To exit the menu at any time, press the MENU button.

SETTING CAPTURE MODE

The capture mode menu has 4 features to choose from for taking pictures.

Capture Mode Option Description

( ) Single The camera will take 1 picture at a time.

( )Continuous Shooting The camera will take 7 pictures (at 1600 x 1200 resolution) in a row when the shutter button is fully pressed. The flash is disabled in this mode.

( ) Sport The camera will take 1 picture at a time in Sport mode.

( + ) Continuous Shooting with Sport The camera will take 7 pictures in a row in Sport mode

Note: Flash will be deactivated in continuous shot.

TAKING PICTURES IN SPORT MODE

This mode is used to shoot sports and other high-speed activities. The camera will automatically choose a higher shutter speed and wider aperture to capture fast-moving action without blur.

Setting Sport Mode:

CAMERA MODE

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

CAPTURE MODE

RETURN SET

AWB

28/45

1. In the main menu, press to enter the capture mode submenu.

2. Press or to highlight Sport ( ) or Sport + Continuous shot ( + ).

3. Press OK to enter the mode.

Taking a picture in Sport Mode:

1. Frame the subject in the LCD.

2. Press the shutter button half-way to activate the focus until the green AF LED stops blinking and the AF frame turns green.

3. Press the shutter button fully to take the picture.

TAKING A PICTURE

AWB

Note: Hold your camera steady to prevent blurriness. It is recommended to either place your camera on a steady surface or use a tripod.

SETTING IMAGE QUALITY

The Image Quality setting determines the amount of compression used to reduce the size of the stored image file in order to economize space in the memory.

AWB

Quality JPEG Compression Ratio Description

Fine 4.5:1 Fine image quality can be used for making prints.

Normal 11:1 Normal image quality can be used for general purpose pictures. (Default)

28/45

CAMERA MODE

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

QUALITY SETUP

FINE

NORMAL

ECONOMY

RETURN SET

Economy 17:1 Economy image quality can be used for pictures that will be sent

via e-mail.

How to change the quality:

1. When ( ) Quality is highlighted, press to enter the ( ) Quality Setup submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the Quality mode.

4. Press the MENU button to return to picture taking mode.

SETTING IMAGE RESOLUTION

Image Resolution determines the size of a captured image. Higher resolution images contain more details and have larger file sizes.

AWB

Images Stored on 16MB memory (approx.):

28/45

CAMERA MODE

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

IMAGE SIZE

2272 x 1704

2048 x 1536

1600 x 1200

1280 x 960

640 x 480

RETURN SET

Resolution 4MP 3MP 2MP 1.3MP VGA

Quality (2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine 14 16 23 33 94

Normal 32 37 52 77 200

Economy 46 53 81 110 248

TAKING A PICTURE

Images Stored on 32MB memory (approx.):

Resolution 4MP 3MP 2MP 1.3MP VGA

Quality (2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine 27 31 45 63 188

Normal 64 74 105 144 378

Economy 93 102 145 202 478

Images Stored on 64MB memory (approx.):

Resolution 4MP 3MP 2MP 1.3MP VGA

Quality (2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine 54 62 93 130 372

Normal 129 147 217 288 774

Economy 186 204 290 404 956

Images Stored on 128MB memory (approx.):

Resolution 4MP 3MP 2MP 1.3MP VGA

Quality (2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine 111 127 181 257 776

Normal 254 300 434 603 1565

Economy 372 378 605 893 1980

How to change the resolution:

1. When Resolution is highlighted in the Main Menu, press to enter the ( ) Resolution submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the mode

4. Press the MENU button to return to picture taking mode.

Note: The default image resolution is 4MP.

AWB

SELECTING SCENE MODES

TAKING A PICTURE

The preset scene modes are helpful to quickly optimize the various settings to get the best capture of specific scenes.

AWB

28/45

CAMERA MODE

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

SCENE SELECTION

OFF

PARTY / INDOOR

SNOW

BEACH

SUNSET

RETURN SET

Preset Scene Description

Off (default) No Scene Selection.

Party/Indoor Use this mode to capture the details of candlelit scenes or other indoor

background light conditions.

Snow Use this mode to capture the details in snow scene, since the snow reflects more of the light and would make the images look darker if the camera is set at Off mode.

Beach Use this mode to capture the details in shining water scene.

Sunset This mode captures the deep hues and color variations in sunsets and

sunrises.

Night Landscape A slow shutter speed is used to capture the lights in night scenes. Photography Tip: With the slow shutter speed there is a possibility of getting blurry images due to camera movement.

To reduce blurring, you may do the following:

1. Set your camera to Night Landscape mode.

2. Place your camera on a tripod or sturdy surface area.

3. Set the camera to Self-Timer mode.

4. Press the shutter button.

Fireworks Use this mode to capture the burst of light from fireworks with a slower shutter

speed.

Night Portrait Use this mode to capture a subject illuminated with the lights in a night scene with a slow shutter speed.

• Due to the slow shutter speed, place the camera on a tripod for better picture quality.

How to set the scene selection:

1. When Scenes Select is highlighted, press to enter its submenu.

2. In the Scene menu, press or to choose between the options.

3. Press the OK button to select the Scene mode.

4. Press the MENU button to return to picture taking mode.

Note: Any change of the flash setting will cancel the scene selected in Scene Selection.

TAKING A PICTURE

AWB

SETTING WHITE BALANCE

By default the camera uses Auto White Balance to best reproduce colors under different lighting conditions. For

mixed lighting conditions you can use the Auto White Balance.

AWB

White Balance Mode Description

Auto The camera will automatically choose the white balance setting. Use this setting in variable light conditions.

Sunny Use outdoors with sufficient sunlight.

Fluorescent Use indoors with fluorescent or ambient light conditions.

Tungsten Use indoors with tungsten light conditions.

28/45

CAMERA MODE

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

WHITE BALANCE

AUTO

AWB

SUNNY

FLUORESCENT

TUNGSTEN

RETURN SET

How to change the White Balance:

1. When White Balance is highlighted, press to enter its submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the White Balance mode.

4. Press the MENU button to return to picture taking mode.

SELECTING THE PICTURE EFFECT

You can shoot with different picture effects.

Picture Effect Description

OFF (Default) Taking pictures without effect.

B&W Taking pictures in black and white.

SOLARIZE Taking pictures with clear light intensity like illustrations.

SEPIA Taking pictures in sepia tones like old pictures.

CAMERA MODE

PICTURE EFFECT

EV COMPENSATION

—

ISO

METERING

AUTO FOCUS

RETURN SELECT

PICTURE EFFECT

OFF

B&W

SOLARIZE

SEPIA

RETURN SET

How to set photo effect:

1. When Picture Effect is highlighted, press to enter its submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the picture effect.

4. Press the MENU button to return to picture taking mode.

TAKING A PICTURE

AWB

SETTING EXPOSURE COMPENSATION

The camera uses Auto Exposure to give you well exposed pictures under most conditions. If the main subject turned out too light or too dark, you can use the Exposure Compensation feature to improve the result.

AWB

28/45

Exposure Compensation

CAMERA MODE

PICTURE EFFECT

EV COMPENSATION

—

ISO

METERING

AUTO FOCUS

RETURN SELECT

Description

EV COMPENSATION

—

Mode

picture lighter.

Increasing the Exposure in pictures that are too dark, will make the

Decreasing the Exposure in pictures that are too light, will make the

picture darker.

How to use Exposure Compensation:

1. Press or in the Main Menu until ( ) Exposure Compensation is highlighted.

—

2. Press display the Exposure Compensation bar on the LCD.

3. Press or to change the Exposure Compensation between – 2.0 to +2.0.

4. Press the OK button to select the desired value.

• The camera will return to picture taking mode automatically after selecting.

00 EV

SET

TAKING A PICTURE

AWB

SETTING THE ISO SENSITIVITY

Raise the ISO speed when you wish to reduce camera shake or to turn the flash off when shooting in a dark

area.

ISO Setting Description

Auto (default) Equivalent to setting of 100 under normal conditions. When lighting is poor, camera

raises sensitivity automatically to compensate.

100 100 is best when you want to shoot clear, sharp images in daylight.

200 200 is ideal when shooting in cloudy situations.

400 400 is best when shooting in dark lit surrounding, for example, when shooting at night.

Note: Higher ISO speeds increase image noise. To take clean images, use as low an ISO speed as possible.

How to change ISO setting:

CAMERA MODE

PICTURE EFFECT

EV COMPENSATION

ISO

METERING

AUTO FOCUS

RETURN SELECT

—

1. When ( ) ISO is highlighted, press to enter its submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the ISO setting.

4. Press the MENU button to return to picture taking mode.

ISO

AUTO

100

200

400

RETURN SET

SETTING LIGHT METERING MODE

AWB

TAKING A PICTURE

You can choose which part of the image to use to measure the brightness and determine the exposure.

Metering Mode Description

Spot Meters the light in the center area of the image. Use this mode when the subject is

backlit or surrounded by strong light.

Matrix(default) Metering the light in different zones. Use this mode when the lighting condition is complex. The camera can adjust the settings to correct exposure for the main subject by metering the position of the subject, the brightness, the direct light, and the backlighting etc.

How to change Light Metering mode:

CAMERA MODE

1. When ( ) Metering is highlighted, press to enter its submenu.

2. Press or until the desired setting is highlighted.

PICTURE EFFECT

EV COMPENSATION

—

ISO

METERING

AUTO FOCUS

RETURN SELECT

METERING

SPOT

MATRIX

RETURN SET

3. Press the OK button to select the metering mode.

4. Press the MENU button to return to picture taking mode.

SETTING AUTO FOCUS (AF) MODE

The camera provides two AF modes to perform the Auto Focus function.

AF Mode Description

Center Spot In this mode, the camera uses the center zone of the subject to perform auto

focusing. Use this mode when the subject is backlit or surrounded by strong light.

Multi-Area (default) In this mode, the camera automatically determines which zone (center, upper-left, upper-right, lower-left, lower-right) to use to perform the auto focusing. Use this mode when the lighting condition is complex.

How to set AF mode:

CAMERA MODE

PICTURE EFFECT

EV COMPENSATION

—

ISO

METERING

AUTO FOCUS

RETURN SELECT

1. When AF mode is highlighted, press to enter its submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the metering mode.

4. Press the MENU button to return to picture taking mode.

AUTO-FOCUS

CENTER SPOT

MULTI-AREA

RETURN SET

TAKING VIDEO CLIPS

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

1 SEC

AWB

28 SEC

AWB

⁄ ⁄

AWB

28 SEC

TAKING VIDEO CLIPS

The camera can capture video clips with sound.

Shutter to Record

28 SEC

To record a video clip:

1. Slide the Mode Switch to ( ) Video Clip Mode.

2. Position the subject in the LCD.

3. Press the shutter button half-way to activate the focus until the green AF LED stops blinking and the AF

• The time limit is showing on the upper right corner of the screen.

frame turns green.

4. Press the shutter button fully to capture a continuous video clip. The time recorded will be shown on the LCD. The camera can take video until the memory is full.

To stop recording:

1. Press the Shutter button again to stop recording.

1 SEC

2. The camera will continue recording until the memory limit has been reached.

Press Shutter to Stop

Video Clip Information

Resolution: QVGA (320x240) or QQVGA (160x120) (Best for e-mail) Frame rate: 30fps File Format: AVI (Motion Picture)

Note:

• Do not open the battery door or turn the camera off while recording. Otherwise the video clip may not be stored.

• Higher capacity memory cards can take longer video clips.

• The Flash, Macro, and Continuous Shooting are deactivated in video clip mode.

AWB

TAKING VIDEO CLIP WITH SELF-TIMER

TAKING VIDEO CLIPS

28 SEC

Shutter to Record

1. In the ( ) Video Clip Mode, press button, and the self-timer icon ( ) will appear on the LCD.

2. Place the camera on a flat surface or tripod.

recording the video clip.

4. Press Shutter button again to stop recording. Otherwise the camera will continue until the memory limit is reached.

USING THE MAIN MENU IN VIDEO CLIP MODE

WHITE BALANCE

AWB

VIDEO MODE

WHITE BALANCE

PICTURE EFFECTS

EV COMPENSATION

—

METERING

VIDEO RESOLUTION

RETURN SELECT

AWB

SUNNY

FLUORESCENT

TUNGSTEN

RETURN SET

PICTURE EFFECT

OFF

B&W

SOLARIZE

SEPIA

RETURN SET

—

EV COMPENSATION

How to Use the Main Menu in Video Clip Mode:

1. Turn the camera on.

2. Set the mode switch to ( ) Video Clip mode.

3. Press the MENU button to display the main menu.

4. Press or until the desired option is highlighted.

5. Press to enter the submenu.

6. Press or in the submenu to toggle between the options.

7. Press the OK button to make a selection.

• All selections will be marked by a red check mark.

8. To return to the previous menu, press .

9. To exit the menu at any time, press the MENU button.

00 EV

—

SET

METERING

SPOT

MATRIX

RETURN SET

320x240

160x120

RETURN SET

VIDEO RESOLUTION

TAKING VIDEO CLIPS

Note:

• Please go to P.21 to get to know the differences between the various White Balance settings.

• Please refer to P.21 to see the different picture effects.

• Please go to P.22 for information about Exposure Compensation.

• Please refer to P.24 for the metering difference.

SETTING VIDEO CLIP RESOLUTION

Note: 160x120 resolution is ideal for email.

How to change the video resolution:

VIDEO MODE

WHITE BALANCE

PICTURE EFFECTS

EV COMPENSATION

—

METERING

VIDEO RESOLUTION

RETURN SELECT

VIDEO RESOLUTION

320x240

160x120

RETURN SET

1. When Video Resolution is highlighted in the Main Menu, press to enter the ( ) Resolution submenu.

2. Press or until the desired setting is highlighted.

3. Press the OK button to select the mode

4. Press the MENU button to return to video clip mode.

REVIEWING YOUR FILES

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

28 SEC

AWB

REVIEWING YOUR FILES

REVIEWING THE PICTURES/VIDEO CLIPS

In ( ) review mode, you can review your stored pictures and video clips through the LCD.

Note: When a memory card is inserted in the camera, only the pictures stored in the memory card will be displayed in the review mode. To view the pictures in the internal memory, please transfer files from internal memory to the SD card (p.36). Or, turn the camera off, remove the memory card, and then turn the camera back on.

How to review pictures/video clips:

2004:03:30 13:30:41

1. Slide the Mode Switch towards ( ) . The lens will retract after 30 seconds in review mode.

2. Press or to scroll through each file.

• The file type and frame counter will be displayed on the LCD.

File Indication File Type

0001/0003

Press OK to view Video

2004:03:30 13:30:41

JPEG Still Picture

Number of total pictures /video clips

AV I Video Clip

Number of current picture/video clip

3. When a video clip icon (AVI) is displayed on the LCD, press the OK button to play the video clip.

To stop playing the video clip, press the Shutter button again. Note: You may press the OK button to pause and resume playing the video clip.

REVIEWING YOUR FILES

AWB

28 SEC

AWB

ENLARGING THE PICTURES

In ( ) Review Mode, you can enlarge your pictures to take a closer look at the subject on the LCD. This

feature is for viewing purposes only and it will not enhance the stored picture.

2x Enlargement 6x Enlargement

4x Enlargement

Resolution Maximum Enlargement

2272 x 1704 6X

2048 x 1536 4x

1600 x 1200 4x

1280 x 960 4x

640 x 480 2x

How to enlarge:

1. In ( ) Review Mode, press or to scroll through the stored pictures and video clips.

2. While viewing a stored still picture, press the T button to get different magnifications.

3. Press , , or to navigate in the picture. When the picture can pan no farther in one direction, the directional arrow will disappear.

4. Press W button to zoom out.

Note: Video Clips cannot be magnified.

AWB

28 SEC

REVIEWING YOUR FILES

REVIEWING YOUR FILES IN THUMBNAIL

The thumbnail view can be accessed in ( ) Review mode by pressing either Menu or Wide button.

0001/0003

2004:03:30 13:30:41

MENU 0012/0012

fig. 1.1 fig. 1.2

Using the Quick Access Button:

1. In the ( ) Review Mode, press W button, nine thumbnail images or video clips will appear on the LCD display in a few seconds. The last displayed picture will come first and bordered in red. (fig. 1.2)

2. Press , , or to look through all the pictures and video clips. The selected picture or video clip will have a red border. And the type of the video clip files and its sequence number will also be shown on the bottom of the LCD.

3. Press the OK button to view the picture or video clip in full screen.

Using the review menu:

1. In ( ) Review Mode, press MENU to enter review menu.

2. Press or to highlight Thumbnail.

3. Press button to have nine thumbnail images or video clips appear at once on the LCD display.

4. Press , , or to look through all the pictures and video clips.

REVIEW

DELETE FILE

THUMBNAIL

SLIDE SHOW

FILE TRANSFER

SETUP

RETURN SELECT

5. Press the OK button to view the picture or video clip in full screen. Or press the MENU button to return to the previous screen.

USING THE DELETE BUTTON TO DELETE YOUR FILES

You can delete your files in Quick View, Thumbnail or in Review mode by using the Delete button.

Note: Once a file is deleted, it cannot be recovered.

Are You Sure?

Yes

SELECT

Deleting in Quick View Mode (Camera Mode)

1. In the ( ) Camera mode, after a picture is taken, the LCD will show the picture for a second. If you are not satisfied with the picture, press the button, the screen will read “Are you sure?”

Note: To change the quick view time, please go to p.42.

2. Press or or to highlight No or Yes.

3. Press the OK button to select.

• If Yes is selected, the picture will be deleted.

• If No is selected, the picture will be saved.

REVIEWING YOUR FILES

Deleting in Review Mode

Delete One

1. In ( ) Review mode, press button once, the screen will read “Are you sure?”

2. Press or to highlight No or Yes.

3. Press the OK button to select.

• If No is selected, no change will be made, and the camera will return to the review mode.

• If Yes is selected, the file will be deleted.

Delete All

1. In ( ) Review mode, press button twice, the screen will read “Delete All, Are you sure?”

2. Press or to highlight No or Yes.

3. Press the OK button to select.

• If No is selected, no change will be made, and the camera will return to the review mode.

• If Yes is selected, all the files will be deleted.

Deleting in Thumbnail Review Mode

1. When thumbnail view is displayed (refer to P.30), select the image you want to delete, press button, the LCD shows the image in full screen and asks “Are You Sure?”

2. Press or to highlight No or Yes.

3. Press the OK button to select.

• If No is selected, no change will be made, and the LCD will return to the thumbnail view mode.

• If Yes is selected, the selected file will be deleted.

USING THE REVIEW MENU

REVIEWING YOUR FILES

REVIEW

DELETE FILE

THUMBNAIL

SLIDE SHOW

FILE TRANSFER

SETUP

RETURN SELECT

DELETE FILE

DELETE ONE

DELETE ALL

RETURN SELECT

0012/0012

1 2

SLIDE SHOW

START SLIDE SHOW

DELAY INTERVAL

CONTINUOUS REPEAT

RETURN SELECT

Are You Sure?

Yes

SELECT

DELAY INTERVAL

2 SEC

5 SEC

10 SEC

30 SEC

RETURN SELECT

Transfer all files

from internal memory

to memory card?

Yes

SELECT

How to use the Menu in Review mode:

1. Turn the camera on.

2. Set the Mode Switch to ( ) Review mode.

3. Press the MENU button to display the main menu.

4. Press or until the desired option is highlighted.

5. Press to enter its submenu.

6. Press or in the submenu to toggle between the options.

7. Press the OK button to make a selection.

• All selections will be marked by a red check mark.

8. To exit the menu, press .

9. To exit the menu at any time, press the MENU button.

CONTINUOUS REPEAT

Yes

RETURN SELECT

REVIEWING YOUR FILES

AWB

28 SEC

AWB

DELETING YOUR FILES

Note: Once the files are deleted, they cannot be recovered.

Deleting One File by Using the Review Menu

DELETE FILE

DELETE ONE

DELETE ALL

RETURN SELECT

DELETE

Are You Sure?

Yes

SELECT

1. In ( ) Review mode, press the MENU button to enter review menu.

2. Press or to highlight Delete File.

3. Press to enter its submenu.

4. Press or to highlight Delete One, then press . The LCD will show the images/video clips in thumbnail.

5. Press , , , to highlight the file you want to delete.

6. Press OK button. The next screen will read “Are You Sure?”

7. Press or to highlight No or Yes.

8. Press the OK button to select.

• If No is selected, no change will be made, and the camera will return to the thumbnail view mode.

• If Yes is selected, the selected file will be deleted, and the LCD return to the thumbnail view mode.

2004:03:30 13:30:41

0001/0003

DELETE FILE

DELETE ONE

DELETE ALL

RETURN SELECT

Are You Sure?

Yes

SELECT

Deleting All Files

1. In ( ) Review Mode, press MENU to enter review menu.

2. Press or to highlight Delete File.

3. Press to enter its submenu.

4. Press or to highlight Delete All.

5. Press . The next screen will read “Are You Sure?”

6. Press or to highlight No or Yes.

7. Press the OK button to select.

• If No is selected, no change will be made, and the LCD will return to the previous screen.

• If Yes is selected, all file will be deleted. The LCD will show “No Files!”

TROUBLESHOOTING

AWB

28 SEC

RUNNING A SLIDE SHOW

Use the slide show feature to automatically display your pictures and videos on the camera LCD screen at a selectable interval rate. You can also run a slide show on any video device that is equipped with a video input, such as a television or digital projector.

The slide show feature is available when you have at least one picture stored.

2004:03:30 13:30:41

How to run a slide show:

1. In ( ) Review Mode, press MENU to enter review menu.

2. Press or to highlight Slide Show.

3. Press to enter its submenu.

4. Press when Start Slide Show is highlighted to begin the Slide Show.

• Pictures: Each picture will be shown for 2 seconds. To change the display interval, please refer to the instructions below.

• Video clips: The full video clip will be displayed.

5. Press or once to speed up or slow down the rate of slide show.

6. Press or to force to the previous or next image.

7. Press OK to pause or resume slide show.

8. To quit the Slide Show, press the Menu button.

0001/0003

REVIEW

DELETE FILE

THUMBNAIL

SLIDE SHOW

FILE TRANSFER

SETUP

RETURN SELECT

1 2

SLIDE SHOW

START SLIDE SHOW

DELAY INTERVAL

CONTINUOUS REPEAT

RETURN SELECT

Note: When an SD memory card is inserted into the camera, only the pictures stored in the memory card will

be displayed. To view the pictures in the internal memory, please transfer the files onto the SD card (p.36) or remove the SD card.

REVIEWING YOUR FILES

AWB

How to set the slide show interval:

The default slide show interval is 2 seconds. You may change the time following the steps below:

REVIEW

DELETE FILE THUMBNAIL

SLIDE SHOW

FILE TRANSFER SETUP

RETURN SELECT

1 2

SLIDE SHOW

START SLIDE SHOW

DELAY INTERVAL

CONTINUOUS REPEAT

RETURN SELECT

DELAY INTERVAL

2 SEC

5 SEC

10 SEC

30 SEC

RETURN SELECT

1. In ( ) Review Mode, press MENU to enter review menu.

2. Press or to highlight Slide Show.

3. Press to enter its submenu.

4. Press or to highlight Delay Interval.

5. Press to enter the submenu.

6. Press or to select how long each picture is displayed on the LCD: 2, 5, 10 or 30 seconds.

7. Press OK to select.

8. Press to return to the previous menu. Or press MENU to exit.

How to set repeatedly slide show

By default, the slide show will stop automatically when the last frame is played. However, you can set the camera to play the slide show repeatedly by following steps below:

REVIEW

DELETE FILE THUMBNAIL

SLIDE SHOW

FILE TRANSFER SETUP

RETURN SELECT

SLIDE SHOW

START SLIDE SHOW DELAY INTERVAL

CONTINUOUS REPEAT

RETURN SELECT

CONTINUOUS REPEAT

Yes

RETURN SELECT

1. In ( ) Review Mode, press MENU to enter review menu.

2. Press or to highlight Slide Show.

3. Press to enter its submenu.

4. Press or to highlight CONTINUOUS REPEAT.

5. Press to enter the submenu.

6. Press or to select Yes or No.

• If Yes is selected, the camera will play the slide show repeatedly after you started playing a slide show.

7. Press OK to select.

8. Press to return to the previous menu. Or press MENU to exit.

AWB

28 SEC

TRANSFERRING FILES FROM INTERNAL MEMORY TO SD CARD

REVIEWING YOUR FILES

The camera allows you to transfer photos and video clips that are stored in the camera’s internal memory to an SD memory card.

2004:03:30 13:30:41

0001/0003

REVIEW

DELETE FILE THUMBNAIL

SLIDE SHOW

FILE TRANSFER

SETUP

RETURN SELECT

Transfer all files

from internal memory

to memory card?

Yes

SELECT

1. In ( ) Review Mode, press Menu to enter review menu.

2. Press or to highlight File Transfer.

3. Press . The next screen will read “Transfer all files from internal memory to memory card”?

4. Press or to highlight No or Yes.

5. Press OK to select.

• If No is selected, no change will be made, and the LCD will return to the previous screen.

TRANSFERRING FILES...

• If Yes is selected, the screen reads “Transferring ...” and all files will be transferred to the SD card.

Note:

1. Please insert a memory card with 16MB or more of available memory. If the SD card memory isn’t enough for the storage of all the files in the internal memory, the camera will leave the remaining images/video clips in the internal memory and displays “Memory Full” message and the Memory card locked icon ( ).

2. If the SD card is locked, the camera will show memory card locked icon for about 2 seconds and then back to the main menu.

CUSTOMIZING THE CAMERA SETTINGS

SET AUTO OFF TIME

2 MIN

3 MIN

CAMERA MODE

SETUP

RETURN SELECT

SETUP

SET AUTO OFF TIME

TV OPTION LANGUAGE OPTION RESTORE DEFAULT LCD BRIGHTNESS

RETURN SELECT

SETUP

FORMAT

DATE/TIME SETUP DIGITAL ZOOM BEEP QUICK VIEW

RETURN SELECT

SETUP

AF Assist Light

Camera Info.

RETURN SET

TV OPTION

NTSC

PAL

RETURN SET

RESTORE DEFAULT

YES

RETURN SELECT

FORMAT

Yes

RETURN SET

LCD BRIGHTNESS

—

SET

Formatting will erase

all data.

Continue?

Yes

SET

CUSTOMIZING THE CAMERA SETTINGS

DATE/TIME SETUP

01 - 01 - 2004

01 : 01 AM MM - DD - YYYY 12- HOUR

CAMERA MODE

SETUP

RETURN SELECT

SETUP

SET AUTO OFF TIME

TV OPTION LANGUAGE OPTION RESTORE DEFAULT LCD BRIGHTNESS

RETURN SELECT

SETUP

FORMAT

DATE/TIME SETUP DIGITAL ZOOM BEEP QUICK VIEW

RETURN SELECT

SETUP

AF ASSIST LIGHT

CAMERA INFO.

RETURN SET

DIGITAL ZOOM

YES

RETURN SET

BEEP

OFF

RETURN SET

QUICK VIEW

Off

1 Sec

3 Sec

5 Sec

RETURN SET

AF ASSIST LIGHT

AUTO

OFF

RETURN SELECT

How to use the Setup menu:

1. Turn the camera on.

2. Set the mode switch to ( ) Camera Mode or ( ) Review Mode..

3. Press the MENU button to display the main menu.

4. Press or until Setup is highlighted.

5. Press to enter the Setup submenu.

6. In the Setup menu, press or to highlight the option you wish to customize.

7. Press to enter the submenu of the highlighted option.

8. Use the arrow buttons to adjust the setting and press the OK button to select.

9. Press to return to the previous menu OR press the MENU button to exit.

RETURN SET

CAMERA INFO.

MODEL: FW VERSION: FW PART NO.: DATE: CONFIG.:

RETURN

CAMERA INFO.

LCD P/N: SENSOR P/N:

RETURN

CUSTOMIZING THE CAMERA SETTINGS

SETUP MENU AND FEATURES

Setup Setting Options Description

Set Auto Off Time 2 min, 3 min This feature enables the camera to automatically turn off when it is idle.

TV Option NTSC, PAL Sets the mode the camera needs to adapt to your TV. (Page 59)

Language Option English Sets the language in your camera. (Page 40) Deutsch Français Español Italiano Nederlands

Português Restore Default Yes/No Sets all camera settings to the factory default. (Page 44) LCD Brightness Sets the LCD brightness level. (Page 40) Format Yes/No Formats the memory card by deleting all files. (Page 41) Date/Time Setup Date/time, Changes the date/time in your camera and their display

Date/time format format. Digital Zoom Yes Activates/deactivates the digital zoom.

No Beep On, Off Activates or deactivates the beep sound. Quick View Off, 1 sec., 3 sec., 5 sec. Sets quick view interval. AF Assist Light Auto, Off Camera Info Model Displays the camera version information. This is for

FW Version information purposes only. FW Part No. Date Config. LCD P/N Sensor P/N

SETTING THE AUTO OFF TIME

CAMERA MODE

SETUP

RETURN SELECT

1. In the Setup menu, press or until SET AUTO OFF TIME is highlighted.

2. Press to enter the submenu.

3. Press or to highlight the preferred choice.

4. Press the OK button to set.

Notes: The default setting is 2 minutes. Press the Power button for more than 1 second to reactivate the camera after it goes off.

SETUP

SET AUTO OFF TIME

TV OPTION LANGUAGE OPTION RESTORE DEFAULT LCD BRIGHTNESS

RETURN SELECT

SET AUTO OFF TIME

2 MIN

3 MIN

RETURN SET

SETTING THE LANGUAGE

CUSTOMIZING THE CAMERA SETTINGS

SETUP

SET AUTO OFF TIME TV OPTION

LANGUAGE OPTION

RESTORE DEFAULT LCD BRIGHTNESS

RETURN SELECT

To set the Language:

1. In the Setup menu, press or until Language is highlighted.

2. Press to enter the Language submenu.

3. Press or to highlight the desired language.

4. Press the OK button to set.

SETTING THE DATE AND TIME

SETUP

FORMAT

DATE/TIME SETUP

DIGITAL ZOOM BEEP QUICK VIEW

RETURN SELECT

01 - 01 - 2004

01 : 01 AM MM - DD - YYYY 12 - HOUR

RETURN SET

DATE/TIME SETUP

1. In the Setup menu, press or until DATE/TIME SETUP is highlighted.

2. Press to enter the submemu.

3. Press to highlight the date/time fields and date/time format. The selected segment will blink.

4. Press or to change the number in the blinking position, and press to go to other fields.

5. After the date/time is set, press the OK button to quit date/time setting. The next screen displays live viewfinder.

SETTING THE LCD BRIGHTNESS

CAMERA MODE

SETUP

RETURN SELECT

How to set the LCD Brightness:

1. In the Setup menu, press or until LCD Brightness is highlighted.

2. Press to display the LCD Brightness bar on the LCD.

3. Press or to adjust the brightness.

4. Press the OK button to select.

SETUP

SET AUTO OFF TIME TV OPTION LANGUAGE OPTION RESTORE DEFAULT

LCD BRIGHTNESS

—

SET

CUSTOMIZING THE CAMERA SETTINGS

X2X1

28 SEC

1 SEC

AWB

28 SEC

X2X1

AWB

28 SEC

FORMATTING THE INTERNAL MEMORY OR MEMORY CARD

CAUTION: ! 1. Formatting deletes all pictures and video clips from the memory.

2. Removing the card during formatting may damage the card.

3. Selecting the formatting feature while there is no memory card in the camera, will cause the internal memory to format. All pictures and video clips on the internal memory

will be lost.

SETUP

FORMAT

DATE/TIME SETUP DIGITAL ZOOM BEEP QUICK VIEW

RETURN SELECT

1. In the Setup menu, press or until Format is highlighted.

2. Press to enter the Format submenu.

3. Press or to highlight No or Yes.

4. Press the OK button to select.

• If No is selected, no change will be made, and the LCD will return to the previous screen.

• If Yes is selected, the LCD shows “Formatting will erase all data. Continue?”

Formatting will erase

all data.

Continue?

Yes

SET

FORMAT

Yes

RETURN SET

Formatting

5. Press or to highlight No or Yes.

6. Press the OK button to select.

• If No is selected, no change will be made, and the LCD will return to the Setup Menu.

• If Yes is selected, the LCD shows “Formatting …” ALL FILES will be deleted.

Note: If “CARD ERROR!” is displayed on the LCD screen, it indicates that the memory card is corrupted. Please format the memory.

TURNING THE BEEP SOUND ON OR OFF

CUSTOMIZING THE CAMERA SETTINGS

The camera provides an option to enable or disable the beep sound. The beep sound is ON by default. While the beep sound is on, the camera will beep in any of the following situations:

• When the camera is powered on.

• After an image is captured. (Note: The beep after image capture cannot be disabled.)

• When any button, except for the Power button, the zoom buttons and the camera mode slide switch button, is pressed.

SETUP

FORMAT DATE/TIME SETUP DIGITAL ZOOM

BEEP

QUICK VIEW

RETURN SELECT

BEEP

OFF

RETURN SET

How to activate/deactivate the beep sound:

1. In the Setup menu, press or until Beep is highlighted.

2. Press to enter its submenu.

3. Press or to highlight the desired selection.

4. Press the OK button to set.

SETTING QUICK VIEW INTERVAL

The camera provides programmable Quick View duration, which is the time that the image is shown to the user immediately after a picture is taken.

Quick View Description

Off No quick view, remain in live viewfinder.

1 sec (Default) Display image for 1 seconds then return to live viewfinder.

3 sec Display image for 3 seconds then return to live viewfinder.

5 sec Display image for 5 seconds then return to live viewfinder.

How to select Quick View time phrase:

SETUP

FORMAT DATE/TIME SETUP DIGITAL ZOOM BEEP

QUICK VIEW

RETURN SELECT

QUICK VIEW

Off

1 Sec

3 Sec

5 Sec

RETURN SET

1. In the Setup menu, press or until Quick View is highlighted.

2. Press to enter its submenu.

3. Press or to highlight the desired selection.

4. Press the OK button to set.

CUSTOMIZING THE CAMERA SETTINGS

SETTING AF ASSIST LIGHT

The camera can turn the built-in AF (Auto Focus) assist light on to illuminate the focus subject in low-light

situation.

AF Assist Light Description

Auto (Default) The camera will turn on AF assist light if it is needed.

Off The camera will not turn on the AF assist light even if the subject is in a low-light

condition.

How to change AF assist light setting:

SETUP

AF Assist Light

Camera Info.

RETURN SELECT

1. In the Setup menu, press or until AF Assist Light is highlighted.

2. Press to enter its submenu.

3. Press or to highlight the desired selection.

4. Press the OK button to set.

AF ASSIST LIGHT

AUTO

OFF

RETURN SET

RESTORE THE CAMERA TO FACTORY DEFAULT SETTINGS

To restore the default settings in your camera:

1. Press when Restore Default is highlighted in the camera.

2. Press or to highlight No or Yes, and then press OK.

• When No is selected, no change is made. The LCD returns to the previous screen.

• When Yes is selected, the LCD shows “Are you sure?”

3. Press or to highlight Yes or No, and then press OK.

• If No is selected, no change will be made. The LCD returns Setup page.

• If Yes is selected, the camera will be reset to the factory default setting. The LCD will show “Restoring...”

for a few seconds and then return to setup page. The Default settings will be restored.

Note: Please refer to the table below for the default settings.

OPTION DEFAULT STATUS

Camera Mode Single Shot

Image Size 2272 x 1704

Quality Normal

Flash Auto Flash

White Balance Auto

LCD Brightness Center (0)

Scene Selection OFF

Digital Zoom Yes

Exposure Compensation 0

ISO Auto

Metering Matrix

Photo Effect None

Time Out 2 min

Slide show interval 2 Seconds

Beep ON

Quick View 1 Sec

AF Mode Multi-Area

Continuous Repeat No

AF Assist Light Auto

TV Mode NTSC for USA/Japan, PAL for Europe/Asia

Date/Time Format USA/Japan: MM/DD/YYYY, 12-hour

Europe/Asia: DD/MM/YYYY, 24-hour

SOFTWARE INSTALLATION GUIDE

The software that comes with the Concord Eye-Q 4363z includes driver, reader, and photo editing programs.

These programs transfer the pictures or video clips from your camera to your computer, and enable you to view them on your computer screen. The following are the computer system requirements for these programs to be installed.

Computer System Requirements Windows

• 300MHz Pentium II processor or equivalent.

• Microsoft Windows 98/98SE, Windows Me, Windows 2000 Professional, Windows XP Home / Professional / Media Center

• 360MB free hard disk space .

• 128MB of RAM

• Minimum 800 x 600 display with 16-bit color (1024 x 768 with 24-bit color or better recommended)

• USB Port

• 4x CD-ROM Drive

Macintosh

• Mac OS 9.0, 9.1, 9.2 and X 10.1 or later

• Power PC-based

• 32MB of RAM

• 640 x 480 display with Thousands of colors (Millions of colors recommended)

• Built-In USB Port

Installation Requirements

The installer will automatically detect which software applications need to be installed or if they are not necessary. Please read the installation requirements before proceeding with the installation process.

System Windows Windows Windows Windows Macintosh

98/98SE Me 2000 XP

Install Camera Driver X

Install DirectX 9 X X

Install ArcSoft PhotoImpression X X X X

Install Adobe Acrobat Reader 5

Camera automatically detected X X X X by the computer (no driver installation required)

USING THE INSTALLER SPLASH SCREEN

SOFTWARE INSTALLATION GUIDE

The installer will automatically detect which software applications need to be installed or if they are not necessary. This will be indicated by the buttons on the splash screen that appears when the CD-ROM is inserted into the computer:

Color Description

Yellow ( ) Required or highly recommended to install.

Gray ( ) Already installed or not necessary

Option Description

Camera Drivers The USB Mass Storage camera drivers enable the camera to become

an external drive on your computer.

Microsoft DirectX 9 DirectX 9 enables the movie playback applications on your computer to

playback video clips that are captured with the camera.

ArcSoft PhotoImpression 2000 This photo software enables you to edit and enhance pictures.

Adobe Acrobat Reader 5 Adobe Acrobat Reader enables you to view the electronic version of the

User’s Guide.

User’s Guide Direct link to the electronic version of the User’s Guide in different

languages. (All User’s Guides are saved in PDF format.)

SOFTWARE INSTALLATION GUIDE

FLOW DIAGRAM FOR SOFTWARE INSTALLATION

To transfer the pictures and video clips from the memory card, the camera must be connected to a computer

with the provided Mini-USB cable. Additional setup may be required by some operating systems before connecting the camera to the computer for the first time.

Identifying your operating system

Windows Windows 2000 Windows Mac OS 98/98SE Professional Me/XP 9.x/10.x

Installing the USB Installing

Mass Storage Drivers DirectX 9 p.51

and DirectX 9 p.49

Installing ArcSoft PhotoImpression 2000 p.52

Installing Adobe Acrobat Reader 5 (if needed) p.54

Connecting the camera to the computer p.56

Downloading pictures and video clips onto the computer p.56

Disconnecting the camera from the computer p.58

Data transfer may not function correctly if you have one of the operating systems listed below or you are using an add-on USB adapter or USB hub.

• Windows 95

• Windows NT 3.51/4.0

• Mac OS 8.6 or lower.

• Home built computer systems or computer systems without a factory installed operating system.

• Home installed operating system or upgrade to the operating system.

SOFTWARE INSTALLATION GUIDE

IDENTIFYING YOUR OPERATING SYSTEM

Windows

1. Right click the My Computer icon on your desktop, and go to Properties.

2. The System Properties Box will appear. The information about your computer is listed under the system area.

3. Confirm that your computer is running one of the following operating systems and proceed to the page in the chart for installation instructions:

System Proceed to page

Windows 98, Windows 98 Page 49 Second Edition

Windows 2000 Page 51

Windows Millennium Edition, Page 52 Windows XP Home Edition, Windows XP Professional Edition, Windows XP Media Center Edition

4. Press OK to close the window

For Windows 98/98SE/Me/2000, if the My Computer icon is not on your desktop, click Control Panel icon from the Start Menu and double click on the System icon to open the System Property Box.

For Windows XP, if the My Computer icon is not on your desktop, click Control Panel icon from the Start Menu and click on the Performance and Maintenance icon, then click on the System icon to open the System Property Box.

Macintosh

1. In the Apple Menu on the Menu bar, select About this Computer.

2. A window will appear with the computers operating system version. Confirm that your computer is version 9 or higher.

No installation of software is necessary for Macintosh users, please go to Page 56 to connecting your camera to the computer.

SOFTWARE INSTALLATION GUIDE

INSTALLING THE DRIVER AND DIRECTX 9 – WINDOWS 98/98SE

NOTE: Do not connect the camera to your computer before the camera drivers and Microsoft DirectX 9

installation is completed.

Step 1 Make sure your camera is powered off and not connected to the computer.

Step 2 Make sure the computer is powered on and Windows 98 or 98SE is running.

Step 3 Close any other applications or software you may be running.

Step 4 Insert the supplied CD-ROM into your computer’s CD-ROM Drive.

NOTE: If the installer does not start automatically within 30 seconds after the CD-ROM has

been inserted, click on “My Computer” either on the Desktop or in the Start Menu and locate the CD-ROM Drive. Double click on the CD-ROM Drive icon for installation and proceed to Step 5.

Step 5 Select the language. Click [OK].

Step 6 The installation screen will appear. Click on Install

Camera Drivers.

Step 7 Click [Next >].

Step 8 The next dialog will prompt you to select the components

that will be installed. USB Mass Storage Driver and DirectX 9 will be preselected.

The files will be saved in the Concord Eye-Q 4363z

directory automatically. OR You may change the default folder by clicking [Browse…]

and selecting a different folder in your computer.

Click [Next >].

Step 9 Click [Install].

Step 10 Install progress bar

Step 11 The next screen will begin the DirectX setup.

Select “ I accept the agreement “ then click [Next >].

SOFTWARE INSTALLATION GUIDE

Step 12 Click [Next >].

Step 13 Click [Finish].

Your computer will automatically restart.

SOFTWARE INSTALLATION GUIDE

INSTALLING DIRECTX 9– WINDOWS 2000

Step 1 Make sure your camera is powered off and not connected to the computer.

Step 2 Make sure the computer is powered on and Windows 2000 is running.

Step 3 Close any other applications or software you may be running.

Step 4 Insert the supplied CD-ROM into your computer’s CD-ROM Drive.

NOTE: If the installer does not start automatically within 30 seconds after the CD-ROM has

been inserted, click on “My Computer” either on the Desktop or in the Start Menu and locate

the CD-ROM Drive. Double click on the CD-ROM Drive icon for installation and proceed to

Step 5.

Step 5 Select the language. Click [OK].

Step 6 The installation screen will appear, click on Install

Microsoft DirectX 9.0.

Step 7 The next screen will begin the DirectX setup.

Select “ I accept the agreement “ then click [Next >].

Step 8 Click [Next >].

Step 9 Click [Finish].

Your computer will automatically restart.

SOFTWARE INSTALLATION GUIDE

INSTALLING ARCSOFT PHOTOIMPRESSION – ALL WINDOWS USERS

Step 1 Make sure your camera is powered off and not connected to the computer.

Step 2 Make sure the computer is powered on and Windows is running.

Step 3 Close any other applications or software you may be running.

Step 4 Insert the supplied CD-ROM into your computer’s CD-ROM Drive.

NOTE: If the installer does not start automatically within 30 seconds after the CD-ROM has

been inserted, click on “My Computer” either on the Desktop or in the Start Menu and locate the CD-ROM Drive. Double click on the CD-ROM Drive icon for installation and proceed to Step 5.

Step 5 Select the language. Click [OK].

Step 6 The installation screen will appear, Click on Install

ArcSoft PhotoImpression 2000.

Step 7 Click [Next >].

Step 8 Click [Yes].

SOFTWARE INSTALLATION GUIDE

Step 9 Click [Next >].

Step 10 Make sure all two applications are checked and then

click [Next >].

Step 11 Click [Next >].

Step 12 The screen will show the status of the installation.

Step 13 Click [Finish].

SOFTWARE INSTALLATION GUIDE

INSTALLING ADOBE ACROBAT READER 5- ALL WINDOWS USERS (OPTIONAL)

Step 1 Make sure your camera is powered off and not connected to the computer.

Step 2 Make sure the computer is powered on and Windows is running.

Step 3 Close any other applications or software you may be running.

Step 4 Insert the supplied CD-ROM into your computer’s CD-ROM Drive.

NOTE: If the installer does not start automatically within 30 seconds after the CD-ROM has

been inserted, click on “My Computer” either on the Desktop or in the Start Menu and locate the CD-ROM Drive. Double click on the CD-ROM Drive icon for installation and proceed to Step 5.

Step 5 Select the language. Click [OK].

Step 6 The installation screen will appear, Click on Install

Adobe Acrobat Reader 5.

Step 7 Status bar

Step 8 Click [Next >].

SOFTWARE INSTALLATION GUIDE

Step 9 The files will be saved into C:\Program Files\Adobe\

Acrobat 5 automatically.

You may change the default folder by clicking [Browse… ]

and selecting a different folder in your computer.

Click [Next >].

Step 10 Installation progress

Step 11 Select Yes, to restart the computer or No, to restart the

computer later.

Click [Finish >].

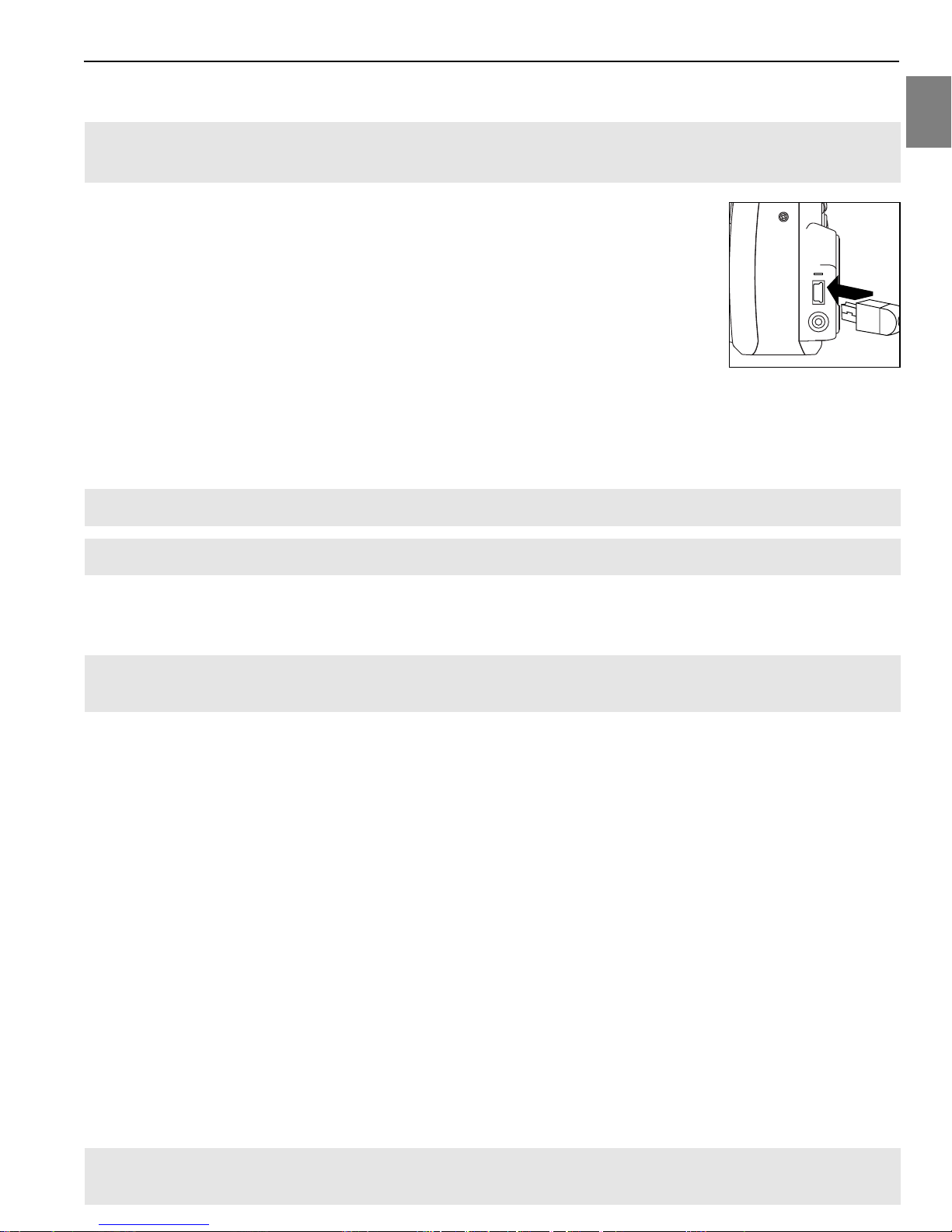

CONNECTING THE CAMERA TO THE COMPUTER

Note for Windows 98 and 98SE users: Do not connect the camera to your computer before the camera

drivers and Microsoft DirectX 9 installation is completed.

1. Power the camera on.

2. Connect the camera to the computer with the Mini-USB cable provided.

• Plug the larger end of the Mini-USB cable that is included with the camera into your PC’s USB port. (Please refer to your computer’s documentation for more information on the location of the USB port.)

• Plug the small end of the Mini-USB cable into the USB port located in the Cable Connection panel on the side of the camera.

3. When the camera is connected to the computer for the first time, the camera USB Mass Storage driver installation will begin. Please follow the on-screen instructions to complete the installation.

DOWNLOADING PICTURES AND VIDEO CLIPS ONTO YOUR COMPUTER

Note: Windows 98/98SE users must install the camera driver and DirectX 9 first. (Page 49)

Note: Windows 2000 users must install DirectX 9 to view video clips on the computer. (Page 51)

Downloading files from the camera:

• Internal memory: Do not insert the memory card.

• Memory Card: Insert the memory card.

Caution: Do not attempt to open the battery/memory door to insert or remove the memory card and/or batteries when the camera is connected to the computer.

FOR WINDOWS USERS

Downloading Pictures and Video Clips onto your computer:

1. Connect the camera to the computer.

2. Double-click on My Computer.

3. Double-click Removable Disk.

4. Double-click DCIM.

5. Double-click 100_4363.

• The pictures (JPEG) and video clips (AVI) stored in the memory will be displayed.

6. Click and drag the files into a directory in your computer to save them.

• To select all files, click Edit > Select all.

FOR MACINTOSH USERS

1. Connect the camera to the computer.

• After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “CONCORD” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double-click 100_4363.

• The stored pictures (JPEG) and video clips (AVI) stored in the memory will be displayed.

5. Drag and drop the image you want to save in the computer.

• To select all files, click Edit > Select all.

Note: You may also transfer the stored pictures and video clips onto your computer by using a memory card reader (sold separately.)

CONNECTING THE CAMERA TO THE COMPUTER

USING ARCSOFT PHOTOIMPRESSION (WINDOWS ONLY)

1. Connect the camera to the computer.

2. Launch ArcSoft PhotoImpression software by clicking on Start-Programs-ArcSoft Camera Suite and choosing PhotoImpression from the application list on your screen. (fig. 1.1)

fig. 1.1 fig. 1.2

3. When the Application opens, click on the Camera/Scanner button.(fig. 1.2)

4. Click on the drop-down list under Select Source and choose Concord Camera.

5. Click on the Camera/ Scanner Icon ( ).

• A second window will appear showing the contents (pictures) in the memory, and options on how to

handle them. (fig. 1.3)

fig. 1.3

6. Select the picture you would like to view, edit or save by clicking on it. The selected image will be highlighted by a border. You may also click on Select All to choose all pictures.

7. Click on Get Photos.

The pictures will then be added to your album at the bottom of the application (fig. 1.4).

fig. 1.4

8. Click on Close to close the Camera Controls windows (as shown in fig. 1.3).

9. Double-click on the thumbnail or click on OK to open the photo.

10. Click on Edit to edit the photo. You may, for example,

• Resize the photo by using the “Crop/Resize” tools.

• Modify the photo by using the “Retouch” tools. For example, to remove red-eyes.

• Add some text onto the photo by using the “Text” tools.

11. Click on Save to save the photo. Two options “Save” and “Save As” will be offered.

12. Click on Print to print the photo. You can choose one preferred way of printing: Standard Printing, Greeting Card/Multiple Printing or Thumbnail Printing.

CONNECTING THE CAMERA TO THE COMPUTER

UNPLUGGING YOUR CAMERA FROM THE COMPUTER

Windows 98/98SE:

1. Double-click on My Computer.

2. Right-click on Removable Disk to display the menu.

3. Click on Eject in the menu.

4. Unplug the Mini-USB from the camera.

Windows ME/2000/XP:

1. Turn the camera off.

2. Click once on the “Unplug or Eject Hardware” icon on the right hand side of your task bar. (fig.1.1)

3. Select “Stop Concord Eye-Q 4363z USB Mass Storage Device”

4. Click [OK] in the “Safe to Remove Hardware” prompt.

5. Unplug the Mini-USB from the camera. (fig.1.2)

Macintosh:

1. Drag the “CONCORD” removable drive icon on the desktop to the Trash.

2. Unplug the Mini-USB cable from the camera.

fig.1.1

fig.1.2

TV MODE

CHANGING THE TV MODE SETTING

The camera allows you to view individual files and to take pictures and record clips on the television. To begin, check your television documentation to determine what video standard you should set your camera to either NTSC or PAL.

SETUP

SET AUTO OFF TIME

TV OPTION

LANGUAGE OPTION RESTORE DEFAULT LCD BRIGHTNESS

RETURN SELECT

TV OPTION

NTSC

PAL

RETURN SET

1. Slide the Mode switch to ( ) Camera mode or ( ) Review mode.

2. Press the MENU button.

3. Press or until Setup is highlighted.

4. Press to enter the Setup menu.

5. In the Setup menu press or until TV is highlighted

6. Press to enter the TV submenu.

7. Press or to change the setting to NTSC or PAL and press OK.

8. Press the MENU button to exit.

CONNECTING THE CAMERA TO THE TELEVISION

1. Connect the red sound terminal of the AV cable to the sound terminal marked AUDIO of your TV, and connect the yellow image terminal of the AV cable to the image input terminal jack marked VIDEO or VIDEO IN on your television.

2. Turn on your television.

3. Set the television to video mode according to the instructions in the owner’s manual. (This is usually channel 3, 4 or AV).

4. Connect the other end of the cable into the VIDEO port located in the cable connection panel.

USING THE TV AS A LIVE VIEWFINDER

1. Connect the camera to the TV.

2. Turn the camera on.

3. Slide the Mode Switch to ( ) Camera mode.

4. The TV will become a live viewfinder.

Note: You may record your TV Mode session by using your VCR. Please refer to your VCR documentation to learn more about recording.

REVIEWING PICTURES AND VIDEO CLIPS ON YOUR TV

1. Connect the camera to the TV.

2. Turn the camera on.

3. Slide the Mode Switch to ( ) Review mode.

4. Press or to scroll through the saved pictures and video clips.

• When an AVI file is displayed on the TV, press the OK button to view the video clip. The sound will be

played via the TV set at the same time.

5. To view more options, press the MENU button to display the menu on the TV screen. Please refer to

page 32/37 for further information.

ERROR MESSAGES

Error Messages appears on the LCD when the memory is full or there is problem with the SD card.

Error Message

Memory Full

Memory Error

Cause

Memory (either internal memory or SD card) is full.

The SD card memory isn’t enough to hold the files saved in the internal memory. Only part of the files in the internal memory is transferred.

The camera’s internal memory may be corrupted.

Solution

Follow one of the below methods:

1) Delete unwanted files.

2) Insert an SD card, or replace the SD card with a new one.

3) Transfer the photos/video clips onto your computer.

Follow one of the below methods:

1) Delete unwanted files.

2) Insert an SD card, or replace the SD card with a new one.

3) Transfer the photos/video clips onto your computer.

Format the memory (P. 41) first. If the problem remains after formatting, that means the internal memory is corrupted. You can either to use an SD card as storage or send the camera for repairing.

Card Error

Imcompatible Media Formating will erase All data Continue?

No Card

The SD card may be corrupted.

The memory card is not recognizable (maybe it’s new or used on other digital cameras).

The memory card is locked.

No SD card is inserted while trying to transfer the files.

Format the SD card first. If the problem still exists after formatting, you can only replace the SD card with a new one.

Format the SD card.

Turn off the camera, take out the SD card and unlock the SD card.

Insert an SD card with enough free memory.

Format Error

The internal memory or the SD card is corrupted.

Change to use SD card as storage or replace the SD card with a new one.

TROUBLESHOOTING

SYMPTOM

CAMERA

Cannot turn on the camera.

The camera buttons do not work.

The camera turns off during usage.

PICTURES/VIDEO CLIPS

Picture/Video clip has poor image quality.

POSSIBLE CAUSE

Batteries were not installed correctly.

Batteries are dead or weak.

Battery door was not closed correctly.

The camera needs to be reset.

The batteries are drained of power.

Poor Lighting.

POSSIBLE SOLUTION

Install batteries correctly by following the indication engraved on the edge of the battery compartment or that on the battery contact.

Replace batteries.

Close the battery compartment properly.

Press the reset button on the back of the camera with a pointed object, such as a pen, then power the camera off then on.

Replace the batteries with new ones.

Increase the lighting in the surrounding area when taking pictures and video clips.

TAKING PICTURES

Flash picture taken is too light.

Flash Picture taken is too dark.

Lens is dirty.

Subject is too close.

The flash is not needed.

Lighting condition is too bright.

The subject is too far away for the flash to be effective.

Flash is not on.

The subject is in front of a bright light.

Clean the lens with a soft cloth. See the Camera Maintenance section.

Stand at least 2 ft. (0.6m) away from the subject in the normal mode. At Macro mode, stand 4’’ (10cm) away from the subject.

Move the subject further away from the camera.

Change the camera setting to Auto Flash. See p.12.

Decrease exposure compensation. See p.22.

Move the subject closer to the camera, or move the camera closer to the subject.

Turn the flash On.

Change the subject’s position.

Lighting condition is too dark.

Increase the exposure compensation. See p.22.

TROUBLESHOOTING

SYMPTOM

Flash did not work.

Picture taken is blurry.

There is something wrong with the color of the photographs.

POSSIBLE CAUSE

There was sufficient flash for the picture and the flash did not fire. This happens when the camera is set to Auto Flash.

Camera’s flash has been turned off.

Flash did not charge.

Subject or camera was moved as the picture was taken.

The focus was not locked before taking the picture.

White balance is not set properly.

POSSIBLE SOLUTION

This is normal as your cameras electronic light sensor is programmed to only fire the flash when needed.

Turn the flash to Auto flash.

Verify that the Ready LED has stopped blinking before taking a picture.

Hold the camera steady until the picture is taken.

Before taking a picture, press the shutter button half-way to lock the focus, and press the shutter button fully to capture the picture. (p.11)

Reset the white balance feature to Auto, or for the specific lighting in the surrounding area.

Cannot take a picture or a video clip.

Cannot take a picture or a video clip when using an SD memory card.

Picture is blurred when looking through the viewfinder.

Part of the picture/ video clip is missing.

Memory is full.

Camera is not set in picture/video clip taking mode.

Power is off.

Camera is in Auto Power off mode.

The SD card is locked or write protected.

Viewfinder is dirty.

Something was blocking the lens when taking the picture.

Delete unwanted pictures and continue shooting.

Download the stored files to your PC and delete the files from the memory card.

Insert a memory card with sufficient memory available.

Set the camera to the proper mode for recording video clips, or taking photographs.

Turn the power on.

Remove the SD card from the card slot and slide the lock switch to off.

Clean the viewfinder with a soft cloth or cotton swab. See the Camera maintenance section.

Keep hands, fingers, etc. away from the lens when taking a picture.

Camera is not responding during picture capture.

The picture was not centered correctly in the viewfinder.

The battery level is low and the camera does not have sufficient power to complete picture capture.

Leave space around the subject when centering the picture in the viewfinder.

Replace batteries.

TROUBLESHOOTING

SYMPTOM

The shutter button does not

work.

LCD

The LCD display is dark.

The LCD screen looks milky and or scratched.

The LCD is not displaying anything.

VIEWING VIDEO CLIPS ON THE COMPUTER (WINDOWS 98/98SE/2000)

POSSIBLE CAUSE

The camera is not turned on.

The camera is processing a picture; the ready LED light is still blinking.

Protective plastic film still in place on the camera.

The LCD brightness level is set too low.

Protective plastic film still in place on the camera.

LCD is turned off.

The battery level is low.

POSSIBLE SOLUTION

Turn the camera on.

Wait until the light stops blinking before attempting to take another picture.

Make sure the protective plastic film covering the LCD during shipment, has been removed.

Increase the brightness level on your LCD to meet your personal needs. See p.40 for setting the brightness.

Make sure the protective plastic film covering the LCD during shipment, has been removed.

Turn the LCD on, by pressing ( ).

Replace the batteries.

Cannot playback stored video clips on the computer.

INSTALLING SOFTWARE AND DRIVERS

Camera is not responding during picture download to the PC.

Cannot transfer pictures to the computer. The New Hardware Wizard cannot locate drivers. (Windows 98/98SE)

Video playback files are missing.

The operating system may not be allocating adequate resources to download the pictures.

The Mini-USB cable is not plugged into the camera.

The Mini-USB cable is not plugged into the computer.

The computer is not powered on.

The Software is not installed on the computer.

Software is not fully or correctly installed on the computer.

Install Microsoft DirectX 9. (p.49)

Reset the camera by pressing the reset button with a pointed object such as a pen. Reboot the computer.

Check that the Mini-USB cable is plugged into the camera.

Check that the USB cable is plugged into the computer.

Turn your computer on.

Disconnect the Mini-USB cable from the camera and the computer. Install the camera software and drivers. (p.49)

Disconnect the Mini-USB cable from the camera and the computer. Uninstall the software: StartSettings-Control Panel-Add/ Remove Programs. Re-install the camera drivers. (See p.49)

TROUBLESHOOTING

SYMPTOM

SD CARDS

The camera does not recognize your SD Card.

RECHARGEABLE BATTERIES

A low battery warning appears during initial use of the freshly charged batteries.

Battery life is short.

POSSIBLE CAUSE

The card may not be SD certified.

The card may be corrupted. Reformat the card.

No card is inserted in the camera.

The batteries are not placed properly.

The batteries haven’t reached their maximum capacity.

POSSIBLE SOLUTION

Purchase a certified SD card.

Caution: Formatting erases all pictures on the card. p.41

Insert a card into the card slot. See p.8.

Remove and reload the batteries.

Fully charge/discharge the batteries via normal operation for three to four cycles

GETTING HELP

You can get help from our troubleshooting section, FAQ on our website or by contacting a customer support representative.

Troubleshooting Section

If you need help with your camera, refer to the Troubleshooting section of this manual on page 61.

Website Customer Support/FAQ

Please visit our customer support website at www.concord-camera.com to view the Frequently Asked Questions (FAQ) by clicking the appropriate camera model picture in the “Camera Support “ Section. Most support issues are answered in the FAQ section. You can also E-mail us by clicking the E-mail address link to the customer support center in the “Camera Support” Section.

Customer Support Before You E-mail or Call us

If you have questions concerning the operation of the camera or software installation, you can speak to or email a customer service representative. Please have the following information available:

Camera Information: Computer Information:

Name of camera model Operating System Camera Serial Number Processor Speed (MHz) Camera Info in camera (page 38): Computer Make and Model FW Version Amount of memory FW Part Number Exact Error message received Date CD-ROM Part Number Comment

For Camera Support please contact: Toll Free in the US and Canada:

• (866) 522-6372

Web: www.concord-camera.com For Camera Support via E-mail, please contact us at www.concord-camera.com.

For ArcSoft Technical Support on Photo Editing Software, please contact: In the USA and Canada

ArcSoft, Inc. 46601 Fremont Blvd. Fremont, CA 94538 Te l: (510) 440-9901 Fax: (510) 440-1270 E-mail: support@arcsoft.com

Europe

Unit 14, Shannon Industrial Estate Shannon, Co. Clare, Ireland Te l: +353 (0) 61-702087 Fax: +353 (0) 61-702001 E-Mail: europe@arcsoft.com

Toll Free in Europe:

UK: 0800-1696482 Spain: 900-973195 Germany: 0800-1800563 Italy: 800-781883 France: 0800-917599

China

ArcSoft Beijing Co., Ltd. No. 6 South Capital Gym Road Beijing New Century Hotel Office Building, #1060 Beijing 100044, China Te l: 8610-6849-1368 Fax: 8610-6849-1367 E-Mail:tech@arcsoft.com.cn

Latin America Local calls only

Te l (Brazil): 00817-200-0709 Te l (Chile): 800-202-797 E-Mail: latinsupport@arcsoftsupport.com

Toll in Europe:

• +31-53-4829779

Japan

ArcSoft Japan 9F, 1-21-9, Higashi-Gotanda, Shinagawa-ku, Tokyo 141-0022, Japan Te l: +81-3-5795-1392 Fax: +81-3-5795-1397 E-Mail: support@arcsoft.jp

Taiwan

ArcSoft Inc. Taiwan Branch Te l: +886 (0) 2-2506-9355 Fax: +886 (0) 2-2506-8922 E-Mail: support@arcsoft.com.tw

CAMERA SPECIFICATIONS

Lens 7.23 - 21.7mm (equivalent to 35-105mm in 35mm format),

f/2.8 - f/4.7, 6 groups 6 elements all glass with 2 aspherical elements

Aperture 2 steps: f/2.8 and f/5.6 at wide zoom position

Shutter Electronic, 4s – 1/2000s

Optical Zoom 3x in 11 steps

Digital Zoom 6x

Focus Range Auto Focus from 60cm to infinity (23.6 in. to infinity), macro from 10 cm to 60 cm

(4 in. to 23.6 in.)

Focusing System 5 area multi-area AF, Center spot AF

Image Sensor Type 1/1.8” CCD

Sensor Effective Pixels 4.0 Megapixels

Image Aspect Ratio 4:3

Sensor Color Filter Array R-G-B

Image Size 2272 x 1704, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480

Image Quality Fine (4.5:1), Normal (11:1), Economy (17:1)

Sensitivity (ISO setting) Auto, 100, 200, 400 (user selectable)

Capture Mode Single Shot, Sport, Continuous Shot, Sport + Continuous Shot

Exposure Auto

Auto Exposure metering Spot, Matrix

White Balance Auto, Sunny, Fluorescent, Tungsten

Scene Selection Off, Party/Indoor, Beach, Snow, Night Landscape, Sunset, Fireworks, Night

portrait.

Picture Effect Off, B&W, Solarize, Sepia

Exposure Compensation +/-0, 0.3, 0.7, 1.0, 1.3, 1.7, 2.0 EV

Continuous Shoot 7 frames in 2.3sec with 2MB resolution

Video Clips AVI format, with audio

• 320x240 or 160x120 resolution with 30 fps, approx 50sec/16MB storage.

Self-Timer 10s delay with blinking red LED (7s slow blinking and 3s fast blinking), available for camera and video clip.

Storage Type Internal Memory and SD card

Internal Storage 16MB Internal Non-Volatile Memory

CAMERA SPECIFICATIONS

Storage Capacity

Images Stored on 16MB memory (approx.):

Image Quality Image Size

4MP 3MP 2MP 1.3MP VGA

(2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine (4.5:1) 14 16 23 33 94

Normal (11:1) 32 37 52 77 200

Economy (17:1) 46 53 81 110 248

Images Stored on 32MB memory (approx.):

Image Quality Image Size

4MP 3MP 2MP 1.3MP VGA

(2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine (4.5:1) 27 31 45 63 188

Normal (11:1) 64 74 105 144 378

Economy (17:1) 93 102 145 202 478

Images Stored on 64MB memory (approx.):

Image Quality Image Size

4MP 3MP 2MP 1.3MP VGA

(2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine (4.5:1) 54 62 93 130 372

Normal 129 147 217 288 774

Economy 186 204 290 404 956

Images Stored on 128MB memory (approx.):

Image Quality Image Size

4MP 3MP 2MP 1.3MP VGA

(2272 x 1704) (2048 x 1536) (1600 x 1200) (1280 x 960) (640 x 480)

Fine (4.5:1) 111 127 181 257 776

Normal 254 300 434 603 1565

Economy 372 378 605 893 1980

Output file format JPEG compression with EXIF 2.2

Optical Viewfinder Real image zoom finder with 70-90% coverage

LCD 1.5” TFT LCD, 326(H) x 240(V), 78,240 Pixels

Playback Zoom 2x, 4x, 6x (for 2272x1704 and 2048x1536),

2x, 4x (for 1600x1200, 1280x960); 2x (for 640x480)

Flash Mode Auto, Auto + RER, Flash ON and Flash off.

Flash Range 0.6 to 3.7m (1.97 to 12.14ft) @ISO200 in Wide;

0.6 to 2.3m (1.97 to 7.55ft) @ISO200 in Tele.

User Interface All information and menus are displayed on TFT LCD display, Review Image,

shows frame counter, flash status, self timer, focus mode, image quality, image size, battery status and memory card.

Multi Language Support User selectable UI on TFT OSD menu. The languages included are Spanish,

Italian, German, English, French, Dutch, Simplified Chinese, Japanese and Portuguese.

Mode Selection Slide Switch for Camera, Review, Video

CAMERA SPECIFICATIONS

Slide Show Ye s

AF Assist Light Ye s

Speaker Yes

Tripod Socket Standard 1/4” size

Connectivity Mini USB and TV/VCR Out

System Connectivity Mass Storage Driver for Window 98, 98SE,2000,ME, XP

Mass Storage Driver for Mac OS 9.x or above

Time Out 1 minute for LCD. 2 minutes or 3 minutes programmable auto power off for camera.

Power Source 2x AA batteries, can use alkaline, lithium and rechargeable NiMH type (Rechargeable NiMH type Highly Recommended)

Dimensions 100 x 61 x 31.5 mm without protrusions

Weight 150g without batteries and memory card

Accessories See the separate “Packing Content” sheet.

SAFETY TIPS AND MAINTENANCE

Cleaning the camera body:

1. Please use a soft dry cloth to clean the camera.

Cleaning the lens, viewfinder and LCD:

1. Blow off dirt or dust with a blower or canned air.

2. Gently wipe the lens, viewfinder and/or LCD with a micro-fiber cloth.

3. To remove dirt or residue, moisten the cloth with lens cleaning fluid and gently wipe the lens, viewfinder

and/or LCD.

CAUTION: Do not apply the fluid directly onto the lens, viewfinder or LCD.

Cleaning the battery contacts:

As a matter of routine operation and handling, should any debris or foreign contaminant deposit itself on the battery contacts in the camera and/or on the batteries, follow steps below to clean the battery contacts to ensure proper electrical operation:

1. Wet the tip of a cotton bud/swab with rubbing alcohol and squeeze the excess alcohol from the bud/swab.

2. Wipe the battery contacts inside the camera battery compartment and both ends of the batteries lightly with the damp bud.

3. Allow the contacts to dry before placing batteries in the camera.

Caution:

1) Do not press hard during cleaning, as this will cause damage to the battery contacts.

2) Do not use water to clean the contacts, as this will increase the chance of oxidation.

3) Do not use Acetone or Nail Polish remover to clean the contacts as this may adversely affect camera operation.

SAFETY TIPS

SAFETY TIPS AND MAINTENANCE

Precautions for the camera:

• Do not attempt to modify this camera in any way. This may cause a fire, electric shock or severe damage to the camera.

• Do not use the flash in close proximity to people or animals.

• When taking photographs, never point the lens of the camera directly into very strong light.

• Please do not use this product in close proximity to flammable or explosive gases as this could increase the risk of explosion.

• For safety reasons keep this product and accessories out of reach of children or animals to prevent

accidents.

• Do not swallow batteries or small camera accessories.

• Keep the camera away from water and other liquids, and never let it get wet. Do not use outdoors when it is raining or snowing.

• Should any form of liquid enter the camera, do not use it. Switch the camera off, and then remove the

batteries. Do not continue to use the camera as this may cause a fire or electric shock.

• Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. card slot and battery chamber. This may cause a fire or electric shock.

• Do not operate this camera with wet hands. This could pose a risk of electric shock.

• Under the environment with electrostatic discharge, the camera may malfunction and require the user to

reset the camera.

• Under the environment with electrical fast transients (EFT), the camera may lose function and require user

to reset the camera.

• Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.

• Please avoid using the camera in high or low temperature. Operation temperature range 32˚F - 104˚F (0˚C

- 40˚C).

• It is normal that the temperature of the camera body rises after being in use for a long period.

• Do not leave this camera in places subject to extremely high temperatures, such as in a sealed vehicle,

under direct sunlight, or in other places with extreme variances in temperature. Exposure to extreme

temperatures

may adversely affect the camera’s internal components and could cause a fire.

• Always use the camera and its accessories in a well-ventilated area.

• Allowing dust to accumulate in the camera over a long period of time is hazardous and in extreme circumstances may cause a fire. It is best to clean your camera prior to seasonal periods of high humidity.

Precautions for batteries:

• Use 2x AA batteries only.

• Dispose of the batteries in a manner that complies with applicable laws.

• Leakage, overheating, or burst batteries could result in fire or injury.

• Do not short circuit, heat or dispose of batteries in fire.

• Do not use old batteries with new ones, or mix brands of batteries.

• Ensure the batteries are positioned correctly with regard to polarity (+/-).

• Batteries may lose power if kept inside the camera for a long time without using. Please remove the

batteries while the camera is not in use.

• Do not use manganese batteries as they cannot supply sufficient power to support the camera’s operations.

Batteries may not work normally under 32˚F (0˚C).

Precautions for SD Memory Cards:

• In the event of malfunction or damage, it is possible that data may be lost. Concord Camera is not

responsible in any way for such data loss.

• Do not touch the terminals with hands or metal objects.

• Keep dust, water and foreign objects away from the terminal section.

• Avoid heat, liquid and direct sunlight when using and when storing.

• Do not open the battery/card cover or remove the SD Memory Card while data is being read or written.

• Do not dismantle or modify.

• The recorded data may be lost if the card is affected by strong static electricity, electrical shock, during card

SAFETY TIPS AND MAINTENANCE

repair or malfunction.

• When using SD Memory Cards do not change the attributes (read-only, etc.) of the files (pictures (JPEG) or video clips (AVI) on the card. Doing so may prevent the camera from working properly when deleting, etc.

• Do not change the file names or the directory name of the pictures or video clips using a computer or save

files other than pictures or video clips taken by this camera onto the SD memory card. Pictures or video clips that have been edited or added to the SD memory card with the computer may not play back and it may cause the camera to malfunction.

• The SD Memory Card includes a write-protect switch. Sliding this switch downward prevents data from

being written to the card and pictures and video clips saved on the card are protected.

• Please note that pictures and video clips cannot be taken or deleted when the write-protect switch is on.

• When using a large-capacity card, writing, reading and deleting may take some time.

• Do not store the card in places with high humidity, dusty places or where static electricity or electromagnetic fields are likely to occur.

Images stored in the memory card may be ruined or damaged if you turn off the camera while it is in process of reading, writing or formatting etc.

• SD cards are delicate electronic devices. Please do not bend or drop them

• Please do not place the SD card in or near to an environment of strong electronic or magnetic fields such as loud speakers or TV receivers.

• Please keep the SD card in its bag or case when not in use.

• It’s normal that the SD card is warm after use.

• Please make sure you switch off the camera before you remove the SD card.

• Do not open the battery/memory card door or remove the SD Memory Card while the camera is reading,

writing or formatting the card.

REGULATOR INFORMATION

FCC INFORMATION

FCC WARNING: This equipment meets the limits for a Class B digital device, pursuant to Part 15 of FCC rules.

Only the cable supplied with the camera should be used. Operation with other cables is likely to result in interference to radio and TV reception and could void the user°Øs authorization to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

Tested to comply

with FCC standards

for HOME OR OFFICE USE

Changes or modifications not expressly approved by the manufacturer may void the user°Øs authority to operate this equipment.

USER INFORMATION NOTE: This equipment has been tested and found to comply with the limits for a class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

VCCI INFORMATION

This is a Class B product, to be used in a domestic environment, based on the Technical Requirement of the Voluntary Control Council for Interference (VCCI) from Information Technology Equipment. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Please install and use the equipment according to this instruction manual.

- This product is in conformity with Directive 89/336/EEC.

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera Corp., in the United States and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All other brands and product names are either registered trademarks or trademarks of their respective owners.

Concord Camera Concord Eye-Q 4363z User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
