MMPPPP5500 HHaarrddwwaarree KKiitt

IInnssttaallllaattiioonn IInnssttrruuccttiioonnss

ffoorr CCDDMM--557700LL MMooddeemm

AApppplliiccaattiioonn NNoottee

P/N: APN/MPP50KIT.DOC

IInnttrroodduuccttiioonn

The MPP50 Hardware Kit supports the IP Module for the CDM-570L modem. The Kit can be installed at the
factory or added as a field-installed upgrade to CDM-570L modems currently deployed.

KKiitt CCoonntteennttss

Upgrade Kit Part Number KT/10922

HW/SEM440X1/4PH 4 each 4-40X1/4 SQ CONE PAN HD PHIL SS

PL/10235-1 1 each

PL/10235-2 1 each MPP50 MODEM PACKET PROCESSOR 8250

PL/9396-1 1 each Cable – RJ11 to 9 Pin DSUB

Installation instructions 1 each

MODEM PACKET PROCESSOR 8250
(PL/10235-2 IS OPTIONAL BOARD)

Observe all normal precautions for handling electrostatic-sensitive devices.

CAUTION

CAUTION

Ensure the pins are exactly aligned when placing the MPP50 board

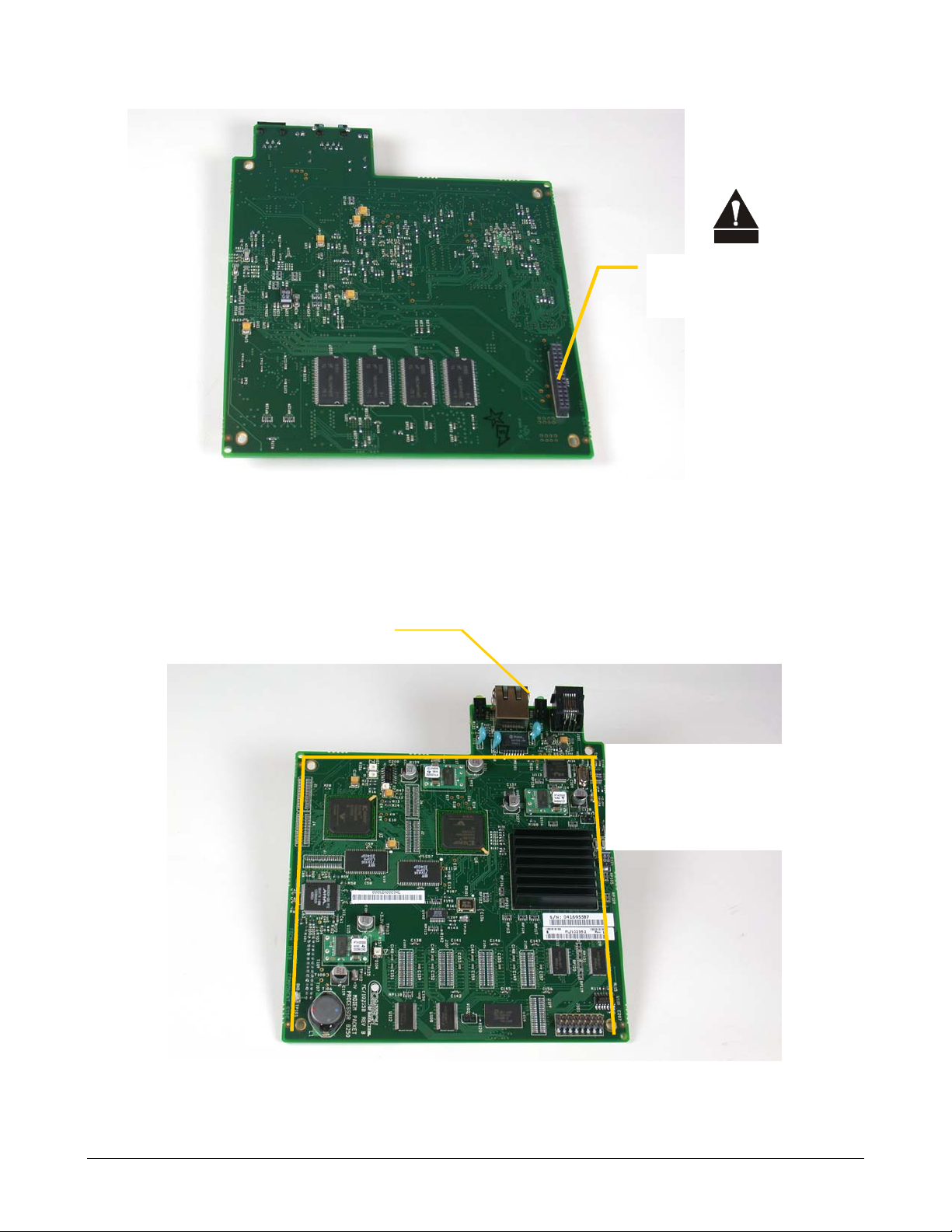

Figure 1. MPP50 properly installed in the CDM-570L modem (full view of inside of chassis)

Copyright © 2004 Comtech EF Data Corp. –1– (Part Number APN/MPP50KIT.DOC) 7/22/2004

IInnssttaallll MMPPPP5500 KKiitt

1. Disconnect the AC power to the unit.

2. Remove the top screws on the top of the modem.

3. Lift off top cover.

4. Place the MPP50 board in position as shown in

5. Figure

6. It is imperative to perform visual inspection of the alignment of the board to ensure

the pins on the MPP50 are perfectly aligned with the female header. Allow time to
ensure the pins are perfectly aligned.

WARN ING

7. Replace the Top Cover. Re-install the top screws.

8. Turn on the AC power to the modem. Modem will re-initialize.

5, with the connector slots lined up with the holes on the rear panel.

Improper alignment of even one pin on the MPP50 will result in damage to the modem

MPP50 Hardware Kit Installation Instructions

for CDM-570L Modem

on power up..

FFiirrmmwwaarree FFllaasshh UUppggrraaddee

1. Refer to FW/10875 Release Notes for FW/10805 compatibility.

2. Go to

www.comtechefdata.com

3. Click on: Downloads

4. Click on : Flash Upgrades

Ensure pins align exactly
with female header when
installing MPP50 board.

MPP50 Board will be
installed in this area.

Figure 2
