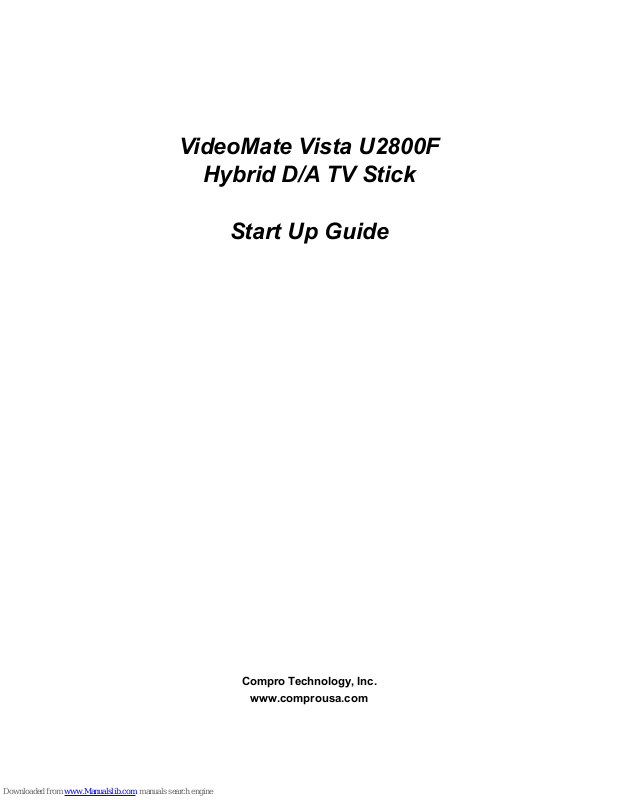

VideoMate Vista U2800F

Hybrid D/A TV Stick

Start Up Guide

Compro Technology, Inc.

www.comprousa.com

2

Copyright © 2001-2008. Compro Technology, Inc. No part of this
document may be copied or reproduced in any form or by any means
without the prior written consent of Compro Technology, Inc.

Compro, VideoMate, Poladyne, Play with Power, and the Compro logo
are trademarks of Compro Technology, Inc. Other names and marks
are trademarks of their respective owners.

Compro makes no warranties with respect to this documentation and
disclaims any implied warranties of merchantability, quality, or fitness
for any particular purpose. The information in this document is subject
to change without notice. COMPRO reserves the right to make
revisions to this publication without obligation to notify any person or
entity of any such changes. The product specification maybe very
without further notice.

Compro Technology, Inc.

Tel. [phone], Fax [phone]
4/F, No.12, Alley 6, Lane 45, Pao Shin Road
Hsintein City, Taipei, Taiwan.
www.comprousa.com

3

Table of Contents

VideoMate Vista U2800F Hybrid D/A Stick .................. 4

VideoMate U2800F Contents........................................ 5

Installation ..................................................................... 6

Windows Media Center Remote for Vista U2800F ..... 7

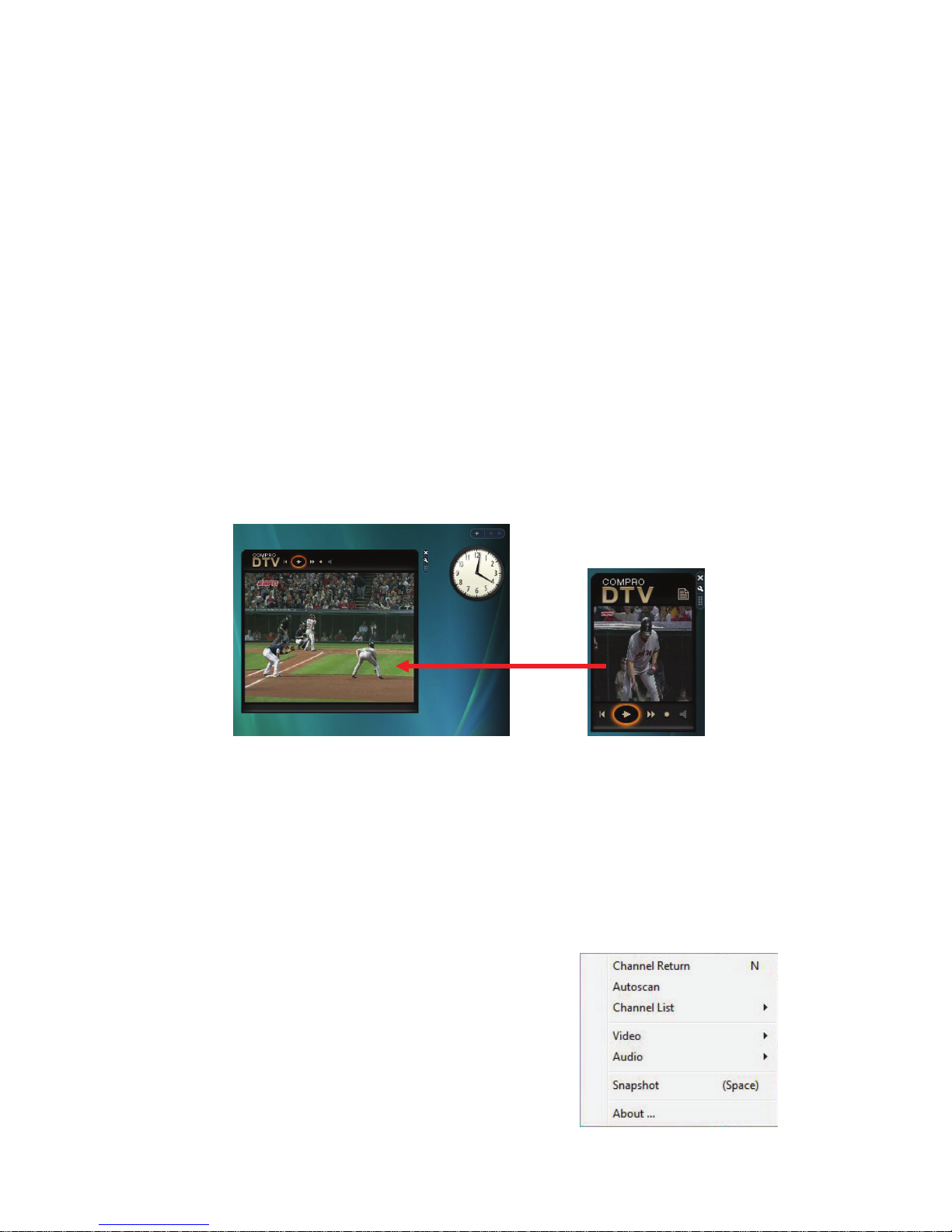

ComproDTV Vista Gadget Tool for Vista .................... 9

ComproDTV Windows Media Center Add-In ............ 11

ComproDTV 4 .............................................................. 12

Open and close the ComproDTV 4 display panel .... 13

ComproFM 2 ................................................................ 20

Troubleshooting.......................................................... 21

4

VideoMate Vista U2800F Hybrid D/A Stick

VideoMate U2800F lets you watch/record digital TV broadcast or analog TV on
your PC. VideoMate Vista U2800F features a TV tuner for either digital TV
broadcast or analog TV signals reception, Digital Video Recording (DVR)
functions, scheduled recording at anytime, crystal video quality, intelligent TV
viewing, video/audio capture, and multi-functional MCE Remote Control.

MINIMUM SYSTEM REQUIREMENTS

Your PC must meet or exceed the following system requirements to watch TV

on your PC.

z PIII 1.7 GHz CPU for TV viewing

z 512 MB RAM

z 2 Available USB 2.0 ports (USB 2.0 only)

z Sound card or on-board sound chip

z Graphics Card or on-board graphics supports DirectX 9.0

z CD-ROM for software installation.

z Windows XP SP2 or above installed.

z 50 MB free disk space for basic software installation.

RECOMMENDED SYSTEM REQUIREMENTS

To use all the features of VideoMate U2800F, your PC should meet the

following requirements.

z 2.6 GHz CPU with SSE 2 support for DVD recording and timeshifting

z 3.0 GHz CPU with SSE 2 support for HDTV/TS viewing/recording and PIP

z 1GB RAM

z Sound card or on-board sound chip

z 2 Available USB 2.0 ports

z CD-ROM for software installation

z Graphics Card or on-board graphics supports DirectX 9.0

z Windows Vista x86/x64

z Update the latest drivers of VGA, motherboard, and soundcard from

vendors.

z 50 MB free space for software installation

z 600 MB (VCD-quality) to 3 GB (DVD-quality) per hour of recorded video

5

VideoMate U2800F Contents

Note

VideoMate U2800F TV Stick needs to install the bundled USB IR receiver to
receive the remote signal from remote control.

Note

In order to receive digital terrestrial TV broadcast, you have to have your own
antenna which is crucial. Digital terrestrial TV broadcast uses about the same
wave (UHF) as analog TV. It’s recommended to have a fishbone-like antenna
on the roof for receiving. More details can be found in the troubleshooting
chapter of this manual.

Digital TV broadcast is different than normal analog TV. You will see no
picture instead of noisy or blurred picture when the signal is too weak. Make
sure you have a good antenna and strong digital TV signal in your location. Or
you will have no TV picture at all.

VideoMate

Vista U2800F

Card-design MCE

Remote with battery

Mobile-type digital

TV antenna

FM antenna

Installation CD

Start Up Guide

I type to F type

converter

3 in 1 video/audio

input cable

USB 2.0 cable USB IR receiver

Ulead DVD

MovieFactory 5 SE

6

Installation

Start the computer. Make sure VideoMate U2800F is connected to your
computer and insert the installation CD into your CD drive.

Step 1. After restarting, Windows will detect a new device and start the

Add/Remove Hardware Wizard, please press Cancel and go to the
next step.

Step 2. Insert the installation CD into your CD drive. If you have Autorun

enabled, the installer will start automatically. (If Autorun is disabled,
double-click on “setup.exe” on the installation CD.) You can choose
Complete to install all necessary software (VideoMate U2800F
drivers, ComproDTV, and ComproFM 2) or choose Custom to select
item by item. Compro recommends you choose Complete.

Step 3. Press Next to install ComproDTV,

Step 4. After each program is successfully installed, press Finish to proceed.

Step 5. When installation completes, press Finish to restart computer.

Step 6. Connect the digital or analog TV signal and open ComproDTV to

enjoy the show.

7

Windows Media Center Remote for Vista U2800F

Compro VideoMate Vista U2800F bundles the easy-to-use Microsoft certified

remote control to controls the Windows Media Center and also ComproDTV,

ComproFM software. Some keys are special designed for Windows Vista

Premium/Ultimate, it may not be used in Windows XP system.

8

No.

Windows Media

Center (MCE)

ComproDTV 4 ComproFM 2

1 Into sleep mode Into sleep mode Into sleep mode

2 Windows Media Center Windows Media Center No function

3 Mute Mute Mute

4 Channel Up Channel Up/Angle Channel Up

5 Channel Down Channel Down/Subtitle Channel Down

6 Volume Up Volume Up Volume Up

7 Volume Down Volume Down Volume Down

8 More Zoom Max/Min

9 Back Guide/Menu On-line help

10 OK OK Play

11 Up Up, Mono/SAP/Stereo UP

12 Down Down/snapshot Down

13 Right Right/forward Scan channel(Up)

14 Left Left/backward Scan channel(Down)

15 Play/Pause Play/Pause, Timeshift Play/Pause

16 Play/Pause Play/Pause, Timeshift Play/Pause

17 Stop/Live Stop/Live Stop/Live

18 Record Record Record

19 Fast Forward Fast Forward Fast Forward

20 Skip Forward Aspect Ratio No function

21 Skip Rewind Last Channel CH Return

22 Rewind Rewind Rewind

23 DVD Menu (MCE) No function No function

24 Live TV (MCE) Live TV (MCE) Live TV (MCE)

25 Zoom (MCE) ComproDTV No function

26 Recorded TV (MCE) Recorded TV (MCE) Recorded TV (MCE)

27 MCE Guide MCE Guide MCE Guide
