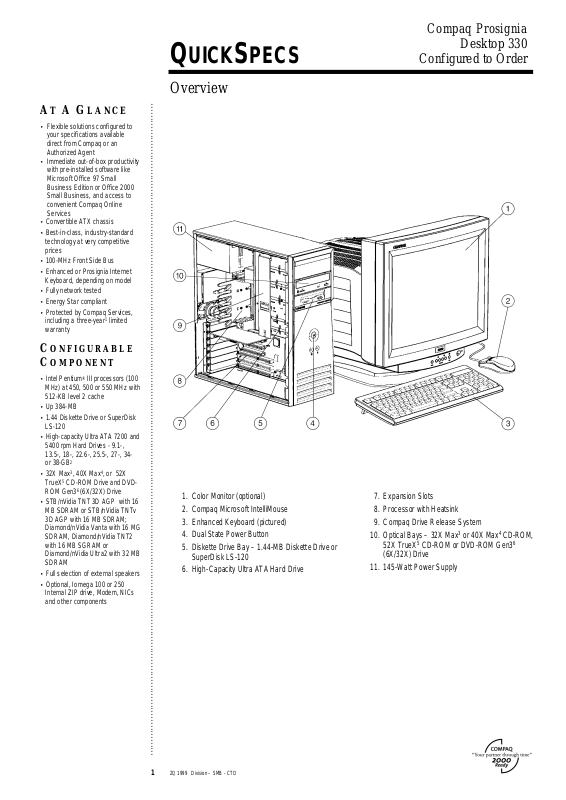

1.
Color Monitor (optional)
7.
Expansion Slots
AT A G
LANCE
• Flexible solutions configured to
your specifications available
direct from Compaq or an
Authorized Agent
• Immediate out-of-box productivity
with pre-installed software like
Microsoft Office 97 Small
Business Edition or Office 2000
Small Business, and access to
convenient Compaq Online
Services
• Convertible ATX chassis
• Best-in-class, industry-standard
technology at very competitive
prices
• 100-MHz Front Side Bus
• Enhanced or Prosignia Internet
Keyboard, depending on model
• Fully network tested
• Energy Star compliant
• Protected by Compaq Services,
including a three-year1 limited
warranty
QUICKSPECS
Overview
Compaq Prosignia
Desktop 330
Configured to Order
CONFIGURABLE
COMPONENT
• Intel Pentium
MHz) at 450, 500 or 550 MHz with
512-KB level 2 cache
• Up 384-MB
• 1.44 Diskette Drive or SuperDisk
LS-120
• High-capacity Ultra ATA 7200 and
5400 rpm Hard Drives - 9.1-,
13.5-, 18-, 22.6-, 25.5-, 27-, 34or 38-GB
• 32X Max
TrueX5 CD-ROM Drive and DVDROM Gen36 (6X/32X) Drive
• STB/nVidia TNT 3D AGP with 16
MB SDRAM or STB/nVidia TNTv
3D AGP with 16 MB SDRAM;
Diamond/nVidia Vanta with 16 MG
SDRAM, Diamond/nVidia TNT2
with 16 MB SGRAM or
Diamond/nVidia Ultra2 with 32 MB
SDRAM
• Full selection of external speakers
• Optional, Iomega 100 or 250
Internal ZIP drive, Modem, NICs
and other components
®
III processors (100
2
3
, 40X Max4, or 52X
2. Compaq Microsoft IntelliMouse
3. Enhanced Keyboard (pictured)
4. Dual State Power Button
5. Diskette Drive Bay – 1.44-MB Diskette Drive or
SuperDisk LS-120
6. High-Capacity Ultra ATA Hard Drive
8. Processor with Heatsink
9. Compaq Drive Release System
10. Optical Bays – 32X Max3 or 40X Max4 CD-ROM,
52X TrueX5 CD-ROM or DVD-ROM Gen3
6
(6X/32X) Drive
11. 145-Watt Power Supply
1 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
M
ODELS
Configured to Order
Prosignia Desktop 330
(100-MHz FSB)
Select the following to configure
your own Prosignia Desktop:
Processor
Memory
Hard Drive
Removable
Storage
Optical Storage
Graphics Card
Audio Card
Software
Modem
Network Interface
Controller
Compaq Prosignia
Desktop 330
QUICKSPECS
Configured to Order
Standard Features
Flexible Solutions Configured to Order
Order the Prosignia Desktop the way the customer wants it by selecting the processor, hard drive, memory,
graphics controller, and more. Purchase directly from Compaq or a Compaq Authorized Agent.
Processors
Intel Pentium III processors at 450, 500 or 550 MHz
Cache Memory
512-KB level 2 cache
Memory
Standard 128 MB
Maximum 384 MB
Expansion Slots
I/O (Total) 6
Shared PCI/ISA 1
PCI 3
ISA 1
AGP 1
Storage Controller
Embedded Ultra ATA
Storage
Diskette Drives 1.44 MB or SuperDisk LS-120
CD-ROM 32X Max3, 40X Max4 CD-ROM, 52X TrueX5 CD-ROM,
or DVD-ROM Gen36 (6X/32X)
Hard Drives 9.1-, 13.5-, 18-, 22.6-, 25.5-, 27-, 34-, or 38–GB2 Ultra ATA
Optional Internal Iomega 100 or 250-MB ZIP Drive
Interfaces
Parallel
Serial
Pointing Device (mouse)
Graphics
Keyboard
USB
Graphics
STB/nVidia TNT 3D AGP (16-MB SDRAM)
STB/nVidia TNTv 3D AGP (16-MB SDRAM)
Diamond/nVidia TNT2 Ultra32 (32-MB SDRAM)
Diamond/nVidia TNT2 (16-MB SDRAM)
Diamond/nVidia Vanta (16-MB SDRAM)
Sound Multimedia Audio Cards
Creative SoundBlaster Live Value PCI 512V
Creative SoundBlaster Audio PCI 128v (SWT)
Sound Multimedia Speakers
Altec Lansing ACS 46
Creative SBS 52
Creative SBS 50
1
2
1
1
1
2
2 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Support for DMI ensures complete inter-operability with a large number of PC LAN management tools, including
Standard Features
Communication
Compaq 56K V.907 PCI Data/Fax Modem
Wireless LAN 2Mb/sec
Compaq Fast Ethernet NIC NC3121 PCI 10/100 Intel/WOL (Wake on LAN)
3Com Fast EtherLink XL 10/100 TX PCI with remote wakeup
Software
Windows 98 or Windows NT 4
Microsoft Office 97 Small Business Edition or Microsoft Office 2000 Small Business, or
Microsoft Office 97 Professional Edition, or Microsoft Office 2000 Professional
Microsoft Internet Explorer 5.0
Compaq Online Services
Compaq/GTE Internet Access
Norton AntiVirus Ver 5.0
Safety and Comfort Guide
Diagnostics for Windows,
Compaq Intelligent Manageability
CompuServe and AOL
Microsoft NetMeeting
OS Support
Windows 98 or Windows NT 4
Manageability
Compaq Prosignia
Desktop 330
Configured to Order
Compaq Intelligent Manageability.
Security
Setup Password
Memory Change Alert
Ownership Tag
QuickLock/QuickBlank
Power-On Password
Removable Media Boot Control
Removable Media Write Control
Serial Port Control
Parallel Port Control
USB Port Control
Online Services
Suite of Internet-based solutions designed to create growth opportunities and reduce operating costs for small
and growing businesses
online.connectivity
online.commerce
online.delivery
online.briefcase
online.backup
online.auction
online.message center
Power Supply
145-Watt Power Supply
Keyboard
The Prosignia Internet Keyboard offers numerous Easy Access buttons that make accessing and using the
Internet easier and faster. It will be available on models introduced in June 1999. All other models come with
the Compaq Enhanced Keyboard
Service and Support
Compaq Backup media is provided for ease of reinstallation of software if necessary. Protected by Compaq
Services including a three-year, limited warranty1 with first year on-site, toll-free 7 x 24 hardware technical
phone support service line at 1-877-456-7878 and online support through CompuServe, Prodigy, America
Online, and the Internet.
3 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Compaq or through a Compaq Agent and are for first
Configurable Components
Compaq Prosignia
Desktop 330
Configured to Order
Flexible Solutions Configured to Order
Configurable components are available directly from
time configurations only.
Form Factor (Choose one of the following)
Minitower
Desktop
Processor (Choose one of the following)
Pentium III 550/100 MHz
Pentium III 500/100 MHz
Pentium III 450/100 MHz
Memory8 (Optional Memory upgrade)
384-MB Memory Kit (3 x 128-MB SDRAM ECC
DIMM)
256-MB Memory Kit (2 x 128-MB SDRAM ECC
DIMM)
128-MB Memory Kit (1 x 128-MB SDRAM ECC
DIMM)
96-MB Memory Kit (1 x 64-MB and 1 x 32 SDRAM
ECC DIMM)
64-MB Memory Kit (1 x 64-MB SDRAM ECC DIMM)
384-MB Memory Kit (3 x 128-MB SDRAM DIMM)
256-MB Memory Kit (2 x 128-MB SDRAM DIMM)
128-MB Memory Kit (1 x 128-MB SDRAM DIMM)
96-MB Memory Kit (1 x 64-MB and 1 x 32-MB
SDRAM DIMM)
64-MB Memory Kit (1 x 64-MB SDRAM DIMM)
Hard Drives (Choose one of the following)
38-GB2 Ultra ATA Hard Drive (5400 rpm)
34-GB2 Ultra ATA Hard Drive (7200 rpm)
27-GB2 Ultra ATA Hard Drive (7200 rpm)
25.5-GB2 Ultra ATA Hard Drive (5400 rpm)
22.6-GB2 Ultra ATA Hard Drive (7200 rpm)
18-GB2 Ultra ATA Hard Drive (7200 rpm)
13.5-GB2 Ultra ATA Hard Drive (7200 rpm)
9.1-GB2 Ultra ATA Hard Drive (7200 rpm)
Removable Storage (Choose one of the
following)
1.44-MB Diskette Drive
SuperDisk LS-120
Removable Storage (Optional)
Internal Iomega 250-MB ZIP Drive
Internal Iomega 100-MB ZIP Drive
Graphics Card (Choose one of the following)
Diamond/nVidia TNT2 Ultra 32 (32-MB SDRAM)
Diamond/nVidia TNT2 16 (16-MB SDRAM)
Diamond/nVidia Vanta (16-MB SDRAM)
STB/nVidia TNT 3D AGP (16-MB SDRAM)
STB/nVidia TNTv 3D AGP (16-MB SDRAM)
Multimedia Audio Card (Choose one of the
following)
Creative SoundBlaster Live Value PCI 512v
Creative SoundBlaster AudioPCI 128v (SWT)
Multimedia Speakers (Choose one of the
following)
Altec Lansing ACS46 (speakers and subwoofer)
Creative SBS 52
Creative SBS 50
Operating System (Choose one of the
following)
Microsoft Windows NT 4
Microsoft Windows 98
Office Suite (Choose one of the following)
Microsoft Office 2000 Professional
Microsoft Office 97 Professional Edition
Microsoft Office 2000 Small Business
Microsoft Office 97 Small Business Edition
Software (Optional)
Norton Utilities for Windows NT
Norton Utilities for Windows
Symantec Act
Symantec WinFax PRO
Carbon Copy (complete version)
Modems (Optional)
Wireless LAN 2Mb/sec
Netelligent 56K7 ISA Fax Modem (upgradeable to
v.909)
Compaq 56K V.907 PCI Data/Fax Modem
Network Interface Controllers (Optional)
Compaq Fast Ethernet NIC NC3121 PCI 10/100
Intel/WOL (Wake on LAN)
3Com Fast EtherLink XL 10/100 TX PCI with remote
wakeup
4 2Q 1999 Division – SMB - CTO
Optical Storage (Choose one of the
following)
Internal DVD-ROM Gen36 (6X/32X) Drive
52X TrueX5 CD-ROM Drive
Internal 40X Max4 CD-ROM Drive
Internal 32X Max3 CD-ROM Drive
...................................................................................................................................................................................................................................
.
QUICKSPECS
Options
Compaq Prosignia
Desktop 330
Configured to Order
Enhancements
Enhancements are available through Compaq
Authorized Resellers for first time configurations or
upgrades, or directly from Compaq or a Compaq
Agent for upgrades.
Memory
Hard Drives
Removable Storage
Monitors
8
256-MB Memory Kit (2 x 128-MB
SDRAM ECC DIMM)
128-MB Memory Kit (1 x 128-MB
SDRAM ECC DIMM)
64-MB Memory Kit (1 x 64-MB
SDRAM ECC DIMM)
256-MB Memory Kit (2 x 128-MB
SDRAM DIMM)
128-MB Memory Kit (1 x 128-MB
SDRAM DIMM)
64-MB Memory Kit (1 x 64-MB
SDRAM DIMM)
8.4-GB2 Ultra ATA Hard Drive
(5400 rpm)
10-GB2 Ultra ATA Hard Drive
(5400 rpm)
22.6-GB2 Ultra ATA66 Hard Drive
(7200 rpm)
52X TrueX5 CD-ROM
40X Max4 CD-ROM Drive
32X Max3 CD-ROM Drive
SuperDisk LS-120 Drive
Internal Iomega 100 MB ZIP Drive
TR5 10/20 GB IDE Tape Drive
DVD-ROM Gen3
6X CDRW
10
P1610 Color
P110 Color
P75 Color
V1000 Color
V900 Color
S900 Color
S700 Color
102307-B21
166618-B21
166617-B21
102306-B21
166614-B21
166613-B21
294245-B21
387473-B21
120203-B21
120192-B21
388116-B21
294240-B21
185061-B25
294402-B21
294243-B21
294406-B21
294239-B21
305708-001
325600-001
307806-001
315756-001
303500-001
360562-001
360512-001
Graphics
Matrox Millennium G200 AGP
Graphics Controller
Matrox Millennium II PCI Graphics
Controller
12-MB WRAM Module (for Matrox
Millennium II)
4-MB WRAM Module (for Matrox
Millennium II)
Storage Controllers/Cables
Ultra ATA Cable Kit (80-pin)
Multimedia
SoundBlaster PCI 64V Wavetable
Sound Card
Creative SBS 50 (speakers)
Modem
Compaq 56K7 ISA Fax Modem
(upgradable to v.909)
Network Interface Controllers
Compaq Fast Ethernet NIC NC3121
PCI 10/100 Intel/WOL (Wake on
LAN)
Compaq Fast Ethernet NC3122 Dual
Port PCI 10/100
Fast EtherLink XL PCI 10/100 Base-
TX
Compaq 10/100 TX PCI Intel UTP
Controller
Compaq 10 T PCI Intel UTP NIC
Wireless LAN 2Mb/sec
3Com Fast EtherLink XL 10/100 TX
PCI with remote wakeup
Other
Serial/ECP Parallel Interface Board
294308-B21
270246-B21
270833-B21
270831-B21
294162-B21
387472-B21
402546-B21
294900-001
323551-B21
317450-B21
387993-001
317600-B21
317356-B21
103931-B21
400722-B21
294293-B21
5 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Memory
STANDARD MEMORY
128 MB Installed in slot 1 (128-MB SDRAM)
Standard Slot
1 2 3
128 MB
STANDARD MEMORY PLUS
OPTIONAL MEMORY
Support for up to 320 MB of SDRAM is available with the installation of an Optional Memory
Upgrade.
Standard Slot
1 2 3
192 MB
256 MB
320 MB
384 MB
Compaq Prosignia
Desktop 330
Configured to Order
Compaq Prosignia Desktop 330
Empty Empty
Empty
Empty
It is not necessary to add memory in like pairs of memory modules. Memory upgrades are accomplished
by adding single or multiple DIMMs of the same or varied sizes.
Following are the memory options available from Compaq for the Prosignia Desktop 330:
• 128-MB Memory (1 x 128-MB SDRAM DIMM, 100 MHz)
• 64-MB Memory (1 x 64-MB SDRAM DIMM, 100 MHz)
• 128-MB Memory (1 x 128-MB SDRAM ECC DIMM, 100 MHz)
• 64-MB Memory (1 x 64-MB SDRAM ECC DIMM, 100 MHz)
6 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Configured to Order
Storage
PROSIGNIA D ESKTOP 330 D RIVE SUPPORT
Removable Media
Internal Iomega 250-MB ZIP Drive
Internal Iomega 100-MB ZIP Drive
32X Max3 CD-ROM
4
40X Max
52X TrueX
DVD-ROM Gen36 (6X/32X) Drive
1.44-MB Diskette Drive
SuperDisk LS-120 Drive
CD-ROM
5
CD-ROM
Hard Drives
2
9.1-GB
Ultra ATA Hard Drive
2
13.5-GB
Ultra ATA Hard Drive
18-GB2 Ultra ATA Hard Drive
22-6GB2 Ultra ATA Hard Drive
25.5-GB2 Ultra ATA Hard Drive
28.4-GB2 Ultra ATA Hard Drive
34-GB2 Ultra ATA Hard Drive
38-GB2 Ultra ATA Hard Drive
Quantity
Supported
Up to 1 1 IDE (embedded)
Up to 1 2 IDE (embedded)
Up to 1 3 IDE (embedded)
Up to 2 4,5 Ultra ATA (embedded)
Position
Supported Controller
Compaq Prosignia
Desktop 330
7 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
System Unit
Dimensions
(HxWxD)
6.6 x 17.65 x 17.11 in/16.76 x 44.83 x 43.46 cm
Weight
(standard configuration)
23.7 lbs/10.74 kg
Power Supply
90 to 132 VAC/180 to 264 VAC
100 to 127 VAC/220 to 240 VAC
50 to 60 Hz
4A/2A
145 W
Temperature
Humidity
(non-condensing)
8% to 90%
5% to 95%
Maximum Altitude
(
unpressurized)
10,000 ft/3,048 m
30,000 ft/9,144 m
QUICKSPECS
Technical Specifications
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Rated Input Current
Maximum Rated Power
Operating 50° to 93° F/10° to 35° C
Non-operating –22° to 140° F/–30° to 60° C
Operating
Non-operating
Operating
Non-operating
Compaq Prosignia
Desktop 330
Configured to Order
Enhanced Keyboard
Internet Keyboard
1.44-MB Diskette
Drive
Dimensions (HxWxL)
Weight
Dimensions (HxWxL)
Weight
Diskette Size 3.5 in
LED Indicators (front panel) Green
Read/Write Capacity per Diskette (high/low density) 1.44 MB/720 KB
Drive Height One-third
Drive Rotation 300 rpm
Transfer Rate (high/low) 500/250 Kb/s
Bytes/Sector 512
Sectors/Track (high/low) 18/9
Tracks/Side (high/low) 80/80
Access Times
Track-to-Track (high/low)
Average (high/low)
Settling Time
Latency Average
Cylinders (high/low) 80/80
1.5 x 18 x 6.5 in/3.81 x 45.72 x 16.51 cm
3.5 lbs/1.59 kg
1.25 x 18 x 7.5 in/3.18 x 45.72 x 19.05 cm
2.65 lbs/1.29 kg
3/6 ms
94/173 ms
15 ms
100 ms
Read/Write Heads Two
8 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
Ultra ATA
Hard Drives
11
(5400 rpm)
38.0 GB
2
2
2
Capacity 38000.0 MB Seek Time (typical reads, including settling)
Height 1 in/25.4 mm Single Track 2.2 ms
Width 3.5 in/88.9 mm Average 9.0 ms
Interface ATA-4 Full-Stroke 15.5 ms
Transfer Rate Physical Configuration
Media 247 MB/s Cylinders 17,688
Interface 66 MB/s Data Heads 10
Sectors per Track 540 to 295
Capacity 25500.0 MB Seek Time (typical reads, including settling)25.5 GB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average 8.5 ms
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Physical Configuration
Media 196 MB/s Cylinders 15,302
Interface 16.6 MB/s Data Heads 10
Sectors per Track 253 to 390
Capacity 8400.0 MB Seek Time (typical reads, including settling)8.4 GB
Height 1 in/25.4 mm Single Track 1.0 ms
Width 3.5 in/88.9 mm Average 10.0 ms
Interface Ultra ATA Full-Stroke 18.0 ms
Transfer Rate Physical Configuration
Media 84.8 to 136 MB/s Cylinders 8,455
Interface 16.6 MB/s Data Heads 8
Sectors per Track 195 to 264
Ultra ATA
Hard Drives
11
(7200 rpm)
2
2
Capacity 34000.0 MB Seek Time (typical reads, including settling)34.0 GB
Height 1 in/25.4 mm Single Track 2.2 ms
Width 3.5 in/88.9 mm Average 9.0 ms
Interface ATA-4 Full-Stroke 15.5 ms
Transfer Rate Physical Configuration
Media 284 MB/s Cylinders 17,494
Interface 66 MB/s Data Heads 10
Sectors per Track 450 to 275
Capacity 28400.0 MB Seek Time (typical reads, including settling)28.4 GB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average 8.5 ms
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Physical Configuration
Media 139 to 224 MB/s Cylinders 15,012
Interface 66.6 MB/s Data Heads 10
Sectors per Track 214 to 312
9 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
Ultra ATA
Hard Drives
(continued)
11
(7200 rpm)
2
2
2
Capacity 22600.0 MB Seek Time (typical reads, including settling)22.6 GB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average 8.5 ms
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Physical Configuration
Media 139 to 224 MB/s Cylinders 15,012
Interface 66.6 MB/s Data Heads 10
Sectors per Track 214 to 312
Capacity 18000.0 MB Seek Time (typical reads, including settling)18.0 GB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average 8.5 ms
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Physical Configuration
Media 139 to 224 MB/s Cylinders 15,011
Interface 66.6 MB/s Data Heads 10
Sectors per Track 214 to 312
Capacity 13500.0 MB Seek Time (typical reads, including settling)13.5 GB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average 8.5 ms
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Physical Configuration
Media 139 to 224 MB/s Cylinders 15,011
Interface 16.6 MB/s Data Heads 6
Sectors per Track 214 to 312
2
Capacity 9100.0 MB Seek Time (typical reads, including settling)9.1 GB
Height 1 in/25.4 mm Single Track 1.7 ms
Width 3.5 in/88.9 mm Average 8.5 ms
Interface Ultra ATA Full-Stroke 15.0 ms
Transfer Rate Physical Configuration
Media 139 to 224 MB/s Cylinders 15,011
Interface 16.6 MB/s Data Heads 4
Sectors per Track 214 to 312
10 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
32X Max3 CD-ROM
Drive IDE
Disk
Applicable Disk
Capacity
Diameter
Rotational Speed
Center Hole
Thickness
Track Pitch
Block Size
Mode 1
Mode 2
CD-DA
CD-XA
Interface IDE
Access Times (typical)
Random
Full-Stroke
Audio Output Level
Line-Out
Headphone
Data Transfer Rate
Sustained
Burst
Cache Buffer 128 KB
Start-up Time (typical) < 7 seconds
Stop Time < 4 seconds
Laser Parameters
Type
Wave Length 780 ± 25 nm
Divergence Angle 53.5° ± 1.5°
Output Power
Operating Conditions
Temperature
Humidity
Dimensions
(HxWxD, maximum)
Weight 2.65 lbs/1.2 kg
CD-ROM (Mode 1 and 2)
CD-DA, CD-XA, CD-RW (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-Session)
Mixed Mode (Audio and Data Combined)
CDi Ready
650 MB (Mode 1, 12 cm)
4.7 in, 3.15 in/12 cm, 8 cm
4200 rpm maximum
0.6 in/15 mm diameter
0.05 in/1.2 mm
1.6 µm
2,048, 1024 bytes
2,340, 2,336, 1,024 bytes
2,352 bytes
2,328 bytes
< 100 ms
< 150 ms
0.7 VRMS at 47 kOhms
0.6 VRMS at 32 Ohms (maximum volume)
150 KB/s (single)
1500 to 4800 KB/s (variable)
Semiconductor Laser GaA1As
0.14 mW
41° to 113°F/5° to 45°C
10% to 80%
11.69 x 5.91 x 8.2 in/4.29 x 15.01 x 20.8 cm
11 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
40X Max4 CD-ROM
Drive IDE
Disk
Applicable Disk
Capacity
Diameter
Rotational Speed
Center Hole
Thickness
Track Pitch
Block Size
Mode 1
Mode 2
CD-DA
CD-XA
Interface IDE
Access Times (typical)
Random
Full-Stroke
Audio Output Level
Line-Out
Headphone
Data Transfer Rate
Sustained
Burst
Cache Buffer 128 KB
Start-up Time (typical) < 7 seconds
Stop Time < 30 seconds
Laser Parameters
Type
Wave Length 780 ± 25 nm
Divergence Angle 53.5° ± 1.5°
Output Power
Operating Conditions
Temperature
Humidity
Dimensions
(HxWxD, maximum)
Weight 2.65 lbs/1.2 kg
CD-ROM (Mode 1 and 2)
CD-DA, CD-XA, CD-RW (Mode 2, Form 1 and 2)
Photo CD (Single and Multi-Session)
Mixed Mode (Audio and Data Combined)
CDi Ready
650 MB (Mode 1, 12 cm)
2,340, 2,336 bytes (Mode 2)
2,352 bytes (CD-DA)
2,328 bytes (CD-XA)
4.7 in, 3.15 in/12 cm, 8 cm
8,350 rpm maximum
0.6 in/15 mm diameter
0.05 in/1.2 mm
1.6 µm
2,048, 1,024 bytes
2,340, 2,336, 1,024 bytes
2,352 bytes
2,328 bytes
< 100 ms
< 150 ms
0.7 VRMS at 47 kOhms
0.6 VRMS at 32 Ohms (maximum volume)
150 KB/s (single)
2,550 to 6000 KB/s (variable)
Semiconductor Laser GaA1As
0.14 mW
41° to 113°F/5° to 45°C
10% to 80%
11.69 x 5.91 x 8.2 in/4.29 x 15.01 x 20.8 cm
12 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
52X TrueX5 CD-ROM
Drive IDE
Disk
Applicable Disk
Capacity
Diameter
Rotational Speed
Center Hole
Thickness
Track Pitch
Block Size
Mode 1
Mode 2
CD-DA
CD-XA
Interface IDE
Access Times (typical)
Random
Full-Stroke
Data Transfer Rate
Sustained
Burst
Start-up Time (typical) < 15 seconds
Stop Time < 3 seconds
Operating Conditions
Temperature
Humidity
Weight 2.65 lbs/1.2 kg
CD-ROM (Mode 1 and 2)
CD-DA, CD-RW,
Photo CD (Single and Multi-Session)
CD-XA Ready
CDi Ready
540 MB (Mode 1, 12 cm)
650 MB (Mode 2)
4.7 in, 3.15 in/12 cm, 8 cm
8,350 rpm maximum
0.6 in/15 mm diameter
0.05 in/1.2 mm
1.6 µm
2,048 bytes
2,340, 2,336 bytes
2,352 bytes
2,328 bytes
< 100 ms
< 150 ms
150 KB/s (single)
6,750 to 7800 KB/s (variable)
41° to 113°F/5° to 45°C
10% to 80%
13 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
DVD-ROM Gen36 (6X/32X)
Drive
Disk
Applicable Disk
Capacity
Diameter
Rotational Speed
Center Hole
Thickness
Track Pitch
Block Size
Mode 1
Mode 2
CD-DA
CD-XA
Interface IDE
Line-Out
Headphone
Access Times (typical)
Random
Data Transfer Rate
Sustained
Burst
Audio Output Level
Variable
Burst
Cache Buffer 512 KB
Start-up Time (typical) < 15 seconds (typical)
Stop Time < 4 seconds
Operating Conditions
Temperature
Humidity
CD-ROM (Mode 1 and 2)
CD-DA,
Photo CD (Single and Multi-Session)
CD-XA Ready
CD: 540 MB (Mode 1, 12 cm)
CD: 650 MB (Mode 2)
DVD: 4.7-GB, 8.5-GB, 9.4-GB
4.7 in, 3.15 in/12 cm, 8 cm
8,350 rpm maximum
0.6 in/15 mm diameter
0.05 in/1.2 mm
CD: 1.6 µm
DVD: 0.74 µm
2,048 bytes
2,340, 2,336 bytes
2,352 bytes
2,328 bytes
0.7 Vrms
0 to 0.6 Vrms
DVD: < 100 ms
CD: <150 ms
150 KB/s (single)
CD: 2,250 to 4800 KB/s (variable)
DVD: 2,705 to 8,115 KB/s (variable)
CD: 1200 to 3600 KB/s
3.6 MB/s (variable)
41° to 113°F/5° to 45°C
10% to 80%
14 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
SuperDisk LS-120 Drive
Internal Iomega 100 and
250-MB ZIP Drive
Media Size 3.5 in
LED Indicators Green in-use indicator
Read/Write Capacity 125.8 MB
Drive Height No data
Drive Rotation 720 rpm
Transfer Rate 680 KB/s (disk)
565 KB/s (sustained)
4.0 MB/s (burst)
Bytes/Sector 512 MB
Sectors/Track 51 to 98 MB
Tracks/Side 900
Seek Time
Track-to-Track
Average
Settling Time
Latency Average
Media Size 3.5 in
Number of Zones
Sectors/Track, Zone 0
Sectors/Track, Zone 1
Sectors/Track, Zone 2
Sectors/Track, Zone 3
Transfer Rate 790 to 1400 KB/sec
Bytes/Sector 512 MB
Seek Time
Track-to-Track
Average
Latency Average
20 ms
70 ms
120 ms
41.67 ms
72
60
48
40
5 ms
29 ms
10 ms
STB/nVidia TNTv 3D AGP
(16 MB)
Resolution (Maximum) Colors Supported Refresh Rate
1600 x 1200
Acceleration 3 ROP BitBLT, Line Draw, Text, Color Expansion,
Memory 16-MB SDRAM Standard
15 2Q 1999 Division – SMB - CTO
16.7M 80 Hz
Basic Video Color Conversion and Scaling
16-MB SDRAM
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
STB/nVidia TNT 3D AGP
(16 MB)
Diamon/nVidia TNT-2
Ultra 32 (32 MB)
Diamon/nVidia TNT-2
(16 MB)
16-MB SDRAM
Resolution (Maximum) Colors Supported Refresh Rate
1600 x 1200
Acceleration 3 ROP BitBLT, Line Draw, Text, Color Expansion,
Memory 16-MB SDRAM Standard
Resolution (Maximum) Colors Supported Refresh Rate
1600 x 1200
Acceleration 3 ROP BitBLT, Line Draw, Text, Color Expansion,
Memory 32-MB SDRAM Standard
Resolution (Maximum) Colors Supported Refresh Rate
1600 x 1200
Acceleration 3 ROP BitBLT, Line Draw, Text, Color Expansion,
Memory 16-MB SDRAM Standard
16.7M 90 Hz
Basic Video Color Conversion and Scaling
32-MB SDRAM
16.7M 60 to 200 Hz
Basic Video Color Conversion and Scaling
16-MB SDRAM
16.7M 60 to 200 Hz
Basic Video Color Conversion and Scaling
Diamon/nVidia Vanta
(16 MB)
16-MB SDRAM
Resolution (Maximum) Colors Supported Refresh Rate
1600 x 1200
Acceleration 3 ROP BitBLT, Line Draw, Text, Color Expansion,
Memory 16-MB SDRAM Standard
16.7M 60 to 200 Hz
Basic Video Color Conversion and Scaling
16 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
Creative SoundBlaster
Audio PCI 128V (SWT)
Creative SoundBlaster
Live Value PCI 512v
Type 16-bit, PCI Bus
Installation Easy installation software – Plug and Play
Sound Quality Stereo
Sampling Multiple sample rate up to 48KHz (Selectable)
Stereo Codec 16-bit A/D, D/A codec
Synthesizer OPL3 FM Synthesis
Audio Output Mixer Output mixing of all audio sources; Digitized sounds,
synthesized music, line-in, CD-audio, PC speaker,
microphone
Audio Input Mixer Synthesized music, Microphone, Aux-In, CD-audio
Volume Stops Yes
Wavetable 128 General MIDI wavetable instruments, 61 drum
programs, 128 MT-32 instruments
3D Sound Yes
Compression/Decompression Yes
Internal Support for CD-ROM Drive Yes
Ports 4 stereo mini-jacks: Microphone/Line input, CD/Aux
Input, Audio out (line level and headphones),
MIDI/Joystick
Approvals/Environmental FCC/CISPR 22/85 (Class B)
Type 16-bit, PCI 2.1 Compliant (Open, Half-Length)
Installation Easy installation software – Plug and Play
Sound Quality 2 Speaker – 3D
Sampling User Selectable Sample Rates From 8 KHz to 48 KHz
(mono/stereo)
Stereo Codec AC 97 Audio Codec
Synthesizer 512 Voice Polyphony PCI Wave-table Synthesis
Audio Output Mixer Output mixing of all audio sources; Digitized sounds,
synthesized music, line-in, CD-audio, PC speaker,
microphone
Audio Input Mixer Synthesized music, Microphone, Aux-In, CD-audio
Volume Stops Yes
Wavetable 48 MIDI Channels with 128 GM & GS Compatible
Instruments and 10 Drum Kits
3D Sound Yes
Compression/Decompression Yes
Internal Support for CD-ROM Drive Yes
Ports MPU 41 MIDI/Gampe Port, Digital CD In, MPC 3 CD
Audio In, Telephone Answering Device In, Aux In
Approvals/Environmental FCC/CISPR 22/85 (Class B)
17 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
Creative SBS 52
Creative SBS 50
Speaker Size 7.87 x 3.75 x 5.12in
System Requirements Sound Blaster-compatible sound card installed PC
Weight 1.6 lbs
Environmental Requirements UL, cUL, CE CSA
Operating conditions No data
Power Source 12V DC
AC Adapter Yes
Input Impedance 7.5 kOhms
Maximum Output Power (sat/sub) 7.17 Watts
Frequency Response 80 to16 kHz
Amplifier Performance THD Maximum 10% @ 1 kHz (7 Watts)
Acoustic Measurements Sensitivity 80 dB S.P.L. for 2Vrms input Pink noise at 1m
Speaker Size 7.787 x 3.75 x 5.12 in
System Requirements Sound Blaster-compatible sound card installed PC
Weight 1.6 lbs
Environmental Requirements UL, cUL, CE CSA
Operating conditions No data
Power Source 12V DC
AC Adapter Yes
Input Impedance 7.5 kOhms
Maximum Output Power (sat/sub) 5.5 Watts/channel 48 Watts total
Frequency Response 80 to 20 kHz
Amplifier Performance THD Maximum Less than 0.05% @ 1kHz (0.3 Watts)
Acoustic Measurements Sensitivity 83.5 dB S.P.L. for 100mV input Pink noise at 0.5m
Altec Lansing ACS 46
Speaker Size 155 x 95 x 95 cm (Satellite)
205 x 330 x 356 cm (Subwoofer)
System Requirements Sound Blaster-compatible sound card installed PC
Weight 19.8 lbs/ 8990 grams (Subwoofer)
Environmental Requirements UL, cUL, CE
Operating conditions
Temperature
Humidity
Power Source 120 VAC/60 Hz, 100 VAC 50-60 Hz
AC Adapter Yes
Input Impedance > 10 kOhms – variable
Maximum Output Power (sat/sub) Sat 20 Watts / woofer 40 Watts
Frequency Response 50 Hz to 20 kHz
Amplifier Performance THD Maximum < 0.8% @ 100 Hz (1 Watt)
Acoustic Measurements Sensitivity 300 mV for full output
18 2Q 1999 Division – SMB - CTO
32° to 104° F/0° to 40°
10% to 90% (non-condensing)
...................................................................................................................................................................................................................................
.
QUICKSPECS
MS Windows 95 (OSR2), MS Windows NT Workstation
Compliance with v.21, v.22, v22bis, v.23, v.32, v.32bis,
MS Windows 95 (OSR2), MS Windows NT Workstation
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
Netelligent 56K7 ISA Fax
Modem (upgradeable to
v.909)
Compaq 56K V.907 PCI
Fax Modem
Architecture ISA
Compliance K56flex7 pre-standard
Full ITU-T v.34 compliance
Compliance with v.21, v.22, v22bis, v.23, v.32,
v.32bis, Bell 103, Bell 212A
Connectors RJ-11
Error Correction v.42, MNP2-4
Data Compression v.42bis/MNP5
Fax Modulation v.17, v.21, v.29, v.27Ter
Command Set Hayes AT, Class 1 Fax
OS Driver Support
4.0
Architecture PCI
Compliance V.90
Connectors RJ-11
Error Correction v.42, MNP2-4
Data Compression v.42bis/MNP5
Fax Modulation v.17, v.21, v.29, v.27Ter
Command Set Hayes AT, Class 1 Fax
OS Driver Support
7
Full ITU-T v.34 compliance
Bell 103, Bell 212A
4.0
3Com Fast EtherLink
XL10/100 TX PCI
Compliance IEEE 802.1x, 802.3, and 802.3u
Certifications FCC Class B
CE Mark
Data Transfer 32-bit bus-master PCI
10 or 100Mb/s
Auto-negotiating
Connector RJ-45
Buffer memory 2KB
Operating system support (Microsoft Windows 95, NT), ODI 16-bit and ODI 32-bit
(Novell NetWare), NDIS 2.0 (most operating
systems), NDIS 3.0/4.0, SCO UNIX
Supported cabling CAT 3, 4, 5 UTP (2 or 4 pair)
Up to 328 feet (100 meters)
19 2Q 1999 Division – SMB - CTO
...................................................................................................................................................................................................................................
.
QUICKSPECS
Technical Specifications
Compaq Prosignia
Desktop 330
Configured to Order
Compaq Fast Ethernet
NIC NC3121 10/100 PCI
Intel WOL
Wireless LAN 2MB
Compliance IEEE 802.2, 802.3, and 802.3u
Power requirements 470mA@+5V typical
Certifications FCC Class B
CE Mark
Data Transfer 32-bit bus-master PCI
10 or 100Mb/s
Auto-negotiating
Connector RJ-45
Buffer memory 6KB
Communication processor Intel 82558 chipset
Operating system support (Microsoft Windows 95, NT), ODI 16-bit and ODI
32-bit (Novell NetWare), NDIS 2.0 (most operating
systems), SCO UNIX
Supported cabling CAT 3, 4, 5 UTP (2 or 4 pair)
Up to 328 feet (100 meters)
Compliance IEEE 802.11
Power requirements 490 mA@+5V DC
Certifications FCC Class B
CE Mark, UL, CSA
Data Transfer 32-bit bus-master PCI
1 and 2 Mb/s
Auto-negotiating
Operating system support Microsoft Windows 95/98, NT,
SCO UNIX
1
Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
2
For Hard Drives, GB = Billion Bytes.
3
Data transfer rates will vary from 150 KB/s to 4800 KB/s.
4
Data transfer rates will vary from 150 KB/s to 6,000 KB/s.
5
Data transfer rates will vary from 150 KB/s to 7800 KB/s.
6
Data transfer rates will vary from 150 KB/s to 8,115 KB/s.
7
Designed only to allow faster downloads from v.90 and/or 56Kflex complaint sources. Maximum achievable download transmission
rates currently do not reach 56KB/s and will vary with line condition. Modems only work with Windows 9.X and Windows NT.
8
There is no exchange or return program available for replacing standard memory.
9
ITU v.90 update may be downloaded from Compaq’s website.
10
AssetControl monitor. AssetControl features are accessible with Compaq desktops featuring Intelligent Manageability.
11
Hard drive specifications will vary depending on vendor.
20 2Q 1999 Division – SMB - CTO
Loading...
