Compaq Professional Workstation AP550
Hardware Reference Guide
First Edition (June 2000)
Part Number 191010-001
Compaq Computer Corporation
chapter 1
Product Features
Standard Configuration Features............................................................................................. 1-1
Front Panel Components ......................................................................................................... 1-2
Rear Panel Components .......................................................................................................... 1-3
System Board Components ..................................................................................................... 1-4
Changing from a Minitower to a Desktop Configuration ....................................................... 1-5
Changing from a Desktop to a Minitower Configuration ....................................................... 1-8
Windows Logo Key .............................................................................................................. 1-11
Special Mouse Functions....................................................................................................... 1-11
Serial Number Location ........................................................................................................ 1-11
chapter 2
Hardware Upgrades
Installation Sequence............................................................................................................... 2-2
Removing the Workstation Access Panel................................................................................ 2-3
Removing the Front Bezel....................................................................................................... 2-4
Installing Additional Memory................................................................................................. 2-5
Installing and Removing RIMMs...................................................................................... 2-6
RIMM Slot Locations .................................................................................................. 2-6
Guidelines for RIMM Installation................................................................................ 2-7
Installing RIMMs......................................................................................................... 2-8
Removing RIMMs ....................................................................................................... 2-9
Installing Additional Drives .................................................................................................. 2-10
Drive Bay Components ................................................................................................... 2-10
Preparing for Drive Installation............................................................................................. 2-11
Removing the Bezel Blank ........................................................................................ 2-11
Locating the Hardware Screws .................................................................................. 2-13
Installing a Drive ............................................................................................................. 2-14
Installing a Hard Drive in a 3.5-inch Drive Bay........................................................ 2-14
Installing a Hard Drive in a 5.25-inch Drive Bay...................................................... 2-16
Removing a Drive............................................................................................................ 2-18
Installing and Removing an Expansion Board...................................................................... 2-21
Identifying the PCI Expansion Slots................................................................................ 2-21
Installing an Expansion Board......................................................................................... 2-22
Removing an Expansion Board ....................................................................................... 2-24
Identifying the AGP Graphics Controller Expansion Slot............................................... 2-24
Installing and Removing an AGP Graphics Controller ................................................... 2-25
Installing a Processor ............................................................................................................ 2-26
ONTENTS
C
Index
..................................................................................................................................................... I-1
Compaq Professional Workstation AP550 Hardware Reference Guide iii
?D=FJAH
RODUCT FEATURES
P
Standard Configuration Features
The Compaq Professional Workstation AP550 is a minitower system
that can be easily converted to a desktop. Features may vary depending
on your model. For a complete listing of the hardware and software
installed in your workstation, run the INSPECT utility described in the
Troubleshooting Guide.
Compaq Professional Workstation AP550 Hardware Reference Guide 1-1
Front Panel Components
Front Panel Components
1-2 Product Features
1 CD-ROM eject button
2 CD-ROM drive activity light
3 CD-ROM headphone jack
4 CD-ROM volume
5 Diskette drive activity light
6 Diskette eject button
7 Power button
8 Power-on light
9 Hard drive activity light
Rear Panel Components
Rear panel components
1 Power cord connector
2 Line-out audio connector
3 Headphone connector
4 Keyboard connector
5 Two universal serial bus (USB) connectors
6 RJ-45 connector
7 Ultra3 SCSI connector
8 Line-in audio connector
9 Microphone connector
: Mouse connector
; Parallel connector
< Serial connector (COMM1)
= Serial connector (COMM2)
> VGA (AGP) Video connector
Compaq Professional Workstation AP550 Hardware Reference Guide 1-3
System Board Components
System board components
1 Four PCI expansion slots
2 AGP expansion slot
3 Serial port cable connector
4 Direct Rambus RIMM sockets 1-4
5 Ultra3 SCSI connector
6 Primary processor
7 Embedded Processor Power Module for primary processor
8 Secondary processor slot
9 Processor Power Module connector for secondary processor
: Power connectors
; Power switch and power LED connector
< Secondary Ultra ATA (IDE) connector
= Primary Ultra ATA (IDE) connector
> Diskette drive connector
τ Battery
ψ Power-on password (P49) enabled jumper
υ CMOS Pushbutton Switch
1-4 Product Features
Changing from a Minitower to a Desktop Configuration
To change from a minitower to a desktop configuration:
1. Turn off the workstation and any external devices.
2. Disconnect the power cord from the grounded AC outlet and the
back of the workstation, and then disconnect the network cable
from the system.
3. Remove the workstation access panel. Refer to the instructions
Removing the Workstation Access Panel in Chapter 2.
4. Remove the front bezel. Refer to Removing the Front Bezel in
Chapter 2.
5. Disconnect all power and data cables from the drives in the
5.25-inch drive bay.
6. To release a drive from the 5.25-inch drive bay, slide the drivelock
as shown. Carefully push the drive from the back of the unit until
the drive casing can be grasped.

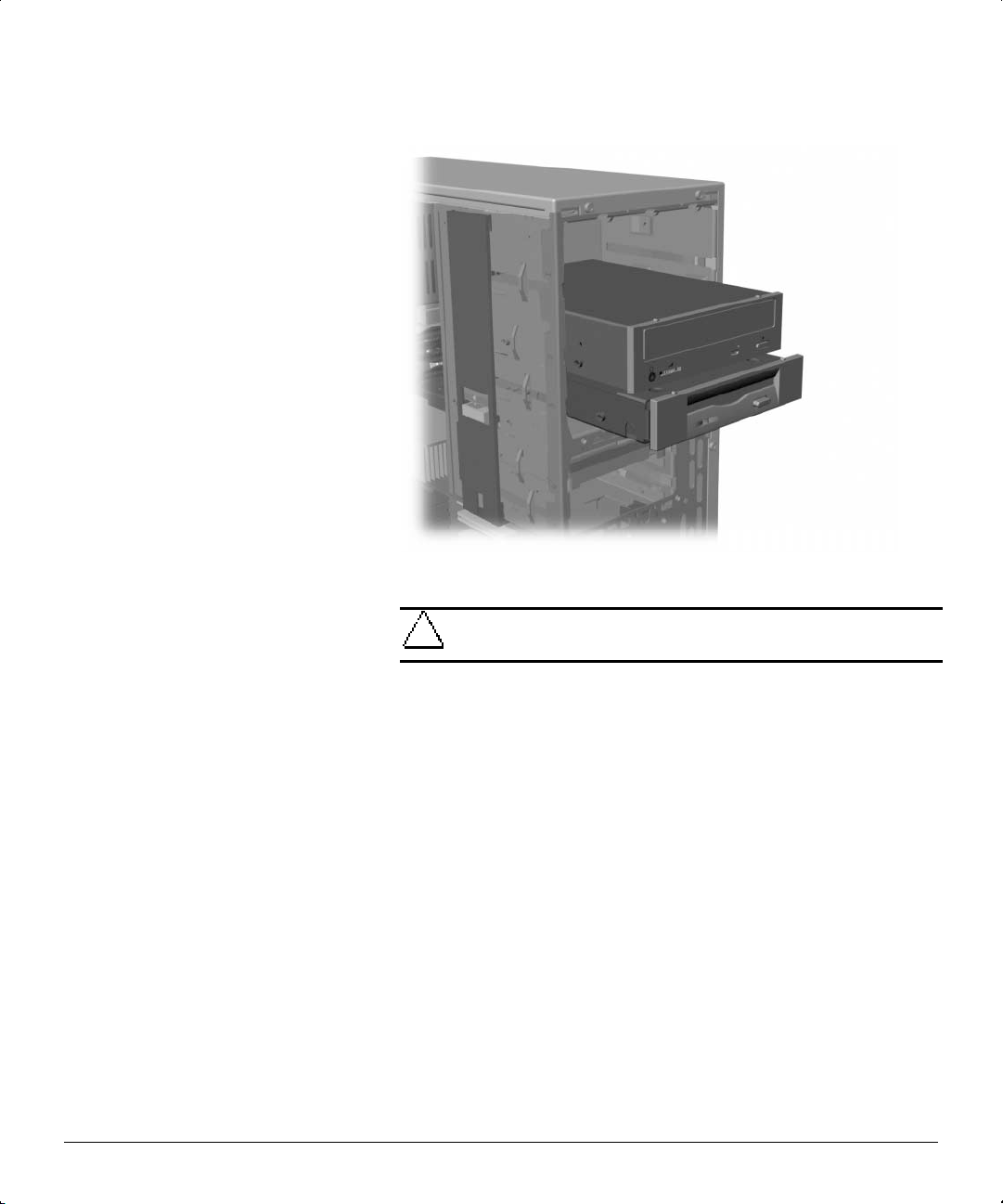

Releasing the drives with the drivelock
CAUTION: Do not hold the faceplate while removing a drive. Only
hold a drive by its casing.
Compaq Professional Workstation AP550 Hardware Reference Guide 1-5
7. While holding the drive casing, gently pull the drives out of the
drive bay.
CAUTION: When removing the drives, do not pull the drives from the
front of the drive bay. To prevent damage to the drive bezel, push the
drives from the rear to remove them from the front of the drive bay.
8. After placing the workstation in the desktop position, gently slide
the drives back into the bay.
1-6 Product Features
Installing the drives
CAUTION: The use of unnecessary force when installing the drive
may result in damage to the drive.
✎
9. Reconnect the power and data cables to the drives as labeled.
Always place the diskette drive in the bay nearest the top
(bay 3) of the chassis in the desktop configuration to ensure
proper drive clearance and access. When all of the drives are
properly inserted, the drivelock will secure the drives in place.
10. Remove the bezel blank as described in the Removing the Bezel
Blank section in Chapter 2 and reposition the subpanel with the
bezel blank in the proper orientation for the desktop configuration.
CAUTION: Hold the subpanel straight when you pull it away from the
front bezel. Pulling the subpanel away at an angle could damage the
pins that align it within the front bezel.
Changing from a minitower to a desktop configuration
11. Replace the subpanel, front bezel, and the workstation access
panel. Be sure the subpanel and front bezel align properly with the
alignment tabs.
✎
12. Reconnect the power cord to the grounded AC outlet, then
When converting from a minitower to a desktop orientation,
use the replacement bezel blank that was shipped with your
workstation to ensure the Compaq logo is properly oriented.
reconnect the network cable and any external devices to the
system.
Compaq Professional Workstation AP550 Hardware Reference Guide 1-7
Changing from a Desktop to a Minitower Configuration
To change from a desktop to a minitower configuration:
1. Turn off the workstation and any external devices.
2. Disconnect the power cord from the grounded AC outlet and the
back of the workstation, and then disconnect the network cable
from the system.
3. Remove the workstation access panel. Refer to Removing the
Workstation Access Panel in Chapter 2.
4. Remove the front bezel. Refer to Removing the Front Bezel in
Chapter 2.
5. Disconnect all power and data cables from the drives in the
5.25-inch drive bay.
6. While pressing the drivelock button, push from the back of the
drives until the drive casing can be grasped.
1-8 Product Features
Releasing the drives with the drivelock
1. While holding the drive casing, pull the drives out of the drive bay.
2. After placing the workstation in the desktop position, gently slide
the drives back into the bay.
Installing the drives
CAUTION: The use of unnecessary force when installing the drives
may damage the drives.
✎
9. Reconnect the power
Always place the diskette drive in the bay nearest the internal
3.5-inch drives in the minitower configuration for proper
clearance within the chassis. When the drives are properly
inserted, the drivelock will secure them.
and data cables to the drives as labeled.
Compaq Professional Workstation AP550 Hardware Reference Guide 1-9
10. Remove the bezel blank as described in the Removing the Bezel
Blank section in Chapter 2 and reposition the subpanel with the
bezel blank in the proper orientation for the desktop configuration.
CAUTION: Hold the subpanel straight when you pull it away from the
front bezel. Pulling the subpanel away at an angle could damage the
pins that align it within the front bezel.
1-10 Product Features
Changing from a desktop to a minitower configuration
11. Replace the subpanel,
front bezel, and workstation access panel. Be sure the subpanel and
front bezel align properly with the alignment tabs.
✎
12. Reconnect the power
When converting from a desktop to a minitower orientation,
use the replacement bezel blank that is shipped with your
workstation to ensure the Compaq logo is properly oriented.
cord to the grounded AC outlet, then reconnect the network cable
and any external devices to the system.
Windows Logo Key
Use the Windows Logo key in combination with other keys to perform
certain functions in Windows 2000 Professional and Windows NT
Workstation 4.0.
Special Mouse Functions
Most software applications support the use of a mouse. The functions
assigned to each mouse button depend on the software application you
are using.
Windows logo key + F1 Displays a pop-up menu for the
selected object.
Windows logo key + Tab Activates the next Taskbar button.
Windows logo key + E Launches Explore My Computer.
Windows logo key + F Launches Find Document.
Windows logo key + Ctrl + F Launches Find Computer.
Windows logo key + M Minimizes all open applications.
Shift+Windows logo key + M Undoes Minimize All.
Windows logo key + R Displays Run dialog box.
Serial Number Location
Each computer has a unique serial number located on the corner of the
computer access panel and on the rear panel of the computer. Keep this
number available when contacting Compaq customer service.
Compaq Professional Workstation AP550 Hardware Reference Guide 1-11
chapter
2
ARDWARE UPGRADES
H
This chapter explains how to remove the workstation access panel and
convert the minitower workstation to a desktop unit or the desktop
workstation to a minitower unit. It also explains how to install the
following hardware:
■ Memory
■ Drives
■ Expansion boards
■ Processors
✎
Compaq recommends that you finish the setup procedures for
the preinstalled software before you install any optional
hardware or third-party devices that were not included with
your workstation.
Compaq Professional Workstation AP550 Hardware Reference Guide 2-1
Installation Sequence
Follow this sequence of steps to ensure the proper installation of any
optional equipment. Before you begin, observe the following
precautions:
WARNING: To reduce the risk of personal injury from hot surfaces,
!
allow the internal system components to cool before touching them.
WARNING: To reduce the risk of electrical shock, fire, or damage to
!
the equipment, do not plug telecommunications/telephone
connectors into the network interface controller (NIC) receptacles.
CAUTION: Static electricity can damage the electronic components
of the workstation or optional equipment. Before beginning these
procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
1. Turn off the workstation and disconnect the power cord from the
grounded AC outlet and the back of the workstation.
2. Open the workstation by removing its workstation access panel.
See the section Removing the Workstation Access Panel in this
chapter for instructions.
2-2 Hardware Upgrades
3. If you are installing or removing drives in the front bays, see the
section Removing the Front Bezel in this chapter for
instructions.
4. Install any optional equipment, such as memory, drives, expansion
boards, processors, or batteries. See the appropriate sections in this
chapter or the appendices for installation instructions.
5. Replace the front bezel and the workstation access panel, if
necessary.
6. Reconnect the power cord to the back of the workstation and plug
the power cord into a grounded AC outlet.
7. Turn on the monitor, workstation, and any devices you installed.
8. Reconfigure the workstation, if necessary.
9. Test the workstation (optional) using the TEST utility.
Removing the Workstation Access Panel
To remove the workstation access panel:
1. Turn off the workstation and any external devices.
2. Disconnect the power cord from the grounded AC outlet and the
back of the workstation.
3. Refer to the following illustration to remove the workstation
access panel.
Loosening the two thumbscrews and removing the workstation access panel
✎
When replacing the workstation access panel, be sure to
tighten both thumbscrews.
Compaq Professional Workstation AP550 Hardware Reference Guide 2-3
Removing the Front Bezel
To remove the front bezel:
1. Turn off the workstation and any external devices.
2. Disconnect the power cord from the grounded AC outlet and the
3. Remove the workstation access panel. Refer to Removing the
4. Push in on the two front bezel release tabs, then rotate the front
back of the workstation
Workstation Access Panel in this chapter.
bezel away from the chassis to release it.
2-4 Hardware Upgrades
Pressing the front bezel release tabs to remove the front bezel
✎
When replacing the front bezel, ensure that the bottom hinge
points are properly placed in the chassis before rotating the
front bezel back into its original position.
Installing Additional Memory
The Compaq Professional Workstation AP550 supports Direct Rambus
inline memory modules (RIMMs). Additional RIMMs are available to
upgrade the memory. A maximum of 32 count Direct RDRAM devices
is supported on each Direct Rambus memory channel. Continuity
RIMMs (CRIMMs) must populate any empty slots.
Compaq Professional Workstation AP550 Hardware Reference Guide 2-5
Installing and Removing RIMMs
RIMM Slot Locations
Your workstation supports a total of four RIMM slots on two Direct
RDRAM channels. A maximum of 32 Direct RDRAM devices is
supported per channel.
The four RIMM slots are numbered XMM1 and XMM2 (Channel A)
and XMM3 and XMM4 (Channel B).
2-6 Hardware Upgrades
Location of RIMM slots
1
RIMM Slot XMM2, Channel A
2
RIMM Slot XMM1, Channel A
3
RIMM Slot XMM4, Channel B
4
RIMM Slot XMM3, Channel B
Guidelines for RIMM Installation
When installing RIMMs, you must follow these guidelines:
■ RIMMs must be installed correctly. Be sure to match the two
on the RIMM with the tabs on the RIMM socket. Push the
slots
RIMM down into the RIMM socket, ensuring that it is fully
inserted and properly seated, and that the retaining arms are locked
in place.
■ CRIMMs must be installed in all empty RIMM sockets. The
CRIMMs are removed when you populate the sockets with
RIMMs. For examples of the correct configuration sequence, refer
to the section, Installing RIMMs.
■ Install RIMMs in pairs across both memory channels. Each RIMM
socket populated with a RIMM or CRIMM on channel A must be
populated with an identical RIMM or CRIMM on Channel B. For
examples of the correct configuration sequence, refer to the
section, "Installing RIMMs.
■ Do not exceed 32-count Direct RDRAM devices on each Direct
Rambus memory channel. A label on the RIMM will indicate the
number of Direct RDRAM devices on the RIMM and their speed.
✎
■ Do not mix RIMMs with different memory speeds. Performance
You cannot remove or add Direct RDRAMS to a RIMM
because the Direct RDRAMS are soldered on and encased by
another material.
will reflect the lowest speed RIMMs.
key
CAUTION: Static electricity can damage the electronic components
of the workstation or option boards. Before beginning these
procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
CAUTION: The above guidelines must be followed when installing
RIMMs or your workstation will not function.
CAUTION: When handling a memory module, do not touch any of the
contacts. Doing so can damage the module.
Compaq Professional Workstation AP550 Hardware Reference Guide 2-7
Installing RIMMs
When installing RIMMs, you must use the configurations in the
following table.
RIMM Installation Configurations
Memory
Channel A
Possible
Configuration
1 RIMM CRIMM RIMM CRIMM
2 RIMM RIMM RIMM RIMM
WARNING: To reduce the risk of personal injury when replacing or
!
removing RIMMs, make sure that the module being removed from
the RIMM slot has had sufficient time to cool. RIMM temperatures
can reach 100°C (212°F).
CAUTION: When handling a RIMM, do not touch any of the contacts.
Doing so may damage the module.
CAUTION: Static electricity can damage the electronic components
of the workstation or option boards. Before beginning these
procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
RIMM
Slot
XMM1
RIMM
Slot
XMM2
Memory
Channel B
RIMM
Slot
XMM3
RIMM
Slot
XMM4
2-8 Hardware Upgrades
Before installing additional RIMMs, read Guidelines for RIMM
Installation in this chapter.
✎
To install a RIMM:
1. Turn off the workstation and any external devices.
2. Disconnect the power cord from the grounded AC outlet and the
3. Remove the workstation access panel.
CRIMMs must be installed in all unpopulated RIMM slots.
back of the workstation.
4. Refer to the following illustration to install a RIMM module.
Installing a RIMM
5. Replace the workstation access panel.
6. Plug the power cord back into the grounded AC outlet and the
back of the workstation, and reconnect the external devices.
7. Turn on the workstation.
Removing RIMMs
To remove a memory module from a RIMM slot, reverse the above
procedure.
The workstation will automatically recognize the added memory.
Compaq Professional Workstation AP550 Hardware Reference Guide 2-9
Loading...
