Hardware Reference Guide - dc7800 Series Convertible Minitower
HP Compaq Business PC
© Copyright 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.
Hardware Reference Guide
HP Compaq Business PC
dc7800 Series Convertible Minitower
First Edition (July 2007)
Document part number: 451122-001
About This Book
This guide provides basic information for upgrading this computer model.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW iii
iv About This Book ENWW
Table of contents
1 Product Features
Standard Configuration Features ......................................................................................................... 1
Front Panel Components ..................................................................................................................... 2
Media Card Reader Components ......................................................................................................... 3
Rear Panel Components ...................................................................................................................... 4
Keyboard .............................................................................................................................................. 5
Using the Windows Logo Key .............................................................................................. 6
Special Mouse Functions ..................................................................................................................... 7
Serial Number Location ........................................................................................................................ 7
2 Hardware Upgrades
Serviceability Features ......................................................................................................................... 8
Warnings and Cautions ........................................................................................................................ 8
Unlocking the Smart Cover Lock .......................................................................................................... 9
Smart Cover FailSafe Key ................................................................................................... 9
Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock ............................. 9
Removing the Computer Access Panel .............................................................................................. 11
Replacing the Computer Access Panel .............................................................................................. 12

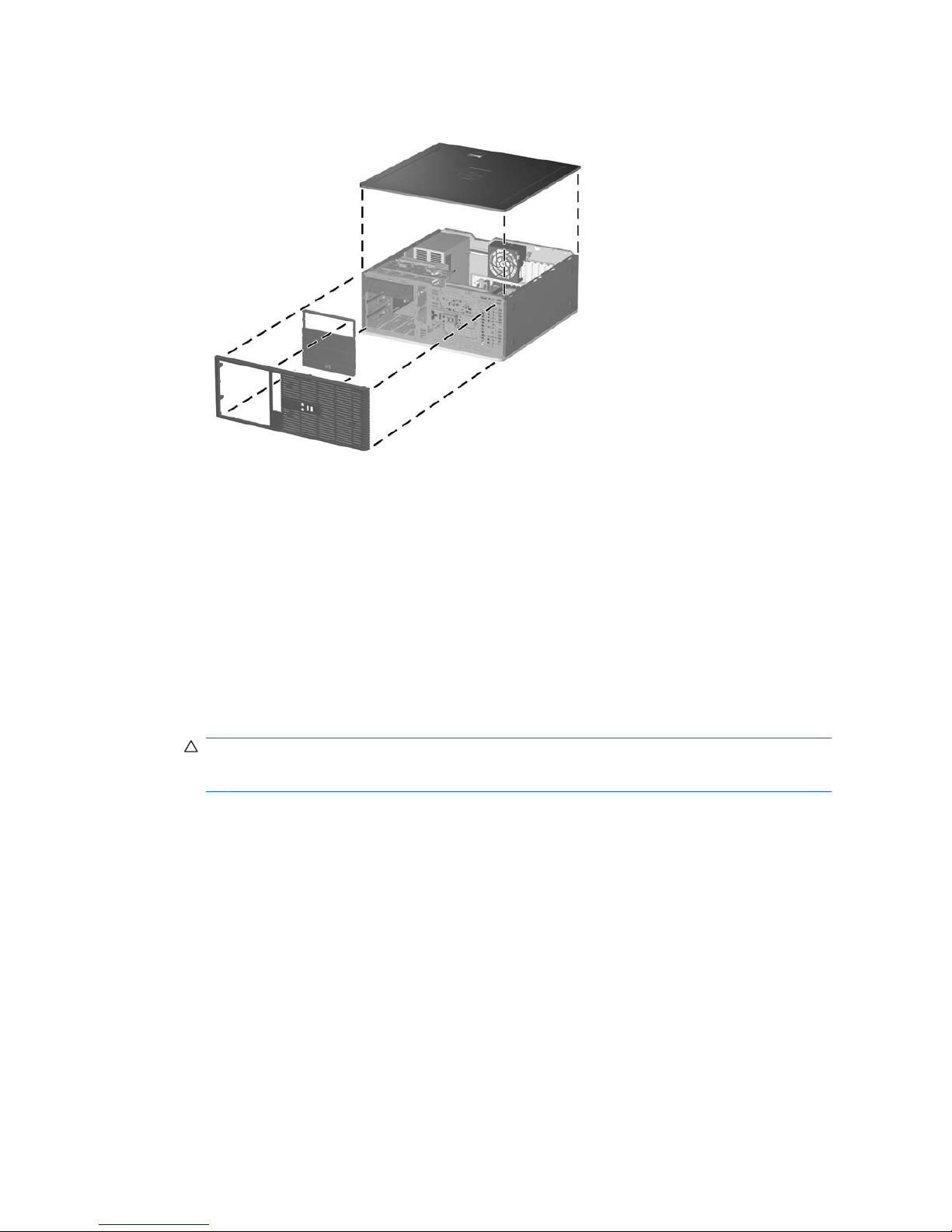

Removing the Front Bezel .................................................................................................................. 13
Replacing the Front Bezel .................................................................................................................. 14
Removing Bezel Blanks ..................................................................................................................... 15
Installing Additional Memory .............................................................................................................. 16
DIMMs ............................................................................................................................... 16
DDR2-SDRAM DIMMs ...................................................................................................... 16
Populating DIMM Sockets ................................................................................................. 17
Installing DIMMs ................................................................................................................ 18
Removing or Installing an Expansion Card ........................................................................................ 20

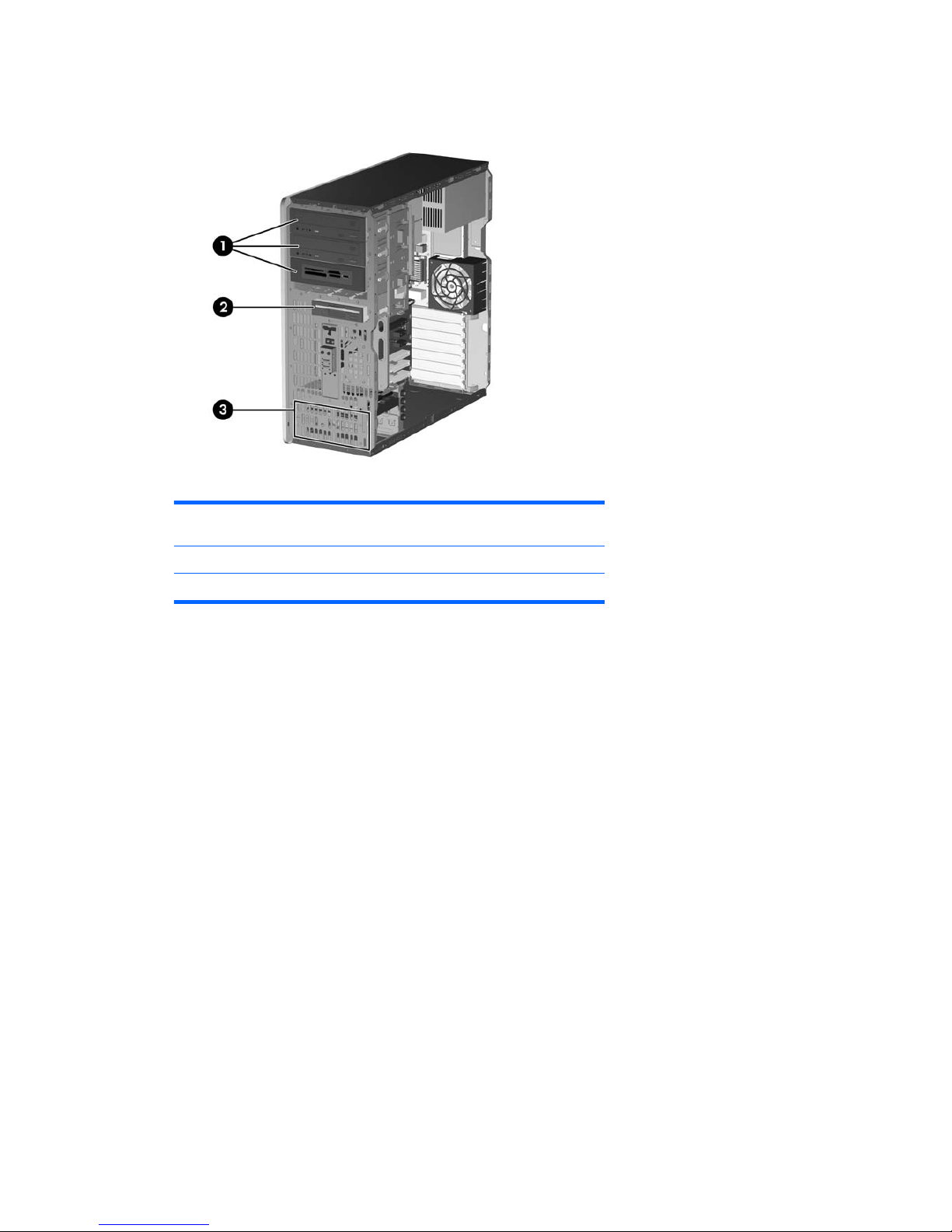

Drive Positions ................................................................................................................................... 24
Removing a Drive from a Drive Bay ................................................................................................... 25
Installing Additional Drives ................................................................................................................. 27
System Board Drive Connections ...................................................................................... 29
Installing a 5.25-inch or 3.5-inch Drive into an External Drive Bay .................................... 30
Installing a 3.5-inch SATA Hard Drive into an Internal Drive Bay ...................................... 32

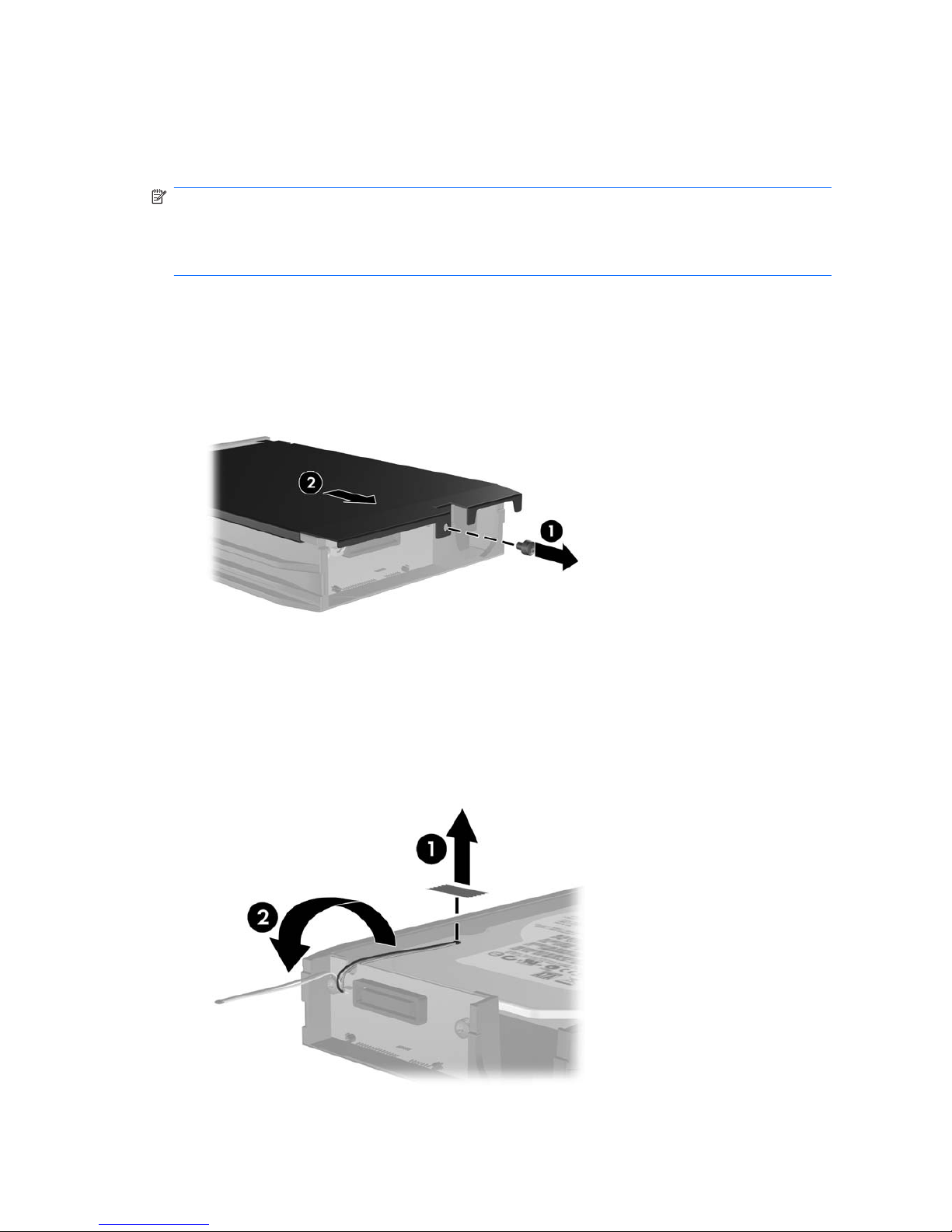

Removing and Replacing a Removable 3.5-inch SATA Hard Drive .................................. 34
Changing from a Minitower to a Desktop Configuration ..................................................................... 38
Changing from a Desktop to a MinitowerConfiguration ...................................................................... 40
Appendix A Specifications
Appendix B Battery Replacement
Appendix C External Security Devices
ENWW v
Installing a Security Lock .................................................................................................................... 48
Cable Lock ......................................................................................................................... 48
Padlock .............................................................................................................................. 49
HP Business PC Security Lock .......................................................................................... 50
Appendix D Electrostatic Discharge
Preventing Electrostatic Damage ....................................................................................................... 52
Grounding Methods ............................................................................................................................ 52
Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care ............................................................................ 53
Optical Drive Precautions ................................................................................................................... 54
Operation ........................................................................................................................... 54
Cleaning ............................................................................................................................. 54
Safety ................................................................................................................................. 54
Shipping Preparation .......................................................................................................................... 54
Index ................................................................................................................................................................... 55
vi ENWW
1 Product Features
Standard Configuration Features
The HP Compaq Convertible Minitower features may vary depending on the model. For a complete listing of the hardware and software installed in the computer, run the diagnostic utility (included on some computer models only). Instructions for using the utility are provided in the Troubleshooting Guide.
NOTE: The HP Compaq Convertible Minitower computer can be easily converted to a desktop. For
more information, see
Changing from a Minitower to a Desktop Configuration on page 38 in this guide.
Figure 1-1 Convertible Minitower Configuration
ENWW Standard Configuration Features 1
Front Panel Components
Drive configuration may vary by model.
Figure 1-2 Front Panel Components
Table 1-1 Front Panel Components
1 5.25-inch Optical Drives 8 5.25-inch Media Card Reader (optional)
2 Optical Drive Activity Lights 9 Diskette Drive Activity Light (optional)
3 3.5-inch Diskette Drive (optional)
1
10 Diskette Eject Button (optional)
4 Dual-State Power Button 11 Power On Light
5 Hard Drive Activity Light 12 Headphone Connector
6 Microphone Connector 13 USB (Universal Serial Bus) Ports
7 Optical Drive Eject Buttons
NOTE: An optical drive is a DVD-ROM or SuperMulti LightScribe drive.
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The bottom bay supports
a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not try to force a larger drive, such as an optical drive, into the bottom bay. This could cause damage to the drive and the system board. The use of unnecessary force when installing any drive into the drive bay may result in damage to the drive.
1
Some models are configured with a media card reader in the external 3.5-inch drive bay. Other models have a bezel blank
covering this bay.
2 Chapter 1 Product Features ENWW
Media Card Reader Components
The media card reader is an optional device available on some models only. Refer to the following illustration and table to identify the media card reader components.
Figure 1-3 Media Card Reader Components
Table 1-2 Media Card Reader Components
1 SmartMedia/xD
3.3V SmartMedia Card (SM)
D-Picture Card (xD)
4 USB (Universal Serial Bus) Port
2 Media Card Reader Activity Light 5 CompactFlash I/II
CompactFlash Card Type 1
CompactFlash Card Type 2
MicroDrive
3 SD/MMC+/miniSD
Secure Digital Card (SD)
MiniSD
MultiMediaCard (MMC)
Reduced Size MultiMediaCard (RS MMC)
MultiMediaCard 4.0 (Mobile Plus)
Reduced Size MultiMediaCard 4.0 (MMC Mobile)
MMC Micro (adapter required)
MicroSD (T-Flash) (adapter required)
6 MS PRO/MS PRO DUO
Memory Stick (MS)
MagicGate Memory Stick (MG)
MagicGate Memory Duo
Memory Stick Select
Memory Stick Duo (MS Duo)
Memory Stick PRO (MS PRO)
Memory Stick PRO Duo (MS PRO Duo)
ENWW Media Card Reader Components 3
Rear Panel Components
Figure 1-4 Rear Panel Components
Table 1-3 Rear Panel Components
1 Power Cord Connector 6 Line-In Audio Connector (blue)
2 RJ-45 Network Connector 7 Line-Out Connector for powered audio
devices (green)
3 Parallel Connector 8 Universal Serial Bus (USB)
4 Serial Connector 9 VGA Monitor Connector
5 PS/2 Mouse Connector (green) 10 PS/2 Keyboard Connector (purple)
NOTE: Arrangement and number of connectors may vary by model.
The Line-in audio connector can be retasked as a microphone connector in the audio driver's control panel.
The monitor connector on the system board is inactive when a PCI Express x16 graphics card is installed in the computer.
If a PCI or PCI Express x1 graphics card is installed, the connectors on the card and the system board may be used at the same time. Some settings may need to be changed in Computer Setup to use both connectors. For information about Boot Order, refer to the Computer Setup (F10) Utility Guide.
4 Chapter 1 Product Features ENWW
Keyboard
Figure 1-5 Keyboard Components
Table 1-4 Keyboard Components
1 Function Keys Perform special functions depending on the software application being used.
2 Editing Keys Includes the following: Insert, Home, Page Up, Delete, End, and Page Down.
3 Status Lights Indicate the status of the computer and keyboard settings (Num Lock, Caps Lock,
and Scroll Lock).
4 Numeric Keys Work like a calculator keypad.
5 Arrow Keys Used to navigate through a document or Web site. These keys allow you to move
left, right, up, and down, using the keyboard instead of the mouse.
6 Ctrl Keys Used in combination with another key; their effect depends on the application
software you are using.
7 Application Key
1
Used (like the right mouse button) to open pop-up menus in a Microsoft Office application. May perform other functions in other software applications.
8 Windows Logo Keys
1
Used to open the Start menu in Microsoft Windows. Used in combination with other keys to perform other functions.
9 Alt Keys Used in combination with another key; their effect depends on the application
software you are using.
1
Keys available in select geographic regions.
ENWW Keyboard 5
Using the Windows Logo Key
Use the Windows Logo key in combination with other keys to perform certain functions available in the Windows operating system. Refer to
Keyboard on page 5 to identify the Windows Logo key.
Table 1-5 Windows Logo Key Functions
The following Windows Logo Key functions are available in Microsoft Windows XP and Microsoft Windows Vista.
Windows Logo Key
Displays or hides the Start menu
Windows Logo Key + d Displays the Desktop
Windows Logo Key + m Minimizes all open applications
Shift + Windows Logo Key + m Undoes Minimize All
Windows Logo Key + e Launches My Computer
Windows Logo Key + f Launches Find Document
Windows Logo Key + Ctrl + f Launches Find Computer
Windows Logo Key + F1 Launches Windows Help
Windows Logo Key + l Locks the computer if you are connected to a network domain, or
allows you to switch users if you are not connected to a network domain
Windows Logo Key + r Launches the Run dialog box
Windows Logo Key + u Launches the Utility Manager
Windows Logo Key + Pause/Break Launches the System Properties dialog box
Windows Logo Key + Tab Cycles through the Taskbar buttons (Windows XP)
Cycles through programs on the Taskbar using the Windows Flip 3-D (Windows Vista)
In addition to the Windows Logo Key functions described above, the following functions are also available in Microsoft Windows Vista.
Ctrl + Windows Logo Key + Tab
Use the arrow keys to cycle through programs on the Taskbar by using Windows Flip 3-D
Windows Logo Key + Spacebar Bring all gadgets to the front and select Windows Sidebar
Windows Logo Key + g Cycle through Sidebar gadgets
Windows Logo Key + u Launches Ease of Access Center
Windows Logo Key + x Launches Windows Mobility Center
Windows Logo Key + any number key Launches the Quick Launch shortcut that is in the position that
corresponds to the number (for example, Windows Logo Key + 1 launches the first shortcut in the Quick Launch menu)
6 Chapter 1 Product Features ENWW
Special Mouse Functions
Most software applications support the use of a mouse. The functions assigned to each mouse button depend on the software applications you are using.
Serial Number Location
Each computer has a unique serial number and a product ID number that are located on the top cover of the computer. Keep these numbers available for use when contacting customer service for assistance.
Figure 1-6 Serial Number and Product ID Location
ENWW Special Mouse Functions 7
2 Hardware Upgrades
Serviceability Features
The computer includes features that make it easy to upgrade and service. No tools are needed for most of the installation procedures described in this chapter.
Warnings and Cautions
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and warnings in this guide.
WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:
Disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.
Do not plug telecommunications or telephone connectors into the network interface controller (NIC) receptacles.
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo.
CAUTION: Static electricity can damage the electrical components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See Appendix D,
Electrostatic Discharge on page 52 for
more information.
When the computer is plugged into an AC power source, voltage is always applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent damage to internal components.
8 Chapter 2 Hardware Upgrades ENWW
Unlocking the Smart Cover Lock
NOTE: The Smart Cover Lock is an optional feature included on some models only.
The Smart Cover Lock is a software-controllable cover lock, controlled by the setup password. This lock prevents unauthorized access to the internal components. The computer ships with the Smart Cover Lock in the unlocked position. For more information about locking the Smart Cover Lock, refer to the Desktop Management Guide.
Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password to disable the lock, you will need a Smart Cover FailSafe Key to open the computer cover. You will need the key to access the internal computer components in any of the following circumstances:
Power outage
Startup failure
PC component (for example, processor or power supply) failure
Forgotten password
NOTE: The Smart Cover FailSafe Key is a specialized tool available from HP. Be prepared; order this
key before you need one.
To obtain a FailSafe Key:
Contact an authorized HP reseller or service provider. Order PN 166527-001 for the wrench-style key or PN 166527-002 for the screwdriver bit key.
Refer to the HP Web site (
http://www.hp.com) for ordering information.
Call the appropriate number listed in the warranty or in the Support Telephone Numbers guide.
Using the Smart Cover FailSafe Key to Remove the Smart Cover Lock
To open the access panel with the Smart Cover Lock engaged:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
ENWW Unlocking the Smart Cover Lock 9
5. Use the Smart Cover FailSafe Key to remove the two tamper-proof screws that secure the Smart
Cover Lock to the chassis.
Figure 2-1 Removing the Smart Cover Lock Screws
6. Remove the access panel.
To reattach the Smart Cover Lock, secure the lock in place with the tamper-proof screws.
10 Chapter 2 Hardware Upgrades ENWW
Removing the Computer Access Panel
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Lay the computer down on its large base for greater stability.
6. Lift up on the access panel handle (1), slide the access panel back about 1.25 cm (1/2 inch), then
lift it up and off the unit (2).
Figure 2-2 Removing the Computer Access Panel
ENWW Removing the Computer Access Panel 11
Replacing the Computer Access Panel
1. Lay the computer down on its large base for greater stability.
2. Align the tabs on the access panel with the slots on the chassis and push down on the access
panel while sliding it forward until it locks into place.
Figure 2-3 Replacing the Computer Access Panel
12 Chapter 2 Hardware Upgrades ENWW
Removing the Front Bezel
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Push up on the two release tabs (1), then rotate the front bezel away from the chassis to release
it (2).
Figure 2-4 Removing the Front Bezel
ENWW Removing the Front Bezel 13
Replacing the Front Bezel
1. Place the bottom hinge points on the front bezel in their corresponding slots in the chassis (1).
2. Rotate the front bezel onto the chassis (2).
3. Snap the catches at the top of the bezel into place (3).
4. Snap the release tabs into place (4).
Figure 2-5 Replacing the Front Bezel
14 Chapter 2 Hardware Upgrades ENWW
Removing Bezel Blanks
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Remove the front bezel.
7. Gently pull the subpanel, with the bezel blanks secured in it, away from the front bezel, then remove
the desired bezel blank.
CAUTION: Hold the subpanel straight when you pull it away from the front bezel. Pulling the subpanel
away at an angle could damage the pins that align it within the front bezel.
Figure 2-6 Removing Bezel Blanks from the Subpanel (Desktop Shown)
NOTE: When replacing the subpanel, ensure that the aligning pins and any remaining bezel blanks
are in their proper orientation. The logo on the subpanel should be located at the bottom of the subpanel when properly oriented.
ENWW Removing Bezel Blanks 15
Installing Additional Memory
The computer comes with double data rate 2 synchronous dynamic random access memory (DDR2­SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs. These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum memory support, you can populate the system board with up to 8 GB of memory configured in a high­performing dual channel mode.
DDR2-SDRAM DIMMs
For proper system operation, the DDR2-SDRAM DIMMs must be:
industry-standard 240-pin
unbuffered, PC2-5300 667 MHz-compliant or PC2-6400 800 MHz-compliant
1.8 volt DDR2-SDRAM DIMMs
The DDR2-SDRAM DIMMs must also:
support CAS latency 5 DDR2 667 Mhz (5-5-5 timing), CAS latency 5 DDR2 800 Mhz (5-5-5 timing), and CAS latency 6 DDR2 800 Mhz (6-6-6 timing)
contain the mandatory JEDEC SPD information
In addition, the computer supports:
512Mbit and 1Gbit non-ECC memory technologies
single-sided and double-sided DIMMs
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not supported
NOTE: The system will not operate properly if you install unsupported DIMMs.
16 Chapter 2 Hardware Upgrades ENWW
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM2 operate in memory channel A. Sockets XMM3 and XMM4 operate in memory channel B.
Figure 2-7 DIMM Socket Locations
Table 2-1 DIMM Socket Locations
Item Description Socket Color
1 DIMM socket XMM1, Channel A Black
2 DIMM socket XMM2, Channel A White
3 DIMM socket XMM3, Channel B White
4 DIMM socket XMM4, Channel B White
NOTE: A DIMM must occupy the black DIMM1 socket. Otherwise, the system
will display a POST error message indicating that a memory module must be installed in the black socket.
The system will automatically operate in single channel mode, dual channel mode, or flex mode, depending on how the DIMMs are installed.
The system will operate in single channel mode if the DIMM sockets are populated in one channel only.
The system will operate in a higher-performing dual channel mode if the total memory capacity of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The technology and device width can vary between the channels. For example, if Channel A is populated with two 512MB DIMMs and Channel B is populated with one 1GB DIMM, the system will operate in dual channel mode.
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated with the least amount of memory describes the total amount of memory assigned to dual channel and the remainder is assigned to single channel. For optimal speed, the channels should be balanced so that the largest amount of memory is spread between the two channels. If one channel will have more memory than the other, the larger amount should be assigned to Channel A. For example, if you are populating the sockets with one 1GB DIMM, and three 512MB DIMMs, Channel
ENWW Installing Additional Memory 17
A should be populated with the 1GB DIMM and one 512MB DIMM, and Channel B should be populated with the two 512MB DIMMs. With this configuration, 2GB will run as dual channel and 512MB will run as single channel.
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION: You must disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. For more information, refer to Appendix D,
Electrostatic Discharge
on page 52.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the
power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.
5. Remove the computer access panel.
6. Locate the memory module sockets on the system board.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
18 Chapter 2 Hardware Upgrades ENWW
7. Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
Figure 2-8 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
A DIMM must occupy the black XMM1 socket.
For maximum performance, populate the sockets so that the memory capacity is spread as equally as possible between Channel A and Channel B. Refer to
Populating DIMM Sockets on page 17
for more information.
8. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
9. Repeat steps 7 and 8 to install any additional modules.
10. Replace the computer access panel.
11. Reconnect the power cord and turn on the computer.
12. Lock any security devices that were disengaged when the computer access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the computer.
ENWW Installing Additional Memory 19
Removing or Installing an Expansion Card
The computer has three standard full-height PCI expansion slots that can accommodate an expansion card up to 34 cm (13.4 inches) in length. The computer also has two PCI Express x1 expansion slots and one PCI Express x16 expansion slot.
Figure 2-9 Expansion Slot Locations
Table 2-2 Expansion Slot Locations
Item Description
1 PCI Express x16 expansion slot
2 PCI Express x1 expansion slot
3 PCI Express x1 expansion slot
4 PCI expansion slot
5 PCI expansion slot
6 PCI expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To remove, replace, or add an expansion card:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
20 Chapter 2 Hardware Upgrades ENWW
6. Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
7. Press straight down on the two green thumb tabs inside the chassis (1) and rotate the expansion
card retention latch up (2).
Figure 2-10 Opening the Expansion Slot Retainer
8. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be attached
to the expansion card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Lift the expansion slot cover from the expansion slot.
Figure 2-11 Removing an Expansion Slot Cover
ENWW Removing or Installing an Expansion Card 21
b. If you are removing a standard PCI card, hold the card at each end and carefully rock it back
and forth until the connectors pull free from the socket. Lift the card straight up to remove it. Be sure not to scrape the card against other components.
Figure 2-12 Removing a Standard PCI Expansion Card
c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Lift the card straight up to remove it. Be sure not to scrape the card against other components.
Figure 2-13 Removing a PCI Express x16 Expansion Card
9. Store the removed card in anti-static packaging.
10. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or expansion
slot cover for proper cooling of internal components during operation.
22 Chapter 2 Hardware Upgrades ENWW
11. To install a new expansion card, slide the bracket on the end of the card down into the slot on the
back of the chassis and press the card down firmly into the socket on the system board.
Figure 2-14 Installing an Expansion Card
NOTE: When installing an expansion card, press firmly on the card so that the whole connector
seats properly in the expansion card slot.
12. Close the expansion card retention latch, making sure that it snaps firmly into place.
13. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
14. Replace the computer access panel.
15. Reconnect the power cord and turn on the computer.
16. Lock any security devices that were disengaged when the computer access panel was removed.
17. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
ENWW Removing or Installing an Expansion Card 23
Drive Positions
Figure 2-15 Desktop and Minitower Drive Positions
Table 2-3 Drive Positions
1 Three 5.25-inch external drive bays for optional drives (optical drives and
media card reader shown)
1
2 One 3.5-inch external drive bay for optional drives (diskette drive shown)
2
3 Two 3.5-inch internal hard drive bays
1
An optional hard drive mounting bracket for these drive bays is available from HP. The bottom 5.25-inch drive bay has a shorter
depth than the upper two bays. The bottom bay supports a half-height drive or other device that is no more than 14.5 cm (5.7
inches) in depth. Do not try to force a larger drive, such as an optical drive, into the bottom bay. This could cause damage to
the drive and the system board. The use of unnecessary force when installing any drive into the drive bay may result in damage
to the drive.
2
Depending on the computer configuration, you may have a bezel blank in this position. If you do not have a drive in this slot,
you may choose to install a 3.5-inch drive (such as a diskette drive, hard drive, or media card reader) later on.
To verify the type and size of the storage devices installed in the computer, run Computer Setup. Refer to the Computer Setup (F10) Utility Guide for more information.
24 Chapter 2 Hardware Upgrades ENWW
Removing a Drive from a Drive Bay
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Disconnect the power and data cables on the back of the drive.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to avoid
damaging the cable.
7. Remove the drive from the drive bay as follows:
To remove a 5.25-inch drive in the desktop configuration, press down on the yellow drivelock mechanism (1) and slide the drive from the drive bay (2).
CAUTION: When the yellow drivelock is pressed, all the external 5.25-inch drives are
released so do not tilt the unit and allow the drives to fall out.
Figure 2-16 Removing a 5.25-inch Drive in the Desktop Configuration (Optical Drive shown)
ENWW Removing a Drive from a Drive Bay 25
To remove a 3.5-inch drive or a 5.25-inch drive in the minitower configuration, pull up on the green drivelock mechanism (1) for that specific drive and slide the drive from the drive bay (2).
Figure 2-17 Removing a 3.5-inch Drive or a 5.25-inch Drive in the Minitower Configuration
(Optical Drive shown)
To remove a hard drive from and internal 3.5-inch drive bay, pull up on the green hard drive drivelock mechanism (1) for that drive and slide the drive from the drive bay (2).
Figure 2-18 Removing a Hard Drive
8. Store the removed drive in anti-static packaging.
26 Chapter 2 Hardware Upgrades ENWW
Installing Additional Drives
The computer supports up to five drives that may be installed in various configurations.
When installing additional drives, follow these guidelines:
The primary Serial ATA (SATA) hard drive must be connected to the dark blue SATA connector on the system board labeled SATA0.
Connect the first SATA optical drive to the white SATA connector on the system board labeled SATA1.
Always populate the dark blue SATA0 and white SATA1 connectors before the light blue SATA4 and orange SATA5 connectors.
Connect a second SATA optical drive to the orange SATA5 connector.
Connect additional SATA hard drives to the next available (unpopulated) SATA connector on the system board in the following order: SATA0, SATA1, SATA5, SATA4.
Connect a diskette drive to the connector labeled FLOPPY.
Connect a media card reader to the USB connector labeled MEDIA CARD.
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
You may install either a third-height or a half-height drive into a half-height bay.
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws installed on the chassis. The hard drive uses 6-32 isolation mounting guide screws, four of which are installed on the hard drive bracket under the access panel. All other drives use M3 metric screws, eight of which are installed on the diskette drive bracket under the access panel. The HP-supplied metric guide screws are black. The HP­supplied 6-32 isolation mounting guide screws are silver and blue.
Figure 2-19 Extra Hard Drive Isolation Mounting Guide Screws Location
Figure 2-20 Extra Optical Drive M3 Guide Screws Location
ENWW Installing Additional Drives 27
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector. For more information about preventing electrostatic damage, refer to Appendix D,
Electrostatic Discharge on page 52.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label the package “Fragile: Handle With Care.”
28 Chapter 2 Hardware Upgrades ENWW
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.
Figure 2-21 System Board Drive Connections
Table 2-4 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA4 SATA4 light blue
4 SATA5 SATA5 orange
5 Media Card Reader MEDIA CARD black
6 Diskette Drive FLOPPY black
ENWW Installing Additional Drives 29
Installing a 5.25-inch or 3.5-inch Drive into an External Drive Bay
NOTE: A 3.5-inch drive may be a diskette drive or a media card reader. A 5.25-inch drive may be an
optical drive (DVD-ROM or SuperMulti LightScribe drive) or a media card reader with a 5.25-inch adapter kit attached.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then remove
the bezel blank. See
Removing Bezel Blanks on page 15 for more information.
7. Install two guide screws in the lower holes on each side of the drive (1).
NOTE: Optical drives, diskette drives, and media card readers use M3 metric guide screws. Eight
extra metric guide screws are provided on the diskette drive bracket under the access panel. The HP-supplied metric screws are black. Refer to
Installing Additional Drives on page 27 for an
illustration of the extra M3 metric guide screws location.
If you are replacing a drive, transfer the guides screws from the old drive to the new one.
Figure 2-22 Installing a 5.25-Inch Drive in a Minitower (top) and Desktop (bottom)
8. Install the drive in the desired drive bay by sliding it all the way into the front of the drive cage until
it locks (2). The drivelock automatically secures the drive in the bay.
30 Chapter 2 Hardware Upgrades ENWW
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The
bottom bay supports a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not try to force a larger drive, such as an optical drive, into the bottom bay. This could cause damage to the drive and the system board. The use of unnecessary force when installing any drive into the drive bay may result in damage to the drive.
NOTE: If you are installing a third optional drive, you may need to remove the strap that bundles
the extra power connectors.
9. Connect the power cable (1) and data cable (2) to the rear of the optical drive or diskette drive.
Figure 2-23 Connecting the Drive Cables (Optical Drive shown)
10. If you are installing a new drive, connect the opposite end of the data cable to the appropriate
system board connector.
NOTE: If you are installing a SATA optical drive, connect the first optical drive to the white SATA
connector on the system board labeled SATA1. Connect a second optical drive to the orange SATA connector labeled SATA5.
If you are installing a diskette drive, connect it to the connector on the system board labeled FLOPPY.
If your are installing a media card reader, connect it to the USB system board connector labeled MEDIA CARD.
11. Replace the front bezel and computer access panel.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the computer access panel was removed.
14. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
ENWW Installing Additional Drives 31
Installing a 3.5-inch SATA Hard Drive into an Internal Drive Bay
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive, make sure you have created a Recovery Disc Set to restore the operating system, software drivers, and any software applications that were preinstalled on the computer. If you do not have this CD set, select Start > HP Backup and Recovery and create it now.
The system does not support Parallel ATA (PATA) hard drives.
To install a hard drive in a 3.5-inch internal drive bay:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Install four 6-32 isolation mounting guide screws, two on each side of the drive.
Figure 2-24 Installing the Hard Drive Guide Screws
NOTE: The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are
installed on the hard drive bracket under the access panel. The HP-supplied isolation mounting guide screws are silver and blue. Refer to
Installing Additional Drives on page 27 for an illustration
of the extra 6-32 isolation mounting guide screws location.
If you are replacing a drive, transfer the guides screws from the old drive to the new one.
32 Chapter 2 Hardware Upgrades ENWW
7. Slide the hard drive down into the drive cage until it locks. The drivelock automatically secures the
drive in the bay.
Figure 2-25 Installing a Hard Drive into the Hard Drive Bay
CAUTION: Make sure the guide screws line up with the guide slots in the drive cage. The use of
unnecessary force when installing any drive into the drive bay may result in damage to the drive.
8. Connect the power cable (1) and data cable (2) to the rear of the hard drive.
Figure 2-26 Connecting the Power Cable and Data Cable to a SATA Hard Drive
9. Connect the opposite end of the data cable to the appropriate system board connector.
NOTE: If your system has only one SATA hard drive, you must connect the hard drive data cable
to the dark blue connector labeled SATA0 to avoid any hard drive performance problems. If you are adding a second hard drive, connect the data cable to the next available (unpopulated) SATA connector on the system board in the following order: SATA0, SATA1, SATA5, SATA4.
10. Replace the computer access panel.
11. Reconnect the power cord and turn on the computer.
12. Lock any security devices that were disengaged when the computer access panel was removed.
13. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
ENWW Installing Additional Drives 33
Removing and Replacing a Removable 3.5-inch SATA Hard Drive
Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch external drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive bay. To remove and replace a drive in the carrier:
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive, make sure you have created a Recovery Disc Set to restore the operating system, software drivers, and any software applications that were preinstalled on the computer. If you do not have this CD set, select
Start > HP Backup and Recovery and create it now.
1. Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.
2. Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).
Figure 2-27 Removing the Carrier Cover
3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
Figure 2-28 Removing the Thermal Sensor
34 Chapter 2 Hardware Upgrades ENWW
4. Remove the four screws from the bottom of the hard drive carrier.
Figure 2-29 Removing the Security Screws
5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 2-30 Removing the Hard Drive
ENWW Installing Additional Drives 35
6. Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the way into the connector on the carrier's circuit board.
Figure 2-31 Replacing the Hard Drive
7. Replace the four screws in the bottom of the carrier to hold the drive securely in place.
Figure 2-32 Replacing the Security Screws
36 Chapter 2 Hardware Upgrades ENWW
8. Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and
attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
Figure 2-33 Replacing the Thermal Sensor
9. Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover
in place (2).
Figure 2-34 Replacing the Carrier Cover
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE: The carrier must be locked for power to be supplied to the hard drive.
ENWW Installing Additional Drives 37
Changing from a Minitower to a Desktop Configuration
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Remove the front bezel.
7. Disconnect all power and data cables from the back of the drives in the 5.25-inch drive bays.
8. To release the drives from the 5.25-inch drive bay, lift the release tab on the green latch drive
bracket for the drive. While lifting the release tab, slide the drive from its drive bay. Repeat this step for each 5.25-inch drive.
Figure 2-35 Releasing the 5.25-inch Drives from the Drive Bays (Minitower)
38 Chapter 2 Hardware Upgrades ENWW
9. Before you reinstall each drive into the chassis, turn the drive so that it is perpendicular to the
internal 3.5-inch drive. The drive should be parallel to the green latch drive bracket.
Figure 2-36 Installing a Drive in the Desktop Configuration
10. Gently slide the drive into the uppermost available bay until it snaps into place. When the drive is
properly inserted, the drivelock will secure it. Repeat this step for each drive.
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The
bottom bay supports a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not try to force a larger drive, such as an optical drive, into the bottom bay. This could cause damage to the drive and the system board. The use of unnecessary force when installing any drive into the drive bay may result in damage to the drive.
11. Reconnect all power and data cables to the drives in the 5.25-inch drive bays.
12. Remove the bezel subpanel as described in
Removing Bezel Blanks on page 15.
CAUTION: Hold the subpanel straight when you pull it away from the front bezel. Pulling the
subpanel away at an angle could damage the pins that align it within the front bezel.
13. Reposition the bezel blanks within the subpanel in the proper orientation for the desktop
configuration.
ENWW Changing from a Minitower to a Desktop Configuration 39
14. Reposition the subpanel (rotate it 90º) with the logo at the bottom, then snap it back into the bezel.
Figure 2-37 Changing from a Minitower to a Desktop Configuration
15. Replace the front bezel and computer access panel.
16. Reconnect the power cord and turn on the computer.
17. Lock any security devices that were disengaged when the computer access panel was removed.
Changing from a Desktop to a MinitowerConfiguration
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Remove the front bezel.
7. Disconnect all power and data cables from the back of the drives in the 5.25-inch drive bays.
40 Chapter 2 Hardware Upgrades ENWW
8. To release the drives from the 5.25-inch drive bay, press down on the short yellow drivelock as
shown. While pressing the drivelock, pull the drives out of the drive bay.
Figure 2-38 Releasing the 5.25-inch Drives from the Drive Bays (Desktop)
9. Before you reinstall each drive into the chassis, turn it so that it is in the same orientation as the
internal 3.5-inch drive. The bottom of the drive should be parallel to the yellow drivelock.
Figure 2-39 Installing a Drive in the Minitower Configuration
10. Gently slide the drive into the uppermost available bay until it snaps into place. When the drive is
properly inserted, the drivelock will secure it. Repeat this step for each drive.
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The
bottom bay supports a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not try to force a larger drive, such as an optical drive, into the bottom bay. This could cause damage to the drive and the system board. The use of unnecessary force when installing any drive into the drive bay may result in damage to the drive.
11. Reconnect all power and data cables to the drives in the 5.25-inch drive bays.
12. Remove the bezel subpanel as described in the
Removing Bezel Blanks on page 15 section.
ENWW Changing from a Desktop to a MinitowerConfiguration 41
CAUTION: Hold the subpanel straight when you pull it away from the front bezel. Pulling the
subpanel away at an angle could damage the pins that align it within the front bezel.
13. Reposition the bezel blanks within the subpanel in the proper orientation for the minitower
configuration.
14. Reposition the subpanel (rotate it 90º) with the logo at the bottom, then snap it back into the bezel.
Figure 2-40 Changing from a Desktop to a Minitower Configuration
15. Replace the front bezel and computer access panel.
16. Reconnect the power cord and turn on the computer.
17. Lock any security devices that were disengaged when the computer access panel was removed.
42 Chapter 2 Hardware Upgrades ENWW
A Specifications
Table A-1 Specifications
Desktop Dimensions
Height
Width
Depth
7.0 in
17.63 in
17.8 in
17.8 cm
44.8 cm
45.2 cm
Tower Dimensions
Height
Width
Depth
17.63 in
7.0 in
17.8 in
44.8 cm
17.8 cm
45.2 cm
Approximate Weight 26.4 lb 12.0 kg
Weight Supported (maximum distributed load in desktop
position)
77 lb 35 kg
Temperature Range
Operating
Nonoperating
50° to 95°F
-22° to 140°F
10° to 35°C
-30° to 60°C
NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct
sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.
Relative Humidity (noncondensing)
Operating
Nonoperating (38.7°C max wet bulb)
10-90%
5-95%
10-90%
5-95%
Maximum Altitude (unpressurized)
Operating
Nonoperating
10,000 ft
30,000 ft
3048 m
9144 m
Heat Dissipation
Maximum (standard PS)
Typical (idle; standard PS)
Maximum (80 Plus PS)
Typical (idle; 80 Plus PS)
1,916 BTU/hr
307 BTU/hr
1,557 BTU/hr
239 BTU/hr
483 kg-cal/hr
77 kg-cal/hr
392 kg-cal/hr
60 kg-cal/hr
Power Supply
Operating Voltage Range
1
115V
90-264 VAC
230V
90-264 VAC
ENWW 43
Rated Voltage Range
Rated Line Frequency
100-240 VAC
50-60 Hz
100-240 VAC
50-60 Hz
Power Output 365 W 365 W
Rated Input Current (maximum)
1
Standard PS
80 Plus PS
6A @ 100 VAC
5A @ 100VAC
3A @ 200 VAC
2.5A @ 200VAC
1
This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements
for use in the countries of the European Union. The active power factor corrected power supply also has the added benefit of
not requiring an input voltage range select switch.
Table A-1 Specifications (continued)
44 Appendix A Specifications ENWW
B Battery Replacement
The battery that comes with the computer provides power to the real-time clock. When replacing the battery, use a battery equivalent to the battery originally installed in the computer. The computer comes with a 3-volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When
the battery is removed or replaced, the CMOS settings will be cleared. Refer to the Computer Setup (F10) Utility Guide for information on backing up the CMOS settings.
Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall
socket. The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, go to
http://www.hp.com/
recycle.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as diskettes or compact discs, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.
5. Remove the computer access panel.
6. Locate the battery and battery holder on the system board.
NOTE: On some computer models, it may be necessary to remove an internal component to gain
access to the battery.
7. Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
ENWW 45
Type 1
a. Lift the battery out of its holder.
Figure B-1 Removing a Coin Cell Battery (Type 1)
b. Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.
Type 2
a. To release the battery from its holder, squeeze the metal clamp that extends above one edge
of the battery. When the battery pops up, lift it out (1).
b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery (2).
Figure B-2 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a. Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
46 Appendix B Battery Replacement ENWW
b. Insert the new battery and position the clip back into place.
Figure B-3 Removing a Coin Cell Battery (Type 3)
NOTE: After the battery has been replaced, use the following steps to complete this procedure.
8. Replace the computer access panel.
9. Plug in the computer and turn on power to the computer.
10. Reset the date and time, your passwords, and any special system setups using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide.
11. Lock any security devices that were disengaged when the computer access panel was removed.
ENWW 47
C External Security Devices
NOTE: For information on data security features, refer to the Computer Setup (F10) Utility Guide, the
Desktop Management Guide, and the HP ProtectTools Security Manager Guide (some models) at
http://www.hp.com.
Installing a Security Lock
The security locks displayed below and on the following page can be used to secure the computer.
Cable Lock
Figure C-1 Installing a Cable Lock
48 Appendix C External Security Devices ENWW
Padlock
Figure C-2 Installing a Padlock
ENWW Installing a Security Lock 49
HP Business PC Security Lock
1. Fasten the security cable by looping it around a stationary object.
Figure C-3 Securing the Cable to a Fixed Object
2. Thread the keyboard and mouse cables through the lock.
Figure C-4 Threading the Keyboard and Mouse Cables
50 Appendix C External Security Devices ENWW
3. Screw the lock to the chassis using the screw provided.
Figure C-5 Attaching the Lock to the Chassis
4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure C-6 Engaging the Lock
ENWW Installing a Security Lock 51
D Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
Avoid hand contact by transporting and storing products in static-safe containers.
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
Avoid touching pins, leads, or circuitry.
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts:
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm +/- 10 percent resistance in the ground cords. To provide proper ground, wear the strap snug against the skin.
Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats.
Use conductive field service tools.
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized dealer, reseller, or service provider.
NOTE: For more information on static electricity, contact an HP authorized dealer, reseller, or service
provider.
52 Appendix D Electrostatic Discharge ENWW
E Computer Operating Guidelines,
Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care
Follow these guidelines to properly set up and care for the computer and monitor:
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented sides of the computer and above the monitor to permit the required airflow.
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also restricts airflow.
Never operate the computer with the access panel or any of the expansion card slot covers removed.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other’s re-circulated or preheated air.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.
Keep liquids away from the computer and keyboard.
Never cover the ventilation slots on the monitor with any type of material.
Install or enable power management functions of the operating system or other software, including sleep states.
Turn off the computer before you do either of the following:
Wipe the exterior of the computer with a soft, damp cloth as needed. Using cleaning products may discolor or damage the finish.
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign matter can block the vents and limit the airflow.
ENWW Computer Operating Guidelines and Routine Care 53
Optical Drive Precautions
Be sure to observe the following guidelines while operating or cleaning the optical drive.
Operation
Do not move the drive during operation. This may cause it to malfunction during reading.
Avoid exposing the drive to sudden changes in temperature, as condensation may form inside the unit. If the temperature suddenly changes while the drive is on, wait at least one hour before you turn off the power. If you operate the unit immediately, it may malfunction while reading.
Avoid placing the drive in a location that is subject to high humidity, extreme temperatures, mechanical vibration, or direct sunlight.
Cleaning
Clean the panel and controls with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Never spray cleaning fluids directly on the unit.
Avoid using any type of solvent, such as alcohol or benzene, which may damage the finish.
Safety
If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an authorized HP service provider.
Shipping Preparation
Follow these suggestions when preparing to ship the computer:
1. Back up the hard drive files on PD discs, tape cartridges, CDs, or diskettes. Be sure that the backup
media is not exposed to electrical or magnetic impulses while stored or in transit.
NOTE: The hard drive locks automatically when the system power is turned off.
2. Remove and store all removable media.
3. Insert a blank diskette into the diskette drive to protect the drive while in transit. Do not use a diskette
on which you have stored or plan to store data.
4. Turn off the computer and external devices.
5. Disconnect the power cord from the electrical outlet, then from the computer.
6. Disconnect the system components and external devices from their power sources, then from the
computer.
NOTE: Ensure that all boards are seated properly and secured in the board slots before shipping
the computer.
7. Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
54 Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation ENWW
Index
A
access panel
locking and unlocking 9, 48 removing 11 replacing 12
audio connectors 2, 4
B
battery replacement 45
C
changing computer
configuration 38, 40 computer operating guidelines 53 connecting drive cables 27
D
desktop conversion 38 DIMMs. See memory diskette drive
installing 30
removing 25 drive connectors 29 drives
connecting cables 27
installing 27
locations 24
removing 25
E
electrostatic discharge, preventing
damage 52
expansion card
installing 20
removing 20
slot locations 20 expansion slot cover
removing 21
replacing 22
F
FailSafe Key 9 front bezel
removing 13
removing blanks 15 replacing 14
front panel components 2
G
guide screws 27
H
hard drive
installing 32 removing 25
headphone connector 2
I
installation guidelines 8 installing
battery 45 diskette drive 30 drive cables 27 expansion card 20 guide screws 27 hard drive 32 media card reader 30 memory 16, 18 optical drive 30 removable hard drive 34 security locks 48
K
keyboard
components 5 connector 4
L
line-in connector 4 line-out connector 4 locks
cable lock 48 HP Business PC Security
Lock 50 padlock 49 Smart Cover Lock 9
M
media card reader
features 3 installing 30 removing 25
memory
installation guidelines 17 installing 16, 18 populating sockets 17 socket locations 17
specifications 16 microphone connector 2 minitower conversion 40 monitor connector 4 mouse
connector 4
special functions 7
N
network connector 4
O
optical drive
cleaning 54
defined 2
installing 30
precautions 54
removing 25
P
parallel connector 4 PCI card 20, 22 PCI Express card 20, 22 power supply 43 product ID location 7
R
rear panel components 4 removable hard drive
replacing 34 removing
battery 45
bezel blanks 15
computer access panel 11
ENWW Index 55
drives from drive bay 25 expansion card 20 expansion slot cover 21 front bezel 13 media card reader 25 PCI card 22 PCI Express card 22 Smart Cover Lock 9
S
security
cable lock 48 HP Business PC Security
Lock 50 padlock 49 Smart Cover Lock 9
serial connector 4 serial number location 7 shipping preparation 54 Smart Cover Lock 9 specifications
computer 43 memory 16
system board drive
connections 29
U
unlocking access panel 9, 48 USB ports
front panel 2 rear panel 4
V
ventilation guidelines 53
W
Windows Logo key 6
56 Index ENWW
Loading...
