QuickSpecs
Compaq Evo Desktop D300/300s

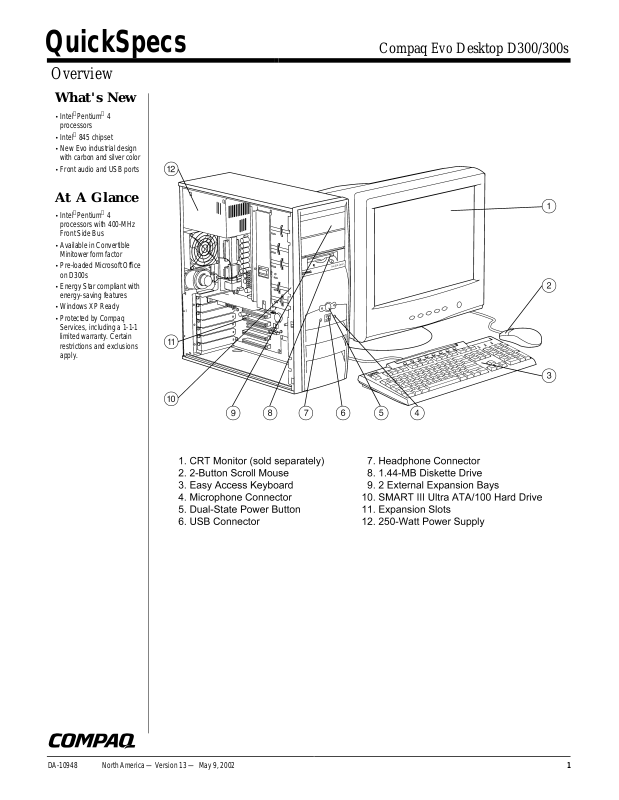

Overview
What's New
•Intel Pentium 4 processors
• Intel 845 chipset
•New Evo industrial design with carbon and silver color
•Front audio and USB ports
At A Glance
•Intel Pentium 4 processors with 400-MHz Front Side Bus
•Available in Convertible Minitower form factor
•Pre-loaded Microsoft Office on D300s
•Energy Star compliant with energy-saving features
•Windows XP Ready
•Protected by Compaq Services, including a 1-1-1 limited warranty. Certain restrictions and exclusions apply.
DA-10948 |
North America — Version 13 — May 9, 2002 |
1 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Select Models
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Pre-Configured Models |
Model Key |
D3Ms/P1.5/20j/2/128c6E |
|
|
Example: |
|
|
|
|
D3Ms = |
Evo D300s Convertible Minitower |
|
|
P1.5 = |
Pentium 4 1.5-GHz processor |
|
|
20 = |
Hard Drive, 5400rpm |
|
|
j = |
845 chipset |
|
|
8 = |
Microsoft Windows 98 SE |
|
|
2 = |
Microsoft Windows 2000 SP2 |
|
|
k = |
Microsoft Windows XP Professional |
|
|
128 = |
Memory, PC133 SDRAM |
|
|
c = |
48X CD-ROM |
|
|
6 = |
NVIDIA Vanta 16-MB 4X AGP graphics |
|
|
g = |
NVIDIA MX200 16-MB 4X AGP graphics |
|
|
E = |
Microsoft Office XP Small Business |
|
470023-466 |
D3Ms/P1.7/40j/8/256c6E |
|
|
470023-467 |
D3Ms/P1.7/40j/2/256c6E |
|
|
470031-669 |
D3Ms/P1.8/20j/8/128c6E |
|
|
470023-794 |
D3Ms/P1.8/40j/k/256cgE |
|
|
470031-671 |
D3Ms/P2.0/40j/k/256c6E |
|
DA-10948 |
North America — Version 13 — May 9, 2002 |
2 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Custom Components
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Processor and Speed |
Intel Pentium 4 Processors |
Standard L2 Cache |
256-KB Integrated ECC |
One of the following |
1.7-GHz |
Front Side Bus |
400-MHz |
|
1.8-GHz |
Maximum Memory |
3-GB |
|
2.0-GHz* |
|
|
|
2.2-GHz* |
|
|
Note. Intel Pentium 4 processors with speeds of 2.0-GHz or above have 512-KB L2 cache.
Note: Compaq Evo D300v Series Microtower with 845 chipset contains three DIMM slots, but can only be upgraded to a maximum of 3-GB when 1-GB PC133 SDRAM are available.
Hard Drives |
20-GB 7200 rpm Quiet Seek and Idle SMART IIII Ultra ATA/100 |
One of the following |
20-GB 5400 rpm Quiet Seek and Idle SMART IIII Ultra ATA/100 |
|
40-GB 7200 rpm Quiet Seek and Idle SMART III Ultra ATA/100 |
|
40-GB 5400 rpm Quiet Seek and Idle SMART III Ultra ATA/100 |
|
60-GB 7200 rpm Quiet Seek and Idle SMART III Ultra ATA/100 |
|
|
Standard Memory |
1.0-GB SDRAM (PC133) (2 x 512MB) |
One of the following |
512-MB SDRAM (PC133) (1 x 512MB) |
|
256-MB SDRAM (PC133) (1 x 256MB) |
|
128-MB SDRAM (PC133) (1 x 128MB) |
|
|
Removable Storage |
1.44-MB Diskette Drive |
|
Zip 250 Drive including one disk |
|
|
Optical Storage |
48X CD-ROM Drive |
|
16X/40X DVD-ROM Drive (with DVD-RAM disc read capability) |
|
16X/10X/40X CD-RW Drive |
|
8X/4X/32X DVD/CD-RW Combo Drive |
|
|
Keyboard/Mouse |
Easy Access Keyboard |
|
2-Button Scroll Mouse |
|
|
Audio |
Integrated AC’97 Audio with Internal Speaker |
|
|
NIC |
Integrated Intel PRO/100 VM Network Connection |
|
|
Modem |
Lucent V90 56K PCI Modem (V.92 upgradable) |
|
|
Graphics |
NVIDIA Vanta 16-MB 4X AGP |
|
NVIDIA GeForce2 MX200 16-MB 4X AGP |
|
NVIDIA GeForce2 MX400 32-MB 4X AGP |
|
Matrox Millennium G450 Dual-Head 32-MB 4X AGP |
|
|
Operating System |
Microsoft Windows XP Professional |
One of the following |
Microsoft Windows XP Home |
|
Microsoft Windows 2000 Professional SP2 |
|
Microsoft Windows 98 SE |
|
|
Productivity Software on D300s |
Microsoft Office XP Small Business with Publisher 2002 |
One of the following |
Microsoft Office XP Professional with Publisher 2002 |
|
|
Antivirus Software |
Norton Antivirus 2002 |
DA-10948 |
North America — Version 13 — May 9, 2002 |
3 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Intelligent Manageability |
Yes |
|
|
|
|
Expansion Capability |
Memory Expansion Slots |
3 DIMMs |
Slots |
PCI |
3 (3 on PCA) (slot occupied by video card) |
|
AGP |
1 (1.5V AGP 4X) |
Bays |
Internal |
(2) HDD |
|
External |
(2) 5.25" 1/2 ht |
|
|
(1) Floppy |
|
|
|
Dimensions (H x W x D) |
Inches |
17.65 x 6.6 x 16.8 inches |
|
Centimeters |
44.8 x 16.8 x 42.7 centimeters |
|
|
|
Weigh t |
System Weight |
26.0 lbs / 11.8 kg |
|
Weight Supported |
100 lb / 45.5 kg |
|
|
|
System Memory |
Type/Speed |
SDRAM DIMM - PC133 Only |
|
Current Maximum Memory |
1.5-GB |
|
Maximum Memory |
3-GB (when 1-GB PC133 SDRAM are available) |
|
Memory Parity |
Not Supported |
|
ECC Memory |
Supported (Intel 845 chipset does not support mixing of |
|
|
Non-ECC and ECC PC133 memory) |
|
Serial Presence Detect Support |
Mandatory as part of PC133 Spec |
|
|
|
Supported Features |
Processor |
Intel Socket 478 |
|
CPU Bus Speed Supported |
400-MHz |
|
Memory Type Supported |
SDRAM |
|
Memory Speed Supported |
PC133 Only |
|
SPD Support |
Yes |
|
Hard Drive Interfaces Supported |
SMART Ultra ATA/100/66/33 |
|
Hard Drive Controller (PCI) Interfaces Supported |
SMART Ultra ATA/100/66/33 |
Intel |
Pentium 4 |
Coprocessor |
|
|
CPU Socket Type/Number |
|
|
CPU Package |
|
|
Front Side Bus Speed |
|
|
Standard L2 Cache |
|
|
L2 Cache Architecture / Speed |
Yes
Surface Mount ZIF Socket - 478 Pins mPGA478B, FC-PGA2
400-MHz
256K
Advanced Transfer Cache on Die with 8-way associativity and Error Correcting Code (ECC) / Full Speed of Processor
DA-10948 |
North America — Version 13 — May 9, 2002 |
4 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
System Board |
Architecture |
P4 / PCI / AGP 4X |
|
|
Chipset |
Intel 845 Chipset |
|
|
I/O Controller |
Super I/O 3 |
|
|
System Board Form Factor |
Standard uATX |
|
|
Processor Socket - 478 Pin ZIF |
Yes |
|
|
DIMM Connectors |
Yes (3) |
|
|
AGP Connector |
Yes (1) |
|
|
AGP Integrated |
No |
|
|
PCI Connectors |
3 standard |
|
|
Flash ROM |
Yes |
|
|
Audio (ADI 1885 - AC97) |
Yes |
|
|
CD ROM IN (Audio) |
Yes |
|
|
Clear CMOS Button |
Yes |
|
|
CPU Fan Header |
Yes |
|
|
Chassis Fan Header |
Yes |
|
|
Chassis Speaker Header |
Yes |
|
|
CMOS Battery Holder - Lithium |
Yes |
|
|
NIC |
Yes |
|
|
Wake-On-Lan® |
Yes |
|
|
Alert-On-LAN® |
Yes |
|
|
Power Supply Header |
Yes |
|
|
Power Switch, Power LED & |
Yes |
|
|
HD LED Header |
|
|
|
Password Clear Header |
Yes |
|
|
Reset Header (Not Installed) |
Yes |
|
|
SCSI LED Header |
Yes |
|
|
Speaker Header |
Yes |
|
|
Boards that connect to |
Convertible Minitower |
Solenoid Lock PCB (Option) PCI Extender Board - |
|
System Board |
|
2 additional PCI Slots Front I/O Board (Option) |
DA-10948 |
North America — Version 13 — May 9, 2002 |
5 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Serviceability Features of System
Board
Dual Color Power and HD LED - To Indicate Normal Operations and Fault Conditions Blinking Diagnostic Keyboard LED Codes
Diagnostic LED Label under Hood Cover User Diagnostic Software Support
Over-Temp Warning on Screen (Need Intelligent Manageability to work) Compaq Software Restore CD
Flash ROM
3.3V Aux Power LED on System PCA
Dual Function 5V Aux Power LED (ON) /PS_ON LED (OFF) on System PCA Processor Hot LED on System PCA
Diagnostic Power Switch LED Clear Password Jumper Clear CMOS Button
Convertible Minitower Chassis |
Color |
Silver/Carbon |
|
System Board Form Factors Supported |
Standard uATX & Standard ATX |
|
Cooling Solutions Supported (3 Fans) |
Variable Speed Power Supply Fan |
|
|
Variable Speed Processor Fan Heatsink |
|
|
Variable Speed Chassis Fan |
|
Slots Supported |
4 Full Length, Full Height Slots (1 AGP and 3 PCI) |
|
Front I/O |
Front Headphone, Mic, and 2 USB (Option) |
|
Rear I/O |
Standard ATX I/O Panel |
|
Internal Speaker |
Yes |
|
Custom Power Supply |
250-Watt Enhanced ATX PS |
|
Security Locks Supported |
Kensington Cable Lock |
|
|
Security Module (Solenoid Hood Lock and Hood Sensor) |
|
|
Compaq Lock Bracket – 173234 (chassis securement |
|
|
only, hood lock required to secure hood) |
|
Power Switch / LED Cable |
Yes |
DA-10948 |
North America — Version 13 — May 9, 2002 |
6 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Serviceability Features of Chassis |
Dual Color Power and HD LED to Indicate Normal |
Yes |
|
|
Operations and Fault Conditions |
|
|
|
Diagnostic LED Label under Hood Cover |
Yes |
|
|
Security Module (Smart Cover Lock and Hood Sensor) |
Optional |
|
|
Front power switch |
Yes |
|
|
Green Pull Tabs, and Quick Release Latches for easy |
Yes |
|
|
Identification |
|
|
|
System memory can be upgraded without removing the |
Yes |
|
|
system board or any internal components |
|
|
|
Tool-less Hood Removal |
Yes |
(with captive thumbscrew) |
|
Tool-less Hard Drive, CD & Floppy Removal |
Yes |
|
|
Tool-less System Board Removal |
No |
|
|
Industry Standard CD Bay |
Yes |
|
|
Towerable |
Yes |
(Can also Rotate Drives) |
|
Universal Tower Stand |
No |
(Not needed) |
|
Green Color Coded Latches & Cable Pull Tabs for Easy |
Yes |
|
|
Identification |
|
|
|
|
|
|
Interfaces |
I/O Chip |
Super IO 3 |
|
|
Serial Port / UART Type |
Yes (2) / SN75185 |
|
|
Parallel Port |
Yes |
|
|
USB |
2 USB 1.1 (Optional 2 Front USB) |
|
|
Infrared Port |
No |
|
|
Network |
RJ-45 (with integrated LEDs) |
|
|
Keyboard |
Yes (PS/2) |
|
|
Mouse |
Yes (PS/2) |
|
|
Video |
Yes (AGP 4X 1.5V Bus) |
|
|
Audio |
Yes |
|
DA-10948 |
North America — Version 13 — May 9, 2002 |
7 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Power Supply |
Full Ranging Input (No Line Select Switch) |
Yes |
|
Active Power Factor Correction (APFC) |
Yes |
|
(Input Current is nearly ½ a non-APFC PS) |
|
|
Operating Voltage Range |
90 to 264VAC |
|
Rated Voltage Range |
100 to 240VAC |
|
Rated Line Frequency |
50-60 Hz |
|
Rated Input Current |
3.6A @ 100VAC |
|
Maximum Rated Power |
250W |
|
Heat Dissipation |
Max: 1,313 BTU/hr |
|
|
Nominal: 656 BTU/hr |
|
|
Max: 331 kg-cal/hr |
|
|
Nominal: 165 kg-cal/hr |
|
|
|
Power Conservation ‘Energy Saver’ |
Energy Star Compliant |
Yes |
|
Blue Angel Compliant (<5w in S5-Power Off) |
Yes |
|
Power Consumption in ES Mode -Suspend to RAM |
TBD |
|
(S3) (Instantly Available PC) |
|
|
APM Support |
Yes |
|
Screen Blanking |
Yes |
|
Hard Disk ‘Idle’ Mode |
Yes |
|
System Idle Mode |
Yes |
|
Processor/Cache Memory Power-Down (S3) |
Yes |
|
CD-Rom Spins Down when not in use |
Yes |
DA-10948 |
North America — Version 13 — May 9, 2002 |
8 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
ROM Features |
Instantly Available PC (Suspend to RAM - S3) |
|
|
ROM Based F10 Setup |
|
|
Remote System Installation via F12 (PXE) |
|
|
Failsafe Boot Block ROM |
|
|
Emergency ROM Flash Recovery with Video |
|
|
CMOS Archive and CMOS Restore |
|
|
Save and Restore CMOS Setup via Diskette |
|
|
Auto Setup when New Hardware Installed |
|
|
Serial, Parallel, USB Enable/Disable Port Control |
|
|
Removable Media Write / Boot Control |
|
|
Remote Boot from Server |
|
|
Network Server Mode |
|
|
Power-On Password |
|
|
Setup Password |
|
|
Memory Change Alert (Need IM to work) |
|
|
Thermal Alert (Need IM to work) |
|
|
Cover Removal Alert (Need IM to work) |
|
|
Master Boot Record Security |
|
|
Remote ROM Flash |
|
|
Remote Wakeup |
|
|
Power Management |
|
|
ACPI Ready |
|
|
DMI BIOS (Desktop Management Interface) |
|
|
|
|
System Environmental Specs |
Operating Temperature |
50° to 95°F/10°to 35° C (Derating of 1.0°C per 300m (1000ft) to |
|
|
3000m (10,000ft), no direct sustained sunlight) |
|
Non-operating Temperature |
-22° to 140° F-30° to 60° C (Maximum rate of change is 20°C/Hr.) |
|
Relative Humidity (non-condensing) |
10% to 90% (28°C maximum wet bulb temperature) |
|
Operating |
|
|
Relative Humidity (non-condensing) |
5% to 95% (38.7°C maximum wet bulb temperature) |
|
Non-operating |
|
|
Max Altitude (unpressurized) Operating |
10,000 ft 3,048 m (Maximum allowable altitude change rate is1500 |
|
|
ft/min) |
|
Max Altitude (unpressurized) Non-operating |
30,000 ft 9,144 m (Maximum allowable altitude change rate is 1500 |
|
|
ft/min) |
|
Acoustics |
ENERGY SAVE MODE: LWAd = TBD Bels, Desktop Average |
|
|
LpAm = TBD dBA |
|
|
FIXED DISK - SCSI (Random write): LWAd = TBD Bels, Desktop |
|
|
Average LpAm = TBD dBA |
|
Shock (Operating) |
5 G |
|
Shock (Non-Operating) |
20 G |
|
|
10 G (positive and negative directions front to back on Small Form |
|
|
Factor) |
|
Vibration (Operating) |
Operating: Random vibration at 0.000215 G²/Hz, 10Hz to 300Hz, |
|
|
(0.25G's nominal) |
|
Vibration (Non-Operating) |
Random vibration at 0.0005 G²/Hz, 10Hz to 500Hz, (0.5G's |
|
|
nominal). |
DA-10948 |
North America — Version 13 — May 9, 2002 |
9 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es wi th 84 5 chip se t
Software
Preinstalled Software |
Microsoft Windows 98 SE |
Yes |
|
Microsoft Windows 2000 SP2 |
Yes |
|
Microsoft Windows XP Pro |
Yes |
|
Microsoft Windows XP Home |
Yes |
|
Microsoft Windows XP Small Business |
Yes |
|
Microsoft Windows XP Professional |
Yes |
|
Norton Antivirus |
Yes |
|
Computer Setup Utility via F10 (ROM Based) |
Yes |
|
Diagnostics for Windows |
Yes |
|
Microsoft Internet Explorer |
Yes |
Intelligent Manageability Agent |
Yes |
|
Plug and Play Ready |
Yes |
|
|
Windows 98 |
Yes |
|
Windows 2000 |
Yes |
|
Windows XP Pro |
Yes |
|
Windows XP Home |
Yes |
Boot Support |
Local Diskette Boot |
Yes |
|
Local CD Boot |
Yes |
|
Remote Boot |
Yes |
|
Network Boot |
Yes |
|
|
|
Intelligent Manageability |
Information downloadable from: http://www.compaq.com/im |
|
|
|
|
Initial Configuration and Deployment Intelligent Manageability Home Page |
|
|
|
Altiris eXpress |
|
|
PC Transplant / PC Transplant PRO |
|
|
System Software Management |
|
|
Novel ZenWorks 2.0 |
|
|
Insight Manager |
|
|
Support Software CD |
|
|
Compaq Software Restore CD |
|
|
|
|
Asset Control |
Asset Tag |
|
|
DIMM Serial Presence Detect |
|
|
Hard drive serial number, model, & manufacturer |
|
|
Monitor serial number, model & manufacturer |
|
|
System serial number, model, & manufacturer |
|
ROM revision levels
System board revision level
Compaq Fingerprint Identification Technology (Optional)
DMI BIOS
Memory Change Alert (Intelligent Manageability needed to work)
Ownership Tag
Smart Cover Lock (Optional)
Kensington Lock Support
Smart Cover Sensor (Optional)
DA-10948 |
North America — Version 13 — May 9, 2002 |
10 |
QuickSpecs
Compaq Evo Desktop D300/300s
Standard Features – Base Unit Details
Compaq Evo D es k top D3 00s Se ri es with 84 5 chip se t
Standard Security Features |
Asset Tracking and Security Home Page http://www.compaq.com/im/ats.html |
|
Optional Smart Cover Lock |
|
Mechanical Security Provision |
|
Cable Lock Provision |
|
Power-On Password |
|
Serial, Parallel, USB Enable/Disable |
|
Removable Media Write / Boot Control |
|
Power-On Password |
|
Setup Password |
Software Updating and Management Software Updating and Management Home Page http://www.compaq.com/im/sum.html
|
Remote ROM Flash |
|
|
ROM Based Setup (F10)and Start-up Diagnostics |
|
|
Support Software CD & WWW Site |
|
Fault Notification and Recovery |
Fault Management Home Page http://www.compaq.com/im/fnr.html |
|
|
DMI BIOS |
|
|
SMART Hard Drives, Fault Notification, & Prefailure Warranty |
|
|
Proactive Backup |
|
|
ATA RAID Controller Option |
|
|
ECC Memory, Fault Notification, and Pre-failure Warning |
|
|
Processor Fault Notification and Prefailure Warranty (Not supported by P4 processor) |
|
|
Surge Tolerant Ful Ranging Power Supply |
|
|
Thermal Sensor |
|
|
Ultra ATA Integrity Monitoring (CRC Checking) |
|
Other Features |
ACPI-Ready Hardware |
|
|
Compaq Insight Manager LC and XE Agents |
|
|
Altiris agent |
|
|
Compaq Management Solutions Partners Program |
|
|
Dual-State Power Button |
|
|
Compaq Management Solutions Partners Program |
|
|
Wired for Management Support |
|
Ser vi ce and Support |
On-site Warranty Note 1: This one-year, limited warranty covers all parts for one year and provides free, next-business- |
|
|
day Note 2 service (parts and labor) for the first year and includes free telephone support Note 3 24 hours a day, 7 days a |
|
|
week. The customer may extend or upgrade the warranty to provide labor and/or on-site service for the second and |
|
|
third years. Global coverage Note 2 ensures that any product purchased in one country and transferred to another non- |
|
|
restricted country will remain fully covered under the original warranty. |
|
|
Note 1: |
Terms and conditions may vary by country. Certain restrictions and exclusions apply. |
|
Note 2: |
On-site service may be provided pursuant to a service contract between Compaq and an authorized |
|
|
Compaq third-party provider, and is not available in certain countries. Global service response times are |
|
|
based on commercially reasonable best effort and may vary by country. |
|
Note 3: |
Technical telephone support applies only to Compaq-configured Compaq and third-party Compaq-qualified |
|
|
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries. |
DA-10948 |
North America — Version 13 — May 9, 2002 |
11 |
Loading...
