Technical Reference Guide

HP Compaq dc5850 Series Business Desktop Computers

Document Part Number: 512751-001

October 2008

This document provides information on the design, architecture, function, and capabilities of the HP Compaq dc5850 Series Business Desktop Computers. This information may be used by engineers, technicians, administrators, or anyone needing detailed information on the products covered.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft Corporation in the U.S. and other countries.

AMD, AMD Sempron, AMD Athlon, AMD Phenom, are trademarks of AMD Corporation in the U.S. and other countries.

Adobe, Acrobat, and Acrobat Reader are trademarks or registered trademarks of Adobe Systems Incorporated.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Technical Reference Guide

HP Compaq dc5850 Series Business Desktop Computers

First Edition (October 2008) Document Part Number: 512751-001

Contents

1Introduction

1.1 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.1.1 Online Viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.1.2 Hardcopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.2 Additional Information Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.3 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.4 Notational Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5.1 Special Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5.2 Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5.2 Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5 Common Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

2 System Overview

2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.3 System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

2.3.1 AMD Processor Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

2.3.2 Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

2.3.3 Support Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

2.3.4 System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

2.3.5 Mass Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.6 Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.7 Universal Serial Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.8 Network Interface Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.9 Integrated Graphics Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.3.10 Audio Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.4 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

3 Processor/Memory Subsystem

3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 AMD Processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.2.1 AMD Processor Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.2.2 Processor Changing/Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3 Memory Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

3.3.1 Memory Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.2 Memory Mapping and Pre-allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Technical Reference Guide www.hp.com iii

Contents

4 System Support

4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 PCI Bus Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2.1 PCI 2.3 Bus Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2.2 PCI Express Bus Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.2.3 Option ROM Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.4 PCI Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.5 PCI Power Management Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.6 PCI Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.3 System Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

4.3.1 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

4.3.2 Direct Memory Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

4.4 Real-Time Clock and Configuration Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

4.4.1 Clearing CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

4.4.2 Standard CMOS Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

4.5 System Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

4.5.1 Security Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

4.5.2 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

4.5.3 System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

4.5.4 Thermal Sensing and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

4.6 Register Map and Miscellaneous Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

4.6.1 System I/O Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14

4.6.2 GPIO Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–15

5 Input/Output Interfaces

5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.2 SATA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2.1 SATA Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2.2 AHCI/RAID Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.3 Diskette Drive Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.4 Serial Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.5 Parallel Interface Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.1 Standard Parallel Port Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.2 Enhanced Parallel Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.3 Extended Capabilities Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.4 Parallel Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.6 Keyboard/Pointing Device Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

5.6.1 Keyboard Interface Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

5.6.2 Pointing Device Interface Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

5.6.3 Keyboard/Pointing Device Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

5.7 Universal Serial Bus Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

5.7.1 USB Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

5.7.2 USB Cable Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

5.8 Audio Subsystem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

5.8.1 HD Audio Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

5.8.2 HD Audio Link Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

5.8.3 Audio Multistreaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

5.8.4 Audio Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

iv www.hp.com Technical Reference Guide

5.9 Network Interface Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16

5.9.1 Wake-On-LAN Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17

5.9.2 Alert Standard Format Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17

5.9.3 Power Management Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17

5.9.4 NIC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18

5.9.5 NIC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18

6 Integrated Graphics Subsystem

6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

6.2 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.3 Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3

6.4 Monitor Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4

6.5.1 Analog Monitor Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4

6.5.2 DVI-D Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

7 Power and Signal Distribution

7.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

7.2 Power Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

7.2.1 SFF Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2

7.2.2 MT Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3

7.2.3 Optional Energy Star Compliant PSUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3 Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.1 Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.3.2 Wake Up Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

7.3.3 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–7

7.4 Signal Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

Contents

Technical Reference Guide www.hp.com v

Contents

8SYSTEM BIOS

8.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–1

8.2 ROM Flashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

8.2.1 Upgrading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

8.2.2 Changeable Splash Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

8.3 Boot Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.1 Boot Device Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.2 Network Boot (F12) Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.3 Memory Detection and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

8.3.4 Boot Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

8.4 Client Management Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–5

8.4.1 System ID and ROM Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–6

8.4.2 Temperature Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–6

8.5 SMBIOS support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–7

8.6 USB Legacy Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8

8.7 Management Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–8

A Error Messages and Codes

Index

vi www.hp.com Technical Reference Guide

1.1 A b o u t t h i s G u i d e

This guide provides technical information about HP Compaq dc5850 Business PC personal computers that feature AMD processors and the AMD 780V chipset. This document describes in detail the system's design and operation for programmers, engineers, technicians, and system administrators, as well as end-users wanting detailed information.

The chapters of this guide primarily describe the hardware and firmware elements and primarily deal with the system board and the power supply assembly. The appendices contain general data such as error codes and information about standard peripheral devices such as keyboards, graphics cards, and communications adapters.

This guide can be used either as an online document or in hardcopy form.

1.1.1 O n l in e V i e w i n g

Online viewing allows for quick navigating and convenient searching through the document. A color monitor will also allow the user to view the color shading used to highlight differential data. A softcopy of the latest edition of this guide is available for downloading in .pdf file format at the following URL:

www.hp.com

Introduction

Viewing the file requires a copy of Adobe Acrobat Reader available at no charge from Adobe Systems, Inc. at the following URL:

www.adobe.com

1.1. 2 H a r d co p y

A hardcopy of this guide may be obtained by printing from the .pdf file. The document is designed for printing in an 8 ½ x 11-inch format.

1.2 Additional Information Sources

For more information on components mentioned in this guide refer to the indicated manufacturers' documentation, which may be available at the following online sources:

■ HP Corporation: www.hp.com

■

AMD Corporation: www.amd.com

■

Serial ATA International Organization (SATA-IO): www.serialATA.org.

■

USB user group: www.usb.org

Technical Reference Guide www.hp.com 1-1

Introduction

1. 3 S e r i al N um b e r

The serial number is located on a sticker placed on the exterior cabinet. The serial number is also written into firmware and may be read with HP Diagnostics or Insight Manager utilities.

1.4 Notational Conventions

The notational guidelines used in this guide are described in the following subsections.

1.4.1 Special Notices

The usage of warnings, cautions, and notes is described as follows:

WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

Text set off in this manner provides information that may be helpful.

✎

1.4.2 Values

Differences between bytes and bits are indicated as follows:

MB = megabytes

Mb = megabits

1.4.3 Ranges

Ranges or limits for a parameter are shown using the following methods:

Example A: Bits <7..4> = bits 7, 6, 5, and 4.

Example B: IRQ3-7, 9 = IRQ signals 3 through 7, and IRQ signal 9

1-2 www.hp.com Technical Reference Guide

1.5 Common Acronyms and Abbreviations

Table 1-1 lists the acronyms and abbreviations used in this guide.

Table 1-1

Acronyms and Abbreviations

Acronym or Abbreviation Description

Aampere

AC alternating current

ACPI Advanced Configuration and Power Interface

A/D analog-to-digital

ADC Analog-to-digital converter

ADD or ADD2 Advanced digital display (card)

AGP Accelerated graphics port

AHCI Advanced Host Controller Interface (SATA)

AMT Active Management Technology

Introduction

API application programming interface

APIC Advanced Programmable Interrupt Controller

APM advanced power management

AOL Alert- On-LAN™

ASIC application-specific integrated circuit

ASF Alert Standard Format

AT 1. attention (modem commands) 2. 286-based PC architecture

ATA AT attachment (IDE protocol)

ATAPI ATA w/packet interface extensions

AVI audio-video in terle ave d

AVGA Advanc ed VGA

AWG American Wire Gauge (specification)

BAT Basic assurance test

BCD binary-coded decimal

BIOS basic input/output system

bis second/new revision

BNC Bayonet Neill-Concelman (connector type)

bps or b/s bits per second

BSP Bootstrap processor

BTO Built to order

CAS column address strobe

CD compact disk

CD-ROM compact disk read-only memory

Technical Reference Guide www.hp.com 1-3

Introduction

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or Abbreviation Description

CDS compact disk system

CGA color graphics adapter

Ch Channel, chapter

cm centimeter

CMC cache/memory controller

CMOS complimentary metal-oxide semiconductor (configuration memory)

Cntlr controller

Cntrl control

codec 1. coder/decoder 2. compressor/decompressor

CPQ Compaq

CPU central processing unit

CRIMM Continuity (blank) RIMM

CRT cathode ray tube

CSM 1. Compaq system management 2. Compaq server management

DAC digital-to-analog converter

DC direct current

DCH DOS compatibility hole

DDC Display Data Channel

DDR Double data rate (memory)

DIMM dual inline memory module

DIN Deutche IndustriNorm (connector type)

DIP dual inline package

DMA direct memory access

DMI Desktop management interface

dpi dots per inch

DRAM dynamic random access memory

DRQ data request

DVI Digital video interface

dword Double word (32 bits)

EDID extended display identification data

EDO extended data out (RAM type)

EEPROM electrically erasable PROM

EGA enhanced graphics adapter

EIA Electronic Industry Association

1-4 www.hp.com Technical Reference Guide

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or Abbreviation Description

EISA extended ISA

EPP enhanced parallel port

EIDE enhanced IDE

ESCD Extended System Configuration Data (format)

EV Environmental Variable (data)

ExCA Exchangeable Card Architecture

FIFO first in/first out

FL flag (register)

FM frequency modulation

FPM fast page mode (RAM type)

FPU Floating point unit (numeric or math coprocessor)

FPS Frames per second

ft Foot/feet

Introduction

GB gigabyte

GND ground

GPIO general purpose I/O

GPOC general purpose open-collector

GART Graphics address re-mapping table

GUI graphic user interface

hhexadecimal

HDD hard disk drive

HW hardware

hex hexadecimal

Hz Hertz (cycles-per-second)

IDE integrated drive element

IEEE Institute of Electrical and Electronic Engineers

IF interrupt flag

I/F interface

IGC integrated graphics controller

in inch

INT interrupt

I/O input/output

IPL initial program loader

IrDA Infrared Data Association

IRQ interrupt request

Technical Reference Guide www.hp.com 1-5

Introduction

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or Abbreviation Description

ISA industry standard architecture

Kb/KB kilobits/kilobytes (x 1024 bits/x 1024 bytes)

Kb/s kilobits per second

kg kilogram

KHz kilohertz

kV kilovolt

lb pound

LAN local area network

LCD liquid crystal display

LED light-emitting diode

LPC Low pin count

LSI large scale integration

LSb/LSB least significant bit/least significant byte

LUN logical unit (SCSI)

m Meter

MCH Memory controller hub

MMX multimedia extensions

MPEG Motion Picture Experts Group

ms millisecond

MSb/MSB most significant bit/most significant byte

mux multiplex

MVA motion video acceleration

MVW motion video window

n variable parameter/value

NIC network interface card/controller

NiMH nickel-metal hydride

NMI non-maskable interrupt

NRZI Non-return-to-zero inverted

ns nanosecond

NT nested task flag

NTSC National Television Standards Committee

NVRAM non-volatile random access memory

ODD optical disk drive

OS operating system

1-6 www.hp.com Technical Reference Guide

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or Abbreviation Description

PAL 1. programmable array logic 2. phase alternating line

PATA Parallel ATA

PC Personal computer

PCA Printed circuit assembly

PCI peripheral component interconnect

PCI-E PCI Express

PCM pulse code modulation

PCMCIA Personal Computer Memory Card International Association

PEG PCI express graphics

PFC Power factor correction

PIN personal identification number

PIO Programmed I/O

PN Part number

Introduction

POST power-on self test

PROM programmable read-only memory

PTR pointer

PWM pulse width modulation

RAID Redundant array of inexpensive disks (drives)

RAM random access memory

RAS row address strobe

RBSU ROM-Based Setup Utility

rcvr receiver

RDRAM (Direct) Rambus DRAM

RGB red/green/blue (monitor input)

RH Relative humidity

RMS root mean square

ROM read-only memory

RPM revolutions per minute

RTC real time clock

R/W Read/Write

SATA Serial ATA

SCSI small computer system interface

SDR Singles data rate (memory)

SDRAM Synchronous Dynamic RAM

Technical Reference Guide www.hp.com 1-7

Introduction

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or Abbreviation Description

SDVO Serial digital video output

SEC Single Edge-Connector

SECAM sequential colour avec memoire (sequential color with memory)

SF sign flag

SGRAM Synchronous Graphics RAM

SIMD Single instruction multiple data

SIMM single in-line memory module

SMART Self Monitor Analysis Report Technology

SMI system management interrupt

SMM system management mode

SMRAM system management RAM

SPD serial presence detect

SPDIF Sony/Philips Digital Interface (IEC-958 specification)

SPN Spare part number

SPP standard parallel port

SRAM static RAM

SSD solid state disk (drive)

SSE Streaming SIMD extensions

STN super twist pneumatic

SVGA super VGA

SW software

TAD telephone answering device

TAFI Temperature-sensing And Fan control Integrated circuit

TCP tape carrier package, transmission control protocol

TF trap flag

TFT thin-film transistor

TIA Telecommunications Information Administration

TPE twisted pair ethernet

TPI track per inch

TTL transistor-transistor logic

TV television

TX transmit

UART universal asynchronous receiver/transmitter

UDMA Ultra DMA

1-8 www.hp.com Technical Reference Guide

Table 1-1 (Continued)

Acronyms and Abbreviations

Acronym or Abbreviation Description

URL Uniform resource locator us/µs microsecond

USB Universal Serial Bus

UTP unshielded twisted pair

Vvolt

VAC Volts alternating current

VDC Volts direct current

VESA Video Electronic Standards Association

VGA video graphics adapter

VLSI very large scale integration

VRAM Video RAM

Wwatt

WOL Wake -On-LAN

Introduction

WRAM Windows RAM

ZF zero flag

ZIF zero insertion force (socket)

Technical Reference Guide www.hp.com 1-9

Introduction

1-10 www.hp.com Technical Reference Guide

2.1 Introduction

The HP Compaq dc5850 Business PC personal computers (Figure 2-1) deliver an outstanding combination of manageability, serviceability, and compatibility for enterprise environments. Based on an AMD processor with the AMD 780V chipset, these systems emphasize performance along with industry compatibility. These models feature a similar architecture incorporating both PCI 2.3 and PCIe 1.1 buses. All models are easily upgradeable and expandable to keep pace with the needs of the office enterprise.

System Overview

Figure 2-1. HP Compaq dc5850 Business PCs

This chapter includes the following topics:

■ Features (2.2)

■ System architecture (2.3)

■ Specifications (2.4)

Technical Reference Guide www.hp.com 2-1

HP dc5850 Small Form Factor

HP dc5850 MiniTower

System Overview

2.2 Features

The following standard features are included on all models unless otherwise indicated:

■ Supports one of the following AMD processors installed in an AM2+ socket:

❏ AMD Phenom™ Quad-Core with HyperTransport Technology

❏ AMD Phenom Triple-Core with HyperTransport Technology

❏ AMD Athlon™ Dual-Core with HyperTransport Technology

❏ AMD Athlon Single-Core with HyperTransport Technology

❏ AMD Sempron™ with HyperTransport Technology

■ AMD 780V chipset

■ ATI Radeon 3100 integrated graphics processor with dual monitor support:

❏ One VGA connector

❏ One DVI-D connector

■ 667-, 800-, or 1066-MHz (DDR2) DIMM support

■ Eight externally-accessible USB 2.0-compliant ports

■ High definition (HD) audio processor with one headphone output, one microphone input,

one line output, and one line input

■ Network interface controller providing 10/100/1000Base T support

■ Plug 'n Play compatible (with ESCD support)

■ Intelligent Manageability support

■ Management/security features including:

❏ Flash ROM Boot Block

❏ Diskette drive disable, boot disable, write protect

❏ Power-on and Administrator passwords

❏ Serial and USB port disable

❏ HP Virtual Safe Browser

■ PS/2 enhanced keyboard and optical scroll mouse

2-2 www.hp.com Technical Reference Guide

System Overview

Table 2-1 shows the differences in features between the different PC series based on form factor:

Table 2-1

Feature Difference Matrix by Form Factor

SFF MT

Drive bays:

Externally accessible 3.5-inch bay Externally accessible 5.25-inch bay Internal 3.5-inch bay

Drive types supported:

HDD ODD

PCIe slots:

x16 graphics (PCIe 2.0) x1 connector

PCI 2.3 32-bit 5-V slots 1 low-profile [1] 1 full-height

1 1 1

2 1

1 low-profile [1] 2 low-profile [1]

1 2 2

4 1

1 full-height 2 full-hieght

Power Supply Unit (standard) 240-watt

active PFC [2]

NOTES:

[1] Low-profile card dimensions: height = 2.5 in., length = 6.6 in. [2] Energy-Star 80-Plus Bronze-level compliant active-PFC unit of same wattage available as an

option.

300-watt

passive PFC [2]

Technical Reference Guide www.hp.com 2-3

System Overview

2.3 System Architecture

The systems covered in this guide feature an architecture based on an AMD processor and chipset (Figure 2-2). All systems covered in this guide include the following key components:

■ AMD Phenom, Athlon, or Sempron processor.

■ AMD 780V chipset (includes RS780 north bridge and SB700 south bridge)

■ SCH5327 Super I/O (SIO) controller supporting PS/2 keyboard and mouse peripherals

■ AD1884A audio controller supporting line in, line out, microphone in, and headphones out

■ Broadcom BMC5754 GbE network interface controller

The AMD 780V chipset, consisting of the RS780C north bridge and the SB700 south bridge, is designed to complement the latest AMD processors. The RS780 north bridge communicates with the processor through a Hypertransport bus and with the SB700 south bridge component. The integrated graphics controller of the RS780 north bridge can be upgraded through a PCI Express (PCIe) x16 graphics slot. All systems include a serial ATA (SATA) hard drive in the standard configuration.

2-4 www.hp.com Technical Reference Guide

System Overview

Analog Mon.

Digital Mon.

PCI Express

x16 slot (PEG)

SATA

Hard Drive

Additional

SATA

Devices

VGA

DVI-D

SATA 0

SATA 1-3

AD1884A

Audio

Subsystem

HyperTransport bus

ATI

Radeon

3100

IGP

SATA I/F (4)

Audio I/F

AMD

Processor

RS780C

North

Bridge

SB700

South

Bridge

USB

I/F

Ch A DDR2

SDRAM

Ch B DDR2

SDRAM

BMC5754

NIC

PCIe x1 slots (2)

USB 2.0 Ports (10) [1]

Serial I/F [2]

SIO Controller

Kybd-Mouse I/F

Parallel I/F [3]

Diskette I/F

Notes:

[1] 2 front ports, 6 rear ports, 2 internal ports [2] 2nd serial port requires optional bracket/cable assembly [3] Parallel port functionality requires optional bracket/cable assembly

Figure 2-2. HP Compaq dc5850 Business PC Architecture, Block diagram

Technical Reference Guide www.hp.com 2-5

BIOS ROM

Power Supply

PCI 2.3 slot

Keyboard

Diskette

Mouse

System Overview

2.3.1 AMD Processor Support

The models covered in this guide are designed to support the following processor types:

■ AMD Phenom X4 Quad-Core with HyperTransport Technology

■ AMD Phenom X3 Triple-Core with HyperTransport Technology

■ AMD Athlon X2 Dual-Core with HyperTransport Technology

■ AMD Athlon 64 Single-Core with HyperTransport Technology

■ AMD Sempron with HyperTransport Technology

All processors include an integrated DDR2 memory controller and support up to eight gigabytes of memory. AMD processors are backward-compatible with software written for earlier x86 microprocessors. The processor mounts in a zero-insertion-force (ZIF) AMD AM2+ socket.

CAUTION: These systems can support a processor rated up to 95 watts. Exceeding this limit can result in system damage and loss of data.

Installation of the processor heatsink is critical in these systems. Refer to the applicable Service

✎

Reference Guide for detailed removal and replacement procedures of the heatsink/fan assembly and the processor

2.3.2 Chipset

The AMD 780V chipset consists of a RS780C north bridge and an SB700 south bridge. Table 2-2 compares the functions provided by the chipsets.

Components Function

RS780C Integrated ATI Radeon 3100 graphics controller

SB700 PCI 2.3 bus I/F

Table 2-2

Chipset Components and Functionality

PCIe 2.0 x16 graphics interface HyperTransport bus operating at 800-, 1066-, or 1333-MHz PCI Express x1

SMBus I/F SATA I/F HD audio interface RTC/CMOS IRQ controller Power management logic USB 1.1/2.0 controllers supporting 12 ports

(these systems provide 8 external, 2 internal)

2-6 www.hp.com Technical Reference Guide

2.3.3 Support Components

Input/output functions not provided by the chipset are handled by other support components. Some of these components also provide “housekeeping” and various other functions as well. Table 2-3 shows the functions provided by the support components.

Support Component Functions

Component Name Function

SCH5327 SIO Controller Keyboard and pointing device I/F

Diskette I/F Serial I/F (COM1and COM2) [1] Parallel I/F (LPT1, LPT2, or LPT3) [2] PCI reset generation Interrupt (IRQ) serializer Power button and front panel LED logic GPIO ports Processor over temperature monitoring Fan control and monitoring Power supply voltage monitoring SMBus and Low Pin Count (LPC) bus I/F

System Overview

Table 2-3

Broadcom BMC5754 Network Interface Controller

AD1884A HD Audio Codec Audio mixer

NOTE:

[1] COM2 requires optional bracket/cable assembly. [2] LPTn support requires optional bracket/cable assembly.

2.3.4 System Memory

These systems implement a dual-channel non-ECC Double Data Rate (DDR2) memory architecture. All models support DDR2 800- and 667-MHz DIMMs, and are shipped with DDR2 800-MHz (PC2-6400) DIMMs. These systems provide four DIMM sockets and support a total of 8 gigabytes of memory.

DDR and DDR2 DIMMs are NOT interchangeable.

✎

10/100/1000 Fast Ethernet network interface controller.

Two digital-to-analog stereo converters Two analog-to-digital stereo converters Analog I/O Supports stereo (two-channel) audio streams

Technical Reference Guide www.hp.com 2-7

System Overview

2.3.5 Mass Storage

These systems provide four SATA interfaces for mass storage devices. The SFF supports up to two removeable media devices and one internal hard drive. The MT supports up to three removeable media devices and two hard drives, and is available in factory-preconfigured RAID configurations.

Supported SATA hard drives:

■ SMART IV, 3.0 Gb/s, 7200 RPM drive sizes (GB): 80, 160, 250, 500

■ SMART III, 3.0 Gb/s, 10000 RPM drive sizes (GB): 80, 160

Supported SATA removeable media drives:

■ DVD-ROM drive

■ SuperMulti LightScribe DVD Writer Drive (requires special label-etchable media)

2.3.6 Serial Interface

These systems include a serial port accessible at the rear of the chassis and support a second serial port option. The serial interface is RS-232-C/16550-compatible and supports standard baud rates up to 115,200 as well as two high-speed baud rates of 230K and 460K.

2.3.7 Universal Serial Bus Interface

All models provide ten Universal Serial Bus (USB) ports. Two ports are accessible at the front of the unit, six ports are accessible on the rear panel, and two ports are accessible through a header on the system board. These systems support a media card reader module that connects to the internal header. These systems support USB 1.1 and 2.0 functionality on all ports.

BIOS Setup allows for the disabling of USB ports individually or in groups. In order to secure the system against a physical attack, ports may be disabled even if there is nothing physically connected to them, such as the two front ports for the media card reader module when the module is not present.

2.3.8 Network Interface Controller

All models feature a Broadcom gigabit Network Interface Controller (NIC) integrated on the system board. The controller provides automatic selection of 10BASE-T, 100BASE-TX, or 1000BASE-T operation with a local area network and includes power-down, wake-up, Alert-On-LAN (AOL), Alert Standard Format (ASF), and AMT features. An RJ-45 connector with status LEDs is provided on the rear panel.

2-8 www.hp.com Technical Reference Guide

2.3.9 Integrated Graphics Processor

These systems use the AMD RS780 component, which uses an ATI Radeon 3100 integrated graphics processor featuring DirectX 10 technology that can drive an analog VGA monitor and a DVI-D monitor. Table 2-4 lists the key features of the integrated graphics processor.

Table 2-4

Integrated Graphics Subsystem Statistics

Integrated Graphics Controller

Recommended for Hi 2D, Entry 3D

Bus Type Int. PCI Express

Memory Amount 128 or 256 MB pre-allocated

Memory Type DVMT 3.0

DAC Speed 300 MHz

Maximum 2D Resolution 2048x1536 @ 85 Hz

System Overview

Hardware function DirectX 10,

Outputs 1 VGA, 1 DVI-D [see text]

These systems also include a PCIe x16 graphics slot to ensure full graphics upgrade capabilities.

2.3.10 Audio Subsystem

These systems use the integrated High Definition audio controller of the chipset and the ADI AD1884A High Definition audio codec. HD audio provides enhanced audio performance with higher sampling rates, refined signal interfaces, and audio processors with increased signal-to-noise ratio. The audio line input jack can be re-configured as a microphone input, and multi-streaming is supported. These systems include a 1.5-watt output amplifier driving an internal speaker, which can be muted with the F10 BIOS control. All models include front panel-accessible stereo microphone input and headphone output audio jacks.

Shader Model 4.0 geometry and pixel support Anti-Alias filtering Anisotropic filtering Advanced texture compression 64b and 128b texture/surface support Multi-level texture cache

Technical Reference Guide www.hp.com 2-9

System Overview

2.4 Specifications

This section includes the environmental, electrical, and physical specifications for the systems covered in this guide. Where provided, metric statistics are given in parenthesis. Specifications are subject to change without notice.

Environmental Specifications (Factory Configuration)

Parameter Operating Non-operating

Table 2-5

Ambient Air Temperature 50

to 95o F (10o to 35o C, max.

rate of change <

10°C/Hr)

-22

to 140o F (-30o to 60o C, max. rate of change <

Shock (w/o damage) 5 Gs [1] 20 Gs [1]

Vibration 0.000215 G

Humidity 10-90% Rh @ 28

wet bulb temperature

/Hz, 10-300 Hz 0.0005 G2/Hz, 10-500 Hz

C max.

5-95% Rh @ 38.7o C max.

wet bulb temperature

Maximum Altitude 10,000 ft (3048 m) [2] 30,000 ft (9144 m) [2]

NOTE:

[1] Peak input acceleration during an 11 ms half-sine shock pulse. [2] Maximum rate of change: 1500 ft/min.

Table 2-6

Power Supply Electrical Specifications

Parameter Value

Input Line Voltage: Nominal: Maximum

100–240 VAC

90–264 VAC

20°C/Hr)

Input Line Frequency Range: Nominal Maximum

Energy Star 4.0 with 80Plus Bronze-level compliancy

SFF MT

Maximum Continuous Power:

SFF MT

NOTE: Optional Energy Star 4.0 with 80-Plus Bronze-level compliant power supply unit available for both form factors.

2-10 www.hp.com Technical Reference Guide

50–60 Hz 47–63 Hz

Optional Optional

240 watts

300 watts

Table 2-7

Physical Specifications

Parameter SFF [2] MT [3]

System Overview

Height 3.95 in

(10.03 c m)

Width 13.3 in

(33.78 cm)

Depth 14.9 in

(37.85 cm)

Weight [1] 17.86 lb

(8.10 kg)

Load-bearing ability of chassis [3]

NOTES:

[1] System configured with 1 hard drive, 1 diskette drive, and no PCI cards. [2] Desktop (horizontal) configuration. [3] Applicable to unit in desktop orientation only and assumes reasonable type of load such as a monitor.

77.1 lb (35 kg)

14 . 8 5 i n

(37.72 cm)

6.95 in

(17.65 c m)

16. 85 i n

(42.80 cm)

23.44 lb

(10. 6 3 kg )

77.1 lb

(35 kg)

Technical Reference Guide www.hp.com 2-11

System Overview

2-12 www.hp.com Technical Reference Guide

3.1 Introduction

This chapter describes the processor/memory subsystem. This systems support the AMD Phenom, Athlon, and Sempron processor families. As shown in Figure 3-1, these processors use an integrated DDR2 memory controller and communicate with the chipset through the HyperTranport interface (I/F).

Processor/Memory Subsystem

AMD Processor

Core(s)

L2 Cache

HyperTransport I/F

North Bridge

Figure 3-1. Processor/Memory Subsystem Architecture

DDR2

Controller

Channel A

Channel B

This chapter includes the following topics:

■ AMD processors (3.2)

XMM1

DIMM

XMM2

XMM3

DIMM

XMM4

■ Memory subsystem (3.3)

Technical Reference Guide www.hp.com 3-1

Processor/Memory Subsystem

3.2 AMD Processors

These systems feature an AMD processor mounted with a heat sink in an AM2+ socket. The mounting socket allows the processor to be easily changed for upgrading.

3.2.1 AMD Processor Overview

The systems covered in this guide support AMD Phenom, Athlon, and Sempron processors.

Key features of these AMD processors include:

■ Single-, dual-, triple-, or quad-core architecture

■ Dedicated L2 cache for each core

■ Integrated DDR2 memory controller

■ Direct-connect archtitecture for improved performance between the CPU, memory, and I/O

■ HyperTransport™ technology providing up to 4 GB/s (each direction) in mode 1.0 and up to

7.2 GB/s in mode 3.0

Table 3-1 provides a sample listing of processors supported by these systems.

Supported Processors (partial listing)

AMD Processor

Phenom X4 quad 2.30 GHz 3.0 512 KB x4 2048 KB Std. set + SSE4a,

Phenom X3 triple 2.40 GHz 3.0 512 KB x3 2048 KB Std. set + SSE4a,

Athlon 64 X2 dual 2.80 GHz 2.0 1024 KB x2 n/a Std. set + AMD-V Athlon 64 X2 dual 2.70 GHz 2.0 1024 KB x2 n/a Std. set + AMD-V Athlon 64 single 2.40 GHz 2.0 1024 KB n/a Std. set Sempron single 2.30 GHz 1.0 512 KB n/a Std. set

Core

design

Core

Speed

HT bus

Table 3-1

mode

Cache

Instruction set

support (see note)

Enhanced 3DNow!

NOTE: Standard (std.) instruction set support includes AMD64, MMX, SSE, SSE2, SSE3, 3DNow!, NX bit, Cool’n’Quiet

3.2.2 Processor Changing/Upgrading

These systems use the AM2+ zero-insertion-force mounting socket. These systems require that the processor use an integrated heatsink/fan assembly.

CAUTION: Attachment of the heatsink to the processor is critical on these systems. Improper attachment of the heatsink will likely result in a thermal condition. Although the system is designed to detect thermal conditions and automatically shut down, such conditions could still result in damage to the processor component. Refer to the applicable Service Reference Guide for processor installation instructions.

CAUTION: These systems can only support a processor with a maximum power consumption (also known as thermal design power (TDP)) of 95 watts. Exceeding this limit can result in system damage and lost data.

3-2 www.hp.com Technical Reference Guide

3.3 Memory Subsystem

All models support up to 8 gigabytes of non-ECC PC2-6400 and PC2-5300 DDR2 memory.

The DDR2 SDRAM “PCxxxx” reference designates bus bandwidth (i.e., a PC2-6400 module

✎

can, operating at a 800-MHz effective speed, provide a throughput of 6400 MBps (8 bytes × 800 MHz)). Memory speed types may be mixed within a system, but the memory controller will operate at speed of the slowest memory module detected.

The actual clock rate used by the memory will be determined by the processor installed. Memory in Sempron and Athlon-based systems use a derivative of the CPU clock rate. Memory in Phenom-based systems run at the specified frequency.

The system board provides four DIMM sockets

■ XMM1, channel A (white)

■ XMM2, channel B(white)

■ XMM3, channel A(black)

■ XMM4, channel B (black)

Memory modules do not need to be installed in pairs although installation of pairs (especially matched sets) provides the best performance. The BIOS will detect the module population and set the system accordingly as follows:

Processor/Memory Subsystem

■ Single-channel mode: memory installed for one channel only

■ Dual-channel asymetric mode: memory installed for both channels but of unequal channel

capacities.

■ Dual-channel interleaved mode (recommended): memory installed for both channels and

offering equal channel capacities, proving the highest performance.

These systems support memory modules with the following parameters:

■ Unbuffered, non-ECC 1.8-volt DDR2 DIMMs

■ 256-Mb, 512-Mb, and 1-Gb memory technologies for x8 and x16 devices

■ CAS latency (CL) of 5 for 667- or 800-MHz DDR2, or CL of6 for 800-MHz DDR2

■ Single or double-sided DIMMs

An installed mix of memory module types is acceptable but operation will be constrained to the level of the module with the lowest (slowest) performance.

Technical Reference Guide www.hp.com 3-3

Processor/Memory Subsystem

3.3.1 Memory Loading/Upgrading

Table 3-2 shows suggested memory configurations for these systems.

CAUTION: Always power down the system and disconnect the power cord from the AC outlet before adding or replacing memory modules. Changing memory modules while the unit is plugged into an active AC outlet could result in equipment damage.

Table 3-2 does not list all possible configurations.

✎

Table 3-2.

Memory Socket Loading

Channel A Channel B

Socket

XMM 1

none none none 512 MB 512 MB (single channel loading) none 512 MB none 512 MB 1 GB (dual-channel loading) none none none 1 GB 1 GB (single chanel loading) none 1 GB none 1 GB 2 GB (dual-channel loading)

1 GB 1 GB 1 GB 1 GB 4 GB (dual-channel loading)

none 2 GB none 2 GB 4 GB (dual-channel loading)

2 GB 2 GB 2 GB 2 GB 8 GB (dual-channel loading)

Socket

XMM 3

Socket

XMM 2

Socket

XMM 4 Total

If only one DIMM is installed, it MUST be installed in socket 4.

✎

HP recommends using dual-channel loading (symmetrical, same-capacity, same-speed modules across both channels) to achieve the best performance. The system automatically selects singleor dual-channel operation depending on how DIMMs are installed. For dual-channel operation, the loading priority is to populate socket XMM4 before XMM2 for channel B, and socket XMM3 before XMM1 for channel A.

Memory amounts over 3 GB may not be fully accessible with 32-bit operating systems due to

✎

system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

3.3.2 Memory Mapping and Pre-allocation

Figure 3-2 shows the system memory map. The RS780C North Bridge pre-allocates a portion of system memory for video use (refer to chapter 6). Pre-allocated memory is not available to the operating system. The amount of system memory reported by the OS will be the total amount installed less

the pre-allocated amount.

3-4 www.hp.com Technical Reference Guide

Processor/Memory Subsystem

Main Memory Area

DOS Compatibilty Area

1 FFFF FFFEh

FFE0 0000h

F000 0000h

0100 0000h

00FF FFFFh

0010 0000h

000F FFFFh

0000 0000h

High BIOS Area

PCI

Memory

Area

IGP

Main

Memory

Main

Memory

BIOS

Extended BIOS

Expansion Area

Legacy Video

Base Memory

8 GB

4.2 GB

4 GB

256 MB

32 MB

16 MB

1 MB

640 KB

Figure 3-2. System Memory Map (for maximum of 8 gigabytes)

All locations in memory are cacheable. Base memory is always mapped to DRAM. The next 128

✎

KB fixed memory area can, through the north bridge, be mapped to DRAM or to PCI space. Graphics RAM areas are mapped to PCI locations.

Technical Reference Guide www.hp.com 3-5

Processor/Memory Subsystem

3-6 www.hp.com Technical Reference Guide

4.1 Introduction

This chapter covers subjects dealing with basic system architecture and covers the following topics:

■ PCI bus overview (4.2)

■ System resources (4.3)

■

Real-time clock and configuration memory (4.4

■ System management (4.5)

■

This chapter covers functions provided by off-the-shelf chipsets and therefore describes only basic aspects of these functions as well as information unique to the systems covered in this guide. For detailed information on specific components, refer to the applicable manufacturer's documentation.

System Support

)

4.2 PCI Bus Overview

This section describes the PCI bus in general and highlights bus implementation for systems

✎

covered in this guide. For detailed information regarding PCI bus operation, refer to the appropriate PCI specification or the PCI web site: www.pcisig.com.

These systems implement the following types of PCI buses:

■ PCI 2.3 - Legacy parallel interface operating at 33-MHz

■ PCI Express - High-performance interface capable of using multiple TX/RX high-speed

lanes of serial data streams

4.2.1 PCI 2.3 Bus Operation

The PCI 2.3 bus consists of a 32-bit path (AD31-00 lines) that uses a multiplexed scheme for handling both address and data transfers. A bus transaction consists of an address cycle and one or more data cycles, with each cycle requiring a clock (PCICLK) cycle. High performance is achieved during burst modes in which a transaction with contiguous memory locations requires that only one address cycle be conducted and subsequent data cycles are completed using auto-incremented addressing.

Devices on the PCI bus must comply with PCI protocol that allows configuration of that device by software. In this system, configuration mechanism #1 (as described in the PCI Local Bus specification Rev. 2.3) is employed.

Technical Reference Guide www.hp.com 4-1

System Support

The PCI bus supports a bus master/target arbitration scheme. A bus master is a device that has been granted control of the bus for the purpose of initiating a transaction. A target is a device that is the recipient of a transaction. The Request (REQ), Grant (GNT), and FRAME signals are used by PCI bus masters for gaining access to the PCI bus. When a PCI device needs access to the PCI bus (and does not already own it), the PCI device asserts its REQn signal to the PCI bus arbiter (a function of the system controller component). If the bus is available, the arbiter asserts the GNTn signal to the requesting device, which then asserts FRAME and conducts the address phase of the transaction with a target. If the PCI device already owns the bus, a request is not needed and the device can simply assert FRAME and conduct the transaction. Table 4-1 shows the grant and request signals assignments for the devices on the PCI bus.

Device REQ/GNT Line

PCI Connector Slot 1 REQ0/GNT0

PCI bus arbitration is based on a round-robin scheme that complies with the fairness algorithm specified by the PCI specification. The bus parking policy allows for the current PCI bus owner (excepting the PCI/ISA bridge) to maintain ownership of the bus as long as no request is asserted by another agent. Note that most CPU-to-DRAM accesses can occur concurrently with PCI traffic, therefore reducing the need for the Host/PCI bridge to compete for PCI bus ownership.

Table 4-1.

PCI Bus Mastering Devices

4.2.2 PCI Express Bus Operation

The PCI Express (PCIe) v1.1 bus is a high-performace extension of the legacy PCI bus specification. The PCI Express bus uses the following layers:

■ Software/driver layer

■ Transaction protocol layer

■ Link layer

■ Physical layer

Software/Driver Layer

The PCI Express bus maintains software compatibility with PCI 2.3 and earlier versions so that there is no impact on existing operating systems and drivers. During system intialization, the PCI Express bus uses the same methods of device discovery and resource allocation that legacy PCI-based operating systems and drivers are designed to use.

Transaction Protocol Layer

The transaction protocol layer processes read and write requests from the software/driver layer and generates request packets for the link layer. Each packet includes an identifier allowing any required responcse packets to be directed to the originator.

4-2 www.hp.com Technical Reference Guide

System Support

Link Layer

The link layer provides data integrity by adding a sequence information prefix and a CRC suffix to the packet created by the transaction layer. Flow-control methods ensure that a packet will only be transferred if the receiving device is ready to accomodate it. A corrupted packet will be automatically re-sent.

Physical Layer

The PCI Express bus uses a point-to-point, high-speed TX/RX serial lane topology. One or more full-duplex lanes transfer data serially, and the design allows for scalability depending on end-point capabilities. Each lane consists of two differential pairs of signal paths; one for transmit, one for receive (Figure 4-1).

System Board

Figure 4-1. PCI Express Bus Lane

Each byte is transferred using 8b/10b encoding. which embeds the clock signal with the data. Operating at a 2.5 Gigabit transfer rate, a single lane can provide a data flow of 200 MBps. The bandwidth is increased if additional lanes are available for use. During the initialization process, two PCI Express devices will negotiate for the number of lanes available and the speed the link can operate at. In a x1 (single lane) interface, all data bytes are transferred serially over the lane. In a multi-lane interface, data bytes are distributed across the lanes using a multiplex scheme.

4.2.3 Option ROM Mapping

During POST, the PCI bus is scanned for devices that contain their own specific firmware in ROM. Such option ROM data, if detected, is loaded into system memory's DOS compatibility area (refer to the system memory map shown in chapter 3).

Device A

PCI Express Card

Device B

4.2.4 PCI Interrupts

Eight interrupt signals (INTA- thru INTH-) are available for use by PCI devices. These signals may be generated by on-board PCI devices or by devices installed in the PCI slots. For more information on interrupts including PCI interrupt mapping refer to the “System Resources” section 4.3.

4.2.5 PCI Power Management Support

This system complies with the PCI Power Management Interface Specification (rev 1.0). The PCI Power Management Enable (PME-) signal is supported by the chipset and allows compliant PCI peripherals to initiate the power management routine.

Technical Reference Guide www.hp.com 4-3

System Support

4.2.6 PCI Connectors

PCI 2.3 Connector

A49

B49

A52

B52

A62

B62

Figure 4-2. 32-bit, 5.0-volt PCI 2.3 Bus Connector

Table 4-2.

PCI 2.3 Bus Connector Pinout

Pin B Signal A Signal Pin B Signal A Signal Pin B Signal A Signal

01 -12 V DC TRST- 22 GND AD28 43 +3.3 VDC PAR

02 TCK +12 VDC 23 AD27 AD26 44 C/BE1- AD15

03 GND TMS 24 AD25 GND 45 AD14 +3.3 VDC

04 TDO TDI 25 +3.3 VDC AD24 46 GND AD13

05 +5 VDC +5 VDC 26 C/BE3- IDSEL 47 AD12 AD11

06 +5 VDC INTA- 27 AD23 +3.3 VDC 48 AD10 GND

07 INTB- INTC- 28 GND AD22 49 GND AD09

08 INTD- +5 VDC 29 AD21 AD20 50 Key Key

09 PRSNT1- Reserved 30 AD19 GND 51 Key Key

10 RSVD +5 VDC 31 +3.3 VDC AD18 52 AD08 C/BE0-

11 PRSNT2- Reserved 32 AD17 AD16 53 AD07 +3.3 VDC

12 GND GND 33 C/BE2- +3.3 VDC 54 +3.3 VDC AD06

13 GND GND 34 GND FRAME- 55 AD05 AD04

14 R S V D +3 .3 AU X 35 I R DY- G N D 56 AD 0 3 GN D

15 GND RST- 36 +3.3 VDC TRDY- 57 GND AD02

16 CLK +5 VDC 37 DEVSEL- GND 58 AD01 AD00

17 GND GNT- 38 GND STOP- 59 +5 VDC +5 VDC

18 R E Q - G ND 39 LO C K - + 3.3 V D C 60 A C K 6 4- R E Q 6 4 -

19 +5 VDC PME- 40 PERR- SDONE n 61 +5 VDC +5 VDC

20 AD31 AD30 41 +3.3 VDC SBO- 62 +5 VDC +5 VDC

21 AD 29 + 3.3 V D C 42 S E RR - G N D

4-4 www.hp.com Technical Reference Guide

PCI Express Connectors

System Support

x1 Connector

A11

A12

A18

A82

x16 Connector

B11

B12

B82

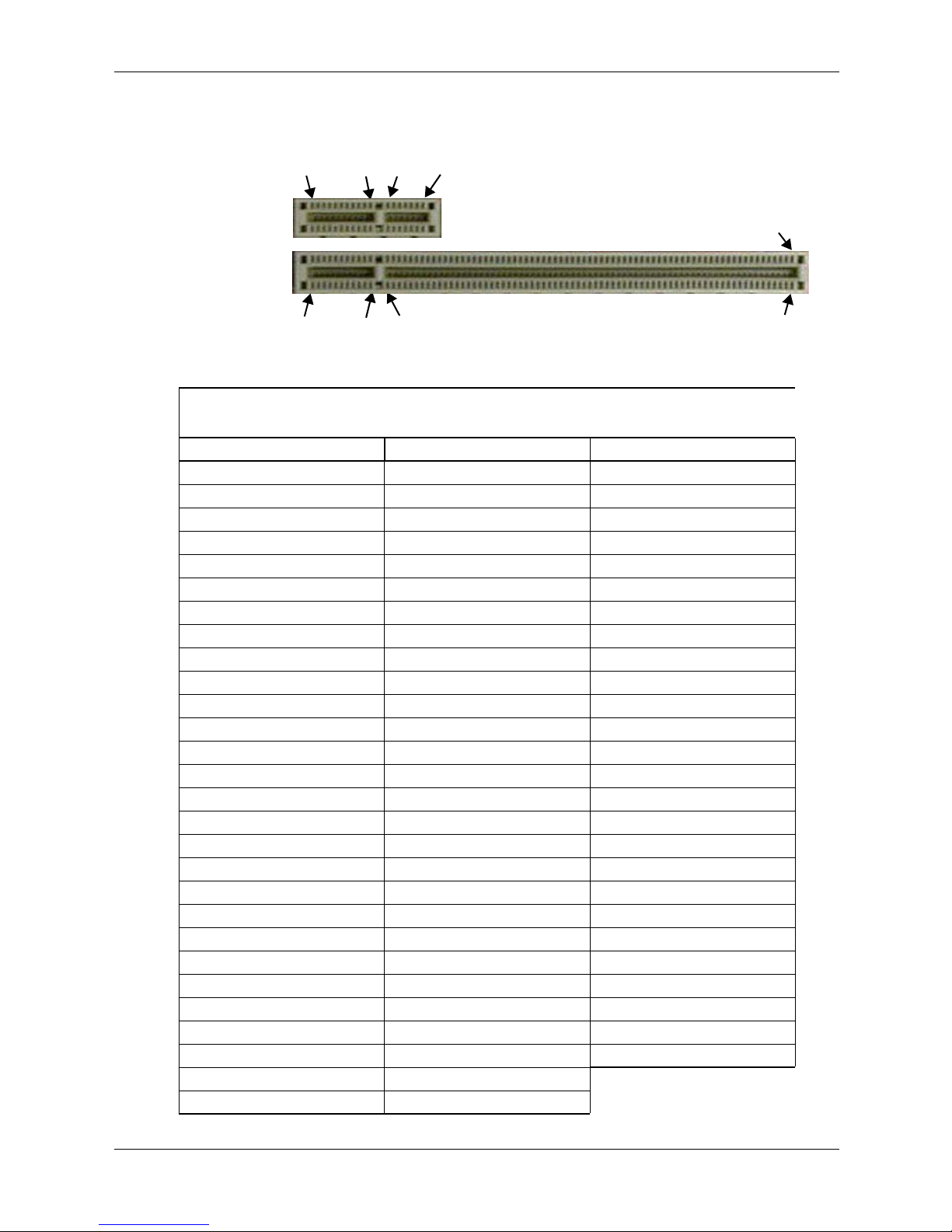

Figure 4-3. PCI Express Bus Connectors

Table 4-3.

PCI Express Bus Connector Pinout

Pin B Signal A Signal Pin B Signal A Signal Pin B Signal A Signal

01 +12 VDC PRSNT1# 29 GND PERp3 57 GND PERn9

02 +12 VDC +12 VDC 30 RSVD PERn3 58 PETp10 GND

03 RSVD +12 VDC 31 PRSNT2# GND 59 PETn10 GND

04 GND GND 32 GND RSVD 60 GND PERp10

05 SMCLK +5 VDC 33 PETp4 RSVD 61 GND PERn10

06 +5 VDC JTAG2 34 PETn4 GND 62 PETp11GND

07 GND JTAG4 35 GND PERp4 63 PETn11 GND

08 +3.3 VDC JTAG5 36 GND PERn4 64 GND PERp11

09 JTAG1 +3.3 VDC 37 PETp5 GND 65 GND PERn11

10 3.3 Vaux +3.3 VDC 38 PETn5 GND 66 PETp12 GND

11WAKE PERST#39 GND PERp567PETn12 GND

12 RSVD GND 40 GND PERn5 68 GND PERp12

13 GND REFCLK+ 41 PETp6 GND 69 GND PERn12

14 PETp0 REFCLK- 42 PETn6 GND 70 PETp13 GND

15 PETn0 GND 43 GND PERp6 71 PETn13 GND

16 GND PERp0 44 GND PERn6 72 GND PERp13

17 PRSNT2# PERn0 45 PETp7 GND 73 GND PERn13

18 GND GND 46 PETn7 GND 74 PETp14 GND

19 PE T p 1 R S VD 47 G N D P E R p7 75 P ET n 14 GN D

20 PETn1 GND 48 PRSNT2# PERn7 76 GND PERp14

21 GND PERp1 49 GND GND 77 GND PERn14

22 GND PERn1 50 PETp8 RSVD 78 PETp15 GND

23 PETp2 GND 51 PETn8 GND 79 PETn15 GND

24 PETn2 GND 52 GND PERp8 80 GND PERp15

25 GND PERp2 53 GND PERn8 81 PRSNT2# PERn15

26 GN D PERn2 54 PETp9 GN D 82 RSVD GND

27 PETp3 GND 55 PETn9 GND

28 PETn3 GND 56 GND PERp 9

Technical Reference Guide www.hp.com 4-5

System Support

4.3 System Resources

This section describes the availability and basic control of major subsystems, otherwise known as resource allocation or simply “system resources.” System resources are provided on a priority basis through hardware interrupts and DMA requests and grants.

4.3.1 Interrupts

The microprocessor uses two types of hardware interrupts; maskable and nonmaskable. A maskable interrupt can be enabled or disabled within the microprocessor by the use of the STI and CLI instructions. A nonmaskable interrupt cannot be masked off within the microprocessor, but may be inhibited by legacy hardware or software means external to the microprocessor.

The maskable interrupt is a hardware-generated signal used by peripheral functions within the system to get the attention of the microprocessor. Peripheral functions produce a unique INTA-H (PCI) or IRQ0-15 (ISA) signal that is routed to interrupt processing logic that asserts the interrupt (INTR-) input to the microprocessor. The microprocessor halts execution to determine the source of the interrupt and then services the peripheral as appropriate.

Most IRQs are routed through the I/O controller of the super I/O component, which provides the serializing function. A serialized interrupt stream is then routed to the ICH component.

Interrupts may be processed in one of two modes (selectable through the F10 Setup utility):

■ 8259 mode

■ APIC mode

These modes are described in the following subsections.

8259 Mode

The 8259 mode handles interrupts IRQ0-IRQ15 in the legacy (AT-system) method using 8259-equivalent logic. If more than one interrupt is pending, the highest priority (lowest number) is processed first.

APIC Mode

The Advanced Programmable Interrupt Controller (APIC) mode provides enhanced interrupt processing with the following advantages:

■ Eliminates the processor's interrupt acknowledge cycle by using a separate (APIC) bus

■ Programmable interrupt priority

■ Additional interrupts (total of 24)

The APIC mode accommodates eight PCI interrupt signals (PIRQA-..PIRQH-) for use by PCI devices. The PCI interrupts are evenly distributed to minimize latency and wired as shown in Table 4-4.

4-6 www.hp.com Technical Reference Guide

PCI Interrupt Distribution

System Board Connector

PCI slot 1 (J20) A B C D

PIRQ APIRQ BPIRQ CPIRQ DPIRQ EPIRQ FPIRQ GPIRQ

The PCI interrupts can be configured by PCI Configuration Registers 60h..63h to share the standard ISA interrupts (IRQn).

The APIC mode is supported by Windows NT, Windows 2000, and Windows XP, and Windows

✎

Vista operating systems.

4.3.2 Direct Memory Access

Direct Memory Access (DMA) is a method by which a device accesses system memory without involving the microprocessor. Although the DMA method has been traditionally used to transfer blocks of data to or from an ISA I/O device, PCI devices may also use DMA operation as well. The DMA method reduces the amount of CPU interactions with memory, freeing the CPU for other processing tasks. For detailed information regarding DMA operation, refer to the data manual for the AMD SB700 South Bridge.

System Support

Table 4-4.

System Interrupts

Technical Reference Guide www.hp.com 4-7

System Support

4.4 Real-Time Clock and Configuration Memory

The Real-time clock (RTC) and configuration memory (also referred to as “CMOS”) functions are provided by the SB700 component and is MC146818-compatible. As shown in the following figure, the SB700 component provides 256 bytes of battery-backed RAM divided into two 128-byte configuration memory areas. The RTC uses the first 14 bytes (00-0Dh) of the standard memory area. All locations of the standard memory area (00-7Fh) can be directly accessed using conventional OUT and IN assembly language instructions through I/O ports 70h/71h, although the suggested method is to use the INT15 AX=E823h BIOS call.

0Dh 0Ch

0Bh

0Ah

09h 08h 07h 06h 05h 04h 03h 02h 01h 00h

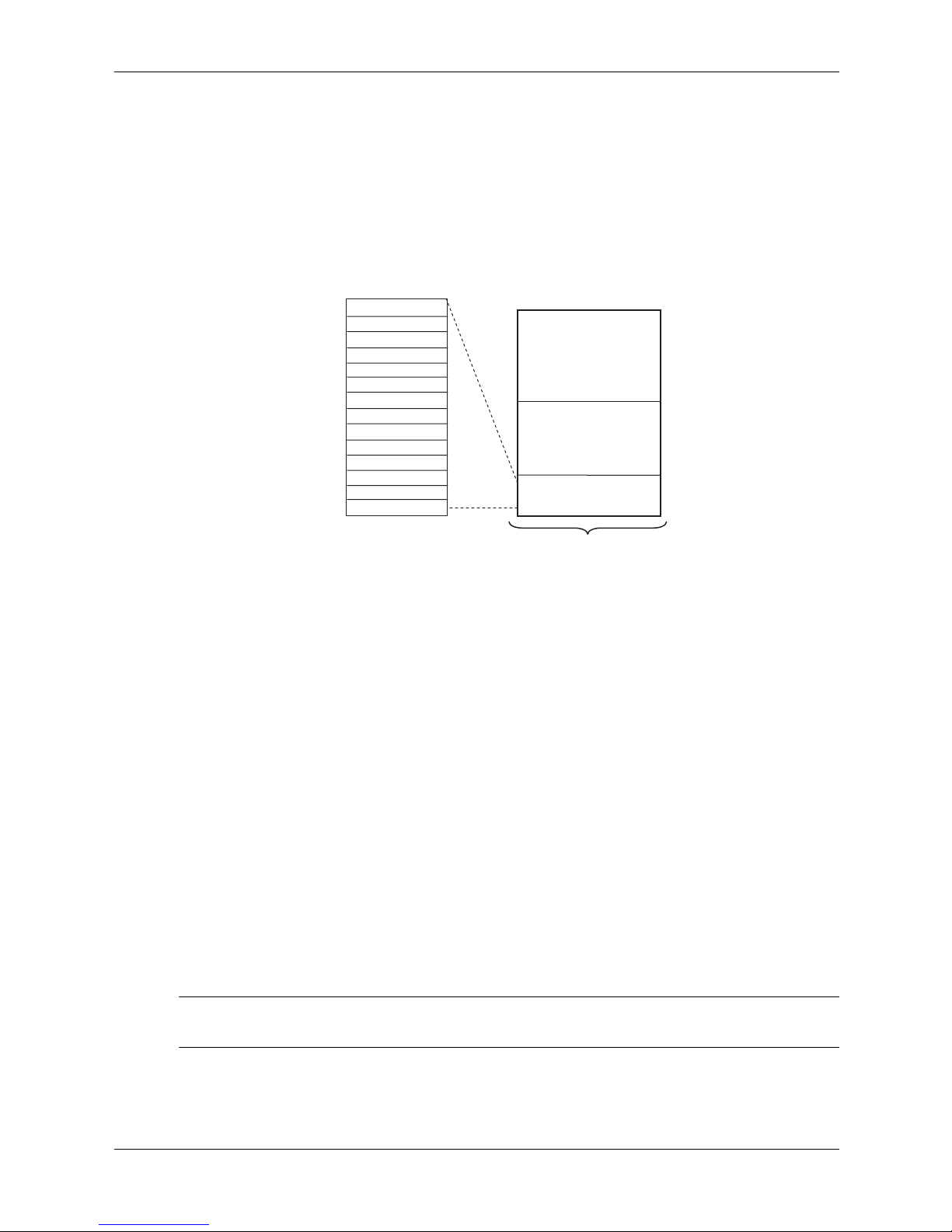

Figure 4 4. Configuration Memory Map

A lithium 3-VDC battery is used for maintaining the RTC and configuration memory while the system is powered down. During system operation the RTC and configuration memory to draw power from the power supply. The battery is located in a battery holder on the system board and has a life expectancy of three or more years. When the battery has expired it is replaced with a CR2032 or equivalent 3-VDC lithium battery.

4.4.1 Clearing CMOS

Year

Month

Date of Month

Day of Week Hours (Alarm) Hours (Timer)

Minutes (Alarm)

Minutes (Timer) Seconds (Alarm) Seconds (Timer)

82801

Extended Config.

Memory Area

(128 bytes)

Standard Config.

Memory Area

(114 bytes)

RTC Area (14 bytes)

FFh

80h 7Fh

0Eh

0Dh

00h

The contents of configuration memory can be cleared by the following procedure:

1. Turn off the unit.

2. Disconnect the AC power cord from the outlet and/or system unit.

3. Remove the chassis hood (cover) and insure that no LEDs on the system board are illuminated.

4. On the system board, slide the CMOS clear button (switch SW1) for at least 5 seconds.

5. Replace the chassis hood (cover).

6. Reconnect the AC power cord to the outlet and/or system unit.

7. Turn the unit on.

Clearing the CMOS memory has no effect on the Power-on and Setup passwords. Passwords

✎

must be cleard using the password-clear jumper as described in section 4.5.1

4-8 www.hp.com Technical Reference Guide

4.4.2 Standard CMOS Locations

Table 4-5 describes standard configuration memory locations 0Ah-3Fh. These locations are accessible through using OUT/IN assembly language instructions using port 70/71h or BIOS function INT15, AX=E823h.

Configuration Memory (CMOS) Map

Location Function Location Function

00-0Dh Real-time clock 24h System board ID 0Eh Diagnostic status 25h System architecture data 0Fh System reset code 26h Auxiliary peripheral configuration 10h Diskette drive type 27h Speed control external drive 11h Reserved 28h Expanded/base mem. size, IRQ12 12h Hard drive type 29h Miscellaneous configuration 13h Security functions 2Ah Hard drive timeout 14h Equipment installed 2Bh System inactivity timeout 15h Base memory size, low byte/KB 2Ch Monitor timeout, Num Lock Cntrl 16h Base memory size, high byte/KB 2Dh Additional flags 17h Extended memory, low byte/KB 2Eh-2Fh Checksum of locations 10h-2Dh 18h Extended memory, high byte/KB 30h-31h Total extended memory tested 19h Hard drive 1, primary controller 32h Century 1Ah Hard drive 2, primary controller 33h Miscellaneous flags set by BIOS 1Bh Hard drive 1, secondary controller 34h International language 1Ch Hard drive 2, secondary controller 35h APM status flags 1Dh Enhanced hard drive support 36h ECC POST test single bit 1Eh Reserved 37h-3Fh Power-on password 1Fh Power management functions 40-FFh Feature Control/Status

System Support

Table 4-5.

NOTES: Assume unmarked gaps are reserved. Higher locations (>3Fh) contain information that should be accessed using the INT15, AX=E845h BIOS function (refer to Chapter 8 for BIOS function descriptions).

4.5 System Management

This section describes functions having to do with security, power management, temperature, and overall status. These functions are handled by hardware and firmware (BIOS) and generally configured through the Setup utility.

4.5.1 Security Functions

These systems include various features that provide different levels of security. Note that this subsection describes only the hardware functionality (including that supported by Setup) and does not describe security features that may be provided by the operating system and application software.

Technical Reference Guide www.hp.com 4-9

System Support

Power-On / Setup Password

These systems include a power-on and setup passwords, which may be enabled or disabled (cleared) through a jumper on the system board. The jumper controls a GPIO input to the SB700 that is checked during POST.

To clear the Power-On and/or Setup password, use the following procedure:

1. Turn off the system and disconnect the AC power cord from the outlet and/or system unit.

2. Remove the cover (hood) as described in the appropriate User Guide or Maintainance And

3. Locate the password clear jumper (header is colored green and labeled E49 on these systems)

4. Replace the cover.

5. Re-connect the AC power cord to the AC outlet and/or system unit.

6. Turn on the system. The POST routine will clear and disable the password.

7. To re-enable the password feature, repeat steps 1-6, replacing the jumper on pins 1 and 2 of

The Setup utility may be configured to be always changeable or changeable only by entering a password. Refer to the previous procedure (Power On / Setup Password) for clearing the Setup password.

Service Reference Guide. Insure that all system board LEDs are off (not illuminated).

and move the jumper from pins 1 and 2 and place on (just) pin 2 (for safekeeping).

header E49.

Cable Lock Provision

These systems include a chassis cutout (on the rear panel) for the attachment of an optional cable lock mechanism.

I/O Interface Security

The SATA, serial, parallel, USB, and diskette interfaces may be disabled individually through the Setup utility to guard against unauthorized access to a system. In addition, the ability to write to or boot from a removable media drive (such as the diskette drive) may be enabled through the Setup utility. The disabling of the serial, parallel, and diskette interfaces are a function of the SIO controller. The USB ports are controlled through the SB700.

4-10 www.hp.com Technical Reference Guide

4.5.2 Power Management

These systems provide baseline hardware support of ACPI-compliant firmware and software. Key power-consuming components (processor, chipset, I/O controller, and fan) can be placed into a reduced power mode either automatically or by user control. The system can then be brought back up (“wake-up”) by events defined by the ACPI 2.0 specification. The ACPI wake-up events supported by this system are listed as follows:

Table 4-6.

ACPI Wake-Up Events

ACPI Wake-Up Event System Wakes From

Power Button Suspend or soft-off

RTC Alarm Suspend or soft-off

Wake On LAN (w/NIC) Suspend or soft-off

PME Suspend or soft-off

Serial Port Ring Suspend or soft-off

USB Suspend only

Keyboard Suspend only

Mouse Suspend only

System Support

Technical Reference Guide www.hp.com 4-11

System Support

4.5.3 System Status

These systems provide a visual indication of system boot, ROM flash, and operational status through the power LED and internal speaker, as described in Table 4-7.

System Operational Status LED Indications

System Status PowerLED Beeps [2] Action Required

S0: System on (normal operation)

S1: Suspend Blinks green @ .5 Hz None None S3: Suspend to RAM Blinks green @ .5 Hz None None S4: Suspend to disk Off – clear None None S5: Soft off Off – clear None None Processor thermal shutdown Blinks red 2 times @ 1 Hz [1] 2 Check air flow, fans,

Processor not seated / installed Blinks red 3 times @ 1 Hz [1] 3 Check processor

Power supply overload failure Blinks red 4 times @ 1 Hz [1] 4 Check system board problem

Memory error (pre-video) Blinks red 5 times @ 1 Hz [1] 5 Check DIMMs, system board Video error Blinks red 6 times @ 1 Hz [1] 6 Check graphics card or

PCA failure detected by BIOS (pre-video)

Invalid ROM checksum error Blinks red 8 times @ 1 Hz [1] 8 Reflash BIOS ROM Boot failure (after power on) Blinks red 9 times @ 1 Hz [1] 9 Check power supply,

Bad option card Blinks red 10 times @ 1 Hz [1] None Replace option card

NOTES:

Beeps are repeated for 5 cycles, after which only blinking LED indication continues. [1] Repeated after 2 second pause. [2] Beeps are produced by the internal chassis speaker.

[3] Check that CPU power connector P3 is plugged in.

Table 4-7.

Steady green None None

heatsink

presence/seating

[3],

system board

Blinks red 7 times @ 1 Hz [1] 7 Replace system board

processor, sys. bd

4.5.4 Thermal Sensing and Cooling

All systems feature a variable-speed fan mounted as part of the processor heatsink assembly. All systems also provide or support an auxiliary chassis fan. All fans are controlled through temperature sensing logic on the system board and/or in the power supply. There are some electrical differences between form factors and between some models, although the overall functionally is the same. Typical cooling conditions include the following:

1. Normal—Low fan speed.

2. Hot processor—ASIC directs Speed Control logic to increase speed of fan(s).

3. Hot power supply—Power supply increases speed of fan(s).

4. Sleep state—Fan(s) turned off. Hot processor or power supply will result in starting fan(s).

4-12 www.hp.com Technical Reference Guide

The RPM (speed) of all fans is the result of the temperature of the CPU as sensed by speed control circuitry. The fans are controlled to run at the slowest (quietest) speed that will maintain proper cooling.

Units using chassis and CPU fans must have both fans connected to their corresponding headers to ensure proper cooling of the system.

4.6 Register Map and Miscellaneous Functions

This section contains the system I/O map and information on general-purpose functions of the SB700 South Bridge and SIO controller.

4.6.1 System I/O Map

Table 4-8 lists the fixed addresses of the input/output (I/O) ports.

System Support

Technical Reference Guide www.hp.com 4-13

System Support

I/O Port Function

0000..001Fh DMA Controller 1

0020..002Dh Interrupt Controller 1 002E, 002Fh Index, Data Ports to SIO Controller (primary)

0030..003Dh Interrupt Controller

0040..0042h Timer 1 004E, 004Fh Index, Data Ports to SIO Controller (secondary)

0050..0052h Timer / Counter

0060..0067h Microcontroller, NMI Controller (alternating addresses)

0070..0077h RTC Controller

0080..0091h DMA Controller 0092h Port A, Fast A20/Reset Generator

0093..009Fh DMA Controller 00A0..00B1h Interrupt Controller 2 00B2h, 00B3h APM Control/Status Ports 00B4..00BDh Interrupt Controller 00C0..00DFh DMA Controller 2 00F0h Coprocessor error register

0170..0177h IDE Controller 2 (active only if standard I/O space is enabled for secondary controller) 01F0..01F7h IDE Controller 1 (active only if standard I/O space is enabled for primary controller)

0278..027Fh Parallel Port (LPT2) 02E8..02EFh Serial Port (COM4) 02F8..02FFh Serial Port (COM2)

0370..0377h Diskette Drive Controller Secondary Address 0376h IDE Controller 2 (active only if standard I/O space is enabled for primary drive)

0378..037Fh Parallel Port (LPT1) 03B0..03DFh Graphics Controller 03BC..03BEh Parallel Port (LPT3) 03E8..03EFh Serial Port (COM3) 03F0..03F5h Diskette Drive Controller Primary Addresses 03F6h IDE Controller 1 (active only if standard I/O space is enabled for sec. drive) 03F8..03FFh Serial Port (COM1) 04D0, 04D1h Interrupt Controller

0678..067Fh Parallel Port (LPT2)

0778..077F h Pa rallel Por t (LPT1) 07BC..07BEh Parallel Por t ( LPT3 ) 0CF8h PCI Configuration Address (dword access only ) 0CF9h Reset Control Register 0CFCh PCI Configuration Data (byte, word, or dword access)

Table 4-8

System I/O Map

NOTE: Assume unmarked gaps are unused, reserved, or used by functions that employ variable I/O

address mapping. Some ranges may include reserved addresses.

4-14 www.hp.com Technical Reference Guide

4.6.2 GPIO Functions

SB700 Functions

The SB700 South Bridge provides various functions through the use of programmable general purpose input/output (GPIO) ports. These systems use GPIO ports and associated registers of the for the following functions:

■ Chassis and board ID

■ Front audio/USB detect

■ SPI data I/O

■ SATA hard drive LED

■ Flash security override

■ Serial port (COM 2) detect

SIO Controller Functions

In addition to the serial and parallel port functions, the SIO controller provides the following specialized functions through GPIO ports:

System Support

■ Power/hard drive LED control for indicating system events (refer to Table 4-8)

■ Chassis and CPU fan control (PWM)

■ PCI Wake control

■ Power On/Power Good control

■ Power supply fan control

Technical Reference Guide www.hp.com 4-15

System Support

4-16 www.hp.com Technical Reference Guide

5.1 Introduction

This chapter describes the standard interfaces that provide input and output (I/O) porting of data and that are controlled through I/O-mapped registers. The following I/O interfaces are covered in this chapter:

■ SATA interfaces (5.2)

■ Diskette drive interface (5.3)

■ Serial interfaces (5.4)

■ Parallel interface support (5.5)

■ Keyboard/pointing device interface (5.6)

■ Universal serial bus interface (5.7)

■ Audio subsystem (5.8)

■ Network interface controller (5.9)

Input/Output Interfaces

Technical Reference Guide www.hp.com 5-1

Input/Output Interfaces

5.2 SATA Interfaces

These systems provide four serial ATA (SATA) interfaces that support tranfer rates up to 3.0 Gb/s and offer RAID data protection functionality. The SATA interface duplicates most of the functionality of the EIDE interface through a register interface that is equivalent to that of the legacy IDE host adapter.

5.2.1 SATA Connector

The standard 7-pin SATA connector is shown in the figure below.

Pin 1

Pin 7

Figure 5-1. 7-Pin SATA Connector (P60-P63 on system board).

Table 5-1.

7-Pin SATA Connector Pinout

Pin Description Pin Description

1 Ground 6 RX positive

2 TX positive 7 Ground

3 TX negative A Holding clip

4 Ground B Holding clip

5 RX negative -- --

5.2.2 AHCI/RAID Support

The SATA controller of the SB700 South Bridge can be set operate in either an IDE or AHCI RAID configuration. The AHCI RAID configuration supports RAID 0 and RAID 1 for improving performance and/or reliability. Applied to systems with only one hard drive, AHCI RAID can improve system performance somewhat through use of native command queuing (NCQ). True fault tolerance requires the use of two or more hard drives to allow mirroring, parity, and/or striping.

CAUTION: Changing the storage mode should always be preceded by backing up all hard rive data onto secondary media.

RAID 0—Striping with Two Hard Drives

RAID 0 uses striping to improve performance but does not provide any fault tolerance. The lack of redundancy (a failed drive ruins the whole array) results in less than half the reliability of a single hard drive. Although these systems support RAID 0, it is not the recommended configuration.

5-2 www.hp.com Technical Reference Guide

Input/Output Interfaces

RAID 1—Mirroring with Two Hard Drives

RAID 1 uses to mirroring to increase storage reliability with minimal impact on performance. Reliability of the storage system is calculated bythe MTBF of an individual drive multiplied by the total number of drives.

Factory Configuration for RAID 1

These systems may be ordered preconfigured from the factory for RAID 1 as follows:

■ Two identical SATA hard drives installed

■ System BIOS ROM and option ROM preconfigured

■ Windows operating system and drivers preloaded and set to mirrored mode

Implementing AHCI RAID for Non-Factory Configurations

CAUTION: Changing the system BIOS ROM SATA Emulation setting from IDE to AHCI RAID is

equivalent to re-connecting the hard drive(s) to a new add-on RAID storage controller. If the original (factory) software image has been replaced and the appropriate RAID driver is not installed, the system will not boot. The RAID driver is available from http://www.hp.com.

Applying the default system BIOS ROM settings DOES NOT change the SATA Emulation

✎

setting. The SATA Emulation setting can only be changed manually.

Configuring a system for AHCI RAID operation requires the following:

For single-drive systems: In the system ROM (accessed by F10 during boot) set the SATA Emulation mode to AHCI RAID.

For multiple-drive systems: a. In the system ROM (accessed by F10 during boot) set the SATA Emulation mode to AHCI RAID.

b. In the option ROM (accessed by Ctrl + F during boot) configure the hard drives as necessary.

Hard drives in a RAID array must match as to size, speed, technology (1.5 GB or 3.0 GB and

✎

NCQ or non-NCQ), and cache size.

Detailed information on configuring these systems for RAID operations is contained in the white paper “AHCI and RAID on HP Compaq dc5850 Business PCs and Using AMD Array Management Software (RAIDXpert)” available at http://www.hp.com.

Technical Reference Guide www.hp.com 5-3

Input/Output Interfaces

5.3 Diskette Drive Interface

These systems support a diskette drive through a standard 34-pin diskette drive connector.

The diskette drive interface function is integrated into the super I/O (SIO) component. The internal logic of the SIO controller is software-compatible with standard 82077-type logic. The diskette drive controller has three operational phases in the following order:

■ Command phase—The controller receives the command from the system.

■ Execution phase—The controller carries out the command.

■ Results phase—Status and results data is read back from the controller to the system.

The Command phase consists of several bytes written in series from the CPU to the data register (3F5h/375h). The first byte identifies the command and the remaining bytes define the parameters of the command. The Main Status register (3F4h/374h) provides data flow control for the diskette drive controller and must be polled between each byte transfer during the Command phase.

The Execution phase starts as soon as the last byte of the Command phase is received. An Execution phase may involve the transfer of data to and from the diskette drive, a mechnical control function of the drive, or an operation that remains internal to the diskette drive controller.

Data transfers (writes or reads) with the diskette drive controller are by DMA, using the DRQ2 and DACK2- signals for control.

The Results phase consists of the CPU reading a series of status bytes (from the data register (3F5h/375h)) that indicate the results of the command. Note that some commands do not have a Result phase, in which case the Execution phase can be followed by a Command phase.

During periods of inactivity, the diskette drive controller is in a non-operation mode known as the Idle phase.

5-4 www.hp.com Technical Reference Guide

Input/Output Interfaces

These systems use a standard 34-pin connector for diskette drives (refer to Figure 5-2 and Table 5-2 for the pinout). Drive power is supplied through a separate connector.

2 4 1

Figure 5-2. 34-Pin Diskette Drive Connector (P10 on system board).

Pin Signal Description Pin Signal Description

1 GND Ground 18 DIR- Drive head direction control

2LOW DEN-Low density select 19 GND Ground

3 --- (KEY) 20 STEP- Drive head track step cntrl.

4 MEDIA ID- Media identification 21 GND Ground

6 5

8 7

9101112131415161718192021222324252627

Table 5-2.

34-Pin Diskette Drive Connector Pinout

30 29

32 31

34 33

5 GND Ground 22 WR DATA- Write data

6DRV 4 SEL-Drive 4 select 23 GND Ground

7GND Ground 24 WR ENABLE-Enable for WR DATA-

8 INDEX- Media index is detected 25 GND Ground

9 GND Ground 26 TRK 00- Heads at track 00 indicator

10 MTR 1 ON- Activates drive motor 27 GND Ground

11 GND Ground 28 WR PRTK- Media write protect status

12 D RV 2 S EL- D ri v e 2 se le ct 29 G N D G ro u n d

13 GND Ground 30 RD DATA- Data and clock read off disk

14 DR V 1 S E L- D r iv e 1 s e l ec t 31 G ND G r o u n d

15 GND Ground 32 SIDE SEL- Head select (side 0 or 1)

16 MTR 2 ON- Activates drive motor 33 GND Ground

17 GND Ground 34 DSK CHG- Drive door opened indicator

Technical Reference Guide www.hp.com 5-5

Input/Output Interfaces

5.4 Serial Interface

Systems covered in this guide may include one RS-232-C type serial interface to transmit and receive asynchronous serial data with external devices. Some systems may allow the installation of a second serial interface through an optional bracket/cable assembly that attaches to header P52 on the system board. The serial interface function is provided by the super I/O controller component that includes two NS16C550-compatible UARTs.

The UART supports the standard baud rates up through 115200, and also special high speed rates of 239400 and 460800 baud. The baud rate of the UART is typically set to match the capability of the connected device. While most baud rates may be set at runtime, baud rates 230400 and 460800 must be set during the configuration phase.

The serial interface uses a DB-9 connector as shown in the following figure with the pinout listed in Table 5-3.

Figure 5-3. DB-9 Serial Interface Connector (as viewed from rear of chassis)

Table 5-3.

DB-9 Serial Connector Pinout

Pin Signal Description Pin Signal Description

1 CD Carrier Detect 6 DSR Data Set Ready

2 RX Data Receive Data 7 RTS Request To Send

3 TX Data Transmit Data 8 CTS Clear To Send

4 DTR Data Terminal Ready 9 RI Ring Indicator

5 GND Ground -- -- --

The standard RS-232-C limitation of 50 feet (or less) of cable between the DTE (computer) and DCE (modem) should be followed to minimize transmission errors. Higher baud rates may require shorter cables.

5-6 www.hp.com Technical Reference Guide

5.5 Parallel Interface Support

These systems include a system board header (P125) that supports an optional parallel bracket/cable assembly that provides a parallel interface for a peripheral device such as a printer. The parallel interface supports bi-directional 8-bit parallel data transfers with a peripheral device. The parallel interface supports three main modes of operation:

■ Standard Parallel Port (SPP) mode

■ Enhanced Parallel Port (EPP) mode

■ Extended Capabilities Port (ECP) mode

These three modes (and their submodes) provide complete support as specified for an IEEE 1284 parallel port.

5.5.1 Standard Parallel Port Mode

The Standard Parallel Port (SPP) mode uses software-based protocol and includes two sub-modes of operation, compatible and extended, both of which can provide data transfers up to 150 KB/s. In the compatible mode, CPU write data is simply presented on the eight data lines. A CPU read of the parallel port yields the last data byte that was written.

Input/Output Interfaces

5.5.2 Enhanced Parallel Port Mode

In Enhanced Parallel Port (EPP) mode, increased data transfers are possible (up to 2 MB/s) due to a hardware protocol that provides automatic address and strobe generation. EPP revisions 1.7 and 1.9 are both supported. For the parallel interface to be initialized for EPP mode, a negotiation phase is entered to detect whether or not the connected peripheral is compatible with EPP mode. If compatible, then EPP mode can be used. In EPP mode, system timing is closely coupled to EPP timing. A watchdog timer is used to prevent system lockup.

5.5.3 Extended Capabilities Port Mode

The Extended Capabilities Port (ECP) mode, like EPP, also uses a hardware protocol-based design that supports transfers up to 2 MB/s. Automatic generation of addresses and strobes as well as Run Length Encoding (RLE) decompression is supported by ECP mode. The ECP mode includes a bi-directional FIFO buffer that can be accessed by the CPU using DMA or programmed I/O. For the parallel interface to be initialized for ECP mode, a negotiation phase is entered to detect whether or not the connected peripheral is compatible with ECP mode. If compatible, then ECP mode can be used.

The ECP mode includes several sub-modes as determined by the Extended Control register. Two submodes of ECP allow the parallel port to be controlled by software. In these modes, the FIFO is cleared and not used, and DMA and RLE are inhibited.

Technical Reference Guide www.hp.com 5-7

Input/Output Interfaces

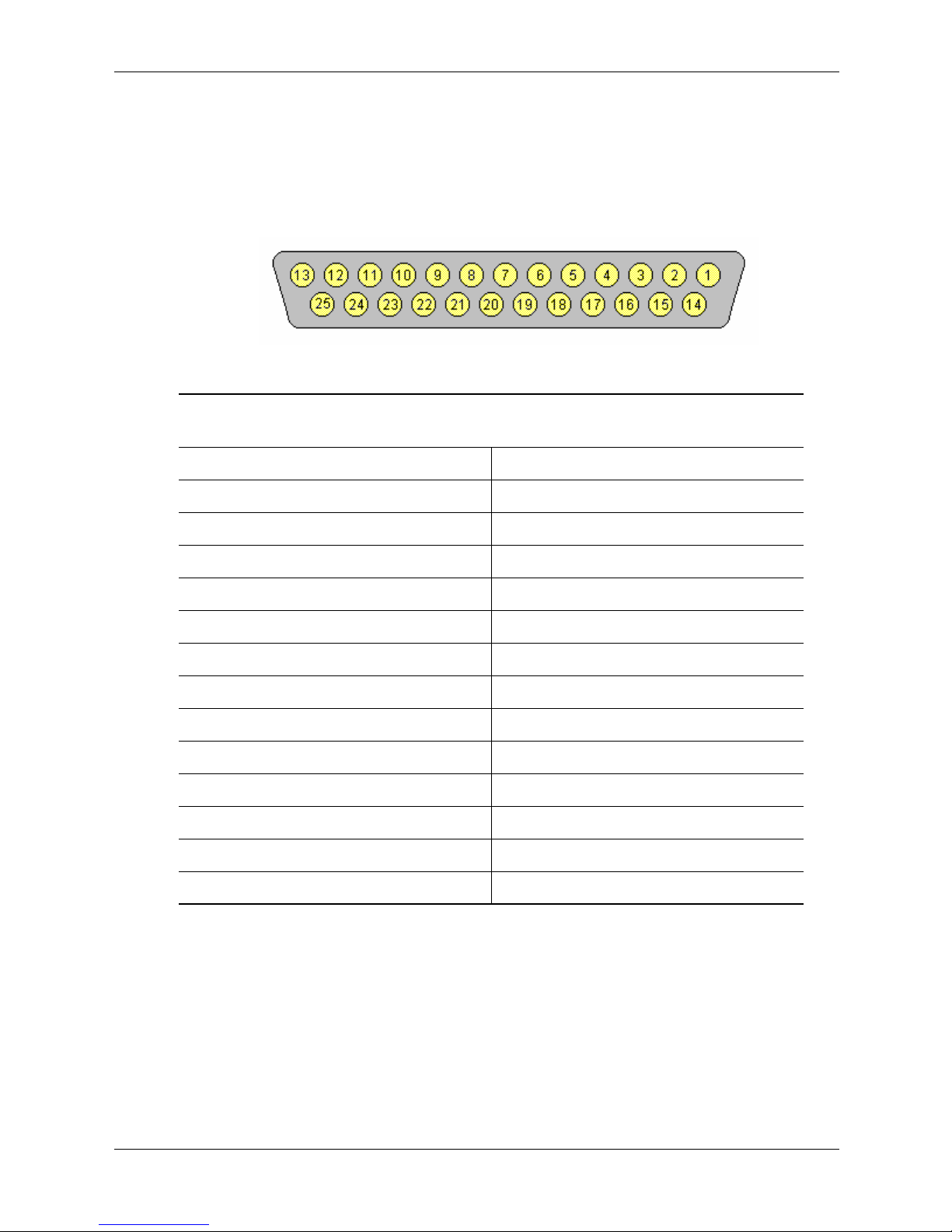

5.5.4 Parallel Interface Connector

Figure 5-4 and Table 5-4 show the connector and pinout of the parallel connector provided on the optional parallel bracket/cable assembly. Note that some signals are redefined depending on the port's operational mode.

Figure 5-4. DB-25 Parallel Interface Connector (provided on the optional bracket/cable assembly)

Table 5-4.

DB-25 Parallel Connector Pinout

Pin Signal Function Pin Signal Function

1 STB- Strobe / Write [1] 14 LF- Line Feed [2]

2D0 Data 0 15ERR- Error [3]

3 D1 Data 1 16 INIT- Initialize Paper [4]

4 D2 Data 2 17 SLCTIN- Select In / Address. Strobe [1]

5D3 Data 3 18GNDGround

6D4 Data 4 19GNDGround

7D5 Data 5 20GNDGround

8D6 Data 6 21GNDGround

9D7 Data 7 22GNDGround

10 ACK- Acknowledge / Interrupt [1] 23 GND Ground

11 B S Y B u s y / W a i t [ 1 ] 2 4 G N D G r o u n d

12 PE Paper End / User defined [1] 25 GND Ground

13 S L CT Se l e ct / U s e r d e f i n e d [ 1 ] - - - - - -

NOTES: [1] Standard and ECP mode function / EPP mode function [2] EPP mode function: Data Strobe ECP modes: Auto Feed or Host Acknowledge [3] EPP mode: user defined ECP modes:Fault or Peripheral Req. [4] EPP mode: Reset ECP modes: Initialize or Reverse Req.

5-8 www.hp.com Technical Reference Guide

5.6 Keyboard/Pointing Device Interface

The keyboard/pointing device interface function is provided by the SIO controller component, which integrates 8042-compatible keyboard controller logic (hereafter referred to as simply the “8042”) to communicate with the keyboard and pointing device using bi-directional serial data transfers. The 8042 handles scan code translation and password lock protection for the keyboard as well as communications with the pointing device.

5.6.1 Keyboard Interface Operation

The data/clock link between the 8042 and the keyboard is uni-directional for Keyboard Mode 1 and bi-directional for Keyboard Modes 2 and 3. (These modes are discussed in detail in Appendix C). This section describes Mode 2 (the default) mode of operation.

Communication between the keyboard and the 8042 consists of commands (originated by either the keyboard or the 8042) and scan codes from the keyboard. A command can request an action or indicate status. The keyboard interface uses IRQ1 to get the attention of the CPU.

The 8042 can send a command to the keyboard at any time. When the 8042 wants to send a command, the 8042 clamps the clock signal from the keyboard for a minimum of 60 us. If the keyboard is transmitting data at that time, the transmission is allowed to finish. When the 8042 is ready to transmit to the keyboard, the 8042 pulls the data line low, causing the keyboard to respond by pulling the clock line low as well, allowing the start bit to be clocked out of the 8042. The data is then transferred serially, LSb first, to the keyboard (Figure 5-5). An odd parity bit is sent following the eighth data bit. After the parity bit is received, the keyboard pulls the data line low and clocks this condition to the 8042. When the keyboard receives the stop bit, the clock line is pulled low to inhibit the keyboard and allow it to process the data.

Input/Output Interfaces

Start

Bit

(LSb)

0 1 0 1 1 0 1 1 1 1 0

D1 D2 D3 D4 D5 D6

(MSb)

Parity

Stop

Bit

Data

Clock

Parameter Minimum Maximum Tcy (Cycle Time) 0 us 80 us Tcl (Clock Low) 25 us 35 us Tch (Clock High) 25 us 45 us Th (Data Hold) 0 us 25 us Tss (Stop Bit Setup) 8 us 20 us

Tsh (Stop Bit Hold) 15 us 25 us

Tcl TchTcy Tss Tsh

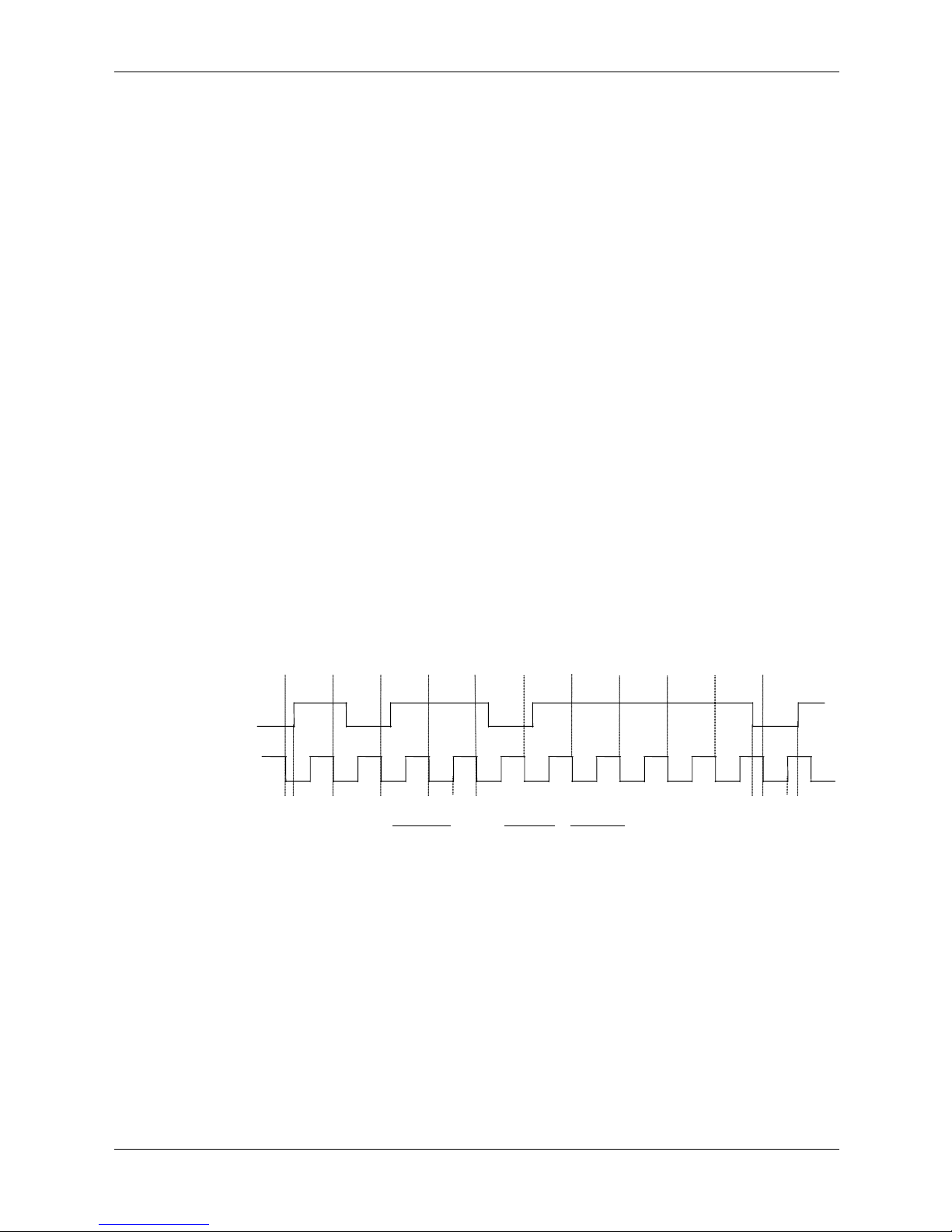

Figure 5-5. 8042-To-Keyboard Transmission of Code EDh, Timing Diagram

Control of the data and clock signals is shared by the 8042 and the keyboard depending on the originator of the transferred data. Note that the clock signal is always generated by the keyboard.

After the keyboard receives a command from the 8042, the keyboard returns an ACK code. If a parity error or timeout occurs, a Resend command is sent to the 8042.

Technical Reference Guide www.hp.com 5-9

Input/Output Interfaces

5.6.2 Pointing Device Interface Operation

The pointing device (typically a mouse) connects to a 6-pin DIN-type connector that is identical to the keyboard connector both physically and electrically. The operation of the interface (clock and data signal control) is the same as for the keyboard. The pointing device interface uses the IRQ12 interrupt.

5.6.3 Keyboard/Pointing Device Interface Connector

The legacy-light model provides separate PS/2 connectors for the keyboard and pointing device. Both connectors are identical both physically and electrically. Figure 5-6 and Table 5-5 show the connector and pinout of the keyboard/pointing device interface connectors.

Figure 5-6. PS/2 Keyboard or Pointing Device Interface Connector (as viewed from rear of chassis)

Table 5-5.

Keyboard/Pointing Device Connector Pinout

Pin Signal Description Pin Signal Description

1DATA Data 4+ 5 VDCPower

2 NC Not Connected 5 CLK Clock

3 GND Ground 6 NC Not Connected

5-10 www.hp.com Technical Reference Guide

5.7 Universal Serial Bus Interface

The Universal Serial Bus (USB) interface provides asynchronous/isochronous data transfers with compatible peripherals such as keyboards, printers, or modems. This high-speed interface supports hot-plugging of compatible devices, making possible system configuration changes without powering down or even rebooting systems.

These systems provide eight externally-accessible USB ports, two front panel USB ports (which may be disabled) and six USB ports on the rear panel. In addition, twe USB ports are available through an internal header (The USB ports are dynamically configured to either a USB 1.1 controller or the USB 2.0 controller depending on the capability of the peripheral device. The

1.1 controllers provide a maximum transfer rate of 12 Mb/s while the 2.0 controller provides a maximum transfer rate of 480 Mb/s. Table 5-6 shows the mapping of the USB ports.

Table 5-6.

USB Port Mapping

SB700 signals USB Connector Location

Data 0P, 0N Rear panel quad stack

Data 1P, 1N Rear panel quad stack

Input/Output Interfaces

Data 2P, 2N Rear panel quad stack

Data 3P, 3N Rear panel quad stack

Data 4P, 4N Rear panel dual w/RJ-45

Data 5P, 5N Rear panel dual w/RJ-45

Data 6P, 6N System board header P150

Data 7P, 7N System board header P150

Data 8P, 8N Front panel thru P24

Data 9P, 9N Front panel thru P24

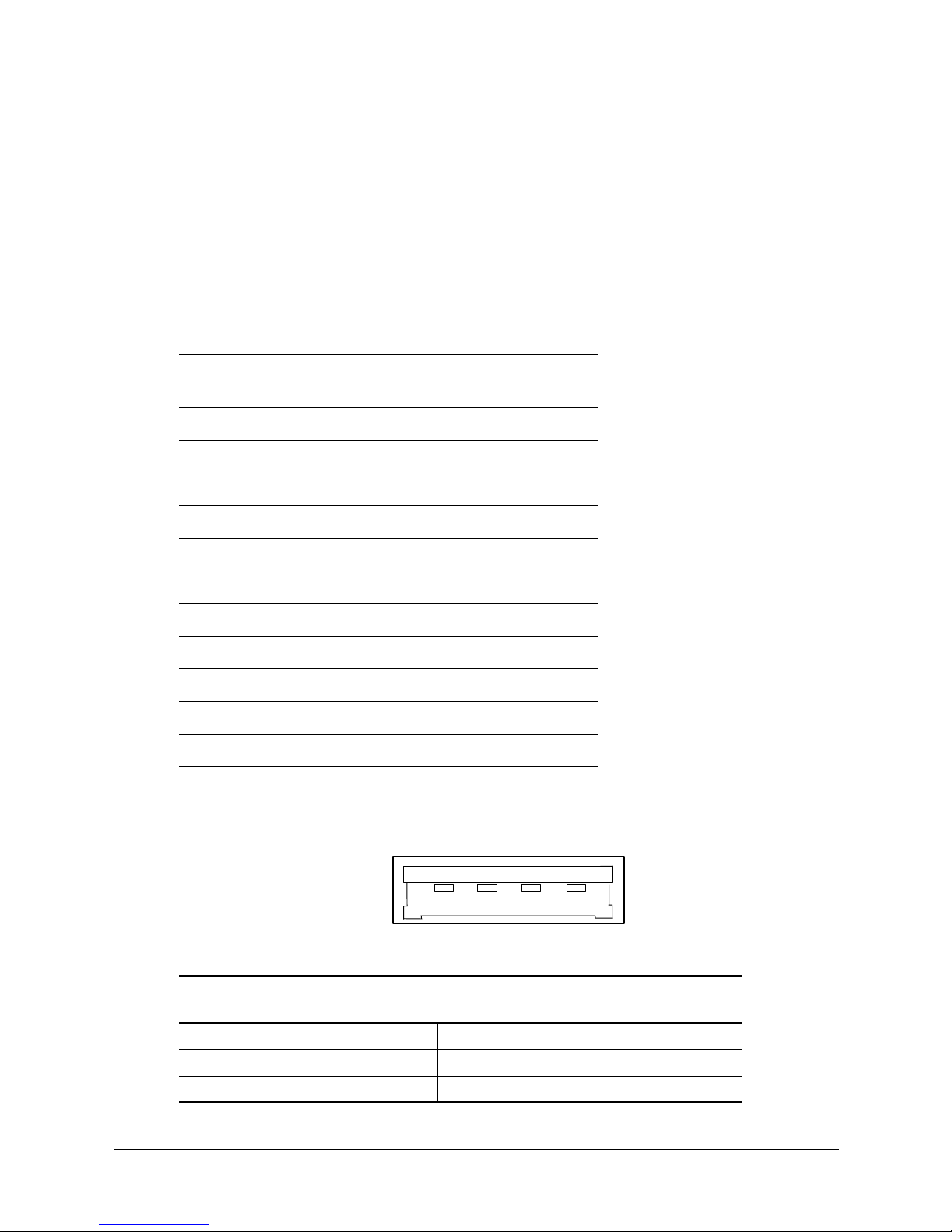

5.7.1 USB Connector

These systems provide type-A USB ports as shown in Figure 5-7.

Figure 5-7 Universal Serial Bus Connector (as viewed from rear of chassis)

1 2

3 4

Pin Signal Description Pin Signal Description

1 Vcc +5 VDC 3 USB+ Data (plus)

2USB- Data (minus) 4GNDGround

Technical Reference Guide www.hp.com 5-11

Table 5-7.

USB Connector Pinout

Input/Output Interfaces

5.7.2 USB Cable Data

The recommended cable length between the host and the USB device should be no longer than sixteen feet for full-channel (12 MB/s) operation, depending on cable specification (see following table).

USB Cable Length Data

Conductor Size Resistance Maximum Length

20 AWG 0.036 Ω 16.4 ft (5.00 m) 22 AWG 0.057 Ω 9.94 ft (3.03 m) 24 AWG 0.091 Ω 6.82 ft (2.08 m) 26 AWG 0.145 Ω 4.30 ft (1.31 m) 28 AWG 0.232 Ω 2.66 ft (0.81 m)

NOTE: For sub-channel (1.5 MB/s) operation and/or when using sub-standard cable shorter lengths may be

allowable and/or necessary.

Table 5-8.

The shield, chassis ground, and power ground should be tied together at the host end but left unconnected at the device end to avoid ground loops.

Table 5-9.

USB Color Code

Signal Insulation color

Data + Green

Data - White

Vcc Red

Ground Black

5-12 www.hp.com Technical Reference Guide

5.8 Audio Subsystem

These systems use the HD audio controller of the SB700 component to access and control an Analog Devices AD1884A HD Audio Codec, which provides 2-channel high definition analog-to-digital (ADC) and digital-to-analog (DAC) conversions. A block diagram of the audio subsystem is shown in Figure 5-8. All control functions such as volume, audio source selection, and sampling rate are controlled through software through the HD Audio Interface of the SB700 component. Control data and digital audio streams (record and playback) are transferred between the SB700 and the Audio Codec over the HD Audio Interface. The codec’s speaker output is applied to a 1.5-watt amplifier that drives the internal speaker. A device plugged into the Headphone jack or the line input jack is sensed by the system, which will inhibit the Speaker Audio signal.

These systems provide the following analog interfaces for external audio devices:

Microphone In—This input uses a three-conductor 1/8-inch mini-jack that accepts a stereo microphone.

Line In—This input uses a three-conductor (stereo) 1/8-inch mini-jack designed for connection of a high-impedance audio source such as a tape deck. This jack can be re-tasked to a Microphone In function.

Headphones Out—This input uses a three-conductor (stereo) 1/8-inch mini-jack that is designed for connecting a set of 32-ohm (nom.) stereo headphones. Plugging into the Headphones jack mutes the signal to the internal speaker and the Line Out jack as well.

Input/Output Interfaces

Line Out—This output uses a three-conductor (stereo) 1/8-inch mini-jack for connecting left and right channel line-level signals. Typical connections include a tape recorder's Line In (Record In) jacks, an amplifier's Line In jacks, or to powered speakers that contain amplifiers.

Header

P23

PC Beep

HD Audio I/F

HD Audio

AD1884A

Codec

Speaker

Audio (mono)

Headphone Audio (L/R)

Line Audio Out (L/R)

Header

P23

Audio

Amp

Front Panel Headphones Out

Rear Panel Line Out

Header

SB700

HD Audio

Interface

Front Panel

Mic In

Rear Panel

Line In [1]

NOTES:

L/R = Separate left and right channels (stereo). L+R = Combined left and right channels (mono). [1] Can be re-configured as Microphone In

Mic Audio (L/R)

Line Audio (L/R)

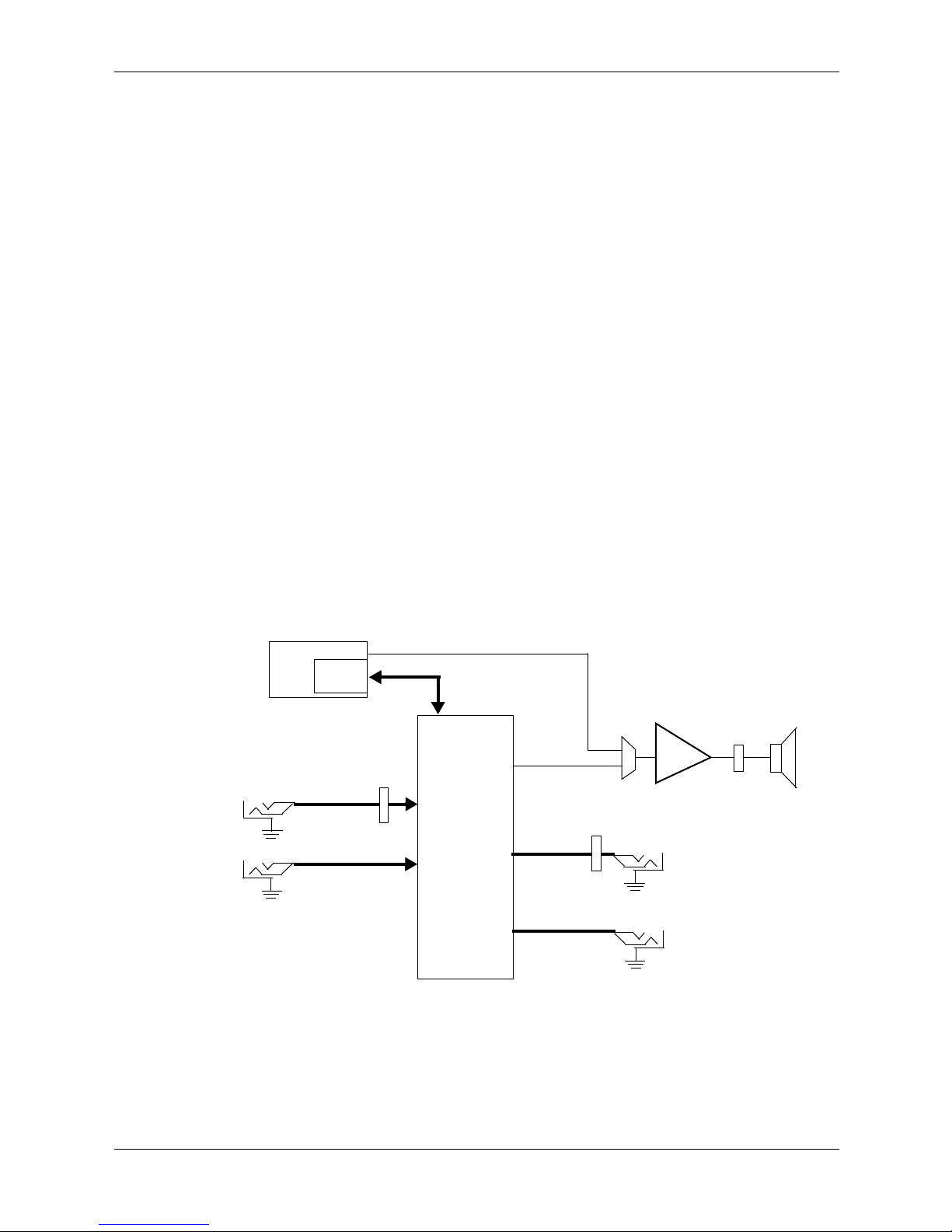

Figure 5-8. Audio Subsystem Functional Block Diagram

Technical Reference Guide www.hp.com 5-13

Input/Output Interfaces

5.8.1 HD Audio Controller

The HD Audio Controller is a PCI Express device that is integrated into the SB700 component and supports the following functions:

■ Read/write access to audio codec registers

■ Support for greater than 48-KHz sampling

■ HD audio interface

5.8.2 HD Audio Link Bus

The HD audio controller and the HD audio codec communicate over a five-signal HD Audio Link Bus (Figure 5-9). The HD Audio Interface includes two serial data lines; serial data out (SDO, from the controller) and serial data in (SDI, from the audio codec) that transfer control and PCM audio data serially to and from the audio codec using a time-division multiplexed (TDM) protocol. The data lines are qualified by the 24-MHz BCLK signal driven by the audio controller. Data is transferred in frames synchronized by the 48-KHz SYNC signal, which is derived from the clock signal and driven by the audio controller. When asserted (typically during a power cycle), the RESET- signal (not shown) will reset all audio registers to their default values.

BCLK

Frame

Start

SYNC

SDO

SDI

RST#

NOTE: Clock not drawn to scale.

Command Stream

Tag A

Response Stream

Figure 5-9. HD Audio Link Bus Protocol

5.8.3 Audio Multistreaming

Frame

Stream A

Tag B

Ta g C

Stream B

Stream C

Frame

Start

The audio subsystem can be configured (through the ADI control panel) for processing audio for multiple applications. The Headphone Out jack can provide audio for one application while the Line Out jack can provide external speaker audio from another application.

5-14 www.hp.com Technical Reference Guide

5.8.4 Audio Specifications

The specifications for the HD Audio subsystem are listed in Table 5-10.

HD Audio Subsystem Specifications

Parameter Measurement

Sampling Rates:

DAC ADC

Resolution:

DAC ADC

Nominal Input Voltage: Mic In (w/+20 db gain) Line In

Input/Output Interfaces

Table 5-10.

44.1-, 48-, 96-, & 192-KHz

44.1-, 48-, 96-, & 192KHz

24-bit 24-bit

.283 Vp-p

2.83 Vp-p

Subsystem Impedance: Mic In Line In Line Out (minimum expected load)

Headphones Out (minimum expected load)

Signal-to-Noise Ratio

Line out Headphone out Microphone / line in

Total Harmonic Distortion (THD)

Line out Headphone out Microphone / line in

Max. Subsystem Power Output to 4-ohm Internal Speaker (with 10% THD):

Gain Step 1.5 db

Master Volume Range -58.5 db

Frequency Response: ADC/DAC Internal Speaker

20K ohms 20K ohms 10K o h ms

32 ohms

90 db (nom) 90 db (nom) 85 db (nom)

-84 db

-80 db

-78 db

1.5 w a t ts

20– 20000 Hz

450–20000 Hz

Technical Reference Guide www.hp.com 5-15

Input/Output Interfaces

5.9 Network Interface Controller

These systems provide 10/100/1000 Mbps network support through a Broadcom BMC5754 network interface controller (NIC), a PHY component, and a RJ-45 jack with integral status LEDs (Figure 5-10). The support firmware is contained in the system (BIOS) ROM. The NIC can operate in half- or full-duplex modes, and provides auto-negotiation of both mode and speed. Half-duplex operation features an Intel-proprietary collision reduction mechanism while full-duplex operation follows the IEEE 802.3x flow control specification.

Green LED

Broadcom BMC5754

NIC

LED Green Yellow

Figure 5-10. Network Interface Controller Block Diagram

Function

Activity/Link. Indicates network activity and link pulse reception. Speed: Off = 10 Mb/s, yellow = 100Mb/s, green = 1 Gb/s.

Tx/Rx Data

LAN I/F

Yellow LED

Tx/Rx Data

RJ-45

Connector

The Network Interface Controller includes the following features:

■ VLAN tagging with Windows XP and Linux

■ Multiple VLAN support with Windows XP

■ Power management support for ACPI 1.1, PXE 2.0, WOL, ASF 1.0, and IPMI

■ Cisco Etherchannel support

■ Link and Activity LED indicator drivers

The controller features high and low priority queues and provides priority-packet processing for networks that can support that feature. The controller's micro-machine processes transmit and receive frames independently and concurrently. Receive runt (under-sized) frames are not passed on as faulty data but discarded by the controller, which also directly handles such errors as collision detection or data under-run.

The NIC uses 3.3 VDC auxiliary power, which allows the controller to support Wake-On-LAN (WOL) and Alert-On-LAN (AOL) functions while the main system is powered down.

For the features in the following paragraphs to function as described, the system unit must be

✎

plugged into a live AC outlet. Controlling unit power through a switchable power strip will, with the strip turned off, disable any wake, alert, or power mangement functionality.

5-16 www.hp.com Technical Reference Guide

5.9.1 Wake-On-LAN Support

The NIC supports the Wired-for-Management (WfM) standard of Wake-On-LAN (WOL) that allows the system to be booted up from a powered-down or low-power condition upon the detection of special packets received over a network. The NIC receives 3.3 VDC auxiliary power while the system unit is powered down in order to process special packets. The detection of a Magic Packet by the NIC results in the PME- signal on the PCI bus to be asserted, initiating system wake-up from an ACPI S1 or S3 state.

5.9.2 Alert Standard Format Support

Alert Standard Format (ASF) support allows the NIC to communicate the occurrence of certain events over a network to an ASF 1.0-compliant management console and, if necessary, take action that may be required. The ASF communications can involve the following:

■ Alert messages sent by the client to the management console.

■ Maintenance requests sent by the management console to the client.

■ Description of client's ASF capabilities and characteristics.

The activation of ASF functionality requires minimal intervention of the user, typically requiring only booting a client system that is connected to a network with an ASF-compliant management console.

Input/Output Interfaces

5.9.3 Power Management Support

The NIC features Wired-for-Management (WfM) support providing system wake up from network events (WOL) as well as generating system status messages (AOL) and supports ACPI power management environments. The controller receives 3.3 VDC (auxiliary) power as long as the system is plugged into a live AC receptacle, allowing support of wake-up events occurring over a network while the system is powered down or in a low-power state.

The Advanced Configuration and Power Interface (ACPI) functionality of system wake up is implemented through an ACPI-compliant OS and is the default power management mode. The following wakeup events may be individually enabled/disabled through the supplied software driver:

■ Magic Packet—Packet with node address repeated 16 times in data portion

The following functions are supported in NDIS5 drivers but implemented through remote

✎

management software applications (such as LanDesk).

■ Individual address match—Packet with matching user-defined byte mask

■ Multicast address match—Packet with matching user-defined sample frame

■ ARP (address resolution protocol) packet

■ Flexible packet filtering—Packets that match defined CRC signature

The PROSet Application software (pre-installed and accessed through the System Tray or Windows Control Panel) allows configuration of operational parameters such as WOL and duplex mode.

Technical Reference Guide www.hp.com 5-17

Input/Output Interfaces

5.9.4 NIC Connector

Figure 5-11 shows the RJ-45 connector used for the NIC interface. This connector includes the two status LEDs as part of the connector assembly.

Speed LED

Figure 5-11. RJ-45 Ethernet TPE Connector (as viewed from rear of chassis)

5.9.5 NIC Specifications

Parameter Compatibility standard orprotocol

Modes Supported 10BASE-T half duplex @ 10 Mb/s

124 38 7 6 5

Table 5-11.

NIC Specifications

10Base-T full duplex @ 20 Mb/s 100BASE-TX half duplex @ 100 Mb/s 100Base-TX full duplex @ 200 Mb/s 1000BASE-T half duplex @ 1 Gb/s 1000BASE-TX full duplex @ 2 Gb/s

Activity LED

Description 1 Transmit+ 2 Transmit3 Receive+ 6 Receive-

Pins 4, 5, 7, 8 not used

Standards Compliance IEEE 802.1P, 802.1Q

IEEE 802.2 IEEE 802.3, 802.3ab, 802.3ad, 802.3u, 802.3x,

802.3z

OS Driver Support MS-DOS

MS Windows 3.1 MS Windows 95 (pre-OSR2), 98, and 2000

Professional, XP Home, XP Pro, Vista Home, Vista Pro MS Windows NT 3.51 & 4.0 Novell Netware 3.x, 4.x, 5x Novell Netware/IntraNetWare SCO UnixWare 7 Linux 2.2, 2.4 PXE 2.0

Boot ROM Support Intel PRO/100 Boot Agent (PXE 3.0, RPL)

F12 BIOS Support Yes

Bus Inteface PCI Express x1

Power Management Support ACPI, PCI Power Management Spec.

5-18 www.hp.com Technical Reference Guide

6.1 Introduction

This chapter describes the integrated graphics processor (IGP) of the HP dc5850 Personal Computer. This graphics subsystem employs the use of system memory to provide efficient, economical 2D and 3D performance.

These systems provide dual-monitor support in the standard configuration and allow two methods for upgrading the IGP:

■ Installing a PCIe x16 graphics card in the PCIe x16 graphics slot, which disables the IGP

■ Installing a PCIe x1 graphics card in a PCIe x1 slot, in which the IGP can be re-enabled

through the BIOS settings

This chapter covers the following subjects:

■ Functional description (6.2)

■ Upgrading (6.3)

■ Monitor connectors (6.4)

Integrated Graphics Processor

Technical Reference Guide www.hp.com 6-1

Integrated Graphics Processor

6.2 Functional Description

These systems include a graphics subsystem based on the ATI Radeon 3100 controller integrated into the AMD RS780 North Bridge (Figure 6-1). The ATI Radeon 3100 operates off the internal PCIe x16 bus and can directly drive an analog multi-scan monitor or a DVI-D-compatible digital monitor. The ATI Radeon 3100 includes a memory management feature that allocates portions of system memory for use as the frame buffer and for storing textures and 3D effects.

Processor

DDR2 Controller

RS780

North Bridge

Analog

Monitor

Digital

Monitor

PCIe x16 Graphics Slot

RGB

DVI-D

PCIe PEG data

ATI

Radeon

3100

Controller

Figure 6-1. Integrated Graphics Processor, Block diagram

The IGP provides the following features:

■ Fully DirectX 10-compliant 32-bit floating point

■ Shader Model 4.0 geometry and pixel support

■ Anti-aliasing filter 11

■ Aniosotropic filtering

PCIe I/F

DDR2

SDRAM

(System

Memory)

PCIe data

PCIe x1 Slot

■ Advanced texture compression

■ 3D resources virtualized to a 32b addressing space

■ Vertex cache/fetch design

■ Full 64b and 132b support for tectures and surfaces

■ Up to 8K x 8K texture support (including 128b/pixel texture)

■ Multi-level texture cache

■ Upgradeable through the PCIe x16 graphics slot

■ Multi-monitor support with SurroundView™ technology

The IGP uses a portion of system memory for the frame buffer. The amount of memory used by the IGP may by user-configured (in BIOS) to 32, 64, 128, or 256 megabytes, or set to Automatic. In Automatic mode, the BIOS will select the optimum amount of memory.

6-2 www.hp.com Technical Reference Guide

6.3 Upgrading

All systems provide direct, dual-monitor support; a VGA montor and a DVI monitor can be connected and driven simultaneously. These systems also include a PCIe x16 graphics slot that specifically supports a PCIe x16 graphics card.

The normal upgrade procedure for these systems is as follows:

1. Shut down the system through the operating system.

2. Unplug the power cord from the rear of the system unit.

3. Remove the chassis cover.

4. Install the graphics card into the PCIe x16 graphics slot.

5. Replace the chassis cover.

6. Reconnect the power cord to the system unit.

7. Power up the system unit:

If an ATI graphics card with SurroundView enabled is installed in the PCIe x16 graphics slot, the

✎

ROM-Based Setup Utility (RBSU) allows the user the choice of leaving the IGP enabled to drive multiple video monitors or disable the IGP and using only the discrete graphics card. If the IGP is enabled, the user also has the choice of selecting which graphics controller is the prime (boot) device.

Integrated Graphics Processor

If a graphics card is installed in the PCIe x1 slot, the BIOS will disable the IGP by default, but

✎

can be re-enabled through the RBSU to allow an alternate method of multi-monitor operation. Press the F10 key during the boot process to enter the ROM-based Setup utility and re-enable the IGP for multi-monitor operation.

Technical Reference Guide www.hp.com 6-3

Integrated Graphics Processor

6.4 Monitor Connectors

These systems provide an analog VGA connector and a DVI-D connector and can drive both types of monitors simultaneously.

6.4.1 Analog Monitor Connector

Figure 6-2 shows the analog VGA connector for attaching an analog video monitor:

Figure 6-2. Male DB-15 Analog VGA Monitor Connector, (as viewed from rear of chassis).

Table 6-1.

DB-15 Monitor Connector Pinout

Pin Signal Description Pin Signal Description

1 R Red Analog 9 PWR +5 VDC (fused) [1] 2 G Blue Analog 10 GND Ground 3 B Green Analog 11 NC Not Connected 4 NC Not Connected 12 SDA DDC Data 5 GND Ground 13 HSync Horizontal Sync 6 R GND Red Analog Ground 14 VSync Vertical Sync 7 G GND Blue Analog Ground 15 SCL DDC Clock 8 B GND Green Analog Ground -- -- --

NOTE: [1] Fuse automatically resets when excessive load is removed.

6-4 www.hp.com Technical Reference Guide

6.4.2 DVI-D Connector

Figure 6-3 shows the DVI-D connector for attaching a digital monitor.

Figure 6-3. Female DVI-D Connector, (as viewed from rear of chassis).

DVI-D Monitor Connector Pinout

Pin Signal Pin Signal

1 TMDS Data 2- 13 TMDS Data 3+ 2TMDS Data 2+ 145 VDC 3TMDS Dara 2 & 4 shield 15Ground 4 TMDS Data 4- 16 Hot Plug Detect 5 TMDS Data 4+ 17 TMDS Data 06DDV Clock 18TMDS Data 0+ 7 DDC Data 19 TMDS Data 0 & 5 shield 8 not used 20 TMDS Data 59 TMDS Data 1- 21 TMDS Data 5+ 10 TMDS Data 1+ 22 TMDS Clock shield 11 TMDS Data 1 & 3 shield 23 TMDS Clock + 12 TMDS Data 3- 24 TMDS Clock -

Integrated Graphics Processor

Table 6-2.

Technical Reference Guide www.hp.com 6-5

Integrated Graphics Processor

6-6 www.hp.com Technical Reference Guide

Power and Signal Distribution

7.1 Introduction

This chapter describes the power supplies and discusses the methods of general power and signal distribution. Topics covered in this chapter include:

■ Power distribution (7.2)

■ Power Control (7.3)

■ Signal distribution (7.4)

7.2 Pow e r D i s tri b uti o n

Each form factor uses a unique power supply unit (PSU). The PSUs are not interchangeable between the SFF and MT form factors.

These systems use a power supply assembly contained within the system chassis. Figure 7-1 shows the block diagram for power generation.

Front Bezel

Power Button

System Board

Power On

PS On

90 - 264 VAC

CPU, slots, Chipsets, Logic,

& Voltage Regulators

POK

+3.3 VDC

5 AUX

Power Supply

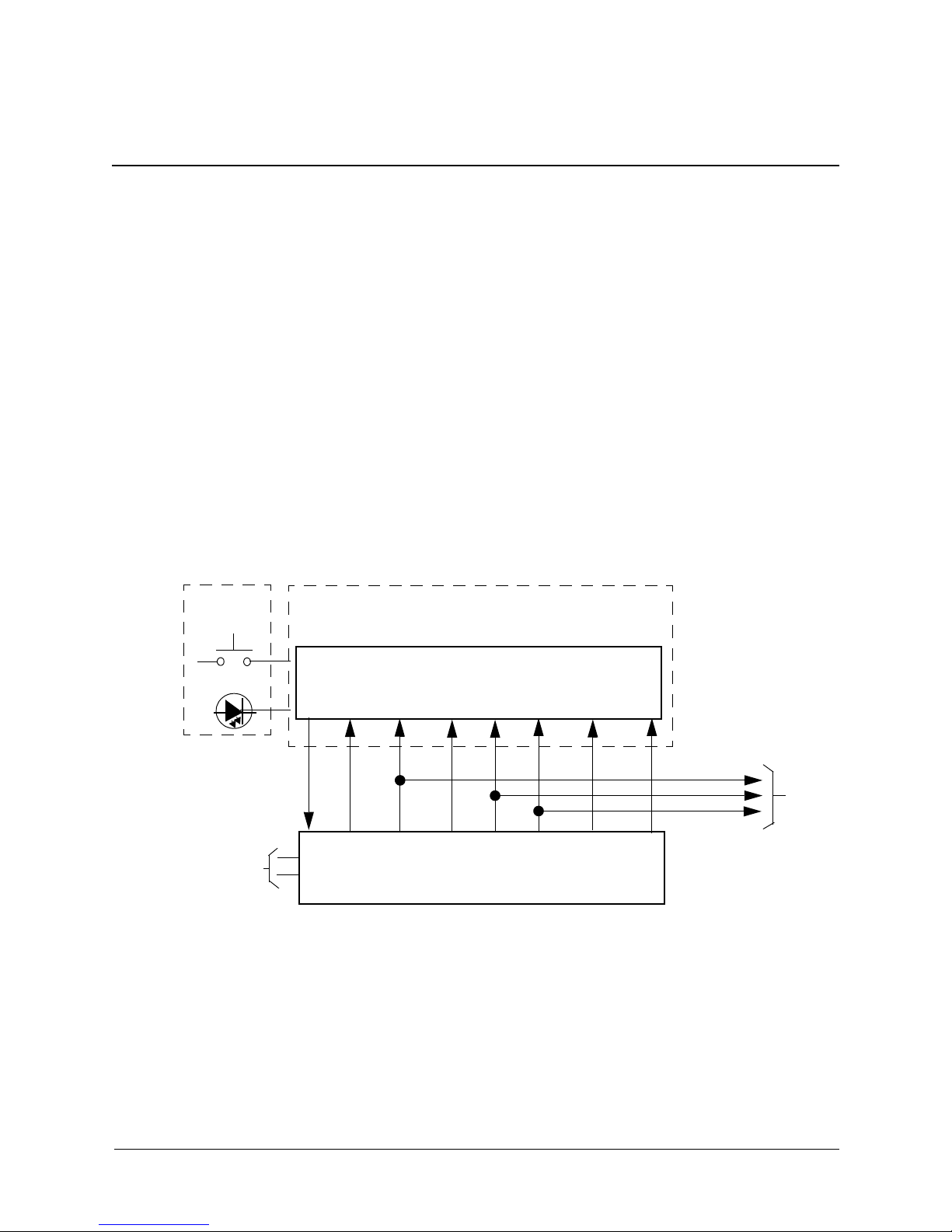

Figure 7-1. Power Generation Block Diagram

Unit

+5 VDC

+12 VDC

+12 VccP

-12 VDC +3.3 VDC

+5 VDC

+12 VDC

Drives

Technical Reference Guide www.hp.com 7-1

Power and Signal Distribution

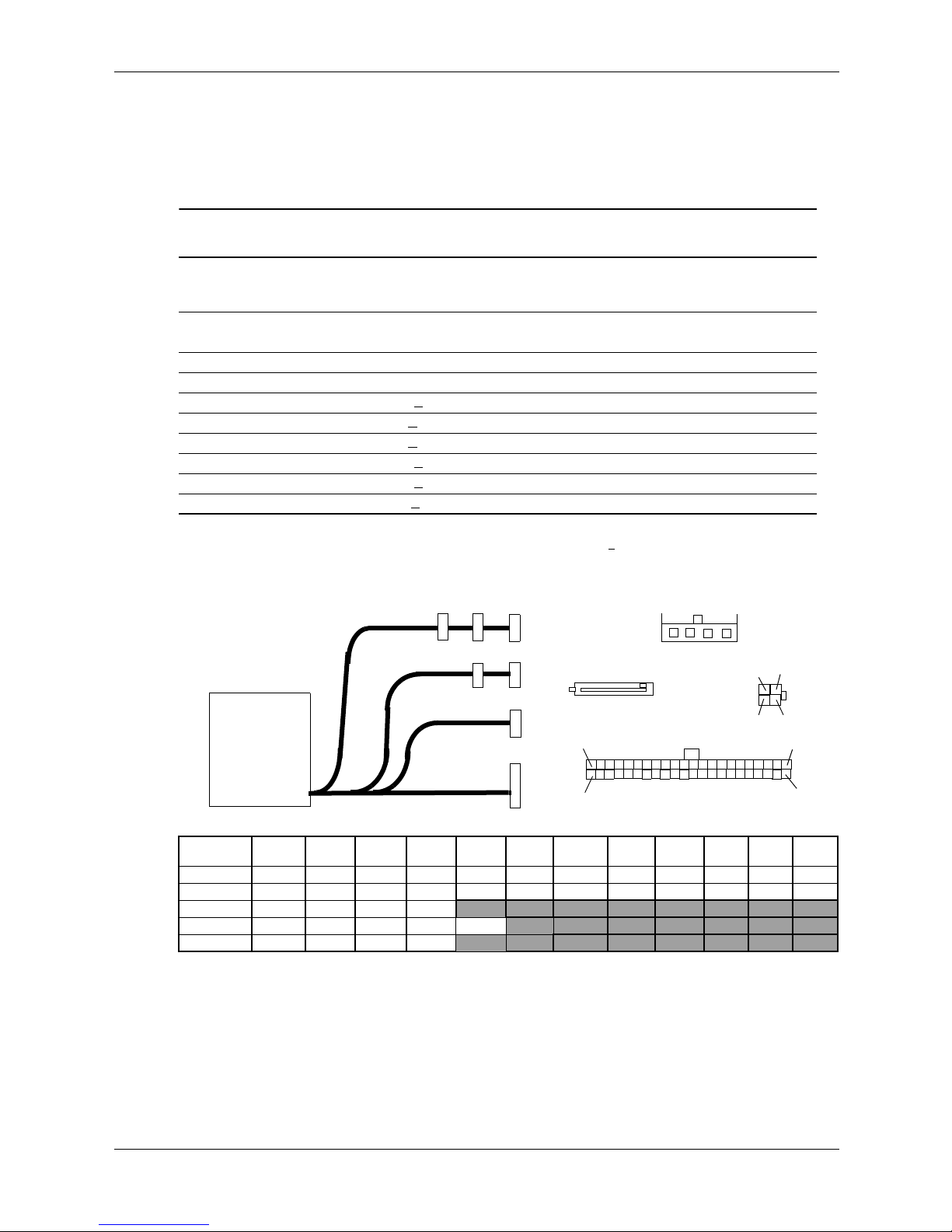

7.2.1 SFF Power Supply

The SFF form factor comes standard with a 240-watt, active-PFC power supply unit with the specifications and cabling as indicated in the following table and figure.

SFF 240-Watt Power Supply Unit Specifications

Input Line Voltage 90–264 VAC -- -- -- -Line Frequency 47–63 Hz -- -- -- -Input (AC) Current -- -- 5.0 A -- -+3.3 VDC Output + +5.08 VDC Output + +5.08 AUX Output + +12 VDC Output + +12 VDC Output (Vcpu) +

--12 VDC Output + 10 % 0.0 A 0.15 A 0.15 A 200 mV

NOTES: Total continuous power should not exceed 240 watts. Total surge power (<10 seconds w/duty cycle < 5 %) should not exceed

260 watts. [1] The minimum current loading figures apply to a PS On start up only.

Table 7-1.

Min.

Range/

Tolerance

4% 0.1 A 15.0 A 15.0 A 50 mV

3.3 % 0.3 A 17.0 A 17.0 A 50 mV

3.3 % 0.0 A 3.0 A 3.5 A 50 mV 5 % 0.1 A 7.5 A 9.0 A 120 mV 5 % 0.1 A 11.0 A 14.5 A 120 mv

Current

Loading [1]

Max.

Current

Surge

Current

Max.

Ripple

Power Supply

P11

P4, P5, P7

P11

1 2 3

Unit

Conn Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9

P1 +3.3 +3.3 RTN +5 RTN +5 RTN POK 5AUX +12 +12 3.3 P1 [1] +3.3 -12 RTN PS On RTN RTN RTN nc +5 +5 +5 RTN P2 +5 RTN RTN +12 P3 RTN RTN VccP VccP P4, 5, 7+12 RTN +5 RTN +3.3

P11 GND nc Ftach Fcmd

All + and - values are VDC. RTN = Return (signal ground) GND = Power ground POK = Power OK (power good) VccP = +12 for CPU

nc = not connected Ftach = Fan speed Fcmd = Fan command

[1] This row represents pins 13–24 of connector P1

Pin 10Pin 11Pin

Figure 7-2. SFF Power Cable Diagram

7-2 www.hp.com Technical Reference Guide

7.2.2 MT Power Supply

The MT form factor comes standard with a 300-watt, passive-PFC power supply unit with the specifications and cabling as indicated in the following table and figure.

MT 300-Watt Power Supply Unit Specifications

Input Line Voltage: 115–230 VAC (auto-ranging) 90–264 VAC -- -- -- -Line Frequency 47–63 Hz -- -- -- -Input (AC) Current -- -- 6.0 A -- -+3.3 VDC Output + +5.08 VDC Output + +5.08 AUX Output + +12 VDC Output + 5 % 0.10 A 11.0 A 11.0 A 120 mV +12 VDC Output (Vcpu) +

-12 VD C Ou t pu t +

NOTES: Total continuous output power should not exceed 300 watts. Maximum surge power (< [1] Minimum loading requirements must be met at all times to ensure normal operation and specification compliance. [2] Maximum surge duration for +12Vcpu is 1 second with 12-volt tolerance +/- 10%.

Power and Signal Distribution

Table 7-2.

Range or Tolerance

4 % 0.10 A 16.0 A 16.0 A 50 mV

3.3 % 0.30 A 19.0 A 19.0 A 50 mV

3.3 % 0.00 A 2.00 A 2.00 A 50 mV

5 % 0.10 A 11.5 A 11.5 A 120 mv

10 % 0.00 A 0.15 A 0.15 A 200 mV

Min.

Current

Loading [1]

Max.

Current

10 seconds) should not exceed 320 watts.

Surge

Current [2]

Max.

Ripple

P4, P5, P7, P8

Power Supply

Unit

Conn Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9

P1 +3.3 +3.3 RTN +5 RTN +5 RTN POK 5 aux +12 +12 +3.3 P1 [1] +3.3 -12 RTN PS On RTN RTN RTN nc +5 +5 +5 RTN P3 RTN RTN VccP VccP P4, 5, 7, 8 +12 RTN +5.08 RTN +3.3 P9 +5 RTN RTN +12

NOTES: All + and - values are VDC.

RTN = Return (signal ground) GND = Power ground RS = Remote sense POK = Power ok (power good) [1] This row represents pins 13–24 of connector P1.

Pin 10Pin 11Pin

Figure 7-3. MT Power Cable Diagram

Technical Reference Guide www.hp.com 7-3

Power and Signal Distribution

7.2.3 Optional Energy Star Compliant PSUs

Energy Star 4.0 (80-Plus, Bronze-compliant) active-PFC power supply units are available as an option for these systems. The specifications of the high-efficiency power supplies match those of the standard units except for the following aspects:

■ Efficiency: no less than 82 percent efficient at 20 or 100 percent of rated load and no less

than 85 percent efficient at 50 percent of rated load (at 115 VAC/60 Hz and at 230 VAC/60 Hz input.

■ Power factor of greater than 0.9 measured at full rated load at 115 VAC/60 Hz and at 230

VAC / 6 0 H z in pu t

7.3 Powe r Co n trol

The generation of +3, +5, and +12 VDC is controlled digitally with the PS On signal. When the PS On signal is asserted, all DC voltages are produced. When PS On is de-asserted, only auxiliary power (+5 AUX) is generated. The +5 AUX voltage is always produced as long as the system is connected to a live AC source.

7.3.1 Power B u t t o n

The PS On signal is typically controlled through the Power Button which, when pressed and released, applies a negative (grounding) pulse to the power control logic on the system board. The resultant action of pressing the power button depends on the state and mode of the system at that time and is described as follows:

Table 7-3.

Power Button Actions

System State

Off Negative pulse, of which the falling edge results in power control logic

On, ACPI Disabled Negative pulse, of which the falling edge causes power control logic to

On, ACPI Enabled Pressed and Released Under Four Seconds:

Pressed Power Button Results In:

asserting PS On signal to Power Supply Assembly, which then initializes. ACPI four-second counter is not active.

de-assert the PS On signal. ACPI four-second counter is not active.

Negative pulse, of which the falling edge causes power control logic to generate SMI-, set a bit in the SMI source register, set a bit for button status, and start four-second counter. Software should clear the button status bit within four seconds and the Suspend state is entered. If the status bit is not cleared by software in four seconds PS On is de-asserted and the power supply assembly shuts down (this operation is meant as a guard if the OS is hung).

Pressed and Held At least Four Seconds Before Release: If the button is held in for at least four seconds and then released, PS On is

negated, de-activating the power supply.

7-4 www.hp.com Technical Reference Guide

Power and Signal Distribution

A dual-color LED located on the front panel (bezel) is used to indicate system power status. The front panel (bezel) power LED provides a visual indication of key system conditions listed as follows:

Table 7-4.

Power LED Indications

Power LED Condition

Steady green Normal full-on operation Blinks green @ 0.5 Hz Suspend state (S1) or suspend to RAM (S3) Blinks red 2 times @ 1 Hz [1] Processor thermal shut down. Check air flow, fan

operation, and CPU heat sink.

Blinks red 3 times @ 1 Hz [1] Processor not installed. Install or reseat CPU.

Blinks red 4 times @ 1 Hz [1] Power failure (power supply is overloaded). Check storage

devices, expansion cards and/or system board (CPU power connector P3).

Blinks red 5 times @ 1 Hz [1] Pre-video memory error. Incompatible or incorrectly seated

DIMM.

Blinks red 6 times @ 1 Hz [1] Pre-video graphics error. On system with integrated

graphics, check/replace system board. On system with

graphics card, check/replace graphics card. Blinks red 7 times @ 1 Hz [1] PCA failure. Check/replace system board. Blinks red 8 times @ 1 Hz [1] Invalid ROM (checksum error). Reflash ROM using CD or

replace system board. Blinks red 9 times @ 1 Hz [1] System powers on but fails to boot. Check power supply,

CPU, system board. Blinks red 10 times @ 1 Hz [1] Bad option card. No light System dead. Press and hold power button for less than 4

seconds. If HD LED turns green then check voltage select

switch setting or expansion cards. If no LED light then check

power button/power supply cables to system board or

system board.

NOTE: [1] Will be accompanied by the same number of beeps, with 2-second pause between cycles. Beeps

stop after 5 cycles.

Technical Reference Guide www.hp.com 7-5

Power and Signal Distribution

7.3. 2 Wake Up Events

The PS On signal can be activated with a power “wake-up” of the system due to the occurrence of a magic packet, serial port ring, or PCI power management event (PME). These events can be individually enabled through the Setup utility to wake up the system from a sleep (low power) state.

Wake-up functionality requires that certain circuits receive auxiliary power while the system is

✎

turned off. The system unit must be plugged into a live AC outlet for wake up events to function. Using an AC power strip to control system unit power will disable wake-up event functionality.

The wake up sequence for each event occurs as follows:

Wake-On-LA N

The network interface controller (NIC) can be configured for detection of a “Magic Packet” and wake the system up from sleep mode through the assertion of the PME- signal on the PCI bus. Refer to Chapter 5, section 5.9 “Network Support” for more information.

Modem Ring

A ring condition on a serial port can be detected by the power control logic and, if so configured, cause the PS On signal to be asserted.

Power Management Event

A power management event that asserts the PME- signal on the PCI bus can be enabled to cause the power control logic to generate the PS On. Note that the PCI card must be PCI ver. 2.2 (or later) compliant to support this function.

7-6 www.hp.com Technical Reference Guide

7.3.3 Power Management

These systems include power management functions designed to conserve energy. These functions are provided by a combination of hardware, firmware (BIOS) and software. The system provides the following power management support:

■ ACPI v2.0 compliant (ACPI modes C1, S1, and S3-S5)

■ U.S. EPA Energy Star 3.0 and 4.0 compliant

Table 7-5 shows the comparison in power states.

Power State System Condition

G0, S0, D0 System fully on. OS and

application is running, all components.

G1, S1, C1, D1 System on, CPU is executing and

data is held in memory. Some peripheral subsystems may be on low power. Monitor is blanked.

G1, S2/3, C2, D2 (Standby/or suspend)

G1, S4, D3 (Hibernation)

G2, S5, D3

G3 System off (mechanical). No power

System on, CPU not executing, cache data lost. Memory is holding data, display and I/O subsystems on low power.

System off. CPU, memory, and most subsystems shut down. Memory image saved to disk for recall on power up.

System off. All components either

cold

completely shut down or receiving minimum power to perform system wake-up.

to any internal components except RTC circuit. [1]

Table 7-5.

System Power States

Power

Consumption

Maximum N/A No

Low < 2 sec after

Low < 5 sec. after

Low <25 sec. after

Minimum <35 sec. after

None — —

Power and Signal Distribution

Transition

To S0 by [2]

keyboard or

pointing device

action

keyboard, pointing

device, or power

button action

power button

action

power button

action

OS Restart

Required

Yes

NOTES: Gn = Global state. Sn = Sleep state. Cn = ACPI state. Dn = PCI state. [1] Power cord is disconnected for this condition. [2] Actual transition time dependent on OS and/or application software.

Technical Reference Guide www.hp.com 7-7

Power and Signal Distribution

7.4 Signal Distribution

Table 7-6 lists key reference designators for LEDs, connectors, headers, and switches used on the system boards for systems covered in this guide. Unless otherwise indicated, components are used on all system boards.

System Board Component Designations

Designator Component function

CR1 +5 VDC LED E1 Descriptor table override header E14 SPI ROM boot block header E49 / JP49 Password clear header / jumper J9 Stacked RJ-45 & dual USB connectors J10 Quad-stacked USB connectors J20 PCI 2.3 connector J31 PCIe x1 connector J32 PCIe x1 connector J41 PCIe x16 graphics connector J68 Stacked keyboard, mouse PS/2 connectors J69 Analog VGA monitor DB-15 connector J70 Digital DVI-D connector J78 Stacked audio line-in, headphone/line-out 1/8” jacks J103 DC input P1 Power supply connector P3 Vccp (PWRCPU) header P5 Control panel (power button, power LED) header P6 Internal speaker header P8 System fan header P9 Chassis fan, primary, header P10 Diskette drive connector P23 Front panel audio header P24 Front panel USB header P52 Serial port, secondary, header P53 Serial port, primary connector P54 Serial port, primary header P60 SATA0 (controller 1, primary master) connector (dark blue) P61 SATA1 (controller 1, secondary master) connector (white) P62 SATA2 (controller 1, primary slave) connector (light blue) P63 SATA3 (controller 1, secondary slave) connector (orange) P70 Primary CPU (heatsink) fan header P126 Parallel port header P150 Media reader USB header SW50 Clear CMOS switch XMM1, 2 Memory slots, channel A (white) XMM3, 4 Memory slots, channel B (black) XU1 Processor socket XB2 Battery socket

Table 7-6.

7-8 www.hp.com Technical Reference Guide

Figure 7-4 shows pinouts of headers used on the sytem boards.

Power and Signal Distribution

Power Button/LED, HD LED

HD LED + 1

HD LED - 3

GND5

Pwr Btn 7

Chassis ID0 9

Media Card Reader USB I/F

Header P150

+5 V fused 1

USB port 7- 3

USB port 7+ 5

GND 7

Front Panel Audio

Header P23

Mic In Left (Tip) 1

Mic In Right (Sleeve) 3

HP Out Right 5

Sense Send 7

HP Out Left 9

Header P5

2 PS LED + 4 PS LED -

10 Chassis ID1

2 +5 V fused 4 USB port 6-

6 USB port 6+

10 not connected

8 GND

2 Analog GND 4 Front Audio Detect#

6 Sense_1 Return

10 Sense_2 Return

Front I/O USB

+5 V fused 1 USB port 8- 3 USB port 8+ 5

GND 7

Serial Port B

UART2 DTR- 1

UART2 CTS- 3

UART2 TX DATA 5

GND 7

+5.0V 9

UART2 RTS- 11

UART2 DCD- 13

+12V 15

Header P5

2 +5 V fused 4 USB port 9-

6 USB port 9+

8 GND

10 Front USB detect#

Header P52

2 UART2 RX DATA 4 UART2 DSR-

6 UART2 RI-

8 GND 10 +3.3V aux 12 Comm B Detect 14 -12V

Fan Header

Header P8, P16

1 GND 2 +12 VDC 3 Fan tach

4 Fan PWM input

NOTE:

No polarity consideration required for connection to speaker header P6. NC = Not connected

Figure 7-4. System Board Header Pinouts

Technical Reference Guide www.hp.com 7-9

Power and Signal Distribution

7-10 www.hp.com Technical Reference Guide

8.1 Introduction

The System Basic Input/Output System (BIOS) of the computer is a collection of machine language programs stored as firmware in read-only memory (ROM). The system BIOS includes such functions as Power-On Self Test (POST), PCI device initialization, Plug 'n Play support, power management activities, and the Setup utility. The firmware contained in the system BIOS ROM supports the following operating systems and specifications:

■ DOS 6.2, Windows 2000, XP, and Vista (Home and Professional versions)

■ Windows NT 4.0 (SP6 required for PnP support)

■ OS/2 ver 2.1 and OS/2 Warp

■ SCO Unix

■ DMI 2.1

■ Alert Standard Format (ASF) 2.0

■ ACPI and OnNow

SYSTEM BIOS

■ SMBIOS 2.5

■ BIOS Boot Specification 1.01

■ Enhanced Disk Drive Specification 3.0

■ “El Torito” Bootable CD-ROM Format Specification 1.0

■ ATAPI Removeable Media Device BIOS Specification 1.0

■ Serial ATA Advanced Host Controller Interface (AHCI) 1.2

The BIOS firmware is contained in a flash ROM component. The runtime portion of the BIOS resides in a 128KB block from E0000h to FFFFFh.

This chapter includes the following topics:

■ ROM flashing (8.2)

■ Boot functions (8.3)

■ Client management functions (8.4)

■ SMBIOS support (8.5)

■ USB legacy support (8.6)

■ Management functions (8.7)

Technical Reference Guide www.hp.com 8-1

SYSTEM BIOS

8.2 ROM Flashing

The system BIOS firmware is contained in a flash ROM device that can be re-written with new BIOS code using a flash utility locally (with F10 setup), with the HPQFlash program in a Windows environment, or with the FLASHBIN.EXE utility in a DOS or DOS-like environment.

8.2.1 Upgrading

Upgrading the BIOS is not normally required but may be necessary if changes are made to the unit's operating system, hard drive, or processor. All System BIOS upgrades are available directly from HP. Flashing is done either locally through F10 setup, the HPQFlash program in a Windows environment, or with the FLASHBIN.EXE utility in a DOS or DOS-like environment. Flashing may also be done by deploying either HPQFlash or FLASHBIN.EXE through the network boot function.

This system includes 64 KB of write-protected boot block ROM that provides a way to recover from a failed flashing of the system BIOS ROM. If the system BIOS ROM fails the flash check, the boot block code provides the minimum amount of support necessary to allow booting the system and re-flashing the system BIOS ROM with a CD or USB disk/thumb drive.

8.2.2 Changeable Splash Screen

A corrupted splash screen may be restored by reflashing the BIOS image through F10 setup,

✎

running HPQFlash, or running FLASHBIN.EXE. Depending on the system, changing (customizing) the splash screen may only be available with asistance from HP.

The splash screen (image displayed during POST) is stored in the system BIOS ROM and may be replaced with another image of choice by using the Image Flash utility (Flashi.exe). The Image Flash utility allows the user to browse directories for image searching and pre-viewing. Background and foreground colors can be chosen from the selected image's palette.

The splash screen image requirements are as follows:

■ Format = Windows bitmap with 4-bit RLE encoding

■ Size = 424 (width) x 320 (height) pixels

■ Colors = 16 (4 bits per pixel)

■ File Size = < 64 KB

The Image Flash utility can be invoked at a command line for quickly flashing a known image as follows:

>\Flashi.exe [Image_Filename] [Background_Color] [Foreground_Color]

The utility checks to insure that the specified image meets the splash screen requirements listed above or it will not be loaded into the ROM.

8-2 www.hp.com Technical Reference Guide

8.3 Boot Functions

The BIOS supports various functions related to the boot process, including those that occur during the Power On Self-Test (POST) routine.

8.3.1 Boot Device Order

The default boot device order is as follows:

1. CD-ROM drive (EL Torito CD images)

2. Diskette drive (A:)

3. USB device

4. Hard drive (C:)

5. Network interface controller (NIC)

The above order assumes all devices are present in the initial configuration. If, for example, a

✎

diskette drive is not initially installed but added later, then drive A would be added to the end of the order (after the NIC)

The order can be changed in the ROM-based Setup utility (accessed by pressing F10 when so prompted during POST). The options are displayed only if the device is attached, except for USB devices. The USB option is displayed even if no USB storage devices are present. The hot IPL option is available through the F9 utility, which allows the user to select a hot IPL boot device.

SYSTEM BIOS

8.3.2 Network Boot (F12) Support

The BIOS supports booting the system to a network server. The function is accessed by pressing the F12 key when prompted at the lower right hand corner of the display during POST. Booting to a network server allows for such functions as:

■ Flashing a ROM on a system without a functional operating system (OS).

■ Installing an OS.

■ Installing an application.

These systems include, as standard, an integrated Intel 82562-equivalent NIC with Preboot Execution Environment (PXE) ROM and can boot with a NetPC-compliant server.

8.3.3 Memory Detection and Configuration

This system uses the Serial Presence Detect (SPD) method of determining the installed DIMM configuration. The BIOS communicates with an EEPROM on each DIMM through the SMBus to obtain data on the following DIMM parameters:

■ Presence

■ Size

■ Ty pe

■ Timing/CAS latency

Refer to Chapter 3, “Processor/Memory Subsystem” for the SPD format and DIMM data specific

✎

to this system.

Technical Reference Guide www.hp.com 8-3

SYSTEM BIOS

The BIOS performs memory detection and configuration with the following steps:

1. Program the buffer strength control registers based on SPD data and the DIMM slots that are populated.

2. Determine the common CAS latency that can be supported by the DIMMs.

3. Determine the memory size for each DIMM and program the memory controller accordingly.

4. Enable refresh.

8.3.4 Boot Error Codes

The BIOS provides visual and audible indications of a failed system boot by using the system’s power LED and the system board speaker. The error conditions are listed in the following table.

Visual (power LED) Audible (speaker) Meaning

Blinks red 2 times @ 1 Hz 2 beeps Processor thermal shut down. Check air flow, fan

Table 8-1

Boot Error Codes

operation, and CPU heat sink.

Blinks red 3 times @ 1 Hz 3 beeps Processor not installed. Install or reseat CPU.

Blinks red 4 times @ 1 Hz None Power failure (power supply is overloaded). Check

storage devices, expansion cards and/or system board (CPU power connector P3).

Blinks red 5 times @ 1 Hz 5 beeps Pre-video memory error. Incompatible or

incorrectly seated DIMM.

Blinks red 6 times @ 1 Hz 6 beeps Pre-video graphics error. On system with

integrated graphics, check/replace system board. On system with graphics card, check/replace graphics card.

Blinks red 7 times @ 1 Hz 7 beeps PCA failure. Check/replace system board.

Blinks red 8 times @ 1 Hz 8 beeps Invalid ROM (checksum error). Reflash ROM using

CD or replace system board.

Blinks red 9 times @ 1 Hz 9 beeps System powers on but fails to boot. Check power

supply, CPU, system board.

Blinks red 10 times @ 1 Hz 10 beeps Bad option card.

NOTE: Audible indications occur only for the five cycles of the error indication. Visual indications occur indefinitely until power is removed or until error is corrected.

8-4 www.hp.com Technical Reference Guide

8.4 Client Management Functions

Table 8-2 provides a partial list of the client management BIOS functions supported by the systems covered in this guide. These functions, designed to support intelligent manageability applications, are HP-specific unless otherwise indicated.

Table 8-2.

Client Management Functions (INT15)

AX Function Mode

E800h Get system ID Real, 16-, & 32-bit Prot.

E813h Get monitor data Real, 16-, & 32-bit Prot.

E814h Get system revision Real, 16-, & 32-bit Prot.

E816h Get temperature status Real, 16-, & 32-bit Prot.

E819h Get chassis serial number Real, 16-, & 32-bit Prot.

E820h [1] Get system memory map Real

SYSTEM BIOS

E81Ah Write chassis serial number Real

E827h DIMM EEPROM Access Real, 16-, & 32-bit Prot.

NOTE: [1] Industry standard function.

All 32-bit protected-mode functions are accessed by using the industry-standard BIOS32 Service Directory. Using the service directory involves three steps:

1. Locating the service directory.

2. Using the service directory to obtain the entry point for the client management functions.

3. Calling the client management service to perform the desired function.

The BIOS32 Service Directory is a 16-byte block that begins on a 16-byte boundary between the physical address range of 0E0000h-0FFFFFh.

The following subsections provide a brief description of key Client Management functions.

Technical Reference Guide www.hp.com 8-5

SYSTEM BIOS

8.4.1 System ID and ROM Type

Diagnostic applications can use the INT 15, AX=E800h BIOS function to identify the type of system. This function will return the system ID in the BX register. Systems have the following IDs and ROM family types:

Table 8-3

System ID Numbers

System (Form Factor)

SFF 3029h

MT 3029h

System ID/

Subsystem Device ID

The ROM family and version numbers can be verified with the Setup utility or the System Insight Manager or Diagnostics applications.

8.4.2 Temperature Status

The BIOS includes a function (INT15, AX=E816h) to retrieve the status of a system's interior temperature. This function allows an application to check whether the temperature situation is at a Normal, Caution, or Critical condition.

8-6 www.hp.com Technical Reference Guide

8.5 SMBIOS

In support of the DMI specification, PnP functions 50h and 51h are used to retrieve the SMBIOS data. Function 50h retrieves the number of structures, size of the largest structure, and SMBIOS version. Function 51h retrieves a specific structure. This system supports SMBIOS version 2.5 and the structure types listed in the following table:

Type Data

0 BIOS Information

1System Information

2 Base board information

3 System Enclosure or Chassis

4 Processor Information

7Cache Information

SYSTEM BIOS

Table 8-3

SMBIOS Functions

8 Port Connector Information

9System Slots

13 BIOS Language Information

15 System Event Log Information

16 Physical Memory Array

17 Memory Devices

19 Memory Array Mapped Addresses

20 Memory Device Mapped Addresses

24 Cooling Device Structure

27 Hardware Security Structure

31 Boot Integrity Service Entry Point

32 System Boot Information

System information on these systems is handled exclusively through the SMBIOS.

✎

Technical Reference Guide www.hp.com 8-7

SYSTEM BIOS

8.6 USB Legacy Support

The system BIOS ROM checks the USB port, during POST, for the presence of a USB keyboard. This allows a system with only a USB keyboard to be used during ROM-based setup and also on a system with an OS that does not include a USB driver.

On such a system a keystroke will generate an SMI and the SMI handler will retrieve the data from the device and convert it to PS/2 data. The data will be passed to the keyboard controller and processed as in the PS/2 interface. Changing the delay and/or typematic rate of a USB keyboard though BIOS function INT 16 is not supported.

8.7 Management Functions

The management functions of the AMD 780V chipset allow a system unit to be managed remotely over a network. The system BIOS can request the management engine to generate the following alerts:

■ Temperature alert

■ Fan failure alert

■ Chassis intrusion alert

■ Watchdog timer alert

■ No memory installed alert

8-8 www.hp.com Technical Reference Guide

Error Messages and Codes

A.1 Introduction

This appendix lists the error codes and a brief description of the probable cause of the error.

Errors listed in this appendix are applicable only for systems running HP/Compaq BIOS.

✎

Not all errors listed in this appendix may be applicable to a particular system model and/or configuration.

A.2 Beep/Power LED Codes

Beep and Power LED indictions listed in Table A-1 apply only to HP-branded models.

✎

Beep/Power LED Codes

Table A-1.

Beeps Power LED Probable Cause

2 beeps Blinks red 2 times @ 1 Hz Processor thermal shut down. Check air flow, fan operation,

and CPU heatsink

3 beeps Blinks red 3 times @ 1 Hz Processor not installed. Install or reseat CPU.

4 beeps Blinks red 4 times @ 1 Hz Power failure (power supply is overloaded). Check storage

devices, expansion cards and/or system board (CPU power connector P3).

5 beeps Blinks red 5 times @ 1 Hz Pre-video memory error. Incompatible or incorrectly seated

DIMM.

6 beeps Blinks red 6 times @ 1 Hz Pre-video graphics error. On system with integrated graphics,

check/replace system board. On system with graphics card, check/replace graphics card.

7 beeps Blinks red 7 times @ 1 Hz PCA failure. Check/replace system board.

8 beeps Blinks red 8 times @ 1 Hz Invalid ROM (checksum error). Reflash ROM using CD or

replace system board.

9 beeps Blinks red 9 times @ 1 Hz System powers on but fails to boot. Check power supply, CPU,

system board.

10 beeps Blinks red 10 times @ 1 Hz Bad option card.

NOTE: Audible indications occur only for the five cycles of the error indication. Visual indications occur indefinitely until power is removed or until error is corrected.

Technical Reference Guide www.hp.com A-1

Error Messages and Codes

A.3 Power-On Self Test (POST) Messages

Table A-2.

Power-On Self Test (POST) Messages

Error Message Probable Cause

Invalid Electronic Serial Number Chassis serial number is corrupt. Use Setup to enter a valid number.

Network Server Mode Active (w/o kybd)

101-Option ROM Checksum Error A device’s option ROM has failed/is bad.

110-Out of Memory Space for Option ROMs

102-system Board Failure Failed ESCD write, A20, timer, or DMA controller.

150-Safe POST Active An option ROM failed to execute on a previous boot.

162-System Options Not Set Invalid checksum, RTC lost power, or invalid configuration.

163-Time & Date Not Set Date and time information in CMOS is not valid.

164-Memory Size Error Memory has been added or removed.

201-Memory Error Memory test failed.

213-Incompatible Memory Module BIOS detected installed DIMM(s) as being not compatible.

214-DIMM Configuration Warning A specific error has occurred in a memory device installed in the

216-Memory Size Exceeds Max Installed memory exceeds the maximum supported by the system.

217-DIMM Configuration Warning Unbalanced memory configuration.

System is in network mode.

Recently added PCI card contains and option ROM too large to download during POST.

identified socket.

219-ECC Memory Module Detected ECC Modules not supported on this platform

301-Keyboard Error Keyboard interface test failed (improper connection or stuck key).

303-Keyboard Controller Error Keyboard buffer failed empty (8042 failure or stuck key).

304-Keyboard/System Unit Error Keyboard controller failed self-test.

404-Parallel Port Address Conflict Current parallel port address is conflicting with another device.

417-Network Interface Card Failure NIC BIOS could not read Device ID of embedded NIC.

501-Display Adapter Failure Graphics display controller.

510-Splash Image Corrupt Corrupted splash screen image. Restore default image w/flash utility.

511-CPU Fan Not Detected Processor heat sink fan is not connected.

512-Chassis Fan Not Detected Chassis fan is not connected.

A-2 www.hp.com Technical Reference Guide

Recently added memory module(s) support ECC memory error correction.

Table A-2. (Continued)

Power-On Self Test (POST) Messages

Error Message Probable Cause

Error Messages and Codes

514-CPU or Chassis Fan not detected.

601-Diskette Controller Error Diskette drive removed since previous boot.

605-Diskette Drive Type Error Mismatch in drive type.

912-Computer Cover Removed Since Last System Start Up

914-Hood Lock Coil is not Connected

916-Power Button Not Connected Power button harness has been detached or unseated from the system

917-Expansion Riser Not Detected Expansion (backplane) board not seated properly.

919-Front Panel, MultiPort, and/or MultiBay Risers not Detected

1156-Serial Port A Cable Not Detected

1157-Front Cables Not Detected Cable from front panel USB and audio connectors is missing or not

1720 -S MA RT H ar d Dr i ve D et ec t s Imminent Failure

CPU fan is not connected or may have malfunctioned.

Cover (hood) removal has been detected by the Smart Cover Sensor.

Smart Cover Lock mechanism is missing or not connected.

board.

Riser card has been removed or has not been reinstalled properly in the system.

Cable from serial port header to I/O connector is missing or not connected properly.

connected properly.

SMART circuitry on an IDE drive has detected possible equipment failure.

1721-SMART SCSI Hard Drive Detects Imminent Failure

1794--Inaccessible device attached to SATA 1

(for systems with 2 SATA ports)

1794-Inaccessible devices attached to SATA 1 and/or SATA 5 (for

systems with 4 SATA ports)

1796-SATA Cabling Error One or more SATA devices are improperly attached. For optimal

SMART circuitry on a SCSI drive has detected possible equipment failure.

A device is attached to SATA 1. Any device attached to this connector will be inaccessible while “SATA Emulation” is set to “Combined IDE Controller” in Computer Setup.

A device is attached to SATA 1 and/or SATA 5. Devices attached to these connectors will be inaccessible while “SATA

Emulation” is set to “Combined IDE Controller” in Computer Setup

performance, the SATA 0 and SATA 1 connectors must be used before SATA 2 and SATA 3.

1801-Microcode Patch Error A processor is installed for which the BIOS ROM has no patch.

Check for ROM update.

Invalid Electronic Serial

Electronic serial number has become corrupted.

Number

Technical Reference Guide www.hp.com A-3

Error Messages and Codes

Error Message Probable Cause

Table A-2. (Continued)

Power-On Self Test (POST) Messages

Network Server Mode Active

Keyboard failure while Network Server Mode enabled.

and No Keyboard Attached

Parity Check 2 Keyboard failure while Network Server Mode enabled.

A-4 www.hp.com Technical Reference Guide

A.4 System Error Messages (1xx-xx)

Table A-3.

System Error Messages

Message Probable Cause Message Probable Cause

101 Option ROM error 109-02 CMOS clock rollover test failed

102 System board failure [1] 109-03 CMOS not properly initialized (clk test)

103 System board failure 110-01 Programmable timer load data test failed

104-01 Master int. cntlr. test failed 110-02 Programmable timer dynamic test failed

104-02 Slave int. cntlr. test failed 110-03 Program timer 2 load data test failed

104-03 Int. cntlr. SW RTC inoperative 111-01 Refresh detect test failed

105-01 Port 61 bit <6> not at zero 112-01 Speed test Slow mode out of range

105-02 Port 61 bit <5> not at zero 112-02 Speed test Mixed mode out of range

Error Messages and Codes

105-03 Port 61 bit <3> not at zero 112-03 Speed test Fast mode out of range

105-04 Port 61 bit <1> not at zero 112-04 Speed test unable to enter Slow mode

105-05 Port 61 bit <0> not at zero 112-05 Speed test unable to enter Mixed mode

105-06 Port 61 bit <5> not at one 112-06 Speed test unable to enter Fast mode

105-07 Port 61 bit <3> not at one 112-07 Speed test system error

105-08 Port 61 bit <1> not at one 112-08 Unable to enter Auto mode in speed test

105-09 Port 61 bit <0> not at one 112-09 Unable to enter High mode in speed test

105-10 Port 61 I/O t e s t faile d 112-10 Speed test High mode out of range

105-11 Port 61 bit <7> not at zero 112 -11 Speed test Auto mode out of range

105-12 Port 61 bit <2> not at zero 112-12 Speed test variable speed mode inop.

105-13 No int. generated by failsafe timer 113-01 Protected mode test failed

105-14 NMI not triggered by timer 114-01 Speaker test failed

106-01 Keyboard controller test failed 116-xx Way 0 read/write test failed

107-01 CMOS RAM test failed 162-xx Options failed (mismatch in drive type)

108-02 CMOS interrupt test failed 163-xx Time and date not set

108-03 CMOS not properly initialized 164-xx Memory size

109-01 CMOS clock load data test failed 199-00 Installed devices test failed

NOTES: [1] 102 message code may be caused by one of a variety of processor-related problems that may be solved by replacing the

processor, although system board replacement may be needed.

Technical Reference Guide www.hp.com A-5

Error Messages and Codes

A.5 Memory Error Messages (2xx-xx)

Table A-4.

Memory Error Messages

Message Probable Cause

200-04 Real memory size changed

200-05 Extended memory size changed

200-06 Invalid memory configuration

200-07 Extended memory size changed

200-08 CLIM memory size changed

201-01 Memory machine ID test failed

202-01 Memory system ROM checksum failed

202-02 Failed RAM/ROM map test

202-03 Failed RAM/ROM protect test

203-01 Memory read/write test failed

203-02 Error while saving block in read/write test

203-03 Error while restoring block in read/write test

204-01 Memory address test failed

204-02 Error while saving block in address test

204-03 Error while restoring block in address test

204-04 A20 address test failed

204-05 Page hit address test failed

205-01 Walking I/O test failed

205-02 Error while saving block in walking I/O test

205-03 Error while restoring block in walking I/O test

206-xx Increment pattern test failed

207-xx ECC failure

210-01 Memory increment pattern test

210-02 Error while saving memory during increment pattern test

210-03 Error while restoring memory during increment pattern test

211-01 Memory random pattern test

A-6 www.hp.com Technical Reference Guide

Table A-4. (Continued)

Memory Error Messages

Message Probable Cause

211-02 Error while saving memory during random memory pattern test

211-03 Error while restoring memory during random memory pattern test

213-xx Incompatible DIMM in slot x

214-xx Noise test failed

215-xx Random address test

A.6 Keyboard Error Messages (30x-xx)

Table A-5.

Keyboard Error Messages

Message Probable Cause Message Probable Cause

Error Messages and Codes

300-xx Failed ID test 303-05 LED test, LED command test failed

301-01 Kybd short test, 8042 self-test

failed

301-02 Kybd short test, interface test

failed

301-03 Kybd short test, echo test failed 303-08 LED test, command byte restore test failed

301-04 Kybd short test, kybd reset failed 303-09 LED test, LEDs failed to light

301-05 Kybd short test, kybd reset failed 304-01 Keyboard repeat key test failed

302-xx Failed individual key test 304-02 Unable to enter mode 3

302-01 Kybd long test failed 304-03 Incorrect scan code from keyboard

303-01 LED test, 8042 self-test failed 304-04 No Make code observed

303-02 LED test, reset test failed 304-05 Cannot /disable repeat key feature

303-03 LED test, reset failed 304-06 Unable to return to Normal mode

303-04 LED test, LED command test failed -- --

303-06 LED test, LED command test failed

303-07 LED test, LED command test failed

Technical Reference Guide www.hp.com A-7

Error Messages and Codes

A.7 Printer Error Messages (4xx-xx)

Table A-6

Printer Error Messages

Message Probable Cause Message Probable Cause

401-01 Printer failed or not connected 402-11 Interrupt test, data/cntrl. reg. failed

402-01 Printer data register failed 402-12 Interrupt test and loopback test failed

402-02 Printer control register failed 402-13 Int. test, LpBk. test., and data register failed

402-03 Data and control registers failed 402-14 Int. test, LpBk. test., and cntrl. register failed

402-04 Loopback test failed 402-15 Int. test, LpBk. test., and data/cntrl. reg.

failed

402-05 Loopback test and data reg.

failed

402-06 Loopback test and cntrl. reg.

failed

402-07 Loopback tst, data/cntrl. reg.

failed

402-08 Interrupt test failed 404-xx Parallel port address conflict

402-09 Interrupt test and data reg. failed 498-00 Printer failed or not connected

402-10 Interrupt test and control reg.

failed

402-16 Unexpected interrupt received

402-01 Printer pattern test failed

403-xx Printer pattern test failed

-- --

A.8 Video (Graphics) Error Messages (5xx-xx)

Table A-7.

Video (Graphics) Error Messages

Message Probable Cause Message Probable Cause

501-01 Video controller test failed 508-01 320x200 mode, color set 0 test failed

502-01 Video memory test failed 509-01 320x200 mode, color set 1 test failed

503-01 Video attribute test failed 510-01 640x200 mode test failed

504-01 Video character set test failed 511-01 Screen memory page test failed

505-01 80x25 mode, 9x14 cell test

failed

506-01 80x25 mode, 8x8 cell test failed 514-01 White screen test failed

507-01 40x25 mode test failed 516-01 Noise pattern test failed

See Table A-14 for additional video (graphics) messages.

A-8 www.hp.com Technical Reference Guide

512-01 Gray scale test failed
