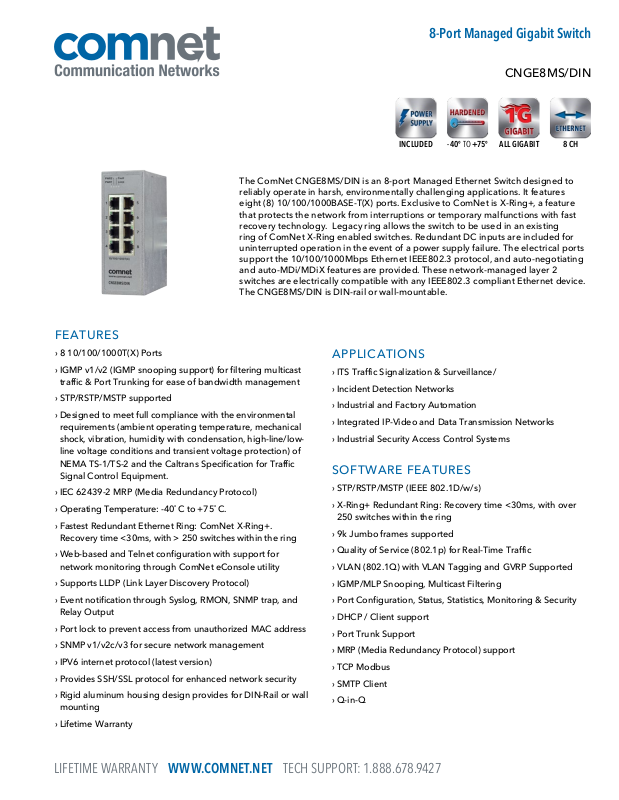

8-Port Managed Gigabit Switch
CNGE8MS/DIN
The ComNet CNGE8MS/DIN is an 8-port Managed Ethernet Switch designed to
reliably operate in harsh, environmentally challenging applications. It features
eight (8) 10/100/1000BASE-T(X) ports. Exclusive to ComNet is X-Ring+, a feature
that protects the network from interruptions or temporary malfunctions with fast
recovery technology. Legacy ring allows the switch to be used in an existing
ring of ComNet X-Ring enabled switches. Redundant DC inputs are included for
uninterrupted operation in the event of a power supply failure. The electrical ports
support the 10/100/1000Mbps Ethernet IEEE802.3 protocol, and auto-negotiating
and auto-MDi/MDiX features are provided. These network-managed layer 2
switches are electrically compatible with any IEEE802.3 compliant Ethernet device.
The CNGE8MS/DIN is DIN-rail or wall-mountable.
FEATURES
› 8 10/100/1000T(X) Ports
› IGMP v1/v2 (IGMP snooping support) for filtering multicast
traffic & Port Trunking for ease of bandwidth management
› STP/RSTP/MSTP supported
› Designed to meet full compliance with the environmental
requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of
NEMA TS-1/TS-2 and the Caltrans Specification for Traffic
Signal Control Equipment.
› IEC 62439-2 MRP (Media Redundancy Protocol)
› Operating Temperature: -40˚ C to +75˚ C.
› Fastest Redundant Ethernet Ring: ComNet X-Ring+.
Recovery time <30ms, with > 250 switches within the ring
› Web-based and Telnet configuration with support for
network monitoring through ComNet eConsole utility
› Supports LLDP (Link Layer Discovery Protocol)
› Event notification through Syslog, RMON, SNMP trap, and
Relay Output
› Port lock to prevent access from unauthorized MAC address
› SNMP v1/v2c/v3 for secure network management
› IPV6 internet protocol (latest version)
› Provides SSH/SSL protocol for enhanced network security
› Rigid aluminum housing design provides for DIN-Rail or wall
mounting
› Lifetime Warranty
-40º TO +75º
8 CHINCLUDED ALL GIGABIT
APPLICATIONS
› ITS Traffic Signalization & Surveillance/
› Incident Detection Networks
› Industrial and Factory Automation
› Integrated IP-Video and Data Transmission Networks
› Industrial Security Access Control Systems
SOFTWARE FEATURES
› STP/RSTP/MSTP (IEEE 802.1D/w/s)
› X-Ring+ Redundant Ring: Recovery time <30ms, with over
250 switches within the ring
› 9k Jumbo frames supported
› Quality of Service (802.1p) for Real-Time Traffic
› VLAN (802.1Q) with VLAN Tagging and GVRP Supported
› IGMP/MLP Snooping, Multicast Filtering
› Port Configuration, Status, Statistics, Monitoring & Security
› DHCP / Client support
› Port Trunk Support
› MRP (Media Redundancy Protocol) support
› TCP Modbus
› SMTP Client
› Q-in-Q
LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427
CNGE8MS/DIN
SPECIFICATIONS
8-Port Managed Gigabit Switch
Connectors
10/100/1000BASE-T(X) 8 × RJ-45 Ports with Auto MDI/MDIX
Power Connector Terminal Block
Switch Properties
Switching Latency 7 μs
Switching Bandwidth 16 Gbps
Max. VLANs Available 256
IGMP Multicast Groups 256
Port Rate Limiting User Defined
MAC Table 8000 MAC addresses available
Packet Buffer Size 4.1 Mbit
Priority Queues 4
Processing Store-and-Forward
Jumbo Frame Up to 9,216 Bytes
Security Features
Enable/Disable Ports, MAC based port security
Port-Based Network Access Control: 802.1x
VLAN (802.1Q): To segregate and secure network traffic
SSH/SSL
SNMPv3 Encrypted Authentication and Access Security
DHCP Option82
Alarms & Monitoring Systems
Relay Output For fault event alarming
Syslog Server / Client To record and view events
RMON For traffic monitoring
Event Selection Support
Network Redundancy
X-Ring+ Legacy Ring
MRP STP
RSTP MSTP
Fault Alarm Relay
Relay Contact Rating 24 VDC @ 1 A
Power
Operating Voltage Range Dual DC Inputs: 12 – 48 VDC
Power Consumption, Typical 6 W
Current Protection Overload Current Protected
Polarity Protection Reverse Polarity Protected
Electrical & Mechanical
Indicating LEDs Power Fault Loop Detection RJ-45 Port
Size (L×W×H) 1.69 × 4.72 × 3.3 in (4.3 × 12 × 8.4 cm)
Shipping Weight: <3 lb / 1.1 kg
Environmental
MTBF >100,000 hours
Operating Temperature - 40˚ C to +75˚ C
Storage Temp -40˚ C to +85˚ C
Relative Humidity 10% to 95% (non-condensing)²
Ethernet Standards Supported
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX
IEEE 802.3ab for 1000BASE-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3az for Energy Efficient Ethernet (EEE)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A, EN 55011/55022
Class A
EMS EN61000-4-2 (Level 3)
EN61000-4-3 (Level 3)
EN61000-4-4 (Level 3)
EN61000-4-5 (Level 3)
EN61000-4-6 (Level 3)
EN61000-4-8 (Level 3)
Mechanical Shock IEC 60068-2-27
Free Fall IEC 60068-2-32
Vibration IEC 60068-2-6
Safety IEC/EN60950, UL60950, UL508, Class 1 Division 2,
ATEX
GENCY COMPLIANCE
ORDERING INFORMATION
Part Number Description
CNGE8MS/DIN (8) 10/100/1000BASE-T(X) por t managed switch
Accessories DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included, for benign 0 to 50ºC applic ations only. Hardened power supply available, consult fac tory)
Options [2] Add suffix ‘/C’ for Conformally Coated Circuit Boards to extend to condensation conditions (Ex tra charge, consult fac tory)
In a continuing effort to improve and advance technology, product specifications are subject to change without notice.
