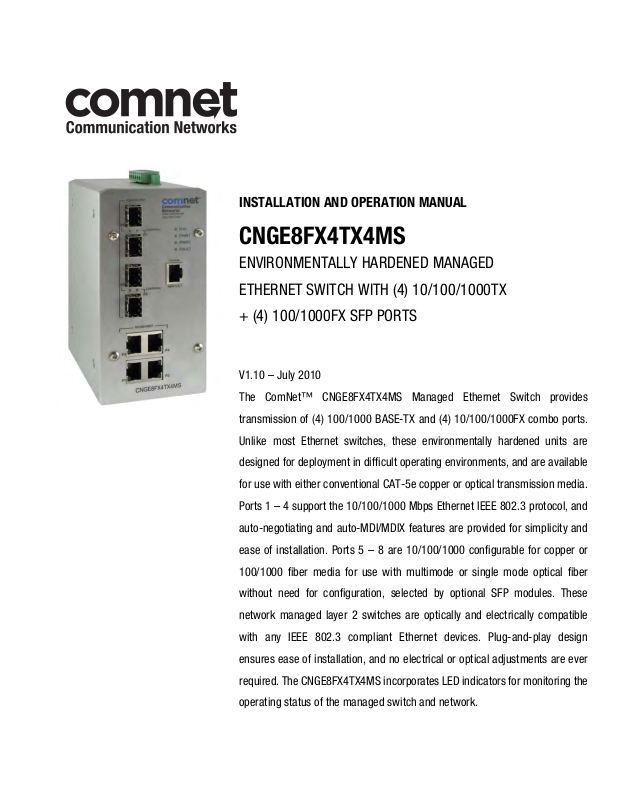

INSTALLATION AND OPERATION MANUAL
CNGE8FX4TX4MS
ENVIRONMENTALLY HARDENED MANAGED
ETHERNET SWITCH WITH (4) 10/100/1000TX
+ (4) 100/1000FX SFP PORTS
V1.10 – July 2010
The ComNet™ CNGE8FX4TX4MS Managed Ethernet Switch provides
transmission of (4) 100/1000 BASE-TX and (4) 10/100/1000FX combo ports.
Unlike most Ethernet switches, these environmentally hardened units are
designed for deployment in difficult operating environments, and are available
for use with either conventional CAT-5e copper or optical transmission media.
Ports 1 – 4 support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and
auto-negotiating and auto-MDI/MDIX features are provided for simplicity and
ease of installation. Ports 5 – 8 are 10/100/1000 configurable for copper or
100/1000 fiber media for use with multimode or single mode optical fiber
without need for configuration, selected by optional SFP modules. These
network managed layer 2 switches are optically and electrically compatible
with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design
ensures ease of installation, and no electrical or optical adjustments are ever
required. The CNGE8FX4TX4MS incorporates LED indicators for monitoring the
operating status of the managed switch and network.
Page 2
2
Content
Overview ............................................................................................................................... 1!
Introduction................................................................................................................................... 1!
ComNet CNGE8FX4TX4MS Features...........................................................................................4!
CNGE8FX4TX4MS Technical Specifications ................................................................................ 6!
Packing List .................................................................................................................................. 8!
Safety Precaution.......................................................................................................................... 8!
Hardware Description.......................................................................................................... 9!
Front Panel....................................................................................................................................9!
Top View .....................................................................................................................................10!
Wiring the Power Inputs.............................................................................................................. 10!
LED Indicators ............................................................................................................................12!
Ports............................................................................................................................................13!
Cabling ........................................................................................................................................14!
DIN-Rail Mounting Installation.......................................................................................... 17!
Wall Mount Plate Mounting............................................................................................... 19!
Hardware Installation ........................................................................................................ 20!
Installation Steps ........................................................................................................................20!
X-Ring Application ......................................................................................................................21!
Coupling Ring Application ..........................................................................................................22!
Dual Homing Application ............................................................................................................23!
Page 3
Console Management ....................................................................................................... 24!
Connecting to the Console Port .................................................................................................24!
Pin Assignment ...........................................................................................................................25!
Login through the Console Interface ..........................................................................................26!
CLI Management ........................................................................................................................28!
System Commands Set.......................................................................................................................... 30!
Port Commands Set............................................................................................................................... 32!
Trunk Commands Set ............................................................................................................................ 34!
DMI Commands Set ............................................................................................................................... 36!
VLAN Commands Set ............................................................................................................................ 36!
Spanning Tree Commands Set .............................................................................................................. 38!
QOS Commands Set.............................................................................................................................. 40!
IGMP Commands Set ............................................................................................................................ 41!
Mac / Filter Table Commands Set.......................................................................................................... 41!
SNMP Commands Set ........................................................................................................................... 42!
Port Mirroring Commands Set ............................................................................................................... 45!
802.1x Commands Set........................................................................................................................... 45!
TFTP Commands Set ............................................................................................................................. 47!
SystemLog, SMTP and Event Commands Set ...................................................................................... 48!
SNTP Commands Set ............................................................................................................................ 50!
X-ring Commands Set ............................................................................................................................ 51!
Web-Based Management.................................................................................................. 52!
About Web-based Management................................................................................................. 52!
Preparing for Web Management.................................................................................................52!
System Login ..............................................................................................................................53!
Main interface .............................................................................................................................54!
System Information.....................................................................................................................55!
DHCP Server – System configuration .........................................................................................57!
DHCP Client – System Configuration .........................................................................................58!
DHCP Server - Port and IP Bindings ..........................................................................................58!
Page 4
4
TFTP – Firmware Update ............................................................................................................59!
TFTP – Restore Configuration.....................................................................................................59!
TFTP - Backup Configuration .....................................................................................................60!
System Event Log – Syslog Configuration .................................................................................61!
System Event Log - SMTP Configuration ...................................................................................62!
System Event Log - Event Configuration....................................................................................63!
Fault Relay Alarm ........................................................................................................................64!
SNTP Configuration ....................................................................................................................65!
IP Security...................................................................................................................................68!
User Authentication ....................................................................................................................69!
Port Statistics..............................................................................................................................70!
Port Control................................................................................................................................. 71!
Port Trunk ...................................................................................................................................72!
Aggregator setting .................................................................................................................................. 72!
Aggregator Information .......................................................................................................................... 73!
State Activity .......................................................................................................................................... 74!
Port Mirroring .............................................................................................................................. 75!
Rate Limiting ............................................................................................................................... 76!
DMI (Digital Monitoring Interface) ...............................................................................................77!
VLAN configuration .....................................................................................................................78!
VLAN configuration - Port-based VLAN ................................................................................................. 79!
802.1Q VLAN.......................................................................................................................................... 81!
Rapid Spanning Tree ..................................................................................................................84!
RSTP - System Configuration ................................................................................................................ 84!
RSTP - Port Configuration...................................................................................................................... 85!
SNMP Configuration ................................................................................................................... 87!
System Configuration ............................................................................................................................. 87!
Trap Configuration.................................................................................................................................. 88!
SNMPV3 Configuration .......................................................................................................................... 89!
Page 5
QoS Configuration ......................................................................................................................92!
QoS Policy and Priority Type ................................................................................................................. 92!
Port Base Priority ................................................................................................................................... 94!
COS Configuration ................................................................................................................................. 94!
TOS Configuration .................................................................................................................................. 94!
IGMP Configuration ....................................................................................................................95!
X-Ring .........................................................................................................................................97!
LLDP Configuration..................................................................................................................... 99!
Security .....................................................................................................................................100!
802.1X/Radius Configuration ............................................................................................................... 100!
MAC Address Table ............................................................................................................................. 103!
Factory Default..........................................................................................................................107!
Save Configuration ...................................................................................................................107!
System Reboot .........................................................................................................................107!
Help ................................................................................................................................... 108!
LED Diagnostic Indicators .............................................................................................. 108!
Page 6
Page 7
1
Overview
Introduction
To create reliability in your network, the ComNet CNGE8FX4TX4MS 4 10/100/1000T + 4 SFP
Managed Switch comes equipped with a proprietary redundant network protocol—X-Ring
provides users with an easy way to establish a redundant Ethernet network with ultra
high-speed recovery time less than 20ms. Also, the long MTBF (Mean Time Between Failures)
ensures that the switch will continue to operate until a Gigabit network infrastructure has
been established, without requiring any extra upgrade costs.
Aside from 4 x 10/100/1000Base-T fast Ethernet ports, the CNGE8FX4TX4MS comes
equipped with 4 SFP (mini-GBIC) ports. Traditional RJ45 ports can be used for uplinking
wide-band paths in short distance (< 100 m), while the SFP slots can be used for the
application of wideband uploading and long distance transmissions to fit the field request
flexibility. Also, the long MTBF (Mean Time Between Failures) ensures that the
CNGE8FX4TX4MS will continue to operate until a Gigabit network infrastructure has been
established, without requiring any extra upgrade costs.
SFP Advantages
The SFP fiber slots provide a lot of flexibility when planning and implementing a network. The
slot can accept any SFP-type fiber module and these modules are designed for transmitting
over distances of either 550m (multi-mode), 10km, 30km, 50km, 70km or 110km
(single-mode)—and the slot supports SFP modules for WDM single-fiber transmissions. This
means that you can easily change the transmission mode and distance of the switch by
simply pulling out the SFP module and plugging in a different module. The SFP modules are
hot-swappable and plug-and-play.
SFP with DMI (Digital Monitoring Interface) function
The ComNet™ SFP supports a digital monitoring interface (DMI) function that allows
real-time access to device operating parameters, and includes optional digital features such
Page 8
2
as soft control and monitoring of SFP I/O signals. In addition, you can set up the action of
alarms and warnings by ports to manage your devices.
High-Speed Transmission
The CNGE8FX4TX4MS includes a switch controller that can automatically sense transmission
speeds (10/100/1000 Mbps). The RJ45 interface can also be auto-detected, so MDI or MDI-X
is automatically selected and a crossover cable is not required. All Ethernet ports have
memory buffers that support the store-and-forward mechanism. This assures that data is
properly transmitted.
Dual Power Input
The redundant power input design of the CNGE8FX4TX4MS is with power reserve protection
to prevent the switch from being damaged by using the wrong power source. When one of
power input has failed, the P-Fail LED will turn on and send an alarm through a relay output to
notify the user.
Flexible Mounting
The CNGE8FX4TX4MS is a compact size and can be mounted on a DIN-rail or panel. It can
be used in any location where space is scarce.
Advanced Protection
The power line of the CNGE8FX4TX4MS supports up to 3,000 VDC EFT protection, which
protects the switch from unregulated voltage and provides greater reliability. This high
voltage protection feature protects all the ports and makes the CNGE8FX4TX4MS suitable for
us in harsh industrial environments
Wide Operating Temperature
The ambient operating temperature of the CNGE8FX4TX4MS is between -40oC ~ 75oC.
Page 9
3
Easy Troubleshooting
LED indicators make troubleshooting quick and easy. Each 10/100/1000 Base-TX port has 2
LEDs that display the link status and transmission speed. The three power indicators: PWR1,
PWR2 and P-Fail assist in diagnosing any problems quickly.
Page 10
4
ComNet CNGE8FX4TX4MS Features
Provides four 10/100/1000Base-T Mbps Ethernet ports
Provides four SFP (mini-GBIC) port (supports 100/1000 Mbps Dual Mode)
SFPs support DMI function
Supports full/half duplex flow control
Supports auto-negotiation
Supports MDI/MDI-X auto-crossover
Supports Packet Buffer up to 1Mb
Supports MAC Address up to 8Kb
Supports surge (EFT) protection 3,000 V
Supports 6,000 V
Ethernet ESD protection
DC
Power Supply
Wide-range Redundant Power Design
Reverse Power Polarity Protection
Current Overload Protection
Case/Installation
IP-30 Protection
DIN Rail and Wall Mount Design
Spanning Tree
Support IEEE802.1d Spanning Tree
Support IEEE802.1w Rapid Spanning Tree
VLAN
Port Based VLAN
Support 802.1 Q Tag VLAN
GVRP
X-Ring
DC
X-Ring, Dual Homing and Couple Ring Topology
Provide redundant backup feature with a recovery time below 20ms
Port Trunk with LACP
QoS (Quality of Service)
Support IEEE 802.1p Class of Service
Per port provides 4 priority queues
Port Base, Tag Base and Type of Service Priority
Page 11
5
Bandwidth Control
Ingress Packet Filter and Egress Rate Limit
Broadcast/Multicast Packet Filter Control
Port Mirror: Monitor traffic in switched networks.
TX Packet only
RX Packet only
Both of TX and RX Packet
System Event Log
System Log Server/Client
SMTP e-mail Alert
Relay Alarm Output System Events
Security
Port Security: MAC address entries/filter
IP Security: IP address security management to prevent unauthorized intruder
Login Security: IEEE802.1X/RADIUS
SNMP Trap
Device cold start
Power status
Authentication failure
X-Ring topology changed
Port Link up/Link down
IGMP with Query mode for Multi Media Application
TFTP Firmware Update and System Configure Restore and Backup
Ambient operating temperature range -40
o
C ~ 75oC
Page 12
6
Communication
Compatibility
IEEE 802.3, 802.3u, 802.3ab
IEEE 802.3x, 802.3z, 802.3ad
IEEE 802.1d, 802.1p, 802.1Q, 802.1x
IEEE 802.1ab
LAN
10/100/1000Base-T, 1000Base-X
Transmission Speed
Up to 1000 Mbps
Interface
Connectors
4 x RJ45 (4-port 10/100/1000TX)
4 x 100/1000 SFP sockets
6-pin removable screw terminal (Power & Relay)
LED Indicators
Unit: Power1, Power2, P-Fail, R-Master
Ethernet port: Link/Active, 1000M
SFP: Link/Active
Network Management
Configuration
Web browser, Telnet, Serial Console, Windows
Utility, TFTP, SNMP v1/v2c/v3, Port Speed/Duplex
Configuration
VLAN
IEEE 802.1Q, GVRP, Port-based, VLAN
Redundancy
X-Ring (Recovery time < 20ms), Dual Homing,
Couple Ring, 802.1w/d RSTP/STP
Security
IP Access security, post security, DHCP Server,
Port and IP Binding, 802.1X Port Access Control
Traffic Control
IGMP Snooping/Query for multicast group
management Port Trunking, Static/802.3ad LACP
Rate limit and storm control
IEEE 802.1p QoS Cos/TOS/DSCP priority queuing
IEEE 802.3x flow control
CNGE8FX4TX4MS Technical Specifications
Page 13
7
Diagnostics
Port Mirroring, Real-time traffic statistic, MAC
Address Table, SNTP, Syslog, E-Mail Alert,
SNMP, Trap, RMON
Power
Power Consumption
13 Watts
Power Input
2 x Unregulated +12 ~ 48 VDC
Fault Output
1 Relay Output
Mechanism
Dimensions (WxHxD)
59.6 x 152 x 105 mm
Enclosure
IP-30, Metal shell with solid mounting kits
Mounting
DIN-Rail, Wall Mount
Protection
ESD (Ethernet)
6,000 VDC
Surge (EFT for power)
3,000 VDC
Reverse Power Protection
Yes
Current Overload Protection
Yes
Environment
Operating Temperature Range
-40oC ~ 75oC
Operating Humidity Range
5% ~ 95% (non-condensing)
Storage Temperature
-40oC ~ 85oC
Storage Humidity
5% ~ 95% (non-condensing)
Certification
Safety
UL508, cUL
EMC
FCC Class A,
CE EN61000-6-2
CE EN61000-6-4
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
Page 14
8
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8 (Magnetic Field)
CE EN61000-4-11 (Voltage DIP)
CE EN61000-3-2 (Harmonics Current)
CE EN61000-3-3 (Voltage Fluctuation & Flickers)
Free Fall
IEC60068-2-32
Shock
IEC60068-2-27
Vibration
IEC60068-2-6
Attention:
IF DC voltage is supplied by an external circuit, please use
a protection device on the power supply input.
Packing List
1 x 4 10/100/1000T + 4 SFP Managed Switch
1 x RS232 Cable
1 x User Manual
2 x Wall Mounting Bracket and Screws
Safety Precaution
Page 15
9
Hardware Description
In this section, we will introduce the CNGE8FX4TX4MS’s hardware spec, port, cabling
information, and wiring installation.
Front Panel
The Front Panel of the CNGE8FX4TX4MS is shown as follows:
Front Panel of the CNGE8FX4TX4MS Managed Switch
Page 16
10
Top View
The top panel of the CNGE8FX4TX4MS is equipped with one terminal block connector for
two DC power inputs.
Top panel of the 4 10/100/1000T + 4 SFP Switch
Wiring the Power Inputs
Primary Secondary (Redundant)
Voltage Input Power Input
Insert the positive and negative wires into the V+ and V- contacts on the terminal block
connector.
Page 17
11
Note
The wire gauge for the terminal block should be in the range between 12~ 20 AWG.
Tighten the wire-clamp screws to prevent the wires from loosening.
Page 18
12
LED
Color
Description
On
The switch is the master of the X-ring group
R-Master
Green
Off
The switch is not the master of the X-ring
group
On
Power input 1 is active
PWR1
Green
Off
Power input 1 is inactive
On
Power input 2 is active
PWR2
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive or port link
down (depends on Fault Relay Alarm
configuration)
P-Fail
Red
Off
Power input 1 and 2 are both functional, or
no power inputs
On
SFP port is linking
Blinking
Transmitting or receiving data
Link/Active
(P5 ~ P8)
Green
Off
Not connected to network
On
Connected to network
Blinking
Data is being transmitted or received
P1 ~ P4
(Upper LED)
Green
Off
Not connected to network
On
Connected to network at speed of
1000Mbps
P1 ~ P4
(Lower LED)
Green
Off
Connected to network at speed of
10/100Mbps
LED Indicators
There are LEDs that display the power status and network status and are located on the front
panel of the CNGE8FX4TX4MS switch. Each has its own specific meaning as noted below.
LED indicators of the CNGE8FX4TX4MS Switch
Page 19
13
Pin Number
Assignment
1
Tx+
2
Tx-
3
Rx+
6
Rx-
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Ports
RJ45 ports (Auto MDI/MDIX): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX
or 1000Base-T device connections. Auto MDI/MDIX means that you can connect to another
switch or workstation without changing straight through or crossover cabling. See figures
below for straight-through and crossover cable schematic.
RJ45 Pin Assignments
All ports on this managed switch support automatic MDI/MDI-X operation. You can use
straight-through cables (See Figure below) for all network connections to PCs or servers, or
to other switches or hubs. In a straight-through cable, pins 1, 2, 3, and 6, at one end of the
cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The
10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs are as presented below.
Page 20
14
Cabling
Straight Through Cable Schematic
Cross Over Cable Schematic
Use the four twisted-pair, Category 5e or above cabling for all RJ45 port connections. The
length of cable between the switch and the link partner (switch, hub, workstation, etc.) must
be less than 100 meters (328 ft.) long.
The small form-factor pluggable (SFP) devices that are the compact optical transceivers used
for optical communication for both telecommunication and data communication applications.
To connect the transceiver and LC cable, please follow the steps shown:
1. Insert the SFP device into the SFP receptacle. Notice that the triangle mark is the
bottom of the module.
SFP Receptacle
Page 21
15
SFP Inserted
2. Insert the fiber cable of LC connector into the SFP.
LC connector to the SFP
To remove the LC connector from the SFP, please follow the steps shown below:
1. Press the upper side of the LC connector from the SFP and pull it out to release.
Remove LC connector
Page 22
16
2. Push down the metal loop and pull the SFP out by the plastic part.
Pull out from the SFP receptacle
Page 23
17
DIN-Rail Mounting Installation
The DIN-Rail mount is attached to the CNGE8FX4TX4MS at the factory. If the DIN-Rail is not
attached to the switch, please see the following to attach the DIN-Rail to the switch.
1. Insert the screws to attach the DIN-Rail to the switch.
2. To remove the DIN-Rail, reverse step 1.
Page 24
18
1. Insert the top of DIN-Rail into the track.
2. Lightly push the button of DIN-Rail mount into the track.
3. Check the switch is held securely on the track.
4. To remove the switch from the track, reverse the above steps.
Page 25
19
Use screws to screw the wall mount plate on the rear side
Wall Mount Plate Mounting
Follow the steps as below to mount the switch with the wall mount plate.
1. Remove the DIN-Rail from the switch; loosen the screws to remove the DIN-Rail mount.
2. Place the wall mount plate on the rear panel of the switch.
3. Use the screws to screw the wall mount plate on the switch.
4. Use the hook holes at the corners of the wall mount plate to hang the switch on the wall.
5. To remove the wall mount plate, reverse steps above.
Page 26
20
Hardware Installation
Note
Be sure the connected network devices support MDI/MDI-X. If it does not
support, then use the crossover category 5e (or above) cable.
This section describes how to install the CNGE8FX4TX4MS Switch and the installation steps.
Installation Steps
1. Unpack the switch from carton.
2. Check the DIN-Rail is screwed on the Switch. If the DIN-Rail mount is not attached to
the switch, please refer to DIN-Rail Mounting section for DIN-Rail mounting
installation. If you want to wall mount the switch, then please refer to Wall Mount Plate
Mounting section for wall mount plate installation.
3. To hang the switch on the DIN-Rail track or wall, please refer to the Mounting
Installation section.
4. Power on the switch. To wire power for the switch, please refer to the Wiring the Power
Inputs section. The power LED on the switch will illuminate. Please refer to the LED
Indicators section for the meaning of the LED lights.
5. Prepare the twisted-pair, straight-through Category 5e (or above) cable for the Ethernet
connection and SFP transceiver for the fiber connection.
6. Insert one side of Category 5e (or above) cables into the switch Ethernet port (RJ45 port)
and the other side of Category 5e (or above) cables to the network device’s Ethernet
port (RJ45 port), ex: switch, PC or Server. The UTP port (RJ45) LED on the switch will
illuminate when the cable is connected to the network device. Please refer to the LED
Indicators section for LED light meaning.
7. For the SFP (mini-GBIC) port, please refer to the Cabling segment.
8. When all connections are set and LED lights illuminate normal, the installation is
complete.
Page 27
21
X-Ring Application
The switch supports the X-Ring protocol that can help the network recover from network
connection failure within 20ms or less, and make the network system more reliable. The
X-Ring algorithm is similar to Spanning Tree Protocol (STP) and Rapid STP (RSTP) algorithm
but its recovery time is less than STP/RSTP. The figure below is a sample of X-Ring
application.
Page 28
22
Coupling Ring Application
In the network, it may be necessary to have more than one X-Ring group. By using the
coupling function it is possible to connect each X-Ring for a redundant backup. This will
ensure the transmission between two ring groups will not fail. The following figure is an
example of the coupling ring feature.
Page 29
23
Note
In Dual Homing application architecture, the upper level switches must
enable Rapid Spanning Tree protocol.
Dual Homing Application
The Dual Homing function is designed to prevent a connection loss between the X-Ring
group and an upper level/core switch. By assigning two ports on the switches as Dual
Homing ports, they will become the designated backup ports in the X-Ring group. The Dual
Homing function only works when the X-Ring function is made active. Each X-Ring group can
only have one Dual Homing port.
Page 30
24
Console Management
Connecting to the Console Port
The cable supplied with the switch has an RS232 connector on one end and the other end is
an RJ45 connector. Attach the end of the RS232 connector to a PC or terminal and the other
end of RJ45 connector to the console port of switch. The connected terminal or PC must
support the terminal emulation program.
Page 31
25
DB9
Connector
RJ45 Connector
NC
1 Orange/White
2
2 Orange
3
3 Green/White
NC
4 Blue
5
5 Blue/White
NC
6 Green
NC
7 Brown/White
NC
8 Brown
Pin Assignment
Page 32
26
Login through the Console Interface
When the switch and PC are connected, turn on the PC and run a terminal emulation program
or Hyper Terminal and configure the communication parameters to match the following
default characteristics of the console port:
Baud Rate: 9600 bps
Data Bits: 8
Parity: none
Stop Bit: 1
Flow control: None
The settings of communication parameters
After finishing the parameter settings, select ‘OK’. When the blank screen shows up, press
Enter key to bring out the login prompt. Key in the ‘admin’ (default value) for the both User
Page 33
27
name and Password (use Enter key to switch), then press Enter key and the Main Menu of
console management appears. See below figure for login screen.

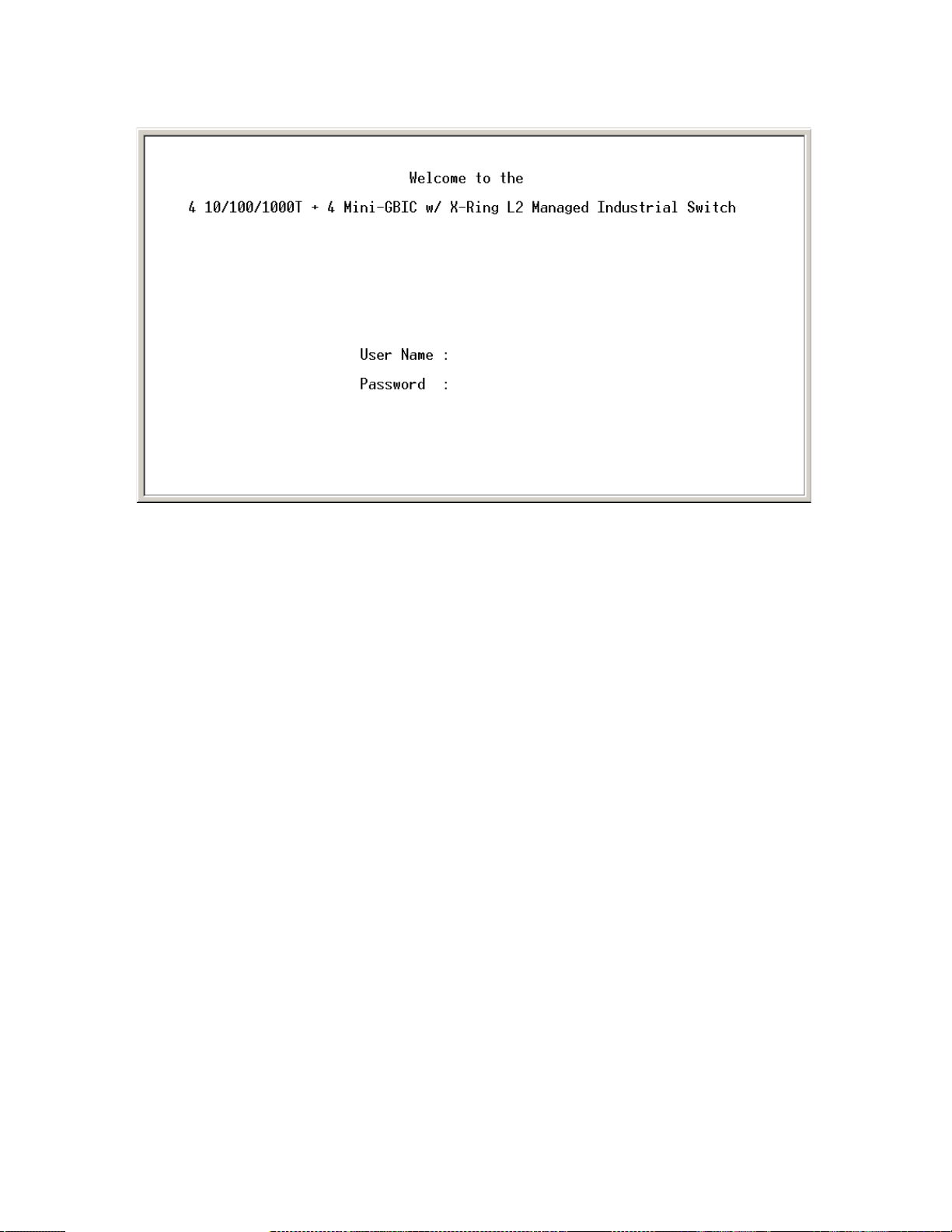

Console login interface
Page 34
28
CLI Management
The system supports the console management – CLI command. After you login to the system,
you will see a command prompt. To enter CLI management interface, type in ‘enable’
command.
CLI command interface
Page 35
29
Modes
Access
Method
Prompt
Exit Method
About This Mode1
User EXEC
Begin a
session with
your switch.
switch>
Enter logout or
quit.
The user commands available at
the user level are a subset of those
available at the privileged level.
Use this mode to
• Perform basic tests.
•Displays system information.
Privileged
EXEC
Enter the
enable
command
while in user
EXEC mode.
switch#
Enter disable to
exit.
The privileged command is
advance mode
Privileged this mode to
•Displays advance function status
• Save configures
Global
Configuration
Enter the
configure
command
while in
privileged
EXEC mode.
switch
(config)#
To exit to
privileged
EXEC mode,
enter exit or
end
Use this mode to configure
parameters that apply to your
switch as a whole.
VLAN
database
Enter the vlan
database
command
while in
privileged
EXEC mode.
switch
(vlan)#
To exit to user
EXEC mode,
enter exit.
Use this mode to configure
VLAN-specific parameters.
Interface
configuration
Enter the
interface of
fast Ethernet
command
(with a
specific
interface)
while in global
configuration
mode
switch
(config-if)
#
To exit to
global
configuration
mode, enter
exit.
To exist to
privileged
EXEC mode, or
end.
Use this mode to configure
parameters for the switch and
Ethernet ports.
Commands Level
The following table lists the CLI commands and description.
Page 36
30
System Commands Set
Command
Level
Description
Example
show config
E
Show switch
configuration
switch>show config
show terminal
P
Show console
information
switch#show terminal
write memory
P
Save user configuration
into permanent memory
(flash rom)
switch#write memory
system name
[System Name]
G
Configure system name
switch(config)#system name xxx
system location
[System Location]
G
Set switch system
location string
switch(config)#system location xxx
system description
[System Description]
G
Set switch system
description string
switch(config)#system description
xxx
system contact
[System Contact]
G
Set switch system
contact window string
switch(config)#system contact xxx
show system-info
E
Show system
information
switch>show system-info
ip address
[Ip-address]
[Subnet-mask]
[Gateway]
G
Configure the IP
address of switch
switch(config)#ip address
192.168.10.1 255.255.255.0
192.168.10.254
ip dhcp
G
Enable DHCP client
function of switch
switch(config)#ip dhcp
show ip
P
Show IP information of
switch
switch#show ip
no ip dhcp
G
Disable DHCP client
function of switch
switch(config)#no ip dhcp
reload
G
Halt and perform a cold
restart
switch(config)#reload
default
G
Restore to default
switch(config)#default
admin username
[Username]
G
Changes a login
username.
(maximum 10 words)
switch(config)#admin username
xxxxxx
admin password
[Password]
G
Specifies a password
(maximum 10 words)
switch(config)#admin password
xxxxxx
Page 37
31
show admin
P
Show administrator
information
switch#show admin
dhcpserver enable
G
Enable DHCP Server
switch(config)#dhcpserver enable
Dhcpserver disable
G
Disable DHCP Server
switch(config)#no dhcpserver
dhcpserver lowip
[Low IP]
G
Configure low IP
address for IP pool
switch(config)#dhcpserver lowip
192.168.1.100
dhcpserver highip
[High IP]
G
Configure high IP
address for IP pool
switch(config)#dhcpserver highip
192.168.1.200
dhcpserver subnetmask
[Subnet mask]
G
Configure subnet mask
for DHCP clients
switch(config)#dhcpserver
subnetmask 255.255.255.0
dhcpserver gateway
[Gateway]
G
Configure gateway for
DHCP clients
switch(config)#dhcpserver gateway
192.168.1.254
dhcpserver dnsip
[DNS IP]
G
Configure DNS IP for
DHCP clients
switch(config)#dhcpserver dnsip
192.168.1.1
dhcpserver leasetime
[Hours]
G
Configure lease time (in
hour)
switch(config)#dhcpserver leasetime
1
dhcpserver ipbinding
[IP address]
I
Set static IP for DHCP
clients by port
switch(config)#interface fastEthernet
2
switch(config-if)#dhcpserver
ipbinding 192.168.1.1
show dhcpserver
configuration
P
Show configuration of
DHCP server
switch#show dhcpserver
configuration
show dhcpserver clients
P
Show client entries of
DHCP server
switch#show dhcpserver clients
show dhcpserver
ip-binding
P
Show IP-Binding
information of DHCP
server
switch#show dhcpserver ip-binding
no dhcpserver
G
Disable DHCP server
function
switch(config)#no dhcpserver
security enable
G
Enable IP security
function
switch(config)#security enable
security http
G
Enable IP security of
HTTP server
switch(config)#security http
security telnet
G
Enable IP security of
telnet server
switch(config)#security telnet
Page 38
32
security ip
[Index(1..10)] [IP
Address]
G
Set the IP security list
switch(config)#security ip 1
192.168.1.55
show security
P
Show the information of
IP security
switch#show security
no security
G
Disable IP security
function
switch(config)#no security
no security http
G
Disable IP security of
HTTP server
switch(config)#no security http
no security telnet
G
Disable IP security of
telnet server
switch(config)#no security telnet
Command
Level
Description
Example
interface fastEthernet
[Portid]
G
Choose the port for
modification.
switch(config)#interface fastEthernet
2
duplex
[full | half]
I
Use the duplex
configuration command
to specify the duplex
mode of operation for
Fast Ethernet.
switch(config)#interface fastEthernet
2
switch(config-if)#duplex full
speed
[10|100|1000|auto]
I
Use the speed
configuration command
to specify the speed
mode of operation for
Fast Ethernet., the
speed can’t be set to
1000 if the port isn’t a
giga port.
switch(config)#interface fastEthernet
2
switch(config-if)#speed 100
no flowcontrol
I
Disable flow control of
interface
switch(config-if)#no flowcontrol
security enable
I
Enable security of
interface
switch(config)#interface fastEthernet
2
switch(config-if)#security enable
Port Commands Set
Page 39
33
no security
I
Disable security of
interface
switch(config)#interface fastEthernet
2
switch(config-if)#no security
bandwidth type all
I
Set interface ingress
limit frame type to
‘accept all frame’
switch(config)#interface fastEthernet
2
switch(config-if)#bandwidth type all
bandwidth type
broadcast-multicast-floo
ded-unicast
I
Set interface ingress
limit frame type to
‘accept broadcast,
multicast, and flooded
unicast frame’
switch(config)#interface fastEthernet
2
switch(config-if)#bandwidth type
broadcast-multicast-flooded-unicas
t
bandwidth type
broadcast-multicast
I
Set interface ingress
limit frame type to
‘accept broadcast and
multicast frame’
switch(config)#interface fastEthernet
2
switch(config-if)#bandwidth type
broadcast-multicast
bandwidth type
broadcast-only
I
Set interface ingress
limit frame type to ‘only
accept broadcast
frame’
switch(config)#interface fastEthernet
2
switch(config-if)#bandwidth type
broadcast-only
bandwidth in
[Value]
I
Set interface input
bandwidth. Rate Range
is from 100 kbps to
102400 kbps or to
256000 kbps for giga
ports,
and zero means no
limit.
switch(config)#interface fastEthernet
2
switch(config-if)#bandwidth in 100
bandwidth out
[Value]
Set interface output
bandwidth. Rate Range
is from 100 kbps to
102400 kbps or to
256000 kbps for giga
ports,
and zero means no
limit.
switch(config)#interface fastEthernet
2
switch(config-if)#bandwidth out 100
show bandwidth
I
Show interfaces
switch(config)#interface fastEthernet
Page 40
34
bandwidth control
2
switch(config-if)#show bandwidth
state
[Enable | Disable]
I
Use the state interface
configuration command
to specify the state
mode of operation for
Ethernet ports. Use the
disable form of this
command to disable the
port.
switch(config)#interface fastEthernet
2
switch(config-if)#state Disable
show interface
configuration
I
show interface
configuration status
switch(config)#interface fastEthernet
2
switch(config-if)#show interface
configuration
show interface status
I
show interface actual
status
switch(config)#interface fastEthernet
2
switch(config-if)#show interface
status
show interface
accounting
I
show interface statistic
counter
switch(config)#interface fastEthernet
2
switch(config-if)#show interface
accounting
no accounting
I
Clear interface
accounting information
switch(config)#interface fastEthernet
2
switch(config-if)#no accounting
Command
Level
Description
Example
aggregator priority
[1~65535]
G
Set port group system
priority
switch(config)#aggregator priority 22
aggregator activityport
[Group ID]
[Port Numbers]
G
Set activity port
switch(config)#aggregator
activityport 2
aggregator group
[GroupID] [Port-list]
G
Assign a trunk group
with LACP active.
switch(config)#aggregator group 1
1-4 lacp workp 2
Trunk Commands Set
Page 41
35
lacp
workp
[Workport]
[GroupID] :1~4
[Port-list]:Member port
list, This parameter
could be a port
range(ex.1-4) or a port
list separate by a
comma(ex.2, 3, 6)
[Workport]: The amount
of work ports, this value
could not be less than
zero or be large than the
amount of member
ports.
or
switch(config)#aggregator group 2
1,4,3 lacp workp 3
aggregator group
[GroupID] [Port-list]
nolacp
G
Assign a static trunk
group.
[GroupID] :1~4
[Port-list]:Member port
list, This parameter
could be a port
range(ex.1-4) or a port
list separate by a
comma(ex.2, 3, 6)
switch(config)#aggregator group 1
2-4 nolacp
or
switch(config)#aggregator group 1
3,1,2 nolacp
show aggregator
P
Show the information of
trunk group
switch#show aggregator 1
or
switch#show aggregator 2
or
switch#show aggregator 3
no aggregator lacp
[GroupID]
G
Disable the LACP
function of trunk group
switch(config)#no aggreator lacp 1
no aggregator group
[GroupID]
G
Remove a trunk group
switch(config)#no aggreator group 2
Page 42
36
DMI Commands Set
Command
Level
Description
Example
show dmi
I
Show DMI port status
(Port 5 to port 8
supports DMI fuction)
switch(config)#interface fastEthernet
5
switch(config-if)#show dmi
Command
Level
Description
Example
vlan database
P
Enter VLAN configure
mode
switch#vlan database
Vlanmode
[portbase| 802.1q |
gvrp]
V
To set switch VLAN
mode.
switch(vlan)#vlanmode portbase
or
switch(vlan)#vlanmode 802.1q
or
switch(vlan)#vlanmode gvrp
no vlan
V
No VLAN
Switch(vlan)#no vlan
Ported based VLAN configuration
vlan port-based
grpname
[Group Name]
grpid
[GroupID]
port
[PortNumbers]
V
Add new port based
VALN
switch(vlan)#vlan port-based
grpname test grpid 2 port 2-4
or
switch(vlan)#vlan port-based
grpname test grpid 2 port 2,3,4
show vlan [GroupID]
or
show vlan
V
Show VLAN information
switch(vlan)#show vlan 23
no vlan group
[GroupID]
V
Delete port base group
ID
switch(vlan)#no vlan group 2
IEEE 802.1Q VLAN
vlan 8021q name
[GroupName]
vid
[VID]
V
Change the name of
VLAN group, if the
group didn’t exist, this
command can’t be
applied.
switch(vlan)#vlan 8021q name test
vid 22
vlan 8021q port
[PortNumber]
access-link untag
[UntaggedVID]
V
Assign a access link for
VLAN by port, if the port
switch(vlan)#vlan 8021q port 3
access-link untag 33
VLAN Commands Set
Page 43
37
belong to a trunk group,
this command can’t be
applied.
vlan 8021q port
[PortNumber]
trunk-link tag
[TaggedVID List]
V
Assign a trunk link for
VLAN by port, if the port
belong to a trunk group,
this command can’t be
applied.
switch(vlan)#vlan 8021q port 3
trunk-link tag 2,3,6,99
or
switch(vlan)#vlan 8021q port 3
trunk-link tag 3-20
vlan 8021q port
[PortNumber]
hybrid-link untag
[UntaggedVID]
tag
[TaggedVID List]
V
Assign a hybrid link for
VLAN by port, if the port
belong to a trunk group,
this command can’t be
applied.
switch(vlan)#vlan 8021q port 3
hybrid-link untag 4 tag 3,6,8
or
switch(vlan)#vlan 8021q port 3
hybrid-link untag 5 tag 6-8
vlan 8021q trunk
[PortNumber]
access-link untag
[UntaggedVID]
V
Assign a access link for
VLAN by trunk group
switch(vlan)#vlan 8021q trunk 3
access-link untag 33
vlan 8021q trunk
[PortNumber]
trunk-link tag
[TaggedVID List]
V
Assign a trunk link for
VLAN by trunk group
switch(vlan)#vlan 8021q trunk 3
trunk-link tag 2,3,6,99
or
switch(vlan)#vlan 8021q trunk 3
trunk-link tag 3-20
vlan 8021q trunk
[PortNumber]
hybrid-link untag
[UntaggedVID]
tag
[TaggedVID List]
V
Assign a hybrid link for
VLAN by trunk group
switch(vlan)#vlan 8021q trunk 3
hybrid-link untag 4 tag 3,6,8
or
switch(vlan)#vlan 8021q trunk 3
hybrid-link untag 5 tag 6-8
show vlan [GroupID]
or
show vlan
V
Show VLAN information
switch(vlan)#show vlan 23
no vlan group
[GroupID]
V
Delete port base group
ID
switch(vlan)#no vlan group 2
Page 44
38
Command
Level
Description
Example
spanning-tree enable
G
Enable spanning tree
switch(config)#spanning-tree enable
spanning-tree priority
[0~61440]
G
Configure spanning tree
priority parameter
switch(config)#spanning-tree priority
32767
spanning-tree max-age
[seconds]
G
Use the spanning-tree
max-age global
configuration command
to change the interval
between messages the
spanning tree receives
from the root switch. If a
switch does not receive
a bridge protocol data
unit (BPDU) message
from the root switch
within this interval, it
recomputed the
Spanning Tree Protocol
(STP) topology.
switch(config)#spanning-tree
max-age 15
spanning-tree
hello-time [seconds]
G
Use the spanning-tree
hello-time global
configuration command
to specify the interval
between hello bridge
protocol data units
(BPDUs).
switch(config)#spanning-tree
hello-time 3
spanning-tree
forward-time [seconds]
G
Use the spanning-tree
forward-time global
configuration command
to set the
forwarding-time for the
specified spanning-tree
instances. The
forwarding time
determines how long
switch(config)#spanning-tree
forward-time 20
Spanning Tree Commands Set
Page 45
39
each of the listening
and
learning states last
before the port begins
forwarding.
stp-path-cost
[1~200000000]
I
Use the spanning-tree
cost interface
configuration command
to set the path cost for
Spanning Tree
Protocol (STP)
calculations. In the
event of a loop,
spanning tree considers
the path cost when
selecting
an interface to place
into the forwarding
state.
switch(config)#interface fastEthernet
2
switch(config-if)#stp-path-cost 20
stp-path-priority
[Port Priority]
I
Use the spanning-tree
port-priority interface
configuration command
to configure a port
priority that
is used when two
switches tie for position
as the root switch.
switch(config)#interface fastEthernet
2
switch(config-if)#stp-path-priority
128
stp-admin-p2p
[Auto|True|False]
I
Admin P2P of STP
priority on this interface.
switch(config)#interface fastEthernet
2
switch(config-if)#stp-admin-p2p Auto
stp-admin-edge
[True|False]
I
Admin Edge of STP
priority on this interface.
switch(config)#interface fastEthernet
2
switch(config-if)#stp-admin-edge
True
Page 46
40
stp-admin-non-stp
[True|False]
I
Admin NonSTP of STP
priority on this interface.
switch(config)#interface fastEthernet
2
switch(config-if)#stp-admin-non-stp
False
show spanning-tree
E
Displays a summary of
the spanning-tree
states.
switch>show spanning-tree
no spanning-tree
G
Disable spanning-tree.
switch(config)#no spanning-tree
Command
Level
Description
Example
qos policy
[weighted-fair|strict]
G
Select QOS policy
scheduling
switch(config)#qos policy
weighted-fair
qos prioritytype
[port-based|cos-only|tos
-only|cos-first|tos-first]
G
Setting of QOS priority
type
switch(config)#qos prioritytype
qos priority portbased
[Port]
[lowest|low|middle|high]
G
Configure Port-based
Priority
switch(config)#qos priority portbased
1 low
qos priority cos
[Priority][lowest|low|mid
dle|high]
G
Configure COS Priority
switch(config)#qos priority cos 0
middle
qos priority tos
[Priority][lowest|low|mid
dle|high]
G
Configure TOS Priority
switch(config)#
qos priority tos 3 high
show qos
P
Displays the information
of QoS configuration
Switch#
show qos
no qos
G
Disable QoS function
switch(config)#
no qos
QOS Commands Set
Page 47
41
Command
Level
Description
Example
igmp enable
G
Enable IGMP snooping
function
switch(config)#igmp enable
igmp query auto
G
Set IGMP query to auto
mode
switch(config)#igmp query auto
igmp query force
G
Set IGMP query to force
mode
switch(config)#igmp query force
Show igmp
configuration
P
Displays the details of
an IGMP configuration.
switch#show igmp configuration
Show igmp multi
P
Displays the details of
an IGMP snooping
entries.
switch#show igmp multi
no igmp
G
Disable IGMP snooping
function
switch(config)#no igmp
no igmp query
G
Disable IGMP query
switch#no igmp query
Command
Level
Description
Example
mac-address-table
static hwaddr
[MAC]
I
Configure MAC address
table of interface
(static).
switch(config)#interface fastEthernet
2
switch(config-if)#mac-address-table
static hwaddr 000012345678
mac-address-table filter
hwaddr
[MAC]
G
Configure MAC address
table(filter)
switch(config)#mac-address-table
filter hwaddr 000012348678
show
mac-address-table
P
Show all MAC address
table
switch#show mac-address-table
show
mac-address-table
static
P
Show static MAC
address table
switch#show mac-address-table
static
show
mac-address-table filter
P
Show filter MAC
address table.
switch#show mac-address-table
filter
no mac-address-table
static hwaddr
I
Remove an entry of
MAC address table of
switch(config)#interface fastEthernet
2
IGMP Commands Set
Mac / Filter Table Commands Set
Page 48
42
[MAC]
interface (static)
switch(config-if)#no
mac-address-table static hwaddr
000012345678
no mac-address-table
filter hwaddr
[MAC]
G
Remove an entry of
MAC address table
(filter)
switch(config)#no mac-address-table
filter hwaddr 000012348678
no mac-address-table
G
Remove dynamic entry
of MAC address table
switch(config)#no mac-address-table
Command
Level
Description
Example
snmp system-name
[System Name]
G
Set SNMP agent
system name
switch(config)#snmp system-name
l2switch
snmp system-location
[System Location]
G
Set SNMP agent
system location
switch(config)#snmp system-location
lab
snmp system-contact
[System Contact]
G
Set SNMP agent
system contact
switch(config)#snmp system-contact
where
snmp agent-mode
[v1v2c|v3|v1v2cv3]
G
Select the agent mode
of SNMP
switch(config)#snmp agent-mode
v1v2cv3
snmp
community-strings
[Community]
right
[RO/RW]
G
Add SNMP community
string.
switch(config)#snmp
community-strings public right rw
snmp-server host
[IP address]
community
[Community-string]
trap-version
[v1|v2c]
G
Configure SNMP server
host information and
community string
switch(config)#snmp-server host
192.168.1.50 community public
trap-version v1
(remove)
Switch(config)#
no snmp-server host
192.168.1.50
snmpv3 context-name
[Context Name ]
G
Configure the context
name
switch(config)#snmpv3 context-name
Test
SNMP Commands Set
Page 49
43
snmpv3 user
[User Name]
group
[Group Name]
password
[Authentication
Password] [Privacy
Password]
G
Configure the
userprofile for SNMPV3
agent. Privacy
password could be
empty.
switch(config)#snmpv3 user test01
group G1 password AuthPW PrivPW
snmpv3 access
context-name [Context
Name ]
group
[Group Name ]
security-level
[NoAuthNoPriv|AuthNoP
riv|AuthPriv]
match-rule
[Exact|Prifix]
views
[Read View Name]
[Write View Name]
[Notify View Name]
G
Configure the access
table of SNMPV3 agent
switch(config)#snmpv3 access
context-name Test group G1
security-level AuthPriv
match-rule Exact views V1 V1 V1
snmpv3 mibview view
[View Name]
type
[Excluded|Included]
sub-oid
[OID]
G
Configure the mibview
table of SNMPV3 agent
switch(config)#snmpv3 mibview view
V1 type Excluded sub-oid 1.3.6.1
show snmp
P
Show SNMP
configuration
switch#show snmp
no snmp
community-strings
[Community]
G
Remove the specified
community.
switch(config)#no snmp
community-strings public
no snmp-server host
[Host-address]
G
Remove the SNMP
server host.
switch(config)#no snmp-server
192.168.1.50
no snmpv3 user
G
Remove specified user
switch(config)#no snmpv3 user Test
Page 50
44
[User Name]
of SNMPv3 agent.
no snmpv3 access
context-name [Context
Name ]
group
[Group Name ]
security-level
[NoAuthNoPriv|AuthNoP
riv|AuthPriv]
match-rule
[Exact|Prifix]
views
[Read View Name]
[Write View Name]
[Notify View Name]
G
Remove specified
access table of
SNMPv3 agent.
switch(config)#no snmpv3 access
context-name Test group G1
security-level AuthPr
iv match-rule Exact views V1 V1 V1
no snmpv3 mibview view
[View Name]
type
[Excluded|Included]
sub-oid
[OID]
G
Remove specified
mibview table of
SNMPV3 agent.
switch(config)#no snmpv3 mibview
view V1 type Excluded sub-oid
1.3.6.1
Page 51
45
Command
Level
Description
Example
monitor rx
G
Set RX destination port
of monitor function
switch(config)#monitor rx
monitor tx
G
Set TX destination port
of monitor function
switch(config)#monitor tx
show monitor
P
Show port monitor
information
switch#show monitor
monitor
[RX|TX|Both]
I
Configure source port
of monitor function
switch(config)#interface fastEthernet
2
switch(config-if)#monitor RX
show monitor
I
Show port monitor
information
switch(config)#interface fastEthernet
2
switch(config-if)#show monitor
no monitor
I
Disable source port of
monitor function
switch(config)#interface fastEthernet
2
switch(config-if)#no monitor
Command
Level
Description
Example
8021x enable
G
Use the 802.1x global
configuration command
to enable 802.1x
protocols.
switch(config)# 8021x enable
8021x system radiusip
[IP address]
G
Use the 802.1x system
radius IP global
configuration command
to change the radius
server IP.
switch(config)# 8021x system
radiusip 192.168.1.1
8021x system serverport
[port ID]
G
Use the 802.1x system
server port global
configuration command
to change the radius
server port
switch(config)# 8021x system
serverport 1815
8021x system
G
Use the 802.1x system
switch(config)# 8021x system
Port Mirroring Commands Set
802.1x Commands Set
Page 52
46
accountport
[port ID]
account port global
configuration command
to change the
accounting port
accountport 1816
8021x system sharekey
[ID]
G
Use the 802.1x system
share key global
configuration command
to change the shared
key value.
switch(config)# 8021x system
sharekey 123456
8021x system nasid
[words]
G
Use the 802.1x system
nasid global
configuration command
to change the NAS ID
switch(config)# 8021x system nasid
test1
8021x misc quietperiod
[sec.]
G
Use the 802.1x misc
quiet period global
configuration command
to specify the quiet
period value of the
switch.
switch(config)# 8021x misc
quietperiod 10
8021x misc txperiod
[sec.]
G
Use the 802.1x misc TX
period global
configuration command
to set the TX period.
switch(config)# 8021x misc txperiod 5
8021x misc
supportimeout [sec.]
G
Use the 802.1x misc
supp timeout global
configuration command
to set the supplicant
timeout.
switch(config)# 8021x misc
supportimeout 20
8021x misc
servertimeout [sec.]
G
Use the 802.1x misc
server timeout global
configuration command
to set the server
timeout.
switch(config)#8021x misc
servertimeout 20
Page 53
47
8021x misc maxrequest
[number]
G
Use the 802.1x misc
max request global
configuration command
to set the MAX
requests.
switch(config)# 8021x misc
maxrequest 3
8021x misc
reauthperiod [sec.]
G
Use the 802.1x misc
reauth period global
configuration command
to set the reauth period.
switch(config)# 8021x misc
reauthperiod 3000
8021x portstate
[disable | reject | accept |
authorize]
I
Use the 802.1x port
state interface
configuration command
to set the state of the
selected port.
switch(config)#interface fastethernet
3
switch(config-if)#8021x portstate
accept
show 8021x
E
Displays a summary of
the 802.1x properties
and also the port sates.
switch>show 8021x
no 8021x
G
Disable 802.1x function
switch(config)#no 8021x
Command
Level
Description
Defaults Example
backup
flash:backup_cfg
G
Save configuration to
TFTP and need to specify
the IP of TFTP server and
the file name of image.
switch(config)#backup
flash:backup_cfg
restore flash:restore_cfg
G
Get configuration from
TFTP server and need to
specify the IP of TFTP
server and the file name of
image.
switch(config)#restore
flash:restore_cfg
upgrade
flash:upgrade_fw
G
Upgrade firmware by TFTP
and need to specify the IP
of TFTP server and the file
name of image.
switch(config)#upgrade
flash:upgrade_fw
TFTP Commands Set
Page 54
48
SystemLog, SMTP and Event Commands Set
Command
Level
Description
Example
systemlog ip
[IP address]
G
Set System log server
IP address.
switch(config)# systemlog ip
192.168.1.100
systemlog mode
[client|server|both]
G
Specified the log mode
switch(config)# systemlog mode both
show systemlog
E
Displays system log.
Switch>show systemlog
show systemlog
P
Show system log client
& server information
switch#show systemlog
no systemlog
G
Disable systemlog
functon
switch(config)#no systemlog
smtp enable
G
Enable SMTP function
switch(config)#smtp enable
smtp serverip
[IP address]
G
Configure SMTP server
IP
switch(config)#smtp serverip
192.168.1.5
smtp authentication
G
Enable SMTP
authentication
switch(config)#smtp authentication
smtp account
[account]
G
Configure
authentication account
switch(config)#smtp account User
smtp password
[password]
G
Configure
authentication
password
switch(config)#smtp password
smtp rcptemail
[Index] [Email address]
G
Configure Rcpt e-mail
Address
switch(config)#smtp rcptemail 1
Alert@test.com
show smtp
P
Show the information of
SMTP
switch#show smtp
no smtp
G
Disable SMTP function
switch(config)#no smtp
event device-cold-start
[Systemlog|SMTP|Both]
G
Set cold start event
type
switch(config)#event
device-cold-start both
event
authentication-failure
[Systemlog|SMTP|Both]
G
Set Authentication
failure event type
switch(config)#event
authentication-failure both
event
ring-topology-change
[Systemlog|SMTP|Both]
G
Set X-ring topology
changed event type
switch(config)#event
ring-topology-change both
Page 55
49
event systemlog
[Link-UP|Link-Down|Bot
h]
I
Set port event for
system log
switch(config)#interface fastethernet
3
switch(config-if)#event systemlog
both
event smtp
[Link-UP|Link-Down|Bot
h]
I
Set port event for SMTP
switch(config)#interface fastethernet
3
switch(config-if)#event smtp both
show event
P
Show event selection
switch#show event
no event
device-cold-start
G
Disable cold start event
type
switch(config)#no event
device-cold-start
no event
authentication-failure
G
Disable Authentication
failure event typ
switch(config)#no event
authentication-failure
no event
X-ring-topology-change
G
Disable X-ring topology
changed event type
switch(config)#no event
X-ring-topology-change
no event systemlog
I
Disable port event for
system log
switch(config)#interface fastethernet
3
switch(config-if)#no event systemlog
no event smpt
I
Disable port event for
SMTP
switch(config)#interface fastethernet
3
switch(config-if)#no event smtp
show systemlog
P
Show system log client
& server information
switch#show systemlog
Page 56
50
Command
Level
Description
Example
sntp enable
G
Enable SNTP function
switch(config)#sntp enable
sntp daylight
G
Enable daylight saving
time, if SNTP function is
inactive, this command
can’t be applied.
switch(config)#sntp daylight
sntp daylight-period
[Start time] [End time]
G
Set period of daylight
saving time, if SNTP
function is inactive, this
command can’t be
applied.
Parameter format:
[yyyymmdd-hh:mm]
switch(config)# sntp daylight-period
20060101-01:01 20060202-01-01
sntp daylight-offset
[Minute]
G
Set offset of daylight
saving time, if SNTP
function is inactive, this
command can’t be
applied.
switch(config)#sntp daylight-offset 3
sntp ip
[IP]
G
Set SNTP server IP, if
SNTP function is
inactive, this command
can’t be applied.
switch(config)#sntp ip 192.169.1.1
sntp timezone
[Timezone]
G
Set timezone index, use
‘show sntp timzezone’
command to get more
information of index
number
switch(config)#sntp timezone 22
show sntp
P
Show SNTP information
switch#show sntp
show sntp timezone
P
Show index number of
time zone list
switch#show sntp timezone
no sntp
G
Disable SNTP function
switch(config)#no sntp
no sntp daylight
G
Disable daylight saving
time
switch(config)#no sntp daylight
SNTP Commands Set
Page 57
51
Command
Leve
l
Description
Example
ring enable
G
Enable X-ring
switch(config)#ring enable
ring master
G
Enable ring master
switch(config)#ring master
ring couplering
G
Enable couple ring
switch(config)#ring couplering
ring dualhoming
G
Enable dual homing
switch(config)#ring dualhoming
ring ringport
[1st Ring Port] [2nd Ring
Port]
G
Configure 1st/2nd Ring
Port
switch(config)#ring ringport 7 8
ring couplingport
[Coupling Port]
G
Configure Coupling Port
switch(config)#ring couplingport 1
ring controlport
[Control Port]
G
Configure Control Port
switch(config)#ring controlport 2
ring homingport
[Dual Homing Port]
G
Configure Dual Homing
Port
switch(config)#ring homingport 3
show ring
P
Show the information of
X - Ring
switch#show ring
no ring
G
Disable X-ring
switch(config)#no ring
no ring master
G
Disable ring master
switch(config)# no ring master
no ring couplering
G
Disable couple ring
switch(config)# no ring couplering
no ring dualhoming
G
Disable dual homing
switch(config)# no ring dualhoming
X-ring Commands Set
Page 58
52
Web-Based Management
About Web-based Management
On CPU board of the switch there is an embedded HTML web site residing in the flash
memory. This Graphic User Interface (GUI) offers advanced management features and allows
users to manage the switch from anywhere on the network through a standard browser such
as Microsoft Internet Explorer.
The Web-Based Management supports Internet Explorer 6.0 or later version. It is applied for
Java Applets to reducing the network bandwidth requirement while enhancing access speed
and presenting an easy viewing screen.
Preparing for Web Management
Before using the web-based management interface, install the switch on the network and
make sure that any one of the PCs on the network can connect with the switch through the
web browser. The switch’s default IP address, subnet mask, username and password is
shown below:
IP Address: 192.168.10.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.10.254
User Name: admin
Password: admin
Page 59
53
System Login
1. Launch Internet Explorer on the PC
2. Enter ‘http:// and the default IP address in the browser address bar. Press Enter or
Return.
3. The login screen will appear.
4. Enter the user name and password. The default user name and password
are the same: admin
5. Press Enter or OK, and then the home screen of the Web-based management appears
as shown below:
Login screen
Page 60
54
Main interface
Main interface
Page 61
55
System Information
Assigning the system name, location and viewing the system information
System Name: Assign the name of switch. The maximum length is 64 bytes
System Description: Displays the description of switch. This is Read only and cannot
be modified
System Location: Assign the switch physical location. The maximum length is 64 bytes
System Contact: Enter the name of contact person or organization
Firmware Version: Displays the switch’s firmware version
Kernel Version: Displays the kernel software version
MAC Address: Displays the unique hardware address assigned by manufacturer
(default)
System information interface
Page 62
56
IP Configuration
To configure the IP Settings and DHCP client function
DHCP Client: When DHCP client function is enabled, the switch will be assigned an IP
address from the network DHCP server. The default IP address will be replaced by the
DHCP server assigned IP address. After the user selects Apply button, a popup dialog
box appears. This is to inform the user that when the DHCP client is enabled, the current
IP will be lost and the user should find the new IP address on the DHCP server.
IP Address: Assigning the IP address that the network is using. If the DHCP client
function is enabled, and the user does not need to assign an IP address, the network
DHCP server will assign the IP address for the switch and display it in this column. The
default IP address is 192.168.10.1.
Subnet Mask: Assigning the subnet mask of the IP address. If DHCP client function is
enabled, the user does not need to assign the subnet mask.
Gateway: Assigning the network gateway for the switch. The default gateway is
192.168.10.254.
DNS1: Assign the primary DNS IP address.
DNS2: Assign the secondary DNS IP address.
And then, select
IP configuration interface
Page 63
57
DHCP Server – System configuration
The system provides the DHCP server function to enable the DHCP server function, the
switch system will be a DHCP server.
DHCP Server: Enable – the switch will become the DHCP server on your local network.
Low IP Address: Low IP address is the beginning of the dynamic IP assignment range.
For example: dynamic IP assignment range is from 192.168.10.100 ~ 192.168.10.200. In
contrast, 192.168.10.100 is the Low IP address.
High IP Address: High IP address is the end of the dynamic IP assignment range. For
example: dynamic IP assignment range is from 192.168.10.100 ~ 192.168.10.200. In
comparison, 192.168.10.200 is the High IP address.
Subnet Mask: the dynamic IP assignment range subnet mask.
Gateway: the gateway in your network.
DNS: Domain Name Server IP Address in your network.
Lease Time (sec): It is the time period that system will reset the dynamic IP assignment
to ensure the dynamic IP will not been occupied for a long period of time or the server
does not know that the dynamic IP is idle.
And then, select
DHCP Server Configuration interface
Page 64
58
DHCP Client – System Configuration
When the DHCP server function is active, the system will collect the DHCP client information
and display it here.
DHCP Client Entries interface
DHCP Server - Port and IP Bindings
You can assign the specific IP address that is the IP address in dynamic IP address
assignment range to the specific port. When the device is connected to the port and requests
dynamic IP address assignment, the system will assign the IP address that has been
assigned previously to the connected device.
Port and IP Bindings interface
Page 65
59
TFTP – Firmware Update
It provides the functions to allow a user to update the switch’s firmware. Before updating,
make sure you have your TFTP server ready and the firmware image is on the TFTP server.
1. TFTP Server IP Address: fill in your TFTP server IP.
2. Firmware File Name: the name of firmware file.
3. Select .
Update Firmware interface
TFTP – Restore Configuration
You can restore EEPROM value from TFTP server, but you must put the file on the TFTP
server first, the switch will download back the flash image.
1. TFTP Server IP Address: Enter the TFTP server IP address.
2. Restore File Name: fill in the correct restore file name.
3. Select .
Restore Configuration interface
Page 66
60
TFTP - Backup Configuration
You can save current EEPROM value from the switch to the TFTP server. You can then go to
the TFTP restore configuration page to restore the EEPROM value.
1. TFTP Server IP Address: Enter the TFTP server IP address
2. Backup File Name: Enter the file name
3. Select .
Backup Configuration interface
Page 67
61
System Event Log – Syslog Configuration
Configuring the system event mode that can be collected and the system log server IP
address.
1. Syslog Client Mode: select the system log mode – client only, server only, or both client
and server.
2. System Log Server IP Address: assigns the system log server IP address.
3. Select to refresh the events log.
4. Select to clear all current events log.
5. After configuring, select .
Syslog Configuration interface
Page 68
62
System Event Log - SMTP Configuration
You can set up the mail server IP address, Email address accounts, account passwords, and
forwarded Email accounts for receiving the event alert.
1. Email Alert: enable or disable the Email alert function.
2. SMTP Server IP: set up the mail server IP address (when Email Alert is enabled, this
function will then be available).
3. Sender: Enter in a complete Email address, e.g. switch102@123.com, to identify where
the event log comes from.
4. Authentication: Select the check box to enable and configure the Email account and
password needed for authentication (when Email Alert enabled, this function will then
be available).
5. Mail Account: set up the Email account, e.g. johnadmin@123.com, to receive the alert.
It must be an existing Email account on the mail server, which had been set up in SMTP
Server IP Address column.
6. Password: The Email account’s required password.
7. Confirm Password: reconfirm the password.
8. Recipient Email Addresses 1 ~ 6: you can assign up to 6 Email accounts also to
receive the alert.
9. Select .
SMTP Configuration interface
Page 69
63
System Event Log - Event Configuration
You can select the system log events and SMTP events. When selected events occur, the
system will send out the event log information. Also, event per port log and SMTP events can
be selected. After configure, select .
System event selection: Four selections – 1) Device cold start, 2) Device warm start,
3) SNMP Authentication Failure, and 4) Topology change. Mark the checkbox to select
the events to be monitored. When selected events occur, the system will log the
event(s).
Device cold start: when the device executes cold start action, the system will note
a log event.
Authentication Failure: when the SMTP authentication fails, the system will note a
log event.
X-ring topology change: when the X-ring topology has changed, the system will
note a log event.
Event Configuration interface
Page 70
64
Port event selection: select the per port events and per port SMTP events. It has three
selections – 1) Link UP, 2) Link Down, and 3) Link UP & Link Down. Disable means no
event is selected.
Link UP: the system will issue a log message when port connection is up only.
Link Down: the system will issue a log message when port connection is down
only.
Link UP & Link Down: the system will issue a log message when port connection
is up and down.
Fault Relay Alarm
Power Failure: Select the check box to enable the function of lighting up FAULT LED
on the panel in the event of a power failure.
Port Link Down/Broken: Mark the check box to enable the function of lighting up
FAULT LED on the panel when Ports’ state reflect link down or link broken.
Fault Relay Alarm interface
Page 71
65
SNTP Configuration
You can configure the SNTP (Simple Network Time Protocol) settings. The SNTP allows you
to synchronize the switch’s clocks through the internet website.
1. SNTP Client: enable or disable SNTP function to get the time from the SNTP server.
2. Daylight Saving Time: enable or disable daylight savings time function. When daylight
saving time is enabling, you need to configure the daylight saving time period.
3. UTC Timezone: set the switch location time zone.
The table on the following page lists the different location time zone for your reference.
Page 72
66
Local Time Zone
Conversion from UTC
Time at 12:00 UTC
November Time Zone
- 1 hour
11am
Oscar Time Zone
-2 hours
10 am
ADT - Atlantic Daylight
-3 hours
9 am
AST - Atlantic Standard
EDT - Eastern Daylight
-4 hours
8 am
EST - Eastern Standard
CDT - Central Daylight
-5 hours
7 am
CST - Central Standard
MDT - Mountain Daylight
-6 hours
6 am
MST - Mountain Standard
PDT - Pacific Daylight
-7 hours
5 am
PST - Pacific Standard
ADT - Alaskan Daylight
-8 hours
4 am
ALA - Alaskan Standard
-9 hours
3 am
HAW - Hawaiian Standard
-10 hours
2 am
Nome, Alaska
-11 hours
1 am
CET - Central European
FWT - French Winter
MET - Middle European
MEWT - Middle European Winter
SWT - Swedish Winter
+1 hour
1 pm
EET - Eastern European, USSR Zone 1
+2 hours
2 pm
BT - Baghdad, USSR Zone 2
+3 hours
3 pm
ZP4 - USSR Zone 3
+4 hours
4 pm
ZP5 - USSR Zone 4
+5 hours
5 pm
ZP6 - USSR Zone 5
+6 hours
6 pm
WAST - West Australian Standard
+7 hours
7 pm
CCT - China Coast, USSR Zone 7
+8 hours
8 pm
JST - Japan Standard, USSR Zone 8
+9 hours
9 pm
EAST - East Australian Standard GST
Guam Standard, USSR Zone 9
+10 hours
10 pm
IDLE - International Date Line
NZST - New Zealand Standard
NZT - New Zealand
+12 hours
Midnight
Page 73
67
4. SNTP Server URL: set the SNTP server IP address.
5. Daylight Saving Period: set up the Daylight Saving beginning date and Daylight
Savings ending date. Both will be different in every year.
6. Daylight Savings Offset (mins): set the offset time.
7. Switch Timer: Displays the current switch time.
8. Select .
SNTP Configuration interface
Page 74
68
Note
Remember to execute the ‘Save Configuration’ action, otherwise the new
configuration will be lost when switch is powered off
IP Security
The IP security function allows user to assign 10 specific IP addresses that have permission
to access the switch through the web browser for the securing switch management.
IP Security Mode: when this option is in the Enable mode, the Enable HTTP Server
and Enable Telnet Server check boxes will then be available.
Enable HTTP Server: when this check box is checked, the IP addresses among
Security IP1 ~ IP10 will be allowed access via HTTP service.
Enable Telnet Server: when checked, the IP addresses among Security IP1 ~ IP10 will
be allowed to access via telnet service.
Security IP 1 ~ 10: Assign up to 10 specific IP address. Only these 10 IP address can
access and manage the switch through the Web browser
And then, select button to apply the configuration
IP Security interface
Page 75
69
User Authentication
Change the default web management login user name and password for security
management.
1. User name: Enter the new user name (The default is admin)
2. Password: Enter the new password (The default is admin)
3. Confirm password: Re-type the new password
4. And then, select
User Authentication interface
Page 76
70
Port Statistics
The following information provides current port information statistics.
Port: The port number.
Type: Displays the current connection speed of the port.
Link: The linkstatus — port is ‘Up’ or ‘Down’.
State: Set by Port Control. When the state is disabled, the port will not transmit or
receive any packet.
Tx (Transmit) Good Packet: The counts of transmitting good packets via this port.
Tx (Transmit) Bad Packet: The counts of transmitting bad packets (including undersize
[less than 64 octets], oversize, CRC Align errors, fragments and jabbers packets) via this
port.
Rx (Receive) Good Packet: The counts of receiving good packets via this port.
Rx (Receive) Bad Packet: The counts of receiving good packets (including undersize
[less than 64 octets], oversize, CRC error, fragments and jabbers) via this port.
Tx (Transmit) Abort Packet: The aborted packets lost while transmitting.
Packet Collision: The counts of packets lost through collision.
Packet Dropped: The counts of packets lost when dropped.
Rx (Receive) Bcast (Broadcast) Packet: The counts of broadcast packets.
Rx (Receive) Mcast (Multicast) Packet: The counts of multicast packets.
Select button to clear all counts.
Port Statistics interface
Page 77
71
Port Control
In Port Control, you can view the status of every port status that depends on the user setting
and the negotiation result.
1. Port: select the port that you want to configure.
2. State: Current port status. The port can be set to disable or enable mode. If the port
setting is disabled then it will not receive or transmit any packet.
3. Negotiation: set auto negotiation status of the port.
4. Speed: set the link speed of the port.
5. Duplex: set full-duplex or half-duplex mode of the port.
6. Flow Control: The flow control function is Symmetric or Asymmetric in Full Duplex
mode. The default value is Symmetric.
7. Security: When its state is On, it means this port accepts only one MAC address.
8. Select .
Port Control interface
Page 78
72
Port Trunk
The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging
information between Partner Systems on a link to allow their Link Aggregation Control
instances to reach agreement on the identity of the Link Aggregation Group to which the link
belongs. It can also move the link to that Link Aggregation Group and enable its transmission
and receive functions to occur in an orderly manner. Link aggregation lets you group up to
four consecutive ports into two dedicated connections. This feature can expand bandwidth to
a device on the network. LACP operation requires full-duplex mode, more detailed
information refers to IEEE 802.3ad.
Aggregator setting
1. System Priority: a value used to identify the active LACP. The switch with the lowest
value has the highest priority and is selected as the active LACP.
2.
Group ID: There are three trunk groups to provide configure. Choose the Group ID and
select .
3. LACP: If enabled, the group is LACP static trunk group. If disabled, the group is the local
static trunk group. All ports support LACP dynamic trunk group. If connected to the
device that also supports LACP, the LACP dynamic trunk group will be created
automatically.
4. Work ports: allows a maximum of four ports to be aggregated at the same time. With
LACP static trunk group, the exceed ports are on standby and can be aggregated if the
working ports fail. If it is part of the local static trunk group, the number of ports must be
the same as the group member ports.
5.
Select the ports to join the trunk group. Allow max four ports can be aggregated at the
same time. Select button to add the port. To remove unwanted ports, select
the port and select button.
6. If LACP enabled, you can configure LACP Active/Passive status in each of the ports on
State Activity page.
Page 79
73
7.
Select .
8.
Use button to delete the Trunk Group. Select the Group ID and select .
Port Trunk—Aggregator Setting interface
Aggregator Information
When you set the aggregator setting with LACP disabled, the local static trunk group
information will be displayedhere.
Port Trunk – Aggregator Information interface
Page 80
74
Note
1. A link having either two active LACP ports or one active port can
perform dynamic LACP trunk.
2. A link has two passive LACP ports will not perform dynamic LACP
trunk because both ports are waiting for an LACP protocol packet
from the opposite device.
3. If you are the active LACP’s aggregator, after you have selected trunk
port, the active status will be created automatically.
State Activity
When you setup the LACP aggregator, you can configure port state activity. You can select or
deselect the port. When you mark the port and select button the port state activity
will change to Active. Opposite is Passive.
Active: The port automatically sends LACP protocol packets.
Passive: The port does not automatically send LACP protocol packets, and responds
only if it receives LACP protocol packets from the opposite device.
Port Trunk – State Activity interface
Page 81
75
Port Mirroring
The Port mirroring is a method for monitoring traffic in switched networks. Traffic through the
ports can be monitored by one specific port. That means traffic that goes in or out monitored
(source) ports will be duplicated into a mirror (destination) port.
Destination Port: There is only one port can be selected to be the destination (mirror)
port for monitoring both RX and TX traffic that comes from the source port. Or, use one
of two ports for monitoring RX traffic only and the other port for TX traffic only. The user
can connect the mirror port to LAN analyzer or Netxray.
Source Port: The ports that the user wants to monitor. All monitored port traffic will be
copied to a mirror (destination) port. The user can select multiple source ports by
checking the RX or TX check boxes of the ports to be monitored.
And then, select button.
Port Trunk – Port Mirroring interface
Page 82
76
Rate Limiting
You can set up every port’s bandwidth rate and frame limitation type.
Ingress Limit Frame type: select the frame type that wants to filter. The frame types
have four options for selecting: 1) All, 2) Broadcast/Multicast/Flooded Unicast, 3)
Broadcast/Multicast and 4) Broadcast only.
Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Bbroadcast only types
are only for ingress frames. The egress rate only supports All type.
Rate Limiting interface
All the ports support port ingress and egress rate control. For example, assume port 1 is
10Mbps, users can set its effective egress rate at 1Mbps, ingress rate at 500Kbps. The
switch performs the ingress rate by packet counter to meet the specified rate.
Ingress: Enter the port effective ingress rate(The default value is ‘0’)
Egress: Enter the port effective egress rate(The default value is ‘0’)
And then, select to apply the settings
Page 83
77
DMI (Digital Monitoring Interface)
You can see the transceiver’s status by ports and set up an action when detecting the
exceptional value. The action includes the following options.
Off: The port will be shut down when detecting the exceptional value.
e-mail: The port will send an e-mail to the administrator when detecting the
exceptional value.
DMI interface
Ports 5 to 8 support the DMI function. The DMI table (above) shows five parameters and
four warning and alarm indicators. All of these warning and alarm indications are defined
and supported by SFP transceivers with the DMI function.
And then, select to apply the settings
Page 84
78
VLAN configuration
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, that
would allow you to isolate network traffic. Only the members of the VLAN will receive traffic
from the same members of VLAN. Basically, creating a VLAN from a switch is the logical
equivalent of reconnecting a group of network devices to another Layer 2 switch. However,
all the network devices are still plugged into the same switch physically.
The switch supports port-based and 802.1Q (tagged-based) VLAN. The default configuration
of VLAN operation mode is Disable.
VLAN Configuration interface
Page 85
79
VLAN configuration - Port-based VLAN
Packets can go among only members of the same VLAN group. Note all unselected ports are
treated as belonging to another single VLAN. If the port-based VLAN is enabled, the
VLAN-tagging is ignored.
In order for an end station to send packets to different VLAN groups, it has to be either
capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that
is capable of classifying and tagging the packet with different VLAN ID based on not only
default PVID but also other information about the packet, such as the protocol.
VLAN – Port Based interface
Select to imitate a new VLAN group (The maximum number of VLAN groups
available is 64).
Enter the VLAN name, group ID and the group of members in the VLAN.
Select
Page 86
80
Note
Remember to execute the ‘Save Configuration’ action, otherwise the new
configuration will be lost when switch is powered off.
VLAN—Port Based Add interface
You will see the VLAN displays.
Use button to delete an unwanted VLAN.
Use button to modify an existing VLAN group.
Page 87
81
802.1Q VLAN
A tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to
create a VLAN across devices from different switch venders. An IEEE 802.1Q VLAN uses a
technique to insert a ‘tag’ into the Ethernet frames. The tag contains a VLAN Identifier (VID)
that indicates the VLAN numbers.
You can create tag-based VLAN, and enable or disable the GVRP protocol. There are 256
VLAN groups to provide a configuration for. Enable 802.1Q VLAN, and all ports on the switch
belong to a default VLAN, VID is 1. The default VLAN cannot be deleted.
GVRP allows automatic VLAN configuration between the switch and all nodes. If the switch is
connected to a device with GVRP enabled, you can send a GVRP request using the VID of a
VLAN defined on the switch; the switch will automatically add that device to the existing
VLAN.
802.1q VLAN interface
Page 88
82
802.1Q Configuration
1. Enable GVRP Protocol: Select the check box to enable GVRP protocol.
2. Select the port that needs to be configured.
3. Link Type: there are three types of link:
Access Link: a single switch only, allows user to select group ports by setting the
same VID.
Trunk Link: extended application of Access Link, allow user to group ports by
setting the same VID on 2 or more switches.
Hybrid Link: Both Access Link and Trunk Link are available.
4. Untagged VID: assign the untagged frame VID.
5. Tagged VID: assign the tagged frame VID.
6. Select
7. You can see each port setting in the below table on the screen.
Group Configuration
Edit the existing VLAN Group.
1. Select the VLAN group in the table list.
2. Select
Page 89
83
Group Configuration interface
3. You can change the VLAN group name and VLAN ID.
4. Select .
Group Configuration interface
Page 90
84
Rapid Spanning Tree
Note
Follow the rule to configure the MAX Age, Hello Time, and Forward Delay Time.
2 x (Forward Delay Time value -1) >= Max Age value >= 2 x (Hello Time value +1)
Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and
provides for faster spanning tree convergence after a topology change. The system also
supports STP and the system will auto detect the connected device that is running STP or
RSTP protocol.
RSTP - System Configuration
User can view spanning tree information about the Root Bridge
User can modify RSTP state. After modification, select button
RSTP mode: user must enable or disable RSTP function before configuring the
related parameters
Priority (0-61440): a value used to identify the root bridge. The bridge with the
lowest value has the highest priority and is selected as the root. If the value
changes, the user must reboot the switch. The value must be multiple of 4096
according to the protocol standard rule
Max Age (6-40): the number of seconds a bridge waits without receiving a
Spanning-Tree Protocol configuration message before attempting a reconfiguration.
Enter a value between 6 through 40
Hello Time (1-10): the time that the switch controls sends out the BPDU packet to
check RSTP current status. Enter a value between 1 through 10
Forward Delay Time (4-30): the number of seconds a port waits before changing
from its Rapid Spanning-Tree Protocol learning and listening states to the
forwarding state. Enter a value between 4 through 30
Page 91
85
RSTP System Configuration interface
RSTP - Port Configuration
You can configure path cost and priority of every port.
1. Select the port in Port column.
1. Path Cost: The cost of the path to the other bridge from this transmitting bridge at the
specified port. Enter a number 1 through 200000000.
2. Priority: Decide which port should be blocked by priority in LAN. Enter a number 0
through 240. The value of priority must be the multiple of 16.
3. P2P: Some of the rapid state transactions that are possible within RSTP are dependent
upon whether the port concerned can only be connected to exactly one other bridge (i.e.
it is served by a point-to-point LAN segment), or can be connected to two or more
bridges (i.e. it is served by a shared medium LAN segment). This function allows the P2P
Page 92
86
status of the link to be manipulated administratively. True is P2P enabling. False is P2P
disabling.
4. Edge: The port directly connected to the end stations cannot create a bridging loop in
the network. To configure the port as an edge port, set the port to True status.
5. Non STP: The port includes the STP mathematic calculation. True is not including STP
mathematic calculation. False is including the STP mathematic calculation.
6. Select .
RSTP Port Configuration interface
Page 93
87
SNMP Configuration
Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes
(servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables
network administrators to manage network performance, find and solve network problems,
and plan for network growth. Network management systems learn of problems by receiving
traps or change notices from network devices implementing SNMP.
System Configuration
Community Strings
You can define a new community string set and remove unwanted community string.
1. String: Enter the name of the string.
2. RO: Read Only. Enables requests accompanied by this string to display MIB-object
information.
3. RW: Read/Write. Enables requests accompanied by this string to display MIB-object
information and to set MIB objects.
1. Select .
2. To remove the community string, select the community string that you have defined and
select . You cannot edit the name of the default community string set.
Agent Mode: Select the SNMP version that you want to use it. And then select
to switch to the selected SNMP version mode.
Page 94
88
SNMP System Configuration interface
Trap Configuration
A trap manager is a management station that receives traps – the system alerts generated by
the switch. If no trap manager is defined, no traps will be issued. Create a trap manager by
entering the IP address of the station and a community string. To define management
stations as a trap manager, enter SNMP community strings and select the SNMP version.
1. IP Address: Enter the IP address of the trap manager.
2. Community: Enter the community string.
3. Trap Version: Select the SNMP trap version type – v1 or v2c.
4. Select .
5. To remove the community string, select the community string that you have defined and
select . You cannot edit the name of the default community string set.
Page 95
89
SNMPV3 Configuration
Trap Managers interface
Configure the SNMP V3 function.
Context Table
Configure SNMP v3 context table. Assign the context name of context table. Select to
add context name. Select to remove unwanted context name.
User Profile
Configure SNMP v3 user table..
User ID: set up the user name.
Authentication Password: set up the authentication password.
Privacy Password: set up the private password.
Select to add context name.
Select to remove unwanted context name.
Page 96
90
SNMP V3 configuration interface
Group Table
Configure SNMP v3 group table.
Security Name (User ID): Assign the user name that you have set up in user table.
Group Name: Set up the group name.
Select to add context name.
Select to remove unwanted context name.
Page 97
91
Access Table
Configure SNMP v3 access table.
Context Prefix: Set up the context name.
Group Name: Set up the group.
Security Level: Set up the access level.
Context Match Rule: Select the context match rule.
Read View Name: Set up the read view.
Write View Name: Set up the write view.
Notify View Name: Set up the notify view.
Select to add context name.
Select to remove unwanted context name.
MIBview Table
Configure MIB view table.
ViewName: Set up the name.
Sub-Oid Tree: Fill the Sub OID.
Type: Select the type – exclude or included.
Select to add context name.
Select to remove unwanted context name.
Page 98
92
QoS Configuration
You can configure QoS policy and priority setting, per port priority setting, COS and TOS
setting.
QoS Policy and Priority Type
QoS Policy: select the QoS policy rule.
Use an 8,4,2,1 weighted fair queuing scheme: The switch will follow 8:4:2:1 rate
to process priority queue from highest to lowest queue. For example, when the
system processes, 1 frame of the lowest queue, 2 frames of the low queue, 4 frames
of the middle queue, and 8 frames of the high queue will be processed at the same
time in accordance with the 8,4,2,1 policy rule.
Use the strict priority scheme: The higher queue will always be processed first,
except when the higher queue is empty.
Priority Type: there are five priority type selections available. Disable means no priority
type is selected.
Port-base: the port priority will follow the Port-base that you have assigned – high,
middle, low, or lowest.
COS only: the port priority will only follow the COS priority that you have assigned.
TOS only: the port priority will only follow the TOS priority that you have assigned.
COS first: the port priority will follow the COS priority first, and then other priority
rule.
TOS first: the port priority will follow the TOS priority first, and the other priority rule.
Select .
Page 99
93
QoS Configuration interface
Page 100
94
Port Base Priority
Configure the per port priority level.
Port: each port has 4 priority levels – high, middle, low, and lowest.
Select .
COS Configuration
Set up the COS priority level.
COS priority: Set up the COS priority level 0~7 –high, middle, low, lowest.
Select .
TOS Configuration
Set up the TOS priority.
TOS priority: the system provides 0~63 TOS priority level. Each level has four types of
priority – high, middle, low, and lowest. The default value is ‘lowest’ priority for each
level. When the IP packet is received, the system will check the TOS level value in the IP
packet that has been received. For example, user set the TOS level 25 is high. The port 1
is following the TOS priority policy only. When the port 1 packet received, the system will
check the TOS value of the received IP packet. If the TOS value of received IP packet is
25(priority = high), and then the packet priority will have highest priority.
Select .
Loading...
