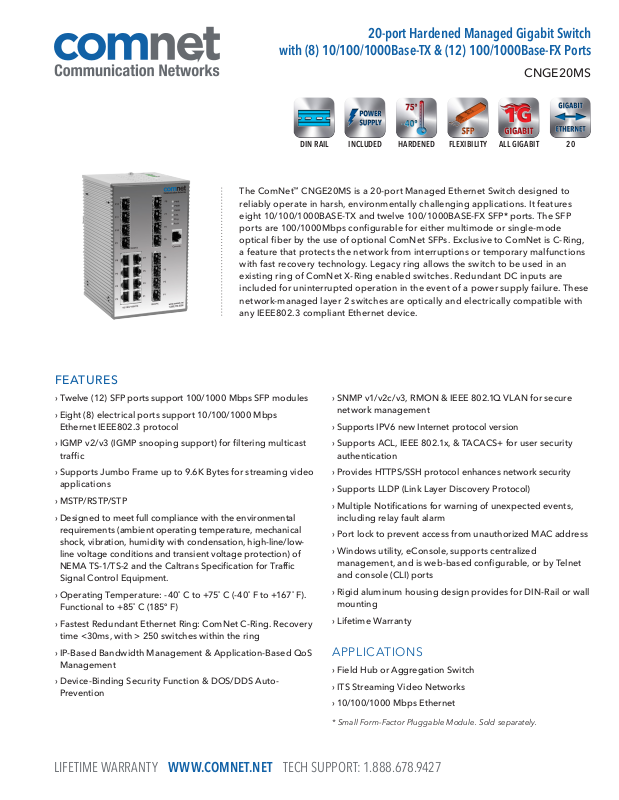

Comnet CNGE20MS Specsheet

20-port Hardened Managed Gigabit Switch

with (8) 10/100/1000Base-TX & (12) 100/1000Base-FX Ports

CNGE20MS

The ComNet™ CNGE20MS is a 20-port Managed Ethernet Switch designed to
reliably operate in harsh, environmentally challenging applications. It features
eight 10/100/1000BASE-TX and twelve 100/1000BASE-FX SFP* ports. The SFP
ports are 100/1000Mbps configurable for either multimode or single-mode
optical fiber by the use of optional ComNet SFPs. Exclusive to ComNet is C-Ring,
a feature that protects the network from interruptions or temporary malfunctions
with fast recovery technology. Legacy ring allows the switch to be used in an
existing ring of ComNet X-Ring enabled switches. Redundant DC inputs are
included for uninterrupted operation in the event of a power supply failure. These
network-managed layer 2 switches are optically and electrically compatible with
any IEEE802.3 compliant Ethernet device.

FEATURES

› Twelve (12) SFP ports support 100/1000 Mbps SFP modules

› Eight (8) electrical ports support 10/100/1000 Mbps

Ethernet IEEE802.3 protocol

› IGMP v2/v3 (IGMP snooping support) for filtering multicast

traffic

› Supports Jumbo Frame up to 9.6K Bytes for streaming video

applications

› MSTP/RSTP/STP

› Designed to meet full compliance with the environmental

requirements (ambient operating temperature, mechanical
shock, vibration, humidity with condensation, high-line/low­line voltage conditions and transient voltage protection) of
NEMA TS-1/TS-2 and the Caltrans Specification for Traffic
Signal Control Equipment.

› Operating Temperature: -40˚ C to +75˚ C (-40˚ F to +167˚ F).

Functional to +85˚ C (185º F)

› Fastest Redundant Ethernet Ring: ComNet C-Ring. Recovery

time <30ms, with > 250 switches within the ring

› IP-Based Bandwidth Management & Application-Based QoS

Management

› Device-Binding Security Function & DOS/DDS Auto-

Prevention

INCLUDEDDIN RAIL

› SNMP v1/v2c/v3, RMON & IEEE 802.1Q VLAN for secure

network management

› Supports IPV6 new Internet protocol version

› Supports ACL, IEEE 802.1x, & TACACS+ for user security

authentication

› Provides HTTPS/SSH protocol enhances network security

› Supports LLDP (Link Layer Discovery Protocol)

› Multiple Notifications for warning of unexpected events,

including relay fault alarm

› Port lock to prevent access from unauthorized MAC address

› Windows utility, eConsole, supports centralized

management, and is web-based configurable, or by Telnet
and console (CLI) ports

› Rigid aluminum housing design provides for DIN-Rail or wall

mounting

› Lifetime Warranty

HARDENED

ALL GIGABIT 20FLEXIBILIT Y

APPLICATIONS

› Field Hub or Aggregation Switch

› ITS Streaming Video Networks

› 10/100/100 0 Mbps Ethernet

* Small Form-Factor Pluggable Module. Sold separately.

LIFETIME WARRANTY WWW.COMNET.NET TECH SUPPORT: 1.888.678.9427

CNGE20MS

SPECIFICATIONS

20-port Hardened Managed Gigabit Switch

with (8) 10/100/1000Base-TX & (12) 100/1000Base-FX Ports

Ethernet Ports

SFP Ports (12) 100/1000BASE-X¹
RJ-45 Ports (8) 10/100/1000BASE-T(X), with Auto MDI/MDIX

Ethernet Standards Supported
IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)

Switch Properties

Switching Latency 7 μs
Switching Bandwidth 40 Gbps
Max. VLANs Available 256
IGMP Multicast Groups 128 for each VL AN
Port Rate Limiting User Defined
MAC Table 8000 MAC addresses available
Priority Queues 8
Processing Store-and-Forward

Security Features

Device Binding Security Feature

Enable/Disable Ports, MAC based port security
Port-Based Network Access Control: 802.1x
VLAN (802.1Q): To segregate and secure network traffic
Radius Centralized Password Management
SNMPv3 Encrypted Authentication and Access Security
HTTPS/SSH enhanced network security
TACACS+

Software Features

STP/RSTP/MSTP (IEEE 802.1D/w/s)

C-Ring Redundant Ring: Recovery time < 30ms, with over 250 units
TOS/Diffserv Supported
Quality of Service (802.1p) for Real-Time Traffic
VLAN (802.1Q) with VLAN Tagging
IGMP Snooping for Multicast Filtering
IP-Based Bandwidth Management
Application-Based QoS Management
DOS/DDOS Auto-Prevention
Port Configuration, Status, Statistics, Monitoring & Security
DHCP Server / Client support
SMTP Client
Modbus TCP

[1] Multimode fiber needs to meet or exceed fiber standard ITU-T G.651.

Single mode fiber needs to meet or exceed fiber standard ITU-T G.652

Network Redundancy

C-Ring

Com-Ring
Legacy Ring
MRP
MSTP (RSTP/STP Compatible)

Alarms & Monitoring Systems

Relay Output For fault event alarming.

Relay contacts rated at 1 A @ 24VDC

Serial Console RJ-45 Port RS-232 @ 115,200 bps 8,N,1 w/ console c able

(included)

LED Status Indicators

Power Indicators 2
R.M. Indicator Indicates switch is operating in C-Ring master mode
Ring Indicator Indicates switch is operating in C-Ring mode
Fault Indicator Indicates a fault/failure event has occurred within

the switch and/or network
RJ-45 Port Indicator For port/link activit y & data rate indication
SFP Port Indicator For port/link activity

Regulatory Approvals

EMI FCC Part 15, CISPR (EN55022) Class A
ESD EN61000-4-2
RS EN61000-4-3
EFT EN61000-4-4
Electrical Surge EN61000-4-5
CS EN61000-4-6, EN61000-4-8, EN61000-4-11
Mechanical Shoc k IEC60068 -2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safet y EN60950-1

Power

Input Power Redundant Dual DC Inputs
Operating Voltage Range 12 to 48 VDC
Power Consumption 10W, Typical
Current Protection Overload Current Protected
Polarity Protection Reverse Polarity Protected
Power Connector 6 pin Terminal Block

Electrical & Mechanical

Size 3.8 × 4.15 × 6.06 in (9.64 × 10.55 × 15.4 cm)
Shipping Weight 2.67 lbs./1.21 kg

Installation DIN Rail (35 mm Track) or Wall Mount
Environmental

MTBF >100,000 hours
Operating Temperature -40˚ C to +75˚ C, Functional to +85˚ C
Storage Temperature -40˚ C to +85˚ C (-40 to 185°F)
Relative Humidity 5% to 95% (non-condensing)

ORDERING INFORMATION

Part Number Description

CNGE20MS (8) 10/100/1000BASE-T(X) + (12) 100/1000BASE-FX SFP Ports

Included
Accessories

© 2015 Communic ation Networ ks. All Right s Reserve d. “ComNet ” and the “ComNe t Logo” are regis tered tra demarks of Comm unication Net works.

DC Plug-in Power Supply, DIN-Rail Kit, Wall Mount Kit,
Console cable, Product Suppor t CD

3 CORPORATE DRIVE

8 TURNBERRY PARK ROAD

|

DANBURY, CONNECTICUT 06810

|

GILDERSOME

|

MORLEY

|

LEEDS, UK LS27 7LE

NOTE: This product requires a fiber installation with a minimum 30
dB connec tor return loss. The use of Super Polish Connectors is
recommended. Complies with FDA Performance Standard for Laser
Products, Title 21, Code of Federal Regulations, Subchapter J. In
a continuing effort to improve and advance technology, product
specifications are subject to change without notice.

|

|

USA

T: 203.796.5300

|

F: 203.796.5303

|

T: [phone]

|

|

F: [phone]

TECH SUPPORT: 1.888.678.9427

|

[e-mail]

|

[e-mail]

09 Jan 2015
