Page 1
EN
TECHNICAL
MANUAL
Maxi door entry monitor
Art. 6801W
Passion.Technology.Design.
Page 2
2
Description ....................................................................................... 3
Soft-touch key description ......................................................................4
Soft-touch key activation ........................................................................4
Indicator LED description........................................................................4
Technical specifications ................................................................. 5
Installation ........................................................................................ 7
Mounting the 7" MAXI SBC monitor on flush-mounted box Art. 6817 .. 7
Wall-mounting (Art. 6820 - optional) .......................................................8
Connections ..................................................................................... 9
Variant: connection of call repetition device Art. 1122/A .....................9
Monitor configuration ................................................................... 10
Standard configuration for soft-touch keys ........................................10
Activation/deactivation automatic answer mode ...............................10
Configuration of Main and Secondary internal units - Dip 8 of S2 ....10
Power supply configuration and management - Dip 7 of S2 .............11
Advanced monitor configuration ..........................................................12
Warning .............................................................................................12
Programming for intercom call ..........................................................12
Programming/deleting intercom address
(selective intercom only) ............................................................12
Programming buttons for intercom call ..................................... 13
Direct programming of intercom call .........................................14
Programming keys for generic or coded actuator ............................15
Programming buttons for other functions .........................................16
Programming range ..........................................................................17
LED/alarm/lock-release/actuator programming ...............................18
Changing monitor ringtones .............................................................19
Programming reset ...........................................................................19
System performance and layouts ................................................ 19
Table of contents
Warning
Page 3
3

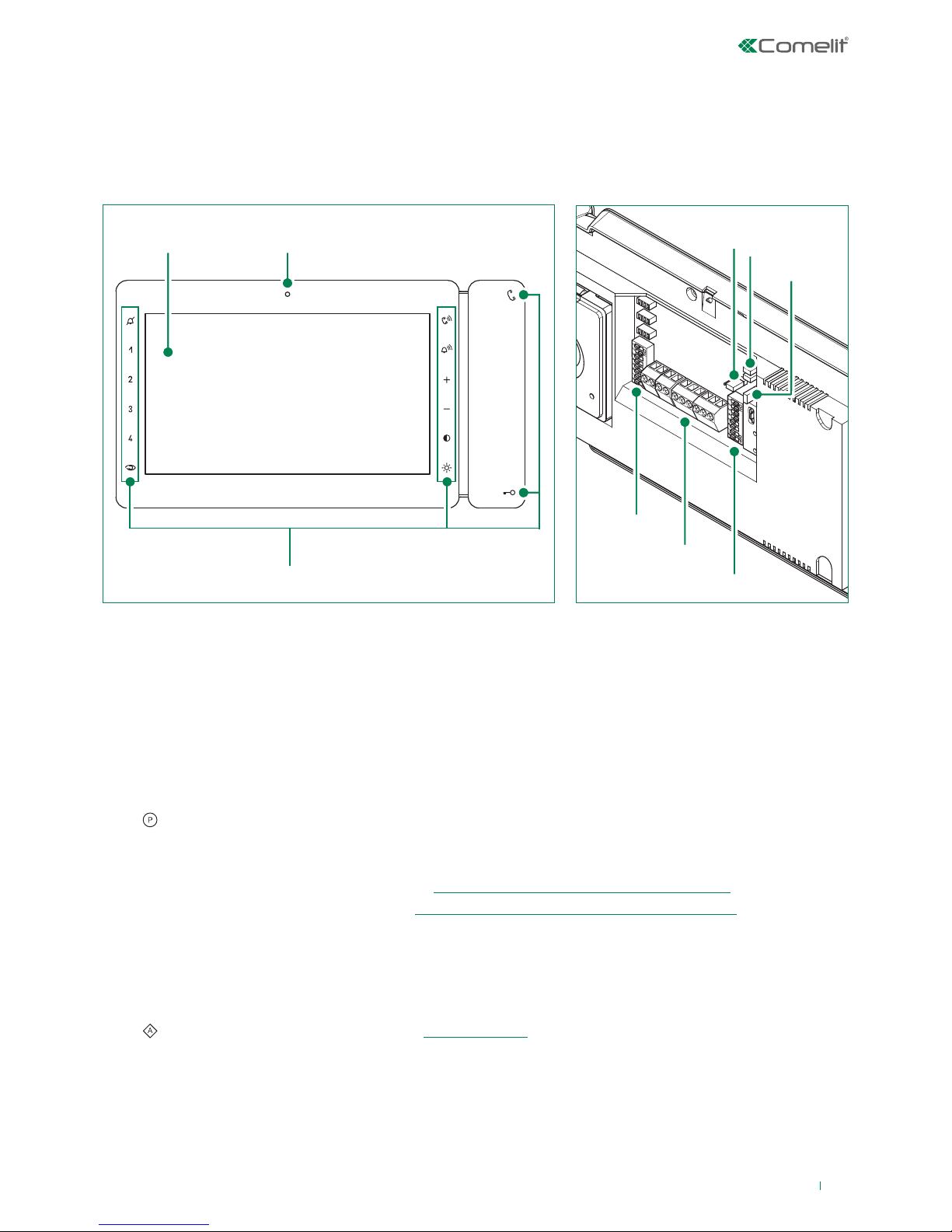

Description
1. 7” colour LCD screen
2. Microphone
3. Soft-touch keys/Led
4. CV6
position A = contact IN1-IN2 > LED (default)
position B = contact CFP2-IN1 > ALARM/LOCK-RELEASE/ACTUATOR
5. CV1 CV2 remove in case of separate power supply
6. CV5 Jumper for video closure. In systems with more than one monitor connected in cascade, only the monitor furthest
away must have CV5 closed.
7. S2
Micro-switches for programming keys and functions
DIP 1-2-3-4 for key function programming
DIP 5-6 access to programming
DIP 7 for management of power supply voltage, see “Power supply configuration and management”
DIP 8
for main and secondary monitor setting, see “Configuration of Main and Secondary internal units”
8. Terminal block for system connection:
CFP1 CFP2 Outside door call input
S+ S- Terminals for additional ringtone output
IN1 IN2 Input terminals (programmable)
- + Power supply terminals
L L Bus line connection terminals
9. S1
User code programming microswitches (see addressing table)
4
5
6
9
8
7
2
3
1
The Maxi series is comprised of hands-free monitors that can be used in “Building Kit” (exclusively 2-wire), Simplebus Top and Kit
Video systems.
• Article 6801W is a colour monitor equipped as standard with 8 function buttons and 6 adjustment buttons.
• Article 6801W/BM is a colour monitor equipped as standard with 8 buttons, 6 adjustment buttons and an induction loop.
Page 4
4

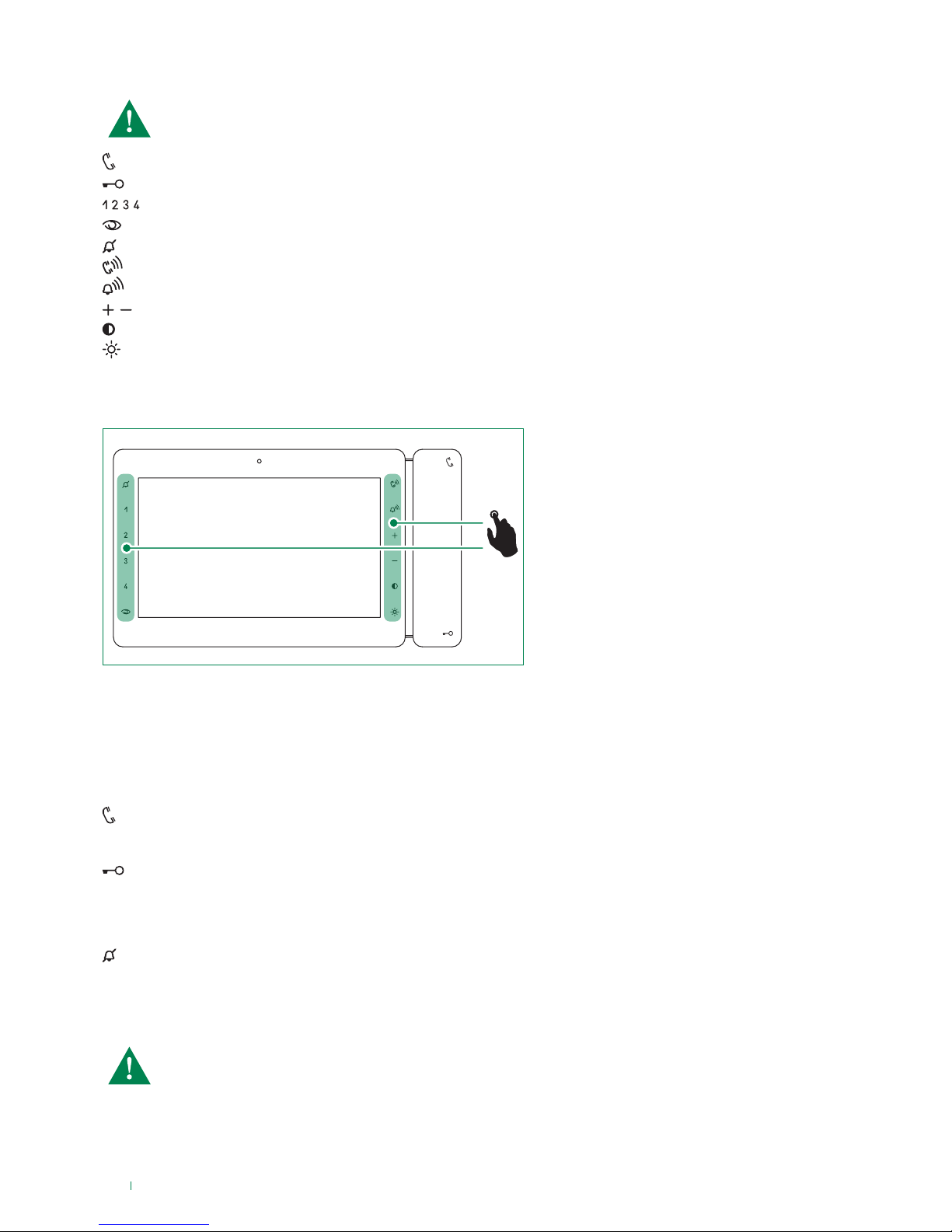

Soft-touch key activation
Indicator LED description
f Touch to activate the function keys
f Press the desired key once to activate the function associated with it
Audio LED
steady = audio enabled/hands-free function
continuous flashing = call received
Lock-release LED
1 flash = confirm lock-release
4 flashes = programming successful
10 flashes = programming error
continuous flashing = door open
Privacy LED - Doctor
4 flashes = device engaged
slow flashing = programming
3 flashes (every 5 s.) = Doctor function enabled
steady = privacy function enabled
Audio key
Lock-release key
Keys 1-2-3-4 (programmable)
Self-ignition key (programmable)
Privacy key
Audio volume key
Ringtone volume key
Value 'Up/Down' key
Contrast key
Brightness key
The monitor Art. 6801W is designed for use in colour systems, in the SB2 section downstream of Art. 4888C, or in
systems without mixer, such as the system with 2-wire KIT or Art. 1210.
Soft-touch key description
Wait for approximately 1 sec. before pressing the same key again. Pressing the same key several times in quick
succession will cancel the command.
Page 5
5
Technical specifications
MAIN SPECIFICATIONS 6801W 6801W/BM
Audio/video system Yes Yes
Flush-mounted Yes Yes
Wall-mounted Yes Yes
Desk base-mounted Yes Yes
Hands-free function Yes Yes
Induction loop function - Yes
Type of display LCD LCD
Display size (inches) 7? 16/9 7? 16/9
Display resolution (H x V) 800x480pixel 800x480pixel
B/W or colour display Color Color
Product colour White White RAL9003
Sensitive Touch technology Yes Yes
Total buttons 14 8
LED signaling 14 14
Backlighting color White White
FUNCTIONS
Actuator control function Yes Yes
Self-ignition Yes Yes
Switchboard call function Yes Yes
Intercom function Yes Yes
Call forwarding Yes Yes
Privacy function Yes Yes
Redial Yes Yes
Floor door call function Yes Yes
Electronic bell - Yes
Customisable ringtone Yes Yes
Alarm function Yes Yes
Sound diusion control Yes Yes
Receiving text messages Yes Yes
Images reception Yes Yes
HARDWARE SPECIFICATIONS
Removable terminals Yes Yes
SETTINGS
Loudspeaker volume control Yes Ye s
Microphone volume control Yes Yes
Ringtone volume control Yes Yes
Display brightness control Yes Yes
Display contrast control Yes Ye s
Display colour control Yes Yes
GENERAL INFO
Product height (mm) 124 124
Product width (mm) 223 223
Product depth (mm) 25 25
Page 6
6
TECHNICAL SPECIFICATIONS 6801W 6801W/BM
Power supply voltage 22÷28Vdc 22÷28Vdc
Maximum current absorption (mA) 400 -
Power consumption stand-by (mA) 36 36
In called absorption (mA) 310 310
In communication absorption (mA) 400 400
Microphone 5mm omni-direction 5mm omni-direction
Loudspeaker 80mm 80Ohm 1W 80mm 80Ohm 1W
IP Rating 30 30
Operating temperature (°C) -5÷40 -5÷40
Relative humidity for operation 25 - 75 % 25 - 75 %
Video encoding MPEG MPEG
Product weight (g) 0,7 0,7
Clamps CFP1 CFP2 IN1 IN2 S+ S- CFP1 CFP2 IN1 IN2 S+ S-
Page 7
7
Installation

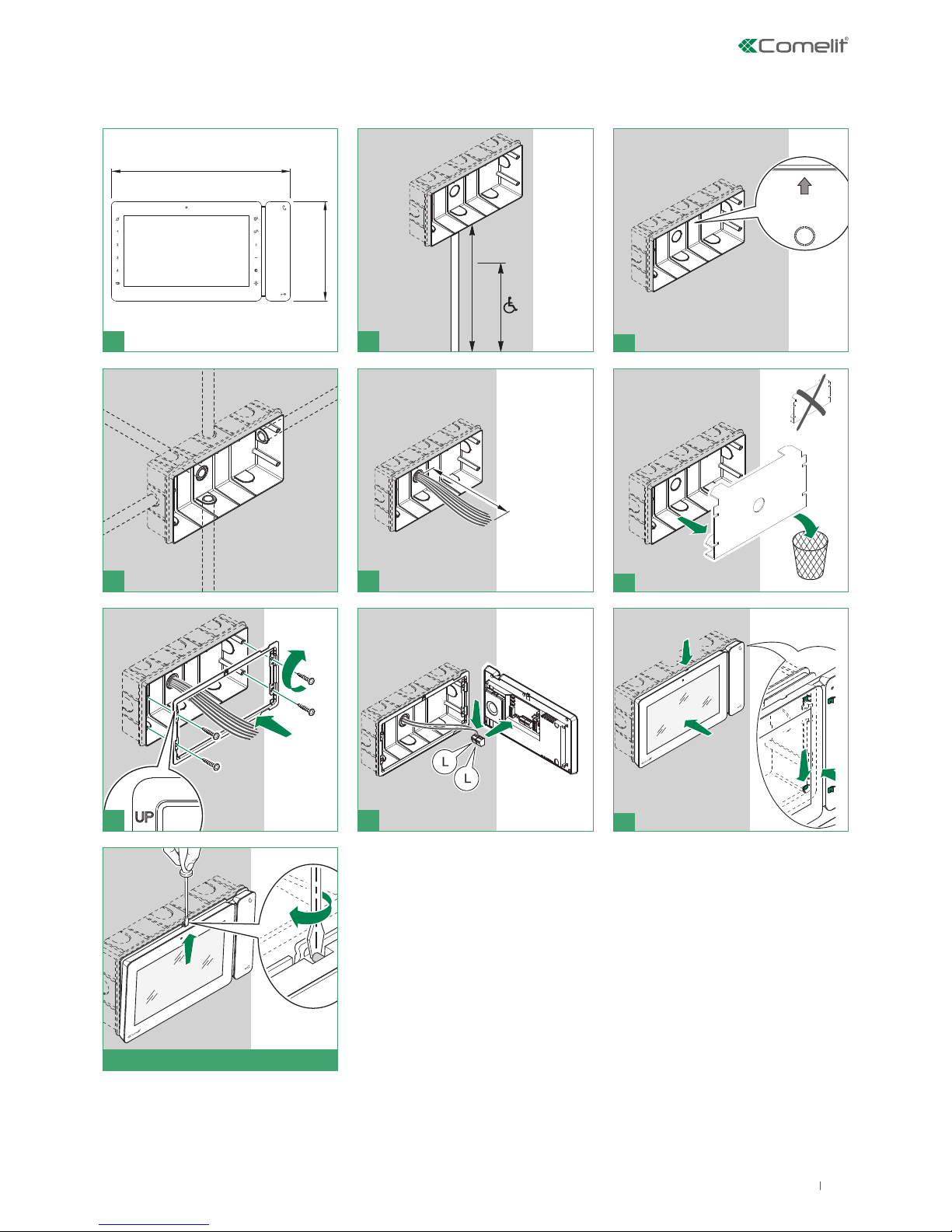

Mounting the 7" MAXI SBC monitor on flush-mounted box Art. 6817
ALTO
UP
HAUT
OBEN
3
160 cm
130 cm
2
223 mm
124 mm
1
6
L
max
= 10 cm
L
min
= 6 cm
5
3
1
5
7
9
4
2
6
8
4
2
1
CLACK !
2
9
1
2
8
1
2
7
1
2
DISASSEMBLY
Page 8
8

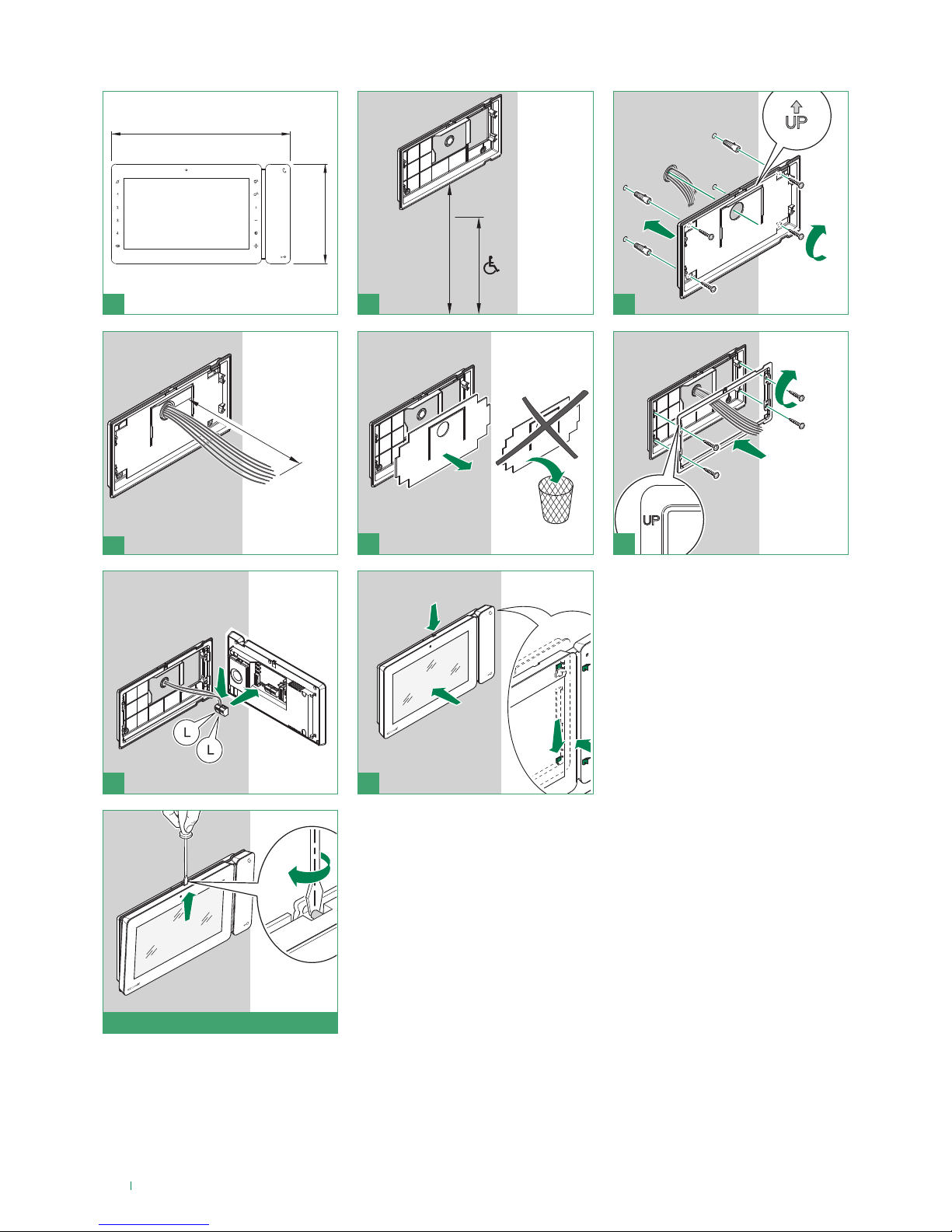

Wall-mounting (Art. 6820 - optional)
L
max
= 7 cm
L
min
= 6,5 cm
4
1
2
2
1
65
1
2
DISASSEMBLY
1
2
2
1
CLACK !
2
87
1
2
160 cm
130 cm
2 3
223 mm
124 mm
1
Page 9
9

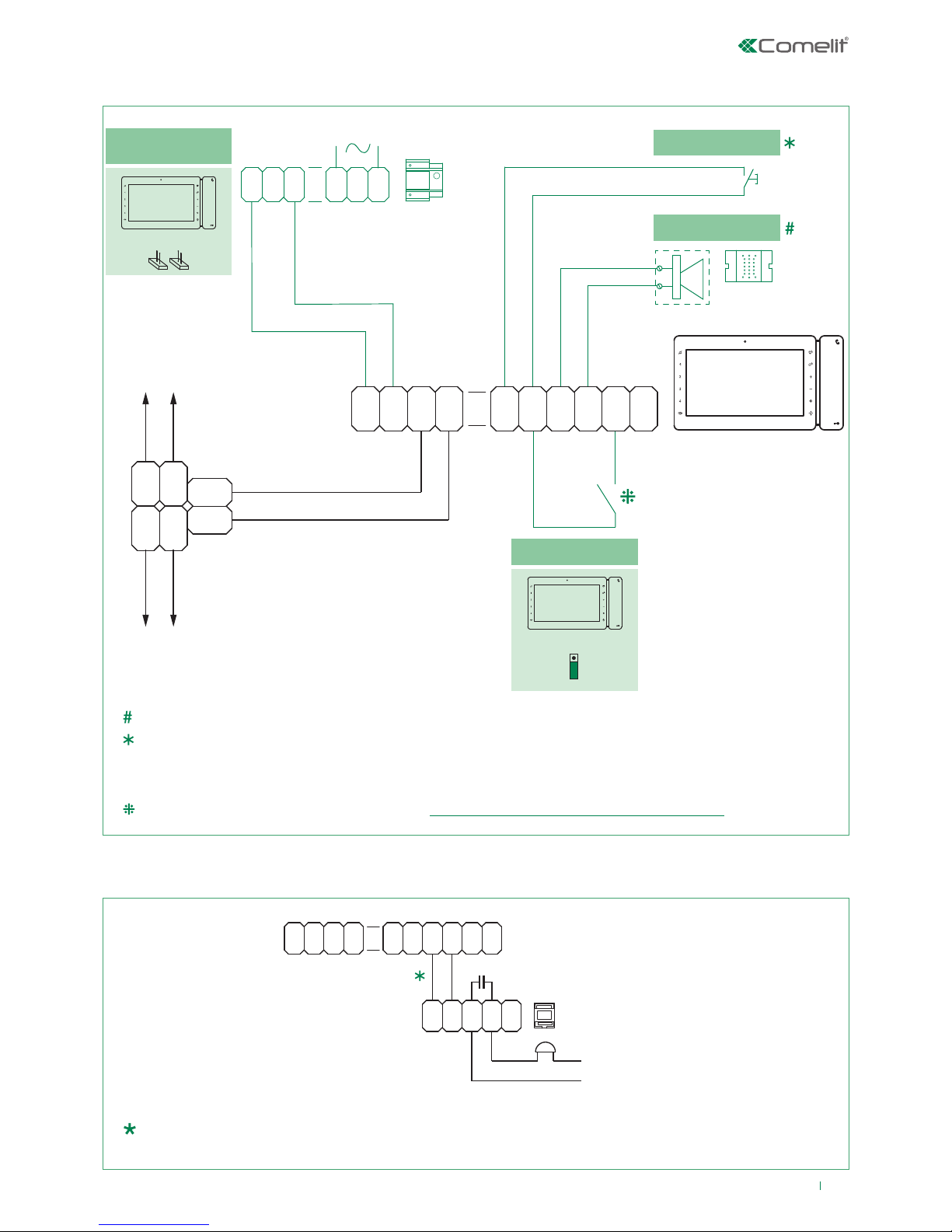

Connections
1212/B
0
2
0
0
3
2
0
ADDITIONAL POWER
SUPPLY (IF NECESSARY)
6801W
1214/2C
VIDEO ENTRY
SYSTEM RISER
VIDEO ENTRY
SYSTEM RISER
+
-
1
P
F
C
2
P
F
C
1
IN IN
2
+
S
-
S
FLOOR DOOR CALL
ADDITIONAL RINGER
1229
CV1CV2
LM
LM
OUT
L
INLIN
L
OUT
L
PROGRAMMABLE INPUT
CV6
A
B
LL
20 m MAX - Connect only one call repetition device for each user code.
20 m MAX - Use shielded cable for the connection and do not route the cables in the vicinity of heavy inductive loads
or power supply cables (230V/400V).
Where multiple door-entry phones or monitor backplates have the same user code, connect the CFP button on one
only; all the devices will ring simultaneously.
For the programming procedure, see paragraph: LED/alarm/lock-release/actuator programming.
12/24V
AC/DC
1122/A
(12V)
C
NON
C
-
+
+
-
1
P
F
C
2
P
F
C
1
IN IN
2
+
S
-
S
LL
20 m MAX - Connect only one call repetition device for each user code. If inductive loads are connected, the
connection of 470nF capacitance in parallel with the C-NO contacts of Art. 1122/A is advisable.
Variant: connection of call repetition device Art. 1122/A
Page 10
10

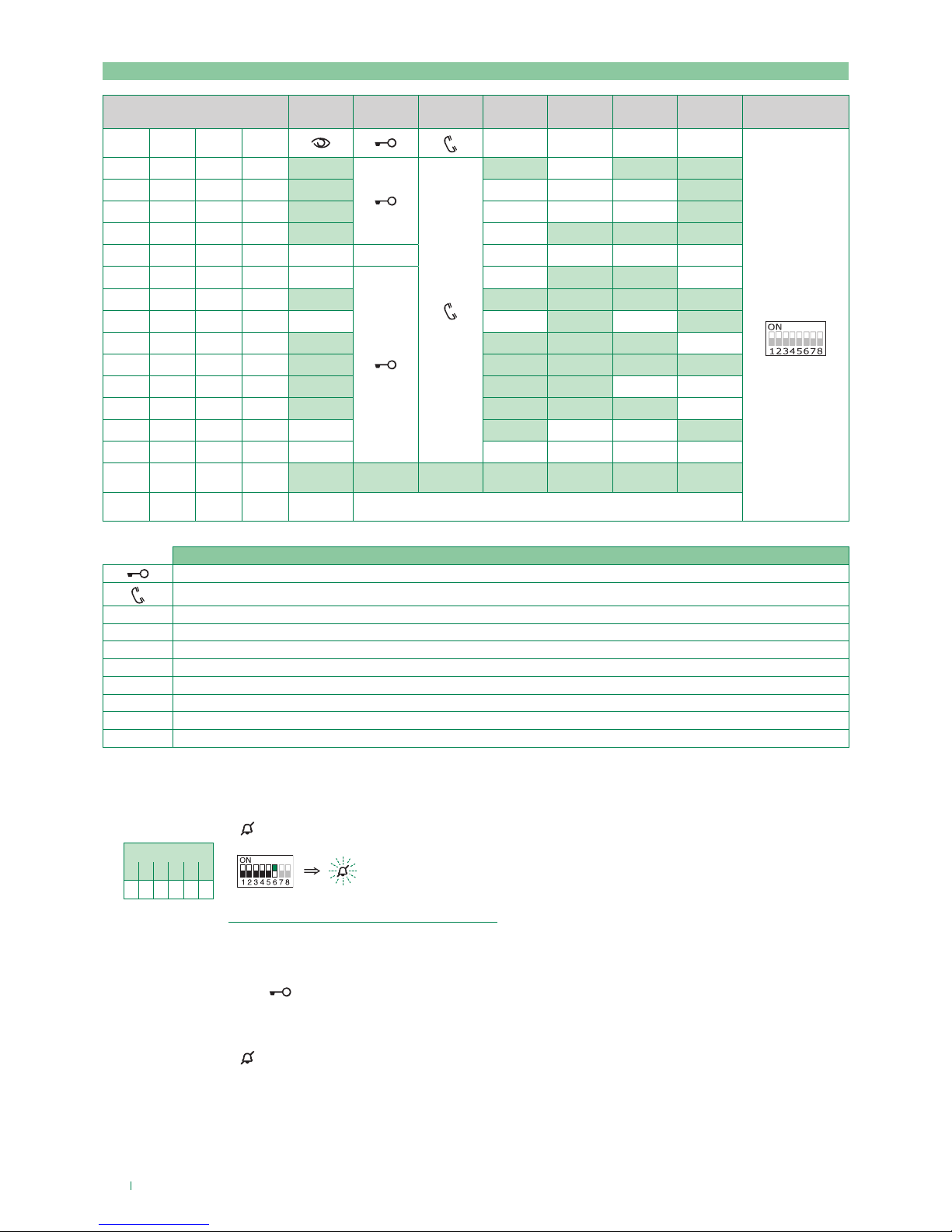

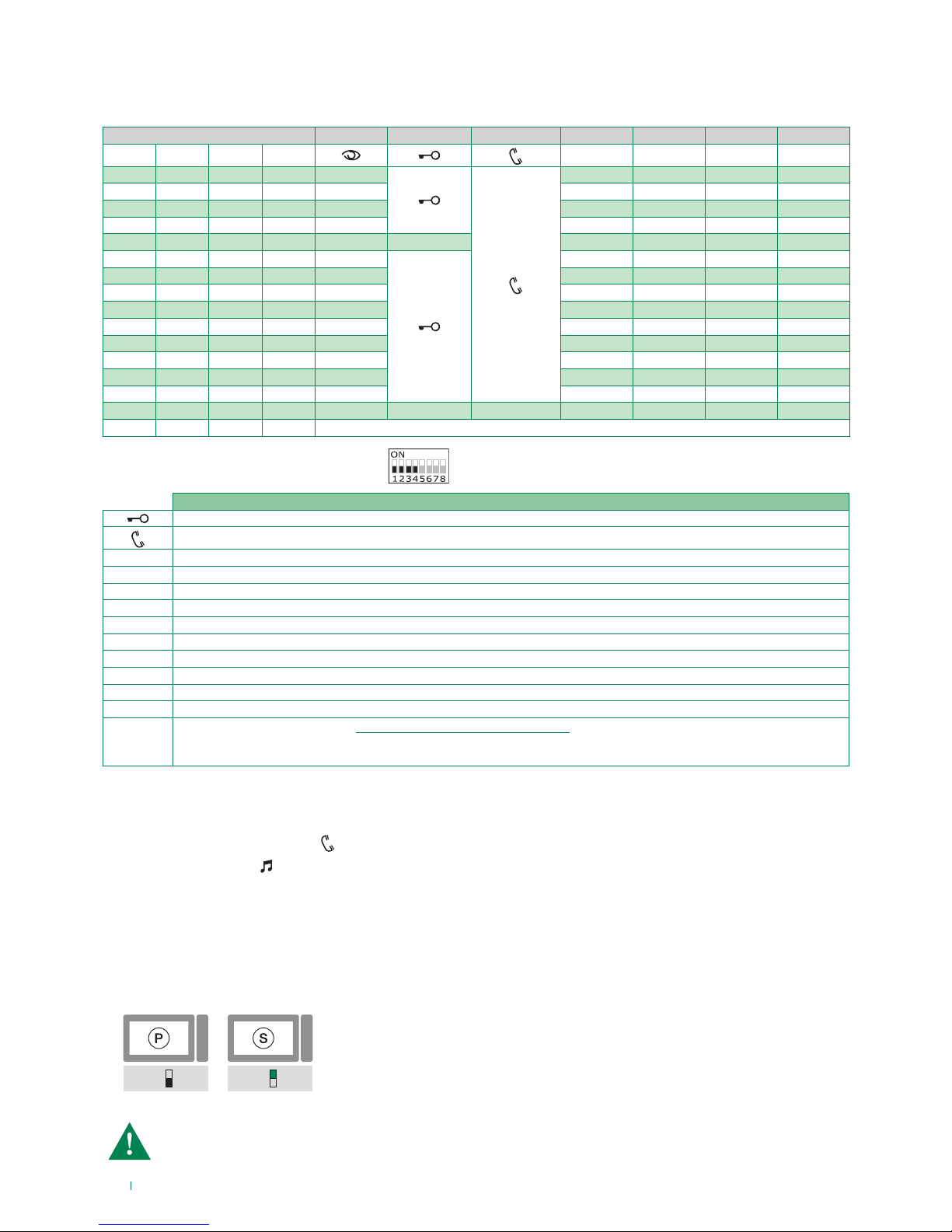

Standard configuration for soft-touch keys
Configuration of Main and Secondary internal units - Dip 8 of S2
f To configure an internal unit as the main unit, set DIP8 of S2 to OFF.
f To configure an internal unit as a secondary unit, set DIP8 of S2 to ON.
OFF
DIP 8
(S2)
ON
DIP 8
(S2)
In systems with Art. 1209 or Art. 1210, you can configure a maximum of 1 main monitor (+ 3 separately powered)
while in systems with Art. 4888C you can configure a maximum of 2 main monitors (+ 2 separately powered).
Standard configuration for DIP switches 1-2-3-4
Monitor configuration
Activation/deactivation automatic answer mode
f Press on the audio activation key for 4sec
» (ACTIVATION)
+ audio LED with FIXED ILLUMINATION
» (DEACTIVATION) BEEP + audio LED OFF
Legend
Lock- release
Audio
ACT Actuator
AI Self-ignition
CCP Main switchboard call – not for use in systems with KIT
CCS Secondary switchboard call – not for use in systems with KIT
K Guardian doorentry phone call
D Doctor
PAN Panic – not for use in systems with KIT
INT General or selective programmable intercom - general internal call as standard for KIT and Simplebus Top
INTb Two-family intercom - for KIT only
NULL No function
PROG
Programmed functions, see "Advanced monitor configuration".
In this Dip switch setting, the buttons control the programmed functions; the NON-programmed buttons
control functions referred to on line 0000 (default).
DIP S2
DIP 1 DIP 2 DIP 3 DIP 4
P1 P2 P3 P4
0 0 0 0 AI
CCS ACT D PAN
1 0 0 0 AI ACT INT INTb D
0 1 0 0 AI INT INTb ACT CCS
1 1 0 0 CCS ACT CCP PAN K
0 0 1 0 ACT ACT ACT ACT ACT ACT
1 0 1 0 ACT
INT CCS CCP INTb
0 1 1 0 D AI K CCS CCP
1 1 1 0 INT INTb AI INT PAN
0 0 0 1 PAN CCS D AI INT
1 0 0 1 CCS K PAN CCP AI
0 1 0 1 K CCP PAN ACT INT
1 1 0 1 CCP PAN CCS K ACT
0 0 1 1 INTb D INT ACT AI
1 0 1 1 INT INT INT INT INT
0 1 1 1 NULL NULL NULL NULL NULL NULL NULL
1 1 1 1 PROG
Page 11
11

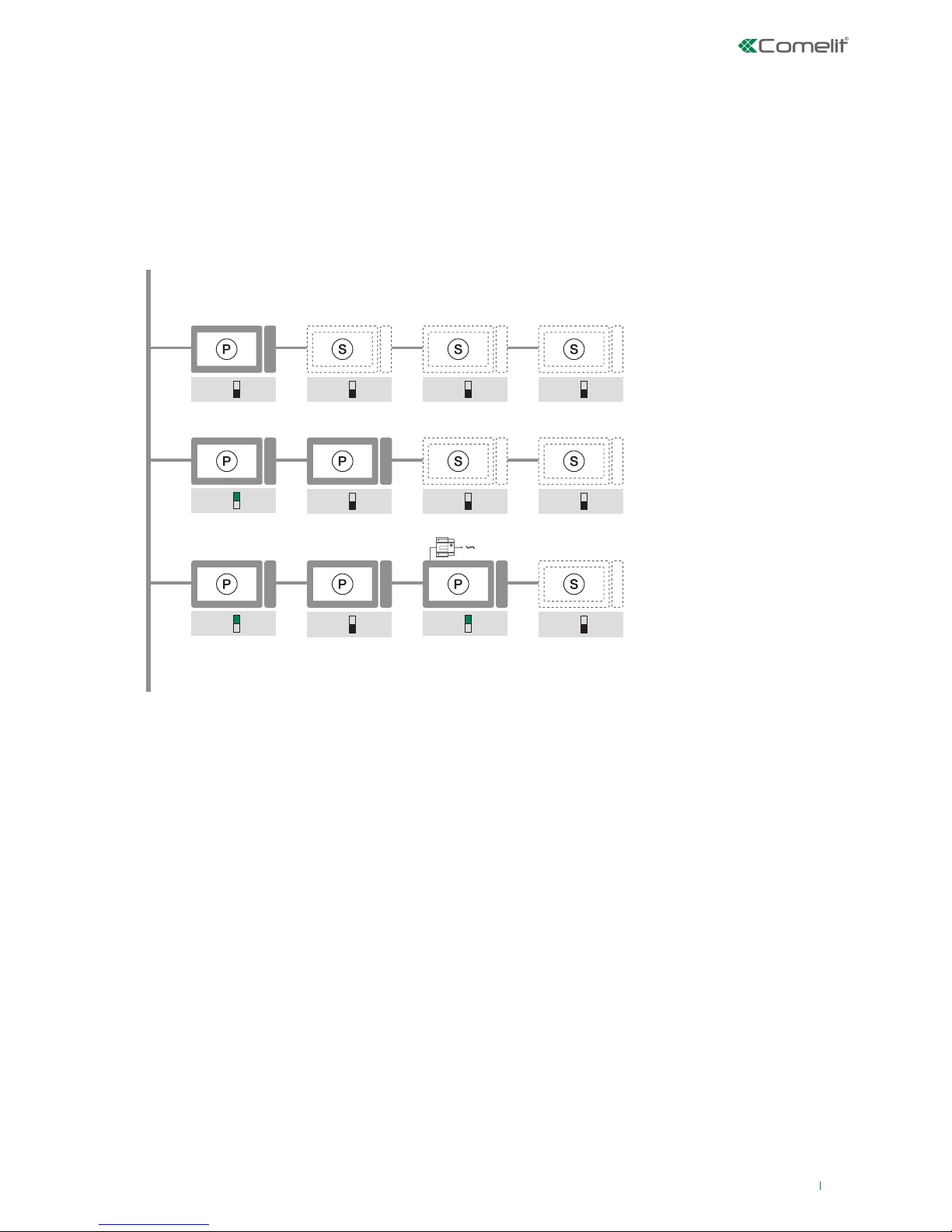

Power supply configuration and management - Dip 7 of S2
f For correct power management, the DIP switch should be set in accordance with the type of system and its configuration:
• in systems with power supply units 1209 and1210: always set the DIP switch to ON
• in systems with power supply unit 4888C: for secondary internal units, always set the DIP switch to OFF, for main
internal units, follow the indications given in the examples in the figure below:
A. 1 main internal unit,
B. 2 main internal units,
C. 3 main internal units of which 1 is powered separately.
OFF
DIP 7
(S2)
ON
DIP 7
(S2)
OFF
DIP 7
(S2)
OFF
DIP 7
(S2)
A
B
C
4888C
OFF
DIP 7
(S2)
OFF
DIP 7
(S2)
OFF
DIP 7
(S2)
OFF
DIP 7
(S2)
OFF
DIP 7
(S2)
ON
DIP 7
(S2)
OFF
DIP 7
(S2)
ON
DIP 7
(S2)
Page 12
12

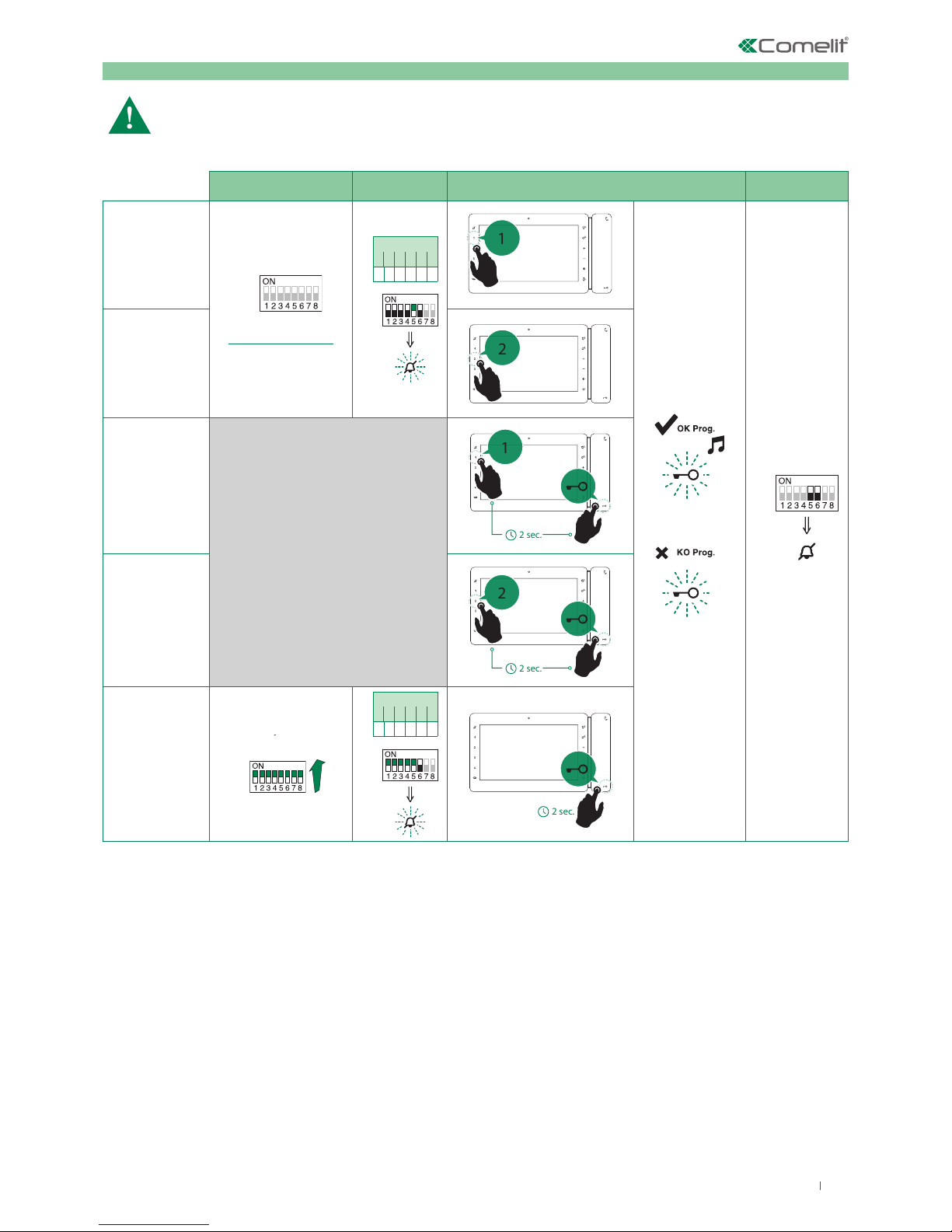

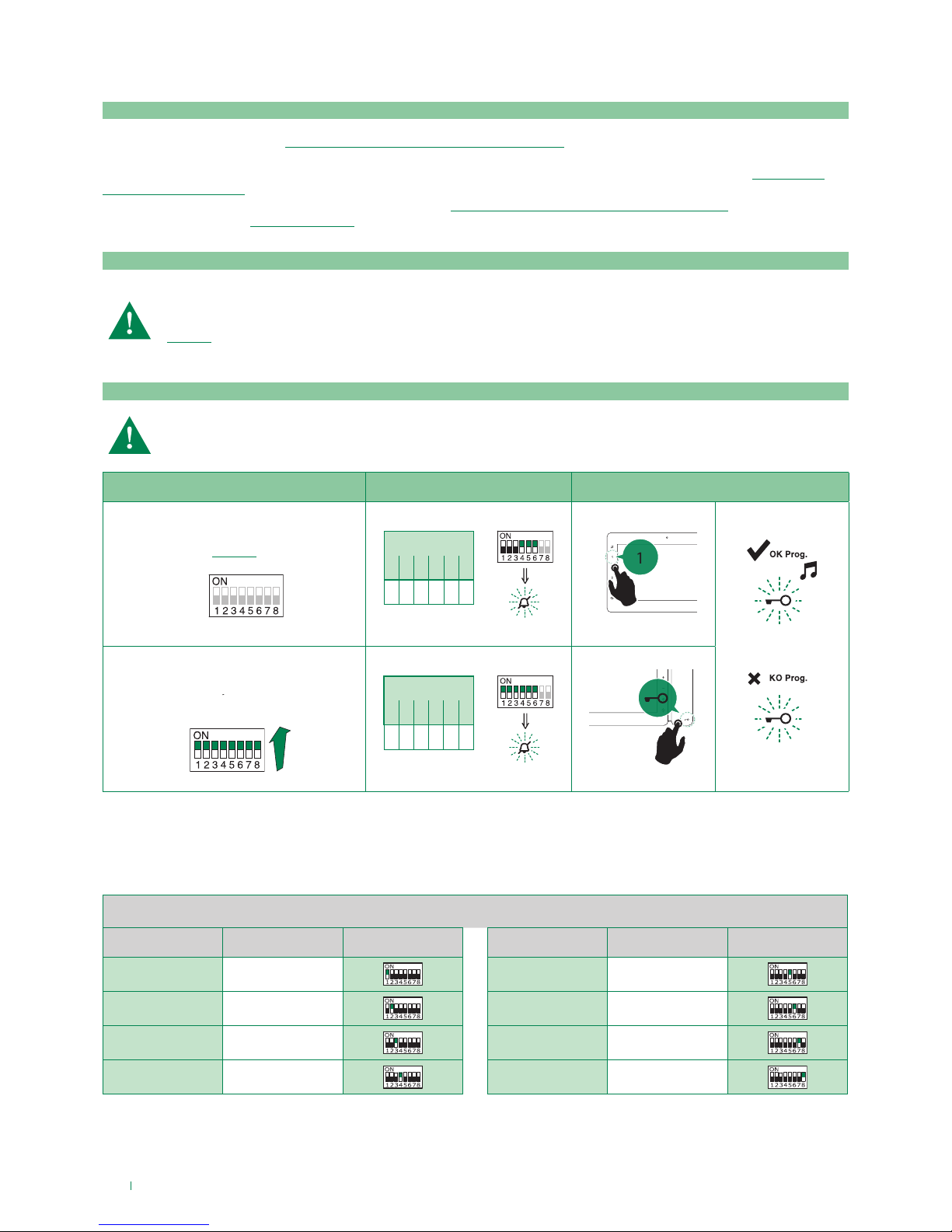

Advanced monitor configuration
TAB. B
Code Dip switch ON S1 Code Dip switch ON S1
1 1
5 5
2 2 6 6
3 3 7 7
4 4 8 8
1) 2) 3)
Programming; set code,
table B
S1
S2 DIP
1 2 3 4 5 6
0 0 0 1 1 1
S2
1
x4
x10
Cancellation
DIP OFF
DIP ON
S1
S2 DIP
1 2 3 4 5 6
1 1 1 1 1 1
S2
If the default settings (see table “Standard configuration for soft-touch keys”) do not reflect requirements, the keys can be
programmed dierently by carrying out the steps below.
At the end, set S2 DIP switches 1-2-3-4 to the combination 1111 (PROG setting in the configuration tables "Advanced
monitor configuration"). In this dip switch setting, the keys control the programmed functions; the NON-programmed
keys control functions referred to on line 0000 (see table “Standard configuration for soft-touch keys”. Restore the user
code setting on S1, see addressing table.
Warning
Programming/deleting intercom address (selective intercom only)
Programming for intercom call
General intercom: function allowing calls to one or more internal units identified by the same call address as used
by the external unit.
Selective intercom: function allowing calls to one or more internal units identified by a dedicated call address (see
table B) which is different from the one used by the external unit.
General and selective intercoms CANNOT be used together on the same riser.
Take note of the S2, S1 setting and restore it when programming is complete
Selective intercom addresses
You must set the intercom address on all the riser’s internal units.
You can assign the same intercom address to a maximum of 3 internal units.
For group calls, select the desired intercom codes simultaneously (max. 3).
Page 13
13

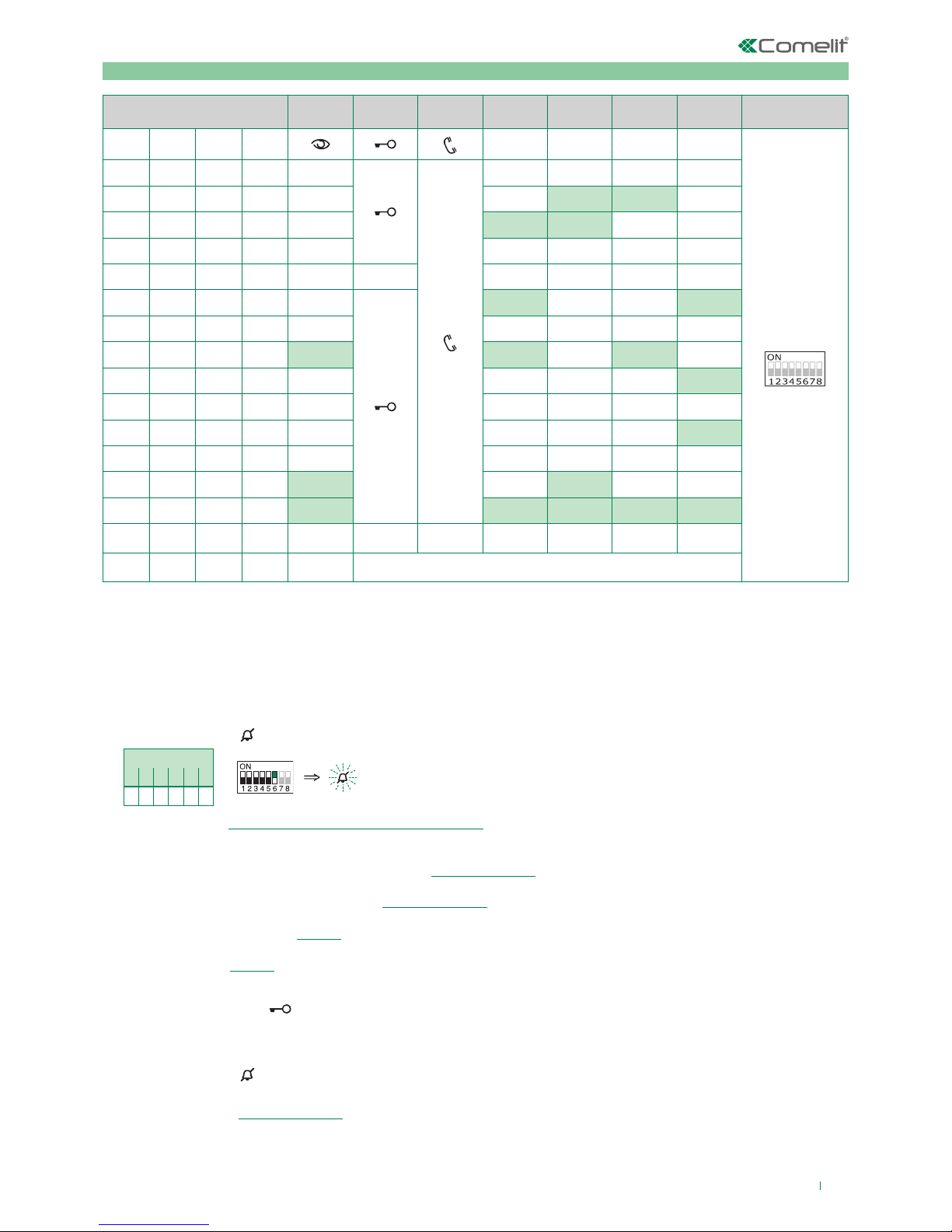

Programming buttons for intercom call
Example 1 - all systems (INCLUDING KITS!) - General intercom
on a monitor with user code 5, P2 programming = general internal call, P3 = general intercom with address 9
Example 2 - Selective intercom
on a monitor with user code 1 and intercom address 1, P2 programming = selective intercom with address 2, P3 = selective
intercom with address 3
1. Set S2 DIP switches 6 to the combination 1.
» the privacy LED
flashes.
S2 DIP
1 2 3 4 5 6
0 0 0 0 0 1
S2
2. Refer to the table “Programming buttons for intercom call” and select a combination in which the intercom function
(either INT or INTb) is listed for the buttons you wish to program.
EXAMPLE 1: for P2= general internal call, set S2 DIP switches 1-2-3-4 to the combination 1000 or 0011 or 1011 (P2=INT)
or 0100 (P2=INTb) and set S1 with address 5 as per addressing table, then go to point 3
EXAMPLE 1: for P3= general intercom, set S2 DIP switches 1-2-3-4 to the combination 1110 or 1011 (P3=INT) or 1000
(P3=INTb) and set S1 with address 9 as per addressing table, then go to point 3
EXAMPLE 2: for P2= selective intercom, set S2 DIP switches 1-2-3-4 to the combination 1000 or 0011 or 1011 (P2=INT)
and set S1 with address 2 as table B, then go to point 3
EXAMPLE 2: for P3= selective intercom, set S2 DIP switches 1-2-3-4 to the combination 1110 or 1011 (P3=INT) and set S1
with address 3 as table B, then go to point 3.
3. Press and release the key to be associated with the function
» the lock-release LED
flashes 4 times.
» a confirmation tone will sound.
4. To exit programming mode, set S2 DIP switches 5-6 to the combination 00
» the privacy LED
switches o
5. When programming is complete, set S2 DIP switches 1-2-3-4 to the combination 1111. Restore the user code
setting on S1, see addressing table.
DIP S2 DIP S1
DIP 1 DIP 2 DIP 3 DIP 4
P1 P2 P3 P4
ADDRESS
0 0 0 0
1 0 0 0 INT INTb
0 1 0 0 INT INTb
1 1 0 0
0 0 1 0
1 0 1 0
INT INTb
0 1 1 0
1 1 1 0 INT INTb INT
0 0 0 1 INT
1 0 0 1
0 1 0 1 INT
1 1 0 1
0 0 1 1 INTb INT
1 0 1 1 INT INT INT INT INT
0 1 1 1
1 1 1 1 PROG
Page 14
14
Direct programming of intercom call
NOTE If a call is received during programming, it must be answered and the programming procedure resumed
afterwards.
Allows direct programming of intercom call via the internal units.
√ Requires 2 operators
Step 1: enter programming mode
Operator 1 and Operator 2 carry out the following procedures on 2 internal units:
1. Set S2 DIP switches 1-2 -3-4 to the combination 1111
2. Press the Key
and Self-ignition button for 2 seconds.
» The internal unit emits 1 tone.
» The privacy LED
flashes.
» The audio button LED lights up.
» The internal unit enters audio mode.
» At this point the 2 operators will be communicating with each other.
Step 2: intercom call programming
Operator 1:
f Press the key you want to program to call operator 2 (e.g. 2).
» The internal unit manned by operator 1 emits a confirmation tone.
Operator 2:
f Press the key you want to program to call operator 1 (e.g. 1).
» The internal unit manned by operator 2 emits a confirmation tone.
Operator 1/ Operator 2:
f Press the audio key
.
» The audio button LED
goes OFF.
» Programming of the 2 internal units is now complete.
To program another internal unit, move on to STEP 3.
Step 3: programming other internal units
Operator 1/ Operator 2:
1. Once the new station has been reached, carry out step 1 to begin communication
2. Repeat step 2
Page 15
15
Example:
on a monitor with user code 5, P1 programming = generic actuator,
= coded actuator (code 125)
1. Set S2 DIP switches 6 to the combination 1.
» the privacy LED
flashes.
S2 DIP
1 2 3 4 5 6
0 0 0 0 0 1
S2
2. Refer to the table “Programming keys for generic or coded actuator” select a combination in which the actuator
function (ACT) is listed for the buttons you wish to program.
E.g.: for P1= generic actuator, set S2 DIP switches 1-2-3-4 to the combination 1000 or 1100 or 0010 (P1=ACT), set S1 DIP
switches to the combination 11111111, then go to point 3.
E.g.: for = coded actuator (code 125), set S2 DIP switches 1-2-3-4 to the combination 0010 or 1010 ( =ACT), set S1
with address 125 as per addressing table, then go to point 3.
3. Press and release the key to be associated with the function.
» the lock-release LED
flashes 4 times.
» a confirmation tone will sound.
4. To exit programming mode, set S2 DIP switches 5-6 to the combination 00.
» the privacy LED
switches o.
5. When programming is complete, set S2 DIP switches 1-2-3-4 to the combination 1111. Restore the user code
setting on S1, see addressing table.
Take note of the DIP-switch settings
DIP S2 DIP S1
DIP 1 DIP 2 DIP 3 DIP 4
P1 P2 P3 P4
ADDRESS
0 0 0 0
ACT
1 0 0 0 ACT
0 1 0 0 ACT
1 1 0 0 ACT
0 0 1 0 ACT ACT ACT ACT ACT ACT
1 0 1 0 ACT
0 1 1 0
1 1 1 0
0 0 0 1
1 0 0 1
0 1 0 1 ACT
1 1 0 1 ACT
0 0 1 1 ACT
1 0 1 1
0 1 1 1
1 1 1 1 PROG
Programming keys for generic or coded actuator
Page 16
16

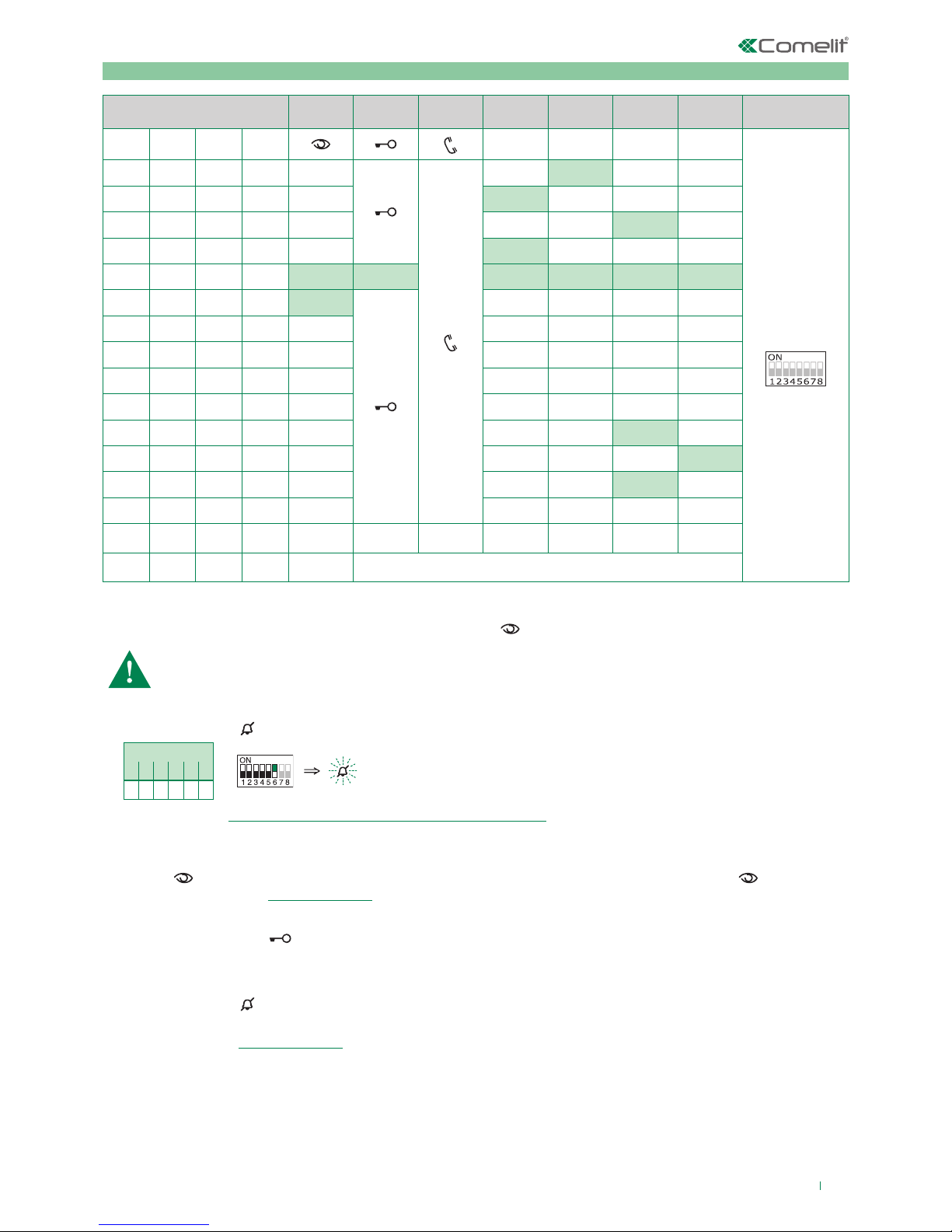

Programming buttons for other functions
Example:
on a monitor with user code 5, P4 programming = self-ignition, P1 = Doctor.
1. Set S2 DIP switches 6 to the combination 1.
» the privacy LED
flashes.
S2 DIP
1 2 3 4 5 6
0 0 0 0 0 1
S2
2. Refer to the table “Programming buttons for other functions” and select a combination in which the desired/necessary
functions are listed for the buttons you wish to program.
E.g.: for P4= self-ignition, P1 = Doctor, set S2 DIP switches 1-2-3-4 to the combination 0011 (P4=AI, P1=D).
3. Press and release the keys to which you wish to assign the functions
» the lock-release LED
flashes 4 times.
» one confirmation tone is emitted.
4. To exit programming mode, set S2 DIP switches 5-6 to the combination 00
» the privacy LED
switches o.
5. When programming is complete, set S2 DIP switches 1-2-3-4 to the combination 1111.
Legend
Lock- release
Audio
AI Self-ignition
CCP Main switchboard call – not for use in systems with KIT
CCS Secondary switchboard call – not for use in systems with KIT
K Guardian doorentry phone call
D Doctor
PAN Panic – not for use in systems with KIT
NULL No function
PROG Programmed functions
DIP S2 DIP S1
DIP 1 DIP 2 DIP 3 DIP 4
P1 P2 P3 P4
ADDRESS
0 0 0 0 AI CCS D PAN
1 0 0 0 AI D
0 1 0 0 AI CCS
1 1 0 0 CCS CCP PA N K
0 0 1 0
1 0 1 0
CCS CCP
0 1 1 0 D AI K CCS CCP
1 1 1 0 AI PAN
0 0 0 1 PAN CCS D AI
1 0 0 1 CCS K PAN CCP AI
0 1 0 1 K CCP PA N
1 1 0 1 CCP PAN CCS K
0 0 1 1 D AI
1 0 1 1
0 1 1 1 NULL NULL NULL NULL NULL NULL
1 1 1 1 PROG
Page 17
17

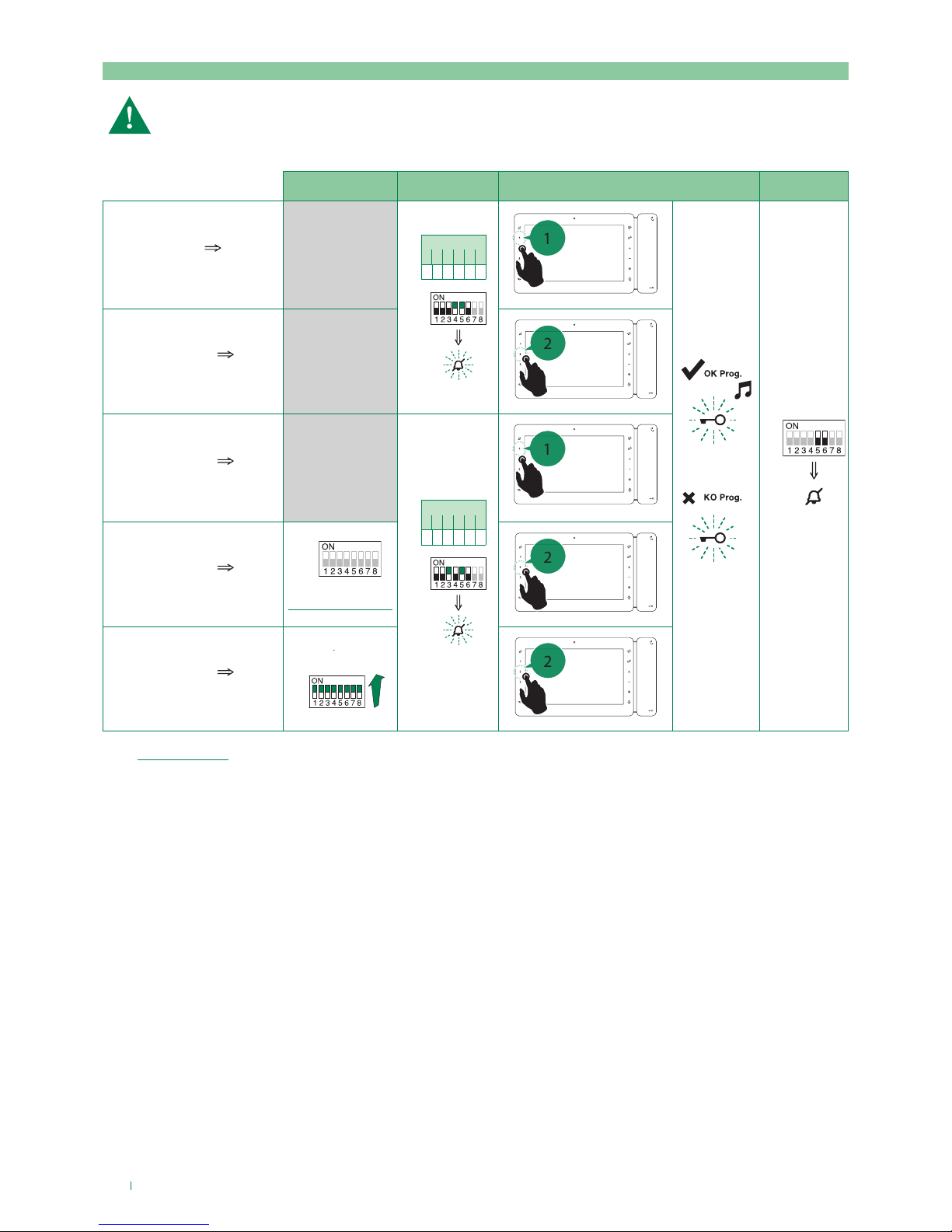

1) 2) 3) 4)
Range
minimum
address
S1
set code,
addressing table
S2 DIP
1 2 3 4 5 6
0 0 0 0 1 0
S2
1
x4
x10
S2
Range
maximum
address
2
Enable range
2 sec.
1
Disable range
2 sec.
2
Deleting the
range
DIP OFF
DIP ON
S1
S2 DIP
1 2 3 4 5 6
1 1 1 1 1 0
S2
2 sec.
f Carry out steps 1 to 4
Programming range
Take note of the S2, S1 setting and restore it when programming is complete
Page 18
18
f Carry out steps 1 to 4
LED/alarm/lock-release/actuator programming
Take note of the S2, S1 setting and restore on completion of programming
1) 2) 3) 4)
Input IN 1- IN 2
LED (default)*
S2 DIP
1 2 3 4 5 6
0 0 0 1 1 0
S2
1
x4
x10
S2
Input CFP2 - IN 1
ALARM*
2
Input CFP2 - IN 1
LOCK-RELEASE*
S2 DIP
1 2 3 4 5 6
0 0 1 0 1 0
S2
1
Input CFP2 - IN 1
CODED ACTUATOR*
S1
set code,
addressing table
2
Input CFP2 - IN 1
GENERIC ACTUATOR*
DIP OFF
DIP ON
S1
2
* See "Connections".
Page 19
19
System performance and layouts
For further information of system performance and to view installation layouts, click on the type of system that best meets your
needs:
• Audio/video kit for the creation of audio-video systems for individual residences
• Building Kit audio/video system for the creation of audio-video systems for small apartment blocks
• SBTOP audio/video system for the creation of audio-video systems for residential complexes.
Factory settings:
• Button functions for the S2 DIP switch 1-2-3-4 combination;
• Intercom address absent;
• Range function and min./max. addresses absent;
• Ringtone reset.
• Input IN 1 - IN 2 > LED (default).
• Doctor, Privacy and Hands Free functions disabled.

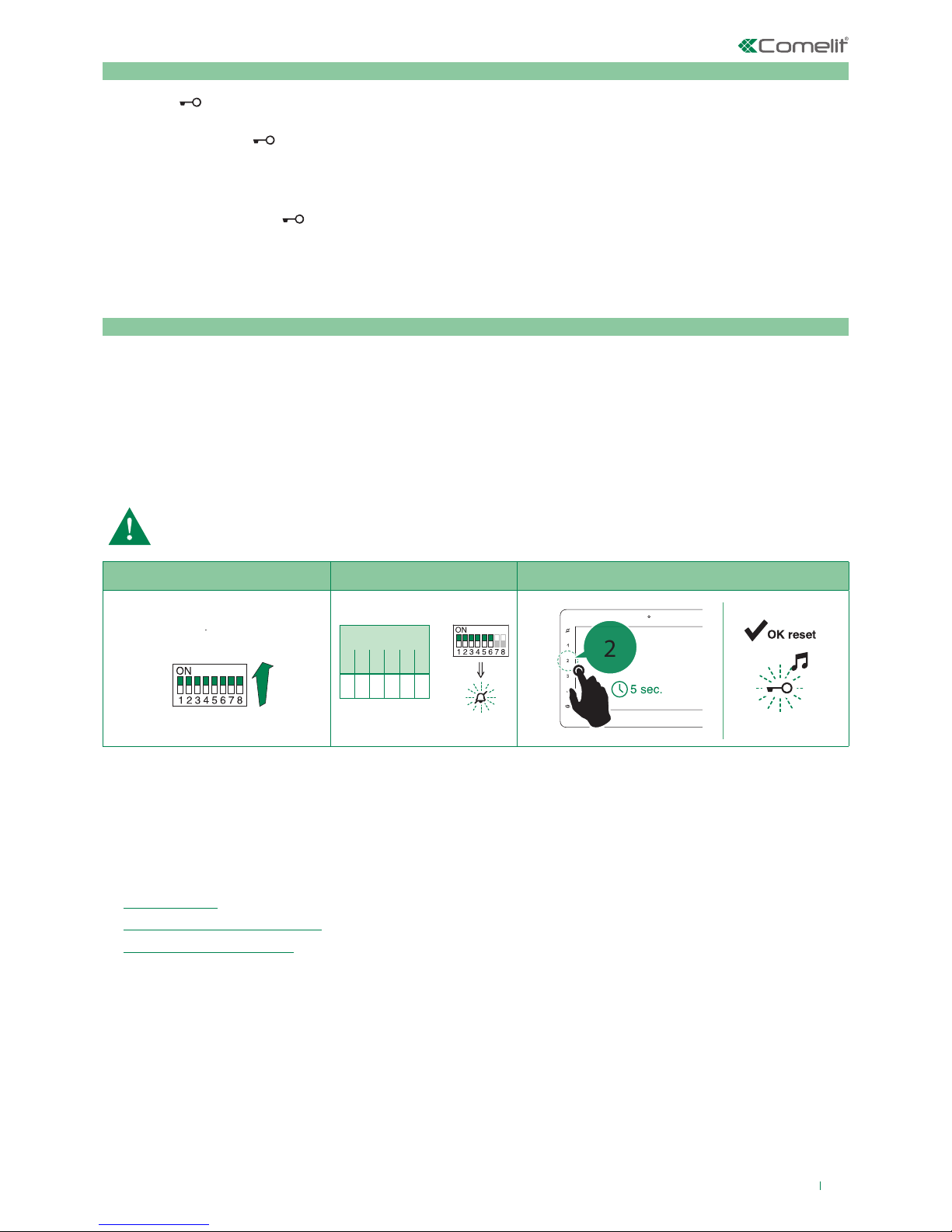

Programming reset
Take note of the S2, S1 setting and restore on completion of programming
1) 2) 3)
DIP OFF
DIP ON
S1
S2 DIP
1 2 3 4 5 6
1 1 1 1 1 1
S2
x4
2
Changing monitor ringtones
1. Keep the
button pressed until a confirmation tone is emitted (this operation is only possible with the system in stand-
by; otherwise the signalling LED will flash to warn the user)
2. Press and release the
button:
once (1 confirmation tone is emitted) to change the ringtone of calls from the external unit.
twice (2 confirmation tones are emitted) to change the ringtone for calls from the switchboard.
3 times (3 confirmation tones are emitted) to change the ringtone for intercom calls made from the internal unit.
4 times (4 confirmation tones are emitted) to change the floor door (“CFP”) call ringtone.
Any further pressing of the repeats the sequence described above.
3. Press and release button 1 to scroll through the various available ringtones in sequence.
4. Press button 2 to confirm selection of the last ringtone heard and to exit (at any time) the monitor ringtone change mode.
On exiting the monitor ringtone selection mode a confirmation tone will be emitted.
Page 20
www.comelitgroup.com
Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy
3
rd
edition 07/2017
code 2G40001931
CERTIFIED MANAGEMENT SYSTEMS
Loading...
