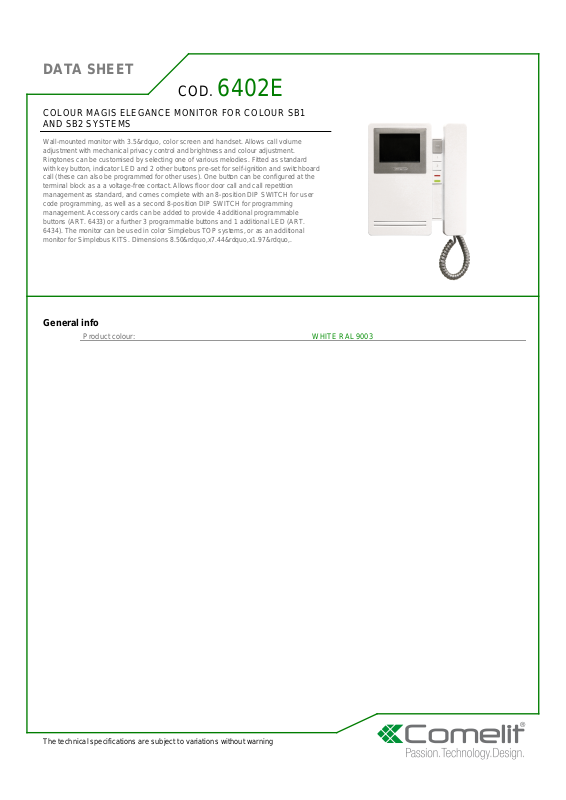

Comelit 6402E Specsheet

DATA SHEET

COD.

6402E

COLOUR MAGIS ELEGANCE MONITOR FOR COLOUR SB1
AND SB2 SYSTEMS

Wall-mounted monitor with 3.5&rdquo, color screen and handset. Allows call volume
adjustment with mechanical privacy control and brightness and colour adjustment.
Ringtones can be customised by selecting one of various melodies. Fitted as standard
with key button, indicator LED and 2 other buttons pre-set for self-ignition and switchboard
call (these can also be programmed for other uses). One button can be configured at the
terminal block as a a voltage-free contact. Allows floor door call and call repetition
management as standard, and comes complete with an 8-position DIP SWITCH for user
code programming, as well as a second 8-position DIP SWITCH for programming
management. Accessory cards can be added to provide 4 additional programmable
buttons (ART. 6433) or a further 3 programmable buttons and 1 additional LED (ART.

6434). The monitor can be used in color Simplebus TOP systems, or as an additional
monitor for Simplebus KITS. Dimensions 8.50&rdquo,x7.44&rdquo,x1.97&rdquo,.

General info

Product colour: WHITE RAL 9003

The technical specifications are subject to variations without warning
