Comelit 6302 Specsheet

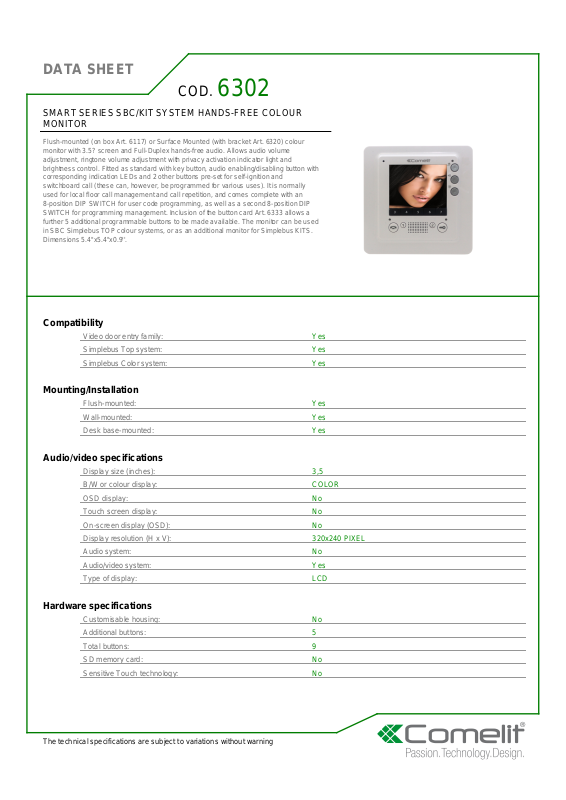

DATA SHEET

COD.

6302

SMART SERIES SBC/KIT SYSTEM HANDS-FREE COLOUR
MONITOR

Flush-mounted (on box Art. 6117) or Surface Mounted (with bracket Art. 6320) colour
monitor with 3.5? screen and Full-Duplex hands-free audio. Allows audio volume
adjustment, ringtone volume adjustment with privacy activation indicator light and
brightness control. Fitted as standard with key button, audio enabling/disabling button with
corresponding indication LEDs and 2 other buttons pre-set for self-ignition and
switchboard call (these can, however, be programmed for various uses). It is normally
used for local floor call management and call repetition, and comes complete with an
8-position DIP SWITCH for user code programming, as well as a second 8-position DIP
SWITCH for programming management. Inclusion of the button card Art. 6333 allows a
further 5 additional programmable buttons to be made available. The monitor can be used
in SBC Simplebus TOP colour systems, or as an additional monitor for Simplebus KITS.
Dimensions 5.4''x5.4''x0.9''.

Compatibility

Video door entry family: Yes
Simplebus Top system: Yes
Simplebus Color system: Yes

Mounting/Installation

Flush-mounted: Yes
Wall-mounted: Yes
Desk base-mounted: Yes

Audio/video specifications

Display size (inches): 3,5
B/W or colour display: COLOR
OSD display: No
Touch screen display: No
On-screen display (OSD): No
Display resolution (H x V): 320x240 PIXEL
Audio system: No
Audio/video system: Yes
Type of display: LCD

Hardware specifications

Customisable housing: No
Additional buttons: 5
Total buttons: 9
SD memory card: No
Sensitive Touch technology: No

The technical specifications are subject to variations without warning

DATA SHEET

Functions - Settings

Alarm function: Yes
Switchboard call function: Yes
Floor door call function: Yes
Actuator control function: Yes
Privacy conversation function: Yes
Induction loop function: No
Intercom function: Yes
Privacy function: Yes
Key button function: Yes
Hands-free function: Yes
Full Duplex hands-free function: Yes
Display colour control: No
Display contrast control: No
Display brightness control: Yes
Loudspeaker volume control: Yes
Microphone volume control: No
Ringtone volume control: Yes

Technical properties

Temperature range (°C): -5/55

Electrical specifications

Maximum current absorption (mA): 240

General info

Self-ignition: Yes
EAN product code: 8023903217162
Intrastat code: 85176910
Customisable ringtone: Yes
Product height (mm): 137
Product width (mm): 137
Product depth (mm): 25
Product weight: 190
Product colour: WHITE RAL9003

Packaging

Single pack height (mm): 80
Single pack width (mm): 160
Single pack weight (g): 530
Single pack depth (mm): 160
Single pack volume (dm3): 2,048

The technical specifications are subject to variations without warning
