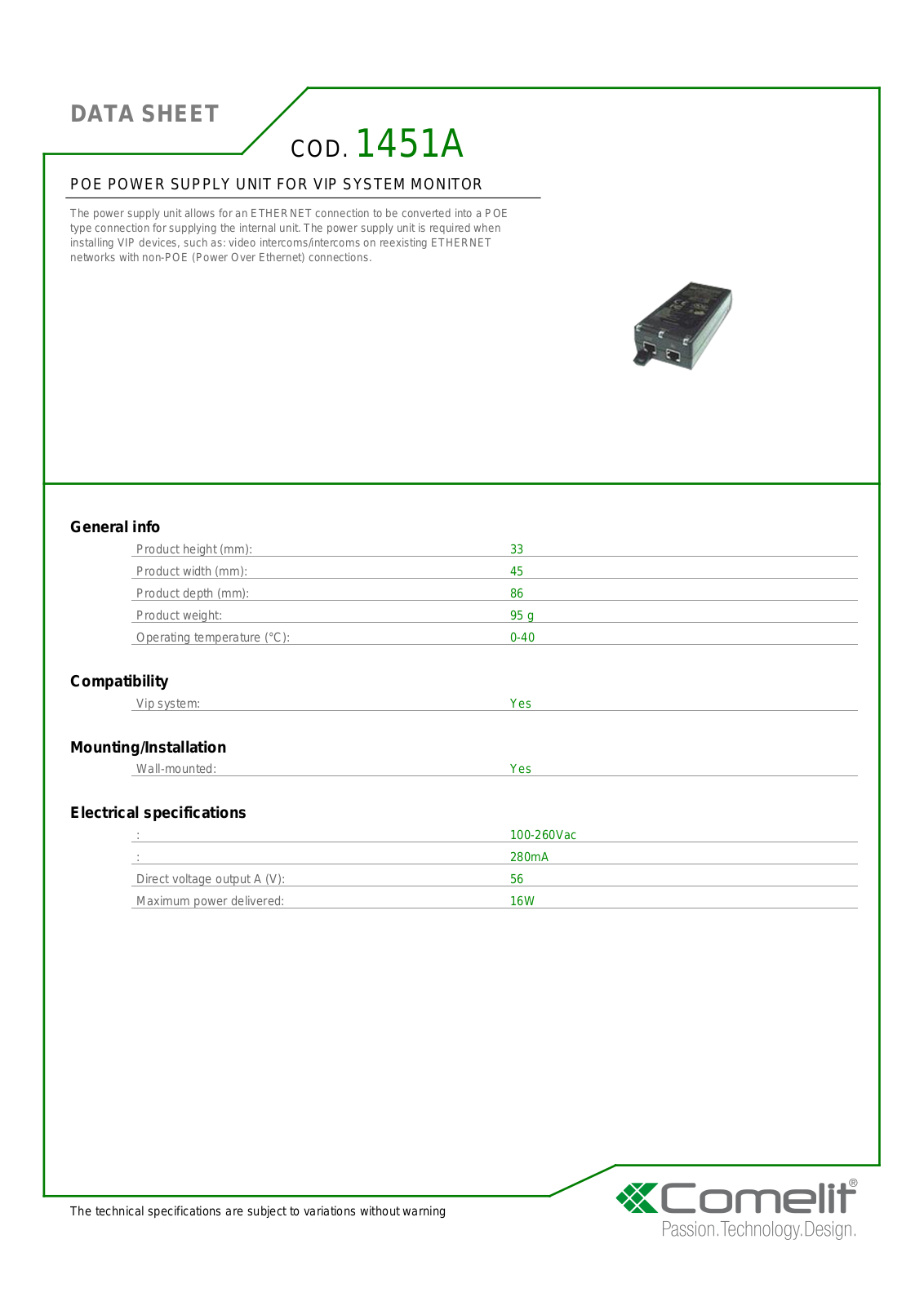

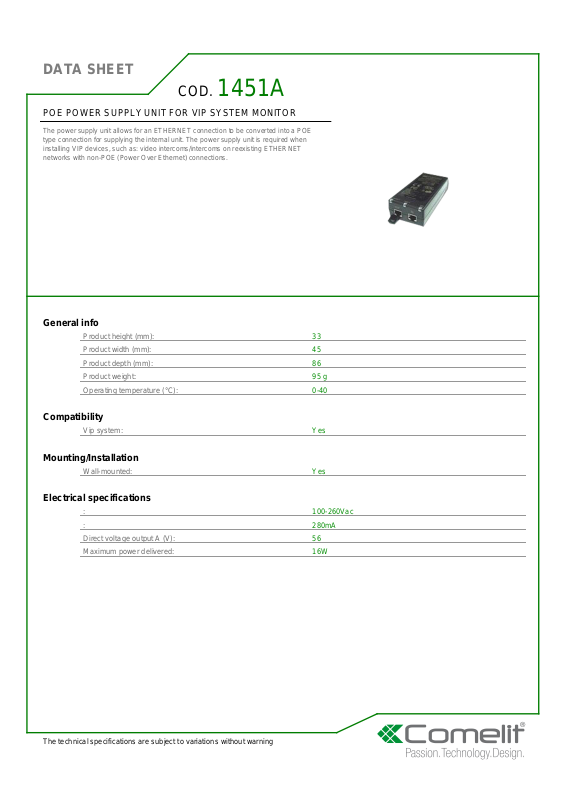

Comelit 1451A Specsheet

DATA SHEET

COD.

1451A

POE POWER SUPPLY UNIT FOR VIP SYSTEM MONITOR

The power supply unit allows for an ETHERNET connection to be converted into a POE
type connection for supplying the internal unit. The power supply unit is required when
installing VIP devices, such as: video intercoms/intercoms on reexisting ETHERNET
networks with non-POE (Power Over Ethernet) connections.

General info

Product height (mm): 33
Product width (mm): 45
Product depth (mm): 86
Product weight: 95 g
Operating temperature (°C): 0-40

Compatibility

Vip system: Yes

Mounting/Installation

Wall-mounted: Yes

Electrical specifications

: 100-260Vac
: 280mA
Direct voltage output A (V): 56
Maximum power delivered: 16W

The technical specifications are subject to variations without warning
