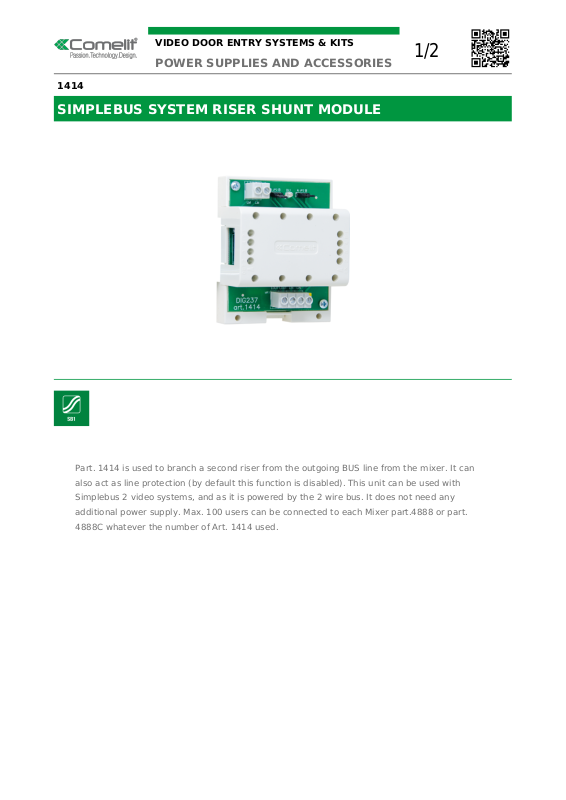

Comelit 1414 Specsheet

VIDEO DOOR ENTRY SYSTEMS & KITS

POWER SUPPLIES AND ACCESSORIES

1414

SIMPLEBUS SYSTEM RISER SHUNT MODULE

1/2

Part. 1414 is used to branch a second riser from the outgoing BUS line from the mixer. It can
also act as line protection (by default this function is disabled). This unit can be used with
Simplebus 2 video systems, and as it is powered by the 2 wire bus. It does not need any
additional power supply. Max. 100 users can be connected to each Mixer part.4888 or part.
4888C whatever the number of Art. 1414 used.

VIDEO DOOR ENTRY SYSTEMS & KITS

POWER SUPPLIES AND ACCESSORIES

1414

SIMPLEBUS SYSTEM RISER SHUNT MODULE

MAIN FEATURES

Height (mm) 85
Width (mm) 66
Depth (") 37
Operating temperature (°C) -5 ÷ 40
Operating humidity (% RH max) 25÷75
DIN rail mounted Yes
DIN modules (no.) (n°) 4
Supply voltage Bus line

2/2

COMPATIBILITY

Simplebus 2 audio/video system Yes
Building Kit audio/video system Yes

The technical specifications are subject to change without prior notice.The technical specifications are subject to change without prior notice.
