INSTALLATION
& OPERATION
MANUAL
OLKIT
OSCILASER
RETROFIT KIT
Contents:
Installation & Mounting ............................................ 2-3
Product Returns ....................................................... 4
IMPORTANT:
Read all instructions and warnings before installing and using.
INSTALLER: This manual must be delivered to the end user of this equipment.

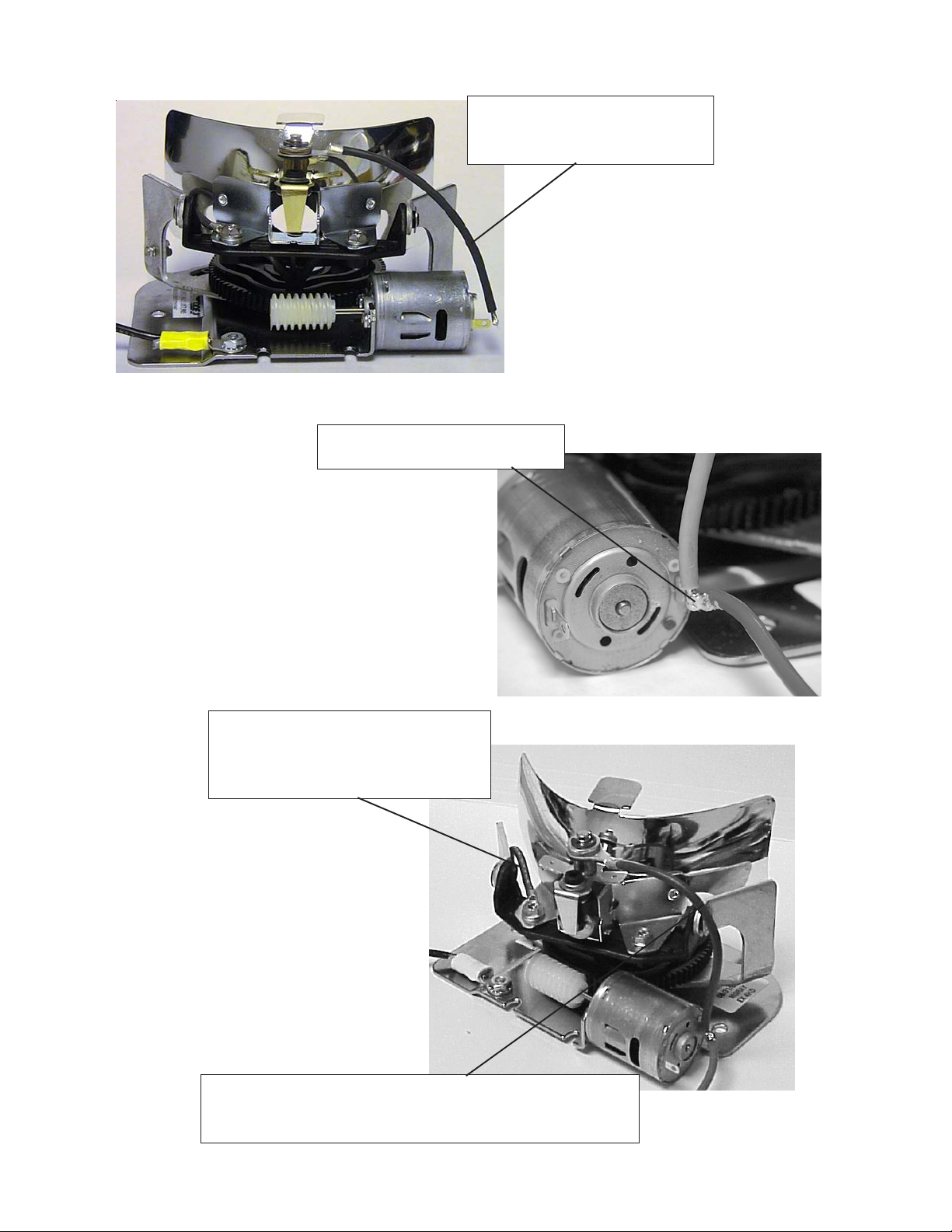

Remove the reflector from
carriage (save the 2 1/4 inch
hex screws) and discard.
Cut gray ground wire
and discard.
Desolder both wires at
motor, discard gray flex
wire, save red wire with
grommet.
Drill one 9/64 hole in bracket
as shown. Measure down
1 inch from edge and center
in the bracket.
Install new ground jumper as shown.
2
Install new reflector. Attach
ground jumper and positive
feed wire.
Detail of solder joint showing
direction of wires.
Note gap between ground wire
and plastic carriage. Angle the
ring terminal such that the wire
and the carriage do not interfere.
Solder positive wires to motor, solder flat, do not
twist the wires together. Install in housing, connect
power and ground wire.
3
