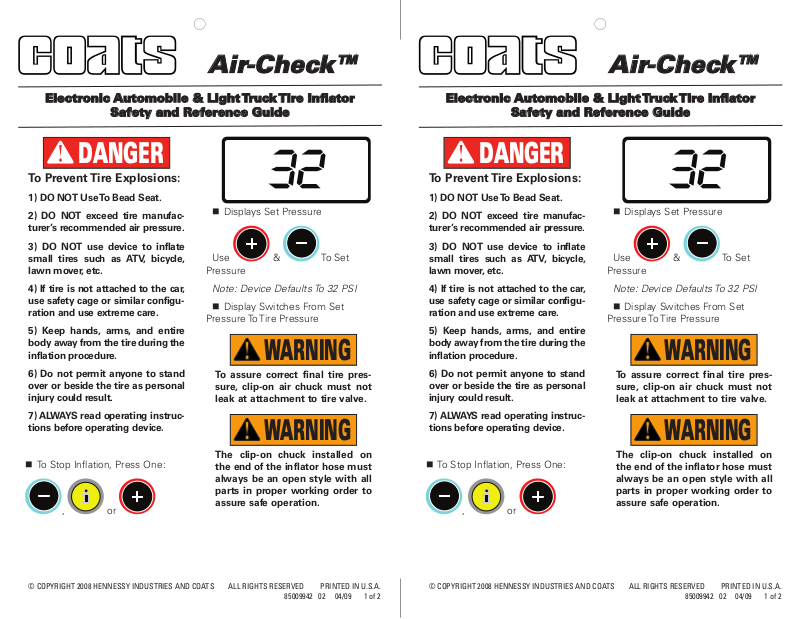

COATS Air-Check Warning Card User Manual
Air-Check™
Electronic Automobile & Light Truck Tire Inflator
Safety and Reference Guide
To Prevent Tire Explosions:
1) DO NOT Use To Bead Seat.
2) DO NOT exceed tire manufacturer’s recommended air pressure.
3) DO NOT use device to inflate
small tires such as ATV, bicycle,
lawn mover, etc.
4) If tire is not attached to the car,
use safety cage or similar configuration and use extreme care.
5) Keep hands, arms, and entire
body away from the tire during the
inflation procedure.
6) Do not permit anyone to stand
over or beside the tire as personal
injury could result.
7) ALWAYS read operating instructions before operating device.
To Stop Inflation, Press One:
, or
Displays Set Pressure
Use & To Set
Pressure
Note: Device Defaults To 32 PSI
Display Switches From Set
Pressure To Tire Pressure
To assure correct final tire pressure, clip-on air chuck must not
leak at attachment to tire valve.
The clip-on chuck installed on
the end of the inflator hose must
always be an open style with all
parts in proper working order to
assure safe operation.
WARNING
WARNING
DANGER
© COPYRIGHT 2008 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
85009942 02 04/09 1 of 2
Air-Check™
Electronic Automobile & Light Truck Tire Inflator
Safety and Reference Guide
To Prevent Tire Explosions:
1) DO NOT Use To Bead Seat.
2) DO NOT exceed tire manufacturer’s recommended air pressure.
3) DO NOT use device to inflate
small tires such as ATV, bicycle,
lawn mover, etc.
4) If tire is not attached to the car,
use safety cage or similar configuration and use extreme care.
5) Keep hands, arms, and entire
body away from the tire during the
inflation procedure.
6) Do not permit anyone to stand
over or beside the tire as personal
injury could result.
7) ALWAYS read operating instructions before operating device.
To Stop Inflation, Press One:
, or
Displays Set Pressure
Use & To Set
Pressure
Note: Device Defaults To 32 PSI
Display Switches From Set
Pressure To Tire Pressure
To assure correct final tire pressure, clip-on air chuck must not
leak at attachment to tire valve.
The clip-on chuck installed on
the end of the inflator hose must
always be an open style with all
parts in proper working order to
assure safe operation.
WARNING
WARNING
DANGER
© COPYRIGHT 2008 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
85009942 02 04/09 1 of 2
Touch To Decrease Set
Pressure.
Touch To Increase Set
Pressure.
If tire has zero pressure, Touch
To Start Tire Inflation.
If tire has air pressure (even a
small amount) device will automatically
start when chuck is attached to tire.
Is For Diagnostic Purposes
Only.
Note: See instructions for details
For additional service information,
call 1-866-455-8768.
© COPYRIGHT 2008 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
85009942 02 04/09 2 of 2
Touch To Decrease Set
Pressure.
Touch To Increase Set
Pressure.
If tire has zero pressure, Touch
To Start Tire Inflation.
If tire has air pressure (even a
small amount) device will automatically
start when chuck is attached to tire.
Is For Diagnostic Purposes
Only.
Note: See instructions for details
For additional service information,
call 1-866-455-8768.
© COPYRIGHT 2007 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.
85009942 02 04/09 2 of 2
