Page 1
6450 2D/3D
Heavy Duty Wheel Balancers
See
ÌBalancing Your
First Tire
on page 1.
Safety Instructions
Operating Instructions
Maintenance Instructions
Installation Instructions
READ these instructions before placing unit in
service. KEEP these and other materials delivered
with the unit in a binder near the machine for ease
of reference by supervisors and operators.
1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 615/641-7533 800/688/6359 www.ammcoats.com Manual Part No.: 85606875 02a
HENNESSY INDUSTRIES INC. Manufacturer of AMMCO
®
, COATS® and BADA® Automotive Service Equipment and Tools. Revision: 12/11
Page 2
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
1. Eye and face protection recommendations:
“Protective eye and face equipment is required
to be used where there is a reasonable probability of injury that can be prevented by the use of
such equipment.” O.S.H.A. 1910.133(a) Protective
goggles, safety glasses, or a face shield must be
provided by the owner and worn by the operator
of the equipment. Care should be taken to see
that all eye and face safety precautions are followed by the operator. ALWAYS WEAR SAFETY
GLASSES. Everyday glasses only have impact
resistant lenses, they are not safety glasses.
2. Do not disable hood safety interlock system, or in
any way shortcut safety controls and operations.
3. Be sure that wheels are mounted properly, the
hub nut engages the arbor for not less than four
(4) turns, and the hub nut is firmly tightened
before spinning the wheel.
4. Read and understand this manual before operating. Abuse and misuse will shorten the functional
life.
5. Be sure the balancer is properly connected to the
power supply and electrically grounded.
6. Do not operate equipment with a damaged cord
or if the equipment has been dropped or damaged – until it has been examined and repaired by
a qualified serviceman.
7. Do not let cord hang over edge of table, bench, or
counter or come in contact with hot manifolds or
moving fan blades.
8. If an extension cord is necessary, a cord with a
current rating equal to or more than that of the
equipment should be used. Cords rated for less
current than the equipment may overheat. Care
should be taken to arrange the cord so that it will
not be tripped over or pulled.
10. Wear proper clothing. Safety toe, non-slip footwear and protective hair covering to contain hair
is recommended. Do not wear jewelry, loose
clothing, neckties, or gloves when operating the
balancer.
11. Keep work area clean and well lighted. Cluttered
and/or dark areas invite accidents.
12. Avoid dangerous environments. Do not use power
tools or electrical equipment in damp or wet locations, or expose them to rain.
13. Avoid unintentional starting. Be sure the balancer
is turned off and power disconnected before servicing.
14. Disconnect the balancer before servicing.
15. Use only manufacturer’s recommended accessories. Improper accessories may result in personal
injury or property damage.
16. Repair or replace any part that is damaged or worn
and that may cause unsafe balancer operation. Do
not operate damaged equipment until it has been
examined by a qualified service technician.
17. Never overload or stand on the weight tray or any
part of the balancer.
18. Do not allow untrained persons to operate machinery.
19. To reduce the risk of fire, do not operate equipment in the vicinity of open containers or flammable liquids (gasoline).
20. Adequate ventilation should be provided when
working on or operating internal combustion
engines.
21. Keep hair, loose clothing, fingers, and all parts of
body away from moving parts.
22. Use equipment only as described in this manual.
9. Keep guards and safety features in place and in
working order.
23. Use only manufacturer’s recommended attachments and accessories.
SAVE THESE INSTRUCTIONS
ii • Important: Always read and follow the information box instructions.
Page 3
Owner’s Responsibility
To maintain machine and user safety, the responsibility
of the owner is to read and follow these instructions:
Definitions of Hazard Levels
Identify the hazard levels used in this manual with the
following definitions and signal words:
• Follow all installation instructions.
• Make sure installation conforms to all applicable
Local, State, and Federal Codes, Rules, and Regulations; such as State and Federal OSHA Regulations
and Electrical Codes.
• Carefully check the unit for correct initial function.
• Read and follow the safety instructions. Keep
them readily available for machine operators.
• Make certain all operators are properly trained,
know how to safely and correctly operate the unit,
and are properly supervised.
• Allow unit operation only with all parts in place
and operating safely.
• Carefully inspect the unit on a regular basis and
perform all maintenance as required.
• Service and maintain the unit only with authorized or approved replacement parts.
• Keep all instructions permanently with the unit
and all decals/labels/notices on the unit clean and
visible.
DANGER
Watch for this symbol:
DANGER
It Means: Immediate hazards, which will result in
severe personal injury or death.
WARNING
Watch for this symbol:
WARNING
It Means: Hazards or unsafe practices, which could
result in severe personal injury or death.
CAUTION
Watch for this symbol:
CAUTION
It Means: Hazards or unsafe practices, which may result
in minor personal injury or product or property damage.
• Do not override safety features.
Operator Protective Equipment
Personal protective equipment helps make tire servicing safer. However, equipment does not take the place
of safe operating practices. Always wear durable work
clothing during tire service activity. Loose fitting clothing
should be avoided. Tight fitting leather gloves are recommended to protect operator’s hands when handling worn
tires and wheels. Sturdy leather work shoes with steel
toes and oil resistant soles should be used by tire service
personnel to help prevent injury in typical shop activities.
Eye protection is essential during tire service activity.
Safety glasses with side shields, goggles, or face shields
are acceptable. Back belts provide support during lifting
activities and are also helpful in providing operator protection. Consideration should also be given to the use of
hearing protection if tire service activity is performed in
an enclosed area, or if noise levels are high.
Watch for this symbol! It means BE ALERT! Your safety,
or the safety of others, is involved!
Important: Always read and follow the information box instructions. • iii
Page 4
Safety Notices and Decals
WARNING
Failure to follow danger, warning, and caution instructions may lead to serious personal injury or death to operator or bystander
or damage to property. Do not operate this
machine until you read and understand all
the dangers, warnings and cautions in this
manual. For additional copies of either, or
further information, contact:
Hennessy Industries, Inc.
1601 JP Hennessy Drive
LaVergne, TN 37086-3565
(615) 641-7533 or (800) 688-6359
www.ammcoats.com
The motor unit of this machine contains a Class IIIa
laser with a maximum output less than 5mW at a wave
length of 630-680 nm. Avoid Exposure – Laser radia-
tion is emitted from its aperture.
CAUTION
Use of controls, adjustments or performance
of procedures other than those specified
herein may result in hazardous radiation
exposure.
In case of failure, the entire motor unit must
be replaced.
NOTICE
Read entire manual before assembling,
installing, operating, or servicing this
equipment.
iv • Important: Always read and follow the information box instructions.
Page 5
Standard Safety Devices
• STOP key for stopping the wheel under emergency
conditions.
• A hood guard of high impact plastic that is designed
to prevent the counterweights from flying out in any
direction except towards the floor.
• A hood switch interlock system that prevents the
machine from starting if the guard is not lowered and
stops the wheel whenever the guard is raised.
Important: Always read and follow the information box instructions. • v
Page 6
Table of Contents
Important Safety Instructions ................................ii
Owner’s Responsibility .............................................iii
Operator Protective Equipment ................................iii
Definitions of Hazard Levels .....................................iii
Safety Notices and Decals .................................. iv - v
Standard Safety Devices ........................................... v
ÌBalancing Your First Tire ......................................1
Principle Operating Parts ...................................3 - 6
Know Your Unit .........................................................3
3D - Stop and Lock Feature ...................................... 3
2D - Stop Feature ......................................................3
Power Switch ............................................................3

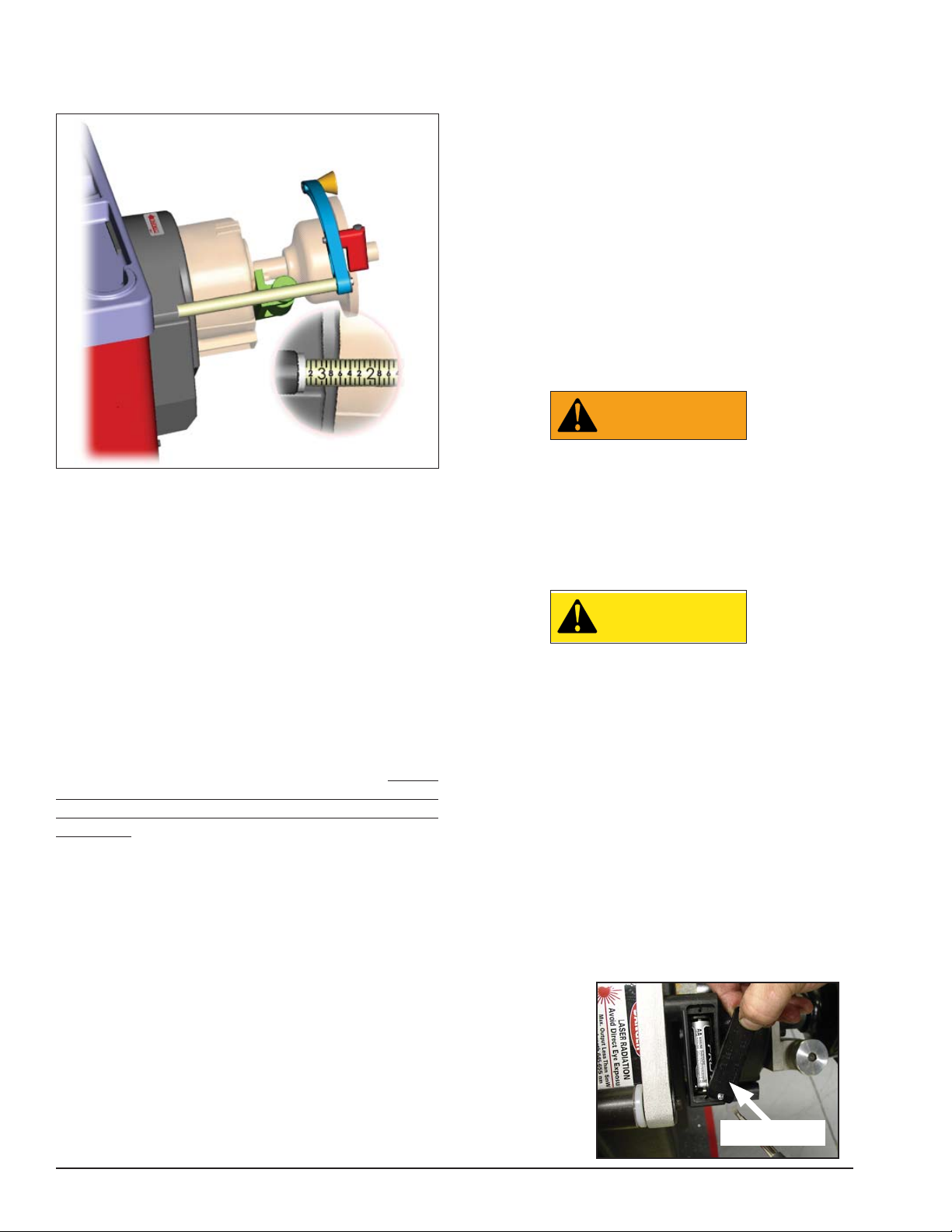

3D - Using The Offset Arm ..................................3 - 5
Using The Laser Locator ........................................... 5
Using The Line Laser ................................................ 5
Using The Hood Sonar .............................................. 5
Laser Guided Operation™ System ...........................6

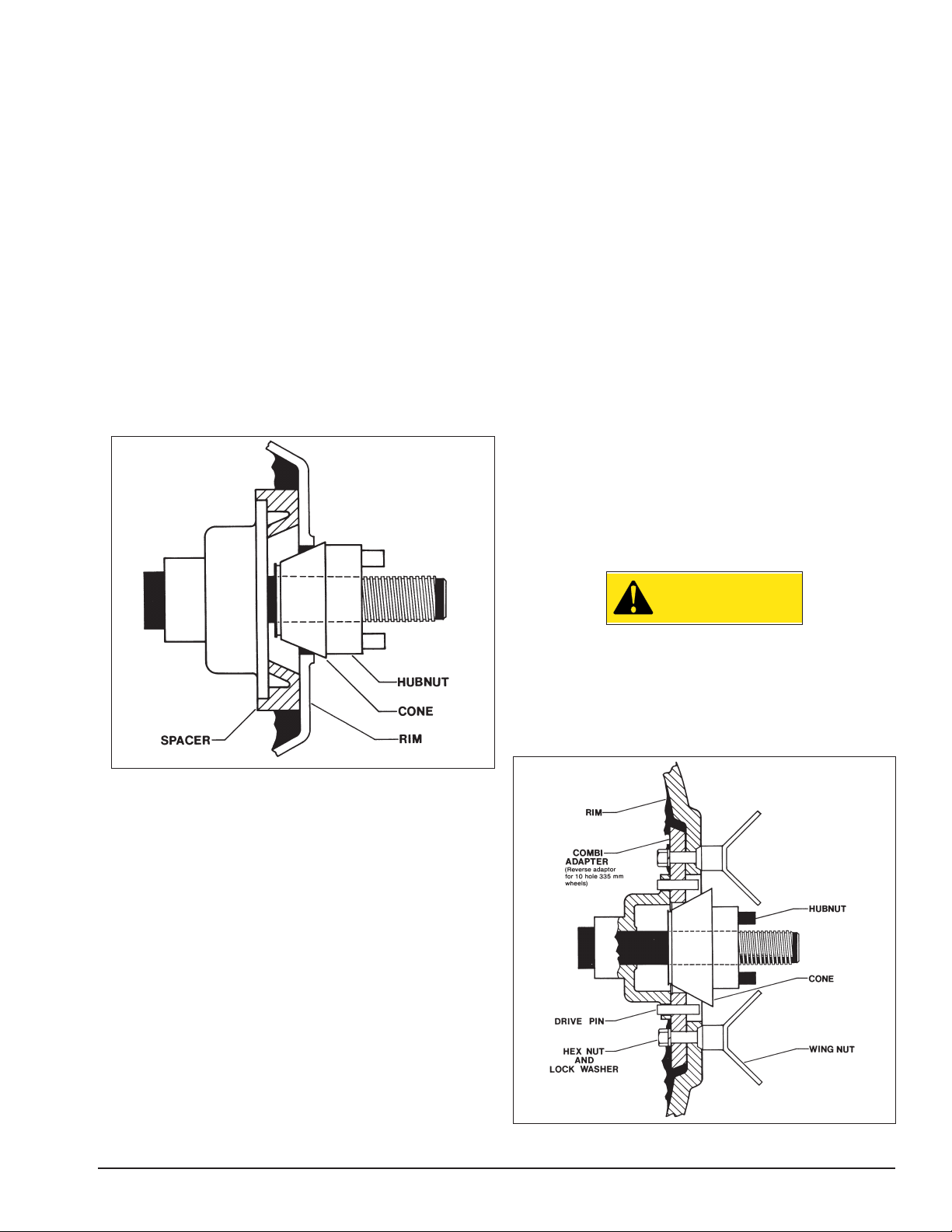

Mounting Wheel on Spindle Shaft ................14 - 15

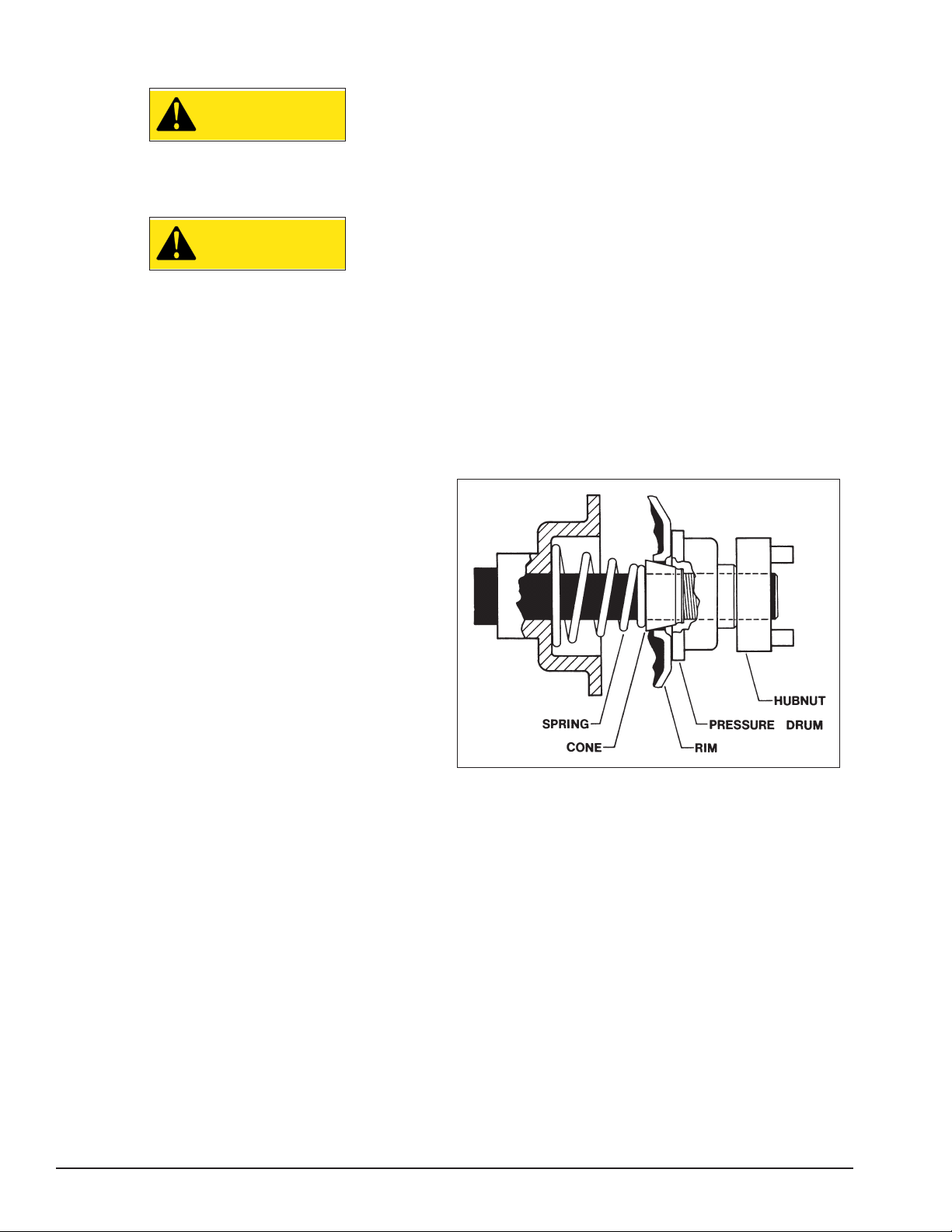

Standard Back Cone Mounting ............................... 14
Standard Front Cone Mounting ............................... 15
Alternate Mounting ................................................. 15

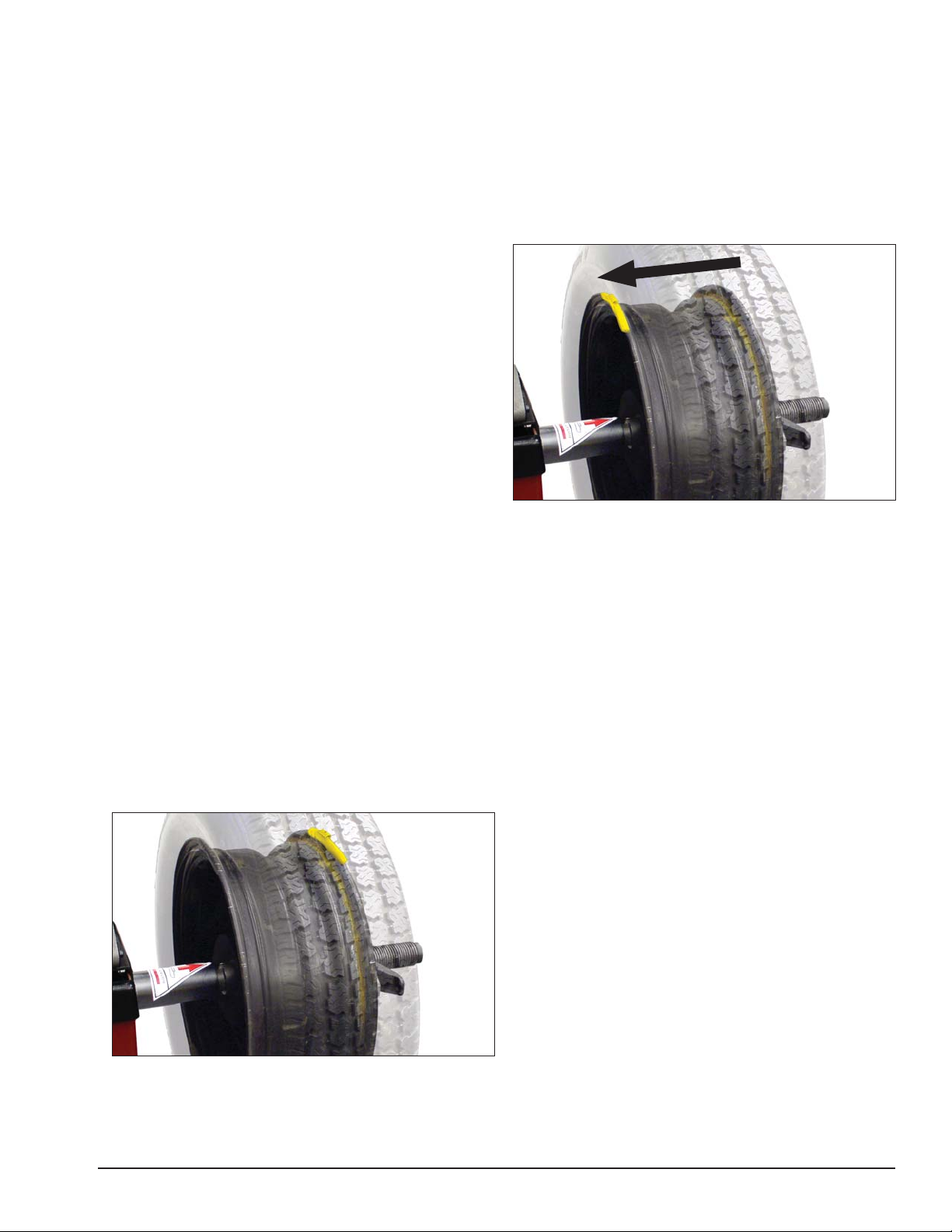

Match Balance (Optimization) ............................... 16
Match Balance Mode .............................................. 16
Calibration ............................................................... 17
Machine Calibration ................................................. 17
Arm Calibration ....................................................... 17
Maintenance Instructions ...................................... 18
Diagnostic Procedures ...........................................19
After Balance Vibration Problems ........................... 19
Troubleshooting ....................................................... 19
Installation Instructions ......................................... 20
Receiving ................................................................. 2 0
Electrical Requirements .......................................... 20
Setup ....................................................................... 20
3D - Auto Wheel Positioning ..................................... 6
Setting Wheel Dimensions (DIM) ........................... 7

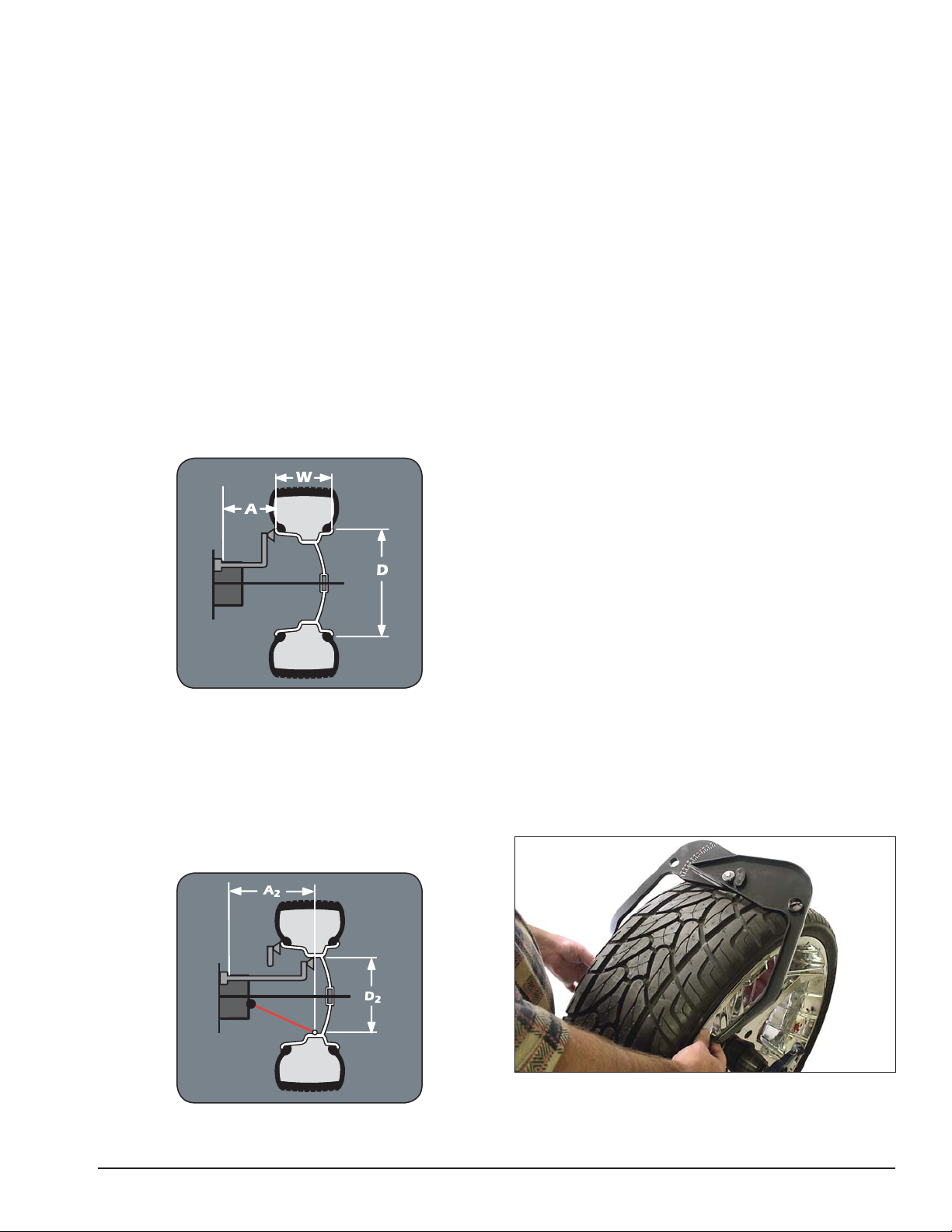

Definition of Dimensions (DIM) ................................7
Basic Wheel Data Entry ............................................ 7
Entering Wheel Dimensions Manually ...................... 7

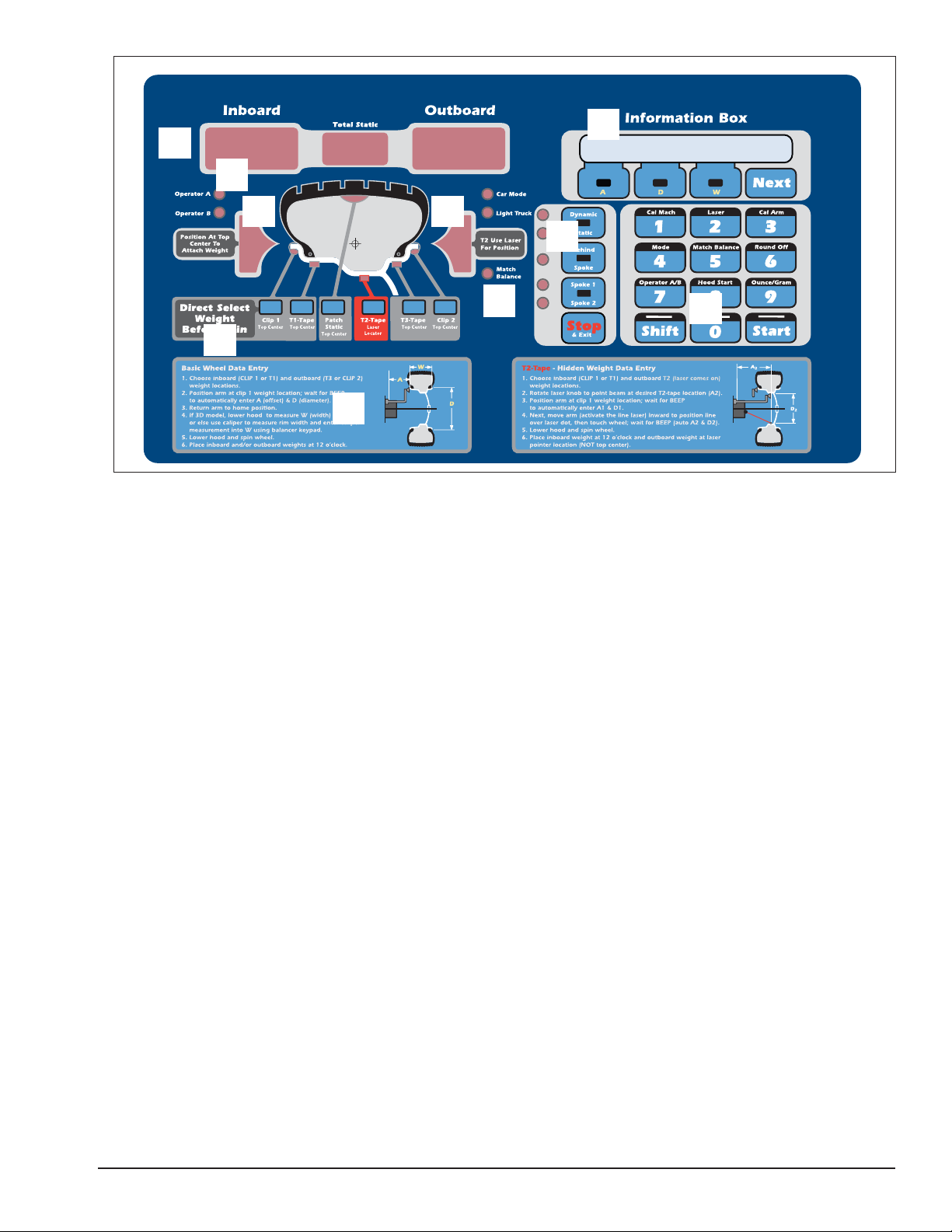

Control Panel Function and Review ................8 - 11
Control Panel Quick Reference ............................ 8 - 9
Screen Saver Mode (Video) .................................... 10
Weight Display and Weight Position Windows ...... 10
Mode Indicators ...................................................... 10

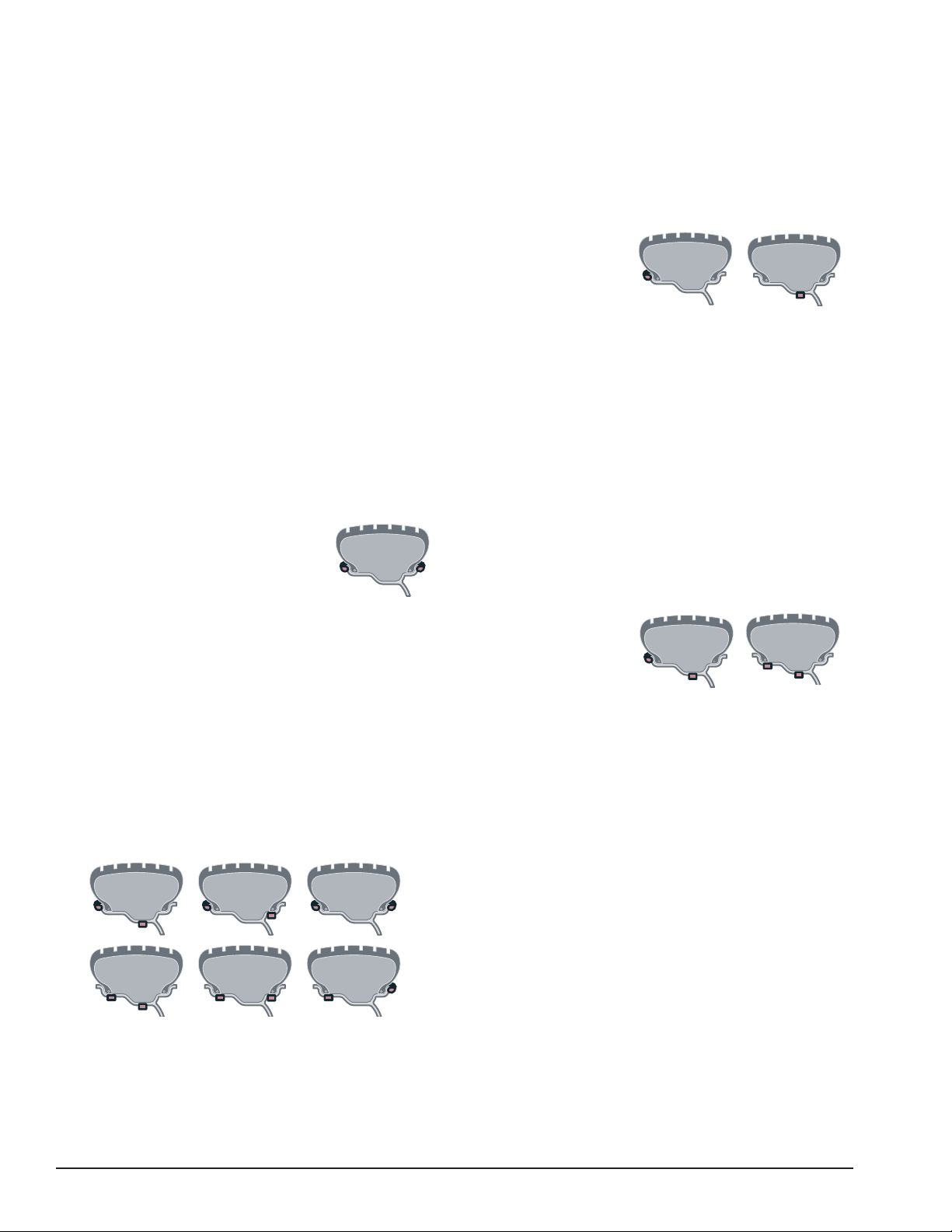

Direct Select™ Weight Placement Location ........... 11
Balance Options ...................................................... 11
Information Box ....................................................... 11
Keypad Group .......................................................... 11
Balancing Using Direct Select™ ....................12 - 13
Dynamic Balancing .................................................. 12
Static Balancing ....................................................... 12
Connect to Power ...................................................20
Floor and Space Requirements ............................... 20
Spec ific ations .......................................................... 21
Features ................................................................... 21
Special Balancing Modes ................................. 12 - 13
vi • Important: Always read and follow the information box instructions.
Page 7
ÌBalancing Your First Tire
1. Turn the machine OFF then
ON (resets machine).
| Note: The machine wakes up using standard clip-
on wheel weight locations (Clip 1 & Clip 2) and
wheel dimensions.
2. Mount a tire/wheel on the balancer that will use standard
clip-on wheel weights.
Use the most appropriate mounting method.
3. Always remove any weights
already attached to the wheel.
4. Enter A & D wheel dimensions using offset arm.
For Automatic Measurement — pull offset arm out
to the wheel, hold it still at clip-on weight position
against wheel flange, and wait for BEEP. Return
arm to home position.
Clip-on Weight Location — viewed on a cut-away
rim for clarification.
Figure 1 - Clip-On Weight Location
8. Inboard center bar blinks.
Note: If an inboard corrective weight is not
required, the wheel will stop at the outboard corrective weight location, go to step 11.
9. Attach inboard corrective
weight.
Attach specified weight amount at top-dead-cen-
ter on inside flange of wheel.
10. Press NEXT; wheel rotates.
11. Outboard center bar blinks.
12. Attach outboard corrective
weight.
Attach specified weight amount at top-dead-cen-
ter on outside flange of wheel.
13. Lower the hood to respin the
tire/wheel and check balance.
The weight readings should now be 0.00.
Note: Throughout this manual tire dimensions are
referred to as A, W, and D, see figure 2.
Note the value entry of A & D dimension.
5. Enter Width wheel dimension.
For Manual Entry — Use plastic calipers to mea-
sure wheel width. Press W key. Use keypad to
enter Width value (between 2.0 and 20.0 inches).
For Automatic Measurement — Lower hood.
Note value entry of W dimension.
6. Lower the hood; wheel spins
and unbalances are measured
and displayed.
Figure 2 - A, W, and D Tire Dimensions
The corrective weight amount appears in the
weight display window for inboard and outboard
weight locations.
7. Raise hood after tire stops
rotating.
Note: Wait for wheel to stop before raising the
hood.
Important: Always read and follow the information box instructions. • 1
Page 8
❶
❶
❺
Principle Operating Parts
❺
❹
❸
❷
❼
❻
❽
❾
❿
2 • Important: Always read and follow the information box instructions.
Page 9
Know Your Unit
❶
❺
Compare this illustration with the unit before placing
it into service. Maximum performance and safety will
be obtained only when all persons using the unit are
fully trained in its parts and operation. Each user should
learn the function and location, of all controls.
Prevent accidents and injuries by ensuring the unit is
properly installed, operated and maintained.
Power Switch
The ON/OFF decal (figure 4) indicates the ON/OFF
switch location at the back of the balancer.
❶ Control Panel
❷ Plug (back of machine)
❸ ON/OFF
❹ Weight Tray with Pockets for Tape-A-Weight
Boxes; Individual Weights
❺ J Hood Guard
❻ Offset Arm, Measures A & D of Tire/Wheel
(shown in home position)
❼ Hood Sonar - Width Sensor (3D model only)
❽ 50mm Shaft
❾ Locator Laser
❿ Line Laser
Note: Throughout this manual wheel weights are
referred to as Clip-on or Tape-A-Weight®. Figure 3
shows an example of each weight.
ON/OFF
Power
Switch
Figure 4 - On/Off Switch
Using The Offset Arm
When not in use or when prompted by the balancer
instructions, store the offset arm in the home position
as shown in figure 5.
Offset Arm
In Home
Position
Figure 5 - Offset Arm Stored In Home Position
Clip-on Weight Tape-A-Weight
Figure 3 - Corrective Weight Examples. For Best Results, use
BADA® Brand Wheel Weights.
®
3D - Stop and Lock Feature
The balancer will stop the wheel on the inner plane
first if a weight is needed on the inner plane. If no
weight is needed on inner plane, the wheel will stop
at the outer plane first. If in fine balancing mode, the
wheel will stop at plane that calls for most weight.
2D - Stop Feature
At the completion of the balance cycle, the wheel
assembly will come to a complete stop; then the drive
will release the wheel. Then the operator can manually
index to the proper plane using the indexing guides on
the front panel.
Important: Always read and follow the information box instructions. • 3
Page 10

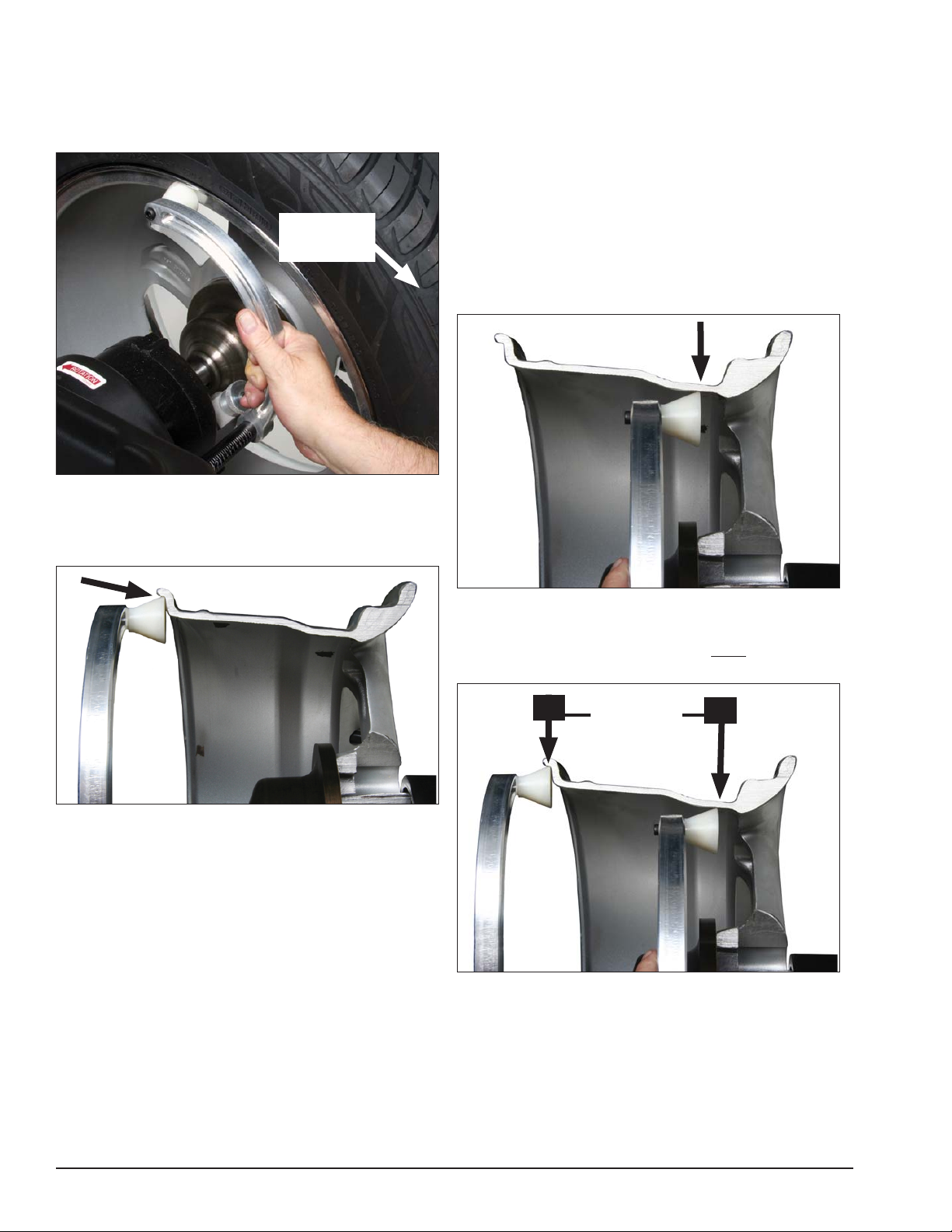

When prompted by balance r instructions, use the
offset arm (figure 6A) to enter A & D measurements
automatically. Pull the arm out and up against the wheel
flange; hold it still at the clip-on weight location (figure
6B), against the wheel flange, and wait for the BEEP.
Offset Arm
In Home
Position
Figure 6A - Automatic A&D Measurement At Clip-on Weight
Location
Note: The T2 - Tape Direct Select™ Weight position
is the only mode that requires the A2 & D2 dimension
measurements.
Note: Use laser locators for correct positioning of
the T2 - Tape Direct Select™ Weight position, refer to
pages 5 - 6.
If the T2 - Tape (hidden Tape-A-Weight®) location is
selected, use the offset arm to enter A2 & D2 measurements automatically. After the A & D measurement is
entered, move the arm from the clip-on weight location
to the inner area of the wheel; up against the rim at the
outboard weight placement location (see figures 7A &
7B). Wait for the BEEP.
Be sure to place the offset arm on the wheel flange at
the clip- on weight location as shown figure 6B.
Figure 6B - Clip-on Weight Location Viewed on a Cut-Away
Rim for Clarification.
Note: Use the offset arm to automatically measure
the A & D dimension for all balancing modes except
Patch Static (refer to page 13 Patch Weight Balance).
Note: Refer to page 7 to measure the A dimension
manually using the offset arm.
Figure 7A - Hidden Weight Location Viewed on a Cut-Away
Rim for Clarification.
Important: The A2 measurement must be at least 2
inches greater than the A1 measurement.
A1
At least
A2
2-Inch
minimum
difference
Figure 7B - T2-Tape (Hidden Tape-A-Weight®) Keep At Least
2-inches Between A1 and A2 Measurement
4 • Important: Always read and follow the information box instructions.
Page 11
Figure 7C - T2-Tape (Hidden Tape-A-Weight®) Data Entry
Diagram
Using The Laser Locator
If the T2 - Tape (hidden Tape-A-Weight®) location is
selected, use the laser locator to point to the hidden
weight location (figures 8 & 7B). Rotate laser locator
knob to position the laser dot outboard at the desired
T2-Tape (hidden Tape-A-Weight®) location.
Using The Line Laser
If the T2 - Tape (hidden Tape-A-Weight®) location
is selected, use the line laser to align the offset arm
with the laser locator dot (figures 8 & 7B); entering
A2 & D2 measurements automatically. Grasp arm at
the line laser and pull out and up to the wheel flange
(figure 6B). Hold arm still at the clip-on weight location
and wait for BEEP. Then, before returning arm to home
position, press button on line laser to activate the line
laser beam. Move arm to inner area of wheel and align
line laser beam with laser locator dot (figure 8). Hold
arm still, up against the rim, in the same plane as the
T2-Tape (hidden Tape-A-Weight®) location (figure 7A &
7B) and wait for BEEP. Refer to figure 9.
Note: The line laser remains on for ten seconds after
its button is pushed.
Press Line
Laser Button
Note: For best performance, choose a weight position
outboard as far inward (in the rim) as wheel allows.
Laser
Locator
Knob
Laser
Locator
Dot
Figure 8 - Positioning Laser Dot At T2 - Tape Hidden Weight
Location (A2)
Note: The T2 - Tape Direct Select™ Weight position
is the only mode that requires the A2 & D2 dimension
measurements.
Center Line
Laser Beam
on Laser
Locator Dot
Figure 9 - Positioning Line Laser Beam At T2 - Tape Hidden
Weight Location (A2)
3D - Using the Hood Sonar
When prompted by the balancer instructions, use the
hood sonar - width sensor (figure 10) to enter wheel
width measurement automatically. Lower balancer
hood guard to enter the measurement.
Figure 10 - Tire Width Sonar Located Inside Hood
Note: Refer to page 7 to measure the W dimension
manually using the plastic calipers (2D & 3D models).
Important: Always read and follow the information box instructions. • 5
Page 12

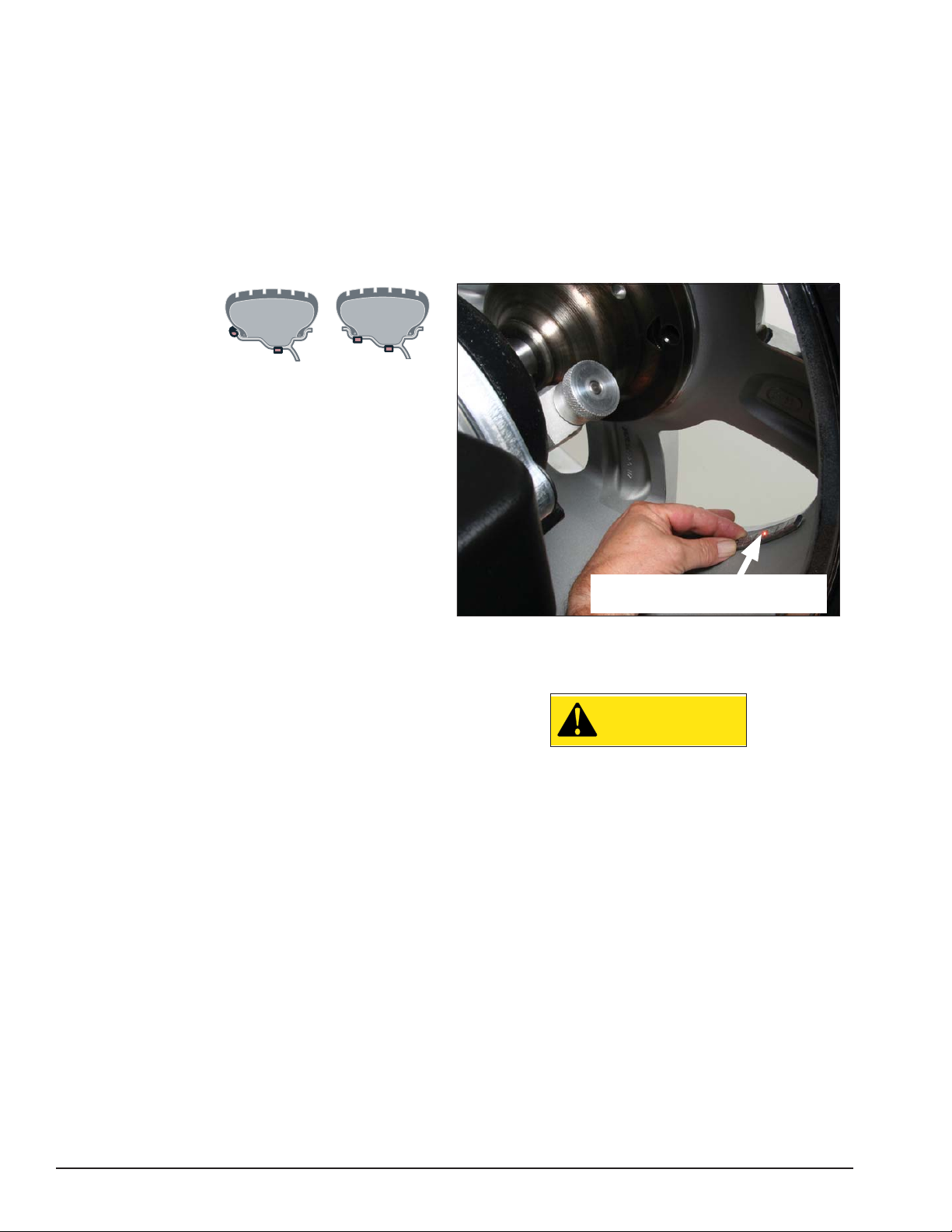

Laser Guided Operation™ System
The operator must select T2 - Tape Laser Locator to
activate the Laser Guided Operation™ feature, see page
8 for the button selection. This Direct Select™ weight
location is used when placing hidden adhesive weights
at the inner area of the wheel and is the required weight
location selection for the Behind Spoke mode.
Follow these steps to use the Laser Guided Operation™ feature for accurate placement of hidden TapeA-Weights
Important: Only use the Direct Select Weight position Clip 1 or T1 - Tape
and T2 - Tape (location
illuminated). Refer to
Using The Offset Arm
on page 4 and Using
The Lasers on page 5.
1. Begin by mounting the wheel assembly.
2. Be sure to Direct Select™ T2 - Tape as the out-
board weight location (refer to Dynamic Balance, Hidden Tape-A-Weights, page 12).
Note: The laser locator dot activates and blinks.
®
:
7. 2D Model - Manually rotate wheel to outboard cor-
rective weight location where the outboard center bar is
steady and the two bars on either side blink.
3D Model - Press NEXT to rotate wheel to outboard
corrective weight location where the outboard center
bar is steady and the two bars on either side blink.
Note: The laser locator dot will stop blinking.
8. Center and attach the outboard corrective weight
at laser locator dot location as shown in figure 11.
9. Respin tire/wheel to check balance.
3. Rotate the laser locator knob to position the laser
locator dot at the desired weight location. See figures
8 & 7B.
Note: For best performance, choose a weight position
outboard as far inward (in the rim) as wheel allows.
4. Enter the A & D wheel measurements, wait for
BEEP. Then, before returning arm to home position,
move arm to inner area of wheel and position the line
laser beam at the T2 - Tape laser locator dot position;
wait for BEEP.
5. Lower hood; wheel spins.
6. 2D Model - When wheel comes to a complete
stop, manually rotate wheel until the inboard center bar
blinks. Attach inboard corrective weight at top-deadcenter.
3D Model - Wheel will come to a complete stop at
the inboard weight position, center bar blinks. Attach
inboard corrective weight at top- dead-center.
Note: If an inboard corrective weight is not required
then the wheel will stop at the outboard corrective
weight location.
Center Corrective Weight At
Laser Locator Dot Location
Figure 11 - Centering Corrective Hidden Weight At Laser Locator Dot Location
3D - Auto Wheel Positioning
CAUTION
Keep hair, loose clothing, fingers and all
parts of body away from moving parts.
The balancer’s auto positioning feature stops the
wheel automatically at the corrective weight location.
The wheel is spun and unbalances are measured and
displayed. The inboard center bar blinks as the balancer
stops the wheel at the inboard corrective weight location (top-dead-center). (If an inboard corrective weight
is not required then the wheel will stop at the outboard
corrective weight location.) Press NEXT. The outboard
center bar blinks as the wheel automatically moves and
stops at the outboard corrective weight location (topdead-center).
Pressing NEXT moves the wheel automatically to the
next corrective weight location. Pressing EXIT releases
the wheel so that it can be manually positioned.
After several minutes of inactivity, the auto positioning feature will turn it self off. Press NEXT to make the
feature activate again.
6 • Important: Always read and follow the information box instructions.
Page 13
Setting Wheel Dimensions (DIM)
Before a wheel can be balanced, wheel dimensions
must be entered into the computer.
Definition of Dimensions (DIM)
A = Offset The distance measured from the bal-
ancer (“0” on offset arm) to inner plane
of the rim (inner weight location).
W = Width The width of the wheel at the rim
flanges, measured with the calipers as
shown in figure 13.
Note: Only use calipers provided by the wheel bal-
ancer manufacturer because others may not be the
same.
D = Diameter The diameter of the wheel as indi-
cated on the tire.
Note: A thick flange, on some aluminum wheels, can
effect the measured diameter. For example, a 16-inch
rim can have a measured diameter of 15.5-inches.
Basic Wheel Data Entry
1. Select the Clip 1 or T1 -Tape weight location and
the T3 - Tape or Clip 2 weight location.
2. Position offset arm at clip weight location; wait for
BEEP (A & D enters automatically).
3. Return offset arm to home position.
4. Use caliper and measure rim width.
5. Enter caliper measurement into W on balancer.
6. Lower hood and spin wheel.
Entering Wheel Dimensions Manually
Information entered into the balancer software for A,
W, and D can be changed anytime during a balancing
procedure by entering the measurements manually. The
balancer will recalculate weights and positions based on
the new measurements.
Wheel Offset - A
1. Press the A (wheel offset) key.
2. Position offset arm at weight location on wheel and
read the number on the offset arm gauge, at the cabinet
(this is the correct offset A DIM).
Figure 12A - A, W, and D Tire Dimensions
A2 = Offset The distance measured from the bal-
ancer (“0” on offset arm) to outer plane
of the rim (outer weight location). Used
only in T2-Tape mode.
D2 = Diameter The diameter as measured at the
A2 weight location. Used only in
T2-Tape mode.
3. Use the keypad to enter the measurement.
Wheel Diameter - D
1. Press the D (wheel diameter) key.
2. Inspect mounted tire sidewall to determine the
exact diameter that is printed on the tire.
3. Use the keypad to enter the D (Diameter DIM) to
match the tire sidewall size.
Note: Auto entry is the preferred method for entering A2 and D2. However, to manually enter A2, press
SHIFT A or D2, press SHIFT D.
Wheel Width - W
1. Press the W (wheel width) key.
2. Use the plastic calipers provided with the wheel
balancer to measure the wheel width.
Figure 13 - Caliper Placement On Wheel
Figure 12B - A2 and D2 Tire Dimensions
3. Use the keypad to enter the W (Width DIM) to
match the measured caliper width of the mounted rim.
Important: Always read and follow the information box instructions. • 7
Page 14
Control Panel Function and Review
❶
❺
Control Panel Quick Reference
If you select/press … Then …
a Direct Select Weight key (Clip
1, T1-Tape, Patch Static, T2-Tape,
T3-Tape, or Clip 2)
the T2-Tape key Laser Guided Operation™ mode activates.
the Dynamic/Static key(s) additional balance modes may be accessed. For additional information,
the Behind Spoke key the indicator illuminates showing the mode is on.
the Spoke 1/Spoke 2 key the indicator illuminates showing the activated spoke location.
a Wheel Dimension key (A, D, or W) enter wheel data manually using the “numbered” keys.
the Next key additional functions or instructions may be accessed, such as moving to
the Stop & Exit key a measurement cycle or function is ended. Also used to toggle the inverter
hold Shift and press 1 the Calibrate Machine mode is activated. Note that Arm Calibration follows
hold Shift and press 3 the Arm Calibrate mode is activated.
hold Shift and press 4 either Car mode, Lt. Truck mode or Truck mode is toggled on.
hold Shift and press 5 the Match Balance indicator illuminates showing the mode is on.
hold Shift and press 6 0.01-ounce weight increment is toggled on.
hold Shift and press 7 either the Operator A or the Operator B mode illuminates to indicate the
hold Shift and press 8 Hood Start is turned On or Off.
hold Shift and press 9 either ounce or gram weight measurements is toggled on.
on the Wheel Cross-section diagram, the activated weight location illuminates.
see Balance Options, page 11.
the next weight location.
off for manual wheel positioning.
automatically.
active operator memory.
(See Figure 14)
❶ Weight Display Windows
❷ Mode Indicators
❸ Left Weight Position Bars
❹ Right Weight Position Bars
❺ Direct Select™ & Wheel Cross-section Diagram
❻ Information Box
❼ Balancer Options
❽ Keypad Group
❾ Instructional Panel
8 • Important: Always read and follow the information box instructions.
Page 15
❶
❶
❺
❻
❷
❸ ❹
❼
❺
❾
Figure 14 - 6450 3D Control Panel Reference
❷
❽
Important: Always read and follow the information box instructions. • 9
Page 16
Weight Display and Weight Position Windows
Two weight display windows, one inboard and one
outboard, are positioned above the wheel cross section
diagram. After a wheel measurement cycle, the balancer calculates the corrective weight amount and indicates it in the appropriate display window. All weight
readings are shown in ounces or grams.
Mode Indicators
The mode indicator will show whether the mode is
activated. Modes are as follows:
Operator A or Operator B - when illuminated, indicates
which operator memory is selected.
Match Balance - when illuminated, indicates that the
Match Balance (Optimization) mode is activated.
The “Total Static” window indicates the value of the
total static unbalance. See MATCH BALANCE (Optimization) on page 16 for further details.
Located on either side of the wheel cross section diagram are the weight position bars, one inboard and one
outboard. After a measurement cycle, rotate wheel until
the center weight position bar blinks, indicating the correct weight placement position is at top-dead-center.
Note: When in laser mode (T2-Tape Laser Locator),
special blinking bars appear on either side of the center
bar to indicate the correct outboard weight placement
position. Also remember that the laser beam dot will
stop blinking when it is at the correct weight placement
location.
Car Mode - 0.25 -ounce round off mode is active when
the car mode light is lit.
Lt. Truck Mode - 0.50-ounce round off mode is active
when the light truck mode light is lit.
Truck Mode - 2.00-ounce round off mode is active
when both the car mode and light truck mode lights
are off. This is the default condition when machine is
powered on.
Dynamic or Static - press to cycle through balance
modes. For additional information, see Balance Options,
page 11.
Behind Spoke - when illuminated, indicates that the
behind spoke mode is activated.
Spoke 1 or Spoke 2 - when illuminated, indicates
spoke location selection.
10 • Important: Always read and follow the information box instructions.
Page 17
Direct Select™ Weight Placement Location
Before spinning the wheel, use direct select to indi-
cate weight placement locations as follows:
Note: When the machine is turned ON, the balancer
defaults to truck mode and 2-plane dynamic mode
using standard clip-on wheel weight locations (Clip 1
and Clip 2) and wheel dimensions.
Information Box
Displays A, W, and D values, functions, and instructions for the operator. Error messages will also be
shown in this display.
Keypad Group
The operator enters wheel data information, selects
functions, and sets options using these keys.
Clip 1 Top Center - select this location to place a stan-
dard clip weight on the inboard rim flange.
T-1 Tape Top Center - select this location to place an
adhesive weight on the inboard side of the wheel that
is the horizontal plane at the outer edge.
Patch Static - select this location for a patch weight
centered inside the tire. See Patch Weight Balance on
page 13 for further details.
T-2 Tape Laser Locator - select this location to place
an adhesive (hidden) weight on the outboard side of the
wheel that is a horizontal plane in the inner area. See
Laser Guided Operation™ System on page 6 for further
details.
T-3 Tape Top Center - select this location to place an
adhesive weight on the outboard side of the wheel that
is the horizontal plane at the outer edge.
Clip 2 Top Center - select this location to place a standard clip weight on the outboard rim flange.
Balance Options
The indicator will illuminate to show the active balance
option. Functions are as follows:
“Numbered” Keys - use to enter wheel data values.
Cal Mach - press and hold the SHIFT key and press 1
to activate Calibrate Machine mode. See Machine Calibration on page 17 for further details.
Match Balance - press and hold the SHIFT key and
press 5 to select the Match Balance mode. See Match
Balance (Optimization) on page 16 for further details.
Round Off - press and hold the SHIFT key and press 6
to toggle between either roundoff (0.25, 0.50 or 2.00ounce) or fine (0.01-ounce) weight increments.
Operator A/B - press and hold the SHIFT key and
press 7 to toggle between two operator memories (A
or B). The default memory is Operator A.
Hood Start - when on, sets the balancer to automatically start the spin cycle as soon as the hood is lowered
completely and the hood safety interlock system is
engaged. Press and hold the SHIFT key and press 8 to
toggle Hood Start on or off. The default is on.
Ounce/Gram - press and hold the SHIFT key and press
9 to toggle between either ounce or gram weight measurements. The default is ounce.
Dynamic/Static - press the respective key to cycle
through either a Dynamic, a Dynamic with Total Static
displayed, a Static, or the EB (if feature is available and
enabled, see page 12) balance mode.
LED Indicators
for 6450
LED Status Balance Mode
Both LEDs Lit Dynamic
Top LED Lit Dynamic/ Total Static
Bottom LED Lit Static
Behind Spoke - toggle the Behind Spoke option on or
off. See Behind Spoke on page 12 for further details.

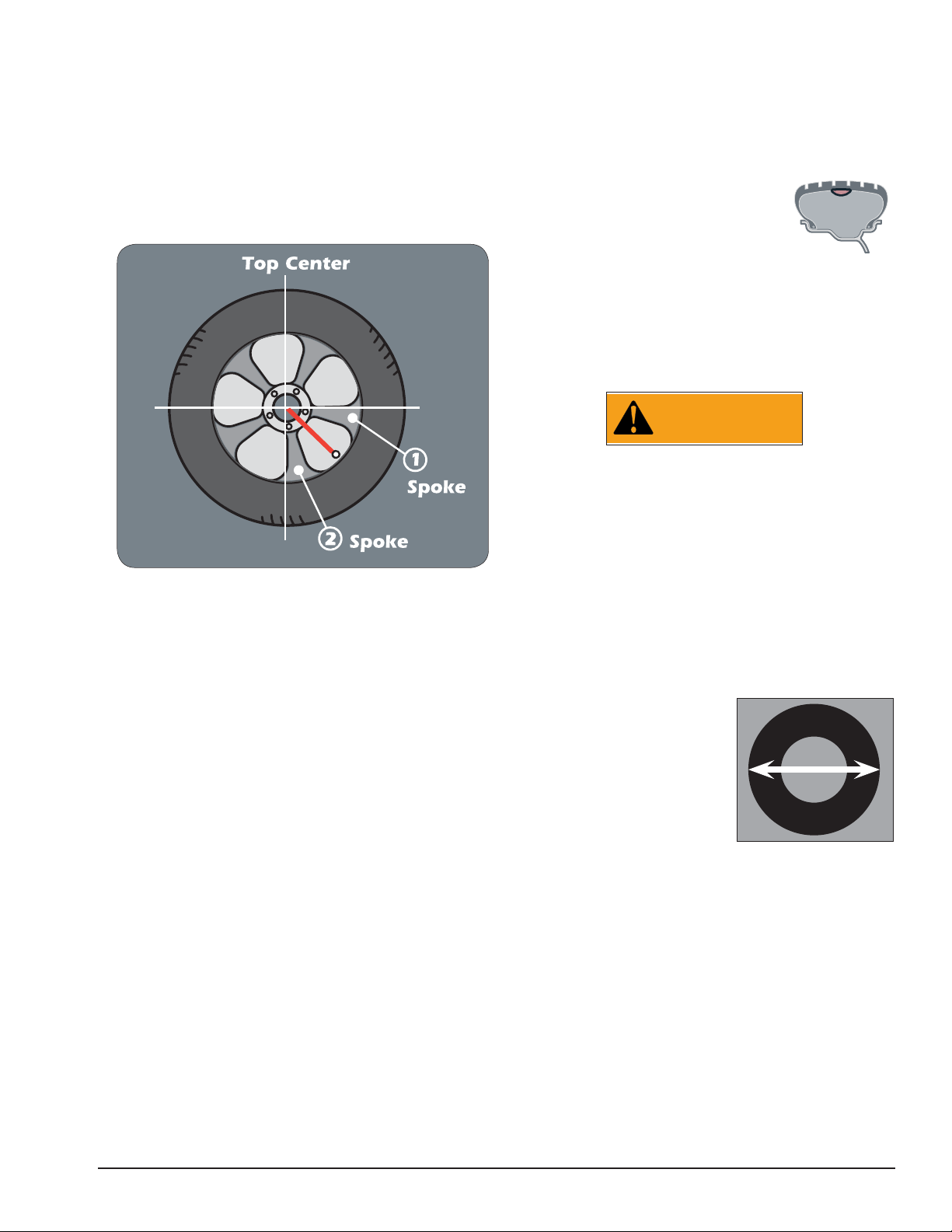

Spoke 1/Spoke 2 - toggle to set the Spoke 1 location
and the Spoke 2 location for adhesive weights (hidden
weights).
Stop & Exit - press STOP to end a measurement cycle,
exit a function or a mode.
Start - press START to begin a measurement cycle, if
the hood is lowered.
Next - function key used when accessing balancer
instructions and, if balancer is 3D and equipped with
an inverter, automatically rotates tire to its next weight
placement position.
Shift - function key used when accessing balancer
modes or options.
Important: Always read and follow the information box instructions. • 11
Page 18
Balancing Using Direct Select™
A variety of wheel configurations can be balanced
using this wheel balancer. Read through this section,
it will help in determining which mode and options
are best suited for certain wheel assemblies. Refer to
pages 1 - 7 to balance the wheel, for measurement and
weight placement techniques. Refer to pages 8 - 11 for
Control Panel functions.
Remember: As with any balancing procedure, first
remove any weights attached to the wheel, inspect the
tire and wheel, and use the most appropriate balancer
mounting method before beginning.
Dynamic Balancing
Choose a dynamic balance to balance a wheel using
two planes for correction. Direct Select™ the weight
option that best fits the available weight locations.
Clip-on Weights -The default; used for most passenger and light truck tire assemblies using the most common location for corrective weights. Clip-on weights
are placed on the inner and outer rim flanges.
Have the following items handy: appropriate style clipon weights.
Direct Select Weight position Clip 1
and Clip 2 (weight locations illuminate).
At these locations place the corrective
weight amount at top-dead-center.
Tape-A-Wei ghts® and Hidden Tape-A-Weights® -
Used when one or both clip-on weight locations are not
possible or desired. Select the weight location(s) that
best fits the rim configuration.
Have the following items handy: appropriate style clipon weights and Tape-A-Weights®.
Direct Select Weight position Clip 1 or T1 - Tape and
T2 - Tape, T3 - Tape or Clip 2 (weight locations illuminate). At all locations, except T-2 Tape, place the corrective weight amount at top-dead-center. If the T2 - Tape
weight location is selected, the balancer activates its
Laser Guided Operation™ feature (see page 6).
Static Balancing
Choose a static balance for wheel assemblies that
are not possible to balance dynamically or for narrow
wheels. For example, a motorcycle wheel that has a
small wheel width.
Have the following items handy: an appropriate wheel
assembly mounted on the balancer and a selection of
weights.
When in static mode,
the active Direct Select
Weight location is Clip 1
or T2 - Tape. Select the
weight location(s) that
best fits the rim configuration.
At the Clip 1 location, place the corrective weight
amount at top-dead-center. If the T2 - Tape weight location is selected, the balancer activates its Laser Guided
Operation™ feature (see page 6).
Note: If using a patch weight, refer to Patch Weight
Balance, page 13.
Special Balancing Modes
A special balancing mode is required for the following
methods.
Behind Spoke (T2 - Tape Mode Only) - Used to
balance with two adhesive weights located behind the
spokes in the outer correction plane.
Only use the Direct
Select Weight position
Clip 1 or T1 - Tape and
T2 - Tape (weight loca-
tions illuminate). When
the T2 - Tape weight location is selected, the balancer
activates its Laser Guided Operation™ feature (see
page 6).
Begin by following the Laser Guided Operation™ procedure, steps 1 through 4 on page 6.
1. When unbalance is displayed, rotate wheel until
inboard center bar blinks. Attach inboard corrective
weight at top-dead-center.
2. Next, rotate wheel until the outboard center bar
blinks and the two bars on either side blink.
Note: The laser locator dot will stop blinking.
3. Select the BEHIND SPOKE mode option.
Important: Be sure that the Spoke 1 and Spoke 2
locations are on either side of the original outboard corrective weight location, as shown in figure 15.
12 • Important: Always read and follow the information box instructions.
Page 19
4. Rotate the wheel toward front so the laser locator
dot is behind the first spoke; press SPOKE 1 (indicator
illuminates).
5. Rotate the wheel toward rear so the laser locator dot is behind the second spoke; press SPOKE 2
(indicator illuminates). Now at the spoke 2 location, the
outboard center bar stops blinking and the two bars on
either side blink.
Note: The laser locator dot will stop blinking.
Figure 15 - Spoke 1 And Spoke 2 Locations On Either Side Of
Original Outboard Weight Location
6. Center and attach the spoke 2 outboard corrective
weight at the laser locator dot location (see figure 11
page 6).
7. Next, rotate the wheel toward the spoke 1 location
until the outboard center bar stops blinking and the two
bars on either side blink.
Note: The laser locator dot will stop blinking.
8. Center and attach the spoke 1 outboard corrective
weight at the laser locator dot location (see figure 11
page 6).
9. Respin tire/wheel to check balance.
Patch Weight Balance - Use a static patch weight
balance when there is a very large unbalance in a tire
assembly or if a very large tire has a large unbalance.
A weighted balance pad (patch weight) is placed inside
the tire in the center to compensate for the large unbalance.
Direct Select Weight position Patch
Static (weight location illuminates). At
this location place the corrective weight
amount at top-dead-center.
Have the following items handy: mea-
suring tape and various patch weight sizes.
Note: Before proceeding with Patch Weight Balance,
it is recommended that you use the Match Balance
(Optimization) procedure first, see page 16, in order to
use the smallest patch weight.
WARNING
The Patch Weight Balance involves the loosening of tire beads and the inflation of a
tire. Training is necessary in tire changer
operation and understanding the dangers
involved during bead seating and tire inflation before attempting this stage of the
Patch Weight Balance procedure. Read the
operators manual supplied with the tire
changer and consult a supervisor.
The patch weight balance steps are as follows:
1. Direct Select Weight position PATCH STATIC. The
balancer automatically sets itself for a STATIC balance.
2. Measure the outside tire
diameter, see figure 16, and
enter this diameter manually
using the keypad.
Figure 16 - Measure Outside Tire
Diameter
3. Spin the wheel.
4. Rotate the wheel until the center weight position
bar blinks. Next, mark the tire and rim at 12 o’clock.
Then remove the wheel assembly from the machine.
Outside
Diameter
5. Disassemble the tire and rim. Place patch weight
in the tire at location marked on the tire. Reassemble
tire and rim matching the marks on the tire and rim.
6. Complete by balancing the wheel assembly following normal procedures.
Important: Always read and follow the information box instructions. • 13
Page 20
Mounting Wheel on Spindle Shaft
Standard Back Cone Mounting
Use only small or medium cones.
CAUTION
Avoid back injury, seek assistance when
lifting heavy tire/rim assemblies onto the
balancer shaft.
CAUTION
Hubnut must engage threads for at least
four full turns. Failure to tighten hubnut
securely or to force wheel firmly against
the faceplate may result in serious personal
injury.
Select the most appropriate mounting method for
the wheel you are balancing. Using the proper method
ensures secure mounting and safe balancer operation,
and prevents damage to the wheel.
On most wheels, the inner side of the wheel hub usually has the most uniform surface for wheel balancing.
Always center the wheel by the most uniform shaped
side of the hub to achieve the most accurate balance.
Regardless of mounting type, always make sure that
the wheel is forced firmly against the shaft faceplate
and that the hub nut engages the threaded shaft for
at least four complete turns. To assist in centering the
wheel properly, rotate the wheel and the shaft while
tightening the hub nut.
1. Place spring over threaded stud with the large end
inside of the faceplate. Spring must be used.
2. Select a cone that best fits into wheel center hole.
Use only small or medium cones. If a larger cone is
required, use the front cone mounting system.
3. Slide selected cone onto threaded shaft with the
large end against the spring.
4. Lift wheel onto shaft and center on cone.
5. Slide pressure drum onto threaded shaft with the
large end against the spring.
6. Thread hubnut on and tighten with hubnut wrench.
If hubnut won’t tighten all the way down, use the front
cone mounting system. The wheel must be forced
firmly against the faceplate.
7. If you still can’t tighten hubnut because of a lack
of threads, use an additional cone to act as a spacer
between the hubnut and pressure drum.
Figure 17 - Back Cone Mounting
14 • Important: Always read and follow the information box instructions.
Page 21
Standard Front Cone Mounting
Can be used with all cones (do not use spring). This
method works well with most truck wheels where the
bolt circle is less than 275 mm.
1. Select a cone that best fits into wheel center hole.
2. Lift wheel onto threaded shaft.
3. Slide selected cone onto shaft with the small end
against the wheel.
Combi Adapter (Optional)
1. Determine the correct hole pattern by comparing
the rim to the adapter. Wheels with the largest bolt circle (335 mm) should be fastened to the large diameter
side of the reversible adapter - all others should be fastened to the small diameter side (see illustration below).
2. Fasten threaded studs from back of adapter
using the 5/16 Allen wrench. Leave enough threads to
securely fasten hex nuts and lock washers.
4. By lifting wheel from bottom, center on cone.
5. Thread hubnut on and tighten with hubnut wrench.
If hubnut won’t tighten all the way down, remove cone
and wheel. Slide truck cone spacer over faceplate and
repeat steps 2 thru 5. The wheel must be forced firmly
against the faceplate.
6. If you still can’t tighten hubnut because of a lack
of threads, use an additional cone to act as a spacer
between the hubnut and existing cone.
3. Slide lock washers on. Hold the studs in place with
the 5/16 Allen wrench while threading the hex nuts on,
then tighten them down with a 5/16 wrench.
4. Mount the adapter onto the faceplate by inserting
the two (2) drive pins of the adapter into the matching
holes in the faceplate.
5. Slide truck cone onto shaft with the small end
inside the center hole of the adapter. Mount by front
cone method only.
6. Thread hubnut on and tighten with hubnut wrench.
The adapter must be forced firmly against the faceplate.
7. Mount the wheel onto the adapter’s lugs. Fasten
wing nuts by hand then securely tighten them with a
rubber mallet. Wheel must be forced firmly against the
faceplate.
CAUTION
Wing nuts must engage threads for at least
six full turns. Hubnut and cone must force
wheel and adapter firmly against the faceplate. Failure to tighten hubnut or wingnuts securely may result in serious personal
injury.
Figure 18 - Front Cone Mounting
Figure 19 - Front Cone Mounting
Important: Always read and follow the information box instructions. • 15
Page 22
Match Balance (Optimization)
The Match Balance (Tire/Rim Weight Optimization)
procedure is used to determine the best mating of tire
and rim that will result in the least amount of total unbalance of the assembly. It requires two spins and two
rotations of the tire on the rim. Match Balance may be
needed when:
• The customer complains of ride problems.
Note: A high unbalance may indicate the improper
mounting of the assembly on the balancer, or a rim that
is out of round or malformed, or a tire with a bubble or
other problem. If the unbalance is excessive, it may be
prudent to replace the rim, the tire, or both. If either is
replaced, do not continue with Match Balance. Balance
the new tire and rim and evaluate the readings.
Match Balance Mode
If you choose to use Match Balance to correct for a
condition, such as a large static unbalance, then follow
the information box instructions for the MATCH BALANCE procedure as outlined in the following steps.
Note: Use this procedure only after the wheel has
spun and the corrective weight amount is displayed.
Note: Use the total static display option. See BALANCE OPTIONS, page 11, for further details.
5. Using a tire changer, rotate the tire 180 degrees
on the rim.
6. Remount wheel assembly on the balancer. Press
2 on the control panel; a “3” will appear in the outboard
weight display.
7. Lower the hood and press START. The wheel
spins.
8. When the wheel stops spinning, raise the hood
and rotate the wheel until the valve stem is at top-deadcenter.
9. Press 4 on the control panel.
Weight amounts appear on the control panel. The
amount in the inboard weight display is the weight
imbalance for the rim. The amount in the outboard
weight display is the weight imbalance for the tire. Use
these weight amounts to determine the suitability of
the rim or tire.
Note: If either the rim or the tire weight amount is
close to zero or zero then using Match Balance will not
affect the total unbalance of the assembly.
10. Rotate the wheel until the outboard weight posi-
tion bar flashes. Mark the tire at top-dead-center.
11. Remove wheel assembly from balancer.
1. Press and hold the SHIFT key and press 5 to select
the Match Balance mode. A “1” will appear in the outboard weight display.
2. Raise the hood and rotate the wheel until the valve
stem is at top-dead -center. Mark the tire sidewall at the
valve stem.
3. Press 1 on the control panel; a “2” will appear in
the outboard weight display.
4. Remove the wheel assembly from the balancer.
WARNING
The Match Balance involves the loosening of
tire beads and the inflation of a tire. Training
is necessary in tire changer operation and
understanding the dangers involved during bead seating and tire inflation before
attempting this stage of the Match Balance
procedure. Read the operators manual supplied with the tire changer and consult a
supervisor.
WARNING
The Match Balance involves the loosening of
tire beads and the inflation of a tire. Training
is necessary in tire changer operation and
understanding the dangers involved during bead seating and tire inflation before
attempting this stage of the Match Balance
procedure. Read the operators manual supplied with the tire changer and consult a
supervisor.
12. Using a tire changer, rotate the tire until the mark
is aligned with the valve stem.
13. Remount the wheel assembly on the balancer.
14 . Press NEXT or START to exit Match Balance.
Select a balancing mode and balance the wheel assembly.
16 • Important: Always read and follow the information box instructions.
Page 23
Calibration
Machine Calibration
Important: Use the correct calibration weight amount:
a 4-ounce calibration weight in ounce mode.
Important: The factory default is set for a 4-ounce
calibration weight amount for both ounce and gram
weight measurement modes. Therefore only a 4-ounce
calibration weight is necessary, regardless of weight
measurement mode setting.
Important: Before beginning calibration, be sure the
balancer is in fine balance mode by pressing the SHIFT
key and 6 to toggle to 0.01 oz. display mode; and balance the tire down below 0.20 oz.
1. It is necessary to machine calibrate at least once in
both Truck and Car modes. Start calibration as follows:
Truck Mode - Hold SHIFT key and press 4 until
both Car Mode and Light Truck LEDs are toggled
off (both lights OFF IS Truck Mode). Then, mount a
R11 22.5 steer tire/wheel assembly on the balancer.
Note: Once both Truck and Car modes are initially cali-
brated, then it is only necessary to calibrate in the mode
that requires calibration. For example, if only truck tires
are balanced on this machine, then only the machine
calibration in Truck Mode is required.
Important: A balanced tire/wheel assembly is required.
Note: Position wheel so that no weights are on
either flange at the top-dead-center location. Turn the
machine OFF then ON.
2. Hold SHIFT key and press 1 to select the CAL
MACHINE mode.
3. Enter the D dimension.
4. Lower the hood and press START.
5. After spin, raise the hood. Attach calibration
weight to the outside flange at top-dead-center.
6. Lower the hood and press START.
Important: It is critical that the inner weight be
placed accurately to achieve proper calibration. If the
calibration weight is not moved from the outside flange
directly across to the inside flange, an inner weight
placement error will occur. To correct, follow the information box instructions.
7. After spin, raise the hood. Move and attach the cal-
ibration weight to the inside flange at top-dead-center.
Figure 21 - Calibration Weight Moved (Directly Across) To
Inside Flange
8. Lower the hood and press START.
9. Calibration complete. Press NEXT.
10. After completing the Machine Calibration proce-
dure, the Arm Calibration will automatically initiate.
Arm Calibration
The Arm Calibration procedure begins immediately
after Machine Calibration.
During Machine Calibration, the balancer software
calculates both the A and W dimensions. The Arm Calibration gives the balancer software a reference point
to the edge of the faceplate and home position. When
the user enters the A dimension from the arm rod, it
calculates the difference from the machine calibration
A and uses that as a factor for the manual A entry. Arm
calibration also gives the D dimension a reference point
from home position.
11. Bring the tip edge of the arm precisely to the
outer edge of the faceplate and hold it there while
pressing the NEXT key. (If necessary to reach the
faceplate accurately, loosen the calibration wheel temporarily.)
Figure 20 - Calibration Weight On Outside Flange At Top-DeadCenter
Important: Always read and follow the information box instructions. • 17
Page 24
12. With the arm still at the edge of the faceplate,
enter the A dimension shown on the arm rod. Press the
NEXT key.
Figure 22 - While Holding Arm at Faceplate Edge, Enter A
13. Move the arm to its home position and press the
NEXT key.
14 . Move the arm to the clip-on weight location on
the rim flange and hold it there while manually entering
the D dimension. Press the NEXT key.
Maintenance Instructions
The balancer requires only minor maintenance to keep
the unit operating properly.
1. Keep the display clean and clear. Use a damp cloth.
Do not use cleaners or solvents which leave oily or filmy
residues behind.
2. Keep the adapters, cones, faceplate, threaded
shaft, pressure cup, and hub nut clean. Grease and dirt
buildup will cause inaccurate balancing and premature
wear. Clean these items at least once a day with a
vaporizing solvent.
3. Clean weight tray and any accessory posts, pegs,
or storage shelves with a vaporizing solvent. Weights
stored in a dirty tray may pick up grease and dirt which
may keep them from securely attaching to the wheel.
WARNING
Use common sense, this is an electrical
device. Exposing the balancer to water,
either by hose or bucket, or by exposure
to rain or snow, may cause risk of shock
or electrocution to operator or bystanders.
Place, store, and operate the balancer only
in a dry, sheltered location.
15. While still holding the arm at the clip-on weight
position on the wheel, enter the dimension read off the
arm rod. Press the NEX T key.
16. Return the arm to home position; arm calibration
is complete.
Important: To redo the Arm Calibration procedure,
press and hold SHIFT and press 0, then press 19 to
bypass the Machine Calibration requirement. Always
use the same wheel assembly that was used during
the machine calibration or else the calibration will not
be correct.
17. If machine calibration for the Car Mode/Lt. Truck
Mode is necessary then:
Car Mode - Hold SHIFT key and press 4 until Car
Mode LED is toggled on. Then, mount a 16-inch
steel tire/wheel assembly on the balancer and
repeat steps 2 through 16.
Note: Car Mode calibration covers both Car mode and
Light Truck mode.
Important: A balanced tire/wheel assembly is required.
Note: Position wheel so that no weights are on
either flange at the top-dead-center location. Turn the
machine OFF then ON.
CAUTION
Do not hose down with water or bucket
wash the balancer. Extensive damage to
the balancer will result. Sensitive electronic
components, wiring harnesses, and other
devices housed in the balancer are not
intended to be exposed to water.
4. Keep the area around and under the balancer
clear. Remove any tools or other items that are leaning
against the balancer. Remove any items that may cause
the balancer to not sit level. Be particularly cautious of
new or used wheel weights on the floor, as they may
cause personal injury due to falls.
5. Use only COATS® accessories. Accessories from
other manufacturers may not fit or function properly,
and may damage the balancer.
6. To replace Arm Laser battery, remove cover
(fig. 23). Discard
old battery. Install
a new battery and
replace the cover.
Figure 23 - Replacing
Arm Laser Battery
Arm Laser
Batter Cover
18 • Important: Always read and follow the information box instructions.
Page 25
Diagnostic Procedures
After Balance Vibration Problems
If vibration is still present after balancing the wheels
and driving the vehicle on smooth pavement, remove
the wheels and recheck the balance. If a wheel is out
of balance the cause maybe:
• Wheel was not mounted/centered correctly on the
balancer.
• A weight has come off the wheel (possibly the
wrong clip style). Remove the other weights from
the wheel and rebalance.
• Foreign material inside the tire. Remove the tire
from the wheel, remove the foreign material, and
remount. Remove wheel weights and rebalance the
wheel.
• Stones or other foreign objects caught in the tire
tread or rim. Remove the objects. Check and rebalance if needed.
If the balancer still indicates the wheels are balanced
to within 0.01 ounces on both inner and outer displays,
the problem is not in the balance of the wheels. Check
the following possible sources of vibration:
• Tire pressure. Bring all tires up to the recommended
PSI.
• Radial or lateral runout in the tire or wheel. Replace
the damaged part.
• Unbalance in wheel covers or trim rings. Remove
the wheel covers or trim rings and test drive. If
the vibration is gone, remove the shaft and use
an appropriate adapter to mount the wheel to the
balancer. Balance the wheel with the wheel cover
or trim ring attached to the wheel.
• Incorrectly mounted tire and wheel. Remount correctly.
• Damaged wheel bolt holes. Replace wheel.
• Worn universal joints. Replace as required.
• Drive shaft unbalance or damaged. Balance, repair,
or replace.
• Unbalance in brake rotor(s) or drum(s).
• Suspension out of alignment. Align the vehicle and
replace any damaged or worn parts.
Troubleshooting
A COATS® Service Technician may ask for information to help diagnose service concerns (Please contact
COATS® directly at 1-800-688-9240 for the Certified
Service Partner nearest you). Conveying this information to your service technician prior to servicing can
help to expedite service to your equipment. Although
much of the diagnostic information aids your COATS®
Service Technician, several remedies for balancer malfunction are available to the operator.
Error Messages - One of the following error messages, shown in the information box display, may
appear indicating a problem with the balancer.
Note: Always EXIT error message and repeat function
to see if error is eliminated.
Error 1 - Spin up is too slow - Verify power supply to
balancer and motor connection E1
Error 2 - Spin up time too long - Check Wheel DIA
and power supply - press STOP - EXIT E2
Error 3 - No rotation signal - Check motor & encoder
function & wiring -press STOP - EXIT E3
Error 4 - Wheel rotation direction is reversed -
Disconnect power and correct wiring E4
Error 5 - Stop time too long - Verify power supply and
motor connection - press STOP - EXIT E5
Error 6 - Encoder is not connected or has failed -
Disconnect power supply and repair E6
Error 9 - Wheel coast speed is too slow E9
Error 11 - User cancelled the operation E11
Error 20 - Arm Scale is out of range E20
Error 24 - Lower hood to spin E24
Error 25 - Loose hub nut. Tighten hub nut and respin
E25
Error 26 - CAL ERROR E26
Inverter Error - Inverter Fault-Please Wait....
An inverter error occurs when one of several fault
conditions is detected by the inverter; such as, low
line voltage, motor over temperature, motor overload
or motor drive over temperature. The balancer will not
respond to inputs until the fault condition is corrected.
The balancer will clear this error as soon as possible
and indicate that with the following message:
Inverter Fault Cleared. Press Any Key
Important: Always read and follow the information box instructions. • 19
Page 26
Installation Instructions
Receiving
The shipment should be thoroughly inspected as soon
as it is received. The signed bill of lading is acknowledgement, for the carrier, of receipt in good condition
of the shipment covered by our invoice.
If any of the goods called for on this bill of lading are
shorted or damaged, do not accept them until the carrier makes a notation of the shorted or damaged goods
on the freight bill. Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any hidden loss or
damage is discovered after receipt and request him to
make an inspection. If the carrier will not do so, prepare
an affidavit to the effect that you have so notified the
carrier (on a certain date) and that he has failed to comply with your request.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE AFTER YOU HAVE GIVEN THE CARRIER A
CLEAR RECEIPT.
File your claim with the carrier promptly. Support
your claim with copies of the bill of lading, freight bill,
invoice, and photographs, if possible.
Although COATS responsibility ceases upon delivery
of the shipment to the carrier, we will gladly assist
in tracing lost shipments. Our willingness to assist in
every possible manner does not make COATS responsible for collection of claims, or replacement of lost or
damaged materials.
Electrical Requirements
See serial tag for the appropriate power requirements
of your machine.
Always have a qualified electrician install the proper
receptacles in accordance with state and local codes.
Setup
CAUTION
Do not use the control panel, control panel
base, accessory storage, faceplate, hood or
shaft to lift the balancer.
CAUTION
Do not attempt to install and setup the unit
yourself. Contact COATS® as noted below.
A factory trained COATS® Service Technician must
perform the install, setup, and initial test procedures on
your wheel balancer. Do not attempt to install and setup
the unit yourself. Accurate and reliable operation of
your unit depends on proper installation. Please contact
COATS® directly at 1-800-688-9240 for the Certified
Service Partner nearest you.
Connect to Power
Your factory trained COATS® Service Technician should
do the final check to verify the power installation before
connecting the balancer to a power supply. Failure due
to improper power connection may void the warranty.
Floor and Space Requirements
The balancer must be located on a flat floor of solid
construction, preferably concrete. The balancer must
sit solidly on its three feet. If the balancer is not level,
does not sit solidly on its three feet, or is placed on an
unstable floor, the balancer will not function properly
and may produce inaccurate balance readings.
Do not operate the balancer while it is on the pallet.
Select a location for the balancer that provides a level,
solid floor, and adequate clearance around and above
the balancer. Make sure the location selected has
enough room above and behind the unit so the hood
can be raised completely. The location must also provide working room for mounting and removing wheels.
Make sure the area has adequate lighting.

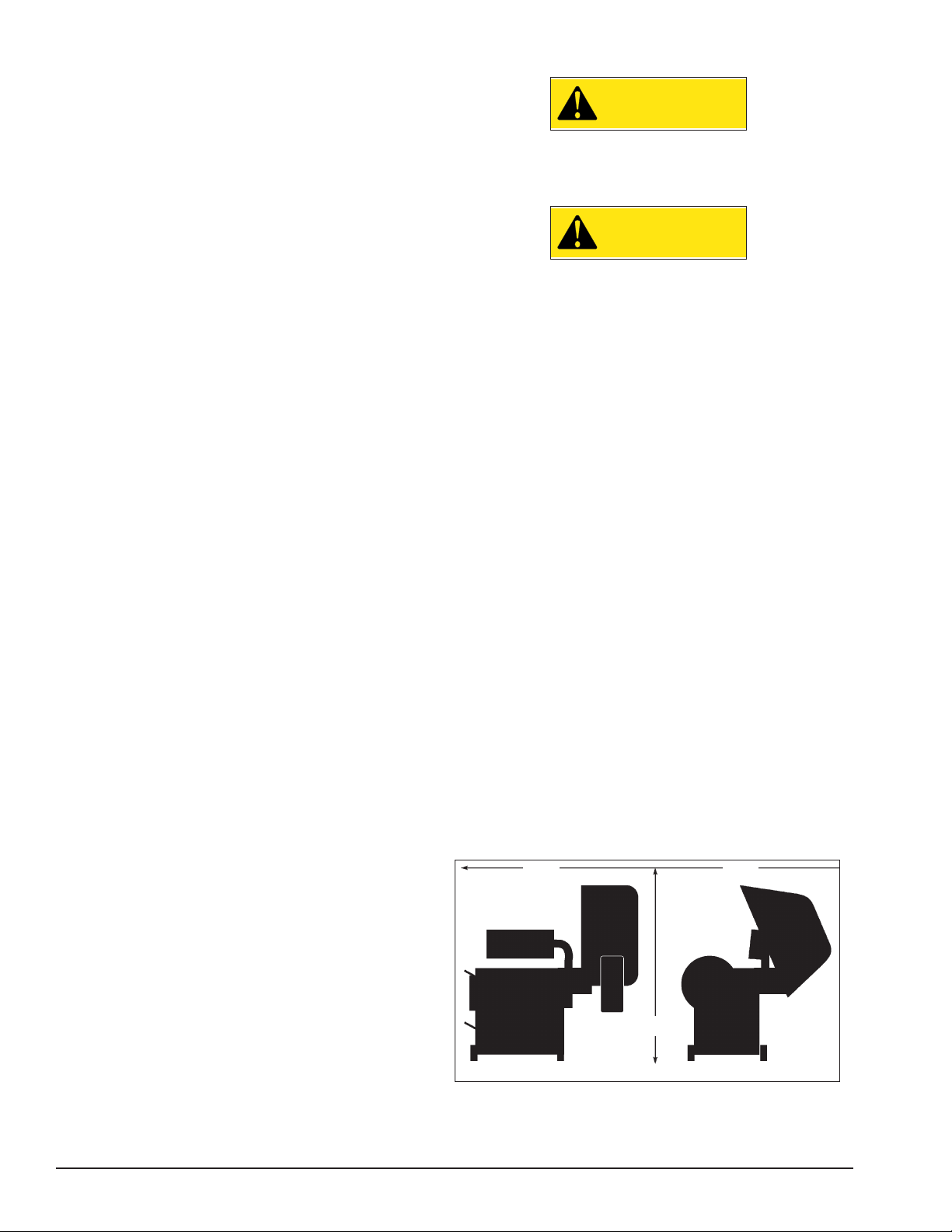

62 in.70 in.
89 in.
Figure 23 - Space Requirements
20 • Important: Always read and follow the information box instructions.
Page 27
Specifi cations
Features
Wheel Diameter Range
19.5 - 30 inches
Wheel Width Range
6 - 20 inches
Maximum Outside Tire Diameter
Up to 52 inches
Maximum Tire/Wheel Weight
500 pounds (227 Kg)
Mounting Shaft Diameter
2.0 inches (51mm)
Resolution
0.35 degrees
Balancing Display Increments
2.00 or 0.01 ounces
Electrical Requirements
230V ±10%, 1 Ph, 50/60 Hz, 20 amp, L6-20
230V ±10%, 3 Ph, 50/60 Hz 20 amp, L15-20
(use grounding type plug)
Footprint
62 inches x 70 inches
Shipping Weight
1.100 pounds (500 Kg)
• Automatic Data Entry for Offset and Diameter Manual Entry Backup on all Parameters
• Static-on-Screen™
• Four Fixed Function Keys, Seven Program Keys for
user Friendly Operation
• Direct Select™ Weight Placement Location
Dynamic (Standard): Clip-on Weights
Alloy: User Defined
Static
Patch (Tire Weight): Static Only
• Behind the Spoke Weight Placement
• Automatic Start When Hood is Lowered
• Single Spin Balancing - Dynamic and Static
• Easy-To-Read Position Indicators
• Laser Guided Operation™ Tape-A-Weight
• Hood Safety Interlock System
• Extended Mounting Faceplate for Deeper Wheels
• Match Balance (Optimization)
• Operator Memory for Two Different Users
• User Friendly Weight Calibration
• No Bolt-down Installation
• Digital Motor Control
• Automatic Stop & Lock
• Automatic Indexing
• MET Lab Listing
®
Important: Always read and follow the information box instructions. • 21
Page 28
85606875 02 12/2011 © Copyright 2010 Hennessy Industries and COATS® All Rights Reserved. Printed in USA
Loading...
