Classe Audio CDP-1.5 Owners manual

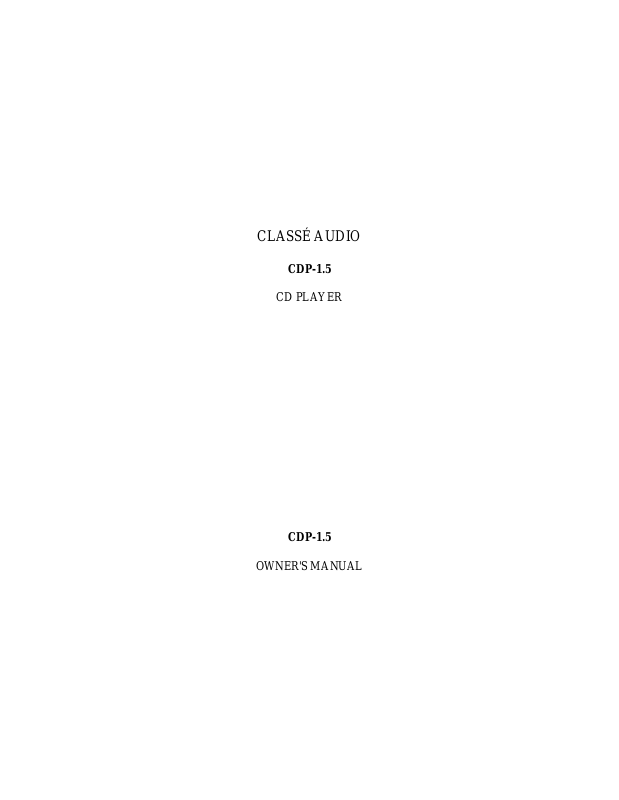

CLASSÉ AUDIO
CDP-1.5
CD PLAYER
CDP-1.5
OWNER'S MANUAL
CLASSÉ DESIGN PHILOSOPHY
1. REPEATED LISTENING DESIGN SESSIONS:
Fine tuning the sound by exchanging and mixing different parts (transistors, capacitors, wiring,
PCB boards etc.), and adjusting many specific operating voltages within proper engineering ranges, has
allowed us to produce an overall sonic recipe giving the most natural harmonic realism of music typical
of instruments in a live performance.
2. UPGRADABLE SINGLE CIRCUIT DESIGNS:
All Classé products share exactly the same circuit design philosophy. This means all amplifiers
and all high level circuits benefit from the same design goals. Similar circuits are then tailored to
different power levels etc. Differences between less expensive models and more expensive models are
parts quality and compliment, power supply extravagance and the amount of filtering etc., as well as
features and packaging.
This means that for years Classé has been constantly sonically fine tuning and technically upgrading this
circuit design and its application, thus reaching a very high level of natural musical enjoyment as well as
excellent reliability which benefits all models.
3. EXTREME LONG LIFE IN REAL WORLD CONDITIONS:
Choosing the best attainable quality parts and materials combined with the advantages of the two
above-mentioned areas provides Classé owners with years of proven trouble-free reliability and musical
enjoyment.
CDP-1.5
OWNER'S MANUAL
TABLE OF CONTENTS
UNPACKING & SET-UP, SAFETY INSTRUCTIONS.....………….. 4
A.C. LINE POWER .................................................….......................…. 6
REAR PANEL CONNECTIONS AND FUNCTIONS……………..... 7
DISPLAY, FUNCTIONS AND OPERATIONS……………………... 8
TECHNICAL DESCRIPTION …………………………………….... 13
SPECIFICATIONS ...................................................….......................... 15
3
UNPACKING & SET-UP
WARNING
THE CDP-1.5 IS NOT TO BE OPERATED WITH THE COVER OPENED.
THERE IS INVISIBLE LASER RADIATION WHEN THE COVER IS OPENED.
AVOID DIRECT EXPOSURE TO THE LASER BEAM.
SAFETY INSTRUCTIONS
1. WATER AND MOISTURE: This product should not be used near water. To prevent fire or
shock hazard, do not expose this product to rain or moisture.
2. HEAT: This product should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliances which produces heat.
3. POWER SOURCES: This product should be connected to an AC power source of the proper
rated voltage. The original shipping container and the serial number tag at the back of the unit
will stipulate the AC voltage from which this unit can operate correctly.
4. SERVICING: Do not open this unit for any reason. No user serviceable parts inside. Refer
servicing to an authorized service technician.
5. NON-USE PERIODS: The power cord of this unit should be unplugged from the AC outlet
when left unused for an extended period of time.
6. DO NOT REMOVE THE TOP COVER while the unit is ‘on’ or connected to an AC outlet, there
is a SHOCK HAZARD, also, foreign objects could fall in the unit and cause severe damage to
internal components, the player may also leak invisible laser radiation. AVOID DIRECT
EXPOSURE TO THE BEAM.
4
1. UNPACKING AND ACCESSORIES:
The Classé CDP-1.5 has been carefully wrapped in heavy gauge plastic, packed in semi-rigid foam and
contained in a special box. To remove the unit, open and spread the top flaps of the box. By its sides,
lift the CDP-1.5 out along with its attached foam packing. Remove each foam side by pulling them
straight out. Remove the plastic wrap and inspect the unit for any concealed damage. Report any
concealed damage to your dealer promptly.
Apart from this owner's manual, please ensure the following is also included:
1) Detachable A.C. power cord.
2) Remote control handset (along with two (2) type "AAA" batteries).
Please report any missing parts to your dealer promptly.
2. SETUP:
The CDP-1.5 CD player must be operated on a horizontal platform (see specifications for
details) such as a table or, preferably, specialized audio furniture to extract the best performance. Like
fine turntables and interconnect cables, the final location of the CDP-1.5 should be free of any huminducing magnetic fields, such as those caused by power amplifiers, AC line filters and other regulation
devices. Such locations can introduce noise into an audio system, which inevitably degrades sound
quality. Ideally, a few feet should separate the CDP-1.5 from the power amplifier. As well, keep lowlevel interconnect cables away from the power amp and separate from A.C. power cords. The CDP-1.5
generates negligible amounts of heat. Therefore, air space around the CDP-1.5 for ventilation need not
be a concern.
Important! Check the Serial Number sticker on the back of the unit for the correct operating voltage.
Regardless of the voltage, the fuse rating should be a 3/8 AMP SLO-BLO type.
5
A.C. LINE POWER
The ON/OFF (POWER) switch on the CDP-1.5 is located on the front panel of the unit, at the
left, besides the CD drawer. While thoroughly musical shortly after turn-on, the CDP-1.5 will exhibit
"sonic growth" for the first 300 hours of use.
For optimum sonic performance, you should consider use of the optional CLASSÉ REFERENCE A.C.
LINE CORD. Consult your dealer regarding this accessory.
CAUTION: "FLOATING THE GROUND” OR DEFEATING THE GROUND ON A 3-PRONG
LINE CORD MAY CREATE A SHOCK HAZARD. CONNECT ALL INTERCONNECT CABLES
BETWEEN THE ELECTRONICS BEFORE CONNECTING THE A.C. LINE CORDS TO THE
WALL OUTLETS. THIS WILL REDUCE THE POTENTIAL SHOCK HAZARD. IN ADDITION
PLEASE READ THE WARRANTY SECTION OF THIS OWNER'S MANUAL.
6
