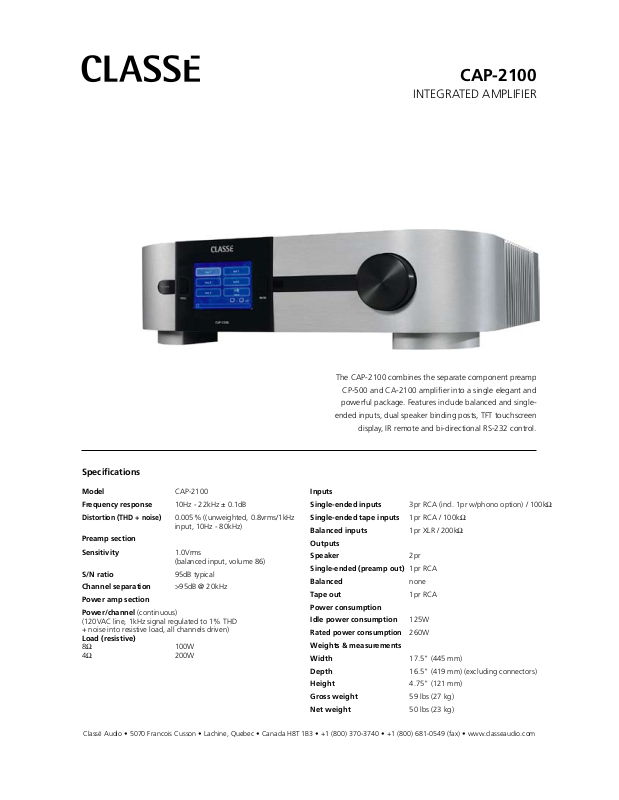

Classe Audio CAP-2100 Brochure

CAP-2100

INTEGRATED AMPLIFIER

Specifications

Model CAP-2100

Frequency response 10Hz - 22kHz ± 0.1dB

Distortion (THD + noise) 0.005% ((unweighted, 0.8vrms/1kHz

input, 10Hz - 80kHz)

Preamp section

Sensitivity 1.0Vrms

(balanced input, volume 86)

S/N ratio 95dB typical

Channel separation >95dB @ 20kHz

Power amp section

Power/channel (continuous)

(120VAC line, 1kHz signal regulated to 1% THD
+ noise into resistive load, all channels driven)
Load (resistive)
8Ω 100W
4Ω 200W

The CAP-2100 combines the separate component preamp

CP-500 and CA-2100 amplifier into a single elegant and

powerful package. Features include balanced and single-

ended inputs, dual speaker binding posts, TFT touchscreen

display, IR remote and bi-directional RS-232 control.

Inputs

Single-ended inputs

Single-ended tape inputs

Balanced inputs 1pr XLR / 200kΩ

Outputs

Speaker

Single-ended (preamp out)

Balanced

Tape out

Power consumption

Idle power consumption 125W

Rated power consumption

Weights & measurements

Width

Depth

Height

Gross weight

Net weight

3pr RCA (incl. 1pr w/phono option) / 100kΩ

1pr RCA / 100kΩ

2pr

1pr RCA

none

1pr RCA

260W

17.5” (445 mm)

16.5” (419 mm) (excluding connectors)

4.75” (121 mm)

59 lbs (27 kg)

50 lbs (23 kg)

Classé Audio • 5070 Francois Cusson • Lachine, Quebec • Canada H8T 1B3 • [phone] • [phone] (fax) • www.classeaudio.com
