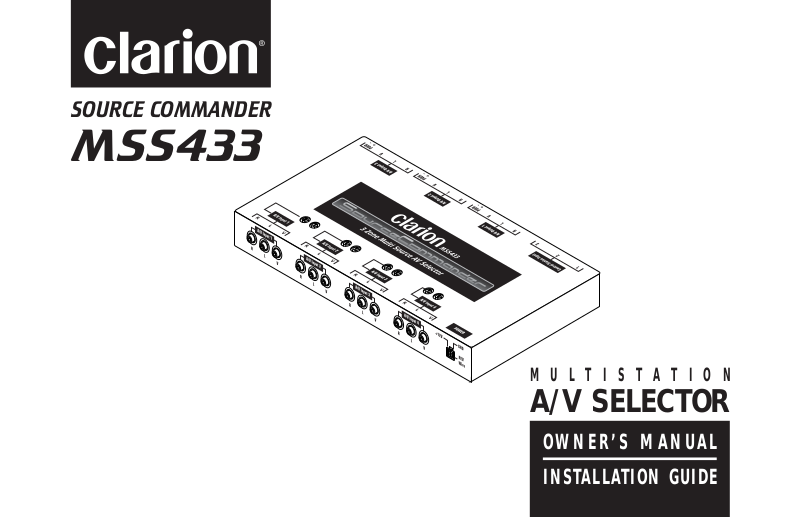

SOURCE COMMANDER
MSS433
OWNER’S MANUAL
INSTALLATION GUIDE
MULTISTATION
A/V SELECTOR
RL
V
RL
V
R
L
V
RL
V
OWNER’S MANUAL/INSTALLATION GUIDE
1
WARNING!
THE CLARION MSS433 MULTISTATION A/V SELECTOR IS
DESIGNED FOR SWITCHING OF VIDEO SOURCES FOR REAR
SEAT VIEWING ONLY.
THIS PRODUCT IS NOT INTENDED FOR VIEWING BY THE
DRIVER WHILE THE VEHICLE IS IN MOTION SINCE SUCH USE
MAY DISTRACT THE DRIVER OR INTERFERE WITH THE DRIVER’S SAFE OPERATION OF THE VEHICLE AND MAY RESULT
IN SERIOUS INJURY OR DEATH. SUCH USE MAY ALSO VIOLATE STATE LAW.
CLARION DISCLAIMS ANY LIABILITY FOR ANY BODILY
INJURY, INCLUDING FATALITIES, OR PROPERTY DAMAGE
THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED
USES OF THIS PRODUCT.
ABOUT INSTALLATION
Installation of mobile audio and video components requires
experience with a variety of mechanical and electrical procedures. Even though this manual provides general installation
and operation instructions for your new Clarion MSS433
Multistation A/V Selector, it does not show the exact installation methods for your particular vehicle.
If you do not have the required knowledge and experience to
successfully complete the installation, we strongly recommend consulting an authorized Clarion dealer about professional installation options.
TABLE OF CONTENTS
Introduction...............................................................2
Installation And Operation Precautions......................3
Installation And Wiring .............................................5
Description Of MSS433 Front Connectors .................10
Description Of MSS433 Rear Connectors ..................12
Description Of Control Station..................................13
Applications Input Configurations............................15
Applications Output Configurations .........................16
Operating the MSS433 ...........................................17
Troubleshooting ......................................................19
Specifications ..........................................................20
SOURCE COMMANDER MSS433
2
INTRODUCTION
The Clarion MSS433 is a full-featured Multistation A/V
Selector specifically created for the mobile environment.
When used with the enclosed Control Stations, the system
allows true multi-zone control with independent audio/video
selection of up to four sources and connection of up to three
monitors, each capable of displaying a different audio/video
program. Each station provides individual entertainment.
The MSS433 also includes the following features:
•Works with all Clarion monitors
•Accepts up to three individual Control Stations
•All solid-state electronic circuits
•Audio level gain controls
• Buffered input and output audio/video circuits
• Gold-plated RCA connectors
•High-quality video/audio selector circuits
•Rear Vision Camera automatic switching
About The Manual And Warranty
To start enjoying your new Clarion MSS433 Multistation A/V
Selector, please read all remaining instructions listed in this
manual. Keep all instructions for future reference.
This product is covered by a limited warranty (see the
enclosed warranty card). Save the sales receipt to protect
your purchase and aid in warranty service.
OWNER’S MANUAL/INSTALLATION GUIDE
3
INSTALLATION AND OPERATION PRECAUTIONS
Installation Precautions
• This unit operates on an automotive 12-volt negative
ground power source and requires additional mobile audio
and video components for proper operation.
• Before installation, disconnect the (–) negative lead from
the vehicle’s battery.
•Use only supplied screws and hardware. Make sure all
connections and components are fastened securely .
•At the proposed installation sites, make sure there is adequate space to accommodate both MSS433 and the
Control Station dimensions.
•Use extreme caution when drilling around electrical
wiring, brake lines, and fuel lines. Check clearances on
both sides of a planned installation surface before drilling
any holes or installing any screws.
•Always wear protective eyewear when using tools.
•Use only high-quality RCA cables that are no longer than
necessary for direct connections to other components in
the system. Extra-length audio and video cables can
cause signal loss and act as an “antenna” for noise.
•When routing RCA cables, keep them away from power
cables and output speaker wires.
Operation Precautions
•Do not allow liquids or foreign objects to enter the
MSS433 Multistation A/V Selector or Control Station(s).
• If any unit should become wet, turn off all power and let
your authorized Clarion dealer clean or service the equipment.
DO NOT ATTEMPT TO OPEN OR SERVICE THE
MSS433 OR CONTROL STATIONS. THE INTERNAL PARTS ARE NOT USER-SERVICEABLE.
DOING SO WILL VOID THE WARRANTY.
•Do not place heavy objects on the MSS433 Multistation
A/V Selector or Control Station(s).
SOURCE COMMANDER MSS433
4
•Do not drop or excessively jar the MSS433 Multistation
A/V Selector or Control Station(s).
•Do not use liquid cleaners on any surfaces. Only use a
soft (cotton or other non-static) cloth to wipe off fingerprints or other imprints from the faceplate or remote control.
•Do not subject the unit to direct sunlight or an extremely
hot environment (e.g., closed windows on a hot summer
day , direct path of heater vent, etc.).
•Avoid using the products under the following conditions:
– After extended parking on an extremely hot or cold day
– Near strong magnetic fields
– In an environment with excessive humidity , dust, or
vibration (e.g., off-road travel, etc.)
OWNER’S MANUAL/INSTALLATION GUIDE
5
INSTALLATION AND WIRING
Parts List
•(1) Source Commander MSS433 A/V Selector
•(3) Control Stations
•(3) Control Station Cables
• (2) Mounting L-Brackets
•(4) M4 x 8 Pan Head Machine Screws
•(4) M4 x 15 Self-tapping Sheet Metal Screws
•(1) 4-pin Molex Power Connector
•(3) 2-pin Monitor Power Connectors
• Owner’s Manual/Installation Guide
•Warranty Registration Card
Installing the MSS433
Figure 1. Installing the MSS433.
RL
V
RL
V
R
L
V
RL
V
P
O
W
E
R
M4 x 15 Self-tapping
Sheet Metal Screw
(4 supplied)
M4 x 8 Pan Head
Machine Screws
(4 supplied)
SOURCE COMMANDER MSS433
6
Installing the Control Station
Figure 2. Installing the Control Station in a center console.
MSS433 Wiring for the 4-Pin Power Harness
Figure 3. Wiring and pinouts for the 4-pin power harness.
Reverse (Green)
Ignition (Red)
Battery +12V (Yellow)
Ground (Black)
1
2
3
4
1 2
34
END
VIEW
To Ground
Black
Green
Reverse Switch
To Vehicle
Circuits
Ignition Switch
Reverse Lights
(on vehicle’s rear)
Battery
+
-
Red
Fuse (Not Supplied)
Yellow
Opening
Mounting Bazel
Control Station
OWNER’S MANUAL/INSTALLATION GUIDE
7
INSTALLATION AND WIRING
(
C
ONTINUED
)
MSS433 Wiring for DVD Disc Player
Figure 4. Wiring diagram using a VS718 DVD player.
MSS433 Wiring for VCR
Figure 5. Wiring diagram for a VCR Input.
RLV RL V RLV RLV
Videocassette Recorder (rear view)
Yellow
RED
RLV RLV RLV RLV
SOURCE COMMANDER MSS433
8
MSS433 Wiring for Rear Vision Camera
Figure 6. Wiring diagram for a Clarion Rear Vision Camera.
R L V R L V R L V R L V
OWNER’S MANUAL/INSTALLATION GUIDE
9
Power Connector Pinouts
Figure 7. 4- and 2-pin Molex Power connector pinouts.
MSS433 Video and Power Connector Pinouts
Figure 8. MSS433 Chassis A/V Inputs, Outputs, & Power connectors.
POWER
4-Pin Connector
(Male Pins)
END
VIEW
END
VIEW
Reverse (Green)
Ignition (Red)
Battery (Yellow)
Ground (Black)
1
2
3
4
1 2
34
MONITOR OUTPUT
2-Pin Connector
(Male Pins)
Positive Lead
Negative Lead
1
2
1 2
Center Connductor is signal (+),
Outside conductor is signal ground (-).
Center Connductor is signal (+),
Outside conductor is signal ground (-).
A/V INPUT 1 ~ 4
RCAs
A/V OUTPUT 1 ~ 3
RCAs
MONITOR OUTPUT
2-Pin Connector
Chassis
View
Positive Lead
Negative Lead
1
2
12
POWER INPUT
4-Pin Molex
Reverse (Green)
Ignition (Red)
Battery (Yellow)
Ground (Black)
1
2
3
4
12
3
4
Chassis
View
SOURCE COMMANDER MSS433
10
DESCRIPTION OF MSS433 FRONT CONNECTORS
Figure 9. The MSS433’s chassis input connectors.
BATT
IGN (+12V)
Reverse
Wire
12345
A/V Input Connections (Front Panel)
1
A/V INPUT 1 (3 -RCA Jacks)
Use a triple RCA A/V cable (not supplied) to connect
video and stereo audio from the primary video source
(e.g., Clarion CVP9700 VCR, VS718 DVD Player, etc.)
to the MSS433 A/V Selector. See Applications on page
15.
Adjust the input gain controls so that the source’s level
matches the audio level of the other video inputs.
NOTE: Do not connect high level speaker-level wires to
these inputs. The MSS433 requires low-level signal
inputs only.
2
A/V INPUT 2 (3 -RCA Jacks)
Same as A/V Input 1. Use these jacks to connect a second
video source (e.g., video game console, etc.)
OWNER’S MANUAL/INSTALLATION GUIDE
11
3
A/V INPUT 3 (3 -RCA Jacks)
Same as A/V Input 1. Use these jacks to connect a third
video source.
4
A/V INPUT 4 (3 -RCA Jacks)
Same as A/V Input 1. Use these jacks to connect a fourth
video source.
NOTE: When using a optional Clarion Rear Vision
Camera, the video connection must be connected to A/V
Input 4 to function properly with the reverse wire. See
Figure 6 on page 8 for connection configuration.
When +12Vdc is applied to the reverse wire (Pin 4), the
MSS433 will automatically override Control Station 1’s
video selection and switch directly to A/V Input 4. The
LED indicator will blink to show that the reverse function
is active. The video signal will automatically override
any other selection that is being viewed on Monitor 1.
When voltage is removed from the reverse wire, the monitor will automatically switch back to the original source
selected.
5
POWER INPUT CONNECTOR (4-Pin Molex)
Connect the enclosed Molex pigtail to the vehicle’s power,
ground, and back-up light circuits, (see Figure 3 on page 6).
SOURCE COMMANDER MSS433
12
6
CONTROL STATION 1 (6 -Pin Connector)
The Control Station connected to this port provides control
and selection of Zone 1 audio/video sources.
7
CONTROL STATION 2 (6 -Pin Connector)
The Control Station connected to this port provides control
and selection of Zone 2 audio/video sources.
8
CONTROL STATION 3 (6 -Pin Connector)
The Control Station connected to this port provides control
and selection of Zone 3 audio/video sources.
9
A/V OUTPUT 1 (3 -RCA Jacks)
Use this output when connecting the MSS433 to an external (PAL/NTSC-compatible type) video monitor for Zone
1.
0
MONITOR 1 OUTPUT (2-Pin Connector)
DESCRIPTION OF MSS43. REAR CONNECTORS (CONT’D)

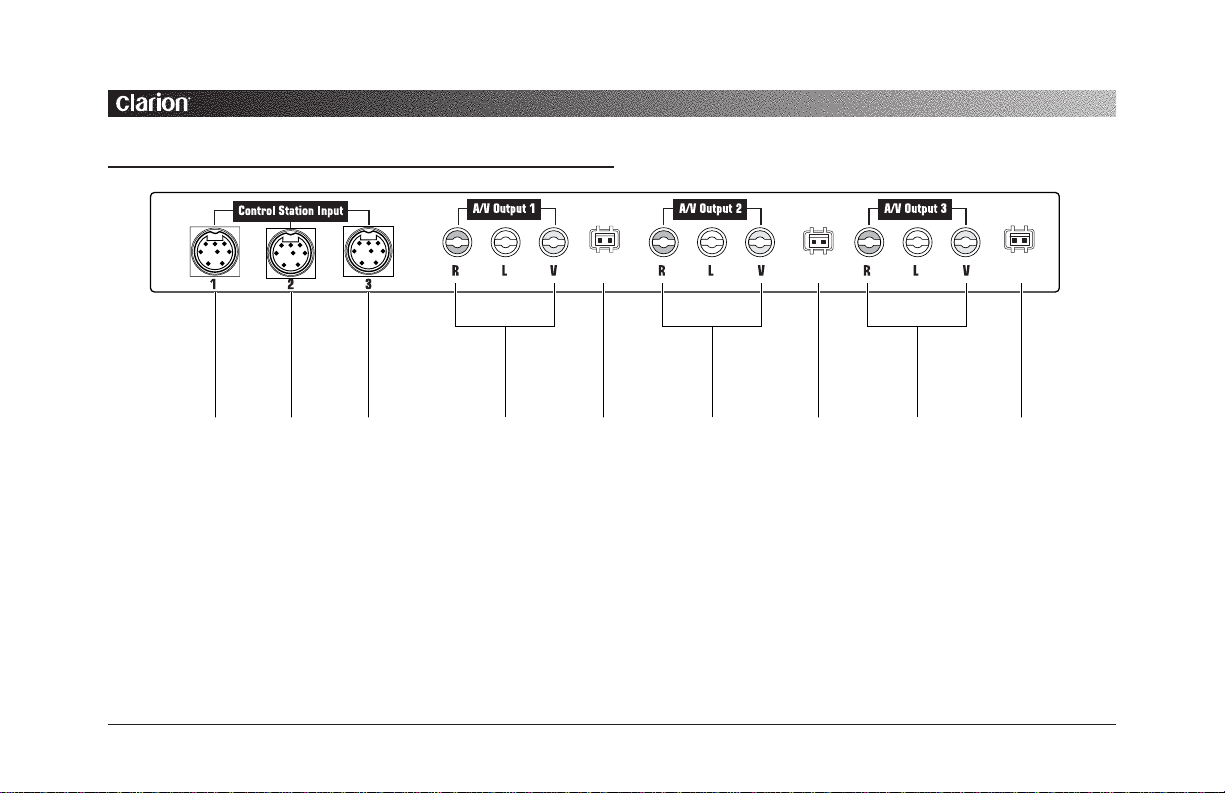

Figure 10. The MSS433’s A/V Outputs and Power connectors.
678 9 0 ewrq
+ −
+ −
+ −
Connect to the monitor’s +12 V and ground for Zone 1.
q
A/V OUTPUT 2 (3 -RCA Jacks)
Use this output when connecting the MSS433 to an external video monitor for Zone 2.
w
MONITOR 2 OUTPUT (2-Pin Connector)
Connect to the monitor’s +12 V and ground for Zone 2.
e
A/V OUTPUT 3 (3 -RCA Jacks)
Use this output when connecting the MSS433 to an external video monitor for Zone 3.
r
MONITOR 3 OUTPUT (2-Pin Connector)
Connect to the monitor’s +12 V and ground for Zone 3.
OWNER’S MANUAL/INSTALLATION GUIDE
13
DESCRIPTION OF CONTROL STATION

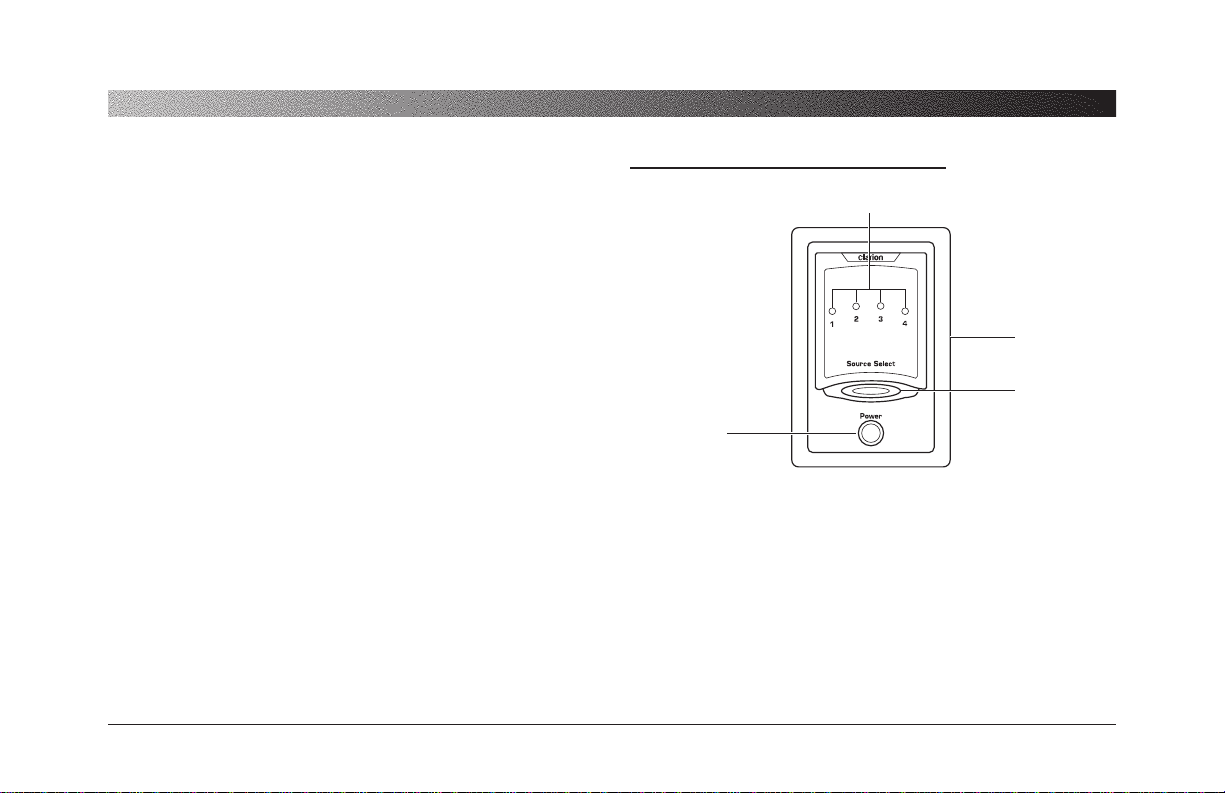

Figure 11. The Control Station’s Power button, source LED indicators, and Source Select buttons.
1
SOURCE SELECT LEDs
When illuminated, each LED indicates which A/V source
is selected. Press the SOURCE SELECT button to
change source selection and the corresponding LED will
illuminate.
1
4
2
3
SOURCE COMMANDER MSS433
14
Press and hold the Power button for 2 to 3 seconds to
power down the monitor at each of the Control Stations.
4
Mounting Bezel
Outer mounting bezel around each Control Station allows
for easy installation. (see page 6 for intallation informa-
tion).
2
SOURCE SELECT Button
Press the SOURCE SELECT button one or more times
to step through the different Audio/Video inputs. Each
LED illuminates to confirm the source selected.
3
POWER Button
When ignition is applied to the MSS433’s ignition lead,
all control stations are automatically set into the Stand-By
mode (no power output from the monitor’s power connector). Press the POWER button on any Control Station
and the source LED will illuminate and the monitor will
power on.
NOTE: Control Stations
a).If the Ignition is shuts down while the Control Stations
are in use, the Control Stations will
not automatically
turn on when the ignition is activated again. Press the
Power button on the Control Station again. The
Control Station will power up and
reset to number 1
source.
OWNER’S MANUAL/INSTALLATION GUIDE
15
APPLICATIONS INPUT CONFIGURATIONS
RLV RLV RLV RLV
ACCGNDREV
VS718
CVP9700
Rear Vision Camera
Video Game etc.
(optional)
YELLOW-Battery(+12V
)
Battery (+12)
GREEN-Reverse
To Reverse Wire
Back-up Light
Figure 12. Using the MSS433 Input Connectors.
SOURCE COMMANDER MSS433
16
APPLICATIONS OUTPUT CONFIGURATIONS
RLV RLV RLV RLV
IR to VDH910
IR to TTX001
Control Station 1
Control Station 2
Control Station 3
WH200
IR HEADPHONES
VMA7192
VMA7192
VRX918R
CCA-389
(optional)
Figure 13. Using the MSS433 Output Connectors.
OWNER’S MANUAL/INSTALLATION GUIDE
17
OPERATING THE MSS433 SYSTEM
Reverse Mode (Control Station 1 ONLY)
When using this control station with an optional Rear
Vision Camera and CAA188 power supply, the camera’s
source will automatically switch when the car is put into
the reverse gear.
The LED indicator will flash designating the Reverse
Mode and the monitor will display the video signal from
the Rear Vision Camera.
NOTE: Rear Vision Camera Connections
a).The Rear Vision Camera’s video output from the
CAA188 must be connected directly to A/V Input 4
only. (see MSS433 Wiring for Rear Vision Camera on
page 8)
.
When the vehicle is taken out of the reverse gear, the last
video source chosen, before the reverse mode, is displayed
and the source LED is illuminated constantly.
Viewing A Videocassette (If Installed)
1. After system and individual control station power is on,
insert a videocassette in the VCR and press PLAY on the
corresponding IR Remote Control. Use the IR remote
controls to control the VCR functions through the monitor’s IR Sensor.(CCE-002 is required for CVP9700)
2. At any Control Station, press the SOURCE SELECT button one or more times until the LED illuminates for the
VCR source input. Its TV monitor will now display the
source selected.
3. Adjust the headphones or audio system’s volume control
to a desired listening level.
Viewing A Video Game (If Installed)
1. After system and individual control station power is on,
power on the video game player and insert a desired
game cartridge.
2. At any Control Station, press the SOURCE SELECT button one or more times until the LED illuminated for the
video game source input. Its TV monitor should now display the selected source.
3. Adjust the audio system’s volume control to a desired listening level.
Viewing A DVD (VS718)
1. After system and individual control station power is on,
insert a DVD in the DVD player and press PLAY on the
corresponding IR Remote Control. Use the IR remote
controls to control the DVD functions through the monitor’s IR Sensor.
2. At any Control Station, press the SOURCE SELECT button one or more times until the LED illuminates for the
DVD source input. Its TV monitor will now display the
source selected.
3. Adjust the headphones or audio system’s volume control
to a desired listening level.
SOURCE COMMANDER MSS433
18
TROUBLESHOOTING
Symptom Cause Solution
System does Fuse is blown. Replace external fuse with
not work. the same value .
Power wires Check IGNITION and
not connected. GROUND wiring at MSS433;
check battery connections.
No Remote-On Check for +12 V on Battery
lead. If voltage is low, use
relay circuit.
No LED illum- No Ignition power Check for +12 V on Ignition lead
ination on the to MSS433. If voltage is low, use
Control Station. relay circuit.
Station DIN not Properly connect to MSS433;
inserted fully into insert connector and lock into
6-pin connector. place.
No sound from Station power Press the POWER button once to
IR Headphones. is off. turn on control unit on.
Stand-by power up Press the Power button once to
mode. activate the Control Station. Check
for source LED illumination.
Volume down on Check volume level on IR headIR headphones. phone set.
No sound from CCA389 not Connect CCA389 to optional
in-dash monitor connected properly. video input.
OWNER’S MANUAL/INSTALLATION GUIDE
19
Symptom Cause Solution
No sound from Video source not Switch the input control on the inin-dash monitor selected on in-dash dash unit to select the video source.
unit.
No video from Power is off at At Control Station, press the
external RCA Station. POWER button once to turn on
outputs. the Control Station.
No video from CCA389 not Connect CCA389 to optional
in-dash monitor. connected properly. video input.
No Rear Vision Reverse wire not Connect Reverse wire on MSS433
connected. to +12V source when vehicle
shifted into reverse.
Camera not connected Connect a Clarion Rear Vision
properly. Camera to the A/V INPUT 4
video connector.
No Power to CAA188 Check power and ground con-
nections to CAA188.
Reverse Wire not con- Check for proper connection and
nected on CAA188 +12 V on Reverse Wire when
camera power supply. vehicle is in reverse gear.
SOURCE COMMANDER MSS433
20
MSS433 SPECIFICATIONS
Audio Specifications –
Maximum Output: 4 V
p-p
(peak to peak)
Frequency Response: 30 Hz to 25 kHz
S/N Ratio (A-wtd): 90 dB
Input Sensitivity: 1.0 V
p-p
(peak to peak)
Input Impedance: 82k Ohms
Input/Output Gain: 0dB +/-2dB at Max volume with
600 Ohm load.
Video Specifications –
Output Level: 1.0 V
p-p
+/- 20% (peak to peak)
Frequency Response: 39 Hz to 5.5 MHz
Video Input/Output Gain: 0dB +/-2dB with 75 Ohm load
Input Sensitivity: 0V
p-p
+/- 20% (peak to peak)
Input Impedance: 75 Ohms
General Specifications –
Power Requirement: 10 V
dc
- 13 V
dc
Fuse Rating: 5 A
Dimensions (w x h x d): 9.84 x 1.06 x 5.24 in.
(250 x 27 x 133 mm)
CONTROL SPECIFICATIONS
Dimensions (w x h x d): 1.7 x 2.6 x .60 in.
(43 x 66 x 15 mm)
Mounting Depth: .63 in. (16 mm); behind panel
Mounting Hole Diam.: 1.9 x 2.8 in. (48 x 72 mm)
Due to Clarion’s ongoing research and development, the product specifications and appearances
listed in this manual are subject to change without prior notice.
2001-MSS433-10 Rev. 1 (08/01)
Clarion Co., Ltd.
©2001 Clarion 80-00433-GK
Loading...
