∗ Please read this owner’s manual in its entirety before operating this equipment.
∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
∗ The operating instructions are not provided with this manual. For the operating instructions, refer
1. This unit does not operate independently. The
unit must be used with a source unit that has
a cable connection for CeNET wire bound (sold
separately).
2. The DPH910 can easily be damaged by
moisture, high temperatures or high humidity.
Keep the inside of the car clean and well
ventilated.
3. Never subject the DPH910 to strong shocks
or open its case. Doing so may result in
damage.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to consult the dealer or
an experienced radio/TV technician for help.
Veuillez déplier et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
2DPH91050DPH910
4. Use a soft, dry cloth to wipe dirt off the
DPH910. Never use a hard cloth or thinners,
alcohol, etc. For tough dirt, apply some cold
or lukewarm water to a soft cloth and wipe
off the dirt gently.
5. When the source unit is switched to the traffic
announcement or PTY interrupt reception
while using the DPH910, the effect from
DPH910 doesn’t work.
6. Some tracks may sound distorted when
adjusted; this is nomal and not a cause for
concern.
CAUTION
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.
Be sure to unfold and read the next page.
2.
DPH910
IDENTIFICATION OF PARTS / PRINCIPALES PIÈCES /
IDENTIFICACIÓN DE PARTES
DPH910
1 CeNET input/output terminal
Connect the CeNET cable.
∗ Equipment to this terminal is not specified.
2 Front RCA terminals
Connect the RCA cable.
3 Rear RCA terminals
Connect the RCA cable.
4 Subwoofer RCA terminals
Connect the RCA cable.
5 Digital signal input terminal
Connect the digital optical fiber cable.
∗ After connection, be sure to fix it with the cable
clip.
6 Reset switch
When no sound is heard, press this switch.
Note:
Pressing the reset switch performs the system
check.
7 Cable clip insertion holes
Insert the cable clip in this hole and fix the
digital optical fiber cable.
2. IDENTIFICATION OF PARTS
Accessories
1 Name plate ............................... 1 sheet
■ Switchable Subwoofer Output (Stereo/Mono) and Adjustable Line Level Subwoofer Output
■ Selectable Subwoofer Low Pass Frequency and High Pass Frequency
■ 4V/6ch Gold-Plated RCA Line Level Output, 2 Optical Digital Inputs
< STD mode >
■ 12 Pre-Programed and 6 User Programmable Sound Field Memories
■ 7 Adjustable Sound Field Parameters
■ 5 Seating Position Memories
■ 7 Band Digital Graphic Equalizer
■ 6 Pre-Programed and 6 User Programmable Grapic Equalizer Memories
< Pro mode >
■ 6 Pre-Programed and 6 User Programmable Virtual Space Enhancer Memories
■ 3 Adjustable Virtual Space Enhancer Parameters
■ 3 Band Front and Rear Independent Digital Parametric Equalizer
■ 6 Front and 6 Rear Pre-Programed Parametric Equalizer Memories
4. FUNCTIONS OF DPH910
With the DPH910, you can enjoy the DSF and
equalizer effects by simulating the sound field
using the easy menu with simple operation (standard mode), and also by simulating the sound
field by adjusting the sound according to the width
of the car interior (professional mode).
• Choose either standard mode or professional
mode to adjust the sound field and sound quality.
• The following major functions are available on
the DPH910:
Functions common to each mode
Spectrum analyzer display, auto loudness, etc.
STD mode
Graphic equalizer function, DSF function, etc.
PRO mode
Virtual Space Enhancer function, parametric
equalizer function, etc.
• In this manual, graphic equalizer is hereafter
referred to as G.EQ, Virtual Space Enhancer
referred to as VSE, and parametric equalizer
referred to as P.EQ.
Functions common to each mode
7-band spectrum analyzer display
Spectrum analyzer display of 7 bands is possible.
Auto Loudness Adjustments
You can vary the amount of compression between 0 and 10 without changing the loudness.
Subwoofer Adjustments
The following adjustments can be made if a
subwoofer is connected:
1. You can set the speakers to:
“OFF”, “MONO” and “STEREO”.
2. You can set the subwoofer volume to:
0 to 14
3. You can set the low-pass filter frequency to:
50Hz, 80Hz or 120Hz.
∗ The slope of the low-pass filter is 24dB/oct.
Test-tone Output
Test tones can be output in the following order to
check the speaker connections:
You can assign and display titles for the DSF,
G.EQ, VSE and P.EQ settings you have set.
4V preout
The preout voltage is raised to 4 V, providing characteristics that are resistant to noise during signal transmission.
Note:
• Since noise or sound distortion may occur when
an external amplifier is connected to this unit, keep
the amplifier gain at a lower level.
Digital signal input terminal
Since 2 digital input signal terminals are provided
with this unit, up to 2 units with digital signal output terminals (such as a CD changer) can be
connected.
Notes:
• When the DPH910 and a unit with digital signal
output terminal are connected with the digital optical fiber cable, and the digital optical fiber cable
is disconnected, no sound is heard. Reconnect the
digital optical fiber cable.
• If you want to listen to music from an analogue
input, disconnect the digital optical fiber cable and
perform a system check by operating the source
unit.
High-pass Adjustments
You can select the frequency of the high-pass
filter from Through, 50Hz, 80Hz and 120Hz.
∗ The slope of the high-pass filter is 18dB/oct.
DPH9105
Standard-mode functions
<G.EQ (Graphic Equalizer) functions>
G.EQ effect ON/OFF switching
You can turn the sound quality effect of the G.EQ
ON or OFF by operating the buttons of the source
unit.
Selection of the basic G.EQ menus
6 basic G.EQ menus are stored in the DPH910.
You can select an appropriate sound quality according to the music.
The basic G.EQ menus are as follows:
1. BASS BOOST;
Low frequencies emphasized.
2. HIGH BOOST;
Medium and high frequencies emphasized.
3. ACOUSTICAL;
Medium frequencies (vocals) emphasized.
Equalizer setting
1. BASS BOOST
2. HIGH BOOST
3. ACOUSTICAL
4. IMPACT
5. SMOOTH
6. FLAT
50Hz
4. IMPACT;
Low and high frequencies emphasized.
5. SMOOTH;
Medium and high frequencies reduced.
6. FLAT;
Original sound.
Editing the G.EQ
You can adjust the sound quality using the G.EQ
menus as you like.
The settings for the basic G.EQ menus are shown
in the following table. The adjustment range of
each frequency is between -12dB and +12dB.
G.EQ memory
You can store 6 kinds of sound quality into the
memory which are edited on the basis of the basic
G.EQ menus.
Graphic equalizer parameter (dB)
100Hz
200Hz
+5
+4
+2
+6
0
0
+2
+4
+2
0
-4
0
0
0
+1
+3
0
0
(User memory)
400Hz
+2
-2
+4
+1
-2
1kHz
+4
+6
+3
0
0
-4
0
3kHz
0
+3
+5
+5
-4
0
12kHz
0
+4
+1
+5
-2
0
Standard-mode functions
DSF effect ON/OFF switching
You can turn the sound field effect of the DSF
ON or OFF by operating the buttons of the source
unit.
Setting of the listening position
You can select one of the preadjusted listening
positions according to the seat position.
The following 6 listening positions are available:
FULL SEAT, FRONT-RIGHT, FRONT-LEFT,
FRONT, REAR and PASS.
Fine-tuning the Listening Position
The time taken for the sound to leave the speaker
and reach you can be fine-tuned to create a natural sound field, no matter where you are sitting in
the car.
Selection of the sound field (DSF) menus
12 basic DSF menus are stored in the DPH910.
6DPH910
<DSF functions>
You can select an appropriate sound field according to the music.
The basic DSF menus are as follows:
BASIC 1
1. HALL:Large concert hall.
2. CHURCH:Church with a vaulted ceiling.
3. STADIUM:Large stadium without roof or
walls.
4. LIVEHOUSE: Live performance hall, larger
than a jazz club.
5. CLUB:Club with strong bass.
6. JAZZCLUB:Jazz club with a low ceiling.
BASIC 2
1. DOME:Indoor sports arena.
2. CHAMBER:Large, echoing hall.
3. PARK:Vast outdoor area.
4. THEATER:Movie or drama theatre.
5. STUDIO:Listening room in a home.
6. BGM:Vocals cut.
Standard-mode functions
<DSF functions>
Editing the DSF
You can adjust the sound field using the DSF
menus as you like.
• The DSF parameters and their contents are as
follows:
EFFECT:Adjusts the percentage of re-
flected sound.
INITIAL DELAY: Adjusts the distance between
sound source and reflecting
surfaces.
REAR MIX:Adjusts the ratio of the direct
sound output from the rear
speaker.
REVERB TIME: Adjusts reverberation length.
ROOM SIZE:Adjusts expansion.
HIGH:Adjusts the percentage of high
frequencies in reverberations.
LIVENESS:The sense of the room’s dy-
namics can be adjusted.
• The settings for the basic DSF menus and the
adjustment ranges are shown in the following
table.
About the sound field system
The DPH910 divides the sound field into three
systems: reverberation, early-reflection and
B.G.M. The reverberation system is the part of
the sound field where reverberating sound is
vivid, while the early-reflection system is the part
of the sound field where reflected sound is emphasized.
• DSF menus for the reverberation system:
HALL, CHURCH, DOME, CHAMBER
• DSF menus for the early-reflection system:
STADIUM, LIVEHOUSE, CLUB, JAZZCLUB,
PARK, THEATER, STUDIO
• DSF menus for the B.G.M system:
B.G.M
Notes:
• There are some parameters that cannot be adjusted, depending on the sound field system.
• The reverberation system cannot adjust ROOM
SIZE and LIVENESS parameters.
• The early-reflection system cannot adjust REVERB TIME and HIGH parameters.
• The B.G.M system can adjust only the EFFECT
parameter.
DSF memory
You can store 6 sound fields into the memory
which, are edited on the basis of the basic DSF
menus.
(User memory)
Initial setting
Sound field
1. HALL
BASIC 1
2. CHURCH
3. STADIUM
4. LIVEHOUSE
5. CLUB
6. JAZZCLUB
1. DOME
BASIC 2
2. CHAMBER
3. PARK
4. THEATER
5. STUDIO
6. B.G.M
Adjustment range
EFFECT
50%
50%
50%
50%
50%
50%
50%
50%
50%
50%
50%
100%
0 to 100%
INITIAL DELAY
50ms
95ms
85ms
20ms
3ms
1ms
65ms
25ms
100ms
1ms
1ms
0 to 100ms
REAR MIX
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
0 to 100%
DSF parameter
ROOM SIZE
2.0
2.0
2.0
2.0
2.0
2.0
2.0
0.1 to 4
LIVENESS
5
5
5
5
5
5
5
0 to 10
REVERB TIME
2.5s
9.5s
7.0s
4.2s
0.3 to 10s
DPH9107
HIGH
0.5
0.5
0.5
0.5
0.1 to 1
Professional-mode functions <VSE (Virtual Space Enhancer) functions>
VSE effect ON/OFF switching
You can turn the sound pressure distribution compensation effect of the VSE ON or OFF by operating the buttons of the source unit.
Selection of the VSE menus
6 basic VSE menus are stored in the DPH910
according to the car type. The basic VSE menus
are as follows:
1. FLAT
2. BASS BOOST
3. HIGH BOOST
4. IMPACT
5. ACOUSTICAL
6. SMOOTH
The settings of DIFFUSE, CAR WIDTH and CAR
LENGTH for each basic VSE menu is the center
value (5) that meets each car type.
Professional-mode functions
P.EQ effect ON/OFF switching
You can turn the transmission frequency characteristics compensation effect of the P.EQ ON or OFF
by operating the buttons of the source unit.
Selection of the P.EQ menus
6 basic P.EQ menus are stored in the DPH910
according to the car type and the speaker installation position.
• The different car types and the speaker installation positions are as follows:
Vehicle type
1. Sedan-1
2. Sedan-2
3. Wagon-1
4. Wagon-2
5. MIN VAN-1
6. MIN VAN-2
8DPH910
Channel
Front
Rear
Front
Rear
Front
Rear
Front
Rear
Front
Rear
Front
Rear
250Hz/F, 3/Q, -8dB/G
250Hz/F, 3/Q, -10dB/G
250Hz/F, 7/Q, -10dB/G
80Hz/F, 7/Q, +3dB/G
250Hz/F, 3/Q, -8dB/G
250Hz/F, 3/Q, -8dB/G
250Hz/F, 7/Q, -8dB/G
125Hz/F, 3/Q, -8dB/G
125Hz/F, 5/Q, -4dB/G
250Hz/F, 1/Q, -6dB/G
250Hz/F, 3/Q, -4dB/G
250Hz/F, 3/Q, -8dB/G
Parametric Equalizer Parameter
BAND 1
Editing the VSE menus
You can adjust the sound pressure distribution
on the basis of the basic VSE according to the
car type.
• The VSE adjustment contents are as follows:
DIFFUSE
Compensates for spacial impression.
CAR WIDTH
Compensates for the width of the car’s interior
(lateral direction).
CAR LENGTH
Compensates for the length of the car’s interior
(longitudinal direction).
• The adjustable range of the VSE menus are 1
to 10 for each item.
VSE memory
You can store 6 kinds of sound pressure distribution into the memory which, are edited on the
basis of the basic VSE menus.
<P.EQ (Parametric Equalizer) functions>
1. SEDANfront: 2WAY
2. SEDANfront: FULLrear: Rear door
3. WAGONfront: 2WAY
4. WAGONfront: FULLrear: Rear door
5. MIN VANfront: 2WAY
6. MIN VANfront: FULL
•
The settings of the basic P.EQ menus are as follows:
2kHz/F, 1/Q, -4dB/G
1.25kHz/F, 5/Q, 0dB/G
800Hz/F, 3/Q, -4dB/G
125Hz/F, 5/Q, -12dB/G
1kHz/F, 3/Q, -8dB/G
800Hz/F, 1/Q, -8dB/G
400Hz/F, 7/Q, -10dB/G
500Hz/F, 5/Q, -5dB/G
1.25kHz/F, 3/Q, -4dB/G
630Hz/F, 3/Q, -4dB/G
1.25kHz/F, 3/Q, -8dB/G
500Hz/F, 5/Q, -5dB/G
F; Center frequency (Hz), Q; Q curve, G; Gain(dB)
(User memory)
rear: Rear parcel
rear: Beside the luggage
rear: Beside the luggage
rear: Equivalent to rear door
BAND 2
5kHz/F, 1/Q, -4dB/G
8kHz/F, 5/Q, 0dB/G
8kHz/F, 1/Q, -5dB/G
1.25kHz/F, 5/Q, 0dB/G
10kHz/F, 1/Q, -6dB/G
8kHz/F, 5/Q, 0dB/G
1.25kHz/F, 7/Q, -8dB/G
1.6kHz/F, 3/Q, 0dB/G
2kHz/F, 7/Q, +3dB/G
8kHz/F, 5/Q, 0dB/G
80Hz/F, 3/Q, +3dB/G
8kHz/F, 5/Q, 0dB/G
BAND 3
Professional-mode functions
g
g
<P.EQ (Parametric Equalizer) functions>
Editing the P.EQ menus
You can compensate for the frequency characteristics using the basic P.EQ according to your
car type.
• The P.EQ adjustment contents are as follows:
Channel selection
Select the channel to be compensated (front
or rear).
Selection of center frequency
Select the center frequency that you want to
compensate from the range of 20Hz to 20kHz.
(1/3 octave step, 31 points)
Selection of Q-curve
Set the sharpness of the Q-curve to one of the
parameters: 1, 3, 5, 7 and 20.
Gain adjustment
Adjust the gain (output level) in the range of 12dB to +12dB. (1dB step, 25 points)
About the compensation of frequency characteristics
See Figure 1 concerning the relationship of the
center frequency, Q-curve (Q) and gain.
Level
(dB)
Gain
(G)
f
Q curve (Q)
3dB
Q=
F
f
P.EQ memory
(User memory)
You can store 6 frequency characteristics into the
memory, which are edited on the basis of the
basic P.EQ menus.
Frequency curve
Center frequency (F)
Frequency (Hz)
Fi
ure 1
About the Q-curve (Q)
For the Q-curve (Q), setting larger values makes
the curve sharper, setting smaller values makes
the curve flatter. (Figure 2)
Selecting the Q-curve (Q) opposite to the frequency curve to be compensated makes the frequency characteristics flat.
Q curve (Q)
HighLow
Q curve; 20Q curve; 1
Fi
ure 2
DPH9109
5. INSTALLATION
1. Before starting, be sure to disconnect the
battery’s negative “−” terminal to prevent ac-
cidents due to short-circuits.
2. Location
Consider safety and operability when select-
ing a place for installation. Avoid the following.
• Locations where the unit will hamper driving.
• Locations where the unit could injure passen-
gers if the car stops suddenly.
• Locations exposed to direct sunlight or hot air
from the heater, etc.
• Locations where the unit may be exposed to
rain or water.
Installation example
Note: Please read this chapter referring to “2. INDENTIFICATION OF PARTS” at the beginning of this manual.
1. Attach the mounting brackets 5 to the sides
of the DPH910 using the screws 8 provided.
2. Select the location on the floor mat. Drill holes
in the floor mat to match the positions of the
holes in the mounting brackets 5.
3. Insert the canoe clips 7 from the rear of the
floor mat and install the DPH910.
∗ There are three mounting holes on each side
of the DPH910. Select the appropriate holes
to match to the installation location.
(Installing the unit under the driver’s seat)
3. Be sure to use the included screws and brackets. Screws other than those supplied could
damage the unit.
CaseCase
Damage
8mm max.
4. When drilling holes in the dashboard, etc., be
sure to check beforehand that there are no
harnesses or other wires on the inside.
10DPH910
6. CONNECTIONS
Note: Please read this chapter referring to “2. INDENTIFICATION OF PARTS” at the beginning of this manual.
FRONT
REAR
FRONT
REAR
4
DPH910
1 RCA cable (2)
Connect it to the source unit’s front input terminals (gray) to use the source unit’s built-in
amplifier or to the amplifier’s front input terminals.
2 RCA cable (2)
Connect it to the source unit’s rear input terminals (black) to use the source unit’s built-in
amplifier or to the amplifier’s rear input terminals.
3 RCA extension cable (sold separately)
Connect it to the subwoofer amplifier.
4 CeNET cable (3)
Connect it to the source unit, CD changer or
MD changer.
5 Digital optical fiber cable (sold separately)
Connect it to the source unit, CD changer or
MD changer.
6 Ground lead (4)
Connect it to vehicle chassis ground.
1
2
3
6
5
How to make wirings
1. CeNET Cable
Orient the CeNET 3 cable in the direction
shown in the figure and insert it until it is locked
in position. To remove the CeNET cable, pull
it by lightly grasping the slide cap A in your
fingers.
CAUTION
• Wire the CeNET cable so that there is mini-
mal tension in the cable, and the connection part will not come off.
• To extend the CeNET cable, use either CCA-
520 (98.4˝/2.5m) or CCA-521 (23.6˝/0.6m)
(both are separately sold CeNET extension
cables.).
2. RCA Cable
Attach the supplied name plate 2 on the RCA
cable to show where to connect it. After checking where to connect it from the name plate,
connect the RCA cable.
F
R
O
NT
CAUTION
• Do not remove the insulating cap of the RCA
cable that is not to be connected, to prevent
short-circuit.
• Fix the connection part of the RCA cable
with insulating tape
come loose and disconnect.
BB
B so that it will not
BB
DPH91011
How to make wirings
C
3. Digital Optical Fiber Cable
When you connect the digital optical fiber
cable to the digital input terminal or to the digital output terminal, firmly insert it until it is
locked in position.
Connect the black slid cap side to the digital
input terminal of the DPH 910.
Note:
Do not bend the digital optical fiber cable through
a loop smaller than 1˝ (3cm) in radius. Doing so
will greatly reduce perfomance.
9
Digital optical fiber cable
(Black slide cap side)
After connecting, fasten the cable using the
included cable clip 9. One cable clip can fix
up to 2 digital optical fiber cables.
To remove the digital optical fiber cable, pull
it by lightly grasping the slide cap C of the
cable in your fingers.
4. Ground lead
Tighten the small terminal of the ground lead
E together with the mounting bracket 5, and
connect the large terminal to the metal part
of the car body using the car screw D.
If grounding is not achieved, noise results.
E
5
D
8
12DPH910

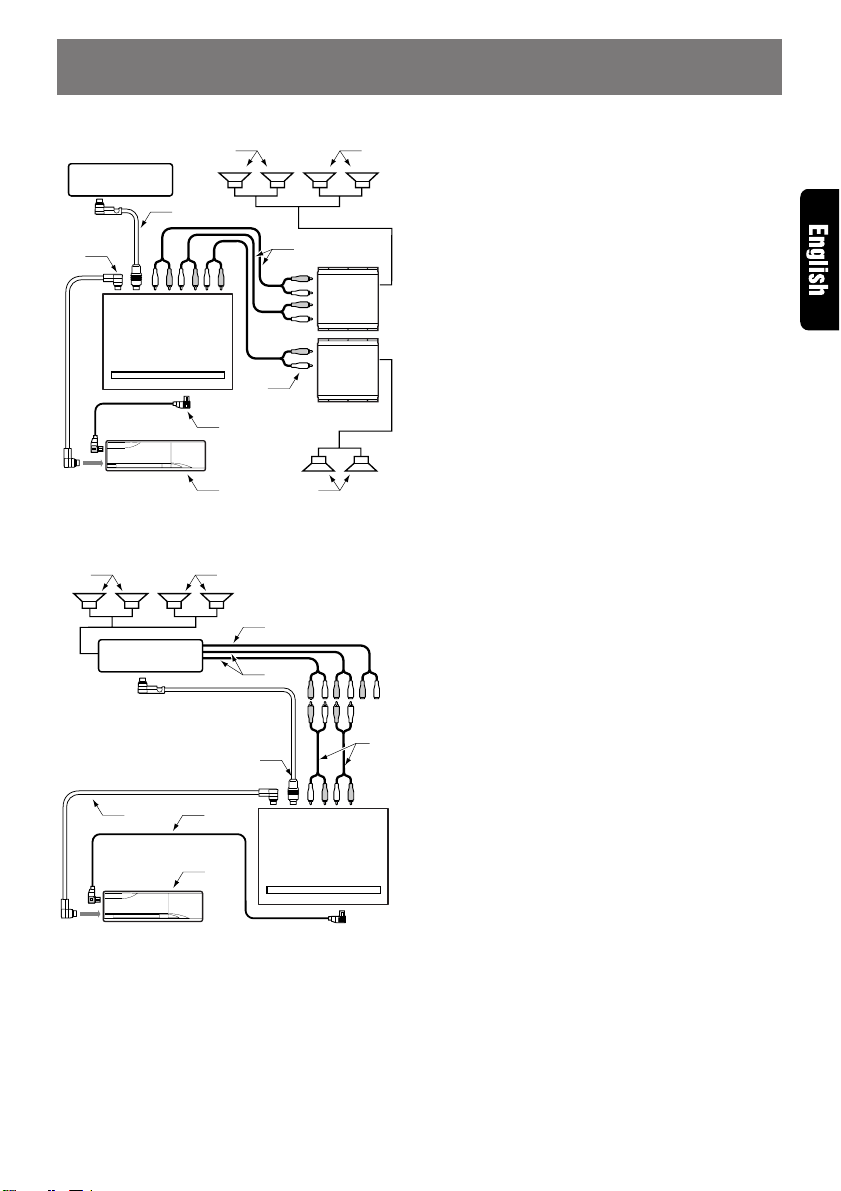

7. SYSTEM EXAMPLES
0!1
@
0!
System with external power amplifier and DSP
6
5
DPH910
8
9
7
2
System with internal power amplifier and DSP
$
#
6
5
7
DPH910
2
3
4
8
1 Source unit compatible with CeNET connec-
tion
2 CD changer compatible with CeNET connec-
tion
3 4-channel power amplifier
For connection with the front/rear speakers.
4 2-channel power amplifier
For connection with the subwoofer speakers.
5 CeNET cable (provided with the CD changer)
Using this cable, connect the DPH910 to the
CD changer.
6 CeNET cable (provided with the DPH910)
Using this cable, connect the DPH910 to the
source unit.
7 Digital optical fiber cable
Using this cable, connect the DPH910 to the
CD changer.
8 RCA cable (provided with the DPH910)
Using this cable, connect the DPH910 to the
4-channel power amplifier for the front/rear
speakers, or connect the DPH910 to the front
/rear line out terminal of the source unit.
9 RCA cable
Using this cable, connect the DPH910 to the
2-channel power amplifier for the subwoofer
speaker.
0 Front speakers
! Rear speakers
@ Subwoofer speakers
# RCA cable for front/rear line in
Connect this cable to the DPH910.
$ RCA cable for non-fader line out
This is not used for this system.
Note:
• The longest wiring length of the CeNET cable is
less than 65.62ft (20m). When you connect the
CeNET cable, be careful not to exceed the wiring
length of 65.62ft (20m).
DPH91013
8. SPECIFICATIONS
● S/N ratio: ........................................... 107 dB (digital input)
83 dB (analogue input)
● Frequency response: ........................ 10 Hz to 20 kHz (±1 dB)
● Separation: ........................................ 100 dB (digital input)
