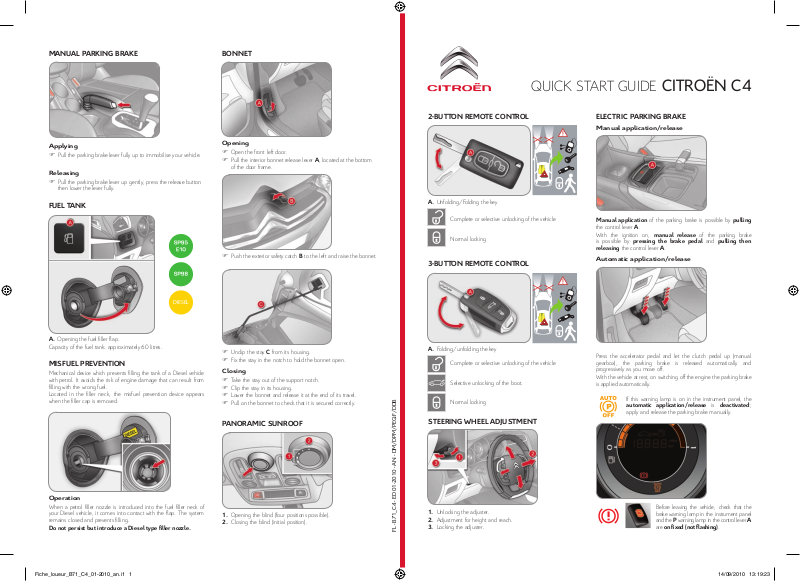

Citroen C4 QUICK START GUIDE

MANUAL PARKING BRAKE

BONNET

QUICK START GUIDE CITROËN C4

Applying

) Pull the parking brake lever fully up to immobilise your vehicle.

Releasing

) Pull the parking brake lever up gently, press the release button

then lower the lever fully.

FUEL TANK

DIESEL

A. Opening the fuel  ller  ap.
Capacity of the fuel tank: approximately 60 litres.

MISFUEL PREVENTION

Mechanical device which prevents  lling the tank of a Diesel vehicle
with petrol. It avoids the risk of engine damage that can result from
 lling with the wrong fuel.

Located in the  ller neck, the misfuel prevention device appears
when the  ller cap is removed.

Opening

) Open the front left door.
) Pull the interior bonnet release lever A , located at the bottom

of the door frame.

) Push the exterior safety catch B to the left and raise the bonnet.

) Unclip the stay C from its housing.
) Fix the stay in the notch to hold the bonnet open.

Closing

) Take the stay out of the support notch.
) Clip the stay in its housing.
) Lower the bonnet and release it at the end of its travel.
) Pull on the bonnet to check that it is secured correctly.

PANORAMIC SUNROOF

2-BUTTON REMOTE CONTROL

A. Unfolding/Folding the key

Complete or selective unlocking of the vehicle

Normal locking

3-BUTTON REMOTE CONTROL

A. Folding/unfolding the key

Complete or selective unlocking of the vehicle

Selective unlocking of the boot.

Normal locking

STEERING WHEEL ADJUSTMENT

ELECTRIC PARKING BRAKE

Manual application/release

Manual application of the parking brake is possible by pulling
the control lever A .

With the ignition on, manual release of the parking brake
is possible by pressing the brake pedal and pulling then

releasing the control lever A .
Automatic application/release

Press the accelerator pedal and let the clutch pedal up (manual
gearbox), the parking brake is released automatically and
progressively as you move off.

With the vehicle at rest, on switching off the engine the parking brake
is applied automatically.

If this warning lamp is on in the instrument panel, the
automatic application/release is deactivated ;
apply and release the parking brake manually.

Operation

When a petrol  ller nozzle is introduced into the fuel  ller neck of
your Diesel vehicle, it comes into contact with the  ap. The system
remains closed and prevents  lling.

Do not persist but introduce a Diesel type  ller nozzle.

Fiche_loueur_B71_C4_01-2010_an.i1 1Fiche_loueur_B71_C4_01-2010_an.i1 1 14/09/2010 13:19:2314/09/2010 13:19:23

1. Opening the blind (four positions possible).

2. Closing the blind (initial position).

FL - B71_C4 - ED 01-2010 - AN - DM/DPM/PEQF/DDB

1. Unlocking the adjuster.

2. Adjustment for height and reach.

3. Locking the adjuster.

Before leaving the vehicle, check that the
brake warning lamp in the instrument panel
and the P warning lamp in the control lever A
are on  xed (not  ashing) .

6-SPEED MANUAL GEARBOX

GEAR SHIFT INDICATOR

LIGHTING CONTROLS

WIPER CONTROLS

Engaging reverse gear

) Raise the ring under the knob and push the gear lever to the

left then forwards.

6-SPEED ELECTRONIC GEARBOX SYSTEM

R. Reverse
N. Neutral.
A. Automatic mode.
M. Manual mode with sequential gear changing.

Moving off

) Select position N .
) Press the brake pedal down fully.
) Start the engine.
) Select  rst gear (position M or A ) or reverse (position R ).
) Release the parking brake unless it is programmed to automatic

mode.

) Take your foot off the brake pedal, then accelerate.

System which reduces fuel consumption by advising the driver to
change up on vehicles  tted with a manual gearbox.

AUTOMATIC GEARBOX

P. Park.
R. Reverse.
N. Neutral.
D. Automatic operation.
M+/-. Manual operation with sequential changing of the six gears.

) With your foot on the brake, select position P or N .
) Start the engine.
) With the engine running, press the brake pedal.
) Release the parking brake, unless it is programmed to

automatic mode.

) Select position R , D or M.
) Gradually release the brake pedal.

STOP & START

Engine going into STOP mode Engine going into START mode

The "ECO" warning lamp comes on in the instrument
panel and the engine is put into standby:

- with a manual gearbox ; at speeds below 12 mph (20 km/h),

when you put the gear lever into neutral, and you release the clutch
pedal,

- with the 6-speed electronic gearbox system; at speeds

below 5 mph (8 km/h), when you press the brake pedal or you
put the gear lever into position N.

- with a manual gearbox; when you depress the clutch pedal,

- with the 6-speed electronic gearbox system;

The "ECO" warning lamp goes off and the engine
restarts:

- gear lever in position A or M, when you release the brake

pedal,

- or gear lever in position N and the brake pedal released,
when you put the lever into position A to M,

- or when you engage reverse.

A. Main lighting mode selection ring: turn it to position the symbol

required facing the mark.

Lamps off.

Automatic illumination of headlamps.

Sidelamps only.

Dipped headlamps or main beam headlamps.

B. Stalk for switching headlamps: pull to switch the lighting between

dipped headlamps/main beam headlamps.

C. Foglamp selection ring.

rear foglamps

front and rear foglamps

SPEED LIMITER

1. Limiter mode On/Off.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter On/Off.

5. Display the list of memorised speeds.

CRUISE CONTROL

1. Cruise control mode On/Off.

2. Programme a speed/Decrease the programmed value.

3. Programme a speed/Increase the programmed value.

4. Cruise control Off/Resume.

5. Display the list of memorised speeds.

Windscreen wiper

A. Wiping speed control stalk: raise or lower the stalk to the

desired position

Fast wiping (heavy rain).

Normal wiping (moderate rain).

Intermittent wiping (proportional to the speed of the
vehicle).

Park,

Single wipe (press down or pull towards you, then
release).

o r

Automatic wiping (press down, then release).
Single wipe (brie y pull the control stalk

towards you).

REAR WIPER

B. Rear wiper selection ring: turn the ring to place the desired

symbol against the marking.

Park,

Intermittent wipe,

Wash-wipe.
Turn the ring to its stop/the rear screen wash, then the

rear wiper operate for a set duration

Fiche_loueur_B71_C4_01-2010_an.i2 2Fiche_loueur_B71_C4_01-2010_an.i2 2 14/09/2010 13:19:3514/09/2010 13:19:35

REAR SCREEN DEMIST - DEFROST

I require...

HOT

COLD

DEMISTING

DEFROSTING

Air distribution A i r  ow

MANUAL AIR CONDITIONING

Air recirculation/

Intake of outside air

Temperature Manual A/C

AUDIO AND TELEMATICS

4

1

1. Rotary control:

- Short press engine not running: on/off.

- Short press engine running: mute on/off.

- Rotation: volume adjustment (each source is independant,
including TA messages and navigation information).

2. Radio source, access to the FM/AM band menu and display

the list of stations.

3 . Access to the MEDIA menu and display the list of tracks.

4. Access to the Navigation - guidance menu and display the

last destinations.

5. Access to the Traf c information menu and display the

current traf c alerts.

6. Access to the " Telephone " menu and display the recent calls

list.

5
6

2

2

3

6

1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from the following modes:
Full screen: Audio (or if a telephone call is in progress)/
New window: Audio (or telephone if a call is in progress) - Time

or Trip computer

Long press: black screen (DARK).

4. Selection of source:
Radio, CD, AUX, USB, Streaming.

5. Selection of FM1, FM2, DAB and AM wavebands.

6. Buttons 1 to 6:
Selection of a preset radio station.
Long press: preset a station.

3

1

4

CITROËN eTouch

Localised emergency call

5

Digital air conditioning: we recommend use of one of the three fully automatic modes by pressing the "AUTO" button.

FRONT SEATS

Forwards-backwards Height

Manual adjustment

Electric adjustment

Seat back angle

ELECTRIC WINDOWS

1. Driver's electric window control.

2. Passenger's electric window control.

3. Rear right electric window control.

4. Rear left electric window control.

5. Deactivation of the rear electric window controls.

DOOR MIRRORS

Adjustment

A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the mirror in the four directions.
C. De-selection of the mirror.

Localised assistance call

REAR SEATS

Folding the backrest

CITROËN C4
