Cisco RV110W Wireless-N VPN Firewall
Simple, Secure Connectivity for the Small Office/Home Office
Figure 1. Cisco RV110W Wireless-N VPN Firewall
Data Sheet
The Cisco® RV110W Wireless-N VPN Firewall provides simple, affordable, highly secure, business-class
connectivity to the Internet for small offices/home offices and remote workers.
The Cisco RV110W combines wired and wireless connectivity for small offices and remote workers with a highspeed, 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based
device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its
combination of business-class features, support for virtual networks to enable highly secure guest access, simple
installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer
employees to a new level.
Product Overview
The Cisco RV110W Wireless-N VPN Firewall features:
●
High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing
employees to stay productive while away from their desks
●
Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras, and
other devices
●
Proven firewall with access rules support and advanced wireless security helps keep business assets safe
●
Quality of service (QoS) support for enhanced voice, video, and data traffic
●
Support for separate “virtual” networks, enabling you to control access to sensitive information and to set
up highly secure wireless guest access
© 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 6
Page 2
●
IP Security (IPsec) and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure
remote access connectivity for Windows and Mac OS computers
●
Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new
technologies
●
Simplified configuration through an intuitive, browser-based device manager
●
Support for the Cisco FindIT Network Discovery Utility

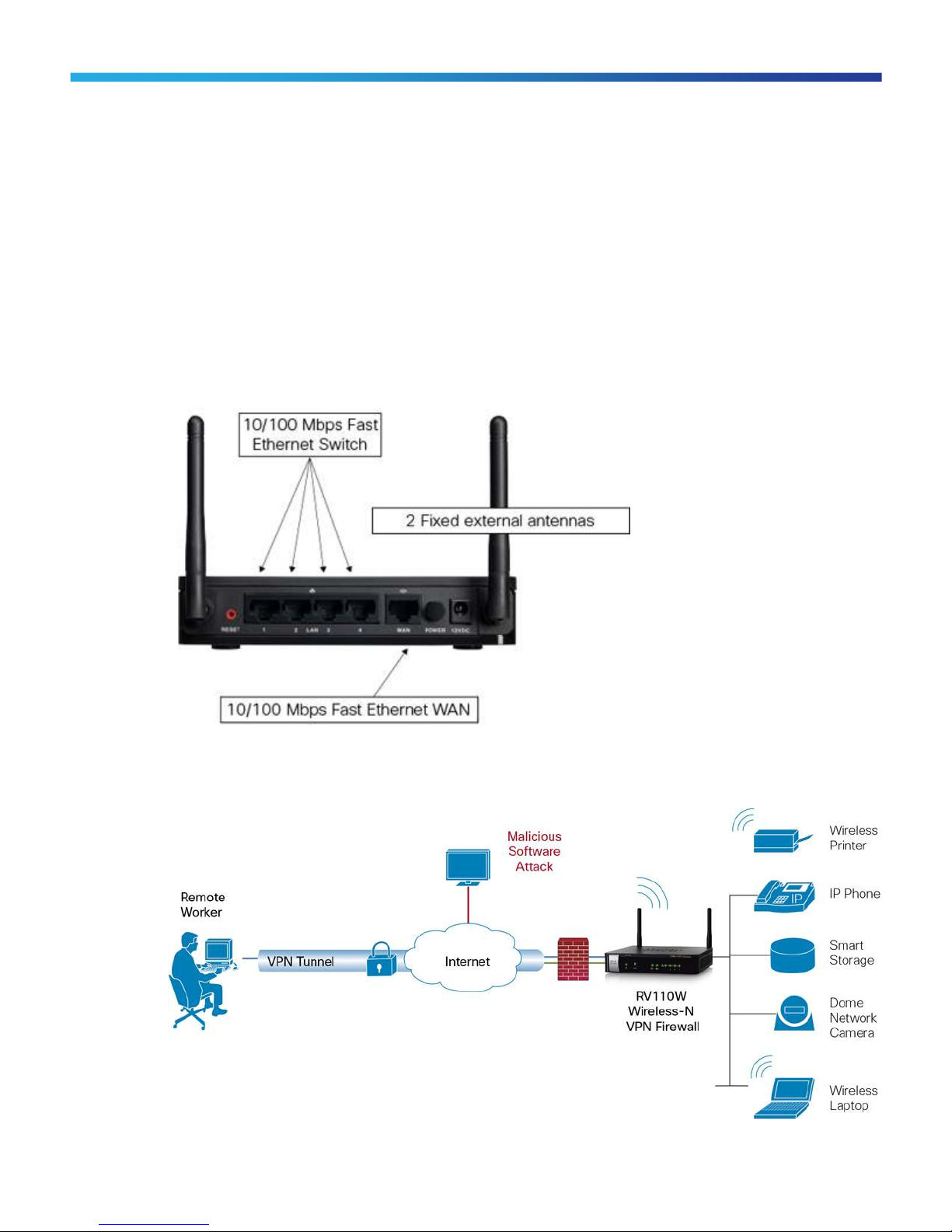

Figure 2. Back Panel of the Cisco RV110W Wireless-N VPN Firewall
Figure 3. Typical Configuration for Cisco RV110W Wireless-N VPN Firewall
© 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 6
Page 3
Product Specifications
Table 1 gives the product specifications for the Cisco RV110W.
Table 1. Product Specifications
Feature Description
●
Routing
Layer 2
Network
IPv6
Security
VPN
Quality of service (QoS)
Static routing
●
Dynamic routingRouting Information Protocol (RIP) v1 and v2
●
Inter-VLAN routing
●
802.1Q -based VLANs
●
4 active VLANs (3 to 4094 range)
●
Dynamic Host Configuration Protocol (DHCP) server
●
Point-to-Point Protocol over Ethernet (PPPoE)
●
Point-to-Point Tunneling Protocol (PPTP)
●
Layer 2 Tunneling Protocol (L2TP)
●
DNS proxy
●
DHCP relay agent
●
Internet Group Management Protocol (IGMP) proxy and multicast forwarding
●
Rapid Spanning Tree Protocol (RSTP)
●
Dynamic DNS (DDNS), TZO.com, DynDNS.com, 3322.org
●
Network Address Translation (NAT), Port Address Translation (PAT)
●
Port management
●
Port Mirroring
●
Software-configurable network edge (DMZ) to any LAN IP address
●
Dual-stack IPv4 and IPv6
●
6to4 tunneling
●
Multicast Listener Discovery (MLD) for IPv6 (RFC 2710)
●
Stateless address auto-configuration
●
DHCP v6 Server for IPv6 Clients on LAN
●
DHCP v6 client for WAN connectivity
●
Internet Control Message Protocol (ICMP) v6
●
Static IPv6 Routing
●
Dynamic IPv6 Routing with RIPng
●
Stateful packet inspection (SPI) firewall
●
Port forwarding and triggering
●
Firewall Access Control Lists and Content Filtering
●
Denial-of-service (DoS) prevention
●
MAC-based wireless access control
●
Static URL blocking or keyword blocking
●
Schedule-based Internet access policy
●
HTTPS web access to the device manager
●
username/password complexity enforcement
●
Self-signed SSL certificate
●
Import and export certificate using Privacy-Enhanced Mail (PEM) format
●
5 IPsec tunnels using Cisco QuickVPN client
●
5 PPTP tunnels for remote client access
●
Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec
●
802.1p port-based priority on LAN port, application-based priority on WAN port
●
4 queues
●
Differentiated Services Code Pointsupport (DSCP)
●
Class of Service (CoS)
●
Bandwidth Management for service prioritization
© 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 6
Page 4
Feature Description
Management
Performance
●
Simple Network Management Protocol (SNMP) v3
●
Event logging: local, syslog, email alerts
●
Firmware upgradable through web browser
●
Imported/exported configuration in text format
●
Simple browser-based configuration (HTTP/HTTPS)
●
Bonjour and Universal Plug and Play (UPnP)
●
Network diagnostics: Ping, Traceroute, and DNS Lookup
●
NAT throughput: 90 Mbps
●
5000 concurrent sessions
●
VPN throughput: 5Mbps
Wireless LAN Specifications
Table 2 gives the wireless specifications for the Cisco RV110W.
Table 2. Wireless LAN Specifications
Features Description
WLAN hardware
Wireless Domain Services
(WDS)
Wi-Fi Multimedia (WMM)
Active WLAN clients
Service Set Identifiers (SSIDs)
Wireless isolation
WLAN security
●
IEEE 802.11n standard-based access point with 802.11b/g compatibility
●
Radio and modulation type:
●
802.11b: direct sequence spread spectrum (DSSS)
●
802.11g/n: orthogonal frequency division multiplexing (OFDM)
●
2 omnidirectional 1.8 dBi gain fixed external antennas
●
Operating channels:
●
11 in North America
●
13 in most of Europe
●
Automatic channel selection
●
Transmit power:
●
802.11b: 17 dBm +/- 1.5 dBm
●
802.11g: 15 dBm +/- 1.5 dBm
●
802.11n: 12.5 dBm +/- 1.5 dBm
●
Receiver sensitivity:
●
-87 dBm at 11 Mbps
●
-71 dBm at 54 Mbps
●
-68 dBm at msc15, HT20 / -66dBm at mcs15, HT40
●
Allows wireless signals to be repeated by up to 3 compatible devices
●
WMM with QoS (802.11e), WMM power save (WMM-PS)
●
Up to 32 clients
●
Up to 4 separate wireless networks
●
Wireless isolation between clients
●
Wireless isolation between clients
●
WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal
and enterprise, WPA2 personal and enterprise
© 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 6
Page 5
System Specifications
Table 3 gives the system specifications for the Cisco RV110W.
Table 3. System Specifications
Features Description
WAN One 10/100 Mbps Fast Ethernet WAN port
LAN Four 10/100 Mbps Fast Ethernet LAN ports
WLAN Built-in 802.11n wireless access point
LEDs Power, WPS, WAN, Wireless, LAN (ports 1-4)
Switch Power button (on/off)
●
Physical dimensions and
weight
Power 12V 1A
Certifications
Environmental operating
range
W x D x H = 5.91 in. x 5.91 in. x 1.18 in. (150 mm x 150 mm x 30 mm)
●
Weight: 0.61 lb (0.3 kg)
●
FCC Class B
●
CE
●
IC
●
cUL
●
Wi-Fi
●
Operating temperature: 0° to 40°C (32° to 104°F)
●
Storage temperature: –20° to 70°C (–4° to 158°F)
●
Operating humidity: 10% to 85% noncondensing
●
Storage humidity: 5% to 90% noncondensing
Configuration Requirements
Table 4 lists the configuration requirements for the Cisco RV110W.
Table 4. Configuration Requirements
Features Description
Network adapter PC with network adapter and Ethernet cable
Web-based configuration Web browser
Ordering Information
Table 5 gives ordering information for the Cisco RV110W.
Table 5. Ordering Information
Part Number Product Name
RV110W-A-NA-K9 Cisco RV110W Wireless-N VPN Firewall (USA)
RV110W-E-G5-K9 Cisco RV110W Wireless-N VPN Firewall (Europe)
RV110W-A-AU-K9 Cisco RV110W Wireless-N VPN Firewall (Australia)
RV110W-E-CN-K9 Cisco RV110W Wireless-N VPN Firewall (China)
RV110W-A-AR-K9 Cisco RV110W Wireless-N VPN Firewall (Argentina)
RV110W-A-CA-K9 Cisco RV110W Wireless-N VPN Firewall (Canada)
© 2011 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 6
Page 6
Warranty Information
Find warranty information on Cisco.com at the Product Warranties page.
For More Information
For more information, visit
www.cisco.com/cisco/web/solutions/small_business/products/routers_switches/small_business_routers/index.html
Printed in USA C78-660141-00 04/11
