Welcome

The Cisco® RNG200 and RNG200N High-Deﬁ nition Digital-Only Set-Tops with Multi-Stream CableCARD™ (M-Card™) provide high-deﬁ nition (HD) capability and broadband digital video services.

Follow the instructions in this guide to install the DVR set-top, to become familiar with the buttons on the front panel, and to access your cable services. Then, enjoy the features of the set-top and change the way you watch TV.

The consumer support website provides news and information about this product. For more information, please refer to

http://www.cisco.com/web/consumer/support/index.html

Safety First

Before using the set-top, read the Important Safety Instructions section of this guide.

Identify Your Set-Top

If the set-top requires troubleshooting in the future, your service provider may ask for the serial numbers of the set-top and M-Card module.

The set-top serial number label is on the back panel of the set-top; the serial number begins with “STB SN” and is located in the upper left corner of the bar code.

The M-Card serial number label is on the M-Card module slot cover; the serial number begins with “M-CARD SN” and is located in the upper left corner of the bar code.

Use this space to record the set-top serial number: ____________________________________________________

Use this space to record the M-Card module serial number: _____________________________________________

Set-Top

STB SN: SABNFSRVG

Serial

Number

eCM MAC: 001868C16907

STB RF MAC: 001868C16906

M-Card

M-CARD SN: PKCPTMFDV

Module

Serial

Number

M-CARD MAC: 001BD746C7CB

T13959

Page 8

What’s In The Carton?

The set-top carton contains the following items:

CH+

VOL+VOL-

POWER

SELECT

CH-

LISTEXITINFOMENU

RNG200N

CH+

VOL+VOL-

POWER

SELECT

LISTEXITINFOMENU

CH-

RNG200N

• RNG200 or RNG200N with M-Card • Quick Reference Guide

• Power Cord

Additional Equipment You Might Need

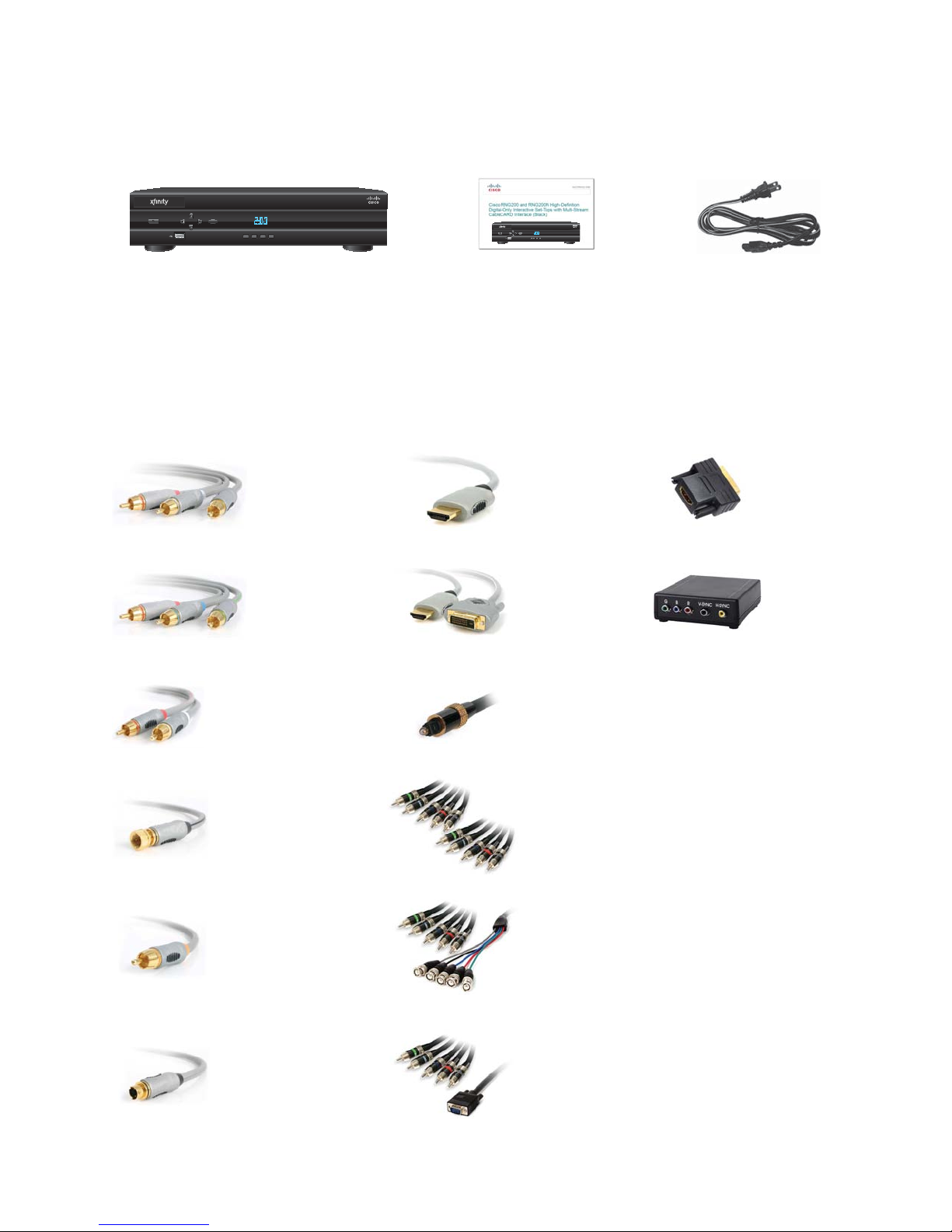

You might need some of the cables and adapters shown below for connecting the set-top to your home entertainment devices. See the connection information in the Connection Diagrams section for more information.

Check with your service provider for information about acquiring cables or adapters, or you can purchase cables or adapters at your local electronics supplier.

Composite A/V Cables

Component Video Cables (YPbPr)

Audio Left/ Right Cable

HDMI Cable

HDMI-to-DVI Cable

Optical Digital Audio Cable

HDMI-to-DVI Adapter

RGB Adapter

RF Coaxial Cable

Coaxial Digital Audio Cable

S-Video Cable

RGB Adapter Cable (RCA to RCA)

RGB Adapter Cable (RCA to BNC)

RGB Adapter Cable (RCA to VGA)

Page 9

Front Panel

POWER

CH+

VOL+VOL-

CH-

SELECT

LISTEXITINFOMENU

RNG200N

178910653112 4

T14761

1 Power Turns the DVR on and off 2 USB 2.0 Connects to external USB equipment approved by your service provider, software controlled 3 VOL -, VOL + Decreases and increases the volume 4 CH+, CH - Scrolls up and down through the channels 5 Select Accesses your on-screen selection 6 IR Sensor Receives the infrared signal from the remote control 7 Menu Accesses on-screen menu services, such as video-on-demand or pay-per-view 8 Info Displays a description of the selected program. This button is available from the on-screen

guide and while viewing a program

9 Exit Exits menus, the on-screen guide, and program information 10 List Displays the recorded list 11 Display Displays the selected channel number and time of day. The display shows the following:

• Message (

)

• HDTV

• Power (

)

• Output Resolution (1080i, 720p, 480p, or 480i)

• AUTO - Automatically outputs native scan rates that your TV can accept

Note: This illustration may vary from the actual product.

CAUTION: The DVR is equipped with a hard disk drive to store programs that you record and to allow you to rewind

and pause live TV. Any time the DVR is powered on (power LED is illuminated) or a recording is in progress (the record LED is illuminated) the hard disk is in use.

If you need to move the DVR, complete the following steps to allow the hard disk to shut down properly. First, make sure that no recording is in progress (record LED is off). Then, turn off power by pressing the Power key. Finally, unplug the unit and wait 10 seconds for the hard disk drive to spin down (stop). At this point the unit can be moved safely.

Y ou should handle this product with the same level of care you would use when handling other electronics containing a hard disk drive, such as a laptop computers or other hard disk drive equipped devices.

Page 10

Back Panel

OPTICAL

AUDIO

DIGITAL

OUT

AUDIO

S-VIDEO

OUT

CABLE OUT

5 64

MCARD SN: PXCPRPSLV

MCARD MAC: 00 1BD73E17D9

USB 2.0

MULTI-STREAM

CABLE CARD

1394 ETHERNETeSATA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS:

RISQUE DE CHOC

ELECTRIQUE NE PAS OUVRIR

LISTED 36MW VIDEO PRODUCT

120 VAC

60Hz 4.2A

500W

120VAC

60Hz 80W

T14760

THIS DEVICE IS INTENDED TO BE ATTACHED TO A RECEIVER THAT IS NOT USED TO RECEIVE OVER-THE-AIR BROADCAST SIGNALS. CONNECTION OF THIS DEVICE IN ANY OTHER FASHION MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS AND IS IN VIOLATION OF THE FCC RULES, PART 15.

CATV CONVERTER MADE IN MEXICO

STB SN: SABPQBQGD

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

CABLE IN

1 2 12 13 168151817 20

OUTPUT Y

VIDEO

LRPb

3 19

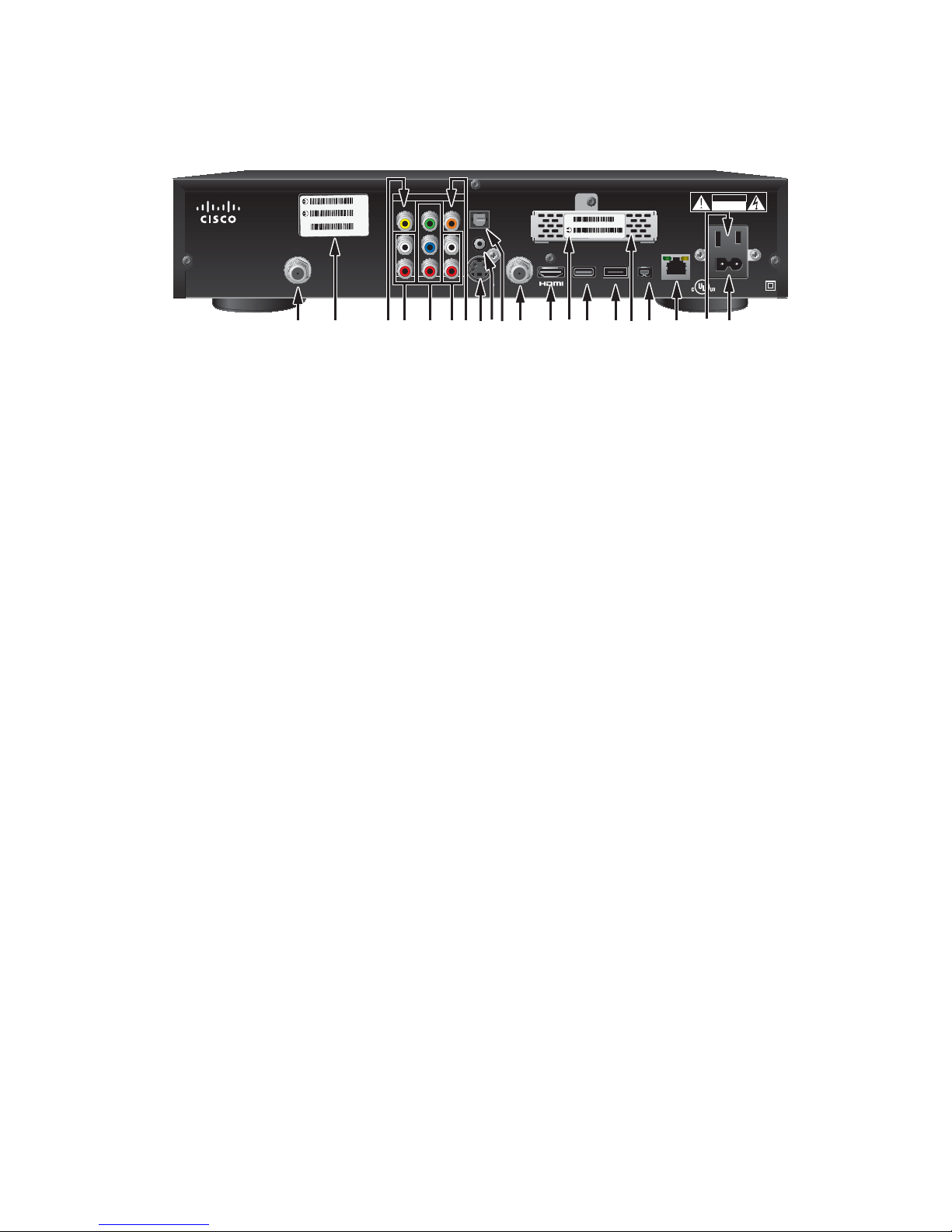

1 Cable In Connects to a coaxial cable that delivers the signal from your service provider 2 Bar Code Label Contains set-top serial number and MAC addresses 3 Video 1 (Composite) Connects to a video input of another device, such as a TV or VCR 4 Audio Out (Left/Right) Connects to RCA cables that send analog audio signals (left/right) to a stereo receiver

or TV with stereo inputs 5 YPbPr Connects to the component video input (YPbPr) on an HDTV. Do not use

these cables if you are using the HDMI connection

6 Out 2 Connects to either a VCR or to another set of inputs (composite) on your TV (Secondary Audio Out)

7 Digital Audio Out Connects to an RCA cable that sends a digital audio signal to a surround-sound receiver

or other digital audio device

8 S-Video Out Connects to S-Video input of a standard TV or VCR 9 IR Connector reserved for future use 10 Optical Audio Out Connects to an optical cable that sends a digital audio signal to a surround-sound

receiver or other digital audio device 11 Cable Out Connects to a coaxial cable that sends analog audio and video signals to a TV or VCR.

These signals are SDTV video and stereo audio

™

12 HDMI Connects an HDMI

cable to the HDMI input of an HDTV . HDMI supports both digital audio and video. May be used to connect to a DVI interface using an HDMI-to-DVI adapter for video and separate audio connections. Any of the following audio connections may be used: Digital Audio Out (7); Audio Out: Left, Right (4); or Optical Audio Out (10)

13 M-Card Label Contains M-Card serial number and MAC address 14 USB 2.0 Connects to external USB equipment approved by your service provider, software controlled 15 eSATA Connects to an external Serial ATA (eSATA) hard disk drive for expanded drive space.

A connected eSA T A drive is not an archival device. Support for your eSA T A may vary by service provider

16 M-Card Slot for M-Card module, which decrypts subscription digital channels. This set-top will not operate correctly without an M-Card module, which is installed by your service provider

17 1394 Connects to display devices that are equipped with a 1394 input 18 Ethernet Connects to an Ethernet-equipped device (Reserved for future use) 19 AC Outlet Connects to the AC power cord from another device, such as a TV 20 AC Power Input Connects to the power cord to deliver power to the set-top Note: This illustration may vary from the actual product.

Page 11

Connecting the Set-Top

POWER

To connect your set-top to your entertainment devices, complete these steps.

1 2

DVD

VCR

Home Theater

D-VCR

Determine if your TV is HD or SD and whether it is wide screen (16:9) or standard screen (4:3). See page 11 for more information.

Make the connections for your TV and VCR as follows:

• If you are using an HDTV, see page 6 and the connection diagrams at the end of this guide.

• If you are using an SDTV, see page 7 and the connection diagrams at the end of this guide.

• If you want to archive some programs to VCR tape, see pages 6 and 7 and the connection diagrams at the end of this guide.

Identify the additional devices you will connect to the set-top and TV. See the Connection Diagrams section of this guide.

Plug the set-top and the TV into an AC power source that is not controlled by a switch.

Other

5 6

Do not turn on the set-top or TV yet.

It may take several minutes for the set-top to receive the latest software, programming, and service information. Wait until you see one of the following displays on the front panel of the set-top that indicates that the update is complete:

• Current time • Four dashes (- - - -) Note: If four dashes appear, you must call your service provider to get the set-top authorized.

Set up your set-top for HDTV or SDTV by completing the following steps:

• Make sure the set-top is Off and the TV is On.

• On the front panel of the set-top, press GUIDE and INFO at the same time.

• Follow the on-screen instructions to choose HD or SD mode and wide screen (16:9) or standard screen (4:3) depending upon your TV type. See Page 11 for more information on the scan rate.

• At the conclusion of the on-screen instructions, press POWER on the set-top to begin watching TV.

Page 12

Connections for an HDTV and VCR

To use the set-top with an HDTV, you must make one of the following connections to view the HD content. In addition, you can make connections to a digital or analog VCR to record to a VCR tape. Refer to your TV and VCR user guides and the cabling diagrams in this guide for more detailed connection information.

Note: The labeling on your set-top, HDTV, and VCR may vary slightly.

Required Connections to an HDTV (use one)

Some HDTVs have a High-Deﬁ nition Multimedia Interface (HDMI) connector. The HDMI connector provides both a digital video and audio connection.

HDMI

See the connection diagram on page 12 for an example.

The HDMI connector can provide the connection to an HDTV with a DVI input. If your HDTV has a Digital Visual Interface (DVI) connector, you will need an HDMI-to-DVI adapter, and you will

DVI

need to connect a separate audio connection. See the connection diagram on page 13 for an example.

The YPbPr connectors can provide high-deﬁ nition component video signals to an HDTV.

Note: Use the HD Setup Wizard on the set-top to set the HD mode and select the output video format that will matches the

YPbPr

full capabilities of your HDTV. See the connection diagram on page 14 for an example.

Some HDTVs have only RGB connectors. If you have one of these HDTVs, you need an RGB adapter.

Check with your service provider for information about acquiring

RGB

an RGB adapter, or you can purchase the adapter at your local electronics supplier.

Set-Top

Connections

Adapter Needed

OUT 1

Adapter Needed

OUT 1

HDTV

Connections

DVI

L R

R G

L R

H V

Optional Connections to a VCR (use one)

For VCRs with Video and Left and Right audio connectors, you can use the Out 2 connectors (Video, Left, and Right) on the set-top.

See the connection diagram on page 16 for an example.

VCR

For VCRs with S-Video and Left and Right audio connectors, you can use the S-Video Out and the Out 2 Left and Right connectors on the set-top.

Set-Top

Connections

OUT 2

L R

VIDEO

S-VIDEO

OUT

A U D

OUT 2

VCR

Connections

L R

VIDEO

S-VIDEO

AUDIO

L R

Page 13

Connections for a Standard-Deﬁ nition TV and VCR

When using the set-top with an SDTV, you must make one of the following connections to view content. Some SDTVs may not have all these connections. In addition, you can make connections to a VCR to record to a VCR tape. Refer to your TV and VCR user guides and the cabling diagrams in this guide for more detailed information.

Note: The labeling on your set-top, SDTV, and VCR may vary slightly.

Required Connections to an SDTV (use one)

The YPbPr connectors can provide standard-deﬁ nition component video signals to an SDTV.

Note: To connect YPbPr to an SDTV, you must set the HD Setup

YPbPr

Wizard on the set-top to HD Mode, and select the output video format (typically 480i) that will match the capabilities of your SDTV.

The S-Video Out connection provides an optimal video connection to SDTVs.

S-VideoCable Out

The Cable Out connector provides a video and audio connection to an SDTV.

Optional Connection to a VCR

For VCRs with Video and Left and Right audio connectors, you can use the Out 2 connectors (Video, Left, and Right) on the set-top.

VCR

Set-Top

Connections

S-VIDEO

OUT

CABLE

OUT

Set-Top

Connections

OUT 2

L R

VIDEO

OUT 1

OUT 2

A U D

SDTV

Connections

S-VIDEO

CABLE IN/

L R

ANT IN

VCR

Connections

L R

VIDEO

AUDIO

Page 14

View Television Programming

Access Services and Programs

Access cable services and programs by pressing the following keys on the remote control:

• Guide–Access the on-screen guide. The on-screen guide displays schedules of TV programs and other services

available from your cable service provider, such as video-on-demand and pay-per-view programs.

• Arrows–Select a program in the schedule.

• Info–Display a speciﬁ c program description (either from the on-screen guide or while viewing a program).

• Select–View a speciﬁ c program in the guide.

Stretch and Zoom Program

You can stretch and zoom SD or HD programs by pressing the # key on the remote control.

Avoid Screen Burn-In

Images such as letterbox bars or side bars, bright closed-captioning backgrounds, station logos, or any other stationary images may cause the picture tube in your HDTV to age unevenly; this is known as screen burn-in. Refer to the user guide that came with your HDTV for more information.

WARNING: Avoid screen burn-in. Do not display the same ﬁ xed images on your HDTV screen for

extended periods of time.

Page 15

Troubleshooting

If the set-top does not perform as expected, the following tips may help. If you need further assistance, contact your service provider.

No Picture

• Verify that the power to your TV is turned on.

• Verify that your HDTV is in HD mode. If necessary, run the HD Setup Wizard to select HD mode.

• If the set-top is plugged into a wall switch, verify that the switch is in the ON position. Note: You should avoid plugging the set-top into an outlet controlled by a wall switch.

• Verify that all cables are properly connected.

• If your system includes a VCR or stereo, verify that you have properly connected them to the set-top.

• Verify that the set-top is set to the proper screen type and resolution.

No Color

• Verify that the current TV program is broadcast in color.

• Adjust the TV color controls.

• If you are using a component video connection (YPbPr), check that all connectors are completely plugged into

the set-top and TV.

No Sound

• If your setup includes a VCR or stereo, verify that you have properly connected them to the set-top.

• Verify that the volume is turned up.

• Verify that the mute function is not on.

Automatic Software Updates

A message appears on the TV screen when the set-top and the M-Card module are receiving software updates. In addition, download information also appears on the front panel of the set-top during these updates. Wait for the current time to display on the front panel before continuing. When the time appears, the update is complete.

Page 16

Frequently Asked Questions

What is Digital Television?

Digital television (DTV) is a huge leap forward in television technology compared to analog television that has been widely available since the 1940s. DTV is delivered and displayed using digital encoding, similar to the way a PC operates. By using digital technology, there is no variation in picture and sound quality from the origination point until it is displayed on your television. You always receive a high-quality picture without the wavy lines or static you might sometimes get from a weak analog signal.

Because DTV receives and displays digital images that contain many times more picture elements (pixels - the small dots that make up the color image on your screen) than standard analog television, you can get a sharper on-screen image than with analog. Additionally, DTV supports CD-quality sound. DTV includes SDTV (Standard Deﬁ nition Television), EDTV (Enhanced Deﬁ nition Television), and HDTV (High-Deﬁ nition Television). That means that all HDTV is digital, but not all digital TV is high-deﬁ nition. A high-deﬁ nition program must originate in HD format and be broadcast in HD format. Having an HDTV system does not mean that everything you watch will be in high-deﬁ nition. Getting the signal from digital cable also does not mean it is high-deﬁ nition.

What is Standard-Deﬁ nition Television?

Standard-deﬁ nition television (SDTV) is basic digital television programming delivered by cable. Typically, the SDTV screen is the same, nearly square shape as an analog television screen. Digital images on an SDTV set are crisp and clear—noticeably better than on a standard analog television set using an antenna to receive over-the-air signals.

What is High-Deﬁ nition Television?

High-deﬁ nition television (HDTV) is a completely new way to send and receive television broadcast signals. HDTV images are made up of pixels that are much smaller and closer together than those used in standard analog television, and there are millions of them. Thus, HDTV can display ﬁ ve to six times the detail of analog television to deliver picture quality that is much more realistic, dimensional, and precise. SDTV programs can be viewed on an HDTV. Another feature of HDTV is digital surround sound using Dolby technology used to produce the sound you hear in movie theaters.

™

Digital technology, which is the same

Are Local TV Stations Broadcasting in HDTV?

Many local TV stations are transmitting digital signals. However, transmitting a digital signal does not mean transmitting an HDTV signal. Some stations are using the new bandwidth to broadcast several standard-deﬁ nition channels. Most stations, once they begin broadcasting in digital, are offering HD content from their parent network (for example, CBS, ABC, NBC, Fox, and PBS).

Where Are the Connection Diagrams?

The diagrams at the end of this guide show examples of common ways to connect the set-top to your HDTV, DVD, and home theater receiver. However, these diagrams do not show every possible combination of devices. Refer to the user guides that came with your other electronic devices for further information.

What Cables Do I Need?

Some of the cables and adaptors shown in the diagrams may not be included with the set-top. Some of the required cables are shown in the connection diagrams and on page 2 of this guide.

Page 17

Picture Formats

What is the Difference Between a Standard-Screen and a Wide-Screen HDTV?

The type of screen your HDTV has (wide screen or standard screen) determines how the set-top displays programs on the screen. The picture format for an HDTV is a combination of aspect ratio and screen resolution and is different for standard-screen and wide-screen HDTVs.

What is Aspect Ratio?

An aspect ratio is the ratio of the width to the height of the TV screen. The aspect ratios differ because the television industry manufactures both standard-screen and wide-screen HDTVs to appeal to consumer viewing preferences.

What is the Screen Resolution and Scan Rate?

The screen resolution indicates the amount of detail that the picture displays. Resolution is identiﬁ ed by the number of display lines on the screen. The techniques that an HDTV uses to “paint” the picture on the screen are referred to as progressive and interlaced.

With the progressive method, the lines are drawn on the screen one at a time in sequential order. The interlaced method involves refreshing pixels in alternation — ﬁ rst the odd lines and then the even lines.

For advance setup, select the scan modes that your TV can support. Refer to your set-top and HDTV user guides to choose the proper scan rates (480i, 480p, 720p, 1080i) for your setup.

For example, a resolution of 1080i indicates that the screen shows 1080 lines in an interlaced display, and 480p indicates that the screens shows 480 lines in a progressive display.

Notes:

• The screen resolution (1080i, 480p, and so forth) is sometimes referred to as the scan rate.

The terms are interchangeable.

• You can stretch and zoom the displayed picture using the built-in capability of the set-top by pressing the # key on

the remote control.

A standard-screen HDTV has a 4x3 aspect ratio. The screen is 4 units wide for every 3 units tall.

A screen resolution of 480p or 480i ﬁ lls the screen.

A wide-screen HDTV is one-third wider than a standard-screen HDTV. The screen is 16 units wide for every 9 units tall.

A screen resolution of 720p or 1080i ﬁ lls the screen.

Page 18

Connecting to an HDTV with an HDMI Connector

120VAC

LPbY

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

Required cables:

• 1 HDMI cable

RNG200N

HIS DEVICE IS INTENDED TO BE ATTACHED

O A RECEIVER THAT IS NOT USED TO RECEIVE OVER-THE-AIR BROADCAST SIGNALS. CONNECTION OF THIS DEVICE IN ANY OTHER FASHION MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS AND IS IN VIOLATION OF THE FCC RULES, PART 15

CATV CONVERTER

ADE IN MEXICO

Cable

Input

ABLE I

CABLE IN

Back of HDTV

S-VIDEO

VIDEO

L/ MONO

IGITAL

AUDIO

OPTICAL

AUDIO

S-VIDEO

CABLE OU

CHANNEL IN

ON OFF

AUDIO

CENTER

AUDIO IN DVI/HDCP

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

SB 2.0

SAT

HDMI

ULTI-STREA ABLE CAR

139

THERNE

CAUTION

RISK OF ELECTRIC SHOCK

O NOT OPEN

AVIS:

RISQUE DE CHOC

LECTRIQUE NE PAS OUVRIR

ISTED 36M IDEO PRODUC

120 VAC

60Hz 4.2

500

60Hz 80

OUTPU

IDEO

ANT (75 )

PBPRL

HD 1

VIDEO

AUDIOAUDIO

L/ MONO

HD 2

PBPRL

AUDIO

INOUT

ANT-1

OUT

ANT-2

T13985

Important Notes Regarding the HDMI Interface on the Set-Top

The HDMI interface automatically conﬁ gures the audio output for a format supported by the television. Because not all TVs support the Dolby Digital input, the HDMI interface may automatically select a 2-channel stereo audio conﬁ guration instead of Dolby Digital, which it carries over to the other digital audio outputs of the set-top. This prevents your home theater system or Dolby Digital decoder from providing the full Dolby Digital surround-sound effect.

You can override this conﬁ guration by completing the following steps.

1. Press SETTINGS twice on the remote control to open the General Settings menu.

2. Press MOVE UP or MOVE DOWN to select the option Audio: Digital Out.

3. Press MOVE RIGHT to select Dolby Digital. (On some models, after you press MOVE RIGHT, you must press MOVE UP or MOVE DOWN to select Dolby Digital from the list.) This setting will send Dolby Digital audio to the HDMI, DIGITAL AUDIO OUT, and OPTICAL AUDIO OUT connectors on the set-top.

Notes:

• If the TV is not Dolby Digital capable, it may not produce audio through its speakers when the Audio: Digital Out

setting on the set-top is set to Dolby Digital. You can either switch the Audio: Digital Out setting back to HDMI when you are not using the home theater or Dolby Digital decoder, or you can connect the baseband audio outputs (OUT 1 Audio Left and Right) to the TV.

• Digital content is encrypted with High-Bandwidth Content Protection (HDCP) on the DVI/HDMI port. This set-top

is not compatible with devices that do not support HDCP. You must use either the YPbPr or 1394 connection to connect the set-top to these devices.

Page 19

Connecting to an HDTV with a DVI Connector

120VAC

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

Required cables:

• 1 HDMI-to-DVI or 1 HDMI cable and 1 DVI adapter

• 1 audio Left/Right cable

RNG200N

HIS DEVICE IS INTENDED TO BE ATTACHED

O A RECEIVER THAT IS NOT USED TO

RECEIVE OVER-THE-AIR BROADCAST SIGNALS. CONNECTION OF THIS DEVICE IN ANY OTHER FASHION MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS AND IS IN VIOLATION OF THE FCC RULES, PART 15

CATV CONVERTE

ADE IN MEXICO

Cable

Input

ABLE IN

CABLE IN

Back of HDTV

S-VIDEO

VIDEO

L/ MONO

OUTPU

IDEO

OPTICAL

AUDIO

IGITAL

AUDIO

CABLE OU

S-VIDEO

AUDIO

CENTER

CHANNEL IN

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

SB 2.0

MULTI-STREA

ABLE CAR

SAT

DVI/HDCP

139

THERNE

CAUTIO

RISK OF ELECTRIC SHOCK

O NOT OPE

AVIS:

ISQUE DE CHOC

LECTRIQUE NE PAS OUVRIR

ISTED 36M IDEO PRODUC

120 VAC

60Hz 4.2

500

60Hz 80

ON OFF

AUDIO IN DVI/HDCP

ANT (75 )

PBPRL

HD 1

VIDEO

AUDIOAUDIO

L/ MONO

HD 2

PBPRL

AUDIO

INOUT

ANT-1

OUT

ANT-2

T13986

Notes:

• When you connect the HDMI connector to the DVI connector on your HDTV, you need an HDMI-to-DVI adaptor and

a separate audio connection.

• Digital content is encrypted with High-Bandwidth Content Protection (HDCP) on the DVI/HDMI port. This set-top is

not compatible with devices that do not support HDCP. You must use either the YPbPr or 1394 connection (which uses Digital Transmission Content Protection, or DTCP) to connect the set-top to these devices.

• Also refer to the Important Notes Regarding the HDMI Interface on the Set-Top on page 12.

Page 20

Connecting to an HDTV with Component Input (YPbPr)

120VAC

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

Required cables:

• 1 component video cable (YPbPr)

• 1 audio Left/Right cable

RNG200N

HIS DEVICE IS INTENDED TO BE ATTACHED

CATV CONVERTE MADE IN MEXICO

Cable

Input

ABLE I

CABLE IN

S-VIDEO

VIDEO

L/ MONO

IGITAL

AUDIO

OPTICAL

UDIO

S-VIDEO

CABLE OU

CHANNEL IN

AUDIO

CENTER

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

SB 2.

DVI/HDCP

SAT

ULTI-STREA

ABLE CAR

139

THERNE

Back of HDTV

CAUTIO

RISK OF ELECTRIC SHOCK

O NOT OPEN

AVIS:

ISQUE DE CHOC

LECTRIQUE NE PAS OUVRIR

ISTED 36M

IDEO PRODUC

120 VAC

60Hz 4.2

500

60Hz 80

OUTPUT

IDEO

PrLR

ON OFF

AUDIO IN

DVI/HDCP

ANT (75 )

VIDEO

PBPRL

AUDIOAUDIO

HD 1

L/ MONO

HD 2

PBPRL

AUDIO

INOUT

ANT-1

OUT

ANT-2

T14762

Page 21

Back of

HDTV

DVI/HDCP

AUDIO

CENTER

CHANNEL IN

AUDIO IN DVI/HDCP

ANT (75½)

INOUT

ANT-1

HD 2

OUT

ANT-2

PBPRL

AUDIO

VIDEO

L/ MONO

VIDEO-1 VIDEO-2

AUDIO

ON OFF

HD 1

S-VIDEO

VIDEO

PBPRL

AUDIOAUDIO

Back of Home Theater Receiver

VIDEO

COMPONENT VIDEO

AUDIO

S-VIDEO

DIGITAL

AUDIO

TV/CABLE

VIDEO

AUDIO

S-VIDEO

DVD

VIDEO

AUDIO

S-VIDEO

VIDEO 1

S-VIDEO

OUT

VIDEO OUT

MONITOR

AUDIO

S-VIDEO

OUTIN

T11136

VIDEO

Back of DVD Player

AUDIO OUTLRVIDEO

OUT

DIGITAL

OUT

COAXIAL

S-VIDEO

OUT

OPTICAL

DIGITAL OUT

COMPONENT VIDEO OUT/

PROGRESSIVE SCAN

PB PBY

Back of Home Theater Receiver

VIDEO

COMPONENT VIDEO

AUDIO

S-VIDEO

DIGITAL

AUDIO

TV/CABLE

VIDEO

AUDIO

S-VIDEO

DVD

VIDEO

AUDIO

S-VIDEO

VIDEO 1

S-VIDEO

OUT

VIDEO OUT

MONITOR

VIDEO

AUDIO

S-VIDEO

OUTIN

T11135

Connecting to a Home Theater System

120VAC

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

with Component Input (YPbPr)

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

Required cables:

• 3 component video cables (YPbPr)

• 1 audio Left/Right cable

• 2 coaxial digital audio cables

RNG200N

HIS DEVICE IS INTENDED TO BE ATTACHED

CATV CONVERTER

ADE IN MEXICO

Cable

Input

CABLE IN

ABLE I

IDE

DIGITAL AUDIO

OUTPUT

DIGITAL

AUDIO

TV/CABLE

S-VIDEO

VIDEO

AUDIO

OPTICAL

AUDIO

S-VIDEO

DVD

S-VIDEO

VIDEO

AUDIO

CABLE OU

S-VIDEO

VIDEO

AUDIO

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

SB 2.0

Back of Home Theater Receiver

VIDEO 1

S-VIDEO

VIDEO

AUDIO

OUTIN

COMPONENT VIDEO

SAT

ULTI-STREA

ABLE CAR

CAUTIO

RISK OF ELECTRIC SHOCK

O NOT OPEN

AVIS:

RISQUE DE CHOC

LECTRIQUE NE PAS OUVRIR

120 VAC

60Hz 4.2

500

139

MONITOR

S-VIDEO

OUT

VIDEO OUT

OUTIN

ISTED 36M IDEO PRODUC

60Hz 80

T13988

Note: This connection assumes that audio is provided by the home theater speakers.

Page 22

Connecting to a Stereo VCR and HDTV (optional)

120VAC

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

Required cables:

• 1 RF coaxial cable

• 2 composite A/V cables

RNG200N

HIS DEVICE IS INTENDED TO BE ATTACHED

CATV CONVERTE

ADE IN MEXICO

Cable

Input

Note: This connection allows for recording to the VCR and for watching VCR tapes on your HDTV. To watch HD content, use the HDMI, YPbPr, or DVI connector.

ABLE I

CABLE IN

Stereo VCR

Back of

HDTV

VIDEO

LRPb

VIDEO

OUTPUT

S-VIDEO

VIDEO

L/ MONO

OPTICAL

AUDIO

DIGITAL

AUDIO

S-VIDEO

AUDIO

VIDEO-1 VIDEO-2

MULTI-STREA

ABLE CAR

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

CABLE OUT

SB 2.

139

SAT

THERNE

CAUTIO

RISK OF ELECTRIC SHOCK

O NOT OPE

AVIS:

ISQUE DE CHOC

LECTRIQUE NE PAS OUVRIR

ISTED 36M IDEO PRODUC

120 VAC

60Hz 4.2

500

60Hz 80

RF IN

VIDEO

OUT

AUDIO

OUT

RF OUT

AUDIO

CENTER

CHANNEL IN

DVI/HDCP

ON OFF

AUDIO IN

DVI/HDCP

ANT (75½)

HD 1

PBPRL

AUDIOAUDIO

VIDEO

AUDIO

L/ MONO

HD 2

PBPRL

AUDIO

INOUT

ANT-1

OUT

ANT-2

T13989

Page 23

Connecting the Set-Top in HD Mode to an SDTV

120VAC

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

with Component Input (YPbPr)

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

Required cables:

• 1 component video cable (YPbPr)

• 1 audio Left/Right cable

RNG200N

HIS DEVICE IS INTENDED TO BE ATTACHED

CATV CONVERTE

ADE IN MEXICO

Cable

Input

Note: The set-top must be set to the proper output mode, typically 480i.

ABLE I

CABLE IN

VIDEO

LRPb

OUTPUT

DIGITAL

AUDIO

OPTICAL

AUDIO

S-VIDEO

CABLE OU

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

SB 2.

SAT

ULTI-STREA

ABLE CAR

139

THERNE

CAUTIO

RISK OF ELECTRIC SHOCK

O NOT OPEN

AVIS:

ISQUE DE CHOC

LECTRIQUE NE PAS OUVRIR

ISTED 36M

IDEO PRODUC

20 VAC

60Hz 4.2

500

60Hz 80

Back of SDTV

AUDIO

VIDEO

OUT

VIDEO

RF IN

RF OUT

T13990

Page 24

Connecting an External SATA Hard Disk Drive (optional)

OOUT

1394

eCM MAC: 001AC3F4F757

STB RF MAC: 001AC3F$F756

STB SN: SABPQBQGD

Complete the following steps to install an external SATA (eSATA) drive.

1. Verify that both the DVR and the eSATA drive are unplugged from power.

2. Connect the data cable for the eSATA drive to the DVR.

3. Plug in power to the eSATA drive.

4. Plug in the DVR power cord, and then turn on the DVR.

5. Follow the on-screen instructions. One of the following occurs:

• If it is a new eSATA drive or one used on another device, you will be asked to format it.

• If the drive is formatted and will work with this DVR, you will get a conﬁ rmation that the drive is working.

WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting

any device cables to the set-top.

RNG200N

IGITAL

AUDIO

OPTICAL

AUDIO

S-VIDE

CABLE OU

ARD SN: PXCPRPSL

ARD MAC: 00 1BD73E17D

SB 2.0

eSATA

ULTI-STREA

ABLE CAR

THERNE

CAUTION

RISK OF ELECTRIC SHOCK

O NOT OPE

AVIS:

RISQUE DE CHO

LECTRIQUE NE PAS OUVRI

ISTED 36M IDEO PRODUC

120 VAC

60Hz 4.2A

500W

120VAC

60Hz 80W

HIS DEVICE IS INTENDED TO BE ATTACHED

CATV CONVERTER

ADE IN MEXICO

ABLE I

CABLE IN

OUTPUT

IDEO

PrLR

Cable

Input

Unswitched

Wall Outlet

External SATA Hard Disk Drive

T13991

SATA

Unswitched

Wall Outlet

How the eSATA Drive Works with Your DVR

An eSATA drive is an extension of the internal hard drive of the DVR; it is not an archival device. Programs recorded to the eSATA drive can be played back on the DVR originally connected to the eSATA drive. For instance, you cannot record programs to the eSATA drive, remove the drive, and then connect it to a computer or a different DVR for playing back programs.

Some programs will record to the DVR internal hard drive and some will record to the eSATA drive, depending on the space available. The DVR selects the drive that has enough space to record the entire program; a program is not split between the internal and external drives.

Page 25

Connecting an External SATA Hard Disk Drive (optional),

continued

Recommendations for the eSATA Drive

Support for eSATA may vary by service provider. At a minimum, your eSATA drive should have the following capabilities:

• External SATA Connector – SATA II Cable and Connector, Revision 1.0 (Refer to www.sata-io.org for more information)

• Drive Speed – 7200 RPM (5400 RPM without Multi-Room

• Capacity – Only one eSATA drive can be connected to the DVR. The DVR does not support a separate port multiplier.

• eSATA Drive Power –The eSATA drive should power on when plugged in and should not be controlled by a switch.

Guidelines for Using the eSATA Hard Disk Drive

The eSATA hard disk drive requires continuous power. If the eSATA drive loses power while the DVR is plugged in, the DVR may stop current recordings or not provide enough space for future recordings. Follow these guidelines for using the eSATA drive:

• Do not plug in the power cord for the eSATA drive to an outlet controlled by a wall switch or to the AC outlet on the DVR.

• Do not turn off, disconnect, or unplug the eSATA drive while the DVR is plugged in.

Disconnecting the eSATA Hard Disk Drive

Complete the following steps to disconnect the eSATA drive safely.

1. Verify that the DVR is powered off.

2. Disconnect the power cord from the DVR and wait for at least 10 seconds.

3. Disconnect the power cord and data cable from the external eSATA drive.

Note: If you improperly disconnect your eSATA drive, you will receive an error message, and you will be required to restart the DVR upon reconnecting.

DVR); 133 Mbps

Page 26

Index

AC Outlet iv, 4 Power input 4 Aspect ratio 11

Back panel 4 Burn-in of screen 8

CableCARD 1, 2, 4, Cables 2

Cable Out, connector 4 Compliance, FCC and Canadian EMI 24 Component video connection. See YPbPr Composite 6, 7 Connectors See also Front panel; Back panel required for HDTV 6 required for SDTV 7 VCR 6, 7 Connecting the set-top to other devices eSATA Hard Disk Drive 18, 19 HDTV with component input (YPbPr) 14 HDTV with DVI connector 13 HDTV with HDMI connector 12 HDTV with VCR 16 Home Theater System with component input

(YPbPr) 15 SDTV 17 Controls. See Front panel

Dashes display 5 Diagrams. See Connecting the set-top

to other devices

Digital TV, What is it 10 Display, LED 3

DVI connector 2, 4, 6, 13

FAQs 10 FCC compliance 24 Formats, picture 11 Frequently Asked Questions. See FAQs Front panel 3

HD broadcasting 10 mode 5, 6, 7, 17 format 1, 10 HDTV Connections 6 formats 11 What is it 10 HDMI 4, 6, 12 High-deﬁ nition. See HD Home theater system connection 15

Interlaced scan rate 11 IR Sensor 3

Page 27

Index, continued

Keys. See Front panel; Back panel

LED Display 3

M-Card. See Multi-Stream CableCARD Multi-Stream CableCARD 1, 2, 4, 9

Picture Doesn’t display 9 Formats 11 No color 9 Ports. See Connectors Product information 1 Programming, viewing 8 Progressive scan rate 11 YPbPr connector 4, 6, 7 HDTV connection 14 home theater connection 15 SDTV connection 17

Remote control 8 RGB connector. See YPbPr

S-Video 6, 7 Safety ii, iv-v Scan rates 11 Screen burn-in 8 resolution 11 size 11 SD mode 5, 17 SDTV

Connections 7, 17 What is it 10 Serial number, locating 1

Set-top. See Welcome Software updates 9 Sound, troubleshooting 9 Standard-deﬁ nition, What is it 10 Standard screen TV 11 Stretching and zooming picture 8, 11

Time display 5 Troubleshooting 9 TV digital, what is it 10 formats 11 HDTV, what is it 10 programming 8 resolution 11 standard screen 11 standard-deﬁ nition, What is it 10 wide screen 11

Page 28

Index, continued

Updating software 9 USB port 3

VCR connection 6, 7, 16 View programs 8

Watch TV 1, 8 Web access to product information 1 Welcome 1 Widescreen TV 11

YPbPr connector 4, 6, 7 HDTV connection 14 home theater connection 15 SDTV connection 17

Zoom picture 8, 11

Page 29

Page 30

FCC Compliance

United States FCC Compliance

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against such interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna, if applicable.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service provider or an experienced radio/television technician for help.

Any changes or modiﬁ cations not expressly approved by Cisco Systems, Inc., could void the user’s authority to operate the equipment.

The information shown in the FCC Declaration of Conformity paragraph below is a requirement of the FCC and is intended to supply you with information regarding the FCC approval of this device. The phone numbers listed are for FCC-related questions

only and not intended for questions regarding the connection or operation for this device. Please contact your service provider for any questions you may have regarding the operation or installation of this device.

Software and Firmware Use

The software described in this document is protected by copyright law and furnished to you under a license agreement. You may only use or copy this software in accordance with the terms of your license agreement.

The ﬁ rmware in this equipment is protected by copyright law. You may only use the ﬁ rmware in the equipment in which it is provided. Any reproduction or distribution of this ﬁ rmware, or any portion of it, without our express written consent is prohibited.

Disclaimer

Cisco Systems, Inc. assumes no responsibility for errors or omissions that may appear in this guide. We reserve the right to change this guide at any time without notice.

AVC VIDEO LICENSE

With respect to each AVC/H.264 product, we are obligated to provide the following notice:

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER T O (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMA TION MAY BE OBT AINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM.

Accordingly, please be advised that service providers, content providers, and broadcasters are required to obtain a separate use license from MPEG LA prior to any use of AVC/H.264 encoders and/or decoders.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) the device may not cause harmful interference, and 2) the device must accept any interference received, including interference that may cause undesired operation.

Cisco RNG200 and RNG200N

High-Deﬁ nition Digital-Only Set-Top

Model: RNG200 and RNG200N

Manufactured by: Cisco Systems, Inc.

5030 Sugarloaf Parkway

Lawrenceville, Georgia 30044 USA

Telephone: 770-236-1077

Canada EMI Regulation

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la class B est conforme à la norme

NMB-003 du Canada.

20081121 FCC Standard

Page 31

Page 32

Cisco Systems, Inc. 678.277.1000 5030 Sugarloaf Parkway, Box 465447 Lawrenceville, GA 30042 www.cisco.com

Cisco and the Cisco Logo are trademarks or registered trademarks of Cisco and/or its afﬁ liates in the U.S. and other countries. A listing of Cisco’s trademarks can be found at www.cisco.com/go/trademarks.

CableCARD and M-Card are trademarks of Cable Television Laboratories, Inc. Manufactured under license from Dolby Laboratories. Dolby is a trademark of Dolby Laboratories. HDMI, the HDMI logo, and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Other third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1009R) © 2010 Cisco and/or its afﬁ liates. All rights reserved. October 2010 Printed in United States of America Part Number 4026880 Rev A
