Cisco Release 2.7 User Manual

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

Software Release 2.7
License, Warranty, and Installation Instructions

Corporate Headquarters

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: [phone]

800 553-NETS (6387)

Fax: [phone]

Customer Order Number: DOC-7816345=
Text Part Number: 78-16345-01

,

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT
NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT
ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR
THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO
LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as
part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.

CCSP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live,
Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE
CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco
Systems logo, Cisco Unity, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare,
GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys,
MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Pac ke t, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX,
ScriptShare, SlideCast, SMARTnet, StrataView Plus, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO
are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (0501R)

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

Copyright © 2004 Cisco Systems, Inc. All rights reserved.

CONTENTS

Cisco 90-Day Limited Hardware Warranty Terms ix

Preface xiii

Audience xiv

Conventions xiv

Product Documentation xx

Obtaining Documentation xxii

Cisco.com xxii
Ordering Documentation xxii

Documentation Feedback xxiii

Obtaining Technical Assistance xxiii

Cisco TAC Website xxiii
Opening a TAC Case xxiv
TAC Case Priority Definitions xxiv

CHAPTER

78-16345-01

Obtaining Additional Publications and Information xxv

Supplemental License Agreement xxvii

1 Product Overview 1-1

Software Features 1-2

Hardware Features—WLSE 1130-19 1-3

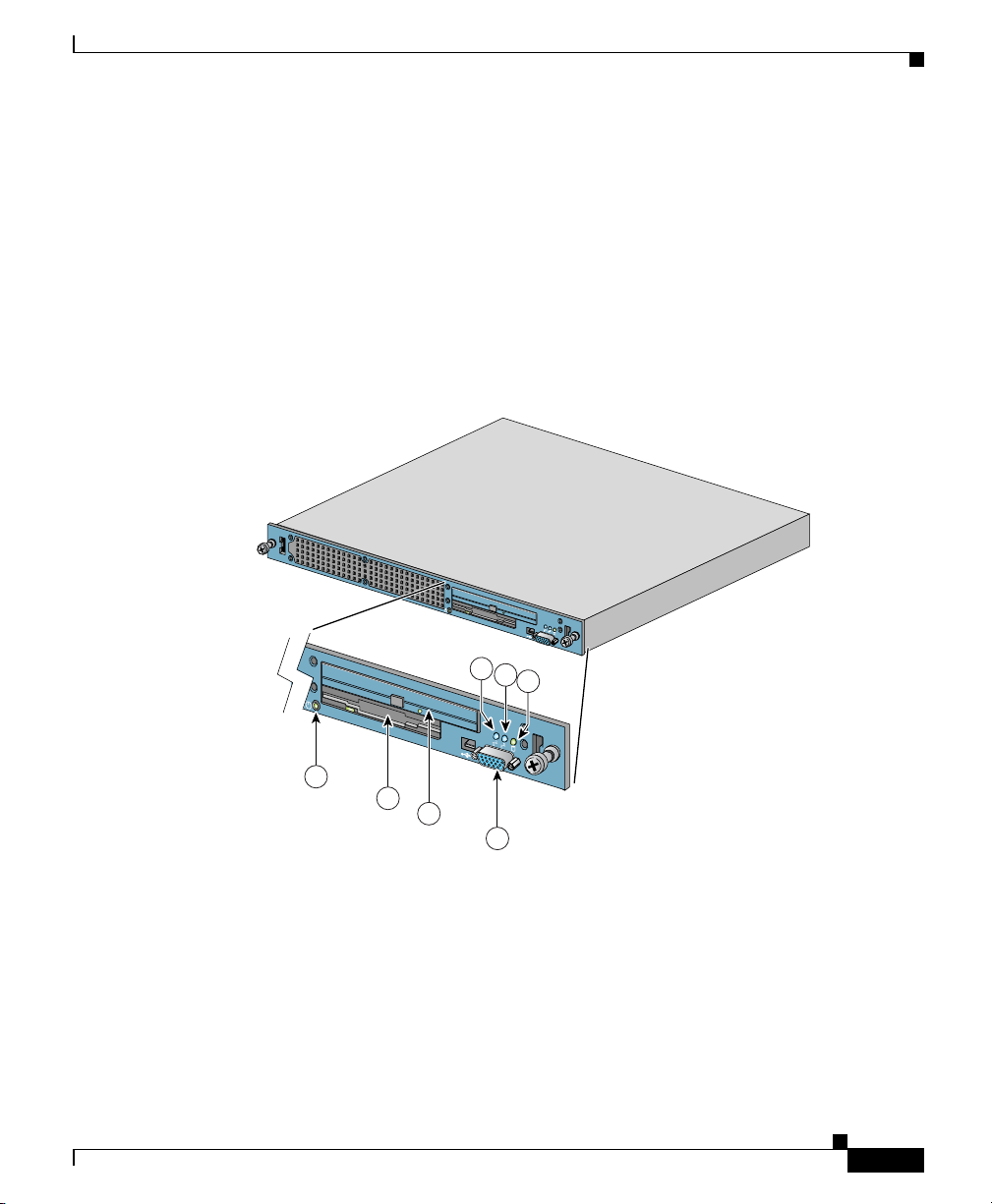

Front Panel Features 1-3

System Indicators 1-4

Back Panel Features 1-5

Serial/Console Port 1-6

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

iii

Contents

Ethernet Connectors 1-7

Equipment Included in the Package 1-8

CHAPTER

2 Preparing to Install WLSE 1130-19 Hardware 2-1

Safety 2-1

Warnings and Cautions 2-1
General Precautions 2-4
Maintaining Safety with Electricity 2-5
Protecting Against Electrostatic Discharge 2-6
Preventing EMI 2-7

Preparing Your Site for Installation 2-7

Environmental 2-7

Choosing a Site for Installation 2-8
Grounding the System 2-8

Creating a Safe Environment 2-9
AC Power 2-9
Cabling 2-9

Precautions for Rack-Mounting 2-10

Precautions for Products with Modems, Telecommunications, or Local Area
Network Options

2-11

Tools and Equipment Required for Installation 2-12

CHAPTER

iv

Next Step 2-12

3 Installing WLSE 1130-19 Hardware 3-1

Installation Quick Reference 3-2

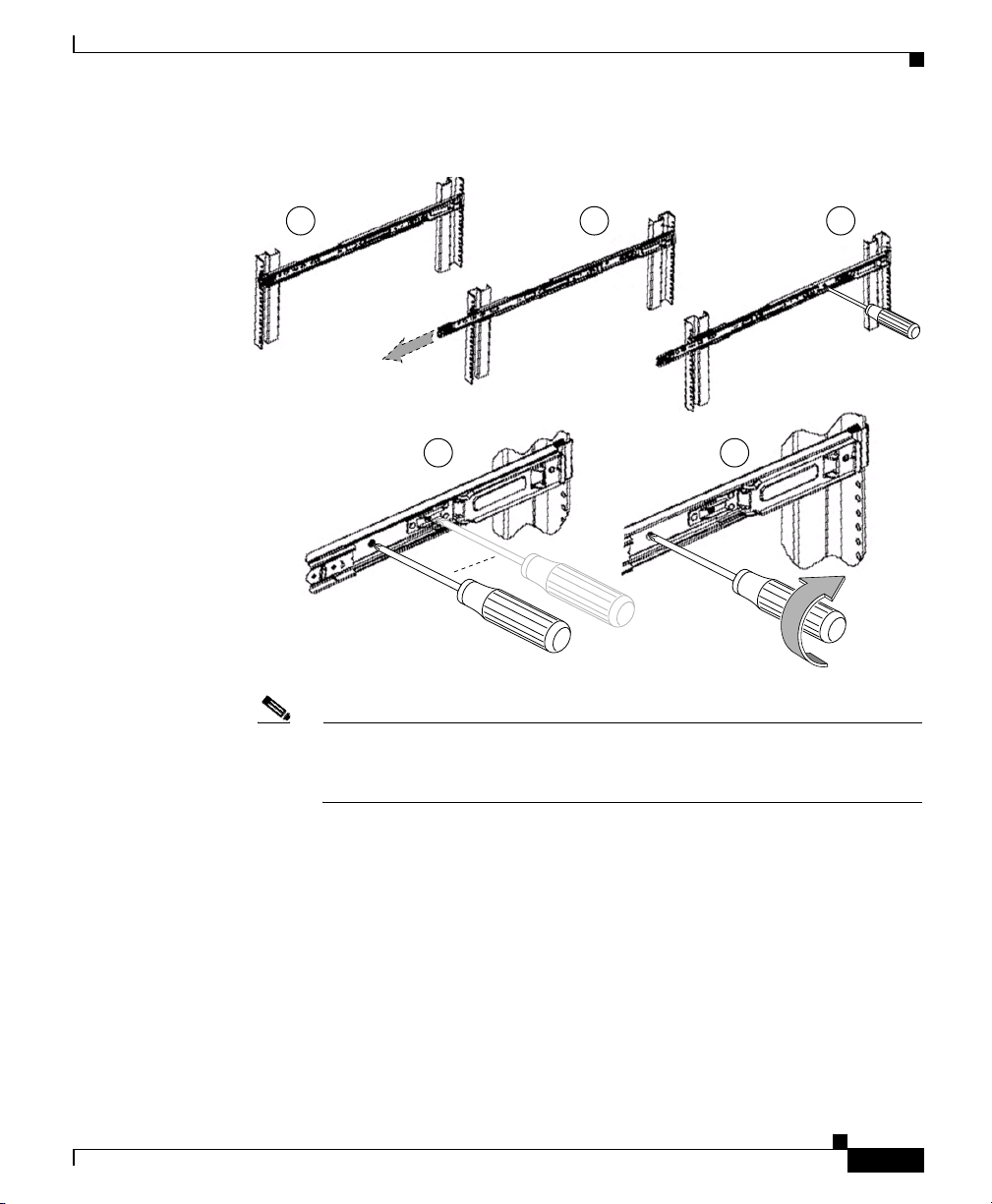

Installing the WLSE 1130-19 in a Rack 3-2

Connecting to the AC Power Source 3-15
Connecting Cables 3-15
Powering On the WLSE 3-16

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Next Step—Configuration 3-16

Contents

CHAPTER

CHAPTER

4 Basic Setup—CiscoWorks 1105/1130/1130-19 4-1

Initial Setup Quick Reference 4-1

Configuring the WLSE’s Network Information 4-2

Guidelines for Using the Setup Program 4-2
Running the Setup Program 4-2
Changing the Configuration After Running Setup 4-5

Configuring Name Resolution 4-6

Configuring the WLSE Without a DNS Server 4-6

Verifying the Configuration 4-7

Configuring the Web Browser 4-8

Supported Browsers 4-8
Configuring Internet Explorer 4-9
Configuring Netscape Navigator 4-10

Logging into the Web Interface and Verifying Connectivity 4-11

Adding Users 4-12

Next Steps—Set Up Devices and Configure Device Management 4-13

5 Setting Up Devices—CiscoWorks 1105/1130/1130-19 5-1

78-16345-01

Setting Up Non-IOS Access Points and Bridges 5-1

Set Up Using the Web Interface 5-2
Set Up Using a WLSE Configuration Template 5-4

Setting Up IOS Access Points 5-4

Basic Network Management Setup—IOS Devices 5-4

Using the AP CLI for Network Management Setup 5-5

Using the AP Web Interface for Network Management Set Up 5-7

Using WLSE Configuration Templates for Network Management Set

Up

5-9

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

v

Contents

Radio Management Setup—IOS Devices 5-10

About WDS Devices 5-11

About Configuring Authentication 5-11

Radio Management Setup Quick Reference 5-12

Using Access Points as WDS Devices 5-12

Using a Wireless LAN Services Module (WSM) as the WDS Device 5-18

Configuring Infrastructure Access Points to Register with WDS Access

Points

Configuring Infrastructure Access Points to Register with a Wireless LAN

Services Module (WSM)

Configuring Scanning APs 5-20

Configuring the WLSE 5-22

Confirming the Configuration 5-22

Setting Up Routers and Switches 5-24

Setting Up AAA Servers 5-25

5-18

5-20

CHAPTER

vi

6 Setting Up Discovery and Device Management—CiscoWorks

1105/1130/1130-19

6-1

Device Management Quick Reference 6-1

Adding Device Credentials to the WLSE 6-2

Enter SNMP Community Strings for All Managed Devices 6-2
Enter HTTP Credentials for Non-IOS Access Points 6-3
Enter Telnet or SSH Credentials for IOS Access Points 6-4
Enter HTTP Port Settings for IOS Access Points 6-5
Enter WLCCP Credentials for Wireless Domain Services (WDS) 6-5

Adding AAA Servers to the WLSE 6-6

Configuring Discovery Options 6-7

Discovering Devices 6-7

Run CDP Discovery 6-8

Run CDP Discovery Now 6-8

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Modify the CDP Discovery Schedule 6-10
Import Devices 6-11

Import Devices from a File 6-11

Import Devices from a CiscoWorks Server 6-12

Managing Devices 6-13

Next Step 6-14

Contents

APPENDIX

A Installing Software—CiscoWorks 1105/1130/1130-19 A-1

Upgrade Versions A-2

Backing Up the WLSE A-2

Downloading the Upgrade Image A-2

Upgrade Methods A-3

Upgrading by Using the Web Interface A-4

Quick Reference A-4

Installing from the Local Repository A-4

Installing from a Windows Server A-6
Upgrading by Using the CLI A-7

Quick Reference A-8

Create the Repository A-8

Install the Software A-10

Related CLI Commands A-11
Upgrading from the Recovery CD A-11

Reimaging the WLSE—Local Installation Method A-12

Reimaging the WLSE—Remote Installation Method A-14

APPENDIX

I

NDEX

78-16345-01

B Technical Specifications— CiscoWorks 1130-19 B-1

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

vii

Contents

viii

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Cisco 90-Day Limited Hardware Warranty Terms

There are special terms applicable to your hardware warranty and various services
that you can use during the warranty period. Your formal Warranty Statement,
including the warranties and license agreements applicable to Cisco software, is
available on Cisco.com. Follow these steps to access and download the Cisco
Information Packet and your warranty and license agreements from Cisco.com.

1. Launch your browser, and go to this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/cetrans.htm

78-16345-01

The Warranties and License Agreements page appears.

2. To read t he Cisco Information Packet, follow these steps:
a. Click the Information Packet Number field, and make sure that the part

number 78-5235-03A0 is highlighted.

b. Select the language in which you would like to read the document.
c. Click Go.

The Cisco Limited Warranty and Software License page from the
Information Packet appears.

d. Read the document online, or click the PDF icon to download and print

the document in Adobe Portable Document Format (PDF).

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

ix

Cisco 90-Day Limited Hardware Warranty Terms

Note You must have Adobe Acrobat Reader to view and print PDF

files. You can download the reader from Adobe’s website:

http://www.adobe.com

3. To read translated and localized warranty information about your product,

follow these steps:

a. Enter this part number in the Warranty Document Number field:

78-5236-01C0

b. Select the language in which you would like to read the document.
c. Click Go.

The Cisco warranty page appears.

d. Review the document online, or click the PDF icon to download and print

the document in Adobe Portable Document Format (PDF).

You can also contact the Cisco service and support website for assistance:

http://www.cisco.com/public/Support_root.shtml.

Duration of Hardware Warranty

Ninety (90) days.

Replacement, Repair, or Refund Policy for Hardware

Cisco or its service center will use commercially reasonable efforts to ship a
replacement part within ten (10) working days after receipt of a Return Materials
Authorization (RMA) request. Actual delivery times can vary, depending on the
customer location.

Cisco reserves the right to refund the purchase price as its exclusive warranty
remedy.

To Receive a Return Materials Authorization (RMA) Number

Contact the company from whom you purchased the product. If you purchased the
product directly from Cisco, contact your Cisco Sales and Service Representative.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

x

78-16345-01

Cisco 90-Day Limited Hardware Warranty Terms

Complete the information below, and keep it for reference:

Company product purchased from

Company telephone number

Product model number

Product serial number

Maintenance contract number

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xi

Cisco 90-Day Limited Hardware Warranty Terms

xii

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Preface

This guide contains both hardware installation and software setup instructions:

• The hardware installation information and technical specifications apply only

to the CiscoWorks 1130-19 Wireless LAN Solution Engine.

• The software information applies to any of the following hardware platforms

that are running WLSE 2.7 software: CiscoWorks 1105 WLSE, CiscoWorks
1130 WLSE, and CiscoWorks 1130-19 WLSE.

This guide contains the following sections:

• Cisco 90-Day Limited Hardware Warranty Terms

• Supplemental License Agreement

78-16345-01

• Product Overview

• Preparing to Install WLSE 1130-19 Hardware

• Installing WLSE 1130-19 Hardware

• Basic Setup—CiscoWorks 1105/1130/1130-19

• Setting Up Devices—CiscoWorks 1105/1130/1130-19

• Setting Up Discovery and Device Management—CiscoWorks

1105/1130/1130-19

• Installing WLSE 1130-19 Hardware

• Technical Specifications— CiscoWorks 1130-19

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xiii

Audience

Audience

Preface

This guide is intended primarily for system administrators who are responsible for
installing and configuring internetworking equipment.

Warning

Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.

Conventions

This document uses the following conventions:

Note Means reader take note. Notes contain helpful suggestions or references to

material not covered in the publication.

Item Convention

Commands and keywords boldface font

Variables for which you supply values italic font

Displayed session and system information

Information you enter

Variables you enter

Menu items and button names boldface font

Selecting a menu item in paragraphs Option > Network Preferences

screen font

boldface screen font

italic screen

font

xiv

Caution Means reader be careful. In this situation, you might do something that could

result in equipment damage or loss of data.

Warning

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

This symbol means danger. You are in a situation that could cause bodily injury.

78-16345-01

Preface

Conventions

Note The English warnings in this document are followed by a statement number. To

see the translations of a warning into other languages, look up its statement
number in the Regulatory Compliance and Safety Information for the CiscoWorks

1130-19 Wireless LAN Solution Engine.

Warni ng

Waarschuwing

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily
injury. Before you work on any equipment, be aware of the hazards involved with
electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to
locate its translation in the translated safety warnings that accompanied this
device.

Statement 1071

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken,
dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's
en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te
voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing
als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd,
wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xv

Conventions

Preface

Varoitus

Attention

Warnung

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia
vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien
käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin
ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana
toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa
näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant entraîner des blessures ou des dommages corporels. Avant de
travailler sur un équipement, soyez conscient des dangers liés aux circuits
électriques et familiarisez-vous avec les procédures couramment utilisées pour
éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui
accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin
de chaque avertissement.

CONSERVEZ CES INFORMATIONS

WICHTIGE SICHERHEITSHINWEISE

xvi

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu
Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den
Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung
vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen
Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten
Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Preface

Conventions

Avvertenza

Advarsel

Aviso

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare
infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura,
occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le
procedure standard per la prevenzione di incidenti. Utilizzare il numero di
istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni
delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på
person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom
på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for
å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne
oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne
enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá
ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer
equipamento, tenha conhecimento dos perigos envolvidos no manuseio de
circuitos elétricos e familiarize-se com as práticas habituais de prevenção de
acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham
este dispositivo.

78-16345-01

GUARDE ESTAS INSTRUÇÕES

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xvii

Conventions

Preface

¡Advertencia!

Varning!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física.
Antes de manipular cualquier equipo, considere los riesgos de la corriente
eléctrica y familiarícese con los procedimientos estándar de prevención de
accidentes. Al final de cada advertencia encontrará el número que le ayudará a
encontrar el texto traducido en el apartado de traducciones que acompaña a este
dispositivo.

GUARDE ESTAS INSTRUCCIONES

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda
till personskada. Innan du utför arbete på någon utrustning måste du vara
medveten om farorna med elkretsar och känna till vanliga förfaranden för att
förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att
hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna
anordning.

SPARA DESSA ANVISNINGAR

xviii

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Preface

Conventions

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xix

Product Documentation

Product Documentation

Note We sometimes update the printed and electronic documentation after original

publication. Therefore, you should review the documentation on Cisco.com for
any updates.

On Cisco.com, WLSE documentation is located at

www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwparent/cw_1105/wlse/2_
7/index.htm

You can access WLSE online help by clicking the Help button in the top right
corner of the screen or by selecting an option and then clicking the Help button.
You can access the user guide from the online help by clicking View PDF.

The following product documentation is available:

Document Title Description

Release Notes for the
CiscoWorks Wireless LAN
Solution Engine

Describes new features, documentation updates, known and resolved
problems, information on obtaining documentation, and information
on obtaining technical assistance. Available:

• On Cisco.com at

Preface

User Guide for the
CiscoWorks Wireless LAN
Solution Engine

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xx

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwpa
rent/cw_1105/wlse/2_7/index.htm

• PDF on the WLSE Recovery CD.

Describes WLSE features and provides instructions for all software
features:

• From the WLSE online help. Click View PDF.

• PDF on the WLSE Recovery CD-ROM.

• On Cisco.com at

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwpa
rent/cw_1105/wlse/2_7/index.htm

• Printed document available by order.

1

78-16345-01

Preface

Document Title Description

Supported Devices Table for
the Wireless LAN Solution
Engine

Lists devices supported at the time the product was released.
Available on Cisco.com at

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwparent/
cw_1105/wlse/2_7/index.htm

Troubleshooting and FAQs for
the CiscoWorks Wireless LAN
Solution Engine

Troubleshooting hints and FAQs. Available:

• From the WLSE online help. Click

• On Cisco.com at

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwpa
rent/cw_1105/wlse/2_7/index.htm

Installation and Configuration
Guide for the CiscoWorks
Wireless LAN Solution Engine

Describes how to install and configure the WLSE. Available:

• PDF on the WLSE Recovery CD-ROM.

• On Cisco.com at

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwpa
rent/cw_1105/wlse/2_7/index.htm

• Printed document available by order.

Regulatory Compliance and
Safety Information for the
CiscoWorks 1130-19 Wireless
LAN Solution Engine

Regulatory compliance and safety information. Available:

• Printed document shipped with the WLSE.

• PDF on the WLSE Recovery CD-ROM.

• On Cisco.com at

Product Documentation

2

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwpa
rent/cw_1105/wlse/2_7/index.htm

Integrating CiscoWorks
Wireless LAN Solution Engine
with a CiscoWorks Server

Provides information about adding a link to the WLSE from a
CiscoWorks server’s navigation tree. On Cisco.com at

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cwparent/
cw_1105/wlse/2_7/index.htm

Developer Guide for the
CiscoWorks Wireless LAN
Solution Engine

Provides information about using XML application programming
interface. On Cisco.com at

http://www.cisco.com/en/US/products/sw/cscowork/ps3915/prod_up
grades_and_downloads.html

1. For information on ordering, see “Obtaining Documentation” section on page xxii.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

xxi

Obtaining Documentation

2. For information on ordering, see “Obtaining Documentation” section on page xxii.

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco
also provides several ways to obtain technical assistance and other technical
resources. These sections explain how to obtain technical information from Cisco
Systems.

Cisco.com

You can access the most current Cisco documentation on the World Wide Web at
this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

Preface

International Cisco websites can be accessed from this URL:

http://www.cisco.com/public/countries_languages.shtml

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

• Registered Cisco.com users (Cisco direct customers) can order Cisco product

documentation from the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/index.shtml

• Nonregistered Cisco.com users can order documentation through a local

account representative by calling Cisco Systems Corporate Headquarters
(California, USA) at 408 526-7208 or, elsewhere in North America, by
calling 800 553-NETS (6387).

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xxii

78-16345-01

Preface

Documentation Feedback

You can submit e-mail comments about technical documentation to
[e-mail].

You can submit comments by using the response card (if present) behind the front
cover of your document or by writing to the following address:

Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco
service contracts, the Cisco Technical Assistance Center (TAC) provides
24-hour-a-day, award-winning technical support services, online and over the
phone. Cisco.com features the Cisco TAC website as an online starting point for
technical assistance. If you do not hold a valid Cisco service contract, please
contact your reseller.

Documentation Feedback

Cisco TAC Website

The Cisco TAC website provides online documents and tools for troubleshooting
and resolving technical issues with Cisco products and technologies. The Cisco
TAC website is available 24 hours a day, 365 days a year. The Cisco TAC website
is located at this URL:

http://www.cisco.com/tac

Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID
and password. If you have a valid service contract but do not have a login ID or
password, register at this URL:

http://tools.cisco.com/RPF/register/register.do

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

xxiii

Obtaining Technical Assistance

Opening a TAC Case

Using the online TAC Case Open Tool is the fastest way to open P3 and P4 cases.
(P3 and P4 cases are those in which your network is minimally impaired or for
which you require product information.) After you describe your situation, the
TAC Case Open Tool automatically recommends resources for an immediate
solution. If your issue is not resolved using the recommended resources, your case
will be assigned to a Cisco TAC engineer. The online TAC Case Open Tool is
located at this URL:

http://www.cisco.com/tac/caseopen

For P1 or P2 cases (P1 and P2 cases are those in which your production network
is down or severely degraded) or if you do not have Internet access, contact Cisco
TAC by telephone. Cisco TAC engineers are assigned immediately to P1 and P2
cases to help keep your business operations running smoothly.

To open a case by telephone, use one of the following numbers:

Asia-Pacific: [phone] (Australia: 1 800 805 227)
EMEA: [phone]
USA: 1 800 553-2447

Preface

For a complete listing of Cisco TAC contacts, go to this URL:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

TAC Case Priority Definitions

To ensure that all cases are reported in a standard format, Cisco has established
case priority definitions.

Priority 1 (P1)—Your network is “down” or there is a critical impact to your
business operations. You and Cisco will commit all necessary resources around
the clock to resolve the situation.

Priority 2 (P2)—Operation of an existing network is severely degraded, or
significant aspects of your business operation are negatively affected by
inadequate performance of Cisco products. You and Cisco will commit full-time
resources during normal business hours to resolve the situation.

Priority 3 (P3)—Operational performance of your network is impaired, but most
business operations remain functional. You and Cisco will commit resources
during normal business hours to restore service to satisfactory levels.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xxiv

78-16345-01

Preface

Obtaining Additional Publications and Information

Priority 4 (P4)—You require information or assistance with Cisco product
capabilities, installation, or configuration. There is little or no effect on your
business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is
available from various online and printed sources.

• Cisco Marketplace provides a variety of Cisco books, reference guides, and

logo merchandise. Go to this URL to visit the company store:

http://www.cisco.com/go/marketplace/

• The Cisco Product Catalog describes the networking products offered by

Cisco Systems, as well as ordering and customer support services. Access the
Cisco Product Catalog at this URL:

http://cisco.com/univercd/cc/td/doc/pcat/

• Cisco Press publishes a wide range of general networking, training and

certification titles. Both new and experienced users will benefit from these
publications. For current Cisco Press titles and other information, go to Cisco
Press online at this URL:

http://www.ciscopress.com

78-16345-01

• Packet magazine is the Cisco quarterly publication that provides the latest

networking trends, technology breakthroughs, and Cisco products and
solutions to help industry professionals get the most from their networking
investment. Included are networking deployment and troubleshooting tips,
configuration examples, customer case studies, tutorials and training,
certification information, and links to numerous in-depth online resources.
You can access Packet magazine at this URL:

http://www.cisco.com/packet

• iQ Magazine is the Cisco bimonthly publication that delivers the latest

information about Internet business strategies for executives. You can access
iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xxv

Obtaining Additional Publications and Information

• Internet Protocol Journal is a quarterly journal published by Cisco Systems

for engineering professionals involved in designing, developing, and
operating public and private internets and intranets. You can access the
Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

• Training—Cisco offers world-class networking training. Current offerings in

network training are listed at this URL:

http://www.cisco.com/en/US/learning/index.html

Preface

xxvi

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Supplemental License Agreement

SUPPLEMENTAL LICENSE AGREEMENT FOR CISCO SYSTEMS NETWORK MANAGEMENT
SOFTWARE RUNNING ON THE CISCO 11XX HARDWARE PLATFORM

IMPORTANT-READ CAREFULLY: This Supplemental License Agreement
(“SLA”) contains additional limitations on the license to the Software provided to
Customer under the Software License Agreement between Customer and Cisco.
Capitalized terms used in this SLA and not otherwise defined herein shall have
the meanings assigned to them in the Software License Agreement. To the extent
that there is a conflict among any of these terms and conditions applicable to the
Software, the terms and conditions in this SLA shall take precedence.

By installing, downloading, accessing or otherwise using the Software, Customer
agrees to be bound by the terms of this SLA. If Customer does not agree to the
terms of this SLA, Customer may not install, download or otherwise use the
Software.

78-16345-01

1. ADDITIONAL LICENSE RESTRICTIONS

• Installation and Use

The CiscoWorks Wireless LAN Solution Engine Software component of the Cisco
11XX Hardware Platform is preinstalled. CD's containing tools to restore this
Software to the 11XX hardware are provided to Customer for reinstallation
purposes only. Customer may only run the supported CiscoWorks Wireless LAN
Solution Engine Software on the Cisco 11XX Hardware Platform designed for its
use. No unsupported Software product or component may be installed on the
Cisco 11XX Hardware Platform.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

xxvii

Supplemental License Agreement

• Software Upgrades, Major and Minor Releases

Cisco may provide CiscoWorks Wireless LAN Solution Engine Software updates
and new version releases for the 11XX Hardware Platform. If the Software update
and new version releases can be purchased through Cisco or a recognized partner
or reseller, the Customer should purchase one Software update for each Cisco
11XX Hardware Platform. If the Customer is eligible to receive the Software
update or new version release through a Cisco extended service program, the
Customer should request to receive only one Software update or new version
release per valid service contract.

• Reproduction and Distribution

Customer may not reproduce nor distribute software.

2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS

Please refer to the Cisco Systems, Inc. Software License Agreement.

xxviii

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

CHAPTER

1

Product Overview

The WLSE is a rack-mountable appliance for configuring and managing Cisco
wireless devices. This chapter describes software features of WLSE 2.7 and
hardware features of the WLSE 1130-19.

This chapter contains the following sections:

• Software Features, page 1-2

• Hardware Features—WLSE 1130-19, page 1-3

• Equipment Included in the Package, page 1-8

Note For translated safety warnings and regulatory compliance information, see the

document titled Regulatory Compliance and Safety Information for the
CiscoWorks 1130-19 WLSE.

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

1-1

Software Features

Software Features

The WLSE has the following major features:

• Configuration—Allows you to apply configuration changes to access points.

• Fault and policy monitoring—Monitors device fault and performance

conditions, LEAP server responses, and policy misconfigurations.

• Reporting—Allows you to track device, client and security information. You

can email, print, and export reports.

• Firmware—Allows you to upgrade the firmware on access points and bridges.

• Radio management—Helps you manage your WLAN radio environment.

The WLSE operates by gathering fault, performance, and configuration
information about Cisco devices that it discovers in your network. The devices
must be properly configured for discovery. After devices are discovered, you
decide which devices to manage with the WLSE.

The WLSE has two user interfaces:

• The Command Line Interface (CLI), which you access by attaching a console

to the WLSE or using Telnet or SSH. For information on all the CLI
commands, see the User Guide for the CiscoWorks Wireless LAN Solution
Engine, Release 2.7.

Chapter 1 Product Overview

1-2

• The Web interface provides access to all device management tasks and most

of the management tasks for the WLSE system. For information on using the
Web interface, see the WLSE online help or the User Guide for the
CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 1 Product Overview

Hardware Features—WLSE 1130-19

This section describes the WLSE 1130-19 front and back panels.

Front Panel Features

Figure 1-1 shows front panel features.

Figure 1-1 Front Panel Features

Hardware Features—WLSE 1130-19

99974

78-16345-01

1

2

5

6

7

1

2

1

2

3

4

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

1-3

Hardware Features—WLSE 1130-19

Chapter 1 Product Overview

1 Power switch with built-in power

indicator

5 Ethernet 0 activity/link

indicator

The power switch turns power on or
off. To turn system power off, press
and hold this switch for at least 4
seconds.

2 Floppy disk drive 6 Ethernet 1 activity/link

indicator

3 CD-ROM drive 7 Hard drive indicator
4 Video output or USB port for optional

keyboard

System Indicators

When troubleshooting your WLSE, you might need to check the status of the
indicators on the front panel. These lights are described in Ta b le 1-1.

Table 1-1 System Indicators

Indicator Color Function

Power Green The power indicator lights up when the WLSE is connected to an

AC power source.

Hard Drive activity Blue The hard drive activity indicator blinks when hard drive activity

occurs.

Ethernet 0
activity/link

Ethernet 1
activity/link

Blue The Ethernet 0 activity/link indicator lights up when the

Ethernet 0 port is connected to a network and blinks when activity
occurs on this channel.

Blue The Ethernet 1 activity/link indicator lights up when the

Ethernet 1 port is connected to a network and blinks when activity
occurs on this channel.

1-4

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 1 Product Overview

Back Panel Features

Figure 1-2 shows the WLSE back panel.

Figure 1-2 Back Panel Connections

Hardware Features—WLSE 1130-19

1

2

3

4

5

6

7

8

1

2

1 AC power receptacle 5 Video output
2 Mouse port 6 Ethernet 0 connector
3 USB port 7 Ethernet 1 connector
4 Console/serial port 8 Console keyboard connector

99973

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

1-5

Hardware Features—WLSE 1130-19

Serial/Console Port

The serial port on the back panel uses a 9-pin D-subminiature connectors.

Figure 1-3 illustrates the pin numbers for the serial port connectors and the

following table defines the pin assignments and interface signals for the serial port
connector.

Figure 1-3 Pin Numbers for the Serial Port Connectors

Pin Signal I/O Definition
1 DCD I Data carrier detect
2 SIN I Serial input
3 SOUT O Serial output
4 DTR O Data terminal ready
5 GND N/A Signal ground
6 DSR I Data set ready
7 RTS O Request to send
8 CTS I Clear to send
9 RI I Ring indicator
Shell N/A N/A Chassis ground

Chapter 1 Product Overview

9

6

5

1

Serial

port

58685

1-6

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 1 Product Overview

Ethernet Connectors

The WLSE has integrated 10/100/1000–megabit-per-second (Mbps) Ethernet
connectors. Each Ethernet connector provides all the functions of a network
expansion card and supports 10BASE-T, 100BASE-TX, and 1000BASE-T
Ethernet standards. The location of the Ethernet connectors is shown in Figure 1-2

on page 1-5.

Hardware Features—WLSE 1130-19

Warning

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits
to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits,
and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45
connectors. Use caution when connecting cables.

Network Cable Requirements

The Ethernet connectors are designed for attaching an unshielded twisted pair
(UTP) Ethernet cable equipped with standard RJ-45 compatible plugs. Press one
end of the UTP cable into the Ethernet connector until the plug snaps securely into
place. Connect the other end of the cable to an RJ-45 jack wall plate or to an RJ-45
port on a UTP concentrator or hub, depending on your network configuration.
Observe the following cabling restrictions for 10BASE-T, 100BASE-TX, and
1000BASE-T networks:

• For 10BASE-T networks, use Category 3 or greater wiring and connectors.

• For 100BASE-TX and 1000 BASE-T networks, use Category 5 or greater

wiring and connectors.

• The maximum cable run length (from a workstation to a concentrator) is 328

feet (ft) or 100 meters (m).

• For 10BASE-T networks, the maximum number of daisy-chained

concentrators on one network segment is four.

78-16345-01

Note To avoid line interference, put voice and data lines in separate sheaths.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

1-7

Equipment Included in the Package

Equipment Included in the Package

The WLSE package should include the following:

• WLSE 1130-19

• Rack mounting kit. (Your rack mounting kit may be different from the one

described in this document.)

• Power cable

• Serial cable (light blue, RJ-45 to RJ-45)

• 10Base-T Ethernet cable (yellow)

• Adapters (DB-9 to RJ-45)

• Adapter (DB-25 to RJ-45)

• WLSE 2.7 Recovery CD

• WLSE documentation:

–

Installation and Configuration Guide for the CiscoWorks 1130-19
Wireless LAN Solution Engine

–

Finding Documentation for the CiscoWorks 1130-19 Wireless LAN
Solution Engine

Chapter 1 Product Overview

1-8

–

Regulatory Compliance and Safety Information for the CiscoWorks
1130-19 Wireless LAN Solution Engine

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

CHAPTER

2

Preparing to Install WLSE 1130-19 Hardware

This chapter describes the safety instructions and site requirements needed for
installing the WLSE 1130-19, and guides you through installation preparation.
The chapter contains the following sections:

• Safety, page 2-1

• Preparing Your Site for Installation, page 2-7

• Precautions for Rack-Mounting, page 2-10

• Precautions for Products with Modems, Telecommunications, or Local Area

Network Options, page 2-11

• Tools and Equipment Required for Installation, page 2-12

Safety

This section provides safety information about installing this product.

Warnings and Cautions

Read the installation instructions in this document before you connect the system
to its power source. Failure to read and follow these guidelines could lead to an
unsuccessful installation and possible damage to the system and components.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

2-1

Safety

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

You should observe the following safety guidelines when working with any
equipment that connects to electrical power or telephone wiring. They can help
you avoid injuring yourself and damaging the WLSE.

Note The English warnings in this document are followed by a statement number. To

see the translations of a warning into other languages, look up its statement
number in the Regulatory Compliance and Safety Information for the CiscoWorks

1130-19 Wireless LAN Solution Engine.

The following warnings and cautions are provided to help you prevent damage to
the devices or injury to yourself:

Warning

Warning

Warning

Warning

Warning

Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.

Statement 1030

The safety cover is an integral part of the product. Do not operate the unit
without the safety cover installed. Operating the unit without the cover in place
will invalidate the safety approvals and pose a risk of fire and electrical
hazards.

Statement 117

This equipment must be grounded. Never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor.
Contact the appropriate electrical inspection authority or an electrician if you
are uncertain that suitable grounding is available.

Statement 1024

Before working on a chassis or working near power supplies, unplug the power
cord on AC units; disconnect the power at the circuit breaker on DC units.

Statement 12

Before opening the unit, disconnect the telephone-network cables to avoid
contact with telephone-network voltages.

Statement 1041

2-2

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Safety

Warning

Warning

Warning

Warning

This unit might have more than one power cord. To reduce the risk of electrical
shock, disconnect all power supply cords before servicing the unit.

Statement

106

This product relies on the building’s installation for short-circuit (overcurrent)
protection. Ensure that a fuse or circuit breaker no larger than 120VAC, 20A U.S.
(240VAC, 16 to 20A international) is used on the phase conductors (all
current-carrying conductors). The fuse or circuit breaker must have adequate
safety approvals recognized by the country of usage.

Statement 119

This equipment is intended to be grounded to comply with emission and
immunity requirements. Ensure that the switch functional ground lug is
connected to earth ground during normal use.

Statement 1064

Blank faceplates and cover panels serve three important functions: they
prevent exposure to hazardous voltages and currents inside the chassis; they
contain electromagnetic interference (EMI) that might disrupt other equipment;
and they direct the flow of cooling air through the chassis. Do not operate the
system unless all cards, faceplates, front covers, and rear covers are in place.

Statement 1029

78-16345-01

Warning

Warning

Do not work on the system or connect or disconnect cables during periods of
lightning activity.

Statement 1001

.

The power supply circuitry for the equipment can constitute an energy hazard.
Before you install or replace the equipment, remove all jewelry (including
rings, necklaces, and watches). Metal objects can come into contact with
exposed power supply wiring or circuitry inside the DSLAM equipment. This
could cause the metal objects to heat up and cause serious burns or weld the
metal object to the equipment.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

Statement 207

2-3

Safety

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Warning

Warning

Warning

Warning

Warning

Ultimate disposal of this product should be handled according to all national
laws and regulations.

Before working on a system that has an on/off switch, turn OFF the power and
unplug the power cord.

Read the installation instructions before connecting the system to the power
source.

The ports labeled “Ethernet,” “10BaseT,” “Token Ring,” “Console,” and “AUX”
are safety extra-low voltage (SELV) circuits. SELV circuits should only be
connected to other SELV circuits. Because the BRI circuits are treated like
telephone-network voltage, avoid connecting the SELV circuit to the telephone
network voltage (TNV) circuits.

There is the danger of explosion if the battery is replaced incorrectly. Replace
the battery only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.

Statement 1004

Statement 1015

Statement 1040

Statement 1

Statement 22

General Precautions

Observe the following general precautions when using and working with your
system:

• Keep your system components away from radiators and heat sources, and do

not block cooling vents.

• Do not spill food or liquids on your system components, and never operate

the product in a wet environment. If the computer gets wet, see the
appropriate chapter in your troubleshooting guide or contact the Cisco

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

2-4

78-16345-01

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Technical Assistance Center. For instructions on contacting the Technical
Assistance Center, see the section Obtaining Technical Assistance,

page -xxiii in the Preface.

• Do not push any objects into the openings of your system components. Doing

so can cause fire or electric shock by shorting out interior components.

• Position system cables and power cables carefully; route system cables and

the power cable and plug so that they cannot be stepped on or tripped over.
Be sure that nothing rests on your system components’ cables or power cable.

• Do not modify power cables or plugs. Consult a licensed electrician or your

power company for site modifications. Always follow your local/national
wiring rules.

• To help avoid possible damage to the system board, wait 5 seconds after

turning off the system before removing a component from the system board
or disconnecting a peripheral device from the computer.

Maintaining Safety with Electricity

Safety

78-16345-01

Follow these guidelines when working on equipment powered by electricity:

• If any of the following conditions occur contact the Cisco Technical

Assistance Center:

–

The power cable or plug is damaged.

–

An object has fallen into the product.

–

The product has been exposed to water.

–

The product has been dropped or damaged.

–

The product does not operate correctly when you follow the operating
instructions.

• Use the correct external power source. Operate the product only from the type

of power source indicated on the electrical ratings label. If you are not sure
of the type of power source required, consult the Cisco Technical Assistance
Center or a local power company.

• Use only approved power cable(s). If you have not been provided with a

power cable for your computer or storage system or for any AC-powered
option intended for your system, purchase a power cable that is approved for
use in your country. The power cable must be rated for the product and for the

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

2-5

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Safety

voltage and current marked on the product’s electrical ratings label. The
voltage and current rating of the cable should be greater than the ratings
marked on the product.

• To help prevent electric shock, plug the WLSE, components, and peripheral

power cables into properly grounded electrical outlets. These cables are
equipped with three-prong plugs to help ensure proper grounding. Do not use
adapter plugs or remove the grounding prong from a cable.

• Observe power strip ratings. Make sure that the total ampere rating of all

products plugged into the power strip does not exceed 80% of the rating.

• To help protect your system/components from sudden, transient increases and

decreases in electrical power, use a surge suppressor, line conditioner, or
uninterruptable power supply (UPS).

• Do not modify power cables or plugs. Consult a licensed electrician or your

power company for site modifications. Always follow your local/national
wiring rules.

Protecting Against Electrostatic Discharge

2-6

Static electricity can harm delicate components inside your computer. To prevent
static damage, discharge static electricity from your body before you touch any of
your computer’s electronic components, such as the microprocessor. You can do
so by touching an unpainted metal surface on the computer chassis.

As you continue to work inside the computer, periodically touch an unpainted
metal surface to remove any static charge your body may have accumulated.

You can also take the following steps to prevent damage from electrostatic
discharge (ESD):

• When unpacking a static-sensitive component from its shipping carton, do not

remove the component from the antistatic packing material until you are
ready to install the component in your computer. Just before unwrapping the
antistatic packaging, be sure to discharge static electricity from your body.

• When transporting a sensitive component, first place it in an antistatic

container or packaging.

• Handle all sensitive components in a static-safe area. If possible, use

antistatic floor pads and workbench pads.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Preventing EMI

When you run wires for any significant distance in an electromagnetic field,
electromagnetic interference (EMI) can occur between the field and the signals on
the wires.

Note that:

• Bad plant wiring can result in radio frequency interference (RFI).

• Strong EMI, especially when it is caused by lightning or radio transmitters,

can destroy the signal drivers and receivers in the system, and can even create
an electrical hazard by conducting power surges through lines and into the
system.

To predict and remedy strong EMI, consult RFI experts.

Preparing Your Site for Installation

This section describes the requirements your site must meet for safe installation
and operation of your WLSE. Ensure that your site is properly prepared before
beginning installation.

Preparing Your Site for Installation

Environmental

78-16345-01

When planning your site layout and equipment locations, keep in mind the
precautions described in this section to help avoid equipment failures and reduce
the possibility of environmentally caused shutdowns. If you are currently
experiencing shutdowns or unusually high errors with your existing equipment,
these precautions will help you isolate the cause of failures and prevent future
problems.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

2-7

Preparing Your Site for Installation

Use the following precautions when planning the operating environment for your
WLSE.

• Always follow the ESD-prevention procedures described in the “Preventing

EMI” section on page 2-7 to avoid damage to equipment. Damage from static

discharge can cause immediate or intermittent equipment failure.

• Make sure that the chassis cover is secure. The chassis is designed to allow

cooling air to flow effectively within it. An open chassis allows air leaks,
which could interrupt and redirect the flow of cooling air from internal
components.

• Electrical equipment generates heat. Ambient air temperature might not be

adequate to cool equipment to acceptable operating temperatures without
adequate circulation. Make sure that the room in which you operate has
adequate air circulation.

Choosing a Site for Installation

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Warning

This unit is intended for installation in restricted access areas. A restricted
access area is where access can only be gained by service personnel through
the use of a special tool, lock and key, or other means of security, and is
controlled by the authority responsible for the location.

• Choose a site with a dry, clean, well-ventilated and air-conditioned area.

• Choose a site that maintains an ambient temperature of 10° to 35°C (50° to

Grounding the System

Warning

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

2-8

Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical
inspection authority or an electrician if you are uncertain that suitable
grounding is available.

95°F).

78-16345-01

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Creating a Safe Environment

Follow these guidelines to create a safe operating environment:

• Keep tools and chassis components off the floor and away from foot traffic.

• Clear the area of possible hazards, such as moist floors, ungrounded power

extension cables, and missing safety grounds.

• Keep the area around the chassis free from dust and foreign conductive

material (such as metal flakes from nearby construction activity).

AC Power

Ensure that the plug-socket combination is accessible at all times, because it
serves as the main disconnecting device. For the WLSE’s power requirements, see

Appendix B, “Technical Specifications— CiscoWorks 1130-19.”

Preparing Your Site for Installation

Cabling

78-16345-01

Warning

This product relies on the building’s installation for short-circuit (overcurrent)
protection. Make sure that a fuse or circuit breaker no larger than 120 VAC,
15A U.S. and 240 VAC, 10A international are used on the phase conductors (all
current-carrying conductors).

Use the cables in the accessory kit to connect the WLSE’s console port to a
console or computer that is running a console program. In addition to the console
cable, you must supply your own standard Ethernet cable to connect the WLSE to
your network. For information detailing cable requirements, see Ethernet

Connectors, page 1-7.

A structured wiring system provides a standardized way to wire a building for all
types of networks for the WLSE to be installed. The main distribution frame links
all the building’s interior wiring and provides an interface connection to circuits
coming from outside sources such as the local telephone company. Wiring hubs
(peripherals for cabling installations) provide the connection logic unique to Fast
Ethernet cables that the WLSE uses. Unshielded twisted pair (UTP) copper wire
is used to connect the WLSE and distributes the network connections to wall jacks
near each piece of network equipment.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

2-9

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Precautions for Rack-Mounting

Precautions for Rack-Mounting

Observe the following precautions for rack stability and safety. Also see the rack
installation documentation accompanying the rack for specific warning and/or
caution statements and procedures.

Servers, storage systems, and appliances are considered to be components in a
rack. Thus, “component” refers to any server, storage system, or appliance, as
well as to various peripherals or supporting hardware.

• Do not move large racks by yourself. Due to the height and weight of the rack,

a minimum of two people are needed to accomplish this task.

• Ensure that the rack is level and stable before extending a component from

the rack.

• Do not overload the AC supply branch circuit that provides power to the rack.

The total rack load should not exceed 80 percent of the branch circuit rating.

• Ensure that proper airflow is provided to components in the rack.

• Do not step on or stand on any system/component when servicing other

system/components in a rack.

2-10

• This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

• When mounting this unit in a partially filled rack, load the rack from the

bottom to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Precautions for Products with Modems, Telecommunications, or Local Area Network Options

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you
must take special precautions to ensure that the system remains stable. The
following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the
top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting
or servicing the unit in the rack.

Statement 1006

Precautions for Products with Modems,
Telecommunications, or Local Area Network
Options

Observe the following guidelines when working with options:

• Do not connect or use a modem or telephone during a lighting storm. There

may be a risk of electrical shock from lightning.

• Never connect or use a modem or telephone in a wet environment.

• Do not plug a modem or telephone cable into the Ethernet connector.

78-16345-01

• Disconnect the modem cable before opening a product enclosure, touching or

installing internal components, or touching an uninsulate4d modem cable or
jack.

• Do not use a telephone line to report a gas leak while you are in the vicinity

of the leak.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

2-11

Chapter 2 Preparing to Install WLSE 1130-19 Hardware

Tools and Equipment Required for Installation

Tools and Equipment Required for Installation

You need the following tools and equipment to install the WLSE:

• Number 2 Phillips screwdriver

• Tape measure and level

• Antistatic mat or antistatic foam

• ESD grounding strap

Next Step

Install the WLSE 1130-19 hardware. See Chapter 3, “Installing WLSE 1130-19

Hardware.”

2-12

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

CHAPTER

3

Installing WLSE 1130-19 Hardware

This chapter describes how to install the CiscoWorks 1130-19 Wireless LAN
Solution Engine in a rack. The chapter contains the following sections:

• Installation Quick Reference, page 3-2

• Installing the WLSE 1130-19 in a Rack, page 3-2

• Connecting to the AC Power Source, page 3-15

• Connecting Cables, page 3-15

• Powering On the WLSE, page 3-16

• Next Step—Configuration, page 3-16

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-1

Installation Quick Reference

Installation Quick Reference

Table 3-1 provides a high-level overview of the installation process. After

installation is complete, follow the directions in Chapter 4, “Basic

Setup—CiscoWorks 1105/1130/1130-19.”

Table 3-1 Quick Reference

Task References

Use the rack mount kit to install
the WLSE in a rack.

Connect the WLSE to an AC
power source.

Connect network and console
cables.

Power on the WLSE. Powering On the WLSE, page 3-16

Chapter 3 Installing WLSE 1130-19 Hardware

Installing the WLSE 1130-19 in a Rack,
page 3-2

Connecting Cables, page 3-15

Connecting Cables, page 3-15

Installing the WLSE 1130-19 in a Rack

This section provides instructions for installing the WLSE in a rack. The rack
must be properly secured to the floor, ceiling, or upper wall, and where applicable,
to adjacent racks. The rack should be secured using floor and wall fasteners and
bracing specified by industry standards.

Before installing the WLSE in a rack, read Preparing Your Site for Installation,

page 2-7 to familiarize yourself with the proper site and environmental

conditions. Failure to read and follow these guidelines could lead to an
unsuccessful installation and possible damage to the system and components.
Perform the steps below when installing and servicing the WLSE.

The rack must be properly secured to the floor, to the ceiling or upper wall, and
where applicable, to adjacent racks. The rack should be secured using floor and
wall fasteners and bracing specified or approved by the rack manufacturer or by
industry standards.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-2

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

When installing and servicing the WLSE:

• Disconnect all power and external cables before installing the system.

• Install the system in compliance with your local and national electrical codes:

–

United States: National Fire Protection Association (NFPA) 70; United
States National Electrical Code.

–

Canada: Canadian Electrical Code, Part, I, CSA C22.1.

–

Other countries: If local and national electrical codes are not available,
see IEC 364, Part 1 through Part 7.

• Do not work alone under potentially hazardous conditions.

• Do not perform any action that creates a potential hazard to people or makes

the equipment unsafe.

• Do not attempt to install the WLSE in a rack that has not been securely

anchored in place. Damage to the system and personal injury may result.

• Due to the size and weight of the computer system, never attempt to install

the computer system by yourself.

See Precautions for Rack-Mounting, page 2-10 for additional safety information
on rack installation.

Installing the WLSE 1130-19 in a Rack

78-16345-01

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you
must take special precautions to ensure that the system remains stable. The
following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the
top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting
or servicing the unit in the rack.

Statement 1006

The server can be installed in a system 1U rack. The rack rail components are as
follows (numbers in parentheses refer to Figure 3-1):

• 2 telescopic rails (1, 2)

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-3

Installing the WLSE 1130-19 in a Rack

• 1 cable management arm (3)

• Bag containing:

–

–

–

–

Figure 3-1 Rack Rail Components

Chapter 3 Installing WLSE 1130-19 Hardware

9 Round head screws with washer (4)

6 Round head screws (5)

6 Cage nuts (6)

Ve l c r o ( 7 )

4

3-4

1

2

3

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5

6

7

99520

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

To install the CiscoWorks 1130-19 WLSE in a rack, perform the following steps:

Step 1 Attach the telescopic rails to the rack assembly:

a. See Figure 3-2. Extend the server rail (1) as far as it will go.
b. Press the green spring plate (2) and slide out that part of the server rail (1).

(Set it aside for attaching to the chassis.)

Figure 3-2 Removing the Server Rail

1

Installing the WLSE 1130-19 in a Rack

78-16345-01

2

3

99521

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-5

Installing the WLSE 1130-19 in a Rack

c. See Figure 3-3. Using a screwdriver (1), push the middle rail to the end of the

rail.

Figure 3-3 Telescoping the Rail

Chapter 3 Installing WLSE 1130-19 Hardware

1

3-6

99522

Note To allow for adjustment later in the installation, do not tighten any screws.

The outer rail/bracket assembly with extended bracket (1) must be
assembled to the left side.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

d. See Figure 3-4. Attach the front end of the telescopic outside rail (1) to the

rack.

Figure 3-4 Attaching Front Rail to the Rack

Installing the WLSE 1130-19 in a Rack

78-16345-01

132

99523

Note The left side of the rail is for the cable arm.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-7

Installing the WLSE 1130-19 in a Rack

e. See Figure 3-5. Attach the back end of the rail to the rack.

Figure 3-5 Attaching Back Rail to Rack

Chapter 3 Installing WLSE 1130-19 Hardware

3-8

Repeat this process with the other rail and rack assembly.

f.

g. Extend the middle rail about 30 cm and fasten with screws. See Figure 3-6.

Then, push the middle rail back into its original position.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

99540

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

Figure 3-6 Attaching Screws to Telescopic Rail

1 2 3

Installing the WLSE 1130-19 in a Rack

4 5

78-16345-01

99524

Note Leaving some play between the bracket and the rail until you install the

rail into the rack will make affixing the rail to the rack easier. After the
rail is attached to the rack, you can tighten the screws.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-9

Installing the WLSE 1130-19 in a Rack

Step 2 Attach the chassis to the rack:

a. See Figure 3-7. Secure chassis to the inner rail using three screws. Repeat this

process with

Figure 3-7 Attaching Chassis to Rail

Chapter 3 Installing WLSE 1130-19 Hardware

the other server rail.

3-10

95525

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

b. See Figure 3-8. Insert the chassis in the rack.

Figure 3-8 Sliding Chassis onto Rack

c. Slide the chassis back and forward several times. Fasten with all the screws

described in Step 1d.

d. See Figure 3-9. Slide six Velcro strips into the holes of the management arm.

Installing the WLSE 1130-19 in a Rack

99526

78-16345-01

Figure 3-9 Attaching Velcro to Management Arm

99527

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-11

Installing the WLSE 1130-19 in a Rack

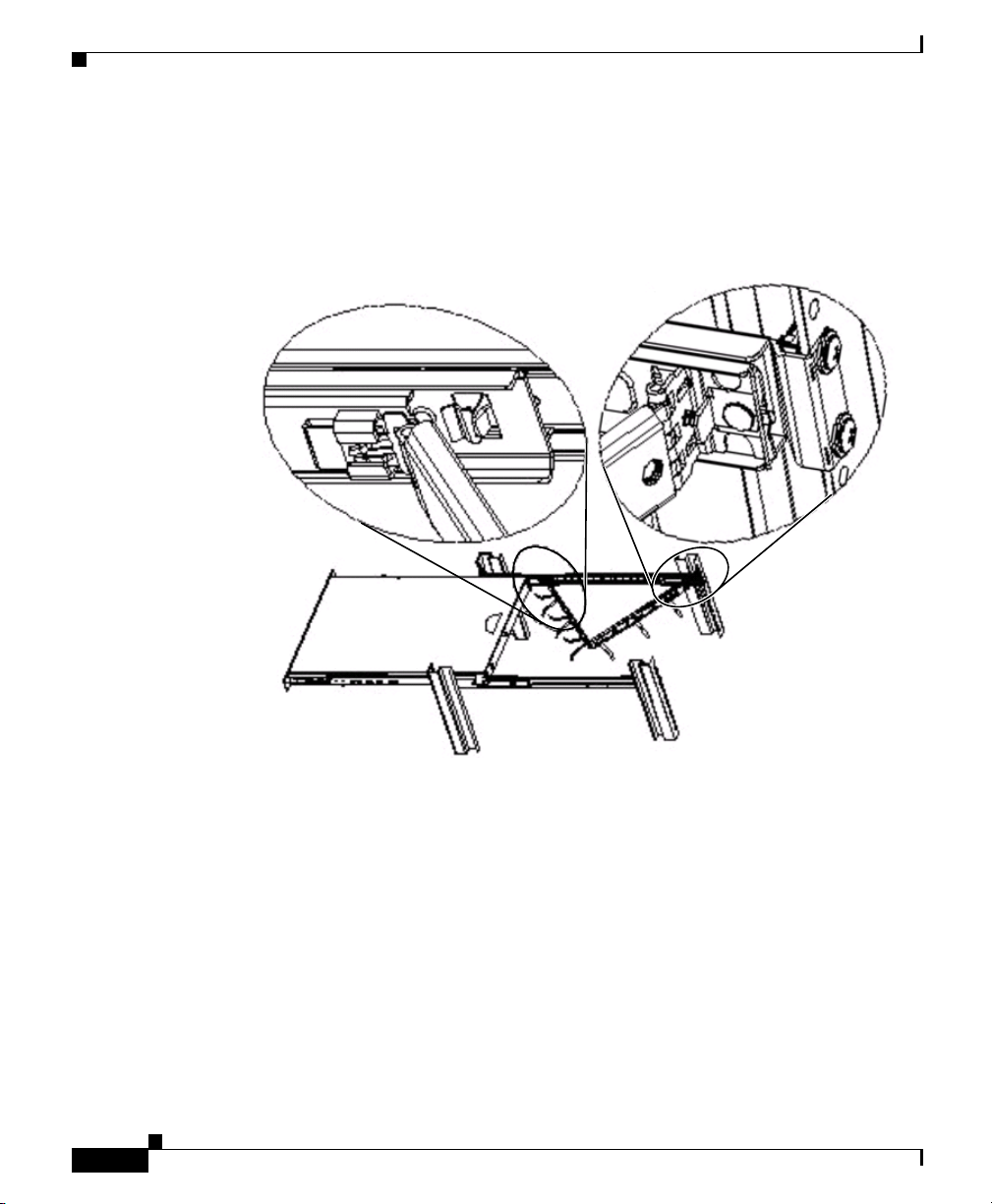

e. See Figure 3-10. Install the rear side of the cable management arm into the

back rail until it snaps in the clip. Then install the front cable management
arm into the inner rail until it snaps into the clip.

Figure 3-10 Attaching Management Arm

Chapter 3 Installing WLSE 1130-19 Hardware

3-12

99528

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

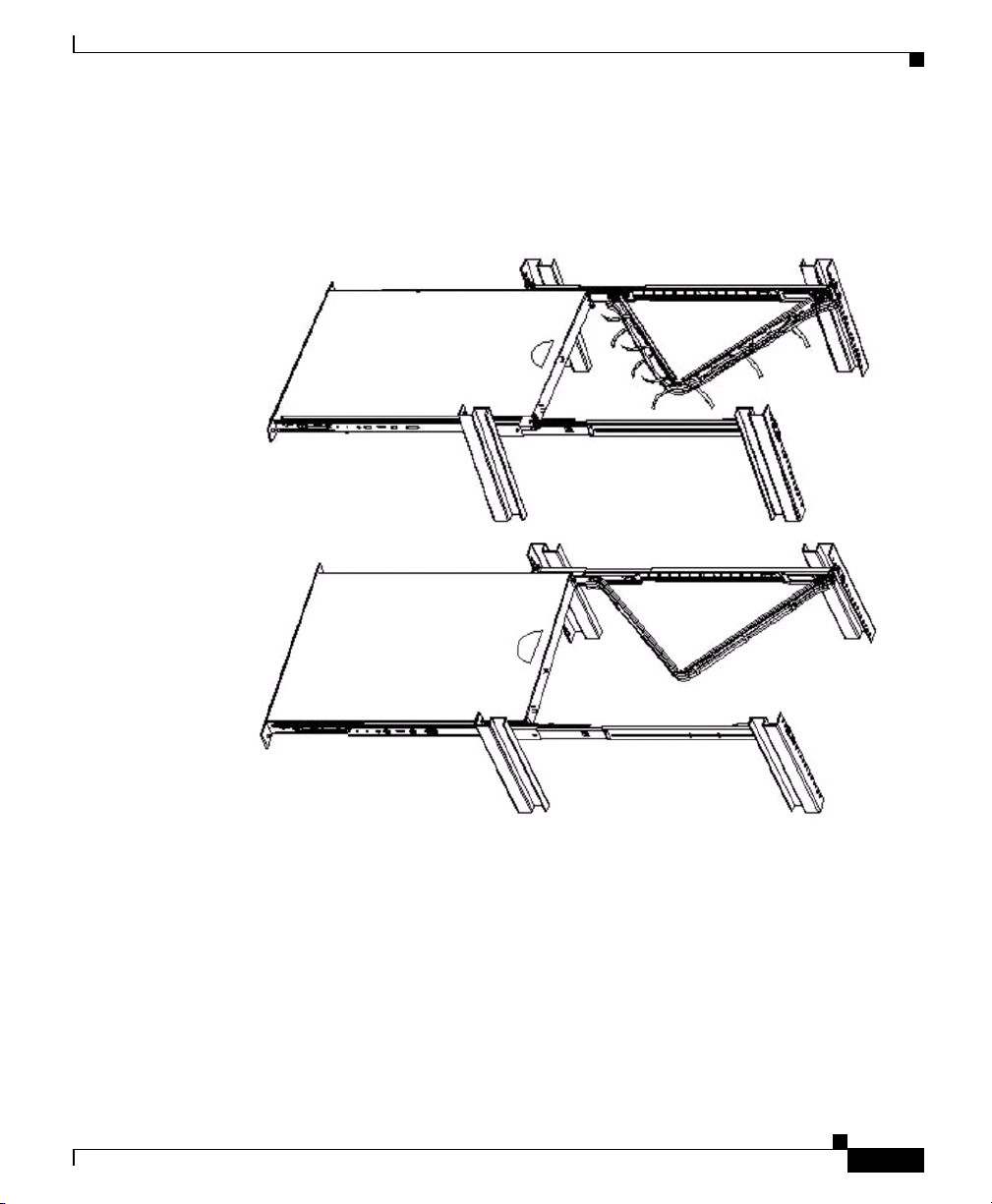

f. See Figure 3-11. Put cables into the cable management arm and use the

Velcro to tighten the cable

Figure 3-11 Installing Cable in Management Arm

Installing the WLSE 1130-19 in a Rack

into the arm.

78-16345-01

99529

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-13

Installing the WLSE 1130-19 in a Rack

g. See Figure 3-12. Push the server to the closed position. If the cable is too

heavy to carry the server, use a screwdriver to adjust the cam so that the cable
management arm is horizontal.

Figure 3-12 Fastening the Server into the Rack

Chapter 3 Installing WLSE 1130-19 Hardware

3-14

Warning

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

This product relies on the building’s installation for short-circuit (overcurrent)

protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15A
(U.S./CAN); 240 VAC, 10A (INTERNATIONAL).

Statement 1005

99539

78-16345-01

Chapter 3 Installing WLSE 1130-19 Hardware

Connecting to the AC Power Source

Installing the WLSE 1130-19 in a Rack

Warning

This equipment must be grounded. Never defeat the ground conductor or

the equipment in the absence of a suitably installed ground conductor.

the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available.

Connect the AC power receptacle to the AC power source with the provided power
cable.

Connecting Cables

Use unshielded twisted pair (UTP) copper wire Ethernet cable, with standard
RJ-45 compatible plugs, to connect the WLSE to the network.

To connect the cables:

Step 1 Plug the network connection into the Ethernet 0 port. See Figure 1-2 on page 1-5

for the location of the Ethernet 0 port

Step 2 Connect a console to the console/serial port using the supplied serial cable and, if

necessary, the DB-9-to-RJ-45 console adapter. See Figure 1-2 on page 1-5 for the
location of the serial port.

operate

Contact

Statement 1024

78-16345-01

Warning

Do not work on the system or connect or disconnect cables during periods of
lightning activity.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

3-15

Next Step—Configuration

Powering On the WLSE

To turn the WLSE’s power on, press the power switch. To turn its power off, press
and hold the power switch for at least four seconds. See Figure 1-1 on page 1-3
for the location of the power switch.

The system begins booting and sending messages to the console window. When
the login prompt appears, you can configure the system.

Next Step—Configuration

Run the setup program and perform basic configuration—See Chapter 4, “Basic

Setup—CiscoWorks 1105/1130/1130-19.”

Chapter 3 Installing WLSE 1130-19 Hardware

3-16

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

CHAPTER

4

Basic Setup—CiscoWorks 1105/1130/1130-19

This chapter describes how to run the setup program and perform basic
configuration for WLSE 2.7 software.

Initial Setup Quick Reference

Table 4-1 provides a high-level overview of the basic initial setup of the WLSE.

Table 4-1 Initial Setup Quick Reference

Task References

1. Run the setup program. Configuring the WLSE’s Network Information, page 4-2

2. Configure DNS, if necessary. Configuring Name Resolution, page 4-6

3. Verify the configuration. Verifying the Configuration, page 4-7

4. Configure the web browser. Configuring the Web Browser, page 4-8

5. Log in and verify connectivity. Logging into the Web Interface and Verifying Connectivity,

page 4-11

6. Add additional users. Adding Users, page 4-12

78-16345-01

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-1

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Configuring the WLSE’s Network Information

Configuring the WLSE’s Network Information

Use the setup program to configure the WLSE when you boot it for the first time,
and after erasing the configuration.

Guidelines for Using the Setup Program

When using the setup program:

• Press the Backspace or Delete key to delete characters when entering a

response to a prompt.

• You cannot edit a response after you press the Enter key. You can use CLI

commands to change some responses after running setup; see Changing the

Configuration After Running Setup, page 4-5.

• Exit the setup program in two ways:

–

Press Ctrl-c.

The login prompt appears. Log in as the user setup to rerun the setup
program.

–

Enter no at the final prompt:

Would you like to save this configuration? [yes].

The setup program exits without saving the configuration, then restarts.

See Table 4-2 on page 4-3 and Table 4-3 on page 4-4 for the data you will need to
enter into the setup prompts.

Running the Setup Program

To configure WLSE network information, perform the following steps:

Step 1 Connect a console to the serial/console port on the back panel.

• For the CiscoWorks 1105, use the serial port on the front panel. Do not use

the serial port on the back panel as a console port.

• For the CiscoWorks 1130 or 1130-19, use the serial port on the back panel.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-2

78-16345-01

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Configuring the WLSE’s Network Information

Note If you are using a Windows terminal emulator as a console, it is

recommended that you use the Windows Hyper Terminal application.

Step 2 Power on the WLSE.

When the system finishes booting, a login prompt appears on the console.

Step 3 At the login prompt, enter setup.

When you boot the system for the first time, it is not configured. Logging in as
setup allows you to configure the system.

Step 4 Enter responses to the first set of prompts to configure the WLSE’s connectivity.

Table 4-2 describes how to respond to the prompts. After each response, press

Enter to proceed to the next prompt.

Table 4-2 General Configuration

Prompt Response Description Sample Response

host name:

domain name:

<username> password:

confirm password:

System host name. SolutionEngine

System domain name. cisco.com

Sets the password for the default user admin. Characters

wq1Cvu2pl

you type do not appear on screen.

Note Default user admin is reserved and cannot be

deleted or changed.

eth0 IP address:

eth0 network mask:

default gateway IP
address:

78-16345-01

You can use the admin password to log into the Web
interface and and to connect via Telnet/SSH.

Password length is unlimited, and you can use the
alphanumeric characters (A-Z, a-z, 0-9) plus the
underscore(_). Passwords are case sensitive.

IP address of Ethernet 0 interface. 209.165.200.224

Network mask of Ethernet 0 interface. 255.255.255.224

IP address of default router. 209.165.200.224

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-3

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Configuring the WLSE’s Network Information

Table 4-2 General Configuration (continued)

Prompt Response Description Sample Response

DNS server IP
address:

Would you like to save
this configuration?
[yes]:

Step 5 Answer the next set of prompts to create a self-signed certificate as described in

Table 4-3 . This certificate will allow you to access the WLSE securely, using

HTTPS, until you are able to obtain a certificate from a certificate authority (CA).
To make changes in the certificate after running setup, see Changing the

Configuration After Running Setup, page 4-5.

The certificate expires after one year. To obtain a permanent, signed certificate,
see the SSL instructions in the online help or in the User Guide for the
CiscoWorks Wireless LAN Solution Engine, Release 2.7.

IP address of DNS server for name/address resolution.
The setup program does not validate the IP address you
enter.

If you are not using a DNS server, see Configuring the

WLSE Without a DNS Server, page 4-6 before

proceeding.

• Enter yes to save the configuration. The

configuration is saved and system reboots.

• Enter no to exit without saving configuration and

run setup program again.

209.165.201.1

Table 4-3 Self-Signed Certificate Creation

Prompt Response Description Sample Response

Country Name

State or Province Name

Locality Name

Organization Name

Organizational Unit

Common Name

Email Address

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-4

2-character code. US

Full name of a state or province. Snake Desert

City or locality name. Snake Town

Company name. Snake Oil, LTD.

Unit of the company that is using the WLSE. Webserver Team

Fully qualified domain name (FQDN). www.snakeoil.com

Email address. [e-mail]

78-16345-01

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Configuring the WLSE’s Network Information

Step 6 After you finish configuring the WLSE, it will reboot. After it finishes rebooting,

set up your mail server to send mail to external domains by entering the following
command:

mailroute {hostname | ip-address}

where hostname is the hostname of the SMTP server and ip-address is the IP
address of the SMTP server. If you do not set the mail server, email can only be
sent to the local domain. For more information about this command, see the User
Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Note You can also set up the mail server after you log in to the Web interface.

See the online help or the User Guide for the CiscoWorks Wireless LAN
Solution Engine, Release 2.7.

Changing the Configuration After Running Setup

78-16345-01

To change the information in the setup configuration, use the following CLI
commands at any time. For more information about CLI commands, see the User
Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

You can use CLI commands by connecting to the WLSE through the console or
by using Telnet or SSH. Log in initially as the admin user, using the password you
created during setup.

• To change the host name, use the hostname command.

• To change the domain name, use the ip-domain-name command.

• To change the DNS server, or add up to 2 additional DNS servers, use the ip

name-server command.

• To configure or reconfigure an Ethernet port, use the interface command.

• To make changes in the HTTPS certificate, use the mkcert command.

Tip To change any other part of the WLSE’s initial configuration, use the erase

config command to erase the previous configuration, and rerun the setup program.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-5

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Configuring Name Resolution

Configuring Name Resolution

The WLSE resolves host names by using a Domain Name System (DNS) server,
or you can use the import CLI command to add individual hosts or a UNIX-style
hosts file. For information on this command, see User Guide for the CiscoWorks
Wireless LAN Solution Engine, Release 2.7.

If you are using a DNS server, register the WLSE on the DNS server, using the
WLSE’s host name as its DNS name.

Configuring the WLSE Without a DNS Server

The WLSE does not require name resolution, but if name resolution is not used,
the following problems will occur:

• Host names will not resolve.

• Discovery will be slow.

• Connecting to the WLSE via Telnet will be slow. You will be able to connect

to the WLSE only after name resolution on the client times out.

• Ping and traceroute commands will result in 100% packet losses in 4 out of 5

ICMP packets. This occurs because the WLSE times out when attempting
reverse DNS lookup.

4-6

• IP addresses will appear instead of hostnames in WLSE displays.

• You will not be able to download access point firmware directly from

Cisco.com to the WLSE.

If you are not using a DNS server, perform the steps described in Configuring the

WLSE’s Network Information, page 4-2, with the following exception:

Step 1 At the DNS server ip address prompt, enter any IP address.
Step 2 After you finish configuring the WLSE, erase the IP address you entered by

entering the following command:

no ip name-server ip-address

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

where ip-address is the IP address you entered at the DNS server ip address:
prompt in the setup program. For more information about this command, see the
User Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Verifying the Configuration

While at the console, verify that the WLSE is correctly configured by performing
the following steps.

For more information on the CLI commands used in the following procedure, see
the User Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Step 1 At the system console, enter admin at the login prompt, and log in with the

password you created during setup. You can also use Telnet or SSH to log in as
the admin user.

Verifying the Configuration

78-16345-01

Note For security reasons, Telnet is disabled on the WLSE by default. If you

want to connect to the CLI interface using Telnet, you can enable it by
selecting Administration > Appliance > Security > SSH and Telnet.
Then select enable and click Configure to save the change.

Step 2 If you are using a DNS server, enter the following command to verify that the

WLSE can obtain DNS services from the network:

# nslookup dns-name

where dns-name is the DNS name of a host that is registered in DNS. If the system
cannot obtain the IP address of the host from DNS, use the ip name-server
command to specify a working DNS server.

Step 3 Enter the following command to verify that the system can communicate with the

network:

# ping ip-address

where ip-address is the IP address of a host that is accessible on the network. A
DNS server is a recommended host to ping because it should always be running
and accessible

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-7

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Configuring the Web Browser

Step 4 Enter the show config command to verify that the configuration is as you

expected. For more information on this command, see the User Guide for the
CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Step 5 Enter the show clock command to verify that the system time and date are correct

in Coordinated Universal Time (UTC).

• If the time or date is incorrect, set the correct time and date using the clock

command.

• If your network uses NTP, configure the system to use NTP to set the clock.

Step 6 Enter the exit command to log out.

You are now finished using the console. The remaining steps take place at the
client system.

Configuring the Web Browser

Normally, all WLSE tasks are performed in the Web interface. Before you connect
to the Web interface, make sure you are using a supported browser and that the
browser is properly configured.

• Supported Browsers, page 4-8

• Configuring Internet Explorer, page 4-9

• Configuring Netscape Navigator, page 4-10

Supported Browsers

Before connecting to the WLSE web interface, make sure you are using a
supported browser and the browser is properly configured. The supported
browsers for WLSE 2.7 are listed in Table 4-4 on page 4-9. Use the procedures in

Configuring Internet Explorer, page 4-9 or Configuring Netscape Navigator,
page 4-10 to configure the browser.

Note Using earlier, unsupported versions of Internet Explorer compromises the

security of the WLSE.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-8

78-16345-01

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Table 4-4 Supported Browsers

Client Operating System Supported Browsers

Windows 2000, Windows NT, and
Windows XP

Japanese Windows 2000,
Windows NT, and Windows XP

Microsoft Internet Explorer 6.0 with Service Pack 1

Netscape Navigator 7.02

Japanese Microsoft Internet Explorer 6.0 with Service Pack 1

Japanese Netscape Navigator 7.02

Solaris 8 and 9 Netscape Navigator 7.01

Java Plug-in 1.4.1

Note Java Plug-in is required for some WLSE functions.

Configuring Internet Explorer

To configure Internet Explorer 6.0, perform the following steps:

Configuring the Web Browser

78-16345-01

Step 1 Select Tools > Internet Options.
Step 2 Enable JavaScript:

a. Select Security.
b. Make sure that the Internet icon is selected, and click Custom Level.
c. Scroll to Scripting and select the following:

–

Select Enable for Active scripting.

–

Select Enable for Allow paste operations via script.

–

Select Enable for Scripting of Java applets.

d. Click OK.

Step 3 Configure the browser to accept all cookies:

a. Select Privacy.
b. Move the slider down to until “Accept all Cookies” appears.
c. Click OK.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-9

Configuring the Web Browser

Step 4 Change the default font to improve readability:

a. Select General. Then elect Fonts.
b. Select a sans-serif font (for example, Arial) from the Web page font and

c. Click OK, then click OK again.

Step 5 Disable caching:

a. Select General. Then s elect Settings.
b. Under “Check for newer versions of stored pages,” select Every visit to

Step 6 Click OK.

Note Windows XP does not come with the Java Plug-in installed on Internet

Explorer 6.0. This causes problems when upgrading a WLSE to 2.5 software.
If you plan to use a Windows XP client or server to update WLSE software,
configure the browser as described in the procedure for creating a remote
repository in the online help or in the User Guide for the CiscoWorks Wireless
LAN Solution Engine, Release 2.7.

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Plain text font lists.

The text in the browser window is redrawn using the new fonts. Not all of the
fonts will change after this user-defined font option is set.

the page.

Configuring Netscape Navigator

To configure Netscape Navigator 7.01 or 7.02, perform the following steps:

Step 1 Select Edit > Preferences.
Step 2 Enable JavaScript:

a. Expand Advanced and select Scripts & Plugins.
b. Under “Enable JavaScript for,” select Navigator.
c. Click OK.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-10

78-16345-01

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Step 3 Configure Netscape Navigator to accept all cookies:

a. Expand Privacy & Security and select Cookies.
b. Select Enable all cookies.
c. Click OK.

Step 4 Change the default font for improved readability:

a. Expand Appearance and select Fonts.
b. From the Proportional list, select Sans Serif and a font size.
c. From the Sans-serif list, select the desired font.
d. Click OK.

Note Some fonts do not change after you use this option.

Step 5 Disable caching:

a. Expand Advanced and click Cache. If no subcategories are listed,

double-click Advanced to expand the list.

Logging into the Web Interface and Verifying Connectivity

b. Under “Compare the page in the cache to the page on the network,” select

“Every time I view the page.”

Logging into the Web Interface and Verifying
Connectivity

Note Disable pop-up blocker software while using the WLSE web interface.

To verify HTTP and HTTPS connectivity, connect to the WLSE using a
supported, properly configured Web browser and perform the following steps:

Step 1 To verify HTTP connectivity, enter the system IP address, followed by :1741 (the

default port number).

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

4-11

Adding Users

For example, if the system IP address is 209.165.202.128, enter
http://209.165.202.128:1741.

If a login dialog box appears, you have connectivity.

Step 2 To verify HTTPS connectivity, enter the system IP address, prefixed by https. Do

not use a port number.

For example, if the system IP address is 209.165.202.128, enter
https://209.165.202.128.

If a login dialog box appears, you have connectivity.

Step 3 Enter the user name admin and the password you created during setup in the login

dialog box. The WLSE home page appears.

Adding Users

You can add users and configure their access to the WLSE Web interface and their
access to the CLI. User access to the Web interface is determined by the roles
assign to each user account. Users can only perform WLSE functions that are
allowed by their logins.

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

4-12

Note For information about using alternative sources of authentication, see the online

help or the User Guide for the CiscoWorks Wireless LAN Solution Engine, Release

2.7.

To create users:

Step 1 Select Administration > User Admin > Manage Users.
Step 2 Enter a user name, password, and email address in the appropriate fields.
Step 3 Select the user’s CLI access level.
Step 4 Select the user’s role. A user’s role determines which WLSE features that user is

allowed to access. The WLSE provides the following default user roles and you
can create others and assign access to tabs and subtabs to your roles.

• System Admin

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

Next Steps—Set Up Devices and Configure Device Management

• Network Admin

• Network Operator

• Help Desk

Note The System Administrator role cannot be modified or deleted. You cannot

delete the other default roles, but you can modify the tabs and subtabs to
which they have access.

Step 5 Click Add to create the user.

Next Steps—Set Up Devices and Configure Device
Management

The next steps are to:

78-16345-01

• Prepare devices for management—see Chapter Chapter 5, “Setting Up

Devices—CiscoWorks 1105/1130/1130-19.”

• Configure device management on the WLSE—Chapter 6, “Setting Up

Discovery and Device Management—CiscoWorks 1105/1130/1130-19.”

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

4-13

Next Steps—Set Up Devices and Configure Device Management

Chapter 4 Basic Setup—CiscoWorks 1105/1130/1130-19

4-14

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

CHAPTER

5

Setting Up Devices—CiscoWorks 1105/1130/1130-19

You must set up devices before the WLSE can discover and manage them and
before you can use WLSE features such as monitoring, reporting, configuration,
firmware upgrade, and radio management. This section describes initial setup
tasks for the following devices:

• Non-IOS access points and bridges—See Setting Up Non-IOS Access Points

and Bridges, page 5-1

• IOS access points and bridges—See Setting Up IOS Access Points, page 5-4

• Routers and switches—See Setting Up Routers and Switches, page 5-24

• AAA servers—Setting Up AAA Servers, page 5-25

Setting Up Non-IOS Access Points and Bridges

This section provides setup procedures to prepare non-IOS access points for basic
network management by the WLSE. You can perform initial setup in two ways:

• Open a web browser session on each access point—See Set Up Using the

Web Interface, page 5-2.

• Use the WLSE startup configuration option for first-time device

configuration and apply a configuration template to a number of access
points—See Set Up Using a WLSE Configuration Template, page 5-4.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

5-1

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up Non-IOS Access Points and Bridges

After discovering and managing devices, you can use WLSE configuration
templates for configuration changes—See the User Guide for the CiscoWorks
Wireless LAN Solution Engine, Release 2.7.

Set Up Using the Web Interface

To use this method, you must first configure each access point or bridge for web
browsing.

Log in to the Web interface of the AP to be configured and set the following
parameters.

Table 5-1 Set Up Procedures for Non-IOS Access Points and Bridges

Tasks Procedure Notes

1. Enable Cisco
Discovery Protocol

1

(CDP).

2. Enable SNMP.

1. In the Summary Status page, click Setup.

2. Under Services: Cisco Services, click

Cisco Discovery Protocol and select
Enabled.

3. Click Apply or OK.

1. In the Summary Status page, click Setup.

2. Under Services, click SNMP.

3. Select Enabled.

4. (Optional) Enter a System Name, System

Location, and System Contact.

5. Click Apply or OK.

Required for the WLSE to use
CDP to discover the device.

If you are not using CDP, add
all APs as seed devices or
import devices. See

Discovering Devices,
page 6-7.

SNMP is required for the
WLSE to discover devices,
populate reports, transfer
configuration information to
devices, and upgrade device
firmware.

Setting the system name,
system contact, and system
location ensures that this
information is included in
device detail displays.

5-2

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up Non-IOS Access Points and Bridges

Table 5-1 Set Up Procedures for Non-IOS Access Points and Bridges (continued)

Tasks Procedure Notes

3. Set the read/write
community string.

4. Add an HTTP user
and enable the User
Manager.

3

You can use the same
user that you created
in Task 3, if the user
has write, firmware,
admin, and ident
capabilities.

1. In the Summary Status page, click Setup.

2. Under Services, click Security.

3. Click User Information; then click Add

New User or select an existing user.

4. Check all capabilities.

Note Ident privileges are required only for

APs that are running a firmware
version earlier than 12.01(T).

5. Click Apply or OK.

1. In the Summary Status page, click Setup.

2. Click Security.

3. Click User Information; then click Add

New User or select an existing user.

4. Enter a username and password and select

Firmware; then click Apply.

5. Return to the Security Setup page and

click User Manager.

The username is the AP’s
read/write community, which
is required for discovery,
reports, and configuration and
firmware jobs.

You must also enter all AP
community strings on the
WLSE. See Enter SNMP

Community Strings for All
Managed Devices, page 6-2.

Allows configuration uploads
from the WLSE to access
points.

You must also enter all AP
HTTP users and passwords on
the WLSE. See Enter HTTP

Credentials for Non-IOS
Access Points, page 6-3.

2

6. Select Enabled; then click Apply or OK.

5. If you will use
HTTP to initiate
configuration or
firmware downloads,
select TFTP as the
transfer protocol
between the WLSE
and APs.

1. Do not run CDP on radio ports.

2. For example, if the AP has a user “lab” with password “cisco”, its SNMP credential is lab::10:1:::lab. Its HTTP username and
password are lab/cisco. If the SNMP credential is set incorrectly, jobs will fail.

3. You can use a non-standard HTTP port. If HTTP browsing is not enabled, you must enable it. Enter the console and navigate
to Security > Web Server. Enable Allow Non-Console Browsing.

78-16345-01

1. In the Summary Status page, click Setup.

2. Under Services, click FTP.

3. Select TFTP as the file transfer protocol.

4. In the Default File Server text box, enter

the IP address of the WLSE.

5. Click Apply or OK.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

TFTP is used for transferring
configuration and firmware
changes to access points.

Selecting the WLSE as the
TFTP server is not required if
you only use SNMP for
configuration and firmware.

5-3

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up IOS Access Points

Set Up Using a WLSE Configuration Template

You can perform initial configuration on access points by using the WLSE’s
startup template feature. Startup configuration works in conjunction with a DHCP
server. The access points get their IP addresses from the DHCP server. If you
prefer static IP addressing, you can either configure the DHCP server like a
BOOTP server (using MAC address-to-IP address mapping) or configure the
static IP address individually on each access point afterwards.

For information on using a startup template, see the online help or the “Managing
Device Configuration” chapter in the User Guide for the CiscoWorks Wireless
LAN Solution Engine, Release 2.7.

Setting Up IOS Access Points

This section provides:

• Procedures to prepare IOS access points for basic network management by

the WLSE—See Basic Network Management Setup—IOS Devices, page 5-4.

• Procedures to prepare IOS access points and the WLSE for participation in

the Cisco Structured Wireless-Aware Network (SWAN)—See Radio

Management Setup—IOS Devices, page 5-10.

Basic Network Management Setup—IOS Devices

You can set up IOS access points and bridges in the following ways:

• Log into each device by using Telnet or SSH and use the device’s CLI

commands—See Using the AP CLI for Network Management Setup,

page 5-5.

• Log into each device’s Web interface—See Using the AP Web Interface for

Network Management Set Up, page 5-7.

• Use the WLSE’s automatic configuration option for first-time device

configuration and applying a configuration template to a number of access
points—See Chapter 7, Managing Device Configuration, in the User Guide
for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-4

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

After you set up a device, all of its MIB variables can be accessed and the device
can be discovered by the WLSE.

After discovering and managing devices, you can use WLSE configuration
templates for configuration changes—See the online help or the “Using IOS
Templates” chapter in the User Guide for the CiscoWorks Wireless LAN Solution
Engine, Release 2.7.

Note VLAN information for IOS access points might not be collected by the WLSE if

WEP keys are not configured in each VLAN. This affects VLAN reports,
grouping, and faults. VLAN information becomes accessible through SNMP as
soon as WEP keys are configured.

Using the AP CLI for Network Management Setup

To configure IOS devices by using the device CLI:

Procedure

Setting Up IOS Access Points

78-16345-01

Step 1 Access the device CLI via Telnet, SSH, or the console.
Step 2 Enter configuration mode.
Step 3 Enable Cisco Discovery Protocol (CDP) by entering the following commands for

each interface that will participate in CDP. Do not enable CDP on radio interfaces.

configure terminal

interface
cdp run

interface

where interface is the name of the interface; for example FastEthernet0.

Note You can find out whether CDP has been enabled by using the show cdp

command in enable mode.

Note If you do not want to use CDP, you can add all access points as seeds or

import devices. For more information, see Discovering Devices, page 6-7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-5

Setting Up IOS Access Points

Step 4 To configure SNMP, enter the following commands in the sequence shown. The

first command includes the ISO view. The read-only community string, is
required for discovery and the fault and report features on the WLSE. The
read/write community string is required for AP firmware management, AP
configuration, and all radio-management functions (client walkabout, radio
scanning, and so on).

a. Include the ISO view:

a. Configure the read-only community:

b. Configure the read/write community:

Note The community strings must also be entered on the WLSE. See Enter

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

snmp-server view iso iso included

snmp-server community

snmp-server community

SNMP Community Strings for All Managed Devices, page 6-2.

ro_ommunity_string

rw_community_string

view iso ro

view iso rw

5-6

Caution IOS access points that do not have an ISO view will be placed in the

Misconfigured Devices system group after discovery and a fault will be generated.
The fault refers to a “dot 11 MIB” problem.

Step 5 (Optional) It is useful to set the system name, contact, and location SNMP

variables to make the device more manageable. Use the following commands:

configuration terminal

hostname
snmp-server location
snmp-server contact

access_point

AP_location

AP_contact

where access_point is the system name, AP_location is its location, and
AP_contact is the name of the contact person.

Step 6 You can use either Telnet or SSH to push configuration templates to IOS access

points. To use templates to configure IOS access points, you must configure either
Telnet or SSH or both, as follows.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

• To enable and configure SSH, enter the following commands. In these

commands, hostname is the hostname of the access point, and domain_name
is your network’s domain name (for example, cisco.com). At the prompt for
the number of bits in the modulus, press Return to accept the default or enter
a value.

hostname
ip domain-name
crypto key generate rsa

How many bits in the modulus [512]:

hostname

domain_name

The following commands are recommended, but optional:

ip ssh time-out 120
ip ssh authentication-retries 3

• To configure Telnet, enter the following commands:

line 0 4
no access-class 111 in

The following commands are recommended, but optional:

width 80
length 24

Setting Up IOS Access Points

Step 7 Exit global configuration mode, then enter the following command:

write memory

Using the AP Web Interface for Network Management Set Up

To configure IOS devices by using the device Web interface:

Procedure

Step 1 Log into the Web interface of the access point.
Step 2 To enable CDP, select SERVICES from the menu, then click CDP:

a. After Cisco Discovery Protocol (CDP), select Enabled.
b. Click Apply.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

5-7

Setting Up IOS Access Points

Note If you do not wish to use CDP, you can add all access points as seeds or

Step 3 You can use either Telnet or SSH (secure shell protocol) to push configuration

templates to IOS access points. To use templates to configure IOS access points,
you must configure either Telnet or SSH or both.

• To enable and configure SSH (secure shell protocol), enter the following:

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

import devices. For more information, see Discovering Devices, page 6-7.

1. Select SERVICES > Telnet/SSH.

2. Enable Secure Shell.

3. Enter a System Name.

4. Enter a Domain Name (for example, cisco.com).

5. (Optional) Enter the RSA key size.

6. (Optional) Enter the Authentication Timeout.

7. (Optional) Enter Authentication Retries.

8. Click Apply.

5-8

• To enable and configure Telnet:

1. Select SERVICES > Telnet/SSH.

2. Enable Te ln et .

3. (Optional) Enable Tel et yp e.

4. Enter the number of Columns.

5. Enter the number of Lines.

6. Click Apply.

Step 4 To enable SNMP:

a. Select Services > SNMP.
b. After Simple Network Management Protocol (SNMP), select Enabled.
c. Enter the System Name (sysName), System Location (sysLocation), and

System Contact (sysContact).

d. Click Apply.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Step 5 In the SNMP Request Communities section, enter a read-only community string.

This community string is required for discovery and the fault and report features.

a. Enter the community string in the SNMP Community field.
b. Enter iso in the Object Identifier field.

Note IOS access points that do not have an ISO view will be placed in the

Misconfigured Devices system group after discovery, and a fault will
be generated. The fault message refers to a “dot11 MIB problem.”

c. Select Read-Only.
d. Click Apply.

Step 6 In the SNMP Request Communities section, enter a read/write community string.

This community string is required for all radio-management features.

a. Enter the community string in the SNMP Community field.
b. Select Read-Write.
c. Enter iso in the Object Identifier field.
d. Click Apply.

Setting Up IOS Access Points

Step 7 The community strings created in Steps 5 and 6 must be entered on the WLSE

before the device can be discovered and the other WLSE features can be used. For
more information, see Enter SNMP Community Strings for All Managed Devices,

page 6-2.

Using WLSE Configuration Templates for Network Management Set Up

You can perform initial configuration by using the WLSE’s startup template
feature. For information on using a startup template, see the online help or the
“Managing Device Configuration” chapter in the User Guide for the CiscoWorks
Wireless LAN Solution Engine, Release 2.7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

5-9

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up IOS Access Points

Radio Management Setup—IOS Devices

Note Make sure you also configure all access points for basic network management.

See Basic Network Management Setup—IOS Devices, page 5-4.

Setting up access points for radio management involves configuring all access
points to register with Wireless Domain Services (WDS). WDS provides wireless
client roaming and radio management aggregation.

Only Cisco Aironet 1100 and 1200 series access points support WDS. For
information about the supported access points and IOS firmware versions, see the
WLSE 2.7 Supported Devices Table on cisco.com.

This section contains the following information:

• About WDS Devices, page 5-11

• About Configuring Authentication, page 5-11

• Radio Management Setup Quick Reference, page 5-12

• Using Access Points as WDS Devices, page 5-12

5-10

• Using a Wireless LAN Services Module (WSM) as the WDS Device,

page 5-18

• Configuring Infrastructure Access Points to Register with WDS Access

Points, page 5-18

• Configuring Infrastructure Access Points to Register with a Wireless LAN

Services Module (WSM), page 5-20

• Configuring Scanning APs, page 5-20

• Configuring the WLSE, page 5-22

• Confirming the Configuration, page 5-22

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

About WDS Devices

The device that supplies WDS can be either one of the following:

• A Cisco Aironet 1100 or 1200 series access point

Each WDS access point supports one AP subnet. You can add additional
WDS access points for redundancy. The priorities you set on the WDS access
points determine which one is the primary, and which ones are backups.

• A Wireless LAN Services Module (WSM)

Each WSM can support multiple AP subnets, as long as all of the subnets are
served by the switch in which the WSM is installed.

About Configuring Authentication

To use WDS, both the infrastructure APs and the WLSE must use LEAP to
authenticate to the WDS devices. For this purpose, you can use:

• Local authentication on a WDS device. See Using Access Points as WDS

Devices, page 5-12.

Setting Up IOS Access Points

78-16345-01

• AAA servers that you have already configured, or you can configure servers

as described in Setting Up AAA Servers, page 5-25.

In addition, server groups must be created on the WDS access points for:

• Infrastructure authentication

For information on creating server groups for infrastructure APs, see Using

Access Points as WDS Devices, page 5-12.

• Client authentication

For information on creating server groups for client authentication, see the
AP documentation.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-11

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up IOS Access Points

Radio Management Setup Quick Reference

Table 5-2 lists the high-level setup tasks and sections in this document where you

can find detailed instructions.

Table 5-2 Radio Management Setup Tasks Quick Reference

Task References

Configure WDS devices Using Access Points as WDS Devices, page 5-12

Using a Wireless LAN Services Module (WSM) as the
WDS Device, page 5-18

Configure infrastructure access points to
authenticate to a WDS device

Configure access points to be
scanning-only APs

Configure the WLSE with WLCCP
credentials

Define authentication servers About Configuring Authentication, page 5-11

Confirm the configuration Confirming the Configuration, page 5-22

Configuring Infrastructure Access Points to Register with
WDS Access Points, page 5-18

Configuring Infrastructure Access Points to Register with
a Wireless LAN Services Module (WSM), page 5-20

Configuring Scanning APs, page 5-20

Configuring the WLSE, page 5-22

Using Access Points as WDS Devices

Note Before making changes to device configuration, you should back up the current

configuration, and test the new configuration on non-production devices.

WDS must be active on an access point in each subnet in which APs are placed;
you can also define backup WDS access points in each AP subnet. Configuring
WDS requires:

• Defining the AAA servers and server groups that the WDS will use to LEAP

authenticate infrastructure access points and the WLSE.

• Enabling WDS and set WDS priorities.

• Entering the WNM IP address.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-12

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

There are three ways to configure WDS access points:

• Use the access point web interface—See Using the Web Interface to

Configure WDS Points, page 5-13.

• Use the access point CLI interface—See Using the CLI Interface to Configure

WDS Access Points, page 5-14.

• Use a WLSE configuration template—Using a WLSE Configuration

Template to Configure WDS Access Points, page 5-16.

Note If you are using redundant WLSEs for high availability, use the VIP address as

the IP address of the WLSE when configuring WDS. For more information on
redundancy, see the online help or the User Guide for the CiscoWorks Wireless
LAN Solution Engine, Release 2.7.

Using the Web Interface to Configure WDS Points

To configure WDS access points by using the web interface:

Setting Up IOS Access Points

78-16345-01

Step 1 Log in to an AP that will serve as a WDS device.
Step 2 Select Wireless Services > WDS.
Step 3 Select the General Set-Up tab.
Step 4 To enable WDS, select Use this AP as Wireless Domain Services.
Step 5 Enter a value between 1 and 255 in the Wireless Domain Services Priority field.

The priority value is used to determine which AP will be the active WDS AP when
multiple APs are configured to run WDS. The highest priority is 255.

Step 6 Configure the Wireless Network Manager (WNM) options:

a. Select Configure Wireless Network Manager.
b. Enter the IP address of your WLSE in the Wireless Network Manager IP

Address field.

c. Click Apply.

Step 7 Define the AAA server group(s) for LEAP authenticating the WLSE and the

infrastructure access points participating in SWAN:

a. Select the Server Groups tab.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-13

Setting Up IOS Access Points

b. Enter a server group name.
c. From the Priority lists, select the appropriate AAA servers.

d. Under Use Group For, select Infrastructure Authentication.

Step 8 Configure the WDS AP to authenticate itself to the WDS so that it can participate

in the SWAN hierarchy:

a. Select Wireless Services > AP.
b. Select Enable.
c. Enter a username and password that can be LEAP authenticated by the AAA

Step 9 To commit the configuration, click Apply.

Note To configure authentication for wireless clients, see the AP documentation.

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

If no AAA servers have been entered, click Define Servers to add the servers,
then select the appropriate servers. Consult the AP online help for assistance
in entering AAA servers into the AP.

servers in the infrastructure server group.

Using the CLI Interface to Configure WDS Access Points

Tip Consult the IOS and access point documentation for details on the subtleties of

IOS commands.

The key steps in configuring the WDS are:

• Configure AAA servers to authenticate SWAN infrastructure access points

and the WLSE.

• Configure WDS.

• Configure the WNM.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-14

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

To configure the WDS access points using the IOS command line interface:

Step 1 Log in to an access point that will be a WDS device.
Step 2 Turn on AAA services:

aaa new-model

Step 3 Define the RADIUS servers that you will use for infrastructure authentication

and/or client authentication. Consult your RADIUS server documentation for the
correct port numbers. CiscoSecure ACS uses port 1645 for authorization and port
1646 for accounting.

radius-server host [
acct-port

port

key

Step 4 Define a server group for infrastructure authentication:

aaa group server radius

Step 5 Define at least one additional server group for wireless client authentication.
Step 6 Configure the AP to run WDS:

wlccp wds priority

ip_address

shared_secret_key

server_group_name

priority

|

hostname

interface BVI1

Setting Up IOS Access Points

] auth-port

server

radius_server

port

78-16345-01

where priority is a value from 1 to 255. Priority determines which AP will be the
active WDS AP when multiple APs are configured to run WDS. The highest
priority is 255.

Step 7 Configure the Wireless Network Manager (WNM) component:

wlccp wnm ip address

wlse_ip_address

where wlse_ip_address is the address of the WLSE.

Step 8 Configure the server group the WDS will use to LEAP authenticate SWAN

infrastructure access points. Use the server group name that you created in Step 4.

aaa authentication login

server_group_name

wlccp authentication-server infrastructure

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

named_authentication_list

named_authentication_list

group

5-15

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up IOS Access Points

Step 9 The WDS access point must also register and authenticate itself to the WDS to

participate in the SWAN hierarchy; therefore, the WDS AP is also an
infrastructure AP. To configure the WDS access point as an infrastructure access
point:

wlccp ap username

Note To configure authentication for wireless clients, see the relevant AP

documentation.

Using a WLSE Configuration Template to Configure WDS Access Points

You can use the WLSE to configure one or more WDS access points.

The major configuration steps are:

• Create a configuration template to set up AAA servers and the WDS.

• Apply the configuration template to the appropriate access points by running

a configuration job.

username

password

password

5-16

To configure WDS access points by using a WLSE configuration template:

Step 1 Log in to the WLSE web interface.
Step 2 Select Configure > Templates.

a. Enter a template name, selecting IOS as the template type.
b. Click Create New.

Step 3 Enter the AAA servers for LEAP authenticating the infrastructure access points

and the WLSE to the WDS, and the AAA servers for authenticating wireless client
devices:

a. Select Security > Server Manager.
b. In the Corporate Servers section, for each server, enter the IP address, select

RADIUS, and enter the shared secret.

c. Click Save.

Step 4 Select Wireless Services > WDS to configure the WDS parameters.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

In the Global Properties section:

a. Select Enable.
b. Enter the Wireless Domain Services priority. This value determines which

access point will serve as the active WDS when multiple access points are
configured to run WDS on the same subnet. Valid priority values are 1-255,
with 255 being the highest.

c. Enter the WLSE’s IP address in the WNM IP Address field.

Step 5 Configure a server group for authenticating the SWAN infrastructure

components.

In the Server Groups section:

a. Enter one or more server names or server IP addresses.
b. Under Use Group For, select Infrastructure Authentication.
c. Click Save.

Step 6 The WDS access point must also register and authenticate itself to the WDS to

participate in the SWAN hierarchy, so the WDS AP is also an infrastructure AP.
To authenticate and register the WDS AP as an infrastructure AP:

a. Select Wireless Services > AP Configuration.

Setting Up IOS Access Points

78-16345-01

b. Select Enabled as the Wireless Services option.
c. Enter a username and password that can be LEAP authenticated by the AAA

servers in the infrastructure server group.

Step 7 (Optional) Select Preview to see a preview of the configuration template.
Step 8 Select Save, then click the Save button.
Step 9 Select Ye s to apply the template immediately or select No to save the template.

For information on configuration jobs, see the “Managing Device Configuration”
chapter in the User Guide for the CiscoWorks Wireless LAN Solution Engine,
Release 2.7.

Note To configure authentication for wireless clients, see the relevant AP

documentation.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-17

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up IOS Access Points

Using a Wireless LAN Services Module (WSM) as the WDS Device

If you are using a WSM to provide WDS, instead of using APs for WDS, follow
the procedures in the WSM documentation to configure it for WDS. Use the IP
address of the WLSE as the WNM IP address.

Configuring Infrastructure Access Points to Register with WDS Access Points

Infrastructure access points initiate participation in SWAN by registering and
LEAP authenticating with the WDS.

The only required configuration for infrastructure access points is the username
and password used to register with the WDS.

There are three ways to configure infrastructure access points to register with
WDS:

• Using the access point web interface—See Using the Web Interface to

Configure Infrastructure APs, page 5-18.

• Using the access point CLI interface—See Using the Command Line

Interface to Configure Infrastructure APs, page 5-19.

• Using a WLSE configuration template—See Using a WLSE Configuration

Job to Configure Infrastructure APs, page 5-19.

Using the Web Interface to Configure Infrastructure APs

To use the web-based interface to configure infrastructure APs:

Step 1 Log in to the AP’s web interface.
Step 2 Select Wireless Services > AP.
Step 3 Select Enabled.
Step 4 Enter the username and password for authenticating the infrastructure AP to the

WDS.

Step 5 Click Apply.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-18

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Using the Command Line Interface to Configure Infrastructure APs

To use the command line interface to configure infrastructure APs:

Step 1 Log in to the AP’s CLI.
Step 2 Enter the following command:

wlccp ap username

where username and password are the credentials for authenticating the
infrastructure access point to the WDS.

Using a WLSE Configuration Job to Configure Infrastructure APs

The WLSE can configure multiple infrastructure APs in a single job. To configure
infrastructure APs using the WLSE, create a configuration template using the
template creation wizard, then apply the template in a configuration job. For more
information about using the template creation wizard and the configuration job
interface, see the online help or the “Using IOS Templates” chapter in the User
Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

username

password

Setting Up IOS Access Points

password

78-16345-01

To configure the username and password used to authenticate the AP to the WDS:

Step 1 Log in to the WLSE web interface.
Step 2 Select Configure > Templates.
Step 3 Select Wireless Services > AP Configuration.
Step 4 Select Enabled.
Step 5 Enter the username and password for LEAP authenticating infrastructure APs to

the WDS.

Step 6 Create a configuration job to apply the template to the appropriate devices. For

information on configuration jobs, see the online help or the “Managing Device
Configuration” chapter in the User Guide for the CiscoWorks Wireless LAN
Solution Engine, Release 2.7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-19

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Setting Up IOS Access Points

Configuring Infrastructure Access Points to Register with a Wireless LAN Services Module (WSM)

To configure infrastructure access points to register with a Wireless LAN
Services Module, see the relevant AP and WSM documentation on Cisco.com.

Configuring Scanning APs

This section describes how to configure an AP as a scanning-only AP. After you
have performed the basic network management configuration and radio
management configuration described in this chapter, perform the additional
configuration described in this section to make the AP into a scanning AP.
Scanning APs can detect and report “bug-lighted” clients (clients associated to
unauthorized access points). Scanning APs do not accept client associations.

For more information on scanning APs and other requirements for using scanning
APs with a WLSE, see the online help “Radio Management” chapter in the User
Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Note Radio scanning requires a read/write SNMP community string on APs. For more

information, see Radio Management Setup—IOS Devices, page 5-10,

Table 5-3 on page 5-20 lists the high level tasks for setting up scanning APs.

Table 5-3 Setting Up Scanning APs Quick Reference

Task References

1. Configure the scanning APs for basic

Setting Up IOS Access Points, page 5-4

management and radio management.

• Do not configure VLAN/SSID on the

scanning AP.

• Do not configure the scanning AP as

a WDS device.

2. Configure the specific scanning AP

parameters.

Configuring a Scanning AP—Using the AP CLI,
page 5-21

Configuring a Scanning AP—Using a WLSE
Configuration Template, page 5-21

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

5-20

78-16345-01

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

Table 5-3 Setting Up Scanning APs Quick Reference

Task References

3. Run inventory on the WLSE. Run Inventory, page 5-21

4. Enable client registration scanning on the

WLSE.

Configuring a Scanning AP—Using the AP CLI

To configure an access point for scanning only, enter the following commands:

config t
int dot11 0
station-role scanner

(for interface 0)

Configuring a Scanning AP—Using a WLSE Configuration Template

To configure an access point for scanning only from a WLSE configuration
template:

Enable Client Registration Scanning, page 5-21

Setting Up IOS Access Points

1. Select Configuration > Templates > IOS > Basic Settings, then select

Scanner Access Point.

2. Select Configuration > Templates > IOS > Network Interfaces. Select a

radio and select Scanner Access Point.

Run Inventory

Select Administration > Devices > Discover > Inventory and run inventory so
the WLSE can update the role of the AP. The scanning APs will be listed in the
WLSE’s Scanning AP system group.

For more information, see the online help or the “Managing Devices” chapter of
the User Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Enable Client Registration Scanning

Select Radio Management > Radio Monitoring and enable Client Registration
Scanning to detect bug-lighted clients.

For more information, see the online help or the “Radio Management” chapter of
the User Guide for the CiscoWorks Wireless LAN Solution Engine, Release 2.7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01

5-21

Setting Up IOS Access Points

Configuring the WLSE

The WLSE is the Wireless Network Manager (WNM) component of SWAN.
The WLSE polls and aggregates radio management data from WDS devices and
processes this data. The following configuration is required on the WLSE for
radio management:

• SWAN components communicate via a Cisco proprietary technology called

WLCCP. You must enter the WLCCP username and password in the WLSE.
This username and password is used to LEAP authenticate the WLSE to the
WDS APs in the network. See Enter WLCCP Credentials for Wireless

Domain Services (WDS), page 6-5.

• Enter the SNMP read-only and read/write communities for all managed IOS

access points. See Enter SNMP Community Strings for All Managed

Devices, page 6-2.

• Enter Telnet/SSH credentials for IOS access points. See Enter Telnet or SSH

Credentials for IOS Access Points, page 6-4.

Confirming the Configuration

Chapter 5 Setting Up Devices—CiscoWorks 1105/1130/1130-19

5-22

After you complete all the configuration procedures, you should confirm that the
configuration is correct and that the SWAN components are communicating
properly. Perform the following confirmation steps on the active WDS APs.
There are two ways to confirm configuration:

• Using the Web interface—See Using the Web-based Interface to Validate the

Configuration, page 5-23.

• Using the command-line interface—See Using the Command-Line Interface

to Validate the Configuration, page 5-23.

Note To determine which WDS APs are actively providing WDS services, you can use

the WDS Summary Report on the WLSE. For more information, see the online
help or the “Reports” chapter in the User Guide for the CiscoWorks Wireless LAN
Solution Engine, Release 2.7.

Installation and Configuration Guide for the CiscoWorks Wireless LAN Solution Engine

78-16345-01
