User Guide

Linksys E2000

Advanced Wireless-N Router

Linksys E2000 Table of Contents

Contents

Chapter 1: Product Overview 1

Top. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Horizontal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Wall-Mounting Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 2: Advanced Conguration 3

How to Access the Browser-Based Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setup > DDNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Setup > MAC Address Clone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Wireless > Wireless MAC Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Security > VPN Passthrough. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Access Restrictions > Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Applications and Gaming > Single Port Forwarding. . . . . . . . . . . . . . . . . . . . . . . .19

Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .20

Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .20

Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Administration > Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Administration > Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Advanced Wireless-N Router

Appendix A: Troubleshooting 28

Appendix B: Specications 30

Linksys E2000 Chapter 1: Product Overview

Chapter 1: Product Overview

Thank you for choosing the Linksys E2000 Advanced Wireless-N Router. The Router lets you access the Internet via a wireless connection or through one of its four switched Gigabit Ethernet ports. You can also use the Router to share resources, such as computers, printers and files. A variety of security features help to protect your data and your privacy while you are online. Security features include Wi-Fi Protected Access 2 (WPA2) security, which encrypts data on your wireless network; a Stateful Packet Inspection (SPI) firewall to help block unauthorized access to your Router; and Network Address Translation (NAT) technology, which enhances network protection by allowing your computers to share Internet access through a single, public Internet IP address (IP stands for Internet Protocol).

Setup and use of the Router is easy using Cisco Connect, the software that is installed when you run the included CD. Advanced configuration of the Router is available through the provided browser-based utility.

Top

1, 2, 3, 4 (Green/Blue) These numbered LEDs,

corresponding with the numbered ports on the Router’s back panel, serve two purposes. The LED is continuously lit when the Router is connected to a device through that port. It flashes to indicates network activity over that port. The LED lights up green when the port is connected to a gigabit port, or blue when the port is connected to a 10/100 port.

Wi-Fi Protected Setup Button If you have

client devices, such as wireless adapters, that support Wi-Fi Protected Setup, then you can use the Wi-Fi Protected Setup button to automatically configure wireless security for your wireless network(s).

Back

Internet (Blue) The Internet LED lights up

when there is a connection made through the Internet port. The LED flashes to indicate network activity over the Internet port.

Power (Blue) The Power LED lights up when

the Router is powered on. When the Router goes through its self-diagnostic mode during every boot-up, the LED flashes. When the diagnostic is complete, the LED is continuously lit.

Internet Ethernet4 3 2 1 Reset

12VDC

Power

Internet Using an Ethernet cable (also called

a network or Internet cable), this port connects the Router to your Internet connection, which is typically a cable or Digital Subscriber Line (DSL) modem.

4, 3, 2, 1 Using Ethernet cables, these Gigabit

Ethernet ports (4, 3, 2, 1) connect the Router to computers and other Ethernet network devices on your wired network.

Reset There are two ways to reset the Router

to its factory defaults. Either press and hold the Reset button for approximately five seconds, or restore the defaults from the Administration > Factory Defaults screen in the Router’s browser-based utility (refer to “Administration > Factory Defaults” on page

26).

Power The Power port connects to the

included power adapter.

To use Wi-Fi Protected Setup, refer to “Wi-Fi Protected Setup” on page 11.

Wireless (Blue) The Wireless LED lights up

when the wireless feature is enabled. The LED flashes when the Router sends or receives data over the wireless network.

Advanced Wireless-N Router

Linksys E2000 Chapter 1: Product Overview

Horizontal Placement

The Router has four rubber feet on its bottom panel. Place the Router on a level surface near an electrical outlet.

Wall-Mounting Placement

The Router has two wall-mount slots on its bottom panel. The distance between the slots is 152 mm (6 inches).

Two screws are needed to mount the Router.

Suggested Mounting Hardware

2.5-3.0 mm

Follow these instructions:

1. Determine where you want to mount the Router. Make sure that the wall you use is smooth, flat, dry, and sturdy. Also make sure the location is within reach of an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are 152mm apart.

3. Insert a screw into each hole and leave 3 mm of its head exposed.

4. Position the Router so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the Router down until the screws fit snugly into the wall-mount slots.

4-5 mm 1-1.5 mm

NOTE:

incurred by unsecured wall-mounting hardware.

Cisco is not responsible for damages

152 mm

Advanced Wireless-N Router

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.

Wall Mounting Template

Linksys E2000 Chapter 2: Advanced Configuration

Chapter 2: Advanced Configuration

After setting up the Router with the setup software (located on the CD-ROM), the Router will be ready for use. If you would like to change its advanced settings, use the Router’s browser-based utility. This chapter describes each web page of the utility and each page’s key functions. You can access the utility via a web browser on a computer connected to the Router.

The browser-based utility has these main tabs: Setup,

Wireless, Security, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will

be available after you click one of the main tabs.

How to Access the Browser-Based Utility

To access the browser-based utility, launch the web browser on your computer, and enter the Router’s default Internet Protocol (IP) address, 192.168.1.1 in the Address field. Then press Enter.

NOTE: You can also access the browser-based

utility on Windows computers by entering the device name in the Address field. Refer to Device Name under “Router IP” on page 6.

Setup > Basic Setup

The first screen that appears is the Basic Setup screen. This allows you to change the Router’s general settings.

A login screen will appear. (Non-Windows 7 users will see a similar screen.) In the User name field, enter admin. Then enter the password created during the setup software. (If you did not run the setup software, then use the default password, admin. You can set a new password on the Administration > Management screen. Refer to “Administration > Management” on page 23.) Click OK to continue.

NOTE: You can also access the browser-based

utility through Cisco Connect.

Advanced Wireless-N Router

Setup > Basic Setup

Language

the drop-down menu. The language of the browser-based utility will change five seconds after you select another language.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

To use a different language, select one from

Internet Setup

The Internet Setup section configures the Router to your Internet connection. Most of this information can be obtained through your Internet Service Provider (ISP).

Internet Connection Type

Select the type of Internet connection your ISP provides from the drop-down menu. These are the available types:

• Automatic Configuration - DHCP

• Static IP

• PPPoE

• PPTP

• L2TP

• Telstra Cable

Linksys E2000 Chapter 2: Advanced Configuration

Automatic Configuration - DHCP

The default Internet Connection Type is set to Automatic Configuration - DHCP (Dynamic Host Configuration Protocol). Keep the default only if your ISP supports DHCP or you are connecting using a dynamic IP Address. (This option usually applies to cable connections.)

Internet Connection Type > Automatic Configuration - DHCP

Static IP

If you are required to use a permanent IP address to connect to the Internet, select Static IP.

Internet Connection Type > Static IP

Connect on Demand: Max Idle Time You can configure

the Router to cut the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. To use this option, select Connect on Demand. In the Max Idle Time field, enter the number of minutes you want to elapse before your Internet connection terminates. The default is

5minutes.

Keep Alive: Redial Period If you select this option, the

Router will periodically check your Internet connection. If you are disconnected, then the Router will automatically re-establish your connection. To use this option, select KeepAlive. In the Redial Period field, specify how often the Router should check the Internet connection. The default is 30 seconds.

PPTP

Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe only.

Internet IP Address This is the Router’s IP address, when

seen from the Internet. Your ISP will provide you with the IP Address you need to enter here.

Subnet Mask This is the Router’s Subnet Mask, as seen

by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Default Gateway Your ISP will provide you with the

Gateway address, which is the ISP server’s IP address.

DNS 1-3 Your ISP will provide you with at least one DNS

(Domain Name System) server IP address.

PPPoE

Some DSL-based ISPs use Point-to-Point Protocol over Ethernet (PPPoE) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable PPPoE.

Internet Connection Type > PPTP

If your ISP supports DHCP or you are connecting through a dynamic IP address, then select Obtain an IP Address Automatically. If you are required to use a permanent IP address to connect to the Internet, then select Specify an

IP Address. Then configure the following:

Specify an IP Address This is the Router’s IP address, as

seen from the Internet. Your ISP will provide you with the IP Address you need to specify here.

Subnet Mask This is the Router’s Subnet Mask, as seen

by users on the Internet (including your ISP). Your ISP will provide you with the Subnet Mask.

Internet Connection Type > PPPoE

Username and Password Enter the Username and

Password provided by your ISP.

Service Name (optional) If provided by your ISP, enter

the Service Name.

Advanced Wireless-N Router

Default Gateway Your ISP will provide you with the

Gateway address, which is the ISP server’s IP address.

DNS 1-3 Your ISP will provide you with at least one

Domain Name System (DNS) server IP address.

PPTP Server IP Address Your ISP will provide you with

the IP address of the PPTP server.

Linksys E2000 Chapter 2: Advanced Configuration

Username and Password Enter the Username and

Password provided by your ISP.

Connect on Demand: Max Idle Time You can configure

5minutes.

Keep Alive: Redial Period If you select this option, the

Router will periodically check your Internet connection. If you are disconnected, then the Router will automatically re-establish your connection. To use this option, select Keep Alive. In the Redial Period field, specify how often the Router should check the Internet connection. The default is 30 seconds

L2TP

Layer 2 Tunneling Protocol (L2TP) is a service that applies to connections in Israel only.

Keep Alive: Redial Period If you select this option, the

Router will periodically check your Internet connection. If you are disconnected, then the Router will automatically re-establish your connection. To use this option, select Keep Alive. In the Redial Period field, specify how often the Router should check the Internet connection. The default is 30 seconds.

Telstra Cable

Telstra Cable is a service that applies to connections in Australia only.

Internet Connection Type > Telstra Cable

Server IP Address This is the IP address of the Telstra

Cable. Your ISP will provide you with the IP Address you need to specify here.

Username and Password Enter the Username and

Password provided by your ISP.

Internet Connection Type > L2TP

Server IP Address This is the IP address of the L2TP

Server. Your ISP will provide you with the IP Address you need to specify here.

Username and Password Enter the Username and

Password provided by your ISP.

Connect on Demand: Max Idle Time You can configure

5minutes.

Connect on Demand: Max Idle Time You can configure

5minutes.

Keep Alive: Redial Period If you select this option, the

Router will periodically check your Internet connection. If you are disconnected, then the Router will automatically re-establish your connection. To use this option, select Keep Alive. In the Redial Period field, specify how often the Router should check the Internet connection. The default is 30 seconds.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Optional Settings

Some of these settings may be required by your ISP. Verify with your ISP before making any changes.

Optional Settings

Host Name and Domain Name These fields allow you to

supply a host and domain name for the Router. Some ISPs, usually cable ISPs, require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.

MTU MTU is the Maximum Transmission Unit. It specifies

the largest packet size permitted for Internet transmission. Select Manual if you want to manually enter the largest packet size that is transmitted. To have the Router select the best MTU for your Internet connection, keep the default setting, Auto.

Size When Manual is selected in the MTU field, this option

is enabled. Leave this value in the 1200 to 1500 range. The default size depends on the Internet Connection Type:

• DHCP, Static IP, or Telstra: 1500

• PPPoE: 1492

• PPTP or L2TP: 1460

Network Setup

The Network Setup section configures the IP settings for your local network.

Router IP

DHCP Server Settings

The settings allow you to configure the Router’s DHCP server function. The Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to each computer or device on your network.

NOTE: If you choose to enable the Router’s

DHCP server option, make sure there is no other DHCP server on your network.

DHCP Server Settings

DHCP Server DHCP is enabled by factory default. If you

already have a DHCP server on your network, or you do not want a DHCP server, then select Disabled (no other DHCP features will be available).

DHCP Reservation Click DHCP Reservation if you want

to assign a fixed local IP address to a specific device on your network. This is helpful if you have a device you need to access at the same address all the time such as a media server or print server. You can reserve the IP address for the specific device by selecting it from the list of devices or by manually entering the MAC address of the device.

DHCP Reservation

You will see a list of DHCP clients with the following information: Client Name, Interface, IP Address, and MAC Address.

IP Address The Router’s IP address, as seen by your

network, is displayed. The default Router IP address is

192.168.1.1.

Subnet Mask The Router’s Subnet Mask, as seen by your

network, is displayed.

Device name To access the browser-based utility, enter

the Router’s Device name or IP address. The default is Ciscoxxxxx (xxxxx are the last five digits of the Router’s serial number, found on the product label on the left side of the Router’s bottom panel). If you want to change the default, enter a new Device name. (The Device name is also the Router’s NetBIOS name.)

Router IP

Advanced Wireless-N Router

DHCP Reservation

Linksys E2000 Chapter 2: Advanced Configuration

• Select Clients from DHCP Table Click the Select

check box to reserve a client’s IP address. Then click Add Clients.

• Manually Adding Client To manually assign an IP

address, enter the client’s name in the Enter Client Name field. Enter the IP address you want it to have in the Assign IP Address field. Enter its MAC address in the To This MAC Address field. Then click Add.

Clients Already Reserved

A list of DHCP clients and their fixed local IP addresses is displayed at the bottom of the screen. If you want to remove a client from this list, click Remove.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes. To view the most up-to-date information, click Refresh. To exit this screen, click Close.

Start IP Address The Start IP Address specifies the

starting IP address for the range of addresses assigned by your Router when it functions as a DHCP server. (The first IP address assigned by the Router will be randomly selected within the range you specify.)

Because the Router’s default IP address is 192.168.1.1, the Start IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.254. The default Start IP Address is

192.168.1.100.

Maximum Number of Users Enter the maximum

number of computers that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 50.

IP Address Range The range of available IP addresses is

displayed.

Client Lease Time The Client Lease Time is the amount

of time a network user will be allowed connection to the Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased” this dynamic IP address. After the time is up, the user will be automatically assigned a new dynamic IP address, or the lease will be renewed. The default is 0 minutes, which means one day.

Static DNS 1-3 The Domain Name System (DNS) is how

the Internet translates domain or website names into Internet addresses or Uniform Resource Locators (URLs). Your ISP will provide you with at least one DNS Server IP Address. If you wish to use another, enter that IP Address in one of these fields. You can enter up to three DNS Server IP Addresses here. The Router will use these for quicker access to functioning DNS servers.

WINS The Windows Internet Naming Service (WINS)

manages each computer’s interaction with the Internet. If you use a WINS server, enter that server’s IP Address here. Otherwise, leave this blank.

Time Settings

Time Setting

Time Zone Select the time zone in which your network

functions from this drop-down menu.

Automatically adjust clock for daylight saving changes Select this option to have the Router

automatically adjust for daylight saving time.

Reboot

Reboot Click Reboot to restart the Router.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Setup > DDNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, File Transfer Protocol (FTP) server, or other server behind the Router.

Before you can use this feature, you need to sign up for DDNS service with a DDNS service provider, www.dyndns.org or www.TZO.com. If you do not want to use this option, keep the default, Disabled.

DDNS

DDNS Service

If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary, depending on which DDNS service provider you use.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

DynDNS.org

Setup > DDNS > DynDNS

Username Enter the Username for your DDNS account.

Password Enter the Password for your DDNS account.

Host Name The DDNS URL assigned by the DDNS service

is displayed.

System Select the DynDNS service you use: Dynamic,

Static, or Custom. The default selection is Dynamic.

Mail Exchange (Optional) Enter the address of your mail

exchange server, so emails to your DynDNS address go to your mail server.

Backup MX

server to be a backup. To disable this feature, keep the default, Disabled. To enable the feature, select Enabled. If you are not sure which setting to select, keep the default, Disabled.

Wildcard This setting enables or disables wildcards

for your host. For example, if your DDNS address is

myplace.dyndns.org and you enable wildcards, then x.myplace.dyndns.org will work as well (x is the wildcard).

To disable wildcards, keep the default, Disabled. To enable wildcards, select Enabled. If you are not sure which setting to select, keep the default, Disabled.

This option allows the Mail eXchange (MX)

TZO.com

Setup > DDNS > TZO

E-mail Address, TZO Key, and Domain Name Enter the

settings of the account you set up with TZO.

Internet IP Address The Router’s Internet IP address is

displayed here. Because it is dynamic, it will change.

Status The status of the DDNS service connection is

displayed.

Update To manually trigger an update, click Update.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Setup > MAC Address Clone

A Media Access Control (MAC) address is a 12-digit code assigned to a unique piece of hardware for identification. Some ISPs require you to register a MAC address in order to access the Internet. If you have your computer’s MAC address registered with your ISP and you do not wish to re-register the MAC address, then you may assign the registered MAC address to the Router with the MAC Address Clone feature.

Internet IP Address The Router’s Internet IP address is

displayed here. Because it is dynamic, it will change.

Status The status of the DDNS service connection is

displayed.

Update To manually trigger an update, click Update.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Advanced Wireless-N Router

Setup > MAC Address Clone

MAC Address Clone

Enabled/Disabled To have the MAC Address cloned,

select Enabled.

MAC Address Enter the MAC Address registered with

your ISP here.

Linksys E2000 Chapter 2: Advanced Configuration

Clone My PC’s MAC Click this option to clone the MAC

address of the computer you are using.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Setup > Advanced Routing

This screen is used to set up the Router’s advanced functions. Operating Mode allows you to select the type(s) of advanced functions you use. Dynamic Routing automatically adjusts how packets travel on your network. Static Routing sets up a fixed route to another network destination.

Route Entries To set up a static route between the Router

and another network, select a number from the dropdown list. Click Delete This Entry to delete a static route.

Enter Route Name Enter a name for the Route here,

using a maximum of 25 alphanumeric characters.

Destination LAN IP The Destination LAN (Local Area

Network) IP is the address of the remote network or host to which you want to assign a static route.

Subnet Mask The Subnet Mask determines which

portion of a Destination LAN IP address is the network portion, and which portion is the host portion.

Gateway This is the IP address of the gateway device that

allows for contact between the Router and the remote network or host.

Interface This interface tells you whether the Destination

IP Address is on the LAN & Wireless (Ethernet and wireless networks) or the Internet (WAN). (WAN stands for Wide Area Network.)

Click Show Routing Table to view the static routes you have already set up.

Setup > Advanced Routing

Advanced Routing

NAT

Enabled/Disabled If this Router is hosting your network’s

connection to the Internet, keep the default, Enabled. If another router exists on your network, select Disabled. When the NAT setting is disabled, dynamic routing will be available.

Dynamic Routing (RIP)

Dynamic routing uses the Routing Information Protocol (RIP). This option enables the Router to automatically adjust to physical changes in the network’s layout and exchange routing tables with the other router(s). The Router determines the network packets’ route based on the fewest number of hops between the source and the destination.

Enabled/Disabled When the NAT setting is enabled, the

Dynamic Routing feature is automatically disabled. When the NAT setting is disabled, this option is available. Select Enabled to use the Dynamic Routing option.

Advanced Routing > Routing Table

Routing Table

For each route, the Destination LAN IP address, Subnet Mask, Gateway, and Interface are displayed. Click Refresh to update the information. Click Close to exit this screen.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Static Routing

A static route is a pre-determined pathway that network information must travel to reach a specific host or network. Enter the information described below to set up a new static route.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Wireless > Basic Wireless Settings

The basic settings for wireless networking are set on this screen.

There are two ways to configure the Router’s wireless network(s), manual and Wi-Fi Protected Setup.

Wi-Fi Protected Setup is a feature that makes it easy to set up your wireless network. If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup, then you can use Wi-Fi Protected Setup.

Configuration View

wireless network, select Manual. Proceed to the Manual Setup section. To use Wi-Fi Protected Setup, select Wi-Fi

Protected Setup. Proceed to “Wi-Fi Protected Setup” on page 11.

Manual Setup

If you set the Configuration View to Manual, the Basic Wireless Settings screen displays the following fields.

To manually configure your

NOTE: If you are not sure which mode to use,

keep the default, Mixed.

Network Name (SSID) The Service Set Identifier (SSID)

is the network name shared by all devices in a wireless network. It is case-sensitive and must not exceed 32 keyboard characters. The default is Ciscoxxxxx (xxxxx are the last five digits of the Router’s serial number, found on the product label on the left side of the Router’s bottom panel). The setup software that you use to install your Router and set up your wireless network changes the default Network Name to an easy-to-remember name.

NOTE: If you restore the Router’s factory default

settings (by pressing the Reset button or using the Administration > Factory Defaults screen), the Network Name will return to its default value, and all devices on your wireless network will need to be reconnected.

Channel Width If you are using the 2.4 GHz band, select

Auto if you want the Router to automatically determine

the proper channel width (20MHz or 40MHz) to use, or select 20 MHz only (default) if you want the Router to operate in Wireless-B and Wireless-G mode only. For best performance, Auto is recommended.

Wireless > Basic Wireless Settings (Manual Setup)

Wireless Band This is used to select the 2.4 GHz or

5.0GHz band.

Network Mode From this drop-down menu, you can

select the wireless standards running on your network.

• MIxed If you have Wireless-N, Wireless-G, and

Wireless-B devices in your network, keep the default, Mixed.

• BG-Mixed If you have only Wireless-G and Wireless-B

devices in your network, select BG-Mixed.

• Wireless-N Only If you have only Wireless-N devices,

select Wireless-N Only.

• Wireless-G Only If you have only Wireless-G devices,

select Wireless-G Only.

• Wireless-B Only If you have only Wireless-B devices,

select Wireless-B Only.

• Disabled If you do not have any wireless devices in

your network, select Disabled.

If you are using the 5 GHz band, select Auto if you want the Router to automatically determine the proper channel width (20 MHz or 40 MHz) to use, select 20 MHz only (default) if you want the Router to operate in Wireless-B and Wireless-G mode only, or select 40 MHz only if you want the Router to operate in Wireless-N mode only. For best performance, Auto is recommended.

Channel Select a channel for your wireless network (from

1 to 11). If you are not sure which channel to select, then keep the default, Auto.

SSID Broadcast When wireless clients survey the local

area for wireless networks to associate with, they will detect the SSID broadcast by the Router. To broadcast the Router’s SSID, keep the default, Enabled. If you do not want to broadcast the Router’s SSID, then select Disabled.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Wi-Fi Protected Setup

There are three methods available. Use the method that applies to the client device you are configuring.

Wireless > Basic Wireless Settings (Wi-Fi Protected Setup)

NOTE:

Wi-Fi Protected Setup configures one client device at a time. Repeat the instructions for each client device that supports Wi-Fi Protected Setup.

• Wi-Fi Protected Setup Button Use this method if

your client device has a Wi-Fi Protected Setup button.

a. Click or press the Wi-Fi Protected Setup button on

the client device.

b. Click the Wi-Fi Protected Setup button on the

Router’s Wi-Fi Protected Setup screen.

The Wi-Fi Protected Setup LED flashes blue for two minutes during the Wi-Fi Protected Setup process and lights up blue when the Wi-Fi- Protected Setup process is successfully completed.

The LED lights up amber if there is an error during the Wi-Fi Protected Setup process. Make sure the client device supports Wi-Fi Protected Setup. Wait until the LED is off, and then try again.

The LED flashes when a Wi-Fi Protected Setup session is active. The Router supports one session at a time. Wait until the LED is continuously lit or off, before starting the next Wi-Fi Protected Setup session

b. Click the Register button on the Router’s Wi-Fi

Protected Setup screen.

c. After the client device has been configured,

click OK on the Router’s Wi-Fi Protected Setup screen. Then refer back to your client device or its documentation for further instructions.

• Enter Router PIN on Client Device Use this method

if your client device asks for the Router’s PIN.

a. On the client device, enter the PIN listed on the

Router’s Wi-Fi Protected Setup screen. (It is also listed on the label on the bottom of the Router.)

b. After the client device has been configured,

click OK on the Router’s Wi-Fi Protected Setup screen. Then refer back to your client device or its documentation for further instructions.

The Network Name (SSID), Security, Passphrase and Wireless Band are displayed at the bottom of the screen.

NOTE: If you have client devices that do not

support Wi-Fi Protected Setup, note the wireless settings, and then manually configure those client devices.

Wireless > Wireless Security

The wireless security settings configure the security of your wireless network(s). The Router supports the following wireless security options: WPA2/WPA Mixed Mode, WPA2 Personal, WPA Personal, WPA2/WPA Enterprise Mixed Mode, WPA2 Enterprise, WPA Enterprise, WEP, and RADIUS. (WPA stands for Wi-Fi Protected Access. WEP stands for Wireless Equivalent Privacy. RADIUS stands for Remote Authentication Dial-In User Service.)

Personal Options

Security Option Strength

WPA2 Personal Strongest

WPA2/WPA Mixed Mode

WPA Personal Strong

WEP Basic

WPA2: Strongest WPA: Strong

c. After the client device has been configured,

click OK on the Router’s Wi-Fi Protected Setup screen. Then refer back to your client device or its documentation for further instructions.

• Enter Client Device PIN on Router Use this method

if your client device has a Wi-Fi Protected Setup PIN (Personal Identification Number).

a. Enter the PIN from the client device in the field on

the Router’s Wi-Fi Protected Setup screen.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Office Options

The office options are available for networks that use a RADIUS server for authentication. The office options are stronger than the personal options because WPA2 or WPA provides encryption while RADIUS provides authentication.

Security Option Strength

WPA2 Enterprise Strongest

WPA2/WPA Enterprise Mixed Mode

WPA Enterprise Strong

RADIUS Basic

WPA2: Strongest WPA: Strong

Security Mode

Select the security method for your wireless network.

WPA/WPA2 Mixed Mode

NOTE: If you select WPA2/WPA Mixed Mode

as your Security Mode, each device in your wireless network MUST use WPA2/WPA and the same passphrase.

WPA2 Personal

NOTE: If you select WPA2 Personal as your

Security Mode, each device in your wireless network MUST use WPA2 Personal and the same passphrase.

Wireless Security > WPA2 Personal

Passphrase Enter a passphrase of 8-63 characters. The

default is password. The setup software that you use to install your Router and set up your wireless network changes the default passphrase.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Wireless Security > WPA/WPA2 Mixed Mode

Passphrase Enter a passphrase of 8-63 characters. The

default is password. The setup software that you use to install your Router and set up your wireless network changes the default passphrase.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

WPA Personal

NOTE: If you select WPA Personal as your

Security Mode, each device in your wireless network MUST use WPA Personal and the same passphrase.

Wireless Security > WPA Personal

Passphrase Enter a Passphrase of 8-63 characters. The

default is password. The setup software that you use to install your Router and set up your wireless network changes the default passphrase.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

WPA2/WPA Enterprise Mixed Mode

This option features WPA2/WPA used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.)

NOTE: If you select WPA2/WPA Enterprise Mixed

Mode as your Security Mode, each device in your wireless network MUST use WPA2/WPA Enterprise and the same shared key.

WPA2/WPA Enterprise Mixed Mode

RADIUS Server Enter the IP address of the RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default is 1812.

Shared Secret Enter the key shared between the Router

and the server.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

WPA Enterprise

This option features WPA used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.)

NOTE: If you select WPA Enterprise as your

Security Mode, each device in your wireless network MUST use WPA Enterprise and the same shared key.

RADIUS Server Enter the IP address of the RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default is 1812.

Shared Secret Enter the key shared between the Router

and the server.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

WPA2 Enterprise

This option features WPA2 used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.)

NOTE: If you select WPA2 Enterprise as your

Security Mode, each device in your wireless network MUST use WPA2 Enterprise and the same shared key.

WPA Enterprise

RADIUS Server Enter the IP address of the RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default is 1812.

Shared Secret Enter the key shared between the Router

and the server.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Advanced Wireless-N Router

WPA2 Enterprise

Linksys E2000 Chapter 2: Advanced Configuration

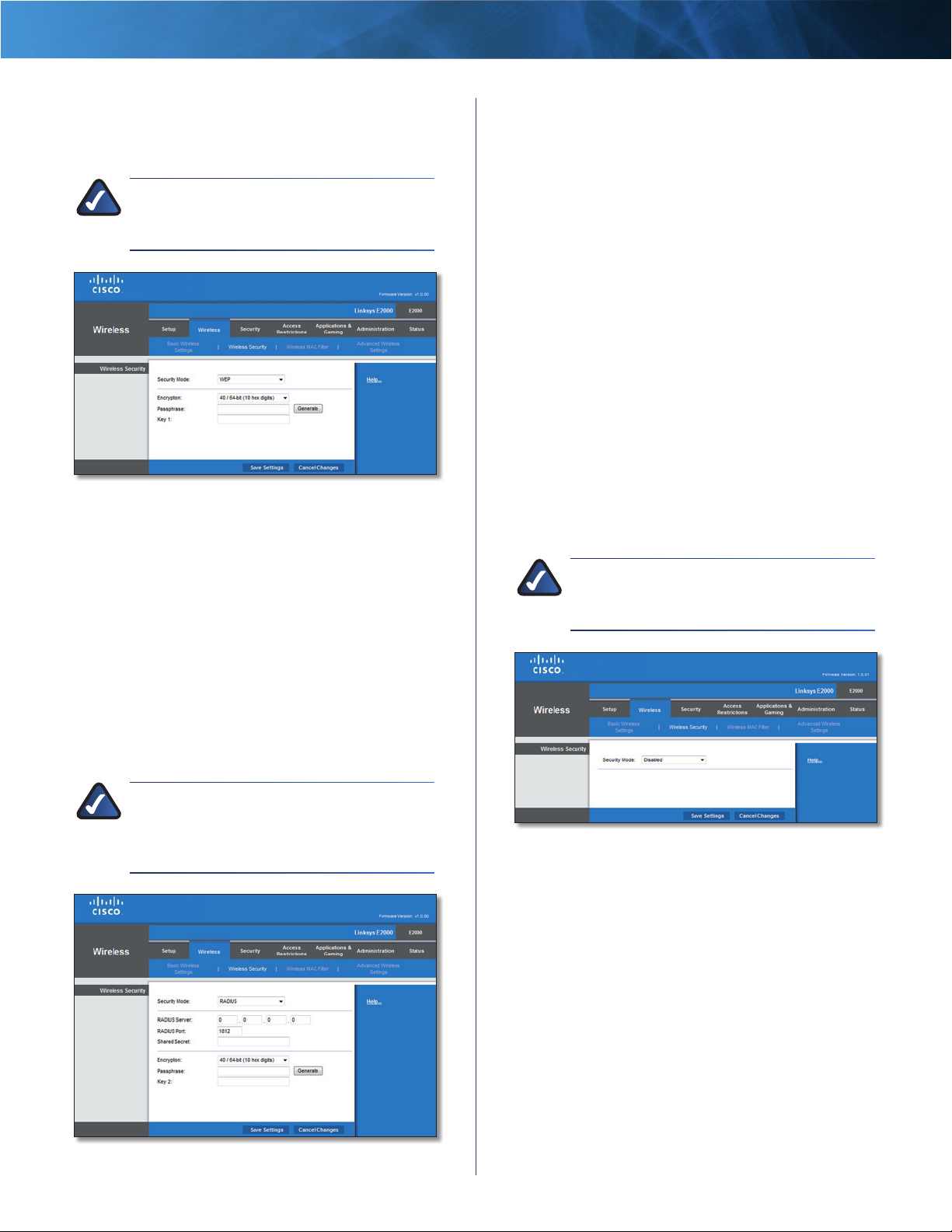

WEP

WEP is a basic encryption method that is not as secure as WPA.

NOTE: If you select WEP as your Security Mode,

each device in your wireless network MUST use WEP and the same encryption and passphrase.

Wireless Security > WEP

Encryption Select a level of WEP encryption, 40/64bits

(10 hex digits) or 104/128 bits (26 hex digits). The default is 40/64 bits (10 hex digits).

Passphrase Enter a Passphrase to automatically generate

WEP keys. Then click Generate.

Key 1 If you did not enter a Passphrase, enter the WEP

key manually.

RADIUS Server Enter the IP address of the RADIUS server.

RADIUS Port Enter the port number of the RADIUS

server. The default value is 1812.

Shared Secret Enter the key shared between the Router

and the server.

Encryption Select a level of WEP encryption, 40/64bits

(10 hex digits) or 104/128 bits (26 hex digits). The default is 40/64 bits (10 hex digits).

Passphrase Enter a Passphrase to automatically generate

WEP keys. Then click Generate.

Key 2 If you did not enter a Passphrase, enter the WEP

key manually.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Disabled

If you choose to disable wireless security, you will be informed that wireless security is disabled when you first attempt to access the Internet. You will given the option to enable wireless security, or confirm that you understand the risks but still wish to proceed without wireless security.

NOTE: When wireless security is disabled,

anyone can access your wireless network at any time.

RADIUS

This option features WEP used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.)

NOTE: If you select RADIUS as your Security

Mode, each device in your wireless network MUST use RADIUS and the same encryption and shared secret key.

Disabled

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Wireless Security > RADIUS

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Wireless > Wireless MAC Filter

Wireless access can be filtered (restricted) by specifying the MAC addresses of the devices in your wireless network.

Wireless Client List

This screen shows computers and other devices on the wireless network. The list can be sorted by Client Name, Interface, IP Address, MAC Address, and Status.

Select Save to MAC Address Filter List for any device you want to add to the MAC Address Filter List. Then click Add.

To update the on-screen information, click Refresh. To exit this screen and return to the Wireless MAC Filter screen, click Close.

Wireless > Wireless MAC Filter

Wireless MAC Filter

Enabled/Disabled

addresses of their computers or devices, select Enabled. Otherwise, keep the default, Disabled

Access Restriction

Prevent PCs listed below from accessing the wireless network When the Wireless MAC Filter is enabled and this

option is selected, computers listed in the MAC Address filter list will be prevented from accessing the wireless network.

Permit PCs listed below to access the wireless network When the Wireless MAC Filter is enabled and this

option is selected, only computers listed in the MAC Address filter list will be granted access to the wireless network.

MAC Address Filter List

To filter wireless users by the MAC

MAC 01-50 Enter the MAC addresses of the devices

whose wireless access you want to control.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Wireless > Advanced Wireless Settings

The Advanced Wireless Settings screen is used to set up the Router’s advanced wireless functions. These settings should only be adjusted by an advanced user because incorrect settings can reduce wireless performance. In most cases, keep the default settings.

Wireless Client List Click this option to open the Wireless

Client List screen.

Advanced Wireless-N Router

Wireless > Advanced Wireless Settings

Linksys E2000 Chapter 2: Advanced Configuration

Advanced Wireless

AP Isolation The AP (Access Point) Isolation feature

isolates all wireless clients and wireless devices on your network from each other. Wireless devices will be able to communicate with the Router but not with each other. To use this option, select Enabled. AP Isolation is disabled by default.

Frame Burst Enabling this option should provide your

network with greater performance, depending on the manufacturer of your wireless products. To use this option, keep the default, Enabled. Otherwise, select Disabled.

Authentication Type The Authentication Type setting

is available if the Security Mode is RADIUS or WEP. The default is set to Auto, which allows either Open System or Shared Key authentication to be used. With Open System authentication, the sender and the recipient do NOT use a WEP key for authentication. With Shared Key authentication, the sender and recipient use a WEP key for authentication. Select Shared Key to only use Shared Key authentication.

Basic Rate The Basic Rate setting is not actually one

rate of transmission but a series of rates at which the Router can transmit. (The Basic Rate is not the actual rate of data transmission. If you want to specify the Router’s rate of data transmission, configure the Transmission Rate setting.) The Router will advertise its Basic Rate to the other wireless devices in your network, so they know which rates will be used. The Router will also advertise that it will automatically select the best rate for transmission. The default setting is Default, when the Router can transmit at all standard wireless rates (1-2 Mbps, 5.5 Mbps, 11 Mbps, 18 Mbps, and 24 Mbps). Select 1-2Mbps for use with older wireless technology. Select All, when the Router can transmit at all wireless rates.

Transmission Rate The Transmission setting is available

if the Network Mode is BG-Mixed, Wireless-G Only, or Wireless-B Only. The rate of data transmission should be set depending on the speed of your wireless network. Select from a range of transmission speeds, or keep the default, Auto, to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client.

CTS Protection Mode The Router automatically

uses CTS (Clear-To-Send) Protection Mode when your Wireless-N and Wireless-G devices are experiencing severe problems and are not able to transmit to the Router in an environment with heavy 802.11b traffic. This option boosts the Router’s ability to catch all Wireless-N and Wireless-G transmissions but severely decreases performance. To use this option, keep the default, Auto. To disable this option, select Disabled.

Beacon Interval A beacon is a packet broadcast by the

Router to synchronize the wireless network. The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 65,535 milliseconds. The default value is 100.

DTIM Interval This value, between 1 and 255, indicates

the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1.

Fragmentation Threshold This value specifies the

maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346.

RTS Threshold Should you encounter inconsistent data

flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset Request to Send (RTS) threshold size, the RTS/CTS (Clear to Send) mechanism will not be enabled. The Router sends RTS frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a CTS frame to acknowledge the right to begin transmission. The RTS Threshold value should remain at its default value of 2347.

Click Save Settings to apply your changes, or click Cancel

Changes to clear your changes.

N Transmission Rate The N Transmission setting is

available if the Network Mode is Mixed or Wireless-N Only. The rate of data transmission should be set depending on the speed of your Wireless-N networking. Select from a range of transmission speeds, or keep the default, Auto, to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Security > Firewall

The Firewall screen is used to configure a firewall that can filter out various types of unwanted traffic on the Router’s local network.

Security > Firewall

Firewall

SPI Firewall Protection To use firewall protection,

keep the default selection, Enabled. To turn off firewall protection, select Disabled.

Java Java is a programming language for websites. If you

deny Java, you run the risk of not having access to Internet sites created using this programming language. Select this option to enable Java filtering. Deselect the option to allow Java usage

ActiveX ActiveX is a programming language for websites.

If you deny ActiveX, you run the risk of not having access to Internet sites created using this programming language. Select this option to enable ActiveX filtering. Deselect the option to allow ActiveX usage

by Internet sites when you interact with them. Select this option to filter cookies. Deselect the option to allow cookie usage.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

A cookie is data stored on your computer and used

Security > VPN Passthrough

The VPN Passthrough screen allows you to enable VPN tunnels using IPSec, PPTP, or L2TP protocols to pass through the

Router

’s firewall.

Internet Filter

Filter Anonymous Internet Requests This option makes

it more difficult for outside users to work their way into your network. This option is enabled by default. Disable it to allow anonymous Internet requests

Filter Multicast The multicasting feature allows for

multiple transmissions to specific recipients at the same time. If multicasting is permitted, then the Router will allow IP multicast packets to be forwarded to the appropriate computers. Select this option to enable the filter. This option is disabled by default.

Filter Internet NAT Redirection This option is used to

prevent a local computer from using a URL or Internet address to access the local server. Select this option to enable the filter. This option is disabled by default.

Filter IDENT (Port 113) The Filter IDENT (Identification)

option keeps port 113 from being scanned by devices outside of your local network. This option is enabled by default. Disable it to allow port113 to be scanned.

Web Filter

Proxy Use of WAN proxy servers may compromise the

Gateway’s security. Denying Proxy will disable access to any WAN proxy servers. Select this option to enable proxy filtering. Deselect the option to allow proxy access

Security > VPN Passthrough

VPN Passthrough

IPSec Passthrough Internet Protocol Security (IPSec) is

a suite of protocols used to implement secure exchange of packets at the IP layer. To allow IPSec tunnels to pass through the Router, keep the default, Enabled.

PPTP Passthrough Point-to-Point Tunneling Protocol

(PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Router, keep the default, Enabled.

L2TP Passthrough Layer 2 Tunneling Protocol is the

method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, keep the default, Enabled.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Access Restrictions > Internet Access

The Internet Access screen allows you to deny or allow specific kinds of Internet usage and traffic, such as Internet access, designated services, and websites during specific days and times.

Summary

Status Policies are disabled by default. To enable a policy,

select the policy number from the drop-down menu, and select Enabled.

To create a policy, follow steps 1-11. Repeat these steps to create additional policies, one at a time.

1. Select a number from the Access Policy drop-down menu.

2. Enter a Policy Name in the field provided.

3. To enable this policy, select Enabled.

4. Click Edit List to select which computers will be affected by the policy. The List of PCs screen appears. You can select a computer by MAC address or IP address. You can also enter a range of IP addresses if you want this policy to affect a group of computers. After making your changes,

Access Restrictions > Internet Access

click Save Settings to apply your changes, or click Cancel Changes to clear your changes. Then click Close.

Internet Access Policy

Access Policy Access can be managed by a policy. Use

the settings on this screen to establish an access policy (after Save Settings is clicked). Selecting a policy from the drop-down menu will display that policy’s settings. To delete a policy, select that policy’s number and click Delete This Policy. To view all the policies, click Summary.

Summary

The policies are listed with the following information: No., Policy Name, Access, Days, Time, and status (Enabled). To enable a policy, select Enabled. To delete a policy, click

Delete. Click Save Settings to save your changes, or click Cancel Changes to clear your changes. To return to the

Internet Access Policy screen, click Close.

List of PCs

5. Select the appropriate option, Deny or Allow, depending on whether you want to block or allow Internet access for the computers you listed on the List of PCs screen.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

6. Decide which days and what times you want this policy to be enforced. Select the individual days during which the policy will be in effect, or select Everyday. Then enter a range of hours and minutes during which the policy will be in effect, or select 24 Hours.

7. You can block websites with specific URL addresses. Enter each URL in a separate Website Blocking by URL Address field.

8. You can also block websites using specific keywords. Enter each keyword in a separate Website Blocking by Keyword field.

9. You can filter access to various services accessed over the Internet, such as FTP or telnet. (You can block up to three applications per policy.)

From the Applications list, select the application you want to block. Then click the >> button to move it to the Blocked List. To remove an application from the Blocked List, select it and click the << button.

10. If the application you want to block is not listed or you want to edit a service’s settings, enter the application’s name in the Application Name field. Enter its range in the Port Range fields. Select its protocol from the Protocol drop-down menu. Then click Add.

To modify a service, select it from the Application list. Change its Application Name, Port Range, and/or Protocol setting. Then click Modify.

To delete a service, select it from the Application list. Then click Delete.

11. Click Save Settings to save the policy’s settings. To cancel the policy’s settings, click Cancel Changes.

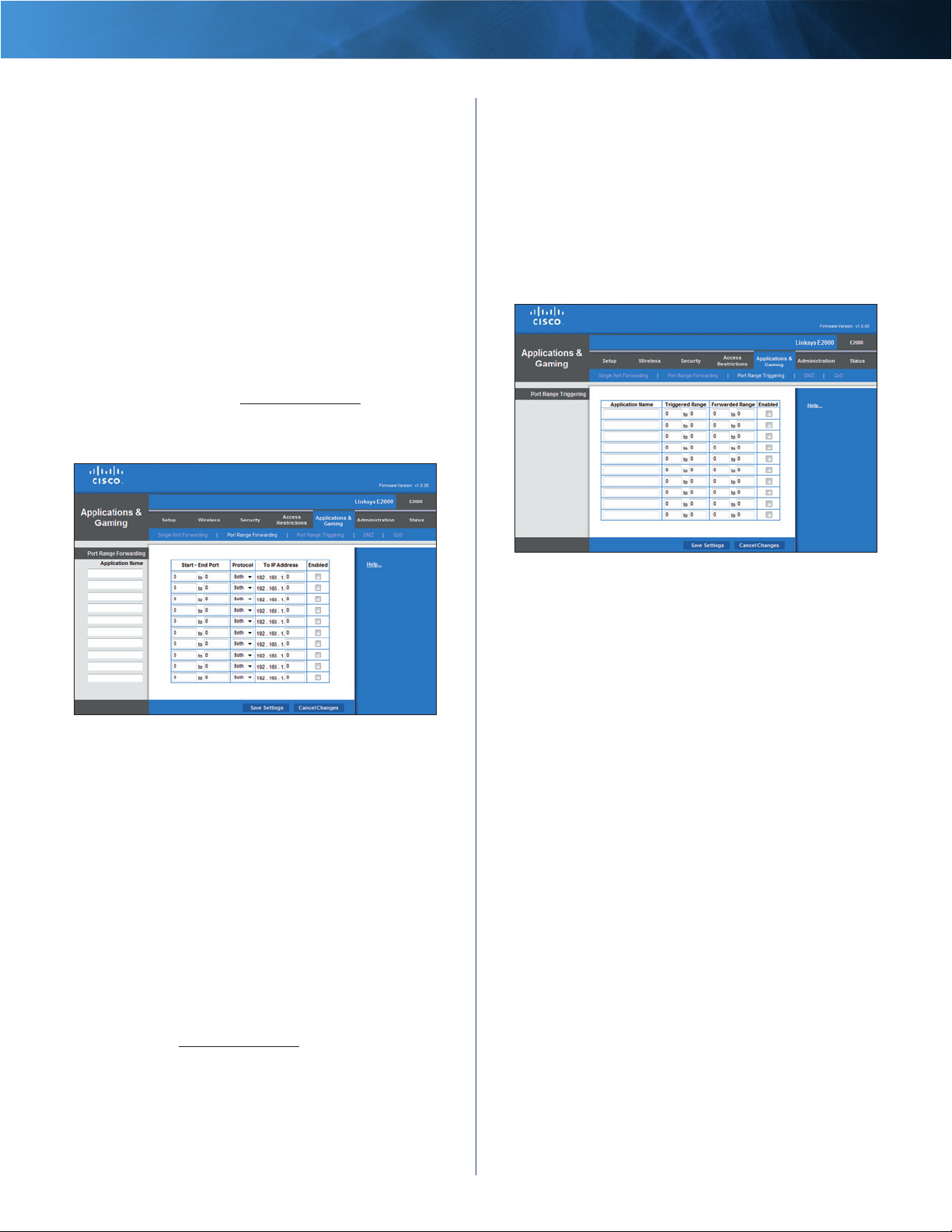

Applications and Gaming > Single Port Forwarding

The Single Port Forwarding screen allows you to customize port services for various applications.

When users send these types of requests to your network via the Internet, the Router will forward those requests to the appropriate computers (also called servers). Before using forwarding, you should assign static IP addresses to the designated computers (use the DHCP Reservation option on the Basic Setup screen; refer to “DHCP Reservation” on page 6).

Single Port Forwarding

Preset applications are available for the first five entries. For each entry, complete the following:

Application Name Select the appropriate application.

To IP Address Enter the IP address of the computer that

should receive the requests. If you assigned a static IP address to the computer, then you can look up its static IP address; refer to “DHCP Reservation” on page 6.

Enabled Select Enabled to enable port forwarding.

You can customize entries for additional applications. For each entry, complete the following:

Application Name Enter the name you wish to give the

application. Each name can be up to 12 characters.

External Port Enter the external port number used by

the computer or Internet application. Check with the Internet application documentation for more information.

Internal Port Enter the internal port number used by the

computer or Internet application. Check with the Internet application documentation for more information.

Protocol Select the protocol(s) used for this application,

TCP (Transmission Control Protocol), UDP (User Datagram

Protocol), or Both.

Applications and Gaming > Single Port Forwarding

Advanced Wireless-N Router

To IP Address Enter the IP address of the computer that

should receive the requests. If you assigned a static IP address to the computer, then you can look up its static IP address; refer to

Enabled Select Enabled to enable port forwarding.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

“DHCP Reservation” on page 6

Linksys E2000 Chapter 2: Advanced Configuration

Applications and Gaming > Port Range Forwarding

The Port Range Forwarding screen allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.)

When users send these types of requests to your network via the Internet, the the appropriate computers (also called servers). Before using forwarding, you should assign static IP addresses to the designated servers (use the DHCP Reservation option on the Basic Setup screen; refer to “DHCP Reservation” on page 6).

If you need to forward all ports to one computer, click the DMZ tab.

Router

will forward those requests to

Applications & Gaming > Port Range Triggering

The Port Range Triggering screen allows the Router to watch outgoing data for specific port numbers. The IP address of the computer that sends the matching data is remembered by the Router, so that when the requested data returns through the Router, the data is pulled back to the proper computer by way of IP address and port mapping rules.

Applications and Gaming > Port Range Forwarding

Port Range Forwarding

For each entry, complete the following.

Application Name Enter the name you wish to give the

application. Each name can be up to 12 characters.

Start~End Port Enter the number or range of port(s)

used by the server or Internet application. Check with the Internet application documentation for more information.

Protocol Select the protocol(s) used for this application,

TCP, UDP, or Both.

To IP Address Enter the IP address of the computer

running the specific application. If you assigned a static IP address to the computer, then you can look up its static IP address;

refer to “DHCP Reservation” on page 6

Applications and Gaming > Port Range Triggering

Port Range Triggering

For each entry, complete the following:

Application Name Enter the application name of the trigger.

Triggered Range Enter the starting and ending port

numbers of the triggered port number range. Check with the Internet application documentation for the port number(s) needed.

Forwarded Range Enter the starting and ending port

numbers of the forwarded port number range. Check with the Internet application documentation for the port number(s) needed.

Enabled Select Enabled to enable port triggering.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Enabled Select Enabled to enable port forwarding.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Applications and Gaming > DMZ

The DMZ (Demilitarized Zone) feature allows one network computer to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one computer. The Port Range Forwarding feature is more secure because it only opens the ports you want to have opened, while DMZ hosting opens all the ports of one computer, exposing the computer to the Internet.

Applications and Gaming > DMZ

DHCP Client Table

The DHCP Client Table lists computers and other devices that have been assigned IP addresses by the Router. The list can be sorted by Client Name, Interface, IP Address, and MAC Address. To select a DHCP client, click Select. To update the on-screen information, click Refresh. To exit this screen and return to the DMZ screen, click Close.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Applications and Gaming > QoS

Quality of Service (QoS) is a method that assigns priority to specific types of network traffic, which often are demanding, real-time applications, such as gaming, videoconferencing, video streaming, and Voice over Internet Protocol (VoIP) telephony. QoS helps to ensure optimal performance for these types of uses.

DMZ

Any computer whose port is being forwarded must have its DHCP client function disabled and have a new static IP address assigned to it because its IP address may change when using the DHCP function.

Enabled/Disabled To disable DMZ hosting, select

Disabled. To expose one PC, select Enabled. Then

configure the following settings:

Source IP Address If you want any IP address to be the

source, select Any IP Address. If you want to specify an IP address or range of IP addresses as the designated source, select and complete the IP address range fields.

Destination If you want to specify the DMZ host by IP

address, select IP Address and enter the IP address in the field provided. If you want to specify the DMZ host by MAC address, select MAC Address and enter the MAC address in the field provided. To retrieve this information, click DHCP Client Table.

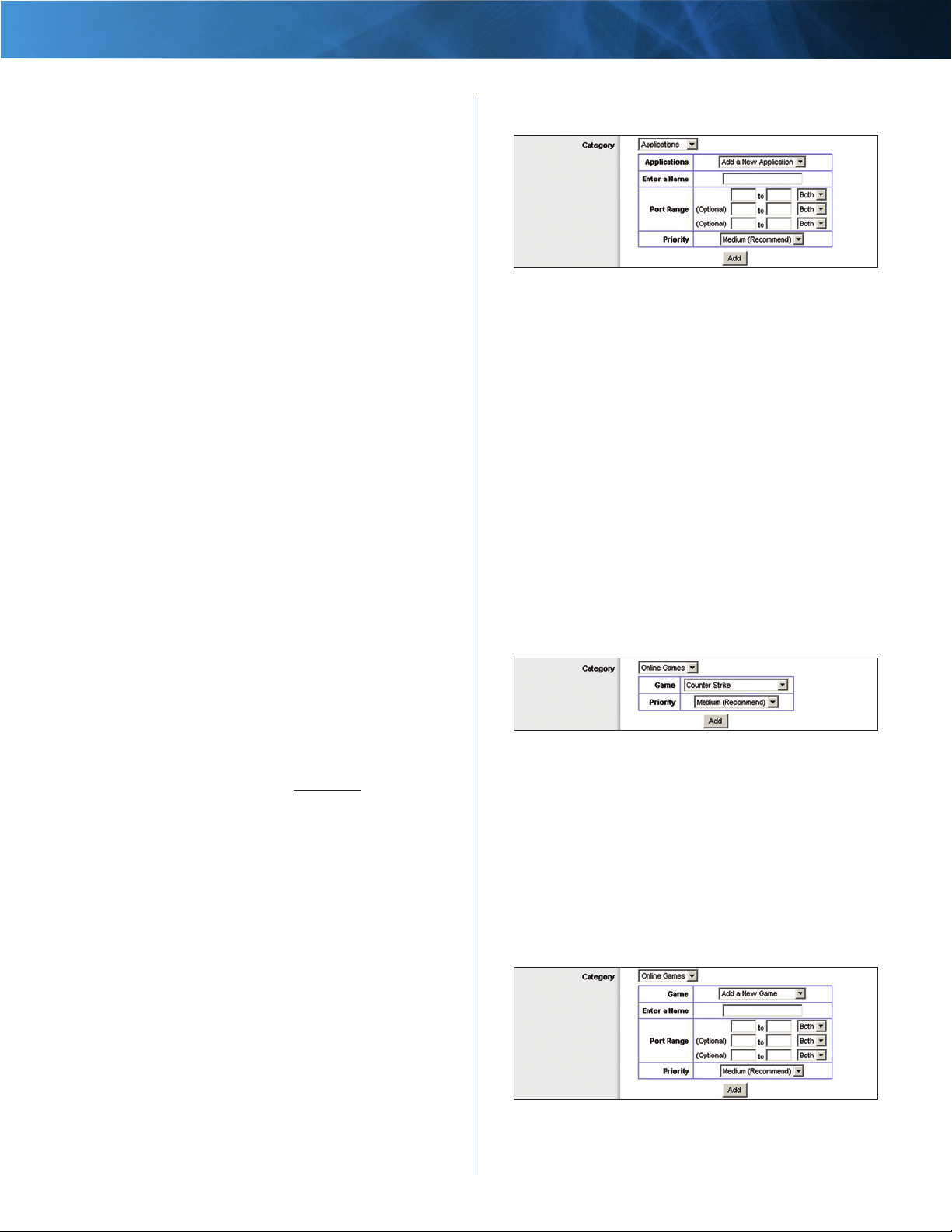

Applications and Gaming > QoS

QoS (Quality of Service)

Wireless

WMM Support

Quality of Service feature that improves quality for audio, video, and voice applications by prioritizing wireless traffic. To use this feature, the wireless client devices in your network must support Wireless WMM. To disable this option, select Disabled. Otherwise, keep the default, Enabled.

No Acknowledgement If you want to disable the

Router’s Acknowledgement feature, so the Router will not re-send data if an error occurs, then select Enabled. Otherwise, keep the default, Disabled.

Wi-Fi Multimedia (WMM) is a wireless

DMZ > DHCP Client Table

Advanced Wireless-N Router

Internet Access Priority

In this section, you can set the bandwidth priority for a variety of applications and devices. There are four levels of priority: High, Medium, Normal, or Low. When you set priority, do not set all applications to High, because

Linksys E2000 Chapter 2: Advanced Configuration

this will defeat the purpose of allocating the available bandwidth. If you want to select below normal bandwidth, select Low. Depending on the application, a few attempts may be needed to set the appropriate bandwidth priority.

Enabled/Disabled To use the QoS policies you set, select

Enabled. Otherwise, keep the default, Disabled.

Upstream Bandwidth This option sets the maximum

outgoing bandwidth that applications can use. To allow the Router to set the maximum, keep the default, Auto. To specify the maximum, select Manual. Then enter the appropriate value and select Kbps or Mbps.

Administration > Management

The Management screen allows the network’s administrator to manage specific Router functions for access and security.

MAC Address Enter the MAC address of your device.

Priority Select the appropriate priority: High, Medium

(Recommend), Normal, or Low.

Click Add to save your changes. Your new entry will appear in the Summary list.

Voice Device

QoS > Voice Device

Enter a Name Enter a name for your voice device.

MAC Address Enter the MAC address of your voice

device.

Priority Select the appropriate priority: High

(Recommend), Medium, Normal, or Low.

Click Add to save your changes. Your new entry will appear in the Summary list.

Summary

This lists the QoS entries you have created for your applications and devices.

Administration > Management

Management

To ensure the Router’s security, you will be asked for your password when you access the Router’s browser-based utility. The default is admin.

Router Password Enter a new password for the Router.

Re-enter to confirm Enter the password again to confirm.

Web Access

Web Utility Access HTTP (HyperText Transport Protocol)

is the communications protocol used to connect to servers on the World Wide Web. HTTPS uses SSL (Secured Socket Layer) to encrypt data transmitted for higher security. Select HTTP or HTTPS. The default is HTTP.

Priority This column displays the bandwidth priority of

High, Medium, Normal, or Low.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Web Utility Access via Wireless If you are using the

Router in a public domain where you are giving wireless access to your guests, you can disable wireless access to the Router’s browser-based utility. You will only be able to access the utility via a wired connection if you disable the setting. Keep the default, Enabled, to allow wireless access to the utility, or select Disabled to block wireless access to the utility.

Remote Access

Remote Management To permit remote access of the

Router from the Internet (outside the local network), select Enabled. Otherwise, keep the default, Disabled.

Web Utility Access HTTP (HyperText Transport Protocol)

Remote Upgrade If you want to be able to upgrade the

Router from the Internet (outside the local network), select Enabled. (You must have the Remote Management feature enabled as well.) Otherwise, keep the default, Disabled.

Allowed Remote IP Address If you want to be able to

access the Router from any external IP address, select Any IP Address. If you want to specify an external IP address or

range of IP addresses, then select the second option and complete the fields provided.

Allow Users to Disable Internet Access Select Enabled,

if you want to be able to prohibit any and all Internet connections. Otherwise, keep the default, Disabled.

Backup and Restore

Backup Configurations To back up the Router’s

configuration settings, click this option and follow the on-screen instructions.

Restore Configurations To restore the Router’s

configuration settings, click this option and follow the on-screen instructions. (You must have previously backed up the Router’s configuration settings.)

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Administration > Log

The Router can keep logs of all traffic for your Internet connection.

Remote Management Port Enter the port number that

will be open to outside access. (To access the Router, you will need to enter the Router’s password.)

NOTE: When you are in a remote location

and wish to manage the Router, enter

http://xxx.xxx.xxx.xxx:yyyy or https://xxx.xxx.xxx.xxx:yyyy, depending

on whether you use HTTP or HTTPS. Enter the Router’s specific Internet IP address in place of xxx.xxx.xxx.xxx, and enter the Remote Management Port number in place of yyyy.

UPnP

Universal Plug and Play (UPnP) allows the appropriate Windows operating system to automatically configure the Router for various Internet applications, such as gaming and videoconferencing.

UPnP If you want to use UPnP, keep the default, Enabled.

Otherwise, select Disabled.

Allow Users to Configure Keep the default, Enabled,

if you want to be able to make manual changes to the Router while using the UPnP feature. Otherwise, select Disabled.

Administration > Log

Log

Log To disable the Log function, select Disabled. To

monitor traffic between the network and the Internet, keep the default, Enabled. With logging enabled, you can choose to view temporary logs.

View Log To view the logs, click View Log.

Administration > Log > View Log

Log

• Type Select Incoming Log, Outgoing Log, Security

Log, or DHCP Client Log.

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

• <Type> Log The Incoming Log displays a temporary

log of the source IP addresses and destination port numbers for the incoming Internet traffic. The Outgoing Log displays a temporary log of the local IP addresses, destination URLs/IP addresses, and service/ port numbers for the outgoing Internet traffic. The Security log displays the login information for the browser-based utility. The DHCP Client Log displays the LAN DHCP server status information.

Click Save the Log to save this information to a file on your computer’s hard drive. Click Refresh to update the log. Click Clear to clear all the information that is displayed.

Click Save Settings to apply your changes, or click Cancel Changes to clear your changes.

Traceroute Test

Traceroute checks the performance of a connection.

IP or URL Address Enter the address of the computer,

device, or website whose connection you wish to test.

Diagnostics > Ping

Administration > Diagnostics

The diagnostic tests (Ping and Traceroute) allow you to check the connections of your network devices, including connection to the Internet. This screen also allows you to reset the Router.

Administration > Diagnostics

Diagnostics

Ping Test

Ping checks the status of a connection.

Start to Traceroute To run the test, click this option.

The Traceroute screen shows if the test is successful. Click Close to return to the Diagnostics screen. Click Stop to stop the test.

Diagnostics > Traceroute

IP or URL Address Enter the address of the computer,

device, or website whose connection you wish to test.

Packet Size Enter the packet size you want to use. The

default is 32 bytes.

Times to Ping Enter the number of times you wish to test

the connection. The default is 5.

Start to Ping

Test screen shows if the test is successful. Click Close to return to the Diagnostics screen. Click Stop to stop the test.

Advanced Wireless-N Router

To run the test, click this option. The Ping

Linksys E2000 Chapter 2: Advanced Configuration

Administration > Factory Defaults

The Factory Defaults screen allows you to restore the Router’s configuration to its factory default settings.

Administration > Factory Defaults

NOTE: Do not restore the factory defaults unless

you are having difficulties with the Router and have exhausted all other troubleshooting measures. Once the Router is reset, you will have to re-enter all of your configuration settings.

Factory Defaults

Restore All Settings To reset the Router’s settings to the

defaults, click this option and then follow the on-screen instructions. Any settings you have saved will be lost when the default settings are restored.

Firmware Upgrade

Before upgrading the firmware, download the Router’s firmware upgrade file from the website,

www.linksys.com/support.

Please select a file to upgrade the firmware Click

Browse and select the extracted firmware upgrade file.

Start to Upgrade After you have selected the appropriate

file, click this option, and f

WARNING: Do not interrupt the upgrade

process. You should not turn off the power or press the Reset button during the upgrade process. Doing so may disable the Router.

ollow the on-screen instructions.

Status > Router

The Router screen displays information about the Router and its current settings.

Administration > Firmware Upgrade

The Firmware Upgrade screen allows you to upgrade the Router

’s firmware. Do not upgrade the firmware unless you are experiencing problems with the firmware has a feature you want to use.

Administration > Firmware Upgrade

NOTE: The Router may lose the settings

you have customized. Before you upgrade its firmware, write down all of your custom settings. After you upgrade its firmware, you will have to re-enter all of your configuration settings.

Router

or the new

Status > Router

Router Information

Firmware Version The version number of the Router’s

current firmware is displayed.

Firmware Verification The unique identifier of the

firmware is displayed.

Current Time This time set on the Router is displayed.

Internet MAC Address The Router’s MAC Address, as

seen by your ISP, is displayed.

Host Name The Host Name of the Router is displayed (if it

was entered on the Setup > Basic Setup screen).

Domain Name The Domain Name of the Router is

displayed (if it was entered on the Setup > Basic Setup screen).

Advanced Wireless-N Router

Linksys E2000 Chapter 2: Advanced Configuration

Internet Connection

This section shows the current network information stored in the Router. The information varies depending on the Internet connection type selected on the Setup > Basic Setup screen.

For a DHCP connection, select IP Address Release or IP Address Renew as appropriate to release or renew a DHCP lease. For a PPPoE or similar connection, select Connect or Disconnect as appropriate to connect to or disconnect from the Internet.

DHCP Client Table

Click Refresh to update the on-screen information.

Status > Local Network

The Local Network screen displays information about the local network.

Status > Local Network

Local Network

Local MAC Address The MAC address of the Router’s

local, wired interface is displayed.

DHCP Client Table

The DHCP Client Table lists computers and other devices that have been assigned IP addresses by the Router. The list can be sorted by Client Name, Interface, IP Address, and MAC Address. To remove a DHCP client, click Delete. To update the on-screen information, click Refresh. To exit this screen and return to the Local Network screen, click Close.

Status > Wireless Network

The Wireless Network screen displays information about your wireless network.

Router IP Address The Router’s IP address, as it appears

on your local network, is displayed.

Subnet Mask The Subnet Mask of the Router is displayed.

DHCP Server

DHCP Server The status of the Router’s DHCP server

function is displayed.

Start IP Address For the range of IP addresses that can

be used by devices on your local network, the starting IP address is displayed.

End IP Address For the range of IP addresses that can

be used by devices on your local network, the ending IP address is displayed.

DHCP Client Table Click this option to view a list of

computers or other devices that are using the Router as a DHCP server.

Advanced Wireless-N Router

Status > Wireless Network

Wireless Network

MAC Address The MAC address of the Router’s local,

wireless interface is displayed.

Mode The wireless mode used by the network is

displayed.

Network Name (SSID) The name of the wireless network,

which is also called the SSID, is displayed.

Channel Width The Channel Width setting (selected on

the Wireless > Basic Wireless Settings screen) is displayed.

Channel The Channel setting selected on the Basic

Wireless Settings screen is displayed.

Security The wireless security method used by the

Router is displayed.

SSID Broadcast The status of the SSID Broadcast option

is displayed.

Linksys E2000 Appendix A: Troubleshooting

Appendix A: Troubleshooting

Your computer cannot connect to the Internet.

Follow these instructions until your computer can connect to the Internet:

• Verify that the power adapter is connected to the

Router and to a power outlet. If connected to a power strip, make sure the power strip is turned on.

• Make sure that the Power LED, Internet LED, and

Wireless LED are on. If you have any wired computers connected to the Router, make sure the appropriate port LED is lit.

NOTE: The Power LED flashes after the

Router’s power cord is plugged in. If the LED remains flashing for more than 30 seconds, it may indicate that the Router is not working properly. For assistance, use a computer or device with Internet access to refer to our Linksys E2000 support section on the web,

www.linksys.com/support/E2000

• Make sure that the your DSL or cable modem is

connected to your Router’s Internet port using an Ethernet cable.

• Reset all of the devices on your network:

1. Turn off all of your network computers and devices, and then unplug the power adapter from your Router.

2. Unplug your modem’s power cord (and coaxial cable if you have a cable modem), and wait two minutes.

3. Reconnect your modem’s power cord (and coaxial cable) and wait two more minutes.

4. Reconnect the power adapter to the Router, and then power on all of your network computers and devices.

The modem does not have an Ethernet port.

The modem is a dial-up modem for traditional dial-up service. To use the Router, you need a cable/DSL modem and high-speed Internet connection.

You cannot use the DSL service to connect manually to the Internet.

After you have installed the Router, it will automatically connect to your Internet Service Provider (ISP), so you no longer need to connect manually.

The DSL telephone line does not fit into the Router’s Internet port.

The Router does not replace your modem. You still need your DSL modem in order to use the Router. Connect the telephone line to the DSL modem, and then insert the setup CD into your computer. Click Set up your Linksys Router and follow the on-screen instructions.

When you double-click the web browser, you are prompted for a username and password. If you want to get rid of the prompt, follow these instructions.

Launch the web browser and perform the following steps (these steps are specific to Internet Explorer but are similar for other browsers):

1. Select Tools > Internet Options.

2. Click the Connections tab.

3. Select Never dial a connection.

4. Click OK.

The Router does not have a coaxial port for the cable connection.

The Router does not replace your modem. You still need your cable modem in order to use the Router. Connect your cable connection to the cable modem, and then insert the setup CD into your computer. Click Set up your Linksys Router and follow the on-screen instructions.

The computer cannot connect wirelessly to the network.

Make sure the wireless network name or SSID is the same on both the computer and the Router. If you have enabled wireless security, then make sure the same security method and key are used by both the computer and the Router.

You need to change the settings on the Router.

Wireless network settings can be changed using Cisco Connect. To change the Router’s advanced settings, refer to “How to Access the Browser-Based Utility” on page 3.

You want to access the browser-based utility from Cisco Connect.

To enter the browser-based utility from Cisco Connect, follow these steps:

1. Open Cisco Connect.

2. On the main menu, click Router settings.

3. Click Advanced settings.

4. Write down the username and password that are displayed. (To help protect your password, you can copy it to the Clipboard by clicking Copy Password.)

5. Click OK.

Advanced Wireless-N Router

Linksys E2000 Appendix A: Troubleshooting

6. Your web browser automatically opens. Enter the username and password, and then click OK. (If you copied the password to the Clipboard in step 4, press Ctrl-V to paste it into the Password field.)

When you try to log into the browser-based utility, your password does not work.

Your wireless security password also serves as the browserbased utility’s login password. To see this password:

1. Open Cisco Connect.

2. On the main menu, click Router settings.

3. The Password is displayed on the left side of the screen.

WEB: If your questions are not

addressed here, refer to our Linksys E2000 support section on the web,

www.linksys.com/support/E2000

Advanced Wireless-N Router

Linksys E2000 Appendix B: Specifications

Appendix B: Specifications

Model Name Linksys E2000

Description Advanced Wireless-N Router

Model Number E2000

Standards 802.11n, 802.11a, 802.11g,

802.11b, 802.3, 802.3u,

802.3ab

Ports Power, Internet, and Ethernet

Buttons Reset, Wi-Fi Protected Setup

LEDs Ethernet (1-4), Wi-Fi Protected Setup, Wireless, Internet, Power

Cabling Type CAT 5e

Number of Antennas 3

Antenna Gain in dBi 2.4GHz: ≤ 2dBi 5GHz: ≤ 5dBi

UPnP able/cert Able

Security Features WEP, WPA, WPA2

Security Key Bits Up to 128-Bit Encryption

Environmental

Dimensions 202 x 160 x 34 mm

Weight 300 g

Power 12V

Certication FCC, CE, IC-03, Wi-Fi

Operating Temp. 0 to 40ºC

Storage Temp. -20 to 60ºC

Operating Humidity 10 to 85% Noncondensing

Storage Humidity 5 to 90% Noncondensing

Specications are subject to change without notice.

Advanced Wireless-N Router

10080610A-JL

www.linksys.com/support

Cisco, the Cisco logo, andLinksys are trademarks or registered trademarks of Cisco and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document or website are the property of their respective owners.

Cisco Systems E2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1: Product Overview

Back

Horizontal Placement

Wall-Mounting Placement

Chapter 2: Advanced Configuration

How to Access the Browser-Based Utility

Setup > Basic Setup

Setup > DDNS

Setup > MAC Address Clone

Setup > Advanced Routing

Wireless > Basic Wireless Settings

Wireless > Wireless Security

Wireless > Wireless MAC Filter

Wireless > Advanced Wireless Settings

Security > Firewall

Security > VPN Passthrough

Access Restrictions > Internet Access

Applications and Gaming > Single Port Forwarding

Applications and Gaming > Port Range Forwarding

Applications & Gaming > Port Range Triggering

Applications and Gaming > DMZ

Applications and Gaming > QoS

Administration > Management

Administration > Log

Administration > Diagnostics

Administration > Factory Defaults

Status > Router

Administration > Firmware Upgrade

Status > Local Network

Status > Wireless Network

Appendix A: Troubleshooting

Appendix B: Specifications
