This guide provides configuration and connection instructions for the EIA/TIA-232 console/modem cable and the adapters used when connecting a PC, a VT series terminal, or a modem to the Catalyst 1800 Token Ring switch to access out-of-band management via the EIA/TIA-232 DB-9 male console port.
Note EIA/TIA-232 was known as recommended standard RS-232 before its acceptance as a standard by the Electronic Industries Association (EIA) and Telecommunications Industry Association (TIA).
Cisco documentation and additional literature are available in a CD-ROM package. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more up to date than printed documentation. To order copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription. You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.
Management terminal and modem requirements are as follows:
•VT 320/420-series terminal or VT-type terminal running emulation programs for the VT series
•IBM or compatible PC running a VT-series emulation software package
•Hayes-compatible modem
This guide also provides the following pin assignments:

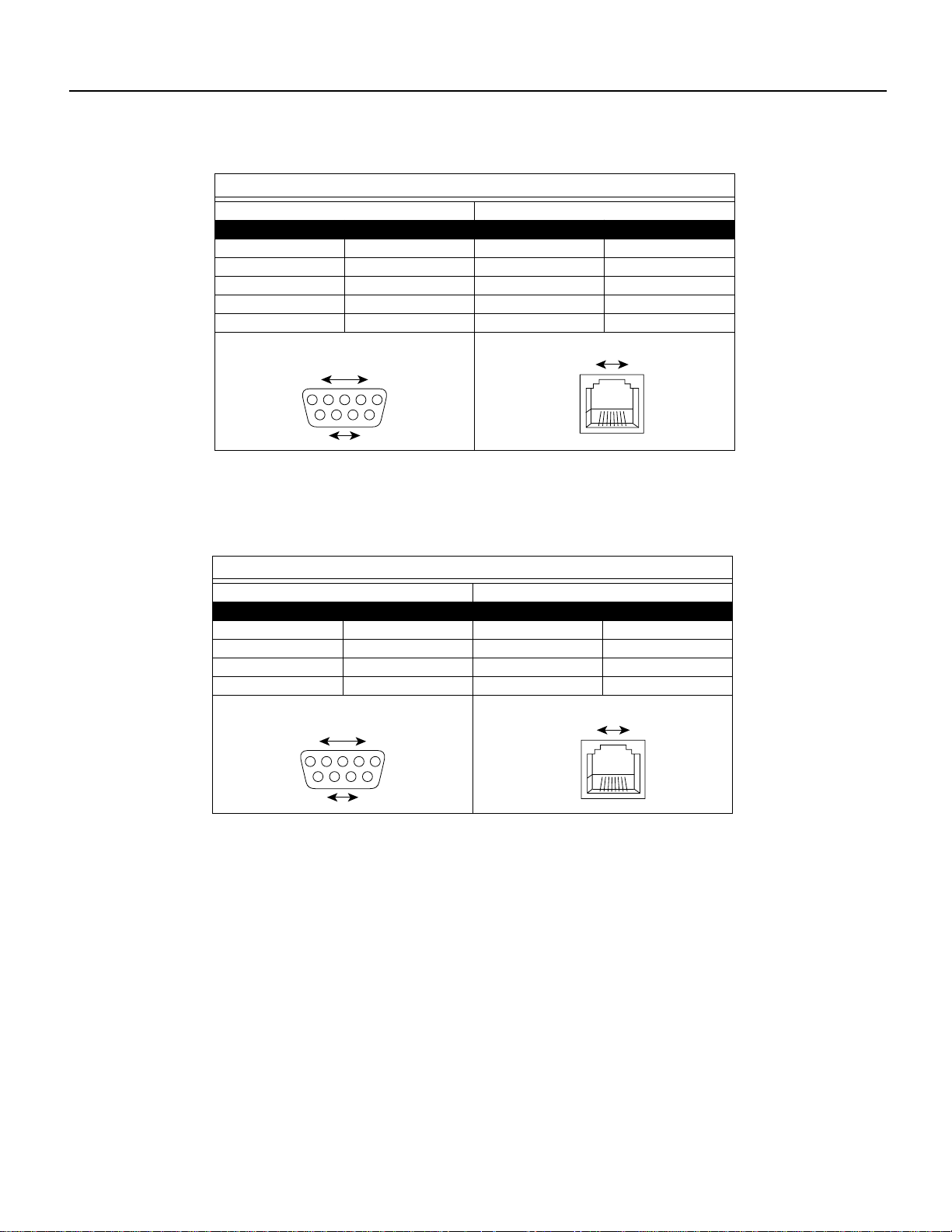

• DB-9 console port connector on the Catalyst 1800 chassis
• DB-9 PC connector
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
Copyright © 1996 |
|
Cisco Systems, Inc. |
1 |
All rights reserved. |
•
•

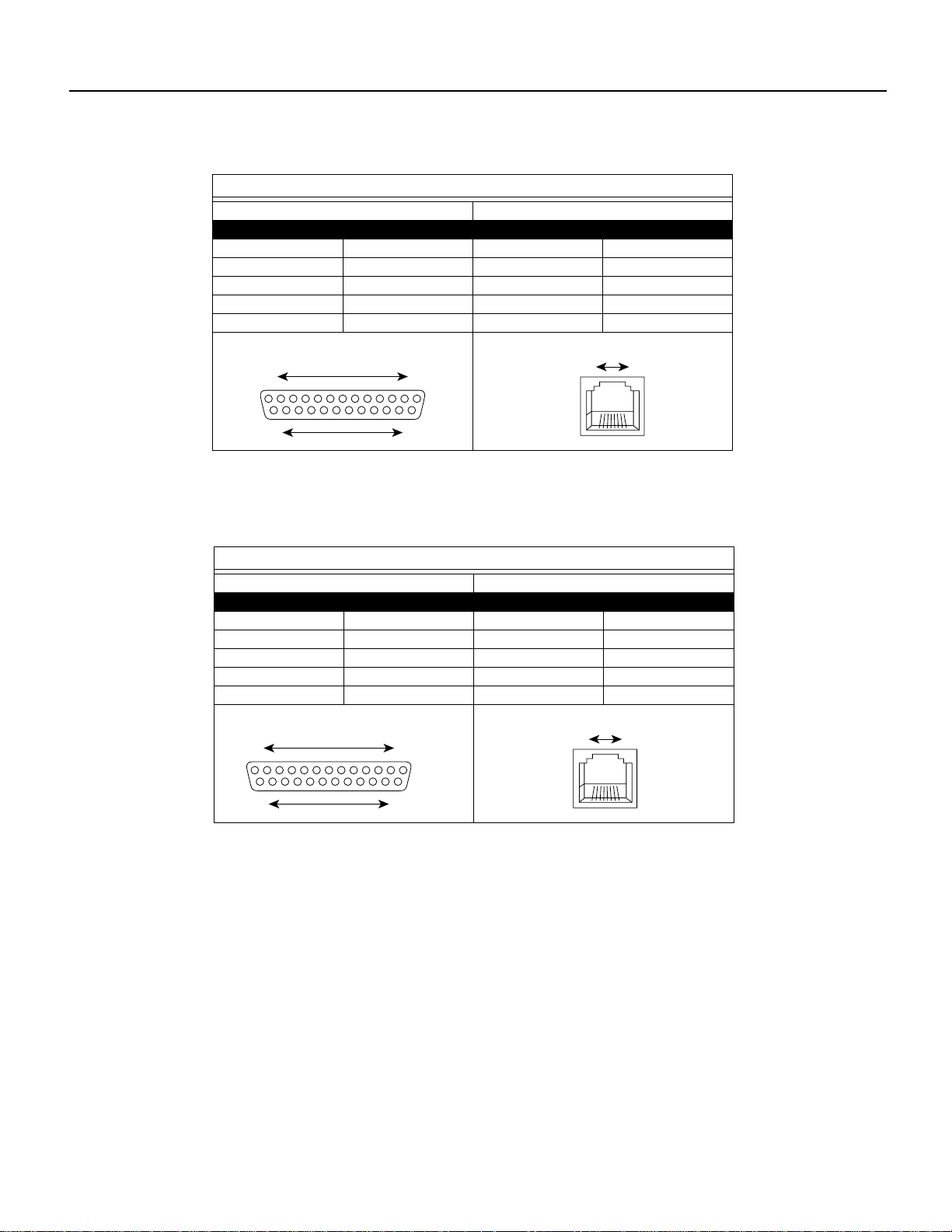

DB-25 VT-series connector
DB-25 modem connector
The Catalyst 1800 console cable kit (part number 78-1188-01) includes
•One 6-foot (1.8-meter) length of unshielded twisted pair (UTP) EIA/TIA-232 cable with RJ-45 connectors at each end
•One RJ-45 to DB-9 female adapter (for console port connection)
•One RJ-45 to DB-9 female adapter (for PC connection)
•One RJ-45 to DB-25 female adapter (for VT terminal connection)
•One RJ-45 to DB-25 male adapter (for modem connection)
Connecting to a VT-Series Terminal
Follow these steps to connect a VT 320/420-series terminal to a Catalyst 1800 Token Ring switch (see Figure 1):
Step 1 Plug either end of the EIA/TIA-232 cable into the RJ-45-to-DB-9 female adapter labelled “Console port.”
Step 2 Connect the console port female adapter to the male DB-9 console port on the front of the Catalyst 1800 chassis.
Step 3 Plug the RJ-45 connector at the other end of the EIA/TIA-232 cable into the
RJ-45-to-DB-25 female adapter labelled “VT series.”
Step 4 Connect the VT-series DB-25 female adapter to the DB-25 male adapter on the cable extending from the VT terminal’s COMM port.
Step 5 Turn on the terminal and access the setup directory. Set the following parameters on your terminal:
Transmit |
9600 |
Bits per character (BPC) |
8 |
|
|
Parity |
None |
|
|
Stop bit |
1 |
|
|
Flow control |
Off |
|
|
After these parameters are set, you can access out-of-band management. Refer to the Catalyst 1800 Token Ring Switch User Guide for instructions on using the console interface.
2 Catalyst 1800 Token Ring Switch Cable Kit Guide
Figure 1 Connecting a VT-Series Terminal to a Catalyst 1800 Switch
8 TOKEN RING |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Ring Status |
|
|
|
|
|
|
|
||
Pwr A |
Sys Status |
Port Activity |
|
|
|
|
|
|
|
Pwr B |
Failure |
16 Mbps |
|
|
|
|
|
|
|
|
|
1 |
2 |
3 |
4 |
|
|
|
|
4TR + FDDI |
|
Ring Status |
|
|
|
Status |
Wrap |
|
Bypass |
|
Port Activity |
|
|
|
|
||||
Pwr A |
Sys Status |
|
|
|
Activity |
B A |
|
|
|
Pwr B |
Failure |
16 Mbps |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Catalyst 1800 |
DB-9 console connector/port interface
VT series adapter
RS-232 cable
H8710
DB-25 male adapter |
|
to VT terminal |
VT 320/340 series terminal |
Connecting to an IBM PC or Compatible
Follow these steps to connect an IBM PC or compatible to a Catalyst 1800 switch (see Figure 2). Note that the PC must be running a VT terminal emulation program.
Step 1 |
Plug either end of the EIA/TIA-232 cable into the RJ-45-to-DB-9 female adapter labelled |
||
|
“Console port.” |
|
|
Step 2 |
Connect the console port female adapter to the male DB-9 console port on the front of the |
||
|
Catalyst 1800 chassis. |
||
Step 3 |
Plug the RJ-45 connector at the other end of the EIA/TIA-232 cable into the |
||
|
RJ-45-to-DB-9 female adapter labelled “PC.” |
||
Step 4 |
Connect the DB-9 female adapter to the appropriate male communications port on the |
||
|
PC. |
|
|
Step 5 |
Turn on the PC and configure its VT emulation package with following parameters: |
||
|
|
|
|
Transmit |
|
9600 |
|
|
|
|
|
Bits per character (BPC) |
8 |
|
|
|
|
|
|
Parity |
|
None |
|
|
|
|
|
Stop bit |
|
1 |
|
|
|
|
|
Flow control |
Off |
||
|
|
|
|
After these parameters are set, you can access out-of-band management. Refer to the Catalyst 1800 Token Ring Switch User Guide for instructions on using the console interface.
Catalyst 1800 Token Ring Switch Cable Kit Guide 3
