Cisco Systems 4500-X User Manual

Catalyst 4500 Series Switches
Installation Guide

December 2005

Corporate Headquarters

Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: [phone]

800 553-NETS (6387)

Fax: [phone]

Customer Order Number: DOC-7814409=
Text Part Number: 78-14409-08

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT
NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT
ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR
THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO
LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate
radio-frequency energy. If it is not installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television
reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in
part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class
A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct
any interference to radio or television communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco
equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by
using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television
or radio are on circuits controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as
part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.

CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work,
Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, ASIST, BPX, Catalyst, CCDA, CCDP,
CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the
Cisco Systems logo, Cisco Unity, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare,
GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys,
MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Pac k et , PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX,
ScriptShare, SlideCast, SMARTnet, StrataView Plus, TeleRouter, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered
trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (0502R)

Catalyst 4500 Series Switches Installation Guide

Copyright © 2002

–2005 Cisco Systems, Inc. All rights reserved.

Preface ix

Audience ix

Organization ix

Related Documentation x

Conventions xi

Obtaining Documentation xvii

Cisco.com xvii
Product Documentation DVD xviii
Ordering Documentation xviii

Documentation Feedback xix

Cisco Product Security Overview xix

Reporting Security Problems in Cisco Products xx

CONTENTS

CHAPTER

78-14409-08

Obtaining Technical Assistance xx

Cisco Technical Support & Documentation Website xxi
Submitting a Service Request xxi
Definitions of Service Request Severity xxii

Obtaining Additional Publications and Information xxiii

1 Product Overview 1-1

Switch Features 1-1

Catalyst 4503 Switch Features 1-2
Catalyst 4506 Switch Features 1-6
Catalyst 4507R Switch Features 1-10
Catalyst 4510R Switch Features 1-14

Catalyst 4500 Series Switches Installation Guide

v

Contents

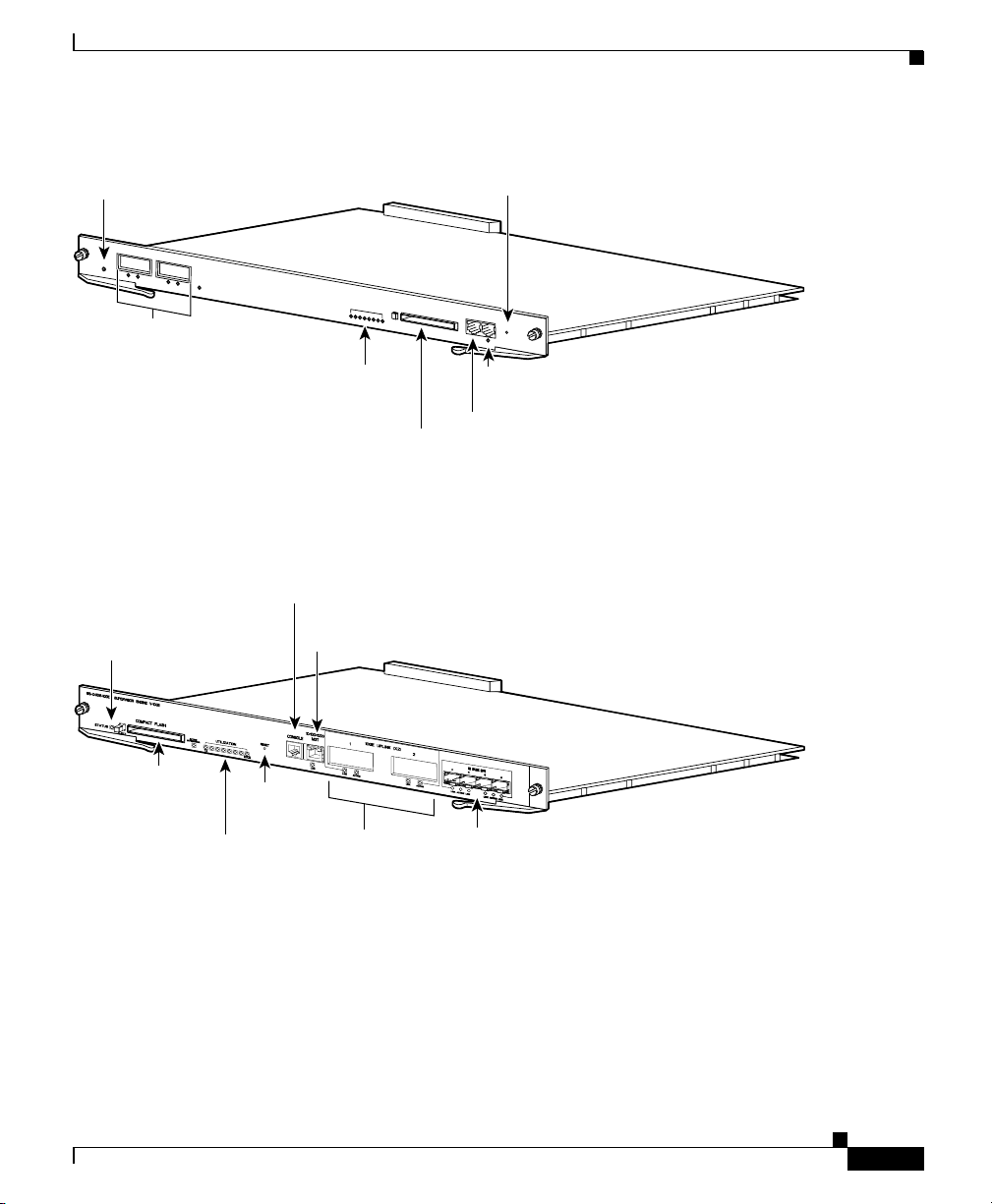

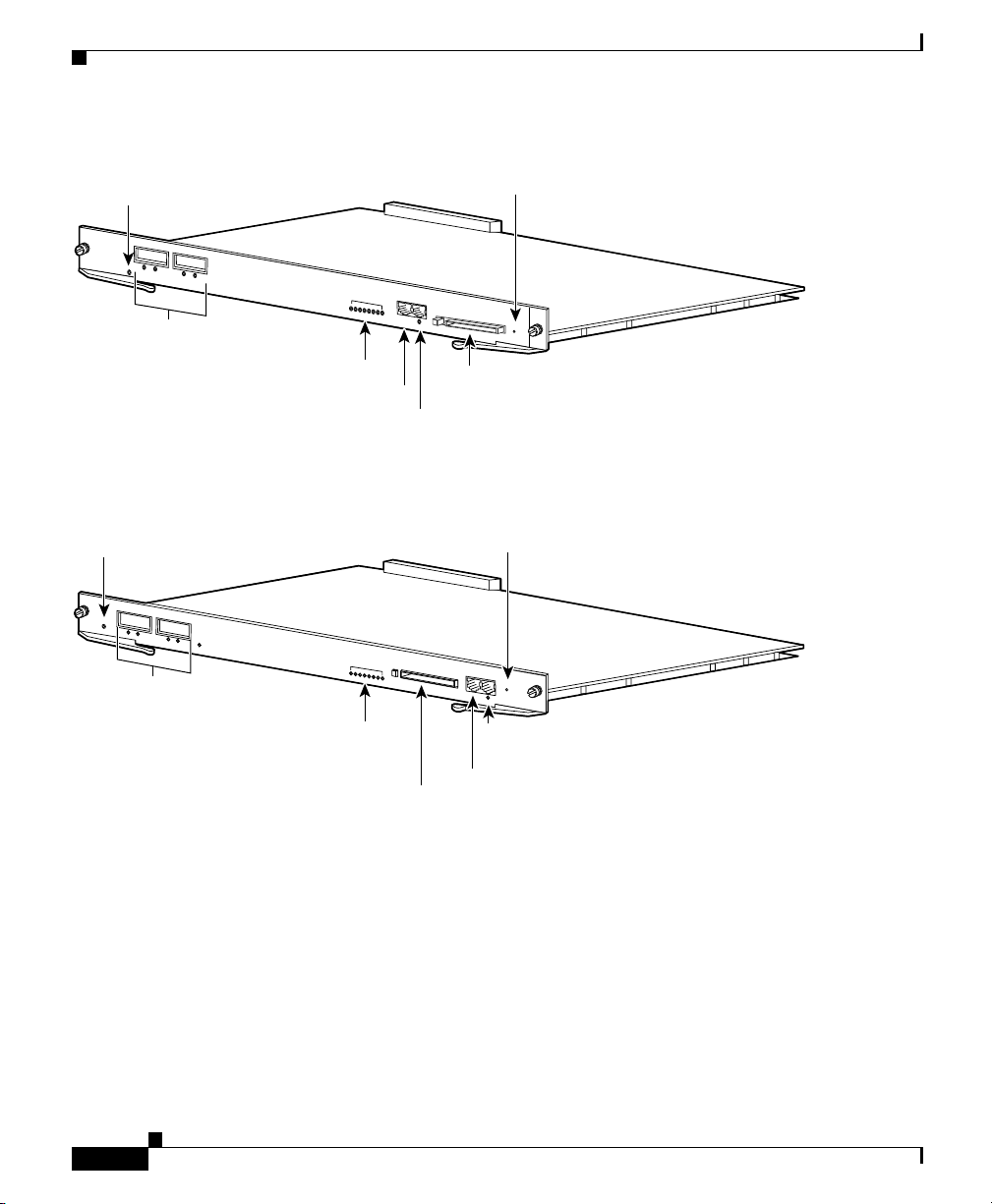

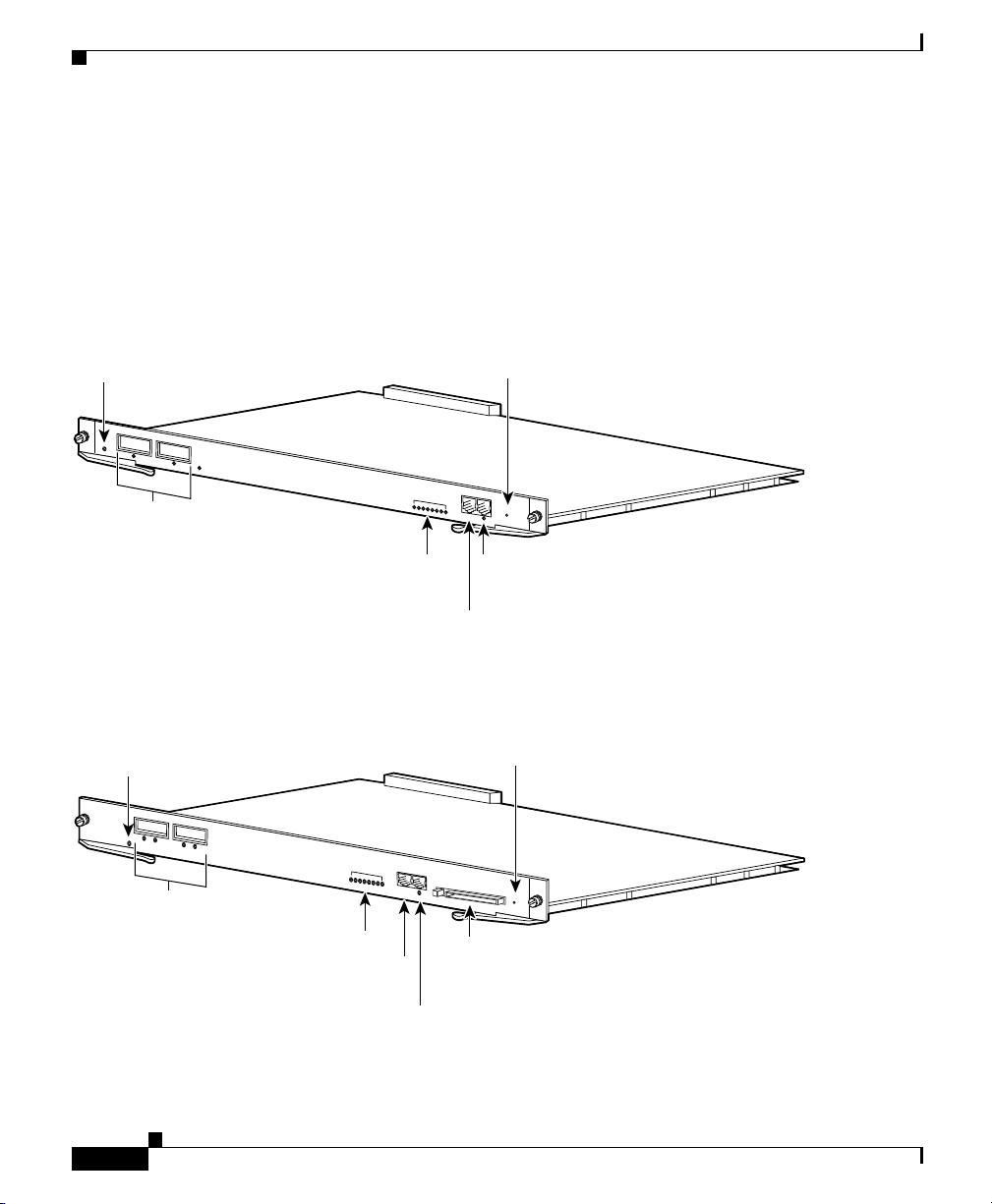

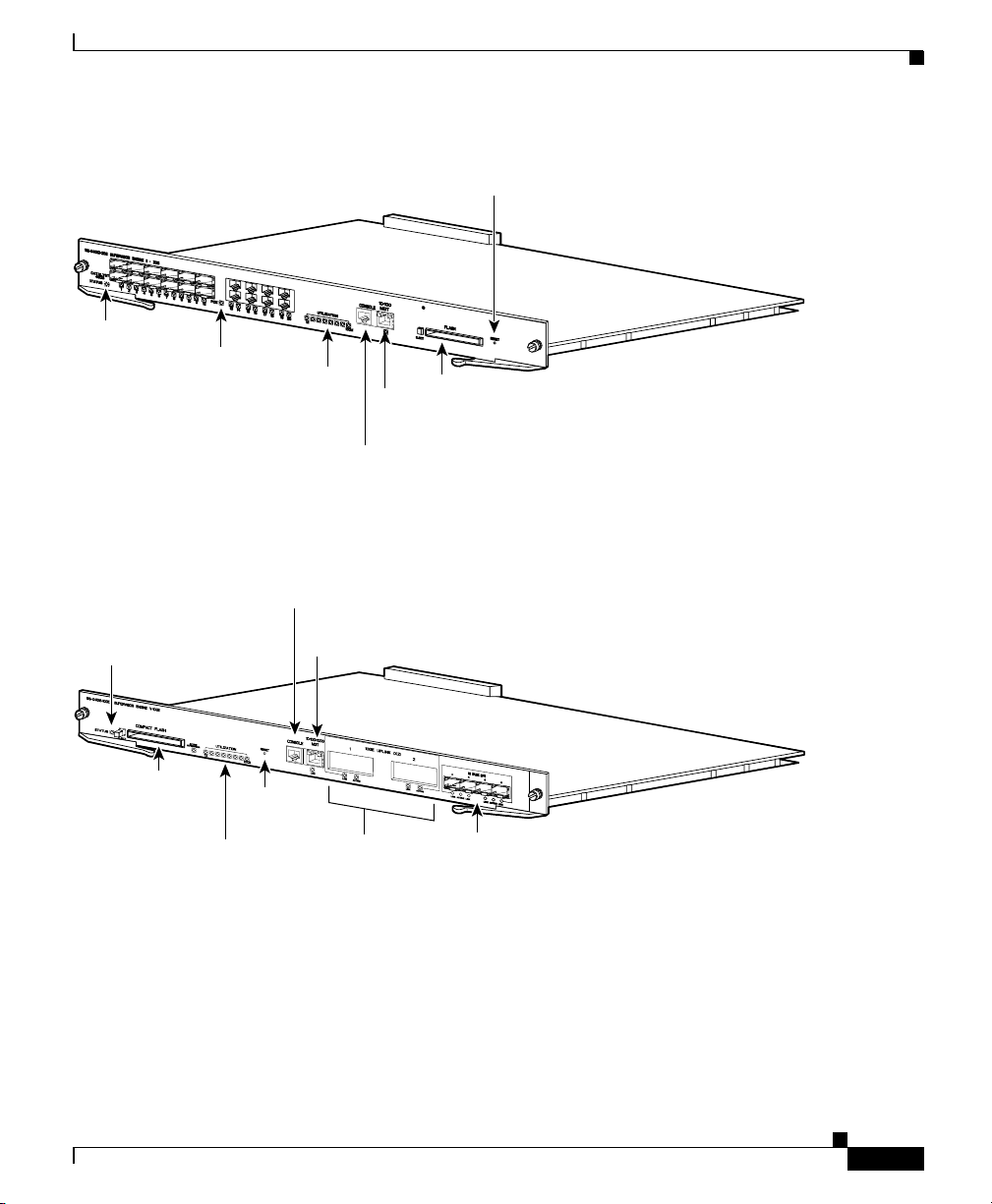

Supervisor Engines 1-18

LEDs 1-24
Gigabit Ethernet Uplink Ports 1-25
10-Gigabit Ethernet Uplink Ports 1-25
SFP Ports 1-26
10/100BASE-T Port 1-26
CONSOLE Port 1-26
RESET Button 1-26
CompactFlash Port 1-27

Fan Assembly 1-27

Power Supplies 1-31

Power Supply LEDs 1-34
Power Supply Fan 1-35
Load-Sharing Feature 1-35
Environmental Monitoring Feature 1-35
1400 W DC Triple-input Power Supply Operational Modes 1-36

CHAPTER

vi

System Architecture 1-40

Power Flow 1-40

Power over Ethernet 1-41
Management Flow 1-45
Switching Traffic Flow 1-46

2 Preparing for Installation 2-1

Electrostatic Discharge 2-2

Preventing Electrostatic Discharge Damage 2-3

Site Power Requirements and Heat Dissipation 2-4

Power Connection Guidelines for AC-Powered Systems 2-5

Power Connection Guidelines for DC-Powered Systems 2-12

Calculating DC Input Current 2-13

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Ventilation 2-14

Calculating System Heat Dissipation 2-15

Site-Planning Checklist 2-16

Contents

CHAPTER

CHAPTER

3 Installing the Switch in a Rack 3-1

Checking the Shipping Container Contents 3-2

Rack-Mounting the Switch 3-3

Required Installation Tools 3-3
Rack-Mounting Catalyst 4500 Series Switches 3-4

System Ground Connection Guidelines 3-18

Parts and Required Tools 3-22
Connecting System Ground and Power 3-23

4 Removing and Replacing FRUs 4-1

Removing and Replacing the Power Supply 4-2

Required Tools 4-5
Removing an AC-Input Power Supply 4-5
Installing an AC-Input Power Supply 4-8
Removing a DC-Input Power Supply 4-11

Required Tools 4-11
Removal Procedure 4-11

Installing a DC-Input Power Supply 4-16

Required Tools 4-16
Installation Procedure 4-16

78-14409-08

Removing and Replacing the Chassis Fan Assembly 4-18

Required Tools 4-22
Removing the Fan Assembly 4-23
Installing the Fan Assembly 4-23
Verifying the Installation 4-24

Catalyst 4500 Series Switches Installation Guide

vii

Contents

Replacing Backplane Modules on a Catalyst 4507R or 4510R Switch 4-24

Verify the New Modules 4-30

CHAPTER

APPENDIX

5 Troubleshooting 5-1

System Boot Verification 5-2

Problem Solving to the System Component Level 5-3

Using LEDs to Identify Startup Problems 5-4

Troubleshooting the Power Supply 5-6

Troubleshooting Power Problems using Cisco IOS 5-7

Troubleshooting the Fan Assembly 5-8

Troubleshooting Backplane Modules 5-9

Troubleshooting Switching Modules 5-10

Troubleshooting Switching Modules Using Cisco IOS 5-12

Troubleshooting Supervisor Engines 5-13

Troubleshooting Supervisor Engines Using Cisco IOS 5-14

Contacting the Cisco Technical Assistance Center 5-16

Serial Numbers 5-17

A Specifications A-1

Catalyst 4503 Switch Specifications A-2

APPENDIX

I

NDEX

viii

Catalyst 4506 Switch Specifications A-3

Catalyst 4507R Switch Specifications A-4

Catalyst 4510R Switch Specifications A-6

Catalyst 4500 Series Power Supplies A-7

B Repacking a Switch B-1

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Audience

Preface

This preface describes the audience, organization, and conventions of the
Catalyst 4500 Series Switches Installation Guide and provides information on
how to obtain related documentation and technical assistance.

Only trained and qualified service personnel (as defined in IEC 60950 and
AS/NZS3260) should install, replace, or service the equipment.

Organization

This guide is organized as follows:

Chapter Title Description

Chapter 1 Product Overview Describes the hardware features, components, interfaces,

and functionality of the Catalyst 4500 series switches.

Chapter 2 Preparing for

Installation

Chapter 3 Installing the Switch

in a Rack

78-14409-08

Describes how to prepare your site for the installation of the
switch.

Describes how to install the Catalyst 4500 series switches.
Provides procedures for removing and installing chassis
components.

Catalyst 4500 Series Switches Installation Guide

ix

Preface

Related Documentation

Chapter Title Description

Chapter 4 Removing and

Replacing FRUs

Chapter 5 Troubleshooting Provides troubleshooting guidelines for the initial hardware

Appendix A Specifications Lists the cable and technical specifications of the

Appendix B Repacking a Switch Provides instructions for repacking your Catalyst 4500

Describes how to remove and replace field-replaceable units
(FRUs).

installation and suggests steps to help isolate and resolve
problems.

Catalyst 4500 series switches.

series switch in the event that you have to return it to the
factory.

Related Documentation

Refer to the following documents for additional Catalyst 4500 series information:

• Catalyst 4500 Series Module Installation Guide at

http://www.cisco.com/en/US/products/hw/switches/ps4324/products_modul
e_installation_guide_book09186a008009c17d.html
for information about individual switching modules and supervisors.

• Regulatory Compliance and Safety Information for the Catalyst 4500 Series

Switches at
http://www.cisco.com/en/US/products/hw/switches/ps4324/products_regula
tory_approvals_and_compliance09186a00800d7676.html

• The release note appropriate to your software version. Release notes are at:

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_release_no
tes_list.html

• The software configuration guide appropriate to your software version.

Software configuration guides are at:
http://www.cisco.com/en/US/products/hw/switches/ps4324/products_install
ation_and_configuration_guides_list.html

• The command reference appropriate to your software version. Command

references are at:
http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_command
_reference_list.html

Catalyst 4500 Series Switches Installation Guide

x

78-14409-08

Preface

Conventions

This document uses the following conventions:

Conventions

• The system message guide appropriate to your software version. System

message guides are at:
http://www.cisco.com/en/US/products/hw/switches/ps4324/products_system
_message_guides_list.html

• There are a number of installation notes and technical tips available for this

switch. The top level Catalyst 4500 documentation and technical support
page is at
http://www.cisco.com/en/US/products/hw/switches/ps4324/tsd_products_su
pport_ series_home.html

Convention Description

boldface font Commands and keywords are in boldface.

italic font Arguments for which you supply values are in italics.

[ ] Elements in square brackets are optional.

{ x | y | z } Alternative keywords are grouped in braces and

separated by vertical bars.

[ x | y | z ] Optional alternative keywords are grouped in brackets

and separated by vertical bars.

string A nonquoted set of characters. Do not use quotation

marks around the string, because the string will include
the quotation marks.

screen font Terminal sessions and information that the system

boldface screen

font

italic screen

font Arguments for which you supply values are in

displays are in

Information that you must enter is shown in boldface

font.

screen

font.

screen

screen font.

italic

78-14409-08

Catalyst 4500 Series Switches Installation Guide

xi

Conventions

Preface

Convention Description

Ctrl- Ctrl- represents the key labeled Control—for example,

the key combination Ctrl-D means to hold down the
Control key while you press the D key.

< > Characters that do not print, such as passwords, are

shown within angle brackets.

Notes use the following conventions:

Note Means reader take note. Notes contain helpful suggestions or references to

material not covered in the publication.

Cautions use the following conventions:

Caution Means reader be careful. In this situation, you might do something

that could result in equipment damage or loss of data.

xii

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Preface

Conventions

Warnings use the following conventions:

Warning

Waarschuwing

Varoitus

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and be familiar with standard practices for
preventing accidents. Use the statement number provided at the end of each
warning to locate its translation in the translated safety warnings that
accompanied this device.

Statement 1071

SAVE THESE INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat
werken, dient u zich bewust te zijn van de bij elektrische schakelingen
betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken
om ongelukken te voorkomen. Gebruik het nummer van de verklaring
onderaan de waarschuwing als u een vertaling van de waarschuwing die bij
het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia
vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien
käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin
ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen
mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta
varoitusten lopussa näkyvien lausuntonumeroiden avulla.

78-14409-08

SÄILYTÄ NÄMÄ OHJEET

Catalyst 4500 Series Switches Installation Guide

xiii

Conventions

Preface

Attention

Warnung

Avvertenza

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant entraîner des blessures ou des dommages corporels. Avant
de travailler sur un équipement, soyez conscient des dangers liés aux circuits
électriques et familiarisez-vous avec les procédures couramment utilisées
pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui
accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la
fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die
zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit
den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur
Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung
angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den
übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät
ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

xiv

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe
causare infortuni alle persone. Prima di intervenire su qualsiasi
apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti
elettrici e conoscere le procedure standard per la prevenzione di incidenti.
Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per
individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Preface

Conventions

Advarsel

Aviso

¡Advertencia!

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade
på person. Før du begynner å arbeide med noe av utstyret, må du være
oppmerksom på farene forbundet med elektriske kretser, og kjenne til
standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver
advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som
fulgte med denne enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá
ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer
equipamento, tenha conhecimento dos perigos envolvidos no manuseio de
circuitos elétricos e familiarize-se com as práticas habituais de prevenção de
acidentes. Utilize o número da instrução fornecido ao final de cada aviso para
localizar sua tradução nos avisos de segurança traduzidos que acompanham
este dispositivo.

GUARDE ESTAS INSTRUÇÕES

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física.
Antes de manipular cualquier equipo, considere los riesgos de la corriente
eléctrica y familiarícese con los procedimientos estándar de prevención de
accidentes. Al final de cada advertencia encontrará el número que le ayudará
a encontrar el texto traducido en el apartado de traducciones que acompaña
a este dispositivo.

78-14409-08

GUARDE ESTAS INSTRUCCIONES

Catalyst 4500 Series Switches Installation Guide

xv

Conventions

Preface

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan
leda till personskada. Innan du utför arbete på någon utrustning måste du vara
medveten om farorna med elkretsar och känna till vanliga förfaranden för att
förebygga olyckor. Använd det nummer som finns i slutet av varje varning för
att hitta dess översättning i de översatta säkerhetsvarningar som medföljer
denna anordning.

SPARA DESSA ANVISNINGAR

xvi

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Preface

Obtaining Documentation

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco
also provides several ways to obtain technical assistance and other technical
resources. These sections explain how to obtain technical information from Cisco
Systems.

Cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/techsupport

You can access the Cisco website at this URL:

http://www.cisco.com

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

78-14409-08

Catalyst 4500 Series Switches Installation Guide

xvii

Obtaining Documentation

Product Documentation DVD

Cisco documentation and additional literature are available in the Product
Documentation DVD package, which may have shipped with your product. The
Product Documentation DVD is updated regularly and may be more current than
printed documentation.

The Product Documentation DVD is a comprehensive library of technical product
documentation on portable media. The DVD enables you to access multiple
versions of hardware and software installation, configuration, and command
guides for Cisco products and to view technical documentation in HTML. With
the DVD, you have access to the same documentation that is found on the Cisco
website without being connected to the Internet. Certain products also have .pdf
versions of the documentation available.

The Product Documentation DVD is available as a single unit or as a subscription.
Registered Cisco.com users (Cisco direct customers) can order a Product
Documentation DVD (product number DOC-DOCDVD=) from Cisco
Marketplace at this URL:

http://www.cisco.com/go/marketplace/

Preface

Ordering Documentation

Beginning June 30, 2005, registered Cisco.com users may order Cisco
documentation at the Product Documentation Store in the Cisco Marketplace at
this URL:

http://www.cisco.com/go/marketplace/

Nonregistered Cisco.com users can order technical documentation from 8:00 a.m.
to 5:00 p.m. (0800 to 1700) PDT by calling 1 866 463-3487 in the United States
and Canada, or elsewhere by calling 011 408 519-5055. You can also order
documentation by e-mail at [e-mail] or by fax at
1 408 519-5001 in the United States and Canada, or elsewhere at 011 408
519-5001.

Catalyst 4500 Series Switches Installation Guide

xviii

78-14409-08

Preface

Documentation Feedback

You can rate and provide feedback about Cisco technical documents by
completing the online feedback form that appears with the technical documents
on Cisco.com.

You can send comments about Cisco documentation to [e-mail].

You can submit comments by using the response card (if present) behind the front
cover of your document or by writing to the following address:

Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

Cisco Product Security Overview

Documentation Feedback

78-14409-08

Cisco provides a free online Security Vulnerability Policy portal at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht
ml

From this site, you can perform these tasks:

• Report security vulnerabilities in Cisco products.

• Obtain assistance with security incidents that involve Cisco products.

• Register to receive security information from Cisco.

A current list of security advisories and notices for Cisco products is available at
this URL:

http://www.cisco.com/go/psirt

If you prefer to see advisories and notices as they are updated in real time, you
can access a Product Security Incident Response Team Really Simple Syndication
(PSIRT RSS) feed from this URL:

http://www.cisco.com/en/US/products/products_psirt_rss_feed.html

Catalyst 4500 Series Switches Installation Guide

xix

Obtaining Technical Assistance

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally
before we release them, and we strive to correct all vulnerabilities quickly. If you
think that you might have identified a vulnerability in a Cisco product, contact
PSIRT:

• Emergencies— [e-mail]

An emergency is either a condition in which a system is under active attack
or a condition for which a severe and urgent security vulnerability should be
reported. All other conditions are considered nonemergencies.

• Nonemergencies— [e-mail]

In an emergency, you can also reach PSIRT by telephone:

• 1 877 228-7302

• 1 408 525-6532

Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to

encrypt any sensitive information that you send to Cisco. PSIRT can work from
encrypted information that is compatible with PGP versions 2.x through 8.x.

Preface

Never use a revoked or an expired encryption key. The correct public key to use
in your correspondence with PSIRT is the one linked in the Contact Summary
section of the Security Vulnerability Policy page at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht
ml

The link on this page has the current PGP key ID in use.

Obtaining Technical Assistance

Cisco Technical Support provides 24-hour-a-day award-winning technical
assistance. The Cisco Technical Support & Documentation website on Cisco.com
features extensive online support resources. In addition, if you have a valid Cisco

Catalyst 4500 Series Switches Installation Guide

xx

78-14409-08

Preface

Obtaining Technical Assistance

service contract, Cisco Technical Assistance Center (TAC) engineers provide
telephone support. If you do not have a valid Cisco service contract, contact your
reseller.

Cisco Technical Support & Documentation Website

The Cisco Technical Support & Documentation website provides online
documents and tools for troubleshooting and resolving technical issues with Cisco
products and technologies. The website is available 24 hours a day, at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support & Documentation website
requires a Cisco.com user ID and password. If you have a valid service contract
but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

Note Use the Cisco Product Identification (CPI) tool to locate your product serial

number before submitting a web or phone request for service. You can access the
CPI tool from the Cisco Technical Support & Documentation website by clicking
the Tools & Resources link under Documentation & Tools. Choose Cisco
Product Identification Tool from the Alphabetical Index drop-down list, or click
the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool
offers three search options: by product ID or model name; by tree view; or for
certain products, by copying and pasting show command output. Search results
show an illustration of your product with the serial number label location
highlighted. Locate the serial number label on your product and record the
information before placing a service call.

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4
service requests. (S3 and S4 service requests are those in which your network is
minimally impaired or for which you require product information.) After you
describe your situation, the TAC Service Request Tool provides recommended

78-14409-08

Catalyst 4500 Series Switches Installation Guide

xxi

Obtaining Technical Assistance

solutions. If your issue is not resolved using the recommended resources, your
service request is assigned to a Cisco engineer. The TAC Service Request Tool is
located at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests or if you do not have Internet access, contact the
Cisco TAC by telephone. (S1 or S2 service requests are those in which your
production network is down or severely degraded.) Cisco engineers are assigned
immediately to S1 and S2 service requests to help keep your business operations
running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: [phone] (Australia: 1 800 805 227)
EMEA: [phone]
USA: 1 800 553-2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Preface

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has
established severity definitions.

Severity 1 (S1)—Your network is “down,” or there is a critical impact to your
business operations. You and Cisco will commit all necessary resources around
the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or
significant aspects of your business operation are negatively affected by
inadequate performance of Cisco products. You and Cisco will commit full-time
resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of your network is impaired, but most
business operations remain functional. You and Cisco will commit resources
during normal business hours to restore service to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product
capabilities, installation, or configuration. There is little or no effect on your
business operations.

Catalyst 4500 Series Switches Installation Guide

xxii

78-14409-08

Preface

Obtaining Additional Publications and Information

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is
available from various online and printed sources.

• Cisco Marketplace provides a variety of Cisco books, reference guides,

documentation, and logo merchandise. Visit Cisco Marketplace, the company
store, at this URL:

http://www.cisco.com/go/marketplace/

• Cisco Press publishes a wide range of general networking, training and

certification titles. Both new and experienced users will benefit from these
publications. For current Cisco Press titles and other information, go to Cisco
Press at this URL:

http://www.ciscopress.com

• Packet magazine is the Cisco Systems technical user magazine for

maximizing Internet and networking investments. Each quarter, Packet
delivers coverage of the latest industry trends, technology breakthroughs, and
Cisco products and solutions, as well as network deployment and
troubleshooting tips, configuration examples, customer case studies,
certification and training information, and links to scores of in-depth online
resources. You can access Packet magazine at this URL:

78-14409-08

http://www.cisco.com/packet

• iQ Magazine is the quarterly publication from Cisco Systems designed to

help growing companies learn how they can use technology to increase
revenue, streamline their business, and expand services. The publication
identifies the challenges facing these companies and the technologies to help
solve them, using real-world case studies and business strategies to help
readers make sound technology investment decisions. You can access iQ
Magazine at this URL:

http://www.cisco.com/go/iqmagazine

or view the digital edition at this URL:

http://ciscoiq.texterity.com/ciscoiq/sample/

Catalyst 4500 Series Switches Installation Guide

xxiii

Obtaining Additional Publications and Information

• Internet Protocol Journal is a quarterly journal published by Cisco Systems

for engineering professionals involved in designing, developing, and
operating public and private internets and intranets. You can access the
Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

• Networking products offered by Cisco Systems, as well as customer support

services, can be obtained at this URL:

http://www.cisco.com/en/US/products/index.html

• Networking Professionals Connection is an interactive website for

networking professionals to share questions, suggestions, and information
about networking products and technologies with Cisco experts and other
networking professionals. Join a discussion at this URL:

http://www.cisco.com/discuss/networking

• World-class networking training is available from Cisco. You can view

current offerings at this URL:

http://www.cisco.com/en/US/learning/index.html

Preface

xxiv

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Product Overview

This chapter provides an overview of the features and components of the
Catalyst 4500 series switches. The Catalyst 4500 series switches are the
Catalyst 4503 switch, the Catalyst 4506 switch, the Catalyst 4507R switch, and
the Catalyst 4510R switch. The information is presented in these major sections:

• Switch Features, page 1-1

• Supervisor Engines, page 1-18

• Fan Assembly, page 1-27

• Power Supplies, page 1-31

• System Architecture, page 1-40

Switch Features

CHAPTER

1

78-14409-08

The following sections describe the features of the Catalyst 4500 series switches:

• Catalyst 4503 Switch Features, page 1-2

• Catalyst 4506 Switch Features, page 1-6

• Catalyst 4507R Switch Features, page 1-10

• Catalyst 4510R Switch Features, page 1-14

Catalyst 4500 Series Switches Installation Guide

1-1

Switch Features

Catalyst 4503 Switch Features

The Catalyst 4503 switch (see Figure 1-1) is a three-slot switch designed for
high-performance, high-density wiring closet applications.

Figure 1-1 Catalyst 4503 Switch (Front View)

Power supplies

Chapter 1 Product Overview

Supervisor engine

(slot 1)

Switching modules

(slots 2 and 3)

Catalyst 4500 Series Switches Installation Guide

1-2

W

S

­X

4
5

1

5

S

U

P

E

R
V

I
S

O

R

E

4

N

G

5

I
N

0

E

6

I

V

U

P

L
I

N

K

1

U

P

L
I

N

K

4503

S

T

A

T

U

2

S

L
I

N

E

A

C

T

IV

E

L
I

N
E

A

C

T

I
V

E

A

C

T
I

V

E

1

1
3

1

1
3

1
0

/1

0

C

0

O

N
S

O

L
E

M

G

T

U
T

I
L

I
Z

A

T
I
O

N

1
%

1

1
3

1

1
3

F

L
A

S

1
0

0
%

H

E

J
E

C

T

R

E

L
I

N

K

S

E

T

Fan assembly

The Catalyst 4503 switch supports the Supervisor Engine II, II+, II+TS, II+10GE,
IV, V, and V-10GE. The supervisor engine has a nonblocking, full-duplex,
switching fabric that provides connections between the supervisor engine and the
switching modules. The Gigabit Ethernet ports can be configured with any
combination of copper 1000BASE-T, shortwave SX, LX/LH, and ZX interfaces,
or CWDM and DWDM GBICs. For a description of GBICs, refer to the Catalyst

4500 Series Module Installation Guide or the Catalyst 4500 Series Supervisor
Engines and Switching Modules Installation Note. Some supervisor engines use

SFP modules for Gigabit Ethernet connections, or X2 modules for 10-Gigabit
Ethernet connections. Refer to the installation note for your supervisor engine for
more details on these modules.

78-14409-08

77980

Chapter 1 Product Overview

Slot 1 is reserved for the supervisor engine only, which provides switching, local
and remote management, and switch-status monitoring. Slots 2 and 3 are available
for switching modules.

Table 1 - 1 describes the features of the Catalyst 4503 switch.

Table 1-1 Features of the Catalyst 4503 Switch

Feature Description

Ethernet speeds

Standard equipment

• Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches,

and routers

Note Autonegotiation of link speed on each 10/100 port allows migration to

100BASE-T from a 10BASE-T installed base.

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for

backbone interconnection of high-performance switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

• Three-slot modular chassis with one slot reserved for a supervisor engine

and two slots for switching modules

Switch Features

Power supplies

Supervisor engine
support

78-14409-08

• One hot-swappable fan assembly

• Two power supply bays

• Supports a 1000 W, 1300 W, 1400 W, 2800 W, or 4200W AC-input power

supply or a 1400 W DC-input single input or triple-input power supply

• Optional redundant power supply

• Supports the Supervisor Engine II, II+, II+TS, II+10GE, III, IV, V

• Holds the ASIC-based forwarding engine (data path) and the management

processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note Packets are not forwarded while the module is removed; a system

reboot occurs when a supervisor engine is reinserted.

Catalyst 4500 Series Switches Installation Guide

1-3

1

Switch Features

Table 1-1 Features of the Catalyst 4503 Switch (continued)

Feature Description

Switching module
support

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module

(WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module

(WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ21)

• 48-port Cisco pre-standard Power over Ethernet (PoE)

10/100BASE-TX switching module (WS-X4148-RJ45V)

Chapter 1 Product Overview

1-4

• 48-port 100BASE-X Fast Ethernet switching module

(WS-X4248-FE-SFP)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module

(WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet switching

module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular

uplink support (WS-X4232-RJ-XX)

–

4-port MT-RJ uplink module (WS-U4504-FX-MT) (optional)

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Table 1-1 Features of the Catalyst 4503 Switch (continued)

Feature Description

Switching module
support (continued)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 6-port 1000BASE-X Gigabit Ethernet switching module (WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 12-port 1000BASE-T plus 2-port 1000BASE-X Gigabit Ethernet

switching module (WS-X4412-2GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45

switching module (WS-X4524-GB-RJ45V)

Switch Features

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit

Ethernet switching module (WS-X4548-GB-RJ45V)

• Access Gateway Module (WS-X4604-GWY)

• Backplane channel module (WS-X4019)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

Catalyst 4500 Series Switches Installation Guide

78-14409-08

1-5

Switch Features

Catalyst 4506 Switch Features

The Catalyst 4506 switch (see Figure 1-2) is a six-slot switch designed for
high-performance, high-density wiring closet applications.

Figure 1-2 Catalyst 4506 Switch (Front View)

Power supplies

W

S

­X

4
5

1

5

S

U

P

E
R

V

IS

O

R

E
N

G
IN

E

Supervisor engine

(slot 1)

Switching modules

(slots 2 through 6)

4

Fan assembly

IV

U

P

L
I
N

K

1

U

P

L
I

N

K

5

0

6

S

T

A

T

U

2

S

L
IN

E

A

C

T
I

V
E

L
IN

E

A

C

T

IV

E

A

C

T
IV

E

1

1
3

1

1
3

1

1
3

1
%

U

T
I
L

I
Z

Chapter 1 Product Overview

1
0
/1

0

C

0
O
N

S
O

L

E

M
G

T

A

T
I
O

N

1

1
3

1

1
3

1

1
3

F
L

A

S

1
0

0
%

H

E

J
E

C

T

R

E

L
I
N

K

S

E

T

77510

1-6

The Catalyst 4506 switch supports the Supervisor Engine II, II+, II+10GE, III, IV,
V, and V-10GE. The supervisor engine has a nonblocking, full-duplex, switching
fabric that provides connections between the supervisor engine and the switching
modules. The Gigabit Ethernet ports can be configured with any combination of
copper 1000BASE-T, shortwave SX, LX/LH, and ZX interfaces, or CWDM and
DWDM GBICs. For a description of GBICs, refer to the Catalyst 4500 Series

Module Installation Guide or the Catalyst 4500 Series Supervisor Engines and
Switching Modules Installation Note. Some supervisor engines use SFP modules

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

for Gigabit Ethernet connections, or X2 modules for 10-Gigabit Ethernet
connections. Refer to the installation note for your supervisor engine for more
details on these modules.

Slot 1 is reserved for the supervisor engine only, which provides switching, local
and remote management, and switch-status monitoring. Slots 2 through 6 are
available for switching modules.

Table 1 - 2 describes the features of the Catalyst 4506 switch.

Table 1-2 Features of the Catalyst 4506 Switch

Feature Description

Ethernet speeds

Standard equipment

• Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches,

and routers

Note Autonegotiation of link speed on each 10/100 port allows migration

to 100BASE-T from a 10BASE-T installed base.

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for

backbone interconnection of high-performance switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

• Six-slot modular chassis with one slot reserved for a supervisor engine

and five slots for switching modules

Switch Features

Power supplies

78-14409-08

• One hot-swappable fan assembly

• Two power supply bays

• Supports a 1000 W, 1300 W, 1400 W, 2800 W, or 4200 W AC-input

power supply or a 1400 W DC-input single or triple-input power supply

• Optional redundant power supply

Catalyst 4500 Series Switches Installation Guide

1

1-7

Switch Features

Table 1-2 Features of the Catalyst 4506 Switch (continued)

Feature Description

Supervisor engine
support

Switching module
support

• Supports the Supervisor Engine II, II+, II+10GE, III, IV, V

• Holds the ASIC-based forwarding engine (data path) and the

management processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note Packets are not forwarded while the module is removed; a system

reboot occurs when a supervisor engine is reinserted.

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module

(WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module

(WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

Chapter 1 Product Overview

1-8

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module

(WS-X4148-RJ21)

• 48-port Cisco pre-standard Power over Ethernet (PoE)

10/100BASE-TX switching module (WS-X4148-RJ45V)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching

module (WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48-port 100BASE-X Fast Ethernet switching module

(WS-X4248-FE-SFP)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Table 1-2 Features of the Catalyst 4506 Switch (continued)

Feature Description

Switching module
support (continued)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet

switching module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular

uplink support (WS-X4232-RJ-XX)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 6-port 1000BASE-X Gigabit Ethernet switching module

(WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 12-port 1000BASE-T plus 2-port 1000BASE-X Gigabit Ethernet

switching module (WS-X4412-2GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

Switch Features

• 24-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45

switching module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit

Ethernet switching module (WS-X4548-GB-RJ45V)

• Access Gateway Module (WS-X4604-GWY)

• Backplane channel module (WS-X4019)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

Catalyst 4500 Series Switches Installation Guide

78-14409-08

1-9

Switch Features

Catalyst 4507R Switch Features

The Catalyst 4507R switch (see Figure 1-3) is a seven-slot switch designed for
high-performance, high-density wiring closet applications.

Figure 1-3 Catalyst 4507R Switch (Front View)

Power supplies

Supervisor engine

U

P

L

I
N

(slot 1)

Redundant

supervisor engine

(slot 2)

Switching modules

(slots 3 through 7)

K

U

P
L

I
N

K

S
T

A

T

U

S

U

P

L

I
N
K

U

P
L

I
N

K

S
T

A

T

U

S

W

S

­X
4

4
1

2

­2
G

B

­T
X

S
T

A
T

U
S

1

2

3

W

S

­X
4

W

S

­X
4

W

S

-X
4

S

W

S

-X
4

S

4

4
1

2

­2
G

B

­T
X

S
T

A
T

4
1

2

­2
G

B

­T
X

S
T

A
T

448

-G
B

-R
J4

5

T
A

TU

S

44

8-G

B

-R
J4

5

T
A

T

U

S

5

6

7

8

9

1
0

1
1

1

U
S

1

2

3

4

5

U
S

1

2

1

2

6

1

2

3

4

5

6

3

4

5

6

7

8

9

0

1

1

1

2
1

3
1

4
1

1
0

5
1

6

1

3

4

5

6

7

8

9

0

1

1

1

2
1

3
1

4
1

1
0

5
1

6

1

2

7

8

9

1
0

1
1

1
2

7

8

9

1
0

1
1

1
2

/1
0

0
B

A
S

E

­T
X

E
T
H

E

R
N

E
T

7
1

8

1

9
1

0
2

1
2

2
2

3

2

4
2

5
2

6
2

7
2

8
2

9
2

0

M
U

L

3

T

I

-S

1

P
E

E

3

D
G
IG

2

A

B

3

IT

E
T

H
E

R
S

N
W

E

T
IT
C

H
IN

G

M

3

O
D

3

U

L

4

E

/
1
0

0
B

A
S

E

­T
X

E
T
H

E

R
N

E
T

7
1

8

1

9
1

0
2

1
2

2
2

3

2

3

4
2

5
2

6
2

7
2

8
2

9
2

0

M
U

L

3

T

I­S

1

P
E

E

3

D
G
IG

2

A

B

3

IT

E
T

H
E

R
S

N
W

E

T
I
T
C

H
IN

G

M

3

O
D

3

U

L

4

E

3

CONSOLE

CONSOLE

5
3

5
3

Chapter 1 Product Overview

10/100

BASE-TX

10/100

BASE-TX

1

7

1

7

1

7

6

3

7
3

8

3

9
3

0
4

1
4

2
4

3
4

4
4

5
4

6
4

7
4

8
4

6

3

7
3

8

3

9
3

0
4

1
4

2
4

3
4

4
4

5
4

6
4

7
4

8
4

68110

1-10

The Catalyst 4507R switch supports the Supervisor Engine II+,II+10GE, IV, V,
and V-10GE. The supervisor engine has two Gigabit Ethernet ports and a
nonblocking, full-duplex, switching fabric that provides connections between the
supervisor engine and the switching modules. The Gigabit Ethernet ports can be
configured with any combination of copper 1000BASE-T, shortwave SX, LX/LH,
and ZX interfaces, or CWDM and DWDM GBICs. For a description of GBICs,
refer to the Catalyst 4000 Series Module Installation Guide or the Catalyst 4500

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Series Supervisor Engines and Switching Modules Installation Note. Some
supervisor engines use SFP modules for Gigabit Ethernet connections, or X2
modules for 10-Gigabit Ethernet connections. Refer to the installation note for
your supervisor engine for more details on these modules.

Slot 1 is reserved for the supervisor engine only, which provides switching, local
and remote management, and switch-status monitoring. Slot 2 is reserved for a
redundant supervisor engine only. Slots 3 through 7 are available for switching
modules.

Table 1 - 3 describes the features of the Catalyst 4507R switch.

Table 1-3 Features of the Catalyst 4507R Switch

Feature Description

Ethernet speeds

• Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches, and

routers

Note Autonegotiation of link speed on each 10/100 port allows migration to

100BASE-T from a 10BASE-T installed base.

Switch Features

Standard equipment

Power supplies

78-14409-08

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for backbone

interconnection of high-performance switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

• Seven-slot modular chassis with one slot reserved for a supervisor engine,

one slot reserved for a redundant supervisor engine, and five slots for
switching modules

• Two power supply bays

• One hot-swappable fan assembly

• Can support a 1000 W, 1300 W, 1400 W, 2800 W, or 4200W AC-input power

supply or a 1400 W DC-input single or triple-input power supply

• Optional redundant power supply

Catalyst 4500 Series Switches Installation Guide

1

1-11

Switch Features

Table 1-3 Features of the Catalyst 4507R Switch (continued)

Feature Description

Supervisor engine
support

Switching module
support

• Supports the Supervisor Engine II, II+, II+10GE, III, IV, V, V-10GE

• Holds the ASIC-based forwarding engine (data path) and the management

processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note Packets are not forwarded while the module is removed; a system reboot

occurs when a supervisor engine is reinserted.

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet switching

module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular uplink

support (WS-X4232-RJ-XX)

–

4-port MT-RJ uplink module (WS-U4504-FX-MT) (optional)

Chapter 1 Product Overview

1-12

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module (WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module (WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ21)

• 48-port Cisco pre-standard Power over Ethernet (PoE)

10/100BASE-TX switching module (WS-X4148-RJ45V)

• 48-port 100BASE-X Fast Ethernet switching module (WS-X4248-FE-SFP)

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Table 1-3 Features of the Catalyst 4507R Switch (continued)

Feature Description

Switching module
support (continued)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module

(WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 6-port 1000BASE-X Gigabit Ethernet switching module (WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 12-port 1000BASE-T plus 2-port 1000BASE-X Gigabit Ethernet switching

module (WS-X4412-2GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4424-GB-RJ45)

Switch Features

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45 switching

module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit Ethernet

switching module (WS-X4548-GB-RJ45V)

• Access Gateway Module (WS-X4604-GWY)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

Catalyst 4500 Series Switches Installation Guide

78-14409-08

1-13

Switch Features

Catalyst 4510R Switch Features

The Catalyst 4510R switch (see Figure 1-4) is a ten-slot switch designed for
high-performance, high-density wiring closet applications.

Figure 1-4 Catalyst 4510R Switch (Front View)

Power supplies

Chapter 1 Product Overview

Supervisor engine

(slot 1)

Redundant

supervisor engine

(slot 2)

Switching modules

(slots 3 through 9)

Flex-Slot

(slot 10)

U
P
L

I
N

K

U
P

L
I
N

K

S
T

A
T

U
S

U
P
L

I
N

K

U
P

L
I
N

K

S
T

A
T

U
S

W

S

­X
4

4
1

2

­2

G
B

­T

X

S

T
A

T

U

S

1

2

3

4

W

S

­X
4

4
1

2

­2

G
B

W

S

­X
4

4
1

2

­2

G
B

W

S-X4448-GB

-R

STA

TUS

W

S

-X
4448-G

B-R

STATU

S

W

S

-X
4448-G

B-R

STATU

S

W

S

-X
4448-G

B-R

STATU

S

5

­T

X

S

T
A

T

U

S

­T

X

S

T
A

T

U

S

J45

J45

J45

J45

6

7

8

9

1

2

3

4

1

2

3

4

1

2

3

4

5

6

7

8

9

0
1

1

2

3

4

5

6

7

8

9

0
1

1

2

3

4

5

6

7

8

9

0
1

1

2

3

4

5

6

7

8

9

0
1

10

5

6

7

8

9

10

5

6

7

8

9

10

1
1

2
1

3

1

4
1

1

0

5

/
1

0
0

1

B

A

6

S
E

­T

1

X

E
T

H
E

R

N
E
T

7
1

8
1

9
1

0
2

1
2

2
2

3
2

1
1

2
1

3

1

4
1

1

0

5

/
1

0
0

1

B

A

6

S
E

­T

1

X

E
T

H
E

R

N
E
T

7
1

8
1

9
1

0
2

1
2

2
2

3

1
1

1
1

2

2
1

3

1

4
1

1

0

5

/
1

0
0

1

B

A

6

S
E

-T

1

X

E
T

H
E

R

N
E
T

7
1

8
1

9
1

0
2

1
2

2
2

3
2

2
1

3

1

4
1

1

0

5

/
1

0
0

1

B

A

6

S
E

­T

1

X

E
T

H
E

R

N
E
T

7
1

8
1

9
1

0
2

1
2

2
2

3
2

1

CONSOLE

10/100
BASE-TX

CONSOLE

10/100
BASE-TX

11

12

11

12

11

12

4
2

5
2

6
2

7
2

4
2

5
2

6
2

7
2

4
2

5
2

6
2

7
2

4
2

5
2

6
2

7
2

17

17

17

8
2

9
2

0

M
U

L

3

T

I

­S

1

P
E

E

3

D

G

2

I
G

3

A
B

I
T

E
T

H
E

R
N

E

S

T

W
I

T
C

H
I

3

N
G

3

M
O

D

4

U
L

E

3

5
3

6
3

7
3

8
3

9
3

0
4

1
4

2
4

3

4

4
4

5
4

6
4

7
4

8

8
2

9
2

0

M
U

L

3

T

I

­S

1

P
E

E

3

D

G

2

I
G

3

A
B

I
T

E
T

H
E

R
N

E

S

T

W
I

T
C

H
I

3

N
G

3

M
O

D

U
L

E

8
2

9
2

0

M
U

L

3

T

I

­S

1

P
E

E

3

D

G

2

I
G

3

A
B

I
T

E
T

H
E

R
N

E

S

T

W
I

T
C

H
I

3

N
G

3

M
O

D

U
L

E

8
2

9
2

0

M
U

L

3

T

I

-S

1

P
E

E

3

D

G

2

I
G

3

A
B

IT

E
T

H
E

R
N

E

S

T

W
I

T
C

H
I

3

N
G

3

M
O

D

U
L

E

2

4

4
3

5
3

6
3

7
3

8
3

9
3

0
4

1
4

2
4

3

4

4
4

5
4

6
4

7
4

8

4

4
3

5
3

6
3

7
3

8
3

9
3

0
4

1
4

2
4

3

4

4
4

5
4

6
4

7
4

8

4

4
3

5
3

6
3

7
3

8
3

9
3

0
4

1
4

2
4

3

4

4
4

5
4

6
4

7
4

8

4

94936

The Catalyst 4510R switch supports the Supervisor Engine V and V-10GE. The
supervisor engine has a nonblocking, full-duplex, switching fabric that provides
connections between the supervisor engine and the switching modules. The
Gigabit Ethernet ports can be configured with any combination of copper
1000BASE-T, shortwave SX, LX/LH, and ZX interfaces, or CWDM and DWDM
GBICs. For a description of GBICs, refer to the Catalyst 4500 Series Module

1-14

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Installation Guide or the Catalyst 4500 Series Supervisor Engines and Switching
Modules Installation Note. Some supervisor engines use SFP modules for Gigabit

Ethernet connections, or X2 modules for 10 Gigabit Ethernet connections. Refer
to the installation note for your supervisor engine for more details on these
modules.

Slot 1 is reserved for the supervisor engine only, which provides switching, local
and remote management, and switch-status monitoring. Slot 2 is reserved for a
redundant supervisor engine only. Slots 3 through 9 are available for switching
modules. When using a Supervisor Engine V, slot 10 is a flex-slot for use with the
2-port Gigabit Ethernet switching module (WS-X4302-GB) or the Access
Gateway Module (WS-X4604-GWY) only. When using a Supervisor Engine
V-10GE, any supported module may be used in slot 10.

Table 1 - 4 describes the features of the Catalyst 4510R switch.

Table 1-4 Features of the Catalyst 4510R Switch

Feature Description

Ethernet speeds

• Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches, and

routers

Note Autonegotiation of link speed on each 10/100 port allows migration to

100BASE-T from a 10BASE-T installed base.

Switch Features

Standard equipment

Power supplies

78-14409-08

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for backbone

interconnection of high-performance switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

• Ten-slot modular chassis with one slot reserved for a supervisor engine, one

slot reserved for a redundant supervisor engine, and eight slots for switching
modules

• Two power supply bays

• One hot-swappable fan assembly

• Can support a 1400 W, 2800 W, or 4200 W AC-input power supply or a

1400 W DC-input single or triple-input power supply

• Optional redundant power supply

Catalyst 4500 Series Switches Installation Guide

1, 2

1-15

Switch Features

Table 1-4 Features of the Catalyst 4510R Switch (continued)

Feature Description

Supervisor engine
support

Switching module
support

• Supports the Supervisor Engine V and V-10GE

• Holds the ASIC-based forwarding engine (data path) and the management

processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note Packets are not forwarded while the module is removed; a system reboot

occurs when a supervisor engine is reinserted.

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module (WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module (WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

Chapter 1 Product Overview

1-16

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ21)

• 48-port Cisco pre-standard Power over Ethernet (PoE)

10/100BASE-TX switching module (WS-X4148-RJ45V)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module

(WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48-port 100BASE-X Fast Ethernet switching module (WS-X4248-FE-SFP)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet switching

module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Table 1-4 Features of the Catalyst 4510R Switch (continued)

Feature Description

Switching module
support (continued)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular uplink

support (WS-X4232-RJ-XX)

–

4-port MT-RJ uplink module (WS-U4504-FX-MT) (optional)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 6-port 1000BASE-X Gigabit Ethernet switching module (WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 12-port 1000BASE-T plus 2-port 1000BASE-X Gigabit Ethernet switching

module (WS-X4412-2GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

Switch Features

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45 switching

module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000BASE-T Gigabit Ethernet switching module

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit Ethernet

switching module (WS-X4548-GB-RJ45V)

• Access Gateway Module (WS-X4604-GWY)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

2. The 1000 W AC and 1300 W AC power supplies for the Catalyst 4500 series will fit and function in a Catalyst 4510R;
however, power management may be required in high-density configurations.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

1-17

Supervisor Engines

Supervisor Engines

The following supervisor engines are available for the Catalyst 4500 series
switches:

• Supervisor Engine II (WS-X4013) (Figure 1-5)

• Supervisor Engine II-Plus (WS-X4013+) (Figure 1-6)

• Supervisor Engine II-Plus TS (WS-X4013+TS) (Figure 1-7)

• Supervisor Engine II-Plus 10GE (WS-X4013+10GE) (Figure 1-8)

• Supervisor Engine III (WS-X4014) (Figure 1-9)

• Supervisor Engine IV (WS-X4515) (Figure 1-10)

• Supervisor Engine V (WS-X4516) (Figure 1-11)

• Supervisor Engine V-10GE (WS-X4516-10GE) (Figure 1-12)

The Catalyst 4500 series supervisor engines have the following features:

Table 1-5 Supervisor Engine Features

Chapter 1 Product Overview

Feature Description

Data path and control Available on all network interfaces

Management functions Interface monitoring

Environmental status

SNMP and console/Telnet interface

MAC addresses supported 32,768 per system (Cisco IOS only)

VLANS Up to 4,096 VLANs with IEEE 802.1Q VLAN tagging on all ports and

VLAN Trunking Protocol (VTP)

Port aggregation PAgP

1

for 100-Mbps and 1000-Mbps EtherChannel

SNMP Full implementation, including entity-MIB, all relevant standard MIBs,

and all relevant Cisco MIBs

RMON The first four groups (Ethernet statistics, Alarms, Events, and History)

are on a per-port basis without an optional RMON processing module

SPAN

2

Supported, which allows you to redirect traffic from any port or VLAN
to a SPAN destination port

Performance management Information provided

Catalyst 4500 Series Switches Installation Guide

1-18

78-14409-08

Chapter 1 Product Overview

Supervisor Engines

Table 1-5 Supervisor Engine Features (continued)

Feature Description

Hot-swappable Supported. On non-redundant systems, packets are not forwarded while

the supervisor engine is removed, and a system reboot occurs when a
supervisor engine is reinserted.

Gigabit Ethernet (using a
GBIC or SFP)

10-Gigabit Ethernet
(WS-X4516-10GE and
WS-X4013+10GE)

Forwarding Layer 2, 3, and 4 forwarding (Cisco IOS only)

Supervisor Engine II 24-Gbps, 18 Mpps full-duplex Gigabit Ethernet switching engine

Supervisor Engine II-Plus 64 Gbps, 48 Mpps (with Catalyst 4506 and 4507R, or 28-Gbps, 21 Mpps

Supervisor
Engine II-Plus TS

Supervisor
Engine II-Plus 10GE

Supervisor Engine III 64 Gbps, 48 Mpps (with Catalyst 4506 and 4507R, or 28-Gbps, 21 Mpps

Supervisor Engine IV 64 Gbps, 48 Mpps (with Catalyst 4506 and 4507R, or 28-Gbps, 21 Mpps

Supervisor Engine V 96-Gbps, 72 Mpps (with Catalyst 4510R, 68 Gbps, 51 Mpps with

Supervisor Engine V-10GE 136-Gbps, 101 Mpps (with Catalyst 4510R, 68 Gbps, 51 Mpps with

1. PAgP = Port Aggregation Protocol

2. SPAN = switched port analyzer

Includes two (four on WS-X4516-10GE and WS-X4013+10GE) Gigabit
Ethernet (1000BASE-X) interfaces for backbone interconnection of
high-performance switches and routers

Includes two 10 Gigabit Ethernet interfaces for backbone
interconnection of high-performance switches and routers

with Catalyst 4503) full-duplex Gigabit Ethernet switching engine

64 Gbps, 48 Mpps (with Catalyst 4503 only) full-duplex Gigabit
Ethernet switching engine

108 Gbps, 81 Mpps full-duplex Gigabit Ethernet switching engine

with Catalyst 4503) full-duplex Gigabit Ethernet switching engine

with Catalyst 4503) full-duplex Gigabit Ethernet switching engine

Catalyst 4507R, 64 Gbps, 48 Mpps with Catalyst 4506, 28 Gbps, 21
Mpps with Catalyst 4503) full-duplex Gigabit Ethernet switching engine

Catalyst 4507R, 64 Gbps, 48 Mpps with Catalyst 4506, 28 Gbps, 21
Mpps with Catalyst 4503) full-duplex Gigabit Ethernet switching engine

78-14409-08

Catalyst 4500 Series Switches Installation Guide

1-19

Supervisor Engines

The Supervisor Engine IV and Supervisor Engine V support the Catalyst 4500
Series NetFlow Services Card (WS-F4531). The Supervisor Engine V-10GE
supports NetFlow services without a NetFlow Services Card.

To install the supervisor engine, refer to the procedure in the Catalyst 4500 Series
Module Installation Guide. The various supervisor engine models are shown in

Figure 1-5 to Figure 1-12.

Figure 1-5 Supervisor Engine II (WS-X4013)

Chapter 1 Product Overview

STATUS LED

U

P

L

I
N

K

STA

TU

S

1

Gigabit uplink

U

P

L

I
N

K

2

U

P
L

IN

K

S

E

N

A

B

L

E

D

RESET button

C

O

N
S

O

1
%

1

0

0
%

1
0

/
1

0

0
L
E

B

A

S

E

­T
X

R

E
S

E

T

ports

Switch load

indicators

Ethernet
management port

CONSOLE port

(RJ-45)

Figure 1-6 Supervisor Engine II-Plus (WS-X4013+)

STATUS LED

W

S

-X

4

0

1

4

U

PLIN

K

1

UP

LIN

K

S

U

P

E

R

V

IS

O

R

III E

N

G

IN

E

S

T

A

T

U

S

2

L

IN

K

A

C

TIVE

LIN

K

A

CTIV

Gigabit uplink ports

E

Switch load indicators

U

T

I

L
I

Z

A

T

I
O

N

1

%

1

0

0
%

RESET button

C
O

N

S

O
L

E

1

0
/

1

0
0

M

G

T

F

L
A

S

H

E
J

E

C
T

CompactFlash port

R

E

S
E

T

CONSOLE port

(RJ-45)

Management port

78478

78479

1-20

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Figure 1-7 Catalyst 4500 Series Supervisor Engine II-Plus TS (WS-X4013+TS)

RESET button

STATUS LED

PoE status

Figure 1-8 Supervisor Engine II-Plus 10GE (WS-X4013+10GE)

STATUS LED

Switch load

LED

indicators

CONSOLE port

Compact Flash port

Ethernet
management port

CONSOLE

port

Ethernet
management port

Supervisor Engines

113860

Compact

Flash

port

78-14409-08

RESET

button

Switch load

indicators

10 GE uplink

ports

120474

Gigabit SFP

ports

Catalyst 4500 Series Switches Installation Guide

1-21

Supervisor Engines

Figure 1-9 Supervisor Engine III (WS-X4014)

Chapter 1 Product Overview

STATUS LED

W

S

-X

4

0

1

4

U

PLINK

1

U

PLINK

S

U

P

E

R

V

IS

O

R

III E

N

G

IN

E

S

T

A

T

U

S

2

LIN

K

A

C

TIVE

LIN

K

A

CTIVE

Gigabit uplink ports

U

T

I

L
I

1

%

Switch load indicators

Z

A

T

I
O

N

1

0

0
%

RESET button

C
O

N

S

O
L

E

1

0
/

1

0
0

M

G

T

F

L
A

S

H

E
J

E

C
T

Compact Flash port

CONSOLE port

Management port

Figure 1-10 Supervisor Engine IV (WS-X4515)

F

L

A

S

H

E

C

T

RESET button

C

O

N

S

O

L
E

STATUS LED

W

S

-X

45

15 S

U

P

E

R

V

IS

O

R

E

N

G

IN

E

IV

U

P

L

I
N

K

1

S

TA

T

U

S

L

I
N

E

A

C

T

IV

E

L

IN

Gigabit uplink

U

P
L

I
N

K

2

E

A

C

T
I

V

E

A

C

T

IV

E

U

T

I

L

I
Z

A

T

I
O

N

1

%

E

J

1

0
0

%

ports

Switch load

indicators

CONSOLE

Compact

Flash

port

port

R

E

S
E

T

1

0
/

1
0

0

M

G

T

R

E
S

E

T

L

I
N

K

Ethernet
management port

68126

77509

1-22

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Figure 1-11 Supervisor Engine V (WS-X4516)

Supervisor Engines

F

L

A

S

H

E

C

T

RESET button

1

0
/

1
0

C

0

O

N

S

O

L
E

M

G

T

R

E
S

E

T

L

I
N

K

Ethernet
management port

STATUS LED

W

S-X45

15 SU

PE

R

VIS

O

R

E

N

G

IN

E IV

U

P

L

IN

K

1

ST

AT

U

S

L

I
N

E

A

C

T

I
V

E

L

I

Gigabit uplink

ports

U

P
L

IN

K

2

N
E

A

C

T
IV

E

A

C

T

I
V

E

U

T

I

L

I
Z

A

T

I
O

N

1

%

E

J

1

0
0

%

Switch load

indicators

CONSOLE

Compact

Flash

port

port

Figure 1-12 Supervisor Engine V-10GE (WS-X4516-10GE)

CONSOLE port

Ethernet

STATUS LED

management port

77509

Compact

Flash

port

78-14409-08

RESET

button

Switch load

indicators

120474

10 GE uplink

ports

Gigabit SFP

ports

For information about the connectors, LEDs, and switches located on the front
panel of the supervisor engine, see these sections:

• LEDs, page 1-24

• Gigabit Ethernet Uplink Ports, page 1-25

• 10/100BASE-T Port, page 1-26

Catalyst 4500 Series Switches Installation Guide

1-23

Chapter 1 Product Overview

Supervisor Engines

• CONSOLE Port, page 1-26

• RESET Button, page 1-26

• CompactFlash Port, page 1-27

LEDs

Table 1 - 6 describes the supervisor engine LEDs.

Table 1-6 Supervisor Engine LEDs

LED Color/State Description

STATUS Indicates the results of a series of self-tests:

Green All diagnostic tests passed.

Red A test failed.

Orange System boot or diagnostic test is in progress.

Off Module is disabled.

UTILIZATION Green 1–100% If the switch is operational, this display indicates the current

traffic load over the backplane (as an approximate percentage).

LINK Indicates the status of the 10/100BASE-T port,

10/100/1000BASE-T or uplink ports:

Green The link is operational.

Orange The link is disabled by user.

Flashing orange The power-on self-test indicates a faulty port.

Off No signal is detected or there is a link configuration failure.

ACTIVE Indicates whether the uplink port is active or not:

Green The port is active.

Off The port is not active.

ACTIVE The LED to the right of the uplink ports is only used in switches

with two supervisors. The LED lights on the active supervisor.

1-24

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Gigabit Ethernet Uplink Ports

The Gigabit Ethernet uplink ports operate in full-duplex mode only. GBICs have
SC connectors to interface with multimode fiber (MMF) and single-mode fiber
(SMF) cable. For more information about GBICs, refer to the Catalyst 4500
Series Module Installation Guide.

When two Supervisor Engine Vs are present in a Catalyst 4507R and Catalyst
4510R, all four uplinks are active on both Primary (active) and Secondary
(standby) supervisor engines by default, or two uplinks will be active in a
nonredundant configuration. This limits access to slot 10 on the Catalyst 4510R
to ports 3 and 4 only. You can only use the 2-port Gigabit Ethernet switching
module (WS-X4302-GB) or the Access Gateway Module (WS-X4604-GWY) in
slot 10 (flex-slot), when a Supervisor Engine V is used.

10-Gigabit Ethernet Uplink Ports

The 10-Gigabit Ethernet uplink ports operate in full-duplex mode only, and are
only on the WS-X4516-10GE and WS-X4013+10GE. These ports use the
hot-swappable 10GBASE X2 optical transceivers. The X2s have SC connectors to
interface with multimode fiber (MMF) and single-mode fiber (SMF) cable.

Supervisor Engines

78-14409-08

On a Catalyst 4510R with a Supervisor Engine V-10GE, the user has the option to
use either four Gigabit Ethernet uplinks using SFPs or two 10-Gigabit Ethernet
uplinks using X2s. The user also has the option of using the Gigabit Ethernet and
10-Gigabit Ethernet uplinks simultaneously. With this option, the tenth slot can
only support the WS-X4302-GB switching module. On a Catalyst 4507R, the user
can use the Gigabit Ethernet uplinks and 10-Gigabit Ethernet uplinks
simultaneously.

When two Supervisor Engine V-10GEs are present in a Catalyst 4510R or Catalyst
4507R switch, or two Supervisor Engine II-Plus 10GEs are present in a Catalyst
4507R, one X2 uplink is active on both the primary (active) and secondary
(standby) supervisor engines by default, or two uplinks will be active in a
nonredundant configuration.

Catalyst 4500 Series Switches Installation Guide

1-25

Supervisor Engines

SFP Ports

Gigabit Ethernet SFP ports operate in full-duplex mode only and are present on
the WS-X4013+TS, WS-X4516-10GE and WS-X4013+10GE supervisors, as
well as some switching modules. These ports use the 1000BASE-SX,
1000BASE-LX, Cisco Coarse Wave Division Multiplexing (CWDM ) SFPs,
1000BASE-T SFP, and 1000BASE-ZX SFP. SFP connectors vary with interface
type and may use multimode fiber (MMF), single-mode fiber (SMF) cable, or
copper Ethernet cables.

10/100BASE-T Port

The 10/100BASE-T port supports emergency image recovery. The
10/100BASE-T port supports image downloads from the ROMMON. You can use
this feature when the onboard Flash memory does not contain any IOS images,
usually after all images were accidentally deleted from onboard Flash.

Chapter 1 Product Overview

CONSOLE Port

Note EIA/TIA-232 was known as recommended standard RS-232 before its acceptance

RESET Button

Catalyst 4500 Series Switches Installation Guide

1-26

The CONSOLE port has an EIA/TIA-232 RJ-45 connector. The CONSOLE port
allows you to perform the following functions:

• Configure the switch from the CLI

• Monitor network statistics and errors

• Configure SNMP agent parameters

as a standard by the Electronic Industries Alliance (EIA) and Telecommunications
Industry Association (TIA).

The RESET button is used to restart the switch.

78-14409-08

Chapter 1 Product Overview

Note Use a paper clip or other small, pointed object to press the Reset button.

CompactFlash Port

The CompactFlash port accepts a Type 1 CompactFlash card. You can use it for
file transfer tasks such as loading a new software image. The CompactFlash card
is optional, and can be obtained from third-party suppliers.

For more information, refer to Using the Compact Flash on the Catalyst 4000
Family Supervisor Engine III and IV at the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/inst_nts/
ol_2788.htm

Fan Assembly

Fan Assembly

78-14409-08

Note For complete environmental specifications, including airflow requirements, see

Appendix A, “Specifications.”

The system fan assembly provides cooling air for the internal chassis components.
The fan assembly is a tray of fans that you can insert and remove from the chassis
while the system is on line. The Catalyst 4503 fan assembly has two fans, the
Catalyst 4506 fan assembly has four fans, the Catalyst 4507R fan assembly has
six fans, and the Catalyst 4510R fan assembly has eight fans. The fans draw in
fresh air from one side and exhaust air on the other side. Catalyst 4503 airflow is
shown in Figure 1-13. Catalyst 4506 airflow is shown in Figure 1-14.
Catalyst 4507R airflow is shown in Figure 1-15. Catalyst 4510R airflow is shown
in Figure 1-16.

Caution You must install module filler plates on unused switching module slots to ensure

proper airflow.

Catalyst 4500 Series Switches Installation Guide

1-27

Fan Assembly

Figure 1-13 Catalyst 4503 Airflow

W

S

­X

4

5

1
5

S

U

P

E

R

V

I
S

O

R

E

4

N

G

5

I
N

0

E

6

I

V

U
P

L

I
N

K

1

U

P

L
I

N

K

4503

S

T

A

T

U

2

S

L
I

N
E

A

C

T

I
V

E

L
IN

E

A

C

T
IV

E

A

C
T

IV

E

1

1

3

1

1

3

Fan assembly

Figure 1-14 Catalyst 4506 Airflow

Chapter 1 Product Overview

1
0

/1
0

C

0
O
N

S
O

L
E

M

G
T

U

T
I

L
I
Z

A

T

I
O

N

1

%

1

1

3

1

1

3

F
L

A

S

1

0
0
%

H

E

J

E

C

T

R

E

L
I

N
K

S

E

T

77981

1-28

W

S

­X

4

5
1

5

S

U

P
E

R
V

I
S

O

R

E

N
G

I
N

E

I
V

U

P

L
I

N

K

1

U

P

L
I

N
K

4

5

0

6

S

T

A

T
U

S

2

L

I
N

E

A

C

T
I

V

E

L
I

N

E

A

C
T

I

V
E

A

C
T

I

V

E

1

1
3

1

1
3

1

1
3

U

T

I

L
I

Z

A
T

I

O

1
%

1

1

3

1

1

3

1

1

3

Fan assembly

Catalyst 4500 Series Switches Installation Guide

1

0

/1
0

C

0
O
N

S
O

L

E

M

G
T

N

F
L

A

S

1

0
0

H

%

E
J

E

C

T

R

E

L

I
N

K

S

E

T

77511

78-14409-08

Chapter 1 Product Overview

Figure 1-15 Catalyst 4507R Airflow

U

P

L
I
N

K

U

P

L

I
N

K

S
T

A

T
U

S

U

P

L
I
N

K

U

P

L

I
N

K

S
T

A

T
U

S

W

S

­X

4

4
1

2

­2
G

B

­T

X

S

T
A

T

U

S

1

2

3

W

S

­X

4

W

S

­X

4

W

S

-X
4

S

W

S

-X
4

S

Fan assembly

4

4
1

2

­2
G

B

­T

X

S

T
A

T

U

4
1

2

­2
G

B

­T

X

S

T
A

T

U

448-G

B

-R
J4

5

T

A
TU

S

44

8-G

B

-R
J4

5

T

A
T

U

S

5

6

7

8

9

1
0

1

1

1

S

1

2

3

4

5

S

1

2

1

2

6

1

2

3

4

5

6

3

4

5

6

7

8

9

0
1

1

1

2

1

3
1

4
1

5
1

6

1

3

4

5

6

7

8

9

0
1

1

1

2

1

3
1

4
1

5
1

6

1

2

7

8

9

1
0

1

1

1

2

7

8

9

1
0

1

1

1

2

1
0/
1

0
0
B

A
S
E

-T
X

E

T
H
E

R
N
E

T

7
1

8
1

9

1

0
2

1

2

2
2

3

2

4
2

5

2

6
2

7
2

8
2

9
2

0

M

U
L

3

T

I­S

1

P
E

E

3

G

IG

2

A
B

3

IT

E
T

H
E

R
S
W

IT

C
H

I
N

G

M

O

1
0
/1

00
B

A
S
E

­T

X

E

T
H
E

R
N
E

T

7
1

8
1

9

1

0
2

1

2

D

2
2

3

2

4
2

5

2

6
2

7
2

8
2

9
2

0

M

U
L

3

T

I­S

1

P
E

E

3

G

IG

2

A
B

3

I
T
E

T

H
E

R
S
W

I
T

C
H

IN

G

M

O

D

Fan Assembly

CONSOLE

10/100
BASE-TX

CONSOLE

10/100
BASE-TX

1
7

1
7

1
7

D

N
E

T

3
3

U
L

4

E

3

5
3

6

3

7
3

8
3

9
3

0
4

1

4

2

4

3
4

4
4

5
4

6
4

7
4

8

D

N
E

T

3
3

U
L

4

E

3

5
3

4

6

3

7
3

8
3

9
3

0
4

1

4

2

4

3
4

4
4

5
4

6
4

7
4

8
4

68111

78-14409-08

Catalyst 4500 Series Switches Installation Guide

1-29

Fan Assembly

Figure 1-16 Catalyst 4510R Airflow

U

P

L
I

N
K

U

P

L
I

N

K

S

T

A

T

U
S

U

P

L
I

N
K

U

P

L
I

N

K

S

T

A

T

U
S

W

S

­X

4
4

1

2

­2
G

B

­T

X

S

T

A
T

U

S

1

2

3

W

S

­X

W

S

­X

W

S

-X

W

S

-X

W

S

-X

W

S

-X

Fan assembly

4

4
4

1

2

­2
G

B

­T

X

S

T

A
T

U

4
4

1

2

­2
G

B

­T

X

S

T

A
T

U

4
44

8-G

B

-R
J4

5

S

T

A
TU

S

4
44

8-G

B

-R
J4

5

S

T

A
T

U

S

44

48

-G
B

-R

J45

S

TA

T

U

S

4
44

8-G

B

-R

J45

S

T

A
TU

S

5

6

7

8

9

1

0

1

1

1

S

1

2

3

4

5

S

1

2

1

2

1

2

1

2

6

1

2

3

4

5

6

3

4

5

6

7

8

9

0

1

1
1

2
1

3
1

4

1

1
0

5
1

6

1

3

4

5

6

7

8

9

0

1

1
1

2
1

3
1

4

1

1
0

5
1

6

1

3

4

5

6

7

8

9

0

1

1
1

2
1

3
1

4

1

1
0

5
1

6

1

3

4

5

6

7

8

9

0

1

1
1

2
1

3
1

4

1

1
0

5
1

6

1

2

7

8

9

1

0

1

1

1

2

7

8

9

1

0

1

1

1

2

/1
0

0
B
A

S
E

­T

X
E
T
H

E
R

N
E
T

7

1

8
1

9
1

0
2

1
2

2
2

3
2

4
2

5

2

6
2

7

2

8

2

9

2

0

M

U
L

3

T

I-S

1

P

E

E

3

D

G

IG

2

A

B

3

IT

E
T
H

E

R

S

N

W

E

T

IT

C
H

IN

G
M

O

D

U
L

/1
0

0
B
A

S
E

-

T

X
E
T
H

E
R

N
E
T

7

1

8
1

9
1

0
2

1
2

2
2

/1
0

0
B
A

S
E

-

T

X
E
T
H

E
R

N
E
T

7

1

8
1

9
1

0
2

1
2

2
2

/1
0

0
B
A

S
E

-

T

X
E
T
H

E
R

N
E
T

7

1

8
1

9
1

0
2

1
2

2
2

1

E

3
2

4
2

5

2

6
2

7

2

8

2

9

2

0

M

U
L

3

T

I-S

1

P

E

E

3

D

G

IG

2

A

B

3

I
T
E

T
H

E

R

S

N

W

E

T

IT

C
H

IN

G
M

O

D

U
L

E

3
2

4
2

5

2

6
2

7

2

8

2

9

2

0

M

U
L

3

T

I-S

1

P

E

E

3

D

G

IG

2

A

B

3

IT
E

T
H

E

R

S

N

W

E

T

IT

C
H

IN

G
M

O

D

U
L

E

3
2

4
2

5

2

6
2

7

2

8

2

9

2

0

M

U
L

3

T

I

-S

1

P

E

E

3

D

G

I

2

G
A

B

3

I
T
E

T
H

E

R

S

N

W

E

T

IT

C
H

I
N

G
M

O

D

U
L

E

2

Chapter 1 Product Overview

CONSOLE

10/100
BASE-TX

CONSOLE

10/100
BASE-TX

1

7

1

7

1

7

3
3

4
3

5
3

6

3

7
3

8
3

9
3

0
4

1

4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

3
3

4
3

5
3

6

3

7
3

8
3

9
3

0
4

1

4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

3
3

4
3

5
3

6

3

7
3

8
3

9
3

0
4

1

4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

3
3

4
3

5
3

6

3

7
3

8
3

9
3

0
4

1

4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

94942

1-30

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Power Supplies

Note For detailed specifications on all Catalyst 4500 series power supplies, refer to the

“Catalyst 4500 Series Power Supplies” section on page A-7.

A Catalyst 4500 series switch can use a 1000 W, 1300 W, 1400 W, 2800 W (see

Figure 1-17), or 4200 W (with two inputs, see Figure 1-18) AC-input power

supply , a 1400 W DC-input power supply with integrated PEM (see Figure 1-19),
or a 1400 W DC multiple-input power supply (see Figure 1-20).

The AC-input power supply has a power cord that connects each power supply to
the site power source. The DC-input power supply is equipped with a input
terminal block that is directly connected to the site power wiring.

Each power supply has an ON/OFF switch that supplies power to the switch. For
information on removing and replacing power supplies, see the “Removing and

Replacing the Power Supply” section on page 4-2.

Figure 1-17 AC-Input Power Supply (All Except 4200 W)

Power Supplies

78-14409-08

Captive screws

Power switch

AC receptacle

79136

Catalyst 4500 Series Switches Installation Guide

1-31

Power Supplies

Chapter 1 Product Overview

Figure 1-18 4200 W Dual Input AC Power Supply

Captive screws

100-120V-

12A

50/60Hz

O

U

T

P

{U

100-120V-

50/60Hz

T

F

A

I

:

F

A

N

O

K

IN

PUT

1

O

K

INP

UT 2

O

K

12A

P

OE EN

ABL

ED

4

6

0

0

A

C

V

AC input 1 receptacle

AC input 1 on switch

AC input 2 on switch

AC input 2 receptacle

Note The 4200 W AC power supply should not be used in mixed-voltage

configurations. All the inputs in a chassis must be the same voltage (110 or
220 V).

130106

1-32

Figure 1-19 1400 W DC-Input Power Supply

Captive screws

68112

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Figure 1-20 1400 W DC Triple-Input Power Supply

Note The 1400 W DC triple-input power supply is not compatible with other power

supplies used on these products, and can only be used with similar supplies. In
redundant mode, the two power supplies must have identical inputs.

Power Supplies

Captive screws

120562

78-14409-08

The 1400 W DC input power supply (either single or triple-input) may be used
with the Catalyst 4500 Series AC Power Shelf. Documentation for the Catalyst
4500 Series AC Power Shelf is at http://www.cisco.com/univercd/cc/td/doc

/product/lan/cat4000/inst_nts/78_15068.htm

Catalyst 4500 series switches support one power supply and an optional
redundant power supply. Each AC power supply has an individual power cord and
status LEDs. Systems with redundant power supplies will share the load, with
each unit providing approximately one-half of the total load. For information
about configuring your switch for redundant and combined modes, refer to the
software configuration guide for your switch.

The Catalyst 4510R requires at least 1400 W of input power. (The 1000 W AC and
1300 W AC power supplies for the Catalyst 4500 series will fit and function in a
Catalyst 4510R; however, power management may be required in high density
configurations.) Cisco recommends the use of the 1400 W DC, 1400 W AC, and
2800 W AC power supplies for the Catalyst 4510R.

When power is removed from one power supply on a Catalyst 4500 series switch
that has two power supplies, the redundant power feature causes the second power
supply to produce full power.

Catalyst 4500 Series Switches Installation Guide

1-33

Chapter 1 Product Overview

Power Supplies

To replace a power supply, see the “Removing and Replacing the Power Supply”

section on page 4-2.

Power Supply LEDs

Table 1 - 7 describes the power supply LEDs.

Table 1-7 Power Supply LEDs

LED Color/State Description

INPUT OK Indicates whether the input voltage is within the required range:

Green Input voltage is within the required range.

Flashing Input voltage is present, but is below required range.

Off Input voltage is below the required range or the power supply is

off.

OUTPUT FAIL

Red Output voltage is not within the specified range.

Off Output voltage is within the specified range.

FAN OK Indicates the status of the power supply fans:

Green The fans are operational.

Off The fans are not operational.

In-line PWR (for
1400 W DC single
input power supplies)

Green –48 V passthru output voltage is enabled and is greater than

–39 V and less than –60 V.

Off Indicates any of the following:

1-34

• Passthrough breakers are not enabled.

• DC input is less than –40.5 V.

• One or more –48 V outputs is less than –39 V.

Amber Passthru breakers are enabled and input voltage exceeds –60 V.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Power Supply Fan

Each power supply has a built-in fan. Air enters the front of the power supply
(power-input end) and exits through the back. An air dam keeps the airflow
separate from the rest of the chassis, which is cooled by the system fan assembly.

Load-Sharing Feature

When you install and turn on a second power supply on a Catalyst 4500 series
switch, it provides approximately one-half of the required power to the system. If
one power supply fails, the other power supply immediately assumes full power
to maintain uninterrupted system operation.

Note Load sharing works only when both power supplies in the chassis are the same

type.

When you install a redundant power supply, load sharing and fault tolerance are
enabled automatically; no additional software configuration is required.

Power Supplies

Environmental Monitoring Feature

With the environmental monitoring and reporting feature, you can keep your
system running by resolving adverse environmental conditions before loss of
operation.

The power supply monitors its own internal temperature and voltages. In the event
of excessive internal temperature, the power supply shuts down to prevent
damage. When the power supply returns to a safe operating temperature, it
restarts. If the power supply output voltage is not within the specified range, the
LED labeled OUTPUT FAIL will light. An instance of substantial output
overvoltage can shut down the power supply.

An instance of substantial input overvoltage (greater than –75 V DC continuous)
can damage the power supply input circuitry and can cause it to shut down
permanently.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

1-35

Chapter 1 Product Overview

Power Supplies

For a 1400 W DC power supply, the main power switch has an input range of
–40.5 to –72 V DC, while the –48 V PoE operates over a range of –40.5 to
–56 V DC. The PoE either fails to start or shuts down if exposed to greater than
–56 V DC input. PoE recovers after you recycle input power within the proper
voltage range. If the PoE shuts down due to input overvoltage (greater than –56
V DC), the main converter section does not shut down.

The supervisor engine monitors the status of each power supply and provides a
status report through the switch software. For more details on how the supervisor
engine monitors the power supplies, refer to the “Environmental Monitoring and
Power Management” chapter of the Catalyst 4500 Series Switch Cisco IOS
Software Configuration Guide.

1400 W DC Triple-input Power Supply Operational Modes

The C4500 1400 W DC Triple Input SP Power Supply (data only) allows added
redundancy by providing terminals for two DC inputs rated at 15 A and one rated
at 12.5 A per power supply.

This power supply has five operational modes depending on the inputs receiving
power. When all three inputs are active, at input voltages greater than –44.0 V DC,
the power supply delivers 1400 W maximum total output. Tabl e 1 -8 provides
output information for these modes, given a single supply.

1-36

Table 1-8 Input Modes

Input
Mode

Input
Number Input Configuration

1 1 1 x 12.5 A 386 W @ –40.5 V DC

2 2 OR 3 1 x 15 A 466 W @ –40.5 V DC

3 1, 2 OR 3 1 x 12.5 A and

1 x 15 A

4 2, 3 2 x 15A 914 W @ –40.5 V DC

5 1, 2, 3 1 x 12.5A and

2 x 15 A

Catalyst 4500 Series Switches Installation Guide

Maximum Total Output
Power

412 W @ –44.0 V DC

495 W @ –44.0 V DC

845 W @ –40.5 V DC
908 W @ –44.0 V DC

990 W @ –44.0 V DC

1294 W @ –40.5 V DC
1400 W @ –44.0 V DC

78-14409-08

Chapter 1 Product Overview

The maximum total input current is 42.5A and the maximum ambient temperature
is 55 C. To determine total maximum input power to a supply, add up the active
individual module input power ratings. Table 1 - 9 provides output information for
these modes, given two supplies working in combined mode. Tabl e 1 -10 provides
output information for these modes, given two supplies working in redundant
mode.

Table 1-9 Combined Mode Power Supply Configuration

Power Supplies

(2450 W Max Output Power)

Input
Number Maximum Input Current

Maximum Input
Power @ –44 V DC

1 12.5 A @ –44 V DC 550 W

2 15 A @ –44 V DC 660 W

3 15 A @ –44 V DC 660 W

Table 1-10 Dual Redundant Mode Power Supply Configuration

(1400 W Max Output Power)

Input
Number

16.25 A @

Approximate
Input Current

Approximate Input
Power @ –40.5 V DC

Approximate Input
Power @ –44 V DC

253 W 275 W

–40.5 / –44 V DC

2 7.5 A @ –40.5 /

304 W 330 W

–44 V DC

3 7.5 A @ –40.5 /

304 W 330 W

–44 V DC

Note In a redundant configuration with all inputs supplied, there must be a 100 W

minimum system load or the OUTPUT FAIL LED shows a false failure.

78-14409-08

The C4500 1400 W DC Triple Input SP Power Supply requires a minimum draw
from the system that it is installed in. Tab le 1 - 1 1 shows

Catalyst 4500 Series Switches Installation Guide

1-37

Chapter 1 Product Overview

Power Supplies

Table 1-11 Minimum Load Table

PSU1 PSU2

12V
Minimum

Input 1 Input 2 Input 3 Input 1 Input 2 Input 3

Load

Single Operation

Mode 1 ON OFF OFF – – – 1.33A 0.6A

Mode 2 OFF ON OFF – – – 1.33A 0.6A

OFF OFF ON – – – 1.33A 0.6A

Mode 3ONONOFF– – – 2.66A0.6A

ON OFF ON – – – 2.66A 0.6A

Mode 4 OFF ON ON – – – 2.66A 0.6A

Mode 5ONONON– – – 4A 0.6A

3.3V
Minimum
Load

1-38

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Power Supplies

Table 1-11 Minimum Load Table (continued)

PSU1 PSU2

12V
Minimum

Input 1 Input 2 Input 3 Input 1 Input 2 Input 3

Load

Dual Redundant Operation

Mode 1ONOFFOFFONOFFOFF2.66A1.2A

Mode 2 OFF ON OFF OFF ON OFF 2.66A 1.2A

OFF OFF ON OFF OFF ON 2.66A 1.2A

Mode 3ONONOFFONONOFF5.32A1.2A

ON OFF ON ON OFF ON 5.32A 1.2A

Mode 4 OFF ON ON OFF ON ON 5.32A 1.2A

Mode 5ONONONONONON8A 1.2A

3.3V
Minimum
Load

78-14409-08

Catalyst 4500 Series Switches Installation Guide

1-39

System Architecture

System Architecture

This section describes the interaction between the various system components of
Catalyst 4500 series switches. A Catalyst 4503 only is shown in the examples.

Power Flow

Figure 1-21 shows power ingress and flow through the system.

Figure 1-21 Power Flow

Ingress to PS Ingress to PS

PS1 PS2

Fan

tray

Chapter 1 Product Overview

1-40

Backplane

12 V

3.3 V

48 V

Power enters the switch through the power supplies. Several types of power
supplies are available, depending on the power needs for your system and the
power type available on your site. All power supplies provide a 3.3 V circuit
(shown as a dash-dot line) to the components on the backplane and a 12 V circuit
(shown as a solid line) that is carried over the backplane to the fans, supervisor
engine, and switching modules. Power supplies that support PoE (1300 W AC,

Catalyst 4500 Series Switches Installation Guide

Supervisor engine

Switching module

Switching module

IP

78-14409-08

120919

Chapter 1 Product Overview

2800 W AC, 4200 W AC or 1400 W DC) also provide a –48 V circuit (shown as
a dashed line) to PoE-enabled switching modules, which is then available to the
powered device connected to the switching module.

Note The Supervisor Engine II-Plus TS has internal DC-to-DC converters that use the

12 V circuit to provide PoE to powered devices connected to the Supervisor
engine only. If your system has a Supervisor Engine II-Plus TS in slot 1, you still
need a PoE-enabled power supply to provide PoE to the other slots.

All Catalyst 4500 series switches support dual power supplies, configurable as
combined mode or redundant mode. In combined mode, the switch has available
the combined rated wattage of both power supplies, less some expected efficiency
loss. In redundant mode, one power supply provides power to the system and the
other supply is on standby should there be a failure in either the power supply or
the input voltage source it is connected to.

Power over Ethernet

System Architecture

78-14409-08

The Cisco Catalyst 4500 Series switches support the Cisco pre-standard and

802.3af standard for PoE on 10/100 or 10/100/1000 ports, enabling customers to
support telephones, wireless base stations, video cameras, and other appliances.
PoE makes it possible to place devices in unique locations without having to
provide new outlets and costly electrical circuits. PoE also enables businesses to
isolate critical devices on a single power system so that the entire system can be
supported by uninterruptable power supply (UPS) backup.

All new Cisco Catalyst PoE line cards can support 15.4 W of power per port
simultaneously. Not only do the cards support the IEEE standard, including the
optional power classifications, but the Cisco pre-standard power implementation
is also supported to help ensure backward compatibility with existing Cisco
powered devices. The cards are compatible with any chassis and supervisor
engine. Most importantly, the Catalyst 4500 series switch has the power supplies
and accessories to support 15.4 W per port on every port simultaneously in any
fully loaded chassis. (This requires an external power shelf or a 4200 W dual-input
power supply.)

Catalyst 4500 Series Switches Installation Guide

1-41

System Architecture

PoE Over-subscription

Chapter 1 Product Overview

With the advent of powered devices requiring as much as 15.4 W and the different
combinations of power supplies and chassis port densities, it becomes quite
possible to over-subscribe the PoE capacity of the power supplies. This temporary
over-subscription typically occurs when a power supply configured in combined
mode fails or when the user has not kept track of the powered devices and plugs
in one too many. The best practice is to design a PoE system in which all devices
receive the power needed at all times. When a power supply is
over-subscribed—more power is being drawn from it than it can supply—the
power supply shuts down. There are several ways to predictably manage a
temporary PoE over-subscription:

1. Configure unused ports to never receive PoE. This prevents a user from

inadvertently plugging a powered device into a port and causing problems for
other powered devices.

2. Configure ports to be in static mode. This is for ports that have highest

priority, such as phones for executives or wireless access points. If ports need
to be disabled because of a power shortage, auto ports are disabled before
static ports.

PoE Line Cards

1-42

3. Configure the maximum wattage on ports to be less than the default, based on

the maximum power consumption of the powered device. This disallows
devices demanding unexpected amounts of power and also stretches the finite
resources of the power supplies. For example, the default port wattage is

15.4 W. By configuring a maximum of 7 W, twice as many PoE powered
devices can be supported with the same power supply.

The Cisco Catalyst 4500 series offers line cards, power supplies, and accessories
required to deploy and operate a standards-based PoE internetwork. PoE provides
–48 V DC power over standard Category 5 unshielded twisted-pair (UTP) cable
up to 100 meters when an IEEE 802.3af-compliant or Cisco pre-standard powered
device is attached to the PoE line card port. Instead of requiring wall power,
attached devices such as IP phones, wireless base stations, video cameras, and
other IEEE-compliant appliances can use power provided by the PoE line cards.
This capability gives network administrators centralized control over power and
eliminates the need to install outlets in ceilings and other out-of-the-way places
where a powered device may be installed.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Although references to “PoE,” “inline-power,” and “voice” power supplies and
line cards are synonymous, there are only two versions: Cisco prestandard and
IEEE 802.3af compliant. Every Cisco Catalyst 4500 series chassis and PoE power
supply supports the IEEE 802.3af standard and the Cisco prestandard power
implementation ensuring backward compatibility with existing Cisco powered
devices. All IEEE 802.3af-compliant line cards can distinguish an IEEE or Cisco
prestandard powered device from an unpowered network interface card (NIC),
ensuring that power is applied only when an appropriate device is connected.

All PoE line cards can distinguish an IEEE or Cisco prestandard powered device
from an unpowered network interface card (NIC) to ensure power is applied only
when an appropriate device is connected. With a Cisco PoE network,
administrators can depend on a robust network that is safe to deploy and simple
to maintain.

Deploying PoE on the Cisco Catalyst 4500 Series

When the switch is properly configured, implementing PoE is easy when it is used
with a Cisco powered device that supports Cisco Discovery Protocol. All PoE line
cards automatically detect an attached powered device the moment it is installed.
Also, the switch returns unused port power to the system power budget for use by
other devices because it supports the IEEE802.3af optional power classifications.

System Architecture

78-14409-08

The Cisco Catalyst 4500 series offers internal power supplies and external power
devices for multiple deployment scenarios. These scenarios include small and
large deployments in AC or DC environments for data-only configurations, and
scalability of up to 15.4 W per port for PoE configurations.

The switches share a common power supply form factor. Each Cisco Catalyst
4500 Series chassis is designed for 1 + 1 power protection while meeting the
needs of PoE demands. In addition to power resiliency, the Cisco Catalyst 4500
Series includes 1 + 1 supervisor-engine redundancy (Cisco Catalyst 4507R and
Catalyst 4510R only) and software-based fault tolerance. Integrated resiliency in
both hardware and software minimizes network downtime, helping ensure
workforce productivity, portability, and customer success.

All available Cisco Catalyst 4500 Series power supplies can be used for data-only
deployments, which typically require just a few hundred watts. For deployments
that dictate support for PoE power, Cisco offers several options.

The Cisco Catalyst 4500 Series offers several internal supplies: 1000 W AC (data
only), 1400 W AC (data only), 1300 W (data and PoE), 1400 W DC (data and
PoE), 2800 W (data and PoE), and 4200 W AC (data and PoE). When more than

Catalyst 4500 Series Switches Installation Guide

1-43

System Architecture

4200 W of redundant data and PoE are required for a Cisco Catalyst 4500 Series
chassis in an AC-powered environment, Cisco offers an external AC power shelf
that houses two 2500 WAC power supplies. When two power shelves are
combined, they can produce 7500 W—the remaining 2500 W supply can be used
for N + 1 protection.

The Cisco Catalyst 4500 Series has two DC power options; one is optimized for
data-only deployments in service provider central offices (part number
PWR-C45-1400DC), and the other is used for high-power PoE deployments (part
number PWR-C45-1400DC-P).

Cisco Catalyst 4500 Series External AC Power Shelf and
1400 W DC Power Supply with Integrated Power Entry Module

The external AC power shelf must be used in conjunction with the 1400 W DC
power supply. In addition to providing power for the chassis, fans, and non-PoE
line cards, the 1400 W DC power supply contains a power entry module (PEM).
The PEM is used to pass additional power to the chassis backplane, power
demanded by the PoE line cards. The chassis power trace used for PoE is
independent from the one used by the supervisor engine(s), fan tray, and
backplane components. The 1400 W DC power supply can accept up to
7500 W DC for data and PoE applications. Up to 1400 W can be dedicated for
data (supervisor engine, fan tray, etc.), while the remaining power is passed
through via the PEM and is used for PoE.

Chapter 1 Product Overview

When only one external AC power shelf is used (with two 2500 W AC power
supplies), it provides the 1400 W DC power supply with 5000 W of DC power in
total. When two AC power shelves are strapped together, the switch can provide
up to 7500 W of DC power (3 + 1 redundant).

Cisco Catalyst 4500 Series Service Provider DC Power Supply

The triple-input 1400 W DC power supply is optimized for service provider or
central-office deployments. By providing multiple inputs, the service provider DC
power supply enables central-office technicians to customize the output power to
meet their application needs. Many central-office deployments require only a
fraction of the 1400 W available in the service provider power supply. Low current
inputs mean technicians can connect the supply to smaller fuses and breakers. The
service provider power supply makes it possible to deploy a Cisco Catalyst 4503

Catalyst 4500 Series Switches Installation Guide

1-44

78-14409-08

Chapter 1 Product Overview

with a single 15A circuit. Likewise, it is possible to deploy a fully populated Cisco
Catalyst 4510R with two 20A and one 15A circuits rather than a single 60A
connection, which often requires rack rewiring.

Management Flow

Figure 1-22 shows management and status information flow through the system.

Figure 1-22 Management Flow

PS1 PS2

Fan
tray

System Architecture

Supervisor engine

Backplane

78-14409-08

Switching module

Switching module

Terminal

120920

Each system component has an EEPROM that identifies it to the supervisor
engine over a serial connection on the backplane, which also passes along
information like temperature, fan speed, power draw per slot and port, and port
activity. LED status information is also sent to the supervisor engine, which
makes it available to an administrator through a terminal connection or
management software.

All Catalyst 4500 series switches support:

• Hardware-based multicast-Protocol Independent Multicast (PIM).

• Internet Group Management Protocol (IGMP).

Catalyst 4500 Series Switches Installation Guide

1-45

System Architecture

• Cisco Group Management Protocol support standards-based and Cisco

technology-enhanced efficient multimedia networking.

• Simple Network Management Protocol (SNMP).

• CiscoWorks, which can manage critical network characteristics such as

availability, responsiveness, resilience, and security.

• Cisco NetFlow Services. The Cisco NetFlow Services Card for the Supervisor

Engine IV and V support statistics capture in hardware for flow-based and
VLAN-based statistics monitoring. This data can be exported, collected, and
analyzed for virus detection and mitigation, network-traffic accounting,
usage-based network billing, network planning, network monitoring, and
data-mining capabilities. Cisco NetFlow Services is integral to the Supervisor
Engine V-10GE.

Switching Traffic Flow

Figure 1-23 shows switching traffic flow through the system.

Chapter 1 Product Overview

1-46

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 1 Product Overview

Figure 1-23 Switching Traffic Flow

System Architecture

MUX

6 Gbps up / 6 Gbps down

1000BASE-T 8:1
(oversubscribed)

6 Gbps up / 6 Gbps down

1000BASE-T 1:1

MUX

24 Gbps

Clock

2 Gigabit Ethernet

uplinks

(Supervisor II, III, IV, V)

Frames flow into the switch through interfaces on the switching modules. Each
switching module connects to a mux/buffer on the backplane that supports a
connection of up to 6 Gbps up (Tx) to the supervisor engine and 6 Gbps from (Rx)
the supervisor engine. When a frame reaches the supervisor engine, it is examined
and either sent out of an interface in one of the other slots, or out of the uplink on
the supervisor engine.

120921

Over-subscription

78-14409-08

Switching modules that have 24 or 48 Gigabit Ethernet (1000BASE-T) ports
over-subscribe on a Catalyst 4500 switch by grouping the ports with an additional
mux/buffer on the switching module, which creates a single, nonblocking,
full-duplex Gigabit Ethernet connection to the internal switch fabric. For each
group of ports, frames received are buffered and sent to the common Gigabit

Catalyst 4500 Series Switches Installation Guide

1-47

System Architecture

Supervisor Redundancy

Chapter 1 Product Overview

Ethernet link to the internal switch fabric. If the amount of data received for a port
begins to exceed buffer capacity, flow control sends pause frames to the remote
port to temporarily stop traffic and prevent frame loss.

Each port in the group shares the bandwidth of a Gigabit Ethernet link. However,
each port operates independently so that flow control, or configuration of one
port, does not block or degrade the performance of another port in that group.
Switching modules that have up to six 1000BASE-T ports do not use
over-subscription.

The amount of over-subscription can be controlled by varying the number of ports
used at 1000 Mbps. All ports can use Cisco Gigabit EtherChannel technology or
IEEE 802.3ad for high-speed interconnection applications. All over-subscribed
ports use the standard IEEE 802.1x flow control (PAUSE frame) mechanism to
control Gigabit Ethernet host traffic.

The Cisco Catalyst 4507R and Catalyst 4510R switches support 1+1
supervisor-engine redundancy for integrated resiliency. Redundant supervisor
engines help minimize network downtime. With the support of stateful switchover
(SSO), the secondary supervisor engine serves as a backup to immediately take
over after a primary supervisor failure. During the switchover, Layer 2 links are
maintained transparently without the need to renegotiate sessions. As a result,
business-critical applications such as Voice-over-IP (VoIP) calls are not dropped.
The Nonstop Forwarding (NSF) Aware feature in Cisco IOS software is also
supported, providing the ability to interface with NSF-capable devices and to
continue forwarding packets as routing information is updated upon a
supervisor-engine switchover.

1-48

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Warning

Warning

Warning

CHAPTER

2

Preparing for Installation

This unit is intended for installation in restricted access areas. A restricted
access area can be accessed only through the use of a special tool, lock and
key, or other means of security.

Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.

This equipment must be grounded. Never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor.
Contact the appropriate electrical inspection authority or an electrician if you
are uncertain that suitable grounding is available.

Statement 1030

Statement 1017

Statement 1024

78-14409-08

Warning

Class 1 laser product.

Statement 1008

Catalyst 4500 Series Switches Installation Guide

2-1

Electrostatic Discharge

Chapter 2 Preparing for Installation

If you will be using your switch as a PoE source, the following warning applies:

Warning

Voltages that present a shock hazard can exist on inline power circuits if
interconnections are made by using uninsulated exposed metal contacts,
conductors, or terminals. Avoid using such interconnection methods unless the
exposed metal parts are in a restricted access location and users and service
people who are authorized to access the location are made aware of the hazard.
A restricted access area can be accessed only through the use of a special tool,
lock and key, or other means of security.

This chapter describes how to prepare your site for the installation of the switch.
The information is presented in these sections:

• Electrostatic Discharge, page 2-2

• Site Power Requirements and Heat Dissipation, page 2-4

• Power Connection Guidelines for AC-Powered Systems, page 2-5

• Site-Planning Checklist, page 2-16

Note See the Site-Planning Checklist at the end of this chapter to help ensure that you

complete all site-planning activities before you install the switch.

Electrostatic Discharge

Statement 1072

2-2

Electrostatic discharge is common on Category 5E and Category 6 cabling
systems.

Category 5E and Category 6 cables have higher capacitance than Category 5
cables. As a result, Category 5E and Category 6 cables can store higher voltages
than Category 5 cables and are more prone to damaging networking equipment if
a differential discharge event occur.

Unshielded twisted-pair cables can store high voltages. When these charged
cables are connected to networking equipment, energy is discharged into the
networking equipment; this is known as electrostatic discharge (ESD).
Networking equipment is commonly designed and tested to withstand common
mode ESD events of up to 2000 V. The design for the common mode event is
based on the expectation that the discharge is delivered to all pins of a port at once.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 2 Preparing for Installation

Sometimes, voltage is discharged to some of the pins of the connector and not
others, or to some pins on the connector before others. This is known as a
differential discharge event, which can damage the networking equipment being
connected.

You can take the following measures to prevent ESD cable damage:

• Ground the cable before connecting the networking equipment. You can

create a grounding cable using an RJ-45 patch cable by doing the following:

–

–

–

• Briefly connect all cables to the grounded cable before connecting to

networking equipment.

• Leave cables from the networking equipment in the distribution closet

connected to ports at user desktops. After you make connections on either
side of the cable to networking equipment, the cable will not build up charge.

Electrostatic Discharge

Bare the wires on one end

Connect the wires to a suitable and safe earth ground

Connect the RJ-45 cable to a female RJ-45 connector

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or
components are improperly handled, results in complete or intermittent failures.
Port adapters and processor modules consist of printed circuit boards that are
fixed in metal carriers. Electromagnetic interference (EMI) shielding and
connectors are integral components of the carrier. Although the metal carrier
helps to protect the board from ESD, use a preventive antistatic strap during
handling.

Following are guidelines for preventing ESD damage:

• Always use an ESD wrist or ankle strap and ensure that it makes good skin

contact.

• Connect the equipment end of the strap to an unfinished chassis surface.

• When installing a component, use any available ejector levers or captive

installation screws toproperly seat the bus connectors in the backplane or
midplane. These devices prevent accidentalremoval, provide proper
grounding for the system, and help to ensure that bus connectors areproperly
seated.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

2-3

Site Power Requirements and Heat Dissipation

• When removing a component, use any available ejector levers or captive

installation screws to release the bus connectors from the backplane or
midplane.

• Handle carriers by available handles or edges only; avoid touching the printed

circuit boards or connectors.

• Place a removed component board-side-up on an antistatic surface or in a

static shielding container. If you plan to return the component to the factory,
immediately place it in a static shielding container.

• Avoid contact between the printed circuit boards and clothing. The wrist strap

only protects components from ESD voltages on the body; ESD voltages on
clothing can still cause damage.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The

measurement should be between 1 and 10 megohm (Mohm).

Chapter 2 Preparing for Installation

Site Power Requirements and Heat Dissipation

This section provides module power requirements and heat dissipation
specifications for the Catalyst 4500 series switches. You should verify site power
before you install the switch.

For more information about power management and planning, refer to the
“Environmental Monitoring and Power Management” chapter in the Catalyst
4500 Series Switch Cisco IOS Software Configuration Guide version appropriate
for your software.

Knowing the power requirements is useful for planning the power distribution
system needed to support the switches. You should consider the heat dissipation
specifications when estimating the air-conditioning requirements for an
installation. For all Catalyst 4500 series switches, supervisor engines, and
switching modules in AC or DC environments see the Catalyst 4500 Series
Module Installation Guide at:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat4000/hw_doc/mod_inst
/0aspecs.htm#wp1012188.

Catalyst 4500 Series Switches Installation Guide

2-4

78-14409-08

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Power Connection Guidelines for AC-Powered
Systems

This section provides guidelines for connecting the Catalyst 4500 series switch
AC power supplies to the site power source. Basic guidelines include the
following:

• Make sure each chassis power supply has its own dedicated branch circuit.

• Size the circuits according to local and national codes.

• If you are using a 200/240 VAC power source in North America, use a

two-pole circuit breaker to protect the circuit.

• Place the source AC outlet within 6 feet (1.8 meters) of the system and make

sure it is easily accessible.

• Make sure the AC power receptacles used to plug in the chassis are the

grounding type. The grounding conductors that connect to the receptacles
should connect to protective earth ground at the service equipment.

Four types of AC-input power supplies are available:

• 1000 W—Tab l e 2-1 lists the AC-input power cord options, specifications,

Cisco part numbers, and shows the different styles of 1000 W AC-input
power cord wall plugs that are available for North America and international
locations as well as the appliance coupler that is attached to the power supply
end of the power cord.

78-14409-08

• 1300 W—Tab l e 2-1 lists the AC-input power cord options, specifications,

and Cisco product numbers, and shows the different styles of 1300 W
AC-input power cord wall plugs that are available for North America or
various international locations as well as the appliance coupler that is
attached to the power supply end of the power cord.

Note For North America, the power cord plug types and appliance couplers

on the power supplies are different for the 1000 W power supplies and
the 1300 W power supplies; for other countries, the plugs shown are
the same for the 1000 W and 1300 W power supplies.

Catalyst 4500 Series Switches Installation Guide

2-5

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

• 1400 W—Tab l e 2-1 lists the AC-input power cord options, specifications,

and Cisco product numbers, and shows the different styles of 1400 W
AC-input power cord wall plugs that are available for North America or
various international locations as well as the appliance coupler that is
attached to the power supply end of the power cord.

• 2800 W—Tab l e 2-1 lists the AC-input power cord options, specifications,

and Cisco part numbers, and shows the different styles of 2800 W AC-input
power cord wall plugs that are available for North America and international
locations as well as the appliance coupler that is attached to the other end of
the 2800 W power supply power cord.

• 4200 W—Tab l e 2-1 lists the AC-input power cord options, specifications,

and Cisco part numbers, and shows the different styles of 4200 W AC-input
power cord wall plugs that are available for North America and international
locations as well as the appliance coupler that is attached to the other end of
the 4200 W power supply power cord.

Table 2-1 AC-Input Power Cord Options

Locale Part Number Length Plug Rating Plug Type

Appliance

1000 W Power Supply (PWR-C45-1000AC=)

North America CAB-7KAC= 8 ft (2.5 m) 125 VAC, 15 A NEMA 5-15P

Coupler

120352

Australia,
New Zealand

Europe (except
Italy)

Catalyst 4500 Series Switches Installation Guide

2-6

120354

CAB-7KACA= 8 ft (2.5 m) 250 VAC, 15 A SAA/3,

AS/NZS 3112-1993

120356

CAB-7KACE= 8 ft (2.5 m) 250 VAC, 16 A CEE 7/7

120357

78-14409-08

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

Italy CAB-7KACI= 8 ft (2.5 m) 250 VAC, 16 A 1/3/16 CEI 23-16

120358

United
Kingdom

CAB-7KACU= 8 ft (2.5 m) 250 VAC, 13 A BS 89/13

BS 1363/A

Argentina CAB-7KACR= 8 ft (2.5 m) 250 VAC, 10 A IRAM 2073

Appliance Coupler

1300 W (PWR-C45-1300ACV=) and
1400 W (PWR-C45-1400AC=) Power Supplies

North America CAB-7513AC= 14 ft (4.3 m) 125 VAC, 20 A NEMA 5-20

Australia,
New Zealand

CAB-7513ACA= 14 ft (4.3 m) 250 VAC, 15 A SAA/3,

AS/NZZS 3112-1993

120359

120356

120353

120362

Europe (except
Italy)

78-14409-08

120356

CAB-7513ACE= 14 ft (4.3 m) 250 VAC, 16 A CEE 7/7

120357

Catalyst 4500 Series Switches Installation Guide

2-7

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

Italy CAB-7513ACI= 14 ft (4.3 m) 250 VAC, 16 A 1/3/16, CEI 23-16

120358

United
Kingdom

CAB-7513ACU= 14 ft (4.3 m) 250 VAC, 13 A BS 89/13

BS 1363/A

Argentina CAB-7513ACR= 14 ft (4.3 m) 250 VAC, 10 A IRAM 2073

North America

CAB-AC-2800W-TWLK= 14 ft (4.3 m) 250 VAC, 16 A NEMA L6-20
(locking)
200–240 VAC
operation

North America
(non-locking)

CAB-AC-2800W-6-20 14 ft (4.3 m) 250 VAC, 16 A NEMA 6-20

non-locking
200–240 VAC
operation

Europe CAB-AC-2800W-EU= 14 ft (4.3 m) 250 VAC, 16 A CEE 7/7

120359

120356120361

120355

2-8

120357

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

International CAB-AC-2800W-INT= 14 ft (4.3 m) 250 VAC, 16 A IEC 309

Appliance Coupler

120360

2800 W Power Supply (PWR-C45-2800ACV=)

North America

CAB-AC-2800W-TWLK= 14 ft (4.3 m) 250 VAC, 16 A NEMA L6-20
(locking)
200–240 VAC
operation

North America
(non-locking)

CAB-AC-2800W-6-20 14 ft (4.3 m) 250 VAC, 16 A NEMA 6-20

non-locking
200–240 VAC
operation

Europe CAB-AC-2800W-EU= 14 ft (4.3 m) 250 VAC, 16 A CEE 7/7

International CAB-AC-2800W-INT= 14 ft (4.3 m) 250 VAC, 16 A IEC 309

120353

120361

120355

120357

120360

78-14409-08

Catalyst 4500 Series Switches Installation Guide

2-9

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

Appliance Coupler

4200 W Power Supply (PWR-C45-4200ACV=)

North America

CAB-US515P-C19-US 6 ft (1.82 m) 125VAC, 15A NEMA 5-15P

120 VAC
operation

North America

CAB-USL620P-C19-US 6 ft (1.82 m) 250 VAC, 20 A NEMA L6-20
(locking)
200–240 VAC
operation

North America
(non-locking)

CAB-US620P-C19-US 6 ft (1.82 m) 250 VAC, 20 A NEMA 6-20

non-locking
200–240 VAC
operation

Europe CAB-CEE77-C19-EU 6 ft (1.82 m) 250 VAC, 15 A CEE 7/7

International

CAB-IEC309-C19-INT 6 ft (1.82 m) 250 VAC, 16 A IEC 309
(including
Argentina and
South Africa)

120353

120354

120361

120355

120357

2-10

120360

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

Australia CAB-AS3112-C19-AUS 6 ft (1.82 m) 250 VAC, 15 A AS/NZZS 3112

Italy CAB-CEI2316-C19-IT 6 ft (1.82 m) 250 VAC, 16 A CEI 23-16

120356

120358

United

CAB-BS1363-C19-UK 6 ft (1.82 m) 250 VAC, 15 A BS 1363
Kingdom

Israeli CAB-SI32-C19-ISRL 6 ft (1.82 m) 250 VAC, 16 A SI32

UPS 220V CAB-C19-C20 6 ft (1.82 m) 250 VAC, 20 A IEC-60320-C20

UPS 110V CAB-C19-C14 6 ft (1.82 m) 125 VAC, 16 A IEC-60320-C14

120359

130922

130923

130924

78-14409-08

Catalyst 4500 Series Switches Installation Guide

2-11

Chapter 2 Preparing for Installation

Power Connection Guidelines for DC-Powered Systems

Power Connection Guidelines for DC-Powered
Systems

This section provides the basic guidelines for connecting the Catalyst 4500 series
switch DC-input power supplies to the site power source or AC power shelf:

• All power connection wiring should conform to local and national codes.

• DC (–) and DC return (+) terminals are evaluated for use with 1/0 AWG wire

(1400W DC supply only).

• The ground terminal is evaluated for use with 6 AWG wire (10 AWG for the

multi-input power supply).

• DC (–) and DC return (+) wire lugs shall not exceed 0.83 inches in width

(0.378 inches for the multi-input power supply).

• For DC power cables, we recommend that you use commensurately rated,

high-strand-count copper wire cable. Connection to the DC-input power
supply requires one earth ground cable, one source DC (–), and one source
DC return (+). The length of the cables depends on your switch location.
These cables are not available from Cisco Systems. They are available from
any commercial cable vendor.

2-12

• The color coding of the source DC power cable leads depends on the color

coding of the site DC power source. Typically, green or green and yellow
indicate that the cable is a ground cable. Because there is no color code
standard for source DC wiring, you must ensure that the power cables are
connected to the DC-input power supply terminal block in the proper (+) and
(–) polarity. In some cases, the source DC cable leads might have a positive
(+) or a negative (–) label. This label is a relatively safe indication of the
polarity, but you must verify the polarity by measuring the voltage between
the DC cable leads. When making the measurement, the positive (+) lead and
the negative (–) lead must always match the (+) and (–) labels on the DC-input
power supply terminal block.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 2 Preparing for Installation

Calculating DC Input Current

Complete power usage tables are in the Catalyst 4500 Series Module Installation
Guide. To calculate the DC input current needed for data and inline power

applications, use the following steps (the example shows the DC input current
requirement in a Catalyst 4503 with a Supervisor Engine II and two
WS-X4306-GB modules, and assumes a DC input voltage of -48 VDC):

Step 1 Add the power requirement for each component in your system.

• Catalyst 4503 uses 54 W

• Supervisor Engine II uses 147 W

• WS-X4306-GB uses 2 X 47 = 94 W

• Total DC input power = 295 W

Step 2 After the entries for all components have been added together, divide that number

by the DC input voltage to determine the DC input current.

• Input current = 295 W/48 VDC = 6.14 A for data only.

Power Connection Guidelines for DC-Powered Systems

78-14409-08

Step 3 to Step 5 are for applications requiring inline power. If your configuration
does not include inline power devices, the DC input current is the result of Step 2.

Step 3 If you want to add an inline-capable module (WS-X4148-RJ45V) with 10 inline

devices (such as IP Phones) to your system, calculate the DC output power sent
to inline devices.

• 10 X 6.3 W = 63 W for inline devices.

6.3 Watts is correct for a Cisco IP phone. Wattage consumption will depend on the
inline device used.

Step 4 Find the DC input power using the DC output power.

• 63/.96 (efficiency) = 65 W of DC input power.

Step 5 Divide the DC input power by the DC voltage input of –48 V to find the DC input

current used by inline devices.

• 65/48 = 1.4 Amps for inline devices.

Catalyst 4500 Series Switches Installation Guide

2-13

Ventilation

Step 6 Add the DC input current used by data and the DC input current used by inline

Ventilation

Chapter 2 Preparing for Installation

devices to find the total DC input current.

• Total DC input current = 6.14 + 1.4 = 7.54 A.

Planning a proper location for the switch and the layout of your equipment rack
or wiring closet is essential for successful system operation. You should install the
switch in an enclosed, secure area, ensuring that only qualified personnel have
access to the switch and control of the environment. Equipment placed too close
together or inadequately ventilated can cause system overtemperature conditions.
In addition, poor equipment placement can make chassis panels inaccessible and
difficult to maintain.

The switch operates as a standalone system mounted in a rack in a secure wiring
closet. It requires a dry, clean, well-ventilated, and air-conditioned environment.
To ensure normal operation, maintain ambient airflow. If the airflow is blocked or
restricted, or if the intake air is too warm, an overtemperature condition can occur.
The switch environmental monitor can then shut down the system to protect the
system components.

2-14

To ensure normal operation and avoid unnecessary maintenance, plan your site
configuration and prepare your site before installation. After installation, make
sure the site maintains an ambient temperature of 0 to 40ºC (32 to 104ºF). It is
essential to keep the area around the chassis as free from dust and foreign
conductive material (such as metal flakes from nearby construction activity) as is
possible.

Multiple switches can be rack-mounted with little or no clearance above and
below the chassis. However, when mounting a switch in a rack with other
equipment, or when placing it on the floor near other equipment, ensure that the
exhaust from other equipment does not blow into the intake vent of the chassis.

Cooling air is drawn in through the right side of the chassis. Keep the right side
clear of obstructions, including dust and foreign conductive material, and away
from the exhaust ports of other equipment.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 2 Preparing for Installation

Appendix A, “Specifications,” lists the operating and nonoperating

environmental site requirements for the switches. To maintain normal operation
and ensure high system availability, maintain an ambient temperature and clean
power at your site. The environmental ranges listed in Appendix A,

“Specifications,” are those within which the switch will continue to operate;

however, a measurement that approaches the minimum or maximum of a range
indicates a potential problem. You can maintain normal operation by anticipating
and correcting environmental anomalies before they exceed the maximum
operating range.

Calculating System Heat Dissipation

To calculate the expected heat dissipation from a switch, add the total amount of
power drawn from power supply by the system's configuration, then divide the
total amount of power by the efficiency of the power supply. Multiply the result
by 3.415 to get the system heat dissipation in BTUs/hr.

First example (System without any powered devices):

Ventilation

78-14409-08

Components

Output Power

1 - Catalyst 4506 with fans 50 W

1 - Supervisor Engine IV 145 W

1 - WS-X4248-RJ45V with no phones 72 W

total output power 267 W

Total heat dissipated by system = (267/.75) * 3.415 = 1215 BTUs/hr

Note All Catalyst 4000/4500 power supplies have different efficiencies, An average

efficiency figure of 75% was chosen.

Second example (same system but this time with one IEEE class 3 device):

Components

Output Power

1 - Catalyst 4506 with fans 50 W

1 - Supervisor Engine IV 145 W

1 - WS-X4248-RJ45V with no phones 72 W

Catalyst 4500 Series Switches Installation Guide

2-15

Site-Planning Checklist

1 - IEEE class 3 device 17.3 W

total output power 284 W

Total heat dissipated by system = (284/.75) * 3.415 = 1293 BTUs/hr

Note Although a class 3 device needs 15.4 W to power up, 17.3 W need to be generated

from the backplane in order to have 15.4 W at the switch port. 17.3 W comes from
the WS-X4248-RJ45V DC-DC converter’s efficiency (89%).

Site-Planning Checklist

Table 2 - 2 lists the site-planning activities that you should complete before you

install a Catalyst 4500 series switch. Completing each activity helps to ensure a
successful switch installation.

Table 2-2 Site-Planning Checklist

Chapter 2 Preparing for Installation

Task No. Planning Activity Verified by Time Date

1 Space evaluation:

• Space and layout

• Floor covering

• Impact and vibration

• Lighting

• Maintenance access

2 Environmental evaluation:

• Ambient temperature

• Humidity

• Altitude

• Atmospheric contamination

• Airflow

Catalyst 4500 Series Switches Installation Guide

2-16

78-14409-08

Chapter 2 Preparing for Installation

Site-Planning Checklist

Table 2-2 Site-Planning Checklist (continued)

Task No. Planning Activity Verified by Time Date

3 Power evaluation:

• Input power type

• Receptacle proximity to the equipment

• Dedicated (separate) circuits for redundant

power supplies

• UPS for power failures

4 Grounding evaluation:

• Circuit breaker size

5 Cable and interface equipment evaluation:

• Cable type

• Connector type

• Cable distance limitations

• Interface equipment (transceivers)

6EMI evaluation:

• Distance limitations for signaling

• Site wiring

• RFI levels

78-14409-08

Catalyst 4500 Series Switches Installation Guide

2-17

Site-Planning Checklist

Chapter 2 Preparing for Installation

2-18

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Warning

Warning

Warning

CHAPTER

3

Installing the Switch in a Rack

This unit is intended for installation in restricted access areas. A restricted
access area can be accessed only through the use of a special tool, lock and
key, or other means of security.

Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.

To prevent personal injury or damage to the chassis, never attempt to lift or tilt
the chassis using the handles on modules (such as power supplies, fans, or
cards); these types of handles are not designed to support the weight of the unit.

Statement 1032

Statement 1030

Statement 1017

78-14409-08

This chapter describes how to install Catalyst 4500 series switches in a rack. For
first-time installations, perform the procedures in the following sections in the
order listed:

• Checking the Shipping Container Contents, page 3-2

• Rack-Mounting the Switch, page 3-3

Note Before starting the installation procedures in this chapter, complete the

site-planning checklist in Table 2 - 2 of Chapter 2, “Preparing for Installation.”

Catalyst 4500 Series Switches Installation Guide

3-1

Chapter 3 Installing the Switch in a Rack

Checking the Shipping Container Contents

Note For information on installing the supervisor engine and switching modules and

verifying switch operation, refer to the Catalyst 4500 Series Module Installation
Guide. For information on configuring the switching modules, refer to the

software configuration guide for your switch and software release.

Checking the Shipping Container Contents

Note Do not discard the shipping cartons and poly bag when you unpack the switch.

Flatten and store them. You will need the containers if you need to move or ship
the switch in the future. Repacking instructions are provided in Appendix B,

“Repacking a Switch.”

Follow these steps to check the contents of the shipping cartons:

3-2

Step 1 Check the contents of the accessories box against the Accessories Box

Components Checklist and the packing slip that were included with your switch.
Verify that you received all listed equipment, including the following:

• Switch hardware documentation and software documentation (if ordered)

• Optional equipment that you ordered, such as network interface cables,

transceivers, or special connectors

Step 2 Check the switching modules in each slot. Ensure that the configuration matches

the packing list and that all the specified interfaces are included.

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

A standard rack-mount kit is included for mounting the switch in a standard
19-inch (48.3 cm) equipment rack with two unobstructed outer posts, with a
nominal depth (between the front and rear mounting posts) of 19.25 inches
(48.9 cm) and a maximum depth of 32 inches (81.3 cm). This kit is not suitable
for racks with obstructions (such as a power strip) that could impair access to the
field-replaceable units (FRUs) of the switch.

Alternatively, you can obtain a 23-inch rack-mount kit.

Required Installation Tools

You will need the following tools and equipment to install the chassis in a rack:

• Number 1 and number 2 Phillips screwdrivers to tighten the captive

installation screws on most systems

• 3/16-inch flat-blade screwdriver for the captive installation screws on the

supervisor engine and switching modules on some systems

Rack-Mounting the Switch

78-14409-08

• Antistatic mat or antistatic foam in case you need to remove switching

modules to troubleshoot the installation

• Rack-mount kit

• Tape measure

• Level

• Your own electrostatic discharge (ESD) grounding strap or the disposable

ESD strap included with the system

Catalyst 4500 Series Switches Installation Guide

3-3

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

Rack-Mounting Catalyst 4500 Series Switches

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you
must take special precautions to ensure that the system remains stable. The
following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to
the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before
mounting or servicing the unit in the rack.

Follow these steps to install a Catalyst 4500 series switch in a rack:

Step 1 Prepare for installation as follows:

a. Place the chassis on the floor or on a sturdy table as close as possible to the

rack. Leave enough clearance to allow you to move around the chassis.

b. Use a tape measure to measure the depth of the rack. Measure from the

outside of the front mounting posts to the outside of the rear mounting strip.
The depth must be at least 19.25 inches (48.9 cm) but not greater than
32 inches (81.3 cm).

c. Measure the space between the inner edges of the left front and right front

mounting posts to ensure that it is 17.75 inches (45.09 cm) wide. (The chassis
is 17.25 inches [43.8 cm] wide and must fit between the mounting posts.)

d. Open the rack-mount kit and check the component checklist in Ta ble 3 - 1 to

verify that all parts are included.

Statement 1006

3-4

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 3 Installing the Switch in a Rack

Table 3-1 Rack-Mount Kit Checklist

Quantity Part Description

2L brackets

6 M4 Phillips pan-head screws

6 12-24 x 3/4-inch Phillips binder-head screws

Note Some equipment racks provide a power strip along the length of one of

the rear posts. If your rack has this feature, consider the position of the
strip when planning fastener points. Before installing the L brackets on
the chassis, determine whether to install the chassis from the front or the
rear of the rack.

Step 2 Install the L brackets, which connect the chassis to the rack, as follows:

a. Remove the screws from the front of the switch side-cover panels.
b. Attach the left and right L brackets using the six M4 Phillips pan-head screws

(three screws per side) provided in the rack-mount kit.

Rack-Mounting the Switch

78-14409-08

See Figure 3-1 for the Catalyst 4503 switch, Figure 3-2 for the Catalyst 4506
switch, or Figure 3-3 for the Catalyst 4507R switch, or Figure 3-4 for the
Catalyst 4510R switch.

Catalyst 4500 Series Switches Installation Guide

3-5

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

Figure 3-1 L Brackets on the Front Edge of the Catalyst 4503 Switch

W

S

­X
4

5

1

5
S

U
P

E

R
V

I

S

O

R

E

4

N

G

5

I

N

0

E

6

I
V

U
P

L

I
N

K
1

U
P

L

I
N

K

4503

S
T

A

T

U
S

2

L

I

N
E

A

C
T

I
V
E

L

I
N

E

A

C

T

I
V

E

A

C

T

IV

E

1

1
3

1

1
3

1

0
/

1
0

C

0

O

N

S

O
L

E

M

G
T

U

T

I
L

I

Z
A

T

I
O

N

F

L

A

1
%

1

0
0

1

1

3

1

1

3

S
H

%

E

J

E

C
T

R

E

L

I
N

K

S

E
T

79182

3-6

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 3 Installing the Switch in a Rack

Figure 3-2 L Brackets on the Front Edge of the Catalyst 4506 Switch

W

S

­X

4
5

1

5

S

U

P

E

R
V

I
S

O

R

E

N
G

I
N

E

I
V

U

P
L

I
N

K
1

U
P

L
I

N

K

S

T

A
T

U

S

2

L
I
N

E

A
C

T
IV

E

L
I

N
E

A

C

T

I
V

E

A

C

T

I
V

E

1

0
/

1
0

C

0

O

N

S
O

L
E

M
G

T

U

T

I
L

I
Z

A

T
I

O
N

1

%

F

L

A
S

1

0

H

0
%

E

J

E

C

T

R

E

L

I
N

K

S

E

T

Rack-Mounting the Switch

1

1

3

1

1

3

1

1

3

1

1
3

1

1
3

1

1
3

79183

78-14409-08

Catalyst 4500 Series Switches Installation Guide

3-7

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

Figure 3-3 L Brackets on the Front Edge of the Catalyst 4507R Switch

U

P
L

I
N

K

U
P

L

I
N

K

S

T
A

T
U

S

U

P
L

I
N

K

U
P

L

I
N

K

S

T
A

T
U

S

W

S

­X

4
4
1

2

­2
G

B

­T

X

S

T
A

T

U

S

1

2

3

W

S

­X

W

S

­X

W

S

-X

W

S

-X

4

4
4
1

2

­2
G

B

­T

X

S

T
A

T

U

4
4
1

2

­2
G

B

­T

X

S

T
A

T

U

4
448

-G
B

-R
J4

5

S
TA

T

U
S

4
44

8-G

B

-R
J4

5

S
T

A
TU

S

5

6

7

8

9

1

S

1

2

3

4

S

1

2

3

4

1

2

3

4

5

6

7

8

9

0
1

1

1

2

1

1

2

3

4

5

6

7

8

9

0
1

1

1

2

1

0

5

6

7

8

9

1
0

5

6

7

8

9

1
0

3
1

4
1

1

0

5

/1
0

0

1

B
A

6

S
E

­T

1

X
E
T

H
E
R

N
E

T

7

1

8
1

9

1

0
2

1
2

2

2

3

2

4
2

3
1

4
1

1

0

5

/
1
0

0

1

B
A

6

S
E

-T

1

X
E
T

H
E
R

N
E

T

7

1

8
1

9

1

0
2

1
2

2

2

3

2

4
2

CONSOLE

10/100
BASE-TX

CONSOLE

10/100
BASE-TX

1

1

1
2

1

1

1
2

1

1

1
2

5
2

6

2

7
2

8

2

2

5
2

6

2

7
2

8

2

2

1

7

1

7

1

7

9

0

M

U
L

3

T

I­S

1

P
E

E

3

D

G

IG

2

A

B

3

IT

E

T
H
E

R

S

N

W

E

T
I
T
C

H
IN

G

M

3

O

D

3

U
L

4

E

3

5
3

6
3

7
3

8

3

9
3

0
4

1

4

2
4

3
4

4
4

5
4

6
4

7
4

8

9

0

M

U
L

3

T

I­S

1

P
E

E

3

D

G

IG

2

A

B

3

IT

E

T
H
E

R

S

N

W

E

T
IT
C

H
I
N

G

M

3

O

D

3

U
L

4

E

3

5
3

4

6
3

7
3

8

3

9
3

0
4

1

4

2
4

3
4

4
4

5
4

6
4

7
4

8

4

68113

3-8

Catalyst 4500 Series Switches Installation Guide

78-14409-08

Chapter 3 Installing the Switch in a Rack

Figure 3-4 L Brackets on the Front Edge of the Catalyst 4510R Switch

U

P

L
I

N

K

U

P
L

I

N
K

S

T

A

T
U

S

U

P

L
I

N

K

U

P
L

I

N
K

S

T

A

T
U

S

W

S

­X

4
4

1

2

­2
G

B

­T

X

S

T
A
T

U
S

1

2

3

W

S

­X

W

S

­X

W

S

-X

W

S

-X

W

S

-X

W

S

-X

4

4
4

1

2

­2
G

B

­T

X

S

T
A
T

U
S

4
4

1

2

­2
G

B

­T

X

S

T
A
T

U
S

44

48

-G
B

-R
J45

S

TA

T

U
S

44

48

-G
B

-R
J45

S

TA

T

U
S

4
44

8-G

B

-R
J45

S

T
A

TU

S

44

48-G

B

-R
J4

5

S

T
A

T

U
S

5

6

7

8

9

1

1

2

3

4

1

2

3

4

1

2

3

4

5

6

7

8

9

0
1

1
1

2

1

1

2

3

4

5

6

7

8

9

0
1

1
1

2

1

1

2

3

4

5

6

7

8

9

0
1

1
1

2

1

1

2

3

4

5

6

7

8

9

0
1

1
1

2

1

3

0

5

6

7

8

9

1

0

5

6

7

8

9

1

0

3
1

4
1

1
0

5

/1

0
0

1

B
A

6

S

E

-T

1

X
E
T

H

E
R

N
E

T

7
1

8
1

9

1

0

2

1
2

2
2

3

2

4
2

3
1

4
1

1
0

5

/1

0
0

1

B
A

6

S

E

­T

1

X
E
T

H

E
R

N
E

T

7
1

8
1

9

1

0

2

1
2

2
2

3

2

4
2

3
1

4
1

1
0

5

/1

0
0

1

B
A

6

S

E

­T

1

X
E
T

H

E
R

N
E

T

7
1

8
1

9

1

0

2

1
2

2
2

3

2

4
2

3
1

4
1

1
0

5

/
10

0

1

B
A

6

S

E

-T

1

X
E
T

H

E
R

N
E

T

7
1

8
1

9

1

0

2

1
2

2
2

3

2

4
2

1

CONSOLE

10/100
BASE-TX

CONSOLE

10/100
BASE-TX

1

1

1

2

1

1

1

2

1

1

1

2

5

2

6
2

7
2

8
2

5

2

6
2

7
2

8
2

5

2

6
2

7
2

8
2

5

2

6
2

7
2

8
2

1

7

1

7

1

7

9
2

0

M

U
L

3

T
I­S

1

P
E

E

3

D

G

I

2

G

A
B

3

IT

E
T

H
E

R

S

N

W

E
T

IT

C
H

I
N
G

3

M
O

D

3

U

L

4

E

3

5
3

6

3

7

3

8

3

9
3

0
4

1
4

2
4

3

4

4

4

5
4

6

4

7
4

8

9
2

0

M

U
L

3

T
I­S

1

P
E

E

3

D

G

IG

2

A
B

3

IT

E
T

H
E

R

S

N

W

E

T
I
T

C
H

IN
G
M

3

O

D

3

U

L

4

E

3

9
2

0

M

U
L

3

T
I

-S

1

P
E

E

3

D

G

IG

2

A
B

3

IT

E
T

H
E

R

S

N

W

E

T
IT

C
H

IN
G
M

3

O

D

3

U

L

4

E

3

9
2

0

M

U
L

3

T
I­S

1

P
E

E

3

D

G

IG

2

A
B

3

I

T
E
T

H
E

R

S

N

W

E

T
IT

C
H

IN
G

3

M
O

D

3

U

L

4

E

3

2

4

5
3

6

3

7

3

8

3

9
3

0
4

1
4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

5
3

6

3

7

3

8

3

9
3

0
4

1
4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

5
3

6

3

7

3

8

3

9
3

0
4

1
4

2
4

3

4

4

4

5
4

6

4

7
4

8

4

2
4

3
4

Rack-Mounting the Switch

94938

78-14409-08

c.

Attach the cable guide, if needed, using the M3 screws provided in the cable
management kit. The cable guide attaches to the L bracket. Attach the cable
guide to the right side of the switch to prevent the cables from obscuring
module LEDs.

See Figure 3-5 for the Catalyst 4503 switch, Figure 3-6 for the Catalyst 4506
switch, Figure 3-7 for the Catalyst 4507R switch, or Figure 3-8 for the
Catalyst 4510R switch.

Catalyst 4500 Series Switches Installation Guide

3-9
