What Features are Supported on the Cisco Unified SIP Phone 3951? 1-6
Feature Overview 1-7
Configuring Telephony Features 1-7
Configuring Network Parameters Using the Cisco Unified IP Phone 1-8
Providing Users with Feature Information 1-9
Understanding Security Features for Cisco Unified SIP Phone 3951 1-9
Overview of Configuring and Installing Cisco Unified IP Phones 1-9
Configuring Cisco Unified IP Phones in Cisco Unified CallManager 1-10
Checklist for Configuring the Cisco Unified IP Phone in Cisco Unified
CallManager
Installing Cisco Unified IP Phones 1-13
Checklist for Installing the Cisco Unified IP Phone 1-14
1-10
CHAPTER
2Preparing to Install the Cisco Unified IP Phone on Your Network 2-1
Understanding How the Cisco Unified IP Phone Interacts with Cisco
Unified CallManager
2-2
Providing Power to the Cisco Unified IP Phone 2-3
Power Guidelines 2-3
Cisco Unified IP Phone Power Injector 2-4
Power Outage 2-5
Obtaining Additional Information about Power 2-5
Understanding Phone Configuration Files 2-6
SIP Dial Rules 2-7
Understanding the Phone Startup Process 2-7
Adding Phones to the Cisco Unified CallManager Database 2-9
Adding Phones with Auto-Registration 2-10
Adding Phones with Cisco Unified CallManager Administration 2-11
Adding Phones with BAT 2-11
Determining the MAC Address for a Cisco Unified IP Phone 2-12
Telephony Features Available for the Cisco Unified IP Phone 5-1
Adding Users to Cisco Unified CallManager 5-4
6Viewing Status, Statistics, and Firmware Information on the Cisco
Unified IP Phone
6-1
Network Statistics Screen 6-1
Firmware Versions Screen 6-2
7Troubleshooting and Maintenance 7-1
Resolving Startup Problems 7-1
Symptom: The Cisco Unified IP Phone Does Not Go Through its Normal
Startup Process
7-2
Symptom: The Cisco Unified IP Phone Does Not Register with Cisco
Unified CallManager
7-3
Identifying Error Messages 7-3
Registering the Phone with Cisco Unified CallManager 7-4
Checking Network Connectivity 7-4
Verifying TFTP Server Settings 7-4
Verifying IP Addressing and Routing 7-5
Verifying DNS Settings 7-5
Verifying Cisco Unified CallManager Settings 7-5
Cisco Unified CallManager and TFTP Services Are Not Running 7-6
Creating a New Configuration File 7-6
Symptom: Cisco Unified IP Phone Unable to Obtain IP Address 7-8
Verifying Voice VLAN Configuration 7-10
Verifying that the Phones Have Not Been Intentionally Reset 7-10
Eliminating DNS or Other Connectivity Errors 7-11
General Troubleshooting Tips for the Cisco Unified IP Phone 7-12
Resetting or Restoring the Cisco Unified IP Phone 7-16
Performing a Basic Reset 7-16
Where to Go for More Troubleshooting Information 7-16
Cleaning the Cisco Unified IP Phone 7-17
Providing Information to Users Via a Website A-1
How Users Obtain Support for the Cisco Unified IP Phone A-1
How Users Get Copies of Cisco Unified IP Phone Manuals A-2
Contents
I
NDEX
How Users Access a Voice Messaging System A-2
Supporting International Users B-1
Adding Language Overlays to Phone Buttons B-1
Installing the Cisco Unified CallManager Locale Installer B-2
Technical Specifications C-1
Physical and Operating Environment Specifications C-1
TheCisco Unified SIP Phone 3951 Administration Guide for Cisco Unified
CallManager 5.0 provides the information you need to understand, install,
configure, manage, and troubleshoot the phones on a Voice-over-IP (VoIP)
network.
Audience
Because of the complexity of an IP telephony network, this guide does not provide
complete and detailed information for procedures that you need to perform in
Cisco Unified CallManager or other network devices.
Network engineers, system administrators, or telecom engineers should review
this guide to learn the steps required to properly set up the
Cisco Unified SIP Phone 3951 on the network.
The tasks described are considered to be administration-level tasks and are not
intended for end-users of the phones. Many of the tasks involve configuring
network settings and affect the phone’s ability to function in the network.
Because of the close interaction between the Cisco Unified IP Phone and
Cisco Unified CallManager, these tasks require familiarity with
Cisco Unified CallManager.
Appendix A, “Providing Information to Users Via
a Website”
Provides suggestions for setting up a website for
providing users with important information about
their Cisco Unified IP Phones.
Appendix B, “Supporting International Users”Provides information about setting up phones in
non-English environments.
Appendix C, “Technical Specifications”Provides technical specifications of the Cisco
Unified IP Phone.
IndexProvides reference information.
Related Documentation
For more information about Cisco Unified IP Phones or
Cisco Unified CallManager, refer to these publications, which are available at the
following location:
The Product Documentation DVD is a library of technical product documentation
on a portable medium. The DVD enables you to access installation, configuration,
and command guides for Cisco hardware and software products. With the DVD,
you have access to the HTML documentation and some of the PDF files found on
the Cisco website at this URL:
http://www.cisco.com/univercd/home/home.htm
The Product Documentation DVD is created and released regularly. DVDs are
available singly or by subscription. Registered Cisco.com users can order a
Product Documentation DVD (product number DOC-DOCDVD= or
DOC-DOCDVD=SUB) from Cisco Marketplace at the Product Documentation
Store at this URL:
You must be a registered Cisco.com user to access Cisco Marketplace. Registered
users may order Cisco documentation at the Product Documentation Store at this
URL:
http://www.cisco.com/go/marketplace/docstore
If you do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Documentation Feedback
You can provide feedback about Cisco technical documentation on the
Cisco Technical Support & Documentation site area by entering your comments
in the feedback form available in every online document.
Documentation Feedback
Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht
ml
From this site, you will find information about how to do the following:
•Report security vulnerabilities in Cisco products
•Obtain assistance with security incidents that involve Cisco products
•Register to receive security information from Cisco
A current list of security advisories, security notices, and security responses for
Cisco products is available at this URL:
To see security advisories, security notices, and security responses as they are
updated in real time, you can subscribe to the Product Security Incident Response
Team Really Simple Syndication (PSIRT RSS) feed. Information about how to
subscribe to the PSIRT RSS feed is found at this URL:
Cisco is committed to delivering secure products. We test our products internally
before we release them, and we strive to correct all vulnerabilities quickly. If you
think that you have identified a vulnerability in a Cisco product, contact PSIRT:
•For emergencies only— security-alert@cisco.com
An emergency is either a condition in which a system is under active attack
or a condition for which a severe and urgent security vulnerability should be
reported. All other conditions are considered nonemergencies.
Preface
•For nonemergencies— psirt@cisco.com
In an emergency, you can also reach PSIRT by telephone:
•1 877 228-7302
•1 408 525-6532
TipWe encourage you to use Pretty Good Privacy (PGP) or a compatible product (for
example, GnuPG) to encrypt any sensitive information that you send to Cisco.
PSIRT can work with information that has been encrypted with PGP versions 2.x
through 9.x.
Never use a revoked encryption key or an expired encryption key. The correct
public key to use in your correspondence with PSIRT is the one linked in the
Contact Summary section of the Security Vulnerability Policy page at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.ht
ml
The link on this page has the current PGP key ID in use.
If you do not have or use PGP, contact PSIRT to find other means of encrypting
the data before sending any sensitive material.
Product Alerts and Field Notices
Modifications to or updates about Cisco products are announced in Cisco Product
Alerts and Cisco Field Notices. You can receive Cisco Product Alerts and Cisco
Field Notices by using the Product Alert Tool on Cisco.com. This tool enables you
to create a profile and choose those products for which you want to receive
information.
To access the Product Alert Tool, you must be a registered Cisco.com user. (To
register as a Cisco.com user, go to this URL:
http://tools.cisco.com/RPF/register/register.do) Registered users can access the
Cisco Technical Support provides 24-hour-a-day award-winning technical
assistance. The Cisco Technical Support & Documentation website on Cisco.com
features extensive online support resources. In addition, if you have a valid
Cisco service contract, Cisco Technical Assistance Center (TAC) engineers
provide telephone support. If you do not have a valid Cisco service contract,
contact your reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online
documents and tools for troubleshooting and resolving technical issues with
Cisco products and technologies. The website is available 24 hours a day at
this URL:
Access to all tools on the Cisco Technical Support & Documentation website
requires a Cisco.com user ID and password. If you have a valid service contract
but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
NoteUse the Cisco Product Identification Tool to locate your product serial number
before submitting a request for service online or by phone. You can access this
tool from the Cisco Technical Support & Documentation website by clicking the
Tools & Resources link, clicking the All Tools (A-Z) tab, and then choosing
Cisco Product Identification Tool from the alphabetical list. This tool offers
three search options: by product ID or model name; by tree view; or, for certain
products, by copying and pasting show command output. Search results show an
illustration of your product with the serial number label location highlighted.
Locate the serial number label on your product and record the information before
placing a service call.
Preface
TipDisplaying and Searching on Cisco.com
If you suspect that the browser is not refreshing a web page, force the browser to
update the web page by holding down the Ctrl key while pressing F5.
To find technical information, narrow your search to look in technical
documentation, not the entire Cisco.com website. On the Cisco.com home page,
click the Advanced Search link under the Search box and then click the Technical Support & Documentation radio button.
To provide feedback about the Cisco.com website or a particular technical
document, click Contacts & Feedback at the top of any Cisco.com web page.
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4
service requests. (S3 and S4 service requests are those in which your network is
minimally impaired or for which you require product information.) After you
describe your situation, the TAC Service Request Tool provides recommended
solutions. If your issue is not resolved using the recommended resources, your
service request is assigned to a Cisco engineer. The TAC Service Request Tool is
located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests, or if you do not have Internet access, contact the
Cisco TAC by telephone. (S1 or S2 service requests are those in which your
production network is down or severely degraded.) Cisco engineers are assigned
immediately to S1 and S2 service requests to help keep your business operations
running smoothly.
To open a service request by telephone, use one of the following numbers:
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has
established severity definitions.
Severity 1 (S1)—An existing network is “down” or there is a critical impact to
your business operations. You and Cisco will commit all necessary resources
around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or
significant aspects of your business operations are negatively affected by
inadequate performance of Cisco products. You and Cisco will commit full-time
resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of the network is impaired while most
business operations remain functional. You and Cisco will commit resources
during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product
capabilities, installation, or configuration. There is little or no effect on your
business operations.
Information about Cisco products, technologies, and network solutions is
available from various online and printed sources.
•The Cisco Online Subscription Center is the website where you can sign up
for a variety of Cisco e-mail newsletters and other communications. Create a
profile and then select the subscriptions that you would like to receive. To
visit the Cisco Online Subscription Center, go to this URL:
http://www.cisco.com/offer/subscribe
•The Cisco Product Quick Reference Guide is a handy, compact reference tool
that includes brief product overviews, key features, sample part numbers, and
abbreviated technical specifications for many Cisco products that are sold
through channel partners. It is updated twice a year and includes the latest
Cisco channel product offerings. To order and find out more about the
Cisco Product Quick Reference Guide, go to this URL:
http://www.cisco.com/go/guide
•Cisco Marketplace provides a variety of Cisco books, reference guides,
documentation, and logo merchandise. Visit Cisco Marketplace, the company
store, at this URL:
http://www.cisco.com/go/marketplace/
•Cisco Press publishes a wide range of general networking, training, and
certification titles. Both new and experienced users will benefit from these
publications. For current Cisco Press titles and other information, go to
Cisco Press at this URL:
http://www.ciscopress.com
•Internet Protocol Journal is a quarterly journal published by Cisco Systems
for engineering professionals involved in designing, developing, and
operating public and private internets and intranets. You can access the
Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
•Networking products offered by Cisco Systems, as well as customer support
•Networking Professionals Connection is an interactive website where
networking professionals share questions, suggestions, and information
about networking products and technologies with Cisco experts and other
networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
•“What’s New in Cisco Documentation” is an online publication that provides
information about the latest documentation releases for Cisco products.
Updated monthly, this online publication is organized by product category to
direct you quickly to the documentation for your products. You can view the
latest release of “What’s New in Cisco Documentation” at this URL:
^The symbol ^ represents the key labeled Control—for example, the key
combination ^D in a screen display means hold down the Control key while
you press the D key.
< >Nonprinting characters, such as passwords are in angle brackets.
NoteMeans reader take note. Notes contain helpful suggestions or references to
material not covered in the publication.
CautionMeans reader be careful. In this situation, you might do something that could
result in equipment damage or loss of data.
Warning
Waarschuwing
Warnings use the following conventions:
This warning symbol means
danger
. You are in a situation that
could cause bodily injury. Before you work on any equipment, be
aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents. To see
translations of the warnings that appear in this publication, refer
to the
Regulatory Compliance and Safety Information
document
that accompanied this device.
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die
lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat
werken, dient u zich bewust te zijn van de bij elektrische schakelingen
betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen
om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die
in deze publicatie verschijnen, kunt u het document
and Safety Information
(Informatie over naleving van veiligheids- en andere
Regulatory Compliance
voorschriften) raadplegen dat bij dit toestel is ingesloten.
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa
ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota
selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista
onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten
käännökset löydät laitteen mukana olevasta
Safety Information
-kirjasesta (määräysten noudattaminen ja tietoa
Regulatory Compliance and
turvallisuudesta).
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une
situation pouvant causer des blessures ou des dommages corporels. Avant de
travailler sur un équipement, soyez conscient des dangers posés par les
circuits électriques et familiarisez-vous avec les procédures couramment
utilisées pour éviter les accidents. Pour prendre connaissance des
traductions d’avertissements figurant dans cette publication, consultez le
document
Regulatory Compliance and Safety Information
(Conformité aux
règlements et consignes de sécurité) qui accompagne cet appareil.
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die
zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an
irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen
Stromkreisen verbundenen Gefahren und der Standardpraktiken zur
Vermeidung von Unfällen bewußt. Übersetzungen der in dieser
Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument
Regulatory Compliance and Safety Information
(Informationen zu
behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät
geliefert wurde.
Avvertenza
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe
causare infortuni alle persone. Prima di lavorare su qualsiasi
apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed
essere al corrente delle pratiche standard per la prevenzione di incidenti. La
traduzione delle avvertenze riportate in questa pubblicazione si trova nel
documento
norme e informazioni sulla sicurezza) che accompagna questo dispositivo.
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre
til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de
faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med
vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av
de advarslene som finnes i denne publikasjonen, kan du se i dokumentet
Regulatory Compliance and Safety Information
(Overholdelse av forskrifter og
sikkerhetsinformasjon) som ble levert med denne enheten.
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe
poderá causar danos físicos. Antes de começar a trabalhar com qualquer
equipamento, familiarize-se com os perigos relacionados com circuitos
eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis
acidentes. Para ver as traduções dos avisos que constam desta publicação,
consulte o documento
Regulatory Compliance and Safety Information
(Informação de Segurança e Disposições Reguladoras) que acompanha este
dispositivo.
Este símbolo de aviso significa peligro. Existe riesgo para su integridad
física. Antes de manipular cualquier equipo, considerar los riesgos que
entraña la corriente eléctrica y familiarizarse con los procedimientos
estándar de prevención de accidentes. Para ver una traducción de las
advertencias que aparecen en esta publicación, consultar el documento
titulado
Regulatory Compliance and Safety Information
(Información sobre
seguridad y conformidad con las disposiciones reglamentarias) que se
acompaña con este dispositivo.
xxiv
Varning!
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan
leda till personskada. Innan du utför arbete på någon utrustning måste du vara
medveten om farorna med elkretsar och känna till vanligt förfarande för att
förebygga skador. Se förklaringar av de varningar som förkommer i denna
publikation i dokumentet
Regulatory Compliance and Safety Information
(Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer
denna anordning.
The Cisco Unified SIP Phone 3951 provides voice communication over an
Internet Protocol (IP) network. It functions like a digital business telephone,
allowing you to place and receive phone calls and to access features such as mute,
hold, transfer, and speed dial. The phone also supports security features that
include image and digest authentication.
The Cisco Unified SIP Phone 3951 is interoperable with RFC-3261, RFC-3264,
RFC-3311, and RFC 3515.
OL-10969-01
An IP Phone, like other network devices, must be configured and managed. These
phones support G.711a, G.711u, G.729(decode only), and G.729a. This manual
describes the Cisco Unified SIP Phone 3951.
This chapter includes the following topics:
•Understanding the Cisco Unified SIP Phone 3951, page 1-2
•What Networking Protocols Are Used?, page 1-3
•What Features are Supported on the Cisco Unified SIP Phone 3951?, page 1-6
•Understanding Security Features for Cisco Unified SIP Phone 3951, page 1-9
•Overview of Configuring and Installing Cisco Unified IP Phones, page 1-9
CautionUsing a cell, mobile, or GSM phone, or two-way radio in close proximity to a
Cisco Unified IP Phone might cause interference. For more information, refer to
the manufacturer's documentation of the interfering device.
Cisco Unified IP Phones support several industry-standard and Cisco networking
protocols required for voice communication. Table 1-1 provides an overview of
the networking protocols supported on the Cisco Unified SIP Phone 3951.
Chapter 1 An Overview of the Cisco Unified IP Phone
What Networking Protocols Are Used?
Table 1-1Supported Networking Protocols on the Cisco Unified IP Phone
Networking ProtocolPurposeUsage Notes
Cisco Discovery
Protocol (CDP)
Dynamic Host
Configuration Protocol
(DHCP)
CDP is a device-discovery protocol
that runs on all Cisco-manufactured
equipment.
Using CDP, a device can advertise its
existence to other devices and receive
information about other devices in
the network.
DHCP dynamically allocates and
assigns an IP address to network
devices.
DHCP enables you to connect an IP
phone into the network and have it
become operational without you
needing to manually assign an IP
address or configure additional
required network parameters.
The Cisco Unified IP Phone uses
CDP to communicate information
such as auxiliary VLAN ID, per port
power management details, and
Quality of Service (QoS) configuration
information with the Cisco Catalyst
switch.
DHCP is enabled by default. If
disabled, you must manually
configure the IP address, subnet
mask, gateway, and a TFTP server on
each phone locally.
Cisco recommends that you use
DHCP custom option 150. With this
method, you configure the TFTP
server IP address as the option value.
For additional supported DCHP
configurations, refer Cisco Unified CallManager System Guide.
HTTP is the standard way of
transferring information and moving
documents across the Internet and the
web.
Cisco Unified SIP Phone 3951
supports HTTP.
OL-10969-01
Page 29
Chapter 1 An Overview of the Cisco Unified IP Phone
What Networking Protocols Are Used?
Table 1-1Supported Networking Protocols on the Cisco Unified IP Phone (continued)
Networking ProtocolPurposeUsage Notes
Internet Protocol (IP)IP is a messaging protocol that
addresses and sends packets across
the network.
Real-Time Transport
(RTP)
RTP is a standard protocol for
transporting real-time data, such as
interactive voice and video, over data
networks.
Session Description
Protocol (SDP)
SDP is the portion of the SIP protocol
that determines which parameters are
available during a connection
between two endpoints. Conferences
are established using only the SDP
capabilities that are supported by all
endpoints in the conference.
To communicate using IP, network
devices must have an assigned IP
address, subnet, and gateway.
IP addresses, subnets, and gateways
identifications are automatically
assigned if you are using the
Cisco Unified IP Phone with
Dynamic Host Configuration
Protocol (DHCP). If you are not
using DHCP, you must manually
assign these properties to each phone
locally.
Cisco Unified IP Phones use the RTP
protocol to send and receive
real-time voice traffic from other
phones and gateways.
SDP capabilities, such as codec
types, DTMF detection, and comfort
noise are normally configured on a
global basis by the
Cisco Unified CallManager or the
Media Gateway in operation. Some
SIP endpoints may allow these
parameters to be configured on the
endpoint itself.
Session Initiation
Protocol (SIP)
SIP is the Internet Engineering task
Force (IETF) standard for
multimedia conferencing over IP. SIP
is an ASCII-based, application-layer
control protocol (defined in RFC
3261) that can be used to establish,
maintain, and terminate calls
between two or more endpoints.
Like other VoIP protocols, SIP is
designed to address the functions of
signaling and session management
within a packet telephony network.
Signaling allows call information to
be carried across network
boundaries. Session management
provides the ability to control the
attributes of an end-to-end call.
1-5
Page 30
Chapter 1 An Overview of the Cisco Unified IP Phone
What Features are Supported on the Cisco Unified SIP Phone 3951?
Table 1-1Supported Networking Protocols on the Cisco Unified IP Phone (continued)
Networking ProtocolPurposeUsage Notes
Transmission Control
Protocol (TCP)
Trivial File Transfer
Protocol (TFTP)
User Datagram Protocol
(UDP)
Related Topics
TCP is a connection-oriented
transport protocol.
TFTP allows you to transfer files
over the network.
On the Cisco Unified IP Phone,
TFTP enables you to obtain a
configuration file specific to the
phone type.
UDP is a connectionless messaging
protocol for delivery of data packets.
•Understanding How the Cisco Unified IP Phone Interacts with Cisco
Unified CallManager, page 2-2
•Understanding the Phone Startup Process, page 2-7
TFTP requires a TFTP server in your
network, which can be automatically
identified from the DHCP server. If
you want a phone to use a TFTP
server other than the one specified by
the DHCP server, you must manually
assign the IP address of the TFTP
server using the Network
Configuration menu on the phone.
Cisco Unified IP Phones transmit
and receive RTP streams, which
utilize UDP.
•Configuration Menus on the Cisco Unified IP Phone, page 4-3
What Features are Supported on the Cisco Unified
SIP Phone 3951?
The Cisco Unified SIP Phone 3951 functions much like digital business phones,
allowing you to place and receive telephone calls. In addition to traditional
telephony features, the Cisco Unified IP Phone includes features that enable you
to administer and monitor the phone as a network device.
Chapter 1 An Overview of the Cisco Unified IP Phone
•Configuring Network Parameters Using the Cisco Unified IP Phone, page 1-8
•Providing Users with Feature Information, page 1-9
Feature Overview
Cisco Unified IP Phones provide traditional telephony functionality, such as call
forwarding and transferring, redialing, speed dialing, and voice messaging system
access. Cisco Unified IP phones also provide a variety of other features. For an
overview of the telephony features that the Cisco Unified IP Phone supports and
for tips on configuring them, see the “Telephony Features Available for the Cisco
Unified IP Phone” section on page 5-1.
As with other network devices, you must configure Cisco Unified SIP Phone 3951
so that it can access Cisco Unified CallManager and the rest of the IP network. By
using DHCP, you have fewer settings to configure on a phone, but if your network
requires it, you can manually configure an IP address, TFTP server, and subnet
mask. For instructions on configuring the network settings on the Cisco Unified
IP Phones, see Chapter 4, “Configuring Settings on the Cisco Unified IP Phone.”
What Features are Supported on the Cisco Unified SIP Phone 3951?
Finally, because the Cisco Unified IP Phone is a network device, you can obtain
detailed status information from it directly. This information can assist you with
troubleshooting any problems users might encounter when using their IP phones.
See Chapter 6, “Viewing Status, Statistics, and Firmware Information on the
Cisco Unified IP Phone,” for more information.
Related Topics
•Configuring Network Settings, page 4-3
•Configuring Features and Users, page 5-1
•Troubleshooting and Maintenance, page 7-1
Configuring Telephony Features
You can modify additional settings for the Cisco Unified IP Phone from the
Cisco Unified CallManager Administration application. Use this web-based
application to set up phone registration criteria and calling search spaces. See the
What Features are Supported on the Cisco Unified SIP Phone 3951?
“Telephony Features Available for the Cisco Unified IP Phone” section on
page 5-1, and refer to the Cisco Unified CallManager documentation for
additional information.
For more information about the Cisco Unified CallManager Administration
application, refer to Cisco Unified CallManager documentation, including Cisco Unified CallManager Administration Guide. You can also use the
context-sensitive help available within the application for guidance.
You can access the complete Cisco Unified CallManager documentation suite at
this location:
•Telephony Features Available for the Cisco Unified IP Phone, page 5-1
Chapter 1 An Overview of the Cisco Unified IP Phone
Configuring Network Parameters Using the Cisco Unified IP
Phone
You can configure parameters such as DHCP, TFTP, and IP settings on the phone
itself. You can also obtain statistics about a current call or firmware versions on
the phone.
For more information about configuring features and viewing statistics from the
phone, see Chapter 4, “Configuring Settings on the Cisco Unified IP Phone” and
see Chapter 6, “Viewing Status, Statistics, and Firmware Information on the Cisco
Unified IP Phone.”
Related Topics
•Configuring Settings on the Cisco Unified IP Phone, page 4-1
Chapter 1 An Overview of the Cisco Unified IP Phone
Understanding Security Features for Cisco Unified SIP Phone 3951
Providing Users with Feature Information
If you are a system administrator, you are likely the primary source of information
for Cisco Unified IP Phone users in your network or company. To ensure that you
distribute the most current feature and procedural information, familiarize
yourself with Cisco Unified IP Phone documentation. Make sure to visit the
Cisco Unified IP Phone web site:
From this site, you can view access various user guides.
In addition to providing documentation, it is important to inform users of
available Cisco Unified IP Phone features—including those specific to your
company or network—and of how to access and customize those features, if
appropriate.
Understanding Security Features for Cisco
Unified SIP Phone 3951
Cisco Unified SIP Phone 3951 support the following security features:
•Digest authentication—When the phone makes any request, Cisco Unified
CallManager issues a challenge that requires the phone to respond with the
correct password.
•Image Authentication—Image files can be sent as signed binary files (with
the extension .sbn) that is used to prevent tampering with the firmware image
before it is loaded on a phone. Tampering with the image causes a phone to
fail the authentication process and reject the new image.
Overview of Configuring and Installing Cisco
Unified IP Phones
When deploying a new IP telephony system, system administrators and network
administrators must complete several initial configuration tasks to prepare the
network for IP telephony service. For information and a checklist for setting up
Chapter 1 An Overview of the Cisco Unified IP Phone
Overview of Configuring and Installing Cisco Unified IP Phones
and configuring a complete Cisco Unified IP telephony network, refer to the
“System Configuration Overview” chapter in Cisco Unified CallManager System Guide.
After you have set up the IP telephony system and configured system-wide
features in Cisco Unified CallManager, you can add IP phones to the system.
The following topics provide an overview of procedures for adding
Cisco Unified IP Phones to your network:
•Configuring Cisco Unified IP Phones in Cisco Unified CallManager,
page 1-10
•Installing Cisco Unified IP Phones, page 1-13
Configuring Cisco Unified IP Phones in Cisco Unified
CallManager
To add phones to the Cisco Unified CallManager database, you can use:
For more information about these choices, see the “Adding Phones to the Cisco
Unified CallManager Database” section on page 2-9.
For general information about configuring phones in Cisco Unified CallManager,
refer to the “Cisco Unified IP Phones” chapter in Cisco Unified CallManager
System Guide and the “Cisco Unified IP Phone Configuration” chapter in Cisco
Unified CallManager Administration Guide.
Checklist for Configuring the Cisco Unified IP Phone in Cisco Unified CallManager
Table 1-2 provides an overview and checklist of configuration tasks for the
Cisco Unified IP Phone in Cisco Unified CallManager Administration. The list
presents a suggested order to guide you through the phone configuration process.
Some tasks are optional, depending on your system and user needs. For detailed
procedures and information, refer to the sources in the list.
Provides users with control
over their phone such as forwarding calls or adding
speed-dial numbers.
NoteSome phones, such
as those in conference rooms, do not
have an associated
user.
Refer to Cisco Unified Call-
Manager Administration
Guide,
“End User Configuration”
chapter, “Associating Devices
to a User” section.
OL-10969-01
Page 37
Chapter 1 An Overview of the Cisco Unified IP Phone
Overview of Configuring and Installing Cisco Unified IP Phones
Table 1-2Checklist for Configuring the Cisco Unified IP Phone 3951 in
Cisco Unified CallManager (continued)
TaskPurposeFor More Information
6. Configure a SIP Phone Dial Plan for
the Cisco SIP Phone 3951(optional).
7. Configure the system to support the
use of DTMF on the Cisco Unified
SIP 3951 Phone (optional).
To ensure successful call
completion on systems that
require digits to be sent one
at a time.
Provide users access to
voice-messaging systems or
to navigate interactive voice
response (IVR) applications
by using the keypad to
generate DTMFs.
Refer to Cisco Unified Call-
Manager Administration
Guide,
“SIP Dial Rules Configuration” chapter.
See the “Configuring a SIP
Phone Dial Plan” section on
page 4-9.
Refer to Cisco Unified Call-
Manager Administration
Guide,
“Media Termination Point
Configurations” chapter and
“Cisco Unified IP Phone”
chapter.
See the “Enabling Cisco
Unified SIP Phone 3951 to Use
iDTMF” section on page 4-9.
Installing Cisco Unified IP Phones
After you have added the phones to the Cisco Unified CallManager database, you
can complete the phone installation. You (or the phone users) can install the phone
at the users’s location. The Cisco Unified IP Phone Installation Guide that ships
in the box with each phone provides directions for connecting the phone handset,
cables, and other accessories.
NoteBefore you install a phone, even if it is new, upgrade the phone to the current
Chapter 1 An Overview of the Cisco Unified IP Phone
Overview of Configuring and Installing Cisco Unified IP Phones
After the phone is connected to the network, the phone startup process begins and
the phone registers with Cisco Unified CallManager. To finish installing the
phone, configure the network settings on the phone depending on whether you
enable or disable DHCP service.
If you used auto-registration, you need to update the specific configuration
information for the phone such as associating the phone with a user, changing the
button table, or directory number.
Checklist for Installing the Cisco Unified IP Phone
Table 1-3 provides an overview and checklist of installation tasks for the Cisco
Unified IP Phone. The list presents a suggested order to guide you through the
phone installation. Some tasks are optional, depending on your system and user
needs. For detailed procedures and information, refer to the sources in the list.
Table 1-3Checklist for Installing the Cisco Unified SIP Phone 3951
TaskPurposeFor More Information
1. Choose the power source for the phone:
•Power over Ethernet (PoE)
Determines how the phone
receives power.
See the “Providing Power
to the Cisco Unified IP
Phone” section on
•External power supply
2. Assemble the phone, placement, and
connect the network cable.
Locates and installs the phone
in the network.
page 2-3.
See the “Installing the
Cisco Unified IP Phone”
section on page 3-7.
3. Monitor the phone startup process.Verifies that phone is config-
Preparing to Install the Cisco
Unified IP Phone on Your Network
Cisco Unified IP Phones enable you to communicate using voice over a data
network. To provide this capability, the IP Phones depend upon and interact with
several other key Cisco IP Telephony components, including Cisco Unified
CallManager.
This chapter focuses on the interactions between the Cisco Unified SIP Phone
3951 and Cisco Unified CallManager, DNS and DHCP servers, TFTP servers, and
switches. It also describes options for powering phones.
OL-10969-01
For related information about voice and IP communications, refer to this URL:
This chapter provides an overview of the interaction between the
Cisco Unified IP Phone and other key components of the Voice over IP (VoIP)
network. It includes the following topics:
•Understanding How the Cisco Unified IP Phone Interacts with Cisco
Unified CallManager, page 2-2
•Providing Power to the Cisco Unified IP Phone, page 2-3
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding How the Cisco Unified IP Phone Interacts with Cisco Unified CallManager
Understanding How the Cisco Unified IP Phone
Interacts with Cisco Unified CallManager
Cisco Unified CallManager is an open and industry-standard call processing
system. To function in the IP telephony network, the Cisco Unified IP Phone must
be connected to a networking device, such as a Cisco Catalyst switch. You must
also register the Cisco Unified IP Phone with a Cisco Unified CallManager
system before sending and receiving calls.
Cisco Unified CallManager software sets up and tears down calls between
phones, integrating traditional PBX functionality with the corporate IP network.
Cisco Unified CallManager manages the components of the IP telephony
system—the phones, the access gateways, and the resources necessary for such
features as call conferencing and route planning. Cisco Unified CallManager also
provides:
•Firmware for phones
•Authentication
•Configuration file via TFTP service
•Phone registration
•Call preservation, so that a media session continues if signaling is lost
between the primary CallManager and a phone)
For information about configuring Cisco Unified CallManager to work with the
IP devices described in this chapter, refer to Cisco Unified CallManager
Administration Guide, Cisco Unified CallManager System Guide, and to Cisco
Unified CallManager Security Guide.
For an overview of security functionality for the Cisco Unified IP Phone, see the
“Understanding Security Features for Cisco Unified SIP Phone 3951” section on
page 1-9.
NoteIf the Cisco Unified IP Phone model that you want to configure does not appear
in the Phone Type drop-down list in Cisco Unified CallManager Administration,
go to the following URL and install the latest support patch for your version of
Cisco Unified CallManager:
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Providing Power to the Cisco Unified IP Phone
Related Topic
•Telephony Features Available for the Cisco Unified IP Phone, page 5-1
Providing Power to the Cisco Unified IP Phone
The Cisco Unified SIP Phone 3951 can be powered with external power or with
Power over Ethernet (PoE). External power is provided through a separate power
supply. PoE is provided by a switch through the Ethernet cable attached to a
phone.
NoteWhen you install a phone that is powered with external power, connect the power
supply to the phone and to a power outlet before you connect the Ethernet cable
to the phone. When you remove a phone that is powered with external power,
disconnect the Ethernet cable from the phone before you disconnect the power
supply.
The following sections provide more information about powering a phone:
•Power Guidelines, page 2-3
•Cisco Unified IP Phone Power Injector, page 2-4
•Obtaining Additional Information about Power, page 2-5
Power Guidelines
Table 2-1 provides guidelines for powering the Cisco Unified SIP Phone 3951.
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Providing Power to the Cisco Unified IP Phone
Table 2-1Guidelines for Powering the Cisco Unified SIP Phone 3951
Power TypeGuidelines
External power—
Provided through the
CP-PWR-CUBE-3
external power supply.
External power—
Provided through the
Cisco Unified IP Phone
Power Injector external
power supply.
Inline power—Provided
by a switch through the
Ethernet cable attached
to the phone.
The Cisco Unified SIP Phone 3951 uses the CP-PWR-CUBE-3 power
supply.
The Cisco Unified IP Phone Power Injector external power supply may be
used with any Cisco Unified IP Phone. Functioning as a midspan device, the
injector delivers inline power to the attached phone. The Cisco Unified IP
Phone Power Injector is connected between a switch port and the IP Phone,
and supports a maximum cable length of 100m between the unpowered
switch and the IP Phone.
For more information, see the “Cisco Unified IP Phone Power Injector”
section on page 2-4
•The Cisco Unified IP Phones support IEEE 802.3af compliant inline
power.
•The inline power patch panel WS-PWR-PANEL is compatible with the
Cisco Unified IP Phones.
•To ensure uninterruptible operation of the phone, make sure that the
switch has a backup power supply.
•Make sure that the CatOS or IOS version running on your switch
supports your intended phone deployment. Refer to the documentation
for your switch for operating system version information.
Cisco Unified IP Phone Power Injector
The Cisco Unified IP Phone Power Injector is an external, single-port, midspan
power injector for use with Cisco Unified IP Phones. It supports a maximum cable
length of 100m between the unpowered switch and the Cisco Unified IP Phone.
As a midspan device, it is connected between a switch port and the IP Phone, and
may reside in either the switch closet or at the desk.
Your accessibility to emergency service through the phone is dependent on the
phone being powered. If there is an interruption in the power supply, Service and
Emergency Calling Service dialing will not function until power is restored. In the
case of a power failure or disruption, you may need to reset or reconfigure
equipment before using the Service or Emergency Calling Service dialing.
Providing Power to the Cisco Unified IP Phone
Obtaining Additional Information about Power
For related information about power, refer to the documents shown in Tabl e 2 -2.
These documents provide information about the following topics:
•Cisco switches that work with the Cisco Unified SIP Phone 3951
•The Cisco Unified IOS releases that support bidirectional power negotiation
•Other requirements and restrictions regarding power
Configuration files for a phone are stored on the TFTP server and define
parameters for connecting to Cisco Unified CallManager. In general, any time
you make a change in Cisco Unified CallManager that requires the phone to be
reset, a change is made to the phone’s configuration file automatically.
Configuration files also contain information about which image load the phone
should be running. If this image load differs from the one currently loaded on a
phone, the phone contacts the TFTP server to request the required load files.
The phone first attempts to access the SEP<MAC>.cnf.xml file. If this file does
not exist, then it will look for the SIP<MAC>.cnf file and the default
configuration file named SIPDefault.cnf
2-6
from the TFTP server when the following conditions exist:
•You have enabled auto-registration in Cisco Unified CallManager
•The phone has not been added to the Cisco Unified CallManager Database
•The phone is registering for the first time
If auto registration is not enabled and the phone has not been added to the
Cisco Unified CallManager Database, the phone registration request will be
rejected. In this case, the phone will reset and attempt to register repeatedly.
If the phone has registered before, the phone will access the configuration file
named SIPmac_address.cnf, where mac_address is the MAC address of the
phone.
For more information on how a SIP phone interacts with the TFTP server, refer to
the Cisco Unified CallManager System Guide.
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding the Phone Startup Process
SIP Dial Rules
For Cisco Unified SIP IP phones, the administrator uses dial rules to configure
SIP phone dial plans. These dial plans must be associated with a SIP phone device
to enable dial plans to be sent to the configuration file. If the administrator does
not configure a SIP phone dial plan, the phone does not display any indication of
a dial plan.
For more information on configuring SIP dial rules, refer to the Cisco Unified CallManager Administration Guide.
Understanding the Phone Startup Process
When connecting to the VoIP network, the Cisco Unified IP Phone go through a
standard startup process that is described in Ta ble 2-3. Depending on your
specific network configuration, some of these steps may not occur on your
Cisco Unified IP Phone.
Table 2-3Cisco Unified IP Phone Startup Process
StepDescriptionRelated Topics
1. Obtaining Power
from the Switch
2. Loading the Stored
Phone Image
If a phone is not using external power, the
switch provides in-line power through the
Ethernet cable attached to the phone.
The Cisco Unified IP Phone has non-volatile
Flash memory in which it stores firmware
images and user-defined preferences. At startup,
the phone runs a bootstrap loader that loads a
phone image stored in Flash memory. Using this
image, the phone initializes its software and
hardware.
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Understanding the Phone Startup Process
Table 2-3Cisco Unified IP Phone Startup Process (continued)
StepDescriptionRelated Topics
3. Configuring VLANIf the Cisco Unified IP Phone is connected to a
Cisco Catalyst switch, the switch next informs
the phone of the voice VLAN defined on the
switch. The phone needs to know its VLAN
membership before it can proceed with the
Dynamic Host Configuration Protocol (DHCP)
request for an IP address.
4. Obtaining an IP
Address
If the Cisco Unified IP Phone is using DHCP to
obtain an IP address, the phone queries the
DHCP server to obtain one. If you are not using
DHCP in your network, you must assign static
IP addresses to each phone locally.
5. Accessing a TFTP
Server
In addition to assigning an IP address, the
DHCP server directs the
Cisco Unified IP Phone to a TFTP Server. If the
phone has a statically-defined IP address, you
must enter information about the TFTP server
locally on the phone; the phone then contacts the
TFTP server directly.
server to use instead of the one assigned
by DHCP.
The TFTP server has configuration files, which
define parameters for connecting to
Cisco Unified CallManager and other information for the phone.
•Adding Phones to the
Cisco
Unified CallManager
Database, page 2-9.
•Resolving Startup
Problems, page 7-1.
OL-10969-01
Page 49
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Adding Phones to the Cisco Unified CallManager Database
Table 2-3Cisco Unified IP Phone Startup Process (continued)
StepDescriptionRelated Topics
7. Contacting Cisco
Unified CallManager
The configuration file defines how the
Cisco Unified IP Phone communicates with
Cisco Unified CallManager and provides a
phone with its load ID. After obtaining the file
from the TFTP server, the phone attempts to
make a connection to the highest priority
Cisco Unified CallManager on the list.
If the phone was manually added to the
database, Cisco Unified CallManager identifies
the phone. If the phone was not manually added
to the database and auto-registration is enabled
in Cisco Unified CallManager, the phone
attempts to auto-register itself in the
Cisco Unified CallManager database.
NoteAuto-registration is disabled when
security is enabled on Cisco Unified
CallManager. In this case, the phone
must be manually added to the
Cisco Unified CallManager database.
Resolving Startup
Problems, page 7-1.
Adding Phones to the Cisco Unified CallManager
Database
Before installing the Cisco Unified IP phone, you must choose a method for
adding phones to the Cisco Unified CallManager database. These sections
describe the methods:
•Adding Phones with Auto-Registration, page 2-10
•Adding Phones with Cisco Unified CallManager Administration, page 2-11
•Adding Phones with BAT, page 2-11
Table 2-4 provides an overview of these methods for adding phones to the
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Adding Phones to the Cisco Unified CallManager Database
Table 2-4Methods for Adding Phones to the Cisco Unified CallManager
Database
Requires MAC
Method
Address?Notes
Auto-registrationNoResults in automatic assignment of
directory numbers
Using the
YesRequires phones to be added individCisco Unified
CallManager Administration
Using BATYesAllows for simultaneous registration
Adding Phones with Auto-Registration
By enabling auto-registration before you begin installing phones, you can:
•Automatically add a Cisco Unified IP Phone to the Cisco Unified
CallManager database when you physically connect the phone to your IP
telephony network. During auto-registration, Cisco Unified CallManager
assigns the next available sequential directory number to the phone.
•Add phones without first gathering MAC addresses from the phones.
•Quickly enter phones into the Cisco Unified CallManager database and
modify any settings, such as the directory numbers, from
Cisco Unified CallManager.
ually
of multiple phones
•Move auto-registered phones to new locations and assign them to different
device pools without affecting their directory numbers.
NoteYou should use auto-registration to add less than 100 phones to your network. To
add more than 100 phones to your network, use the Cisco Unified CallManager
Bulk Administration (BAT). See the “Adding Phones with BAT” section on
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Adding Phones to the Cisco Unified CallManager Database
In some cases, you might not want to use auto-registration: for example, if you
want to assign a specific directory number to the phone. For information about
enabling auto-registration, refer to “Auto-Registration Configuration” in the
Cisco Unified CallManager Administration Guide.
Related Topics
•Adding Phones with Cisco Unified CallManager Administration, page 2-11
•Adding Phones with BAT, page 2-11
Adding Phones with Cisco Unified CallManager Administration
You can add phones individually to the Cisco Unified CallManager database
using Cisco Unified CallManager Administration. To do so, you first need to
obtain the MAC address for each phone.
For information about determining a MAC address, see the “Determining the
MAC Address for a Cisco Unified IP Phone” section on page 2-12.
After you have collected MAC addresses, in Cisco Unified CallManager
Administration, choose Device > Phone and click Add New to begin adding
phones to the Cisco Unified CallManager database.
For complete instructions and conceptual information about Cisco Unified
CallManager, refer to Cisco Unified CallManager Administration Guide and to Cisco Unified CallManager System Guide.
Related Topics
•Adding Phones with Auto-Registration, page 2-10
•Adding Phones with BAT, page 2-11
Adding Phones with BAT
Cisco Unified CallManager Bulk Administration (BAT) is a web-based
application that enables you to perform bulk transactions, including registering,
multiple phones to the Cisco Unified CallManager database.
Before you can use BAT to add phones, you must obtain the MAC address for each
phone.
Chapter 2 Preparing to Install the Cisco Unified IP Phone on Your Network
Determining the MAC Address for a Cisco Unified IP Phone
For information about determining a MAC address, see the “Determining the
MAC Address for a Cisco Unified IP Phone” section on page 2-12.
For detailed instructions about using BAT, refer to Cisco Unified CallManager
Administration Guide and to Cisco Unified CallManager Bulk Administration
Guide.
Related Topics
•Adding Phones with Auto-Registration, page 2-10
•Adding Phones with Cisco Unified CallManager Administration, page 2-11
Determining the MAC Address for a Cisco Unified IP
Phone
Several procedures described in this manual require you to determine the MAC
address of a Cisco Unified IP Phone. You can determine a phone’s MAC address
in these ways:
•From the phone, press the OK button and select Settings > Network
Configuration > Mac Address to display the MAC Address field.
This chapter includes this following topics, which help you install the
Cisco Unified IP Phone on an IP telephony network:
•Before You Begin, page 3-1
•Understanding the Cisco Unified IP Phone Components, page 3-4
•Installing the Cisco Unified IP Phone, page 3-7
•Mounting the Phone to the Wall, page 3-9
•Verifying the Phone Startup Process, page 3-10
•Configuring Startup Network Settings, page 3-11
NoteBefore you install a Cisco Unified IP phone, you must decide how to configure
the phone in your network. Then you can install the phone and verify its
functionality. For more information, see Chapter 2, “Preparing to Install the Cisco
Unified IP Phone on Your Network.”
Before You Begin
Before installing the Cisco Unified IP Phone, review the requirements in these
sections:
For the Cisco Unified SIP Phone 3951 to successfully operate as a Cisco Unified
IP Phone endpoint in your network, your network must meet the following
requirements:
•Working Voice over IP (VoIP) Network:
–
VoIP configured on your Cisco routers and gateways
–
Cisco Unified CallManager installed in your network and configured to
handle call processing
•IP network that supports DHCP or manual assignment of IP address, gateway,
and subnet mask
The Cisco Unified IP Phone displays the date and time from Cisco Unified
CallManager. If the Cisco Unified CallManager server is located in a different
time zone than the phones, the phones will not display the correct local time.
Chapter 3 Setting Up the Cisco Unified IP Phone
Cisco Unified CallManager Configuration
The Cisco Unified IP Phone requires Cisco Unified CallManager to handle call
processing. Refer to Cisco Unified CallManager Administration Guide or
context-sensitive help in the Cisco Unified CallManager application to ensure
that Cisco Unified CallManager is set up properly to manage the phone and to
properly route and process calls.
If you plan to use auto-registration, verify that it is enabled and properly
configured in Cisco Unified CallManager before connecting any
Cisco Unified IP Phone to the network. See the “Adding Phones to the Cisco
Unified CallManager Database” section on page 2-9 for details.
You must use Cisco Unified CallManager to configure and assign telephony
features to the Cisco Unified IP Phones. See the “Telephony Features Available
for the Cisco Unified IP Phone” section on page 5-1 for details.
In Cisco Unified CallManager, you can add users to the database and associate
them with specific phones. See the “Adding Users to Cisco Unified CallManager”
Review the following warnings before installing the Cisco Unified IP Phone. To
see translations of these warnings, refer to the Regulatory Compliance and Safety Information for the Cisco Unified IP Phone 7900 Series document that
accompanied this device.
Before You Begin
Warning
Warning
Warning
Warning
Warning
Read the installation instructions before you connect the system to its power
source.
Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.
Ultimate disposal of this product should be handled according to all national
laws and regulations.
Do not work on the system or connect or disconnect cables during periods of
lightning activity.
Installation of the equipment must comply with local and national electrical
codes
Warning
Warning
The power supply must be placed indoors.
To avoid electric shock, do not connect safety extra low voltage (SELV) circuits
to telephone network voltage (TNV) circuits. LAN ports contain SELV circuits,
and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45
connectors. Use caution when connecting cables.
Understanding the Cisco Unified IP Phone Components
CautionInline power circuits provide current over the cable. Use the Cisco provided cable
or a minimum 24 AWG communication cable.
The following warnings apply when you use an external power supply.
CautionOnly use the proper Cisco approved external power supply. Reference the
installation manual provided with the phone.
Chapter 3 Setting Up the Cisco Unified IP Phone
Warning
Warning
Warning
This product relies on the building's installation for short-circuit (overcurrent)
protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15 A U.S.
(240 VAC, 10 A international) is used on the phase conductors (all
current-carrying conductors).
The device is designed to work with TN power systems.
The plug-socket combination must be accessible at all times because it serves
as the main disconnecting device. #331
Understanding the Cisco Unified IP Phone
Components

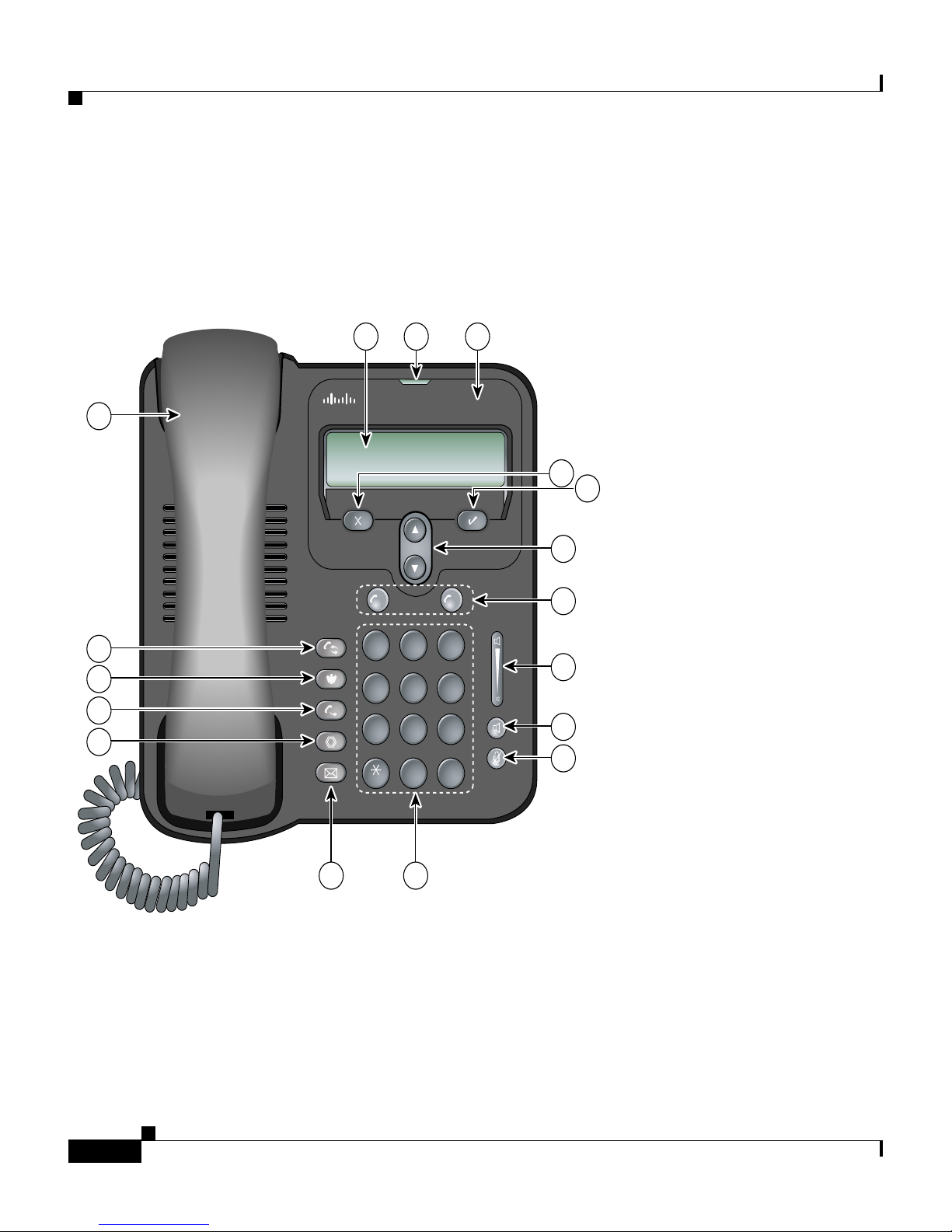

The Cisco Unified SIP Phone 3951 includes these components on the phone or as
accessories for the phone:
The back of the Cisco Unified SIP Phone 3951 has a port that you use to connect
to the network.
Handset
The handset is designed especially for use with a Cisco Unified SIP Phone. It
includes a light strip that indicates incoming calls and voice messages waiting. To
connect a handset to the Cisco Unified SIP Phone, plug the cable into the handset
and the Handset port on the back of the phone.
Speakerphone
Understanding the Cisco Unified IP Phone Components
Headset
By default, the speakerphone is enabled on Cisco Unified IP Phones.
You can disable the speakerphone through the Cisco Unified CallManager
Administration application. To do so, choose Device > Phone and locate the
phone you want to modify. In the Phone Configuration web page for the phone,
check the Disable Speakerphone check box.
Although Cisco Systems performs some internal testing of third-party headsets
for use with the Cisco Unified IP Phones, Cisco does not certify or support
products from headset or handset vendors. Because of the inherent environmental
and hardware inconsistencies in the locations where Cisco Unified IP Phones are
deployed, there is not a single "best" solution that is optimal for all environments.
Cisco recommends that customers test the headsets that work best in their
environment before deploying a large number of units in their network.
In some instances, the mechanics or electronics of various headsets can cause
remote parties to hear an echo of their own voice when they speak to Cisco
Unified IP Phone users.
Understanding the Cisco Unified IP Phone Components
Cisco Systems recommends the use of good quality external devices, like headsets
that are screened against unwanted radio frequency (RF) and audio frequency
(AF) signals. Depending on the quality of these devices and their proximity to
other devices such as cell phones and two-way radios, some audio noise may still
occur.
The primary reason that support of a headset would be inappropriate for an
installation is the potential for an audible hum. This hum can either be heard by
the remote party or by both the remote party and the Cisco Unified IP Phone user.
Some potential humming or buzzing sounds can be caused by a range of outside
sources, for example, electric lights, being near electric motors, large PC
monitors. In some cases, a hum experienced by a user may be reduced or
eliminated by using the Cisco Unified IP Phone Power Cube 3
(CP-PWR-CUBE-3).
Audio Quality Subjective to User
Chapter 3 Setting Up the Cisco Unified IP Phone
Beyond the physical, mechanical and technical performance, the audio portion of
a headset must sound good to the user and the party on the far end. Sound is
subjective and Cisco cannot guarantee the performance of any headsets or
handsets, but some of the headsets and handsets on the sites listed below have
been reported to perform well on Cisco Unified IP Phones.
Nevertheless, it is ultimately still the customer's responsibility to test this
equipment in their own environment to determine suitable performance.
Connecting a Headset
To connect a headset to the Cisco Unified SIP Phone 3951, plug it into the RJ-9
Handset port on the back of the phone. Depending on headset manufacturer's
recommendations, an external amplifier may be required. Refer to headset
manufacturer's product documentation for details.
You can use the headset with all of the features on the Cisco Unified IP Phone,
including using the Volume button.

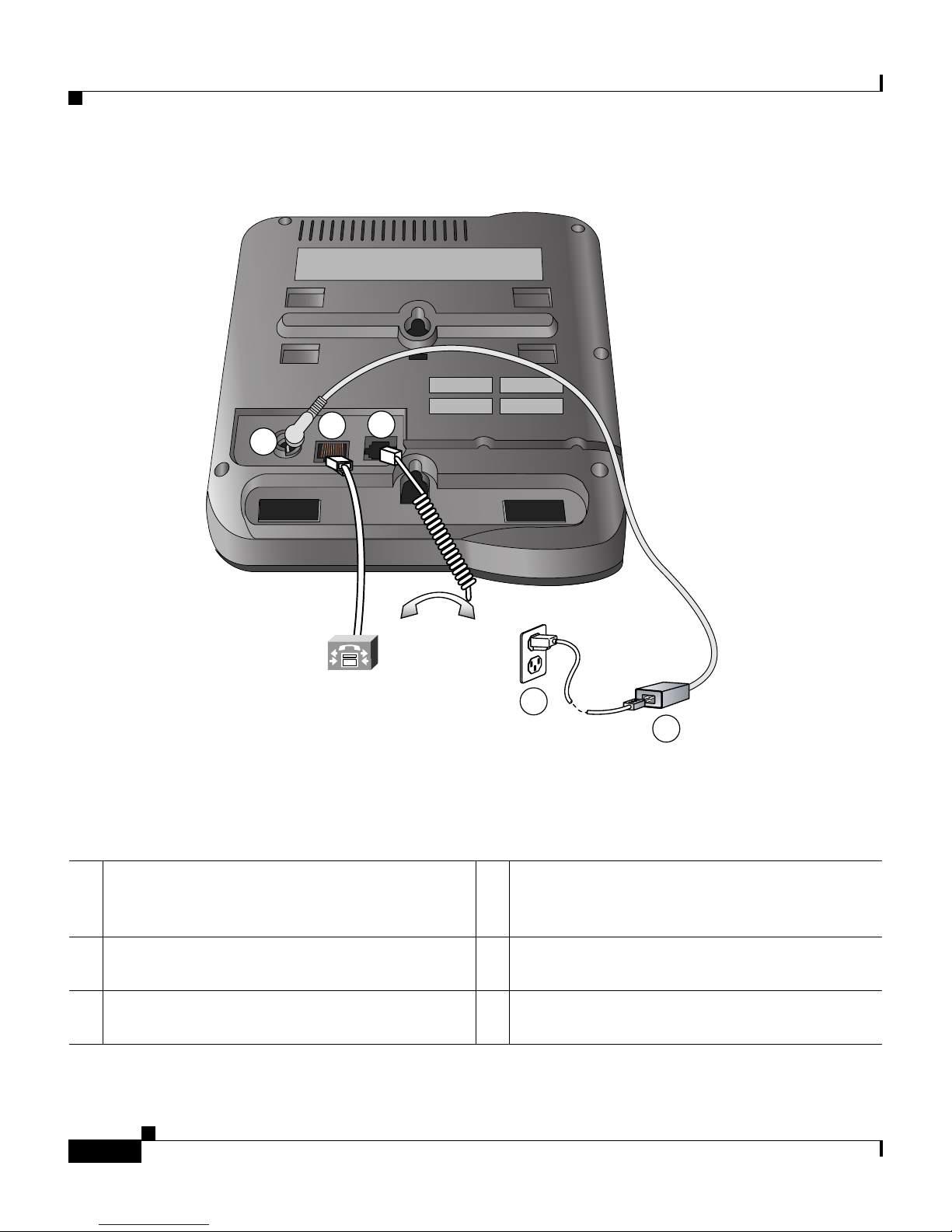

You must connect the Cisco Unified IP Phone to the network and to a power
source before using it. See Figure 3-1 for a graphical representation of the
connections.
TaskNotesReference
1.Connect the handset to the
Handset port.
2.Connect the power supply to
the Cisco DC Adapter port.
3.Connect a Category 3 or 5
straight-through Ethernet cable
from the switch to the network
port.
You can mount the Cisco Unified IP Phone on the wall by using special brackets
available in a Cisco Unified IP Phone wall mount kit. (Wall mount kits must be
ordered separately from the phone.) If you attach the Cisco Unified IP Phone to a
wall using the standard footstand and not the wall mount kit, you need to supply
the following tools and parts:
•Screwdriver
Installing the Cisco Unified IP Phone
•Screws to secure the Cisco Unified IP phone to the wall
Before You Begin
To ensure that the handset attaches securely to a wall-mounted phone, remove the
handset wall hook from the handset rest, rotate the hook 180 degrees, and reinsert
the hook. Turning the hook exposes a lip on which the handset catches when the
phone is vertical. For an illustrated procedure, refer to Installing the Wall Mount Kit for the Cisco Unified IP Phone.
CautionUse care not to damage wires or pipes located inside the wall when securing
screws to wall studs.
Procedure
Step 1Remove the footstand from the phone.
Step 2Modify the handset rest so that the handset remains on the ear-piece rest when the
phone is vertically placed.
a.Remove the handset from the ear-piece rest.
b.Locate the tab (handset wall hook) at the base of the ear-piece rest.
c.Slide this tab out, rotate it 180 degrees (left to right), and reinsert it.
Step 3Insert two screws into a wall stud, matching them to the two screw holes on the
back of the footstand.
The keyholes fit standard phone jack mounts.
Step 4Hang the phone on the wall.
Verifying the Phone Startup Process
After the Cisco Unified IP Phone has power connected to it, the phone begins its
startup process by cycling through these following steps:
1.These buttons lights up:
–
Voice Message Light Indicator
–
Line 1 Light Indicator
–
Line 2 Light Indicator
–
Conference button
–
MWI button
–
Speaker button
–
Mute button
2.The LCD screen displays the Cisco Systems, Inc., logo screen.
3.The LCD screen displays a series of messages that inform you of various
activities that the phone performs as it starts up. If the phone upgrades its
firmware as part of the startup process, additional messages will inform you
about this process.
4.The main LCD screen displays this information:
–
Current date and time
–
Primary directory number
If the phone successfully passes through these stages, it has started up properly.
If the phone does not start up properly, see the “Resolving Startup Problems”
If you are not using DHCP in your network, you must configure these network
settings on the Cisco Unified IP Phone after installing the phone on the network:
•IP address
•IP subnet mask
•Default gateway IP address
•Domain name
•DNS server IP address
•TFTP server IP address
Collect this information and see Chapter 4, “Configuring Settings on the Cisco
Configuring Settings on the Cisco
Unified IP Phone
The Cisco Unified IP Phone includes many configurable settings that you may
need to modify before the phone is functional for your users. You can access these
settings, and change many of them, through the menu on the phone.
This chapter includes the following topics:
•Editing Values, page 4-1
•Unlocking and Locking Options, page 4-2
•Configuring Network Settings, page 4-3
•SIP Configuration Menu, page 4-8
•Additional Configurations for the Cisco SIP Phone 3951, page 4-9
Editing Values
When you edit the value of an option setting on a configuration menu or enter a
password, follow these guidelines:
•Use the keys on the telephone keypad to enter numbers and letters.
•Press the # key to switch between the following different text entry modes.
Abc—uppercase character followed by lowercase characters.
–
abc—lowercase characters only
–
123—numerals
4-1
Page 66
Unlocking and Locking Options
•To enter letters using the keypad, use a corresponding number key. Press the
•To enter a period (for example, in an IP address), press the * (asterisk) key.
•To delete the last character, press the Cancel key.
•Once you have completed your entry, press the OK button .
NoteThe Cisco Unified IP Phone provides several methods that you can use to reset or
restore option settings, if necessary. For more information, see the “Resetting or
Restoring the Cisco Unified IP Phone” section on page 7-16.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
key one or more times to display a particular letter. For example, press the 2
key once for “a,” twice quickly for “b,” and three times quickly for “c.” After
you pause, the cursor automatically advances to allow you to enter the next
letter.
Related Topics
•Editing Values, page 4-1
•Configuring Network Settings, page 4-3
•SIP Configuration Menu, page 4-8
Unlocking and Locking Options
Administrative configuration options that can be changed from a phone are locked
by default to prevent users from making changes that could affect the operation of
a phone. You must unlock these options before you can change them.
Once the Cisco Unified IP Phone has registered with Cisco Unified CallManager,
users can configure their phone settings in the User Preferences menu. For more
information, see the Cisco Unified SIP Phone 3951 User Guide.
Configuring Network Settings
To display or modify current configuration settings, perform these steps:
Procedure
Step 1Press the OK button.
Step 2Choose Settings.
Step 3Choose Network Configuration.
Use the navigation key to scroll through the network settings. See Tab le 4 -1 for
detail information on each setting. Choose the network setting that you wish to
change.
Step 4If you have not unlocked the phone, the password prompt displays. Enter the
password.
Step 5Enter new network setting. For information about the keys you can use to edit
options, see the “Editing Values” section. Press the OK button to accept changes.
Press the Cancel button if you do not want to accept the changes.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Configuration Menus on the Cisco Unified IP Phone
Step 6The Reset-Restart prompt display. Press the Ok button to restart the phone.
Related Topics
•Editing Values, page 4-1
•Unlocking and Locking Options, page 4-2
Table 4-1Network Configuration Menu Options
OptionDescriptionUsage Notes
MAC AddressUnique Media Access Control (MAC)
Display only—cannot configure.
address of the phone.
Host NameUnique host name assigned to the
phone.
Domain NameName of the Domain Name System
(DNS) domain in which the phone
Display only—cannot configure.
Obtained from the DHCP server.
When DNS is enabled, the Domain name
is assigned by the DHCP server.
resides.
IP AddressUnique Internet Protocol (IP) Address
for the phone.
When DHCP is enabled, the IP Address is
assigned by the DHCP server.
When DHCP is disabled, you must
configure the IP address. If you assign an
IP address with this option, you must also
assign a subnet mask and default router.
See the Subnet Mask and Default Router
options in this table.
Subnet MaskSubnet mask used by the phone.You must assign a subnet mask if you
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Configuration Menus on the Cisco Unified IP Phone
Table 4-1Network Configuration Menu Options (continued)
OptionDescriptionUsage Notes
DNS Server 1
DNS Server 2
Primary Domain Name System (DNS)
server (DNS Server 1) and secondary
DNS server (DNS Server 2) used by the
phone.
Operational
VLAN ID
Auxiliary Virtual Local Area Network
(VLAN) configured on a Cisco Catalyst
switch in which the phone is a member.
If the phone has not received an
auxiliary VLAN, this parameter
indicates the Administrative VLAN.
If neither the auxiliary VLAN nor the
Administrative VLAN are configured,
this parameter is blank.
Admin. VLAN IDAuxiliary VLAN in which the phone is
a member.
Used only if the phone does not receive
an auxiliary VLAN from the switch,
ignored otherwise.
The phone obtains its Operational VLAN
ID via Cisco Discovery Protocol (CDP)
from the switch to which the phone is
attached. To assign a VLAN ID manually,
use the Admin VLAN
Press the OK button to choose whether
you wish to enter an auxiliary VLAN.
OL-10969-01
Overrides the value specified by the
Operational VLAN ID option.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Cisco Unified CallManager Options
The CallManager 1 through CallManager 5 options on the Network configuration
menu show the host names or IP addresses, in prioritized order, of the Cisco
Unified CallManager servers that the phone can register to. These options show
Cisco Unified CallManager servers that are available for processing calls from the
phone, in prioritized order.
For an available server, an option will show the Cisco Unified CallManager server
IP address and one of the following states:
•Active—Cisco Unified CallManager server from which the phone is
currently receiving call-processing services.
•Standby—Cisco Unified CallManager server to which the phone switches if
the current server becomes unavailable.
•Blank—No current connection to this Cisco Unified CallManager server.
Configuration Menus on the Cisco Unified IP Phone
An option may also include using CallManager 4 and CallManager 5 as one of
these designations:
•SRST—Indicates Survivable Remote Site Telephony (SRST) designation,
which indicates an SRST router capable of providing Cisco Unified
CallManager functionality with a limited feature set. This router assumes
control of call processing if all other Cisco Unified CallManager servers
become unreachable. The SRST Cisco Unified CallManager always appears
last in the list of servers, even if it is active.
NoteAfter a failover to a SRST router, the phone will monitor the links to the
Cisco Unified CallManager servers that the phone can register to. When
a server has been available for two minutes, by default, the phone will fall
back from the router to that server. You can change this default time by
specifying another value for the Connection Monitor Duration parameter
in Cisco Unified CallManager Administration. For more information,
refer to Cisco Unified CallManager Administration Guide.
•TFTP designation—Indicates that the phone was unable to register with a
Cisco Unified CallManager listed in its configuration file and it registered
with the TFTP server instead.
Chapter 4 Configuring Settings on the Cisco Unified IP Phone
Additional Configurations for the Cisco SIP Phone 3951
Additional Configurations for the Cisco SIP Phone
3951
Depending on your network configuration and topology, you may need configure
the Cisco SIP Phone 3951 on the Cisco Unified CallManager to include the
following:
•Configuring a SIP Phone Dial Plan, page 4-9
•Enabling Cisco Unified SIP Phone 3951 to Use iDTMF, page 4-9
Configuring a SIP Phone Dial Plan
Key Press Markup Language (KPML) allows for the digits to be sent to Cisco
Unified CallManager digit by digit. Cisco Unified CallManager defaults to the use
(KPML) when SIP dial rules are not configured. SIP Dial Rules allow for a pattern
of digits to be collected locally on the phone prior to sending to Cisco Unified
CallManager. Cisco SIP phone 3951 does not support KPML. To ensure
successful call completion, you must use the 7940_7960_OTHER dial rules
pattern to configure a SIP phone dial plan and to associate the plan with the Cisco
SIP phone 3951.
Enabling Cisco Unified SIP Phone 3951 to Use iDTMF
To access voice-messaging systems or to navigate interactive voice response
(IVR) applications from Cisco Unified SIP phone 3951, you must have one of the
following configurations on your system:
•Verify that you have a transcoding device that supports RFC 2833 on your
system. Configure the trunk that is going to the transcoder is configured for
MTP by using Cisco Unified CallManager Administration.
•On Cisco Unified CallManager Administration, check the Require DTMF
Reception checkbox for each registered Cisco Unified SIP Phone 3951. Cisco
Unified CallManager will verify transcoder support for RFC 2833 and
allocate its own MTP resource as necessary.
After you install Cisco Unified IP Phones in your network, configure their
network settings, and add them to Cisco Unified CallManager, you must then use
the Cisco Unified CallManager Administration application to configure some
telephony features, and assign users.
This chapter provides an overview of these configuration and set up procedures.
Cisco Unified CallManager documentation provides detailed instructions for
these procedures.
You configure most telephony features on the phone itself. For additional
information, refer to Cisco Unified SIP Phone 3951 User Guide.
This chapter includes following topics:
•Telephony Features Available for the Cisco Unified IP Phone, page 5-1
•Adding Users to Cisco Unified CallManager, page 5-4
•Adding Users to Cisco Unified CallManager, page 5-4
Telephony Features Available for the Cisco Unified
IP Phone
After you add Cisco Unified IP Phones to Cisco Unified CallManager, you can
add functionality to the phones. Tabl e 5- 1 includes a list of supported telephony
features, many of which you can configure using Cisco Unified CallManager
Administration. The Reference column lists Cisco Unified CallManager and other
documentation that contains configuration procedures and related information.
Conferencing is supported on
Cisco Unified SIP Phone 3951
itself and does not use Cisco
Unified CallManager resources, so
the user must remain in the
conference for the two other
parties to stay connected and
interact with one another.
Message Waiting
Indicator
Refers to the light (or "lamp") on the phone
handset that blinks or glows to indicate an
incoming call or new voice message.
Cisco Unified CallManager System
Guide, “Cisco Unified IP Phones”
chapter.
NoteFor the Cisco Unified SIP
Phone 3951, this feature
has limited support.
Incoming calls will ring on
both phones The call then
goes to whichever phone
picks up the call, but the
phone cannot perform any
of the other functions that
are associated with the
shared-line feature.
Speed Dial Allows a user to access a menu with a list of
Adding users to Cisco Unified CallManager allows you to display and maintain
information about users. You can add users to Cisco Unified CallManager using
either of these methods:
•To add users individually, choose User Management > End User from
Cisco Unified CallManager Administration.
Refer to Cisco Unified CallManager Administration Guide for more
information about adding users. Refer to Cisco Unified CallManager System Guide for details about user information.
•To add users in batches, use the Bulk Administration Tool. This method also
enables you to set an identical default password for all users.
Refer to Cisco Unified CallManager Bulk Administration Guide for details.
Viewing Status, Statistics, and
Firmware Information on the Cisco
Unified IP Phone
This chapter describes how to access and use the following screens on the
Cisco Unified IP Phone:
•Network Statistics Screen, page 6-1—Displays information about the
network performance of the phone.
•Firmware Versions Screen, page 6-2—displays information about the
firmware that is running on the phone.
You access these screens from the Status menu on the phone.
You can use the information on these screens to monitor the operation of a phone
and to assist with troubleshooting
For more information about troubleshooting, see Chapter 7, “Troubleshooting and
Maintenance.”
Network Statistics Screen
The Network Statistics screen displays information about the phone and network
performance. Ta ble 6-1 explains components of text messages that might appear
in this screen.
To display the Network Statistics screen, follow these steps:
To exit the Network Statistics screen, press the cancel key.
Table 6-1Network Statistics Message Components
Chapter 6 Viewing Status, Statistics, and Firmware Information on the Cisco Unified IP Phone
Message ComponentDescription
Rx FramesNumber of packets received by the phone
Tx FramesNumber of packets transmitted by the phone
Firmware Versions Screen
The Firmware Versions screen displays information about the firmware that is
running on the phone. Tabl e 6- 2 explains the information that is displayed on this
screen.
To display the Firmware Versions screen, follow these steps:
Procedure
Step 1Press the Navigator Key
Step 2Press the Cancel button
Step 3Select Status.
Step 4Select Firmware Versions.
To exit the Firmware Versions screen, press the Exit softkey.
This chapter provides information that can assist you in troubleshooting problems
with your Cisco Unified IP Phone or in your IP telephony network.
If you need additional troubleshooting assistance, you can contact the Cisco TAC.
The phone generates detailed logs that can assist the Cisco TAC with
troubleshooting and resolving problems.
This chapter includes these topics:
•Resolving Startup Problems, page 7-1
•Cisco Unified IP Phone Resets Unexpectedly, page 7-8
•General Troubleshooting Tips for the Cisco Unified IP Phone, page 7-12
•Resetting or Restoring the Cisco Unified IP Phone, page 7-16
•Where to Go for More Troubleshooting Information, page 7-16
•Cleaning the Cisco Unified IP Phone, page 7-17
Resolving Startup Problems
After installing a Cisco Unified IP Phone into your network and adding it to
Cisco Unified CallManager, the phone should start up as described in the
“Verifying the Phone Startup Process” section on page 3-10. If the phone does not
start up properly, see the following sections for troubleshooting information:
•Symptom: The Cisco Unified IP Phone Does Not Go Through its Normal
•Symptom: The Cisco Unified IP Phone Does Not Register with Cisco
Unified CallManager, page 7-3
•Symptom: Cisco Unified IP Phone Unable to Obtain IP Address, page 7-8
Symptom: The Cisco Unified IP Phone Does Not Go Through its
Normal Startup Process
When you connect a Cisco Unified IP Phone into the network port, the phone
should go through its normal startup process and the LCD screen should display
information. If the phone does not go through the startup process, the cause may
be faulty cables, bad connections, network outages, lack of power, and so on. Or,
the phone may not be functional.
To determine whether the phone is functional, follow these suggestions to
systematically eliminate these other potential problems:
1.Verify that the network port is functional:
–
Exchange the Ethernet cables with cables that you know are functional.
–
Disconnect a functioning Cisco Unified IP Phone from another port and
connect it to this network port to verify the port is active.
–
Connect the Cisco Unified IP Phone that will not start up to a different
port that is known to be good.
–
Connect the Cisco Unified IP Phone that will not start up directly to the
port on the switch, eliminating the patch panel connection in the office.
2.Verify that the phone is receiving power:
–
Verify that the electrical outlet is functional.
–
If you are using in-line power, use the external power supply instead.
–
If you are using the external power supply, switch with a unit that you
know to be functional.
If after attempting these solutions, the LCD screen on the Cisco Unified IP Phone
does not display any characters after at least five minutes, perform a factory reset
of the phone (see the “Where to Go for More Troubleshooting Information”
section on page 7-16). If the phone still does not display characters, contact a
Cisco technical support representative for additional assistance.
Symptom: The Cisco Unified IP Phone Does Not Register with
Cisco Unified CallManager
If the phone proceeds past the first stage of the startup process (LED buttons
flashing on and off) but displays error messages on the LCD screen, the phone is
not starting up properly. The phone cannot successfully start up unless it is
connected to the Ethernet network and it has registered with a
Cisco Unified CallManager server.
These sections can assist you in determining the reason the phone is unable to start
up properly:
•Identifying Error Messages, page 7-3
•Registering the Phone with Cisco Unified CallManager, page 7-4
•Cisco Unified CallManager and TFTP Services Are Not Running, page 7-6
•Creating a New Configuration File, page 7-6
In addition, problems with security may prevent the phone from starting up
properly. See the “General Troubleshooting Tips for the Cisco Unified IP Phone”
section on page 7-12 for more information.
Identifying Error Messages
As the Cisco Unified SIP Phone models 3951 cycle through the startup process,
you can access status messages that might provide you with information about the
cause of a problem.
Registering the Phone with Cisco Unified CallManager
A Cisco Unified IP Phone can register with a Cisco Unified CallManager server
only if the phone has been added to the server or if auto-registration is enabled.
Review the information and procedures in the “Adding Phones to the Cisco
Unified CallManager Database” section on page 2-9 to ensure that the phone has
been added to the Cisco Unified CallManager database.
To verify that the phone is in the Cisco Unified CallManager database, choose
Device > Phone > Find from Cisco Unified CallManager Administration to
search for the phone based on its MAC Address. For information about
determining a MAC address, see the “Determining the MAC Address for a Cisco
Unified IP Phone” section on page 2-12.
If the phone is already in the Cisco Unified CallManager database, its
configuration file may be damaged. See the “Creating a New Configuration File”
section on page 7-6 for assistance.
Checking Network Connectivity
If the network is down between the phone and the TFTP server or
Cisco Unified CallManager, the phone cannot start up properly. Ensure that the
network is currently running.
Verifying TFTP Server Settings
The Cisco Unified IP Phone uses the TFTP Server 1 setting to identify the primary
TFTP server used by the phone. You can determine this setting by pressing the OK
button and choosing Settings > Network Configuration > TFTP Server.
If you have assigned a static IP address to the phone, you must manually enter a
setting for the TFTP Server 1 option. You can also enable the phone to use a
dynamic TFTP server.
For more information on configuring network settings, see the “Configuring
You should verify the IP addressing and routing settings on the phone. If you are
using DHCP, the DHCP server should provide these values. If you have assigned
a static IP address to the phone, you must enter these values manually.
On the Cisco Unified IP Phone, press the OK button and choose Settings >
Network Configuration > DHCP Enabled.
•DHCP Enabled—Verify that DHCP Enabled is set to yes. If it is not, check
your IP routing and VLAN configuration. Refer to Troubleshooting Switch Port Pro bl ems , available at this URL:
http://www.cisco.com/warp/customer/473/53.shtml
•IP Address, Subnet Mask, Default Router—If you have assigned a static IP
address to the phone, you must manually enter settings for these options. See
the “Configuring Network Settings” section on page 4-3 for instructions.
Resolving Startup Problems
If you are using DHCP, check the IP addresses distributed by your DHCP server.
Refer to Understanding and Troubleshooting DHCP in Catalyst Switch or Enterprise Networks, available at this URL:
If you are using DNS to refer to the TFTP server or to Cisco Unified CallManager,
you must ensure that you have specified a DNS server. You should also verify that
there is a CNAME entry in the DNS server for the TFTP server and for the
Cisco Unified CallManager system.
Verifying Cisco Unified CallManager Settings
On the Cisco Unified IP Phone, press the OK button and choose Settings >
Network Configuration > CallManager 1 - 6. The Cisco Unified IP Phone
attempts to open a TCP connection to all the Cisco Unified CallManager servers
that are part of the assigned Cisco Unified CallManager group. If none of these
options contain IP addresses or show Active or Standby, the phone is not properly
registered with Cisco Unified CallManager. See the “Registering the Phone with
Cisco Unified CallManager” section on page 7-4 for tips on resolving this
Cisco Unified CallManager and TFTP Services Are Not Running
If the Cisco Unified CallManager or TFTP services are not running, phones may
not be able to start up properly. In this case, it is likely that you are experiencing
a system-wide failure and that other phones and devices are unable to start up
properly.
If the Cisco Unified CallManager service is not running, all devices on the
network that rely on it to make phone calls will be affected. If the TFTP service
is not running, many devices will not be able to start up successfully.
To start a service, follow these steps:
Procedure
Step 1From Cisco Unified CallManager Administration, choose Serviceability from the
Navigation drop-down list.
Step 2Choose Tools > Control Center - Network Services.
Step 3Choose the primary Cisco Unified CallManager server from the Server
drop-down list.
The page displays the service names for the server that you chose, the status of
the services, and a service control panel to stop or start a service.
Step 4If a service has stopped, click its radio button and then click the Start button.
The Service Status symbol changes from a square to an arrow.
Creating a New Configuration File
If you continue to have problems with a particular phone that other suggestions in
this chapter do not resolve, the configuration file may be corrupted.
To create a new configuration file, follow these steps:
Procedure
Step 1From Cisco Unified CallManager, choose Device > Phone > Find to locate the
Step 2Choose Delete to remove the phone from the Cisco Unified CallManager
database.
Step 3Add the phone back to the Cisco Unified CallManager database. See the “Adding
Phones to the Cisco Unified CallManager Database” section on page 2-9 for
details.
Step 4Power cycle the phone:
•If the phone receives power from an external power source, unplug the
Ethernet cable from the Network port on the phone, then unplug the power
supply from the DC adaptor port on the phone. Next, reconnect the power
supply and then reconnect the Ethernet cables.
CautionAlways unplug the upstream Ethernet cable from the phone before unplugging the
power supply. Unplugging the power supply before unplugging the upstream
Ethernet cable could result in a service interruption on the network.
Resolving Startup Problems
•If the phone receives inline power, unplug the cable from the Network port on
the phone and then plug it back in.
Note•When you remove a phone from the Cisco Unified CallManager database, its
configuration file is deleted from the Cisco Unified CallManager TFTP
server. The phone’s directory number or numbers remain in the Cisco Unified
CallManager database. They are called “unassigned DNs” and can be used for
other devices. If unassigned DNs are not used by other devices, delete them
from the Cisco Unified CallManager database. You can use the Route Plan
Report to view and delete unassigned reference numbers. Refer to
Cisco Unified CallManager Administration Guide for more information.
•Changing the buttons on a phone button template, or assigning a different
phone button template to a phone, may result in directory numbers that are no
longer accessible from the phone. The directory numbers are still assigned to
the phone in the Cisco Unified CallManager database, but there is no button
on the phone with which calls can be answered. These directory numbers
should be removed from the phone and deleted if necessary.
Symptom: Cisco Unified IP Phone Unable to Obtain IP Address
If a phone is unable to obtain an IP address when it starts up, the phone may be
not be on the same network or VLAN as the DHCP server, or the switch port to
which the phone is connected may be disabled.
Make sure that the network or VLAN to which the phone is connected has access
to the DHCP server, and make sure that the switch port is enabled.
Cisco Unified IP Phone Resets Unexpectedly
If users report that their phones are resetting during calls or while idle on their
desk, you should investigate the cause. If the network connection and
Cisco Unified CallManager connection are stable, a Cisco Unified IP Phone
should not reset on its own.
Typically, a phone resets if it has problems connecting to the Ethernet network or
to Cisco Unified CallManager. These sections can help you identify the cause of
a phone resetting in your network:
•Verifying that the Phones Have Not Been Intentionally Reset, page 7-10
•Eliminating DNS or Other Connectivity Errors, page 7-11
Verifying Physical Connection
Verify that the Ethernet connection to which the Cisco Unified IP Phone is
connected is up. For example, check if the particular port or switch to which the
phone is connected is down.
Intermittent network outages affect data and voice traffic differently. Your
network might have been experiencing intermittent outages without detection. If
so, data traffic can resend lost packets and verify that packets are received and
transmitted. However, voice traffic cannot recapture lost packets. Rather than
retransmitting a lost network connection, the phone resets and attempts to
reconnect its network connection.
If you are experiencing problems with the voice network, you should investigate
whether an existing problem is simply being exposed.
Verifying DHCP Settings
The following suggestions can help you determine if the phone has been properly
configured to use DHCP:
Cisco Unified IP Phone Resets Unexpectedly
1.Verify that you have properly configured the phone to use DHCP. See the
“Configuring Network Settings” section on page 4-3 for more information.
2.Verify that the DHCP server has been set up properly.
3.Verify the DHCP lease duration. Cisco recommends that you set it to 8 days.
Cisco Unified IP Phones send messages with request type 151 to renew their
DHCP address leases. If the DHCP server expects messages with request type
150, the lease will be denied, forcing the phone to restart and request a new
IP address from the DHCP server.
Checking Static IP Address Settings
If the phone has been assigned a static IP address, verify that you have entered the
correct settings. See the “Configuring Network Settings” section on page 4-3 for
more information.
If the Cisco Unified IP Phone appears to reset during heavy network usage (for
example, following extensive web surfing on a computer connected to same
switch as phone), it is likely that you do not have a voice VLAN configured.
Isolating the phones on a separate auxiliary VLAN increases the quality of the
voice traffic.
Verifying that the Phones Have Not Been Intentionally Reset
If you are not the only administrator with access to Cisco Unified CallManager,
you should verify that no one else has intentionally reset the phones.
You can check whether a Cisco Unified SIP Phone model 3951 received a
command from Cisco Unified CallManager to reset by pressing the Settings
button on the phone and choosing Status > Network Statistics. If the phone was
recently reset one of these messages appears:
•Reset-Reset—Phone closed due to receiving a Reset/Reset from
Cisco Unified CallManager administration.
•Reset-Restart—Phone closed due to receiving a Reset/Restart from
If the phone continues to reset, follow these steps to eliminate DNS or other
connectivity errors:
Procedure
Step 1Reset the phone to factory defaults. See the “Resolving Startup Problems” section
on page 7-1 for details.
Step 2Modify DHCP and IP settings:
a.Disable DHCP. See the “Configuring Network Settings” section on page 4-3
for instructions.
b.Assign static IP values to the phone. See the “Configuring Network Settings”
section on page 4-3 for instructions. Use the same default router setting used
for other functioning Cisco Unified IP Phones.
c.Assign a TFTP server. See the “Configuring Network Settings” section on
page 4-3 for instructions. Use the same TFTP server used for other
functioning Cisco Unified IP Phones.
Step 3On the Cisco Unified CallManager server, verify that the local host files have the
correct Cisco Unified CallManager server name mapped to the correct IP address.
Step 4From Cisco Unified CallManager, choose System > Server and verify that the
server is referred to by its IP address and not by its DNS name.
Step 5From Cisco Unified CallManager, choose Device > Phone > Find and verify that
you have assigned the correct MAC address to this Cisco Unified IP Phone. For
information about determining a MAC address, see the “Determining the MAC
Address for a Cisco Unified IP Phone” section on page 2-12.
General Troubleshooting Tips for the Cisco Unified IP Phone
Step 6Power cycle the phone:
•If the phone receives power from an external power source, unplug the
Ethernet cable from the Network port on the phone, then unplug the power
supply from the DC adaptor port on the phone. Next, reconnect the power
supply and then reconnect the Ethernet cable.
CautionAlways unplug the upstream Ethernet cable from the phone before unplugging the
power supply. Unplugging the power supply before unplugging the upstream
Ethernet cable could result in a service interruption on the network.
•If the phone receives inline power, unplug the cable from the Network port on
the phone and then plug it back in.
Chapter 7 Troubleshooting and Maintenance
General Troubleshooting Tips for the Cisco Unified
IP Phone
Table 7-1 provides general troubleshooting information for the Cisco Unified IP
Phone.
Table 7-1Cisco Unified IP Phone Troubleshooting
SummaryExplanation
Poor quality when calling digital cell
phones using the G.729 protocol.
Prolonged broadcast storms cause
IP phones to re-register.
In Cisco Unified CallManager, you can configure the network
to use the G.729 protocol (the default is G.711). When using
G.729, calls between an IP phone and a digital cellular phone
will have poor voice quality. Use G.729 only when absolutely
necessary.
Prolonged broadcast storms (lasting several minutes) on the
voice VLAN cause the IP phones to re-register with another
Cisco Unified CallManager server.
General Troubleshooting Tips for the Cisco Unified IP Phone
Table 7-1Cisco Unified IP Phone Troubleshooting (continued)
SummaryExplanation
Moving a network connection from
the phone to a workstation.
Changing the telephone
configuration.
If you are powering your phone through the network
connection, you must be careful if you decide to unplug the
phone’s network connection and plug the cable into a desktop
computer.
CautionThe computer’s network card cannot receive power
through the network connection; if power comes
through the connection, the network card can be
destroyed. To protect a network card, wait 10
seconds or longer after unplugging the cable from
the phone before plugging it into a computer. This
delay gives the switch enough time to recognize that
there is no longer a phone on the line and to stop
providing power to the cable.
By default, the network configuration options are locked to
prevent users from making changes that could impact their
network connectivity. You must unlock the network
configuration options before you can configure them. See the
“Unlocking and Locking Options” section on page 4-2 for
details.
Phone resetting.The phone resets when it loses contact with the
Cisco Unified CallManager software. This lost connection can
be due to any network connectivity disruption, including cable
breaks, switch outages, and switch reboots.
LCD display issues.If the display appears to have rolling lines or a wavy pattern, it
might be interacting with certain types of older fluorescent
lights in the building. Moving the phone away from the lights,
or replacing the lights, should resolve the problem.
When you are on a call that requires keypad input, if you press
the keys too quickly, some of them might not be recognized.
7-13
Page 96
Chapter 7 Troubleshooting and Maintenance
General Troubleshooting Tips for the Cisco Unified IP Phone
Table 7-1Cisco Unified IP Phone Troubleshooting (continued)
SummaryExplanation
Codec mismatch between the phone
and another device.
The RxType and the TxType that is being used for a
conversation between this IP phone and the other device should
match. If they do not, verify that the other device can handle the
codec conversation or that a transcoder is in place to handle the
service.
Sound sample mismatch between the
phone and another device.
The size of the voice packets that are being used in a
conversation between this IP phone and the other device should
match.
Gaps in voice calls.Can be caused by a problem with jitter on the network or
periodic high rates of network activity.
Checking signaling.To check that signaling is working properly between the phone
and Cisco Unified CallManager, press the Speaker button on
the phone to answer a call. If you can answer a call and if you
hear a dial tone, signaling is working properly.
Checking the handset cradle clip.Cisco Unified IP Phones are designed with a reversible handset
clip in the cradle. This clip is used with the plastic tab
protruding out when the phone is in a vertical (wall-mounted)
position. The position of the tab can interfere with the handset
as it is placed in the cradle. If the phone remains in the on-hook
position you may experience continued ringing when you try to
answer a call or a lack of dial tone when you try to place a call.
To resolve this problem, you may need to reverse the clip.
If the handset cradle clip is in the wall-mounted position and
your phone is placed on a desktop, slide the clip upward to
remove it. Rotate the clip 180 degrees and slide it back in so that
the tab is hidden.
If the hook switch remains in the down position, tapping on the
phone should free up the switch. You can also try pushing and
suddenly releasing the off-hook button after the handset has
been picked up.
OL-10969-01
Page 97
Chapter 7 Troubleshooting and Maintenance
General Troubleshooting Tips for the Cisco Unified IP Phone
Table 7-1Cisco Unified IP Phone Troubleshooting (continued)
SummaryExplanation
Checking the hook switch contacts.The hook switch contacts on the phone use a wiping action to
self-clean the contacts. If your phone is not used regularly, dust
and other airborne contaminants may degrade the contact
performance and cause problems with operation. If you have
periods of limited phone usage, you can clean the contacts by
quickly pressing and releasing the hook switch a dozen times.
Checking the position of the phone.The footstand of the phone allows adjustment of the phone to
eliminate glare on the LCD screen. When the phone is in the
most vertical position, the phone may be forced forward and the
handset may not sit properly in the cradle, creating a false
off-hook condition. Cisco recommends that you position the
phone one notch from the most vertical position to ensure that
the handset is firmly resting on the hook switch.
Checking the LAN cable.Make sure that the LAN cable connected to the phone is
positioned properly. The LAN cable should pass out of the side
of the phone between the base and the footstand. If you are
using a cable (such as Cat-5E or Cat-6) with a larger diameter
than the cable that was packaged with your phone, the cable
may cause the phone to tilt forward and force it off-hook. Use
a smaller LAN cable to eliminate this problem.
Loopback condition.A loopback condition can occur when the following conditions
are met:
•The SW Port Configuration option in the Network
Configuration menu on the phone is set to 10H
(10-BaseT / half duplex)
•The phone receives power from an external power supply
•The phone is powered down (the power supply is
disconnected)
In this case, the switch port on the phone can become disabled
and the following message will appear in the switch console
log:
To resolve this problem, re-enable the port from the switch.
7-15
Page 98
Chapter 7 Troubleshooting and Maintenance
Resetting or Restoring the Cisco Unified IP Phone
Resetting or Restoring the Cisco Unified IP Phone
There are two general methods for resetting or restoring the Cisco Unified IP
Phone:
•Performing a Basic Reset, page 7-16
•Where to Go for More Troubleshooting Information, page 7-16
Performing a Basic Reset
Performing a basic reset of a Cisco Unified IP Phone provides a way to recover if
the phone experiences an error and provides a way to reset or restore various
configuration and security settings.
A basic reset resets any user and network configuration changes that you have
made but that the phone has not written to its Flash memory to previously-saved
settings, then restarts the phone.
To perform a basic reset, hold down the * and the 6 keys, and press the Settings
button.
Where to Go for More Troubleshooting Information
If you have additional questions about troubleshooting the Cisco Unified IP
Phones, several Cisco.com web sites can provide you with more tips. Choose from
the sites available for your access level.
•Cisco Unified IP Phone Troubleshooting Resources:
To clean your Cisco Unified IP phone, use only a dry soft cloth to gently wipe the
phone and the LCD screen. Do not apply liquids or powders directly on the phone.
As with all non-weather-proof electronics, liquids and powders can damage the
components and cause failures.
