Configuring Voice over IP for the
Cisco 3600 Series
This chapter shows you how to configure Voice over IP (VoIP) on the Cisco 3600 series. For a
description of the commands used to configure Voice over IP, refer to the “Voice-Related
Commands” chapter in the Voice, Video, and Home Applications Command Reference.
VoIP enables a Cisco 3600 series router to carry voice traffic (for example, telephone calls and faxes)
over an IP network. Voice over IP is primarily a software feature; however, to use this feature on a
Cisco 3600 series router, you must install a voice network module (VNM). The VNM can hold either
two or four voice interface cards (VICs), each of which is specific to a particular signaling type
associated with a voice port. For more information about the physical characteristics, installing or
configuring a VNM in your Cisco 3600 series router, refer to the Voice Network Module and Voice
Interface Card Configuration Note that came with your VNM.
Voice over IP offers the following benefits:
• Toll bypass
• Remote PBX presence over WANs
• Unified voice/data trunking
• POTS-Internet telephony gateways
How Voice over IP Processes a Telephone Call
Before configuring Voice over IP on your Cisco 3600 series router, it helps to understand what
happens at an application level when you place a call using Voice over IP. The general flow of a
two-party voice call using Voice over IP is as follows:
1 The user picks up the handset; this signals an off-hook condition to the signaling application part
of Voice over IP in the Cisco 3600 series router.
2 The session application part of Voice over IP issues a dial tone and waits for the user to dial a
telephone number.
3 The user dials the telephone number; those numbers are accumulated and stored by the session
application.
4 After enough digits are accumulated to match a configured destination pattern, the telephone
number is mapped to an IP host via the dial plan mapper. The IP host has a direct connection to
either the destination telephone number or a PBX that is responsible for completing the call to
the configured destination pattern.
Configuring Voice over IP for the Cisco 3600 Series VC-13
List of Terms
5 The session application then runs the H.323 session protocol to establish a transmission and a
6 The CODECs are enabled for both ends of the connection and the conversation proceeds using
7 Any call-progress indications (or other signals that can be carried in-band) are cut through the
8 When either end of the call hangs up, the RSVP reservations are torn down (if RSVP is used) and
List of Terms
ACO M—Term used in G.165, “General Characteristics of International Telephone Connections and
International Telephone Circuits: Echo Cancellers.” ACOM is the combined loss achieved by the
echo canceller, which is the sum of the Echo Return Loss, Echo Return Loss Enhancement, and
nonlinear processing loss for the call.
reception channel for each direction over the IP network. If the call is being handled by a PBX,
the PBX forwards the call to the destination telephone. If RSVP has been configured, the RSVP
reservations are put into effect to achieve the desired quality of service over the IP network.
RTP/UDP/IP as the protocol stack.
voice path as soon as end-to-end audio channel is established. Signaling that can be detected by
the voice ports (for example, in-band DTMF digits after the call setup is complete) is also trapped
by the session application at either end of the connection and carried over the IP network
encapsulated in RTCP using the RTCP APP extension mechanism.
the session ends. Each end becomes idle, waiting for the next off-hook condition to trigger
another call setup.
Call leg—A logical connection between the router and either a telephony endpoint over a bearer
channel or another endpoint using a session protocol.
CIR—Committed information Rate. The average rate of information transfer a subscriber (for
example, the network administrator) has stipulated for a Frame Relay PVC.
CODEC—coder-decoder. Device that typically uses pulse code modulation to transform analog
signals into a digital bit stream and digital signals back into analog signals. In Voice over IP, it
specifies the voice coder rate of speech for a dial peer.
Dial peer—An addressable call endpoint. In Voice over IP, there are two kinds of dial peers: POTS
and VoIP.
DTMF—Dual tone multifrequency. Use of two simultaneous voice-band tones for dial (such as
touch tone).
E&M—E&M stands for recEive and transMit (or Ear and Mouth). E&M is a trunking arrangement
generally used for two-way switch-to-switch or switch-to-network connections. Cisco’s E&M
interface is an RJ-48 connector that allows connections to PBX trunk lines (tie lines).
FIFO—First-in, first-out. In data communication, FIFO refers to a buffering scheme where the first
byte of data entering the buffer is the first byte retrieved by the CPU. In telephony, FIFO refers to a
queuing scheme where the first calls received are the first calls processed.
FXO—Foreign Exchange Office. An FXO interface connects to the PSTN’s central office and is the
interface offered on a standard telephone. Cisco’s FXO interface is an RJ-11 connector that allows
an analog connection to be directed at the PSTN’s central office. This interface is of value for
off-premise extension applications.
VC-14
FXS—Foreign Exchange Station. An FXS interface connects directly to a standard telephone and
supplies ring, voltage, and dial tone. Cisco’s FXS interface is an RJ-11 connector that allows
connections to basic telephone service equipment, keysets, and PBXs.
Multilink PPP—Multilink Point-to-Point Protocol. This protocol is a method of splitting,
recombining, and sequencing datagrams across multiple logical data links.
Voice, Video, and Home Applications Configuration Guide
Prerequisite Tasks
PBX—Private Branch Exchange. Privately-owned central switching office.
PLAR—Private Line Auto Ringdown. This type of service results in a call attempt to some
particular remote endpoint when the local extension is taken off-key.
POTS—Plain Old Telephone Service. Basic telephone service supplying standard single line
telephones, telephone lines, and access to the public switched telephone network.
POTS dial peer—Dial peer connected via a traditional telephony network. POTS peers point to a
particular voice port on a voice network device.
PSTN—Public Switched Telephone Network. PSTN refers to the local telephone company.
PVC—Permanent virtual circuit.
QoS—Quality of Service. QoS refers to the measure of service quality provided to the user.
RSVP—Resource Reservation Protocol. This protocol supports the reservation of resources across
an IP network.
Trunk—Service that allows quasi-transparent connections between two PBXs, a PBX and a local
extension, or some other combination of telephony interfaces to be permanently conferenced
together by the session application and signaling passed transparently through the IP network.
VoIP dial peer—Dial peer connected via a packet network; in the case of Voice over IP, this is an
IP network. VoIP peers point to specific VoIP devices.
Prerequisite Tasks
Before you can configure your Cisco 3600 series router to use Voice over IP, you must first:
• Establish a working IP network. For more information about configuring IP, refer to the
“IP Overview,” “Configuring IP Addressing,” and “Configuring IP Services” chapters in the
Network Protocols Configuration Guide, Part 1.
• Install the one-slot or two-slot (NM-1V/NM-2V) voice network module into the appropriate bay
of your Cisco router. For more information about the physical characteristics of the voice network
module, or how to install it, refer to the installation documentation, Voice Network Module and
Voice Interface Card Configuration Note, that came with your voice network module.
• Complete your company’s dial plan.
• Establish a working telephony network based on your company’s dial plan.
• Integrate your dial plan and telephony network into your existing IP network topology. Merging
your IP and telephony networks depends on your particular IP and telephony network topology.
In general, we recommend the following suggestions:
— Use canonical numbers wherever possible. It is important to avoid situations where
numbering systems are significantly different on different routers or access servers in your
network.
— Make routing and/or dialing transparent to the user—for example, avoid secondary dial tones
from secondary switches, where possible.
— Contact your PBX vendor for instructions about how to reconfigure the appropriate PBX
interfaces.
After you have analyzed your dial plan and decided how to integrate it into your existing IP network,
you are ready to configure your network devices to support Voice over IP.
Configuring Voice over IP for the Cisco 3600 Series VC-15
Voice over IP Configuration Task List
Voice over IP Configuration Task List
To configure Voice over IP on the Cisco 3600 series, you need to complete the following tasks:
1 Configure IP Networks for Real-Time Voice Traffic
Configure your IP network to support real-time voice traffic. Fine-tuning your network to
adequately support VoIP involves a series of protocols and features geared toward Quality of
Service (QoS). To configure your IP network for real-time voice traffic, you need to take into
consideration the entire scope of your network, then select and configure the appropriate QoS
tool or tools:
(a) Multilink PPP with Interleaving
(b) RTP Header Compression
(c) Custom Queuing
(d) Weighted Fair Queuing
Refer to “Configure IP Networks for Real-Time Voice Traffic” section for information about how
to select and configure the appropriate QoS tools to optimize voice traffic on your network.
2 Configure Frame Relay for Voice over IP
(Optional) If you plan to run Voice over IP over Frame Relay, you need to take certain factors
into consideration when configuring Voice over IP for it to run smoothly over Frame Relay. For
example, a public Frame Relay cloud provides no guarantees for QoS. Refer to the “Configure
Frame Relay for Voice over IP” section for information about deploying Voice over IP over
Frame Relay.
3 Configure Number Expansion
Use the num-exp command to configure number expansion if your telephone network is
configured so that you can reach a destination by dialing only a portion (an extension number) of
the full E.164 telephone number. Refer to the “Configure Number Expansion” section for
information about number expansion.
4 Configure Dial Peers
Use the dial-peer voice command to define dial peers and switch to the dial-peer configuration

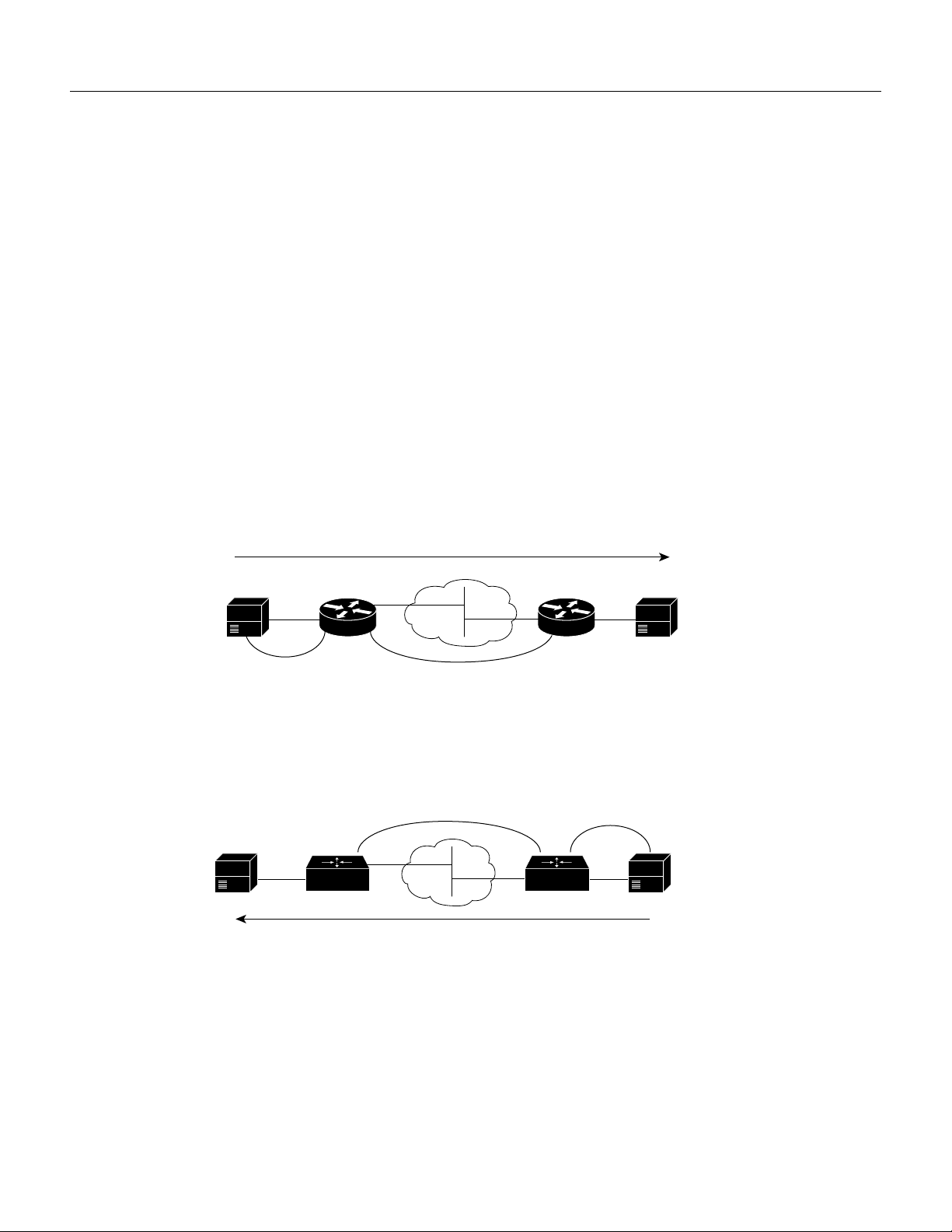

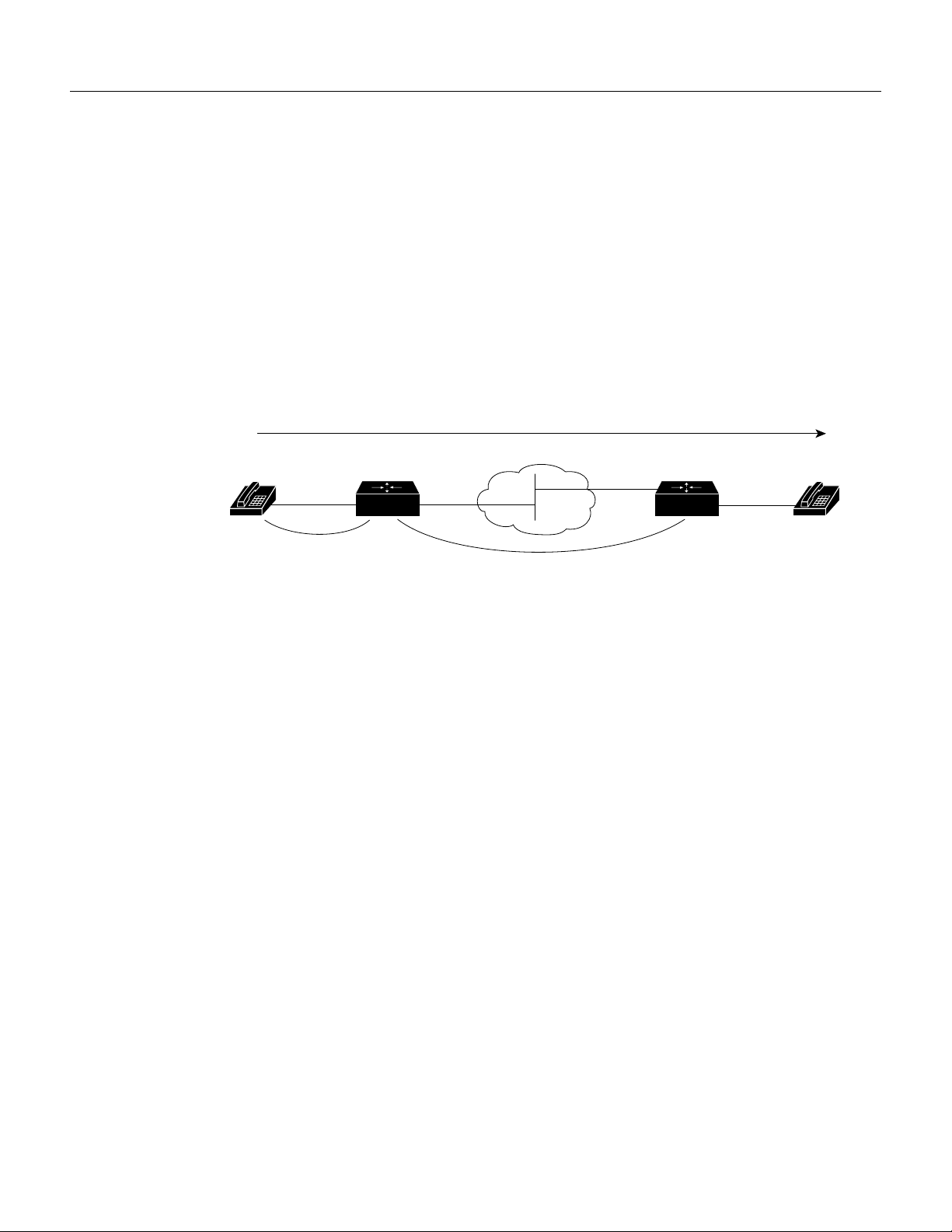

mode. Each dial peer defines the characteristics associated with a call leg. A call leg is a discrete
segment of a call connection that lies between two points in the connection. An end-to-end call
is comprised of four call legs, two from the perspective of the source access server, and two from
the perspective of the destination access server. Dial peers are used to apply attributes to call legs
and to identify call origin and destination. There are two different kinds of dial peers:
(a) POTS—Dial peer describing the characteristics of a traditional telephony network
connection. POTS peers point to a particular voice port on a voice network device. To
minimally configure a POTS dial peer, you need to configure the following two
characteristics: associated telephone number and logical interface. Use the
destination-pattern command to associate a telephone number with a POTS peer. Use the
port command to associate a specific logical interface with a POTS peers. In addition, you
can specify direct inward dialing for a POTS peer by using the direct-inward-dial
command.
VC-16
Voice, Video, and Home Applications Configuration Guide
Configure IP Networks for Real-Time Voice Traffic
(b) VoIP—Dial peer describing the characteristics of a packet network connection; in the case
of Voice over IP, this is an IP network. VoIP peers point to specific VoIP devices. To
minimally configure a VoIP peer, you need to configure the following two characteristics:
associated destination telephone number and a destination IP address. Use the
destination-pattern command to define the destination telephone number associated with
a VoIP peer. Use the session target command to specify a destination IP address for a VoIP
peer.
Refer to the “Configure Dial Peers” section additional information about configuring dial peers
and dial-peer characteristics.
5 Optimize Dial Peer and Network Interface Configurations
You can use VoIP peers to define characteristics such as IP precedence, additional QoS
parameters (when RSVP is configured), CODEC, and VAD. Use the ip precedence command to
define IP precedence. If you have configured RSVP, use either the req-qos or acc-qos command
to configure QoS parameters. Use the codec command to configure specific voice coder rates.
Use the vad command to disable voice activation detection and the transmission of silence
packets. Refer to the “Optimize Dial Peer and Network Interface Configurations” section for
additional information about optimizing dial-peer characteristics.
6 Configure Voice Ports
You need to configure your Cisco 3600 series router to support voice ports. In general, voice-port
commands define the characteristics associated with a particular voice-port signaling type. voice
ports on the Cisco 3600 series support three basic voice signaling types:
(a) FXO—Foreign Exchange Office interface
(b) FXS—The Foreign Exchange Station interface
(c) E&M—The “Ear and Mouth” interface (or “RecEive and TransMit” interface)
Under most circumstances, the default voice-port command values are adequate to configure
FXO and FXS ports to transport voice data over your existing IP network. Because of the inherent
complexities involved with PBX networks, E&M ports might need specific voice-port values
configured, depending on the specifications of the devices in your telephony network. For
information about configuring voice ports, refer to the “Configuring Voice Ports” chapter.
7 Configure Voice over IP for Microsoft NetMeeting
(Optional) Voice over IP can be used with Microsoft NetMeeting (Version 2.x) when the
Cisco 3600 series router is used as the voice gateway. Refer to the 'Configure Voice over IP for
Microsoft NetMeeting” section for more information about configuring Voice over IP to support
Microsoft NetMeeting.
Configure IP Networks for Real-Time Voice Traffic
You need to have a well-engineered network end-to-end when running delay-sensitive applications
such as VoIP. Fine-tuning your network to adequately support VoIP involves a series of protocols and
features geared toward Quality of Service (QoS). It is beyond the scope of this document to explain
the specific details relating to wide-scale QoS deployment. Cisco IOS software provides many tools
for enabling QoS on your backbone, such as Random Early Detection (RED), Weighted Random
Early Detection (WRED), Fancy queuing (meaning custom, priority, or weighted fair queuing), and
IP Precedence. To configure your IP network for real-time voice traffic, you need to take into
consideration the entire scope of your network, then select the appropriate QoS tool or tools.
Configuring Voice over IP for the Cisco 3600 Series VC-17
Configure IP Networks for Real-Time Voice Traffic
The important thing to remember is that QoS must be configured throughout your network—not just
on the Cisco 3600 series devices running VoIP—to improve voice network performance. Not all QoS
techniques are appropriate for all network routers. Edge routers and backbone routers in your
network do not necessarily perform the same operations; the QoS tasks they perform might differ as
well. To configure your IP network for real-time voice traffic, you need to take into consideration
the functions of both edge and backbone routers in your network, then select the appropriate QoS
tool or tools.
In general, edge routers perform the following QoS functions:
• Packet classification
• Admission control
• Bandwidth management
• Queuing
In general, backbone routers perform the following QoS functions:
• High-speed switching and transport
• Congestion management
• Queue management
Scalable QoS solutions require cooperative edge and backbone functions.
Note In a subsequent Cisco IOS release, we have implemented enhancements to improve QoS on
low speed, wide-area links, such as ISDN, MLPPP, and Frame Relay running on edge routers. For
more information about these enhancements, refer to the Cisco IOS Release 12.0(5)T “IP RTP”
feature module.
Although not mandatory, some QoS tools have been identified as being valuable in fine-tuning your
network to support real-time voice traffic. To configure your IP network for QoS using these tools,
perform one or more of the following tasks:
• Configure Multilink PPP with Interleaving
• Configure RTP Header Compression
• Configure Custom Queuing
• Configure Weighted Fair Queuing
Each of these components is discussed in the following sections.
VC-18
Voice, Video, and Home Applications Configuration Guide
Configure Multilink PPP with Interleaving
Multi-class Multilink PPP Interleaving allows large packets to be multilink-encapsulated and
fragmented into smaller packets to satisfy the delay requirements of real-time voice traffic; small
real-time packets, which are not multilink-encapsulated, are transmitted between fragments of the
large packets. The interleaving feature also provides a special transmit queue for the smaller,
delay-sensitive packets, enabling them to be transmitted earlier than other flows. Interleaving
provides the delay bounds for delay-sensitive voice packets on a slow link that is used for other
best-effort traffic.
Note Interleaving applies only to interfaces that can configure a multilink bundle interface. These
include virtual templates, dialer interfaces, and Integrated Services Digital Network (ISDN) Basic
Rate Interface (BRI) or Primary Rate Interface (PRI) interfaces.
In general, Multilink PPP with interleaving is used in conjunction with weighted fair queuing and
RSVP or IP Precedence to ensure voice packet delivery. Use Multilink PPP with interleaving and
weighted fair queuing to define how data will be managed; use RSVP or IP Precedence to give
priority to voice packets.
You should configure Multilink PPP if the following conditions exist in your network:
Configure Multilink PPP with Interleaving
• Point-to-point connection using PPP Encapsulation
• Slow links
Note Multilink PPP should not be used on links greater than 2 Mbps.
Multilink PPP support for interleaving can be configured on virtual templates, dialer interfaces, and
ISDN BRI or PRI interfaces. To configure interleaving, you need to complete the following tasks:
• Configure the dialer interface or virtual template, as defined in the relevant chapters of the
Dial Solutions Configuration Guide.
• Configure Multilink PPP and interleaving on the interface or template.
To configure Multilink PPP and interleaving on a configured and operational interface or virtual
interface template, use the following commands in interface mode:
Step Command Purpose
1 ppp multilink Enable Multilink PPP.
2 ppp multilink interleave Enable real-time packet interleaving.
3 ppp multilink fragment-delay milliseconds Optionally, configure a maximum fragment delay.
4 ip rtp reserve lowest-UDP-port
range-of-ports [maximum-bandwidth]
Reserve a special queue for real-time packet flows
to specified destination User Datagram Protocol
(UDP) ports, allowing real-time traffic to have
higher priority than other flows. This is only
applicable if you have not configured RSVP.
Note The ip rtp reserve command can be used instead of configuring RSVP. If you configure
RSVP, this command is not required.
Configuring Voice over IP for the Cisco 3600 Series VC-19
Configure IP Networks for Real-Time Voice Traffic
For more information about Multilink PPP, refer to the “Configuring Media-Independent PPP and
Multilink PPP” chapter in the Dial Solutions Configuration Guide.
Multilink PPP Configuration Example
The following example defines a virtual interface template that enables Multilink PPP with
interleaving and a maximum real-time traffic delay of 20 milliseconds, and then applies that virtual
template to the Multilink PPP bundle:
interface virtual-template 1
ppp multilink
encapsulated ppp
ppp multilink interleave
ppp multilink fragment-delay 20
ip rtp reserve 16384 100 64
multilink virtual-template 1
Configure RTP Header Compression
Real-Time Transport Protocol (RTP) is used for carrying packetized audio traffic over an IP network.
RTP header compression compresses the IP/UDP/RTP header in an RTP data packet from 40 bytes
to approximately 2 to 4 bytes (most of the time), as shown in Figure 4.
This compression feature is beneficial if you are running Voice over IP over slow links. Enabling
compression on both ends of a low-bandwidth serial link can greatly reduce the network overhead if
there is a lot of RTP traffic on that slow link.
Typically, an RTP packet has a payload of approximately 20 to 160 bytes for audio applications that
use compressed payloads. RTP header compression is especially beneficial when the RTP payload
size is small (for example, compressed audio payloads between 20 and 50 bytes).
Figure 4 RTP Header Compression
Before RTP header compression:
20 bytes 8 bytes
IP
Header
After RTP header compression:
12 bytes
UDP
RTP Payload
2 to 4 bytes
20 to 160 bytes
VC-20
Payload
IP/UDP/RTP header
20 to 160 bytes
Voice, Video, and Home Applications Configuration Guide
12076
You should configure RTP header compression if the following conditions exist in your network:
• Slow links
• Need to save bandwidth
Note RTP header compression should not be used on links greater than 2 Mbps.
Perform the following tasks to configure RTP header compression for Voice over IP. The first task is
required; the second task is optional.
• Enable RTP Header Compression on a Serial Interface
• Change the Number of Header Compression Connections
Enable RTP Header Compression on a Serial Interface
To use RTP header compression, you need to enable compression on both ends of a serial
connection. To enable RTP header compression, use the following command in interface
configuration mode:
Configure RTP Header Compression
Command Purpose
ip rtp header-compression [passive] Enable RTP header compression.
If you include the passive keyword, the software compresses outgoing RTP packets only if incoming
RTP packets on the same interface are compressed. If you use the command without the passive
keyword, the software compresses all RTP traffic.
Change the Number of Header Compression Connections
By default, the software supports a total of 16 RTP header compression connections on an interface.
To specify a different number of RTP header compression connections, use the following command
in interface configuration mode:
Command Purpose
ip rtp compression connections number Specify the total number of RTP header
RTP Header Compression Configuration Example
The following example enables RTP header compression for a serial interface:
interface 0
ip rtp header-compression
encapsulation ppp
ip rtp compression-connections 25
compression connections supported on an interface.
For more information about RTP header compression, see the “Configuring IP Multicast Routing”
chapter of the Network Protocols Configuration Guide, Part 1.
Configuring Voice over IP for the Cisco 3600 Series VC-21
Configure Frame Relay for Voice over IP
Configure Custom Queuing
Some QoS features, such as IP RTP reserve and custom queuing, are based on the transport protocol
and the associated port number. Real-time voice traffic is carried on UDP ports ranging from 16384
to 16624. This number is derived from the following formula:
16384 = 4(number of voice ports in the Cisco 3600 series router)
Custom Queuing and other methods for identifying high priority streams should be configured for
these port ranges. For more information about custom queuing, refer to the “Performing Basic
System Management” chapter in the Configuration Fundamentals Configuration Guide.
Configure Weighted Fair Queuing
Weighted fair queuing ensures that queues do not starve for bandwidth and that traffic gets
predictable service. Low-volume traffic streams receive preferential service; high-volume traffic
streams share the remaining capacity, obtaining equal or proportional bandwidth.
In general, weighted fair queuing is used in conjunction with Multilink PPP with interleaving and
RSVP or IP Precedence to ensure that voice packet delivery. Use weighted fair queuing with
Multilink PPP to define how data will be managed; use RSVP or IP Precedence to give priority to
voice packets. For more information about weighted fair queuing, refer to the “Performing Basic
System Management” chapter in the Configuration Fundamentals Configuration Guide.
Configure Frame Relay for Voice over IP
You need to take certain factors into consideration when configuring Voice over IP for it to run
smoothly over Frame Relay. A public Frame Relay cloud provides no guarantees for QoS. For
real-time traffic to be transmitted in a timely manner, the data rate must not exceed the committed
information rate (CIR) or there is the possibility that packets will be dropped. In addition, Frame
Relay traffic shaping and RSVP are mutually exclusive. This is particularly important to remember
if multiple DLCIs are carried on a single interface.
For Frame Relay links with slow output rates (less than or equal to 64 kbps) where data and voice
are being transmitted over the same PVC, we recommend the following solutions:
• Separate DLCIs for voice and data—By providing a separate subinterface for voice and data, you
can use the appropriate QoS tool per line. For example, each DLCI would use 32 kbps of a
64 kbps line.
— Apply adaptive traffic shaping to both DLCIs.
— Use RSVP or IP Precedence to prioritize voice traffic.
— Use compressed RTP to minimize voice packet size.
— Use weighted fair queuing to manage voice traffic.
• Lower MTU size—Voice packets are generally small. By lowering the MTU size (for example,
to 300 bytes), large data packets can be broken up into smaller data packets that can more easily
be interwoven with voice packets.
VC-22
Note Some applications do not support a smaller MTU size. If you decide to lower MTU size,
use the ip mtu command; this command affects only IP traffic.
Voice, Video, and Home Applications Configuration Guide
Frame Relay for Voice over IP Configuration Example
Note Lowering the MTU size affects data throughput speed.
• CIR equal to line rate—Make sure that the data rate does not exceed the CIR. This is
accomplished through generic traffic shaping.
— Use IP Precedence to prioritize voice traffic.
— Use compressed RTP to minimize voice packet header size.
• Traffic shaping—Use adaptive traffic shaping to throttle back the output rate based on the BECN.
If the feedback from the switch is ignored, packets (both data and voice) might be discarded.
Because the Frame Relay switch does not distinguish between voice and data packets, voice
packets could be discarded, which would result in a deterioration of voice quality.
— Use compressed RTP, reduced MTU size, and adaptive traffic shaping based on BECN to
hold data rate to CIR.
— Use generic traffic shaping to obtain a low interpacket wait time. For example, set Bc to 4000
to obtain an inter-packet wait of 125 ms.
Note We recommend FRF.12 fragmentation setup rules for Voice over IP connections over Frame
Relay. FRF.12 was implemented in the Cisco IOS Release 12.0(4)T. For more information, refer to
the Cisco IOS Release 12.0(4)T “Voice over Frame Relay using FRF.11 and FRF.12” feature
module.
Frame Relay for Voice over IP Configuration Example
For Frame Relay, it is customary to configure a main interface and several subinterfaces, one
subinterface per PVC. The following example configures a Frame Relay main interface and a
subinterface so that voice and data traffic can be successfully transported:
interface Serial0/0
ip mtu 300
no ip address
encapsulation frame-relay
no ip route-cache
no ip mroute-cache
fair-queue 64 256 1000
frame-relay ip rtp header-compression
interface Serial0/0.1 point-to-point
ip mtu 300
ip address 40.0.0.7 255.0.0.0
no ip route-cache
no ip mroute-cache
bandwidth 64
traffic-shape rate 32000 4000 4000
frame-relay interface-dlci 16
frame-relay ip rtp header-compression
In this configuration example, the main interface has been configured as follows:
• MTU size of IP packets is 300 bytes.
• No IP address is associated with this serial interface. The IP address must be assigned for the
subinterface.
• Encapsulation method is Frame Relay.
Configuring Voice over IP for the Cisco 3600 Series VC-23
Loading...
