CHAP T E R

Installing the Access Point

This chapter describes how to install the 1552 access point and contains the following sections:

• Unpacking the Access Point, page 2-2

• Tools and Hardware, page 2-2

• Warnings, page 2-4

• Safety Information, page 2-5

• Avoiding Damage to Radios in a Testing Environment, page 2-7

• Installation Guidelines, page 2-8

• Installing the Access Point, page 2-15

• Grounding the Access Point, page 2-34

• Connecting a Fiber-Optic Cable to the Access Point, page 2-35

• Powering the Access Point, page 2-38

• Installing the Access Point in Hazardous Locations, page 2-53

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-1

Unpacking the Access Point

When you are unpacking the access point, do not remove the foam blocks attached to the antenna connectors. The foam protects the antenna connectors during installation.

To unpack the access point, follow these steps:

Step 1 Open the shipping container and carefully remove the contents.

Step 2 Return all packing materials to the shipping container, and save it.

Step 3 Ensure that all items listed in “Package Contents” are included in the shipment. If any item is damaged

or missing, notify your authorized Cisco sales representative.

Package Contents

The typical access point package contains the following items:

• Access point

Chapter 2 Installing the Access Point

• Cisco product documentation and translated safety warnings

• Three liquid-tight adapters

• Two-pin DC power connector

• Ground lug (Panduit PLCD6-10A-L) and screws with lock washers

• Watertight cable glands for Power-over-Ethernet (PoE) ports (depending on the 1552 access point

model, 2 or 3 cable glands are provided)

Tools and Hardware

The tools and hardware used to install the 1552 access point are described in:

• Optional Tools and Hardware, page 2-2

• Optional Tools and Hardware That You Supply, page 2-3

• Pole Installation Hardware and Tools, page 2-3

• Cable Strand Installation Hardware and Tools, page 2-4

Optional Tools and Hardware

The optional tools and hardware that can be obtained from Cisco are:

• Optional power injector (AIR-PWRINJ1500-2=)

2-2

• Optional AC power cord

–

40-ft (12.2-m) power cord with North American plug (AIR-CORD-R3P-40NA=) for light pole installations in the US and Canada

–

AC power cord, 40 ft (12.2 m) with European unterminated end (AIR-CORD-R3P-40UE=) for light pole installations outside of the US and Canada

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

–

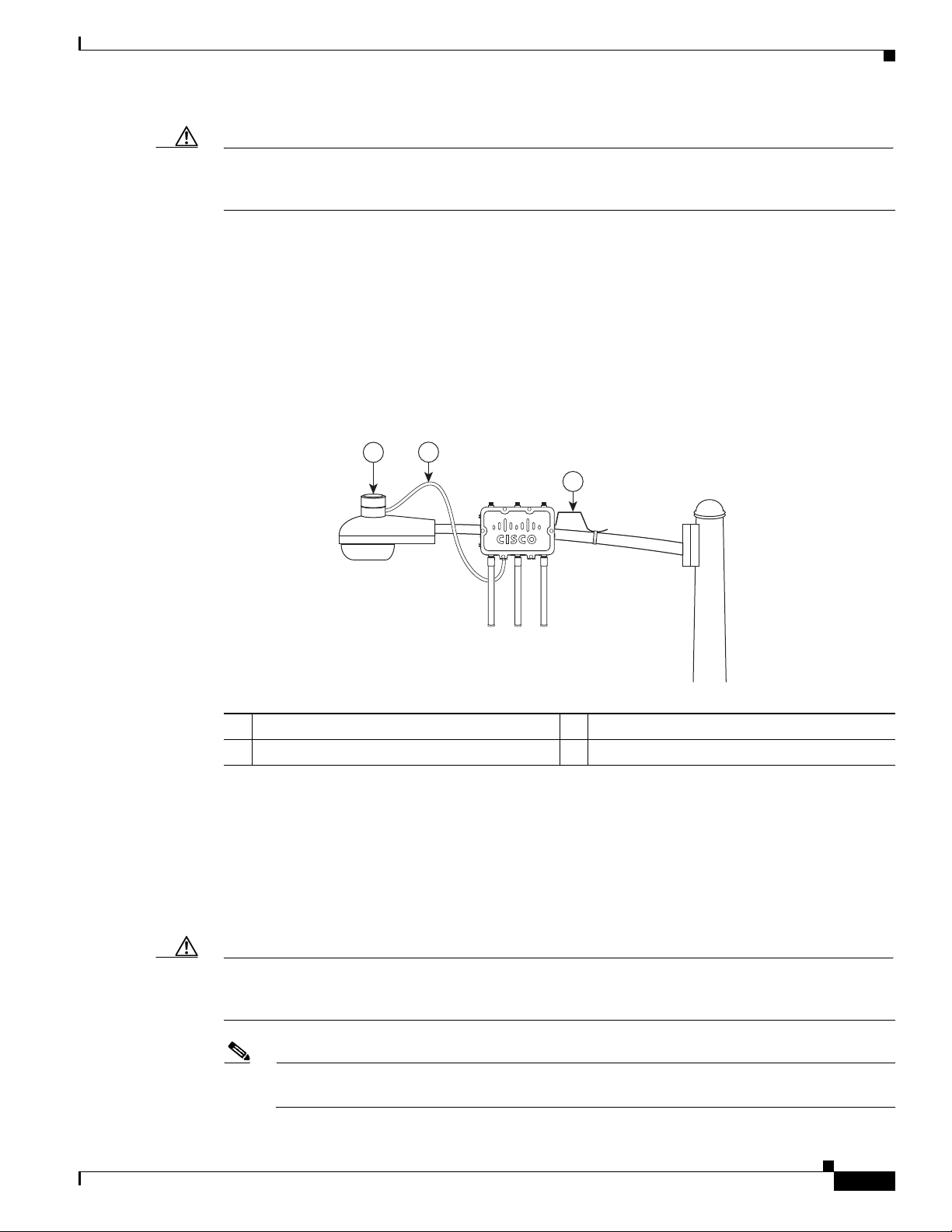

4-ft (1.2-m) streetlight power tap adapter (AIR-PWR-ST-LT-R3P=) for light pole installations in the US and Canada

• Antennas, 2.4/5-GHz (refer to the “Antenna Configurations” section on page 1-12)

• Optional battery backup unit (AIR-1520-BATT-6AH=)—Used only on model 1552E

• Optional pole mount kit (AIR-ACCPMK1550=)

• Optional strand mount kit (AIR-ACCSMK1550=)

• Optional banding strap tool (BAND IT) (AIR-BAND-INST-TL=)

• Optional fiber-optic 100BASE-BX10-U SFP, fiber-optic take-up reels, and liquid-tight adapter

(GLC-FE-100BX-URGD=)

Optional Tools and Hardware That You Supply

Tools and materials that are user-supplied are:

• Ground lug crimping tool (Panduit CT-720 with CD-720-1 die)

• 6-AWG copper ground wire

• 13 mm box-end wrench or socket set

• Adjustable wrench, 22 mm socket, or Sealcon S-2200-WR socket wrench

Tools and Hardware

• #8 Torx screwdriver

• Small flat screwdriver for DC power connector

• Optional shielded outdoor-rated Ethernet (CAT5e or better) cable with 0.20 to 0.35 in

(0.51 to 0.89 cm) diameter

• Optional Ethernet RJ-45 connector and installation tool

• Optional shielded outdoor-rated DC power cable with 0.20 to 0.35 inch (.0.51 to 0.89 cm) diameter

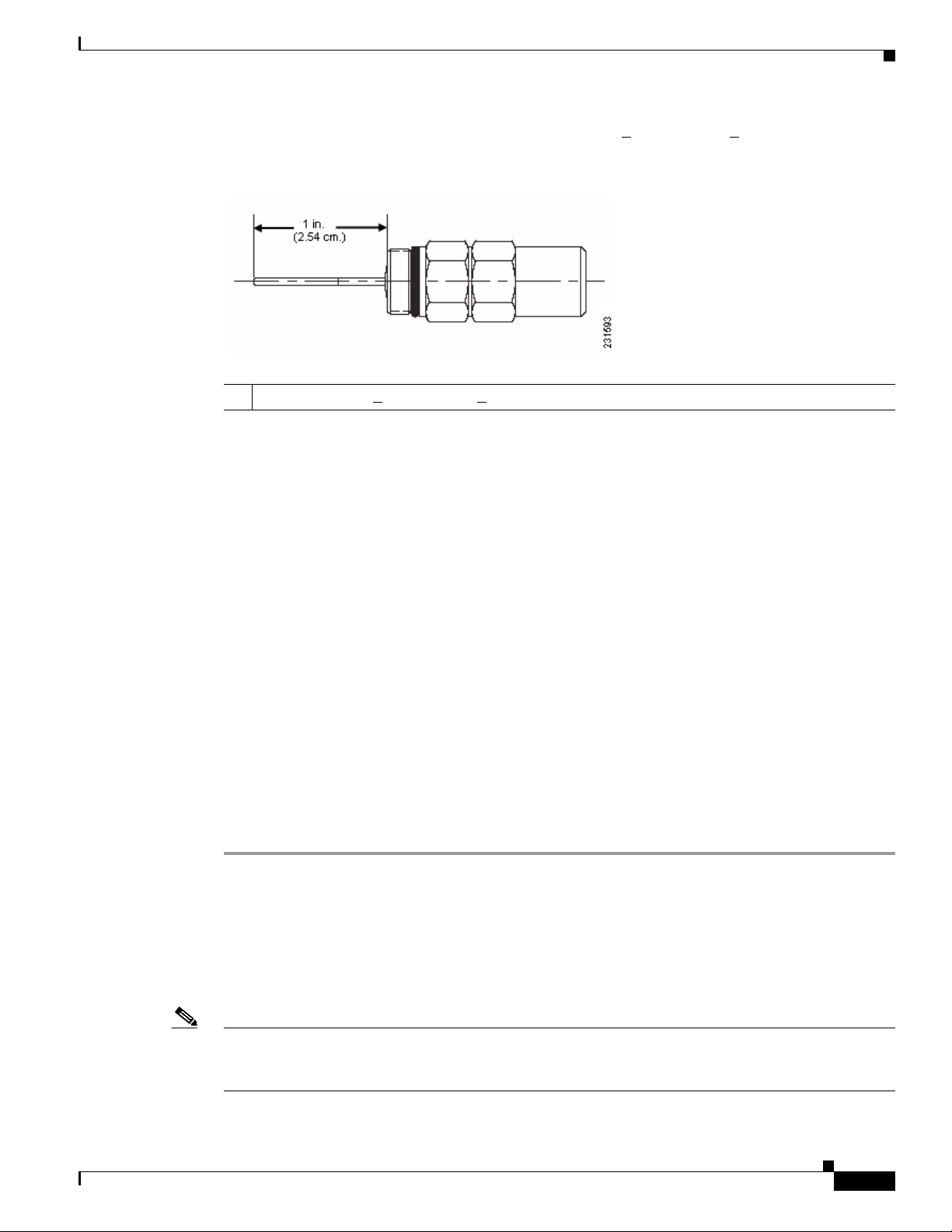

• Optional cable F-connector adapter (stinger)

• Optional ground rod, as required by local regulations

• Optional ladder, power lift, rope, or other tools as required

Pole Installation Hardware and Tools

To install the access point on a vertical or horizontal metal, wood, or fiberglass pole, you need the following additional hardware and tools:

• Pole mount kit (AIR-ACCPMK1550=)

–

Pole clamp bracket

–

Two gusset strap brackets

–

One mounting bracket

–

Twelve hex bolts (M8 x16)

–

One M8 flange nut

OL-24247-01

–

Six M8 flat washers

–

Ten M8 split lock washers

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-3

Warnings

–

Two stainless steel mounting straps

• Customer banding strap tool (BAND IT)—(AIR-BAND-INST-TL=)

• Customer-supplied 13-mm and box-end wrench or socket set

• Customer-supplied adjustable wrench, 22 mm socket, or Sealcon S-2200-WR socket wrench

Cable Strand Installation Hardware and Tools

To install the access point on a cable strand, you need the following additional parts:

• Cable strand mount kit (AIR-ACCSMK1550=)

–

Four hex bolts (M8, 0x16mmL)

–

Four M8 split lock washers (0.14 8mmoD, 2mmT)

–

Four M8 flat washers (16.0mmOD, 1.6mmT)

–

Two carriage bolt fasteners (5/16-18 x 1.25 in.)

–

Six hex nuts, serrated flange (5/16-18)

–

Four carriage bolts (5/16 x 5/8LG)

Chapter 2 Installing the Access Point

Warnings

Warning

–

Strand mounting brackets—1 left bracket, 1 right bracket, 2 adjustable brackets

–

Four strap clamps

• Customer-supplied 13-mm box-end wrench or socket set

• Customer-supplied adjustable wrench, 22 mm socket, or Sealcon S-2200-WR socket wrench

Translated versions of all safety warnings are available in the safety warning document that shipped with your access point or on Cisco.com. To browse to the document on Cisco.com, refer to Appendix A,

“Translated Safety Warnings” for instructions.

IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

Statement 1071

SAVE THESE INSTRUCTIONS

This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for obtaining any required local or national safety inspections of the structural integrity of the installation by the local authority/inspection department.

2-4

Warning

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

Do not operate the unit near unshielded blasting caps or in an explosive environment unless the device has been modified to be especially qualified for such use.

Statement 364

OL-24247-01

Chapter 2 Installing the Access Point

Safety Information

Warning

The cables specified in this installation guide that are used with the specified liquid-tight adapters provide protection against ingress of moisture for a Type 4/IP67 classified enclosure. If substitute cable are used, the installer must ensure that the size (OD) of the cable meets the acceptable range allowed by the liquid-type adaptor.

This equipment must be externally grounded using a customer-supplied ground wire before power is applied. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

Read the installation instructions before connecting the system to the power source.

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Safety Information

Follow the guidelines in this section to ensure proper operation and safe use of the access point.

Statement 366

Statement 1004

FCC Safety Compliance Statement

The FCC, with its action in ET Docket 96-8, has adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC-certified equipment. When used with approved Cisco Aironet antennas, Cisco Aironet products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio device according to the instructions in this publication results in user exposure substantially below the FCC recommended limits.

Safety Precautions

Warning

In order to comply with radio frequency (RF) exposure limits, the antennas for this product should be positioned no less than 6.56 ft (2 m) from your body or nearby persons.

The AC power supply has double pole/neutral fusing.

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Statement 1001

Statement 339

Statement 188

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-5

Safety Information

Chapter 2 Installing the Access Point

Warning

Class 1 laser product.

Statement 1008

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Statement 1015

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements in IEC 60950 based safety standards.

Statement 1033

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Statement 1046.

Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, because they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54).

Caution Before connecting or disconnecting a power cord, you must remove AC power from the power cord using

Statement 1052

a suitable service disconnect.

For additional important safety instructions for AC power cords, refer to the AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points document that shipped with your AC power cords.

For safety and to achieve a good installation, please read and follow these safety precautions:

2-6

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

• Select your installation site with safety, as well as performance in mind. Remember: electric power

lines and phone lines look alike. For safety, assume that any overhead line can kill.

• Call your electric power company. Tell them your plans, and ask them to come look at your proposed

installation.

• Plan your installation carefully and completely before you begin. Successful raising of a mast or

tower is largely a matter of coordination. Each person should be assigned to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

• When installing the access point and antennas, remember:

–

• Use a rope to lift the access point. If the assembly starts to drop, get away from it and let it fall.

• If any part of the antenna system should come in contact with a power line, do not touch it or try to

remove it yourself. Call your local power company. They will remove it safely.

If an accident should occur, call for qualified emergency help immediately.

Avoiding Damage to Radios in a Testing Environment

Do not use a metal ladder.

Do not work on a wet or windy day.

Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.

Avoiding Damage to Radios in a Testing Environment

The radios on outdoor units (bridges) have higher transmit power levels than radios on indoor units (access points). When you test high-power radios in a link, you must avoid exceeding the maximum receive input level for the receiver. At levels above the normal operating range, packet error rate (PER) performance is degraded. At even higher levels, the receiver can be permanently damaged. To avoid receiver damage and PER degradation, you can use one of the following techniques:

• Separate the omnidirectional antennas by at least 2 ft (0.6 m) to avoid receiver damage or by at least

25 ft (7.6 m) to avoid PER degradation.

Note These distances assume free space path loss and are conservative estimates. Required separation

distances for damage and performance degradation levels in actual deployments are less if conditions are not non-line-of-sight.

•

Reduce the configured transmit power to the minimum level.

• Use directional antennas, and keep them away from each other.

• Cable the radios together using a combination of attenuators, combiners, or splitters to achieve a total

attenuation of at least 60 dB.

For a radiated test bed, the following equation describes the relationships among transmit power, antenna gain, attenuation, and receiver sensitivity:

txpwr + tx gain + rx gain - [attenuation due to antenna spacing] < max rx input level Where: txpwr = Radio transmit power level tx gain = transmitter antenna gain rx gain = receiver antenna gain

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-7

Installation Guidelines

For a conducted test bed, the following equation describes the relationships among transmit power, antenna gain, and receiver sensitivity:

txpwr - [attenuation due to coaxial components] < max rx input level

Caution Under no circumstances should you connect the antenna port from one access point to the antenna port

of another access point without using an RF attenuator. If you connect antenna ports, you must not exceed the maximum survivable receive level of 0 dBm. Never exceed 0 dBm, or damage to the access point can occur. Using attenuators, combiners, and splitters having a total of at least 60 dB of attenuation ensures that the receiver is not damaged and that PER performance is not degraded.

Installation Guidelines

Because the access point is a radio device, it is susceptible to common causes of interference that can reduce throughput and range. Follow these basic guidelines to ensure the best possible performance:

• For information on planning and initially configuring your Cisco Mesh network, refer to the Cisco

Wireless Mesh Access Points, Design and Deployment Guide, Release 7.0.

Chapter 2 Installing the Access Point

Note To calculate path loss and to determine how far apart to install access points, consult an RF planning

Site Surveys

• Review the FCC guidelines for installing and operating outdoor wireless LAN devices at

http://www.cisco.com/en/US/partner/prod/collateral/routers/ps272/data_sheet_c78-647116_ps114 51_Products_Data_Sheet.html.

• Perform a site survey before beginning the installation.

• Install the access point in an area where structures, trees, or hills do not obstruct radio signals to and

from the access point.

• The access points can be installed at any height, but best throughput is achieved when all the access

points are mounted at the same height. We recommend installing the access points no higher than 40 feet to allow support for wireless clients on the ground.

expert.

Every network application is a unique installation. Before installing multiple access points, you should perform a site survey to determine the optimum use of networking components and to maximize range, coverage, and network performance.

Consider the following operating and environmental conditions when performing a site survey:

• Data rates—Sensitivity and range are inversely proportional to data bit rates. The maximum radio

range is achieved at the lowest workable data rate. A decrease in receiver sensitivity occurs as the radio data increases.

• Antenna type and placement—Proper antenna configuration is a critical factor in maximizing radio

range. As a general rule, range increases in proportion to antenna height. However, do not place the antenna higher than necessary, because the extra height also increases potential interference from other unlicensed radio systems and decreases the wireless coverage from the ground.

• Physical environment—Clear or open areas provide better radio range than closed or filled areas.

2-8

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

• Obstructions—Physical obstructions such as buildings, trees, or hills can hinder performance of

wireless devices. Avoid locating the devices in a location where there is an obstruction between the sending and receiving antennas.

Before Beginning the Installation

Before you begin the installation process:

• Ensure that a site survey has been performed.

• Ensure that your network infrastructure devices are operational and properly configured.

• Ensure that your controllers are connected to switch trunk ports.

• Ensure that your switch is configured with untagged access ports for connecting your access points.

• Ensure that a DHCP server with Option 43 configured is reachable by your access points, or

manually configure the controller information in the access point (for additional information, refer to the “Configuring DHCP Option 43” section on page F-1).

• Become familiar with the access point installation components (see the “Becoming Familiar with

Access Point Installation Components” section on page 2-9).

Installation Guidelines

Becoming Familiar with Access Point Installation Components

The access point is designed to be installed in an outdoor environment, such as the exterior roof overhang of a tall building or a streetlight pole. Carefully review the following figures to become familiar with the system components, connectors, indicators, cables, system interconnection, and grounding:

• Components in a typical access point installation (see Figure 2-1)

• Pole mount installation (see Figure 2-2)

• Cable strand mount installation (see Figure 2-3

• Streetlight power tap installation (see Figure 2-4)

Note The illustrations in this document show all available connections for the access point. Unused

connections are capped with a connector plug to ensure the watertight integrity of the access point. liquid-tight adapters are provided for connector openings, which can be installed before or after deploying the access point.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-9

Installation Guidelines

281938

10 8

Chapter 2 Installing the Access Point

Figure 2-1 Components in a Typical Access Point Installation

1 Building roof-overhang 6 Ground

2 Shielded outdoor-rated Ethernet

3 Water drip loop 8 Power injector

4 6-AWG copper grounding wire1 9 Shielded Ethernet (CAT5e or better) cable

5 Ground rod1 10 Controller (through a switch)

1. User supplied.

2. The safety ground wire in the AC power cord must have a ground path to a grounding rod.

3. The shielded Ethernet cable has a ground path through the power injector and the safety ground wire in the AC power cord.

Note The 1552 access point was designed with consideration for resistance to effects of lightning effects on

the access point electronics. The 1552 access point employs lightning arrestor circuitry on the Ethernet and power ports. On the input Ethernet port, Gas Discharge Tubes (GDT) are used for the Power Entry Module (PEM) to mitigate lightning effect. On the AC power, GDTs are also used along with fuses to mitigate high-current condition. For the DC power, a fuse is used to mitigate high current condition.

While not a common practice, the user may want to consider using lightning protection at the antenna ports for added protection. To meet EN/IEC60950-22 (Clause 4.2) requirements, the installer must ensure that additional protection is provided external to this equipment to reduce transient surges from Overvoltage IV to Overvoltage Category II at the AC power input of the access point. The over-voltage and fault-current protection components used to achieve this protection must comply with the IEC 61643

(CAT5e or better) cable

7 AC power cord

2-10

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

series of standards. To meet CAN/CSA-C22.2 No. 60950-22-07/UL60950-22 requirements, the installer may use alternative components to provide this additional protection. Those components may comply with ANSI/IEEE C62.11, CSA Certification Notice No. 516, CSA C22.2 No. 1, or UL 1449. Suitability of the components for the application must be determined for the intended installation. (For example, some devices are suitable for installation on the load side of the service entrance only, and some are suitable for use with cord-connected equipment only.)

Installation Guidelines

Warning

Installation of the equipment must comply with local and national electrical codes.

Figure 2-2 Pole Mount Installation

255239

Statement 1074

OL-24247-01

1 Stainless steel mounting straps

(part of pole mount kit)

2 Pole (wood, metal, or fiberglass)

2 to 16 in. (5.1 to 40.6 cm) diameter

3 Mounting bracket (part of pole mount kit)

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

4 Cisco Aironet Dual-Band Omnidirectional

Antennas. The dual-band antenna covers both the 2.4 GHz and 5 GHz bands.

5 1552 series access point, models:

• AIR-CAP1552E-x-K9, or

• AIR-CAP1552H-x-K9

2-11

Installation Guidelines

255246

Chapter 2 Installing the Access Point

Figure 2-3 Cable Strand Mounting Example - Shown on a 1552 Model AIR-CAP1552C-x-K9

1 Cable Strand Mounting Kit brackets 4 Low-profile dual-band (2.4 GHz and 5 GHz)

3-element array antenna unit

2 Strand support cable 5 F-connector adapter for the POC cable (only

on model AIR-CAP1552C-x-K9)

3 Cable bundle

Figure 2-4 Streetlight Power Tap Adapter Installation

281939

1 Outdoor light control 3 6-AWG copper grounding wire

2 Streetlight power tap adapter

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-12

OL-24247-01

Chapter 2 Installing the Access Point

Antenna N-Type Connector Locations

The access point antenna N-type connectors are located on the bottom of Models AIR-CAP1552E-x-K9 and AIR-CAP1552H-x-K. The N-type connectors support the Cisco Aironet AIR-ANT2547V-N Dual-Band Omnidirectional Antennas. Figure 2-5 shows the antenna port locations viewed from the RF cover side.

Figure 2-5 Antenna Port Locations - Models AIR-CAP1552E-x-K9 and AIR-CAP1552H-x-K9

Installation Guidelines

123

255247

456

1 Not used 4 Antenna port 4 (with caps)

2 Not used 5 Antenna port 5 (with caps)

3 Not used 6 Antenna port 6 (with caps)

Adding the Access Point MAC Addresses to the Controller Filter List

Before installing your access points, configure your controller by adding the MAC addresses of the access points to the filter list. MAC address filtering is enabled by default. This enables the controller to respond to the listed access points. To add a MAC filter entry on the controller, follow these steps:

Step 1 Log into your controller using a web browser.

Step 2 Choose SECURITY > MAC Filtering > New.

Step 3 Enter the MAC address of the access point to the MAC Filter list; for example, 00:0B:91:21:3A:C7.

Note The access point MAC address is located on the bottom of the unit. When two MAC addresses

are shown, use the top MAC address.

OL-24247-01

Step 4 Select a WLAN ID or Any WLAN from the WLAN ID pop-up menu.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-13

Installation Guidelines

Step 5 Enter a description (32 characters maximum) of the access point in the Description field; for example,

Fisher_Street_00.0B.91.21.3A.C7 shows the location and MAC address of the access point.

Step 6 Choose an interface from the Interface Name pop-up menu, and click Apply.

Step 7 Repeat Steps 2 to 6 to add other access points to the list.

Step 8 Log out of your controller, and close your web browser.

Configuring a RAP

The access point defaults to the mesh access point (MAP) radio role. One or more of your access points must be reconfigured as a root access point (RAP). The RAPs connect to a wired Ethernet link through a switch to the controller. The MAPs use their wireless backhaul interface to connect to a RAP to reach the controller.

To configure a RAP on the controller GUI, follow these steps:

Step 1 Log into your controller using a web browser.

Step 2 Click Wireless. When your access point associates to the controller, the name of the access point appears

in the AP Name list.

Step 3 Double-click your access point name.

Chapter 2 Installing the Access Point

Step 4 Find Mesh Information, and choose Root AP by clicking the drop-down arrow in the AP Role field.

Step 5 Click Apply.

Step 6 Repeat Steps 2 through 5 for each RAP.

Step 7 Log out from your controller, and close your web browser.

Configuring a Bridge Group Name

The bridge group name (BGN) controls the association of the access points to a RAP. BGNs can be used to logically group the radios to avoid different networks on the same channel from communicating with each other. This setting is also useful if you have more than one RAP in your network in the same area.

If you have two RAPs in your network in the same area (for more capacity), we recommend that you configure the two RAPs with the same BGN, but on different channels.

The BGN is a string of ten characters maximum. A factory-set bridge group name (NULL VALUE) is assigned during manufacturing. It is not visible to you, but allows new access point radios to join a network of new access points. The BGN can be reconfigured from the Controller CLI and GUI. After configuring the BGN, the access point reboots.

The BGN should be configured very carefully on a live network. You should always start from the farthest node (last node) from the RAP and move towards the RAP. If you start configuring the BGN in a different location, then the access points beyond this point (farther away) are dropped, as they have a different BGN.

2-14

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

To configure the BGN for the access points using the GUI, follow these steps:

Step 1 Log into your controller using a web browser.

Step 2 Click Wireless. When access points associates to the controller, the name of the access point appears in

the AP Name list.

Step 3 Double-click on an access point name.

Step 4 Find Mesh Information, and enter the new BGN in the Bridge Group Name field.

Step 5 Click Apply.

Step 6 Repeat Steps 2 through 5 for each access point.

Step 7 Log out from your controller, and close your web browser.

Installing the Access Point

This section provides instructions for installing your access points. Personnel installing the access point must understand wireless access points and bridging techniques and grounding methods.

Caution All installation methods for mounting an access point on any wall surface is subject to the acceptance of

local jurisdiction.

Installation Options

There are two optional installation kits:

• Pole mount kit—Used for pole, wall, or streetlight installations

• Strand mount kit—Used for cable strand installations

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

OL-24247-01

Caution To provide inline PoE, you must use the power injector (AIR- PWRINJ1500-2=) specified for the access

point. Other power injectors, PoE switches, and 802.3af power sources do not provide adequate power, which might cause the access point to malfunction and cause over-current conditions at the power source. You must ensure that the switch port connected to the access point has PoE turned off.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-15

Installing the Access Point

Refer to these sections for installation details:

• Access Point Mounting Orientation, page 2-16

• Mounting the Access Point on a Wall, page 2-16

• Mounting the Access Point on a Pole, page 2-19

• Cable Strand Mounting, page 2-26

Access Point Mounting Orientation

When mounting an access point on a horizontal or vertical surface, you must ensure that the access point is oriented with the LED indicators pointing down (see Figure 2-2, Figure 2-3, and Figure 2-4). This positioning allows the LEDs to be visible to someone on the ground below the access point.

You must also ensure the access point is mounted with the hinged access cover facing out.

Note Omnidirectional antennas are vertically polarized and should be mounted vertically with the antennas

facing down.

Chapter 2 Installing the Access Point

Mounting the Access Point on a Wall

The optional pole mount kit contains a mounting bracket for wall mounting. You can use the mounting bracket as a template to mark the positions of the mounting holes for your installation. You then install the mounting plate, and attach the access point when you are ready. Tabl e 2-1 lists the material that you will need to provide in addition to the pole mount kit.

Table 2-1 Material Needed to Mount Access Point to a Vertical Wall

Materials Required In Kit

•

Ground lug and screws (provided with access point)

• Crimping tool for ground lug, Panduit CT-720 with

CD-720-1 die (http://onlinecatalog.panduit.com)

• Four M8 or 5/16 in. (31 mm) screws

• Four wall anchors (specified for wall material)

• Drill bit for wall anchors

• Electric drill and standard screwdriver

• #6-AWG ground wire

• Shielded outdoor-rated Ethernet (CAT5e or better) cable

• Grounding block

• Grounding rod

• 13-mm box-end wrench or socket set

Yes

2-16

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Caution The mounting surface, attaching screws, and optional wall anchors must be able to support a 50-lb

(22.7 kg) static weight.

To mount the access point on a vertical wall, follow these instructions:

Step 1 Use the mounting bracket as a template to mark four screw hole locations on your mounting surface. See

Figure 2-6 for the mounting bracket screw hole locations. You can optionally use the individual

mounting holes or the mounting slots.

Caution The mounting surface, attaching screws, and optional wall anchors must be able to support a 50-lb

(22.7 kg) static weight.

Figure 2-6 Mounting Bracket for Wall Mounting

Installing the Access Point

Step 2

255252

1 Access point quick mount notch 3 Mounting slots (allows bracket rotation)

2 Mounting holes

Use four customer-supplied screws and optional screw anchors to attach the mounting plate to the mounting surface.

Note If necessary, use suitable screw anchors and an exterior-grade plywood backboard to mount the

access point to stucco, cement, or drywall.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-17

Installing the Access Point

Step 3 Screw a M8 x16 bolt in the top support bolt hole on each side the access point (see Figure 2-7). Do not

screw the bolt all the way in; leave approximately a 0.25 inch (0.635 cm) space.

Figure 2-7 Location of Access Point Top Support Bolt Hole

Chapter 2 Installing the Access Point

255244

1 M8 x16 bolt (supplied with pole mount kit) 3 Ground lug location

2 M8 x16 bolt (supplied with pole mount kit)

Step 4 Position the two bolts on the access point into the quick mount notches on each side of the mounting

bracket (see Figure 2-2). Ensure that the hinged door is facing out.

Step 5 Screw a M8 x16 bolt (with flat and lock washers) into the second bolt hole on each side of the access

point.

Step 6 Ensure that the front of the access point is vertical, and tighten the four bolts to 13 to 15 ft lbs

(17.6 to 20.3 Nm).

Step 7 When using the Cisco Aironet Dual-Band Omnidirectional Antennas, connect them to the access point

as shown in Figure 2-2. Hand-tighten the antennas to the access point.

Step 8 Continue with the “Grounding the Access Point” section on page 2-34 and the “Powering the Access

Point” section on page 2-38.

2-18

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Mounting the Access Point on a Pole

When installing an access point on a vertical pole, mast, or a streetlight pole, you should use the optional Cisco pole mount kit. The kit supports metal, wood, or fiberglass poles from 2 to 16 inches in diameter.

Assembling the Pole Clamp Bracket and the Mounting Bracket

When installing an access point on a pole, mast, or a streetlight, you should use the optional Cisco pole mount kit. The kit supports metal, wood, or fiberglass poles from 2 to 16 inches in diameter.

The pole mount kit contains several parts that you must assemble prior to mounting on a pole. First you need to assemble two strap brackets on the pole clamp bracket that are positioned for the pole diameter you are using to mount the access point. Figure 2-8 illustrates the pole diameter indicators and bolt holes on the pole clamp bracket.

Figure 2-8 Pole Clamp Bracket Adjustment Hole Locations

Installing the Access Point

OL-24247-01

1 Pole size indicators

• 2 to 6 in.

• 6 to 11 in.

• 11 to 16 in.

To assemble the pole clamp bracket, follow these steps:

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2 Bolt holes for pole diameters (11 to 16

inches indicated)

2-19

Installing the Access Point

Step 1 Position the strap brackets on the pole clamp bracket for the pole diameter you are using and secure each

strap bracket with two M8 x16 bolts (with lock washers) (see Figure 2-9). Tighten the bolts to 13 to 15 ft lbs (17.6 to 20.3 Nm).

Figure 2-9 Assembled Pole Clamp Bracket and Strap Brackets

Chapter 2 Installing the Access Point

2-20

1 M8 x1.25x16 bolts (with lock washers) 3 Strap bracket (shown positioned for 11

to 16 inch diameter pole)

2 Pole clamp bracket

Step 2

Screw the M8 nut onto the pole clamp bracket support bolt, and tighten just enough to prevent the bolt from falling off.

Step 3 Go to the “Pole Mounting” section on page 2-21.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Pole Mounting

The access point can be installed where power is available, without the need for a wired LAN connection. The access point uses intelligent wireless routing that is based on the Adaptive Wireless Path Protocol (AWPP). AWPP enables a remote access point to dynamically optimize the best route to the wired LAN network using another access point.

The 1522 access point uses the 5-GHz radio for the Mesh backhaul and connections. The 2.4-GHz radio is used for local wireless client access.

To mount your access point on a vertical pole or streetlight pole, you need to install two metal bands around the pole to support the access point. This process requires extra tools and material not provided in the pole mount kit (see Tab le 2-2).

Table 2-2 Material Needed to Mount Access Point on a Pole

Mounting Method Materials Required In Kit

Vertical or streetlight pole • Two 0.75-in (1.9 cm) stainless steel bands

• Banding strap tool (BAND IT) (Cisco

AIR-BAND-INST-TL=)

• Ground lug (provided with access point)

Installing the Access Point

Yes

• Crimping tool for ground lug, Panduit CT-720 with

CD-720-1 die (http://onlinecatalog.panduit.com)

• #6 AWG ground wire

To mount the access point onto a vertical pole or streetlight pole, follow these steps:

Step 1 Select a mounting location on the pole to mount the access point. You can attach the access point to any

pole from 2 to 16 inch (5.1 to 40.6 cm) in diameter.

Note If you will be using a streetlight power tap adapter, position the access point within 3 ft (1 m) of

the outdoor light control.

Step 2 For poles larger than 3.5 inch (8.9 cm), mount the pole clamp bracket assembly to a pole (see

Figure 2-10) using two metal straps. Following the instructions provided with the banding strap tool

(BAND IT) (AIR-BAND-INST-TL=), loop each metal strap twice through the slots on the strap bracket.

Caution Do not place the metal straps in the large open area between the pole clamp bracket and the strap

brackets, because this does not properly secure the access point.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-21

Installing the Access Point

Figure 2-10 Clamp Bracket Assembly Mounted on Poles Larger than 3.5 inch (8.9 cm)

Chapter 2 Installing the Access Point

1 Pole clamp bracket 3 Metal mounting strap

2 Strap slot in strap bracket 4 Pole

Step 3 For pole diameters of 3.5 inch (8.9 cm) or less, mount the pole clamp bracket assembly to a pole using

two metal straps looped through the space between the pole clamp bracket and the strap brackets (see

Figure 2-11) to provide maximum holding strength for extreme environments. Following the instructions

provided with the banding strap tool (BAND IT) (AIR-BAND-INST-TL=), loop each metal strap twice.

2-22

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Figure 2-11 Metal Strap Open Space for 3.5 inch (8.9 cm) and Smaller Poles

Installing the Access Point

OL-24247-01

1 Metal strap open space

Caution Do not place the metal straps in the large open area between the pole clamp bracket and the strap brackets

because this does not properly secure the access point.

Step 4 Position the pole clamp bracket on the pole as needed before tightening the metal bands.

Note When the metal bands are tightened to the full tension, the pole clamp bracket cannot be adjusted

unless the metal bands are cut or disassembled.

Step 5 Tighten the metal bands using the banding strap tool (BAND IT) (Cisco AIR-BAND-INST-TL=) by

following the operating instructions in the box with the tool. Ensure that the metal bands are as tight as possible.

Step 6 Place the mounting bracket onto the pole clamp bracket support bolt (see Figure 2-12).

Step 7 For vertical poles, position the mounting bracket as shown in Figure 2-12. For horizontal streetlight

poles, rotate the mounting bracket 90

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

from the position shown in Figure 2-12.

2-23

Installing the Access Point

281940

Step 8 Install four M8 x16 bolts (with flat and lock washers) into the bolt holes.

Figure 2-12 Screw Hole Locations on the Mounting Bracket and Pole Clamp Bracket Assembly

Chapter 2 Installing the Access Point

1 Pole clamp bracket assembly 3 Bolt holes

2 Access point support bolt

4 Mounting bracket

(M8 flange nut not shown)

Step 9 Hand-tighten the bolts and the nut (do not overtighten).

Step 10 Adjust the top edge of the mounting bracket until it is horizontal and tighten the bolts and the flange nut

(see Figure 2-12) to 13 to 15 ft lbs (17.6 to 20.3 Nm).

Note The mounting bracket can be adjusted up to 45

to compensate for tilted horizontal streetlight

poles.

Step 11 Screw a M8 x16 bolt (without a flat or lock washer) in the top support bolt hole on each side the access

point (see Figure 2-13). Do not screw the bolt all the way in. Leave a gap of approximately 0.25 inch (0.635 cm).

2-24

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

255254

Figure 2-13 Location of Access Point Top Support Bolt Holes

Installing the Access Point

Step 12

1 Ground lug screw holes location 3 Second M8 x16 bolt hole location

2 M8 x16 bolt hole (bolts are supplied with pole

mount kit; install without flat or lock washers)

Position the two bolts on the access point into the access point quick-mount notch on the mounting bracket (see Figure 2-14).

Note The access point should be positioned with the LEDs on the bottom to allow viewing from the

ground and with the hinged cover facing out.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-25

Installing the Access Point

255256

Figure 2-14 Access Point Hanging in Mounting Bracket

Chapter 2 Installing the Access Point

Step 13

Screw a M8 x16 bolt (with flat and lock washers) into the second bolt hole on each side of the access point (see Figure 2-14).

Step 14 Ensure that the front of the access point is vertical, and tighten the four bolts to 13 to 15 ft lbs

(17.6 to 20.3 Nm).

Step 15 When using the Cisco Aironet Dual-Band Omnidirectional Antennas, connect them to the access point

as shown in Figure 2-14. Hand-tighten the antennas to the access point.

Step 16 Continue with the “Grounding the Access Point” section on page 2-34 and the “Powering the Access

Point” section on page 2-38.

Cable Strand Mounting

When mounting the access point on a cable strand, you must use the optional strand mount kit. The kit contains several parts that you should assemble before mounting on a cable strand. To install the access point to a cable strand, you need to perform these operations:

• Assemble cable brackets; attach cable clamps to the clamp bracket.

• Attach the strand brackets to the access point.

• Attach the clamp bracket to the fiber or cable strand.

• Attach the Dual-Band Omnidirectional Antennas to 1552H or 1552I access points.

2-26

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Note The Low Profile Dual-Band 2.4/5 GHz Omni Antenna Array should already be attached to the

1552C or 1552E access points.

• Attach a ground wire.

• Connect cables and power to the access point.

Note The access point must be installed on a cable strand by a professional cable installer.

To mount the access point, follow these steps:

Step 1 Assemble the cable clamps to the clamp bracket on both cable brackets (Figure 2-15). You should only

hand-tighten the nuts sufficiently to prevent them from falling off.

Figure 2-15 Assemble Cable Brackets

Installing the Access Point

OL-24247-01

Step 2

1 M8 flange nut and flat washer 2 Cable Clamps

Secure each strap bracket with two M8 x16 bolts (with lock washers) on each side of the access point with the antennas facing down. (Figure 2-16). Only hand-tighten the bolts to 13 to 15 ft lbs (17.6 to 20.3 Nm).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-27

Installing the Access Point

Figure 2-16 Attach Strap Brackets to Access Point

Chapter 2 Installing the Access Point

255245

Step 3

1 M8 x16 bolts with lock washers

4 Height and Pivot Adjustment

(supplied with cable mount kit)

2 Antenna unit assembly (shown with the

5 Height and Tilt Adjustment

Low Profile Dual-Band 2.4/5 GHz Omni Antenna Array)

3 Strap bracket assemblies

Place the clamp bracket on the strand support cable (see Figure 2-17). On each cable support bolt, ensure that one cable clamp is placed on each side of the support cable. Tighten the two M8 flange nuts to 13 to 15 in. lbs (17.6 to 20.3 Nm). Ensure the cable is mounted to the bottom side of the access point.

2-28

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

255246

Figure 2-17 Attach the Cable Strand to the Cable Mount Brackets

Installing the Access Point

1 Strap bracket assemblies 4 Antenna unit assembly (shown with the Low

Profile Dual-Band 2.4/5 GHz Omni Antenna Array)

2 Strand support cable 5 F-Connector Adapter (for Cable Modem

models only); sometimes referred to as a “stringer”

3 Fiber or Cable bundle

Step 4

The assembled cable mounting kit is shown from the top view of the access point (Figure 2-18).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-29

Installing the Access Point

Figure 2-18 Clamp Brackets Attached to Cable Strand-Top View of Access Point

Chapter 2 Installing the Access Point

2 2

N T

SS TP

255243

1 Top view of access point 2 Cable strand bracket

Note The strand support cable might have to be pulled away from the fiber or cable bundle. Be sure

to resecure the cable as necessary.

Note The strand support cable and the mounting hardware provide grounding for the access point.

Step 5 Continue with the “Grounding the Access Point” section on page 2-34 and the “Powering the Access

Point” section on page 2-38.

Opening the Access Point Hinged Cover

You need to open the access point hinged cover when you are performing these operations:

• Installing fiber-optic SFP module and fiber cable take-up reels

• Installing hazardous location (Haz Loc) Batter Backup Unit (BBU)

To open the access point hinged cover, follow these steps:

2-30

Step 1 Use 0.5-in (13-mm) box-end wrench or socket set to unscrew and remove the four bolts on the front cover

of the unit. Only unscrew the hinge bolts about 2 turns until they are easily turned by hand, do not remove the bolts on the hinge (Figure 2-19).

Step 2 The cover is hinged on the bottom. Carefully open the cover and remove the cover.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Note If the cover does not open easily, carefully loosen the hinge bolts again.

Figure 2-19 Access Point Front View of Hinged Cover

Installing the Access Point

1 M8 x32 bolts 2 Cover hinge M8 x32 bolts

255250

Closing the Access Point Hinged Cover

To close the access point cover, follow these steps:

Step 1 When closing the access point cover, be careful not to pinch internal wires.

Step 2 Carefully position the cover flush with all sides of the access point, then slowly hand-tighten each bolt.

Step 3 When all bolts are hand-tightened, use a 13-mm closed-end wrench or socket to partially tighten the bolts

in the tightening sequence shown in Figure 2-20. Tighten each bolt to 3 to 4 ft lbs (0.34 to 0.45 Nm).

Step 4 Repeat Step 3 using the same tightening sequence to fully tighten each bolt to 6 to 7 ft lbs

(0.68 to 0.79 Nm).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-31

Installing the Access Point

Figure 2-20 Hinged Cover Bolt Tightening Sequence

Chapter 2 Installing the Access Point

255257

1 - 6 Tighten the bolts in the numeric order shown, starting with 1.

Using the Reset Button

The access point has a reset button located on the bottom of the unit (see Figure 2-21 and Figure 2-22). The reset button is recessed in a small hole that is sealed with a screw and a rubber gasket. The reset button can be used to perform these functions:

• Reset the access point—Press the reset button for less than 10 seconds.

• Disable battery backup power—Press the reset button for more than 10 seconds.

2-32

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

45 6

255242

Figure 2-21 Reset Button Location - Models AIR-CAP1552E-x-K9 and AIR-CAP1552H-x-K

1 Reset button

Installing the Access Point

Figure 2-22 Reset Button Location - Models AIR-CAP1552C-x-K9 and AIR-CAP1552I-x-K

1Reset button

Reboot the Access Point

To reboot (power cycle) the access point, follow these steps:

Step 1 Use a Phillips screwdriver to remove the reset button screw (Figure 2-21). Be careful not to lose the

screw.

Step 2 Use a straightened paperclip, and push the reset button for less than 10 seconds. This action causes the

access point to reboot (power cycle), all LEDs to turn off for approximately 5 seconds, and then the LEDs to reactivate.

Step 3 Replace the reset button screw and use a Phillips screwdriver to tighten to 22 to 24 in. lbs

(2.49 to 2.71 Nm).

255415

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-33

Grounding the Access Point

Disabling Backup Battery Power

To disable battery backup power, follow these steps:

Step 1 Use a Phillips screwdriver to remove the reset button screw (Figure 2-21). Be careful not to lose the

screw.

Step 2 Use a straightened paper clip and push the reset button for longer than 10 seconds.

• When the access point is only battery powered, the access point reboots and then disables the backup

battery power. The LEDs turn off for approximately 5 seconds, reactivate for approximately 5 seconds, and then turn off and stay off.

• When the access point has battery power and another power source, the access point reboots, then

disables the battery and continues operating from the second power source. The LEDs turn off for approximately 5 seconds and then reactivate.

Note If your access point does not contain a battery backup unit, the access point only reboots.

Chapter 2 Installing the Access Point

Note The battery backup unit is reactivated when the access point is rebooted (power cycled)

again.

Step 3 Replace the reset button screw, and use a Phillips screwdriver to tighten to 22 to 24 in. lbs

(2.49 to 2.71 Nm).

Grounding the Access Point

The access point must be grounded before connecting power.

Warning

Note When the access point is cable strand mounted, the strand support cable and the mounting hardware

Installation of the equipment must comply with local and national electrical codes.

provide grounding for the access point.

Statement 366

Statement 1074

2-34

In all outdoor installations and when powering the access point with AC power, you must follow these instructions to properly ground the case:

Step 1 If using insulated 6-AWG copper ground wire, strip the insulation as required for the grounding lug.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Connecting a Fiber-Optic Cable to the Access Point

Step 2 Use the appropriate crimping tool to crimp the bare 6-AWG copper ground wire to the supplied

grounding lug (Panduit PLCD6-10A-L).

Note The grounding lug and hardware used must comply with local and national electrical codes.

Step 3 Open the electrical joint compound (supplied), and apply a liberal amount over the metal surface where

the ground strap screw holes are located (see Figure 2-13).

Step 4 Connect the grounding lug to the access point grounding screw holes (see Figure 2-13) using the

supplied two Phillips head screws (M4 x10 mm) with lock washers. Tighten the grounding screw to 22 to 24 in. lbs (2.49 to 2.71 Nm).

Step 5 If necessary, strip the other end of the ground wire, and connect it to a reliable earth ground such as a

grounding rod (see Figure 2-2), an appropriate grounding point on a metal streetlight pole that is grounded (see Figure 2-29), or a grounded cable on a cable strand.

Connecting a Fiber-Optic Cable to the Access Point

The fiber-optic kit (GLC-FE-100BX-URGD=) enables the 1552E and 1552H access points to support fiber-optic network connections. The kit contains these parts:

• 100BASE-BX10-U rugged SFP module

–

Single strand fiber bidirectional optical transceiver

–

1.3/1.5 micro-meter wavelength division multiplexing (WDM) function

–

125-Mb/s data rates

–

Single mode LC receptacle

• Eight screws

• Two small take-up reels

• Two large take-up reels

• One liquid-tight adapter—Accepts a cable diameter of 0.20 to 0.35 inches (0.51 to 0.89 cm)

Note Fiber backhaul is only possible on the 1552E and 1552H access points.

Warning

Note You need a customer-supplied outdoor-rated fiber-optic cable with an LC connector. The cable diameter

Class 1 laser product.

Statement 1008

must be 0.20 to 0.35 in. (0.52 to 0.89 cm) in diameter.

OL-24247-01

To connect a fiber-optic cable to the access point, follow these steps:

Step 1 Ensure that all power sources have been disconnected from the access point.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-35

Connecting a Fiber-Optic Cable to the Access Point

Chapter 2 Installing the Access Point

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Note If your access point contains a backup battery pack, you must depress the reset button for

Statement 1028

10 seconds or more (see the “Disabling Backup Battery Power” section on page 2-34).

Step 2 Open the hinged cover (see the “Opening the Access Point Hinged Cover” section on page 2-30 for

instructions).

Step 3 Place the two large reels with the small reels on top as shown in Figure 2-23.

Step 4 Align the screw holes in the large and small reels, and insert four attachment screws in each of the reel

pairs. Tighten the screws to 3 to 4 in. lbs (0.34 to 0.45 Nm).

Step 5 Remove the plug from the end of the SFP module, and insert the module into the SFP receptacle (see

Figure 2-23).

Figure 2-23 Fiber-Optic Cable Components

2-36

1 Not used 4 Four screws for each reel assembly

2 SFP module slot 5 Fiber-optic connector plug

3 Fiber reels (large reel with small reel on top)

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Step 6 Loosen the round end of the liquid-tight connector by turning counterclockwise, but do not remove (see

Figure 2-24).

Figure 2-24 Liquid -Tight Adapter

Connecting a Fiber-Optic Cable to the Access Point

1 Thread end 2 Round end

Step 7

Step 8 Use an adjustable wrench, the 22 mm socket, or the Sealcon S-2200-WR wrench to tighten the threaded

Carefully screw the threaded end of the adapter into the access point and hand-tighten.

end of the adapter to 6 to 7 ft lbs (8.1 to 9.5 Nm).

Step 9 Carefully remove approximately 1 to 2 ft (30.5 cm) of the external jacket from the fiber-optic cable,

exposing the inner strand.

Step 10 Carefully insert the fiber-optic LC cable connector into the rounded end of the liquid-tight adapter (see

Figure 2-24), and push through the adapter.

Step 11 Wrap excess fiber-optic cable around the take-up reels in a figure eight (8) pattern.

Step 12 Insert the fiber-optic LC cable connector into the SFP module.

Step 13 Use an adjustable or open-end wrench to tighten the round end of the adapter to 2.7 to 3.2 ft lbs

(3.66 to 4.34 Nm).

Step 14 Close the hinged cover (see the “Closing the Access Point Hinged Cover” section on page 2-31).

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-37

Powering the Access Point

The access point can be powered by one of these methods:

• PoE—56 VDC; for 1552E/1552H access points

–

Connecting a 1500 Series Power Injector, page 2-38

• AC power

–

110 to 240 VAC for a 1552I access point—Connecting Streetlight AC Power, page 2-44

–

110 to 480 VAC for 1552E/1552H access points—Connecting Streetlight AC Power, page 2-44

–

120 VAC—Connecting an AC Power Cable to the Access Point, page 2-47

• External 12 VDC

–

Connecting a DC Power Cable to the Access Point, page 2-48

• POC—40 to 90 VAC (Quasi-AC); only for a 1552C access point

–

Connecting a Cable POC Power to the Access Point, page 2-51

Chapter 2 Installing the Access Point

Note In all cases above, the AC branch circuit powering the access point must be limited to no more than 20A

from the over-protection device supplied by the user. This branch power protection must meet all local and national electrical codes.

Connecting a 1500 Series Power Injector

The power injector provides 56 VDC to the access point over the Ethernet cable and supports a total end-to-end Ethernet cable length of 100 m (328 ft) from the switch to the access point.

Note The cable from the power injector to the access point (PoE-in port) must be at least 10 ft (3.05 m) long.

Note The PoE-Out port is disabled when the access point is powered by the power injector.

When your access point is powered by an optional power injector, follow these steps to complete the installation:

Step 1 Before applying PoE to the access point, ensure that the access point is grounded (see the “Grounding

the Access Point” section on page 2-34.

Step 2 Review Figure 2-2 to identify the components needed for the installation.

2-38

Note The 1550 power injector can only be used in an indoor environment, therefore, the cable from

the injector must travel from the protected location to the outside mounted access point.

Step 3 Connect a CAT5e or better Ethernet cable from your wired LAN network to the power injector.

Warning

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

OL-24247-01

Chapter 2 Installing the Access Point

Use only the 1500 power injector (AIR-PWRINJ1500-2=) for the access point. This power injector is designed to meet the power requirements of the access point and is a listed Class 2 limited power source (LPS).

Note The installer is responsible for ensuring that powering the access point from this type of power injector

is allowed by local and/or national safety and telecommunications equipment standards.

Tip To forward bridge traffic, add a switch between the power injector and controller. Refer to the

Cisco Wireless Mesh Access Points, Design and Deployment Guide, Release 7.0 for more information.

Step 4 Ensure that the antennas are connected and that a ground is attached to the access point before you apply

power to the access point.

Step 5 Connect a shielded outdoor-rated Ethernet (CAT5e or better) cable between the power injector and the

PoE-in connector of the access point (see Figure 2-25).

Step 6 Connect the Ethernet cable to the access point PoE-In port (see “Connecting an Ethernet Cable to the

Access Point” section on page 2-39).

Powering the Access Point

Note When a 1552E or 1552H access point is powered by PoE, the PoE-Out port is not active.

Step 7 Continue with the “What to Do Next” section on page 2-63.

Connecting an Ethernet Cable to the Access Point

You need to supply these tools and materials:

• Shielded outdoor-rated Ethernet (CAT5e or better) cable with 0.2 to 0.35 in. (0.51 to 0.89 cm)

diameter

Note The Ethernet cable from the power injector to the access point must be at least 10 ft

(3.05 m) long. The PoE-out port is disabled when the access point is powered by the power injector.

• RJ-45 connector and installation tool

• Adjustable wrench

To connect the shielded Ethernet cable to the access point, follow these steps:

Step 1 Disconnect power to the power injector, and ensure all power sources to the access point are turned off.

OL-24247-01

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-39

Powering the Access Point

45 6

255260

1 2

Note If your access point contains a backup battery pack, you must press the reset button for 10

Step 2 Ensure a 6 AWG ground wire is connected to the access point (see the “Grounding the Access Point”

section on page 2-34).

Step 3 Use an adjustable wrench, a 22-mm socket, or the Sealcon S-2200-WR wrench to remove the Ethernet

connector plug from the access point (see Figure 2-25 for the location).

Figure 2-25 Location of Ethernet Liquid-Tight Adapters (Only Models AIR-CAP1552E-x-K9 and

Chapter 2 Installing the Access Point

seconds or more (see the “Disabling Backup Battery Power” section on page 2-34).

AIR-CAP1552H-x-K9)

1 PoE-in port 2 PoE-out port

Note For information on data cable entry, refer to Figure 1-1 on page 1-7

Step 4 Loosen the round end of the liquid-tight adapter by turning counterclockwise, but do not remove (see

Figure 2-26).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-40

OL-24247-01

Chapter 2 Installing the Access Point

Figure 2-26 liquid-tight Adapter

1 Thread end 2 Round end

Step 5 Insert the unterminated end of the Ethernet cable into the round end of the liquid-tight adapter (see

Figure 2-26), and pull several inches of cable through the adapter.

Powering the Access Point

Step 6 Install an RJ-45 connector on the unterminated end of the Ethernet cable using your Ethernet cable

installation tool.

Warning

Step 7 Carefully insert the RJ-45 cable connector into the Ethernet port opening on the access point, and

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

connect to the internal Ethernet connector (see Figure 2-27).

Figure 2-27 Inserting RJ-45 Connector into the Ethernet Port Opening in Case

OL-24247-01

1 Liquid-tight adapter 3 RJ-45 connector

2 Ethernet port opening in access point case 4 Shielded outdoor-rated Ethernet (CAT5e or

better) cable

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-41

Chapter 2 Installing the Access Point

Powering the Access Point

Step 8 Slide the liquid-tight adapter towards the access point, and screw the threaded end of the adapter into the

access point, and hand-tighten.

Step 9 Use an adjustable wrench, a 22-mm socket, or a Sealcon S-2200-WR wrench to tighten the threaded end

of the adapter to 6 to 7 ft lbs (8.1 to 9.5 Nm).

Step 10 Use an adjustable wrench and tighten the round end of the adapter to 2.7 to 3.2 ft lbs (3.66 to 4.34 Nm).

Step 11 Ensure that the antennas are connected to the access point before you apply power to the access point.

Step 12 Route your Ethernet cable, and cut off any excess cable.

Step 13 Install an RJ-45 connector on the unterminated cable end, and insert it into the power injector. For typical

installation components, see Figure 2-2.

Step 14 Turn on power to the power injector.

AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points

The Cisco Aironet 1550 series outdoor mesh access point supports these AC power cord options:

• 40-ft (12.2-m) power cord (AIR-CORD-R3P-40NA=) for light pole installations in the US and

Canada.

• 40-ft (12.2-m) power cord (AIR-CORD-R3P-40UE=) for light pole installations in the European

Union.

• 4-ft (1.2-m) streetlight power tap adapter (AIR-PWR-ST-LT-R3P=) for light pole installations in the

US and Canada.

Warning

Caution Prior to connecting or disconnecting a power cord, you must remove AC power from the power cord

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

1022

Statement

using a suitable service disconnect.

Note European Union users need to install a country-specific plug to the blunt cut end of the cable assembly.

Note In all installations, the detachable power cord (pluggable Type B) must be an approved type acceptable

to the authorities in the country where the unit is sold, and must meet all local and national electrical codes.

2-42

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

255269

Table 2-3 AC Power Cord Information

AC Power Cord Cord Diameter Comment

AIR-CORD-R3P-40NA= 0.398 to 0.413 in.

AIR-CORD-R3P-40UE= 0.398 to 0.413 in.(10.1 mm

AIR-PWR-ST-LT-TAP= Strain relief bushing not

When using a user-supplied AC power plug on the AIR-CORD-R3P-40UE= power cord, ensure that the plug is certified for outdoor use and that it has a minimum IP67 rating, such as Interpower 84131251 or Hubbell HBL316P6W (IEC/EN 60309) pin-and-sleeve type connectors. The European Union power cord plug pinouts are listed in Figure 2-28. For the location of the AC power connectors, see Figure 2-30 and Figure 2-31.

Figure 2-28 European Union Plug Pinouts

(10.1 mm to 10.5 mm)

to 10.5 mm)

needed

Powering the Access Point

The three prong plug is limited to 120 VAC. Internal wiring is rated at 600 VAC insulation protection.

Power cord rating is 100 to 480 VAC.

Power cord rating is 100 to 480 VAC

Pin Description Conductor Color Pin Description Conductor Color

1 Ground Green/Yellow 3 Neutral Blue

2 Live Brown

Caution All AC power plugs and AC receptacles must be protected from water and other outdoor elements. Use

a UL listed waterproofing enclosure suitable for covering the AC receptacle and AC power plug that supplies power to the unit as described in Article 406 of the NEC. If the power cord goes through a metal cover, install a bushing to prevent fraying of the cord.

When using a strain relief bushing, you should follow these recommendations:

• Use properly sized parts (see Table 2- 3 for the power cord diameter)

• Use bushings that are safety certified

• Use parts that are suitable for outdoor installation

Caution If your power cord does not use an AC power plug, you must ensure that the power source is OFF before

connecting or disconnecting the power cord wires from the power source.

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-43

Powering the Access Point

Chapter 2 Installing the Access Point

Warning

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Statement 1046

Connecting Streetlight AC Power

The access point can be installed on a streetlight pole and powered from a streetlight outdoor light control using the optional streetlight power tap adapter.

Caution The access point can be powered by a light pole twist-lock outdoor light control that provides

100-to 480-VAC 50/60 Hz power. Do not connect to an outdoor light control powered by higher voltages.

When powering the access point with AC power other than the streetlight power tap adapter, you must ensure that the following conditions are observed:

1. AC power can be conveniently removed from the unit. The power should not be removed by

disconnecting the AC power connector on the unit.

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

Caution Before connecting or disconnecting a power cord, you must remove AC power from the power cord using

a suitable service disconnect.

2. You must protect any AC power plugs and AC receptacles from water and other outdoor elements.

You can use a UL-listed waterproofing enclosure suitable for covering the AC receptacle and AC power plug that supplies power to the unit as described in Article 406 of the NEC.

3. When you install the access point outdoors or in a wet or damp location, the AC branch circuit that

powers the access point should have ground fault protection (GFCI), as required by Article 210 of the National Electrical Code (NEC).

Warning

Be very careful when connecting the streetlight adapter to Category 3 pole-top power. If you are not careful, you may electrocute yourself or fall.

Statement 363

For additional important safety instructions for AC power cords, refer to the AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points document that shipped with your AC power cords.

To install an access point on a streetlight pole, follow these steps:

Step 1 Before beginning the installation, ensure the AC power to the streetlight pole is turned off.

Step 2 Turn off power to the AC power source at the designated circuits.

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

2-44

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

281939

Caution For your safety, when connecting the access point AC power connector, always connect the access point

end of the cable FIRST. When removing the AC power connector, always disconnect the access point end of the cable LAST.

If your access point contains a backup battery pack, you must press the reset button for 10 seconds or more (see the “Disabling Backup Battery Power” section on page 2-34.)

Step 3 When using the streetlight power tap adapter (AIR-PWR-ST-LT-R3P=), ensure that the access point is

mounted within 3 feet (1 m) of the outdoor light control. For mounting instructions, refer to the

“Mounting the Access Point on a Pole” section on page 2-19.

Step 4 Ensure that a 6-AWG ground wire is attached to the access point (see Figure 2-29) and connected to the

streetlight pole (for instructions see Grounding the Access Point, page 2-34).

Figure 2-29 Using the Streetlight Power Tap Adapter

Powering the Access Point

1 Outdoor light control 3 6-AWG copper grounding wire

2 Streetlight power tap adapter

Step 5

Ensure that the streetlight power tap adapter, which uses a 3-pronged LC-10 twist-lock adapter, is placed between the outdoor light control and its fixture (refer to Figure 2-29). The LC-10 twist-lock adapter is designed to be used with LC-10 listed outdoor light controls operating at 100 to 480 VAC, 50 to 60 Hz.

Step 6 Disconnect the outdoor light control from its fixture.

Step 7 Verify that the voltage available at the fixture is between 100 and 480 VAC, 50 to 60 Hz.

Step 8 Turn off power to the fixture at the designated circuits.

Caution When installing the streetlight power tap adapter to the access point AC power connector, always

connect the access point end of the cable FIRST. When removing the streetlight power tap adapter, always disconnect the access point end of the cable LAST.

Note Ensure that your antennas are connected to the access point before you apply power to the access

point.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-45

Powering the Access Point

45 6

255259

255258

Step 9 Connect the streetlight power tap adapter to the access point AC power connector, as shown in

Figure 2-30 and Figure 2-31. Hand-tighten the connector.

Figure 2-30 AC Power Connector - Shown on Access Point Model AIR-CAP1552E-x-K9

Chapter 2 Installing the Access Point

1 AC power connector

Figure 2-31 AC Power Connector - Shown on Access Point Model AIR-CAP-1552I-x-K9

1 AC power connector

Step 10

Step 11 Plug the outdoor light control into the streetlight power tap adapter.

Plug the streetlight power tap adapter into the outdoor light control fixture, as shown in Figure 2-29.

Step 12 Ensure that the antennas are connected to the access point before you apply power to the access point.

Step 13 Turn on the power to the outdoor light control fixture at the designated circuits.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-46

OL-24247-01

Chapter 2 Installing the Access Point

Connecting an AC Power Cable to the Access Point

When powering the access point with AC power other than the streetlight power tap adapter, you must ensure that the following conditions are observed:

1. AC power can be conveniently removed from the unit. The power should not be removed by

disconnecting the AC power connector on the unit.

Powering the Access Point

Warning

Caution Before connecting or disconnecting a power cord, you must remove AC power from the power cord using

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

a suitable service disconnect.

2. You must protect any AC power plugs and AC receptacles from water and other outdoor elements.

You can use a UL-listed waterproofing enclosure suitable for covering the AC receptacle and AC power plug that supplies power to the unit as described in Article 406 of the NEC.

3. When you install the access point outdoors or in a wet or damp location, the AC branch circuit that

powers the access point should have ground fault protection (GFCI), as required by Article 210 of the National Electrical Code (NEC).

Note For additional important safety instructions for AC power cords, refer to the AC Power Cords for Cisco

Aironet 1550 Series Outdoor Mesh Access Points document that shipped with your AC power cords.

The access point supports this Cisco AC power cable:

• 40 ft (12.2 m) AC power cable (AIR-CORD-R3P-40NA=)

To connect an AC power cable to the access point, perform these steps:

OL-24247-01

Step 1 Prior to applying AC power, ensure the access point is grounded (see Grounding the Access Point,

page 2-34).

Step 2 Turn off power to the AC power source at the designated circuits.

Warning

Caution When connecting the access point AC power connector, always connect the access point end of the cable

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

FIRST. When removing the AC power connector, always disconnect the access point end of the cable LAST.

Note If your access point contains a backup battery pack, you must press the reset button for 10

seconds or more (see the “Disabling Backup Battery Power” section on page 2-34).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-47

Powering the Access Point

Step 3 Align the notch in the AC power cable connector with the key in the access point AC power connector,

and push the cable connector into the access point connector (see Figure 2-30 or Figure 2-31). When fully seated, rotate the cable connector ring clockwise until hand-tight.

Step 4 Ensure that the antennas are connected to the access point before you apply power to the access point.

Step 5 Turn on the AC power at the designated circuits.

Connecting a DC Power Cable to the Access Point

When powering the access point with DC power, you must ensure that DC power can be conveniently removed from the unit. The power should not be removed by disconnecting the DC power connector on the unit.

Chapter 2 Installing the Access Point

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements in IEC 60950 based safety standards.

Statement 1033

To connect a DC power cable, you need to supply these tools and material:

• Shielded outdoor-rated DC power cable with cable diameter of 0.20 to 0.35 inch (0.51 to 0.89 cm).

• Adjustable or open-end wrench

• Small flat screw driver

• Two-pin DC power connector (Cisco supplied)

To connect the DC power cable to the access point, follow these steps:

Step 1 Before connecting DC power to the access point, ensure that the ground is connected to the access point

(see the “Grounding the Access Point” section on page 2-34.

Step 2 Turn off all power sources to the access point, including the DC power source.

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

2-48

Caution When installing DC power to the access point, always connect the access point end of the cable FIRST.

When removing the DC power connector, always disconnect the access point end of the cable LAST.

If your access point contains a backup battery pack, you must press the reset button for 10 seconds or more (see the “Disabling Backup Battery Power” section on page 2-34.)

Step 3 Use an adjustable wrench, a 22-mm socket, or a Sealcon S-2200 -WR wrench to remove the plug in the

DC power connector opening (see Figure 2-32 for the location of the DC power connector).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Figure 2-32 Location of the DC Power Liquid-Tight Adapter

Powering the Access Point

Step 4

255240

1 DC power connector with liquid-tight adapter 2 Ground lug screw holes

Loosen the round end of the liquid-tight adapter by turning counterclockwise, but do not remove (see

Figure 2-33).

Figure 2-33 Liquid-Tight Adapter

OL-24247-01

1 Thread end 2 Round end

Note The liquid-tight adapter accepts a cable diameter of 0.20 to 0.35 in. (0.51 to 0.89 cm).

Step 5 Insert a bare end of the DC power cable into the rounded end of the liquid-tight adapter (see

Figure 2-33), and pull approximately 6 inches of cable through the adapter.

Step 6 Strip the DC cable jacket back about 1 inch to expose the wires and strip the insulation about 3/8 inch

(9.5 mm) from each wire.

Step 7 Insert each wire into the two-position terminal strip (supplied), and tighten each wire using a 0.1 inch

(0.25 cm) flat screw driver (see Figure 2-34).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-49

Powering the Access Point

Figure 2-34 Two-Position Terminal Strip

Chapter 2 Installing the Access Point

1 Securing screws 3 Wire opening for DC +

2 Wire opening for ground (DC return)

Step 8 Insert the two-position terminal strip into the DC power opening in the access point case, and carefully

push the terminal strip into the internal connector (see Figure 2-35).

2-50

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Figure 2-35 Inserting the Terminal Strip into the DC Power Opening in the Access Point Case

1 Two-position terminal strip 3 Liquid-tight adapter

2 DC power cable

Powering the Access Point

4 DC power opening in access point case

Note For specifications and

restrictions on power cable connections, refer to Figure 2-43

Step 9

Slide the liquid-tight adapter towards the access point, and screw the threaded end of the adapter into the access point, and hand-tighten.

Step 10 Use an adjustable wrench, a 22-mm socket, or a Sealcon S-2200-WR wrench to tighten the threaded end

of the adapter to 6 to 7 ft lbs (8.1 to 9.5 Nm).

Step 11 Use an adjustable or open-end wrench to tighten the round end of the adapter to 2.7 to 3.2 ft lbs (3.66 to

4.34 Nm).

Step 12 Ensure that the antennas are connected to the access point before you apply power to the access point.

Step 13 Turn on the DC power at the designated circuits.

Connecting a Cable POC Power to the Access Point

The cable configuration on a 1552C access point contains a cable modem and RF splitter but does not contain a cable stinger connector. The cable stinger connector is customer supplied.

OL-24247-01

Note To ensure system performance, with respect to immunity from external electromagnetic fields, the

installer must use a well shielded coax cable (quad shield).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-51

Powering the Access Point

255265

Note The POC access point is classified as a type “Hazardous Voltage Secondary” circuit as per the

UL/IEC/EN 60950-1 safety standard. The cable distribution network used with this access point must provide transient reduction to the level for this type of circuit classification (that is, 500V transient/lightning surge).

To connect cable POC power to the access point, follow these steps:

Step 1 Before connecting cable POC power to the access point, ensure that the ground is connected to the access

point (see the “Grounding the Access Point” section on page 2-34).

Step 2 Ensure that all power sources have been disconnected from the access point.

Chapter 2 Installing the Access Point

Warning

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

Statement 1028

If your access point contains a backup battery pack, you must press the reset button for 10 seconds or more (see the “Disabling Backup Battery Power” section on page 2-34).

Step 3 Remove the ATTN and SHUNT connector plugs on the top of the access point. Follow your cable

company procedures to measure the cable signal strength and possibly adjust signal attenuation externally to the access point or on the RF splitter (see Figure 2-36).

Note The cable modem MAC address is located on the bottom of the access point under the LEDs.

Step 4 Locate the F-connector adapter on the access point (see Figure 2-36).

Figure 2-36 RF Splitter Components

2-52

1 RF splitter attenuator (ATTN) 2 RF splitter shunt (SHUNT)

3 F-connector adapter (stinger connector pin)

Step 5

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

Use a Phillips screw driver to loosen the set screw, but be careful not to remove it.

OL-24247-01

Chapter 2 Installing the Access Point

Step 6 Cut the cable stinger connector pin (see Figure 2-37) to 0.75 + 0.1 inch (1.91 + 0.25 cm).

Figure 2-37 Cable Stinger Connector Pin

Installing the Access Point in Hazardous Locations

1 Pin length is 0.75 +

Step 7

Step 8 Screw the F-connector adapter into the POC connector opening, and hand-tighten.

Step 9 Use an adjustable wrench to tighten the F-connector adapter to 6 to 7 ft lbs (8.1to 9.5 Nm).

Step 10 Use a Phillips screw driver to tighten the F-connector adapter set-screw on the RF splitter to 2.7 to 3.2

Insert the cable stinger connector pin into the cable POC connector opening in the access point case.

0.1inch (1.91 + 0.25 cm).

ft lbs (3.66 to 4.34 Nm).

Step 11 Before connecting cable POC power to the access point, ensure that the antennas are attached to the

access point.

Step 12 Connect or attach the cable company POC cable to the F-connector adapter according to their

specifications.

Step 13 Turn on cable POC power.

Step 14 Reinsert the RF splitter shunt.

Step 15 Check the cable modem Power and Cable LEDs and verify that the cable modem receives power and

registers to the cable network.

The Power LED (fifth LED from the hinge) is green to indicate power is available.The Cable LED (second LED from the hinge) should be blinking green to indicate scanning the cable network and green to indicate registered on the cable network.

Step 16 Close the hinged cover (see the “Closing the Access Point Hinged Cover” section on page 2-31).

Installing the Access Point in Hazardous Locations

This section describes the steps required to retrofit the 1552H access point and prepare it for installation in Class I, Division 2, Zone 2 hazardous locations.

Note This document does not provide specific procedures for installing conduit. You must ensure that your

installation techniques and procedures comply with Class I, Division 2, Zone 2 hazardous location installation regulations for your geographic location.

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

2-53

Installing the Access Point in Hazardous Locations

The access point hazardous location option complies with safety standards for Class I, Division 2, Zone 2 hazardous locations where ignitable concentrations of flammable gases, vapors, or liquids are not likely to exist under normal operation conditions.

When you select the hazardous location option as part of the ordering process, Cisco configures the system to contain the new components. Two conduit adapters and assembly instructions placed in the shipping box provide information and assembly procedures. The hazardous location option configures the access point as follows:

• The battery pack is removed because battery construction does not meet hazardous location

requirements.

• Do not install the battery (AIR-1520-BATT-6AH=) in the AIR-CAP1552H-x-K9 access point.

• The AC power connections are moved to the inside of the access point by installing an AC entry

board containing a terminal block. To comply with hazardous location requirements, AC power must be installed through rigid metal conduit to the terminal block.

Caution Do not use any form of sealant or gasket material when joining conduit components.

Chapter 2 Installing the Access Point

Caution The electrical rating for hazardous location installations has a lower voltage rating (100-240

VAC, 50/60 Hz, 1A) than a non-hazardous location installation (100-480 VAC).

Note To provide a proper seal, threaded conduit must be used to route the power and data cabling to

the access point.

• Two PG13 - 1/2 NPT adapters are provided. The adapters connect the conduit to the AC power port

and Ethernet backhaul port of the access point.

• When used in hazardous locations, the access point is rated 100 to 240 VAC only.

Required Tools and Materials

For a list tools and materials you will need to install the access point, see the “Package Contents” section

on page 2-2.

Warnings

Warning

Do not disconnect connections to this equipment unless power has been removed or you have verified that the area is nonhazardous. Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this product. Substitution of components may impair suitability for Class I, Zone 2, Division 2.

Statement 1062

2-54

Warning

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

When used in a Class I, Zone 2, Division 2 hazardous location, this equipment must be mounted with a proper wiring method that complies with the governing electrical codes.

Statement 1069

OL-24247-01

Chapter 2 Installing the Access Point

Installing the Access Point in Hazardous Locations

Warning

Compliance

If you connect or disconnect the console cable with power applied to the unit or any device on the network, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

To verify unit operation, perform POST on the device in a nonhazardous location before installation.

Statement 1080

A 1552H access point complies with the following versions of hazardous location certifications:

• IEC 60079-0: 2004

• IEC 60079-15: 2005

• CAN/CSA E60079-0: 2007

• CAN/CSA E60079-15: 2002

• UL 60079-0: Edition 4

• UL 60079-15: Edition 1

• EN 600079-0: 2006

• EN 60079-15: 2006

Compliance Label

Figure 2-38 and Figure 2-39 show examples of a 1552H access point hazardous-location compliance

labels.

Figure 2-38 Hazardous-Location Compliance Label for Model AIR-CAP1552H-E-K9

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-55

Installing the Access Point in Hazardous Locations

Figure 2-39 Hazardous-Location Compliance Label for Model AIR-CAP1552H-A-K9

Table 2- 4 interprets the information on the compliance labels.

Table 2-4 Interpreting the Hazardous Compliance Label

Label Text Description

Class I, Division 2, Groups A, B, C, D

Chapter 2 Installing the Access Point

Defines the environment in which the access point can be used:

• Class I—Environment containing flammable gases, vapors, or

liquids

• Division 2—Environmental classification used by the U.S. and

Canada

• Groups A, B, C, D—Gas identification for the U.S. and

Canada:

–

A—Acetylene

–

B—Hydrogen

–

C—Ethylene

–

D—Propane

Class I, Zone 2, Group II Defines the environment in which the access point can be used:

• Class I—Environment containing flammable gases, vapors, or

liquids

• Zone 2—Environment classification used in North America

• Group II—Gas identification for Zone II, which includes:

–

IIa—Propane

–

IIb—Ethylene

–

IIc—Acetylene & Hydrogen

2-56

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Label Text Description

Ex nA II T5 Defines parameters that the product complies with for U.S.

CSA Certificate 1945576 Identifies the Canadian Standards Association (CSA) certificate

-40 <

Ta < +55C The operating temperature range for the access point in all

Installing the Access Point in Hazardous Locations

Certification:

• Ex —Denotes explosive atmosphere

• nA —Non-sparking

• II = Group II as defined previously

• T5 = Temperature code < 100 degrees C, maximum surface

temperature

number.

countries.

Note Current safety certifications only include

operation of this outdoor equipment down to

-40C.

Type 4, IP67 Defines the enclosure degree of protection (Type 4 = indoor or

outdoor use primarily to provide a degree of protection against windblown dust and rain, splashing water, hose-directed water, and damage from external ice formation. IP67 = Dust tight (dust, dirt, sand, and so forth) and protected against powerful water jets. Also, the unit can be immersed in water up to 1m for short periods of time (30min).

Mounting the Access Point

You can mount the access point using any of the mounting systems described in this document. Follow the instructions in the appropriate section or sections for the installation you intend to use.

Routing and Connecting Ground, AC Power, and Ethernet Backhaul Cables

After you have mounted the access point, you must route ground, AC power, and backhaul Ethernet cabling to the access point using rigid steel conduit.

Note When you install the conduit, be sure to comply with the local electrical codes for your area.

The procedure is divided into six parts:

OL-24247-01

1. “Installing the PG-13 1/2 NPT Conduit Adapters” section on page 2-58

2. “Opening the 1552H Access Point Hinged Cover” section on page 2-59

3. “Connecting Ground and AC Power” section on page 2-60

4. “Closing the 1552H Access Point Hinged Cover” section on page 2-61

5. “Connecting the Ethernet Backhaul Cable” section on page 2-62

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-57

Installing the Access Point in Hazardous Locations

45 6

255261

We recommend that you follow these steps in the sequence listed.

Installing the PG-13 1/2 NPT Conduit Adapters

To install the PG-13 1/2 NPT conduit adapters on your access point, follow these steps:

Step 1 Locate and remove the Ethernet backhaul port plug on the access point, as shown in Figure 2-40.

Figure 2-40 Remove the Ethernet Backhaul Port Plug

Chapter 2 Installing the Access Point

1 Ethernet backhaul port plug

Step 2

Start a PG-13 1/2 NPT conduit adapter into the threaded hole, as shown in Figure 2-41.

Figure 2-41 Installing the Ethernet Backhaul Cable with Conduit Adapter

255266

2-58

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

255250

Caution To ensure a proper seal, make sure you have positioned an O-ring on the adapter threads.

Caution Do not use any type of pipe thread sealant or other gasket material. Doing so will invalidate the

hazardous-location compliance certification of the unit.

Step 3 Tighten the adapters hand-tight to avoid damaging the O-ring seal.

Opening the 1552H Access Point Hinged Cover

You need to open the 1552H access point hinged cover to access the AC entry terminal block and the Ethernet backhaul port. See Figure 2-42.

To open the access point hinged cover, follow these steps:

Installing the Access Point in Hazardous Locations

Step 1 Use 0.5-in (13-mm) box-end wrench or socket set to unscrew the six bolts on the front cover of the unit.

Only unscrew the bolts about 2 turns until they are easily turned by hand, do not remove the bolts.

Step 2 The cover is hinged on the bottom. Carefully open the cover and swing it down.

Note If the cover does not swing open easily, carefully loosen the hinge bolts again.

Figure 2-42 1552H Access Point Front Cover View

1 M8 x32 bolts 2 Cover hinge M8 x32 bolts

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-59

Installing the Access Point in Hazardous Locations

Connecting Ground and AC Power

To route and connect the ground and AC power cabling to the 1552H access point model, follow these steps:

Chapter 2 Installing the Access Point

Warning

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Statement 1046

Caution Always install the ground wire before connecting the AC power leads.

Step 1 Open the access point hinged cover. See the “Opening the 1552H Access Point Hinged Cover” section

on page 2-59 for instructions.

Step 2 Use a Phillips head screwdriver to loosen the three captive screws that secure the AC entry module cover.

(Figure 2-43).

Figure 2-43 AC Power Installation—Model AIR-CAP1552H-A-K9

AC Entry Cover Loosen the Captive Screws (3x) To open cover. Reattach after harness has been installed

Attach GND wire to terminal Ring. Attach terminal ring to chassis as shown

Customer supplied harness

Terminal Block

2-60

½ NPT Adapter and O-ring (North American/ATEX ) or Sheathed Cable Adapter (ATEX) – See Notes 1, 2 and 3

Customer supplied ½ NPT Pipe (North American/ATEX) or Sheathed Cable (ATEX only)

330059

Notes

1 The installer/integrator is responsible for supplying the appropriate

certified components as part of the overall designed system and must maintain the access point environmental integrity of IP67 rating.

2 The water-tight gland device selected by the installer/integrator must be

equal to or greater (better) than the specifications listed for device referenced as Sealcon CD-13AR-EX with a Buna-N O-ring.

3 The torque specification for water-tight glands are 6 to 7 ft-lbs (8.1 to 9.5

N.m).

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Step 3 Remove the cover and set it aside.

Step 4 Route the AC power cable through the PG-13 1/2 NPT adapter serving the AC entry module.

Step 5 Use a wire stripper tool to remove the insulation from each wire. Remove only enough wire to provide

a solid connection in the terminal block. The hot wires should have no bare wire exposed after the connection is made.

Step 6 Insert the ground wire into the provided ground lug and use a crimping tool to secure the connection.

Step 7 Install the ground lug and tighten the connection with a Phillips screwdriver. To prevent stripping the

screw threads, do not overtighten.

Step 8 Insert each hot wire into the AC entry terminal block.

Step 9 Use a Phillips screwdriver to tighten the terminal block set screws to secure the wires in the terminal

block.

Step 10 Verify that no bare wire is exposed. If wire is exposed, remove it from the terminal block, adjust the

length, and reinstall.

Step 11 Check your work.

Step 12 Reinstall the AC entry module top cover and tighten the captive screws. Do not overtighten.

Step 13 Close the access point hinged cover. See the “Closing the Access Point Hinged Cover” section on

page 2-31 for details.

Step 14 Install the Ethernet backhaul cable. See the next section for instructions.

Installing the Access Point in Hazardous Locations

Closing the 1552H Access Point Hinged Cover

To close the 1552H access point cover, follow these steps:

Step 1 When closing the access point cover, be careful not to pinch internal wires.

Step 2 Carefully position the cover flush with all sides of the access point, then slowly hand-tighten each bolt.

Step 3 When all bolts are hand-tightened, use a 13-mm closed-end wrench or socket to partially tighten the bolts

in the tightening sequence shown in Figure 2-44. Tighten each bolt to 3 to 4 ft lbs (0.34 to 0.45 Nm).

Step 4 Repeat Step 3 using the same tightening sequence to fully tighten each bolt to 6 to 7 ft lbs

(0.68 to 0.79 Nm).

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-61

Installing the Access Point in Hazardous Locations

Figure 2-44 Hinged Cover Bolt Tightening Sequence

Chapter 2 Installing the Access Point

Connecting the Ethernet Backhaul Cable

The Ethernet backhaul cable plugs into the port identified in Figure 2-40. To connect the Ethernet backhaul cable, follow these steps:

255257

Step 1 Route the Ethernet cable through the PG-13 1/2 NPT serving the backhaul connection on the access

point.

Step 2 Insert the RJ-45 connector for the cable into the Ethernet connection in the access point. Make sure the

connection is tight.

Step 3 Check your work.

Performing Maintenance

The access point requires minimal periodic or preventive maintenance as it has no moving parts, filters, lubricants, or mechanical contact components. However, when installed in a hazardous location, periodic inspections should be conducted in order to ensure that the access point is operating satisfactory. This section provides information about performing maintenance on an access point installed in a hazardous location.

Additional maintenance information can be found in Chapter 3, “Troubleshooting” and the Troubleshooting a Mesh Network Guide. The troubleshooting document is available at cisco.com at the following URL:

http://www.cisco.com/en/US/docs/wireless/access_point/1520/troubleshooting/guide/TrbleshtMesh.ht ml

2-62

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Chapter 2 Installing the Access Point

Installing the Access Point in Hazardous Locations

Warning

To verify unit operation, perform POST on the device in a nonhazardous location before installation.

Statement 1080

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Statement 1046

Removing the Access Point from Service

When removing an access point from service, make sure you remove power from the access point before opening the cover and disconnecting the AC input wiring. When removing the AC wiring, the ground connection should be the last to be disconnected.

Statement 1062

Conducting Periodic Inspections

The access point should be inspected periodically to ensure normal and airtight operation in the hazardous location environment. Table 2- 5 lists the inspection routines and their periodicity.

Table 2-5 Periodic Inspection Table

Inspection Routine Periodicity

Inspect O-ring seals and exterior electrical connections for aging, corrosion, and low ground resistance.

Inspect cover and liquid-tight adapter gaskets for airtightness. Every 5 years

What to Do Next

When you power up a MAP that is not connected to a wired Ethernet, fiber-optic, or cable network to the controller, the access point uses the Cisco Adaptive Wireless Path Protocol (AWPP) to bind to another mesh access point (MAP) with the best path to a root access point (RAP) connected to the wired network to a controller. The access point sends a discovery request when powered up. If you have configured the access point in the controller correctly, the controller sends back a discovery response to the access point. When that happens, the access point sends out a join request to the controller, and the controller responds with a join confirmation response. Then the access point establishes a Control And Provisioning of Wireless Access Points (CAPWAP) connection to the controller and gets the shared secret configured on the controller.

Refer to the Cisco Wireless LAN Controller Configuration Guide for more information on configuring, monitoring, and operating your access points.

Every 3 years

OL-24247-01

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

2-63

Installing the Access Point in Hazardous Locations

Chapter 2 Installing the Access Point

2-64

Cisco Aironet 1550 Series Outdoor Mesh Access Point Hardware Installation Guide

OL-24247-01

Cisco Systems 102074P Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Unpacking the Access Point

Package Contents

Tools and Hardware

Optional Tools and Hardware

Optional Tools and Hardware That You Supply

Pole Installation Hardware and Tools

Warnings

Cable Strand Installation Hardware and Tools

Safety Information

FCC Safety Compliance Statement

Safety Precautions

Avoiding Damage to Radios in a Testing Environment

Installation Guidelines

Site Surveys

Before Beginning the Installation

Becoming Familiar with Access Point Installation Components

Antenna N-Type Connector Locations

Adding the Access Point MAC Addresses to the Controller Filter List

Configuring a RAP

Configuring a Bridge Group Name

Installing the Access Point

Installation Options

Access Point Mounting Orientation

Mounting the Access Point on a Wall

Mounting the Access Point on a Pole

Assembling the Pole Clamp Bracket and the Mounting Bracket

Pole Mounting

Cable Strand Mounting

Opening the Access Point Hinged Cover

Closing the Access Point Hinged Cover

Using the Reset Button

Reboot the Access Point

Grounding the Access Point

Disabling Backup Battery Power

Connecting a Fiber-Optic Cable to the Access Point

Powering the Access Point

Connecting a 1500 Series Power Injector

Connecting an Ethernet Cable to the Access Point

AC Power Cords for Cisco Aironet 1550 Series Outdoor Mesh Access Points

Connecting Streetlight AC Power

Connecting an AC Power Cable to the Access Point

Connecting a DC Power Cable to the Access Point

Connecting a Cable POC Power to the Access Point

Installing the Access Point in Hazardous Locations

Required Tools and Materials

Warnings

Compliance

Compliance Label

Mounting the Access Point

Routing and Connecting Ground, AC Power, and Ethernet Backhaul Cables

Installing the PG-13 1/2 NPT Conduit Adapters

Opening the 1552H Access Point Hinged Cover

Connecting Ground and AC Power

Closing the 1552H Access Point Hinged Cover

Connecting the Ethernet Backhaul Cable

Performing Maintenance

Removing the Access Point from Service

Conducting Periodic Inspections

What to Do Next
