DMX-RT
User Manual
Page 2
DMX-RT
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Unpacking Instructions.................................................................................. 1
Claims ............................................................................................................................ 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
Disclaimer ..................................................................................................... 1
Product at a Glance ...................................................................................... 2
Safety Notes.................................................................................................. 2
2. Introduction ................................................................................ 3
Product Overview.......................................................................................... 3
Product Dimensions ...................................................................................... 4
3. Setup ........................................................................................... 5
AC Power ...................................................................................................... 5
Mounting ....................................................................................................... 5
Orientation...................................................................................................................... 5
Rigging ........................................................................................................................... 5
Basic Setup ................................................................................................... 6
Trigger Set-up ................................................................................................................ 6
DMX Set-up.................................................................................................................... 7
4. Operation .................................................................................... 8
Control Panel Operation................................................................................ 8
Menu Map ..................................................................................................... 8
Configuration................................................................................................. 8
Trigger Set-up ................................................................................................................ 8
Cue File Setting.............................................................................................................. 9
DMX Sequence File Selection ....................................................................................... 9
Delay Time ..................................................................................................................... 9
Record File Start type .................................................................................................... 9
Record File End type...................................................................................................... 9
Record File..................................................................................................................... 9
Run File.......................................................................................................................... 9
Software Version............................................................................................................ 9
5. Maintenance................................................................................ 10
Product Maintenance .................................................................................... 10
6. Technical Specifications ........................................................... 11
7. Returns........................................................................................ 12
8. Contact Us .................................................................................. 13
DMX-RT User Manual Rev. 4
Page 3
BEFORE YOU BEGIN
1. BEFORE YOU BEGIN
What Is Included
• DMX-RT
• Power Adapter
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
CONVENTION MEANING
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
• Warranty Card
• Quick Reference Guide
Symbols
SYMBOL MEANING
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
!
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com.
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2018 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and DMX-RT are registered trademarks or trademarks of Chauvet & Sons
LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and
product names and logos referred to herein may be trademarks of their respective companies.
DMX-RT User Manual Rev. 4
Page 1 of 13
Page 4
Product at a Glance
BEFORE YOU BEGIN
Use on Dimmer
Outdoor Use
Sound-Active
DMX
Master/Slave
Safety Notes
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power cord by pulling or tugging on the cord.
!
• If mounting the product overhead, always secure to a fastening device using a safety
cable.
• Make sure there are no flammable materials close to the product when operating.
• Always make sure that the voltage of the outlet to which you are connecting the product
is within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose
the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm)
from adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Never carry the product from the power cord. Always use the hanging/mounting bracket.
• The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at
higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Auto Programs
Auto-ranging Power Supply
Replaceable Fuse
User-Serviceable
Page 2 of 13
Keep this User Manual for future use. If you sell the product to someone else, be sure that
they also receive this document.
DMX-RT User Manual Rev. 4
Page 5
INTRODUCTION
2. INTRODUCTION
Product Overview
DMX Data
In/Out
Micro SD
Card Slot
Power In
Trigger
Input
Control
Panel LCD
Indicator
LEDs
3 mm Mounting
Points
Control Panel
Buttons
DMX-RT User Manual Rev. 4
Page 3 of 13
Page 6
Product Dimensions
INTRODUCTION
0.16 in
4 mm
2.87 in
73 mm
0.24 in
6 mm
3.23 in
82 mm
2.52 in
64 mm
2.17 in
55 mm
1.81 in
46 mm
Page 4 of 13
DMX-RT User Manual Rev. 4
Page 7
SETUP
3. SETUP
AC Power
The DMX-RT has an external auto-ranging power supply that works with an input voltage range of 100 to
240 VAC, 50/60 Hz. It runs on 12 VDC, 1A. To determine the product’s power requirements (circuit
breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back
panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s
average current draw under normal conditions.
• Always connect the product to a protected circuit (circuit breaker or fuse).
Make sure the product has an appropriate electrical ground to avoid the risk of
electrocution or fire.
!
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The DMX-RT may be mounted in any position; however, make sure adequate ventilation is provided
around the product.
Rigging
• Before deciding on a location for the product, always make sure there is easy access to the product
for maintenance and programming purposes.
• Make sure that the structure onto which you are mounting the product can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to
reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the
desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the
knobs.

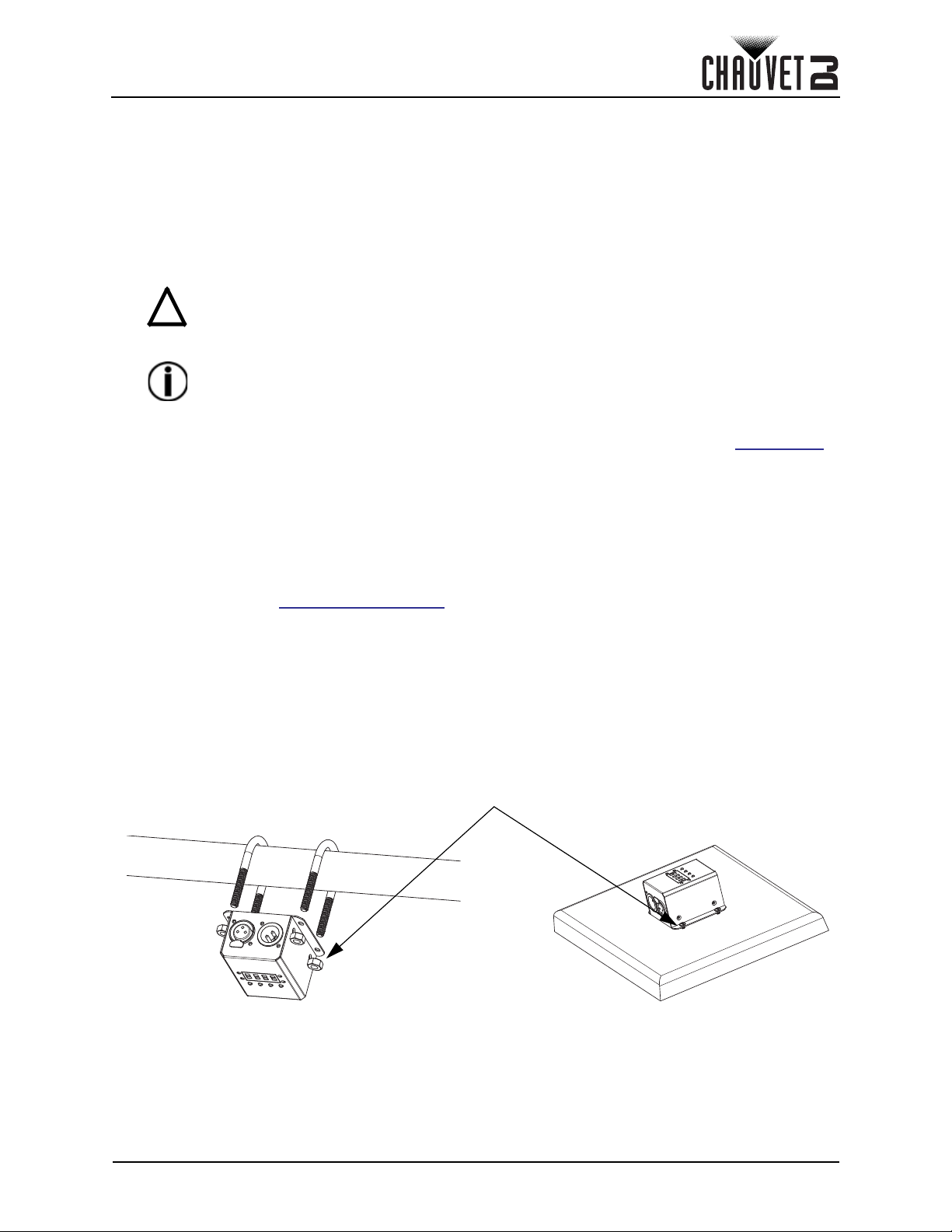

Mounting Diagram
• To eliminate unnecessary wear and improve its lifespan, during periods of nonuse completely disconnect the product from power via breaker or by
unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel serves only as a 0 to 100% switch.
Overhead Mounting
DMX-RT User Manual Rev. 4
Mounting Points
Surface Mounting
Page 5 of 13
Page 8
SETUP
Basic Setup
Below are basic set-up diagrams. Please refer to the other product’s user manual for detailed installation
instructions.
Trigger Set-up
DMX-RT
Signal
-
12 VDC 100 mA
Signal
The diagram above illustrates how to connect products to the trigger port of the DMX-RT.
•“IN” “-” ports are for the signal that allows the DMX-RT to sense whether the circuit is closed or open.
•“+” port provides 12 VDC 100 mA of power to connect to other devices if needed.
The diagrams below show open and closed circuits.
Open Circuit
+
IN
Closed Circuit
Page 6 of 13
DMX-RT User Manual Rev. 4
Page 9
SETUP
DMX Set-up
DMX signal in from
controller
DMX signal out to
fixtures
DMX-RT User Manual Rev. 4
Page 7 of 13
Page 10
OPERATION
4. OPERATION
Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to
the Product Overview to see the button locations on the control panel.
BUTTON FUNCTION
<MENU> Press to find an operation mode or to back out of the current menu option
<UP> Press to scroll up the list of options or to find a higher value
<DOWN> Press to scroll down the list of options or to find a lower value
<ENTER> Press to activate a menu option or a selected value
Menu Map
MAIN
LEVEL
---- Main Level Start
SEtU
rECo F000-999 StAr mm.ss Select to put product in record mode
rUn F000-999 StAr mm.ss
vEr
PROGRAMMING LEVELS DESCRIPTION
nC
tt
no
Shot Plays the selected show file one time only.
rt
FILE F000-999 Selects the show file to play
dt 00-60
rb
rE
bxx
Axx
LooP
nAnL
non
nAnL Press <Enter> to stop the recording.
non
Normal= Closed. Product is set to trigger when
circuit opens
Normal= Opened. Product is set to trigger when
circuit closes
Plays the selected show file continuously until
trigger is released
Sets delay time in seconds. until the sequence can
be triggered again
Sets the trigger mode to press <Enter> to start the
recording.
Sets the trigger mode to having a DMX value of 001
or higher to start recording.
Sets the trigger mode to having a DMX value of 000
to stop the recording.
Select a program to test or preview. Press <Enter>
to begin the sequence and press <Menu> to stop.
Shows the software (bootloader) and firmeware
(application) versions
Configuration
Trigger Set-up
Set the DMX-RT to nC if the circuit is “on” (closed) during normal operation. The trigger will be cued when
the circuit is turned “off”.
1. Go to SEtU > tt.
2. Select nC.
Set the DMX-RT to no if the circuit is “off” (opened) during normal operation. The trigger will be cued when
the circuit is turned “on”.
1. Go to SEtU > tt.
2. Select no.
Page 8 of 13
DMX-RT User Manual Rev. 4
Page 11
OPERATION
Cue File Setting
The DMX-RT can play the selected cue file one time and then stop (Shot) or continuously loop (LooP) the
same cue after it was triggered.
1. Go to SEtU > rt.
2. Select Shot or LooP.
DMX Sequence File Selection
The DMX-RT can record and play up to 999 different user recorded DMX sequence files. Follow the steps
below to set which file to play when triggered.
1. Go to SEtU > FILE.
2. Select the desired file number to play. (F000-999)
Delay Time
This will set the amount of time (0-60 secs) before the DMX-RT can be triggered again.
1. Go to SEtU > dt.
2. Select the desired delay time in seconds. (00-60)
Record File Start type
The DMX-RT can initiate recording a DMX sequence file by using DMX (once a value of 001 or higher is
sensed the DMX-RT will start recording) or manually on the control panel using the <ENTER> button.
Using DMX as a trigger:
1. Go to SEtU > rb.
2. Select non.
Using manual trigger.
1. Go to SEtU > rb.
2. Select nAnL.
Record File End type
The DMX-RT can stop recording a DMX sequence file by DMX (once a value of 000 is sensed the DMXRT will stop recording) or manually on the control panel using the <ENTER> button.
Using DMX as a trigger:
1. Go to SEtU > rE.
2. Select non.
Using manual trigger.
1. Go to SEtU > rE.
2. Select nAnL.
Record File
After choosing how to start and end the recording...
1. Go to rECo.
2. Select the desired file number to record (F000-999).
3. To start your recording, follow the recording setup selected above.
Run File
This allows the DMX-RT to run a file manually without having to use a trigger.
1. Go to rUn.
2. Select the desired file number to play. (F000-999)
Software Version
This shows the firmware.
1. Go to vEr.
2. Select bxxx for the software (bootloader) version and Axxx for the firmware (application) version.
DMX-RT User Manual Rev. 4
Page 9 of 13
Page 12
MAINTENANCE
5. MAINTENANCE
Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of
the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean
your lighting products at least twice a month. However, be aware that usage and environmental conditions
could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external
surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl
alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.
Page 10 of 13
DMX-RT User Manual Rev. 4
Page 13
TECHNICAL
6. TECHNICAL SPECIFICATIONS
Dimensions and Weight
LENGTH WIDTH HEIGHT WEIGHT
3.23 in (82 mm) 2.87 in (73 mm) 2.17 in (55 mm) 0.4 lb (0.2 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
POWER SUPPLY TYPE RANGE VOLTAGE
Switching (external) 100 to 240 VAC, 50/60 Hz 12 VDC 100 mA
PARAMETER 120 V, 60 HZ 230 V, 50 HZ
Consumption 1 W 1 W
Operating Current 0.03 A 0.03 A
Thermal
MAXIMUM EXTERNAL TEMPERATURE COOLING SYSTEM
104 °F (40 °C) Convection
DMX
I/O CONNECTOR
3-pin XLR
Ordering
PRODUCT NAME ITEM CODE UPC NUMBER
DMX-RT 09081254 781462216023
DMX-RT User Manual Rev. 4
Page 11 of 13
Page 14
RETURNS
RETURNS
In case you need to get support or return a product:
• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local
distributor. See www.chauvetdj.com for distributors outside the U.S., UK, Ireland, Mexico, or
Benelux.
If you are located outside the U.S., UK, Ireland, Mexico, or Benelux, contact your
distributor of record and follow their instructions on how to return Chauvet products to
them. Visit our website www.chauvetdj.com for contact details.
Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization
(RMA) number before shipping the product. Be prepared to provide the model number, serial number, and
a brief description of the cause for the return.
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet
will not issue call tags.
Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA
number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number
directly on the box.
Before sending the product, clearly write the following information on a piece of paper and place it inside
the box:
• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be
your responsibility. FedEx packing or double-boxing are recommended.
Chauvet reserves the right to use its own discretion to repair or replace returned
product(s).
Page 12 of 13
DMX-RT User Manual Rev. 4
Page 15
CONTACT US
CONTACT US
World Headquarters
EUROPE
MEXICO
Address: Av. de las Partidas 34, 3-B Email: servicio@chauvet.com.mx
Lerma, Edo. de México, CP 52000
General Information Technical Support
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email:
Fax: (954) 929-5560
Toll Free: (800) 762-1084 www.chauvetdj.com
chauvetcs@chauvetlighting.com
Website
General Information Technical Support
Address: Stokstraat 18 Email: eutech@chauvetlighting.eu
9770 Kruishoutem
Belgium www.chauvetdj.eu
Voice: +32 9 388 93 97
Website
General Information Technical Support
Address: Unit 1C Email: uktech@chauvetlighting.com
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT www.chauvetdj.eu
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Website
General Information Technical Support
(Entrance by Calle 2)
Zona Industrial Lerma
Website
Voice: +52 (728) 690-2010 www.chauvetdj.mx
Visit the applicable website above to verify our contact information and instructions to request support.
Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record.
DMX-RT User Manual Rev. 4
Page 13 of 13
Loading...
