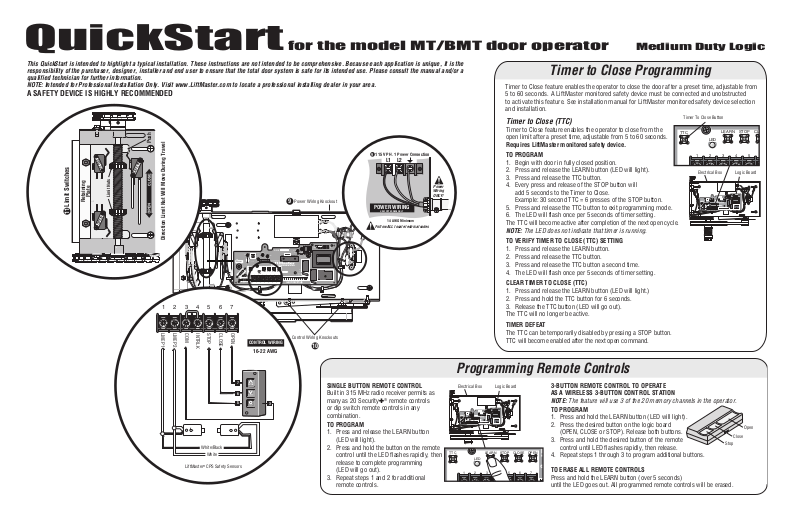

Page 1
This QuickStart is intended to highlight a typical installation. These instructions are not intended to be comprehensive. Because each application is unique, it is the
responsibility of the purchaser, designer, installer and end user to ensure that the total door system is safe for its intended use. Please consult the manual and/or a
qualified technician for further information.
NOTE: Intended for Professional Installation Only. Visit www.LiftMaster.com to locate a professional installing dealer in your area.
A SAFETY DEVICE IS HIGHLY RECOMMENDED
Timer to Close Programming
Programming Remote Controls
Timer to Close feature enables the operator to close the door after a preset time, adjustable from
5 to 60 seconds. A LiftMaster monitored safety device must be connected and unobstructed
to activate this feature. See installation manual for LiftMaster monitored safety device selection
and installation.
CONTROL WIRING
USE COPPER WIRE ONLY
16-22 AWG
COM
INTRLK
STOP
OPEN
CLOSE
1
LMEP1
LMEP2
234567
Direction Limit Nut Will Move During Travel
Limit Switches
11
Retaining
Plate
Limit Nuts
Push
SAFETY
CLOSE
OPEN
115 V PH. 1 Power Connection
9
14 AWG Minimum
POWER WIRING
USE COPPER WIRE ONLY
Power
Wiring
ONLY!
Follow ALL local electrical codes
L1 L2
D14
LED
TTC
LEARN
12345
STOP CL
D14
LED
TTC
LEARN
1 234567
STOP CLOSE OPEN
Power Wiring Knockout
9
D7
D5
U4
D6
D4
10
AUX ANT
AUX ANT
C9
L5
^^^^
R27
J2
TTC
1234567
LMEP1 LMEP2 INTRLKCOM STOP CLOSE OPEN
D9
J4
014A1030
C20
TP1
C21
C18
D14
LEARN
STOP CLOSE OPEN
LED
C32
R25
U1
C31
K2
LT
C29
R24
P1
Control Wiring Knockouts
Timer to Close (TTC)
Timer to Close feature enables the operator to close from the
open limit after a preset time, adjustable from 5 to 60 seconds.
Requires LiftMaster monitored safety device.
TO PROGRAM
1. Begin with door in fully closed position.
2. Press and release the LEARN button (LED will light).
3. Press and release the TTC button.
4. Every press and release of the STOP button will
add 5 seconds to the Timer to Close.
Example: 30 second TTC = 6 presses of the STOP button.
5. Press and release the TTC button to exit programming mode.
6. The LED will flash once per 5 seconds of timer setting.
The TTC will become active after completion of the next open cycle.
NOTE: The LED does not indicate that timer is running.
TO VERIFY TIMER TO CLOSE (TTC) SETTING
1. Press and release the LEARN button.
2. Press and release the TTC button.
3. Press and release the TTC button a second time.
4. The LED will flash once per 5 seconds of timer setting.
CLEAR TIMER TO CLOSE (TTC)
1. Press and release the LEARN button (LED will light.)
2. Press and hold the TTC button for 6 seconds.
3. Release the TTC button (LED will go out).
The TTC will no longer be active.
TIMER DEFEAT
The TTC can be temporarily disabled by pressing a STOP button.
TTC will become enabled after the next open command.
Timer To Close Button
014A1030
C20
TP1
C9
C21
L5
^^^^
AUX ANT
AUXANT
C18
R27
J2
D14
LEARN
STOPCLOSE OPEN
TTC
LED
1234567
INTRLKCOM
LMEP1 LMEP2
STOP CLOSE OPEN
D9
J4
C32
R25
U1
C31
K2
LT
C29
R24
P1
Logic BoardElectrical Box
D7
D5
U4
D6
D4
White/Black
White
LiftMaster® CPS Safety Sensors
7
6
5
3
SINGLE BUTTON REMOTE CONTROL
Built in 315 MHz radio receiver permits as
many as 20 Security✚
®
remote controls
or dip switch remote controls in any
combination.
TO PROGRAM
Logic BoardElectrical Box
D7
D5
U4
D6
D4
J4
014A1030
C32
C20
TP1
R25
C9
AUX ANT
AUXANT
J2
D9
L5
^^^^
C18
R27
D14
TTC
LED
1234567
LMEP1 LMEP2 INTRLKCOM STOP CLOSEOPEN
U1
C21
C31
K2
LT
LEARN
STOPCLOSE OPEN
C29
R24
P1
1. Press and release the LEARN button
(LED will light).
2. Press and hold the button on the remote
control until the LED flashes rapidly, then
3-BUTTON REMOTE CONTROL TO OPERATE
AS A WIRELESS 3-BUTTON CONTROL STATION
NOTE: The feature will use 3 of the 20 memory channels in the operator.
TO PROGRAM
1. Press and hold the LEARN button (LED will light).
2. Press the desired button on the logic board
(OPEN, CLOSE or STOP). Release both buttons.
3. Press and hold the desired button of the remote
control until LED flashes rapidly, then release.
Stop
4. Repeat steps 1 through 3 to program additional buttons.
Open
Close
release to complete programming
(LED will go out).
3. Repeat steps 1 and 2 for additional
remote controls.
TO ERASE ALL REMOTE CONTROLS
Press and hold the LEARN button (over 5 seconds)
until the LED goes out. All programmed remote controls will be erased.
Page 2
Pivot Bolt
Take-Up
Bolt
Nylon
Locking
Nut
L-Slot
L-Slot
Door
Bracket
Arm Assembly
Pivot Shaft
and Cotter Pins
Open Side of Straight Arm
4
4
Header
Bracket
1
st
2
nd
8
5
3
7
1
2
6
QuickStart for the model MT/BMT door operator
IMPORTANT: This QuickStart is intended to highlight a typical installation. These instructions are not intended to be comprehensive. Because each application is unique, it is the responsibility of
the purchaser, designer, installer and end user to ensure that the total door system is safe for its intended use. Please consult the manual and/or a qualified technician for further information.
5
NOTE: Intended for Professional Installation Only. Visit www.LiftMaster.com to locate a professional installing dealer in your area.
A SAFETY DEVICE IS HIGHLY RECOMMENDED
1
Install the spacer brackets evenly down the track. The nylon pad on the spacer bracket must face up. (Two -3/4" bolts/nuts per spacer)
2
Install the idler wheel assembly in the second hole from the end of the track (Two - 1" bolts/nuts with lock washers).
NEVER run Control wiring
in same conduit as the
Power wiring!
OPEN
CLOSE
STOP
Approximately 4 Feet
Half the Height of the Door
6 inches
Maximum
Edge Sensor
6 inches
Maximum
7
3
Slide the trolley carriage into the tracks so that the take-up bolt will be facing toward the powerhead.
4
Secure the powerhead to the tracks using the L-slot and the 3rd hole for each track. (Four -3/4" bolts/nuts)
5
Connect the chain to the trolley carriage connection on the door end. Connect the take-up bolt on the other end and adjust chain accordingly. A properly adjusted chain
will sag about 3" at the mid-point. If necessary, remove links from the chain to achieve proper adjustment. (Two nuts and a lock washer, two master links)
6
Provide a mounting pad for the header bracket to attach to the front wall. Then use the pivot shaft and cotter pins to secure the track assembly to the header bracket (with the
powerhead remaining on the floor).
7
Pivot the powerhead up until track assembly is horizontal with the header bracket then secure the brackets to the ceiling. Secure mounting brackets to the powerhead.
If the track is longer than 15', use of a mid-span support bracket is recommended.
Assemble the curved and straight arm as shown making sure the open side of the notch on the straight arm faces the door, (Two -3/4" bolts/nuts). Attach arm assembly to the
8
door bracket with a 3/4" bolt and nylon locking nut so the bolt can pivot. Connect the arm assembly to the trolley with the disconnect assembly.
Run the power wires through the power wiring conduit hole in the electrical box enclosure. Connect the power and earth ground to the operator terminal block.
9
Follow ALL local electrical codes.
Run control wires through the control wiring conduit hole in the electrical box enclosure. Follow ALL local electrical codes.
10
Adjust the limit switches to open and close door properly. Make sure the limit nuts are positioned between the limit switches before proceeding with adjustments.
11
12
Remove cotter pin from nut on the clutch shaft. Back off clutch nut until there is very little tension on the clutch spring. Tighten clutch nut gradually until there is just enough
tension to permit the operator to move the door smoothly but to allow the clutch to slip if the door is obstructed. When the clutch is properly adjusted, it should generally be
possible to stop the door by hand during travel. Reinstall cotter pin when finished.
13
Additional programming and troubleshooting can be found in the installation manual.
© 2008, The Chamberlain Group, Inc.
01-34216B
All Rights Reserved
1
4
Clutch
POWER WIRING
9
12
Powerhead
11
