Chamberlain 4200 1-2HP, 7220 1-2HP User Manual

GARAGE DOOR OPENER

For Residential Use Only

Complies with UL 325 regulations effective January 1, 1993

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

is connected

and properly aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located on the front end panel of your opener.

The Chamberlain Group, Inc. A DUCHOSSOIS ENTERPRISE 845 Larch Avenue Elmhurst, Illinois 60126-1196

www.chamberlaingroup.com

Series 7220 – 1/2HP

Series 4200 – 1/2HP

Introduction Pages 2-7

Safety symbol and signal word review ........................2

Preparing your garage door........................................3

Tools needed...............................................................3

Planning ..................................................................4-5

Carton inventory..........................................................6

Hardware inventory.....................................................7

Assembly Pages 8-11

Assemble T-rail & attach the pulley bracket ................8

Install the trolley..........................................................9

Fasten the T-rail to the motor unit...............................9

Install the chain/cable and sprocket cover................10

Tighten the chain and cable......................................11

Installation Pages 11-27

Installation safety instructions....................................11

Determine the header bracket location ................12-13

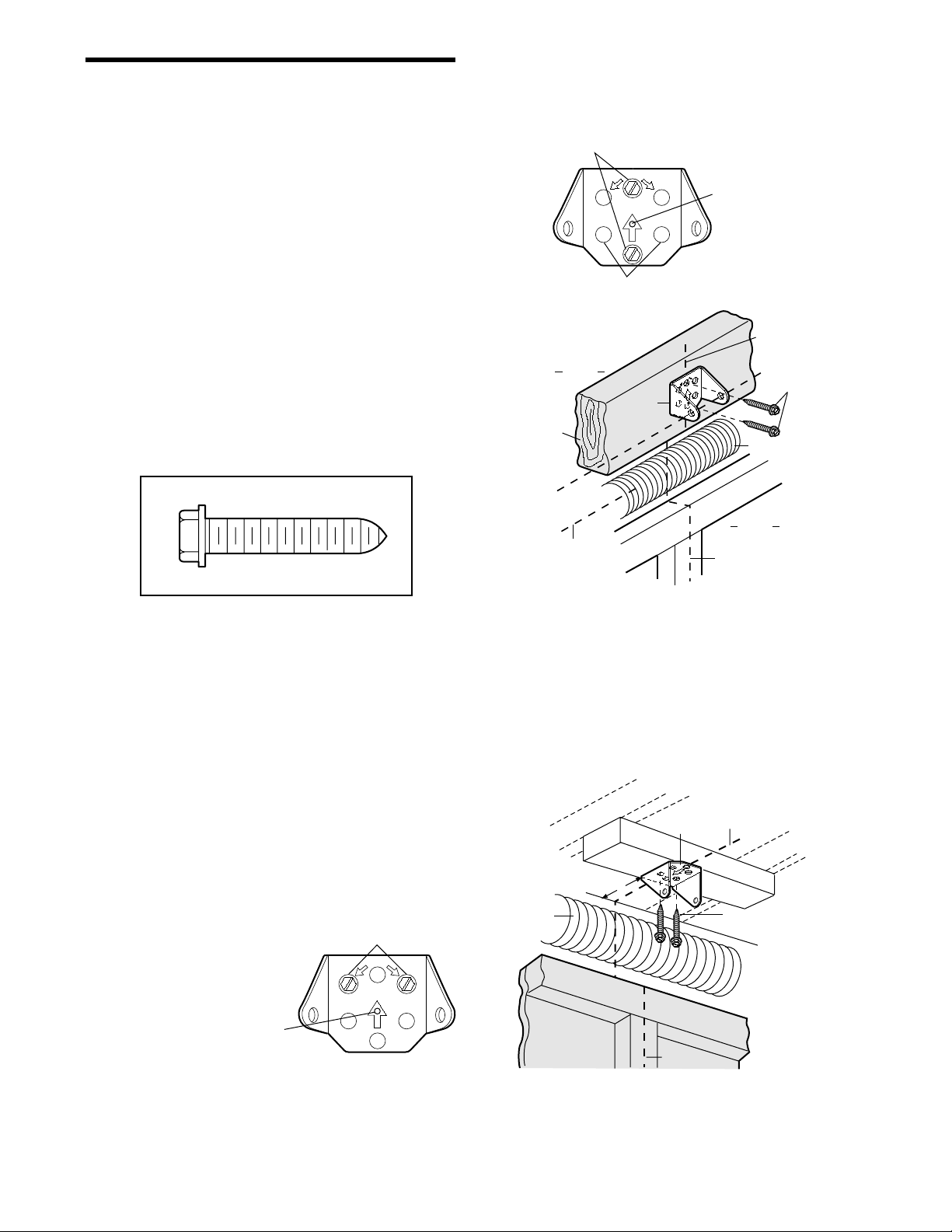

Install the header bracket..........................................14

Attach the T-rail to the header bracket ......................15

Position the opener...................................................16

Hang the opener .......................................................17

Install the door control...............................................18

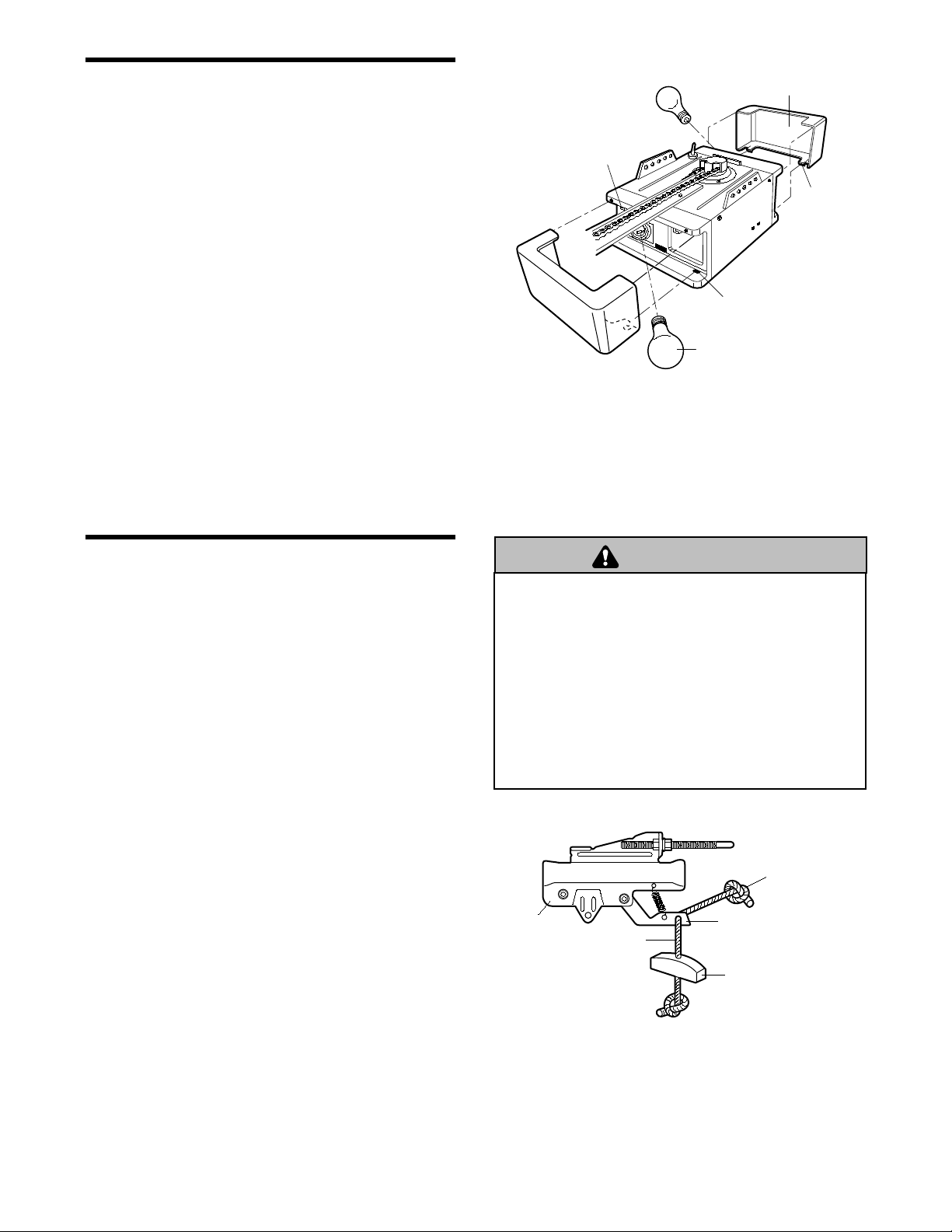

Install the light and lens ............................................19

Attach the emergency release rope and handle.......19

Electrical requirements ..............................................20

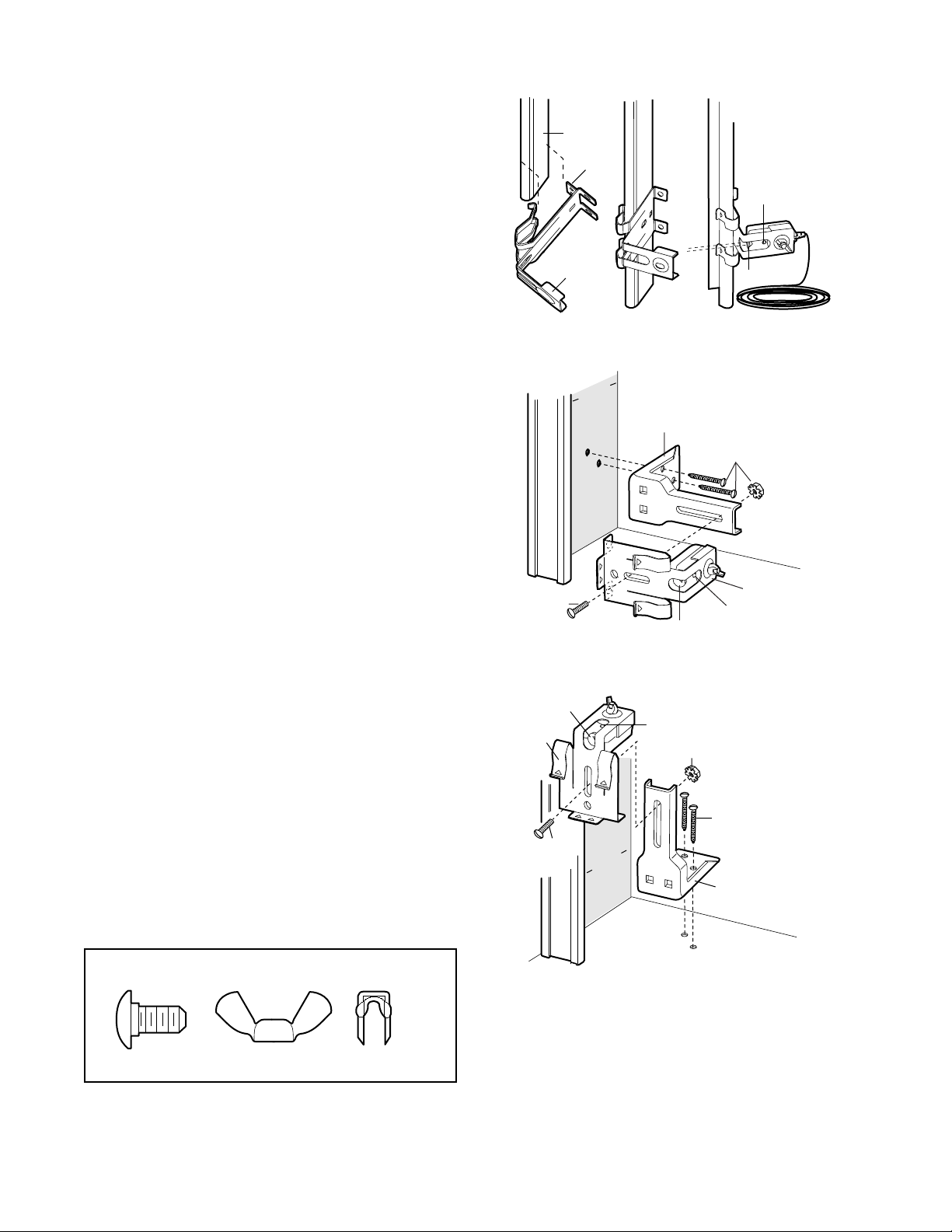

Install the Protector System®................................21-23

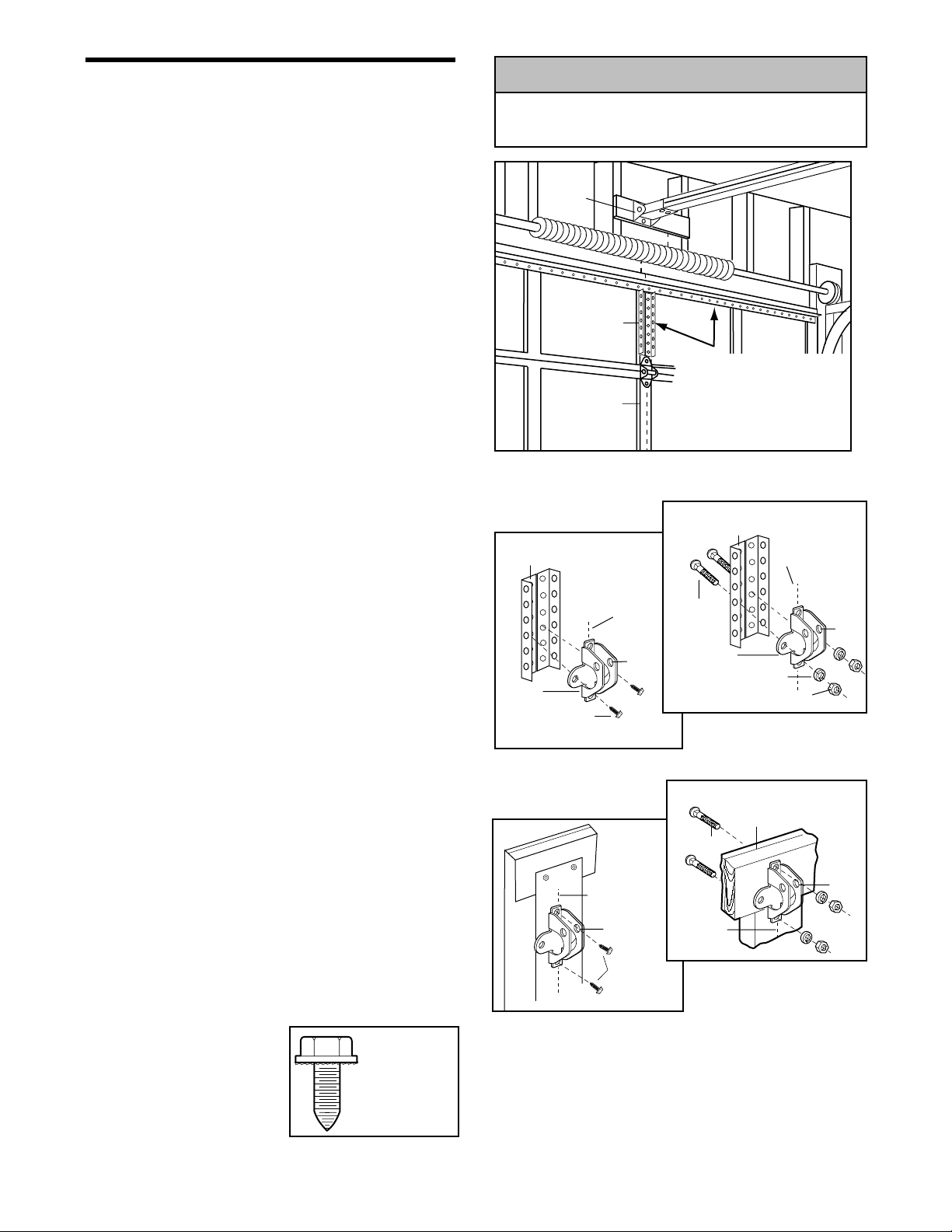

Fasten the door bracket.......................................24-25

Connect the door arm to the trolley.....................26-27

Adjustment Pages 28-30

Adjust the travel limits...............................................28

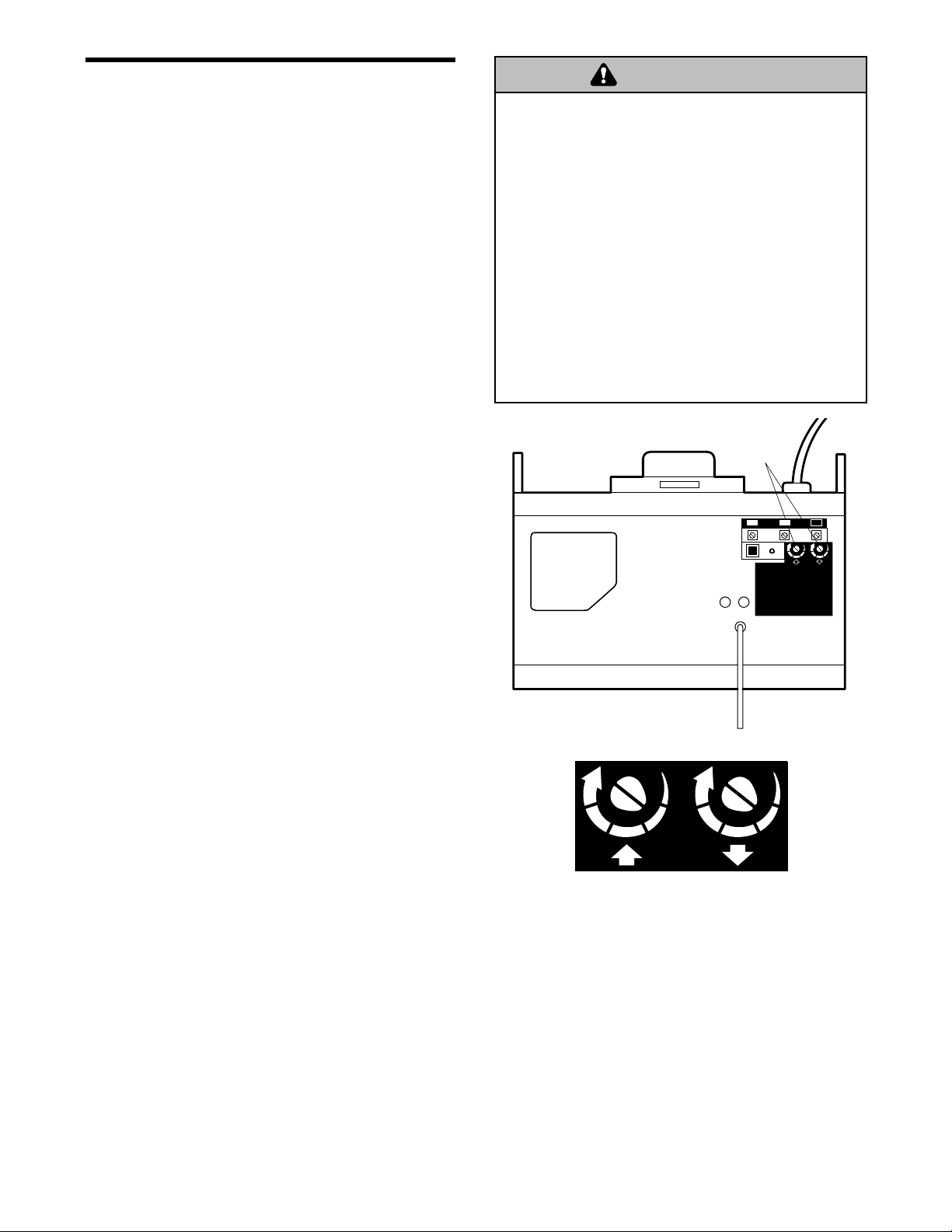

Adjust the force.........................................................29

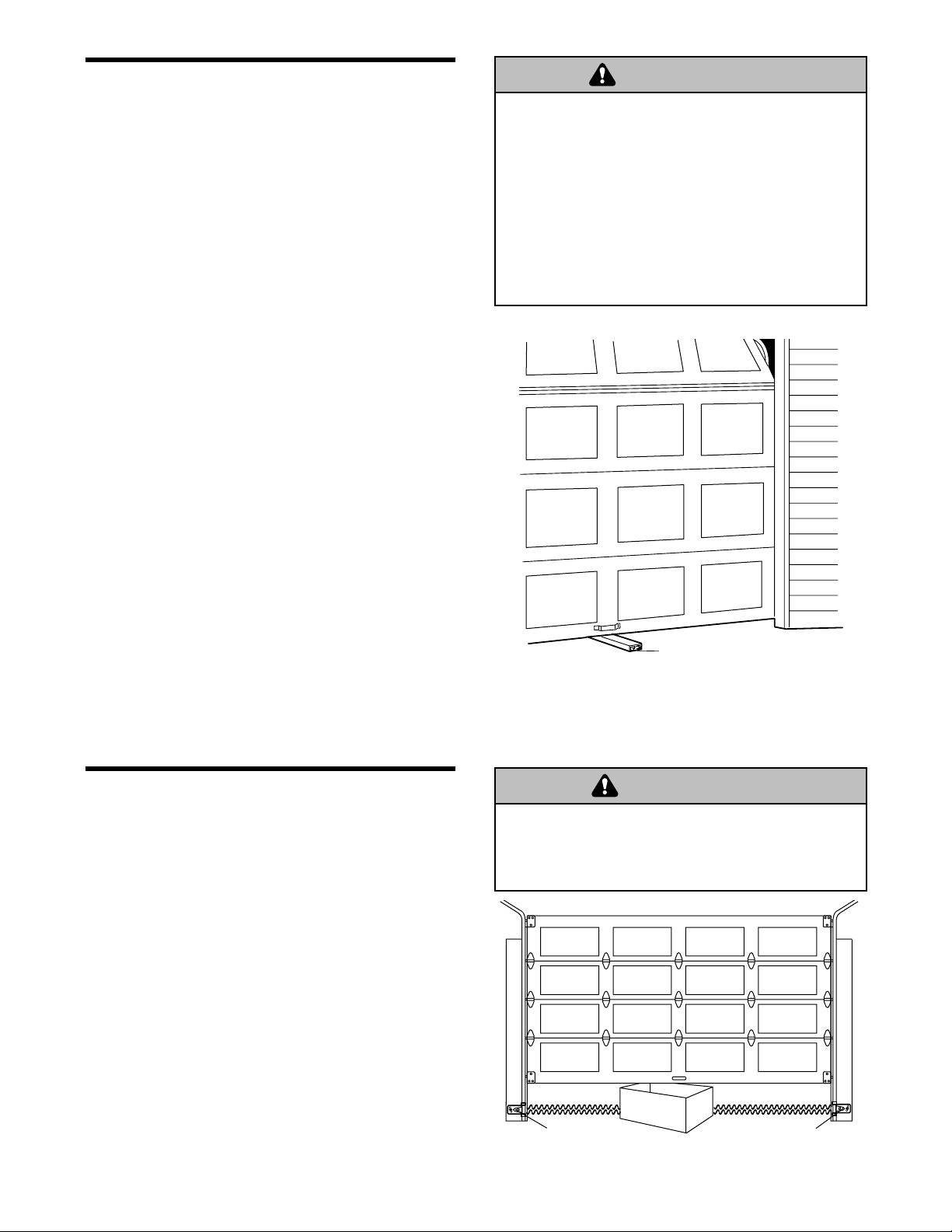

Test the safety reversal system.................................30

Test the Protector System®........................................30

Operation Pages 31-34

Operation safety instructions.....................................31

Using your garage door opener................................31

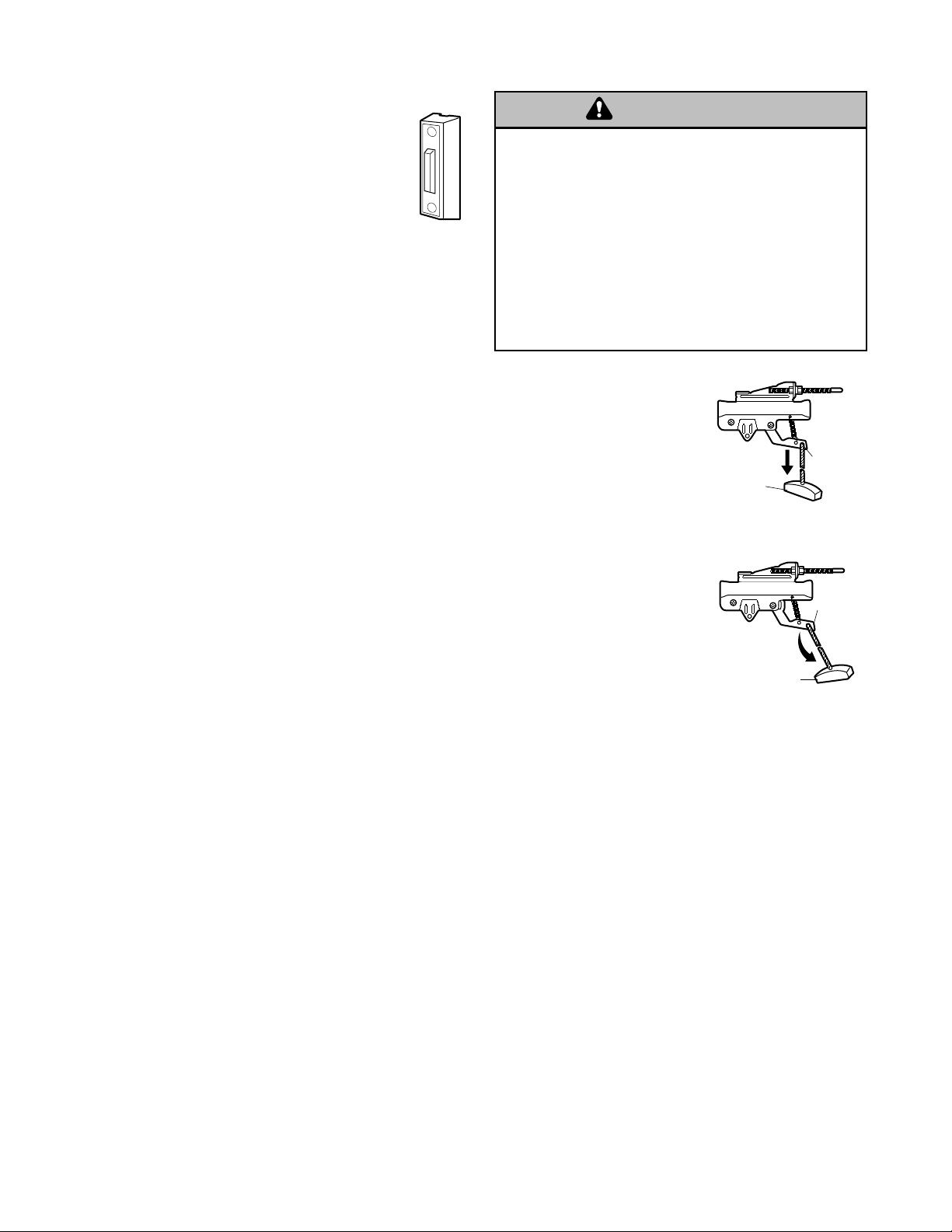

Using the wall-mounted door control ........................32

To open the door manually........................................32

Care of your garage door opener..............................33

Having a problem?....................................................34

Programming Pages 35-36

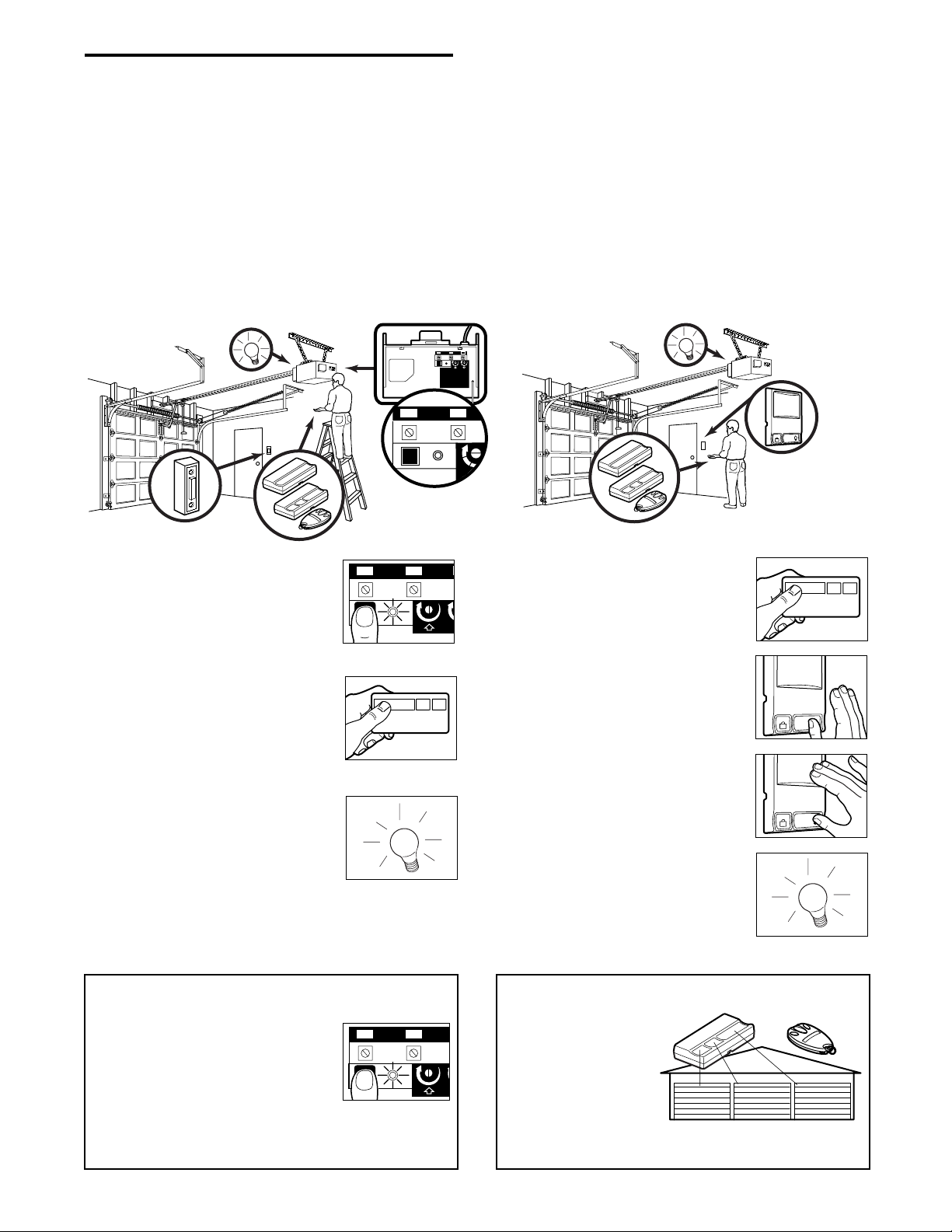

To add a hand-held remote control...........................35

To erase all codes.....................................................35

Multi-function remotes...............................................35

To add or change a Keyless Entry PIN.....................36

Repair Parts Pages 37-38

Rail assembly parts...................................................37

Installation parts........................................................37

Motor unit assembly parts.........................................38

Accessories 39 Repair Parts and Service 40 Warranty 40

TABLE OF CONTENTS

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of

serious injury or death

if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

Mechanical

Electrical

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

WARNING

CAUTION

To prevent damage to garage door and opener:

• ALWAYS disable locks before installing and operating the opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

To prevent possible SERIOUS INJURY OR DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may not reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, all of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

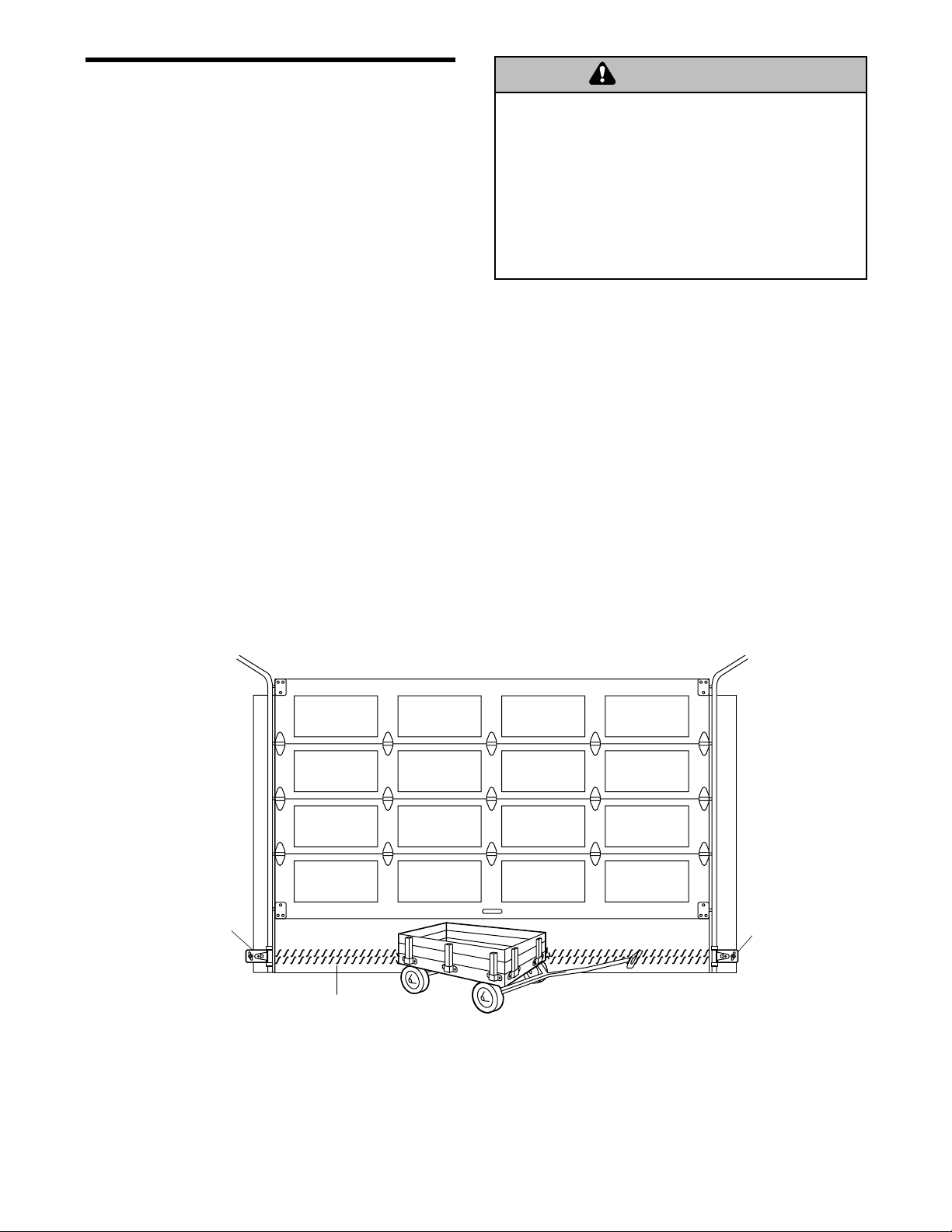

• Complete the following test to make sure your garage door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release

the door. If balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to see if there is any

binding or sticking.

If your door binds, sticks, or is out of balance, call a trained door systems technician.

Tools needed

During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.

Sectional Door

One-Piece Door

CAUTION

Carpenter's

Level

Drill

Tape Measure

3/16", 5/16" and

5/32" Drill Bits

Pencil

Hack Saw

Wire Cutters

Claw Hammer

Pliers

Stepladder

1/2" and 7/16" Sockets

and Wrench

Screwdriver

Adjustable End Wrench

SECTIONAL DOOR INSTALLATION

Planning

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

Depending on your requirements, there are several installation steps which may call for materials or hardware not included in the carton.

• Installation Step 1 – Look at the wall or ceiling above the garage door. The header bracket must be securely fastened to structural supports.

• Installation Step 5 – Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware may be required.

• Installation Step 10 – Depending upon garage construction, extension brackets or wood blocks may be needed to install sensors.

• Installation Step 10 – Alternate floor mounting of the safety reversing sensor will require hardware not provided.

• Do you have an access door in addition to the garage door? If not, Model 7702CB Outside Quick Release is required. See Accessories page.

• Look at the garage door where it meets the floor. Any gap between the floor and the bottom of the door must not exceed 1/4". Otherwise, the safety reversal system may not work properly. See Adjustment Step 3. Floor or door should be repaired.

SECTIONAL DOOR INSTALLATIONS

• Do you have a steel, aluminum, fiberglass or glass panel door? If so, horizontal and vertical reinforcement is required (Installation Step 11).

• The opener should be installed above the center of the door. If there is a torsion spring or center bearing plate in the way of the header bracket, it may be installed within 4 feet to the left or right of the door center. See Installation Steps 1 and 11.

• If your door is more than 7 feet high, see rail extension kits listed on Accessories page.

Horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, steel, aluminum, door with glass panels, etc.). See page 24 for details.

Header Wall

— — — — — — — —

Door Center

Gap between floor

Safety Reversing Sensor

and bottom of door must not exceed 1/4"

Torsion Spring

Safety Reversing Sensor

Slack in chain tension is normal when garage door is closed

Extension Spring

Wallmounted Door Control

Access Door

FINISHED CEILING

Support bracket & fastening hardware is required. See page 17.

Header Bracket

Header Wall

Garage Door

Cable Pulley Bracket

Garage Door Spring

Door Bracket

Straight Door Arm

Curved Door Arm

Motor unit

CLOSED POSITION

Trolley

Emergency Release Rope & Handle

Access Door

Gap between floor and bottom of door must not exceed 1/4"

Safety Reversing Sensor

CLOSED POSITION

Header Bracket

Cable Pulley Bracket

Door Bracket

Straight Door Arm

Curved Door Arm

Trolley

Emergency Release Rope & Handle

T-rail

Garage Door

Cable Header Wall

Chain

Planning (Continued)

ONE-PIECE DOOR INSTALLATIONS

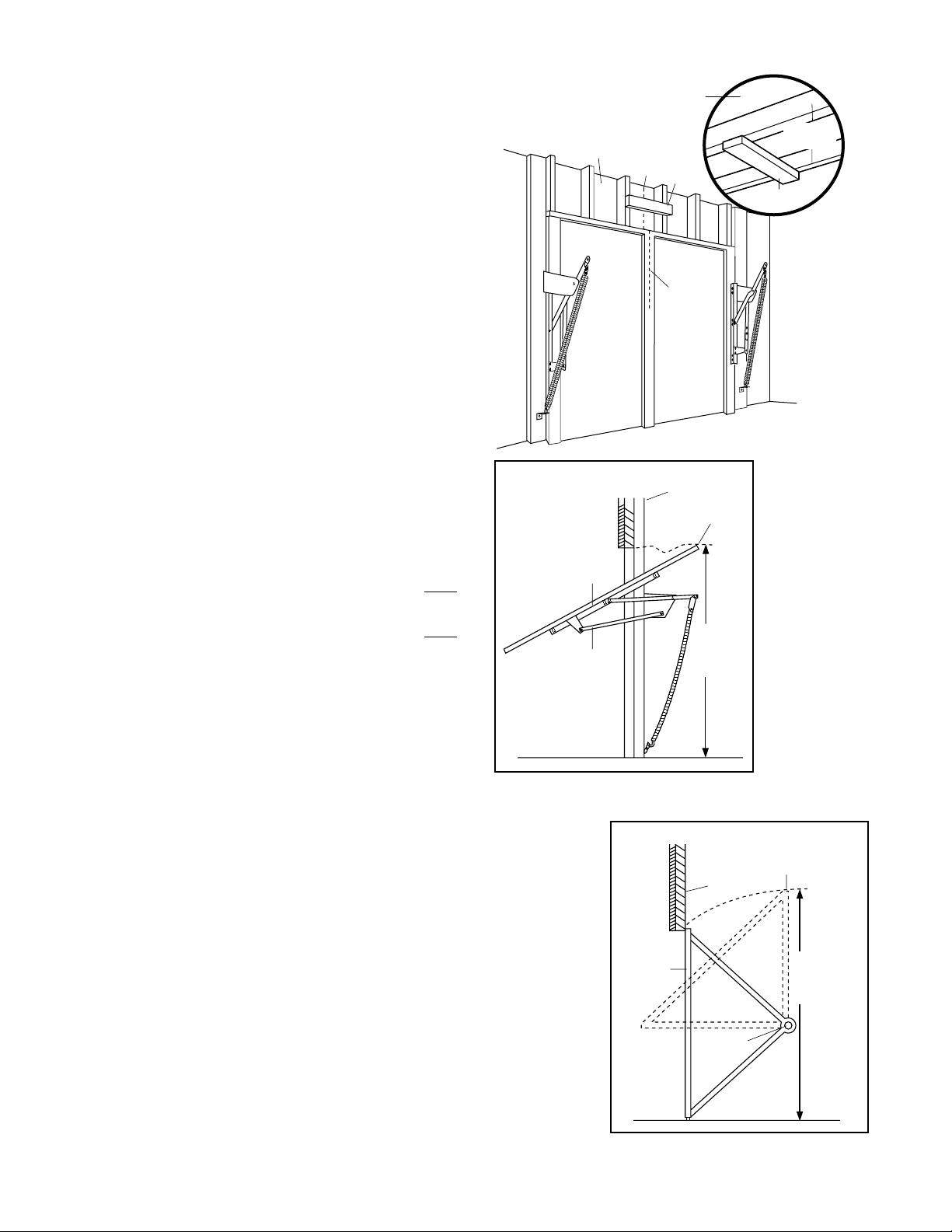

• Generally, a one-piece door does not require reinforcement. If your door is lightweight, refer to the information relating to sectional doors in Installation Step 11.

• Depending on your door’s construction, you may need additional mounting hardware for the door bracket (Step 11).

ONE-PIECE DOOR WITHOUT TRACK

ONE-PIECE DOOR WITH TRACK

Without a properly working safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• The gap between the bottom of the garage door and the floor MUST NOT exceed 1/4". Otherwise, the safety reversal system may not work properly.

• The floor or the garage door MUST be repaired to eliminate the gap.

Slack in chain tension is normal when

Header Wall

garage door is closed.

FINISHED CEILING Support bracket & fastening hardware is required. See page 17.

Wallmounted Door Control

WARNING

Motor Unit

Gap between floor

Safety Reversing Sensor

and bottom of door must not exceed 1/4"

Access Door

Safety Reversing Sensor

Header Wall

Cable Pulley Bracket

Header Bracket

Door Bracket

Garage Door

CLOSED POSITION

Cable

Trolley

T-rail

Straight

Curved

Door

Arm

Chain

Emergency Release Rope & Handle

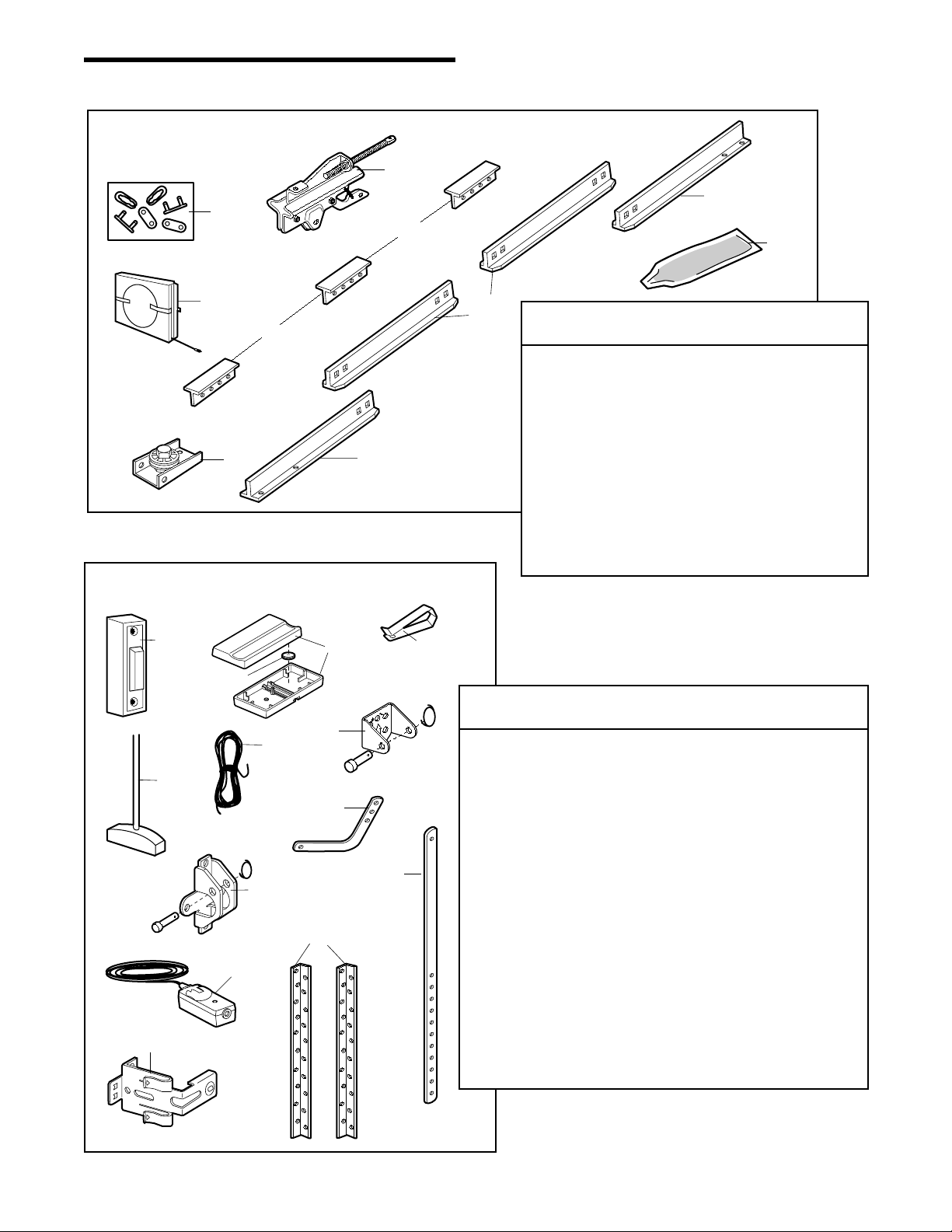

Your garage door opener is packaged in one carton which contains the motor unit and the parts illustrated below. Note that accessories will depend on the model purchased. If anything is missing, carefully check the packing material. Parts may be stuck in the

foam. Hardware for assembly and installation is shown on the next page. Save the carton and packing material until installation and adjustment is complete.

Carton Inventory

Model 4200 (1) Model 7220 (2)

Lighted Door Control Button with (2) 6ABx1-1/2" screws

2-Conductor Bell Wire White & White/Red

SECURITY✚ Single-Function Remote Control Transmitter

Rail Brace (3)

Model 4200 (1) Model 7220 (2)

Light Lens (1)

Cable Pulley Bracket

Door Bracket

CEILING MOUNT ONLY

Trolley

Sprocket Cover

Safety Sensor Bracket (2)

T-rail End Section (2)

Chain and Cable in Dispensing Carton

T-rail Center Section (each) (2)

Curved Door Arm Section

(2) Safety Reversing Sensors (1 Sending Eye and 1 Receiving Eye) with 2-Conductor White & White/Black Bell Wire attached

Header Bracket Plus Clevis Pin and Fastener

Hanging Brackets

Safety Labels

and

Literature

Straight Door Arm Section

Hardware Inventory

Separate all hardware and group as shown below for the assembly and installation procedures.

ASSEMBLY HARDWARE

INSTALLATION HARDWARE

Washered Screw 5/16"-18x1/2" (2) (mounted in opener)

Lag Screw 5/16"-9 x1-5/8" (2)

Lag Screw 5/16"-18x1-7/8" (2)

Hex Screw 5/16"-18x7/8" (3)

Trolley Threaded Shaft (1)

Nut 5/16"-18 (5)

Hex Screw 5/16"-18x7/8" (4)

Nut 5/16"-18 (4)

NOTICE

Handle

Carriage Bolts 1/4"-20x1/2" (12)

Lock Washer 5/16" (4)

RAIL GREASE

NO. 83A4

Rail Grease

Master Link (2)

Lock Nut 1/4"-20x7/16" (12)

Rope

Self-Threading Screw 1/4"-14x5/8" (2)

Carriage Bolts

1/4"-20x1/2" (2)

Clevis Pin 5/16"x2-3/4" (1)

Ring Fastener (3)

Wing Nut

1/4X20 (2)

Insulated Staples (30)

Clevis Pin 5/16"x1-1/4" (1)

Dry Wall Anchors (2)

Clevis Pin 5/16"x1" (1)

ASSEMBLY STEP 1

Assemble the T-Rail and Attach the Cable Pulley Bracket

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

1. Align the four T-rail sections on a flat surface

exactly as shown. Center sections are interchangeable. Front and back sections are also interchangeable for ease of assembly.

2. Insert the carriage bolts so the square bolt necks seat in the square holes in the T-rail sections and pass through the round holes in the rail braces.

Make sure bolt necks are seated in the square holes and rails are aligned before you tighten lock nuts. Improper assembly can cause

jerky trolley operation, noise and/or nuisance door reversals.

3. Assemble lock nuts, ensure alignment and tighten.

NOTE: If T-rail is not assembled exactly as shown, trolley will not travel smoothly along length of rail or it will hit against nuts.

4. Position the cable pulley bracket on the front end of the T-rail as shown. Fasten securely with the hardware shown.

NOTE: When tightening the screws, be sure to keep bracket parallel to the rail. Otherwise, the rail

may bow when the opener is operated.

T-RAIL BACK (TO MOTOR UNIT)

T-RAIL FRONT (TO DOOR)

Cable pulley bracket attaches to FRONT END of T-rail

T-rail (End Section)

T-rail (Center Section)

Carriage Bolt 1/4"-20x1/2"

T-rail (End Section)

Square Carriage Bolt Hole

1/4" Lock Nut

Hex Screws 5/16"-18x7/8"

Cable Pulley Bracket

Bracket & Rail Must Be Aligned

Lock Washer 5/16"

Nut 5/16"-18

HARDWARE

SHOWN ACTUAL SIZE

Hex Screw 5/16"-18x7/8"

Lock Nut 1/4"-20

Nut 5/16"-18

Carriage Bolts 1/4"-20x1/2"

Lock Washer 5/16"

ASSEMBLY STEP 2

Install the Trolley

• Attach the trolley threaded shaft to the trolley with the lock washer and nuts as shown.

• As a temporary stop, insert a screwdriver into the hole in the front end of the T-rail.

• Slide the trolley assembly along the rail to the screwdriver stop.

NOTE: If trolley hits against any nuts on the T-rail, the bolts and nuts were attached from the wrong side and must be repositioned. Review Assembly Step 1.

Temporary Stop Screwdriver

Trolley Threaded Shaft

Inner Nut 5/16"

Lock Washer 5/16"

Outer Nut 5/16"

Trolley

ASSEMBLY STEP 3

Fasten the T-Rail to the Motor Unit

• Place the opener on packing material to protect the cover. For convenience, put a support under the cable pulley bracket.

• Remove the two 5/16"-18x1/2" washered screws mounted in the top of the motor unit.

• Align the holes in the back section of the T-rail with the holes in the motor unit.

• Fasten the rail with the two washered screws previously removed. Tighten securely. Remember

to use only these screws! Any other screws will cause serious damage to the opener.

• Insert a 5/16"-18x7/8" hex screw into the cover protection bolt hole in the T-rail as shown. Tighten securely with a 5/16" lock washer and nut.

NOTE: This screw prevents trolley over-travel. Keep a 2" minimum between the trolley and this screw when adjusting travel limits (see page 28).

HARDWARE SHOWN ACTUALSIZE

To avoid serious damage to opener, ONLY use screws mounted in top of motor unit.

HARDWARE SHOWN ACTUALSIZE

Lock Washer 5/16"

Nut 5/16" -18

CAUTION

T-Rail (Back Section)

Cover Protection Bolt Hole

Lock Washer 5/16"-18

Nut 5/16"-18

Hex Screw 5/16"-18x7/8"

Washered Screw 5/16"-18x1/2"

USE ONLY THIS TYPE AND SIZE

SCREW

Hex Screw 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

ASSEMBLY STEP 4

Install the Chain/Cable and Attach the Sprocket Cover

INSTALLING THE CHAIN/CABLE

1.Pull the cable loop from the carton and fasten it to the trolley with a master link from the hardware bag (see Figure 1).

• Push pins of master

link bar through cable loop and hole in front end of trolley.

• Push master link cap over pins and past pin

notches.

• Slide clip-on spring over cap and onto pin

notches until both pins are securely locked in place.

2.With the trolley against the screwdriver, dispense the cable around the pulley.

3.Continue along the rail and around the motor unit sprocket (Figure 2). The sprocket teeth must engage the chain. Continue forward to the trolley threaded shaft.

4.Use the second master link to connect the chain to the flat end of the shaft (Figure 1).

Check to make sure the chain is not twisted.

5.Remove the screwdriver.

ATTACHING THE SPROCKET COVER

Insert the back tab in the slot on the back of the mounting plate. Squeeze the cover slightly and insert the front tab. (Figure 3).

To avoid possible SERIOUS INJURY to fingers from moving garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.

• Securely attach sprocket cover before operating.

Figure 2

Figure 3

Figure 1

Keep Chain & Cable Taut When Dispensing

Leave Chain & Cable Inside Carton to Prevent Kinking.

Master Link Clip-On Spring

Master Link Cap

Cable Loop

Cable Pulley

INSTALL CHAIN & CABLE IN THIS DIRECTION

WARNING

Master Link Clip-On Spring

Master

Flat end of Trolley Threaded Shaft

Master Link Bar

Link Cap

Chain

Pin Notch

Front Tab Slot

Sprocket Cover

Back Tab Slot

Mounting Plate

Motor unit Sprocket

ASSEMBLY STEP 5

Tighten the Chain and Cable

• Spin the inner nut and lock washer down the trolley threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown. AS YOU TURN THE NUT, KEEP THE CHAIN FROM TWISTING.

• When the chain is approximately 1/2" above the base of the T-rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is either too loose or too tight.

NOTE: When installation is complete, you may notice some chain droop with the door closed. This is normal. If the chain returns to the position shown when the door is open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS pull the emergency release handle to disconnect trolley before adjusting chain.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section.

IMPORTANT INSTALLATION INSTRUCTIONS

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener only on properly balanced and lubricated garage door. An improperly balanced door may not reverse when required and could result in severe injury or death.

3. All repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician before installing opener.

4. Disable all locks and remove all ropes connected to garage door before installing opener to avoid entanglement.

5. Install garage door opener 7 feet or more above floor.

6. Mount emergency release handle 6 feet above floor.

7. NEVER connect garage door opener to power source until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door

• out of reach of children at minimum height of 5 feet

• away from all moving parts of the door.

10. Place entrapment warning label on wall next to garage door control.

11. Place manual release/safety reverse test label in plain view on inside of garage door.

12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a oneinch high object (or a 2x4 laid flat) on the floor.

To reduce the risk of severe injury or death:

WARNING

To Tighten Outer Nut

Outer Nut

Chain

Base of T-rail

Lock Washer

Inner Nut

To Tighten Inner Nut

1/2"

WARNING

INSTALLATION STEP 1

Determine the Header Bracket Location

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

SECTIONAL DOOR AND ONE-PIECE DOOR WITH TRACK

1. Close the door and mark the inside vertical centerline of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 14) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2".)

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 13.

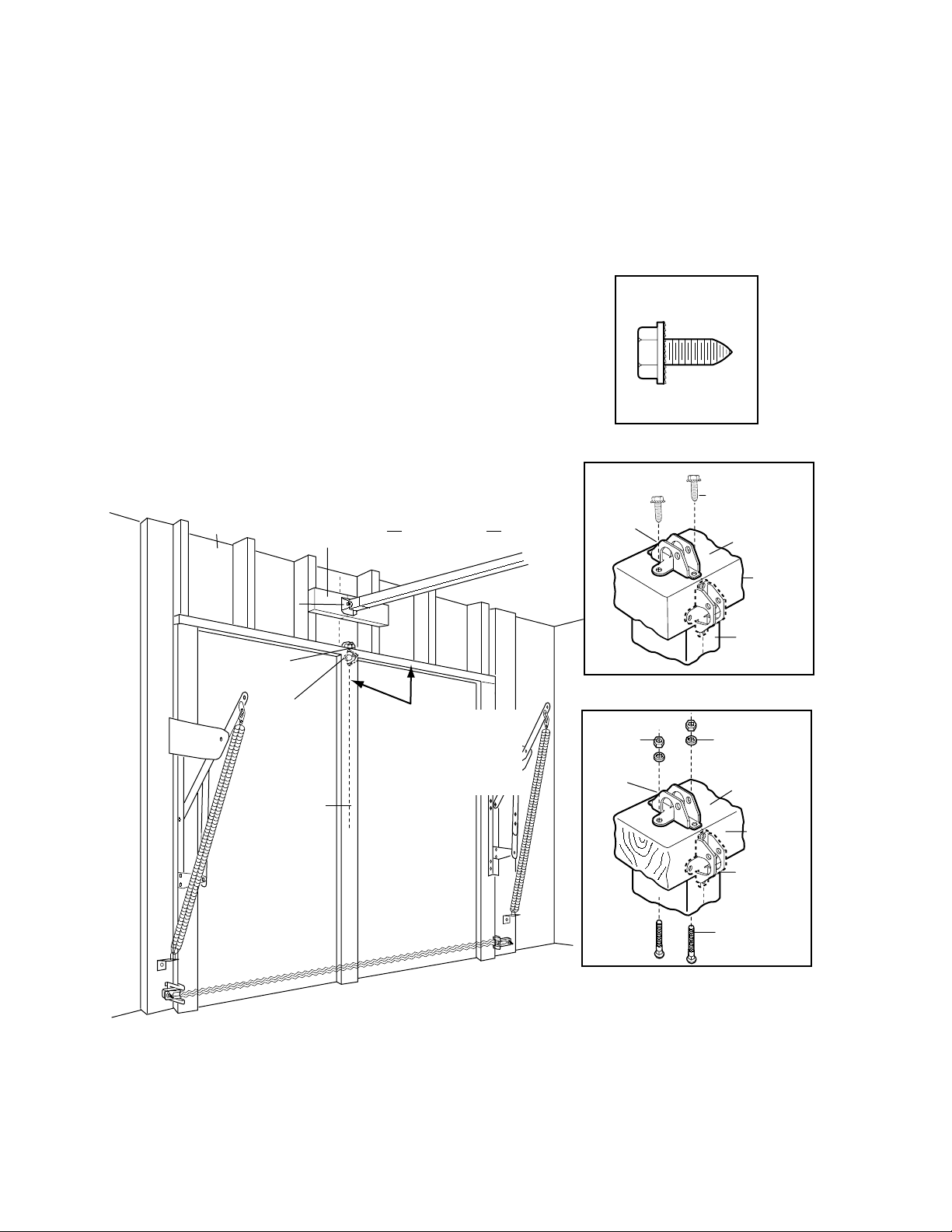

3. Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" above the high point. This height will provide travel clearance for the top edge of the door.

Proceed to Step 2, page 14.

One-piece

door with

horizontal

track

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, all of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might not reverse when required.

Sectional door with curved track

WARNING

Header Wall

Ceiling

Vertical Centerline

Finished Ceiling

2x4

Structural Supports

Header Wall

Highest Point of Travel

Door

Track

Header Wall

Highest Point of Travel

Track

+ 28 hidden pages
