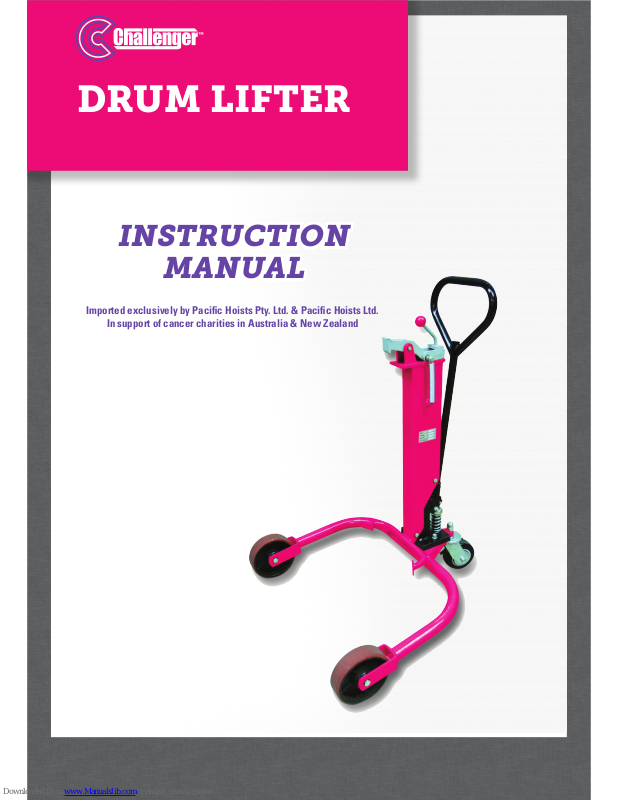

Challenger Drum Lifter, DP25 Instruction Manual

Imported exclusively by Pacific Hoists Pty. Ltd. & Pacific Hoists Ltd.

In support of cancer charities in Australia & New Zealand

INSTRUCTION

MANUAL

DRUM LIFTER

www.jbstools.com

2

WWW.PACIFICHOISTS.COM.AU

33

INTRODUCTION

Thank you for purchasing your new Challenger Drum Lifter. Choosing the Challenger brand
directly supports cancer charities in Australia and New Zealand.

It is important that this manual be kept in a safe place where any operator of the Challenger
Drum Lifter can refer to it and understand the operating principles of this device. All users of
this Challenger Drum Lifter should read this manual in full and understand the safe operating
principles of the device.

SPECIFICATIONS

IMPORTANT

PLEASE READ THIS OPERATION MANUAL BEFORE USING THIS PRODUCT. THIS MANUAL CONTAINS

IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, INSTALLATION & MAINTENANCE.

ALWAYS OPERATE, INSPECT AND MAINTAIN THIS PRODUCT IN ACCORDANCE WITH

INSTRUCTIONS IN THIS MANUAL

Model DP25

Stock Code CDL25

Rated Capacity (kg) 250

Lifting Height (mm) 280

Max. Drum Diameter (mm) 572

Max. Drum Length (mm) 915

Net Weight (kg) 40

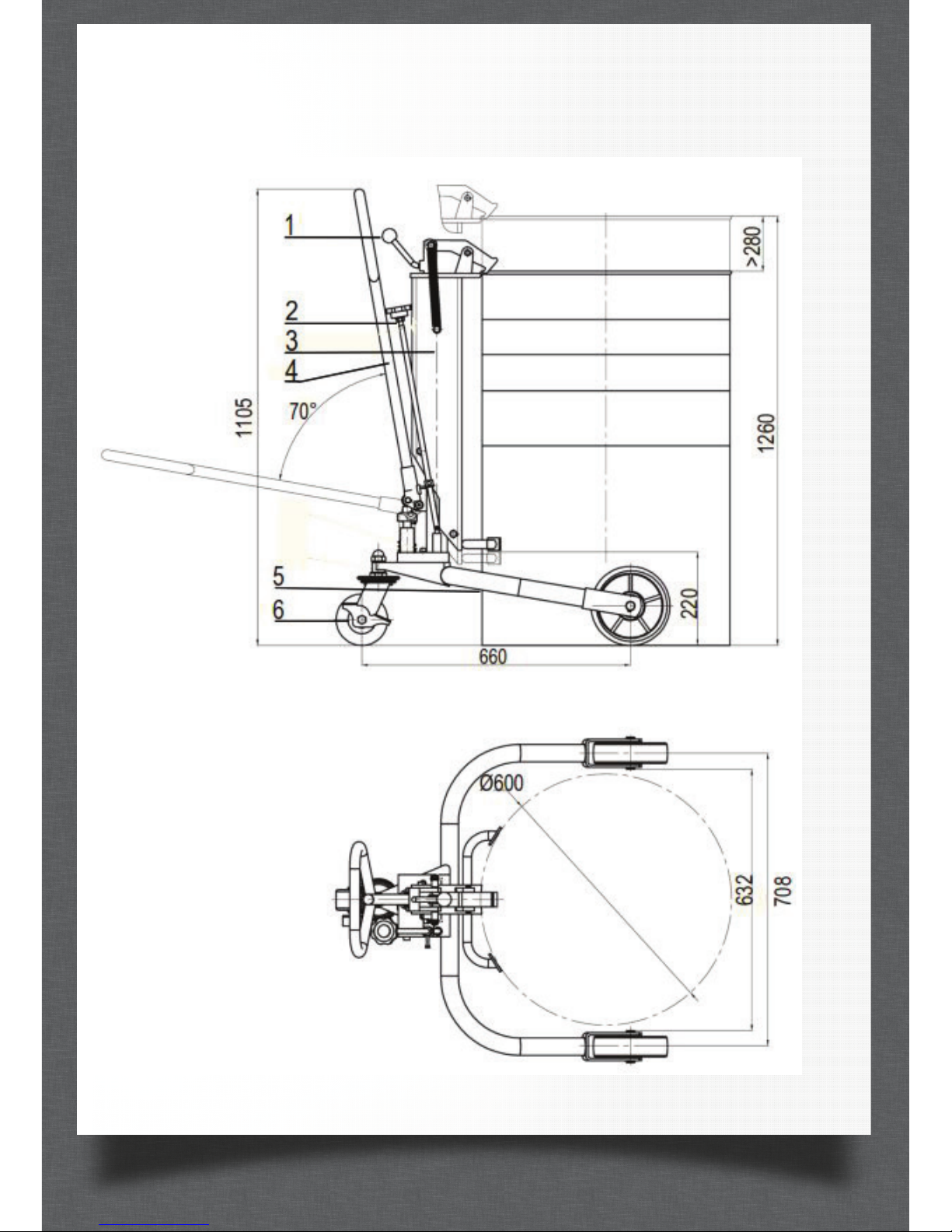

Part

1 Drum clamp handle

2 Release lever

3 Mast

4 Operation handle

5 Frame

6 Locking brake
