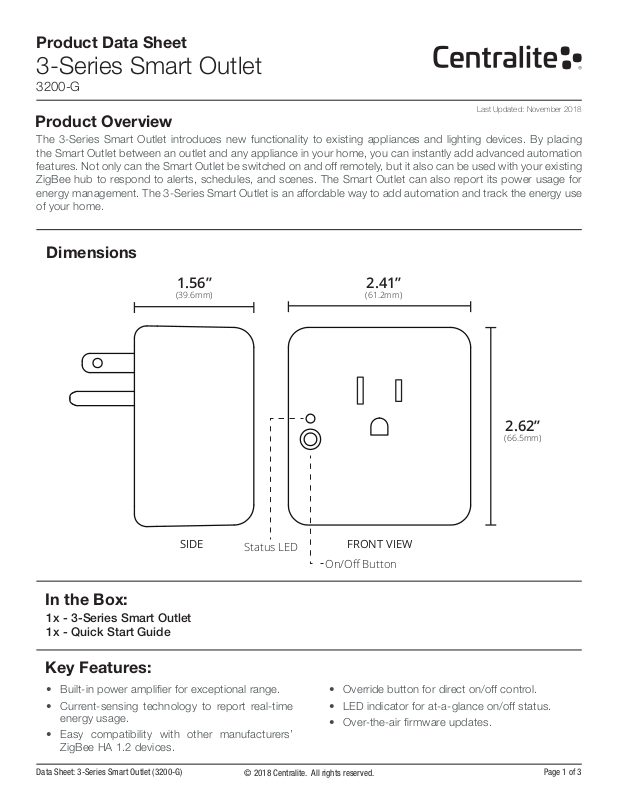

Product Data Sheet
On/Off Button
3-Series Smart Outlet
3200-G
Last Updated: November 2018
Product Overview
The 3-Series Smart Outlet introduces new functionality to existing appliances and lighting devices. By placing
the Smart Outlet between an outlet and any appliance in your home, you can instantly add advanced automation
features. Not only can the Smart Outlet be switched on and off remotely, but it also can be used with your existing
ZigBee hub to respond to alerts, schedules, and scenes. The Smart Outlet can also report its power usage for
energy management. The 3-Series Smart Outlet is an affordable way to add automation and track the energy use
of your home.
Dimensions
1.56”
(39.6mm)
SIDE
Status LED
2.41”
(61.2mm)
2.62”
(66.5mm)
FRONT VIEW
In the Box:
1x - 3-Series Smart Outlet
1x - Quick Start Guide
Key Features:
• Built-in power amplier for exceptional range.
• Current-sensing technology to report real-time
energy usage.
• Easy compatibility with other manufacturers’
ZigBee HA 1.2 devices.
Data Sheet: 3-Series Smart Outlet (3200-G) Page 1 of 3
© 2018 Centralite. All rights reserved.
• Override button for direct on/off control.
• LED indicator for at-a-glance on/off status.
• Over-the-air rmware updates.
Use Cases
• Include appliances in your automated home
schedules and events.
• Automatically turn off devices that are dangerous
to leave on.
• Trigger coffee pot or toaster to turn on when there
is motion in your bedroom in the morning.
Turn your Crock-Pot into a “smart Crock-Pot.”
Plug-in your Crock-Pot to a 3-Series Smart Outlet
and experience “connected” cooking. Schedule your
home to begin cooking at noon—no more coming
home during your lunch break to start a meal.
Automatically turn off devices that are dangerous
to leave on.
Can’t remember if you turned off the curling iron?
Not only can the Smart Outlet automatically turn off
a device after a set period of time, it can send you
notications and let you check the status of a device.
Special Features
Current-Sensing Circuitry
The 3-Series Smart Outlet features current-sensing
circuitry for real-time energy usage reporting. The
current-sensing feature can also be used to notify
users when a device has been turned on or off.
High-quality, latching relays
The high-quality latching relay included in the Smart
Outlet is rated for loads up to 12 amps. This allows
users the ability to safely control loads from larger,
higher current devices like computers, monitors, TVs,
coffee makers, and large stereo systems.
Easy 2-Step Join Process
The Smart Outlet is factory-congured to search for
open ZigBee networks the rst time it is plugged in.
Simply open the hub for joining, plug in the Smart
Outlet, and the module will join the open network.
• Measure energy usage of power-hungry devices.
• Be alerted if an appliance is turned on outside of
scheduled times.
• Include window units and space heaters in your
home automation system.
Say no to energy-hungry devices
Many appliances still consume power, even when
they’re turned off. The Smart Outlet lets you see how
much power those devices are using and lets you
shut them off to conserve electricity.
Measure energy usage of appliances
The 3-Series Smart Outlet features current sensing
technology that actively reports energy usage. Your
connected home can track energy usage and offer
suggestions to save energy.
ZigBee Home Automation 1.2 Compatibility
The 3-Series Smart Outlet is fully ZigBee HA 1.2
certied and is guaranteed to function with all open,
ZigBee HA 1.2-certied hubs and devices.
Superior Range and Updatability
The 3-Series Smart Outlet includes a built-in power
amplier, giving the module superior range and stability
in large homes or areas with wireless interference.
The Smart Outlet also supports over-the-air updates
providing for seamless upgrades and feature additions
without the need for any user interaction.
Getting Started Troubleshooting
Step 1: Open ZigBee Network for Joining
Using your controller or hub’s interface, enable the
ZigBee network for joining.
Step 2: Plug-In Smart Outlet
Plug the Smart Outlet into a receptacle and it will
immediately begin searching for a network to join.
Step 3: Finish Joining at Hub (optional)
Some hubs and controllers require additional steps
such as naming or categorizing the device.
Data Sheet: 3-Series Smart Outlet (3200-G) Page 2 of 3
© 2018 Centralite. All rights reserved.
Unplug Module from Receptacle
Begin by unplugging the module from the wall
receptacle. Then plug it in again and test operation.
Also, try plugging the lamp or appliance into a nonswitched wall receptacle to ensure the lamp works.
Step 2: Factory Reset and Rejoin
Unplug any devices from the module and unplug from
the wall. Now hold the on/off button while plugging
it back into the wall. Hold the button until the status
LED turns on. Repeat the “Getting Started” steps to
rejoin the ZigBee network.
