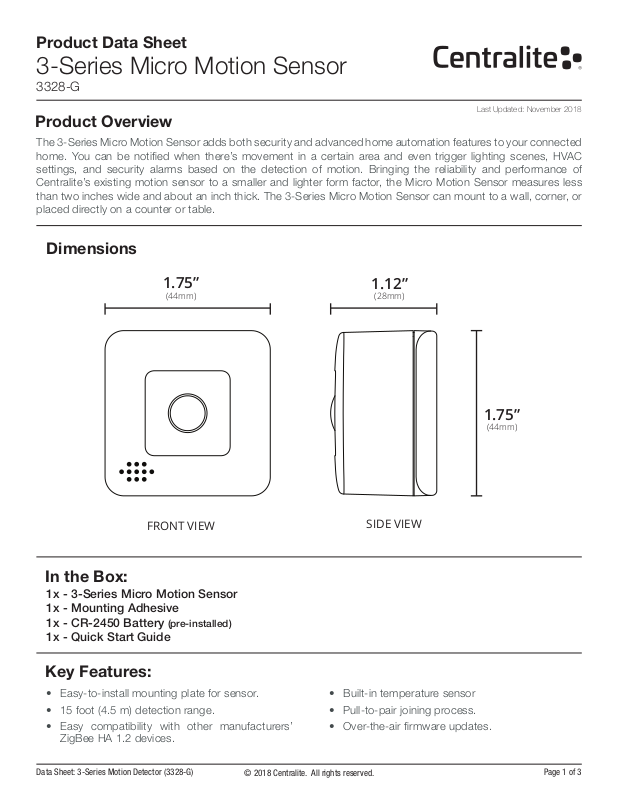

Product Data Sheet

3-Series Micro Motion Sensor

3328-G

Last Updated: November 2018

Product Overview

The 3-Series Micro Motion Sensor adds both security and advanced home automation features to your connected home. You can be notied when there’s movement in a certain area and even trigger lighting scenes, HVAC settings, and security alarms based on the detection of motion. Bringing the reliability and performance of Centralite’s existing motion sensor to a smaller and lighter form factor, the Micro Motion Sensor measures less than two inches wide and about an inch thick. The 3-Series Micro Motion Sensor can mount to a wall, corner, or placed directly on a counter or table.

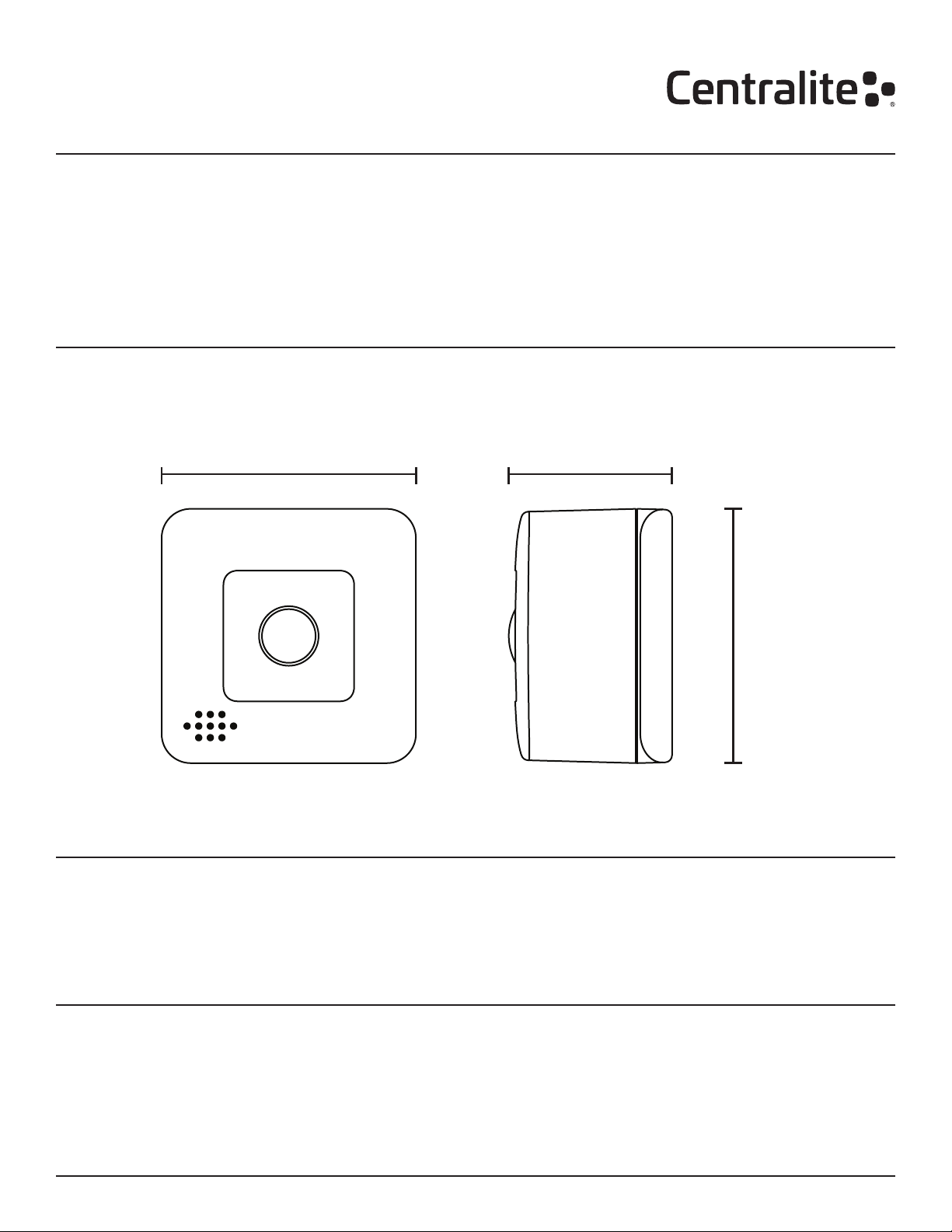

Dimensions

1.75”

(44mm)

FRONT VIEW

1.12”

(28mm)

1.75”

(44mm)

SIDE VIEW

In the Box:

1x - 3-Series Micro Motion Sensor 1x - Mounting Adhesive 1x - CR-2450 Battery (pre-installed) 1x - Quick Start Guide

Key Features:

• Easy-to-install mounting plate for sensor.

• 15 foot (4.5 m) detection range.

• Easy compatibility with other manufacturers’ ZigBee HA 1.2 devices.

Data Sheet: 3-Series Motion Detector (3328-G) Page 1 of 3

• Built-in temperature sensor

• Pull-to-pair joining process.

• Over-the-air rmware updates.

Page 2

Use Cases

• Save energy by turning off lights in areas that aren’t being used.

• Receive alerts if motion is detected while you’re away.

Save energy by turning off lights in areas that aren’t being used.

Energy is wasted any time lights are on in a room that isn’t being used. By adding a 3-Series Micro Motion Sensor to the room, your home can automatically turn off lights when there hasn’t been activity for more than 15 or 30 minutes.

Create custom automatic ood light and entry scenes.

Install the 3-Series Micro Motion Sensor near the front door or garage to trigger “welcome” lighting scenes

Special Features

Easy Mounting Options

The 3-Series Micro Motion Sensor can be installed on a wall or in a corner using included adhesive strips.

Pull-to-Pair Join Process

All 3-Series sensors feature “pull-to-pair” joining. The device ships with the battery pre-installed and all that is needed to begin the joining process is to pull out a small plastic tab from the bottom of the device. There is nothing for the user to take apart or put back together.

• Create custom automatic ood light and entry scenes.

• Use time-based motion triggers to light a path at night.

in the home. Upon motion in a garage, the home can automatically turn on garage, hallway, living room, and outdoor ood lights.

Use time-based motion triggers to light a path at night.

Combine the Micro Motion Sensor with time-based rules to automatically dim lights low at night. For a late night trip to the kitchen or bathroom, the Micro Motion Sensor can trigger lights to fade up to only 20%, saving your eyes from bright, harsh light.

ZigBee Home Automation 1.2 Compatibility

The 3-Series Micro Motion Sensor is fully ZigBee HA

1.2 certied and is guaranteed to function with all open, ZigBee HA 1.2-certied hubs and devices.

Superior Range and Updatability

The Micro Motion Sensor supports over-the-air updates providing for seamless upgrades and feature additions without the need for any user interaction.

Getting Started Troubleshooting

Step 1: Open ZigBee Network for Joining

Using your controller or hub’s interface, enable the ZigBee network for joining.

Step 2: Pull Tab from Bottom of Sensor

Pull the small plastic tab out from the bottom of the sensor and it will immediately begin searching for a network to join.

Step 2: Finish Joining at Hub (optional)

Some hubs and controllers require additional steps such as naming or categorizing the device.

Data Sheet: 3-Series Motion Detector (3328-G) Page 2 of 3

Step 1: Remove and Replace Battery from Device

Open the battery tray on the bottom of the device. Remove battery and replace with a new CR-2450 battery. Reassemble and test operation.

Step 2: Factory Reset and Rejoin

Remove battery. Insert a paper clip into the reset hole on the side of the device. While holding down the reset button, reinsert battery to factory reset the device. Repeat the “Getting Started” steps to rejoin the ZigBee network.

Page 3

Compatibility

The 3-Series Micro Motion Sensor features out-of-the-box compatibility with any ZigBee HA 1.2-certied hub, controller, bridge, or platform.

Technical Specications

Power

Rated: 3V Battery: CR-2450 (1x) Battery Life: Up to 2 years

Environmental

Operating Temperature: 0° to 40°C

Shipping / Storage

Temperature: -20° to 50°C Humidity Range: 0 to 90% RH. (non-condensing)

Centralite offers both Tier-1 and Tier-2 support structures to meet the needs of different customers. For those customers that provide existing, in-house support for systems, Centralite can serve as Tier2 support specialists. For Centralite retail-branded products, Centralite provides direct Tier-1 support for all products.

Approvals:

Wireless RF

Protocol: ZigBee HA 1.2 TX Strength: +8 dBm RF Channels: 16 Range: 130+ ft. (40+ m) L.O.S.

Temp Accuracy: ±1.8 °C (max), –10 to 85 °C

Precision: ± 0.1 °C

Standard WarrantySupport

Centralite offers a standard 12-month limited warranty on the 3-Series Micro Motion Sensor.

Additional mandatory warranty period in compliance with local law product is being sold.

Contact Sales

For more information about sales or distribution, please contact:

877-466-5483 +1 251-607-9119 (Int’l) [email protected]

Centralite Systems, Inc. 1701 Industrial Park Drive Mobile, AL 36693

http://centralite.com

Notice: Any content, factual information, or specications containing errors in this document are solely inadvertent and will be corrected
