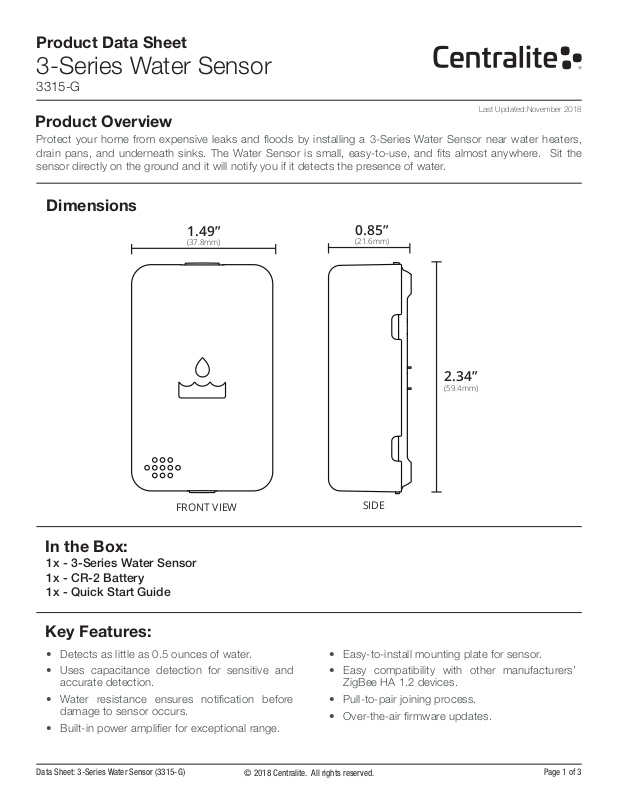

Product Data Sheet

0.85”

3-Series Water Sensor

3315-G

Last Updated:November 2018

Product Overview

Protect your home from expensive leaks and oods by installing a 3-Series Water Sensor near water heaters, drain pans, and underneath sinks. The Water Sensor is small, easy-to-use, and ts almost anywhere. Sit the sensor directly on the ground and it will notify you if it detects the presence of water.

Dimensions

1.49”

(37.8mm)

FRONT VIEW

(21.6mm)

2.34”

(59.4mm)

SIDE

In the Box:

1x - 3-Series Water Sensor 1x - CR-2 Battery 1x - Quick Start Guide

Key Features:

• Detects as little as 0.5 ounces of water.

• Uses capacitance detection for sensitive and accurate detection.

• Water resistance ensures notication before damage to sensor occurs.

• Built-in power amplier for exceptional range.

Data Sheet: 3-Series Water Sensor (3315-G) Page 1 of 3

• Easy-to-install mounting plate for sensor.

• Easy compatibility with other manufacturers’ ZigBee HA 1.2 devices.

• Pull-to-pair joining process.

• Over-the-air rmware updates.

Page 2

Use Cases

• Be alerted if an appliance or pipe is leaking or burst.

• Ensure that A/C drain pans don’t overow.

Automatically shut off water supply to home in the event of a leak.

If the 3-Series Water Sensor detects water, it can trigger a whole-home water shut off valve to disconnect the water supply. This protects your home against leak and ood damage even when you’re away or unaware that there’s a problem.

Ensure that A/C drain pans don’t overow.

With the included clip-on standoff/remote leads, you can place the water sensor in areas that there is standing water. A/C drain pans contain some

Special Features

Easy Placement

The 3-Series Water Sensor can be placed on any non-conductive surface. It’s as simple as joining and placing it in a low-spot or near an appliance such as a washing machine, refrigerator, or water heater.

Pull-to-Pair Join Process

All 3-Series sensors feature “pull-to-pair” joining. The device ships with the battery pre-installed and all that is needed to begin the joining process is to pull out a small plastic tab from the bottom of the device. There is nothing for the user to take apart or put back together.

• Automatically shut off water supply to home in the event of a leak.

• Prevent basements from ooding if a sump pump fails.

water under typical operating conditions but with the 3-Series Water Sensor, you can be notied when the water reaches an unacceptable level.

Prevent basements from ooding if a sump pump fails.

Many homes with basements have water issues requiring the use of an automatic sump pump to remove water. When these pumps fail, the rising water level can trigger notications with the 3-Series Water Sensor.

ZigBee Home Automation 1.2 Compatibility

The 3-Series Water Sensor is fully ZigBee HA 1.2 certied and is guaranteed to function with all open, ZigBee HA 1.2-certied hubs and devices.

Superior Range and Updatability

The 3-Series Water Sensor includes a built-in power amplier, giving the module superior range and stability in large homes or areas with wireless interference.

The Water Sensor also supports over-the-air updates providing for seamless upgrades and feature additions without the need for any user interaction.

Getting Started Troubleshooting

Step 1: Open ZigBee Network for Joining

Using your controller or hub’s interface, enable the ZigBee network for joining.

Step 2: Pull Tab from Bottom of Sensor

Pull the small plastic tab out of the bottom of the sensor and it will immediately begin searching for a network to join.

Step 2: Finish Joining at Hub (optional)

Some hubs and controllers require additional steps such as naming or categorizing the device.

Data Sheet: 3-Series Water Sensor (3315-G) Page 2 of 3

Step 1: Remove and Replace Battery from Device

Remove cover from sensor. Remove battery and replace with a new CR-2 battery. Reassemble and test operation.

Step 2: Factory Reset and Rejoin

Remove cover from sensor and remove battery. While holding down the reset button, reinsert battery to factory reset the device. Repeat the “Getting Started” steps to rejoin the ZigBee network.

Page 3

Compatibility

The 3-Series Water Sensor features out-of-the-box compatibility with any ZigBee HA 1.2-certied hub, controller, bridge, or platform.

Technical Specications

Power

Rated: 3V Battery: CR-2 (1x) Battery Life: 2 to 3 years

Environmental

Operating Temperature: 0° to 40°C

Shipping / Storage

Temperature: -20° to 50°C Humidity Range: 0 to 90% RH. (non-condensing)

Centralite offers both Tier-1 and Tier-2 support structures to meet the needs of different customers. For those customers that provide existing, in-house support for systems, Centralite can serve as Tier2 support specialists. For Centralite retail-branded products, Centralite provides direct Tier-1 support for all products.

Approvals:

Wireless RF

Protocol: ZigBee HA 1.2 TX Strength: +18 dBm RF Channels: 16 Range: 300+ ft. (90+ m) L.O.S.

Temp Accuracy: ±1.8 °C (max), –10 to 85 °C

Precision: ±0.1 °C

Standard WarrantySupport

Centralite offers a standard 12-month limited warranty on the 3-Series Water Sensor.

Additional mandatory warranty period in compliance with local law product is being sold.

Contact Sales

For more information about sales or distribution, please contact:

877-466-5483 +1 251-607-9119 (Int’l) [email protected]

Centralite Systems, Inc. 1701 Industrial Park Drive Mobile, AL 36693

http://centralite.com

Notice: Any content, factual information, or specications containing errors in this document are solely inadvertent and will be corrected

upon discovery. Specications for unreleased/planned products are subject to change.

Data Sheet: 3-Series Water Sensor (3315-G) Page 3 of 3
