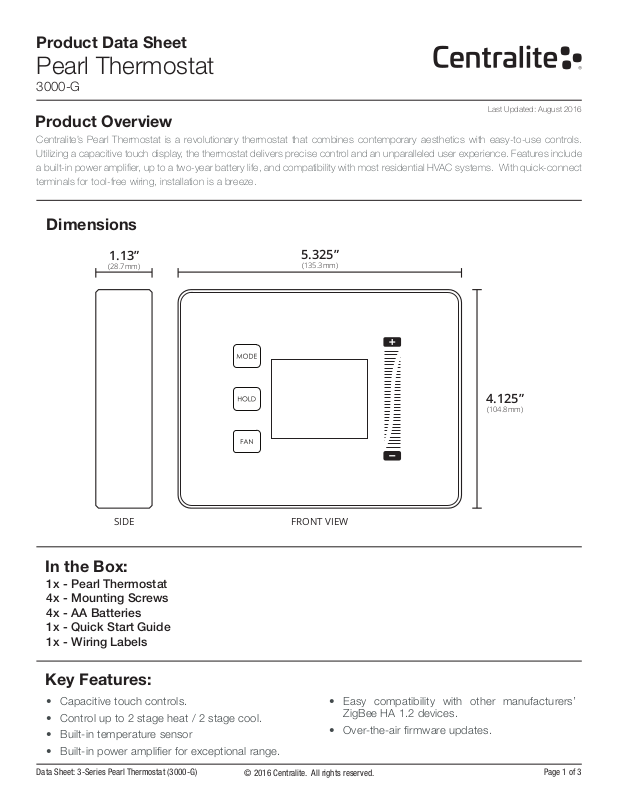

Product Data Sheet
5.325”
FRONT VIEWSIDE
1.13”
Pearl Thermostat
3000-G
Last Updated: August 2016
Product Overview
Centralite’s Pearl Thermostat is a revolutionary thermostat that combines contemporary aesthetics with easy-to-use controls.
Utilizing a capacitive touch display, the thermostat delivers precise control and an unparalleled user experience. Features include
a built-in power amplier, up to a two-year battery life, and compatibility with most residential HVAC systems. With quick-connect
terminals for tool-free wiring, installation is a breeze.
Dimensions
(28.7mm)
(135.3mm)
4.125”
(104.8mm)
In the Box:
1x - Pearl Thermostat
4x - Mounting Screws
4x - AA Batteries
1x - Quick Start Guide
1x - Wiring Labels
Key Features:
• Capacitive touch controls.
• Control up to 2 stage heat / 2 stage cool.
• Built-in temperature sensor
• Built-in power amplier for exceptional range.
Data Sheet: 3-Series Pearl Thermostat (3000-G) Page 1 of 3
© 2016 Centralite. All rights reserved.
• Easy compatibility with other manufacturers’
ZigBee HA 1.2 devices.
• Over-the-air rmware updates.
Page 2
Use Cases
• The right temperature where you want it.
• Measure comfort, not just temperature.
The right temperature where you want it.
Most homes have thermostats placed in hallways,
dining rooms, and kitchens but we spend very little
our time in these areas. Since most homes do not
have a properly balanced HVAC system, this leads
to cold and hot spots throughout the house. By
adding a temperature sensor to different areas of your
home, the Pearl can now keep that room at the right
temperature.
Measure comfort, not just temperature.
Fluctuations in humidity levels have drastic effects
on the temperature that your body “feels.” When
Special Features
Capacitive Touch Screen
The Pearl Thermostat is controlled using intuitive
capacitive touch controls. Without physical buttons,
the Pearl can be controlled with features like slide-up/
slide-down to adjust the temperature set point.
ZigBee Home Automation 1.2 Compatibility
The Pearl Thermostat is fully ZigBee HA 1.2 certied
and is guaranteed to function with all open, ZigBee
HA 1.2-certied hubs and devices.
• Save money with scheduling.
• Use schedules to provide more comfort.
paired with a 3-Series Temp & Humidity Sensor, your
system can respond to your comfort level, not just
temperature. The Temp & Humidity Sensor can also
alleviate problems like damp basements or mold
issues in the summer by triggering your air conditioner
to run when high humidity is detected.
Save money with scheduling.
Adding a programmed setback to your HVAC system
while you’re away can save over 20% on your electricity
bill. By setting schedules and having occupancy
sensors know when you’re home and away, the Pearl
can reduce the work your HVAC system has to do.
Superior Range and Updatability
The Pearl Thermostat includes a built-in power
amplier, giving the module superior range and stability
in large homes or areas with wireless interference.
The Pearl also supports over-the-air updates providing
for seamless upgrades and feature additions without
the need for any user interaction.
Getting Started Troubleshooting
Step 1: Open ZigBee Network for Joining
Using your controller or hub’s interface, enable the
ZigBee network for joining.
Step 2: Pull Tab from Battery Terminals
Pull the small plastic tab out of the battery terminals
and the thermostat will immediately begin searching
for a network to join.
Step 2: Finish Joining at Hub (optional)
Some hubs and controllers require additional steps
such as naming or categorizing the device.
Step 1: Remove and Replace Battery from Device
Remove front from base. Remove batteries and
replace with new AA batteries. Reassemble and test
operation.
Step 2: Factory Reset and Rejoin
Enter Programming Mode, navigate to Menu ID “17”,
press HOLD, then navigate to option “11”, then press
HOLD again. The device will then factory reset itself
and begin looking for an open network to join.
Data Sheet: 3-Series Pearl Thermostat (3000-G) Page 2 of 3
© 2016 Centralite. All rights reserved.
Page 3
Compatibility
The Pearl Thermostat features out-of-the-box compatibility with any ZigBee HA 1.2-certied hub, controller,
bridge, or platform.
Technical Specications
Power
Rated: 24V (common wire)
3V (batteries)
Battery: AA (4x)
Battery Life: 2 to 3 years
Environmental
Operating Temperature: 0° to 40°C
Shipping / Storage
Temperature: -20° to 50°C
Humidity Range: 0 to 90% RH.
(non-condensing)
Centralite offers both Tier-1 and Tier-2 support
structures to meet the needs of different customers.
For those customers that provide existing, in-house
support for systems, Centralite can serve as Tier2 support specialists. For Centralite retail-branded
products, Centralite provides direct Tier-1 support for
all products.
Approvals:
Wireless RF
Protocol: ZigBee HA 1.2
TX Strength: +20 dBm
RF Channels: 16
Range: 300+ ft. (90+ m) L.O.S.
Temp Accuracy: ±0.4 °C (max), –10 to 85 °C
Standard WarrantySupport
Centralite offers a standard 12-month limited warranty
on the Pearl Thermostat.
Additional mandatory warranty period in compliance
with local law product is being sold.
Contact Sales
For more information about sales or distribution,
please contact:
North America
Sean Bryant, VP Sales & Marketing
877-466-5483
+1 251-607-9119 (Int’l)
[email protected]
Centralite Systems, Inc.
1000 Cody Road
Mobile, AL 36695
www.Centralite.com
Notice: Any content, factual information, or specications containing errors in this document are solely inadvertent and will be corrected
upon discovery. Specications for unreleased/planned products are subject to change.
International
Marco Dorjee
International Business Development
Ofce: +31 (0)20 893 2532
Mobile: +31 (0)62 900 3903
[email protected]
Data Sheet: 3-Series Pearl Thermostat (3000-G) Page 3 of 3
© 2016 Centralite. All rights reserved.
