MODEL NO. 0926-C
MANUFACTURING COMPANY
2950 East 55
Phone: (216) 883-0220 Fax: (216) 883-0875
th
St. Cleveland, Ohio 44127
www.CentralBrass.com
The two valve shower fitting is made with a cast brass body
with replaceable seats designed for direct sweat union
connections. The stem units are all brass with a reinforced
rubber packing and rubber seat washer. The stem units
can be easily replaced from the front of the fitting without
removing the valve body. The handles and escutcheons
are zinc die cast with a chrome plated finish. The shower
arm is brass with a chrome plated finish, the escutcheon is
stainless steel and the shower head is chrome plated
plastic.
ASME A1 12.18.1M
Shower Flow Rate 2.5 gpm @ 80 psi

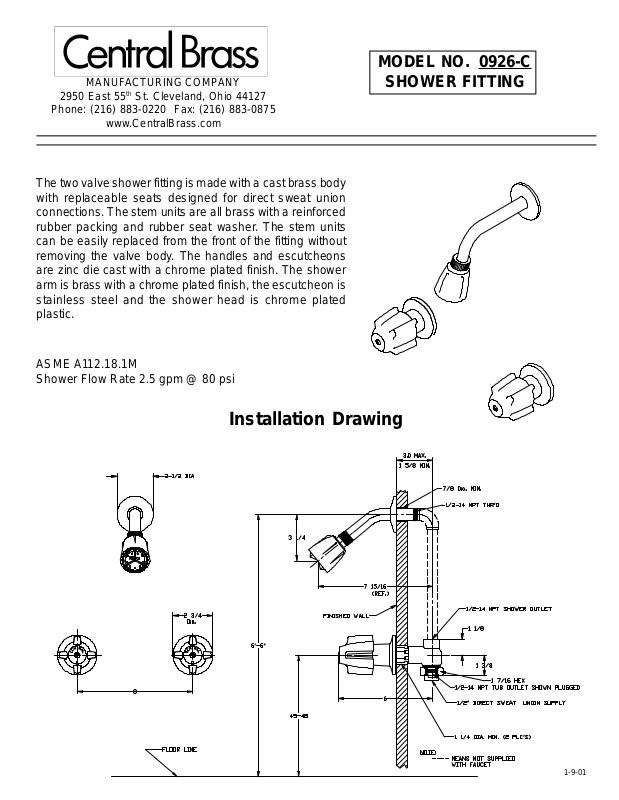

SHOWER FITTING
Installation Drawing
1-9-01
MODEL NO. 0926-C
MANUFACTURING COMPANY
th
2950 East 55
St. Cleveland, Ohio 44127
Phone: (216) 883-0220 Fax: (216) 883-0875
www.CentralBrass.com
SHOWER FITTING
Parts Breakdown
# Part# Description
1 1876-BB Brass Coupling
2 1875-C Brass Union
3 1505-T Brass 2-Valve Body
4 PF-263-B Brass Seat
5 1028-Y Nylon Gasket
6 104 Brass Seat Washer Screw
7 901-WN Seat Washer
8 1548-CT Right Thread Brass Stem
9 1549-CT Right Thread Brass Bonnet
10 4-L Brass Washer
11 814-BA Packing
12 765-TA Brass Packing Nut
13 269-2 9/16 Brass Threaded Nipple
14 521-B Escutcheon
15 508-C Handle Indexed “C”
15 508-H Handle Indexed “H”
16 107-F Brass Phillips Head Screw
17 601-P1/2B Brass Plug
18 SU-1548-CTP Right Thread Stem Assembly
19 1035-SS Shower Arm Flange
20 714-WT-02 Brass Shower Arm
21 3034-1/2-02 Showerhead
